TLC220x, TLC220xA, TLC220xB, TLC220xY |
||
|
|
|
Advanced LinCMOS LOW-NOISE PRECISION |
||
|
|
|
OPERATIONAL AMPLIFIERS |
||
|
|
|
SLOS175 ± FEBRUARY 1997 |
||
|
|
|
|
|
|
D B Grade Is 100% Tested for Noise |
D Low Input Bias Current |
||||
30 nV/√ |
Hz |
Max at f = 10 Hz |
1 pA Typ at TA = 25°C |
||
12 nV/√ |
Hz |
Max at f = 1 kHz |
D Common-Mode Input Voltage Range |
||
D Low Input Offset Voltage . . . 500 V Max |
|||||
Includes the Negative Rail |
|||||
D Excellent Offset Voltage Stability |
D Fully Specified For Both Single-Supply and |
||||
With Temperature . . . 0.5 V/°C Typ |
Split-Supply Operation |
||||
D Rail-to-Rail Output Swing |
TYPICAL EQUIVALENT |
||||
|
|
|
|||
description
The TLC220x, TLC220xA, TLC220xB, and TLC220xY are precision, low-noise operational amplifiers using Texas Instruments Advanced LinCMOS process. These devices combine the noise performance of the lowest-noise JFET amplifiers with the dc precision available previously only in bipolar amplifiers. The Advanced LinCMOS process uses silicon-gate technology to obtain input offset voltage stability with temperature and time that far exceeds that obtainable using metal-gate technology. In addition, this technology makes possible input impedance levels that meet or exceed levels offered by top-gate JFET and expensive dielectric-isolated devices.
The combination of excellent dc and noise performance with a common-mode input voltage range that includes the negative rail makes these devices an ideal choice for high-impedance, low-level signal-conditioning applications in either single-supply or split-supply configurations.
nV ± Equivalent Input Noise Voltage ± nV/ HzHz n
|
|
|
|
|
|
|
|
INPUT NOISE VOLTAGE |
|
|
|
|
|||||||||||||||||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
vs |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||||||
|
|
|
|
|
|
|
|
|
|
|
|
FREQUENCY |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|||||||||||
60 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
VDD = 5 V |
|
|
|
|
||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
RS = 20 Ω |
|
|
|
|
||||||
50 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
TA = 25°C |
|
|
|
|
||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||||||||
40 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
30 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
20 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
10 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
0 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
1 |
|
|
|
|
|
|
10 |
100 |
|
|
|
|
|
|
1 k |
10 k |
|||||||||||||||||||||
|
|
|
|
|
|
|
|
|
|
|
f ± Frequency ± Hz |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||||||||||||
The device inputs and outputs are designed to withstand ±100-mA surge currents without sustaining latch-up. In addition, internal ESD-protection circuits prevent functional failures at voltages up to 2000 V as tested under MIL-PRF-38535, Method 3015.2; however, care should be exercised in handling these devices as exposure to ESD may result in degradation of the parametric performance.
The C-suffix devices are characterized for operation from 0°C to 70°C. The I-suffix devices are characterized for operation from ±40°C to 85°C. The M-suffix devices are characterized for operation over the full military temperature range of ±55°C to 125°C.
Please be aware that an important notice concerning availability, standard warranty, and use in critical applications of Texas Instruments semiconductor products and disclaimers thereto appears at the end of this data sheet.
Advanced LinCMOS is a trademark of Texas Instruments Incorporated.
PRODUCTION DATA information is current as of publication date. Products conform to specifications per the terms of Texas Instruments standard warranty. Production processing does not necessarily include testing of all parameters.
Copyright 1997, Texas Instruments Incorporated
On products compliant to MIL-PRF-38535, all parameters are tested unless otherwise noted. On all other products, production processing does not necessarily include testing of all parameters.
POST OFFICE BOX 655303 •DALLAS, TEXAS 75265 |
1 |
TLC220x, TLC220xA, TLC220xB, TLC220xY |
|
|
|
|
|
|
|
|
|
|
|
||||||||||||||||||||
Advanced LinCMOS |
LOW-NOISE PRECISION |
|
|
|
|
|
|
|
|
|
|
||||||||||||||||||||
OPERATIONAL AMPLIFIERS |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||||||||||||
SLOS175 ± FEBRUARY 1997 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
TLC2201 AVAILABLE OPTIONS |
|
|
|
|
|
|
|
|||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Vnmax |
|
Vnmax |
|
|
|
|
|
|
|
|
PACKAGED DEVICES |
|
|
|
|
CHIP |
|
|||||||||
|
|
VIOmax |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||||||||||||
|
TA |
f = 10 Hz |
|
f = 1 kHz |
|
|
SMALL |
|
|
CHIP |
CERAMIC |
PLASTIC |
|
|
FORM³ |
|
|||||||||||||||
|
AT 25°C |
|
|
OUTLINE² |
|
CARRIER |
|
DIP |
|
DIP |
|
|
|
||||||||||||||||||
|
|
|
|
|
AT 25°C |
|
AT 25°C |
|
|
|
(D) |
|
|
|
(FK) |
|
(JG) |
|
(P) |
|
|
(Y) |
|
||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
0°C |
200 V |
|
35 nV/√ |
|
|
15 nV/√ |
|
|
|
TLC2201ACD |
|
|
|
|
|
|
TLC2201ACP |
|
|
|
|
|||||||||
|
|
Hz |
|
Hz |
|
|
|
|
|
|
|
|
|
|
|
||||||||||||||||
|
to |
200 V |
|
30 nV/√ Hz |
|
12 nV/√ Hz |
|
TLC2201BCD |
|
|
Ð |
|
Ð |
TLC2201BCP |
|
TLC2201Y |
|
||||||||||||||
|
70°C |
500 V |
|
Ð |
|
|
|
Ð |
|
|
|
|
TLC2201CD |
|
|
|
|
|
|
TLC2201CP |
|
|
|
|
|||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|||
|
± 40°C |
200 V |
|
35 nV/√ |
|
|
15 nV/√ |
|
|
|
TLC2201AID |
|
|
|
|
|
|
TLC2201AIP |
|
|
|
|
|||||||||
|
|
Hz |
|
Hz |
|
|
|
|
|
|
|
|
|
|
|
||||||||||||||||
|
to |
200 V |
|
30 nV/√ Hz |
|
12 nV/√ Hz |
|
TLC2201BID |
|
|
Ð |
|
Ð |
TLC2201BIP |
|
Ð |
|
||||||||||||||
|
85°C |
500 V |
|
Ð |
|
|
|
Ð |
|
|
|
|
TLC2201ID |
|
|
|
|
|
|
TLC2201IP |
|
|
|
|
|||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||
|
± 55°C |
200 V |
|
35 nV/√ |
|
|
15 nV/√ |
|
|
|
TLC2201AMD |
|
TLC2201AMFK |
TLC2201AMJG |
TLC2201AMP |
|
|
|
|
||||||||||||
|
|
Hz |
|
Hz |
|
|
|
|
|
|
|||||||||||||||||||||
|
to |
200 V |
|
30 nV/√ Hz |
|
12 nV/√ Hz |
|
TLC2201BMD |
|
TLC2201BMFK |
TLC2201BMJG |
TLC2201BMP |
|
Ð |
|
||||||||||||||||
|
125°C |
500 V |
|
Ð |
|
|
|
Ð |
|
|
|
|
TLC2201MD |
|
TLC2201MFK |
TLC2201MJG |
TLC2201MP |
|
|
|
|
||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||||||
|
² The D packages are available taped and reeled. Add R suffix to device type (e.g. TLC220xBCDR). |
|
|
|
|
|
|
||||||||||||||||||||||||
|
³ Chip forms are tested at 25°C only. |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
TLC2202 AVAILABLE OPTIONS |
|
|
|
|
|
|
|
|||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Vnmax |
|
Vnmax |
|
|
|
|
|
PACKAGED DEVICES |
|
|
|
|
CHIP |
|
||||||||||
|
|
|
|
VIOmax |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||||||||||||
|
|
|
|
|
|
|
SMALL |
|
CHIP |
|
CERAMIC |
PLASTIC |
|
|
|||||||||||||||||
|
T |
|
|
|
f = 10 Hz |
|
f = 1 kHz |
|
|
|
|
FORM³ |
|
||||||||||||||||||
|
A |
|
|
|
° |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
² |
|
CARRIER |
DIP |
|
DIP |
|
|
|
||
|
|
|
AT 25 C |
|
AT 25°C |
|
AT 25°C |
|
OUTLINE |
|
|
|
(Y) |
|
|||||||||||||||||
|
|
|
|
|
|
|
|
|
(D) |
|
|
(FK) |
|
(JG) |
|
(P) |
|
|
|||||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||||||||||
|
|
|
|
500 V |
30 nV/√ |
|
|
|
12 nV/√ |
|
|
TLC2202BCD |
|
Ð |
|
Ð |
|
TLC2202BCP |
|
|
|
||||||||||
|
|
|
|
Hz |
|
Hz |
|
|
|
|
|
|
|
||||||||||||||||||
|
0°C to 70°C |
|
500 V |
35 nV/√ Hz |
|
15 nV/√ Hz |
|
TLC2202ACD |
|
Ð |
|
Ð |
|
TLC2202ACP |
|
TLC2202Y |
|
||||||||||||||
|
|
|
|
|
1 mV |
|
|
Ð |
|
|
|
Ð |
|
|
|
TLC2202CD |
|
Ð |
|
Ð |
|
TLC2202CP |
|
|
|
||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|||||||||||||
|
|
|
|
500 V |
30 nV/√ |
|
|
|
12 nV/√ |
|
|
TLC2202BID |
|
Ð |
|
Ð |
|
TLC2202BIP |
|
|
|
||||||||||
|
|
|
|
Hz |
|
Hz |
|
|
|
|
|
|
|
||||||||||||||||||
|
± 40°C to 85°C |
|
500 V |
35 nV/√ Hz |
|
15 nV/√ Hz |
|
TLC2202AID |
|
Ð |
|
Ð |
|
TLC2202AIP |
|
Ð |
|
||||||||||||||
|
|
|
|
|
1 mV |
|
|
Ð |
|
|
|
Ð |
|
|
|
TLC2202ID |
|
Ð |
|
Ð |
|
TLC2202IP |
|
|
|
||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|||||||||||||
|
|
|
|
500 V |
30 nV/√ |
|
|
|
12 nV/√ |
|
|
TLC2202BMD |
|
TLC2202BMFK |
TLC2202BMJG |
TLC2202BMP |
|
|
|
||||||||||||
|
|
|
|
Hz |
|
Hz |
|
|
|
|
|
||||||||||||||||||||
|
± 55°C to 125°C |
|
500 V |
35 nV/√ Hz |
|
15 nV/√ Hz |
|
TLC2202AMD |
|
TLC2202AMFK |
TLC2202AMJG |
TLC2202AMP |
|
Ð |
|
||||||||||||||||
|
|
|
|
|
1 mV |
|
|
Ð |
|
|
|
Ð |
|
|
|
TLC2202MD |
|
TLC2202MFK |
TLC2202MJG |
TLC2202MP |
|
|
|
||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
² The D packages are available taped and reeled. Add R suffix to device type (e.g. TLC220xBCDR). ³ Chip forms are tested at 25°C only.
2 |
POST OFFICE BOX 655303 •DALLAS, TEXAS 75265 |
TLC220x, TLC220xA, TLC220xB, TLC220xY
Advanced LinCMOS LOW-NOISE PRECISION
OPERATIONAL AMPLIFIERS
SLOS175 ± FEBRUARY 1997
TLC2201 |
TLC2202 |
TLC2202 |
D, JG, OR P PACKAGE |
JG OR P PACKAGE |
D PACKAGE |
(TOP VIEW) |
(TOP VIEW) |
(TOP VIEW) |
|
NC |
1 |
|
8 |
NC |
|
|
IN± |
2 |
|
7 |
VDD + |
|
|
IN+ |
3 |
|
6 |
OUT |
|
VDD ±/GND |
4 |
|
5 |
NC |
||
|
|
TLC2201 |
|
|
||
|
FK PACKAGE |
|
||||
|
|
(TOP VIEW) |
|
|||
|
NC |
NC |
NC |
NC |
NC |
|
NC |
3 |
2 |
1 |
20 19 |
NC |
|
4 |
|
|
|
18 |
||
IN± |
5 |
|
|
|
17 |
VDD + |
NC |
6 |
|
|
|
16 |
NC |
IN+ |
7 |
|
|
|
15 |
OUT |
NC |
8 |
|
|
|
14 |
NC |
|
9 |
10 11 12 13 |
|
|||
|
NC |
/GND |
NC |
NC |
NC |
|
|
|
DD ± |
|
|
|
|
|
|
V |
|
|
|
|
NC ± No internal connection
1OUT 1IN ± 1IN +
VDD ±/GND
1 |
8 |
VDD + |
|
|
|
NC |
1 |
14 |
NC |
|
2 |
7 |
2OUT |
|
|
|
NC |
2 |
13 |
NC |
|
3 |
6 |
2IN ± |
|
|
|
1OUT |
3 |
12 |
VDD + |
|
4 |
5 |
2IN + |
|
|
|
1IN ± |
4 |
11 |
2OUT |
|
|
|
|
|
|
|
|
1IN + |
5 |
10 |
2IN ± |
|
|
|
|
|
VDD ±/GND |
6 |
9 |
2IN + |
||
|
|
|
|
|
|
|
NC |
7 |
8 |
NC |
|
|
|
|
TLC2202 |
|
|
|
|||
|
|
|
FK PACKAGE |
|
|
|
||||
|
|
|
|
(TOP VIEW) |
|
|
|
|||
|
|
|
NC |
1OUT |
NC |
DD+ |
NC |
|
|
|
|
|
|
V |
|
|
|
||||
|
|
NC |
3 |
2 |
1 |
20 19 |
NC |
|
|
|
|
|
4 |
|
|
|
18 |
|
|
||
|
1IN ± |
5 |
|
|
|
17 |
2OUT |
|
|
|
|
|
NC |
6 |
|
|
|
16 |
NC |
|
|
|
1IN + |
7 |
|
|
|
15 |
2IN ± |
|
|
|
|
|
NC |
8 |
|
|
|
14 |
NC |
|
|
|
|
|
9 |
10 11 12 13 |
|
|
|
|||
|
|
|
NC |
/GND |
NC |
2IN+ |
NC |
|
|
|
|
|
|
|
DD ± |
|
|
|
|
|
|
|
|
|
|
V |
|
|
|
|
|
|
POST OFFICE BOX 655303 •DALLAS, TEXAS 75265 |
3 |
TLC220x, TLC220xA, TLC220xB, TLC220xY
Advanced LinCMOS LOW-NOISE PRECISION
OPERATIONAL AMPLIFIERS
SLOS175 ± FEBRUARY 1997

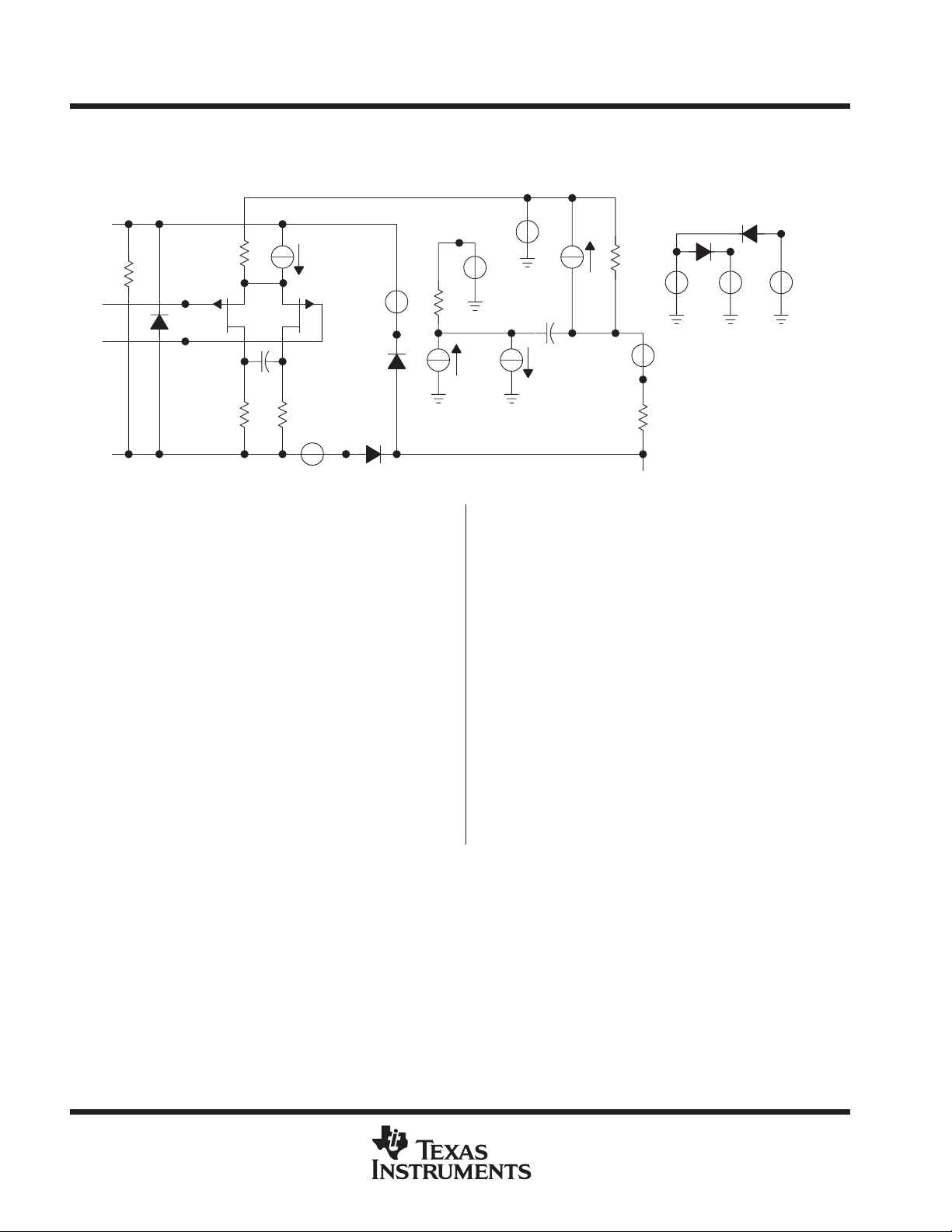

equivalent schematic (each amplifier)
|
|
|
|
|
VDD + |
|
|
|
Q3 |
Q6 |
|
Q9 |
Q12 |
Q14 |
Q16 |
IN + |
|
|
|
|
|
|
|
|
|
|
|
|
C1 |
|
OUT |
|
|
|
|
|
|
|
|
IN ± |
|
|
|
|
|
|
|
Q1 |
|
Q4 |
|
|
|
|
|
|
|
|
|
|
Q13 |
Q15 |
Q17 |
|
|
|
|
|
|
|
D1 |
|
|
Q7 |
Q8 |
Q10 |
Q11 |
|
|
|
|
|
|
|
R1 |
R2 |
|
Q2 |
Q5 |
|
|
|
|
|
|
|
|
|
|
|
VDD ± / GND |
|
|
ACTUAL DEVICE COMPONENT COUNT
COMPONENT |
TLC2201 |
TLC2202 |
|
|
|
Transistors |
17 |
34 |
|
|
|
Resistors |
2 |
2 |
|
|
|
Diodes |
1 |
4 |
|
|
|
Capacitors |
1 |
2 |
|
|
|
4 |
POST OFFICE BOX 655303 •DALLAS, TEXAS 75265 |
TLC220x, TLC220xA, TLC220xB, TLC220xY
Advanced LinCMOS LOW-NOISE PRECISION
OPERATIONAL AMPLIFIERS
SLOS175 ± FEBRUARY 1997
TLC2201Y chip information
This chip, when properly assembled, displays characteristics similar to the TLC2201C. Thermal compression or ultrasonic bonding may be used on the doped-aluminum bonding path. Chips may be mounted with conductive epoxy or a gold-silicon preform.
BONDING PAD ASSIGNMENTS
|
|
|
|
(8) |
(7) |
|
|
(6) |
|
|
|
|
|
|
|
|
|
||
77 |
|
|
|
|
|
|
|||
|
|
(1) |
(2) |
(3) |
(4) |
||||
|
|
||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
65 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
VDD+ |
|
|
||
|
(2) |
|
|
(7) |
|
|
IN ± |
+ |
|
|
|
|
|
|
|
|
(6) |
|||
|
|
|
|
|
||
IN + |
(3) |
± |
|
|
|
OUT |
|
|
|
||||
|
|
|
|
|||
|
|
(4) |
|
|
||
|
|
|
|
|||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
VDD ± |
|
|
||
CHIP THICKNESS: 15 MILS TYPICAL
BONDING PADS: 4 × 4 MILS MINIMUM
TJmax = 150°C
TOLERANCES ARE ± 10%.
ALL DIMENSIONS ARE IN MILS.
PIN (4) IS INTERNALLY CONNECTED TO BACK SIDE OF CHIP.
TERMINAL NUMBERS ARE FOR THE D, JG, AND P PACKAGES.
POST OFFICE BOX 655303 •DALLAS, TEXAS 75265 |
5 |
TLC220x, TLC220xA, TLC220xB, TLC220xY
Advanced LinCMOS LOW-NOISE PRECISION
OPERATIONAL AMPLIFIERS
SLOS175 ± FEBRUARY 1997
TLC2202Y chip formation
This chip, when properly assembled, displays characteristics similar to the TLC2202C. Thermal compression or ultrasonic bonding may be used on the doped-aluminum bonding pads. Chips may be mounted with conductive epoxy or a gold-silicon preform.
|
|
|
|
|
|
|
BONDING PAD ASSIGNMENTS |
||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
(8) |
(7) |
(6) |
|||
|
|
|
|
|
|
|
(5) |
||
|
|
|
|
|
|
|
|
|
|
|
80 |
|
|
|
|
|
|
||
|
|
|
|
|
|
|
(4) |
||
|
|
|
|
(1) |
(2) |
(3) |
|||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
100 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
VDD+ |
|
|
|
||
|
(3) |
|
|
|
(8) |
|
|
|
|
1IN + |
+ |
|
|
|
|
|
|||
|
|
|
|
(1) |
1OUT |
||||
|
|
|
|
||||||
|
|
|
|
|
|
|
|||
1IN ± |
(2) |
± |
|
|
|
|
|||
|
|
|
|||||||
|
|
|
|
|
|||||
|
|
|
|
(5) |
|
||||
|
|
|
|||||||
|
|
|
+ |
2IN + |
|||||
2OUT |
(7) |
|
|
||||||
|
|
||||||||
|
|
|
|
|
|
|
|||
|
|
|
|
|
± |
(6) |
2IN ± |
||
|
|
|
|
|
|||||
|
|
|
|
|
|
||||
|
|
|
|
|
|
|
|||
|
|
|
|
|
|||||
|
|
|
|
|
(4) |
|
|
|
|
|
|
|
|
VDD± |
|
|
|
||
CHIP THICKNESS: 15 MILS TYPICAL BONDING PADS: 4 × 4 MILS MINIMUM TJmax = 150°C
TOLERANCES ARE ± 10%.
ALL DIMENSIONS ARE IN MILS.
PIN (4) IS INTERNALLY CONNECTED TO BACKSIDE OF CHIP.
6 |
POST OFFICE BOX 655303 •DALLAS, TEXAS 75265 |
TLC220x, TLC220xA, TLC220xB, TLC220xY
Advanced LinCMOS LOW-NOISE PRECISION
OPERATIONAL AMPLIFIERS
SLOS175 ± FEBRUARY 1997
absolute maximum ratings over operating free-air temperature range (unless otherwise noted)²
Supply voltage, VDD + (see Note 1) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . |
. . . . . . . . . . . |
. . . . . . . . . . . 8 V |
Supply voltage, VDD ± . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . |
. . . . . . . . . . . . |
. . . . . . . . . ±8 V |
Differential input voltage, VID (see Note 2) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . |
. . . . . . . . . . . . |
. . . . . . . . ± 16 V |
Input voltage, VI (any input) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . |
. . . . . . . . . . . . |
. . . . . . . . . ± 8 V |
Input current, II (each input) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . |
. . . . . . . . . . . . |
. . . . . . . ± 5 mA |
Output current, IO (each output) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . |
. . . . . . . . . . . . |
. . . . . . ± 50 mA |
Duration of short-circuit current at (or below) 25°C (see Note 3) . . . . . . . . . . . . . |
. . . . . . . . . . . . |
. . . . . unlimited |
Continuous total dissipation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . |
See Dissipation Rating Table |
|
Operating free-air temperature range, TA: C suffix . . . . . . . . . . . . . . . . . . . . . . . . . |
. . . . . . . . . . . . |
. . 0°C to 70°C |
I suffix . . . . . . . . . . . . . . . . . . . . . . . . . . |
. . . . . . . . . . . . |
±40°C to 85°C |
M suffix . . . . . . . . . . . . . . . . . . . . . . . . . |
. . . . . . . . . . . |
±55°C to 125°C |
Storage temperature range . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . |
. . . . . . . . . . . |
±65°C to 150°C |
Case temperature for 60 seconds: FK package . . . . . . . . . . . . . . . . . . . . . . . . . . . |
. . . . . . . . . . . . |
. . . . . . . 260°C |
Lead temperature 1,6 mm (1/16 inch) from case for 10 seconds: D or P package . . . . . . . . . . |
. . . . . . . 260°C |
|
Lead temperature 1,6 mm (1/16 inch) from case for 60 seconds: JG package . |
. . . . . . . . . . . . |
. . . . . . . 300°C |
²Stresses beyond those listed under ªabsolute maximum ratingsº may cause permanent damage to the device. These are stress ratings only, and functional operation of the device at these or any other conditions beyond those indicated under ªrecommended operating conditionsº is not
implied. Exposure to absolute-maximum-rated conditions for extended periods may affect device reliability.
NOTES: 1. All voltage values except differential voltages are with respect to the midpoint between VDD + and VDD ± .
2.Differential voltages are at IN+ with respect to IN ±.
3.The output may be shorted to either supply. Temperature and /or supply voltages must be limited to ensure that the maximum dissipation rating in not exceeded.
|
|
DISSIPATION RATING TABLE |
|
|
||
PACKAGE |
TA ≤ 25°C |
DERATING FACTOR |
TA = 70°C |
TA = 85°C |
TA = 125°C |
|
POWER RATING |
ABOVE TA = 25°C |
POWER RATING |
POWER RATING |
POWER RATING |
||
|
||||||
D±8 |
725 mW |
5.8 mW/°C |
464 mW |
377 mW |
145 mW |
|
D±14 |
950 mW |
7.6 mW/°C |
608 mW |
494 mW |
190 mW |
|
FK |
1375 mW |
11.0 mW/°C |
880 mW |
715 mW |
275 mW |
|
JG |
1050 mW |
8.4 mW/°C |
672 mW |
546 mW |
210 mW |
|
P |
1000 mW |
8.0 mW/°C |
640 mW |
520 mW |
200 mW |
|
recommended operating conditions
|
C SUFFIX |
I SUFFIX |
M SUFFIX |
UNIT |
|||
|
|
|
|
|
|
|
|
|
MIN |
MAX |
MIN |
MAX |
MIN |
MAX |
|
|
|
||||||
|
|
|
|
|
|
|
|
Supply voltage, VDD ± |
± 2.3 |
± 8 |
± 2.3 |
± 8 |
± 2.3 |
± 8 |
V |
Common-mode input voltage, VIC |
VDD ± |
VDD + ± 2.3 |
VDD ± |
VDD + ± 2.3 |
VDD ± |
VDD + ± 2.3 |
V |
Operating free-air temperature, TA |
0 |
70 |
± 40 |
85 |
± 55 |
125 |
°C |
POST OFFICE BOX 655303 •DALLAS, TEXAS 75265 |
7 |
TLC220x, TLC220xA, TLC220xB, TLC220xY
Advanced LinCMOS LOW-NOISE PRECISION
OPERATIONAL AMPLIFIERS
SLOS175 ± FEBRUARY 1997
TLC2201C electrical characteristics at specified free-air temperature, VDD ± = ±5 V (unless otherwise noted)
|
PARAMETER |
TEST CONDITIONS |
T ² |
TLC2201C |
|
UNIT |
|||
|
|
|
|
||||||
|
|
|
|
||||||
|
|
|
|
|
A |
MIN |
TYP |
MAX |
|
|
|
|
|
|
|
|
|||
VIO |
Input offset voltage |
|
|
|
25°C |
|
100 |
500 |
µV |
|
|
|
|
|
|
|
|||
|
|
|
Full range |
|
|
600 |
|||
|
|
|
|
|
|
|
|
||
|
|
|
|
|
|
|
|
|
|
αVIO |
Temperature coefficient of input offset voltage |
|
|
|
Full range |
|
0.5 |
|
µV/°C |
|
Input offset voltage long-term drift (see Note 4) |
VIC = 0, |
RS |
= 50 Ω |
25°C |
|
0.001 |
0.005 |
µV/mo |
IIO |
Input offset current |
25°C |
|
0.5 |
|
pA |
|||
|
|
|
|
|
|||||
|
|
|
Full range |
|
|
100 |
|||
|
|
|
|
|
|
|
|
||
|
|
|
|
|
|
|
|
|
|
IIB |
Input bias current |
|
|
|
25°C |
|
1 |
|
pA |
|
|
|
|
|
|
|
|||
|
|
|
Full range |
|
|
100 |
|||
|
|
|
|
|
|
|
|
||
|
|
|
|
|
|
|
|
|
|
|
|
RS = 50 Ω |
|
|
|
± 5 |
|
|
|
VICR |
Common-mode input voltage range |
|
|
Full range |
to |
|
|
V |
|
|
|
|
|
|
|
2.7 |
|
|
|
|
|
|
|
|
|
|
|
|
|
VOM + |
Maximum positive peak output voltage swing |
|
|
|
25°C |
4.7 |
4.8 |
|
V |
|
|
|
|
|
|
|
|||
RL = 10 kΩ |
|
|
Full range |
4.7 |
|
|
|||
|
|
|
|
|
|
|
|||
|
|
|
|
|
|
|
|
|
|
VOM ± |
Maximum negative peak output voltage swing |
|
|
25°C |
± 4.7 |
± 4.9 |
|
V |
|
|
|
|
|
||||||
|
|
|
|
|
|
|
|||
|
|
|
Full range |
± 4.7 |
|
|
|||
|
|
|
|
|
|
|
|
||
|
|
|
|
|
|
|
|
|
|
|
|
VO = ± 4 V, |
RL |
= 500 kΩ |
25°C |
400 |
560 |
|
|
|
|
|
|
|
|
|
|||
AVD |
Large-signal differential voltage amplification |
Full range |
300 |
|
|
V/mV |
|||
|
|
|
|
|
|||||
|
|
|
|
|
|
|
|||
VO = ± 4 V, |
RL |
= 10 kΩ |
25°C |
90 |
100 |
|
|||
|
|
|
|
||||||
|
|
|
|
|
|
|
|||
|
|
Full range |
70 |
|
|
|
|||
|
|
|
|
|
|
|
|
||
|
|
|
|
|
|
|
|
|
|
CMRR |
Common-mode rejection ratio |
VIC = VICRmin, |
VO |
= 0, |
Full range |
85 |
|
|
dB |
RS = 50 Ω |
|
|
|
|
|||||
|
|
|
|
|
|
|
|
|
|
kSVR |
Supply voltage rejection ratio ( VDD ± / VIO) |
VDD ± = ± 2.3 V to ± 8 V |
25°C |
90 |
110 |
|
dB |
||
|
|
|
|
||||||
Full range |
85 |
|
|
||||||
|
|
|
|
|
|
|
|
||
|
|
|
|
|
|
|
|
|
|
IDD |
Supply current |
VO = 0, |
No load |
25°C |
|
1.1 |
1.5 |
mA |
|
|
|
|
|
||||||
Full range |
|
|
1.5 |
||||||
|
|
|
|
|
|
|
|
||
|
|
|
|
|
|
|
|
|
|
² Full range is 0°C to 70°C.
NOTE 4: Typical values are based on the input offset voltage shift observed through 168 hours of operating life test at TA = 150 °C extrapolated to TA = 25 °C using the Arrhenius equation and assuming an activation energy of 0.96 eV.
TLC2201C operating characteristics at specified free-air temperature, VDD ± = ±5 V
|
PARAMETER |
TEST CONDITIONS |
T ² |
TLC2201C |
|
UNIT |
||||||
|
|
|
|
|||||||||
|
|
|
|
|||||||||
|
|
|
|
A |
MIN |
TYP |
MAX |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|||
SR |
Slew rate at unity gain |
VO = ± 2.3 V, |
RL = 10 kΩ, |
25°C |
2 |
2.7 |
|
V/µs |
||||
CL = 100 pF |
|
Full range |
1.5 |
|
|
|||||||
|
|
|
|
|
|
|
|
|
|
|||
Vn |
Equivalent input noise voltage |
f = 10 Hz |
|
25°C |
|
18 |
|
nV/√ |
|
|
|
|
|
|
|
|
|
|
Hz |
|
|||||
f = 1 kHz |
|
25°C |
|
8 |
|
|
||||||
|
|
|
|
|
|
|
|
|
|
|||
VN(PP) |
Peak-to-peak equivalent input noise voltage |
f = 0.1 to 1 Hz |
|
25°C |
|
0.5 |
|
µV |
||||
f = 0.1 to 10 Hz |
|
25°C |
|
0.7 |
|
|||||||
|
|
|
|
|
|
|
|
|
|
|||
|
|
|
|
|
|
|
|
|
||||
In |
Equivalent input noise current |
|
|
25°C |
|
0.6 |
|
fA/√ |
Hz |
|
||
|
Gain-bandwidth product |
f = 10 kHz, |
RL = 10 kΩ, |
25°C |
|
1.9 |
|
MHz |
||||
|
CL = 100 pF |
|
|
|
||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
φm |
Phase margin at unity gain |
RL = 10 kΩ, |
CL = 100 pF |
25°C |
|
48° |
|
|
|
|
|
|
² Full range is 0°C to 70°C.
8 |
POST OFFICE BOX 655303 •DALLAS, TEXAS 75265 |
TLC220x, TLC220xA, TLC220xB, TLC220xY
Advanced LinCMOS LOW-NOISE PRECISION
OPERATIONAL AMPLIFIERS
SLOS175 ± FEBRUARY 1997
TLC2201C electrical characteristics at specified free-air temperature, VDD ± = ±5 V (unless otherwise noted)
|
PARAMETER |
TEST CONDITIONS |
T ² |
TLC2201AC |
TLC2201BC |
UNIT |
|||||
|
|
|
|
|
|
|
|||||
|
|
|
|
|
|
|
|||||
|
|
|
|
A |
MIN |
TYP |
MAX |
MIN |
TYP |
MAX |
|
|
|
|
|
|
|
||||||
VIO |
Input offset voltage |
|
|
25°C |
|
80 |
200 |
|
80 |
200 |
µV |
|
|
|
|
|
|
|
|
|
|||
|
|
Full range |
|
|
300 |
|
|
300 |
|||
|
|
|
|
|
|
|
|
|
|||
|
|
|
|
|
|
|
|
|
|
|
|
αVIO |
Temperature coefficient of input |
|
|
Full range |
|
0.5 |
|
|
0.5 |
|
µV/°C |
offset voltage |
|
|
|
|
|
|
|||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Input offset voltage long-term |
VIC = 0, |
RS = 50 Ω |
25°C |
|
0.001 |
0.005 |
|
0.001 |
0.005 |
µV/mo |
|
drift (see Note 4) |
|
|
||||||||
|
|
|
|
|
|
|
|
|
|
|
|
IIO |
Input offset current |
|
|
25°C |
|
0.5 |
|
|
0.5 |
|
pA |
|
|
|
|
|
|
|
|
|
|||
|
|
Full range |
|
|
100 |
|
|
100 |
|||
|
|
|
|
|
|
|
|
|
|||
|
|
|
|
|
|
|
|
|
|
|
|
IIB |
Input bias current |
|
|
25°C |
|
1 |
|
|
1 |
|
pA |
|
|
|
|
|
|
|
|
|
|||
|
|
Full range |
|
|
100 |
|
|
100 |
|||
|
|
|
|
|
|
|
|
|
|||
|
|
|
|
|
|
|
|
|
|
|
|
VICR |
Common-mode input voltage |
RS = 50 Ω |
|
Full range |
± 5 to |
|
|
± 5 to |
|
|
V |
range |
|
2.7 |
|
|
2.7 |
|
|
||||
|
|
|
|
|
|
|
|
|
|||
|
|
|
|
|
|
|
|
|
|
|
|
VOM + |
Maximum positive peak output |
|
|
25°C |
4.7 |
4.8 |
|
4.7 |
4.8 |
|
V |
voltage swing |
RL = 10 kΩ |
|
Full range |
4.7 |
|
|
4.7 |
|
|
||
|
|
|
|
|
|
|
|||||
|
|
|
|
|
|
|
|
|
|
|
|
VOM ± |
Maximum negative peak output |
|
25°C |
± 4.7 |
± 4.9 |
|
± 4.7 |
± 4.9 |
|
V |
|
|
|
|
|
||||||||
voltage swing |
|
|
Full range |
± 4.7 |
|
|
± 4.7 |
|
|
||
|
|
|
|
|
|
|
|
||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
VO = ± 4 V, |
RL = 500 kΩ |
25°C |
400 |
560 |
|
400 |
560 |
|
|
|
|
|
|
|
|
|
|
|
|
||
AVD |
Large-signal differential voltage |
Full range |
300 |
|
|
300 |
|
|
V/mV |
||
|
|
|
|
|
|
||||||
amplification |
VO = ± 4 V, RL = 10 kΩ |
25°C |
90 |
100 |
|
90 |
100 |
|
|||
|
|
|
|
||||||||
|
|
|
|
|
|
|
|
|
|
||
|
|
Full range |
70 |
|
|
70 |
|
|
|
||
|
|
|
|
|
|
|
|
|
|||
|
|
|
|
|
|
|
|
|
|
|
|
CMRR |
Common-mode rejection ratio |
VIC = VICRmin, |
25°C |
90 |
115 |
|
90 |
115 |
|
dB |
|
VO = 0, |
RS = 50 Ω |
Full range |
85 |
|
|
85 |
|
|
|||
|
|
|
|
|
|
|
|||||
kSVR |
Supply voltage rejection ratio |
VDD ± = ± 2.3 V to ± 8 V |
25°C |
90 |
110 |
|
90 |
110 |
|
dB |
|
( VDD ± / VIO) |
Full range |
85 |
|
|
85 |
|
|
||||
|
|
|
|
|
|
|
|
||||
IDD |
Supply current |
VO = 0, |
No load |
25°C |
|
1.1 |
1.5 |
|
1.1 |
1.5 |
mA |
|
|
|
|
|
|
|
|||||
Full range |
|
|
1.5 |
|
|
1.5 |
|||||
|
|
|
|
|
|
|
|
|
|||
|
|
|
|
|
|
|
|
|
|
|
|
² Full range is 0°C to 70°C.
NOTE 4: Typical values are based on the input offset voltage shift observed through 168 hours of operating life test at TA = 150 °C extrapolated to TA = 25 °C using the Arrhenius equation and assuming an activation energy of 0.96 eV.
POST OFFICE BOX 655303 •DALLAS, TEXAS 75265 |
9 |
TLC220x, TLC220xA, TLC220xB, TLC220xY
Advanced LinCMOS LOW-NOISE PRECISION
OPERATIONAL AMPLIFIERS
SLOS175 ± FEBRUARY 1997
TLC2201C operating characteristics at specified free-air temperature, VDD ± = ±5 V
|
PARAMETER |
TEST CONDITIONS |
T ² |
TLC2201AC |
TLC2210BC |
UNIT |
|||||||||
|
|
|
|
|
|
|
|||||||||
|
|
|
|
|
|
|
|||||||||
|
|
|
|
A |
MIN |
TYP |
MAX |
MIN |
TYP |
MAX |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||||||
|
|
V = ± 2.3 V, |
RL = 10 kΩ, |
25°C |
2 |
2.7 |
|
2 |
2.7 |
|
|
|
|
|
|
SR |
Slew rate at unity gain |
O |
|
|
|
|
|
|
|
|
V/µs |
||||
|
Full range |
1.5 |
|
|
1.5 |
|
|
||||||||
|
|
CL = 100 pF |
|
|
|
|
|
|
|
|
|
|
|||
Vn |
Equivalent input noise volt- |
f = 10 Hz |
|
25°C |
|
18 |
35 |
|
18 |
30 |
|
|
|
|
|
|
|
|
nV/√ Hz |
||||||||||||
age (see Note 5) |
f = 1 kHz |
|
25°C |
|
8 |
15 |
|
8 |
12 |
||||||
|
|
|
|
|
|
|
|
|
|||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
VN(PP) |
Peak-to-peak equivalent input |
f = 0.1 to 1 Hz |
|
25°C |
|
0.5 |
|
|
0.5 |
|
µV |
||||
noise voltage |
f = 0.1 to 10 Hz |
|
25°C |
|
0.7 |
|
|
0.7 |
|
||||||
|
|
|
|
|
|
|
|
|
|
|
|
||||
In |
Equivalent input noise current |
|
|
25°C |
|
0.6 |
|
|
0.6 |
|
fA/√ |
|
|
|
|
|
|
|
|
|
|
Hz |
|
||||||||
|
Gain-bandwidth product |
f = 10 kHz, |
RL = 10 kΩ, |
25°C |
|
1.9 |
|
|
1.9 |
|
MHz |
||||
|
CL = 100 pF |
|
|
|
|
|
|||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
φm |
Phase margin at unity gain |
RL = 10 kΩ, |
CL = 100 pF |
25°C |
|
48° |
|
|
48° |
|
|
|
|
|
|
² Full range is 0°C to 70°C.
NOTE 5: This parameter is tested on a sample basis for the TLC2201A and on all devices for the TLC2201B. For other test requirements, please contact the factory. This statement has no bearing on testing or nontesting of other parameters.
10 |
POST OFFICE BOX 655303 •DALLAS, TEXAS 75265 |
TLC220x, TLC220xA, TLC220xB, TLC220xY
Advanced LinCMOS LOW-NOISE PRECISION
OPERATIONAL AMPLIFIERS
SLOS175 ± FEBRUARY 1997
TLC2201C electrical characteristics at specified free-air temperature, VDD = 5 V (unless otherwise noted)
|
PARAMETER |
TEST CONDITIONS |
T ² |
TLC2201C |
|
UNIT |
||
|
|
|
|
|||||
|
|
|
|
|||||
|
|
|
|
A |
MIN |
TYP |
MAX |
|
|
|
|
|
|
|
|||
VIO |
Input offset voltage |
|
|
25°C |
|
100 |
500 |
µV |
|
|
|
|
|
|
|||
|
|
Full range |
|
|
600 |
|||
|
|
|
|
|
|
|
||
|
|
|
|
|
|
|
|
|
αVIO |
Temperature coefficient of input offset voltage |
|
|
Full range |
|
0.5 |
|
µV/°C |
|
Input offset voltage long-term drift (see Note 4) |
VIC = 0, |
RS = 50 Ω |
25°C |
|
0.001 |
0.005 |
µV/mo |
|
|
|
|
|
|
|
||
IIO |
Input offset current |
25°C |
|
0.5 |
|
pA |
||
|
|
|
|
|||||
|
|
|
|
|
|
|||
|
|
Full range |
|
|
100 |
|||
|
|
|
|
|
|
|
||
|
|
|
|
|
|
|
|
|
IIB |
Input bias current |
|
|
25°C |
|
1 |
|
pA |
|
|
|
|
|
|
|||
|
|
Full range |
|
|
100 |
|||
|
|
|
|
|
|
|
||
|
|
|
|
|
|
|
|
|
|
|
RS = 50 Ω |
|
|
0 |
|
|
|
VICR |
Common-mode input voltage range |
|
Full range |
to |
|
|
V |
|
|
|
|
|
|
2.7 |
|
|
|
|
|
|
|
|
|
|
|
|
VOH |
Maximum high-level output voltage |
RL = 10 kΩ |
|
25°C |
4.7 |
4.8 |
|
V |
|
Full range |
4.7 |
|
|
||||
|
|
|
|
|
|
|
||
|
|
|
|
|
|
|
|
|
VOL |
Maximum low-level output voltage |
IO = 0 |
|
25°C |
|
0 |
50 |
mV |
|
Full range |
|
|
50 |
||||
|
|
|
|
|
|
|
||
|
|
|
|
|
|
|
|
|
|
|
VO = 1 V to 4 V, |
|
25°C |
150 |
315 |
|
|
AVD |
Large-signal differential voltage amplification |
RL = 500 kΩ |
|
Full range |
100 |
|
|
V/mV |
VO = 1 V to 4 V, |
|
25°C |
25 |
55 |
|
|||
|
|
|
|
|
||||
|
|
RL = 10 kΩ |
|
Full range |
15 |
|
|
|
CMRR |
Common-mode rejection ratio |
VIC = VICRmin, |
VO = 0, |
25°C |
90 |
110 |
|
dB |
RS = 50 Ω |
|
Full range |
85 |
|
|
|||
|
|
|
|
|
|
|||
kSVR |
Supply voltage rejection ratio ( VDD ± / VIO) |
VDD = 4.6 V to 16 V |
25°C |
90 |
110 |
|
dB |
|
|
|
|
|
|||||
Full range |
85 |
|
|
|||||
|
|
|
|
|
|
|
||
|
|
|
|
|
|
|
|
|
IDD |
Supply current |
VO = 2.5 V, |
No load |
25°C |
|
1 |
1.5 |
mA |
|
|
|
|
|||||
Full range |
|
|
1.5 |
|||||
|
|
|
|
|
|
|
||
|
|
|
|
|
|
|
|
|
² Full range is 0°C to 70°C.
NOTE 4: Typical values are based on the input offset voltage shift observed through 168 hours of operating life test at TA = 150 °C extrapolated to TA = 25 °C using the Arrhenius equation and assuming an activation energy of 0.96 eV.
TLC2201C operating characteristics at specified free-air temperature, VDD = 5 V
|
PARAMETER |
TEST CONDITIONS |
T ² |
TLC2201C |
|
UNIT |
||||||
|
|
|
|
|||||||||
|
|
|
|
|||||||||
|
|
|
|
A |
MIN |
TYP |
MAX |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|||
SR |
Slew rate at unity gain |
VO = 0.5 V to 2.5 V, |
25°C |
1.8 |
2.5 |
|
V/µs |
|||||
RL = 10 kΩ, |
CL = 100 pF |
Full range |
1.3 |
|
|
|||||||
|
|
|
|
|
|
|
|
|
||||
Vn |
Equivalent input noise voltage |
f = 10 Hz |
|
25°C |
|
18 |
|
nV/√ |
|
|
|
|
|
|
|
|
|
|
Hz |
|
|||||
f = 1 kHz |
|
25°C |
|
8 |
|
|
||||||
|
|
|
|
|
|
|
|
|
|
|||
VN(PP) |
Peak-to-peak equivalent input noise voltage |
f = 0.1 to 1 Hz |
|
25°C |
|
0.5 |
|
µV |
||||
f = 0.1 to 10 Hz |
|
25°C |
|
0.7 |
|
|||||||
|
|
|
|
|
|
|
|
|
|
|||
|
|
|
|
|
|
|
|
|
||||
In |
Equivalent input noise current |
|
|
25°C |
|
0.6 |
|
fA/√ |
Hz |
|
||
|
Gain-bandwidth product |
f = 10 kHz, |
RL = 10 kΩ, |
25°C |
|
1.8 |
|
MHz |
||||
|
CL = 100 pF |
|
|
|
||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
φm |
Phase margin at unity gain |
RL = 10 kΩ, |
CL = 100 pF |
25°C |
|
45° |
|
|
|
|
|
|
² Full range is 0°C to 70°C.
POST OFFICE BOX 655303 •DALLAS, TEXAS 75265 |
11 |
TLC220x, TLC220xA, TLC220xB, TLC220xY
Advanced LinCMOS LOW-NOISE PRECISION
OPERATIONAL AMPLIFIERS
SLOS175 ± FEBRUARY 1997
TLC2201C electrical characteristics at specified free-air temperature, VDD = 5 V (unless otherwise noted)
|
PARAMETER |
TEST CONDITIONS |
T ² |
TLC2201AC |
TLC2201BC |
UNIT |
|||||
|
|
|
|
|
|
|
|||||
|
|
|
|
|
|
|
|||||
|
|
|
|
A |
MIN |
TYP |
MAX |
MIN |
TYP |
MAX |
|
|
|
|
|
|
|
||||||
VIO |
Input offset voltage |
|
|
25°C |
|
80 |
200 |
|
80 |
200 |
µV |
|
|
|
|
|
|
|
|
|
|||
|
|
Full range |
|
|
300 |
|
|
300 |
|||
|
|
|
|
|
|
|
|
|
|||
|
|
|
|
|
|
|
|
|
|
|
|
αVIO |
Temperature coefficient of |
|
|
Full range |
|
0.5 |
|
|
0.5 |
|
µV/°C |
input offset voltage |
|
|
|
|
|
|
|||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Input offset voltage long-term |
VIC = 0, |
RS = 50 Ω |
25°C |
|
0.001 |
0.005 |
|
0.001 |
0.005 |
µV/mo |
|
drift (see Note 4) |
|
|
||||||||
|
|
|
|
|
|
|
|
|
|
|
|
IIO |
Input offset current |
|
|
25°C |
|
0.5 |
|
|
0.5 |
|
pA |
|
|
Full range |
|
|
100 |
|
|
100 |
|||
|
|
|
|
|
|
|
|
|
|||
|
|
|
|
|
|
|
|
|
|
|
|
IIB |
Input bias current |
|
|
25°C |
|
1 |
|
|
1 |
|
pA |
|
|
|
|
|
|
|
|
|
|||
|
|
Full range |
|
|
100 |
|
|
100 |
|||
|
|
|
|
|
|
|
|
|
|||
|
|
|
|
|
|
|
|
|
|
|
|
VICR |
Common-mode input voltage |
RS = 50 Ω |
|
Full range |
0 to |
|
|
0 to |
|
|
V |
range |
|
2.7 |
|
|
2.7 |
|
|
||||
|
|
|
|
|
|
|
|
|
|||
|
|
|
|
|
|
|
|
|
|
|
|
VOH |
Maximum high-level output |
RL = 10 kΩ |
|
25°C |
4.7 |
4.8 |
|
4.7 |
4.8 |
|
V |
voltage |
|
Full range |
4.7 |
|
|
4.7 |
|
|
|||
|
|
|
|
|
|
|
|
||||
|
|
|
|
|
|
|
|
|
|
|
|
VOL |
Maximum low-level output |
IO = 0 |
|
25°C |
|
0 |
50 |
|
0 |
50 |
mV |
voltage |
|
Full range |
|
|
50 |
|
|
50 |
|||
|
|
|
|
|
|
|
|
||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
VO = 1 V to 4 V, |
25°C |
150 |
315 |
|
150 |
315 |
|
|
|
AVD |
Large-signal differential |
RL = 500 kΩ |
|
Full range |
100 |
|
|
100 |
|
|
V/mV |
voltage amplification |
VO = 1 V to 4 V, |
25°C |
25 |
55 |
|
25 |
55 |
|
|||
|
|
|
|
||||||||
|
|
|
|
|
|||||||
|
|
RL = 10 kΩ |
|
Full range |
15 |
|
|
15 |
|
|
|
CMRR |
Common-mode rejection ratio |
VIC = VICRmin, |
25°C |
90 |
110 |
|
90 |
110 |
|
dB |
|
VO = 0, |
RS = 50 Ω |
Full range |
85 |
|
|
85 |
|
|
|||
|
|
|
|
|
|
|
|||||
kSVR |
Supply voltage rejection ratio |
VDD = 4.6 V to 16 V |
25°C |
90 |
110 |
|
90 |
110 |
|
dB |
|
( VDD ± / VIO) |
Full range |
85 |
|
|
85 |
|
|
||||
|
|
|
|
|
|
|
|
||||
IDD |
Supply current |
VO = 2.5 V, |
No load |
25°C |
|
1 |
1.5 |
|
1 |
1.5 |
mA |
Full range |
|
|
1.5 |
|
|
1.5 |
|||||
|
|
|
|
|
|
|
|
|
|||
|
|
|
|
|
|
|
|
|
|
|
|
² Full range is 0°C to 70°C.
NOTE 4: Typical values are based on the input offset voltage shift observed through 168 hours of operating life test at TA = 150 °C extrapolated to TA = 25 °C using the Arrhenius equation and assuming an activation energy of 0.96 eV.
12 |
POST OFFICE BOX 655303 •DALLAS, TEXAS 75265 |
|
|
|
|
TLC220x, TLC220xA, TLC220xB, TLC220xY |
||||||||||||
|
|
|
Advanced LinCMOS |
LOW-NOISE PRECISION |
||||||||||||
|
|
|
|
|
|
OPERATIONAL AMPLIFIERS |
||||||||||
|
|
|
|
|
|
|
|
|
SLOS175 ± FEBRUARY 1997 |
|||||||
|
|
|
|
|
|
|
|
|
|
|
|
|||||
TLC2201C operating characteristics at specified free-air temperature, VDD = 5 V |
|
|
|
|
|
|
|
|||||||||
|
PARAMETER |
TEST CONDITIONS |
T ² |
TLC2201AC |
|
TLC2210BC |
UNIT |
|
||||||||
|
|
|
|
|
|
|
|
|||||||||
|
|
|
|
|
|
|
|
|||||||||
|
|
|
|
A |
MIN |
TYP MAX |
MIN |
TYP |
MAX |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||||||
SR |
Slew rate at unity gain |
VO = 0.5 V to 2.5 V, |
25°C |
1.8 |
2.5 |
|
1.8 |
2.5 |
|
V/µs |
|
|||||
RL = 10 kΩ, |
CL = 100 pF |
Full range |
1.3 |
|
|
1.3 |
|
|
|
|||||||
|
|
|
|
|
|
|
|
|
|
|
|
|||||
Vn |
Equivalent input noise voltage |
f = 10 Hz |
|
25°C |
|
18 |
35 |
|
18 |
30 |
|
|
|
|
|
|
|
|
|
nV/√ Hz |
|
||||||||||||
(see Note 5) |
f = 1 kHz |
|
25°C |
|
8 |
15 |
|
8 |
12 |
|
||||||
|
|
|
|
|
|
|
|
|
|
|||||||
VN(PP) |
Peak-to-peak equivalent input |
f = 0.1 to 1 Hz |
|
25°C |
|
0.5 |
|
|
0.5 |
|
µV |
|
||||
noise voltage |
f = 0.1 to 10 Hz |
25°C |
|
0.7 |
|
|
0.7 |
|
|
|||||||
|
|
|
|
25°C |
|
|
|
|
|
|
|
|
||||
In |
Equivalent input noise current |
|
|
|
0.6 |
|
|
0.6 |
|
fA/√ |
Hz |
|
|
|||
|
Gain-bandwidth product |
f = 10 kHz, |
RL = 10 kΩ, |
25°C |
|
1.8 |
|
|
1.8 |
|
MHz |
|
||||
|
CL = 100 pF |
|
|
|
|
|
|
|||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
φm |
Phase margin at unity gain |
RL = 10 kΩ, |
CL = 100 pF |
25°C |
|
45° |
|
|
45° |
|
|
|
|
|
|
|
² Full range is 0°C to 70°C.
NOTE 5: This parameter is tested on a sample basis for the TLC2201A and on all devices for the TLC2201B. For other test requirements, please contact the factory. This statement has no bearing on testing or nontesting of other parameters.
POST OFFICE BOX 655303 •DALLAS, TEXAS 75265 |
13 |
TLC220x, TLC220xA, TLC220xB, TLC220xY
Advanced LinCMOS LOW-NOISE PRECISION
OPERATIONAL AMPLIFIERS
SLOS175 ± FEBRUARY 1997
TLC2202C electrical characteristics at specified free-air temperature, VDD ± = ±5 V (unless otherwise specified)
|
PARAMETER |
TEST CONDITIONS |
T ² |
TLC2202C |
|
UNIT |
||
|
|
|
|
|||||
|
|
|
|
|||||
|
|
|
|
A |
MIN |
TYP |
MAX |
|
|
|
|
|
|
|
|||
VIO |
Input offset voltage |
|
|
25°C |
|
100 |
1000 |
µV |
|
|
|
|
|
|
|||
VIC = 0, |
RS = 50 Ω |
Full range |
|
|
1150 |
|||
|
|
|
|
|
||||
|
|
|
|
|
|
|
||
αVIO |
Temperature coefficient of input offset voltage |
Full range |
|
0.5 |
|
µV/°C |
||
|
|
|
|
|||||
|
Input offset voltage long-term drift (see Note 4) |
|
|
25°C |
|
0.001 |
0.005 |
µV/mo |
|
|
|
|
|
|
|
|
|
IIO |
Input offset current |
|
|
25°C |
|
0.5 |
|
|
|
|
|
|
|
|
|
||
VIC = 0, |
RS = 50 Ω |
Full range |
|
|
100 |
pA |
||
|
|
|
|
|||||
|
|
|
|
|
|
|||
IIB |
Input bias current |
25°C |
|
1 |
|
|||
|
|
|
|
|
||||
|
|
|
|
|
|
|
||
|
|
Full range |
|
|
100 |
|
||
|
|
|
|
|
|
|
||
|
|
|
|
|
|
|
|
|
|
|
RS = 50 Ω |
|
|
± 5 |
|
|
|
VICR |
Common-mode input voltage range |
|
Full range |
to |
|
|
V |
|
|
|
|
|
|
2.7 |
|
|
|
|
|
|
|
|
|
|
|
|
VOM + |
Maximum positive peak output voltage swing |
|
|
25°C |
4.7 |
4.8 |
|
|
RL = 10 kΩ |
|
Full range |
4.7 |
|
|
V |
||
|
|
|
|
|
||||
|
|
|
|
|
|
|
|
|
VOM ± |
Maximum negative peak output voltage swing |
|
25°C |
± 4.7 |
± 4.9 |
|
|
|
|
|
|
|
|||||
|
|
Full range |
± 4.7 |
|
|
V |
||
|
|
|
|
|
|
|||
|
|
|
|
|
|
|
|
|
|
|
VO = ± 4 V, |
RL = 500 kΩ |
25°C |
300 |
560 |
|
|
AVD |
Large-signal differential voltage amplification |
Full range |
200 |
|
|
V/mV |
||
|
|
|
|
|||||
|
|
|
|
|
|
|||
VO = ± 4 V, RL = 10 kΩ |
25°C |
50 |
100 |
|
||||
|
|
|
|
|||||
|
|
|
|
|
|
|
||
|
|
Full range |
25 |
|
|
|
||
|
|
|
|
|
|
|
||
|
|
|
|
|
|
|
|
|
CMRR |
Common-mode rejection ratio |
VO = 0, |
VIC = VICRmin, |
25°C |
80 |
115 |
|
dB |
RS = 50 Ω |
|
Full range |
80 |
|
|
|||
|
|
|
|
|
|
|||
kSVR |
Supply-voltage rejection ratio ( VDD ± / VIO) |
VDD ± = ± 2.3 V to ± 8 V |
25°C |
80 |
110 |
|
dB |
|
|
|
|
|
|||||
Full range |
80 |
|
|
|||||
|
|
|
|
|
|
|
||
|
|
|
|
|
|
|
|
|
IDD |
Supply current |
VO = 0, |
No load |
25°C |
|
1.8 |
2.7 |
mA |
|
|
|
|
|||||
Full range |
|
|
2.7 |
|||||
|
|
|
|
|
|
|
||
|
|
|
|
|
|
|
|
|
² Full range is 0°C to 70°C.
NOTE 4: Typical values are based on the input offset voltage shift observed through 168 hours of operating life test at TA = 150 °C extrapolated to TA = 25 °C using the Arrhenius equation and assuming an activation energy of 0.96 eV.
TLC2202C operating characteristics at specified free-air temperature, VDD± = ±5 V
|
PARAMETER |
TEST CONDITIONS |
T ² |
TLC2202C |
|
UNIT |
||||||
|
|
|
|
|||||||||
|
|
|
|
|||||||||
|
|
|
|
A |
MIN |
TYP |
MAX |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|||
SR |
Slew rate at unity gain |
VO = ± 2.3 V, |
RL = 10 kΩ, |
25°C |
1.8 |
2.7 |
|
V/µs |
||||
|
|
|
|
|||||||||
Full range |
1.3 |
|
|
|||||||||
|
|
CL = 100 pF |
|
|
|
|
|
|
|
|
||
Vn |
Equivalent input noise voltage |
f = 10 Hz |
|
25°C |
|
18 |
|
nV/√ |
|
|
|
|
|
|
|
|
|
|
Hz |
|
|||||
f = 1 kHz |
|
25°C |
|
8 |
|
|
||||||
|
|
|
|
|
|
|
|
|
|
|||
VN(PP) |
Peak-to-peak equivalent input noise voltage |
f = 0.1 to 1 Hz |
|
25°C |
|
0.5 |
|
µV |
||||
f = 0.1 to 10 Hz |
|
25°C |
|
0.7 |
|
|||||||
|
|
|
|
|
|
|
|
|
|
|||
|
|
|
|
|
|
|
|
|
||||
In |
Equivalent input noise current |
|
|
25°C |
|
0.6 |
|
fA/√ |
Hz |
|
||
|
Gain-bandwidth product |
f = 10 kHz, |
RL = 10 kΩ, |
25°C |
|
1.9 |
|
MHz |
||||
|
|
CL = 100 pF |
|
|
|
|
|
|
|
|
|
|
φm |
Phase margin at unity gain |
RL = 10 kΩ, |
CL = 100 pF |
25°C |
|
48° |
|
|
|
|
|
|
² Full range is 0°C to 70°C.
14 |
POST OFFICE BOX 655303 •DALLAS, TEXAS 75265 |
TLC220x, TLC220xA, TLC220xB, TLC220xY
Advanced LinCMOS LOW-NOISE PRECISION
OPERATIONAL AMPLIFIERS
SLOS175 ± FEBRUARY 1997
TLC2202C electrical characteristics at specified free-air temperature, VDD ± = ±5 V (unless otherwise noted)
|
PARAMETER |
TEST CONDITIONS |
T ² |
TLC2202AC |
TLC2202BC |
UNIT |
|||||||
|
|
|
|
|
|
|
|||||||
|
|
|
|
|
|
|
|||||||
|
|
|
|
|
|
A |
MIN |
TYP |
MAX |
MIN |
TYP |
MAX |
|
|
|
|
|
|
|
|
|
||||||
VIO |
Input offset voltage |
|
|
|
|
25°C |
|
80 |
500 |
|
80 |
500 |
µV |
|
|
|
|
|
|
|
|
|
|
|
|||
|
|
|
|
Full range |
|
|
650 |
|
|
650 |
|||
|
|
|
|
|
|
|
|
|
|
|
|||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
αVIO |
Temperature coefficient |
VIC |
= 0, |
RS |
= 50 Ω |
Full range |
|
0.5 |
|
|
0.5 |
|
µV/°C |
of input offset voltage |
|
|
|
|
|||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Input offset voltage long-term |
|
|
|
|
25°C |
|
0.001 |
0.005 |
|
0.001 |
0.005 |
µV/mo |
|
drift (see Note 4) |
|
|
|
|
|
|
||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
IIO |
Input offset current |
|
|
|
|
25°C |
|
0.5 |
|
|
0.5 |
|
pA |
VIC = 0, |
RS |
= 50 Ω |
Full range |
|
|
100 |
|
|
100 |
||||
|
|
|
|
|
|
|
|||||||
|
|
|
|
|
|
|
|
|
|
||||
IIB |
Input bias current |
25°C |
|
1 |
|
|
1 |
|
pA |
||||
|
|
|
|
|
|
|
|
||||||
|
|
|
|
|
|
|
|
|
|
|
|||
|
|
|
|
Full range |
|
|
100 |
|
|
100 |
|||
|
|
|
|
|
|
|
|
|
|
|
|||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Common-mode input voltage |
|
|
Ω |
|
|
± 5 |
|
|
± 5 |
|
|
|
VICR |
RS |
= 50 |
|
Full range |
to |
|
|
to |
|
|
V |
||
range |
|
|
|
|
|
||||||||
|
|
|
|
|
|
2.7 |
|
|
2.7 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
VOM + |
Maximum positive peak |
|
|
|
|
25°C |
4.7 |
4.8 |
|
4.7 |
4.8 |
|
V |
output voltage swing |
RL = 10 kΩ |
|
Full range |
4.7 |
|
|
4.7 |
|
|
||||
|
|
|
|
|
|
|
|||||||
|
|
|
|
|
|
|
|
|
|
|
|||
VOM ± |
Maximum negative peak |
|
25°C |
± 4.7 |
± 4.9 |
|
± 4.7 |
± 4.9 |
|
V |
|||
|
|
|
|
|
|
||||||||
output voltage swing |
|
|
|
|
Full range |
± 4.7 |
|
|
± 4.7 |
|
|
||
|
|
|
|
|
|
|
|
|
|
||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
VO = ± 4 V, RL |
= 500 kΩ |
25°C |
300 |
560 |
|
300 |
560 |
|
|
||
|
|
|
|
|
|
|
|
|
|
||||
AVD |
Large-signal differential |
Full range |
200 |
|
|
200 |
|
|
V/mV |
||||
|
|
|
|
|
|
|
|
||||||
voltage amplification |
VO = ± 4 V, RL |
= 10 kΩ |
25°C |
50 |
100 |
|
50 |
100 |
|
||||
|
|
|
|
||||||||||
|
|
|
|
|
|
|
|
|
|
||||
|
|
Full range |
25 |
|
|
25 |
|
|
|
||||
|
|
|
|
|
|
|
|
|
|
|
|||
|
|
|
|
|
|
|
|
|
|
|
|
||
CMRR |
Common-mode rejection ratio |
VIC = VICRmin, |
= 50 Ω |
25°C |
80 |
115 |
|
80 |
115 |
|
dB |
||
VO |
= 0, |
RS |
Full range |
80 |
|
|
80 |
|
|
||||
|
|
|
|
|
|
|
|||||||
kSVR |
Supply-voltage rejection ratio |
VDD ± = |
± 2.3 V to ± 8 V |
25°C |
80 |
110 |
|
80 |
110 |
|
dB |
||
( VDD ± / VIO) |
Full range |
80 |
|
|
80 |
|
|
||||||
|
|
|
|
|
|
|
|
|
|
||||
IDD |
Supply current |
VO = 0, |
No load |
25°C |
|
1.8 |
2.7 |
|
1.8 |
2.7 |
mA |
||
|
|
|
|
|
|
|
|||||||
Full range |
|
|
2.7 |
|
|
2.7 |
|||||||
|
|
|
|
|
|
|
|
|
|
|
|||
² Full range is 0°C to 70°C.
NOTE 4: Typical values are based on the input offset voltage shift observed through 168 hours of operating life test at TA = 150°C extrapolated to TA = 25°C using the Arrhenius equation and assuming an activation energy of 0.96 eV.
TLC2202C operating characteristics at specified free-air temperature, VDD± = ±5 V
|
PARAMETER |
TEST CONDITIONS |
T ² |
TLC2202AC |
TLC2202BC |
UNIT |
|||||||||
|
|
|
|
|
|
|
|||||||||
|
|
|
|
|
|
|
|||||||||
|
|
|
|
A |
MIN |
TYP |
MAX |
MIN |
TYP |
MAX |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||||||
SR |
Slew rate at unity gain |
VO = ± 2.3 V, |
|
25°C |
1.8 |
2.7 |
|
1.8 |
2.7 |
|
V/µs |
||||
RL = 10 kΩ, |
CL = 100 pF |
Full range |
1.3 |
|
|
1.3 |
|
|
|||||||
|
|
|
|
|
|
|
|
|
|
|
|||||
Vn |
Equivalent input noise voltage |
f = 10 Hz |
|
25°C |
|
18 |
35 |
|
18 |
30 |
|
|
|
|
|
|
|
|
nV/√ Hz |
||||||||||||
|
|
|
|
|
|
|
|
|
|||||||
|
(see Note 5) |
f = 1 kHz |
|
25°C |
|
8 |
15 |
|
8 |
12 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
VN(PP) |
Peak-to-peak equivalent input |
f = 0.1 to 1 Hz |
25°C |
|
0.5 |
|
|
0.5 |
|
µV |
|||||
noise voltage |
f = 0.1 to 10 Hz |
25°C |
|
0.7 |
|
|
0.7 |
|
|||||||
|
|
|
|
|
|
|
|
|
|
||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||
|
|
|
|
25°C |
|
|
|
|
|
|
|
||||
In |
Equivalent input noise current |
|
|
|
0.6 |
|
|
0.6 |
|
fA/√ |
Hz |
|
|||
|
Gain-bandwidth product |
f = 10 kHz, |
RL = 10 kΩ, |
25°C |
|
1.9 |
|
|
1.9 |
|
MHz |
||||
|
|
CL = 100 pF |
|
|
|
|
|
|
|
|
|
|
|
|
|
φm |
Phase margin at unity gain |
RL = 10 kΩ, |
CL = 100 pF |
25°C |
|
48° |
|
|
48° |
|
|
|
|
|
|
² Full range is 0°C to 70°C.
NOTE 5: This parameter is tested on a sample basis for the TLC2202A and on all devices for the TLC2202B. For other test requirements, please contact the factory. This statement has no bearing on testing or nontesting of other parameters.
POST OFFICE BOX 655303 •DALLAS, TEXAS 75265 |
15 |
TLC220x, TLC220xA, TLC220xB, TLC220xY
Advanced LinCMOS LOW-NOISE PRECISION
OPERATIONAL AMPLIFIERS
SLOS175 ± FEBRUARY 1997
TLC2202C electrical characteristics at specified free-air temperature, VDD = 5 V (unless otherwise noted)
|
PARAMETER |
TEST CONDITIONS |
T ² |
TLC2202C |
|
UNIT |
||
|
|
|
|
|||||
|
|
|
|
|||||
|
|
|
|
A |
MIN |
TYP |
MAX |
|
|
|
|
|
|
|
|||
VIO |
Input offset voltage |
|
|
25°C |
|
100 |
1000 |
µV |
|
|
|
|
|
|
|||
VIC = 0, |
RS = 50 Ω |
Full range |
|
|
1150 |
|||
|
|
|
|
|
||||
|
|
|
|
|
|
|
||
αVIO |
Temperature coefficient of input offset voltage |
Full range |
|
0.5 |
|
µV/°C |
||
|
|
|
|
|||||
|
Input offset voltage long-term drift (see Note 4) |
|
|
25°C |
|
0.001 |
0.005 |
µV/mo |
|
|
|
|
|
|
|
|
|
IIO |
Input offset current |
|
|
Full range |
|
|
100 |
|
IIB |
Input bias current |
VIC = 0, |
RS = 50 Ω |
25°C |
|
1 |
|
pA |
|
|
Full range |
|
|
100 |
|
||
|
|
|
|
|
|
|
||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
0 |
|
|
|
VICR |
Common-mode input voltage range |
RS = 50 Ω |
|
Full range |
to |
|
|
V |
|
|
|
|
|
2.7 |
|
|
|
|
|
|
|
|
|
|
|
|
VOH |
Maximum high-level output voltage |
RL = 10 kΩ |
|
25°C |
4.7 |
4.8 |
|
V |
|
|
|
|
|
||||
|
Full range |
4.7 |
|
|
||||
|
|
|
|
|
|
|
||
|
|
|
|
|
|
|
|
|
VOL |
Maximum low-level output voltage |
IO = 0 |
|
25°C |
|
0 |
50 |
mV |
|
Full range |
|
|
50 |
||||
|
|
|
|
|
|
|
||
|
|
|
|
|
|
|
|
|
|
|
VO =1 V to 4 V, |
25°C |
150 |
315 |
|
|
|
AVD |
Large-signal differential voltage amplification |
RL = 500 kΩ |
|
Full range |
100 |
|
|
V/mV |
VO = 1 V to 4 V, |
25°C |
25 |
55 |
|
||||
|
|
|
|
|||||
|
|
RL = 10 kΩ |
|
Full range |
15 |
|
|
|
CMRR |
Common-mode rejection ratio |
VO = 0, |
VIC = VICRmin, |
25°C |
75 |
110 |
|
dB |
RS = 50 Ω |
|
Full range |
75 |
|
|
|||
|
|
|
|
|
|
|||
kSVR |
Supply-voltage rejection ratio ( VDD ± / VIO) |
VDD= 4.6 V to 16 V |
25°C |
80 |
110 |
|
dB |
|
|
|
|
|
|||||
Full range |
80 |
|
|
|||||
|
|
|
|
|
|
|
||
|
|
|
|
|
|
|
|
|
IDD |
Supply current |
VO = 0, |
No load |
25°C |
|
1.7 |
2.6 |
mA |
|
|
|
|
|||||
Full range |
|
|
2.6 |
|||||
|
|
|
|
|
|
|
||
² Full range is 0°C to 70°C.
NOTE 4: Typical values are based on the input offset voltage shift observed through 168 hours of operating life test at TA = 150°C extrapolated to TA = 25°C using Arrhenius equation and assuming an activation energy of 0.96 eV.
TLC2202C operating characteristics at specified free-air temperature, VDD = 5 V
|
|
|
|
T ² |
TLC2202C |
|
|
|
|
|
|
|
|
PARAMETER |
TEST CONDITIONS |
A |
|
|
|
UNIT |
|||||
|
|
MIN |
TYP |
MAX |
||||||||
|
|
|
|
|
|
|
|
|
|
|||
|
|
|
|
|
|
|
|
|
|
|
|
|
SR |
Slew rate at unity gain |
VO = 0.5 V to 2.5 V, |
25°C |
1.6 |
2.5 |
|
V/µs |
|||||
|
|
|
|
|||||||||
|
|
|
|
|||||||||
|
|
RL = 10 kΩ, |
CL = 100 pF |
Full range |
1.1 |
|
|
|
|
|
|
|
Vn |
Equivalent input noise voltage |
f = 10 Hz |
|
25°C |
|
18 |
|
nV/√ |
|
|
|
|
|
|
|
|
|
|
Hz |
|
|||||
f = 1 kHz |
|
25°C |
|
8 |
|
|
||||||
|
|
|
|
|
|
|
|
|
|
|||
|
|
|
|
|
|
|
|
|
|
|
|
|
VN(PP) |
Peak-to-peak equivalent input noise voltage |
f = 0.1 to 1 Hz |
|
25°C |
|
0.5 |
|
µV |
||||
|
|
|
|
|
|
|||||||
f = 0.1 to 10 Hz |
|
25°C |
|
0.7 |
|
|||||||
|
|
|
|
|
|
|
|
|
|
|||
|
|
|
|
|
|
|
|
|
||||
In |
Equivalent input noise current |
|
|
25°C |
|
0.6 |
|
fA/√ |
|
|
|
|
|
|
|
|
Hz |
|
|||||||
|
Gain-bandwidth product |
f = 10 kHz, |
RL = 10 kΩ, |
25°C |
|
1.9 |
|
MHz |
||||
|
|
CL = 100 pF |
|
|
|
|
|
|
|
|
|
|
φm |
Phase margin at unity gain |
RL = 10 kΩ, |
CL = 100 pF |
25°C |
|
47° |
|
|
|
|
|
|
² Full range is 0°C to 70°C.
16 |
POST OFFICE BOX 655303 •DALLAS, TEXAS 75265 |
TLC220x, TLC220xA, TLC220xB, TLC220xY
Advanced LinCMOS LOW-NOISE PRECISION
OPERATIONAL AMPLIFIERS
SLOS175 ± FEBRUARY 1997
TLC2202C electrical characteristics at specified free-air temperature, VDD = 5 V (unless otherwise noted)
|
PARAMETER |
TEST CONDITIONS |
T ² |
TLC2202AC |
TLC2202BC |
UNIT |
|||||
|
|
|
|
|
|
|
|||||
|
|
|
|
|
|
|
|||||
|
|
|
|
A |
MIN |
TYP |
MAX |
MIN |
TYP |
MAX |
|
|
|
|
|
|
|
||||||
VIO |
Input offset voltage |
|
|
25°C |
|
80 |
500 |
|
80 |
500 |
µV |
|
|
Full range |
|
|
650 |
|
|
650 |
|||
|
|
|
|
|
|
|
|
|
|||
|
|
|
|
|
|
|
|
|
|
|
|
αVIO |
Temperature coefficient |
VIC = 0, |
RS = 50 Ω |
Full range |
|
0.5 |
|
|
0.5 |
|
µV/°C |
of input offset voltage |
|
|
|
|
|||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Input offset voltage |
|
|
25°C |
|
0.001 |
0.005 |
|
0.001 |
0.005 |
µV/mo |
|
long-term drift (see Note 4) |
|
|
|
|
||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
IIO |
Input offset current |
|
|
25°C |
|
0.5 |
|
|
0.5 |
|
pA |
VIC = 0, |
RS = 50 Ω |
Full range |
|
|
100 |
|
|
100 |
|||
|
|
|
|
|
|
|
|||||
|
|
|
|
|
|
|
|
|
|
||
IIB |
Input bias current |
25°C |
|
1 |
|
|
1 |
|
pA |
||
|
|
|
|
|
|
||||||
|
|
|
|
|
|
|
|
|
|||
|
|
Full range |
|
|
100 |
|
|
100 |
|||
|
|
|
|
|
|
|
|
|
|||
|
|
|
|
|
|
|
|
|
|
|
|
|
Common-mode input |
|
|
|
0 |
|
|
0 |
|
|
|
VICR |
RS = 50 Ω |
|
Full range |
to |
|
|
to |
|
|
V |
|
voltage range |
|
|
|
|
|
||||||
|
|
|
|
2.7 |
|
|
2.7 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||
|
|
|
|
|
|
|
|
|
|
|
|
VOH |
Maximum high-level |
RL = 10 kΩ |
|
25°C |
4.7 |
4.8 |
|
4.7 |
4.8 |
|
V |
output voltage |
|
Full range |
4.7 |
|
|
4.7 |
|
|
|||
|
|
|
|
|
|
|
|
||||
|
|
|
|
|
|
|
|
|
|
|
|
VOL |
Maximum low-level |
IO = 0 |
|
25°C |
|
0 |
50 |
|
0 |
50 |
mV |
output voltage |
|
Full range |
|
|
50 |
|
|
50 |
|||
|
|
|
|
|
|
|
|
||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
VO = 1 V to 4 V, |
25°C |
150 |
315 |
|
150 |
315 |
|
|
|
AVD |
Large-signal differential |
RL = 500 kΩ |
|
Full range |
100 |
|
|
100 |
|
|
V/mV |
voltage amplification |
VO = 1 V to 4 V, |
25°C |
25 |
55 |
|
25 |
55 |
|
|||
|
|
RL = 10 kΩ |
|
Full range |
15 |
|
|
15 |
|
|
|
CMRR |
Common-mode rejection ratio |
VIC = VICRmin, |
25°C |
75 |
110 |
|
75 |
110 |
|
dB |
|
VO = 0, |
RS = 50 Ω |
Full range |
75 |
|
|
75 |
|
|
|||
|
|
|
|
|
|
|
|||||
kSVR |
Supply-voltage rejection ratio |
VDD = 4.6 V to 16 V |
25°C |
80 |
110 |
|
80 |
110 |
|
dB |
|
( VDD ± / VIO) |
Full range |
80 |
|
|
80 |
|
|
||||
|
|
|
|
|
|
|
|
||||
IDD |
Supply current |
VO = 2.5 V, |
No load |
25°C |
|
1.7 |
2.6 |
|
1.7 |
2.6 |
mA |
|
|
|
|
|
|
|
|||||
Full range |
|
|
2.6 |
|
|
2.6 |
|||||
|
|
|
|
|
|
|
|
|
|||
² Full range is 0°C to 70°C.
NOTE 4: Typical values are based on the input offset voltage shift observed through 168 hours of operating life test at TA = 150°C extrapolated to TA = 25°C using the Arrhenius equation and assuming an activation energy of 0.96 eV.
TLC2202C operating characteristics at specified free-air temperature, VDD = 5 V
|
PARAMETER |
TEST CONDITIONS |
T ² |
TLC2202AC |
TLC2202BC |
UNIT |
|||||||||
|
|
|
|
|
|
|
|||||||||
|
|
|
|
|
|
|
|||||||||
|
|
|
|
A |
MIN |
TYP |
MAX |
MIN |
TYP |
MAX |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||||||
SR |
Slew rate at unity gain |
VO = 0.5 V to 2.5 V, |
25°C |
1.6 |
2.5 |
|
1.6 |
2.5 |
|
V/µs |
|||||
RL = 10 kΩ, |
CL = 100 pF |
Full range |
1.1 |
|
|
1.1 |
|
|
|||||||
|
|
|
|
|
|
|
|
|
|
|
|||||
Vn |
Equivalent input noise voltage |
f = 10 Hz |
|
25°C |
|
18 |
35 |
|
18 |
30 |
|
|
|
|
|
|
|
|
nV/√ Hz |
||||||||||||
|
(see Note 5) |
f = 1 kHz |
|
25°C |
|
8 |
15 |
|
8 |
12 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
VN(PP) |
Peak-to-peak equivalent input |
f = 0.1 to 1 Hz |
25°C |
|
0.5 |
|
|
0.5 |
|
µV |
|||||
noise voltage |
f = 0.1 to 10 Hz |
25°C |
|
0.7 |
|
|
0.7 |
|
|||||||
|
|
|
|
|
|
|
|
|
|
||||||
|
|
|
|
25°C |
|
|
|
|
|
|
|
||||
In |
Equivalent input noise current |
|
|
|
0.6 |
|
|
0.6 |
|
fA/√ |
Hz |
|
|||
|
Gain-bandwidth product |
f = 10 kHz, |
RL = 10 kΩ, |
25°C |
|
1.9 |
|
|
1.9 |
|
MHz |
||||
|
|
CL = 100 pF |
|
|
|
|
|
|
|
|
|
|
|
|
|
φm |
Phase margin at unity gain |
RL = 10 kΩ, |
CL = 100 pF |
25°C |
|
47° |
|
|
47° |
|
|
|
|
|
|
² Full range is 0°C to 70°C.
NOTE 5: This parameter is tested on a sample basis for the TLC2202A and on all devices for the TLC2202B. For other test requirements, please contact the factory. This statement has no bearing on testing or nontesting of other parameters.
POST OFFICE BOX 655303 •DALLAS, TEXAS 75265 |
17 |
TLC220x, TLC220xA, TLC220xB, TLC220xY
Advanced LinCMOS LOW-NOISE PRECISION
OPERATIONAL AMPLIFIERS
SLOS175 ± FEBRUARY 1997
TLC2201I electrical characteristics at specified free-air temperature, VDD ± = ±5 V (unless otherwise noted)
|
PARAMETER |
TEST CONDITIONS |
T ² |
|
TLC2201I |
|
UNIT |
|
|
|
|
|
|||||
|
|
|
|
|||||
|
|
|
|
A |
MIN |
TYP |
MAX |
|
|
|
|
|
|
|
|||
VIO |
Input offset voltage |
|
|
25°C |
|
100 |
500 |
µV |
|
|
|
|
|
|
|||
|
|
Full range |
|
|
650 |
|||
|
|
|
|
|
|
|
||
|
|
|
|
|
|
|
|
|
αVIO |
Temperature coefficient of input offset voltage |
|
|
Full range |
|
0.5 |
|
µV/°C |
|
Input offset voltage long-term drift (see Note 4) |
VIC = 0, |
RS = 50 Ω |
25°C |
|
0.001 |
0.005 |
µV/mo |
IIO |
Input offset current |
25°C |
|
0.5 |
|
pA |
||
|
|
|
|
|||||
|
|
Full range |
|
|
150 |
|||
|
|
|
|
|
|
|
||
|
|
|
|
|
|
|
|
|
IIB |
Input bias current |
|
|
25°C |
|
1 |
|
pA |
|
|
|
|
|
|
|||
|
|
Full range |
|
|
150 |
|||
|
|
|
|
|
|
|
||
|
|
|
|
|
|
|
|
|
|
|
RS = 50 Ω |
|
|
± 5 |
|
|
|
VICR |
Common-mode input voltage range |
|
Full range |
to |
|
|
V |
|
|
|
|
|
|
2.7 |
|
|
|
|
|
|
|
|
|
|
|
|
VOM + |
Maximum positive peak output voltage swing |
|
|
25°C |
4.7 |
4.8 |
|
V |
|
|
|
|
|
|
|||
RL = 10 kΩ |
|
Full range |
4.7 |
|
|
|||
|
|
|
|
|
|
|||
|
|
|
|
|
|
|
|
|
VOM ± |
Maximum negative peak output voltage swing |
|
25°C |
± 4.7 |
± 4.9 |
|
V |
|
|
|
|
||||||
|
|
|
|
|
|
|||
|
|
Full range |
± 4.7 |
|
|
|||
|
|
|
|
|
|
|
||
|
|
|
|
|
|
|
|
|
|
|
VO = ± 4 V, |
RL = 500 kΩ |
25°C |
400 |
560 |
|
|
|
|
|
|
|
|
|
||
AVD |
Large-signal differential voltage amplification |
Full range |
250 |
|
|
V/mV |
||
|
|
|
|
|||||
|
|
|
|
|
|
|||
VO = ± 4 V, |
RL = 10 kΩ |
25°C |
90 |
100 |
|
|||
|
|
|
|
|||||
|
|
|
|
|
|
|
||
|
|
Full range |
65 |
|
|
|
||
|
|
|
|
|
|
|
||
|
|
|
|
|
|
|
|
|
CMRR |
Common-mode rejection ratio |
VIC = VICRmin, |
25°C |
90 |
115 |
|
dB |
|
VO = 0, |
RS = 50 Ω |
Full range |
85 |
|
|
|||
|
|
|
|
|
||||
kSVR |
Supply voltage rejection ratio ( VDD ± / VIO) |
VDD ± = ± 2.3 V to ± 8 V |
25°C |
90 |
110 |
|
dB |
|
Full range |
85 |
|
|
|||||
|
|
|
|
|
|
|
||
|
|
|
|
|
|
|
|
|
IDD |
Supply current |
VO = 0, |
No load |
25°C |
|
1.1 |
1.5 |
mA |
|
|
|
|
|||||
Full range |
|
|
1.5 |
|||||
|
|
|
|
|
|
|
||
|
|
|
|
|
|
|
|
|
² Full range is ± 40°C to 85°C.
NOTE 4: Typical values are based on the input offset voltage shift observed through 168 hours of operating life test at TA = 150 °C extrapolated to TA = 25°C using the Arrhenius equation and assuming an activation energy of 0.96 eV.
TLC2201I operating characteristics at specified free-air temperature, VDD ± = ±5 V
|
|
PARAMETER |
|
|
TEST CONDITIONS |
T ² |
|
TLC2201I |
|
UNIT |
|
|||||
|
|
|
|
|
|
|
|
|||||||||
|
|
|
|
|
|
|
|
|||||||||
|
|
|
|
|
|
|
A |
MIN |
TYP |
MAX |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|||
|
SR |
Slew rate at unity gain |
V |
O |
= ± 2.3 V, |
RL = 10 kΩ, |
25°C |
2 |
2.7 |
|
V/µs |
|
||||
|
|
|
|
Full range |
1.4 |
|
|
|
||||||||
|
|
|
CL = 100 pF |
|
|
|
|
|
|
|
|
|
||||
|
Vn |
Equivalent input noise voltage |
f = 10 Hz |
|
25°C |
|
18 |
|
nV/√ |
|
|
|
|
|||
|
|
|
|
|
|
|
|
|
Hz |
|
|
|||||
|
f = 1 kHz |
|
25°C |
|
8 |
|
|
|
||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||
|
VN(PP) |
Peak-to-peak equivalent input noise voltage |
f = 0.1 to 1 Hz |
|
25°C |
|
0.5 |
|
µV |
|
||||||
|
|
|
|
|
|
|
|
|
|
|||||||
|
f = 0.1 to 10 Hz |
|
25°C |
|
0.7 |
|
|
|||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||
|
|
|
|
|
|
|
|
|
|
|
|
|
||||
|
In |
Equivalent input noise current |
|
|
|
|
25°C |
|
0.6 |
|
fA/√ |
Hz |
|
|
||
|
|
Gain-bandwidth product |
f = 10 kHz, |
RL = 10 kΩ, |
25°C |
|
1.9 |
|
MHz |
|
||||||
|
|
CL = 100 pF |
|
|
|
|
||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|||
|
φm |
Phase margin at unity gain |
RL = 10 kΩ, |
CL = 100 pF |
25°C |
|
48° |
|
|
|
|
|
|
|
||
|
² Full range is ± 40°C to 85°C. |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
18 |
POST OFFICE BOX 655303 •DALLAS, TEXAS 75265 |
Loading...
