CY54/74FCT540T
CY54/74FCT541T
SCCS029 - May 1994 - Revised March 2000
8-Bit Buffers/Line Drivers
Features
•Function, pinout, and drive compatible with FCT and F logic
•FCT-C speed at 4.1 ns max. (Com’l) FCT-A speed at 4.8 ns max. (Com’l)
•Reduced VOH (typically = 3.3V) versions of equivalent FCT functions
•Edge-rate control circuitry for significantly improved noise characteristics
•Power-off disable feature
•ESD > 2000V
•Matched rise and fall times
•Fully compatible with TTL input and output logic levels
• Sink current |
64 mA (Com’l), 48 mA (Mil) |
Source current |
32 mA (Com’l), 12 mA (Mil) |
Functional Description
The FCT540T inverting buffer/line driver and the FCT541T non-inverting buffer/line driver are designed to be employed as memory address drivers, clock drivers, and bus-oriented transmitters/receivers. The devices provide speed and drive capabilities equivalent to their fastest bipolar logic counterparts while reducing power dissipation. The input and output voltage levels allow direct interface with TTL, NMOS, and CMOS devices without external components.
The outputs are designed with a power-off disable feature to allow for live insertion of boards.
• Extended commercial range of −40˚C to +85˚C
Logic Block Diagram—FCT540T |
Pin Configurations |
|||||||||||||||||||||||||||||||||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|

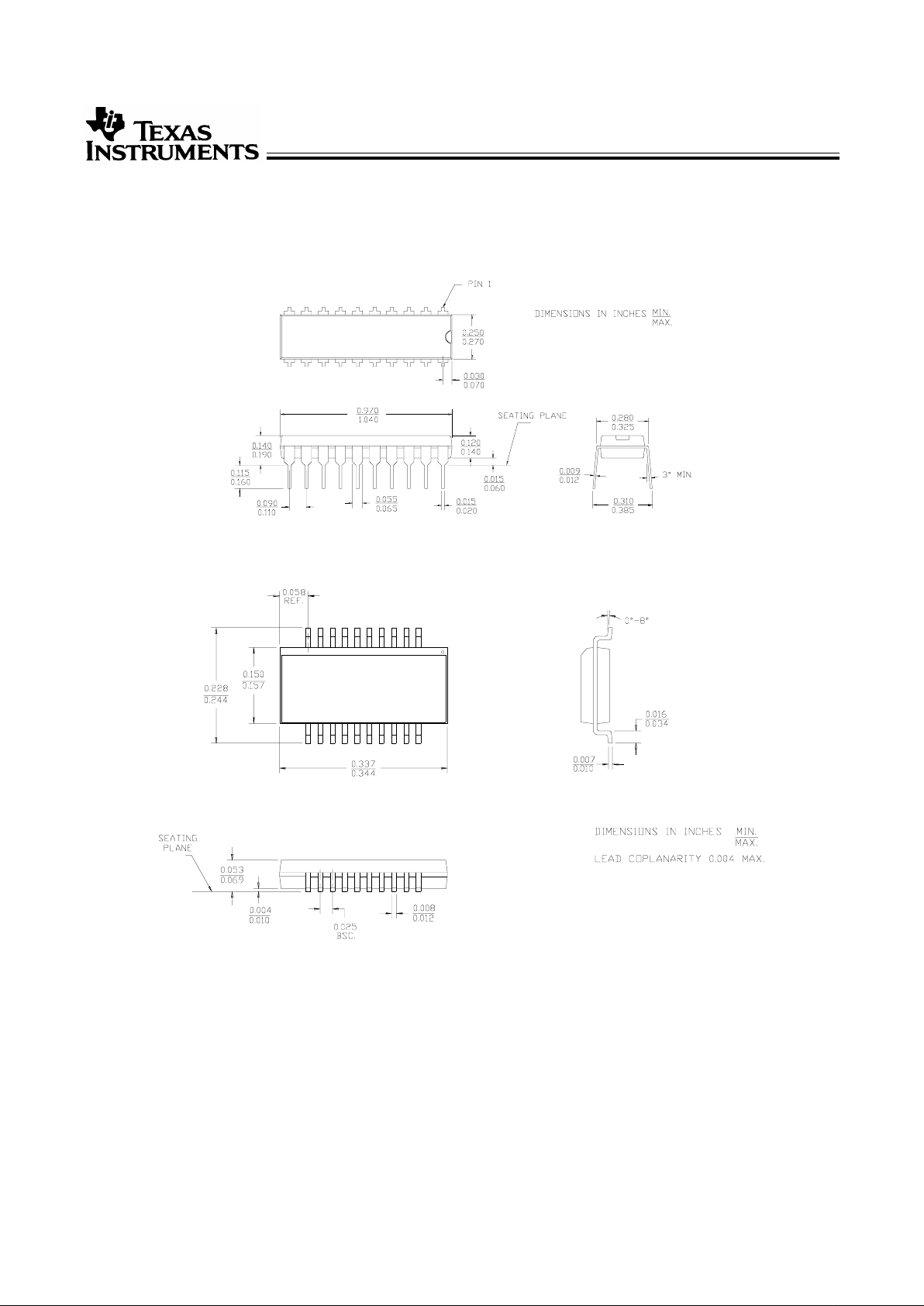

CERDIP/SOIC/QSOP |
|||||||||||||||||
|
OEA |
|
|
|
|
|
|
|
|
|
|
|
|
OEB |
||||||||||||||||||||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Top View |
|
|
|
|
|
|
|
|
|
|||||||||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
A |
1 |
|
|
20 |
|
|
VCC |
|||||||||
|
|
D0 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
0 |
|
|
OE |
|
|
|
|
||||||||||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
O |
|
|
|
D0 |
2 |
|
|
19 |
|
|
|
|
|
|
|
|
|
|
||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
D1 |
3 |
|
|
18 |
|
|
|
OEB |
|||||||||
|
|
D1 |
|
|
|
|
|
|
|
|
1 |
|
|
|
|
|
|
|
|
O |
0 |
|
|
|
||||||||||||||||||
|
|
|
|
O |
|
|
|
|||||||||||||||||||||||||||||||||||
|
|
|
|
|
D2 |
4 |
|
|
17 |
|
||||||||||||||||||||||||||||||||
|
|
D2 |
|
|
|
|
|
|
|
|
|
2 |
|
|
|
|
|
|
|
|
O |
1 |
|
|
|
|||||||||||||||||
|
|
|
|
|
|
|
|
|
O |
|
|
|
D3 |
5 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|||||||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
16 |
|
|
|
O2 |
|||||||||||||||||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
FCT540T |
|
|
|
|
|
|
|
|
|
|
|
||
|
|
D3 |
|
|
|
|
|
|
|
O |
3 |
|
|
|
D4 |
6 |
|
|
15 |
|
|
|
O3 |
|
|
|
||||||||||||||||
|
|
|
|
|
|
|
|
|
||||||||||||||||||||||||||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
D5 |
7 |
|
|
14 |
|
|
|
O |
4 |
|
|
||||||
|
|
D4 |
|
|
|
|
|
|
O4 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||||||||||||||
|
|
|
|
|
|
|
|
D6 |
8 |
|
|
13 |
|
|
|
O5 |
||||||||||||||||||||||||||
|
|
D5 |
|
|
|
|
|
|
|
|
|
|
|
|
D7 |
9 |
|
|
12 |
|
|
|
|
|
6 |
|
|
|||||||||||||||
|
|
|
|
|
|
|
|
|
O |
5 |
|
|
|
|
|
|
|
O |
||||||||||||||||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
GND |
10 |
|
|
11 |
|
|
|
|
|
7 |
|
|
||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
O |
|||||||||||||
|
|
D6 |
|
|
|
|
|
|
O6 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||||||||||||||
|
|
D7 |
|
|
|
|
|
|
|
|
7 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||||||||||
|
|
|
|
|
|
O |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|||||||||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|||||||
Logic Block Diagram—FCT541T |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|||||||||||||||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
CERDIP/DIP/SOIC/QSOP |
||||||||||||||||||
|
|
OE |
A |
|
|
|
|
|
|
|
|
|
|
|
OE |
B |
|
|
|
|
|
Top View |
|
|
|
|
|
|
|
|
|
|||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||||||||||||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
A |
1 |
|
|
20 |
|
|
VCC |
||||||||
|
|
D0 |
|
|
|
|
|
|
|
|
|
|
O0 |
|
OE |
|
|
|
|
|||||||||||||||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
D0 |
2 |
|
|
19 |
|
|
|
|
|
|
|
|
|
||||||||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
D1 |
3 |
|
|
|
|
|
|
|
OEB |
||||||||
|
|
D1 |
|
|
|
|
|
|
|
O1 |
|
|
|
18 |
|
|
|
O0 |
||||||||||||||||||||||||
|
|
|
|
|
|
|
|
|
D2 |
4 |
|
|
|
|
|
|
||||||||||||||||||||||||||
|
|
D2 |
|
|
|
|
|
|
|
O2 |
|
|
|
17 |
|
|
|
O1 |
||||||||||||||||||||||||
|
|
|
|
|
|
|
|
|
|
D3 |
|
5 FCT541T |
16 |
|
|
|
O2 |
|||||||||||||||||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|||||||||
|
|
D3 |
|
|
|
|
|
|
|
O3 |
|
D4 |
6 |
|
|
15 |
|
|
|
O3 |
||||||||||||||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|||||||||||||||||||||||||||||
|
|
D4 |
|
|
|
|
|
|
|
O4 |
|
D5 |
7 |
|
|
14 |
|
|
|
O4 |
||||||||||||||||||||||
|
|
|
|
|
|
|
|
|
|
D6 |
8 |
|
|
13 |
|
|
|
O5 |
||||||||||||||||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|||||||||||||
|
|
D5 |
|
|
|
|
|
|
|
O5 |
|
D7 |
9 |
|
|
12 |
|
|
|
O6 |
||||||||||||||||||||||
|
|
D6 |
|
|
|
|
|
|
|
O6 |
GND |
10 |
|
|
11 |
|
|
|
O7 |
|||||||||||||||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|||||||||||||||
|
|
D7 |
|
|
|
|
|
|
|
O7 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|||||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Copyright © 2000, Texas Instruments Incorporated
CY54/74FCT540T
CY54/74FCT541T
Function Table FCT540T[1]
|
|
|
Inputs |
|
|
||
|
|
|
|
|
|
|
|
|
|
A |
|
|
B |
D |
Output |
|
OE |
OE |
|||||
|
L |
|
L |
L |
H |
||
|
L |
|
L |
H |
L |
||
|
H |
|
H |
X |
Z |
||
|
|
|
|
|
|
|
|
Function Table FCT541T[1]
|
|
|
Inputs |
|
|
||
|
|
|
|
|
|
|
|
|
|
A |
|
|
B |
D |
Output |
|
OE |
OE |
|||||
|
L |
|
L |
L |
L |
||
|
L |
|
L |
H |
H |
||
|
H |
|
H |
X |
Z |
||
|
|
|
|
|
|
|
|
Maximum Ratings[2, 3]
(Above which the useful life may be impaired. For user guidelines, not tested.)
Electrical Characteristics Over the Operating Range
Storage Temperature ................................. |
–65°C to +150°C |
|
Ambient Temperature with |
–65°C to +135°C |
|
Power Applied............................................. |
||
Supply Voltage to Ground Potential............... |
–0.5V to +7.0V |
|
DC Input Voltage ........................................... |
–0.5V to +7.0V |
|
DC Output Voltage......................................... |
–0.5V to +7.0V |
|
DC Output Current (Maximum Sink Current/Pin) ...... |
120 mA |
|
Power Dissipation .......................................................... |
|
0.5W |
Static Discharge Voltage............................................ |
|
>2001V |
(per MIL-STD-883, Method 3015)
Operating Range
|
|
Ambient |
|
Range |
Range |
Temperature |
VCC |
Commercial |
T, AT, CT |
–40°C to +85°C |
5V ± 5% |
|
|
|
|
Military[4] |
All |
–55°C to +125°C |
5V ± 10% |
Parameter |
Description |
|
Test Conditions |
|
Min. |
Typ.[5] |
Max. |
Unit |
||
VOH |
Output HIGH Voltage |
VCC = Min., IOH = –32 mA |
Com’l |
2.0 |
|
|
V |
|||
|
|
|
VCC = Min., IOH = –15 mA |
Com’l |
2.4 |
3.3 |
|
V |
||
|
|
|
VCC = Min., IOH = –12 mA |
Mil |
2.4 |
3.3 |
|
V |
||
VOL |
Output LOW Voltage |
VCC = Min., IOL = 64 mA |
Com’l |
|
0.3 |
0.55 |
V |
|||
|
|
|
VCC = Min., IOL = 48 mA |
Mil |
|
0.3 |
0.55 |
V |
||
VIH |
Input HIGH Voltage |
|
|
|
|
2.0 |
|
|
V |
|
VIL |
Input LOW Voltage |
|
|
|
|
|
|
0.8 |
V |
|
VH |
Hysteresis[6] |
All inputs |
|
|
|
0.2 |
|
V |
||
VIK |
Input Clamp Diode Voltage |
VCC = Min., IIN = –18 mA |
|
|
–0.7 |
–1.2 |
V |
|||
II |
Input HIGH Current |
VCC = Max., VIN = VCC |
|
|
|
5 |
A |
|||
IIH |
Input HIGH Current |
VCC = Max., VIN = 2.7V |
|
|
|
±1 |
A |
|||
IIL |
Input LOW Current |
VCC = Max., VIN = 0.5V |
|
|
|
±1 |
A |
|||
IOZH |
Off State HIGH-Level Output |
VCC = Max., VOUT = 2.7V |
|
|
|
10 |
A |
|||
|
|
Current |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|||
IOZL |
Off State LOW-Level |
VCC = Max., VOUT = 0.5V |
|
|
|
–10 |
A |
|||
|
|
Output Current |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
I |
OS |
Output Short Circuit Current[7] |
V |
= Max,. V |
= 0.0V |
|
–60 |
–120 |
–225 |
mA |
|
|
CC |
OUT |
|
|
|
|
|
|
|
IOFF |
Power-Off Disable |
VCC = 0V, VOUT = 4.5V |
|
|
|
±1 |
A |
Notes:
1.H = HIGH Voltage Level L = LOW Voltage Level X = Don’t Care
Z = High Impedance
2.Unless otherwise noted, these limits are over the operating free-air temperature range.
3.Unused inputs must always be connected to an appropriate logic voltage level, preferably either VCC or ground.
4.TA is the “instant on” case temperature.
5.Typical values are at VCC=5.0V, TA=+25˚C ambient.
6.This parameter is specified but not tested.
7.Not more than one output should be shorted at a time. Duration of short should not exceed one second. The use of high-speed test apparatus and/or sample and hold techniques are preferable in order to minimize internal chip heating and more accurately reflect operational values. Otherwise prolonged shorting of a high output may raise the chip temperature well above normal and thereby cause invalid readings in other parametric tests. In any sequence of parametric tests, IOS tests should be performed last.
2
CY54/74FCT540T
CY54/74FCT541T
Capacitance[6]
Parameter |
Description |
Test Conditions |
Typ. [5] |
Max. |
Unit |
CIN |
Input Capacitance |
|
5 |
10 |
pF |
COUT |
Output Capacitance |
|
9 |
12 |
pF |
Power Supply Characteristics
|
Parameter |
Description |
|
|
Test Conditions |
Typ.[5] |
Max. |
Unit |
||
ICC |
Quiescent Power Supply Current |
VCC=Max., VIN ≤ 0.2V, VIN ≥ VCC–0.2V |
0.1 |
0.2 |
mA |
|||||
|
I |
CC |
Quiescent Power Supply Current |
V |
CC |
= Max., V |
= 3.4V, f = 0, Outputs Open[8] |
0.5 |
2.0 |
mA |
|
|
(TTL inputs) |
|
IN |
1 |
|
|
|
||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|||||
ICCD |
Dynamic Power Supply Current[9] |
VCC = Max., 50% Duty Cycle, Outputs Open, |
0.06 |
0.12 |
mA/MHz |
|||||
|
|
|
|
One Bit Toggling at f1 = 10 MHz, |
|
|
|
|||
|
|
|
|
OEA=OEB=GND, or OEA=GND, OEB=VCC, |
|
|
|
|||
|
|
|
|
VIN ≤ 0.2V or VIN ≥ VCC–0.2V |
|
|
|
|||
I |
C |
|
Total Power Supply Current[10] |
V =Max., 50% Duty Cycle, Outputs Open, |
0.7 |
1.4 |
mA |
|||
|
|
|
|
CC |
|
|
|
|
|
|
|
|
|
|
One Bit Toggling at f1=10 MHz, |
|
|
|
|||
|
|
|
|
OEA=OEB=GND, or OEA=GND, OEB=VCC, |
|
|
|
|||
|
|
|
|
VIN≤0.2V or VIN≥VCC–0.2V |
|
|
|
|||
|
|
|
|
VCC = Max., 50% Duty Cycle, Outputs Open, |
1.0 |
2.4 |
mA |
|||
|
|
|
|
One Bit Toggling at f1=10 MHz, |
|
|
|
|||
|
|
|
|
OEA=OEB=GND, or OEA=GND, OEB=VCC, |
|
|
|
|||
|
|
|
|
VIN = 3.4V or VIN = GND |
|
|
|
|||
|
|
|
|
VCC = Max., 50% Duty Cycle, Outputs Open, |
1.3 |
2.6[11] |
mA |
|||
|
|
|
|
Eight Bits Toggling at f1= 2.5 MHz, |
|
|
|
|||
|
|
|
|
OEA=OEB=GND, or OEA=GND, OEB=VCC, |
|
|
|
|||
|
|
|
|
VIN ≤ 0.2V or VIN ≥ VCC –0.2V |
|
|
|
|||
|
|
|
|
VCC = Max., 50% Duty Cycle, Outputs Open, |
3.3 |
10.6[11] |
mA |
|||
|
|
|
|
Eight Bits Toggling at f1=2.5 MHz, |
|
|
|
|||
|
|
|
|
OEA=OEB=GND, or OEA=GND, OEB=VCC, |
|
|
|
|||
|
|
|
|
VIN = 3.4V or VIN = GND |
|
|
|
|||
Notes: |
|
|
|
|
|
|
|
|
8.Per TTL driven input (VIN=3.4V); all other inputs at VCC or GND.
9.This parameter is not directly testable, but is derived for use in Total Power Supply calculations.
10. IC |
= |
IQUIESCENT + IINPUTS + IDYNAMIC |
IC |
= |
ICC+ ICCDHNT+ICCD(f0/2 + f1N1) |
ICC |
= |
Quiescent Current with CMOS input levels |
ICC = |
Power Supply Current for a TTL HIGH input (VIN=3.4V) |
|
DH |
= |
Duty Cycle for TTL inputs HIGH |
NT |
= |
Number of TTL inputs at DH |
ICCD = |
Dynamic Current caused by an input transition pair (HLH or LHL) |
|
f0 |
= |
Clock frequency for registered devices, otherwise zero |
f1 |
= |
Input signal frequency |
N1 |
= |
Number of inputs changing at f1 |
All currents are in milliamps and all frequencies are in megahertz.
11. Values for these conditions are examples of the ICC formula. These limits are specified but not tested.
3
