User Manual
POINT Guard I/O Safety Modules
Catalog Numbers 1734-IB8S, 1734-OB8S, 1734-IE4S
Read this document and the documents listed in the additional resources section about installation, configuration, and operation of this equipment before you install, configure, operate, or maintain this product. Users are required to familiarize themselves with installation and wiring instructions in addition to requirements of all applicable codes, laws, and standards.
Activities including installation, adjustments, putting into service, use, assembly, disassembly, and maintenance are required to be carried out by suitably trained personnel in accordance with applicable code of practice.
If this equipment is used in a manner not specified by the manufacturer, the protection provided by the equipment may be impaired.
In no event will Rockwell Automation, Inc. be responsible or liable for indirect or consequential damages resulting from the use or application of this equipment.
The examples and diagrams in this manual are included solely for illustrative purposes. Because of the many variables and requirements associated with any particular installation, Rockwell Automation, Inc. cannot assume responsibility or liability for actual use based on the examples and diagrams.
No patent liability is assumed by Rockwell Automation, Inc. with respect to use of information, circuits, equipment, or software described in this manual.
Reproduction of the contents of this manual, in whole or in part, without written permission of Rockwell Automation, Inc., is prohibited.
Throughout this manual, when necessary, we use notes to make you aware of safety considerations.
WARNING: Identifies information about practices or circumstances that can cause an explosion in a hazardous environment, which may lead to personal injury or death, property damage, or economic loss.
ATTENTION: Identifies information about practices or circumstances that can lead to personal injury or death, property damage, or economic loss. Attentions help you identify a hazard, avoid a hazard, and recognize the consequence.
IMPORTANT Identifies information that is critical for successful application and understanding of the product.
Labels may also be on or inside the equipment to provide specific precautions.
SHOCK HAZARD: Labels may be on or inside the equipment, for example, a drive or motor, to alert people that dangerous voltage may be present.
BURN HAZARD: Labels may be on or inside the equipment, for example, a drive or motor, to alert people that surfaces may reach dangerous temperatures.
ARC FLASH HAZARD: Labels may be on or inside the equipment, for example, a motor control center, to alert people to potential Arc Flash. Arc Flash will cause severe injury or death. Wear proper Personal Protective Equipment (PPE). Follow ALL Regulatory requirements for safe work practices and for Personal Protective Equipment (PPE).
Allen-Bradley, GuardLogix, Guardmaster, POINT Guard I/O, Rockwell Automation, Rockwell Software, RSNetWorx, SmartGuard, and Studio 5000 are trademarks of Rockwell Automation, Inc.
Trademarks not belonging to Rockwell Automation are property of their respective companies.
New and Updated
Information
This manual contains new and updated information. Changes throughout this revision are marked by change bars, as shown to the right of this paragraph.
This table contains the changes made to this revision.
Topic |
Page |
|
|
Added information on accessing Release Notes. |
12 |
|
|
Added information on single-channel operation to the list of 1734-IB8S module features |
18 |
|
|
Updated Single-channel Mode Normal Operation and Fault Detection figure. |
26 |
|
|
Updated Dual-channel, Equivalent Normal Operation and Fault Detection figure. |
28 |
|
|
Updated Complementary, Normal Operation and Fault Detection figure. |
29 |
|
|
Updated Dual-channel Setting figure. |
39 |
|
|
Added information on placing Series B modules. |
48 |
|
|
Updated European Hazardous Location Approval information. |
52 |
|
|
Added guidance for using the 1734-IE4S module's sensor power supply. |
58 |
|
|
Corrected the Class ID in Table 15 Safety Analog Input Module (1734-IE4S) |
158 |
|
|
Updated Appendix C: Specifications |
161 |
|
|
Added specification for Sensor Supply Undercurrent Fault. |
166 |
|
|
Added Safety Data for Series B modules to Appendix C. |
173 |
|
|
Rockwell Automation Publication 1734-UM013J-EN-P - July 2014 |
3 |
Summary of Changes
Notes:
4 |
Rockwell Automation Publication 1734-UM013J-EN-P - July 2014 |
POINT Guard I/O Overview
Safety Inputs, Safety Outputs, and
Safety Data
Preface
Studio 5000 Environment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Terminology. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Access Product Release Notes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Additional Resources . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Chapter 1
Understand Suitability for Use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Safety Precautions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17 Installing and Replacing Modules . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
POINT Guard I/O Modules in CIP Safety Systems. . . . . . . . . . . . . . . . . 17
1734-IB8S Digital Input Module Features. . . . . . . . . . . . . . . . . . . . . . 18 1734-OB8S Safety Digital Output Module Features. . . . . . . . . . . . . 18
1734-IE4S Safety Analog Input Module Features . . . . . . . . . . . . . . . 19 Programming Requirements. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19 CIP Safety Architectures . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Safety Application Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Chapter 2
Safe States . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
POINT Guard Digital I/O Modules . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
POINT Guard I/O Analog Input Module. . . . . . . . . . . . . . . . . . . . . . 24
Safety Inputs (1734-IB8S) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Using a Test Output with a Safety Input . . . . . . . . . . . . . . . . . . . . . . . 24
Single-channel Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Dual-channel Mode and Discrepancy Time. . . . . . . . . . . . . . . . . . . . . 27
Dual-channel, Equivalent . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Dual-channels, Complementary . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Safety Input Fault Recovery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
Input Delays . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
Safety Analog Inputs (1734-IE4S) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Input Range . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Scaling. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

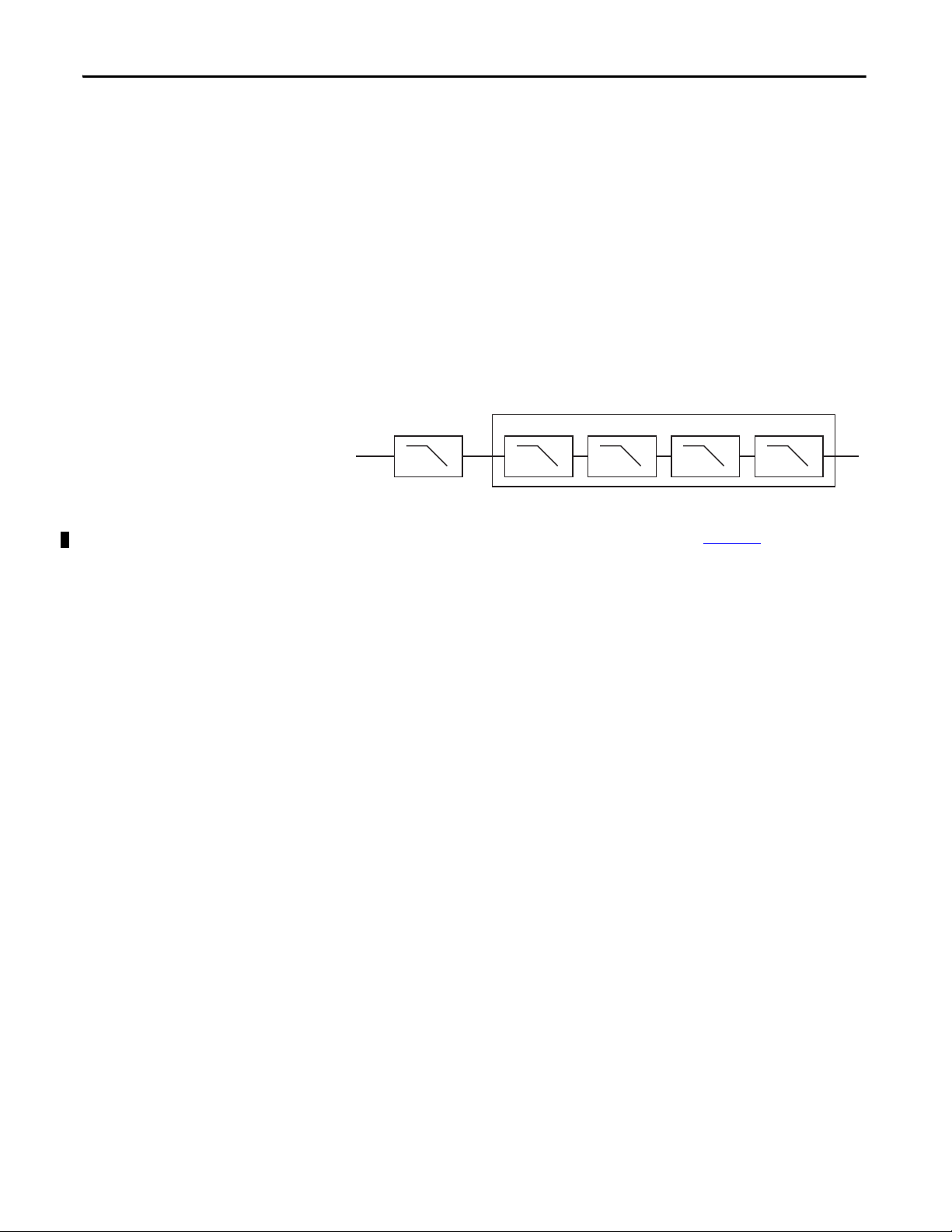

Digital Input Filter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
Sensor Power Supply . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
Channel Offset. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33

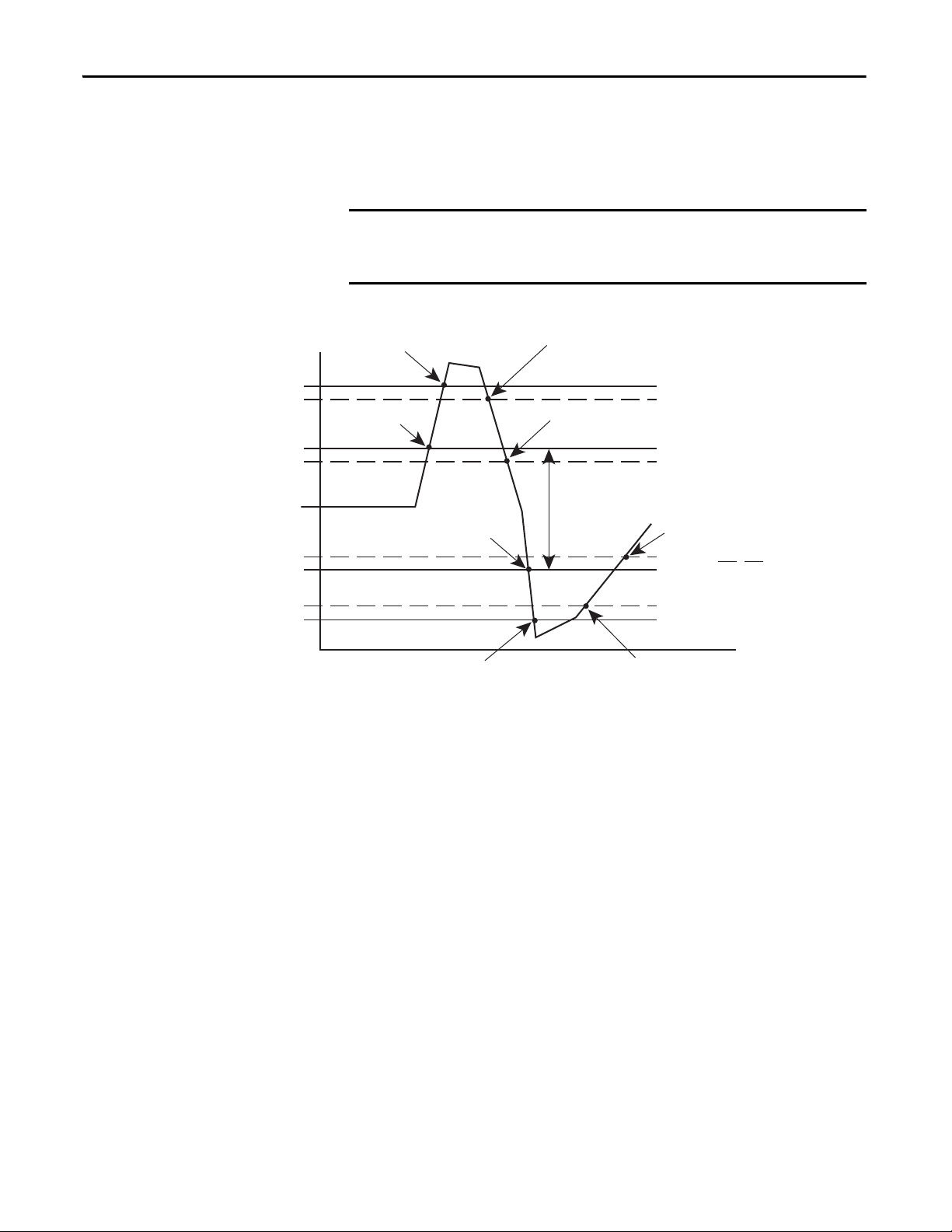

Process Alarms . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
Using a Single-channel Sensor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
Dual-channel Equivalent Mode. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
Tachometer Mode. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
Safety Outputs (1734-OB8S) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
Safety Output with Test Pulse . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
Dual-channel Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
Safety Output Fault Recovery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40
Muting Lamp Operation (1734-IB8S) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40
Rockwell Automation Publication 1734-UM013J-EN-P - July 2014 |
5 |
Table of Contents
GuidelinesforPlacingPowerSupplies
and Modules in a System
I/O Status Data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
Digital I/O Status Data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
Analog I/O Status Data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43
Chapter 3
Choosing a Power Supply . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45 Power Supply Examples . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46
Example 1: Isolating Field Power Segments . . . . . . . . . . . . . . . . . . . . . 47
Example 2: POINT Guard I/O Used with AC I/O Modules . . . . . 47 Placing Series A Digital and Analog Modules . . . . . . . . . . . . . . . . . . . . . . . 48
Placing Series B Digital Modules . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48
|
Chapter 4 |
|
Install the Module |
Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . |
52 |
|
European Hazardous Location Approval . . . . . . . . . . . . . . . . . . . . . . . |
52 |
|
North American Hazardous Location Approval . . . . . . . . . . . . . . . . . |
53 |
|
Environment and Enclosure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . |
53 |
|
Preventing Electrostatic Discharge . . . . . . . . . . . . . . . . . . . . . . . . . . . . . |
54 |
|
Mount the Module . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . |
54 |
|
Install the Mounting Base . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . |
54 |
|

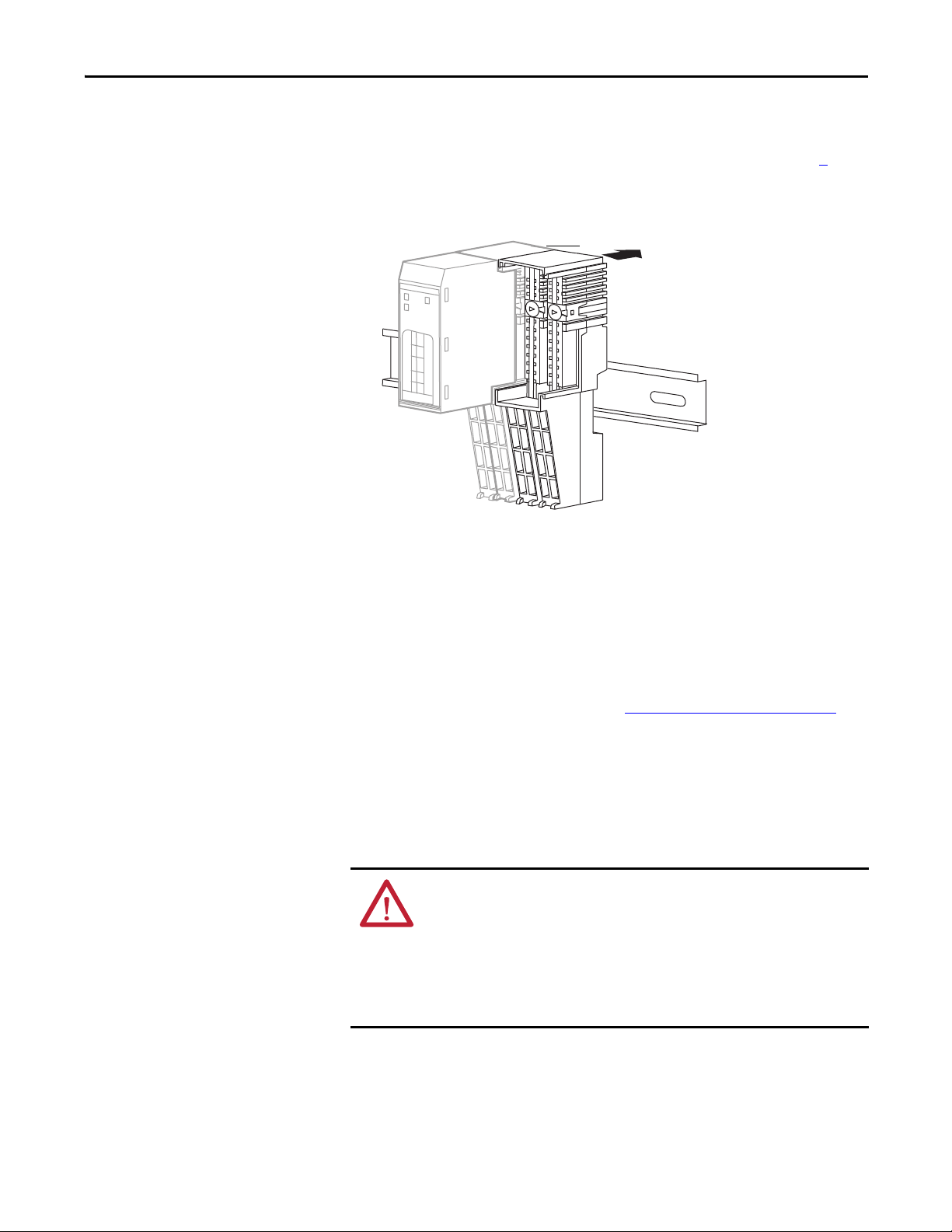

Connect the Module to the Mounting Base . . . . . . . . . . . . . . . . . . . . . |
55 |
|
Connect the Removable Terminal Block. . . . . . . . . . . . . . . . . . . . . . . . |
56 |
|
Remove a Mounting Base. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . |
57 |
|
Wire Modules. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . |
58 |
|

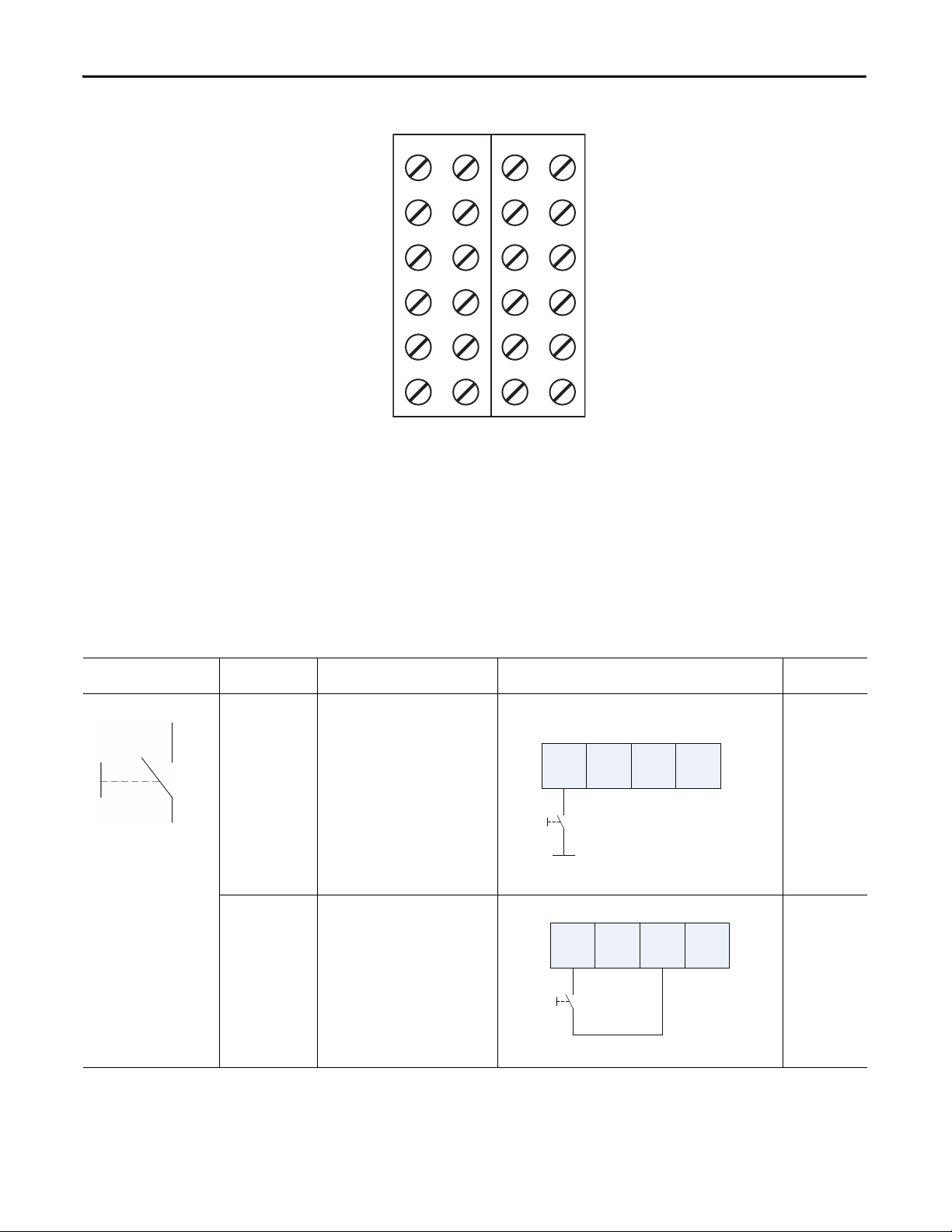

Terminal Layout. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . |
59 |
|
Connection Details. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . |
60 |
|
Wiring Examples . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . |
62 |
|
Emergency Stop Dual-channel Devices . . . . . . . . . . . . . . . . . . . . . . . . . |
62 |
|
Single-channel Safety Contactor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . |
63 |
|
Dual-channel Safety Contactors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . |
64 |
|

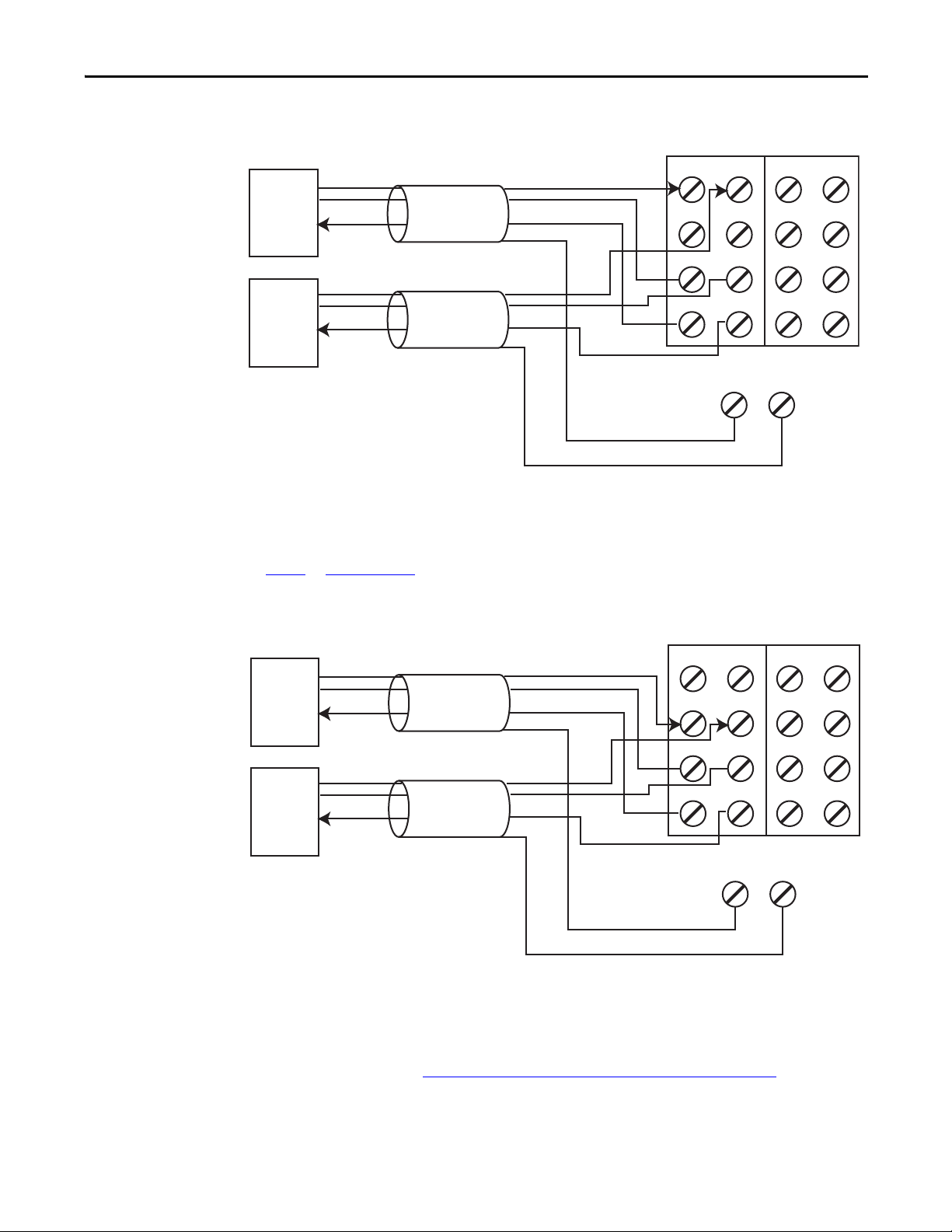

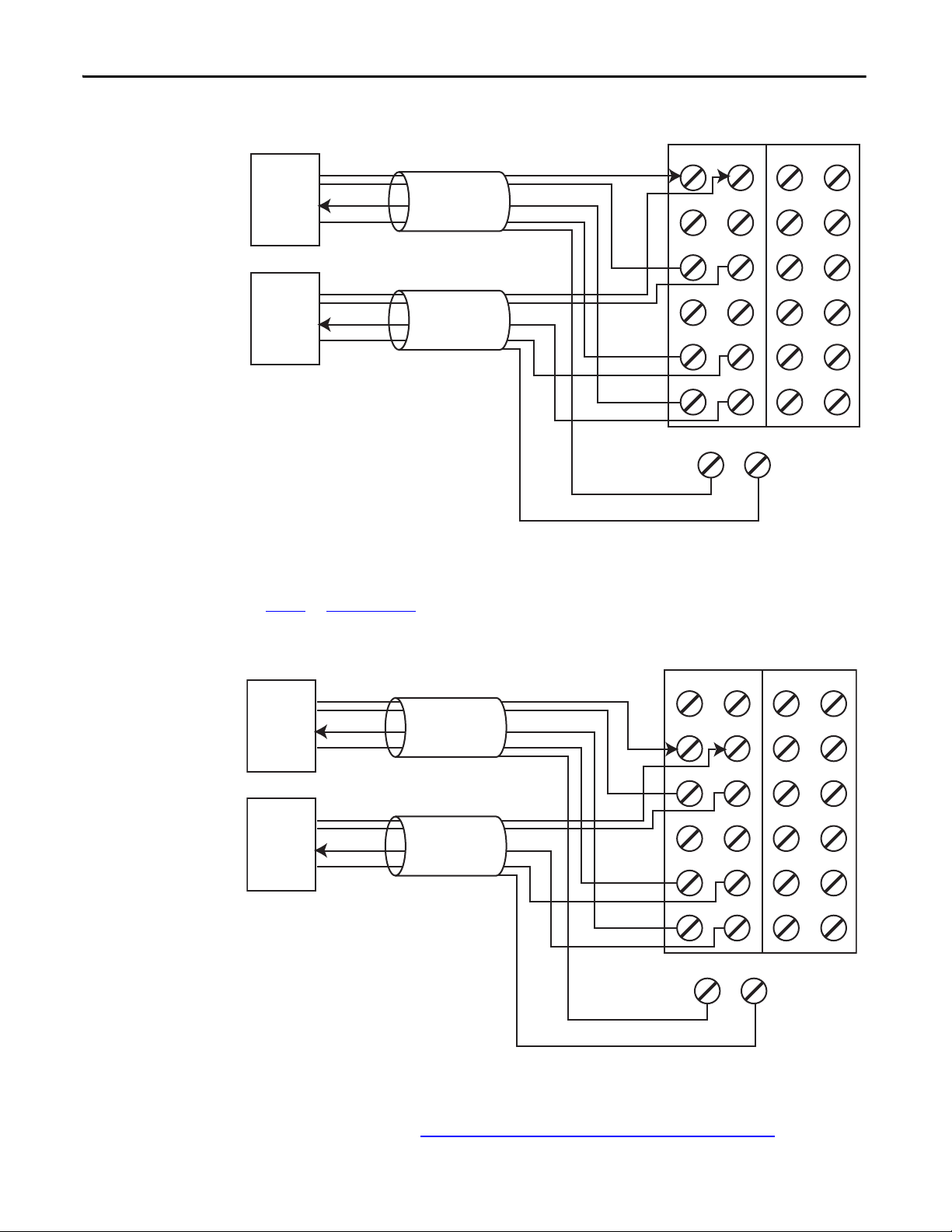

Safety Analog Input Wiring . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . |
65 |
|
Chapter 5 |
|
ConfiguretheModuleinaGuardLogix |
Setting Up the Module . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . |
73 |
Controller System |
Add and Configure the Ethernet Bridge Module . . . . . . . . . . . . . . . . . . . . |
74 |
|

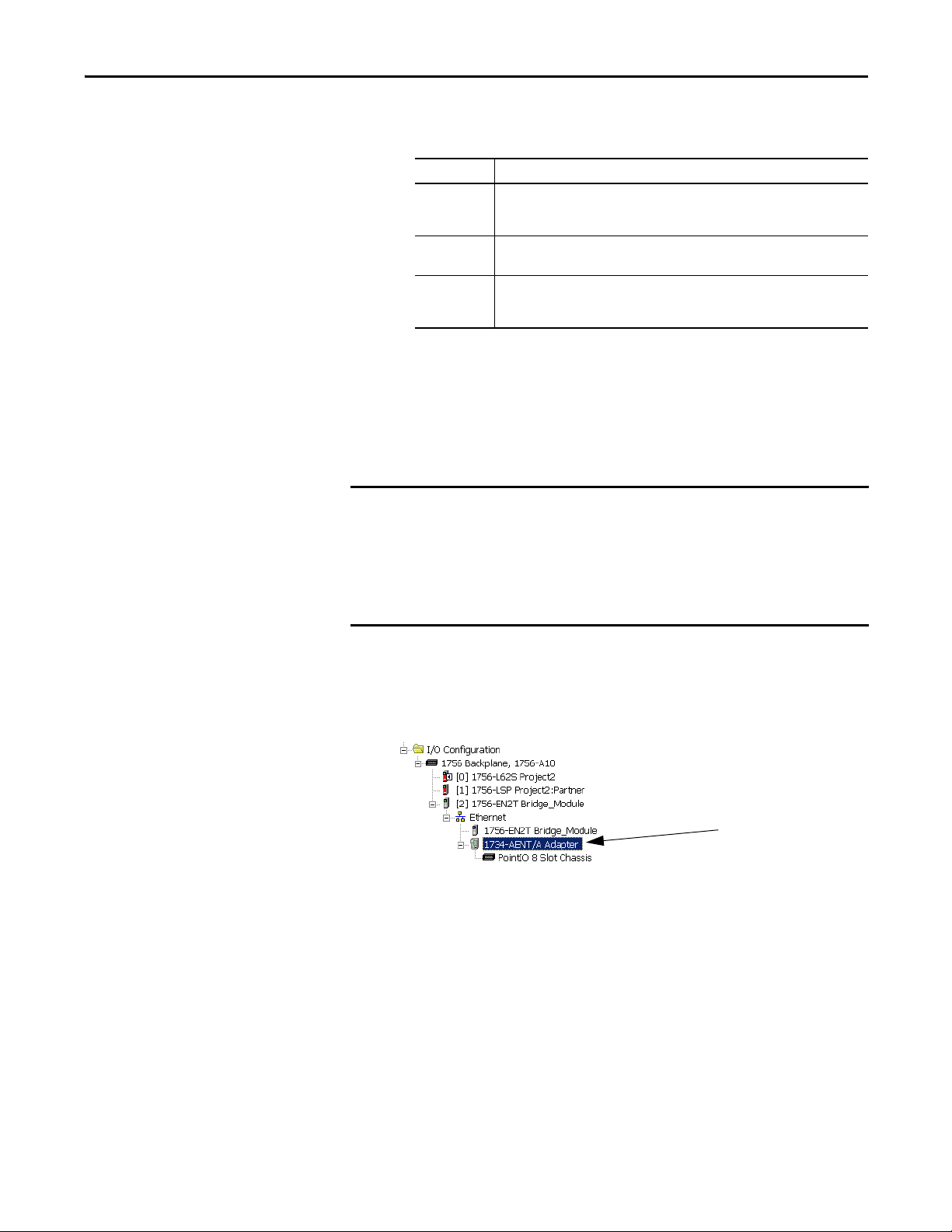

Add and Configure the 1734 Ethernet Adapter . . . . . . . . . . . . . . . . . . . . . |
75 |
|
Add and Configure Safety Digital Input Modules . . . . . . . . . . . . . . . . . . . |
77 |
|
Add the Safety Digital Input Module . . . . . . . . . . . . . . . . . . . . . . . . . . . |
77 |
|

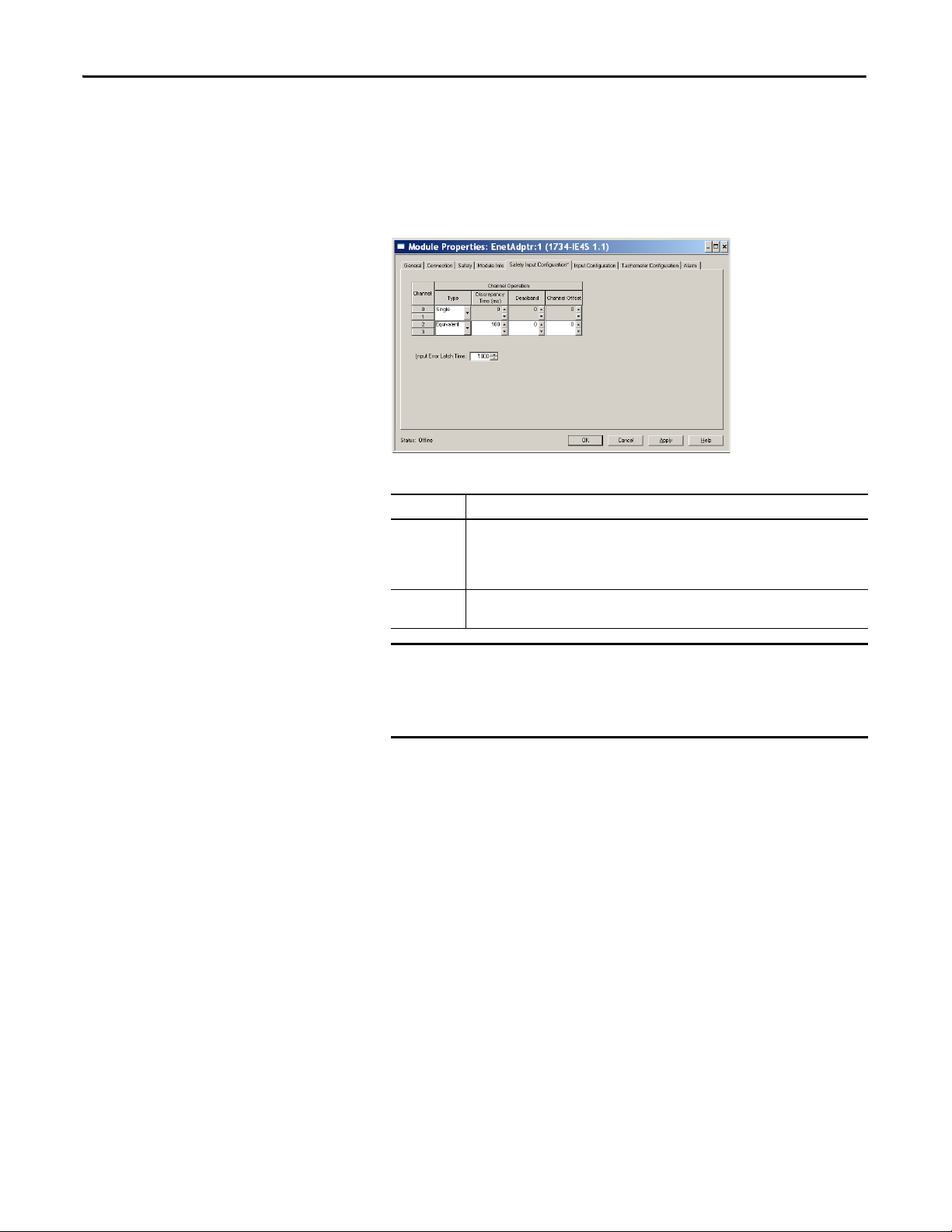

Configure the Safety Digital Inputs . . . . . . . . . . . . . . . . . . . . . . . . . . . . |
82 |
|
Configure the Test Outputs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . |
85 |
|
Add and Configure Safety Digital Output Modules . . . . . . . . . . . . . . . . . |
86 |
|
Add the Safety Digital Output Module . . . . . . . . . . . . . . . . . . . . . . . . . |
86 |
|
Configure the Safety Digital Outputs. . . . . . . . . . . . . . . . . . . . . . . . . . . |
90 |
|
Add and Configure Safety Analog Input Modules . . . . . . . . . . . . . . . . . . . |
91 |
|
Add the Safety Analog Input Module. . . . . . . . . . . . . . . . . . . . . . . . . . . |
91 |
|
Configure the Safety Analog Input Channel Operation . . . . . . . . . . |
94 |
|
Configure the Safety Analog Inputs . . . . . . . . . . . . . . . . . . . . . . . . . . . . |
95 |
6 |
Rockwell Automation Publication 1734-UM013J-EN-P - July 2014 |
Table of Contents
Configure the Module for a SmartGuard Controller
Configure Safety Analog Input Alarms (optional) . . . . . . . . . . . . . . . 96 Configure Tachometer Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 98
Values and States of Tags . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 100
Configure Safety Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 102 Configuration Ownership . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 103
Saving and Downloading the Module Configuration . . . . . . . . . . . . . . . 104
Using ControlFLASH Software to Update POINT Guard I/O
Modules. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 104
Chapter 6
Before You Begin . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 105
Set the Node Address. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 106
Auto-addressing with a 1734-PDN Adapter . . . . . . . . . . . . . . . . . . . . . . . 108 Set Up Your DeviceNet Network . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 109
Configure the POINT Guard I/O Modules . . . . . . . . . . . . . . . . . . . . . . . 110 Configure Digital Safety Inputs and Test Outputs . . . . . . . . . . . . . 110 Configure Digital Safety Outputs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 113
Configure Safety Analog Inputs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 114
Configure the SmartGuard Controller . . . . . . . . . . . . . . . . . . . . . . . . . . . . 119 Set Up the Input and Output Connections . . . . . . . . . . . . . . . . . . . . 119
Complete the Set Up of the SmartGuard Controller . . . . . . . . . . . 123
Save and Download Module Configuration . . . . . . . . . . . . . . . . . . . . . . . 124
Configuring Safety Connections between a GuardLogix Controller and POINT Guard I/O Modules on a DeviceNet Network
Chapter 7
Configure the Module in RSNetWorx for DeviceNet Software . . . . . 125 Add the POINT Guard I/O Module to the Controller Project . . . . . 126 Complete the Safety Configuration. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 129 Download the DeviceNet Network Configuration. . . . . . . . . . . . . . . . . 131 Verify Your DeviceNet Safety Configuration . . . . . . . . . . . . . . . . . . . . . . 131
Determine If Devices Can Be Verified. . . . . . . . . . . . . . . . . . . . . . . . . 132
Select Devices to Verify . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 133 Review the Safety Device Verification Reports . . . . . . . . . . . . . . . . . 134
Lock Safety Devices. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 135
Chapter 8
Replacing POINT Guard I/O Modules The Safety Network Number . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 137 Manually Setting the Safety Network Number. . . . . . . . . . . . . . . . . . . . . 138
Resetting a Module to Out-of-box Condition . . . . . . . . . . . . . . . . . . . . . 139
By Using the Logix Designer Application. . . . . . . . . . . . . . . . . . . . . . 139 By Using RSNetWorx for DeviceNet Software . . . . . . . . . . . . . . . . 140
Replacing a Module in a GuardLogix System on an EtherNet/IP
Network . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 141 Replacement with ‘Configure Only When No Safety Signature Exists’ Enabled . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 141
Replacement with ‘Configure Always’ Enabled. . . . . . . . . . . . . . . . . 145 Replacing a Module When Using a SmartGuard or GuardLogix
Controller on a DeviceNet Network. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 147
Rockwell Automation Publication 1734-UM013J-EN-P - July 2014 |
7 |
Table of Contents |
|
|
|
Appendix A |
|
Indicators |
Module . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . |
152 |
|
Network Status . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . |
152 |
|
Configuration Lock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . |
152 |
|
Power . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . |
153 |
|
1734-IE4S Sensor Power . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . |
153 |
|
1734-IE4S Safety Analog Input Status . . . . . . . . . . . . . . . . . . . . . . . . . . . . |
153 |
|
1734-IB8S Safety Input Status. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . |
153 |
|
1734-OB8S Safety Output Status. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . |
154 |
Get I/O Diagnostic Status from Modules in Logix Systems
Specifications
Appendix B
Message Instructions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 155
Configure the Message Instruction. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 156 Class, Instance, and Attribute Data for I/O Modules . . . . . . . . . . . . . . . 157
Appendix C
Technical Specifications for Series A Modules . . . . . . . . . . . . . . . . . . . . . 161
Safety Digital Input Module Specifications. . . . . . . . . . . . . . . . . . . . . 161 Safety Digital Output Module Specifications. . . . . . . . . . . . . . . . . . . 163
Safety Analog Input Module Specifications . . . . . . . . . . . . . . . . . . . . 164
Technical Specifications for Series B Modules. . . . . . . . . . . . . . . . . . . . . . 173 Safety Digital Input Module Specifications. . . . . . . . . . . . . . . . . . . . . 173
Safety Digital Output Module Specifications. . . . . . . . . . . . . . . . . . . 176
Environmental Specifications. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 177 Certifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 179
Legislations and Standards . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 179
|
Appendix D |
|
Safety Data |
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . |
181 |
|
Series A Safety Data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . |
182 |
|
Series B Safety Data. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . |
184 |
|
Appendix E |
|
Configuration Parameters |
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . |
187 |
|
Appendix F |
|
I/O Assemblies |
Input Assemblies . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . |
191 |
|
Output Assemblies . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . |
192 |
|
Analog Input Assemblies. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . |
192 |
|
Configuration Assemblies . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . |
194 |
|
Using Data from Modules Configured via the Generic Profile. . . . . . . |
200 |
8 |
Rockwell Automation Publication 1734-UM013J-EN-P - July 2014 |
|
|
Table of Contents |
|
Appendix G |
|
History of Changes |
1734-UM013I-EN-P, May 2013 . . . . . . . . . . . . . . . . . . . . . . . . . . |
. . . . . . . 201 |
|
1734-UM013H-EN-P, August 2012. . . . . . . . . . . . . . . . . . . . . . . . |
. . . . . . 201 |
|
1734-UM013G-EN-P, August 2012. . . . . . . . . . . . . . . . . . . . . . . . |
. . . . . . 201 |
|
1734-UM013F-EN-P, June 2012. . . . . . . . . . . . . . . . . . . . . . . . . . . |
. . . . . . 201 |
|
1734-UM013E-EN-P, March 2012. . . . . . . . . . . . . . . . . . . . . . . . . |
. . . . . . 202 |
|
1734-UM013D-EN-P, September 2011 . . . . . . . . . . . . . . . . . . . . |
. . . . . . 202 |
|
1734-UM013C-EN-P, August 2010. . . . . . . . . . . . . . . . . . . . . . . . |
. . . . . . 202 |
|
1734-UM013B-EN-P, June 2009. . . . . . . . . . . . . . . . . . . . . . . . . . . |
. . . . . . 203 |
|
1734-UM013A-EN-P, February 2009 . . . . . . . . . . . . . . . . . . . . . . |
. . . . . . 203 |
Index |
|
|
Rockwell Automation Publication 1734-UM013J-EN-P - July 2014 |
9 |
Table of Contents
10 |
Rockwell Automation Publication 1734-UM013J-EN-P - July 2014 |
Thoroughly read and understand this manual before installing and operating a system using POINT Guard I/O™ modules.
Always observe the following guidelines when using a module, noting that in this manual we use safety administrator to mean a person qualified, authorized, and responsible to secure safety in the design, installation, operation, maintenance, and disposal of the ‘machine’.
• Keep this manual in a safe place where personnel can refer to it when necessary.
• Use the module properly according to the installation environment, performance ratings, and functions of the machine.
See Understand Suitability for Use on page 15 and Safety Precautions on page 17.
|
Product specifications and accessories can change at any time. Consult with your |
|
Rockwell Automation representative to confirm specifications of purchased |
|
product. Dimensions and weights are nominal and are not for manufacturing |
|
purposes, even when tolerances are shown. |
|
Consult your Rockwell Automation representative if you have any questions or |
|
comments. Also refer to the related documentation, listed in the page 13, as |
|
necessary. |
Studio 5000 Environment |
The Studio 5000® Automation Engineering & Design Environment combines |
|
engineering and design elements into a common environment. The first element |
|
is the Studio 5000 Logix Designer™ application. The Logix Designer application |
|
is the rebranding of RSLogix™ 5000 software and will continue to be the product |
|
to program Logix5000™ controllers for discrete, process, batch, motion, safety, |
|
and drive-based solutions. |
The Studio 5000 environment is the foundation for the future of Rockwell Automation® engineering design tools and capabilities. The Studio 5000 environment is the one place for design engineers to develop all of the elements of their control system.
Rockwell Automation Publication 1734-UM013J-EN-P - July 2014 |
11 |
Preface
Terminology |
Refer to this table for the meaning of common terms. |
|
|
Term |
Means |
|
|
|
|
Connection |
Logical communication channel for communication between nodes. Connections are maintained and controlled between masters and slaves. |
|
|
|
|
EDS |
Electronic data sheet, a template used in RSNetWorx software to display the configuration parameters, I/O data profile, and connection-type support for a |
|
|
given I/O module. RSNetWorx software uses these simple text files to identify products and commission them on a network. |
|
|
|
|
ODVA |
Open DeviceNet Vendor Association, a nonprofit association of vendors established for the promotion of CIP networks. |
|
|
|
|
PFD |
Probability of failure on demand, the average probability of a system to fail to perform its design function on demand. |
|
|
|
|
PFH |
Probability of failure per hour, the probability of a system to have a dangerous failure occur per hour. |
|
|
|
|
Proof test |
Periodic test performed to detect failures in a safety-related system so that, if necessary, the system can be restored to an as-new condition or as close as |
|
|
practical to this condition. |
|
|
|
|
SNN |
Safety network number, which uniquely identifies a network across all networks in the safety system. You are responsible for assigning a unique number |
|
|
for each safety network or safety sub-net within a system. |
|
|
|
|
Standard |
Devices or portions of devices that do not participate in the safety function. |
|
|
|
1.From the Quick Links list on http://www.ab.com, choose Product Compatibility and Download Center.
2.From the Compatibility Scenarios tab or the Get Downloads tab, search for and choose your product.
3. Click the download icon to access product release notes.
12 |
Rockwell Automation Publication 1734-UM013J-EN-P - July 2014 |
Preface
These documents contain additional information concerning related products from Rockwell Automation.
Resource |
Description |
|
|
POINT I/O Selection Guide, publication 1734-SG001 |
Provides selection information for POINT I/O™ modules. Additional publication references |
|
are listed as well. |
|
|
GuardLogix 5570 Controllers User Manual, publication 1756-UM022 |
Provides information on how to install, configure, program, and use GuardLogix 5570 |
|
controllers in Studio 5000 Logix Designer projects. |
|
|
GuardLogix 5570 Controller Systems Safety Reference Manual, publication 1756-RM099 |
Provides information on safety application requirements for GuardLogix 5570 controllers |
|
in Studio 5000™ Logix Designer projects. |
|
|
GuardLogix Controller Systems Safety Reference Manual, publication 1756-RM093 |
Provides information on safety system requirements and describes the GuardLogix® |
|
controller system. |
|
|
GuardLogix Controllers User Manual, publication 1756-UM020 |
Provides information on how to install, configure, program, and use GuardLogix |
|
controllers in RSLogix 5000 projects. |
|
|
GuardLogix Safety Application Instructions Safety Reference Manual, |
Provides reference information describing the GuardLogix Safety Application Instruction |
publication 1756-RM095 |
Set. |
|
|
SmartGuard 600 Controllers Safety Reference Manual, publication 1752-RM001 |
Describes SmartGuard 600-specific safety requirements and controller features. |
|
|
SmartGuard 600 Controllers User Manual, publication 1752-UM001 |
Describes how to configure, operate, and troubleshoot the controller. |
|
|
Field Potential Distributor Installation Instructions, publication 1734-IN059 |
Provides installation information on 1734-FPD distributors. |
|
|
POINT I/O 24V DC Expansion Power Supply Installation Instructions, |
Provides installation information on 1734-EP24DC power supplies. |
publication 1734-IN058 |
|
|
|
POINT I/O 120/240V AC Expansion Power Supply Installation Instructions, |
Provides installation information on 1734-EPAC power supplies. |
publication 1734-IN017 |
|
|
|
POINT I/O Wiring Base Assembly Installation Instructions, publication 1734-IN511 |
Provides installation information on 1734-TB and 1734-TBS assemblies. |
|
|
POINT I/O One-piece Wiring Base Assembly Installation Instructions, |
Provides installation information on 1734-TOP, 1734-TOPS, 1734-TOP3, and 1734-TOP3S |
publication 1734-IN028 |
assemblies. |
|
|
DeviceNet Modules in Logix5000 Control Systems User Manual, publication DNET-UM004 |
Provides information on how to connect the controller to the network. |
|
|
ODVA Media Planning and Installation Guide, http://www.odva.org |
Describes the required media components and how to plan for and install these required |
|
components. |
|
|
Industrial Automation Wiring and Grounding Guidelines, publication 1770-4.1 |
Provides general guidelines for installing a Rockwell Automation industrial system. |
|
|
Product Certifications website, http://www.ab.com |
Provides declarations of conformity, certificates, and other certification details. |
|
|
You can view or download publications at http://www.rockwellautomation.com/literature/. To order paper copies of technical documentation, contact your local Allen-Bradley® distributor or Rockwell Automation sales representative.
Rockwell Automation Publication 1734-UM013J-EN-P - July 2014 |
13 |
Preface
Notes:
14 |
Rockwell Automation Publication 1734-UM013J-EN-P - July 2014 |
Chapter 1
POINT Guard I/O Overview
Topic |
Page |
|
|
Understand Suitability for Use |
15 |
|
|
Safety Precautions |
17 |
|
|
POINT Guard I/O Modules in CIP Safety Systems |
17 |
|
|
Safety Application Requirements |
21 |
|
|
Use the POINT Guard I/O safety modules in the POINT I/O platform to distribute safety I/O on a safety-control network that meets the requirements up to and including SIL CL3, and PLe, Cat. 4 as defined in IEC 61508, IEC 61511, IEC 62061, and ISO 13849-1. POINT Guard I/O modules may be used with 1756 GuardLogix, 1768 Compact GuardLogix, or SmartGuard 600 controllers.
You can configure the modules for use on DeviceNet networks by using the network configuration tool, RSNetWorx™ for DeviceNet software. For EtherNet networks, use the GuardLogix programming tool, the Logix Designer application.
Rockwell Automation is not responsible for conformity with any standards, codes, or regulations that apply to the combination of the products in your application or use of the product. See Legislations and Standards on page 179 for more information.
Take all necessary steps to determine the suitability of the products for the systems, machine, and equipment with which it is used.
Know and observe all prohibitions of use applicable to these products.
Use this equipment within its specified ratings.
Never use these products for an application involving serious risk to life or property without making sure that the system as a whole was designed to address the risks and that the Rockwell Automation products are properly rated and installed for the intended use within the overall equipment or system.
Rockwell Automation Publication 1734-UM013J-EN-P - July 2014 |
15 |
Chapter 1 POINT Guard I/O Overview
Verify that the POINT Guard I/O firmware revision is correct prior to commissioning the safety system. Firmware information for safety I/O modules is available at http://www.rockwellautomation.com/products/certification/safety.
TIP |
Field power must be applied to the 1734-IE4S module when updating |
|
firmware. |
Verify that a safety administrator conducts a risk assessment on the machine and determines module suitability before installation.
ATTENTION: Personnel responsible for the application of safety-related programmable electronic systems (PES) shall be aware of the safety requirements in the application of the system and shall be trained in using the system.
ATTENTION: Use only appropriate components or devices complying with relevant safety standards corresponding to the required safety category and safety integrity level.
•Conformity to requirements of the safety category and safety integrity level must be determined for the entire system.
•We recommend you consult a certification body regarding assessment of conformity to the required safety integrity level or safety category.
You are responsible for confirming compliance with the applicable standards for the entire system.
Table 1 - Requirements for Controlling Devices
Device |
Requirement |
Allen-Bradley Bulletin Safety Components |
Emergency stop switches |
Use approved devices with direct opening mechanisms complying with IEC/EN 60947- |
Bulletin 800F, 800T |
|
5-1. |
|
Door interlocking switches, |
Use approved devices with direct opening mechanisms complying with IEC/EN 60947- |
Bulletin 440K, 440G, 440H for interlock switch |
limit switches |
5-1 and capable of switching microloads of |
Bulletin 440P, 802T for limit switch |
|
24V DC, 3 mA. |
|
Safety sensors |
Use approved devices complying with the relevant product standards, regulations, and |
Any Guardmaster product |
|
rules in the country where used. |
|
Relays with forciblyguided |
Use approved devices with forcibly-guided contacts complying with EN 50205. For |
Bulletin 700S, 100S |
contacts, contactors |
feedback purposes, use devices with contacts capable of switching micro loads of |
|
|
24V DC, 3 mA. |
|
Other devices |
Evaluate whether devices used are appropriate to satisfy the requirements of safety |
- |
|
category levels. |
|
16 |
Rockwell Automation Publication 1734-UM013J-EN-P - July 2014 |
POINT Guard I/O Overview |
Chapter 1 |
|
|
Observe these precautions for proper use of POINT Guard I/O modules.
ATTENTION: As serious injury may occur due to loss of required safety function, follow these safety precautions.
•Never use test outputs as safety outputs. Test outputs are not safety outputs.
•Do not use Ethernet, DeviceNet, or ControlNet standard I/O data or explicit message data as safety data.
•Do not use LED status indicators on the I/O modules for safety operations.
•Do not connect loads beyond the rated value to the safety outputs.
•Apply properly specified voltages to the module. Applying inappropriate voltages may cause the module to fail to perform it’s specified function, which could lead to loss of safety functions or damage to the module.
•Wire the POINT Guard I/O modules properly following the wiring requirements and guidelines in Wire Modules on page 58.
•Set unique network node addresses before connecting devices to the network.
•Perform testing to confirm that device wiring, configuration, and operation is correct before starting system operation.
•Do not disassemble, repair, or modify the module. This may result in loss of safety functions.
POINT Guard I/O Modules in
CIP Safety Systems
ATTENTION:
•Clear previous configuration data before connecting devices to the network or connecting input or output power to the device.
•Configure the replacement device properly and confirm that it operates correctly.
•After installation of the module, a safety administrator must confirm the installation and conduct trial operation and maintenance.
When cleaning modules, do not use the following:
•Thinner
•Benzene
•Acetone
POINT Guard I/O modules are used in the POINT I/O platform and implement CIP Safety protocol extensions over EtherNet/IP and DeviceNet networks to communicate safety messages. POINT Guard I/O modules connect to EtherNet/IP or DeviceNet networks via these network adapters.
Table 2 - Network Adapters
Network |
System |
Adapter(1) |
EtherNet/IP |
GuardLogix |
1734-AENT (firmware revision 3 or later) |
|
|
|
|
|
1734-AENTR |
|
|
|
DeviceNet |
SmartGuard or GuardLogix |
1734-PDN |
|
|
|
(1) Not compatible with 1734-ADN, 1734-ADNX, 1734-APB, or 1734-ACNR adapters.
Rockwell Automation Publication 1734-UM013J-EN-P - July 2014 |
17 |
Chapter 1 POINT Guard I/O Overview
Distributed I/O communication for safety I/O data is performed through safety connections supporting CIP Safety over an EtherNet/IP or DeviceNet network. Data processing is performed in the safety controller. The status and fault diagnostics of POINT Guard I/O modules are monitored by a controller.
In addition to I/O state data, the modules include status data for monitoring I/O faults within each circuit.
The configuration information of the modules can be protected by a password.
•Safety digital inputs
–Safety devices, such as emergency stop push buttons, gate switches, and safety light curtains, can be connected.
–Dual-channel mode evaluates consistency between two input signals (channels), which allows use of the module for safety Category 3 and 4 and in applications rated up to and including Performance Level e/ SIL CL3.
–Single-channel mode evaluates one input signal (channel), which allows use of the module for safety Category 2 and in applications rated up to and including Performance Level d/SIL CL 2.
–You can configure a discrepancy time to control how long two channels are allowed to be discrepant before a fault is declared.
–An external wiring short-circuit check is possible when inputs are wired in combination with test outputs. The module must be wired in combination with test outputs when this function is used.
–Independently adjustable on and off delays are available per channel.
•Test outputs (digital input modules only)
–Separate test outputs are provided for short-circuit detection of a safety input (or inputs).
–Power (24V) can be supplied to devices, such as safety sensors.
–Test outputs can be configured as standard outputs.
–Specific test outputs can be used for broken-wire detection of a muting lamp.
•Solid-state outputs
•Dual-channel mode provides redundant control by using two output signals (channels), which allows use of the module for safety Category 3 and 4, and applications rated up to and including Performance Level e/ SIL CL3.
•Safety outputs can be pulse-tested to detect field wiring short circuits to 24V DC.
18 |
Rockwell Automation Publication 1734-UM013J-EN-P - July 2014 |
POINT Guard I/O Overview |
Chapter 1 |
|
|
•Connection of up to four voltage or current sensors.
•Sensor power outputs are individually current-limited and monitored.
•Measurement of process variables, such as temperature, pressure, or flow rate.
•Seven configurable input ranges
(±10V, ±5V, 0…5V, 0…10V, 4…20 mA, 0…20 mA, Tachometer).
•Tachometer mode converts 24V DC switching signals into pulses per second.
•Single-channel or dual-channel for SIL 3-rated safety devices and applications.
•Dual-channel mode evaluates the consistency between two input signals (channels), which allows use of the module in applications rated up to and including SIL CL3/PLe/Cat. 4.
•You can configure a discrepancy time to control how long two channels are allowed to be discrepant before a fault is declared.
Use the minimum software versions listed here.
Cat. No. |
Studio 5000 Environment |
RSLogix 5000 Software |
RSNetWorxforDeviceNet |
|
Version(1) |
Version(1) |
Software Version(1) |
|
|
(EtherNet/IP Network) |
(DeviceNet Network) |
|
|
|
|
1734-IB8S, |
21 |
17(2) |
9 |
1734-OB8S |
|
|
|
|
|
|
|
1734-IE4S |
21 |
18(3) |
10 |
(1)This version or later.
(2)If you are using digital POINT Guard I/O modules with the analog POINT Guard I/O module, you need to update the add-on profiles to version 2.02.004 or later for the modules to be compatible with version 18 or later of RSLogix 5000 software and the Studio 5000 environment. To find add-on profiles, go to http://www.rockwellautomation.com/support.
(3)Dual-channel Analog (DCA) safety application instruction is available in RSLogix 5000 software, version 20 or later and Studio 5000 environment, version 21 and later.
Rockwell Automation Publication 1734-UM013J-EN-P - July 2014 |
19 |
Chapter 1 POINT Guard I/O Overview
Use POINT Guard I/O modules in EtherNet/IP or DeviceNet safety architectures. Safety controllers control the safety outputs. Safety or standard PLC controllers can control the standard outputs.
Figure 1 - POINT Guard I/O Modules in EtherNet/IP Safety Architecture
GuardLogix
Controller
Stratix Switch
CompactBlock
Guard I/O™
Safety Communication |
POINT Guard I/O and POINT I/O |
Standard Communication |
|
Safety Communication
Standard Communication
Figure 2 - POINT Guard I/O Modules in DeviceNet Safety Architectures
GuardLogix
Controller
SmartGuard
Controller
Guard I/O |
POINT Guard I/O and POINT I/O
20 |
Rockwell Automation Publication 1734-UM013J-EN-P - July 2014 |
POINT Guard I/O Overview |
Chapter 1 |
|
|
Safety Application
Requirements
POINT Guard I/O modules are certified for use in safety applications up to and including Performance Level e (PLe/Cat. 4) and Safety Integrity Level 3
(SIL CL3) in which the de-energized state is the safe state. Safety application requirements include evaluating probability of failure rates (PFD and PFH), system reaction time settings, and functional verification tests that fulfill SIL 3 criteria.
Creating, recording, and verifying the safety signature is also a required part of the safety application development process. Safety signatures are created by the safety controller. The safety signature consists of an identification number, date, and time that uniquely identifies the safety portion of a project. This includes all safety logic, data, and safety I/O configuration.
For safety system requirements, including information on the safety network number (SNN), verifying the safety signature, functional verification test intervals, system reaction time, and PFD/PFH calculations, refer to the following publications.
For safety requirements in |
Refer to |
|
|
GuardLogix controller systems |
GuardLogix 5570 Controller Systems Safety Reference |
|
Manual, publication 1756-RM099 |
|
|
SmartGuard 600 controller systems |
SmartGuard 600 Controllers Safety Reference Manual, |
|
publication 1752-RM001 |
|
|
You must read, understand, and fulfill the requirements detailed in these publications prior to operating a safety system that uses POINT Guard I/O modules.
Rockwell Automation Publication 1734-UM013J-EN-P - July 2014 |
21 |
Chapter 1 POINT Guard I/O Overview
Notes:
22 |
Rockwell Automation Publication 1734-UM013J-EN-P - July 2014 |
Chapter 2
Safety Inputs, Safety Outputs, and Safety Data
Topic |
Page |
|
|
Safe States |
23 |
|
|
Safety Inputs (1734-IB8S) |
24 |
|
|
Safety Analog Inputs (1734-IE4S) |
31 |
|
|
Safety Outputs (1734-OB8S) |
39 |
|
|
I/O Status Data |
42 |
|
|
ATTENTION:
• The safe state of the outputs is defined as the off state.
•The safe state of the module and its data is defined as the off state.
•Use the POINT Guard I/O module only in applications where the off state is the safe state.
These are the safe states of the digital POINT Guard I/O modules:
•Safety outputs: OFF
•Safety input data to network: OFF (single channel and dual-channel equivalent)
•Safety input data to network: OFF/ON for input channels n/n+1 (dual-channel complimentary)
Figure 3 - Safety Status
Networks |
Inputs to Network OFF |
Safety
Status
Output OFF |
Input |
44076
The module is designed for use in applications where the safe state is the off state.
Rockwell Automation Publication 1734-UM013J-EN-P - July 2014 |
23 |
Chapter 2 Safety Inputs, Safety Outputs, and Safety Data
These are the safe states of the POINT Guard I/O analog input module:
•Safety input data to network in single-channel configuration: 0 (OFF)
•Safety input data to network in dual-channel equivalent configuration:
–If a diagnostic fault occurs, the signal for the faulted channel is set to 0 (OFF).
–If a dual-channel discrepancy fault occurs, the dual-channel inputs continue to report actual input signals.
Safety Inputs (1734-IB8S) |
Safety inputs are used to monitor safety input devices. |
A test output can be used in combination with a safety input for short circuit, cross-channel, and open-circuit fault detection. Configure the test output as a pulse test source and associate it to a specific safety input.
TIP |
|
The test output can also be configured as a power supply to source 24V DC |
|||||||||
|
|
to an external device, for example, a light curtain. |
|
|
|
|
|||||
Figure 4 - Example Use of a POINT Guard I/O Input Module |
|
|
|
|
|
|
|||||
Safety Input |
|
|
|
|
|
|
|
|
|
|
|
|
I0 |
|
I1 |
I4 |
I5 |
|
|
|
|
||
Terminal |
|
0 |
|
1 |
0 |
|
|
|
|
|
|
|
|
|
|
|
1 |
|
|
|
|||
|
|
I2 |
|
I3 |
I6 |
I7 |
|
|
|
|
|
|
|
2 |
|
3 |
2 |
|
|
3 |
|
|
|
|
|
COM |
|
COM |
COM |
COM |
|
|
|
|
|
|
|
4 |
|
5 |
4 |
|
|
5 |
|
|
|
|
|
TO |
|
T1M |
T2 |
T3M |
|
|
External |
||
|
|
|
|
|
Contact |
||||||
|
|
6 |
|
7 |
6 |
|
|
7 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Where: |
|
|
|
|
|
|
|
|
||
|
T0 = Test Output 0 |
|
T1M = Test Output 1 with Muting |
|
|
|
|
||||
|
T2 = Test Output 2 |
|
T3M = Test Output 3 with Muting |
|
|
|
|
||||
|
I0…I7 = Safety Inputs |
|
|
|
|
|
|
|
|
24 |
Rockwell Automation Publication 1734-UM013J-EN-P - July 2014 |
Safety Inputs, Safety Outputs, and Safety Data |
Chapter 2 |
|
|
Figure 5 - Test Pulse in a Cycle
On
OUT
X |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Off |
|
|
|
|
|
|
Y |
|
|
|
|
|
||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
For the 1734-IB8S module, the pulse width (X) is typically 525 μs; the pulse period (Y) is typically 144 ms.
When the external input contact is closed, a test pulse is output from the test output terminal to diagnose the field wiring and input circuitry. By using this function, short-circuits between inputs and 24V power, and between input signal lines and open circuits can be detected.
Figure 6 - Short-circuit between Input Signal Lines
24V |
IN+ |
|
|
|
|
|
||||
|
|
|
|
|
|
|
|
|
||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
COM |
|
|
|
|
|
|
24V |
|
|
|
|
|
|
|
|
|
|||
|
|
|
|
|
|
|
|
|
||
|
|
|
|
|
|
|
|
|
||
|
|
|
|
|
|
|
|
|
|
0V |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
T0 |
|
|
|
|
|
|
External Contact |
|
|
|
|
|
|
|
|
|
|||
|
|
|
|
|
|
|
||||
|
|
|
|
|
|
|
|
|
||
|
|
|
|
|
|
|
|
|
||
|
|
IN0 |
|
|
|
|
Short-circuit between Input Signal Lines and Power |
|||
|
|
|
|
|
|
|
|
|||
|
|
|
|
|
|
|
|
|
|
Supply (positive side) |
T1
External Contact
IN1
Short-circuit between Input Signal Lines
44079
Rockwell Automation Publication 1734-UM013J-EN-P - July 2014 |
25 |
Chapter 2 Safety Inputs, Safety Outputs, and Safety Data
If an error is detected, safety input data and safety input status turn off.
Figure 7 - Normal Operation and Fault Detection (not to scale)
Normal Operation |
Test Output 0 |
24V |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
0V |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
External Device |
ON |
|
|
|
|
|
|
|
|
|
|
|
|||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||||||||||
|
|
|
|
|
|
OFF |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Input Terminal 0 |
ON |
|
|
|
|
|
|
|
|
|
|
|
||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||||||||||
Safety |
|
|
|
|
|
OFF |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|||
|
|
|
|
|
Safety Input 0 |
ON |
|
|
|
|
|
|
|
|
|
|
|||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|||||||||||||
I/O |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|||
Network |
|
|
|
|
|
Data |
|
OFF |
|
|
|
|
|
|
|
|
|
|
|||||||||
Data Sent |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||
to the |
|
|
|
|
|
|
|
ON |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||
Controller |
|
|
|
|
Safety Input 0 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|||||
|
|
|
|
|
|
Status |
|
OFF |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Fault Detection |
Test Output 0 |
24V |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|||||||||
|
|
|
|
|
|
|
|
|
0V |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||
|
|
|
|
|
|
|
External Device |
ON |
|
|
|
|
|
|
|||||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||||||||||||
|
|
|
|
|
|
|
OFF |
|
|
|
|
|
|
|
|
|
|||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|||||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||||||||||
|
|
|
|
|
|
|
Input Terminal 0 |
ON |
|
|
|
|
|
|
|
|
|||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|||||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|||||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|||||||||||||
|
|
|
|
|
|
|
OFF |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Fault Detected |
|||||||||
Safety |
|
|
|
|
|
Safety Input 0 |
ON |
|
|
|
|
|
|||||||||||||||
|
|
|
|
|
|
|
|
|
|
||||||||||||||||||
|
|
|
|
|
|
|
|
|
|
||||||||||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||||
I/O |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|||
|
|
|
|
|
Data |
|
OFF |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|||||
Network |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||
Data Sent |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
to the |
|
|
|
|
|
Safety Input 0 |
ON |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||||||
|
|
|
|
|
|
||||||||||||||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|||||
Controller |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|||
|
|
|
|
|
Status |
|
OFF |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
26 |
Rockwell Automation Publication 1734-UM013J-EN-P - July 2014 |
Safety Inputs, Safety Outputs, and Safety Data Chapter 2
To support dual-channel safety devices, the consistency between signals on two channels can be evaluated. Either equivalent or complementary can be selected.
If the length of a discrepancy between the channels exceeds the configured discrepancy time (0…65,530 ms in increments of 10 ms), the safety input data and the individual-safety input status turn off for both channels. In Dual-channel Complimentary mode, the safety input data goes to off/on for input channels n/n+1 respectively as described in Table 3.
|
|
|
|
IMPORTANT |
The dual-channel function is used with two consecutive inputs that are paired |
|||||
|
|
|
|
|
|
together, starting at an even input number, such as inputs 0 and 1, 2 and 3, |
||||
|
|
|
|
|
|
and so on. |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
IMPORTANT |
If you are using the safety application instructions with a GuardLogix |
|||||
|
|
|
|
|
|
controller, set the module’s inputs to Single (default). Do not use the modules’ |
||||
|
|
|
|
|
|
dual-channel mode as this functionality is provided by the safety application |
||||
|
|
|
|
|
|
instructions. |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
This table shows the relation between input terminal states and controller input |
||||||
|
|
|
|
data and status. |
|
|
|
|
|
|
Table 3 - Terminal Input Status and Controller I/O Data |
|
|
|
|
|
|
||||
|
|
|
|
|
|
|
|
|
||
Dual-channel Mode |
Input Terminal |
Controller Input Data and Status |
|
|
Dual-channel |
Dual-channel |
||||
|
|
|
|
|
|
|
|
|
Resultant |
Resultant |
|
IN0 |
IN1 |
Safety |
Safety |
|
Safety |
Safety |
|||
|
|
Data |
|
|||||||
|
|
|
Input 0 Data |
Input 1 Data |
Input 0 Status |
Input 1 Status |
|
|||
|
|
|
|
|
||||||
Dual-channels, Equivalent |
OFF |
OFF |
OFF |
OFF |
|
ON |
ON |
OFF |
Normal |
|
|
OFF |
ON |
OFF |
OFF |
|
OFF |
OFF |
OFF |
Fault |
|
|
ON |
OFF |
OFF |
OFF |
|
OFF |
OFF |
OFF |
Fault |
|
|
ON |
ON |
ON |
ON |
|
ON |
ON |
ON |
Normal |
|
Dual-channels, Complementary |
OFF |
OFF |
OFF |
ON |
|
OFF |
OFF |
OFF |
Fault |
|
|
OFF |
ON |
OFF |
ON |
|
ON |
ON |
OFF |
Normal |
|
|
ON |
OFF |
ON |
OFF |
|
ON |
ON |
ON |
Normal |
|
|
ON |
ON |
OFF |
ON |
|
OFF |
OFF |
OFF |
Fault |
Rockwell Automation Publication 1734-UM013J-EN-P - July 2014 |
27 |
Chapter 2 Safety Inputs, Safety Outputs, and Safety Data
In Equivalent mode, both inputs of a pair should be in the same (equivalent) state. When a transition occurs in one channel of the pair prior to the transition of the second channel of the pair, a discrepancy occurs. If the second channel transitions to the appropriate state prior to the discrepancy time elapsing, the inputs are considered equivalent. If the second transition does not occur before the discrepancy time elapses, the channels will fault. In the fault state, the input and status for both channels are set low (OFF). When configured as an equivalent dual pair, the data bits for both channels will always be sent to the controller as equivalent, both high or both low.
Figure 8 - Equivalent, Normal Operation and Fault Detection (not to scale)
Normal Operation |
IN0 |
ON |
|
|
|
|
|
|
|
|
||||||||||
|
|
|
|
|
|
|
|
|||||||||||||
|
|
|
|
|
OFF |
|
|
|
|
|
|
|
|
|
|
|||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|||||
|
|
|
|
|
IN1 |
ON |
|
|
|
|
|
|
|
|
|
|
||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||||||
|
|
|
|
|
OFF |
|
|
|
|
|
|
|
|
|
|
|||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Discrepancy Time |
||||||
|
|
|
|
Safety Input 0 |
ON |
|
|
|
|
|
|
|
|
|
||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||||||
Safety |
|
|
|
Data |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
OFF |
|||||||||||||||
I/O |
|
|
|
|
|
|||||||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Network |
|
|
|
|
|
ON |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Data Sent |
|
|
|
Safety Input 1 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|||
to the |
|
|
|
Data |
|
OFF |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Controller |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||
|
|
|
Safety Input 0, 1 |
ON |
|
|
|
|
|
|
|
|
||||||||
|
|
|
|
|
|
|
|
|
|
|
||||||||||
|
|
|
|
|
|
|
|
|
|
|
||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||
|
|
|
|
Status |
|
OFF |
|
|
|
|
|
|
|
|
||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||||||
Fault Detection |
|
IN0 |
ON |
|
|
|
|
|
|
|
|
|||||||||
|
|
|
|
|
|
|
|
|
||||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|||||
|
|
|
|
|
OFF |
|
|
|
|
|
|
|
|
|||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|||||||
|
|
|
|
|
IN1 |
ON |
|
|
|
|
|
|
|
|
|
|||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|||||||
|
|
|
|
|
OFF |
|
|
|
|
|
|
|
|
|
||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
Discrepancy Time |
|||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||
Safety |
|
|
|
Safety Input 0 |
ON |
|
|
|
|
|
|
|
|
|
|
|
||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|||
|
|
Data |
|
OFF |
|
|
|
|
|
|
|
|
|
|
|
|||||
I/O |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||
Network |
|
|
|
|
ON |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|||||
Data Sent |
|
|
|
Safety Input 1 |
|
|
|
|
|
|
|
|
||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||||
to the |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||
|
|
Data |
|
OFF |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||
Controller |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||
|
|
|
|
|
|
ON |
|
|
|
|
|
|
|
|
|
|
Fault Detected |
|||
|
|
|
|
Safety Input 0, 1 |
|
|
|
|
|
|
|
|
|
|
||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||
|
|
|
|
Status |
|
OFF |
|
|
|
|
|
|
|
|
|
|
|
|
||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
28 |
Rockwell Automation Publication 1734-UM013J-EN-P - July 2014 |
Safety Inputs, Safety Outputs, and Safety Data |
Chapter 2 |
|
|
In Complementary mode, the inputs of a pair should be in the opposite (complementary) state. When a transition occurs in one channel of the pair prior to the transition of the second channel of the pair, a discrepancy occurs. If the second channel transitions to the appropriate state prior to the discrepancy time elapsing, the inputs are considered complementary.
If the second transition does not occur before the discrepancy time elapses, the channels will fault. The fault state of complementary inputs is the even-numbered input turned off and the odd-numbered input turned ON. Note that if faulted, both channel status bits are set low. When configured as a complementary dual-channel pair, the data bits for both channels will always be sent to the controller in complementary, or opposite states.
Figure 9 - Complementary, Normal Operation and Fault Detection (not to scale)
Normal |
|
IN0 |
ON |
|
|
|
|
|
|
|
|
|
|
|
|
|
||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|||||
Operation |
|
|
OFF |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
IN1 |
ON |
|
|
|
|
|
|
|
|||||||
|
|
|
|
|
|
|
|
|
|
|
|
|||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|||||||||
|
|
|
|
|
OFF |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Discrepancy Time |
|
|
|
|
|
|
Safety Input 0 |
ON |
|
|
|
|
|
|
|
|
|
|
|
|
|
||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||||
Safety |
|
|
|
Data |
|
OFF |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
I/O |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Network |
|
|
|
|
|
ON |
|
|
|
|
|
|
|
|
|
|
|
|||
Data Sent |
|
|
|
Safety Input 1 |
|
|
|
|
|
|
|
|
|
|
|
|||||
|
|
|
|
|
|
|
|
|
|
|
||||||||||
to the |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||
|
|
|
Data |
|
OFF |
|
|
|
|
|
|
|
|
|
|
|
||||
Controller |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|||||
|
|
|
|
Safety Input 0, 1 |
ON |
|
|
|
|
|
|
|
|
|
|
|
|
|||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||
|
|
|
|
Status |
|
OFF |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Fault Detection |
IN0 |
ON |
|
|
|
|
|
|
|
|
|
|
|
|
|
|||||
|
|
|
|
|
|
|
|
|
|
|
|
|
||||||||
OFF |
|
|
|
|
|
|
|
|
|
|
|
|
|
|||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||
|
|
|
|
|
IN1 |
ON |
|
|
|
|
|
|
|
|
||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
||||||||
|
|
|
|
|
|
|
|
|||||||||||||
|
|
|
|
|
|
|
|
|||||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
OFF |
|
|
|
|
|
|
|
|
||||||
|
|
|
|
|
|
|
|
|
||||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
Discrepancy Time |
|
|||||||
|
|
|
|
Safety Input 0 |
ON |
|
|
|
|
|
|
|
|
|
|
|
|
|||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||
Safety |
|
|
Data |
|
OFF |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
I/O |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||
Network |
|
|
|
|
ON |
|
|
|
|
|
|
|
|
|
|
|||||
|
|
|
|
|
|
|
|
|
|
|
|
|||||||||
Data Sent |
|
|
|
Safety Input 1 |
|
|
|
|
|
|
|
|
||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||||
to the |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||
|
|
Data |
|
OFF |
|
|
|
|
|
|
|
|
|
|
||||||
Controller |
|
|
|
|
|
|
|
|
|
|
|
|
||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||
|
|
|
|
|
|
ON |
|
|
|
|
|
|
|
|
|
|
|
|
Fault Detected |
|
|
|
|
|
Safety Input 0, 1 |
|
|
|
|
|
|
|
|
|
|
|
|
||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||
|
|
|
|
Status |
|
OFF |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Rockwell Automation Publication 1734-UM013J-EN-P - July 2014 |
29 |
Chapter 2 Safety Inputs, Safety Outputs, and Safety Data
If an error is detected, the safety input data remains in the OFF state. Follow this procedure to activate the safety input data again.
1.Remove the cause of the error.
2.Place the safety input (or safety inputs) into the safe state.
3.Allow the input-error latch time to elapse.
After these steps are completed, the I/O indicator (red) turns off. The input data is now active.
On-delay—An input signal is treated as Logic 0 during the on-delay time (0…126 ms, in increments of 6 ms) after the input contact’s rising edge. The input turns on only if the input contact remains on after the on-delay time has elapsed. This helps prevent rapid changes of the input data due to
contact bounce.
Figure 10 - On-delay
Input Signal |
ON |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|||||
OFF |
|
|
|
|
|
|
|
|
|
|
|
|
|
||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||
|
|
|
|
|
|
|
|
|
|
|
|
|
|||
Safety Input |
ON |
|
|
|
|
|
|
||||||||
|
|
|
|
|
|
||||||||||
|
|
|
|
|
|||||||||||
Network Data |
OFF |
|
|
|
|
|
|
|
|
|
|
||||
|
|
|
|
|
|
|
|
|
|
||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
On-delay |
44094 |
Off-delay—An input signal is treated as Logic 1 during the off-delay time (0…126 ms, in increments of 6 ms) after the input contact’s falling edge.
The input turns off only if the input contact remains off after the off delay time has elapsed. This helps prevent rapid changes of the input data due to contact bounce.
Figure 11 - Off-delay
Input Signal |
ON |
|
|
|
|
|
|
|
|
|
|
|
|
OFF |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||
Safety Input |
ON |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|||
OFF |
|
|
|
|
|
|
|
|
|
|
|
|
|
Network Data |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Off-delay |
44095 |
