Dear customer
Thank you for purchasing this product.
For optimum performance and safety, please read these instructions carefully.
VK725D : indicates features applicable to SC-VK725D only.
VK825D : SC-VK825D only.
VK925D : SC-VK925D only.
¡Unless otherwise indicated, illustrations in these operating instructions are of SC-VK725D.

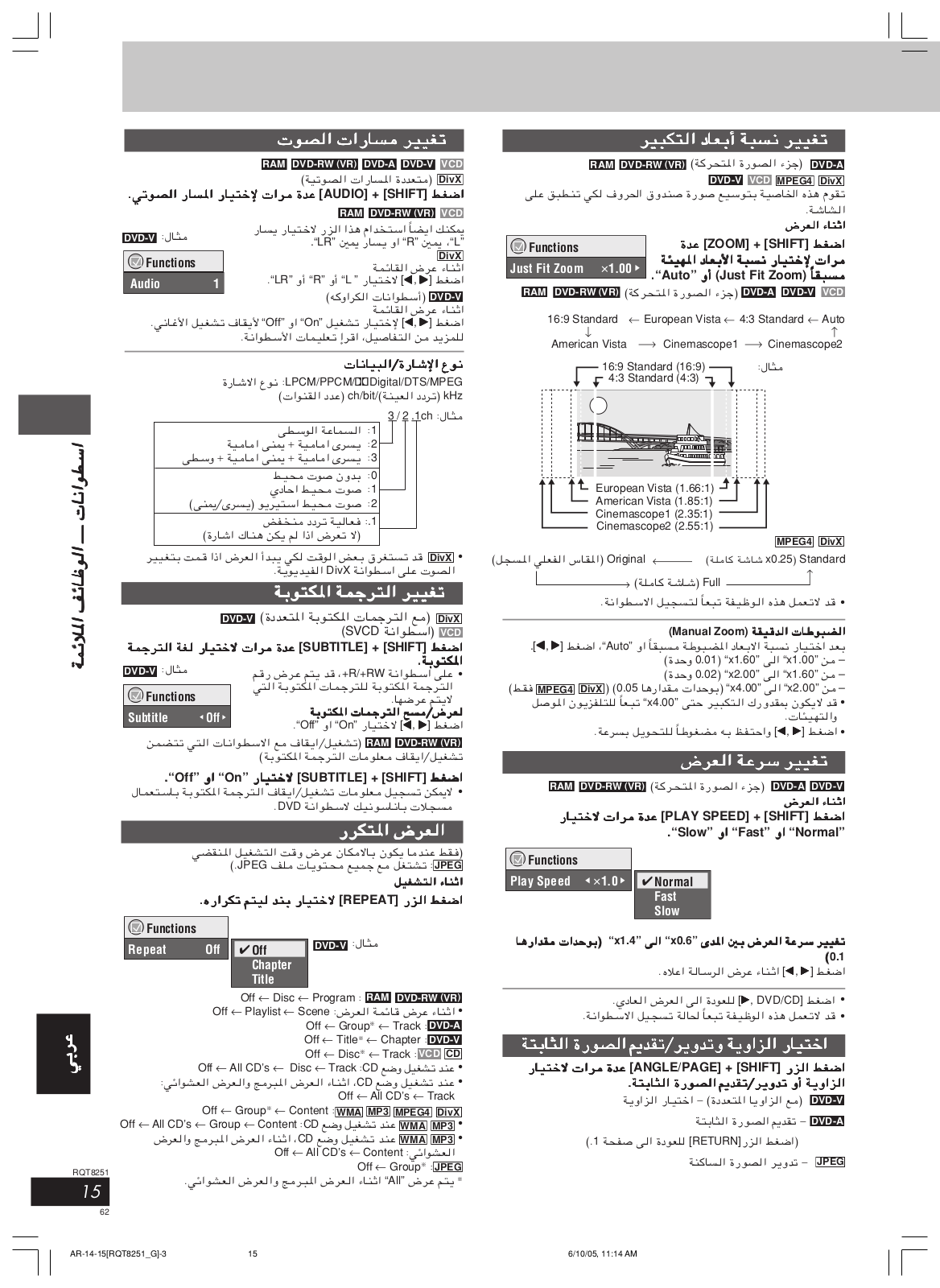

¡Operations in these instructions are described mainly with the remote control, but you can do the operations on the main unit if the controls are the same.
System |
SC-VK725D |
SC-VK825D |
SC-VK925D |
Main unit |
SA-VK725D (1 unit) |
SA-VK825D (1 unit) |
SA-VK925D (1 unit) |
|
|
|
|
Front speakers |
SB-VK72 (2 units) |
SB-VK82 (2 units) |
SB-VK92 (2 units) |
|
|
|
|
Center speaker |
SB-PC72 (1 unit) |
SB-PC82 (1 unit) |
SB-PC92 (1 unit) |
|
|
|
|
Surround speakers |
SB-PS72 (2 units) |
SB-PS82 (2 units) |
SB-PS92 (2 units) |
|
|
|
|
Subwoofer(s) |
---- |
SB-WVK82 (1 unit) |
SB-WVK92 (2 units) |
|
|
|
|
|
|
|
|
CAUTION!
THIS PRODUCT UTILIZES A LASER.
USE OF CONTROLS OR ADJUSTMENTS OR PERFORMANCE
OF PROCEDURES OTHER THAN THOSE SPECIFIED HEREIN
MAY RESULT IN HAZARDOUS RADIATION EXPOSURE.
DO NOT OPEN COVERS AND DO NOT REPAIR YOURSELF.
REFER SERVICING TO QUALIFIED PERSONNEL.
WARNING: |
|
|
|
(Inside of product) |
|
|
|
||
|
|
|
||
|
|
|
||
TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK |
|
|
|
|
|
|
|
|
|
OR PRODUCT DAMAGE, DO NOT EXPOSE THIS |
|
|
|
|
APPARATUS TO RAIN, MOISTURE, DRIPPING OR |
|
|
|
|
SPLASHING AND THAT NO OBJECTS FILLED WITH |
|
|
|
|
LIQUIDS, SUCH AS VASES, SHALL BE PLACED ON |
|
|
|
|
THE APPARATUS. |
|
|
|
|
|
|
|
|
|
CAUTION!
•DO NOT INSTALL OR PLACE THIS UNIT IN A BOOKCASE, BUILT-IN CABINET OR IN ANOTHER CONFINED SPACE.
ENSURE THE UNIT IS WELL VENTILATED. TO PREVENT RISK OF ELECTRIC SHOCK OR FIRE HAZARD DUE TO OVERHEATING, ENSURE THAT CURTAINS AND ANY OTHER MATERIALS DO NOT OBSTRUCT THE VENTILATION VENTS.
• DO NOT OBSTRUCT THE UNIT'S VENTILATION OPENINGS WITH NEWSPAPERS, TABLECLOTHS, CURTAINS, AND SIMILAR ITEMS.
• DO NOT PLACE SOURCES OF NAKED FLAMES, SUCH AS LIGHTED CANDLES, ON THE UNIT.
• DISPOSE OF BATTERIES IN AN ENVIRONMENTALLY FRIENDLY MANNER.
The socket outlet shall be installed near the equipment and easily accessible or the mains plug or an appliance coupler shall remain readily operable.
This product may receive radio interference caused by mobile telephones during use. If such interference is apparent, please increase separation between the product and the mobile telephone.
THIS UNIT IS INTENDED FOR USE IN TROPICAL CLIMATES.
CAUTION:
The AC voltage is different according to the area.
Be sure to set the proper voltage in your area before use. (For details, please refer to page 8.)
RQT8251
2
2
Safety precautions
Placement
Set the unit up on an even surface away from direct sunlight, high temperatures, high humidity, and excessive vibration. These conditions can damage the cabinet and other components, thereby shortening the unit’s service life.
Do not place heavy items on the unit.
Voltage
Do not use high voltage power sources. This can overload the unit and cause a fire.
Do not use a DC power source. Check the source carefully when setting the unit up on a ship or other place where DC is used.
Power cord protection
Ensure the AC power cord is connected correctly and not damaged. Poor connection and lead damage can cause fire or electric shock. Do not pull, bend, or place heavy items on the lead.
Grasp the plug firmly when unplugging the lead. Pulling the AC power cord can cause electric shock.
Do not handle the plug with wet hands. This can cause electric shock.
Foreign matter
Do not let metal objects fall inside the unit. This can cause electric shock or malfunction.
Do not let liquids get into the unit. This can cause electric shock or malfunction. If this occurs, immediately disconnect the unit from the power supply and contact your dealer.
Do not spray insecticides onto or into the unit. They contain flammable gases which can ignite if sprayed into the unit.
Service
Do not attempt to repair this unit by yourself. If sound is interrupted, indicators fail to light, smoke appears, or any other problem that is not covered in these instructions occurs, disconnect the AC power cord and contact your dealer or an authorized service center. Electric shock or damage to the unit can occur if the unit is repaired, disassembled or reconstructed by unqualified persons.
Extend operating life by disconnecting the unit from the power source if it is not to be used for a long time.
Accessories
Please check and identify the supplied accessories.
1 AC power supply cord |
3 |
Speaker cords |
|
|
VK725D |
||
|
1 x short cord |
||
|
2 x long cords |
||
1 Remote control |
|
|
|
VK725D |
1 |
Video cable |
|
(N2QAJB000143) |
|
|
|
VK825D |
|
|
|
(N2QAJB000142) |
|
|
|
VK925D |
1 |
AM loop antenna |
|
(N2QAJB000141) |
|||
|
|
||
2 Batteries for remote control
1 FM indoor antenna
Note
The included AC power supply cord is for use with this unit only. Do not use it with other equipment.
