Operating Instructions

DVD Home Theater Sound System

Model No. SC-PT950

SC-PT1050

SC-PT953

The illustration shows SC-PT950.

Wireless surround

speakers

[PT1050]

Wireless subwoofer

[U.S.A.[and[Canada[

As an ENERGY STAR Partner, Panasonic has determined that this product meets the ENERGY STAR guidelines for energy efficiency.

For Canada only: The word “Participant” is used in place of the word

“Partner”.

P PC

High-quality picture

HDMI capability, Advanced

progressive scan and more.

XM® Satellite Radio

Enjoy a variety of digital radio

channels.

Before connecting, operating or adjusting this product, please read the instructions completely. Please keep this manual for future reference.

If you have any questions contact

In the U.S.A.: 1-800-211-PANA (7262) In Canada: 1-800-561-5505

RQTX0064-3P

Page 2

Dear customer

Thank you for purchasing this product. For optimum performance and safety, please read these instructions carefully.

≥ These operating instructions are applicable to models SC-PT950,

SC-PT953 and SC-PT1050 for a variety of regions.

≥ Unless otherwise indicated, illustrations in these operating

instructions are of SC-PT950 for U.S.A. and Canada.

≥ Operations in these instructions are described mainly with the

remote control, but you can perform the operations on the main unit if the controls are the same.

CAUTION!

THIS PRODUCT UTILIZES A LASER. USE OF CONTROLS OR ADJUSTMENTS OR PERFORMANCE OF PROCEDURES OTHER THAN THOSE SPECIFIED HEREIN MAY RESULT IN HAZARDOUS RADIATION EXPOSURE. DO NOT OPEN COVERS AND DO NOT REPAIR YOURSELF. REFER SERVICING TO QUALIFIED PERSONNEL.

WARNING:

TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK OR PRODUCT DAMAGE,

≥

DO NOT EXPOSE THIS APPARATUS TO RAIN, MOISTURE, DRIPPING OR SPLASHING AND THAT NO OBJECTS FILLED WITH LIQUIDS, SUCH AS VASES, SHALL BE PLACED ON THE APPARATUS.

≥

USE ONLY THE RECOMMENDED ACCESSORIES.

≥

DO NOT REMOVE THE COVER (OR BACK); THERE ARE NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

THE FOLLOWING APPLIES ONLY IN THE U.S.A. AND CANADA

(For wireless system)

The following mark and symbols are located on bottom of the unit.

IMPORTANT SAFETY INSTRUCTIONS

CAUTION: TO REDUCE THE RISK OF ELECTRIC

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

SHOCK, DO NOT REMOVE SCREWS. NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

[PT950] : indicates features applicable to SC-PT950 only. [PT953] : SC-PT953 only

[PT1050] : SC-PT1050 only

System SC-PT950 SC-PT953 SC-PT1050

Main unit SA-PT950 SA-PT953 SA-PT1050

Front speakers SB-HF950 SB-HF950 SB-HF1050

Center speaker SB-HC950 SB-HC950 SB-HC950

Surround speakers SB-HS950 SB-HS950 SB-HS1050 Subwoofer SB-HW950 SB-HW950 s Active subwoofer ssSB-WA1050

Digital transmitter SH-FX65T SH-FX65T SH-FX65T

Wireless system SE-FX65 SE-FX65 SE-FX66

THE FOLLOWING APPLIES ONLY IN THE U.S.A.

FCC Note:

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

≥ Reorient or relocate the receiving antenna. ≥ Increase the separation between the equipment and receiver. ≥ Connect the equipment into an outlet on a circuit different from that

to which the receiver is connected.

≥ Consult the dealer or an experienced radio/TV technician for help.

FCC caution: To maintain compliance with FCC regulations, shielded interface cables must be used with this equipment. Operation with non-approved equipment or unshielded cables may result in interference to radio and TV reception. Any changes or modifications not approved by the party responsible for compliance could void the user’s authority to operate this equipment.

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Responsible Party: Panasonic Corporation of North America One Panasonic Way Secaucus, NJ 07094

Support Contact: Panasonic Consumer Electronics Company Telephone No.: 1-800-211-7262

WARNING:

To satisfy FCC RF exposure requirements for mobile transmitting devices, a separation distance of 20 cm or more should be maintained between the antenna of this device and persons during device operation. To ensure compliance, operations at closer than this distance is not recommended. The antenna used for this transmitter must not be co-located in conjunction with any other antenna or transmitter.

IMPORTANT SAFETY INSTRUCTIONS

Read these operating instructions carefully before using the unit. Follow the safety instructions on the unit and the applicable safety instructions listed below. Keep these operating instructions handy for future reference.

1) Read these instructions.

2) Keep these instructions.

3) Heed all warnings.

4) Follow all instructions.

5) Do not use this apparatus near water.

6) Clean only with dry cloth.

7) Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.

8) Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.

9) \U.S.A.\and\Canada] Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding-type plug has two blades and a third grounding prong.

RQTX0064

The wide blade or the third prong are provided for your safety. If the

provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.

10) Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.

11) Only use attachments/accessories specified by the manufacturer.

12) Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.

13) Unplug this apparatus during lightning storms or when unused for long periods of time.

14) Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

Page 3

Getting

Started

Playing

Discs

IMPORTANT SAFETY INSTRUCTIONS . . . . . . . 2

Simple Setup

step 1 step 2

step 3

step 4

Basic play. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

Using the main unit . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

Using the remote control . . . . . . . . . . . . . . . . . . . . . . 17

Convenient functions . . . . . . . . . . . . . . . . . . . . 18

Checking and selecting the disc . . . . . . . . . . . . . . . . . 18

Displaying current playback condition. . . . . . . . . . . . . 18

Playing CDs sequentially . . . . . . . . . . . . . . . . . . . . . . 18

Repeat play. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

[PT950] [PT953] Quick replay . . . . . . . . . . . . . . . . . . . . 18

Program and Random play . . . . . . . . . . . . . . . . . . . . . 19

Assembling the front speakers . . . .4

Positioning . . . . . . . . . . . . . . . . . . . . .5

Speaker installation options . . . . . . . . . . . . . 6

Cable connections. . . . . . . . . . . . . . . 7

Audio and video connections . . . . . . . . . . . . 7

Speaker connections . . . . . . . . . . . . . . . . . . 8

Radio antenna connections . . . . . . . . . . . . . 8

Digital transmitter connection . . . . . 9

step 5 step 6 step 7 step 8

Control reference guide . . . . . . . . . . . . . . . . . 12

Discs that can be played. . . . . . . . . . . . . . . . . 14

Maintenance. . . . . . . . . . . . . . . . . . . . . . . . . . . 15

Playing data discs using navigation menus . .20

Playing data discs . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

Selecting a track using CD text . . . . . . . . . . . . . . . . . 20

Playing HighMAT

Playing RAM and DVD-R/ -RW (DVD-VR) discs . . . . 21

Using on-screen menus . . . . . . . . . . . . . . . . . . 22

Main menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

Other Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

Changing the player settings . . . . . . . . . . . . . .25

Changing the delay time of the speakers. . . . . . . . . . 27

iPod connection. . . . . . . . . . . . . . . 10

AC cord connections. . . . . . . . . . . 10

Preparing the remote control . . . . 11

Performing QUICK SETUP . . . . . . 11

discs . . . . . . . . . . . . . . . . . . . . . . 21

Other

Operations

Reference

Using the EZ Sync

One touch play . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

Auto input switching . . . . . . . . . . . . . . . . . . . . . . . . . . 28

Speaker control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

Power off link . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

EZ Sync Control only with TV’s remote control

(for “HDAVI Control 2”). . . . . . . . . . . . . . . . . . . . . . . 28

Using the FM/AM radio . . . . . . . . . . . . . . . . . . . 29

Presetting stations automatically . . . . . . . . . . . . . . . . 29

Selecting the preset channels . . . . . . . . . . . . . . . . . . 29

Manual tuning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

Using the XM® Satellite Radio . . . . . . . . . . . . . 30

Selecting XM channels by direct entry . . . . . . . . . . . . 31

Selecting XM channels by category . . . . . . . . . . . . . . 31

Presetting the XM channels . . . . . . . . . . . . . . . . . . . . 31

Using sound effects . . . . . . . . . . . . . . . . . . . . .32

Using the equalizer function . . . . . . . . . . . . . . . . . . . . 32

Enjoying sound from all speakers: Surround Music . . . 32

Glossary . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .35

Product Service . . . . . . . . . . . . . . . . . . . . . . . . .35

Troubleshooting guide . . . . . . . . . . . . . . . . . . . 36

Specifications . . . . . . . . . . . . . . . . . . . . . . . . . .40

“HDAVI ControlTM” . . . . . 28

Enhancing the sound from the center speaker:

Center Focus. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32

Enhancing the stereo sound:

Dolby Pro Logic II/Super Surround . . . . . . . . . . . . . 32

Adjusting the amount of bass: Subwoofer level . . . . . 32

Adjusting the volume of each speaker: Speaker level

adjustments. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33

[PT1050] Enhancing the bass sound: H.BASS . . . . . . 33

[PT1050] Enhancing the surround sound effect:

Surround Enhancer . . . . . . . . . . . . . . . . . . . . . . . . . 33

Adjusting the speaker output level automatically:

Auto Speaker Setup . . . . . . . . . . . . . . . . . . . . . . . . 33

Enjoying audio from an external source . . . . .34

Enjoying audio from the television . . . . . . . . . . . . . . . 34

Using the Music Port . . . . . . . . . . . . . . . . . . . . . . . . . 34

Using the iPod . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34

[PT1050] Operating the cable TV box,

digital broadcasting or satellite receiver . . . . . . . . . 34

Limited Warranty (ONLY FOR U.S.A.) . . . . . . . 42

Limited Warranty (ONLY FOR CANADA). . . . . 43

Accessories . . . . . . . . . . . . . . . . . . . . Back cover

RQTX0064

Page 4

step

Assembling the front speakers

Preparation

≥ To prevent damage or scratches, lay down a soft cloth and perform assembly on it. ≥ For assembly, use a Phillips-head screwdriver. ≥ There is no difference between the right and left speakers and stands. ≥ For optional wall mount, refer to page 6.

Simple Setup

Assembling the front speakers

Make sure you have all the indicated components before starting assembly, setup, and connection.

2 Front speakers 2 Stands (with cable) 2 Bases

Slide into the groove.

Tighten securely.

Insert the wire fully.

i: White j: Blue

Push !

Position the cable between the ridges.

Leave about 80 mm (3

/16z)

Press into the groove.

Tighten securely.

8 Screws

Speaker assembly option

Thread the speaker cable through the base.

Leave about 100 mm (315/16z)

You can remove and use the cable from the stand. To reattach the cable, refer to page 6.

∫ Preventing the speakers from falling

≥ You will need to obtain the appropriate screw eyes to match the

walls or pillars to which they are going to be fastened.

≥ Consult a qualified housing contractor concerning the

appropriate procedure when attaching to a concrete wall or a surface that may not have strong enough support. Improper attachment may result in damage to the wall or speakers.

RQTX0064

Attach the speaker.

Insert the wire fully.

i: White j: Blue

Push !

Press into the groove.

Tighten securely.

String (not included) Thread from the wall to the speaker and tie tightly.

Rear of the speaker

Screw eye

(not included)

Wall

Approx. 150 mm

/32z)

Page 5

step

Positioning

How you set up your speakers can affect the bass and the sound field. Note the following points:

≥ Place speakers on flat secure bases. ≥ Placing speakers too close to floors, walls, and corners can result in excessive bass. Cover walls and windows with thick curtains. ≥ For optional wall mount, refer to page 6.

[Note]

Keep your speakers at least 10 mm (13/32q) away from the system for proper ventilation.

Setup example

Place the front, center, and surround speakers at approximately the same distance from the seating position. Using “Auto Speaker Setup” (➜ page 33) is a convenient way to get the ideal surround sound from your speakers when you are unable to place them an equal distance away from the seating position. The angles in the diagram are approximate.

Simple Setup

[PT950] [PT953] Subwoofer

[PT1050] Wireless subwoofer

e.g. [PT950] [PT953]

Place to the right or left of the television, on the floor or a sturdy shelf so that it will not cause vibration. Leave about 30 cm (11 television.

/16q) from the

Do not use the wireless equipment in a metal cabinet or bookshelf.

Wireless system

Place the wireless system within approximately 10 m (33 ft) from the main unit.

Front speakers

Left and right speakers are interchangeable.

60º

Put on a rack or shelf. Vibration caused by the speaker can disrupt the picture if it is placed directly on the television.

Main unit

Center speaker

Digital transmitter

Positioning

To allow for proper ventilation and to maintain good airflow around the main unit, position it with at least 5 cm (2q) of space on all sides.

Universal Dock for iPod

(included only for SC-PT950 and SC-PT1050) Position near the main unit.

≥ For compatible iPod, refer to

page 34.

Surround speakers e.g. [PT950] [PT953]

Left and right speakers are interchangeable.

120º

To avoid interference, maintain the following distances between the wireless equipment and other electronic devices that use the same radio frequency (2.4 GHz band).

POWER





AUTO OPERATION

ON/OFF

Wireless LAN: approx. 2 m (6-1/2 ft)

Cordless phone and other electronic devices: approx. 2 m (6-1/2 ft)

The wireless equipment will automatically seek a clear channel if any of these other devices interfere with its communication. When this happens, the wireless link indicator [“ [W1] ” or “ [WS] ([PT1050] only)”] flashes on the main unit, and there is a brief interruption in audio coming from the surround speakers.

This is the normal operation of the product working to assure the best possible performance of your home theater system.

If the interference persists, try moving the other devices to another location outside the range of the wireless equipment or move the wireless equipment nearer to the main unit.

Expand your listening options with a multi-room wireless sound system. Optional Panasonic wireless accessory SH-FX85

You can enjoy a multi-room wireless sound system when you use the optional Panasonic wireless accessory SH-FX85. For details, please refer to the operating instructions for the optional Panasonic wireless accessory.

(Continued on next page)

RQTX0064

Page 6

Notes on speaker use ≥Use only supplied speakers

Using other speakers can damage the unit, and sound quality will be negatively affected.

≥ You can damage your speakers and shorten their useful life if you play

sound at high levels over extended periods.

≥ Reduce the volume in the following cases to avoid damage:

– When playing distorted sound. – When the speakers are reverberating due to a record player, noise

Simple Setup

from FM broadcasts, or continuous signals from an oscillator, test

disc, or electronic instrument. – When adjusting the sound quality. – When turning the unit on or off.

2 Fit the speaker securely onto the screw(s) with the hole(s).

Front speaker

Attach to a wall without the base and the stand

Center speaker

190 mm (7

/32q)

If irregular coloring occurs on your television

The front and center speakers are designed to be used close to a television, but the picture may be affected with some televisions and setup combinations.

If this occurs, turn the television off for about 30 minutes.

The demagnetizing function of the television should correct the problem. If it persists, move the speakers further away from the television.

Caution

≥ The main unit and supplied speakers are to be

Positioning

used only as indicated in this setup. Failure to do so may lead to damage to the amplifier and/ or the speakers, and may result in the risk of fire. Consult a qualified service person if damage has occurred or if you experience a sudden change in performance.

≥ Do not attempt to attach these speakers to

walls using methods other than those described in this manual.

Caution

≥ Do not touch the front netted area of the speakers. Hold by the sides.

e.g. Center speaker

≥ Do not stand on the base. Be cautious when children are near.

e.g. Front speaker

384 mm

(15

/8q)

e.g. [PT950] [PT953]

Surround speaker

∫ Fitting speaker stands (not included)

(except front speakers and subwoofer)

Ensure the stands meet these conditions before purchasing them. Note the diameter and length of the screws and the distance between screws as shown in the diagram.

≥ The stands must be able to support over 10 kg (22 lbs). ≥ The stands must be stable even if the speakers are in a high

position.

e.g. Center speaker

Metal screw holes

For attaching to speaker stands

5 mm (

/16q), pitch 0.8 mm (1/32q)

Speaker installation options

∫ Attaching to a wall

You can attach all of the speakers (except subwoofer) to a wall.

The wall or pillar on which the speakers are to be attached should be

≥

capable of supporting 10 k

(22 lbs) per screw. Consult a qualified

Plate thickness plus 7 mm to 10 mm

/32q to 13/32q)

(plus

60 mm (2

∫ Reattaching the front speaker cable

Insert the cable from the bottom.

/8q)

Speaker stand

(not included)

building contractor when attaching the speakers to a wall. Improper attachment may result in damage to the wall and speakers.

1 Drive a screw (not included) into the wall.

At least 30 mm (1

‰4.0 mm (

RQTX0064

/32q)

Wall or pillar

‰7.0 t o 9.4 mm

(

4 to 6 mm (

/32q to 11/32q)

/32q to 1/4q)

/16q)

Leave about

80 mm (3

/16z)

Pull out the cable through the hole.

Page 7

step

Cable connections

Turn off all equipment before connection and read the appropriate operating instructions.

Do not connect the AC power supply cord until all other connections are complete.

COMPONENT VIDEO OUT

AUX

PBY

VIDEO

OUT

Audio and video connections

OPTICAL

AV OUT

Basic setup example

To your cable TV service or television antenna

RF IN

RF OUT

Cable TV box or video cassette recorder (not included)

RF cable (not included)

Audio cable

(not included)

Video cable

(included)

RF IN

AUDIO OUT

AUDIO IN

VIDEO INVIDEO OUT

Television (not included)

Other connections for improved picture and audio quality

Television terminals

AV IN

COMPONENT

VIDEO IN

All Panasonic televisions that have 480p input connectors are compatible. Consult the manufacturer if you have another brand of television.

OPTICAL OUT

[Note]

≥Do not make the video connections through the video cassette recorder. ≥ Only one video connection is required.

Cables required

(not included)

HDMI cable

[Note]

≥ Non-HDMI-compliant cables

cannot be utilized.

≥ It is recommended that you use

Panasonic’s HDMI cable. Recommended part number: RP-CDHG15 (1.5 m/4.9 ft), RP-CDHG30 (3.0 m/9.8 ft), RP-CDHG50 (5.0 m/16.4 ft), etc.

Video cables

Optical digital audio cable

(not included)

≥

Do not bend sharply when connecting

Main unit terminals Features

[\\\\\\\\\\\HDMI\\\\\\\\\\\]

AV OUT

[COMPONENT\VIDEO]

COMPONENT VIDEO OUT

PBY

≥ Connect to terminals

of the same color.

[OPTICAL\IN]

[PT1050]

OPTICAL

Main unit

(The illustration shows SC-PT1050.)

You can enjoy audio from your television, video cassette

AUX

COMPONENT VIDEO OUT

PBY

recorder or cable TV programs through this home theater system by connecting to the AUX terminals. Select “AUX” as the source (➜ page 34).

VIDEO

OUT

Main unit

This connection provides the best picture quality.

≥ Set “Video Mode” to “On” (➜ page 26, “HDMI” menu). ≥ Set “Video Output Mode” (➜ page 23, Picture Menu).

EZ Sync “HDAVI Control”

If your Panasonic television is an HDMI control compatible television, you can operate your television synchronizing with home-theater operations or vice versa (➜ page 28, Using the EZ Sync

”).

Control

≥ Make the audio connection (➜ above) when you use

EZ Sync “HDAVI Control” function.

This connection provides a much purer picture than the VIDEO OUT terminal.

≥ After making this connection, select “Darker” from the

“Black Level Control” in the “Video” menu (➜ page 26).

To enjoy progressive video

VIDEO

OUT

≥ Connect to a progressive output compatible

television. 1 Set “Video Mode” to “Off” (➜ page 26, “HDMI”

menu).

Set “

Video Output Mode the instructions on the menu screen Picture Menu).

This unit can decode the surround signals received through cable TV box, digital broadcasting or satellite broadcasts. Refer to your equipment’s operating instructions for details. Only Dolby Digital and PCM can be played with this connection.

≥ After making this connection, make settings and

select sound effects to suit your digital equipment (➜ page 34).

Due to copy guard protection, the picture may not be displayed properly.

(Continued on next page)

“HDAVI

” to “480p”, and then follow

(➜ page 23,

Simple Setup

Cable connections

RQTX0064

Page 8

step

Cable connections

Simple Setup

Cable connections

Wireless system

 



Speaker connections

Wireless system



Insert the wires correctly.

3 SURROUND (L) 4 SURROUND (R)

FM ANT FM ANT

Main unit

75 75

LOOP LOOP

ANT GND ANT GND

LOOP

EXT

(The illustration shows

AM AM

SC-PT950 for U.S.A.

ANT

and Canada.)

≥Be careful not to cross (short-circuit) or reverse the polarity of the speaker wires as doing so may damage the

speakers.

Speaker cable sticker (included)

Attach the corresponding speaker cables with the speaker-cable

[PT950] [PT953] Main unit

stickers to make connection easier.

e.g. [PT950] [PT953]

i: White

Surround speaker (R)

i: White

SURROUND

Rch

j: Blue

i: White j: Blue

Insert the wires correctly.

1 FRONT (L) 2 FRONT (R)

Insert the wires, taking care not to insert beyond the wire insulation.

5 CENTER 6 SUBWOOFER

[PT1050] Main unit

FRONT

Lch

j: Blue

i: White

FRONT

Lch

Insert the wires correctly.

1 FRONT (L) 2 FRONT (R)

j: Blue

5 CENTER

Radio antenna connections

≥ Keep loose antenna cables away from other wires and cables.

[FM\indoor\antenna]

(included)

Affix this end of the antenna where reception is best.

Adhesive tape

[AM\loop\antenna]

(included)

Stand the antenna up on its base. Place the antenna where reception is best.

ANT GND

LOOP

Push!

RQTX0064

LOOP

EXT

FM ANT

AM ANT

White

Black

Red

Click!

[XM\antenna]

(not included)

Use an XM Connect & Play antenna, or XM Passport Mini-Tuner and Home Dock. ≥ Subscription is required to receive

XM Satellite Radio. Refer to page 30 for details.

Page 9

Using an FM/AM outdoor antenna (optional)

Use outdoor antenna if FM/AM radio reception is poor.

≥ Disconnect the antenna when the unit is not in use. ≥ Do not use the outdoor antenna during an electrical storm.

Leave the AM loop antenna connected.

ANT GND

LOOP

Rework your outdoor antenna’s 75 ≠ coaxial cable as follows.

1 Remove a piece of the outer

vinyl insulator.

10 mm (

/32z)

10 mm (

7 mm (

/32z)

Peel back

/32z)

FM ANT

LOOP

AM ANT

EXT

2 Carefully pull the tabs apart

to remove the cover.



75 ≠ coaxial cable

(not included)

\U.S.A.\and\Canada]

Antenna plug (not included)

(16 to 39 feet)

5 to 12 m

3 Install the coaxial cable.

Clamp the cable conductor, and wind it on so that it does not contact anything else.





Clamp with pliers

FM outdoor antenna [Using a television antenna (not included)]

≥ Disconnect the FM indoor antenna. ≥ The antenna should be installed by a

competent technician.

AM outdoor antenna [Using a vinyl wire (not included)]

Run a piece of vinyl wire horizontally across a window or other convenient location.

4 Attach the cover.

Simple Setup

step

Digital transmitter connection

Do not insert or remove while the main unit is on.

DIGITAL

TRANSMITTER

AV OUT

Cable connections / Digital transmitter connection

Digital transmitter

Insert fully until you hear a click.

Main unit

RQTX0064

Page 10

step

iPod connection

Proceed to step 6 if you are not going to enjoy iPod with the main unit.

For SC-PT953, use an optional SH-PD10 Universal Dock for iPod.

Dock adapter for iPod nano 2nd generation (aluminum) (2GB, 4GB, 8GB)

Simple Setup

The mark adapter.

≥ For other types of iPod, use the dock adapter sold separately.

Do not connect or disconnect the dock while the main unit is on.

Universal Dock for iPod

Dock adapter for iPod 5th generation (video) (60GB, 80GB)

[11], [10] or [9] is shown on the back of each dock

Or visit the official Apple website for compatible adapters.

Connect the dock to the back of the main unit.

Dock adapter for iPod 5th generation (video) (30GB)

When removing, use your fingernail or a flat object to lift upwards.

∫ Charging the iPod

iPod (not included) ≥ Connect the iPod firmly.

The indicator lights up when the iPod is inserted, and

OPTION V .1

charging starts.

Charging time

iPod nano 2nd generation (aluminum) iPod 5th generation (video) iPod nano 1st generation

iPod 4th generation (color display) iPod 4th generation iPod mini

Until iPod is fully charged

5 hours (fixed)

[Note]

≥ AC cord must be connected with the main unit. ≥ “OPTION ¢” will be shown on the main unit’s display during iPod

charging in main unit standby mode. It will go off when charging is finished. For the above models under “fixed 5-hour charging”, “OPTION ¢” continues to be displayed throughout this duration, even when your iPod is fully charged. You can turn off this display by removing the iPod from the dock.

≥Compatibility depends on the software version of your iPod.

iPod connection / AC cord connections

step

AC cord connections

Wireless system

I/D SET

AC power supply cord (included)

To household AC outlet

[PT1050]

Wireless subwoofer

[PT1050]

AC IN

Ferri te core

Main unit

AC IN

AC power supply cord

(included)

AC power supply cord (included)

To household

Ferrite core

AC outlet

[PT950] [For\areas\except\U.S.A.[and\Canada]

Before connecting the AC power supply cord

Set the voltage.

Use a flat-head screwdriver to move the voltage selector to the appropriate position for the

AV OUT

area in which this system is used.

To household AC outlet

[PT950] [For\areas\except\U.S.A.\and\Canada]

[PT1050]

[PT950] [For\areas\except\U.S.A.\and\Canada]

≥ If the power plug does not fit your AC outlet

Use the power plug adaptor (included).

If it still does not fit, contact an electrical parts distributor for assistance.

Ferr ite core

DIGITAL

PUSH PUSH

TRANSCEIVER

Conserving power

The main unit and the wireless equipment consume a small amount of power when they are turned off (\U.S.A.\and\Canada] wireless system: approx. 0.2 W, wireless subwoofer \Others] main unit: approx. 0.9 W, wireless system: approx. 0.3 W).

RQTX0064

To save power when they are not to be used for a long time, unplug them from the household AC outlet. You will need to reset some memory items after plugging in the main unit.

main unit: approx. [PT1050]:

approx. 0.3 W

0.5 W

[Note]

The included AC power supply cords are for use with the main unit and

wireless equipment only. Do not use them with other equipment. Also,

do not use cords for other equipment with the main unit or wireless system.

Page 11

∫ [PT1050] Before using your wireless subwoofer

Perform the pairing procedure below to use your wireless subwoofer.

Preparation

≥Ensure all connections are completed. ≥Turn on the main unit and reduce the volume.

1 Turn on your wireless subwoofer. 2 While pressing [5/9] on the main unit, press the numbered button [3] on the remote control until “P” lights in the main unit’s display. 3 While “P” is displayed, press [I/D SET].

I/D SET

Wireless subwoofer

4 While pressing [5/9] on the main unit, press the numbered button [3] on the remote control.

≥“ [WS] ” lights on the main unit’s display.

5 Turn the wireless subwoofer off and on again.

≥Make sure its indicator lights up green.

Use a pointed object.

I/D SET

step

Preparing the remote control

∫ Batteries

Insert so the poles (i and j) match those in the remote control.

Press in and lift up.

R6/LR6, AA

Replace the cover.

≥ Do not use rechargeable type batteries.

Do not:

≥ mix old and new batteries. ≥ use different types at the same time. ≥ heat or expose to flame. ≥ take apart or short circuit. ≥ attempt to recharge alkaline or manganese batteries. ≥ use batteries if the covering has been peeled off.

Mishandling of batteries can cause electrolyte leakage which can severely damage the remote control.

Remove the batteries if the remote control is not going to be used for a long period of time. Store in a cool, dark place.

∫ Use

Aim at the remote control signal sensor (➜ page 13), avoiding obstacles, at a maximum range of 7 m (23 feet) directly in front of the unit.

Simple Setup

step

Performing QUICK SETUP

The QUICK SETUP screen assists you to make necessary settings.

To display the picture from the main unit, turn on your television and change its video input mode (e.g. VIDEO 1, AV 1, etc.).

≥To change your television’s video input mode,

refer to its operating instructions.

≥This remote control can perform some basic

television operations (➜ page 12).

DVD

, , ,

ENTER

SETUP

RETURN

AUTO

DVD

SETUP

Select

ENTER

SETUP

Turn on the unit.

Select “DVD/CD”.

Show the QUICK SETUP screen.

Setup

QUICK SETUP

Select the menu language.

English

ENTER

to select and press

Follow the messages and make the settings.

RETURN

≥Menu Language ≥TV Type ≥TV Aspect

Press to finish QUICK SETUP.

Press to exit.

RETURN

Preparing the remote control / Performing QUICK SETUP

to return

To change these settings later

Select “QUICK SETUP” in the “Others” menu (➜ page 27).

RQTX0064

Page 12

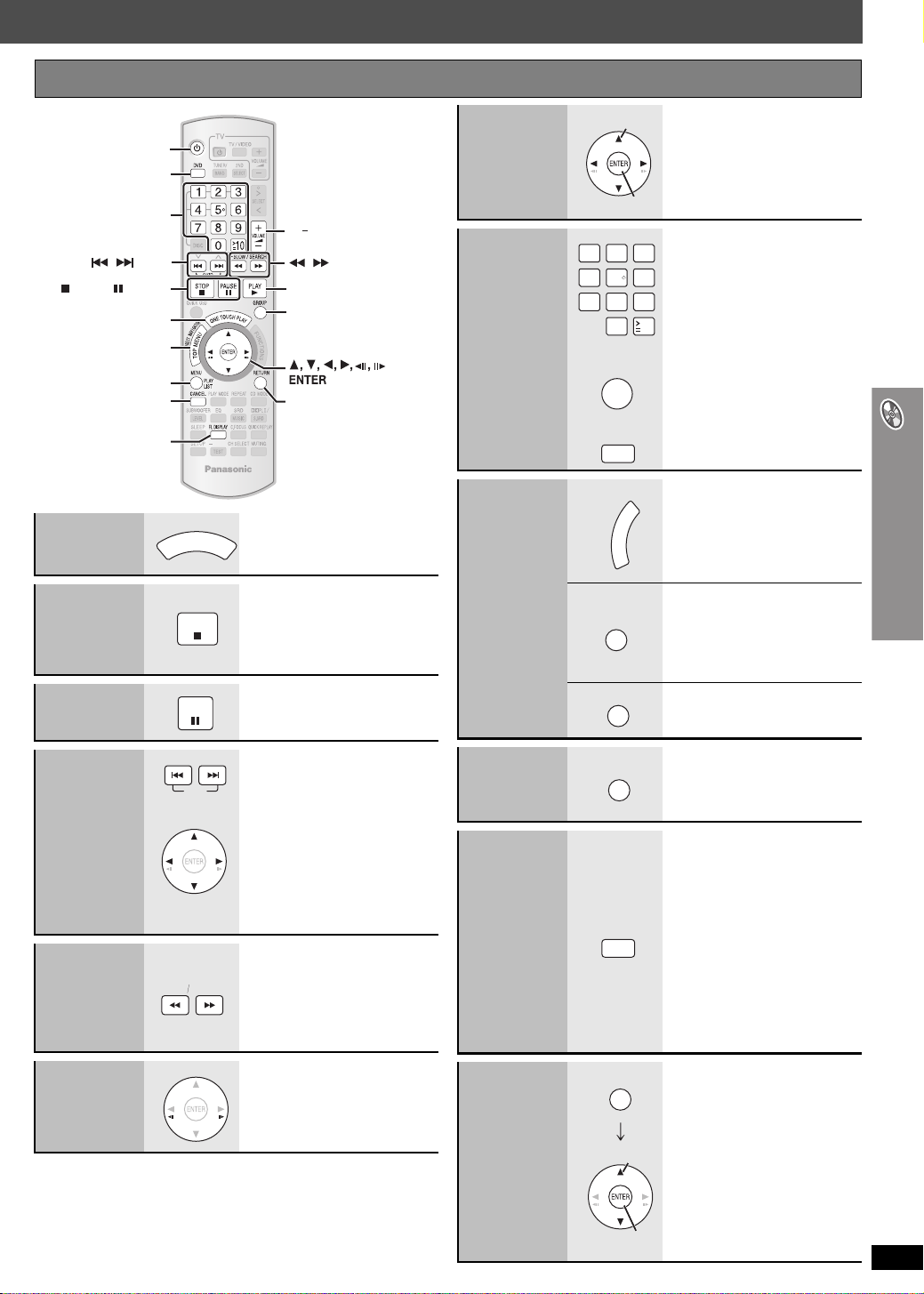

Control reference guide

See page references in parentheses.

Refer to “Operating the television” below.

Select disc’s title numbers etc./Enter numbers (17)

Select the disc or show disc information (18)

Select preset radio stations/channels (29, 31)

Basic operations for play (16, 17)

Display current playback condition (18)

Start up and play a disc automatically (17, 28)

Show a disc top menu (20) or program list (21)

Control reference guide

Show a disc menu (20) or play list (21)

CANCEL PLAY MODE REPEAT

(17) (19, 31) (18)(18)

SUBWOOFER

LEVEL

(32) (32)

SETUP

(25)

FL DISPLAY

(17)

AUTO

TEST

(33)

Turn the unit off automatically (Sleep timer)

≥ The maximum setting is 120-min (in 30-min steps). ≥ Press the button again to confirm the remaining time on

the unit’s display.

≥ To cancel, select “OFF” in the main unit’s display.

Television operations

Turn the main unit on/off (11)

CD MODE

SRD

MUSIC

S.SRD

(32)

(33)

(32)

QUICK REPLAY

(18)

C.FOCUS

CH SELECT

Select the source

[DVD]:

DVD/CD

[TUNER/BAND]: [

N,O

(11)

FM/AM (29), XM

SELECT]:

DVD/CD, FM/AM, XM,

AUX

(34)

D-IN

(34) ([PT1050]

(30)

/ MUSIC P.

(34)

) / OPTION

(34)

The below function is available only when using the optional Panasonic wireless sound system SH-FX85.

[2ND SELECT]:

MAIN SOURCE (follows the selected source for the main room)#(FM#AM)

Change the source for the second room

#XM#OPTION#

Return to MAIN SOURCE

If the main room is in FM/AM mode, you can only

select the same mode for the FM/AM tuner of the

second room.

For details, refer to the operating instructions for the optional Panasonic wireless sound system SH-FX85.

Adjust the volume of the main unit

Select radio stations/channels manually (29, 31)

Select a group of contents to play (17)

[PT1050]

Enhancing the surround sound effect (33)

Show on-screen menu (22)

Frame-by-frame/ Select or register menu items on the television screen (17)/ Browse XM radio categories (31)

Return to previous screen (17)

H.BASS

(33)

AUTO

Mute the sound ≥ “MUTING” flashes in the main unit’s display while

the function is on.

≥ To cancel, press the button again or adjust the

volume.

≥ Muting is canceled when you switch the unit to

standby.

Operating the television

Aim the remote control at the Panasonic television and press the button. [Í TV]: Turn the television on/off [TV/VIDEO]: Change the television’s video input mode

[r, s]: Adjust the television volume

≥ This may not work properly with some models. ≥ To operate some other brands of televisions, change the remote control

code.

Aim the remote control at the television. While pressing [Í TV], press the numbered buttons to enter the 4-digit television code.

If the code is correct, the television turns on or off. If it does not, try entering another code.

]Note]

Reenter the codes after you change the batteries.

Avoiding interference with other Panasonic equipment

Other Panasonic audio/video equipment may start functioning when you operate the unit using the supplied remote control. You can operate this unit in another mode by setting the remote control operating mode to “REMOTE 2”.

RQTX0064

Television code list

Panasonic: 0051, 0250 Fisher: 0154 GE: 0047 Gold Star: 0178, 0317, 0457 Hitachi: 0145 JVC: 0053 Magnavox: 0054 Mitsubishi: 0150 Philips: 0054

RCA: 0047 Samsung: 0060, 0587, 0702 Sanyo: 0154 Sharp: 0093, 0165 Sony: 0000 Sylvania: 0054 Thomson: 0047 Toshiba: 0156 Zenith: 0017

Quasar: 0051, 0250

The main unit and remote control must be set to the same mode.

1 Press and hold [5] on the main unit and [2] on the remote

control until the main unit's display shows "REMOTE 2".

2 Press and hold [ENTER] and [2] on the remote control for at least 2

seconds.

To change the mode back to “REMOTE 1”, repeat both steps above by replacing [2] with [1].

Page 13

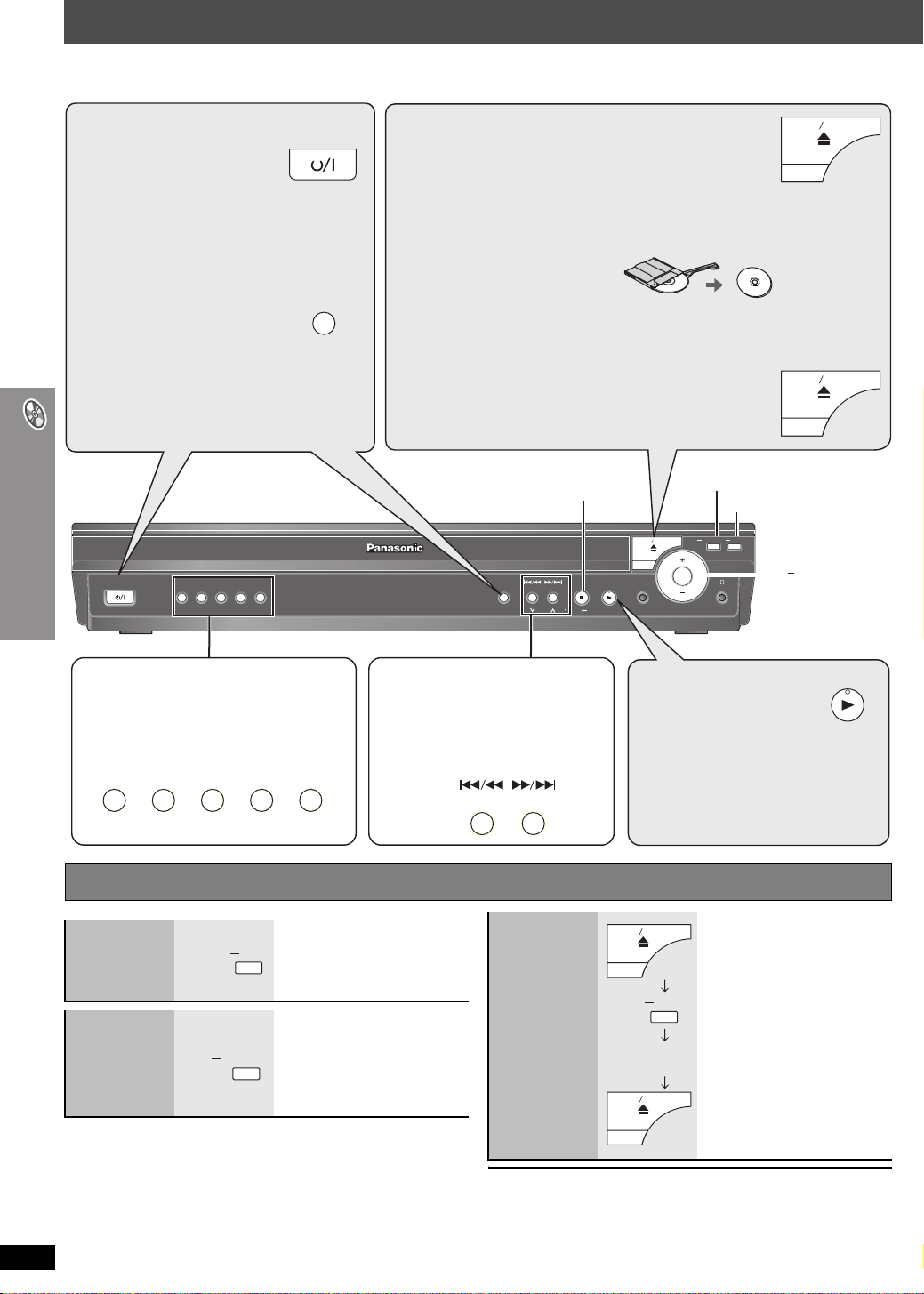

Standby/on switch [POWER Í/I]

Turn the main unit on/off. Press to switch the unit from on to standby mode or vice versa. In standby mode, the unit is still consuming a small amount of power. (16)

5 DISC SELECTOR Select a disc directly (16)

≥ A disc indicator lights if a disc is detected or a

tray is unchecked.

Remote control signal sensor

POWER

12345

5 DISC SELECTOR

SELECTOR (29)

DVD/CD#FM#AM#XM# AUX #MUSIC P.#D-IN ([PT1050])# OPTION#Return to DVD/CD

4, 5 / X TUNING W

Skip or slow-search play (16)/ Select the radio stations/channels (29, 31)

AUTO OPERATION ON/OFF indicator

The indicator lights red when the wireless system is turned on and lights green when the wireless link is activated. When the wireless link is inactive for a long time, it turns red.

Unit on/off button [POWER C I, BÍ]

Use this button to turn the unit on and off.

C I: This unit is on. BÍ: This unit is off.

POWER

AUTO OPERATION ON/OFF

∫ /-TUNE MODE / —FM MODE

Stop playing (16)/ Select the tuning mode (29) Adjust the FM reception condition (29)

1/MEMORY

Play discs (16)/ Memorize the receiving radio stations/channels (29, 31)

Display

OPEN CLOSE

SELECTOR

TUNING

TUNE MODE FM MODE

MEMORY

MUSIC PORT

SETUP MIC

MUSIC PORT/SETUP MIC

Connect an external device (34)/

Connect the setup microphone (33)

Headphones (not included) Headphone plug type: ‰3.5 mm (1/8z) stereo mini plug

≥ Reduce the volume before connecting. ≥ Audio is automatically switched to 2-channel stereo. ≥ To prevent hearing damage, avoid listening for

prolonged periods of time.

[PT1050]

POWER





AUTO OPERATION

ON/OFF

< OPEN/CLOSE Open/Close the disc drawer (16)

DISC EXCHANGE

Open the disc drawer to exchange the disc in the play position (16)

DISC SKIP

Skip to the next disc tray (16)

SKIP

DISC

EXCHANGE

VOLUME

Adjust the volume of the main unit.

AUTO OPERATION ON/OFF indicator

The indicator lights red when the wireless system is turned on and lights green when the wireless link is activated. When the wireless link is inactive for a long time, it turns red.

Unit on/off button [POWER BÍ, C I]

Use this button to turn the unit on and off.

BÍ: This unit is off. C I: This unit is on.

Control reference guide

EST. 1924

Selecting fine audio equipment such as the unit you’ve just purchased is only the start of your musical enjoyment. Now it’s time to consider how you can maximize the fun and excitement your equipment offers. This manufacturer and the Electronic Industries Association’s Consumer Electronics Group want you to get the most out of your equipment by playing it at a safe level. One that lets the sound come through loud and clear without annoying blaring or distortion—and, most importantly, without affecting your sensitive hearing.

Listening caution

We recommend that you avoid prolonged exposure to excessive noise.

Sound can be deceiving. Over time your hearing “comfort level” adapts to higher volumes of sound. So what sounds “normal” can actually be loud and harmful to your hearing.

Guard against this by setting your equipment at a safe level BEFORE your hearing adapts.

To establish a safe level:

≥ Start your volume control at a low setting. ≥ Slowly increase the sound until you can hear

it comfortably and clearly, and without distortion.

Once you have established a comfortable sound level: ≥ Leave it there.

Taking a minute to do this now will help to prevent hearing damage or loss in the future. After all, we want you listening for a lifetime.

RQTX0064

Page 14

Discs that can be played

Commercial discs

Disc Logo

DVD- Video [DVD-V] High quality movie and music discs

Indicated in these

instructions by

Remarks

Video CD [VCD]

[CD] Music discs

Music discs with video Including SVCD (Conforming to IEC62107)

Recorded discs (±: Playable, k: Not playable)

Disc Logo

DVD-RAM

DVD-R/RW

Recorded on a

DVD video

recorder, etc.

[DVD-VR]§2[DVD-V]

± — k±±

±±k±±

Recorded on a personal

computer, etc.

§4

[WMA] [MP3] [JPEG]

Finalizing

Not necessary

Necessary

Discs that can be played

DVD-R DL

iR/iRW

CD-R/RW

≥ It may not be possible to play all the above-mentioned discs in some cases due to the type of disc, the condition of the recording, the recording

method, or how the files were created (➜ page 15, Tips for making data discs).

§1

This unit can play CD-R/RW recorded with CD-DA or Video CD format. [WMA] [MP3] [JPEG] This unit also plays HighMAT discs.

§2

Discs recorded on DVD video recorders or DVD video cameras, etc. using Version 1.1 of the Video Recording Format (a unified video recording standard).

§3

Discs recorded on DVD video recorders or DVD video cameras using Version 1.2 of the Video Recording Format (a unified video recording standard).

§4

Discs recorded on DVD video recorders or DVD video cameras using DVD-Video Format.

§5

Recorded using a format different from DVD-Video Format, therefore some functions cannot be used.

§6

A process that allows play on compatible equipment. To play a disc that is indicated as “Necessary”, the disc must first be finalized on the device it was recorded on.

§7

Closing the session will also work.

§1

— k (±) — k (±) ———±±±

§3

±kkk

§5

kkk

§5

kkk

Necessary

§6

§7

∫ Discs that cannot be played

DVD-RW version 1.0, DVD-Audio, DVD-ROM, CD-ROM, CDV, CD-G, SACD, DivX Video Discs and Photo CD, DVD-RAM that cannot be removed from their cartridge, 2.6-GB and 5.2-GB DVD-RAM, and “Chaoji VCD” available on the market including CVD, DVCD and SVCD that do not conform to IEC62107.

Note about using a DualDisc

The digital audio content side of a DualDisc does not meet the technical specifications of the Compact Disc Digital Audio (CD-DA) format so playback may not be possible.

RQTX0064

∫ Disc handling precautions

≥Do not attach labels or stickers to discs. This may cause disc

warping, rendering it unusable.

≥Do not write on the label side with a ball-point pen or other writing

instrument.

≥Do not use record cleaning sprays, benzine, thinner, liquids which

prevent static electricity, or any other solvent.

≥Do not use scratch-proof protectors or covers. ≥Do not use the following discs:

– Discs with exposed adhesive from removed stickers or labels

(rented discs, etc.). – Discs that are badly warped or cracked. – Irregularly shaped discs, such as heart shapes.

Page 15

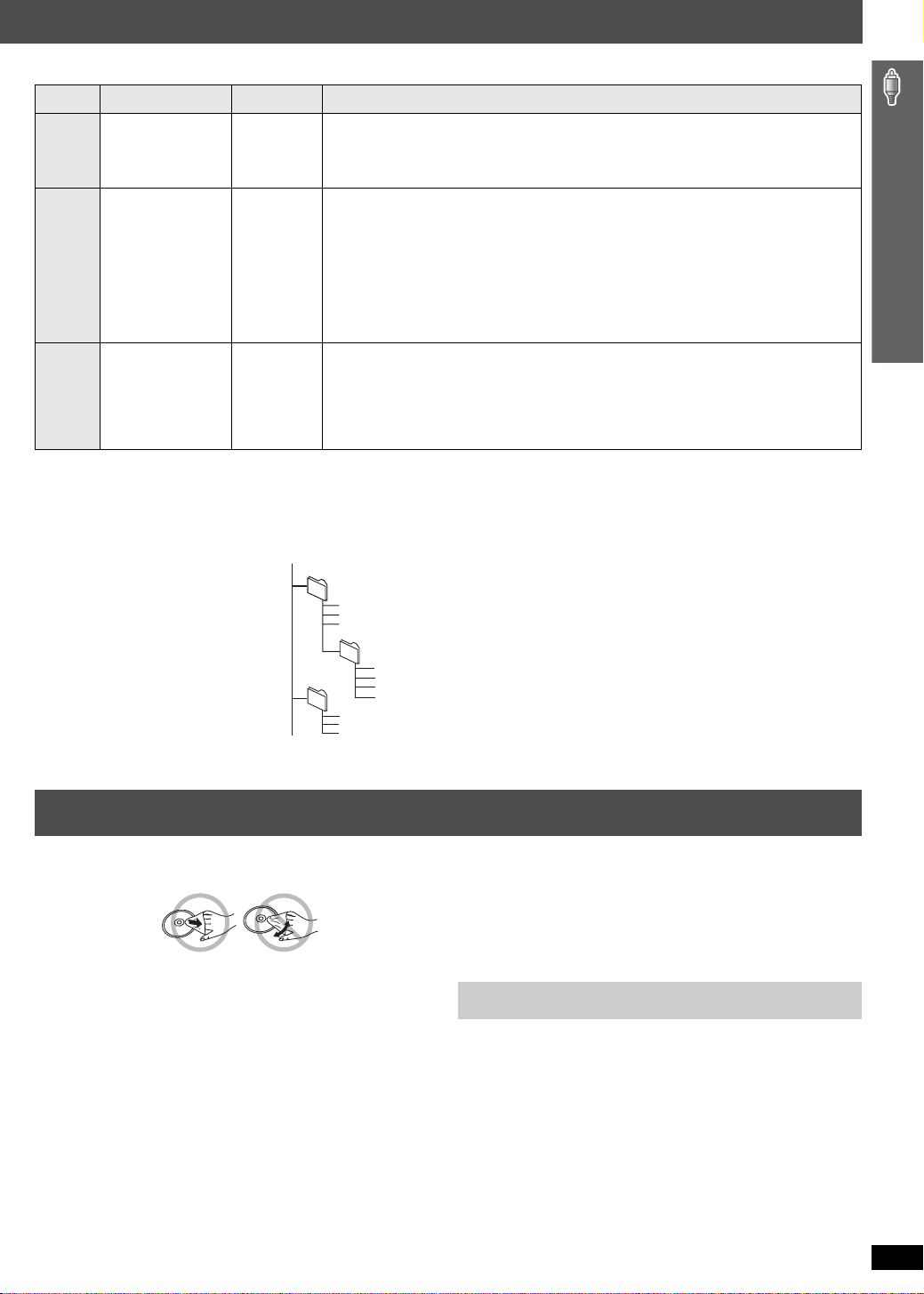

∫ Tips for making data discs

Format Disc Extension Reference

[WMA] CD-R/RW “.WMA”

[MP3] DVD-RAM

[JPEG] DVD-RAM

≥ When there are more than 8 groups, the eighth group onwards will be displayed on one vertical line in the menu screen. ≥ There may be differences in the display order on the menu screen and computer screen. ≥ This unit cannot play files recorded using packet write.

DVD-R/RW CD-R/RW

“.wma”

“.MP3” “.mp3”

“.JPG” “.jpg” “.JPEG” “.jpeg”

≥ Compatible compression rate: between 48 kbps and 320 kbps ≥ You cannot play WMA files that are copy-protected. ≥ This unit does not support Multiple Bit Rate (MBR: an encoding process for audio content that

produces an audio file encoded at several different bit rates).

≥ Compatible compression rate:

– between 32 kbps and 320 kbps for sampling frequencies of 32 kHz and above – between 8 kbps and 160 kbps for sampling frequencies of 24 kHz and below

≥ This unit does not support ID3 tags. ≥ Compatible sampling frequencies:

– DVD-RAM, DVD-R/RW:

11.02, 12, 22.05, 24, 44.1 and 48 kHz

– CD-R/RW:

8, 11.02, 12, 16, 22.05, 24, 32, 44.1 and 48 kHz

≥ JPEG files taken on a digital camera that conform to DCF Standard (Design rule for Camera

File system) Version 1.0 are displayed. – Files that have been altered, edited or saved with computer picture editing software may not

be displayed.

≥ This unit cannot display moving pictures, MOTION JPEG and other such formats, still pictures

other than JPEG (e.g. TIFF), or play pictures with attached audio.

Naming folders and files (Files are treated as contents and folders are treated as groups on this unit.)

At the time of recording, prefix folder and file names. This should be with numbers that have an equal number of digits, and should be done in the order you want to play them (this may not work at times).

Maintenance

∫ To c lea n di scs

Wipe with a damp cloth and then wipe dry.

e.g. [MP3]

root

001 group

001

003 group

001 track.mp3 002 track.mp3 003 track.mp3 002 group

001 track.mp3 002 track.mp3 003 track.mp3 004 track.mp3

001 track.mp3 002 track.mp3 003 track.mp3

DVD-RAM

≥ Discs must conform to UDF 2.0.

DVD-R/RW

≥ Discs must conform to UDF bridge (UDF 1.02/ISO9660). ≥ This unit does not support multi-session. Only the default session is

played.

CD-R/RW

≥ Discs must conform to ISO9660 level 1 or 2 (except for extended

formats).

≥ This unit supports multi-session but if there are many sessions it takes

more time for play to start. Keep the number of sessions to a minimum to avoid this.

∫ Clean this unit with a soft, dry cloth.

≥ Never use alcohol, paint thinner or benzine to clean this unit. ≥ Before using chemically treated cloth, carefully read the instructions that

came with the cloth.

Do not use commercially available lens cleaners as they may cause malfunction. Cleaning of the lens is generally not necessary although

this depends on the operating environment.

Before moving the unit, ensure the disc trays are empty. Failure to do so will risk severely damaging the discs and the unit.

Discs that can be played / Maintenance

RQTX0064

Page 16

Basic play

To display the picture from the main unit, turn on your television and change its video input mode (e.g. VIDEO 1, AV 1, etc.).

≥ To change your television’s video input mode, refer to its operating instructions.

1 Power on.

2 Select “DVD/CD”.

POWER

12345

5 DISC SELECTOR

POWER

SELECTOR

Open the drawer and place the disc(s).

≥ Load double-sided discs so the label for the side you want to

play is facing up.

≥ To load discs on the other trays, press [DISC SKIP] on the

main unit.

≥ Play will start from the disc in the front-left position of the

tray.

≥ For DVD-RAM, remove the disc

from its cartridge before use.

≥ Do not:

– load more than one disc per tray. – touch the drawer or the carousel while they are in motion. – rotate the carousel by hand. – close the drawer by hand.

4 Close the drawer.

∫ (Stop)

OPEN CLOSE

SELECTOR

TUNING

TUNE MODE FM MODE

MEMORY

MUSIC PORT

SETUP MIC

VOLUME

DISC EXCHANGE

DISC SKIP

SKIP

DISC

EXCHANGE

OPEN CLOSE

+, VOLUME

Basic play

RQTX0064

Press to select a disc directly.

≥ You can also select the disc using the remote

control (➜ page 18, Checking and selecting the disc).

12345

5 DISC SELECTOR

Using the main unit

Select the next disc

DISC

SKIP

tray

≥ The drawer opens and the disc

Exchange the disc in the play position

DISC

EXCHANGE

in the play position comes to the front-left position.

≥ Press the button again to play

the disc after changing the disc in the front-left position.

Press to skip. Press and hold to

– search during play – start slow-motion play during pause

(Motion picture part)

≥ Press [1] (Play) to start normal play.

—

Change the other discs without interrupting play

[Note[

≥ DISC CONTINUES TO ROTATE WHILE MENUS ARE DISPLAYED.

To preserve the unit’s motor and your television screen, press [∫](Stop) when you are finished with the menus.

≥ Total title number may not be displayed properly on iR/iRW.

5 Start play.

≥ Press [r, s VOLUME] to adjust

the volume.

≥ You can enjoy surround sound

when you press [ÎPLII/S.SRD] to turn on Dolby Pro Logic II (➜ page 32).

OPEN CLOSE

SKIP

DISC

Change the

discs

OPEN CLOSE

≥ Each time you press [DISC

SKIP], you can select the other trays.

Page 17

If you are experiencing problems, refer to troubleshooting (➜ page 36 to 39).

Using the remote control

Select

Numbered

buttons

SKIP

STOP, PAUSE

ONE TOUCH PLAY

TOP MENU,

DIRECT NAVIGATOR

MENU, PLAY LIST

CANCEL

FL DISPLAY

One touch play

Stop

Pause

1 2

On-screen

—

item select

+, VOLUME

SLOW/SEARCH

[PT950] [PT953]

GROUP

Enter

5 6

8 9

number

RETURN

AUTO

The main unit automatically turns

STOP

PAU S E

on and starts playing the disc in

the play position (➜ page 28).

The position is memorized while “RESUME” is on the display.

≥ Press [1 PLAY] to resume. ≥ Press [∫ STOP] again to clear

the position.

≥ Press [1 PLAY] to restart play.

Disc menu

ENTER

CANCEL

RETURN

[DVD-VR] [DVD-V] [VCD] [CD]

e.g. To select 12: [S10] ➜ [1] ➜ [2]

[VCD] with playback control Press [∫ STOP] to cancel the PBC

function, and then press the numbered buttons.

[WMA] [MP3] [JPEG] e.g. To select 123: [1] ➜ [2] ➜ [3] ➜ [ENTER]

≥ Press [CANCEL] to cancel the

number(s).

[DVD-V]

Shows a disc top menu.

[DVD-VR]

Press the button to show the

programs (➜ page 21).

[DVD-V]

Shows a disc menu.

PLAY

[DVD-VR]

LIST

Press the button to show a playlist (➜ page 21).

[VCD] with playback control Shows a disc menu.

Basic play

Skip

(during play)

Slow-motion

(during pause)

Frame-byframe

(during pause)

SKIP

SLOW SEARCH

—

≥ [WMA] [MP3] [JPEG]

[This feature does not work during program and random play (➜ page 19).]

[3, 4]: Group skip

[2, 1]: Content skip

≥ Up to 5 steps. ≥ Press [1 PLAY] to start normal

play.

≥ [VCD] Slow-motion: forward

direction only.

[DVD-VR] [DVD-V] [VCD]

≥ [VCD] Forward direction only.

Return to previous screen

Main unit display

[PT950] [PT953]

Start play from a selected group

RETURN

DISPLAY

GROUP

[DVD-VR] [DVD-V] [VCD] [CD] [WMA] [MP3]

Time display

,-.Information display

(e.g. [DVD-VR] Program number)

[JPEG]

When Slideshow (➜ page 22) is on:

SLIDE

,-.Contents number

When Slideshow is off:

,-.Contents number

PLAY

[WMA] [MP3] [JPEG] A folder on WMA/MP3 and JPEG discs is treated as a “Group”.

Select

—

RQTX0064

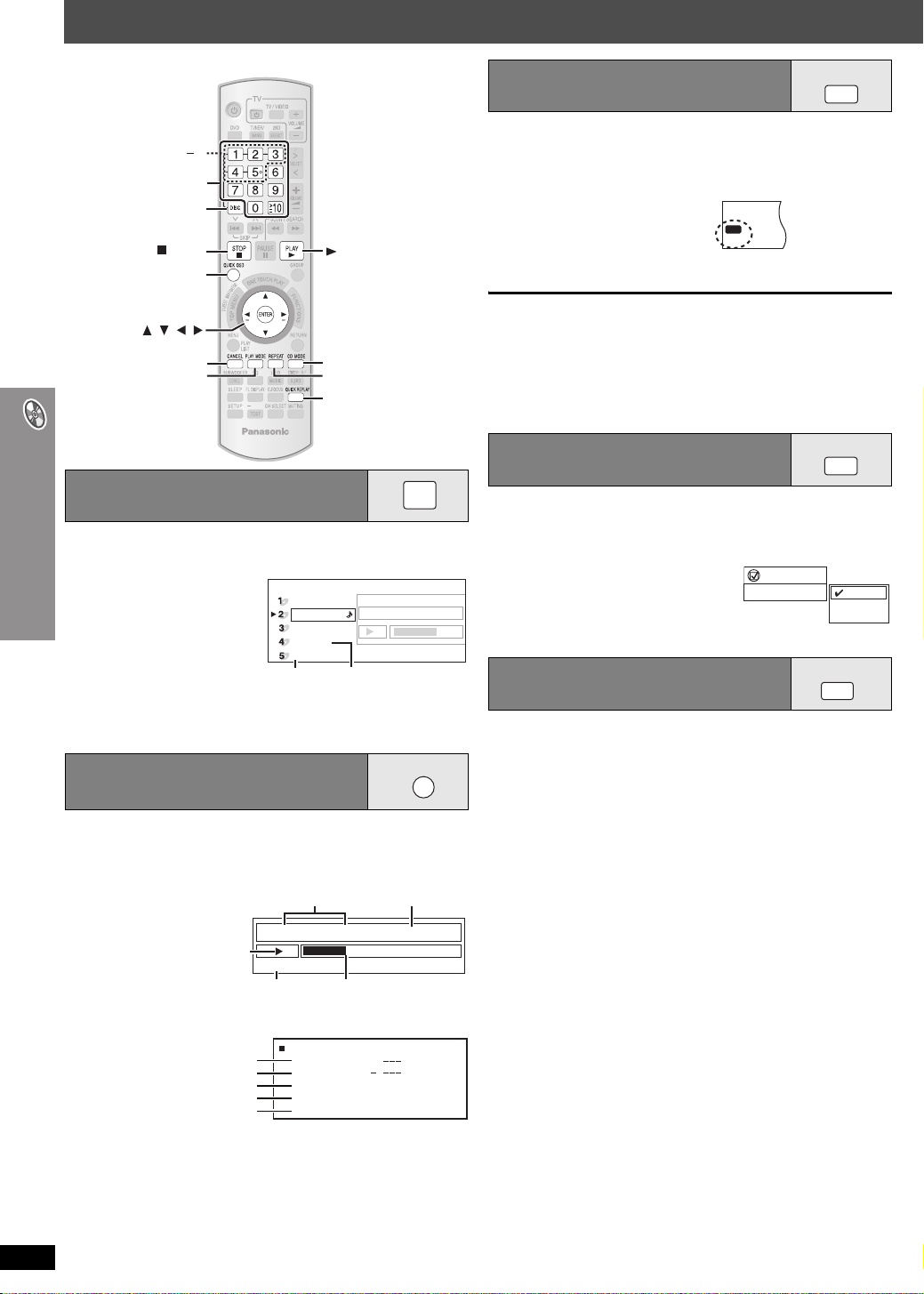

Page 18

Convenient functions

1 5

Numbered

buttons

DISC

STOP

PLAY

QUICK OSD

, , ,

ENTER

CANCEL

PLAY MODE

AUTO

CD MODE REPEAT

QUICK REPLAY

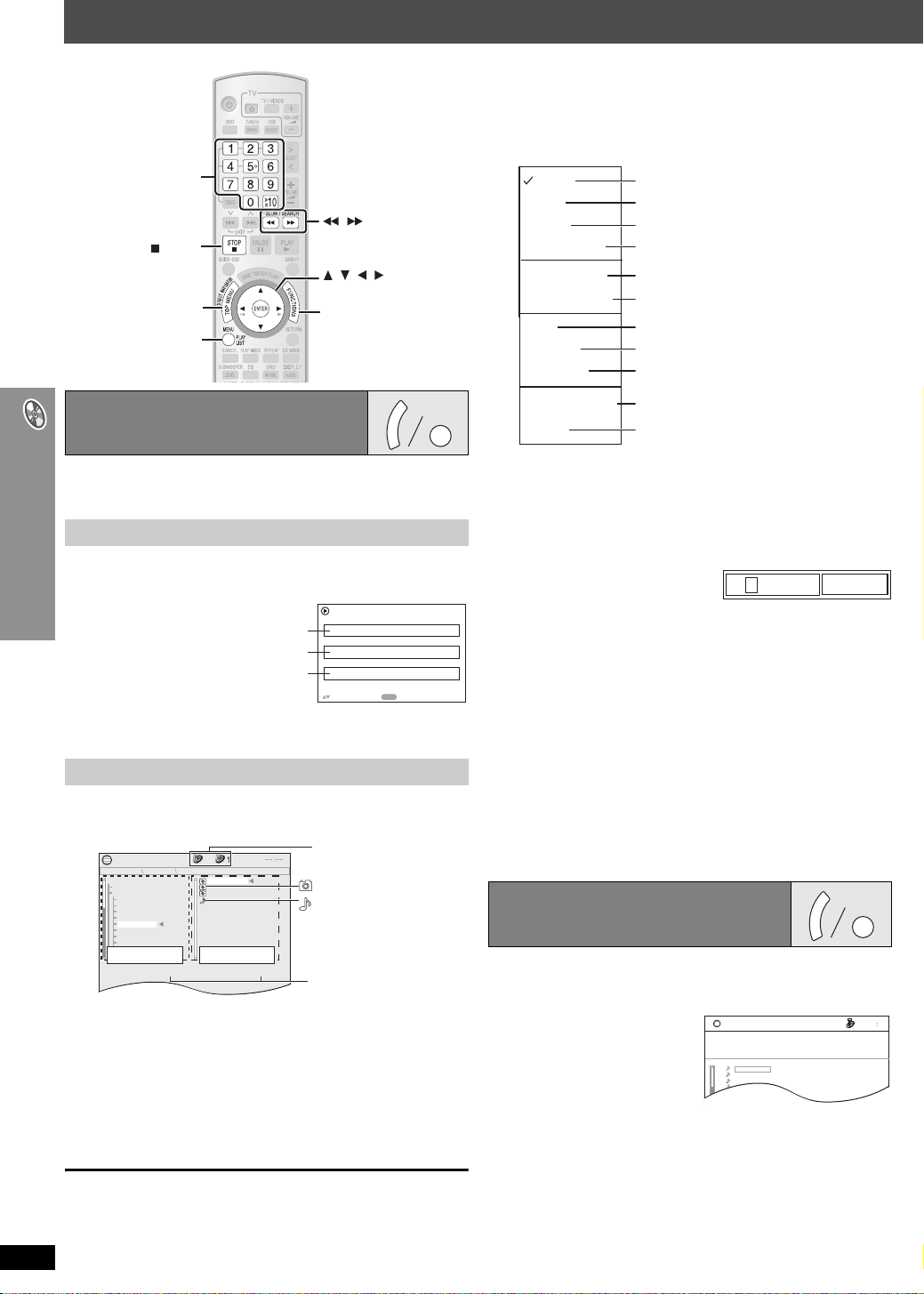

Checking and selecting the disc

Press [DISC] to show the Disc information screen.

≥ To exit the screen, press [DISC].

e.g.

Press the numbered buttons ([1] – [5]) to select the

disc.

Disc Information

DVD-Video CD

DVD-Video

Unchecked

No Disc

Empty

Track

Not yet read

DISC

10 Time 1:15

KARA

MODECD

D.MIX

REPEAT

Off Chapter Title

QUICK REPLAY

MONO

Playing CDs sequentially

[VCD] [CD] [WMA] [MP3]

This feature is very convenient if you want to play several music CDs sequentially. Select an applicable disc before playing (➜ Checking and selecting the disc, left).

While stopped

Press [CD MODE].

Press [1 PLAY].

≥ If all loaded discs are DVDs, CD Mode does not work. ≥ HighMAT menus and Video CD playback control are disabled. ≥ You cannot turn CD Mode on or off during program or random play. ≥ If you want to play a DVD, press [CD MODE] again while stopped to

cancel CD Mode. (CD Mode is also canceled when you switch the unit to standby, select another source, or change the disc in the play position.)

≥ DVD and JPEG are skipped without being played.

USB

DVD

MODE

DISC

S.SRD

Repeat play

This works only when the elapsed play time can be displayed. It also works with all JPEG content.

During play

Press

[REPEAT]

Items shown differ depending on the type of disc and playback mode.

several times to select an item to be repeated.

e.g. [DVD-V]

Functions

Repeat Off

[PT950] [PT953] Quick replay

[DVD-VR] [DVD-V] [WMA] [MP3] [VCD] [CD]

Press [QUICK REPLAY] to skip back a few seconds.

SLP

Displaying current playback condition

Convenient functions

Press [QUICK OSD].

Basics ------------------------------------------------------------> Details

^------ off (No on-screen display),-------b

∫ Basics

e.g. [DVD-V]

Playback condition

∫ Details

e.g. [DVD-V]

Total play time of current title

RQTX0064

Audio information

Subtitle information

Angle information

Aspect of current title

Elapsed play timeCurrent playback number

Chapter

Title

1 0:41:23

Program Playback

Details - DVD-Video Audio Subtitle Angle Source Aspect Title Total Time

Time

Current positionPlay mode

1 DTS 3/2.1ch

1/1 4:3 0:54:28

QUICK

OSD

≥ This may not work depending on the disc’s recording. ≥ This does not work with +R/+RW.

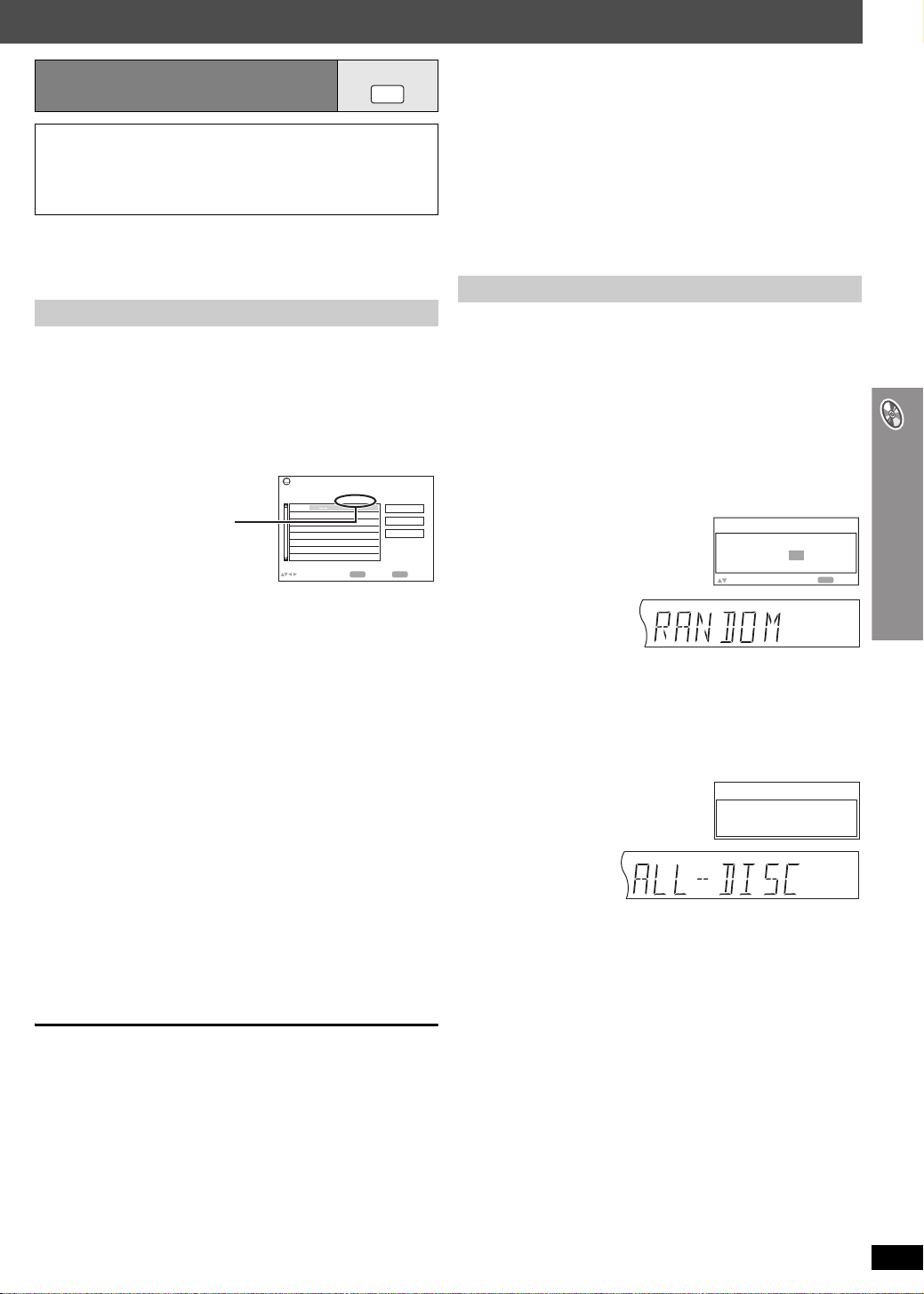

Page 19

Program and Random play

MODEPLAY

Press [PLAY MODE] while stopped.

Program and random playback screens appear sequentially. Program__--------------------------------------------------------------------) Random

^---------- off (Cancel the program and random play) (_-----}

≥ Select “Play as Data Disc” in Other Menu (➜ page 24) when using

– HighMAT discs without using the HighMAT function, or – DVD-RAM or DVD-R/RW discs containing MP3 or JPEG files.

≥ [DVD-V]

Some items cannot be played even if you have programmed them.

Program play (up to 32 items)

∫ When CD Mode is off

[DVD-V] [VCD] [CD] [WMA] [MP3] [JPEG]

You can program all the items on a disc in the play position.

1 [VCD] [CD] Skip to step 2

Press the numbered buttons to select a group or title.

([WMA] [MP3] [JPEG]

T/G: Title/Group C/T: Chapter, Content/

Press [ENTER] to register the selection.)

e.g. [DVD-V]

Program Playback

Choose a title and chapter.

DiscNo.

T/G

C/T

Clear all

Tr ac k

ENTER

to select and press

PLAY

≥ To select a 2-digit number

e.g. To select 12: [S10] ➜ [1] ➜ [2]

[WMA] [MP3] [JPEG] [1] ➜ [2] ➜ [ENTER]

2 Press the numbered buttons to select a chapter or track.

([WMA] [MP3] [JPEG] Press [ENTER] to register the selection.)

≥ Repeat steps 1 and 2 to program other items.

3 Press [1 PLAY].

∫ When CD Mode is on (➜ page 18)

[VCD] [CD] [WMA] [MP3]

You can program all the items on all the discs.

1 Press the numbered buttons ([1] – [5]) to select a disc. 2 [WMA] [MP3]

(Press [ENTER] to register the selection.)

≥ To select a 2-digit number

e.g. To select 12: [1] ➜ [2] ➜ [ENTER]

3 Press the numbered buttons to select a track.

([WMA] [MP3] Press [ENTER] to register the selection.)

≥ To select a 2-digit number

e.g. To select 12: [S10] ➜ [1] ➜ [2]

≥ Repeat steps 1 to 3 to program other items.

4 Press [1 PLAY].

Press the numbered buttons to select a group.

[WMA] [MP3] [1] ➜ [2] ➜ [ENTER]

Play

Clear

To change the selected program

1 Press [3, 4] to select the program number. 2 Press the numbered buttons to change each item.

([WMA] [MP3]

Press [ENTER] to register the selection.)

To clear the selected program

1 Press [3, 4] to select the program number. 2 Press [CANCEL] (or press [3, 4, 2, 1] to select “Clear” and press

[ENTER]).

To clear the whole program

Select “Clear all” with [3, 4, 2, 1] and press [ENTER]. The whole program is also cleared when the disc is moved out of the play position, the unit is turned off or another source is selected.

Random play

∫ When CD Mode is off

[VCD] [CD]

You can play all the items on a disc in the play position in random order.

[DVD-V] [WMA] [MP3] [JPEG]

You can play selected item(s) on a disc in the play position in random order.

1 [DVD-V] [WMA] [MP3] [JPEG]

Press [3, 4] to select a group or a title. ([WMA] [MP3] [JPEG]

Press [ENTER] to register the selection.)

e.g. [DVD-V]

to start

USB

DVD

MODE

DISC

S.SRD

to select

KARA

D.MIX

MONO

2 Press [1 PLAY].

∫ When CD Mode is on (➜ page 18)

[VCD] [CD] [WMA] [MP3]

You can play all the items on all the discs in random order.

Press [1 PLAY].

USB

DVD

MODE

e.g. [CD]

DISC

S.SRD

Press PLAY to start

KARA

D.MIX

MONO

Random Playback

Choose a title.

Title

SLP

ST CT

PGM

Random Playback

SLP

ST CT

PGM EQ

PLAY

DDTS

SRDE.

RND

W1 W2

DDTS

SRDE.

RND

W1 W2

to start

PRG

RDS

PRG RDS

Convenient functions

To select an item using the cursor buttons

Press [ENTER] and [3, 4] to select an item, and then press [ENTER] again to register.

RQTX0064

Page 20

Playing data discs using navigation menus



∫ Using the submenu

1 While Navigation Menu (➜ left) is displayed

Press [FUNCTIONS].

2 Press [3, 4] to select an item and press [ENTER].

Items shown differ depending on the type of disc.

Numbered

buttons

STOP

TOP MENU,

DIRECT NAVIGATOR

MENU,

PLAY LIST

Playing data discs

[WMA] [MP3] [JPEG]

SLOW/SEARCH

, , ,

ENTER

FUNCTIONS

Multi List Tree Thumbnail

Next group Previous group

All Audio Picture

Help display

Find

Groups and contents are displayed.

Contents only

Groups only

Thumbnail images [JPEG]

To go to next group [WMA] [MP3]

To go to previous group [WMA] [MP3]

WMA/MP3 and JPEG

WMA/MP3 only

JPEG only

To switch between guide messages and the elapsed play time indicator To search by a content or group title (➜below)

≥ Select “Play as Data Disc” in Other Menu (➜ page 24) when using

– HighMAT discs without using the HighMAT function, or – DVD-RAM or DVD-R/RW discs containing MP3 or JPEG files.

∫ Searching by a content or group title

Highlight a group title to search the group, or a content title to search its content.

Playing items in order (Playback Menu)

Press [TOP MENU].

≥ To exit the screen, press [TOP MENU].

e.g.

Playback Menu

WMA/MP3/JPEG

WMA/MP3

JPEG

Press [3, 4] to select “All”, “Audio” or “Picture” and

press [ENTER].

All

Audio


to select and press

Playing from the selected item (Navigation Menu)

Press [MENU].

≥ To exit the screen, press [MENU].

e.g.

JPEG

avigation Menu

005 Japanese

002 My favorite2

Perfume

001 My favorite1 002 My favorite2

001 Brazilian 002 Chinese 003 Czech 004 Hungarian 005 Japanese 006 Mexican 007 Philippine 008 Swedish 009 Piano 010 Vocal

Group

Playing data discs using navigation menus

Group 005/023

Press [2] followed by [3, 4] to select the group and press [ENTER].

To play content in the group in order

Press [ENTER].

001 Lady Starfish

001 Lady Starfish 002 Metal Glue 003 Life on Jupiter 004 Starperson

Content

Content 0001/0004

To start play from the selected content

Press [3, 4] to select and [ENTER].

Group and content number currently playing

: JPEG

: WMA/MP3

Number currently selected

Total 434

Total 7

Total 427

ENTER

1 While the submenu is displayed (➜ above)

Press [3, 4] to select “Find” and press [ENTER].

2 Press [3, 4] to select a character and press [ENTER].

≥ Repeat to enter another character.

≥ Lower case characters are also searched.

≥ Press [6, 5 SLOW/SEARCH] to skip between A, E, I, O

and U.

≥ Press [2] to erase a character.

≥ Leave the asterisk (¢) when you search for the titles including

the character you enter.

≥ Erase the asterisk (¢) to search for the titles starting with the

character you enter. To add the asterisk (¢) again, display the submenu again and select “Find”.

3 Press [1] to select “Find” and press [ENTER].

The search result screen appears.

4 Press [3, 4] to select the content or group and press

[ENTER].

Selecting a track using CD text

[CD]

Titles appear with CD Text disc playback.

Press [TOP MENU] or [MENU].

≥ To exit the screen, press [TOP MENU] or [MENU].

e.g. CD text

Press [3, 4] to select the track and press [ENTER].

≥ Press [FUNCTIONS] to show the playback condition and current

Disc Title: All By Artist Disc Artist: Pink Island Track title: Long John Platinum Track Artist: SHIPWRECKED

Ashley at Prom

City Penguin Formura one

Soccer Baseball

5. Neanderthal

6. Cartoons

Find

1/23

63 00

position.

To enjoy listening to WMA/MP3 contents while showing a JPEG image on the screen, select a JPEG file first and then select audio contents. (The opposite order is not effective.)

RQTX0064

Page 21

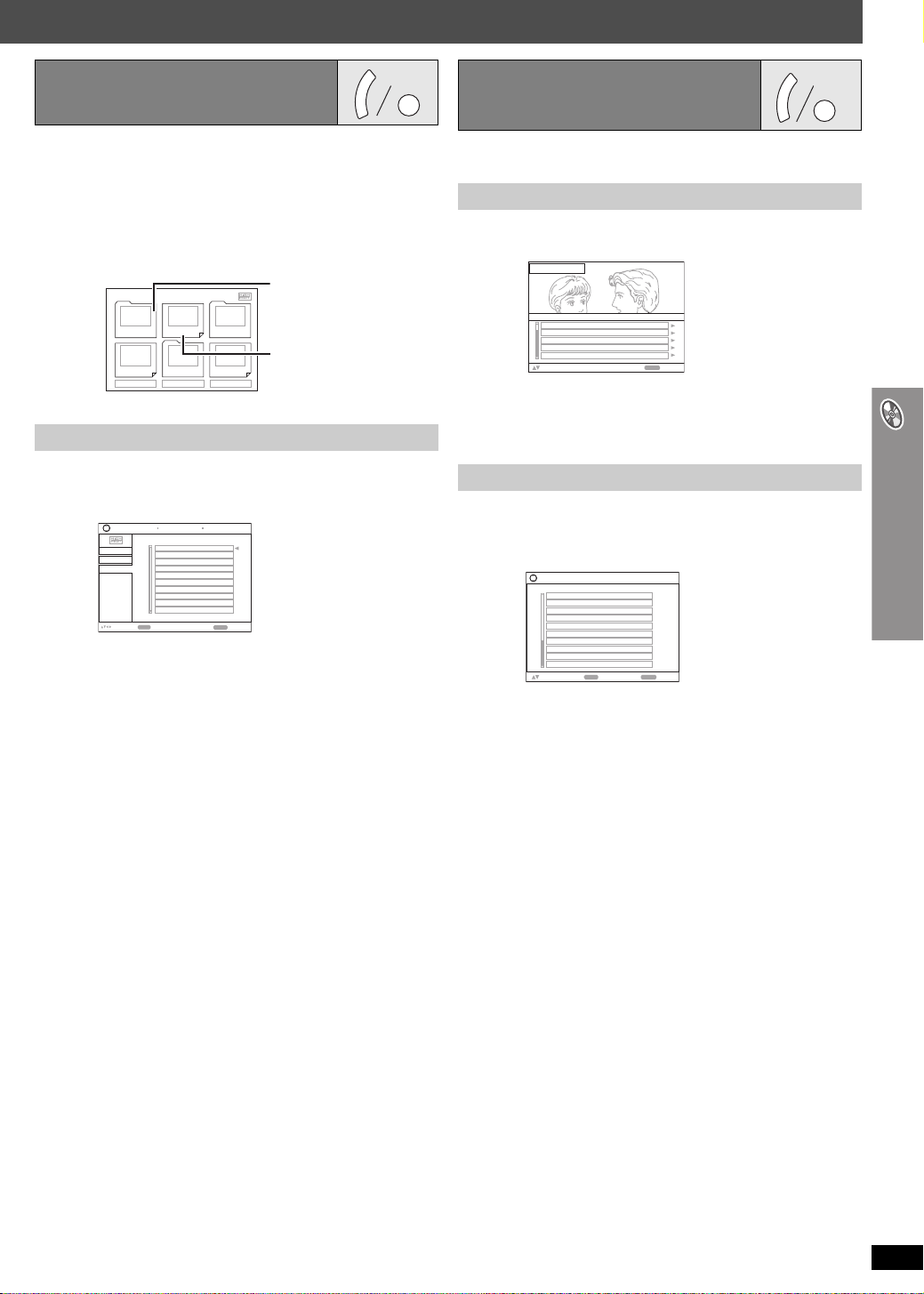

Playing HighMATTM discs

[WMA] [MP3] [JPEG]

Press [TOP MENU].

≥ To exit the screen, press [∫ STOP].

≥ To change the menu background to the one recorded on the disc,

press [FUNCTIONS].

Press [3, 4, 2, 1] to select the item, and then press

[ENTER].

≥ Repeat this step if necessary.

e.g.

New Playlist Item Long Name Display Te

Menu1

Play list1

PAGE 1/3

Menu: Takes you to the next

menu which shows

Menu2

playlists or another menu

Playlist: Play starts

Menu3

Play list2



Play list3



Return



Selecting from the list

During play

Press [MENU].

≥ To exit the screen, press [MENU].

e.g.

Playlist

Group

Content

Press [2] followed by [3, 4] to switch among

“Playlist”, “Group” and “Content” lists.

Press [1] followed by [3, 4] to select an item and

press [ENTER].

Playlist

ENTER

All By Artist

No.

Few times in summer

Less and less

And when I was born

Quatre gymnopedies

You've made me sad

I can't quit him Evening glory

Wheeling spin

Velvet Cuppermine

Ziggy starfish

to playto select

Content title

Krissa

to exit

RETURN

Playing RAM and DVD-R/-RW (DVD-VR) discs

[DVD-VR]

PLAY LIST

≥ Titles appear only if the titles are recorded on the disc. ≥ You cannot edit programs, playlists and disc titles.

Playing the programs

Press [DIRECT NAVIGATOR].

≥ To exit the screen, press [DIRECT NAVIGATOR].

e.g.

Direct Navigator

Date

No.

11/ 1(WED) 0:05 AM Monday feature1

1/ 1 (MON) 1:05 AM Auto action2

2/ 2 (TUE) 2:21 AM Cinema3

3/ 3 (WED) 3:37 AM Music4

4/10(THU) 11:05 AM Baseball5

to select

Press [3, 4] to select the program.

≥ Press [1] to show the contents of the program and the disc.

Press [ENTER].

Title Contents

to exit

RETURN

Playing a playlist

This works only when the disc contains a playlist.

Press [PLAY LIST].

≥ To exit the screen, press [PLAY LIST].

e.g.

Playlist

DateNo. Length Title 11/11 0:00:01 City Penguin1

12/ 1 0:01:20 Ashley at Prom2

1/ 2 1:10:04 Special3

2/ 3 0:10:20 Soccer4

2/10 0:25:01 Baseball5

3/12 0:06:13 Home6

3/ 1 0:01:20 Drama7

4/ 2 1:00:12 Goodbye8

4/ 3 0:30:20 Soccer 29

4/10 1:00:01 Baseball 210

to select and press

ENTER

Press [3, 4] to select the playlist.

Press [ENTER].

RETURN

to exit

RQTX0064

Playing data discs using navigation menus

Page 22

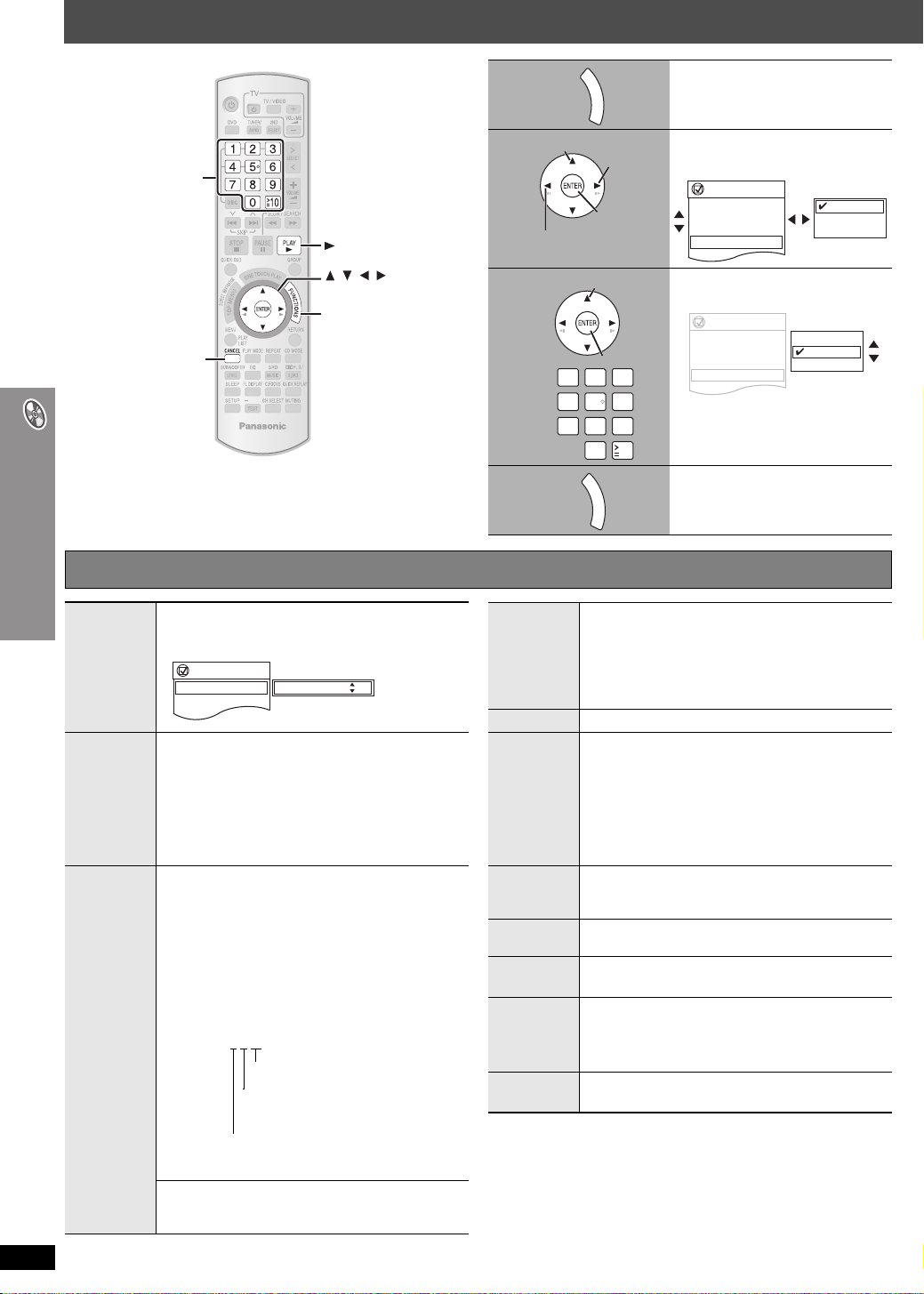

Using on-screen menus

Show the Main menu.

Select the menu.

e.g. [DVD-V]

Functions

Title Chapter Time Audio Subtitle

3/10

0:24:31

1 English

3 Spanish

1/2

1 English 2 French 3 Spanish

Make the settings.

e.g. [DVD-V]

Functions

Title Chapter Time Audio Subtitle Angle Other Settings

1/2

3/10

0:24:31

1 English

3 Spanish

1/2

1 English 2 French 3 Spanish

Press to exit.

Numbered

buttons

CANCEL

Select

Go to the next menu

Return to the previous menu

Select

PLAY

, , ,

ENTER

FUNCTIONS

AUTO

4 7

5 6 89 0

Main menu Items shown differ depending on the type of disc.

Using on-screen menus

Program Group Title Chapter Tra ck Playlist Content

Time

Audio

RQTX0064

To start from a specific item

e.g. [DVD-VR] To select Program 12

Press the numbered buttons: [1] ➜ [2] ➜ [ENTER]

Functions

Program Time Audio Subtitle

2/16

0:34:15

L R

Program Search 12

(Time Slip does not work with iR/iRW discs.)

To skip incrementally or decrementally (Time Slip for play only)

1 Press [ENTER] twice to show the Time Slip indicator. 2 Press [3,4] to select the time and press [ENTER].

≥ To change the steps more quickly, press and hold

[3, 4].

To change remaining/elapsed time display

[DVD-V] (with multiple soundtracks)

To select audio soundtrack

[DVD-VR] [VCD]

To select “L”, “R” or “LR”

[DVD-V] (Karaoke disc)

To select “On” or “Off” for vocals

≥ Read the disc’s instructions for details.

Signal type/data

LPCM/PPCM/ÎDigital/DTS/MP3/MPEG: Signal type kHz (Sampling frequency)/bit/ch (Number of channels)

e.g. 3

/2 .1ch

.1: Low frequency effect

.1: (not displayed if there is no signal) .0: No surround .1: Mono surround .2: Stereo surround (left/right)

.1: Center .2: Front leftiFron t r ig ht .3: Front leftiFron t r ig htiCenter

[WMA] [MP3]

To display the current bitrate or sampling frequency

Number Select

Thumbnail

Subtitle

Marker (VR)

Angle

Rotate Picture

Slideshow

Other Settings

[VCD] with playback control

To select number

While the disc menu is displayed Press [3, 4] ➜ Press [ENTER]

≥ To change the numbers more quickly, press and hold

[3, 4].

To show thumbnail images

[DVD-V] (with multiple subtitles) [VCD] (SVCD only)

To select subtitle language

≥ On iR/iRW, a subtitle number may be shown for

subtitles that are not displayed.

≥ [DVD-VR] “On” or “Off” appears only with discs that

contain subtitle on/off information (Subtitle on/off information cannot be recorded using Panasonic DVD Recorders).

[DVD-VR]

To recall a marker recorded on DVD-Video recorders

Press [3, 4] ➜ Press [ENTER].

(with multiple angles)

To select a video angle

To rotate a picture

To turn slideshow on/off

On ,------. Off

To change the slideshow timing

1 (Fast) to 5 (Slow)

(➜ page 23)

Page 23

Other Settings Items shown differ depending on the type of disc.

[DVD-VR] [DVD-V]

To change play speed

– from “k0.6” to “k1.4” ≥ Press [1 PLAY] to return to normal play. ≥ After you change the speed

Play Speed

– Dolby Pro Logic II has no effect. – Audio output switches to 2-channel stereo (except

when Surround Music is on).

– Sampling frequency of 96 kHz is converted to

48 kHz.

≥ This function may not work depending on the disc’s

recording.

∫ Play Menu

This works only when the elapsed play time can be displayed. It also works with all JPEG content.

Repeat

A-B Repeat

Advanced Disc Review

(➜ page 18, Repeat play)

Except [JPEG] [DVD-VR] (Still picture part)

To repeat a specified section

Press [ENTER] at the starting and ending points. Press [ENTER] again to cancel.

[DVD-VR]

(Except still picture part)

[DVD-V]

(Except iR/iRW) Allows you to browse the disc contents and start playing from the selected position. You can select either “Intro Mode” or “Interval Mode” in “Advanced Disc Review” in the “Disc” menu (➜ page 25).

When you find a title/program to play

Press [1 PLAY]. ≥ This may not work depending on the disc and the

play position.

≥ [DVD-VR]

This does not work when playing a playlist

(➜ page 21).

∫ Picture Menu

Normal Cinema1: Mellows images and enhances detail in

Cinema2: Sharpens images and enhances detail in

Animation:Suitable for animation. Dynamic: Enhances the contrast for powerful images. User: Press [ENTER] to select “Picture

Picture Mode

Video Output Mode

Transfer Mode

Picture Adjustment

Contrast: Increases the contrast between light and

Brightness: Brightens the picture. Sharpness: Adjusts the sharpness of the edges of

Color: Adjusts the shade of the picture’s color. Gamma: Adjusts the brightness of dark parts. Depth Enhancer: Reduces the rough noise in the

To select suitable picture quality with your television

(Video recordings will be converted to, and output as, high-definition video.)

When HDMI connection is being used and “Video Mode” (➜ page 26, “HDMI” menu) is set to “On”

480i (interlaced) 480p (progressive) 720p (progressive) 1080i (interlaced) 1080p (progressive)

≥Select a video output with an “¢” mark. The “¢”

≥Selecting a video output without an “¢” mark can

≥Output from the COMPONENT VIDEO OUT

When HDMI connection is not being used or “Video Mode” (➜ page 26, “HDMI” menu) is set to “Off”

480i (interlaced) 480p (progressive)

≥When you select “480p”, a confirmation screen

If you have chosen “480p”, “720p”, “1080i” or “1080p” (➜ above), select the method of conversion for progressive output to suit the type of material.

Auto1: Detects 24 frame-per-second film content and

Auto2: Compatible with 30 frame-per-second film

Video: Select if the video content is distorted when

dark scenes.

Adjustment” (➜ below).

dark parts of the picture.

horizontal lines.

background to give a greater feeling of depth.

mark shows that the video output is acceptable with your television.

result in the picture being distorted. If the picture is distorted, press and hold [CANCEL] until the picture is displayed correctly. (The output will return to “480p”.)

terminals will be “480i”.

appears. Select “Yes” only if connecting to a progressive output compatible television.

appropriately converts it.

content in addition to 24 frame-per-second film content.

using Auto1 or Auto2.

Using on-screen menus

(Continued on next page)

RQTX0064

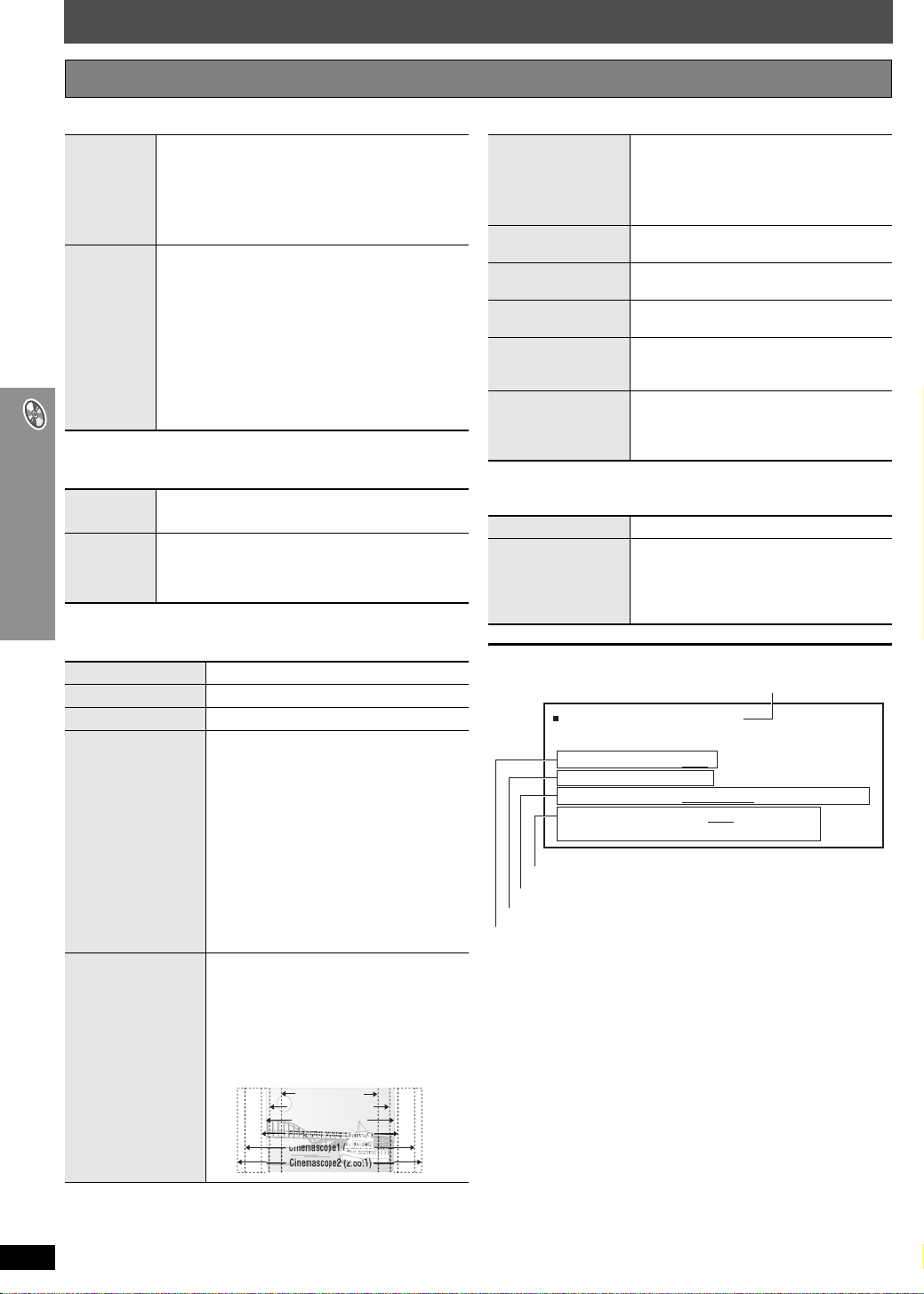

Page 24

Using on-screen menus

Other Settings Items shown differ depending on the type of disc.

∫ Picture Menu (Continued)

This works when the HDMI connection is being used and “Video Mode” (

HD Picture Enhancer

To sharpen the “720p, “1080i” and “1080p” picture quality

This works when the HDMI connection is being used and “Video Mode” (

To select suitable picture color with your television

HDMI Color Space

≥ If the setting above is not compatible with your

television, it will not be displayed.

≥ “RGB Range” (➜ page 26, “HDMI” menu) is available

when “RGB” is selected.

∫ Audio Menu

Dolby Pro Logic II

Dialogue Enhancer

(➜ page 32, Enhancing the stereo sound: Dolby Pro Logic II/Super Surround)

To make the dialogue in movies easier to hear

[DVD-V] (Dolby Digital, DTS, 3-channel or higher, with the dialogue recorded in the center channel)

➜

page 26, “HDMI” menu) is set to “On”.

Off,------. 1,------.2,------.3 (sharpest picture)

^------------------------------------J

➜

page 26, “HDMI” menu) is set to “On”.

RGB YC

bCr (4:4:4)

bCr (4:2:2)

On ,------. Off

Manual Zoom

Bit Rate Display

GUI See-through

GUI Brightness

HDMI Status

Quick OSD

∫ Other Menu

Setup

Play as DVD-VR, Play as HighMAT

Play as Data Disc

To zoom in and out manually

– in 0.01-unit steps from “k1.00” to “k1.60” – in 0.02-unit steps from “k1.60” to “k2.00”

≥ To change the steps more quickly, press

and hold [3, 4].

[DVD-VR] [DVD-V] [VCD]

On ,------. Off

To make the on-screen menu transparent

Off, On, Auto

To adjust the on-screen menu brightness

s3 to r3

Indicates various information when connected with HDMI AV OUT terminal. (➜ below, Confirming HDMI information)

To display current playback condition

Off, Basics, Details

After registering the item, press [RETURN] to show the QUICK OSD screen (➜ page 18).

(➜ page 25)

To use functions for data discs (➜

(To play MP3 or JPEG files on DVD-RAM or DVD-R/RW, or to play a HighMAT disc without using the HighMAT function) Select “Play as Data Disc”.

page 20)

∫ Display Menu

Information

Subtitle Position

Subtitle Brightness

Using on-screen menus

4:3 Aspect

Just Fit Zoom

[JPEG] On ,------. Off

0 to s60 (in 2 unit steps)

Auto, 0 to s7

To select how to show images made for 4:3 aspect screens on a 16:9 aspect television

Normal: Laterally stretches images. Auto: Expands 4:3 letterbox images to fill

more of the screen. Other images appear in full in the center of the screen.

Shrink: Images appear in the center of the

screen. Zoom: Expands to 4:3 aspect ratio. If your television has a similar feature, use it instead for a better effect.

To select the appropriate screen size to fit your television screen

[DVD-VR] [DVD-V] [VCD]

Auto, 4:3 Standard, European Vista, 16:9 Standard, American Vista, Cinemascope1, Cinemascope2

e.g.

4:3 Standard (4:3)

European Vista (1.66:1)

16:9 Standard (16:9) American Vista (1.85:1) Cinemascope1 (2.35:1)

Cinemascope2 (2.55:1)

Confirming HDMI information

e.g.

HDMI Status --- HDMI is connected.

HDMI Information Audio Stream

Max Channel

Color Space

Video Format

(➜ page 23, Video Output Mode)

(➜ above, HDMI Color Space)

Shows the number of audio channels.

Shows the output signal type.

[Note]

≥ All possible types of output are displayed. ≥ The current output for “Audio Stream”, “Color Space” and “Video

Format” will be underlined. (If you select a video output without an “¢” mark in the “Video Output Mode” in Picture Menu, the selected video format will not be underlined.)

≥

When “Off” is selected in “Audio Output” (➜page 26, “HDMI” menu), “– – –” will be displayed in “Audio Stream” and “Max Channel”.

Connection status

PCM

2ch

YCbCr (4:4:4)/YCbCr (4:2:2)/RGB

480i/480p 720p/1080i/1080p

RQTX0064

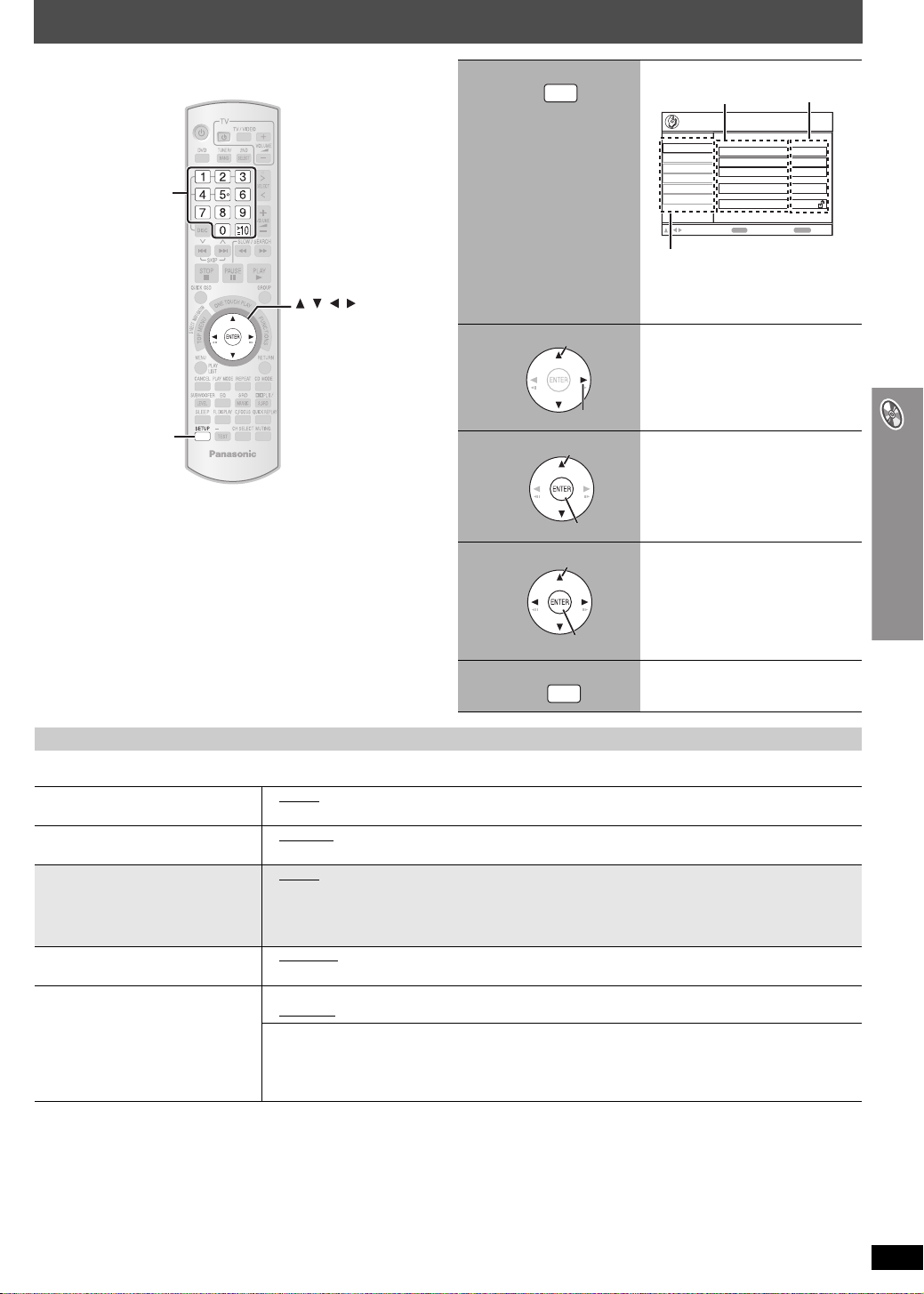

Page 25

Changing the player settings

Numbered

buttons

SETUP

Show the Setup menu.

Setting

English

Automatic

English

Intro Mode

Level 8

to exit

RETURN

Disc

Video Audio HDMI Display Others

Setup

Item

Audio Subtitle Menus

Advanced Disc Review

Ratings

to select and press

ENTER

If you have not performed QUICK

, , ,

ENTER

AUTO

Select

Go right

Select

SETUP (➜ page 11), the QUICK SETUP screen appears.

Select the menu.

Select the item.

Select

Make the settings.

≥Numbered buttons can be used.

≥ The settings remain intact even if you switch the unit to standby. ≥ Underlined items are the factory settings in the following table.

SETUP

QUICK SETUP enables successive settings of the items in the shaded area.

∫ “Disc” menu

Audio

≥ English

≥ French ≥ Spanish ≥ Original

Choose the audio language.

§3

Subtitle

≥ Automatic

≥ English ≥ Frenc h ≥ Spanish ≥ Other¢¢¢¢

Choose the subtitle language.

Menus

Choose the language for disc menus. Changing the menu language in QUICK SETUP also changes this setting.

Advanced Disc Review

(➜ page 23)

Ratings

Set a rating level to limit DVD-Video play.

§1

The original language designated on the disc is selected.

§2

Input the appropriate code from the language code list (➜ page 27).

§3

If the language selected for “Audio” is not available, subtitles appear in that language (if available on the disc).

≥ English ≥ French ≥ Spanish ≥ Other¢¢¢¢

≥ Intro Mode ≥ Interval Mode:

: Reviews each title/program.

Reviews not only each title/program but also each 10-minute interval within a title/program.

Setting ratings (When level 8 is selected) ≥ 8 No Limit

When you select your ratings level, a password screen is shown. Follow the on-screen instructions.

Do not forget your password.

A message screen will be shown if a DVD-Video disc exceeding the rating level is inserted in the unit. Enter your password and then follow the on-screen instructions.

≥ 1 to 7 ≥ 0 Lock All: To prevent play of discs without rating levels.

§1

Press to exit.

≥ Other¢¢¢¢

§2

Changing the player settings

(Continued on next page)

RQTX0064

Page 26

Changing the player settings

QUICK SETUP enables successive settings of the items in the shaded area.

∫ “Video” menu

TV Aspect

Choose the setting to suit your television and preference.

TV Type

Select to suit the type of television.

Time Delay

When connected with a Plasma display, adjust if you notice the audio is out of sync with the video.

Still Mode

Specify the type of picture shown when paused.

Black Level Control

Change the black level of the picture if you connected a television through the COMPONENT VIDEO OUT terminals.

§4

Refer to “Frame still and field still” (➜ page 35, Glossary).

≥ 4:3 Pan&Scan

The sides of the widescreen picture are cut off so it fills the screen (unless prohibited by the disc).

≥ 4:3 Letterbox: Regular aspect television (4:3)

Widescreen picture is shown in the letterbox style.

≥ 16:9: Widescreen television (16:9)

≥ Standard (Direct View TV) ≥ CRT Projector ≥ LCD TV/Projector ≥ Projection TV ≥ Plasma TV

≥ 0ms

≥ Automatic ≥ Field§4: The picture is not blurred, but picture quality is lower. ≥ Fra me

≥ Lighter ≥ Darker: When connected through COMPONENT VIDEO OUT (Y/P

: Regular aspect television (4:3)

≥ 20ms ≥40ms ≥ 60ms ≥80ms ≥ 100ms

§4

Overall quality is high, but the picture may appear blurred.

: When connected through VIDEO OUT.

B/PR).

∫ “Audio” menu

Dolby Digital

DTS Digital Surround

§5

Dynamic Range Compression

Speaker Settings (➜ page 27)

Set the delay time for your center and surround speakers.

§5

When audio is output from HDMI AV OUT terminal, and the connected equipment does not support the item selected, the actual output will depend

on the performance of this connected equipment.

∫ “HDMI” menu

Changing the player settings

RGB Range

Set “HDMI Color Space” to “RGB” (➜ page 24, Picture Menu).

Video Mode

(This setting is irrelevant when connected through the VIDEO OUT terminal.)

Audio Output

EZ Sync

≥ Bitstream ≥ PCM

≥ Off ≥ On: Adjusts for clarity even when the volume is low. Convenient for late night viewing. (Only works with

Dolby Digital)

≥ Center: 0.0 ≥ Surround (L/R): 0.0

≥ Standard ≥ Enhanced: When the black and white images are not distinct.

≥ On

: When connected through the HDMI AV OUT terminal. Video is output from the HDMI terminal.

Video is also output from the COMPONENT VIDEO OUT terminal, but only in 480i (interlaced).

≥ Off: When connected through the COMPONENT VIDEO OUT terminal. Video is output from the

COMPONENT VIDEO OUT terminal according to the setting of the “Video Output Mode” (➜ page 23, Picture Menu). Video is also output from the HDMI AV OUT terminal, but only in 480p (progressive).

≥ On: When audio output is from the HDMI AV OUT terminal. (Depending on the capabilities of the

connected equipment, audio output may differ from the audio settings of the main unit.)

≥ Off

: When audio output is not from the HDMI AV OUT terminal. (The audio is output using the settings of

the main unit.)

≥ On:The ≥ Off

EZ Sync “HDAVI Control”

Select to suit the type of equipment you connected to the HDMI AV OUT terminal (➜ page 7).

Select “Bitstream” when the equipment can decode the bitstream (digital form of

5.1-channel data). Otherwise, select “PCM” (audio output is 2-channel). (If the bitstream is output to the equipment without a decoder, high levels of noise can be output and may damage your speakers and hearing.)

/1.0/2.0/3.0/4.0/5.0 ms /5.0/10.0/15.0 ms

function is available (➜ page 28).

∫ “Display” menu

Menu Language

On-Screen Messages

RQTX0064

≥ English ≥Français ≥Español

≥ On ≥Off

Page 27

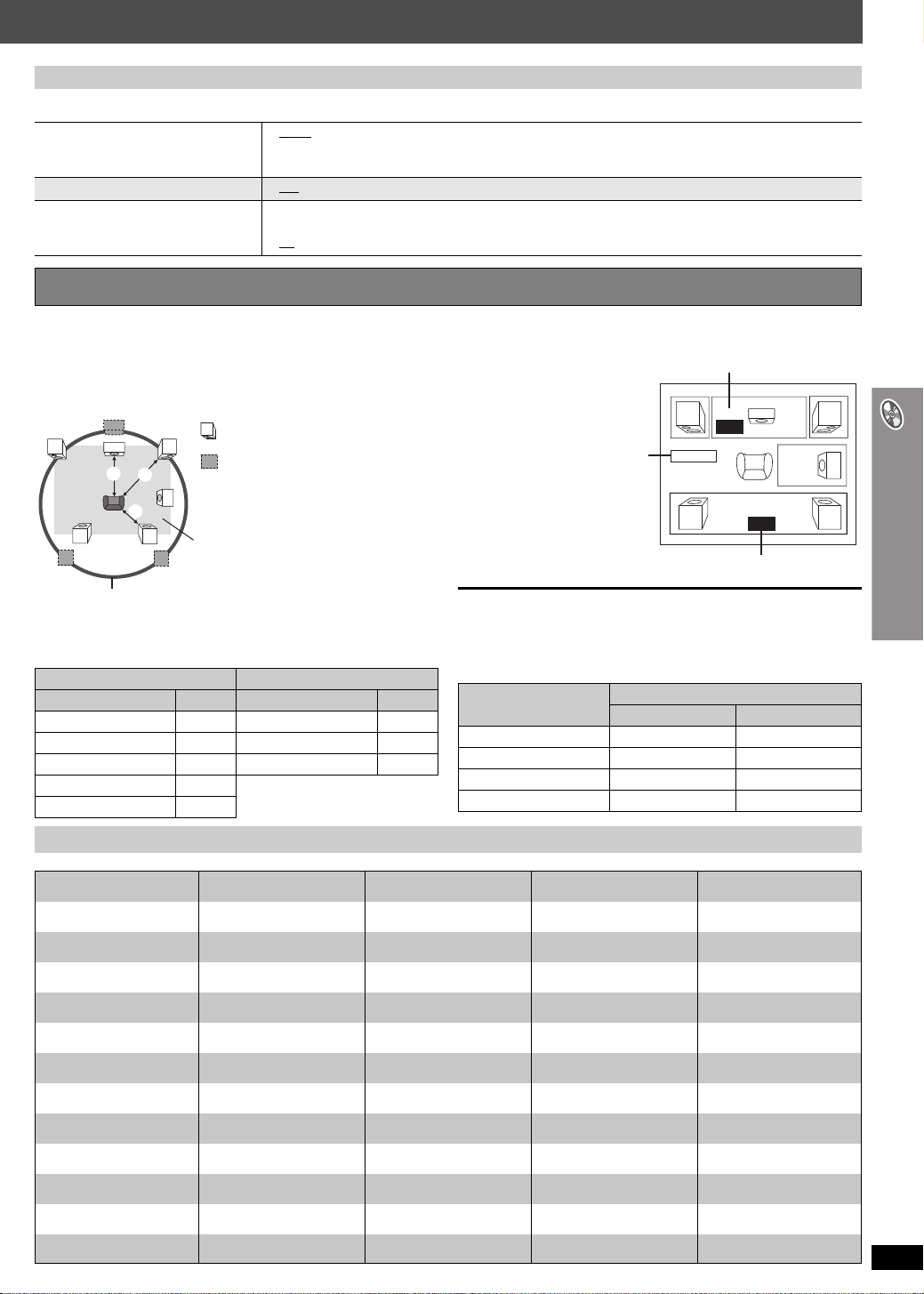

QUICK SETUP enables successive settings of the items in the shaded area.

∫ “Others” menu

FL Dimmer

Change the brightness of the unit’s

≥ Bright ≥ Auto: The display is dimmed, but brightens when you perform some operations.

display.

QUICK SETUP

Re-initialize Setting

Return all values in the Setup menus to the default settings.

≥ Ye s ≥ No

≥ Yes: The password screen is shown if “Ratings” (➜ page 25) is set. Please enter the same password.

After “INIT” on the display disappears, turn the unit off and on again.

≥ No

Changing the delay time of the speakers

≥ Dim

(Effective when playing 5.1-channel sound)

(Center and surround speakers only) For optimum listening with 5.1-channel sound, all the speakers, except for the subwoofer, should be the same distance from the seating position. If you have to place the center or surround speakers closer to the seating position, adjust the delay time to make up for the difference.





: Actual speaker position

: Ideal speaker position

 

: Primary listening distance



Approximate room dimensions

Circle of constant primary listening distance

If either distance a or b is less than c, find the difference in the table and change to the recommended setting.

a Center speaker b Surround speaker

Difference (Approx.) Setting Difference (Approx.) Setting

30 cm (1 foot) 1.0 ms 150 cm (5 feet) 5.0 ms

60 cm (2 feet) 2.0 ms 300 cm (10 feet) 10.0 ms

90 cm (3 feet) 3.0 ms 450 cm (15 feet) 15.0 ms

120 cm (4 feet) 4.0 ms

150 cm (5 feet) 5.0 ms

1Press [3, 4] to select the delay time box and press [ENTER]. 2Press [3, 4] to adjust the delay time and press [ENTER].

Center delay time

0.0

Exit

Surround delay time

To finish the speaker setting

Press [2] to select “Exit” and press [ENTER].

When you change the surround speaker setting for Dolby Digital, the setting also changes for Dolby Pro Logic II. e.g., the settings for Music are the same as those for Dolby Digital.

Dolby Digital

Dolby Pro Logic II

Music Movie

0 ms 0 ms 10 ms

5 ms 5 ms 15 ms

10 ms 10 ms 20 ms

15 ms 15 ms 25 ms

Language code list

Abkhazian: 6566 Afar: 6565 Afrikaans: 6570 Albanian: 8381 Ameharic: 6577 Arabic: 6582 Armenian: 7289 Assamese: 6583 Aymara: 6589 Azerbaijani: 6590 Bashkir: 6665 Basque: 6985 Bengali, Bangla:6678 Bhutani: 6890 Bihari: 6672 Breton: 6682 Bulgarian: 6671 Burmese: 7789 Byelorussian: 6669 Cambodian: 7577 Catalan: 6765 Chinese: 9072 Corsican: 6779 Croatian: 7282 Czech: 6783

Danish: 6865 Dutch: 7876 English: 6978 Esperanto: 6979 Estonian: 6984 Faroese: 7079 Fiji: 7074 Finnish: 7073 French: 7082 Frisian: 7089 Galician: 7176 Georgian: 7565 German: 6869 Greek: 6976 Greenlandic: 7576 Guarani: 7178 Gujarati: 7185 Hausa: 7265 Hebrew: 7387 Hindi: 7273 Hungarian: 7285 Icelandic: 7383 Indonesian: 7378 Interlingua: 7365 Irish: 7165

Italian: 7384 Japanese: 7465 Javanese: 7487 Kannada: 7578 Kashmiri: 7583 Kazakh: 7575 Kirghiz: 7589 Korean: 7579 Kurdish: 7585 Laotian: 7679 Latin: 7665 Latvian, Lettish: 7686 Lingala: 7678 Lithuanian: 7684 Macedonian: 7775 Malagasy: 7771 Malay: 7783 Malayalam: 7776 Maltese: 7784 Maori: 7773 Marathi: 7782 Moldavian: 7779 Mongolian: 7778 Nauru: 7865 Nepali: 7869

Norwegian: 7879 Oriya: 7982 Pashto, Pushto: 8083 Persian: 7065 Polish: 8076 Portuguese: 8084 Punjabi: 8065 Quechua: 8185 Rhaeto-Romance:

8277 Romanian: 8279 Russian: 8285 Samoan: 8377 Sanskrit: 8365 Scots Gaelic: 7168 Serbian: 8382 Serbo-Croatian: 8372 Shona: 8378 Sindhi: 8368 Singhalese: 8373 Slovak: 8375 Slovenian: 8376 Somali: 8379 Spanish: 6983 Sundanese: 8385 Swahili: 8387

Swedish: 8386 Tagalog: 8476 Tajik: 8471 Tamil: 8465 Tatar: 8484 Telugu: 8469 Thai: 8472 Tibetan: 6679 Tigrinya: 8473 Tonga: 8479 Turkish: 8482 Turkmen: 8475 Twi: 8487 Ukrainian: 8575 Urdu: 8582 Uzbek: 8590 Vietnamese: 8673 Volapük: 8679 Welsh: 6789 Wolof: 8779 Xhosa: 8872 Yiddish: 7473 Yoruba: 8979 Zulu: 9085

Changing the player settings

RQTX0064

Page 28

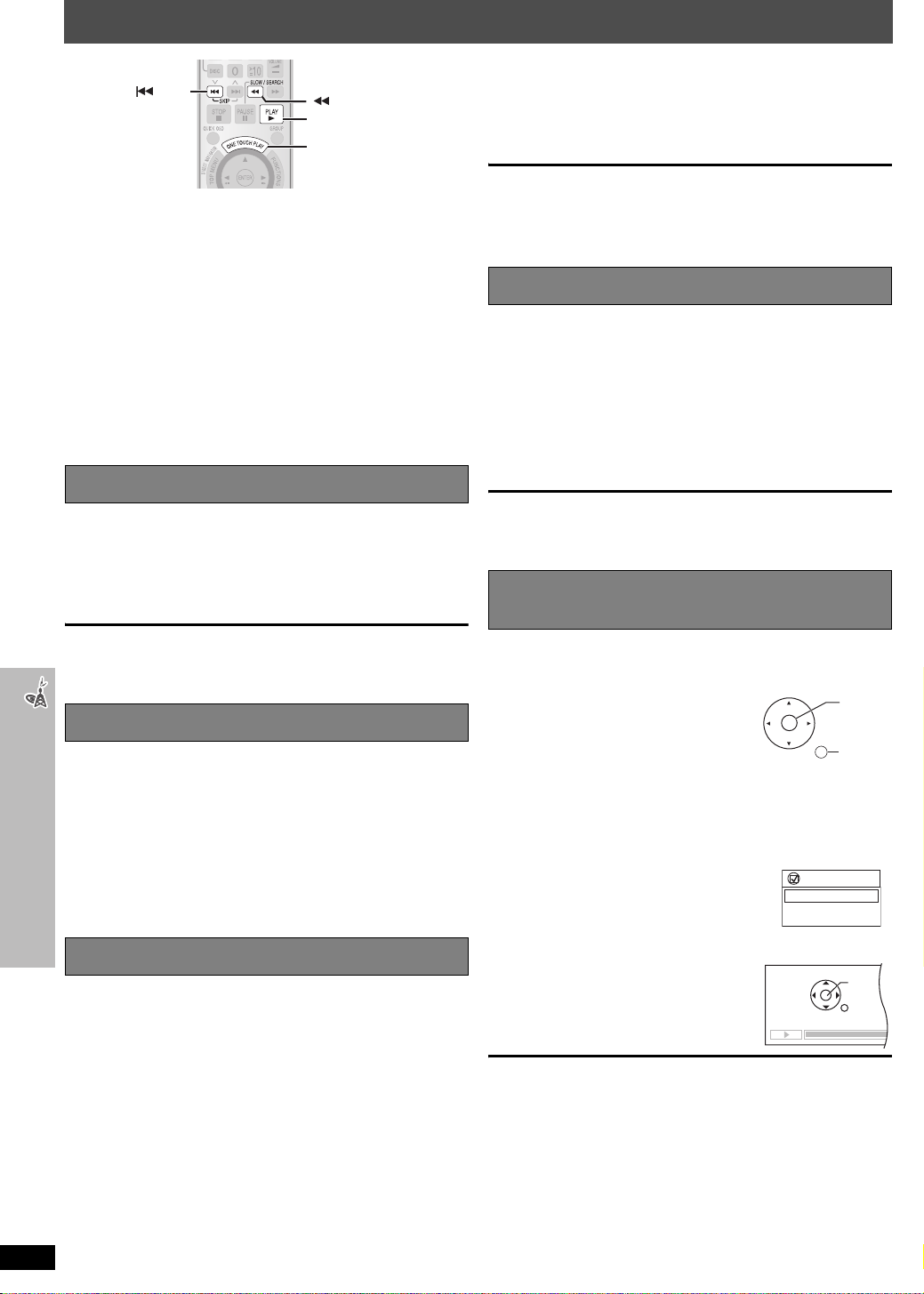

Using the EZ Sync

SKIP

“HDAVI ControlTM”

SLOW/SEARCH

 PLAY

ONE TOUCH PLAY

EZ Sync “HDAVI Control”

EZ Sync “HDAVI Control” is a convenient function that offers linked operations of this unit, and a Panasonic television (VIERA) under “HDAVI Control”. You can use this function by connecting the equipment with the HDMI cable. See the operating instructions for connected equipment for operational details. This unit supports “HDAVI Control 2” function. The TV with “HDAVI Control 2” function enables the following operation: EZ Sync Control only with TV’s remote control (for “HDAVI Control 2”) (➜right)

Preparation

≥ Confirm that the HDMI connection (➜ page 7) has been made.

”

≥ Set “EZ Sync” to “On” (➜ page 26, “HDMI” menu).

≥

To complete and activate the connection correctly, turn on all “HDAVI Control” compatible equipment and set the television to the corresponding HDMI input mode for the home theater system.

Whenever the connection or settings are changed, reconfirm the points above.

One touch play

“HDAVI Control

You can turn on the home theater system and television, and start playing the disc in the play position with a single press of a button.

Press [ONE TOUCH PLAY].

Theater speakers will be automatically activated (➜ below). ≥ This function also works if you press [1 PLAY] on the home theater

remote control during home theater standby mode.

[Note]

Using the EZ Sync

Playback may not be immediately displayed on the television. If you miss the beginning portion of playback, press [:] or [6] to go back to where playback started.

Auto input switching

≥ When you switch the television input to:

– TV tuner mode, the home theater system will automatically switch to

[or “D-IN”§ ([PT1050])].

“AUX”

– HDMI input mode for the home theater system, the home theater system

will automatically switch to “DVD/CD” if it is in “AUX” (

[PT1050]

≥ When you start disc play, the television will automatically switch to the

HDMI input mode for the home theater system.

To toggle the mode that this function works with, press [SETUP] while

the main unit is in “AUX” or “D-IN” mode. – The default setting is “AUX”.

)] mode.

[or “D-IN”

Speaker control

You can select whether audio is output from the home theater system or the television speakers by using the television menu settings. For details, refer to the operating instructions of your television.

Home theater

Theater speakers are active.

≥

When the home theater system is in standby mode, changing the television speakers to theater speakers in the television menu will automatically turn the home theater system on and select “AUX” source.

≥ The television speakers are automatically muted. ≥ You can control the volume setting using the volume or mute button on

the TV’s remote control. (The volume level is displayed on the main unit’s FL display.)

≥ To cancel muting, you can also use the home theater remote control

(➜ page 12).

RQTX0064

≥ If you turn off the home theater system, television speakers will be

automatically activated.

[or “D-IN”§ (

EZ Sync

[PT1050]

)] as the

Television speakers are active. ≥ The volume of the home theater system is set to “0”.

– This function works only when “DVD/CD” or “AUX”§ [or “D-IN”§ (

is selected as the source on the home theater system.

≥ Audio output is 2-channel audio.

When switching between the theater and television speakers, the TV screen may be blank for several seconds.

To toggle which input source the main unit will automatically switch to,

press [SETUP] while the main unit is in “AUX” or “D-IN” mode. – The default setting is “AUX”.

[PT1050]

Power off link

When the television is turned off, the home theater system goes into standby mode automatically. ≥ This function works only when “DVD/CD” or “AUX”

([PT1050])] is selected as the source on the home theater system.

≥ When the television is turned on, the home theater system does not turn

on automatically. (Power on link is not available.)

For “AUX” or “D-IN” mode, power off link can be set to work with one or the other. To toggle the mode that this function works with, press [SETUP] while the main unit is in “AUX” or “D-IN” mode. – The default setting is “AUX”.

[or “D-IN”

[Note]

Only the home theater system turns off when you press [Í] for shutting it down. Other connected equipment compatible with EZ Sync “HDAVI Control” stays on.

EZ Sync Control only with TV’s remote control (for “HDAVI Control 2”)

You can control the disc menus of the home theater system with the TV’s remote control when using the “DVD/CD” source. When operating the TV’s remote control, refer to the below illustration for operation buttons.

1 Select the theater operation menu by using

the television menu settings. (For details, refer to the operating instructions of your television.) ≥The home theater system will automatically

switch to “DVD/CD” if it is in “AUX”

To toggle the mode that this function works with, press [SETUP] while the main unit is in “AUX” or “D-IN” mode. –The default setting is “AUX”.

2 Select the desired item.

≥“TOP MENU”: Shows a disc top menu

≥“MENU”: Shows a disc menu

≥“Control Panel”:

(➜ page 17, 20) or program list (➜ page 21).

(➜ page 17, 20) or play list (➜ page 21). The basic operations for discs are available.

[or “D-IN”§ ([PT1050])] mode.

[Note]

≥ Depending on the menu, some button operations cannot be performed

from the TV’s remote control.

≥ “Control Panel” can be selected directly by using a button on the TV’s

remote control (e.g. [SUB MENU]).

EZ Sync

TOP MENU MENU Control Panel

PAU SE

STOP

ENTER/ PLAY

RETURN

PLAY

SKIPSKIP

RETURN

)]

Page 29

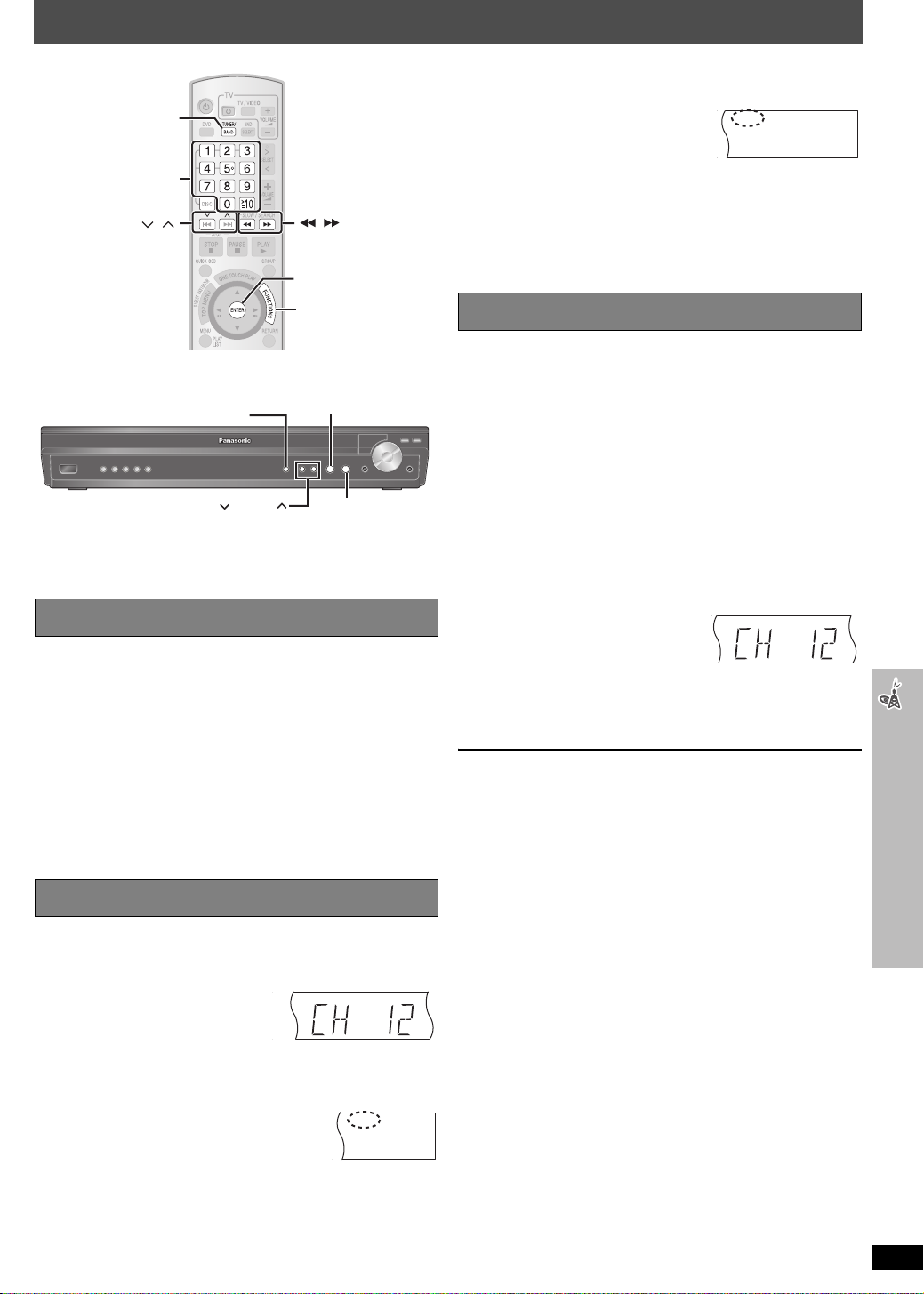

Using the FM/AM radio

TUNER/BAND

Numbered

buttons

ENTER

∫ If noise is excessive

When “FM” is selected

Press and hold [—FM MODE] on the main unit to display

“MONO”.

Press and hold [—FM MODE] again to cancel the mode. ≥ The mode is also canceled when you change the frequency.

When “AM” is selected

Press [FUNCTIONS] on the remote control.

Each time you press the button: BP 2()BP 1

D.MIX

MONO

SLP

ST CT

PGM

DDTS

SRDE.

RND

W1 W2

PRG

RDS

FUNCTIONS

SELECTOR

-TUNE MODE/ FM MODE

TUNING

Radio operations are described mainly with the remote control. You can alternatively use the corresponding button on the main unit.

§1

[SELECTOR]

§2

[X TUNING W]

§3

[MEMORY]

MEMORY

Presetting stations automatically

Up to 30 stations can be set in each band, FM and AM.

Press [TUNER/BAND]§1 to select “FM” or “AM”.

Press and hold [ENTER]§3.

Release the button when “FM AUTO” or “AM AUTO” is displayed.

The tuner tunes to the lowest frequency and starts to preset all the stations it can receive into the channels in ascending order. ≥ “SET OK” is displayed when the stations are set, and the radio

tunes to the last preset station.

≥ “ERROR” is displayed when automatic presetting is unsuccessful.

Preset the channels manually (➜ right).

Selecting the preset channels

Press [TUNER/BAND]§1 to select “FM” or “AM”.

Press the numbered buttons to select the channel.

≥ To select a 2-digit number

e.g. 12: [S10] ➜ [1] ➜ [2]

Alternatively, press [X, W].

≥ To perform this step on the main

unit, first press [-TUNE MODE] to select “PRESET”, and then press [X TUNING W] to select the channel.

When a stereo FM broadcast is being received, “ST” lights in the display.

ODE

DISC

S.SRD

KARA

D.MIX

SLP

ST CT

DDTS

SRDE.

PGM

W1 W2

MONO

RND

Manual tuning

Press [TUNER/BAND]§1 to select “FM” or “AM”.

Press [6, 5]§2 to select the frequency.

≥ When performing this step on the main unit, first press

[-TUNE MODE] to select “MANUAL”, and then press [XTUNINGW] to select the frequency.

≥ To start automatic tuning, press and hold [6, 5]

frequency starts scrolling. Tuning stops when a station is found.

∫ Presetting the channel

Up to 30 stations can be set in each band, FM and AM. 1 While listening to the radio broadcast

Press [ENTER]

2 While the frequency and “PGM” are flashing on the display

Press the numbered buttons to select a channel.

≥ To select a 2-digit number

e.g. 12:

Alternatively, press [X, W], and then press [ENTER]

A station previously stored is overwritten when another station is stored in the same channel preset.

FM frequency step

\Main\unit\only]

The step is factory-set to 0.2-MHz, but you can change it to receive broadcasts allocated in 0.1-MHz steps.

1 Press [SELECTOR] to select “FM”.

2 Press and hold [SELECTOR].

After a few seconds the display changes to show the current minimum frequency. Continue to hold the button down. The minimum frequency changes and the step is changed.

To return to the original step, repeat steps 1 and 2.

[Note]

After changing the setting, previously preset frequencies will be cleared. Preset them again.

SLP

PRG

RDS

§3

[S10] ➜ [1] ➜ [2]

DISC

S.SRD

§2

until the

MONO

D.MIX

SLP

KARA

Using the FM/AM radio

§3

RQTX0064

Page 30

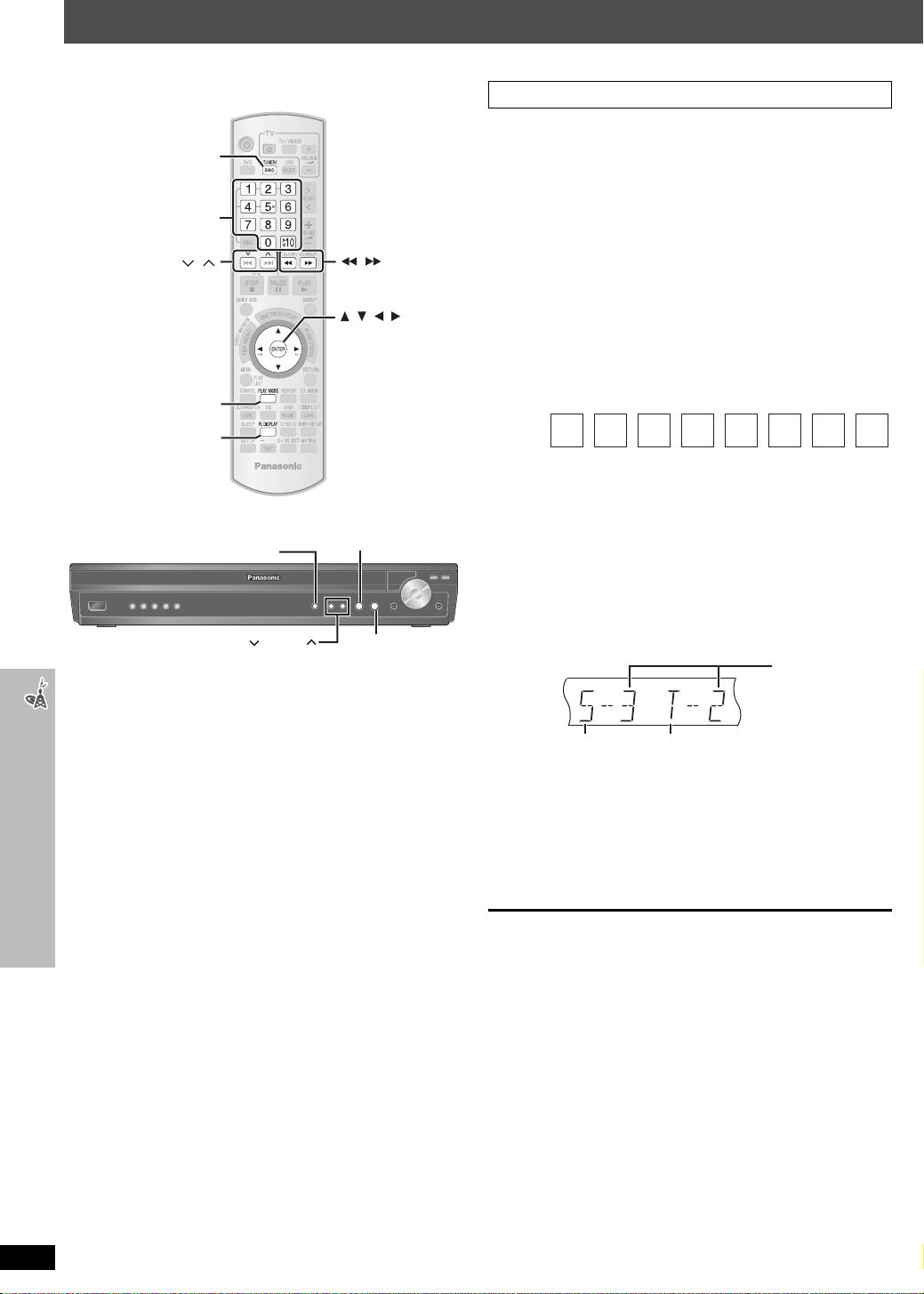

Using the XM® Satellite Radio

\The\XM\Satellite\Radio\is\available\only\in\the\48\contiguous\United\States\and\Canada\

Preparation

∫ The XM Satellite Radio ID

TUNER/BAND

Numbered

buttons

PLAY MODE

, , ,

ENTER

Please confirm your XM Satellite Radio ID necessary for activating XM Satellite Radio as follows.

Press [TUNER/BAND]§1 to select “XM”.

≥ Ensure the antenna is connected (➜ page 8).

Press [PLAY MODE]§4 to select “MANUAL”.

Each time you press the button: MANUAL()PRESET

Press [0] to select “XM 0” (XM channel 0).

“RADIO ID” is indicated in the display briefly, followed by an 8-digit alphanumeric ID.

Note your XM Satellite Radio ID.

≥ To avoid ambiguity, the letters I, O, S and F are not used in

the ID.

FL DISPLAY

Satellite Radio

Using the XM

Radio operations are described mainly with the remote control. You can alternatively use the corresponding button on the main unit.

§1

[SELECTOR]

XM Satellite Radio

XM Satellite Radio is the provider of satellite radio. XM Satellite Radio offers an extraordinary variety of commercial-free music, plus the best in sports, news, talk and entertainment. To enjoy XM Satellite Radio, subscription is required. For more information, visit XM on the Web at www.xmradio.com for U.S. customers, or www.xmradio.ca for Canada customers.

How to Subscribe

XM monthly service subscription sold separately. XM Connect & Play antenna, or XM Passport Mini-Tuner and Home Dock (includes home antenna) required to receive XM service (sold separately). Channels with frequent explicit language are indicated with an XL. Channel blocking is available for XM radio receivers by calling 1-800-XMRADIO (U.S. residents) or 1-877-GET-XMSR (Canada residents). Subscriptions subject to Customer Agreement available at xmradio.com (U.S. residents) and xmradio.ca (Canada residents). Only available in the 48 contiguous United States and Canada. C2006 XM Satellite Radio Inc. All rights reserved. All other trademarks are the property of their respective owners. ≥ To subscribe in the U.S., visit

XM’s Listener Care at 1-800-XMRADIO (1-800-967-2346). To subscribe in Canada, visit XM’s Listener Care at

You should have your Radio ID ready (➜ right).

§2

[X TUNING W]

1-877-GET-XMSR

AUTO

SELECTOR

TUNING

§3

XM on the Web at www.xmradio.com or call

XM on the Web at

-TUNE MODE

MEMORY

[MEMORY]

(1-877-438-9677).

§4

www.xmradio.ca

[-TUNE MODE]

or call

≥ To exit, press [6, 5]

§2

to select another channel.

∫ Optimizing the XM signal reception

The main unit has a signal strength indicator function that allows you to optimize the XM signal reception.

Press [TUNER/BAND]§1 to select “XM”.

≥ Ensure the antenna is connected (➜ page 8).

Press and hold [FL DISPLAY] until the XM signal

status is displayed.

Signal strength:

DISC

S.SRD

USB

DVD

MODE

Satellite signal

Position the antenna for the best possible satellite

signal reception.

The display changes depending on the signal strength. ≥ If the satellite signal is weak or not available, you can

optimize for the terrestrial signal (where available).

Press [FL DISPLAY] to return to the previous

display.

MONO

KARA

D.MIX

Terrestrial signal

SLP

ST CT

PGM

Tips for optimizing reception

≥

To prevent interference with wireless equipment, place the antenna away from this unit, Panasonic wireless sound system SH-FX80/SH-FX85, Panasonic wireless system SH-FX50/SH-FX60/SH-FX65, and other equipment that emits radio waves (such as radio equipment and microwave ovens).

≥ Place the antenna near a south-facing window with an unobstructed

view of the sky for the best satellite signal reception.

≥ Refer also to the operating instructions of your XM antenna.

DDTS

SRDE.

RND

W1 W2

4 (strong)

3 (good)

PRG

RDS

2 (marginal)

1 (weak) 0 (no signal)

RQTX0064

Page 31

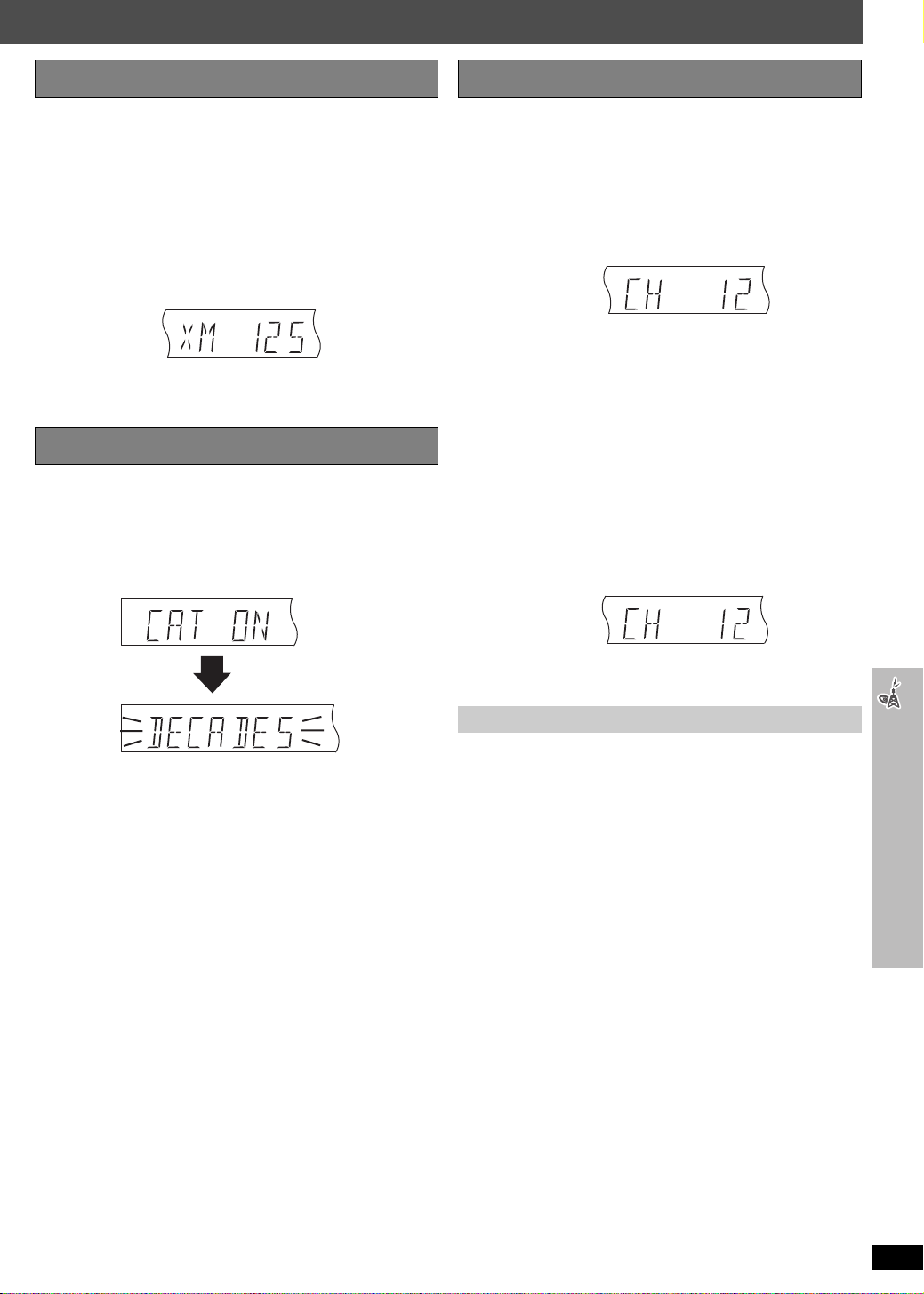

Selecting XM channels by direct entry

Presetting the XM channels

XM channels can be selected manually by directly entering the XM channel number.

Press [TUNER/BAND]§1 to select “XM”.

Press [PLAY MODE]§4 to select “MANUAL”.

Each time you press the button: MANUAL()PRESET

Press the numbered buttons to select the XM channel.

≥ To select a 2-digit or 3-digit number

e.g.12: [S10] ➜ [1] ➜ [2] 125: [S10] ➜ [S10] ➜ [1] ➜ [2] ➜ [5].

DISC

S.SRD

USB

DVD

MODE

Alternatively, press [6, 5] ≥ Press and hold [6, 5]

MONO

SLP

KARA

D.MIX

§2

to select the desired XM channel.

§2

to scan through quickly.

ST CT

PGM

DDTS

SRDE.

RND

W1 W2

PRG

RDS

Selecting XM channels by category

XM channels are organized into categories such as Rock, Classical, Country and Dance to make browsing and selecting channels easier.

Press [TUNER/BAND]§1 to select “XM”.

Press [3, 4, 2, 1] to enter category tune mode.

The category of the current XM channel flashes on the display.

DISC

USB

DVD

MODE

S.SRD

KARA

D.MIX

MONO

SLP

ST CT

PGM

DDTS

SRDE.

RND

W1 W2

PRG

RDS

Channel presets allow you to quickly and conveniently select your favorite XM channels. Up to 30 XM channels can be stored as channel presets.

While listening to the XM radio broadcast

Press [ENTER]§3.

While the XM channel and “PGM” are flashing on the display

Press the numbered buttons to select a channel.

≥ To select a 2-digit number

e.g. 12: [S10] ➜ [1] ➜ [2]

DISC

S.SRD

USB

DVD

MODE

Alternatively, press [X, W] and then press [ENTER]

KARA

D.MIX

MONO

SLP

ST CT

§3

PGM

DDTS

SRDE.

RND

W1 W2

PRG

RDS

≥ An XM channel previously stored is overwritten when another XM

channel is stored in the same channel preset.

≥ XM channel 0 (RADIO ID) cannot be stored as a channel preset.

∫ Selecting the preset channels

1 When “XM” is selected

Press [PLAY MODE]

Each time you press the button: MANUAL()PRESET

2 Press the numbered buttons to select the desired channel

preset.

≥ To select a 2-digit number

e.g. 12: [S10] ➜ [1] ➜ [2]

Alternatively, press [X, W].

USB

DVD

MODE

§4

to select “PRESET”.

DISC

S.SRD

KARA

D.MIX

MONO

SLP

ST CT

DDTS

SRDE.

PGM

W1 W2

RND

PRG

RDS

Satellite Radio

Using the XM

e.g.

While the category is flashing

Press [3, 4] to select a category.

USB

DVD

MODE

DISC

S.SRD

MONO

SLP

KARA

D.MIX

ST CT

PGM

DDTS

SRDE.

RND

W1 W2

PRG

RDS

Available categories vary according to broadcasting hours. ≥ Press and hold [3, 4] to scan through quickly.

While the selected category is flashing

Press [2,1] to select a channel in the current category.

The XM channel number and name are displayed briefly, and then the current category flashes on the display.

Press [ENTER] to exit category tune mode.

The XM channel information will be displayed.

[Note]

Some XM channels belong to two categories; a primary and secondary category, either of which can be used for XM channel selection. Although you may have selected an XM channel from its secondary category (e.g. DANCE), after exiting and then re-entering category tune mode, the primary category of the XM channel is displayed (e.g. DECADES).

Selecting the XM channel information

The XM channel information display can be changed.

While listening to the XM radio broadcast

Press [FL DISPLAY].

Each time you press the button:

XM channel number

-----------------------.XM channel name (factory preset)

^----ARTIST NAME,---- SONG TITLE ,----CATEGORY,----}

Longer text information will not be fully displayed.

[Note]

≥ If there is no text information for the current XM broadcast, “

displayed.

≥ Even if the main unit is turned off, or another source is selected, the

setting of channel information will be retained.

≥ The XM channel number and name are displayed briefly whenever the

XM channel is changed.

----

” is

RQTX0064

Page 32

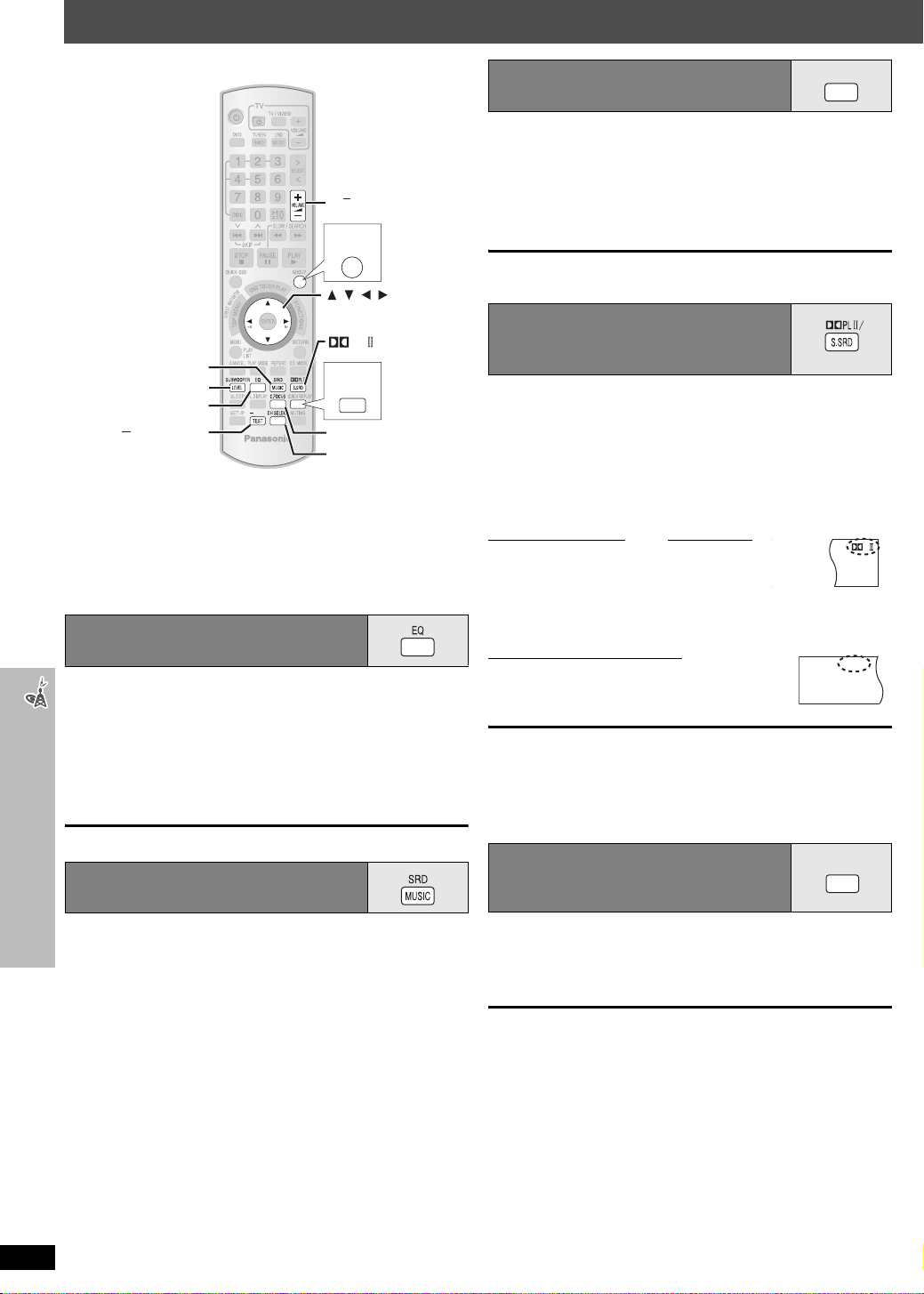

Using sound effects

+ VOLUME

[PT1050]

SRD ENH

, , ,

/S.SRD

SRD MUSIC

SUBWOOFER LEVEL

AUTO, TEST

AUTO

[PT1050]

H.BASS

C.FOCUS

CH SELECT

[Note]

≥

The following sound effects may not be available or have no effect with some sources, or when headphones are used (

≥

You may experience a reduction in sound quality when these sound effects are used with some sources. If this occurs, turn the sound effects off.

Using the equalizer function

Using sound effects

To enjoy the following sound quality settings, ensure that Surround Music (➜ below) is turned off.

➜

page 13).

Press [EQ].

Each time you press the button: FLAT: Cancel (no effect is added) (factory preset). HEAVY: Adds punch to rock. CLEAR: Clarifies higher sounds. SOFT: For background music.

≥ To check the current setting, press [EQ].

Enjoying sound from all speakers: Surround Music

The sound fills the room, and comes from all directions with equal intensity.

Press [SRD MUSIC].

Each time you press the button:

S.MUSIC ON,------.S.MUSIC OFF

Enhancing the sound from the

C.FOCUS

center speaker: Center Focus

This applies to discs where the dialogue is recorded in the center channel.

You can make the sound of the center speaker seem like it is coming from within the television.

Press [C.FOCUS].

Each time you press the button:

C FOCUS ON,------.C FOCUS OFF

≥ This does not work when Surround Music (➜ left) is turned on. ≥ This also works when Dolby Pro Logic II is turned on.

Enhancing the stereo sound: Dolby Pro Logic II/Super Surround

Depending on the source, you can enhance the stereo sound with Dolby Pro Logic II or Super Surround to enjoy the surround sound effect.

Press [ÎPLII/S.SRD].

Each time you press the button: Movie: Movie software Music: Stereo sources Off: Cancel

When DVD/CD or ≥Dolby Pro Logic II§ is available

–“ÎPLII” lights when there is effect.

Dolby Pro Logic II is an advanced decoder that derives 5-channel surround from stereo sound sources, whether or not it has been specifically Dolby Surround encoded.

When another source is selected

≥Super Surround is available

≥ This does not work when audio is output from HDMI AV OUT terminal. ≥ Dolby Pro Logic II/Super Surround cannot be used together with

Surround Music.

≥ You can adjust the volume of the surround speakers to get the best

surround effect (➜ page 33, Adjusting the volume of each speaker: Speaker level adjustments).

Adjusting the amount of bass: Subwoofer level

You can adjust the amount of bass. The unit automatically selects the most suitable setting according to the type of playback source.

Press [SUBWOOFER LEVEL].

You can select the level from “SUB W 1” (weakest) to “SUB W 4” (strongest).

≥ To check the current setting, press [SUBWOOFER LEVEL]. ≥ The setting you make is retained, and recalled every time you play the

same type of source.

D-IN ([PT1050]) is the source

SLP

ST CT

PGM EQ

DISC

USB

DVD

MODE

SUBWOOFER

DDTS

SRDE.

RND

W1 W2

LEVEL

S.SRD

PRG

RDS

RQTX0064

Page 33

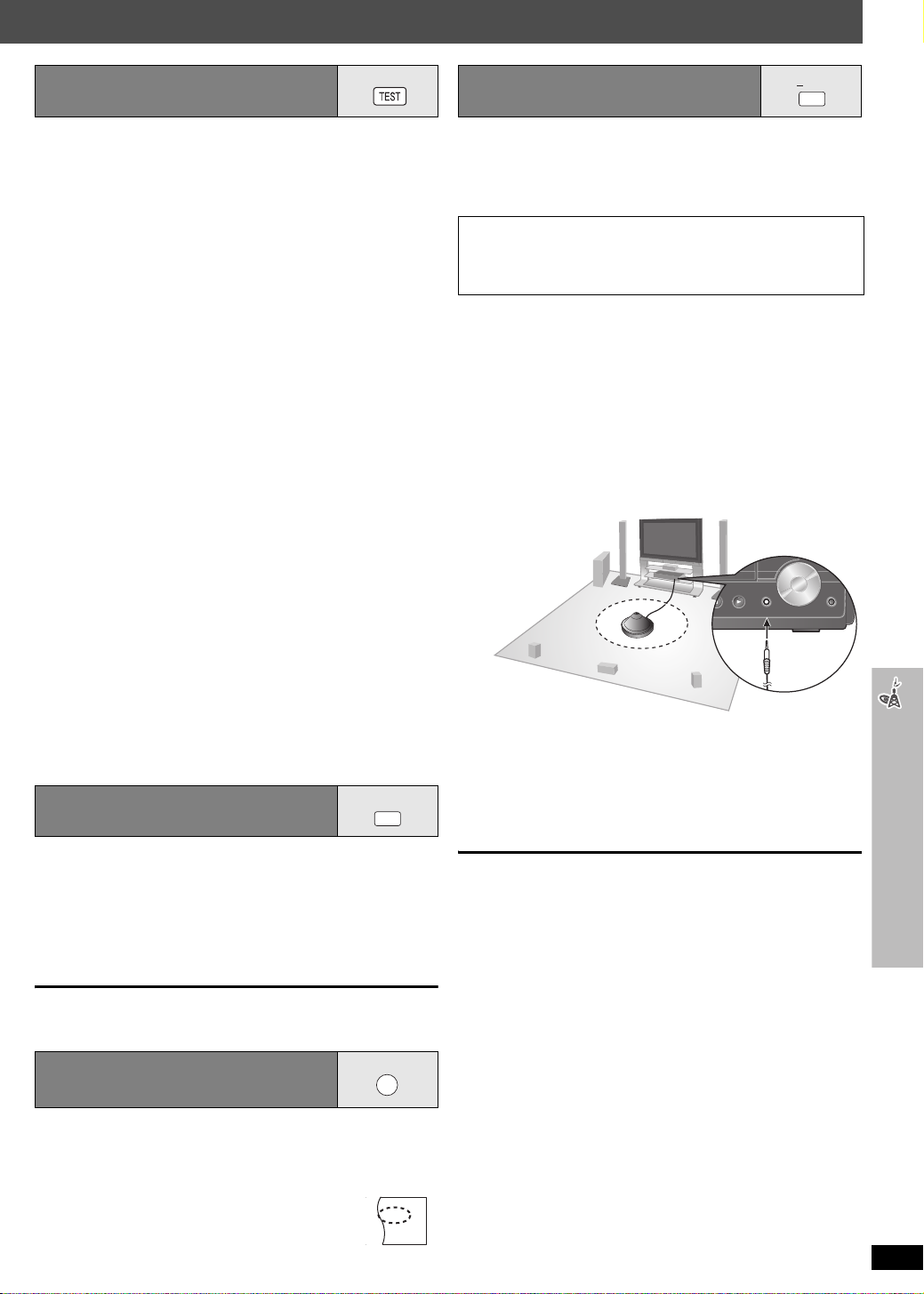

Adjusting the volume of each

SETUP MIC

speaker: Speaker level adjustments

This is one of the ways to get appropriate surround effects.

When “DVD/CD” is selected as the source

While stopped and no on-screen display is shown

Press [TEST] to output a test signal.

≥ To stop the test signal, press [TEST] again.

L: Front left C: Center R: Front right RS: Right surround LS: Left surround

≥ There is no output from SW (subwoofer) channel.

Press [VOLUME, r] or [s] to set the volume level

normally used for listening.

Press [3] (increase) or [4] (decrease) to adjust the

speaker level for each speaker.

≥ Adjust the speaker levels to the same level as the front speakers.

C, RS, LS: `6dB to i6dB

Adjusting the speaker output level

AUTO

automatically: Auto Speaker Setup

The speaker level settings can be optimized to accommodate your room’s listening conditions so that you can enjoy the ideal surround sound experience. Using the supplied setup microphone, the main unit adjusts the balance of the front speakers, and the volume level of the center and surround speakers automatically.

Keep as quiet as possible during the auto speaker setup. Loud voices, air-conditioning noise, or disturbances caused by the wind may lead to incorrect settings. The speakers output loud test signals during the setup.

Preparation

≥ Turn off the TV before starting the auto speaker setup. ≥ Make sure that “DVD/CD” is selected as the source (➜ page 16), and

there are no discs in the trays.

≥ Ensure that the wireless link setting is completed (➜ page 13). ≥ Ensure that headphones are disconnected.

∫ To adjust speaker level during play

(Effective when playing 5.1-channel sound or when Dolby Pro Logic II/Super Surround is on, and Surround Music is off.)

1 Press [CH SELECT] to select the speaker.

#C #R #RS #LS #SW

^----------------------------------------------------}

≥ You can adjust SW (Subwoofer) only if the disc includes a

subwoofer channel and “ÎPLII” is not lit.

≥ “S” appears on the display when Super Surround is on

(➜ page 32). In this case, you can adjust both surround speaker levels at the same time using [3, 4].

6dB to i6dB

2 Press [3] (increase) or [4] (decrease) to adjust the speaker

level for each speaker.

C, RS, LS, SW: `6dB to i6dB (L, R: Only the balance is adjustable.)

≥ To adjust the balance of the front speakers, while “L” or “R” is

selected, press [2, 1].

[PT1050] Enhancing the bass sound: H.BASS

You can enhance low-frequency sound so that heavy bass sound can be heard clearly, even if the acoustics of your room are not optimal. The unit automatically selects the most suitable setting according to the type of playing source.

Press [H.BASS].

Each time you press the button:

H.BASS ON,------.H.BASS OFF

H.BASS

While stopped

Connect the setup microphone.

≥ Place the microphone at the actual seating position and the same

height of hearing level (e.g. on your sofa’s headrest).

Press and hold [—AUTO].

≥ The test signal is output from each speaker. ≥ “COMPLETE” will be displayed in the main unit’s display when the

setting is completed. Unplug the setup microphone.

≥ To cancel the setup, press and hold [—AUTO] again (“CANCEL”

will be displayed in the main unit’s display).

[Note]

The settings will return to default if Auto Speaker Setup is cancelled.

Using sound effects

The setting you make is retained, and recalled every time you play from the same type of source.

[PT1050] E

nhancing the surround

SRD ENH

sound effect: Surround Enhancer

Automatically adjusts each speaker to enhance the surround sound effect. When playing two-channel audio, the audio of the L/R front speakers is also output through the rest of the speakers creating a surround sound effect.

Press [SRD ENH].

Each time you press the button:

SRD ENHANCER ON,------.SRD ENHANCER OFF

PGM

DDTS

SRDE.

RND

W1 W2

PRG RDS

RQTX0064

Page 34

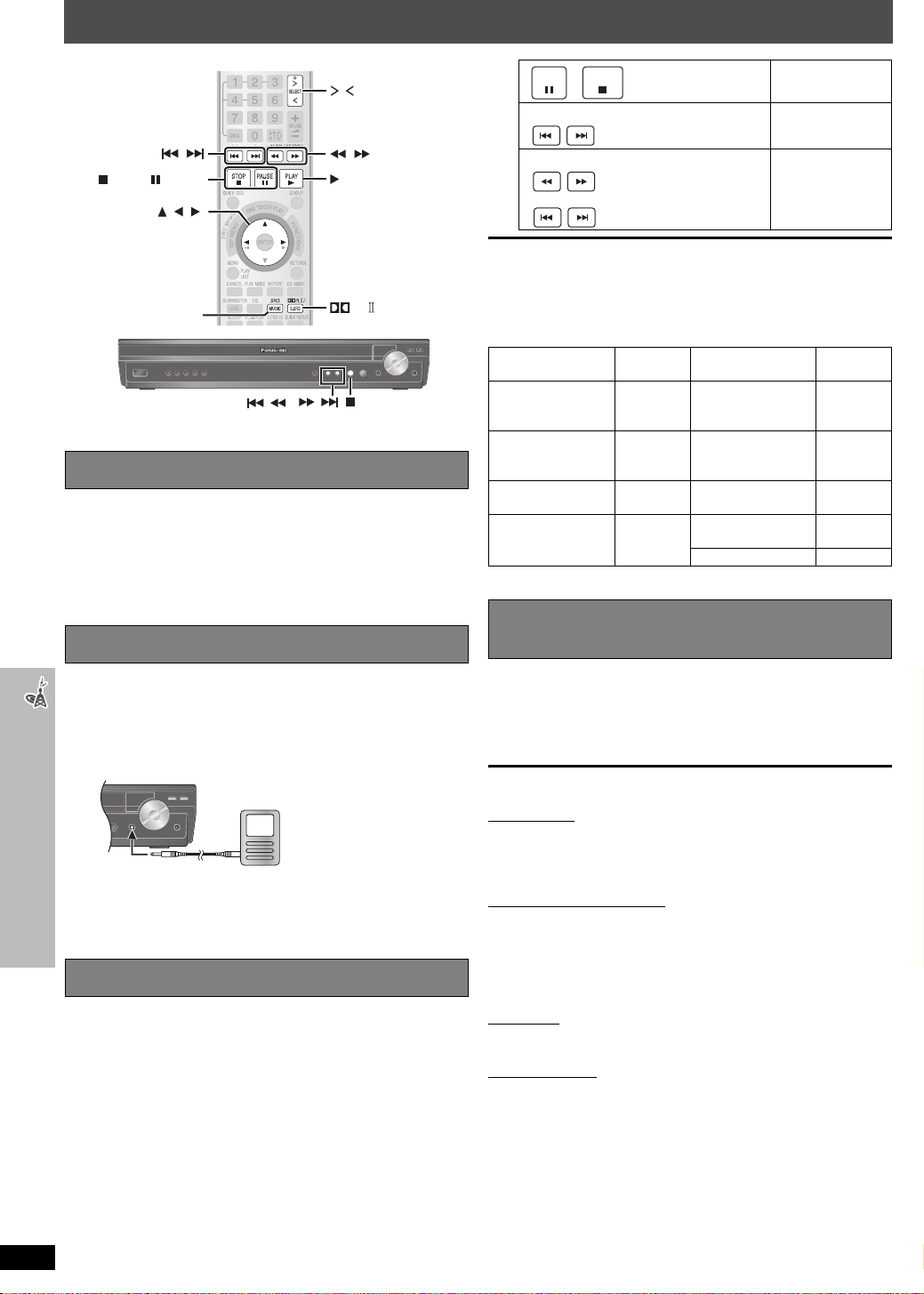

Enjoying audio from an external source

SELECT

STOP, PAUSE

, ,

SRD MUSIC

You can enjoy audio from an external source through your home theater system.

PLAY

/S.SRD

Enjoying audio from the television

Preparation

Confirm the audio connection to the AUX terminal on the main unit (➜page 7).

Press [N, O SELECT] repeatedly to select “AUX”.

≥ Reduce the volume on the television to its minimum, and then adjust the

volume of the main unit.

≥ You can enjoy surround sound when you press [ÎPLII/S.SRD] to turn

on Super Surround (➜ page 32).

Using the Music Port

Enjoying audio from an external source

Preparation

≥ To avoid distorted sound, make sure that any equalizer function of your

external device is turned off.

≥ Reduce the volume of the main unit and external device.

Connect the external device (not included).

Plug type: ‰3.5 mm (1/8z) stereo mini plug

MUSIC PORT

Press [N, O SELECT] repeatedly to select “MUSIC P.”.

≥ Adjust the volume on the external device to a normal listening

level, and then adjust the volume of the main unit.

≥ You can enjoy sound from all speakers when you press

[SRD MUSIC] to turn on Surround Music (➜ page 32).

External device

(e.g. MP3 player)

Using the iPod

Preparation

≥ Adjust the volume on the iPod to a normal listening level. ≥ Reduce the volume of the main unit. ≥ Confirm the iPod connection (➜ page 10).

Press [N, O SELECT] repeatedly to select “OPTION”.

The iPod turns on.

Press [1 PLAY] to play the iPod.

≥ Adjust the volume of the main unit. ≥ You can enjoy surround sound when you press [ÎPLII/S.SRD] to

turn on Super Surround (➜ page 32).

PAU S E

(During play/pause)

or press and hold

When you select another source, or turn the main unit off, the iPod turns off.

STOP

Alternatively, press [∫] on the main unit.

Alternatively, press [4, 5] on the main unit.

Alternatively, press and hold [4, 5] on the main unit.

To pause track

To skip a track

To search the current track

[Note]

Image/video display through the home theater is not available.

Compatible iPod

Name Memory

iPod nano 2nd generation (aluminum)

iPod 5th generation (video)

iPod 5th generation (video) iPod nano 1st generation

≥ Compatibility depends on the software version of your iPod.

size

2GB, 4GB, 8GB

60GB, 80GB

30GB iPod

1GB, 2GB, 4GB

Name Memory

iPod 4th generation (color display)

4th generation iPod 4th generation iPod mini 4GB, 6GB

size

40GB, 60GB

20GB, 30GB

40GB

20GB

[PT1050] Operating the cable TV box, digital broadcasting or satellite receiver

Preparation

Confirm the audio connection to the OPTICAL IN terminal on the main unit (➜ page 7).

Press [N, O SELECT] repeatedly to select “D-IN” (Digital In).

≥ Main unit: Press [SELECTOR] several times.

When you select “D-IN” as the source, you can select the following sound effects. (These functions only work with Dolby Digital or PCM.)

PCM FIX Mode

Press and hold [1].

PFIX ON: Select when receiving only PCM signals. PFIX OFF (factory preset): Select when receiving Dolby Digital and

Dynamic Range Compression

Press and hold [2].

DRC ON: Adjust for clarity even when the volume is low by compressing

the range of the lowest sound level and the highest sound level. Convenient for late night viewing. (Only works with Dolby Digital)

DRC OFF (factory preset)

Audio Mode

Press and hold [3].

AUDIO ST (stereo audio), AUDIO L, AUDI O R

Dolby Pro Logic

Press [ÎPLII/S.SRD].

(This function only works with Dolby Digital Dual Mono.)

II (➜ page 32)

[Note]

≥ Audio that is input through the OPTICAL IN terminal cannot be output

through the HDMI terminal.

≥ Dolby Pro Logic II does not work when “AUDIO L” or “AUDIO R” is

selected in Audio Mode.

PCM signals.

RQTX0064

Page 35

Glossary

Decoder

A decoder restores the coded audio signals on DVDs to normal. This is called decoding.

Dolby Digital

This is a method of coding digital signals developed by Dolby Laboratories. Apart from stereo (2-channel) audio, these signals can also be 5.1-channel sound.

DTS (Digital Theater Systems)

This surround system is used in many movie theaters around the world. There is good separation between the channels, so realistic sound effects are possible.

Dynamic range

Dynamic range is the difference between the lowest level of sound that can be heard above the noise of the equipment and the highest level of sound before distortion occurs.

Frame still and field still

Frames are the still pictures that go together to make a moving picture. There are about 30 frames shown each second. One frame is made up of two fields. A regular television shows these fields one after the other to create frames. A still is shown when you pause a moving picture. A frame still is made up of two alternating fields, so the picture may appear blurred, but overall quality is high. A field still is not blurred, but it has only half the information of a frame still so picture quality is lower.

HDMI (High-Definition Multimedia Interface)

HDMI is a next-generation digital interface for consumer electronic products. Unlike conventional connections, it transmits uncompressed digital video and audio signals on a single cable. This unit supports high-definition video output (720p, 1080i, 1080p) from the HDMI AV OUT terminal. To enjoy highdefinition video, a high-definition compatible television is required.

JPEG (Joint Photographic Experts Group)

This is a system used for compressing/decoding color still pictures. The benefit of JPEG is less deterioration in picture quality considering the degree of compression.

Linear PCM (pulse code modulation)

These are uncompressed digital signals, similar to those found on CDs.

MP3 (MPEG Audio Layer 3)

An audio compression method that compresses audio to approximately one tenth of its size without any considerable loss of audio quality.

Playback control (PBC)

If a Video CD has playback control, you can select scenes and information with menus.

Progressive/Interlaced

NTSC, the video signal standard, has 480 interlaced (i) scan lines, whereas progressive scanning uses twice the number of scan lines. This is called 480p. Using progressive output, you can enjoy the high-resolution video recorded on media such as DVD-Video. Your television must be compatible to enjoy progressive video.

Sampling frequency

Sampling is the process of converting the heights of sound wave (analog signal) samples taken at set periods into digits (digital encoding). Sampling frequency is the number of samples taken per second, so larger numbers mean more faithful reproduction of the original sound.

WMA (Windows MediaTM Audio)

WMA is a compression format developed by Microsoft Corporation. It achieves the same sound quality as MP3 with a file size that is smaller than that of MP3.

Product Service

1. Damage requiring service—The unit should be serviced by qualified service personnel if:

(a) The AC power supply cord or AC adaptor has been damaged; or (b) Objects or liquids have gotten into the unit; or (c) The unit has been exposed to rain; or (d) The unit does not operate normally or exhibits a marked change in performance; or (e) The unit has been dropped or the cabinet damaged.

2. Servicing—Do not attempt to service the unit beyond that described in these operating instructions. Refer all other servicing to authorized servicing personnel.

3. Replacement parts— When parts need replacing ensure the servicer uses parts specified by the manufacturer or parts that have the same characteristics as the original parts. Unauthorized substitutes may result in fire, electric shock, or other hazards.

4. Safety check—After repairs or service, ask the servicer to perform safety checks to confirm that the unit is in proper working condition.

The servicer will require all components to service your system. Therefore, should service ever be necessary, be sure to bring the entire system.

Product information

For product information or assistance with product operation:

In the U.S.A., refer to “Customer Services Directory” on page 42.

In Canada, contact the Panasonic Canada Inc. Customer Care Centre at 1-800-561-5505, or visit the website (www.panasonic.ca), or an authorized Servicentre closest to you.

In other areas, consult your dealer.

Glossary / Product Service

RQTX0064

Page 36

Troubleshooting guide

Before requesting service, make the following checks. If you are in doubt about some of the check points, or if the solutions indicated in the chart do not solve the problem, refer to “Customer Services Directory” on page 42 if you reside in the U.S.A., or refer to “Product information” on page 35 if you reside in Canada. In other areas, consult your dealer.

Power

No power. ≥ Insert the AC power supply cord securely. 10

The unit is automatically switched to standby mode.

Unit displays

The display is dark. ≥ Select “Bright” in “FL Dimmer” in the “Others” menu. 27

“NOPLAY” ≥You inserted a disc the unit cannot play; insert one it can.

“NODISC” ≥ You have not inserted a disc; insert one.

“NO MIC” ≥ Ensure that the setup microphone is properly connected to the SETUP MIC terminal. 33

“NOISY” ≥ The ambient noise is high. Perform the setup again and keep quiet during the auto speaker setup. 33

“F61” ≥

“F76” ≥ There is a power supply problem. Consult the dealer. —

“DVD U11” ≥ Disc may be dirty. Wipe it clean. 15

“ERROR” ≥Incorrect operation performed. Read the instructions and try again.

“DVD H∑∑” “DVD F∑∑∑”

∑ stands for a number.

“ [W1] ” or “ [WS] ” is flashing. ≥There is no link between the main unit and the wireless equipment. Check that the wireless

“U70∑”

∑ stands for a number. The actual number following “U70” will depend on the state of the main unit.

“XM RADIO” ≥ It takes a short time for the XM radio to power up after turning on the main unit, during which time

“XM ERROR” ≥ There may be an error in the XM radio module. Turn the main unit off, and then back on.

“REMOTE 1” or “REMOTE 2” ≥

General operation

No response when any buttons are pressed.

Troubleshooting guide

No response when remote control buttons are pressed.

Other products respond to the remote control.

Cannot play DVDs. ≥ CD Mode is on. Press [CD MODE] to turn CD Mode off. 18

No picture or sound. ≥Check the video or speaker connection.

You have forgotten your ratings password.

Reset all the settings to Factory Preset.

The EZ Sync “HDAVI Control” function does not respond.

RQTX0064

Cannot operate the television. ≥ Check the remote control code for the television manufacturer. 12

≥ The Sleep timer was working and had reached the set time limit. 12

≥ You inserted a blank disc. ≥ You inserted a disc that has not been finalized.

≥ You have not inserted the disc correctly; insert it correctly.

Check and correct the speaker cable connections. If this does not fix the problem, consult the dealer.

≥ Ensure that necessary preparations have been made before Auto Speaker Setup. ≥ Check and correct the speaker cable connections if you are doing Auto Speaker Setup. ≥ The volume might be muted. Cancel muting before Auto Speaker Setup.

≥ Trouble may have occurred. The numbers following “H” and “F” depend on the status of the unit.

Turn the unit off and then back on. Alternatively, turn the unit off, disconnect the AC power supply cord, and then reconnect it.

≥ If the service numbers fail to clear, note the service number and contact a qualified service person.——

equipment is plugged into the AC outlet and is turned on.

≥ [PT1050] Ensure the pairing procedure for the wireless subwoofer is performed correctly. ≥ Ensure that the digital transmitter is fully inserted into the slot of the main unit.

≥ The HDMI connection acts unusually.

– The connected equipment is not HDMI-compatible. – Please use HDMI cables that have the HDMI logo (as shown on the cover). – The HDMI cable is too long. – The HDMI cable is damaged.

“XM RADIO” is displayed (only when the selected source is XM). Wait a few seconds for this process to complete.

≥ The XM antenna may be defective. Consult the dealer of the XM antenna.

Match the modes on the main unit and remote control. Depending on the number being displayed (“1” or “2”), press and hold [ENTER] and the corresponding numbered button ([1] or [2]) for at least 2 seconds.

≥ This unit cannot play discs other than the ones listed in these operating instructions. ≥ The unit may not be operating properly due to lightning, static electricity or some other external

factor. Turn the unit off and then back on. Alternatively, turn the unit off, disconnect the AC power supply cord, and then reconnect it.

≥ Condensation has formed. Wait 1 to 2 hours for it to evaporate.

≥ Check that the batteries are installed correctly. ≥ The batteries are depleted. Replace them with new ones. ≥ Aim the remote control at the remote control signal sensor and operate.

≥ Change the remote control operating mode. 12

≥ Check the power or input setting of the connected equipment and the main unit. ≥ Check that the disc has something recorded on it.

≥

While stopped and “DVD/CD” is the source, press and hold [∫] (Stop) on the main unit and [S10] on the remote control until “Initialized” disappears from the television. Turn the unit off and on again. All settings will return to the default values.

≥ Depending on the condition of the home theater system or the connected equipment, it may be

necessary to repeat the same operation so that the function can work correctly.

14 — —

— 16

— 33

10, 13

— — — —

—

— —

14 —

—

11 11 13

7, 8

— —

—

Page 37

Disc operation

It takes time before play starts.

[MP3]

Folders on a data CD are not displayed correctly. [WMA] [MP3] [JPEG]

A menu screen appears during skip or search. [VCD]

Playback control menu does not appear. [VCD]

Program and Random play do not work. [DVD-V]

Subtitle position is wrong. ≥ Adjust the position. (“Subtitle Position” in Display Menu) 24

No subtitles. ≥Display the subtitles. (“Subtitle” in Main menu) 22

Subtitles overlap the closed captions.

Point B is automatically set. ≥ The end of an item becomes point B when it is reached. —

The Setup menu cannot be accessed.

with playback control

≥ Play may take time to begin when an MP3 track has still picture data. Even after the track starts, the

correct play time will not be displayed. This is normal.

≥ Folders deeper than the eighth layer are displayed as the eighth layer. —

≥ This is normal for Video CDs. —

≥ Press [∫ STOP] twice and then press [1 PLAY]. —

≥ These functions do not work with some DVD-Videos. —

≥ Clear the subtitles. 22

≥ Select “DVD/CD” as the source. ≥ Cancel Program and Random play.

Sound

Sound is distorted. ≥ Noise may occur when playing WMA.

Effects do not work. ≥ Some audio effects do not work or have less effect with some discs. —

Humming is heard during play. ≥ An AC power supply cord or fluorescent light is near the main unit or wireless system. Keep other

No sound. ≥ There may be a slight pause in sound when you change the play speed.

≥ When using the HDMI output, audio may not be output from other terminals.

appliances and cables away from the main unit and wireless system.

≥ Audio may not be heard when more than 4 devices are connected with HDMI cables. Reduce the

number of connected devices.

≥ When using the HDMI connection, ensure that “Audio Output” in the “HDMI” menu is set to “On”.

—

— 19

— —

—

— —


The picture on the television is not displayed correctly or disappears.

Picture size does not fit the screen.

Menu is not displayed correctly. ≥ Restore the zoom ratio to “a1.00”. (“Manual Zoom” in Display Menu)

Auto zoom function does not work well.

≥ Ensure that the unit is connected directly to the television, and is not connected through a video

cassette recorder.

≥ Mobile telephone chargers can cause some disturbance. ≥ If you are using an indoor television antenna, change to an outdoor antenna. ≥ The television antenna wire is too close to the unit. Move it away from the unit. ≥ Picture may not be seen when more than 4 devices are connected with HDMI cables. Reduce the

number of connected devices.

≥ When using the COMPONENT VIDEO OUT terminal, ensure that progressive output is not

selected when the connected television is not progressive compatible. Press and hold [CANCEL] until the picture is displayed correctly. (The output will return to “480i”.)

≥ When using the HDMI AV OUT terminal, ensure that video output unacceptable with the connected

television is not selected. Press and hold [CANCEL] until the picture is displayed correctly. (The output will return to “480p”.)

≥ Change “TV Aspect” in the “Video” menu. ≥ Use the television to change the aspect. If your television does not have that function, change “4:3

Aspect” in Display Menu.

≥ Change the Zoom setting. (“Just Fit Zoom” or “Manual Zoom” in Display Menu)

≥ Set “Subtitle Position” in Display Menu to “0”. ≥ Set “4:3 Aspect” in Display Menu to “Normal”.

≥ Turn off television’s zoom function. ≥ Use the other preset aspect ratios or manual adjustment. ≥ Zoom function may not work well, especially in dark scenes and may not work depending on the

type of disc.

iPod with Universal Dock for iPod

Cannot charge or operate even when the indicator on the dock lights.

≥ Check that the iPod is connected firmly. ≥ The battery of the iPod is depleted. Charge the iPod, and then operate again.

— — — —

26 24

24 24 24

— 24 —

10 —

Troubleshooting guide

(Continued on next page)

RQTX0064

Page 38

Troubleshooting guide

HDMI or progressive video

There is ghosting when HDMI or progressive output is on.

Pictures not in progressive output.

Closed captions not displayed. ≥ When HDMI or progressive output is on, closed captions will not be displayed. —

≥ This problem is caused by the editing method or material used on DVD-Video, but should be

corrected if you use interlaced output.

– When using the COMPONENT VIDEO OUT terminal, set “Video Output Mode” in Picture Menu to

“480i”. (Alternatively, press and hold [CANCEL] to switch to “480i”.)

– When using the HDMI AV OUT terminal, set “Video Output Mode” in Picture Menu to “480i” output

marked with an “¢”. Or, disable the HDMI AV OUT connection and use other video connections. Make the settings in the following order: 1 Set “Video Mode” in the “HDMI” menu to “Off”. 2 Set “Video Output Mode” in Picture Menu to “480i”. (Alternatively, press and hold [CANCEL] to

switch to “480i”.)

≥ Select “480p” in “Video Output Mode” in Picture Menu. ≥ The unit’s VIDEO OUT terminal outputs the interlaced signal even if “PRG” is displayed.

23,

Radio

Distorted sound or noise is heard. “ST” flickers or does not light.

A beat sound is heard. ≥ Turn the television off or move it away from the unit. —

A low hum is heard during AM broadcasts.

≥ Adjust the position of the FM or AM antenna. ≥ Use an outdoor antenna.

≥ Separate the antenna from other cables. —

Wireless equipment

No sound. ≥ Ensure that the digital transmitter is fully inserted into the slot of the main unit.

The indicator on the wireless equipment keeps flashing between red and green.

≥ Ensure that the wireless equipment is plugged into the AC outlet and is turned on. Then, check that

“ [W1] ” [and “ [WS] ” ([PT1050])] is displayed on the main unit’s display.

≥ There is a power supply problem. Consult the dealer. —

10, 13

—

Television displays

“/” ≥ The operation is prohibited by the unit or disc. —

“Cannot display group xx, content xx”

“This disc may not be played in your region”

No on-screen display. ≥ Select “On” in “On-Screen Messages” in the “Display” menu. 26

Main unit’s screen saver remains ≥

≥ You are trying to display incompatible contents. —

≥

Only DVD-Video discs that include or have the same region number as the one on the rear panel of this unit can be played.

When using the HDMI connection, audio/video information is continually transferred between the main unit and the television regardless of which source has been selected on the main unit. This is normal.

Troubleshooting guide

Cover

page

—

RQTX0064

Page 39

XM Satellite Radio advisory messages

The XM Satellite Radio is available only in the 48 contiguous United States and Canada.

“ANTENNA” is flashing. ≥The XM antenna is not properly connected. Check the connection and make sure the antenna

“UPDATING” is flashing. ≥The XM antenna is being updated with the latest encryption code.

“NO SIGNL” is flashing. ≥ The XM signal is too weak. Reorient the XM antenna for better reception. 30

“LOADING” is flashing. ≥ The XM antenna is receiving and decoding the broadcast information. Wait a few seconds for

“OFF AIR” is flashing. ≥The selected XM channel is not currently broadcasting. Select a different channel. 31

“XM

---

” ≥ The selected XM channel is not available. Select a different channel. 31

“

----

” ≥Supplemental text information, such as the song title or artist’s name is not available for that

You can receive only promotional XM channels.

Manufactured under license from Dolby Laboratories. Dolby, Pro Logic, and the double-D symbol are trademarks of Dolby Laboratories.

“DTS” and “DTS Digital Surround” are registered trademarks of DTS, Inc.

Apparatus Claims of U.S. Patent Nos. 4,631,603, 4,577,216, and 4,819,098, licensed for limited viewing uses only.

This product incorporates copyright protection technology that is protected by method claims of certain U.S. patents and other intellectual property rights owned by Macrovision Corporation and other rights owners. Use of this copyright protection technology must be authorized by Macrovision Corporation, and is intended for home and other limited viewing uses only unless otherwise authorized by Macrovision Corporation. Reverse engineering or disassembly is prohibited.

Windows Media and the Windows logo are trademarks or registered trademarks of Microsoft Corporation in the United States and/or other countries.

This product is protected by certain intellectual property rights of Microsoft Corporation and third parties. Use or distribution of such technology outside of this product is prohibited without a license from Microsoft or an authorized Microsoft subsidiary and third parties.

WMA is a compression format developed by Microsoft Corporation. It achieves the same sound quality as MP3 with a file size that is smaller than that of MP3.

cable is not damaged.

Wait a few seconds for the update to complete.

≥ You may have selected an XM channel that has been blocked, or is no longer available with your

subscription package. For inquiry, call XM’s Listener Care at 1-800-XMRADIO (U.S. residents) or 1-877-GET-XMSR (Canada residents).

loading to complete.

particular broadcast. You can change the type of XM channel information that is displayed by pressing [FL DISPLAY].

≥ Your

XM Satellite service To activate your XM Satellite service, or to renew your subscription: – For U.S. residents, visit XM on the Web at www.xmradio.com or call XM’s Listener Care at

1-800-XMRADIO (1-800-967-2346).

– For Canada residents, visit

1-877-GET-XMSR

You should have your Radio ID ready.

has not been activated, or your subscription has expired.

XM on the Web at

(1-877-438-9677).

HDMI, the HDMI logo and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC.

HDAVI ControlTM is a trademark of Matsushita Electric Industrial Co., Ltd.

EZ Sync

iPod is a trademark of Apple Inc., registered in the U.S. and other countries.

www.xmradio.ca

is a trademark of Matsushita Electric Industrial Co., Ltd.

or call XM’s Listener Care at

HighMAT™ and the HighMAT logo are either trademarks or registered trademarks of Microsoft Corporation in the United States and/or other countries.

—

Troubleshooting guide

User memo:

DATE OF PURCHASE

DEALER NAME

DEALER ADDRESS

TELEPHONE NUMBER

The model number and serial number of this product can be found on either the back or the bottom of the unit. Please note them in the space provided below and keep for future reference.

MODEL NUMBER

SERIAL NUMBER

RQTX0064

Page 40

Specifications

AMPLIFIER SECTION

[PT950] [PT1050]

RMS Output Power: Dolby Digital Mode

Front Ch 250 W per channel (6 ≠), 1 kHz, 10 % THD

Surround Ch 100 W per channel (4 ≠), 1 kHz, 10 % THD Center Ch 250 W per channel (6 ≠), 1 kHz, 10 % THD Subwoofer Ch 250 W per channel (6 ≠), 100 Hz, 10 % THD Total RMS Dolby Digital mode power 1200 W

FTC Output Power: Dolby Digital Mode

Front Ch 104 W per channel (6 ≠), 120 Hz–20 kHz, 1 % THD Surround Ch 34 Center Ch Subwoofer Ch 95 W per channel (6

W per channel (4 ≠), 120 Hz–20 kHz, 1 % THD

101 W per channel (6 ≠), 120 Hz–20 kHz, 1 % THD

≠

), 45 Hz–120 Hz, 1% THD

Total FTC Dolby Digital mode power 472 W

[PT953]

RMS Output Power: Dolby Digital Mode

Front Ch 200 W per channel (6 ≠), 1 kHz, 10 % THD Surround Ch 100 W per channel (4 ≠), 1 kHz, 10 % THD Center Ch 200 W per channel (6 ≠), 1 kHz, 10 % THD Subwoofer Ch 200 W per channel (6 ≠), 100 Hz, 10 % THD Total RMS Dolby Digital mode power 1000 W

FTC Output Power: Dolby Digital Mode

Front Ch 94 W per channel (6 ≠), 120 Hz–20 kHz, 1 % THD Surround Ch 34 Center Ch Subwoofer Ch 86 W per channel (6

W per channel (4 ≠), 120 Hz–20 kHz, 1 % THD

91 W per channel (6 ≠), 120 Hz–20 kHz, 1 % THD

≠

), 45 Hz–120 Hz, 1% THD

Total FTC Dolby Digital mode power 433 W

FM/AM TUNER, TERMINALS SECTION

Preset Memory FM 30 stations

Frequency Modulation (FM)

Frequency range 87.9–107.9 MHz (200-kHz step)

87.5–108.0 MHz (100-kHz step) Sensitivity 1.8 µV (IHF) S/N 26 dB 1.4 µV Antenna terminals 75 ≠ (unbalanced)

Amplitude Modulation (AM/MW)

Frequency range 520 –1710 kHz (10-kHz step) AM Sensitivity S/N 20 dB at 1000 kHz 560 µV/m

[PT1050] Digital audio input

Optical digital input Optical terminal Sampling frequency 32 kHz, 44.1 kHz, 48 kHz

Phone jack

Terminal Stereo, 3.5 mm (

Music Port (Front)

Sensitivity 100 mV, 1.2 Terminal (Input) Stereo, 3.5 mm (

AM/MW 30 stations

DISC SECTION

Discs played [8 cm (3z) or 12 cm (5z)]

Specifications

RQTX0064

(1) DVD (DVD-Video) (2) DVD-RAM (DVD-VR, MP3 (3) DVD-R (DVD-Video, DVD-VR, MP3 (4) DVD-R DL (DVD-Video, DVD-VR) (5) DVD-RW (DVD-Video, DVD-VR, MP3 (6) iR/iRW (Video) (7) iR DL (Video) (8) CD, CD-R/RW [CD-DA, Video CD, SVCD

§4, 5

, HighMAT Level 2 (Audio and Image)]

JPEG

§1

Conforming to IEC62107

§2

MPEG-1 Layer 3, MPEG-2 Layer 3

§3

Windows Media Audio Ver.9.0 L3 Not compatible with Multiple Bit Rate (MBR)

§4

Exif Ver 2.1 JPEG Baseline files Picture resolution: between 160k120 and 6144k4096 pixels (Sub sampling is 4:0:0, 4:2:0, 4:2:2 or 4:4:4). Extremely long and narrow pictures may not be displayed.

§5

The total combined maximum number of recognizable audio and picture contents and groups: 4000 audio and picture contents and 400 groups.

§2, 5

, JPEG

§2, 5

§4, 5

, JPEG

§2, 5

)

, JPEG

§1

, MP3

§4, 5

)

§4, 5

§2, 5

)

, WMA

/8z

§3, 5

Pick up

Wavelength (DVD/CD) 662/ 785 nm Laser power (DVD/CD) [U.S.A.] CLASS II / CLASS I

[Others] CLASS 1/ CLASS 1M

Audio output (Disc)

Number of channels 5.1ch (FL, FR, C, SL, SR, SW)

VIDEO SECTION

Video system NTSC Composite video output

Output level 1 Vp-p (75 ≠) Terminal Pin jack (1 system)

Component video output (480p/480i)

Y output level 1 Vp-p (75 ≠) P

B output level 0.7 Vp-p (75 ≠)

R output level 0.7 Vp-p (75 ≠)

Terminal Pin jack (Y: green, P

B: blue, PR: red) (1 system)

HDMI AV output

Terminal Type A connector (19-pin)

SUBWOOFER SECTION [PT1050]

[Active\subwoofer\SB-WA1050]

Type 1 way, 1 speaker system (Bass reflex) Speaker unit(s) Impedance 6 ≠

Woofer 17 cm (6

Output sound pressure 81 dB/W (1.0 m) Frequency range 32 –220 Hz (j16 dB)

Dimensions (WtHtD) 137 mmk403 mmk439 mm

Mass 6.5 kg (14.3 lbs)

[AMPLIFIER\SECTION]

RMS Output Power

Subwoofer Ch 250 W per channel (6 ≠), 100 Hz, 10 % THD To t a l RM S po w e r 2 5 0 W

FTC Output Power

Subwoofer Ch 95 W per channel (6 ≠), 45 Hz–120 Hz, 1 % THD Total FTC power 95 W

[RF\SECTION]

Wireless module

Frequency range 2.400 to 2.4835 GHz No. of channels 3

[GENERAL]

Power supply AC 120 V, 60 Hz Power consumption 50 W

) jack

Operating temperature range r5 oC to r35 oC (r41 oF to r95 oF) Operating humidity range 5 % to 90 % RH (no condensation)

≠

) jack

Power consumption in off mode approx. 0.3 W

39 –180 Hz (j10 dB)

/4z) Cone type

/32zk157/8zk179/32z)

Page 41

SPEAKER SECTION

[PT950] [PT953] [Front\speakers\SB-HF950] Typ e 2 way, 2 speaker system (Bass reflex) Speaker unit(s) Impedance 6 ≠

1. Full range 6.5 cm (2

2. Full range 6.5 cm (2

Input power (IEC) 250 W Output sound pressure 83 dB/W (1.0 m)

Cross over frequency 5 kHz

Frequency range 79 Hz– 25 kHz (j16 dB)

Dimensions (WtHtD) 252 mmk1123 mmk235 mm

Mass 3.8 kg (8.4 lbs) [PT950] [PT953] [Surround\speakers\SB-HS950]

Typ e 1 way, 1 speaker system (Bass reflex) Speaker unit(s) Impedance 4 ≠

Full range 6.5 cm (2

Input power (IEC) 100 W Output sound pressure 80 dB/W (1.0 m) Frequency range 89 Hz– 25 kHz (j16 dB)

Dimensions (WtHtD) 92 mmk142 mmk95 mm

105 Hz– 22 kHz (j10 dB)

Mass 0.6 kg (1.32 lbs)

[PT950] [PT953] [Center\speaker\SB-HC950] Typ e 2 way, 2 speaker system (Bass reflex)

Speaker unit(s) Impedance 6 ≠

1. Full range 6.5 cm (2

2. Full range 6.5 cm (2

Input power (IEC) 250 W Output sound pressure 82 dB/W (1.0 m)

Cross over frequency 5 kHz

Frequency range 80 Hz– 25 kHz (j16 dB)

Dimensions (WtHtD) 270 mmk94 mmk95 mm

Mass 1.3 kg (2.9 lbs) [PT950] [PT953] [Subwoofer\SB-HW950]

Typ e 1 way, 1 speaker system (Bass reflex) Speaker unit(s) Impedance 6 ≠

Woofer 17 cm (63/4z) Cone type

Input power (IEC) 250 W (Max) Output sound pressure 81 dB/W (1.0 m)

Frequency range 26 –220 Hz (j16 dB)

Dimensions (WtHtD) 180 mmk445 mmk330 mm

Mass 5.5 kg (12.2 lbs)

[PT1050] [Front\speakers\SB-HF1050]

Typ e 3 way, 3 speaker system (Bass reflex) Speaker unit(s) Impedance 6 ≠

1. Tweeter 6 cm (2

2. Woofer 6.5 cm (2

3. Woofer 6.5 cm (2

Input power (IEC) 250 W Output sound pressure 84 dB/W (1.0 m)

Cross over frequency 5 kHz, 7 kHz

Frequency range 83 Hz– 41 kHz (j16 dB)

Dimensions (WtHtD) 252 mmk1123 mmk235 mm

Mass 4kg (8.8 lbs)

[PT1050] [Surround\speakers\SB-HS1050]

Typ e 1 way, 1 speaker system (Bass reflex) Speaker unit(s) Impedance 4 ≠

Full range 6.5 cm (2

Input power (IEC) 100 W Output sound pressure 80 dB/W (1.0 m) Frequency range 86 Hz– 25 kHz (j16 dB)

Dimensions (WtHtD) 94 mmk272 mmk95 mm

102 Hz– 22 kHz (j10 dB)

Mass 1.1 kg (2.4 lbs)

/2z) Cone type

§6

(Max)

95 Hz– 22 kHz (j10 dB)

/32zk447/32zk91/4z)

/2z) Cone type

§6

(Max)

/8zk519/32zk33/4z)

/2z) Cone type

§6

(Max)

96 Hz– 22 kHz (j10 dB)

/8zk311/16zk33/4z)

(10

32 –180 Hz (j10 dB)

/32zk1717/32zk13z)

/8z) Cone type

/2z) Cone type

§6

(Max)

96 Hz– 40 kHz (j10 dB)

/32zk447/32zk91/4z)

/2z) Cone type

§6

(Max)

/16zk1023/32zk33/4z)

[PT1050] [Center\speaker\SB-HC950]

Typ e 2 way, 2 speaker system (Bass reflex) Speaker unit(s) Impedance 6 ≠

1. Full range 6.5 cm (2

2. Full range 6.5 cm (2

Input power (IEC) 250 W Output sound pressure 82 dB/W (1.0 m)

Cross over frequency 5 kHz

Frequency range 80 Hz –25 kHz (j16 dB)

Dimensions (WtHtD) 270 mmk94 mmk95 mm

96 Hz– 22 kHz (j10 dB)

Mass 1.3 kg (2.9 lbs)

/2z) Cone type

/8zk311/16zk33/4z)

(10

§6

(Max)

GENERAL

Power su pply

[U.S.A.\and\Canada] AC 120 V, 60 Hz [Others] AC 110-127 V/220-240 V, 50/60 Hz

Power consumption

[U.S.A.\and\Canada] [PT950] [PT953] Main unit 135 W

[PT1050] Main unit 130 W

[Others] [PT950] Main unit 150 W

Dimensions (WtHtD) 430 mmk75 mmk424 mm

615/16zk

215/16zk

1611/16z

Mass Main unit 5 kg (11.02 Ibs) Operating temperature range r5 oC to r35 oC (r41 oF to r95 oF) Operating humidity range 5 % to 90 % RH (no condensation)

Power consumption in standby mode

[U.S.A.\and\Canada] approx. 0.5 W [Others] approx. 0.9 W

WIRELESS SYSTEM AND DIGITAL TRANSMITTER

[AMPLIFIER\SECTION]

RMS output power

Surround Ch 100 W per channel (4 ≠), 1 kHz, 10 % THD Total RMS power 200 W

FTC output power

Surround Ch 34 W per channel (4 ≠), 120 Hz–20 kHz, 1 % THD Total FTC power 68 W

[RF\SECTION]

Wireless module

Frequency range 2.400 to 2.4835 GHz No. of channels 3

[GENERAL]

Power su pply

[U.S.A.\and\Canada] AC 120 V, 60 Hz [Others] AC 110-240 V, 50/60 Hz

Power consumption Digital transmitter 1.5 W

Dimensions (WtHtD) Digital transmitter

Mass Digital transmitter 0.02 kg (0.04 Ibs)

Operating temperature range r5 oC to r35 oC (r41 oF to r95 oF) Operating humidity range 5 % to 90 % RH (no condensation)

Power consumption in off mode

[U.S.A.\and\Canada] approx. 0.2 W [Others] approx. 0.3 W

§6

Rating with low-cut filter equipped amplifier

[Note]

1. Specifications are subject to change without notice. Mass and dimensions are approximate.

2. Total harmonic distortion is measured by a digital spectrum analyzer.

3. This unit supports “HDAVI Control 2” function.

Wireless system [U.S.A.\and\Canada] 35 W

[Others] 43 W

65 mmk52 mmk8.6 mm

(29/16zk

Wireless system

165 mmk90 mmk164 mm

(61/2zk

21/16zk11/32z

317/32zk

615/32z

Wireless system 0.655 kg (1.54 Ibs)

)

Specifications

)

RQTX0064

Page 42

Limited Warranty (ONLY FOR U.S.A.)

Panasonic Consumer Electronics Company, Division of Panasonic Corporation of North America

One Panasonic Way Secaucus, New Jersey 07094

Panasonic Audio Products Limited Warranty

Limited Warranty Coverage

If your product does not work proper ly because of a defect in materials or workmanship, Panasonic Consumer Electronics Company or Panasonic Puerto Rico, Inc. (collectively referred to as “the warrantor”) will, for the length of the period indicated on the chart below, which starts with the date of original purchase (“warranty period”), at its option either (a) repair your product with new or refurbished parts, or (b) replace it with a new or a refurbished product. The decision to repair or replace will be made by the warrantor.

Product or Part Name Parts Labor

Audio Products (except items listed below) One (1) year One (1) year

USB Reader-Writer, Personal Computer Card Adapters (in exchange for defective item)

Accessories: Headphones, Cartridges, Microphones, Adapters

Rechargeable Batteries, DVD-R/-RAM Discs (in exchange for defective item)

SD Memory Cards, Rechargeable Battery Packs (in exchange for defective item)

During the “Labor” warranty period there will be no charge for labor. During the “Parts” warranty period, there will be no charge for parts. You must carry-in or mail-in your product during the warranty period. If non-rechargeable batteries are included, they are not warranted. This warranty only applies to products purchased and serviced in the United States or Puerto Rico. This warranty is extended only to the original purchaser of a new product which was not sold “as is”. A purchase receipt or other proof of the original purchase date is required for warranty service.

One (1) year

Ninety (90)

days

Ten (10)

days

Ninety (90)

days

Not

Applicable

Ninety (90)

days

Not

Applicable

Not

Applicable

Panasonic Puerto Rico, Inc.

Ave. 65 de Infantería, Km. 9.5 San Gabriel Industrial Park, Carolina, Puerto Rico 00985

Carry-In or Mail-In Service

For Carry-In or Mail-In Service in the United States call 1-800-211-PANA (1-800-211-

7262) or visit Panasonic web site: http://www.panasonic.com For assistance in Puerto Rico call Panasonic Puerto Rico, Inc. (787)-750-4300 or fax (787)-768-2910.

Limited Warranty Limits And Exclusions

This warranty ONLY COVERS failures due to defects in materials or workmanship, and DOES NOT COVER normal wear and tear or cosmetic damage. The warranty ALSO DOES NOT COVER damages which occurred in shipment, or failures which are caused by products not supplied by the warrantor, or failures which result from accidents, misuse, abuse, neglect, mishandling, misapplication, alteration, faulty installation, set-up adjustments, misadjustment of consumer controls, improper maintenance, power line surge, lightning damage, modification, or commercial use (such as in a hotel, office, restaurant, or other business), rental use of the product, service by anyone other than a Factory Servicenter or other Authorized Servicer, or damage that is attributable to acts of God.

THERE ARE NO EXPRESS WARRANTIES EXCEPT AS LISTED UNDER “LIMITED WARRANTY COVERAGE”. THE WARRANTOR IS NOT LIABLE FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES RESULTING FROM THE USE OF THIS PRODUCT, OR ARISING OUT OF ANY BREACH OF THIS WARRANTY. (As

examples, this excludes damages for lost time, travel to and from the servicer, loss of media or images, data or other memory content. The items listed are not exclusive, but are for illustration only.) ALL EXPRESS AND IMPLIED WARRANTIES,

INCLUDING THE WARRANTY OF MERCHANTABILITY, ARE LIMITED TO THE PERIOD OF THE LIMITED WARRANTY.

Some states do not allow the exclusion or limitation of incidental or consequential damages, or limitations on how long an implied warranty lasts, so the exclusions may not apply to you. This warranty gives you specific legal rights and you may also have other rights which vary from state to state. If a problem with this product develops during or after the warranty period, you may contact your dealer or Servicenter. If the problem is not handled to your satisfaction, then write to the warrantor’s Consumer Affairs Department at the addresses listed for the warrantor.

PARTS AND SERVICE WHICH ARE NOT COVERED BY THIS LIMITED WARRANTY ARE YOUR RESPONSIBILITY.

Customer Services Directory

Obtain Product Information and Operating Assistance; locate your nearest Dealer or Servicenter; purchase Parts and Accessories; or make Customer Service and Literature requests by visiting our Web Site at:

http://www.panasonic.com/consumersupport

or, contact us via the web at:

http://www.panasonic.com/contactinfo

You may also contact us directly at: 1-800-211-PANA (7262), Monday-Friday 9 am-9 pm; Saturday-Sunday 10 am-7 pm, EST.

For hearing or speech impaired TTY users, TTY : 1-877-833-8855

Accessory Purchases

Purchase Parts, Accessories and Instruction Books online for all Panasonic Products by visiting our Web Site at:

http://www.pstc.panasonic.com

or, send your request by E-mail to:

Limited Warranty (ONLY FOR U.S.A.)

[email protected]

You may also contact us directly at: 1-800-332-5368 (Phone) 1-800-237-9080 (Fax Only) (Monday – Friday 9 am to 8 pm, EST.) Panasonic Service and Technology Company 20421 84th Avenue South, Kent, WA 98032 (We Accept Visa, MasterCard, Discover Card, American Express, and Personal Checks)

For hearing or speech impaired TTY users, TTY : 1-866-605-1277

Service in Puerto Rico

Panasonic Puerto Rico, Inc. Ave. 65 de Infantería, Km. 9.5, San Gabriel Industrial Park, Carolina, Puerto Rico 00985 Phone (787)750-4300, Fax (787)768-2910

RQTX0064

F1206

Page 43

Limited Warranty (ONLY FOR CANADA)

Panasonic Canada Inc.

PANASONIC PRODUCT – LIMITED WARRANTY

Panasonic Canada Inc. warrants this product to be free from defects in material and workmanship and agrees to remedy any such defect for a period as stated below from the date of original purchase.

Technics Audio Product One (1) year, parts and labour

Panasonic Portable / Clock Radio (without Tape, CD, MD) One (1) year, parts and labour Panasonic Audio / SD Audio Product One (1) year, parts and labour Panasonic DVD Product One (1) year, parts and labour Panasonic Combination DVD Player / VCR One (1) year, parts and labour Panasonic Combination DVD Recorder / VCR One (1) year, parts and labour Accessories including rechargeable batteries Ninety (90) days

LIMITATIONS AND EXCLUSIONS

This warranty does not apply to products purchased outside Canada or to any product which has been improperly installed, subjected to usage for which the product was not designed, misused or abused, damaged during shipping, or which has been altered or repaired in any way that affects the reliability or detracts from the performance, nor does it cover any product which is used commercially. Dry cell batteries are also excluded from coverage under this warranty. This warranty is extended to the original end user purchaser only. A purchase receipt or other proof of date of original purchase is required before warranty service is performed.

THIS EXPRESS, LIMITED WARRANTY IS IN LIEU OF ALL OTHER WARRANTIES, EXPRESS OR IMPLIED, INCLUDING ANY IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. IN NO EVENT WILL PANASONIC CANADA INC. BE LIABLE FOR ANY SPECIAL, INDIRECT OR CONSEQUENTIAL DAMAGES.

In certain instances, some jurisdictions do not allow the exclusion or limitation of incidental or consequential damages, or the exclusion of implied warranties, so the above limitations and exclusions may not be applicable.

WARRANTY SERVICE

FOR PRODUCT OPERATION ASSISTANCE, please contact:

Our Customer Care Centre: Telephone #: (905) 624-5505

FOR PRODUCT REPAIRS, please locate your nearest Authorized Servicentre at www.panasonic.ca

Link : "Servicentres

Carefully pack and send prepaid, adequately insured and preferably in the original carton.

locator" under "Customer support"

IF YOU SHIP THE PRODUCT TO A SERVICENTRE

Include details of the defect claimed, and proof of date of original purchase.

1-800 #: 1-800-561-5505 Fax #: (905) 238-2360 Email link: “Customer support” on www.panasonic.ca

Limited Warranty (ONLY FOR CANADA)

RQTX0064

Page 44

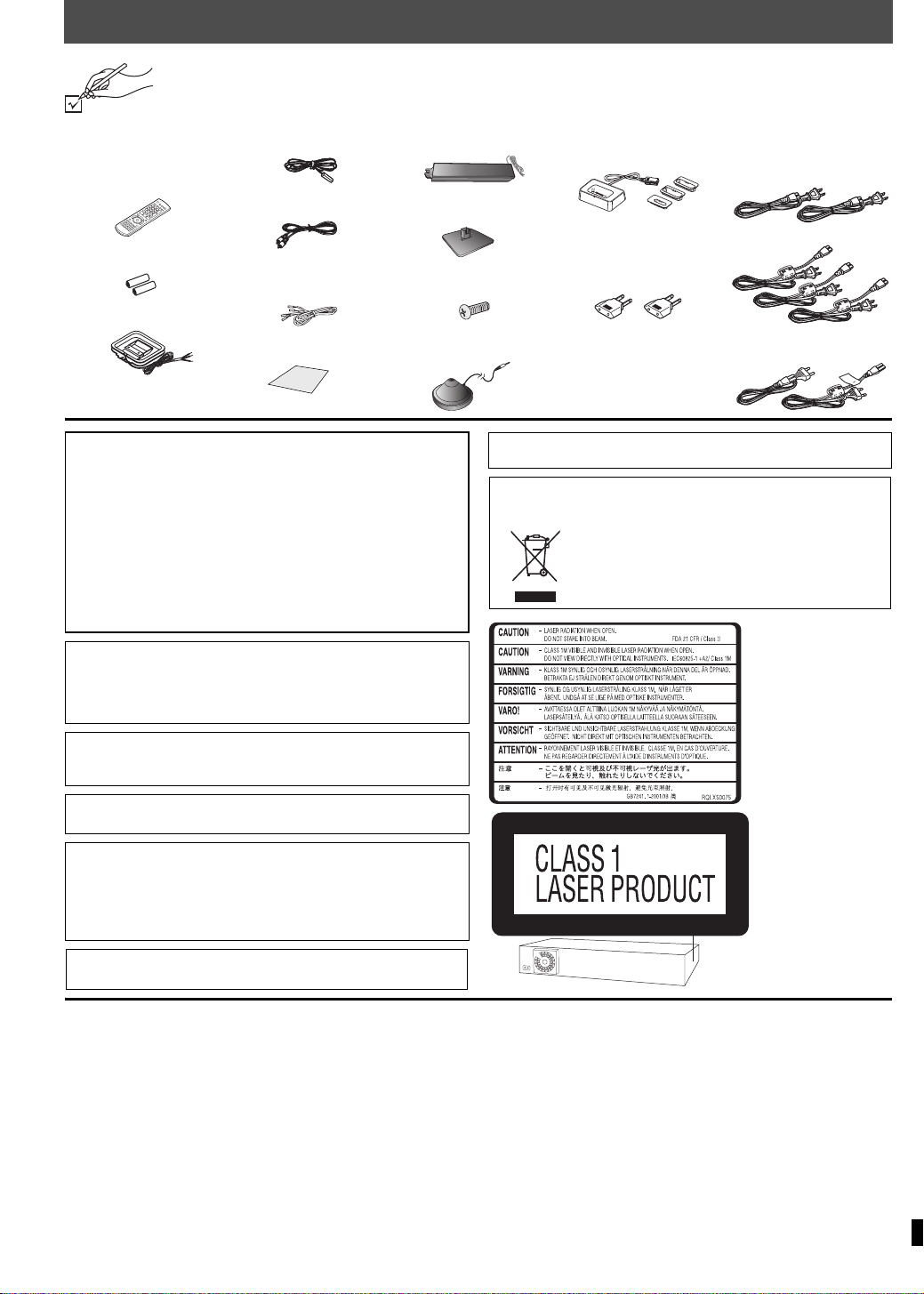

Accessories

∏

Please check and identify the supplied accessories. Use numbers indicated in parentheses when asking for replacement parts. (Product numbers correct as of December 2006. These may be subject to change.)

Only for U.S.A.: To order accessories, refer to “Accessory Purchases” on page 42. For other areas: To order accessories, call the dealer from whom you made your purchase.

1 Remote control

[PT950] [PT953] (EUR7662YX0)

[PT1050]

(EUR7662YY0)

2 Remote control

batteries

1 AM loop antenna

(N1DAAAA00002)

∏ 1 FM indoor antenna

∏ 1 Video cable

∏ 3 Speaker cables

∏ 1 Sheet of speaker cable

(RSA0007-L)

(K2KA2BA00001)

(REEX0449B-2L, REEX0449B-2K)

stickers

∏ 2 Stands

(RYPX0203-K)

∏ 2 Bases

(RYPX0206-K)

∏ 8Screws

(XSN5+12FJ)

∏ 1 Setup microphone

(L0CBAB000125)

∏ [PT950] [PT1050]

1 Universal Dock for iPod

(RFE0205)

∏ \For\areas\except\U.S.A.\

[and\Canada]

2 Power plug adaptors

(K2DA42E00001)

∏

AC power supply cords

\U.S.A.\and\Canada]

(K2CB2CB00018)

[PT950] [PT953] (2 cords)

[PT1050] (3 cords)

\Others] (2 cords)

(K2CQ2CA00002)

CAUTION!

≥

DO NOT INSTALL OR PLACE THIS UNIT IN A BOOKCASE, BUILT-IN CABINET OR IN ANOTHER CONFINED SPACE. ENSURE THE UNIT IS WELL VENTILATED. TO PREVENT RISK OF ELECTRIC SHOCK OR FIRE HAZARD DUE TO OVERHEATING, ENSURE THAT CURTAINS AND ANY OTHER MATERIALS DO NOT OBSTRUCT THE VENTILATION VENTS.

≥

DO NOT OBSTRUCT THE UNIT’S VENTILATION OPENINGS WITH NEWSPAPERS, TABLECLOTHS, CURTAINS, AND SIMILAR ITEMS.

≥

DO NOT PLACE SOURCES OF NAKED FLAMES, SUCH AS LIGHTED CANDLES, ON THE UNIT.

≥

DISPOSE OF BATTERIES IN AN ENVIRONMENTALLY FRIENDLY MANNER.

The socket outlet shall be installed near the equipment and easily accessible. The mains plug of the power supply cord shall remain readily operable. To completely disconnect this apparatus from the AC Mains, disconnect the power supply cord plug from AC receptacle.

This product may receive radio interference caused by mobile telephones during use. If such interference is apparent, please increase separation between the product and the mobile telephone.

For units with PX printed on the outer packaging

THIS UNIT IS INTENDED FOR USE IN MODERATE CLIMATES.

THE FOLLOWING APPLIES ONLY IN CANADA

This device complies with RSS-210 of the IC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, (2) This device must accept any interference received, including

interference that may cause undesired operation of the device.

For wireless system

Product Identification Marking is located on the bottom of unit.

-If you see this symbolInformation on Disposal in other Countries outside the European Union

This symbol is only valid in the European Union. If you wish to discard this product, please contact your local authorities or dealer and ask for the correct method of disposal.

(Inside of product)

The laser product label has not been attached to products for the U.S.A. and Canada.

For wireless system

Marking sign is located on bottom of the unit.

[For\U.S.A.]

Panasonic Consumer Electronics Company, Division of Panasonic Corporation of North America

One Panasonic Way Secaucus, New Jersey 07094

http://www.panasonic.com

Panasonic Puerto Rico, Inc.

Ave. 65 de Infantería, Km. 9.5 San Gabriel Industrial Park, Carolina, Puerto Rico 00985

C 2007 Matsushita Electric Industrial Co., Ltd.

Printed in Malaysia F1206YM3037

[For\Canada]

Panasonic Canada Inc.

5770 Ambler Drive Mississauga, Ontario L4W 2T3

www.panasonic.ca

[For\others]

Matsushita Electric Industrial Co., Ltd. Corporate Management Division for the Americas

Sales Office for North America Tokyo Panasonic Sales Section

32nd Floor, World Trade Center 4-1, Hamamatsu-cho, 2-Chome, Minato-Ku, Tokyo 105-6132, Japan

Panasonic Marketing Europe G.M.B.H.

Wiesbaden N. (a Division of Panasonic Marketing G.M.B.H.) Military Sales Department

6200 Wiesbaden-Biebrich, Hagenauerstr. 43 Germany

(Side of product)

RQTX0064-3P

Panasonic SC-PT953, SCPT950, SCPT1050 User Manual

IMPORTANT SAFETY INSTRUCTIONS

TABLE OF CONTENTS

Control reference guide

Discs that can be played

Maintenance

Basic play

Convenient functions

Playing data discs using navigation menus

Using on-screen menus

Changing the player settings

Using the FM/AM radio

Using the XM® Satellite Radio

Using sound effects

Enjoying audio from an external source

Glossary

Product Service

Troubleshooting guide

Specifications

Limited Warranty (ONLY FOR U.S.A.)

Limited Warranty (ONLY FOR CANADA)

Accessories
