D-Link DES-1005E User Manual

ENGLISH

Preface

D-Link reserves the right to revise this publication and to make changes in the content hereof without obligation to notify any person or organization of such revisions or changes.

Manual Revisions

Revision	Date	Description
1.0	February 16, 2010	DES-1005E - Hardware revision A1
1.1	May 18, 2010	Added Windows® 7 Support

Trademarks

D-Link and the D-Link logo are trademarks or registered trademarks of D-Link Corporation or its subsidiaries in the United States or other countries. All other company or product names mentioned herein are trademarks or registered trademarks of their respective companies.

Copyright Statement

No part of this publication or documentation accompanying this product may be reproduced in any form or by any means or used to make any derivative such as translation, transformation, or adaptation without permission from D-Link Corporation/D-Link Systems, Inc., as stipulated by the United States Copyright Act of 1976 and any amendments thereto. Contents are subject to change without prior notice.

Copyright ©2010 by D-Link Corporation/D-Link Systems, Inc. All rights reserved.

FCC Statement

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with this user’s guide, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense.

2

ENGLISH

Table of Contents

Preface......................................................................................................	2
Manual Revisions........................................................................................	2
Trademarks....................................................................................................	2
Copyright Statement.................................................................................	2
FCC Statement.............................................................................................	2
Safety Instructions.................................................................................	4
Safety Cautions............................................................................................	4
Protecting Against Electrostatic Discharge.......................................	6
Product Overview..................................................................................	7
Package Contents.......................................................................................	7
Setup...............................................................................................................	7
Introduction..................................................................................................	7
Features..........................................................................................................	9
Hardware Overview................................................................................	10
Top Panel (LEDs)..............................................................................	10
Rear Panel (Connections).............................................................	11
Installation.............................................................................................	12
Before You Connect to the Network.................................................	12
Mounting the Switch on the Wall......................................................	13
Mounting on a cement wall........................................................	13
Mounting on a wood wall...........................................................	13
Connecting the Switch..........................................................................	14
PC to Switch......................................................................................	14
Hub/Switch to DES-1005E...........................................................	14
DES-1005E to Other Devices.......................................................	14
Troubleshooting...................................................................................	15
Networking Basics...............................................................................	16
Check your IP address............................................................................	16

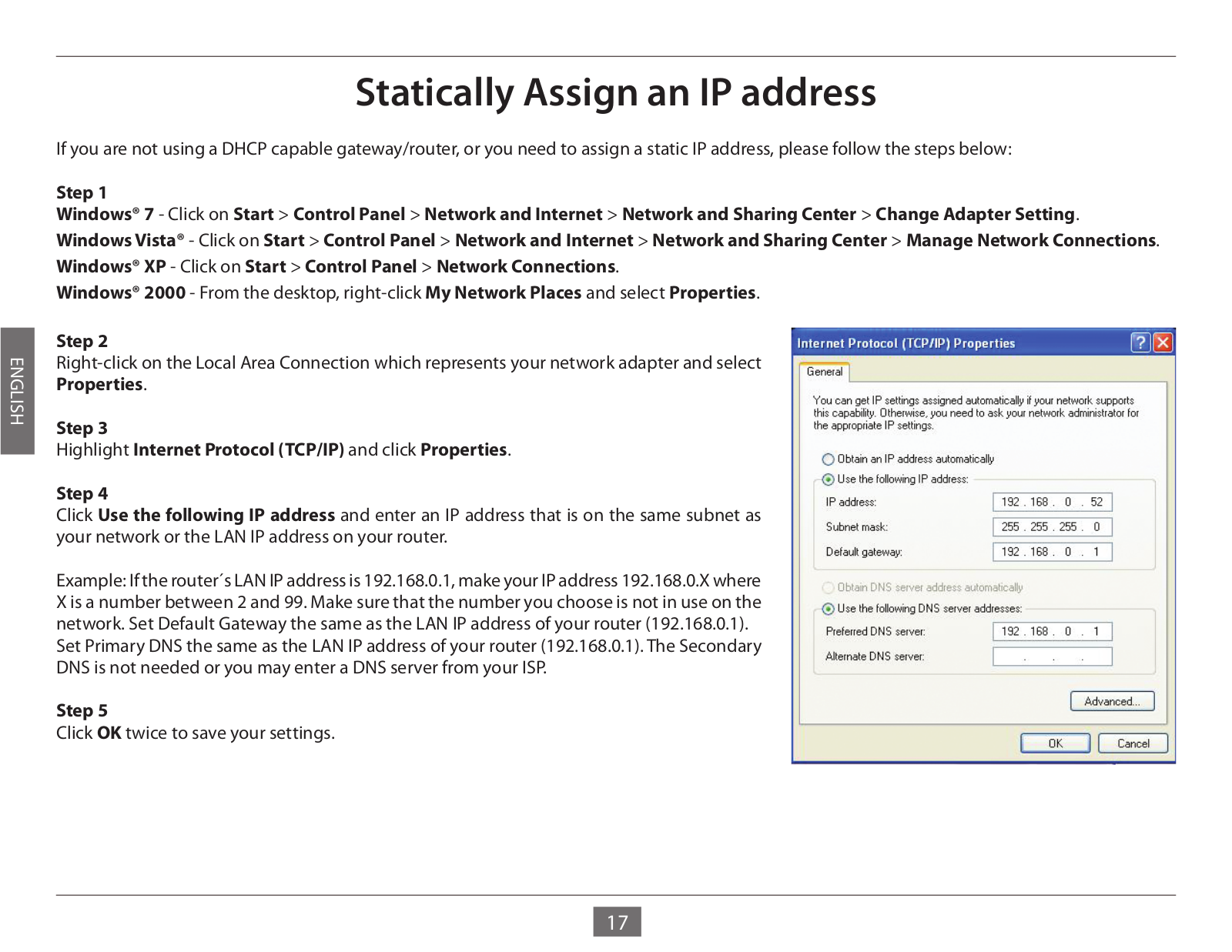

Statically Assign an IP address............................................................	17

Glossary.................................................................................................	18
Technical Specifications......................................................................	23
Contacting Technical Support...........................................................	25
Registration...........................................................................................	26

3

ENGLISH

Safety Instructions

Use the following safety guidelines to ensure your own personal safety and to help protect your system from potential damage.

Safety Cautions

To reduce the risk of bodily injury, electrical shock, fire, and damage to the equipment, observe the following precautions.

Observe and follow service markings. Do not service any product except as explained in your system documentation. Opening or removing covers that are marked with the triangular symbol with a lightning bolt may expose you to an electrical shock. Only a trained service technician should service components inside these compartments.

If any of the following conditions occur, unplug the product from the electrical outlet and replace the part or contact your trained service provider:

–The power cable, extension cable, or plug is damaged.

–An object has fallen into the product.

–The product has been exposed to water.

–The product has been dropped or damaged.

–The product does not operate correctly when you follow the operating instructions.

•Keep your system away from radiators and heat sources. Also, do not block cooling vents.

•Do not spill food or liquids on your system components, and never operate the product in a wet environment. If the system gets wet, see the appropriate section in your troubleshooting guide or contact your trained service provider.

•Do not push any objects into the openings of your system. Doing so can cause a fire or an electric shock by shorting out interior components.

•Use the product only with approved equipment.

•Allow the product to cool before removing covers or touching internal components.

•Operate the product only from the type of external power source indicated on the electrical ratings label. If you are not sure of the type of power source required, consult your service provider or local power company.

4

• To help avoid damaging your system, be sure the voltage selection switch (if provided) on the power supply is set to match the

		power available at your location:
		– 115 volts (V)/60 hertz (Hz) in most of North and South America and some Far Eastern countries such as South Korea andTaiwan.
		– 100 V/50 Hz in eastern Japan and 100 V/60 Hz in western Japan.
		– 230 V/50 Hz in most of Europe, the Middle East, and the Far East.
		• Also be sure that attached devices are electrically rated to operate with the power available in your location.
		• Useonlyapprovedpowercable(s).IfyouhavenotbeenprovidedwithapowercableforyoursystemorforanyAC-poweredoption
		intended for your system, purchase a power cable that is approved for use in your country. The power cable must be rated for the
		product and for the voltage and current marked on the product’s electrical ratings label. The voltage and current rating of the
	ENGLISH	cable should be greater than the ratings marked on the product.
		• To help prevent an electric shock, plug the system and peripheral power cables into properly grounded electrical outlets. These
		cables are equipped with three-prong plugs to help ensure proper grounding. Do not use adapter plugs or remove the grounding
		prong from a cable. If you must use an extension cable, use a 3-wire cable with properly grounded plugs.
		• Observeextensioncableandpowerstripratings.Makesurethatthetotalampereratingofallproductspluggedintotheextension
		cable or power strip does not exceed 80 percent of the ampere ratings limit for the extension cable or power strip.
		• To help protect your system from sudden, transient increases and decreases in electrical power, use a surge suppressor, line
		conditioner, or uninterruptible power supply (UPS).
		• Position system cables and power cables carefully; route cables so that they cannot be stepped on or tripped over. Be sure that
		nothing rests on any cables.
		• Do not modify power cables or plugs. Consult a licensed electrician or your power company for site modifications. Always follow
		your local/national wiring rules.
		• When connecting or disconnecting power to hot-pluggable power supplies, if offered with your system, observe the following
		guidelines:
		– Install the power supply before connecting the power cable to the power supply.
		– Unplug the power cable before removing the power supply.
		– If the system has multiple sources of power, disconnect power from the system by unplugging all power cables from the power
		supplies.

5

Protecting Against Electrostatic Discharge

Static electricity can harm delicate components inside your system. To prevent static damage, discharge static electricity from your body before you touch any of the electronic components, such as the microprocessor. You can do so by periodically touching an unpainted metal surface on

	the chassis.
	You can also take the following steps to prevent damage from electrostatic discharge (ESD):
	1.	When unpacking a static-sensitive component from its shipping carton, do not remove the component from the antistatic packing
		material until you are ready to install the component in your system. Just before unwrapping the antistatic packaging, be sure to
		discharge static electricity from your body.
ENGLISH
	2.	When transporting a sensitive component, first place it in an antistatic container or packaging.
	3.	Handle all sensitive components in a static-safe area. If possible, use antistatic floor pads, workbench pads, and an antistatic
		grounding strap.

6

Product Overview
	Package Contents
D-Link DES-1005E 5-port Desktop Switch	Warranty Card
Wall Mount Kit	Quick Install Guide
Power Adapter

ENGLISH

Setup

The setup of the DES-1005E can be performed using the following steps:

•The power outlet should be within 1.82 meters (6 feet) of the Switch.

•Visually inspect the DC power jack and make sure that it is fully secured to the power adapter.

•Do not cover the ventilation holes on the sides of the Switch, and make sure there is adequate ventilation around it.

•Do not place heavy objects on the switch.

Introduction

Fast Ethernet Technology

The growing importance of LANs and the increasing complexity of desktop computing applications are fueling the need for high performance networks. 100BASE-TX (Fast Ethernet) provides a cost-effective and high-performance solution for small workgroups, SMBs (Small to Medium

Businesses), and any network supporting bandwidth-intensive applications. Fast Ethernet technology operates at 10 times the speed of traditional

Ethernet, offering maximum performance and enhanced capability for existing Ethernet-based networks.

100Mbps Fast Ethernet is a standard specified by the IEEE 802.3 LAN committee. It is an extension of the 10Mbps Ethernet standard with the ability to transmit and receive data at 100Mbps, while maintaining the CSMA/CD Ethernet protocol. Since the 100Mbps Fast Ethernet is compatible with all other 10Mbps Ethernet environments, it provides a straightforward upgrade and takes advantage of the existing investment in hardware, software, and personnel training.

7

ENGLISH

Switching Technology

Switches provide full-line speed and dedicated bandwidth for all connections. This is in contrast to hubs, which use the traditional shared networking topology, where the connected nodes contend for the same network bandwidth. When two switching nodes are communicating, they are connected with a dedicated channel between them, so there is no contention for network bandwidth with other nodes. As a result, the switch reduces considerably, the likelihood of traffic congestion.

For Ethernet networks, a switch is an effective way of eliminating the problem of chaining hubs beyond the“two-repeater limit.”A switch can be used to split parts of the network into different collision domains, making it possible to expand your Ethernet network beyond the 205-meter network diameter limit for 100BASE-TX networks. Switches supporting both 10Mbps Ethernet and 100Mbps Fast Ethernet are also ideal for bridging between existing 10Mbps networks and newer 100Mbps networks.

Switching LAN technology is a marked improvement over the previous generation of network hubs and bridges, which were characterized by higher latencies. Routers have also been used to segment local area networks, but the cost of a router, the setup and maintenance required, make routers relatively impractical. Today switches are an ideal solution to most kinds of local area network congestion problems.
