D-Link DCS-4602EV User Manual

0 (0)

Version 1.00 | 05/06/2015

User Manual

Vigilance Full HD Outdoor Vandal-Proof PoE Dome Camera

DCS-4602EV

Preface

D-Link reserves the right to revise this publication and to make changes in the content hereof without obligation to notify any person or organization of such revisions or changes. Information in this document may become obsolete as our services and websites develop and change.

Manual Revisions

Revision	Date	Description
1.00	05/06/2015	DCS-4602EV Revision A1 with firmware version 1.00

Trademarks

D-Link and the D-Link logo are trademarks or registered trademarks of D-Link Corporation or its subsidiaries in the United States or other countries. All other company or product names mentioned herein are trademarks or registered trademarks of their respective companies.

D-Link DCS-4602EV User Manual

Table of Contents

Product Overview........................................................	4
Package Contents.................................................................	4
Introduction............................................................................	5
System Requirements..........................................................	5
Features....................................................................................	6
Hardware Overview..............................................................	7
Mounting the Camera.........................................................	9
Waterproofing Your Installation.................................	12
Software Installation......................................................	15
Configuration.............................................................	18
Using the Configuration Interface................................	18
Live Video...............................................................................	20
Setup........................................................................................	22
Setup Wizard.....................................................................	22
Network Setup.................................................................	27
Dynamic DNS....................................................................	30
Image Setup......................................................................	31
Video....................................................................................	33
Preset...................................................................................	35
Motion Detection............................................................	37

Time and Date..................................................................	38
Event Setup.......................................................................	39
Advanced...............................................................................	46
ICR and IR...........................................................................	46
HTTPS..................................................................................	47
Access List..........................................................................	48
SNMP....................................................................................	49
Maintenance.........................................................................	51
Device Management......................................................	51
System.................................................................................	52
Firmware Upgrade..........................................................	53
Status.......................................................................................	54
Device Info.........................................................................	54
Logs......................................................................................	55
Help......................................................................................	56
Technical Specifications............................................	57
Regulatory Information.............................................	60

D-Link DCS-4602EV User Manual

Section 1: Product Overview

Product Overview

Package Contents

DCS-4602EV Vigilance Full HD Outdoor Vandal-Proof PoE Dome Camera

Cable Waterproofing Connector

Rubber Power Connector Plug

Mounting Kit

CD-ROM with User Manual and software

Quick Installation Guide

If any of the above items are missing, please contact your reseller.

Safety Notice: Installation and servicing should be done by certified technicians so as to conform to all local codes and prevent voiding your warranty.

D-Link DCS-4602EV User Manual

Section 1: Product Overview

Introduction

Congratulations on your purchase of the DCS-4602EV Vigilance Full HD Outdoor Vandal-Proof PoE Dome Camera. The DCS-4602EV is a professional surveillance and security solution for small, medium, and large enterprises alike. The DCS-4602EV uses a Full HD progressive scan CMOS sensor; the professional sensor results in low noise and high sensitivity capabilities ideal for surveillance applications.

The DCS-4602EV is a complete system with a built-in CPU and incorporates a web server, allowing it to transmit excellent realtime Full HD resolution video for security and outdoor surveillance.

The DCS-4602EV can be accessed remotely, controlled and configured from any PC/Notebook over your local network or through the Internet via a web browser. The simple installation and intuitive web-based interface offer easy configuration across the full range of its advanced feature set, including granular control over multiple video streams with different configurations and multicast video streams which helps you manage your network load.

The DCS-4602EV has an IP66 certified weatherproof housing designed for both indoor and outdoor applications. The builtin removable IR-cut filter and IR LEDs give the DCS-4602EV the capability to view up to 20M at night. The DCS-4602EV also incorporates Power over Ethernet (PoE), allowing it to be easily installed in a variety of locations without the need for supplemental power cabling. The combination of IP66 weatherproof housing, IK10 vandal-proof housing, IR-Cut Filter, IR LEDs, and PoE make the DCS-4602EV an ideal solution for a dependable and cost-effective 24 hour surveillance solution with easy clutter-free installation.

System Requirements

•Computer with Microsoft Windows® 8, 7, or Vista® (for CD-ROM Setup Wizard), Mac OS or Linux

•Internet Explorer 7, Firefox 20, or Safari 6 or higher

•Existing 10/100 Ethernet-based network with an available 802.3af Power over Ethernet (PoE) port

D-Link DCS-4602EV User Manual

Section 1: Product Overview

Features

Simple to Maintain

The DCS-4602EV is a stand-alone system with a built-in CPU, requiring no special hardware or software.The DCS-4602EV can be viewed and managed through most web browsers, including Internet Explorer®, Chrome®, Firefox®, and Safari®.

Supports a Variety of Platforms

With support for TCP/IP networking, HTTP, and other Internet related protocols, the DCS-4602EV can also be integrated easily into other Internet/ Intranet applications because of its standards-based features. The DCS-4602EV works with any 10/100 Ethernet network, making the DCS-4602EV easy to integrate into your existing network environment.

Advanced Event Management

The DCS-4602EV can be set up to send e-mail notifications with snapshots when an event occurs, such as when motion is detected. Events can be triggered from several sources, such as motion detection and time based events.

IR LEDs for Day and Night Functionality

The built-in infrared LEDs enable night time viewing of up to 20 meters.

IP66 Weatherproof and Vandal-proof Housing

The DCS-4602EV uses an IP66 weatherproof housing, allowing you to rest assured that in the toughest of conditions, it will continue to provide round-the-clock surveillance.

PoE (Power over Ethernet) for Flexible Installation

The DCS-4602EV can draw all the power it needs from a PoE switch or PoE injector for a simple and clutter-free installation.

Remote Monitoring Utility

The D-ViewCam application adds enhanced features and functionality for the Network Camera and allows administrators to configure and access the Network Camera from a remote site via Intranet or Internet. Other features include image monitoring, recording images to a hard drive, viewing up to 32 cameras on one screen, and taking snapshots.

D-Link DCS-4602EV User Manual

Section 1: Product Overview

Hardware Overview

7 2

1	Protective Cover	Fixed lens to record video of the surrounding area

2	Cover Screws	The three screws can be removed with the included wrench

3	Camera Lens	Fixed lens to record video of the surrounding area

4	Inner Cover	Covers the camera components

5	Reset Button	Press and hold for 10 seconds to reset camera back to the factory default settings

6	IR LEDs	Provide illumination for low-light environments

7	Tilt Adjustment Screw	Can be loosened to adjust camera angle

D-Link DCS-4602EV User Manual

Section 1: Product Overview

2			3

	1	Power Connector	Connects to an optional 12 V / 1.5 A power adapter (not included)

	2	Ethernet Jack	RJ-45 connector for Ethernet which can also be used to power the camera using
	2	Ethernet Jack	Power over Ethernet (PoE)
			Power over Ethernet (PoE)

	3	Grounding Screw	Can be attached to a grounding wire if desired

D-Link DCS-4602EV User Manual

Section 2: Assembly and Installation

Mounting the Camera

It is highly recommended that you configure and test your camera before mounting it.

Step 1

Place the mounting sticker where you want to position the camera.

Use a 6 mm drill bit to make the required holes approximately 25 mm deep, then insert the wall anchors into the holes.

If you are running the camera cables through the wall or ceiling, drill a hole in the center and pull the cables through the hole.

Step 2

Use the included wrench to loosen the 3 screws on the top of the camera, then lift the camera cover off.

D-Link DCS-4602EV User Manual

Section 2: Assembly and Installation

Step 3

Use the screws provided to mount the camera to the wall or ceiling.

If you are running the camera cables out the side of the camera, guide the camera cables through the cable channel on the base.

Step 4

Connect the power and Ethernet cables, or just the Ethernet cable if you are using a PoE connection.

D-Link DCS-4602EV User Manual

Section 2: Assembly and Installation

Step 5

To adjust the camera's angle, pull the black inner cover and remove it from the camera.

Loosen the adjustment screw on the side of the camera, then retighten it after moving the camera to the desired angle. You can also rotate the camera by grasping the camera and turning it left or right.

When you are done adjusting the camera's angle, put the inner cover back into place.

Note:The camera has a limited range of motion. If it stops when you are adjusting it, do not attempt to rotate or tilt the camera any further in that direction.

Step 6

Reattach the camera cover.

If you need to waterproof your installation, please continue to the next page.

D-Link DCS-4602EV User Manual

Section 2: Assembly and Installation

Waterproofing Your Installation

To waterproof your camera installation, follow the instructions below. Round Ethernet cable, a crimping tool, and RJ-45 plugs are required for this procedure.

Step 1

Place the washer around the base of the Ethernet connector as shown.

Step 2

Thread bare Ethernet cable through the waterproof connector as shown, then crimp an RJ-45 plug onto the cable.

D-Link DCS-4602EV User Manual

Section 2: Assembly and Installation

Step 3

Connect the RJ-45 plug into the Ethernet connector, then screw the waterproof connector to the Ethernet connector by turning it about a half-turn clockwise.

Step 4

Screw the back part of the waterproof connector clockwise until there is a tight seal around the Ethernet cable.

If you are using PoE to power your camera, use the included rubber power connector plug to the power connector.

D-Link DCS-4602EV User Manual

Section 2: Assembly and Installation

If you are using a power adapter (not included) to power your camera, wind waterproof tape around the connection in an overlapping manner to cover it.



D-Link DCS-4602EV User Manual	14

Section 2: Assembly and Installation

Software Installation

Step 1

Insert the DCS-4602EV CD into your computer's CD-ROM drive to begin the installation.

If the Autorun function on your computer is disabled, or if the D-Link Launcher fails to start automatically, click the Start button and type D:\autorun.exe (where D: represents the drive letter of your CD-ROM drive) and press Enter.

Step 2

Click on the D-Link Setup Wizard SE icon that was created in your Windows Start menu (Start > D-Link > Setup Wizard SE).

D-Link DCS-4602EV User Manual

Section 2: Assembly and Installation

Step 3

The Setup Wizard will appear and display the MAC address and IP address of your camera(s). If you have a DHCP server on your network, a valid IP Address will be displayed. If your network does not use a DHCP server, the network camera's default static IP 192.168.0.20 will be displayed.

Select your camera, then click the Wizard button to continue.

Step 4

Enter the Admin ID and password. When logging in for the first time, the default Admin ID is admin with the password left blank.

Click the checkboxes if you wish to change the admin ID and password for the camera, and enter the new ID and password you wish to use.

Click Next to continue.

D-Link DCS-4602EV User Manual

Section 2: Assembly and Installation

Step 5

Select DHCP if your camera obtains an IP address automatically from a DHCP server such as a router. Select Static IP if you want to manually enter the IP settings for the camera.

Click Next to continue.

Step 6

Take a moment to confirm your settings and click Restart.

D-Link DCS-4602EV User Manual

Section 3: Configuration

Configuration

Using the Configuration Interface

After completing the Camera Installation Wizard, you are ready to use your camera. The camera’s built-in Web configuration utility is designed to allow you to easily access and configure your DCS-4602EV. At the end of the wizard, click Link, or enter the IP address of your camera into a web browser, such as Firefox. To log in, use the User name admin and the password you created in the Installation Wizard. If you did not create a password, the default password is blank. After entering your password, click OK.

Step 1

Click on the D-Link SetupWizard SE icon that was created in your Windows Start menu (Start > D-Link > Setup Wizard SE).

Step 2

Select the camera and click Link to access the web configuration.

The Setup Wizard will automatically open your web browser to the IP address of the camera.

D-Link DCS-4602EV User Manual

Section 3: Configuration

Step 3

Enter admin as the default username and leave the password blank. Click OK to continue.

Step 4

This section displays your camera’s live video. You can select your video profile and view or operate the camera.

D-Link DCS-4602EV User Manual

Section 3: Configuration

Live Video

This section shows your camera’s live video. You may select any of the available icons listed below to operate the camera. You may also select your language using the drop-down menu on the left side of the screen.

You can zoom in and out on the live video image using your mouse. Right-click to zoom out or left-click to zoom in on the image.

	Motion Trigger	This indicator will change color when a trigger event occurs.
	Indicator	Note: The video motion feature for your camera must be
		Note: The video motion feature for your camera must be
		enabled.
	Recording	When a recording is in progress, this indicator will change
	Indicator	color.
	Control Pad	This control pad can be used to electronically pan, tilt, and
	Control Pad	zoom (ePTZ) within the camera's predefined view area, if one
		has been defined.
	Auto Pan	Starts the automatic panning function. The ROI will pan from
		back and forth within the FOV.
	Stop	Stops the camera ePTZ motion.

	Preset Path	Starts the camera's motion along the predefined path.

D-Link DCS-4602EV User Manual

Section 3: Configuration

ePTZ Speed: You may select a value between 0 and 10. 0 is the slowest and 10 is the fastest.

Global View: This window indicates the total field of view (FOV) of the camera. The red box indicates the visible region of interest (ROI).

Language: You may select the interface language using this menu.

Video Profile 1	Record a Video Clip
Video Profile 2	Set a Storage Folder
Full screen mode
Take a Snapshot

Go To: If any presets have been defined, you can select them here to move the (Preset List) camera to the selected preset.

D-Link DCS-4602EV User Manual

Section 3: Configuration

Setup

Setup Wizard

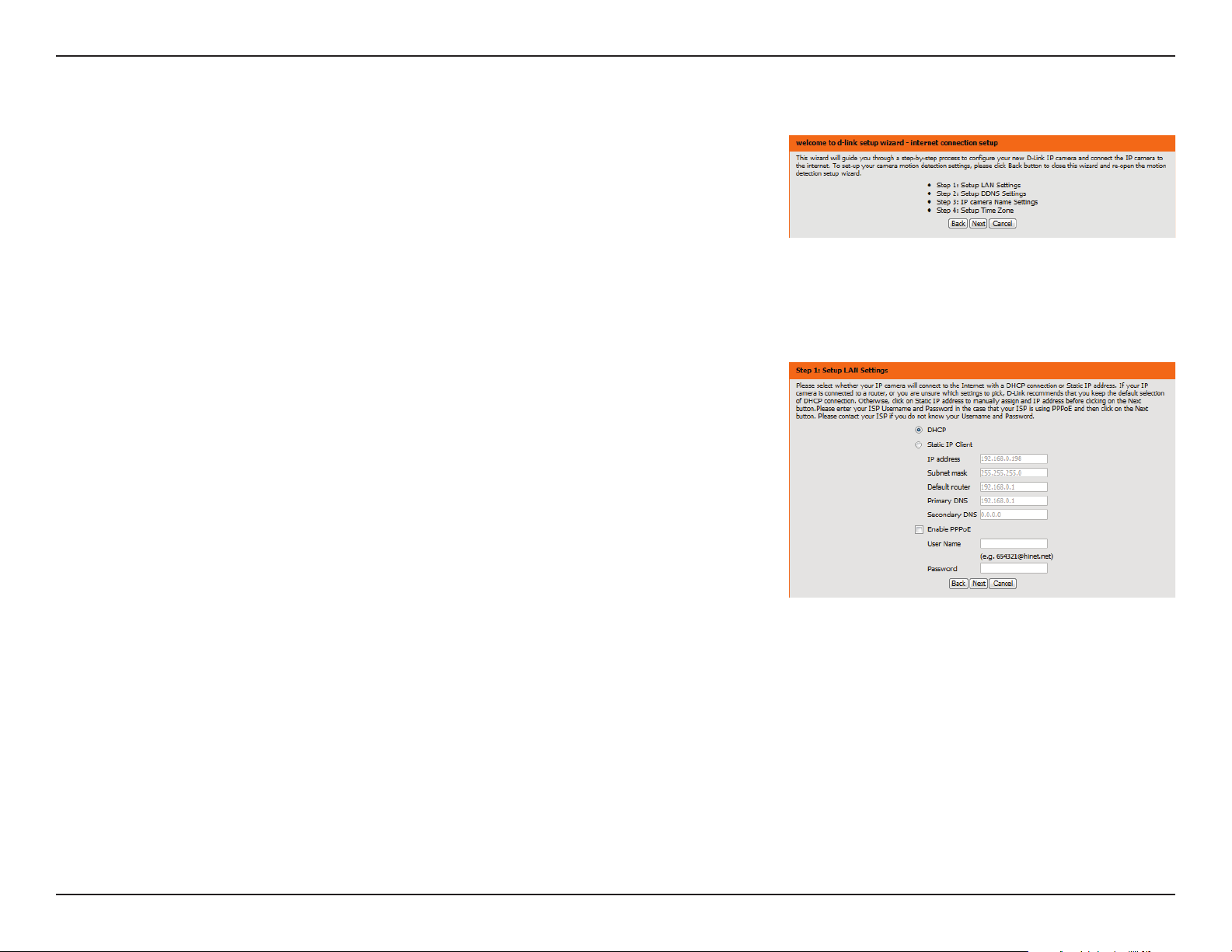

To configure your Network Camera, click Internet Connection Setup Wizard. Alternatively, you may click Manual Internet Connection Setup to manually configure your Network Camera and skip to "Network Setup" on page 27.

To quickly configure your Network Camera’s motion detection settings, click Motion Detection Setup Wizard. If you want to enter your settings without running the wizard, click Manual Motion Detection Setup and skip to"Motion Detection" on page 37.

D-Link DCS-4602EV User Manual
