Manual
CX2020, CX2030, CX2040
Embedded PC
Version |
1.2 |
Date |
01/03/2014 |
Order No. |
CX20x001xx |
|
|
|
Table of contents |
Table of contents |
|
||
1 |
Foreword .................................................................................................................................................... |
4 |
|
|
1.1 |
Notes on the documentation............................................................................................................. |
4 |
|
1.2 |
Safety instructions ............................................................................................................................ |
5 |
|
1.3 |
Documentation issue state ............................................................................................................... |
6 |
2 |
Product overview....................................................................................................................................... |
7 |
|
|
2.1 |
Intended use ..................................................................................................................................... |
7 |
|
2.2 |
System Overview.............................................................................................................................. |
8 |
|
2.3 |
CX20x0 Technical data ................................................................................................................ |
11 |
|
2.4 |
Types .............................................................................................................................................. |
13 |
|
2.5 |

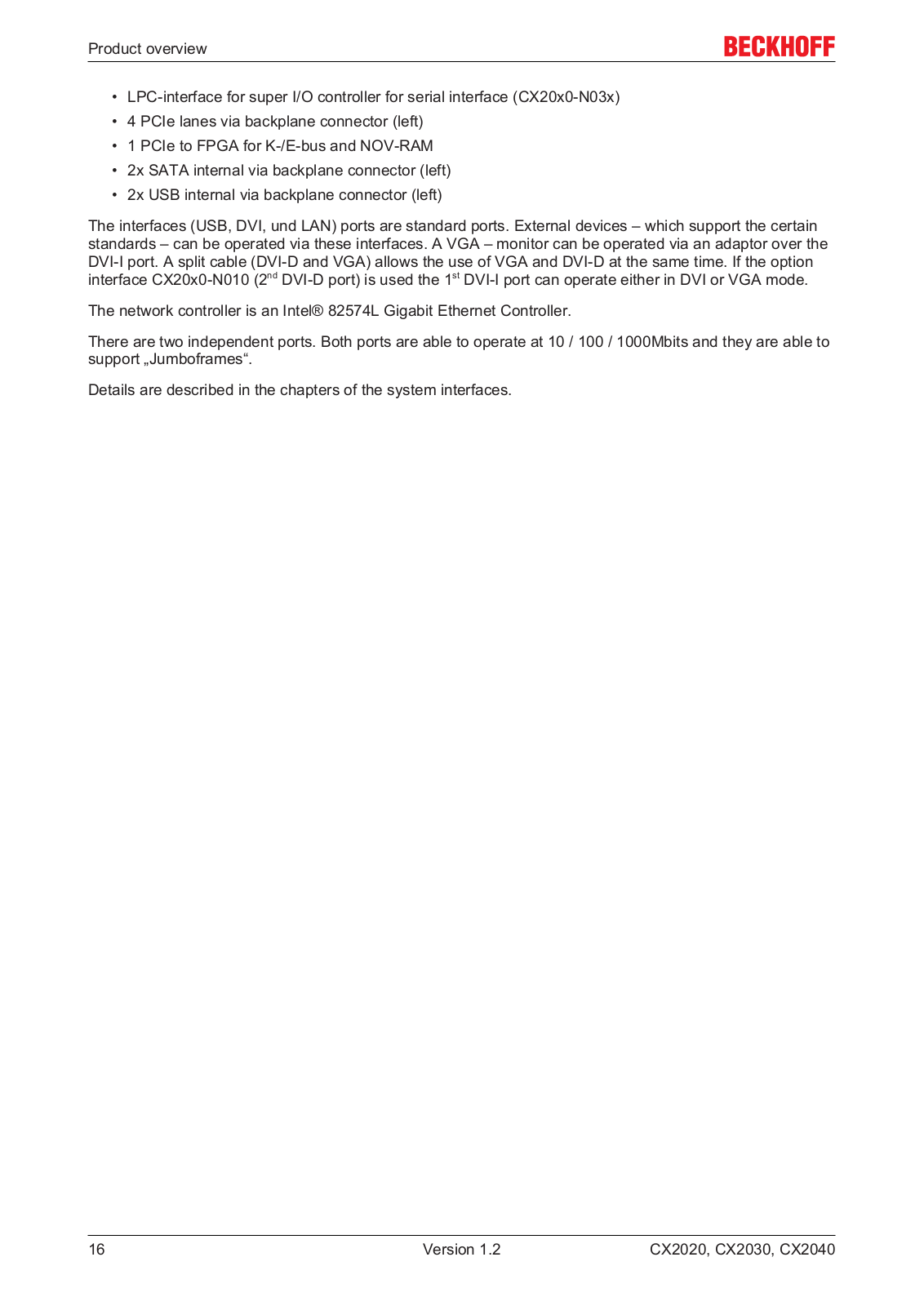

Architekture overview ..................................................................................................................... |
15 |
|
2.6 |
Battery compartment ...................................................................................................................... |
17 |
|
2.7 |
CF slot ............................................................................................................................................ |
17 |
|
2.8 |

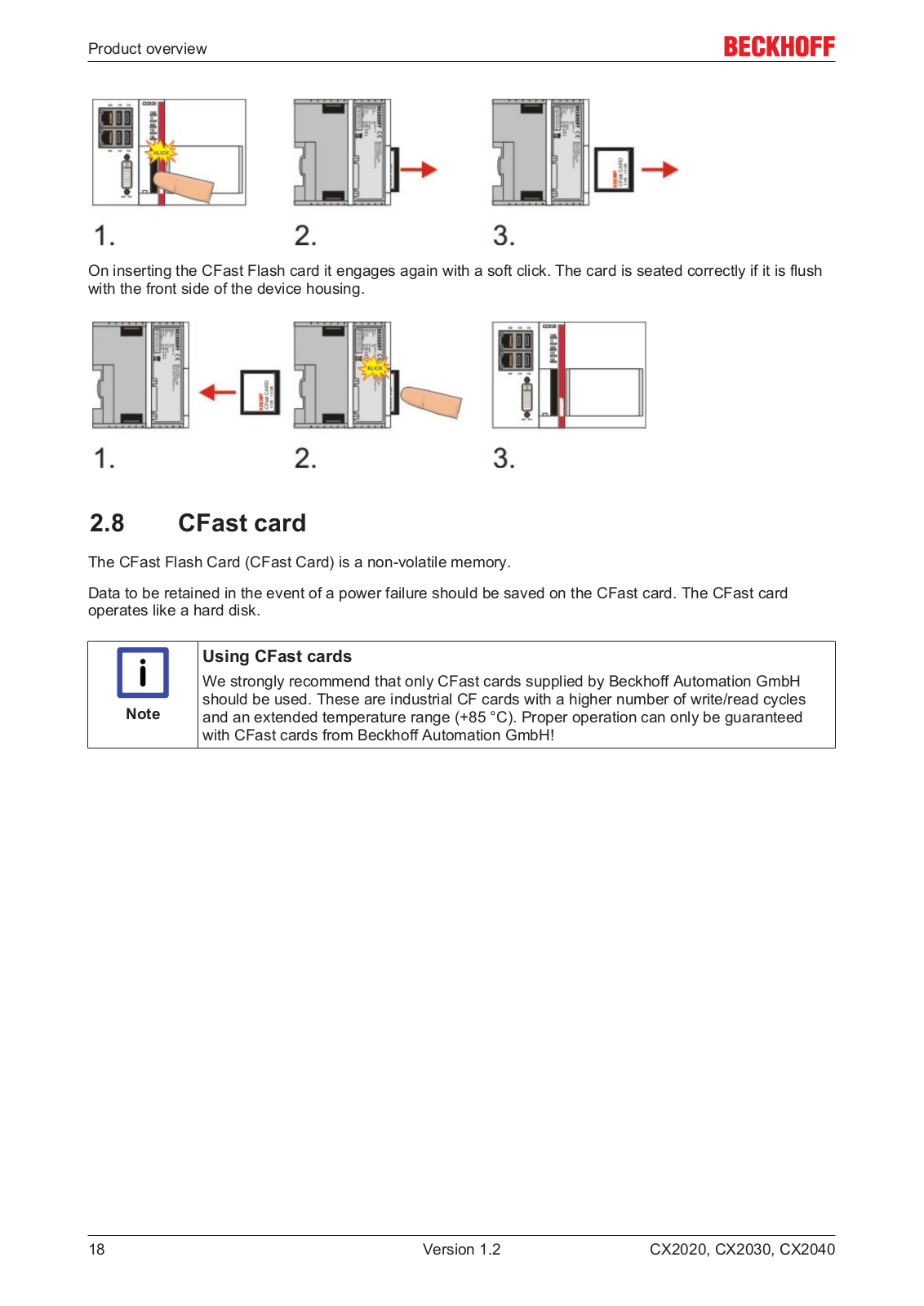

CFast card ...................................................................................................................................... |
18 |
3 |
Mounting and wiring ............................................................................................................................... |
19 |
|
|
3.1 |
Unpacking, installation and transport.............................................................................................. |
19 |
|
3.2 |
Dimensions ..................................................................................................................................... |
20 |
|
3.3 |
Installation on the mounting rail ...................................................................................................... |
21 |
|
3.4 |

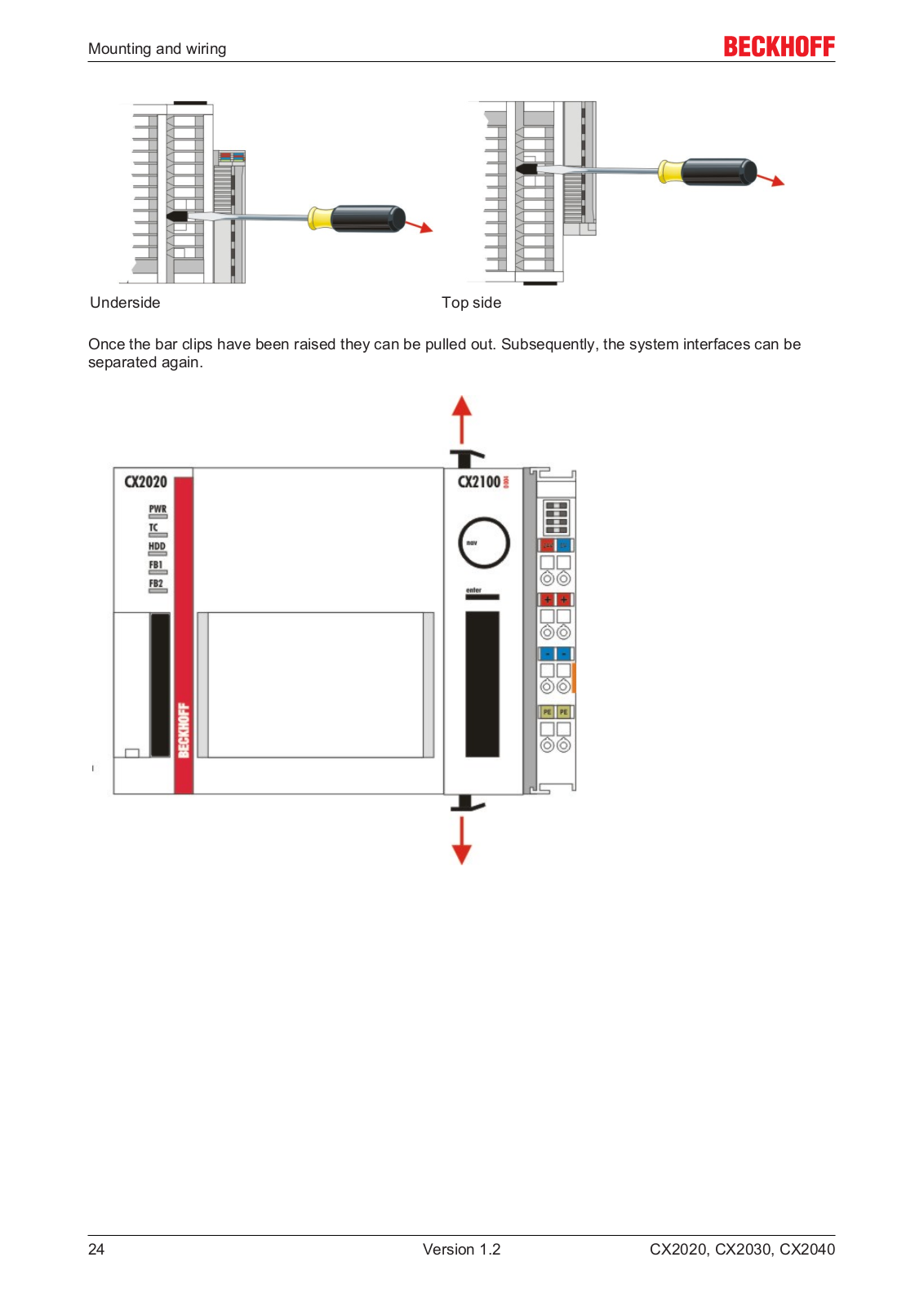

Mounting the module lock............................................................................................................... |
23 |
|
3.5 |

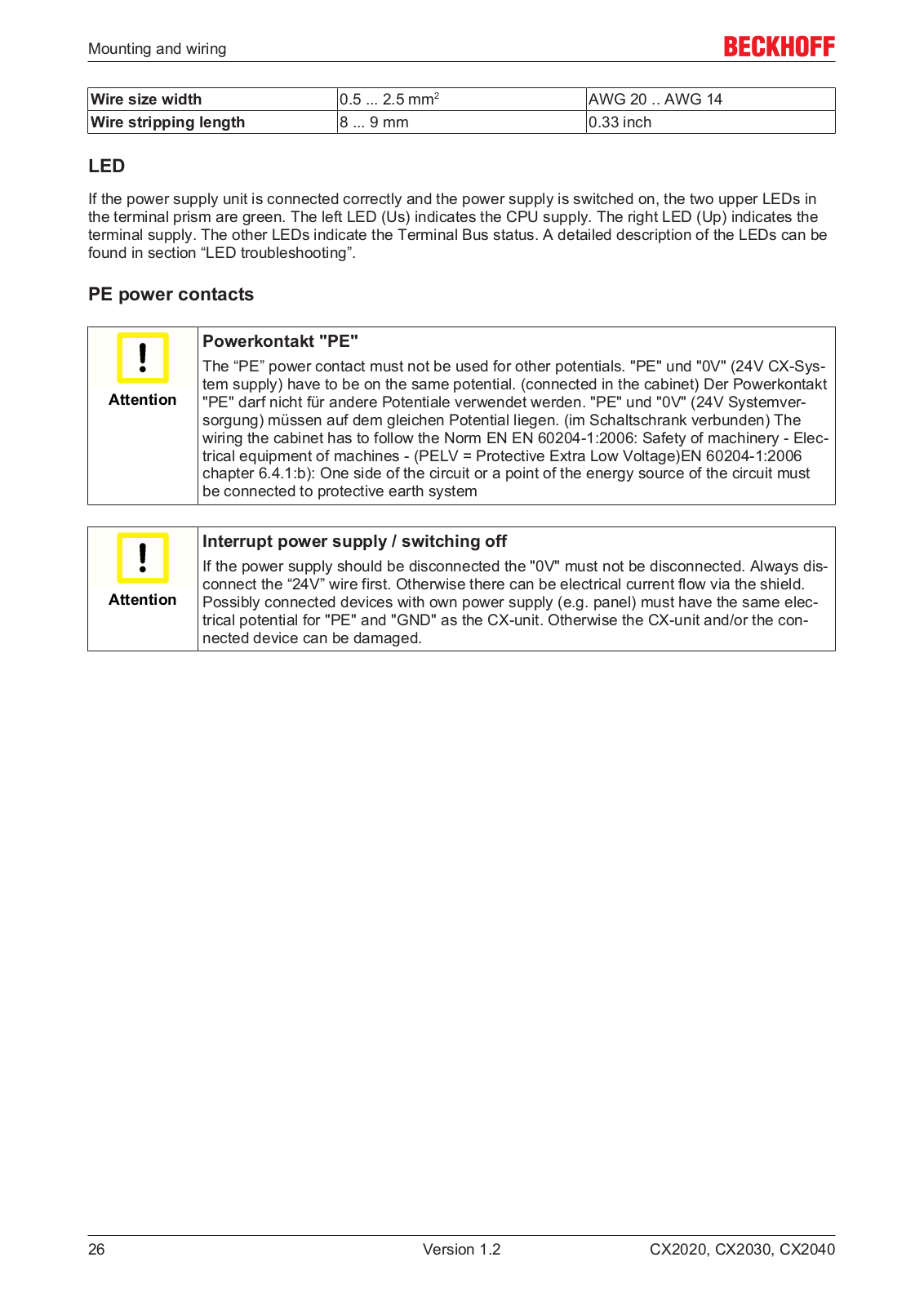

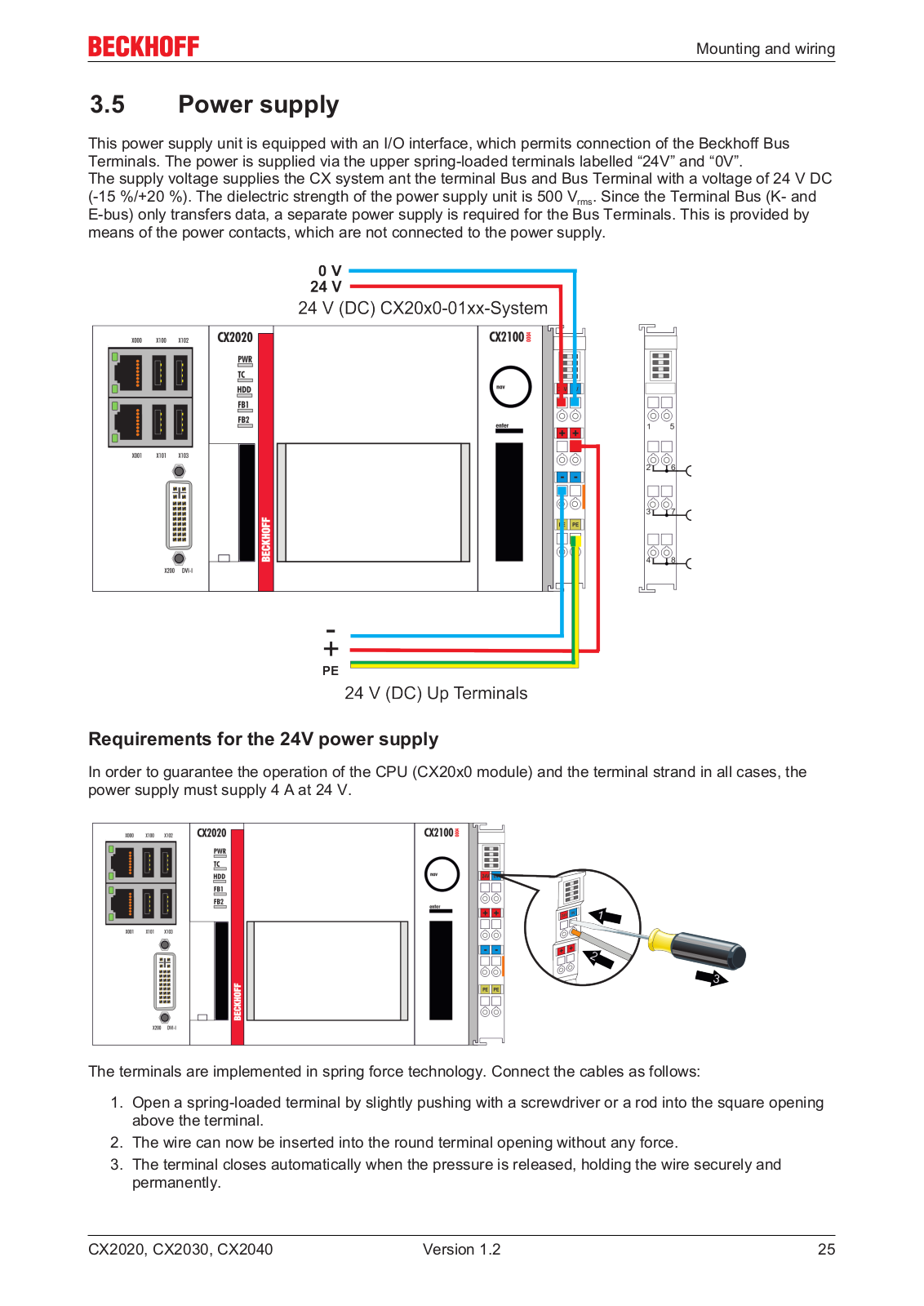

Power supply .................................................................................................................................. |
25 |
|
3.6 |
Mounting of passive terminals on the CX21000xx4 power supply ................................................ |
27 |
|
3.7 |

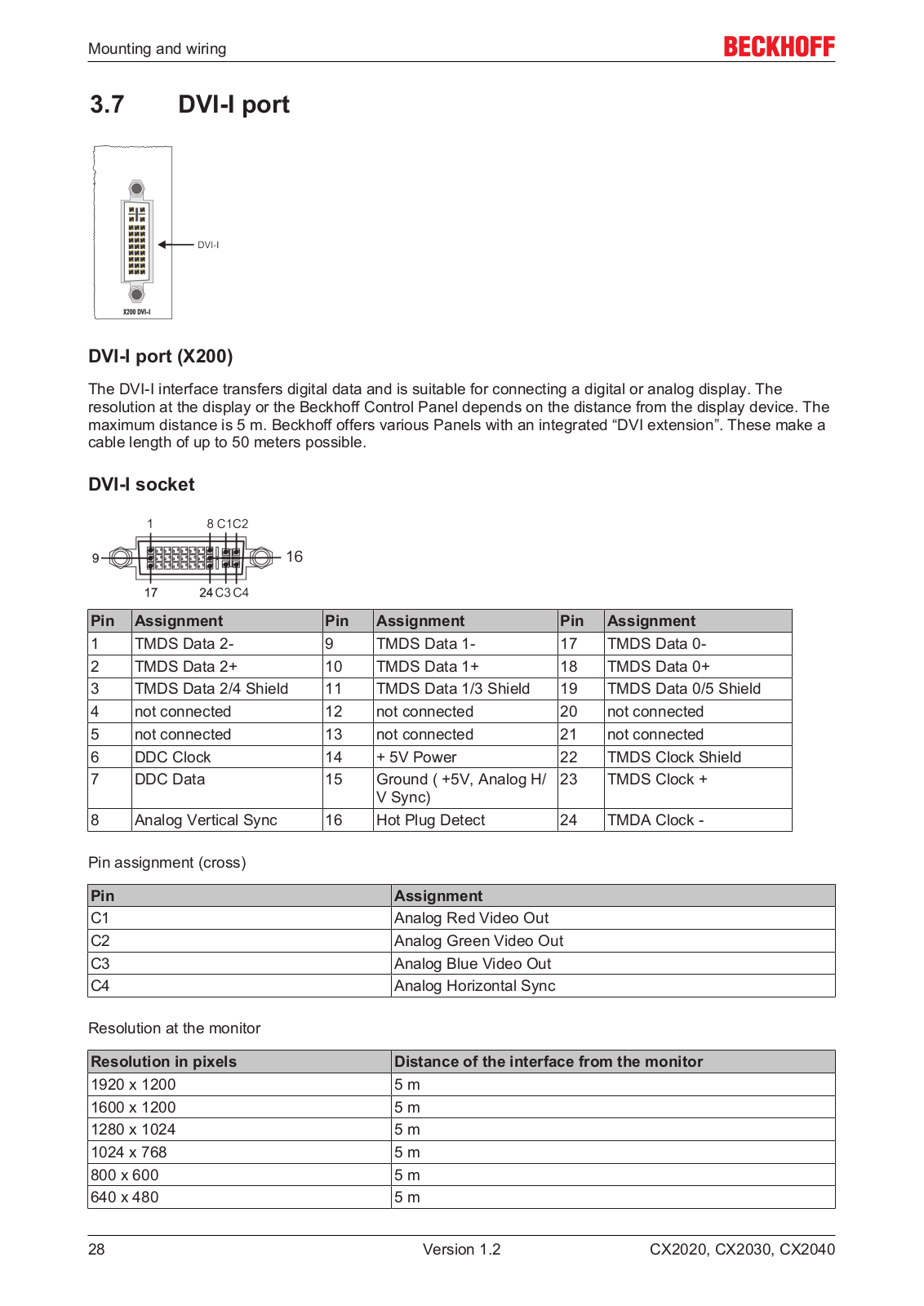

DVII port ........................................................................................................................................ |
28 |
|
3.8 |
USB connections ............................................................................................................................ |
29 |
|
3.9 |
LAN connections............................................................................................................................. |
30 |
|
3.10 |
RS232 connections (CX20x0N030)............................................................................................... |
32 |
|
3.11 |
RS422/RS485 connections (CX20x0N031)................................................................................... |
33 |
4 |
Commissioning / Configuration ............................................................................................................. |
35 |
|
|
4.1 |
EtherCAT cable redundancy........................................................................................................... |
35 |
|
4.2 |
Switching on and off ....................................................................................................................... |
38 |
5 Error handling and diagnostics ............................................................................................................. |
39 |
||
|
5.1 |
Basic CPU module.......................................................................................................................... |
39 |
|
|
5.1.1 LEDs on the basic CPU module ......................................................................................... |
39 |
|
|
5.1.2 LEDs of the power supply unit (CX21000xx4) in Kbus mode........................................... |
39 |
|
|
5.1.3 LEDs of the power supply unit (CX21000xx4) in Ebus mode........................................... |
41 |
|
5.2 |
Faults .............................................................................................................................................. |
42 |
6 |
Decommissioning.................................................................................................................................... |
43 |
|
|
6.1 |

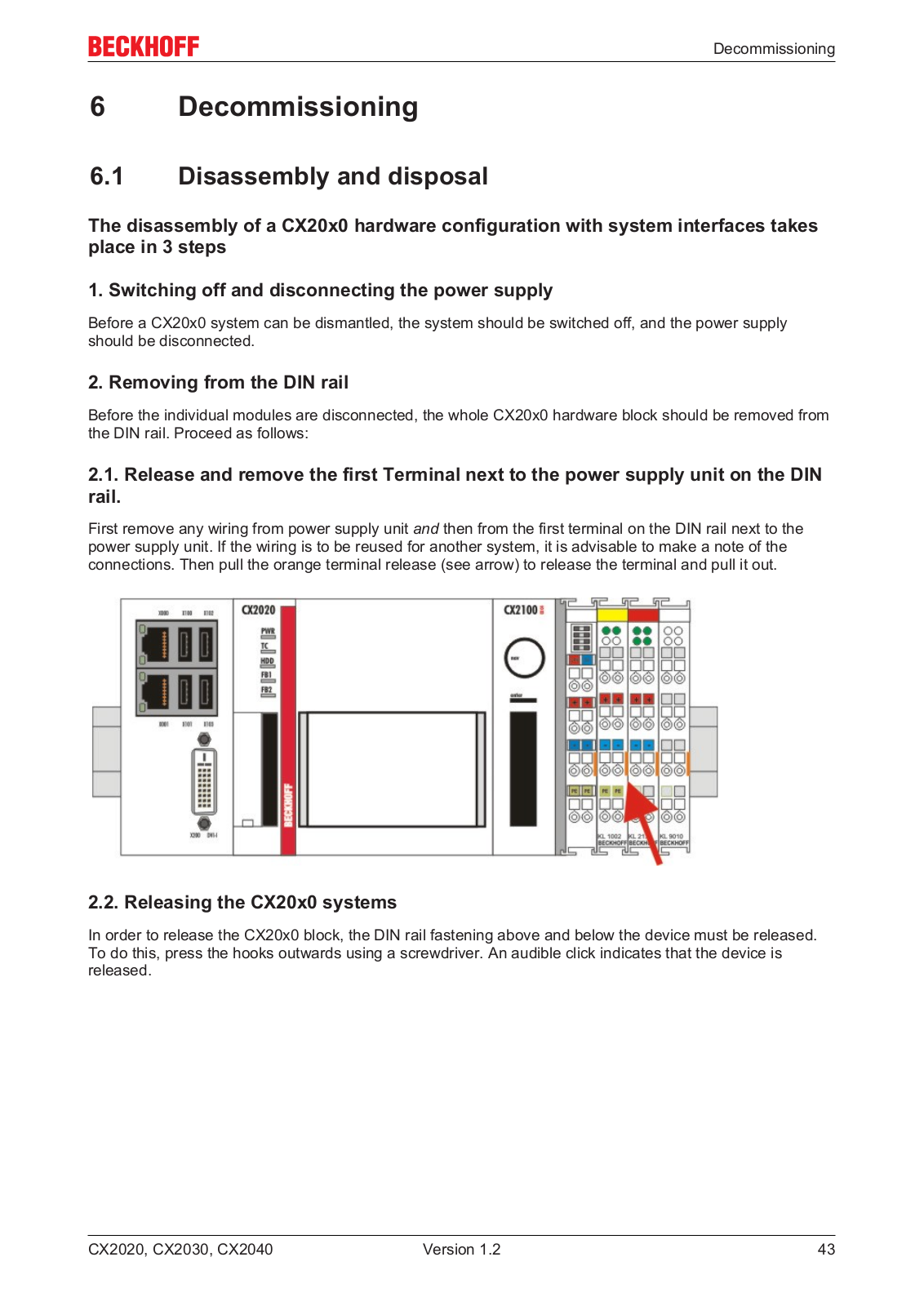

Disassembly and disposal .............................................................................................................. |
43 |
7 |
Appendix .................................................................................................................................................. |
45 |
|
|
7.1 |
Accessories .................................................................................................................................... |
45 |
|
7.2 |
Certifications ................................................................................................................................... |
46 |
|
7.3 |
Support and Service ....................................................................................................................... |
47 |
CX2020, CX2030, CX2040 |
Version 1.2 |
3 |
Foreword
This description is only intended for the use of trained specialists in control and automation engineering who are familiar with the applicable national standards.
It is essential that the following notes and explanations are followed when installing and commissioning these components.
The responsible staff must ensure that the application or use of the products described satisfy all the requirements for safety, including all the relevant laws, regulations, guidelines and standards.
Disclaimer
The documentation has been prepared with care. The products described are, however, constantly under development.
For that reason the documentation is not in every case checked for consistency with performance data, standards or other characteristics.
In the event that it contains technical or editorial errors, we retain the right to make alterations at any time and without warning.
No claims for the modification of products that have already been supplied may be made on the basis of the data, diagrams and descriptions in this documentation.
Trademarks
Beckhoff®, TwinCAT®, EtherCAT®, Safety over EtherCAT®, TwinSAFE®, XFC®and XTS® are registered trademarks of and licensed by Beckhoff Automation GmbH.
Other designations used in this publication may be trademarks whose use by third parties for their own purposes could violate the rights of the owners.
Patent Pending
The EtherCAT Technology is covered, including but not limited to the following patent applications and patents:
EP1590927, EP1789857, DE102004044764, DE102007017835
with corresponding applications or registrations in various other countries.
The TwinCAT Technology is covered, including but not limited to the following patent applications and patents:
EP0851348, US6167425 with corresponding applications or registrations in various other countries.
EtherCAT® is registered trademark and patented technology, licensed by Beckhoff Automation GmbH, Germany
Copyright
© Beckhoff Automation GmbH & Co. KG, Germany.
The reproduction, distribution and utilization of this document as well as the communication of its contents to others without express authorization are prohibited.
Offenders will be held liable for the payment of damages. All rights reserved in the event of the grant of a patent, utility model or design.
4 |
Version 1.2 |
CX2020, CX2030, CX2040 |
Foreword
Safety regulations
Please note the following safety instructions and explanations!
Productspecific safety instructions can be found on following pages or in the areas mounting, wiring, commissioning etc.
Exclusion of liability
All the components are supplied in particular hardware and software configurations appropriate for the application. Modifications to hardware or software configurations other than those described in the documentation are not permitted, and nullify the liability of Beckhoff Automation GmbH & Co. KG.
Personnel qualification
This description is only intended for trained specialists in control, automation and drive engineering who are familiar with the applicable national standards.
Description of symbols
In this documentation the following symbols are used with an accompanying safety instruction or note. The safety instructions must be read carefully and followed without fail!
Serious risk of injury!
Failure to follow the safety instructions associated with this symbol directly endangers the life and health of persons.
DANGER
Risk of injury!
Failure to follow the safety instructions associated with this symbol endangers the life and health of persons.
WARNING
Personal injuries!
Failure to follow the safety instructions associated with this symbol can lead to injuries to persons.
CAUTION
Damage to the environment or devices
Failure to follow the instructions associated with this symbol can lead to damage to the en vironment or equipment.
Attention
Tip or pointer
This symbol indicates information that contributes to better understanding.
Note
CX2020, CX2030, CX2040 |
Version 1.2 |
5 |
Foreword
Version |
Changes |
1.0 |
First Version |
1.1 |
Notes on power connections added, order numbers |
|
for CX20x0N031 added |
1.2 |
New types added |
6 |
Version 1.2 |
CX2020, CX2030, CX2040 |
Product overview
The CX20x0 device series is a modular control system designed for DIN rail installation. The system is scalable, so that the required modules can be assembled and installed in the control cabinet or terminal box as required.
Only switch the PC off after closing the software
Before the Embedded PC is switched off, the software currently running on it should be stopped properly in order to avoid data loss on the hard disk. Please read the section on “Switching off”.
Switch off all system components and uncouple the Industrial PC from the system if the PC is not used for control purposes, e.g. during a function test. To disconnect first pull the first terminal behind the power supply unit (optional), then pull the connectors of the fieldbus connections.
System components that have been switched off must be secured against being switched on again.
The Embedded PC’s power supply unit must be supplied with 24 VDC.
Damage to the environment or devices
Do not exchange any parts when under power! The exchange of controller parts when live can lead to shortcircuits or overvoltages. These can damage the controller itself and con
Attention nected peripherals (terminals, monitors, input devices, etc.).
When components are being fitted or removed, the supply voltage must be switched off.
Software knowledge
System malfunctions
Mandatory software knowledge! Every user must be familiar with any of the functions of the software installed on the PC that he can reach.
Attention
CX2020, CX2030, CX2040 |
Version 1.2 |
7 |
Product overview
CX2020, CX2030, CX2040 | Basic CPU module
The system
The CX2020 has a 1.4 GHz Intel® Celeron® CPU, the CX2030 has a 1.5 GHz Intel® Core™ i7 dualcore CPU, the CX2040 has a 2.1 GHz Intel® Core™ i7 quadcore CPU. In the CX2020 and CX2030 the controller is fanless and has no rotating components. Due to its high power, the CX2040 has a fan with ball bearings and speed monitoring. In addition to the CPU and chipset the basic modules also contain the main memory. For the CX2020 and CX2030 the size is 2 GB. Up to 4 GB are possible as an option. The CX2040 has 4 GB of RAM as standard. The controller boots from the CFast flash memory card. The basic configuration of the modules includes a CFast memory card, two independent Gbit Ethernet interfaces, four USB 2.0 interfaces and a DVII interface. The CPU has an internal 128 KB NOVRAM, which functions as a persistent data memory if no UPS is used. Optionally the devices can be ordered with a serial or fieldbus interface. Other components from the CX2000 family can be connected via the multipin terminals on either side. The operating system is Microsoft Windows Embedded Standard 7 P. Up to four modules can be connected to the basic CPU module. The connection order is irrelevant. Internally the modules are connected via PCI Express and can be plugged to the CPU "in the field". The power supply for the CPU module comes from a CX2100 power supply module, which is connected on the righthand side of the CPU. Two further CFast memory card modules (CX2550 0010) can be connected between the power supply unit and the CPU, so that a total of up to three CFast cards can be used. RAID can be used in situations where more than one CFast card is used.
The CX2020, CX2030 and CX2040 Embedded PCs extend the CX product family with versions with very high CPU power (optionally with multicore) and enable direct connection of Bus Terminals or EtherCAT Terminals. The CX2000 in conjunction with EtherCAT and TwinCAT enables very fast control processes in the microsecond range (eXtreme Fast Control Technology). The basic CPU modules have two independent Gbit Ethernet interfaces, four USB 2.0 interfaces and a DVII interface as standard. A serial or a fieldbus
8 |
Version 1.2 |
CX2020, CX2030, CX2040 |
Product overview
interface can optionally be ordered. Please note that these have to be specified with the order, i.e. retrospective installation is not possible. On the lefthand side the CPU features a multipin connector for connecting further optional modules.
The components
The individual system components are modules with a width of 22 mm or multiples of it that can be connected inline with one another. The basic unit consists of the CX20x0 CPU module and a power supply module (CX21000xxx).
Power supply unit with integrated I/O interface and optional UPS
The 24V DC power supply unit is available in three different versions:
•CX21000004: Ebus/KBus power supply unit with automatic switchover
•CX21000904: Ebus/KBus power supply unit with automatic switchover and integrated capacitive UPS
•CX21000914: Ebus/KBus power supply unit with automatic switchover and integrated electronic charging unit for external battery packs in order to maintain UPS functionality.
All power supply units feature an illuminated antiglare LC display with two rows of 16 characters each for displaying status messages. The application programs can also use the display for displaying application specific texts.
EtherCAT as a fast I/O system
The CX2020, CX2030 and CX2040 Embedded PCs were developed with a view towards optimised interaction with EtherCAT. EtherCAT offers a wide range of application options. The separate Gigabit Ethernet interfaces enable EtherCAT to be used with cable redundancy by using one of the Ethernet interfaces as redundancy port. In addition, devices with EtherCAT slave interface can be operated such that several intelligent controllers can be synchronised via an EtherCAT network.
PLC, Motion Control, interpolation and visualisation
As IPC on a DIN rail the CX2000 in conjunction with TwinCAT offers the functionality of large Industrial PCs. Multicore CPUs in conjunction with TwinCAT 3 enable PLC projects to be distributed to several cores, resulting in significant performance gains. Moreover, all TwinCAT functionalities are available for Motion Control applications: in theory, up to 256 axes can be controlled. In addition to simple pointtopoint movements, more complex multiaxis functions such as “electronic gearbox”, “cam plates” and “flying saw” can be implemented. Due to the highperformance CPUs, the CX2000 can also perform interpolating 3D path movements and execute DIN66025 programs. In addition to handling realtime control tasks the TwinCAT realtime kernel leaves enough time for the user interface (HMI). The high performance of the graphics kernel integrated in the CPU enables demanding visualisations with advanced user interfaces to be realised.
Fieldbus interfaces
The fieldbus interfaces are currently available as master and slave versions for the following fieldbuses.
Optional interfaces:
The optional interfaces can be used to connect singlechannel fieldbus interfaces. Operation is limited to one interface at a time. If several fieldbus interfaces are required, they can be added as Ebus terminals (EL67xx). The following fieldbus interfaces are available:
•CX20x0N010 = DVID, DVID connector
•CX20x0N030 = RS232, DSub connector
•CX20x0N031 = RS422/RS485, DSub socket
CX2020, CX2030, CX2040 |
Version 1.2 |
9 |
Product overview
•CX20x0B110 = EtherCAT slave, EtherCAT IN and OUT (2 x RJ 45)
•CX20x0M310 = PROFIBUS master, DSub socket, 9pin
•CX20x0B310 = PROFIBUS slave, DSub socket, 9pin
•CX20x0M510 = CANopen master, DSub connector, 9pin
•CX20x0B510 = CANopen slave, DSub connector, 9pin
•CX20x0M930 = PROFINET RT, controller, Ethernet (2 x RJ45)
•CX20x0B930 = PROFINET RT, device, Ethernet (2 x RJ45 switch)
•CX20x0B950 = EtherNet/IP Slave, Ethernet (2 x RJ45 switch)
The software
In combination with the TwinCAT automation software, the CX20x0 Industrial PC becomes a powerful IEC 611313 PLC with up to four user tasks. Additionally, Motion Control tasks can also be executed. Depending on the required cycle time, several servo axes can be controlled. Even special functions such as flying saw, electronic gearbox and cam plate can be realised.
10 |
Version 1.2 |
CX2020, CX2030, CX2040 |
Product overview
2.3CX20x0 Technical data
The basic configuration of the CX20x0 includes an 8 GB CFast Flash card. The basic configuration includes two Ethernet RJ45 interfaces, four USB2.0 interfaces and a DVII interface.
CX2020, CX2030, CX2040 |
Version 1.2 |
11 |
Product overview
Technical data |
CX2020 |
CX2030 |
CX2040 |
Processor |
Intel® Celeron® 1.4 GHz, |
Intel® CoreTM i7 1,5 GHz, |
Intel® CoreTM i7 2,1 GHz, |
|
singlecore |
dualcore |
quadcore |
Internal Flash memory |
4 or 8 GB CFast Flash |
4 or 8 GB CFast Flash |
4 or 8 GB CFast Flash |
|
card (optionally |
card (optionally |
card (optionally |
|
expandable) |
expandable) |
expandable) |
Internal main memory |
2 GB DDR3RAM |
2 GB DDR3RAM |
4 GB DDR3RAM |
Persistent memory |
128 kB NOVRAM |
128 kB NOVRAM |
128 kB NOVRAM |
|
integrated |
integrated |
integrated |
Interfaces |
2 x RJ 45, 10/100/1000 |
2 x RJ 45, 10/100/1000 |
2 x RJ 45, 10/100/1000 |
|
MBit/s, DVII, 4 x USB |
MBit/s, DVII, 4 x USB |
MBit/s, DVII, 4 x USB |
|
2.0, 1x option interface |
2.0, 1x option interface |
2.0, 1x option interface |
Diagnostics LED |
1 x power, 1 x TC status, |
1 x power, 1 x TC status, |
1 x power, 1 x TC status, |
|
1 x flash access, 2 x bus |
1 x flash access, 2 x bus |
1 x flash access, 2 x bus |
|
status |
status |
status |
Clock |
Internal clock with battery |
Internal clock with battery |
Internal clock with battery |
|
backup for time and date |
backup for time and date |
backup for time and date |
|
(battery replaceable) |
(battery replaceable) |
(battery replaceable) |
Operating system |
Microsoft Windows |
Microsoft Windows |
Microsoft Windows |
|
Embedded Standard 7 P |
Embedded Standard 7 P |
Embedded Standard 7 P |
Control software |
TwinCAT 2 PLC Runtime, |
TwinCAT 2 PLC Runtime, |
TwinCAT 2 PLC Runtime, |
|
NC PTP Runtime, NC I |
NC PTP Runtime, NC I |
NC PTP Runtime, NC I |
|
Runtime | TwinCAT 3. |
Runtime | TwinCAT 3. |
Runtime | TwinCAT 3. |
|
See TwinCAT 3 price list |
See TwinCAT 3 price list |
See TwinCAT 3 price list |
Power supply |
24 V DC (15 %/+20 %) |
24 V DC (15 %/+20 %) |
24 V DC (15 %/+20 %) |
Max. power loss |
15 W (including system |
20 W (including system |
42 W (including system |
|
interfaces) |
interfaces) |
interfaces) |
Dielectric strength |
500 V (supply / internal |
500 V (supply / internal |
500 V (supply / internal |
|
electronics) |
electronics) |
electronics) |
Dimensions (W x H x D) |
144 mm x 100 mm x 91 |
144 mm x 100 mm x 91 |
144 mm x 100 mm x 91 |
|
mm |
mm |
mm |
Weight |
approx. 1,160 g |
approx. 1,165 g |
approx. 1,230 g |
Operating/storage |
25° C ... +60° C / 40° |
25° C ... +60° C / 40° |
25° C ... +60° C / 40° |
temperature |
C ... +85° C |
C ... +85° C |
C ... +85° C |
Relative humidity |
95 % no condensation |
95 % no condensation |
95 % no condensation |
Vibration/shock resistant |
conforms to EN |
conforms to EN |
conforms to EN |
|
6006826 / EN |
6006826 / EN |
6006826 / EN |
|
60068227 |
60068227 |
60068227 |
EMC immunity/emission |
conforms to EN |
conforms to EN |
conforms to EN |
|
6100062 / EN 6100064 |
6100062 / EN 6100064 |
6100062 / EN 6100064 |
Protection class |
IP 20 |
IP 20 |
IP 20 |
Further Information: www.beckhoff.de/CX2000
12 |
Version 1.2 |
CX2020, CX2030, CX2040 |
Product overview
The CPU module can be equipped with different hardware and software options. The TwinCAT automation software transforms a CX20x0 system into powerful PLC and Motion Control system that can be operated with or without visualisation. Further system interfaces (preinstalled in the factory) or fieldbus connections can be added to the basic CPU module.
The CX 20x0 modules are available in the following types:
Table 1: CX2020 (1,4 GHz 1 core)
Modul |
without |
Microsoft |
Microsoft |
Microsoft |
without |
TwinCAT |
TwinCAT |
TwinCAT |
|
Operat |
Windows |
Windows |
Windows |
TwinCAT |
PLC |
NC PTP |
NC I |
|
ingsys |
Embedded |
Embedded7 |
Embedded7 |
|
Runtime |
Runtime |
Runtime |
|
tem |
Compact |
(32bit) |
(64bit) |
|
|
|
|
CX20200100 |
X |
|
|
|
X |
|
|
|
CX20200110 |
|
X |
|
|
X |
|
|
|
CX20200120 |
|
|
X |
|
X |
|
|
|
CX20200130 |
|
|
|
X |
X |
|
|
|
CX20200111 |
|
X |
|
|
|
X |
|
|
CX20200112 |
|
X |
|
|
|
|
X |
|
CX20200113 |
|
X |
|
|
|
|
|
X |
CX20200121 |
|
|
X |
|
|
X |
|
|
CX20200122 |
|
|
X |
|
|
|
X |
|
CX20200123 |
|
|
X |
|
|
|
|
X |
CX20200131 |
|
|
|
X |
|
X |
|
|
CX20200132 |
|
|
|
X |
|
|
X |
|
CX20200133 |
|
|
|
X |
|
|
|
X |
CX2020, CX2030, CX2040 |
Version 1.2 |
13 |
Product overview
Table 2: CX2030 (1,5 GHz 2 cores)
Modul |
without |
Microsoft |
Microsoft |
Microsoft |
without |
TwinCAT |
TwinCAT |
TwinCAT |
|
Operat |
Windows |
Windows |
Windows |
TwinCAT |
PLC |
NC PTP |
NC I |
|
ingsys |
Embedded |
Embedded7 |
Embedded7 |
|
Runtime |
Runtime |
Runtime |
|
tem |
Compact |
(32bit) |
(64bit) |
|
|
|
|
CX20300100 |
X |
|
|
|
X |
|
|
|
CX20300110 |
|
X |
|
|
X |
|
|
|
CX20300120 |
|
|
X |
|
X |
|
|
|
CX20300130 |
|
|
|
X |
X |
|
|
|
CX20300111 |
|
X |
|
|
|
X |
|
|
CX20300112 |
|
X |
|
|
|
|
X |
|
CX20300113 |
|
X |
|
|
|
|
|
X |
CX20300121 |
|
|
X |
|
|
X |
|
|
CX20300122 |
|
|
X |
|
|
|
X |
|
CX20300123 |
|
|
X |
|
|
|
|
X |
CX20300131 |
|
|
|
X |
|
X |
|
|
CX20300132 |
|
|
|
X |
|
|
X |
|
CX20300133 |
|
|
|
X |
|
|
|
X |
Table 3: CX2040 (2,1 GHz 4 cores)
Modul |
without |
Microsoft |
Microsoft |
Microsoft |
without |
TwinCAT |
TwinCAT |
TwinCAT |
|
Operat |
Windows |
Windows |
Windows |
TwinCAT |
PLC |
NC PTP |
NC I |
|
ingsys |
Embedded |
Embedded7 |
Embedded7 |
|
Runtime |
Runtime |
Runtime |
|
tem |
Compact |
(32bit) |
(64bit) |
|
|
|
|
CX20400100 |
X |
|
|
|
X |
|
|
|
CX20400110 |
|
X |
|
|
X |
|
|
|
CX20400120 |
|
|
X |
|
X |
|
|
|
CX20400130 |
|
|
|
X |
X |
|
|
|
CX20400111 |
|
X |
|
|
|
X |
|
|
CX20400112 |
|
X |
|
|
|
|
X |
|
CX20400113 |
|
X |
|
|
|
|
|
X |
CX20400121 |
|
|
X |
|
|
X |
|
|
CX20400122 |
|
|
X |
|
|
|
X |
|
CX20400123 |
|
|
X |
|
|
|
|
X |
CX20400131 |
|
|
|
X |
|
X |
|
|
CX20400132 |
|
|
|
X |
|
|
X |
|
CX20400133 |
|
|
|
X |
|
|
|
X |
CX20x0 systems with Microsoft Windows Embedded 7 P require a Compact Flash card with a capacity of at least 8 GByte.
Software Images
A list of the different software images can be found in the CX1000 Software Documenta tion.
Note
14 |
Version 1.2 |
CX2020, CX2030, CX2040 |
Product overview
All EmbeddedPCs of CX20x0 family have the same architecture. This architecture is described in the following section.
The CX20x0 EmbeddedPCs based on the IntelSandyBridgeMicroarchitecture. Intel named the architecture SandyBridge processors as „2nd Generation Intel Core Processors“. The CX20x0family uses the following CPUs:
•Intel®Celeron® 827E (Singlecore)
•Intel®CORETM i7 2610UE (Dualcore)
•Intel®CORETM i7 2715QE (Quadcore)
The CPU contains the computing unit, the memory controller and the graphic interface. The single core processor contains the Intel® HD Graphics core. The two CoreTM i7 CPUs (Dual and Quadcore) contain the Intel® HD Graphics 3000 core. This is more powerful than the Intel® HD Graphics core in case of the quad core CPU the clock speed is a bit higher than the dual core CPU. Details of the CPUs can be found in the documentation from Intel. The embedded PCs are available with 2GB and 4 GB memory. The memory is not expandable and must be ordered ex works.
All CX20x0EPCs have the Mobile Intel® QM67 Express chipset (Intel® BD82QM67 PCH). This chip offers all necessary interfaces::
•4x USB 2.0 (interface)
•1x USB 2.0 intern (power supply button / display)
•DVII und DVID interface (2nd interface optional CX20x0N010)
•1PCIe Lane for each Intel® 82574L Gigabit Ethernet controller
CX2020, CX2030, CX2040 |
Version 1.2 |
15 |
