Operating Instructions
Instrukcja obsługi Návod k obsluze Instrucciones de funcionamiento
CD Stereo System Zestaw stereo z CD Stereosystém s CD Sistema estéreo con reproductor de discos compactos
Model No. SC-PM600
Thank you for purchasing this product.
For optimum performance and safety, please read these instructions carefully.
Please keep this manual for future reference.
Dziękujemy za zakupienie tego produktu.
Proszę dokładnie zapoznać się z tą instrukcją obsługi, aby jak najlepiej wykorzystać to urządzenie i zapewnić jego bezpieczne użytkowanie.
Prosimy o zachowanie niniejszej instrukcji obsługi.
Děkujeme za zakoupení tohoto výrobku.
Pro dosažení optimálního výkonu a z bezpečnostních důvodu si pečlivě přečtěte tyto pokyny. Uschovejte si prosím tento návod k obsluze.
Muchísimas gracias por haber adquirido este aparato.
Lea con atención estas instrucciones para obtener las máximas prestaciones y seguridad. Guarde este manual para su consulta en el futuro.
EG |
RQT0B18-R |
Your system and the illustrations can look differently.
These operating instructions are applicable to the following system.
System |
SC-PM600 |
|
|
Main unit |
SA-PM600 |
|
|
Speakers |
SB-PM500 |
|
|
Safety precautions
WARNING!
Unit
•To reduce the risk of fire, electric shock or product damage,
–Do not expose this unit to rain, moisture, dripping or splashing.
–Do not place objects filled with liquids, such as vases, on this unit.
–Use only the recommended accessories.
–Do not remove covers.
–Do not repair this unit by yourself. Refer servicing to qualified service personnel.
–Do not let metal objects fall inside this unit.
Supplied accessories
Check and identify the supplied accessories.
1 AC mains lead
1 FM indoor antenna
1 Remote control
(N2QAYB000984)
Table of contents
Supplied accessories . . . . . . . . . . . . . . . . . . . . . . . .2 Safety precautions . . . . . . . . . . . . . . . . . . . . . . . . . .2 Making the connections . . . . . . . . . . . . . . . . . . . . . .3 Placement of speakers. . . . . . . . . . . . . . . . . . . . . . .3 Overview of controls. . . . . . . . . . . . . . . . . . . . . . . . .4 Preparing the remote control . . . . . . . . . . . . . . . . . .4 Preparing the media . . . . . . . . . . . . . . . . . . . . . . . . .5 Media playback. . . . . . . . . . . . . . . . . . . . . . . . . . . . .6 Radio . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7 Clock and timers. . . . . . . . . . . . . . . . . . . . . . . . . . . .8 Sound effects . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9 Others . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9 Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . .10 Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11 Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12 References . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14
RQT0B18
2
CAUTION!
Unit
•To reduce the risk of fire, electric shock or product damage,
–Do not install or place this unit in a bookcase, built-in cabinet or in another confined space. Ensure this unit is well ventilated.
–Do not obstruct this unit’s ventilation openings with newspapers, tablecloths, curtains, and similar items.
–Do not place sources of naked flames, such as lighted candles, on this unit.
•This unit is intended for use in moderate climates.
•This unit may receive radio interference caused by mobile telephones during use. If such interference occurs, please increase separation between this unit and the mobile telephone.
•This unit utilizes a laser. Use of controls or adjustments or performance of procedures other than those specified herein may result in hazardous radiation exposure.
AC mains lead
•The mains plug is the disconnecting device. Install this unit so that the mains plug can be unplugged from the socket outlet immediately.
Battery
•Danger of explosion if battery is incorrectly replaced. Replace only with the type recommended by the manufacturer.
•When disposing of the batteries, please contact your local authorities or dealer and ask for the correct method of disposal.
•Do not heat or expose to flame.
•Do not leave the battery(ies) in a car exposed to direct sunlight for a long period of time with doors and windows closed.
•Do not break open or short-circuit the battery.
•Do not charge the alkaline or manganese battery.
•Do not use the battery if the cover has peeled off.
•Remove the battery if you do not use the remote control for a long period of time. Keep in a cool, dark area.
2

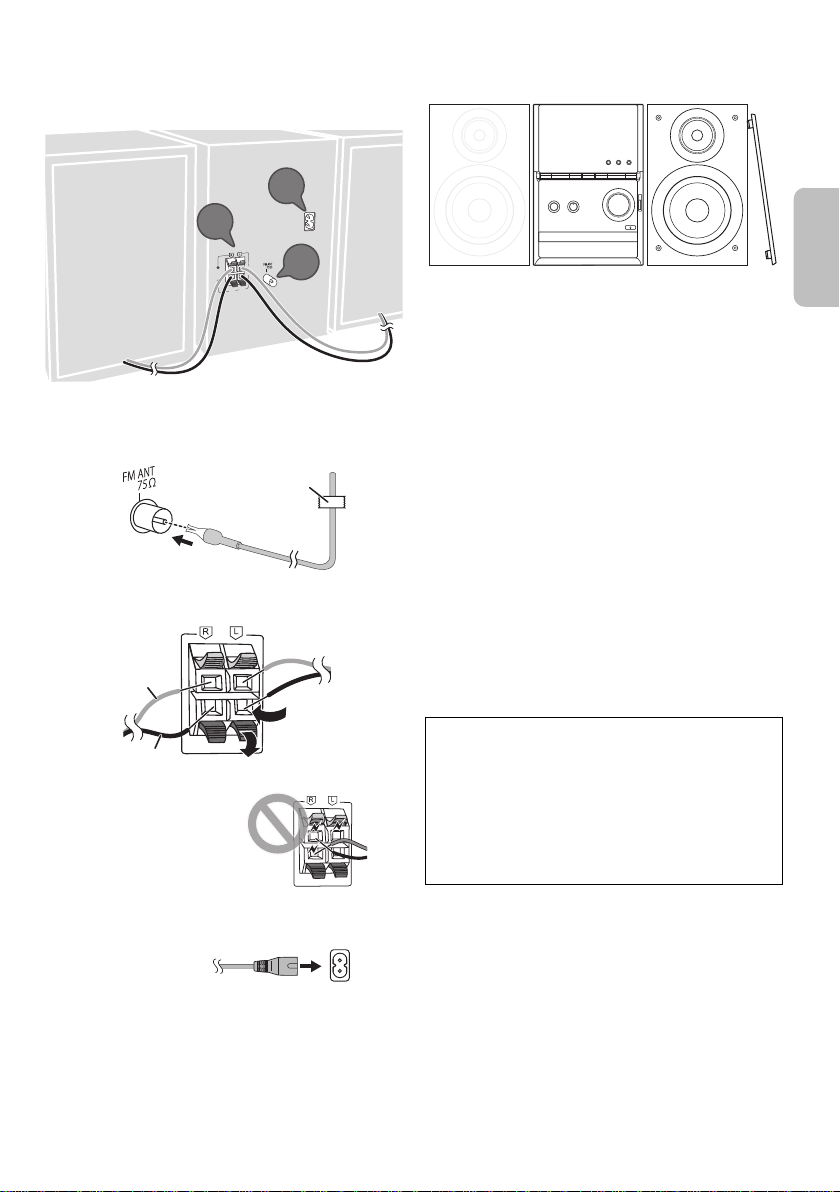

Making the connections
Connect the AC mains lead only after all the other connections have been made.
3
2
1
(6:) |
(6:) |
1Connect the FM indoor antenna.
Place the antenna where reception is best.
Adhesive tape (not supplied)
2 Connect the speakers.
Red
B
Black
A
Be careful not to cross (short-circuit) or reverse the polarity of the speaker wires as doing so may damage the speakers.
3 Connect the AC mains lead.
To household mains socket
Do not use an AC mains lead from other equipment.
Conserving power
The system consumes a small amount of power (Z“Specifications”) when it is in standby mode. Disconnect the power supply if you do not use the system.
Some settings will be lost after you disconnect the system. You have to set them again.
Placement of speakers
ENGLISH
The left and right speakers are the same.
Use only the supplied speakers.
You can cause damage to the system and decrease the sound quality if you use other speakers.
Note:
•Keep your speakers more than 10 mm from the main unit for ventilation.
•Put the speakers on a flat safe surface.
•These speakers do not have magnetic shielding. Do not put them near TVs, PCs or other equipment easily influenced by magnetism.
•When you play at high levels for a long period, it can cause damage to the speakers and decrease the life of the speakers.
•Decrease the volume in these conditions to prevent damage:
–When the sound is distorted.
–When you adjust the sound quality.
•To prevent damage to the speakers, do not touch the speaker cones if you remove the nets.
CAUTION!
•Use the speakers only with the recommended system. If not, you can cause damage to the amplifier and speakers and can cause a fire. Consult an approved service personnel if damage occurs or if there is a sudden apparent change in performance.
•Do the procedures included in these instructions when you attach the speakers.
RQT0B18
3
3

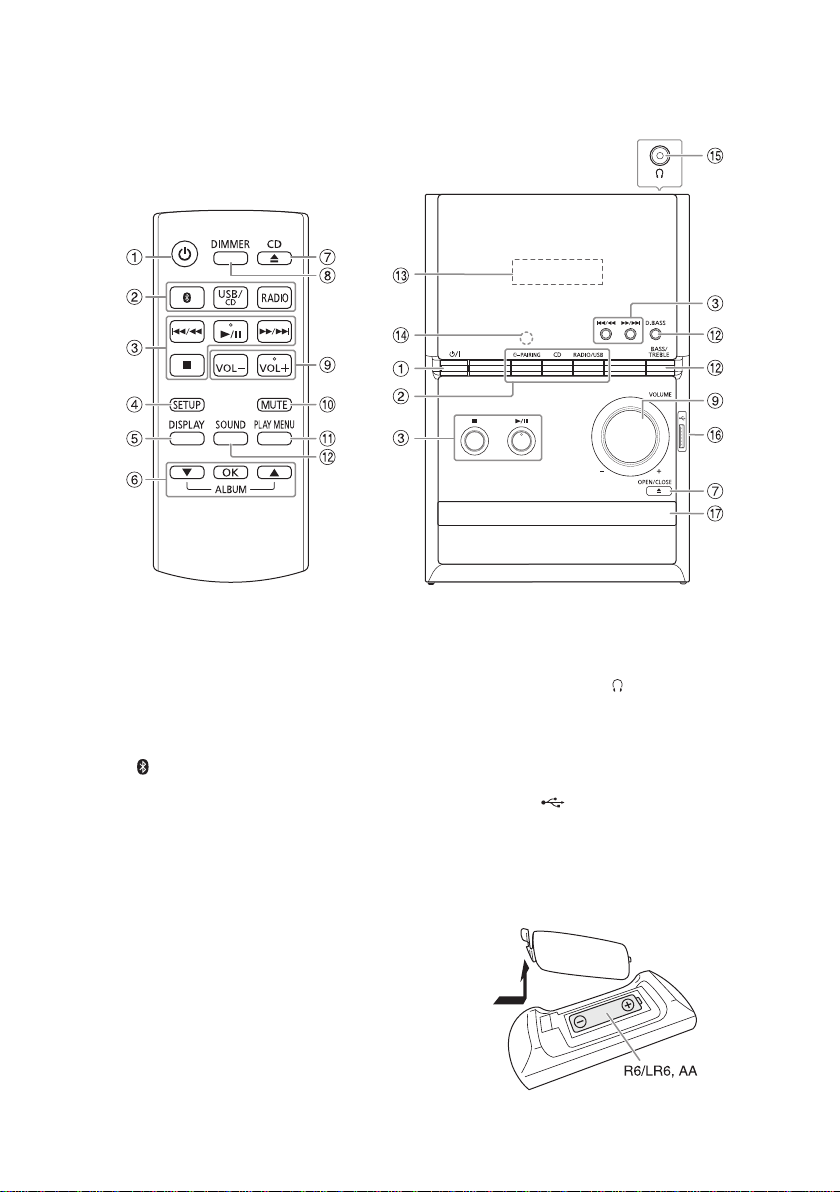

Overview of controls
Do the procedures with the remote control. You can also use the buttons on the main unit if they are the same.
RQT0B18
4
AStandby/on switch [`], [1]
Press to switch the unit from on to standby mode or vice versa. In standby mode, the unit is still consuming a small amount of power.
BSelect the audio source
On the main unit:
To start Bluetooth® pairing, press and hold [
–PAIRING].
CBasic playback control
DView the setup menu
EView the content information
FSelect or confirm the option
GOpen or close the disc tray
HDecrease the brightness of the display panel
To cancel, press the button again.
IAdjust the volume level
JMute the sound
To cancel, press the button again.
“MUTE” is also cancelled when you adjust the volume or when you switch off the system.
KView the play menu
LSelect the sound effects
MDisplay panel
NRemote control sensor
Distance: Within approximately 7 m
Angle: Approximately 20° up and down, 30° left and right
OHeadphones jack (
)
Plug type: Ø 3.5 mm stereo (not supplied)
–Excessive sound pressure from earphones and headphones can cause hearing loss.
–Listening at full volume for long periods may damage the user’s ears.
PUSB port (
)
QDisc tray
Preparing the remote control
(not supplied)
Use alkaline or manganese battery.
Install the battery so that the poles (+ and –) align with those in the remote control.
4
Preparing the media
Disc
1Press [CD x] (main unit: [x OPEN/CLOSE]) to open the disc tray.
Put in a disc with the label facing up. Press again to close the disc tray.
2 Press [USB/CD] to select “CD”.
USB
1Decrease the volume and connect the USB device to the USB port.
Hold the main unit when connecting or disconnecting the USB device.
2 Press [USB/CD] to select “USB”.
Note:
Do not use a USB extension cable. The system cannot recognise USB device connected through a cable.
Bluetooth®
You can connect and play an audio device wirelessly through Bluetooth®.
Preparation
•Switch on the Bluetooth® feature of the device and put the device near the system.
•Read the operating instructions of the device for details.
█ Pairing a device
Preparation
If this system is connected to a Bluetooth® device, disconnect it (Z“Disconnecting a device”).
1Press [
].
If “PAIRING” is shown, continue with step 3.
2Press [PLAY MENU] to select “PAIRING” and then press [OK].
Or press and hold [
–PAIRING] on the main unit until “PAIRING” is shown.
3Select “SC-PM600” from the Bluetooth® menu of the device.
If prompted for a passkey, input “0000”.
The device connects with this system automatically after pairing is complete.
The name of the connected device is shown for a few seconds.
Note:
You can pair up to 8 devices with this system. If a 9th device is paired, the device that has not been used for the longest time will be replaced.
█ Connecting a device |
|
Preparation |
ENGLISH |
1 Press [ ]. |
|
If this system is connected to a Bluetooth® device, |
|
disconnect it (Z“Disconnecting a device”). |
|
“BLUETOOTH READY” is shown. |
|
2Select “SC-PM600” from the Bluetooth® menu of the device.
The name of the connected device is shown for a few seconds.
3 Start playback on the device.
Note:
•A device must be paired to connect.
•This system can only connect to one device at a time.
•When “BLUETOOTH” is selected as the source, this system will automatically try to connect to the last connected device. (“LINKING” is shown during this process.)
█ Disconnecting a device
1 Press [
].
2Press [PLAY MENU] repeatedly to select “DISCONNECT?”.
3Press [R, T] to select “OK? YES” and then press [OK].
“BLUETOOTH READY” is shown. To cancel, select “OK? NO”.
Using the main unit
Press and hold [
–PAIRING] until “PAIRING” is shown.
Note:
A device is disconnected when you:
•Select a different source.
•Move the device out of the maximum range.
•Disable the Bluetooth® transmission of the device.
•Switch off the system or the device.
RQT0B18
5
5

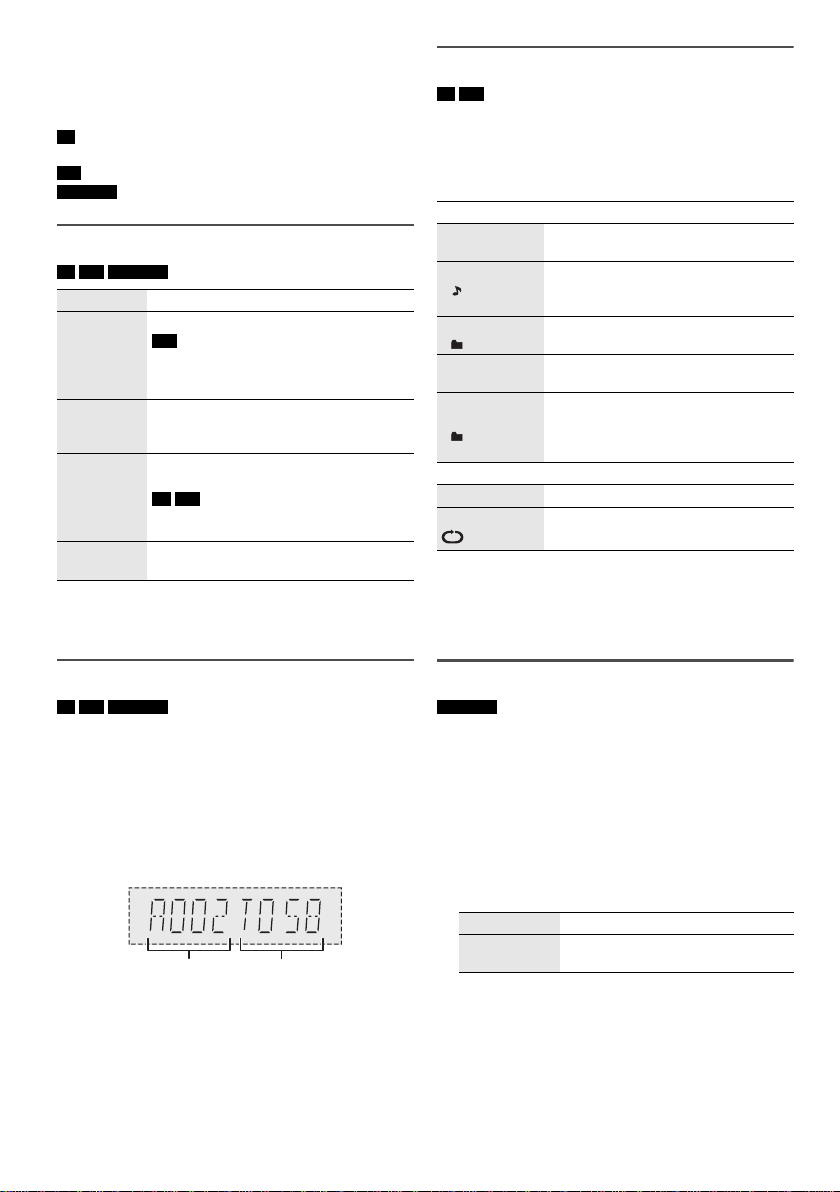

Media playback
The following marks indicate the availability of the feature.
: CD-R/RW in CD-DA format or with MP3 files.
: USB device with MP3 files.
BLUETOOTH : Bluetooth® device.
Basic playback
|
|
|
|
BLUETOOTH |
|
|
|||
|
|
|
|||||||
Play |
|
Press [4/9]. |
|||||||
|
|
|
|||||||
Stop |
|
Press [8]. |
|||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
The position is memorised. |
||||
|
|
|
|
|
“RESUME” is shown. |
||||
|
|
|
|
|
Press again to stop fully. |
||||
|
|
|
|
||||||
Pause |
|
|
Press [4/9]. |
||||||
|
|
|
|
Press again to continue playback. |
|||||
|
|
|
|||||||
Skip |
|
Press [2/3] or [5/6] to skip track. |
|||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Press [R, T] to skip MP3 album.
Search Press and hold [2/3] or [5/6].
Note:
Depending on the Bluetooth® device, some operations may not work.
Viewing available information
BLUETOOTH
You can view the available information on the display panel.
Press [DISPLAY].
Note:
•Maximum characters that can be shown: approximately 32
•This system supports ver. 1.0, 1.1 and 2.3 ID3 tags.
•Text data that the system does not support can show differently.
•Example: MP3 album and track number display.
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Album |
|
Track |
|||
|
number |
|
number |
|||
Play menu
1Press [PLAY MENU] repeatedly to select “PLAYMODE” or “REPEAT”.
2Press [R, T] to select the setting and then press [OK].
PLAYMODE
OFF |
Cancel the setting. |
PLAYMODE |
|
1-TRACK |
Play one selected track. |
1 |
Press [2/3] or [5/6] to |
|
select the track. |
1-ALBUM |
Play one selected MP3 album. |
1 |
Press [R, T] to select the MP3 album. |
RANDOM |
Play all tracks randomly. |
RND |
|
1-ALBUM |
Play all tracks in one selected MP3 |
RANDOM |
album randomly. |
1 RND |
Press [R, T] to select the MP3 album. |
REPEAT |
|
|
|
OFF REPEAT |
Cancel the setting. |
ON REPEAT |
Repeat playback. |
|
|
Note:
•During random playback, you cannot skip to tracks which have been played.
•The setting is cancelled when you open the disc tray or disconnect the USB device.
Link mode
BLUETOOTH
You can change the link mode to suit the connection type.
Preparation
If this system is connected to a Bluetooth® device, disconnect it (Z“Disconnecting a device”).
1Press [PLAY MENU] repeatedly to select “LINK MODE”.
2Press [R, T] to select the mode and then press [OK].
MODE 1 Emphasis on connectivity.
MODE 2 Emphasis on sound quality. (default)
Note:
•Depending on the device, the playback image and sound may not be synchronised. In this case, select “MODE 1”.
•Select “MODE 1” if the sound is interrupted.
RQT0B18
6
6
Input level
BLUETOOTH
You can change the input level setting if the sound input level of the Bluetooth® transmission is too low.
1Press [PLAY MENU] repeatedly to select “INPUT LEVEL”.
2 Press [R, T] to select the level and then press [OK].
(default)
Note:
Select “LEVEL 0” if the sound is distorted.
█ Note on disc
•This system can play CD-R/RW with CD-DA or MP3 format content.
•Before playback, finalise the disc on the device it was recorded on.
•Some CD-R/RW cannot be played because of the condition of the recording.
█ Note on USB device
•This system supports USB 2.0 full speed.
•This system can support USB devices of up to 32 GB.
•Only FAT 12/16/32 file system is supported.
█ Note on MP3 file
•Files are defined as tracks and folders are defined as albums.
•Tracks must have the extension “.mp3” or “.MP3”.
•Tracks will not necessarily be played in the order you recorded them.
•Some files can fail to work because of the sector size.
MP3 file on disc
•This system can access up to:
–255 albums (including root folder)
–999 tracks
–20 sessions
•Disc must conform to ISO9660 level 1 or 2 (except for extended formats).
MP3 file on USB device
•This system can access up to:
–800 albums (including root folder)
–8000 tracks
–999 tracks in one album
Radio
Preparation
Press [RADIO].
Manual tuning
1Press [PLAY MENU] repeatedly to select “TUNEMODE”.
2Press [R, T] to select “MANUAL” and then press [OK].
3Press [2/3] or [5/6] to tune in to the station.
To tune automatically, press and hold the button until the frequency starts changing quickly.
“STEREO” is shown when a stereo broadcast is being received.
Memory presetting
You can preset up to 30 FM stations.
█ Automatic presetting
1 Press [PLAY MENU] to select “A.PRESET”.
2Press [R, T] to select the setting and then press [OK].
LOWEST Tuning begins from the lowest frequency.
CURRENT Tuning begins from the current frequency.
The tuner presets all the stations it can receive into the channels in ascending order.
To cancel, press [8].
█ Manual presetting
1Press [PLAY MENU] repeatedly to select “TUNEMODE”.
2Press [R, T] to select “MANUAL” and then press [OK].
3Press [2/3] or [5/6] to tune in to the station.
4 Press [OK].
5Press [R, T] to select a preset number and then press [OK].
Do steps 3 through 5 again to preset more stations. The new station replaces any station that occupies the same preset number.
█ Selecting a preset station
1Press [PLAY MENU] repeatedly to select “TUNEMODE”.
2Press [R, T] to select “PRESET” and then press [OK].
3Press [2/3] or [5/6] to select the preset station.
ENGLISH
RQT0B18
7
7
Improving the sound quality
1Press [PLAY MENU] repeatedly to select “FM MODE”.
2Press [R, T] to select “MONO” and then press [OK].
To cancel, select “STEREO”.
“MONO” is also cancelled when you change the frequency.
To memorise the setting
Continue with step 4 of “Manual presetting”.
Checking the signal status
Press [DISPLAY] to select “FM STATUS”.
FM – – – – |
The FM signal is in monaural. |
|
The system is not tuned in to a station. |
FM ST |
The FM signal is in stereo. |
FM MONO |
“MONO” is selected as the “FM MODE”. |
|
|
RDS broadcasting
This system can show the text data transmitted by the radio data system (RDS) available in some areas.
Press [DISPLAY] repeatedly.
PS |
Programme service |
PTY |
Programme type |
FREQ |
Frequency |
|
|
Note:
RDS may not be available if reception is poor.
RQT0B18
8
Clock and timers
Setting the clock
This is a 24-hour clock.
1 Press [SETUP] repeatedly to select “CLOCK”.
2 Press [R, T] to set the time and then press [OK].
To check the time
Press [SETUP] repeatedly to select “CLOCK” and then press [OK].
In standby mode, press [DISPLAY].
Note:
Reset the clock regularly to maintain accuracy.
Play timer
(Except for Bluetooth® source)
You can set the timer to come on at a certain time to wake you up.
Preparation
Set the clock.
1 Press [SETUP] repeatedly to select “TIMER ADJ”.
2Press [R, T] to set the start time and then press [OK].
3 Do step 2 again to set the end time.
4Press [R, T] to select the source you want to play and then press [OK].
To start the timer
1 Press [SETUP] repeatedly to select “TIMER SET”.
2Press [R, T] to select “SET” and then press [OK].
“#” is shown.
To cancel, select “OFF”.
The system must be switched off for the timer to operate.
To check the setting
Press [SETUP] repeatedly to select “TIMER ADJ” and then press [OK].
In standby mode, press [DISPLAY] two times.
Note:
•The timer starts at a low volume and increases gradually to the preset level.
•The timer comes on at the set time every day if the timer is on.
•If you switch off the system and then switch on again while a timer is in operation, the timer will not stop at the end time.
8
Sleep timer
The sleep timer switches off the system after the set time.
1 Press [SETUP] repeatedly to select “SLEEP”.
2Press [R, T] to select the setting (in minutes) and then press [OK].
To cancel, select “OFF”.
Note:
•The remaining time is shown for a few seconds every minute. “SLEEP 1” is always shown when only 1 minute remains.
•The sleep timer can be used together with the play timer.
•The sleep timer always comes first. Be sure not to set an overlap of timers.
Saving the sound settings
You can save the current sound effects (up to 3 combinations).
Preparation
Select the sound effects.
1 Press [SETUP] to select “SAVE MY SOUND”.
2Press [R, T] to select a sound setting number and then press [OK].
“SAVED” is shown.
The new setting replaces the one existing in the same sound setting number.
To recall the setting
1 Press [SOUND] to select “MY SOUND”.
2Press [R, T] to select the sound setting number and then press [OK].
ENGLISH
Sound effects
1Press [SOUND] repeatedly to select the sound effect.
2Press [R, T] to select the setting and then press [OK].
MY SOUND |
“SOUND 1”, “SOUND 2” or “SOUND 3” |
|
|
(Z“Saving the sound settings”) |
|
PRESET EQ |
“HEAVY” (default), “SOFT”, “CLEAR”, |
|
|
“VOCAL” or “FLAT” |
|
BASS |
–4 to +4 (default: 0) |
|
|
Using the main unit |
|
|
1. |
Press [BASS/TREBLE] to select |
|
|
“BASS”. |
|
2. |
Press [2/3] or [5/6]. |
TREBLE |
–4 to +4 (default: 0) |
|
|
Using the main unit |
|
|
1. |
Press [BASS/TREBLE] to select |
|
|
“TREBLE”. |
|
2. |
Press [2/3] or [5/6]. |
D.BASS |
“ON D.BASS” (default) or “OFF D.BASS” |
|
|
Using the main unit |
|
|
Press [D.BASS] repeatedly. |
|
SURROUND |
“ON SURROUND” or |
|
|
“OFF SURROUND” (default) |
|
|
|
|
Note:
Changed settings will be kept until it is changed again, unless otherwise indicated.
Others
Auto off
This system automatically switches off when you do not use it for 20 minutes.
1 Press [SETUP] repeatedly to select “AUTO OFF”.
2Press [R, T] to select “ON” and then press [OK].
To cancel, select “OFF”.
Note:
This function does not work when you are in radio source or when a Bluetooth® device is connected.
Bluetooth® standby
This function automatically switches on the system when you establish a Bluetooth® connection from a paired device.
1Press [SETUP] repeatedly to select “BLUETOOTH STANDBY”.
2Press [R, T] to select “ON” and then press [OK].
To cancel, select “OFF”.
Checking the software version
1Press [SETUP] repeatedly to select “SW VER.” and then press [OK].
The software version is shown.
2 Press [OK] again to exit.
RQT0B18
9
9
Troubleshooting
Before requesting service, make the following checks. If you are in doubt about some of the check points, or if the solutions indicated do not solve the problem, consult your dealer for instructions.
█ Common problems
The unit does not work.
•The safety device has been activated. Do the following:
1.Press [1] on the main unit to switch the unit to standby mode. If the unit does not switch to standby mode,
–Press and hold the button for a minimum of 10 seconds. Or,
–Disconnect the AC mains lead and connect it again.
2.Press [1] again to switch on the unit. If the problem persists, consult your dealer.
No operations can be done with the remote control.
• Examine that the battery is installed correctly.
Sound is distorted or no sound.
•Adjust the volume of the system.
•Switch off the system, determine and correct the cause, and then switch on again. It can be caused by straining of the speakers through excessive volume or power, and when using the system in a hot environment.
A humming sound can be heard during playback.
•An AC mains lead or fluorescent light is near the cables. Keep other appliances and cords away from the cables of this system.
█ Disc
Display not shown correctly.
Playback does not start.
•You have not put in the disc correctly. Put it in correctly.
•Disc is dirty. Clean the disc.
•Replace the disc if it is scratched, warped, or non-standard.
•There is condensation. Let the system dry for 1 to 2 hours.
█ USB
The USB device or the contents in it cannot be read.
•The format of the USB device or the contents in it are not compatible with the system.
•USB devices with storage capacity of more than 32 GB cannot work in some conditions.
Slow operation of the USB device.
•Large content size or large memory USB device takes longer time to read.
The elapsed time shown is different from the actual play time.
•Transfer the data to another USB device or backup the data and reformat the USB device.
█ Radio
Sound is distorted.
•Use an optional outdoor antenna. The antenna should be installed by a competent technician.
A beat sound is heard.
•Switch off the TV or move it away from the system.
•Move mobile telephones away from the system if the interference is apparent.
█ Bluetooth®
Pairing cannot be done.
•Check the Bluetooth® device condition.
•The device is out of the 10 m communication range. Move the device nearer to the system.
The device cannot be connected.
•The pairing of the device was unsuccessful. Do pairing again.
•The pairing of the device has been replaced. Do pairing again.
•This system might be connected to a different device. Disconnect the other device and try pairing the device again.
The device is connected but audio cannot be heard through the system.
•For some built-in Bluetooth® devices, you have to set the audio output to “SC-PM600” manually. Read the operating instructions of the device for details.
Sound from the device is interrupted.
•The device is out of the 10 m communication range. Move the device nearer to the system.
•Remove any obstacle between the system and the device.
•Other devices that use the 2.4 GHz frequency band (wireless router, microwaves, cordless phones, etc.) are interfering. Move the device nearer to the system and distance it from the other devices.
•Select “MODE 1” for stable communication.
Playback image and sound are not synchronised.
• Restart the playback app of the device.
RQT0B18
10
10
█ Main unit displays
“--:--”
•You connected the AC mains lead for the first time or there was a power failure recently. Set the clock.
“ADJUST CLOCK”
• The clock is not set. Adjust the clock.
“ADJUST TIMER”
• The play timer is not set. Adjust the play timer.
“AUTO OFF”
•The system has not been used for 20 minutes and will switch off within a minute. To cancel, press any button.
“ERROR”
•An incorrect operation was done. Read the instructions and try again.
“F61”
“F77”
• Disconnect the AC mains lead and consult your dealer.
“F703”
•Examine the Bluetooth® connection.
•Disconnect the Bluetooth® device. Switch off the system and then switch on again.
“F76”
•There is a problem with the power supply.
•Disconnect the AC mains lead and consult your dealer.
“NODEVICE”
• The USB device is not connected. Examine the connection.
“NO DISC”
• You have not put in a disc.
“NO PLAY”
•Examine the content. You can only play supported format.
•The system may have a problem. Switch off the system and then switch on again.
“PLAYERROR”
•You played an unsupported MP3 file. The system will skip that track and play the next one.
“REMOTE 1” “REMOTE 2”
•The remote control and the main unit are using different codes. Change the code of the remote control.
–When “REMOTE 1” is shown, press and hold [OK] and [
] for a minimum of 4 seconds.
–When “REMOTE 2” is shown, press and hold [OK] and [USB/CD] for a minimum of 4 seconds.
“SOUND 1 NOT SET” “SOUND 2 NOT SET” “SOUND 3 NOT SET”
•You have not saved the sound effects into the sound setting number.
“USB OVER CURRENT ERROR”
•The USB device is using too much power. Disconnect the USB device, switch off the system and then switch on again.
“VBR”
•The system cannot show the remaining play time for variable bit rate (VBR) tracks.
Remote control code |
|
|
ENGLISH |
||
When other Panasonic equipment responds to the |
||
|
||
remote control of this system, change the remote control |
|
|
code for this system. |
|
|
Preparation |
|
|
Press [USB/CD] to select “CD”. |
|
█ To set the code to “REMOTE 2”
1Press and hold [CD] on the main unit and [USB/CD] on the remote control.
“REMOTE 2” is shown.
2Press and hold [OK] and [USB/CD] for a minimum of 4 seconds.
█ To set the code to “REMOTE 1”
1 Press and hold [CD] on the main unit and [
] on the remote control.
“REMOTE 1” is shown.
2 Press and hold [OK] and [
] for a minimum of 4 seconds.
System memory reset
Reset the memory when the following situations occur:
•There is no response when buttons are pressed.
•You want to clear and reset the memory contents.
1 Disconnect the AC mains lead.
2While you press and hold [1] on the main unit, connect the AC mains lead again.
Continue to press and hold the button until “– – – – – – – – –” is shown.
3Release [1].
All the settings are set back to the factory preset. It is necessary to set the memory items again.
Maintenance
To clean this system, wipe with a soft, dry cloth.
•Never use alcohol, paint thinner or benzine to clean this system.
•Before using chemically treated cloth, read the instructions that came with the cloth carefully.
RQT0B18
11
11
Specifications
█ Amplifier section
RMS output power
Front Ch (both ch driven)
20 W per channel (6 Ω), 1 kHz, 10% THD
Total RMS power |
40 W |
█ Tuner, terminals section
Preset memory FM 30 stations Frequency modulation (FM)
Frequency range
87.50 MHz to 108.00 MHz (50 kHz step)
Antenna terminals |
75 Ω (unbalanced) |
Headphones jack |
|
Terminal |
Stereo, 3.5 mm jack |
█ Disc section
Disc played (8 cm or 12 cm)
CD, CD-R/RW (CD-DA, MP3
)
MPEG-1 Layer 3, MPEG-2 Layer 3
Pick up |
|
Wavelength |
790 nm (CD) |
NORSK |
|
Bølgelengde |
790 nm (CD) |
Laserstyrke |
Ingen farlig stråling sendes ut |
█ USB section
USB port |
DC OUT 5V, 500 mA |
USB standard |
USB 2.0 full speed |
Media file format support |
MP3 (*.mp3) |
USB device file system |
FAT12, FAT16, FAT32 |
█ Bluetooth® section
Version |
Bluetooth® Ver. 2.1 + EDR |
Class |
Class 2 |
Supported profiles |
A2DP, AVRCP |
Operating frequency |
2.4 GHz band, FH-SS |
Operation distance |
10 m line of sight |
█ Speaker section
Speaker unit(s) |
|
Woofer |
10 cm cone type x 1 per channel |
Tweeter |
6 cm cone type x 1 per channel |
Impedance |
6 Ω |
Dimensions (W x H x D) 145 mm x 224 mm x 197 mm
Mass |
1.9 kg |
█ General
Power supply |
AC 220 V to 240 V, 50 Hz |
Power consumption |
17 W |
Dimensions (W x H x D) 153 mm x 224 mm x 232 mm
Mass |
1.4 kg |
Operating temperature range |
0°C to +40°C |
Operating humidity range
35% to 80% RH (no condensation)
Power consumption in standby mode
(With “BLUETOOTH STANDBY” set to “OFF”)
0.3 W (approximate)
Power consumption in standby mode
(With “BLUETOOTH STANDBY” set to “ON”)
0.4 W (approximate)
Note:
•Specifications are subject to change without notice. Mass and dimensions are approximate.
•Total harmonic distortion is measured by the digital spectrum analyser.
RQT0B18
12
12
English
Declaration of Conformity (DoC)
Hereby, “Panasonic Corporation” declares that this product is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC.
Customers can download a copy of the original DoC to our R&TTE products from our DoC Server: http://www.doc.panasonic.de
Contact to Authorised Representative: Panasonic Marketing Europe GmbH, Panasonic Testing Centre, Winsbergring 11, 22525 Hamburg, Germany
Ελληνικά
∆ήλωση συμμόρφωσης (DoC)
Με την παρούσα, η “Panasonic Corporation” δηλώνει ότι το προϊόν αυτό είναι σύμφωνο με τις βασικές απαιτήσεις και άλλες σχετικές διατάξεις της οδηγίας 1999/5/EC.
Οι πελάτες μπορούν να κατεβάσουν ένα αντίγραφο τουπρωτοτύπου DoC για τα R&TTE προϊόντα μας από τον DoC server μας:
http://www.doc.panasonic.de
Στοιχεία επικοινωνίας Eξουσιοδοτημένου Aντιπροσώπου: Panasonic Marketing Europe GmbH, Panasonic Testing Centre, Winsbergring 11, 22525 Hamburg, Γερμανία
Português
Declaração de Conformidade (DoC)
Com o presente documento, a “Panasonic Corporation” declara que este produto é conforme os requisitos específicos e demais especificações referentes à Directriz 1999/5/EC.
Os clientes podem baixar uma cópia da declaração de conformidade (DoC) para nossos produtos R&TTE do Server DoC:
http://www.doc.panasonic.de
Contacte o representante autorizado: Panasonic Marketing Europe GmbH, Panasonic Testing Centre, Winsbergring 11, 22525 Hamburg, Alemanha
Lietuviškai
Atitikties deklaracija (AD)
Bendrovė “Panasonic Corporation” patvirtina, kad šis gaminys tenkina direktyvos 1999/5/EB esminius reikalavimus ir kitas taikytinas nuostatas.
Mūsų R&TTE gaminių originalios atitikties deklaracijos kopiją klientai gali atsisiųsti iš mūsų AD serverio: http://www.doc.panasonic.de
Įgaliotojo atstovo adresas: “Panasonic Marketing Europe GmbH”, Panasonic Testing Centre, Winsbergring 11, 22525 Hamburg, Vokietija
Slovensko
Izjava o skladnosti (DoC)
S pričujočo izjavo podjetje “Panasonic Corporation” izjavlja, da so svoji izdelki skladni s poglavitnimi zahtevami in drugimi odgovarjajočimi predpisi direktive 1999/5/ES.
Stranka lahko naloži izvod izvirnega DoC o naših izdelkih R&TTE s strežnika DoC:
http://www.doc.panasonic.de
Pooblaščeni zastopnik: Panasonic Marketing Europe GmbH, Panasonic Testing Centre, Winsbergring 11, 22525 Hamburg, Nemčija
Slovensky
Vyhlásenie o zhode (DoC)
“Panasonic Corporation” týmto prehlasuje, že tento výrobok je v zhode so základnými požiadavkami a ďalšími príslušnými ustanoveniami smernice 1999/5/ES.
Zákazníci si môžu stiahnuť kópiu pôvodného DoC na naše R&TTE výrobky z nášho servera DoC: http://www.doc.panasonic.de
Kontakt na splnomocneného zástupcu: Panasonic Marketing Europe GmbH, Panasonic Testing Centre, Winsbergring 11, 22525 Hamburg, Nemecko
Norsk Samsvarserklæring (DoC)
“Panasonic Corporation” erklærer at utstyret er i samsvar med de grunnleggende krav og øvrige relevante krav i direktiv 1999/5/EF.
Kundene kan laste ned en kopi av den originalesamsvarserklæringen (DoC) for vårt R&TTE utstyr fra vår DoC server: http://www.doc.panasonic.de
Kontakt vår autoriserte representant: Panasonic Marketing Europe GmbH, Panasonic Testing Centre, Winsbergring 11, 22525 Hamburg, Tyskland
Eesti keel Vastavusdeklaratsioon (DoC)
“Panasonic Corporation” kinnitab käesolevaga, et see toode on vastavuses põhiliste nõuete ja muude direktiivi 1999/5/EÜ asjakohaste sätetega.
Kliendid saavad koopia meie R&TTE toodetele kehtiva originaalvastavusdeklaratsiooni koopia alla laadida meie DoC serverist:
http://www.doc.panasonic.de
Võtke ühendust volitatud esindajaga: Panasonic Marketing Europe GmbH, Panasonic Testing Centre, Winsbergring 11, 22525 Hamburg, Germany
ENGLISH
RQT0B18
13
13
Latviski
Atbilstības deklarācija (DoC)
Kompānija “Panasonic Corporation” ar šo paziņo, ka šis izstrādājums atbilst būtiskām prasībām un citām saistošām Direktīvas 1999/5/EK prasībām.
Pircēji var lejupielādēt oriģinālo DoC kopiju mūsu R&TTE izstrādājumos no mūsu DoC servera: http://www.doc.panasonic.de
Lūdzam sazināties ar pilnvaroto parstāvi: Panasonic Marketing Europe GmbH, Panasonic Testing Centre, Winsbergring 11, 22525 Hamburg, Germany
Български
Декларация за съответствие (DoC)
“Panasonic Corporation” декларира, че този продукт съответства на съществените изисквания и другите приложими разпоредби на Директива 1999/5/EC.
Потребителите могат да свалят копие от оригиналните DoC към нашите продуктите от типа R&TTE от сървъра, на който се съхраняват DoC: http://www.doc.panasonic.de
За контакт с оторизиран представител: Panasonic Marketing Europe GmbH, Panasonic Testing Centre, Winsbergring 11, 22525 Hamburg, Германия
Român
Declaraţie de Conformitate (DoC)
Prin prezenta, societatea “Panasonic Corporation” declară că produsul este conform cu cerinţele esenţiale şi cu alte norme corespunzătoare Directivei 1999/5/EC.
Clienţii pot descărca o copie a DoC-ului original al produselor noastre R&TTE de la adressa noastră DoC din Internet:
http://www.doc.panasonic.de
Contact la Reprezentanţa autorizată: Panasonic Marketing Europe GmbH, Panasonic Testing Centre, Winsbergring 11, 22525 Hamburg, Germania
|
Magyar |
|
Megfelelőségi Nyilatkozat (DoC) |
|
Ezennel a, “Panasonic Corporation” kijelenti, hogy a jelen |
|
termék kielégíti az 1999/5/EK Irányelv létfontosságú |
|
követelményeit és más vonatkozó rendelkezéseit. |
|
A vásárlók letölthetik az R&TTE termékek eredeti DoC |
|
másolatát a DoC szerverünkről: |
|
http://www.doc.panasonic.de |
|
Forduljon a hivatalos márkaképviselethez: Panasonic |
|
Marketing Europe GmbH, Panasonic Testing Centre, |
|
Winsbergring 11, 22525 Hamburg, Németország |
|
Hrvatski |
|
Deklaracija o podobnosti (DoC) |
|
Ovime, “Panasonic Corporation” izjavljuje da je ovaj |
|
proizvod udovoljava osnovnim zahtjevima i ostalim |
|
relevantnim uvjetima Smjernice 1999/5/EC. |
|
Kupci mogu preuzeti kopiju originalne DoC za naše |
|
R&TTE proizvode s našeg DoC poslužitelja: |
RQT0B18 |
http://www.doc.panasonic.de |
Obratite se ovlaštenom predstavniku: Panasonic |
|
Marketing Europe GmbH, Panasonic Testing Centre, |
|
14 |
Winsbergring 11, 22525 Hamburg, Njemačka |
References
About Bluetooth®
Panasonic bears no responsibility for data and/or information that can possibly be compromised during a wireless transmission.
Frequency band
• This system uses the 2.4 GHz frequency band.
Certification
•This system conforms to the frequency restrictions and has received certification based on frequency laws. Thus, a wireless permit is not necessary.
•The actions below are punishable by law:
–Taking apart or modifying the main unit.
–Removing specification indications.
Restrictions of use
•Wireless transmission and/or usage with all Bluetooth® equipped devices is not guaranteed.
•All devices must conform to standards set by Bluetooth SIG, Inc.
•Depending on the specifications and settings of a device, it can fail to connect or some operations can be different.
•This system supports Bluetooth® security features. But depending on the operating environment and/or settings, this security is possibly not sufficient. Transmit data wirelessly to this system with caution.
•This system cannot transmit data to a Bluetooth® device.
Range of use
•Use this device at a maximum range of 10 m.
•The range can decrease depending on the environment, obstacles or interference.
Interference from other devices
•This system may not function properly and troubles such as noise and sound jumps may arise due to radio wave interference if this unit is located too close to other Bluetooth® devices or the devices that use the 2.4 GHz band.
•This system may not function properly if radio waves from a nearby broadcasting station, etc. is too strong.
Intended usage
•This system is for normal, general use only.
•Do not use this system near an equipment or in an environment that is sensitive to radio frequency interference (example: airports, hospitals, laboratories, etc.).
Licenses
The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by Panasonic Corporation is under license. Other trademarks and trade names are those of their respective owners.
MPEG Layer-3 audio coding technology licensed from Fraunhofer IIS and Thomson.
14
Disposal of Old Equipment and Batteries
Only for European Union and countries with recycling systems
These symbols on the products, packaging, and/or accompanying documents mean that used electrical and electronic products and batteries must not be mixed with general household waste.
For proper treatment, recovery and recycling of old products and used batteries, please take them to applicable collection points in accordance with your national legislation. By disposing of them correctly, you will help to save valuable resources and prevent any potential negative effects on human health and the environment.
For more information about collection and recycling, please contact your local municipality.
Penalties may be applicable for incorrect disposal of this waste, in accordance with national legislation.
Note for the battery symbol (bottom symbol):
This symbol might be used in combination with a chemical symbol. In this case it complies with the requirement set by the Directive for the chemical involved.
ENGLISH
RQT0B18
15
15
Zakupione urządzenie może różnić się od przedstawionego na ilustracjach.
Niniejsza instrukcja obsługi ma zastosowanie do następującego zestawu.
Zestaw |
SC-PM600 |
|
|
Urządzenie główne |
SA-PM600 |
|
|
Głośniki |
SB-PM500 |
|
|
Środki ostrożności
OSTRZEŻENIE!
Urządzenie
•Aby ograniczyć niebezpieczeństwo pożaru, porażenia prądem lub uszkodzenia urządzenia,
–Nie należy wystawiać urządzenia na działanie deszczu, wilgoci, kapanie lub zachlapanie.
–Na urządzeniu nie należy umieszczać żadnych przedmiotów napełnionych płynami, np. dzbanków.
–Należy stosować tylko zalecane akcesoria.
–Nie zdejmować pokrywy.
–Użytkownik nie powinien podejmować się naprawy urządzenia na własną rękę. Serwis należy zlecić w autoryzowanym punkcie serwisowym.
–Należy uważać, aby do wnętrza urządzenia nie dostały się metalowe przedmioty.
Dostarczone wyposażenie
Sprawdzić i znaleźć poszczególne elementy dostarczonego wyposażenia.
1 Przewód zasilania
1 Antena wewnętrzna FM
1 Pilot zdalnego sterowania
(N2QAYB000984)
|
Spis treści |
|
|
Dostarczone wyposażenie. . . . . . . . . . . . . . . . . . . . . |
. 2 |
|
Środki ostrożności . . . . . . . . . . . . . . . . . . . . . . . . . . . . |
2 |
|
Podłączenie . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . |
3 |
|
Rozmieszczenie głośników . . . . . . . . . . . . . . . . . . . . . |
3 |
|
Opis elementów sterowania . . . . . . . . . . . . . . . . . . . . |
4 |
|
Przygotowanie pilota zdalnego sterowania . . . . . . . . |
4 |
|
Przygotowanie multimediów . . . . . . . . . . . . . . . . . . . . |
5 |
|
Odtwarzanie multimediów . . . . . . . . . . . . . . . . . . . . . . |
6 |
|
Radio . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . |
7 |
|
Zegar i timer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . |
8 |
|
Efekty dźwiękowe . . . . . . . . . . . . . . . . . . . . . . . . . . . . |
9 |
|
Inne . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . |
9 |
|
Rozwiązywanie problemów. . . . . . . . . . . . . . . . . . . . |
10 |
RQT0B18 |
|
|
|
Konserwacja. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . |
11 |
|
Dane techniczne . . . . . . . . . . . . . . . . . . . . . . . . . . . . |
12 |
|
Odnośniki . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . |
13 |
2
UWAGA!
Urządzenie
•Aby ograniczyć niebezpieczeństwo pożaru, porażenia prądem lub uszkodzenia urządzenia,
–Niniejszego urządzenia nie należy instalować lub umieszczać w biblioteczce, wbudowanej szafce lub innej ograniczonej przestrzeni. Należy zapewnić odpowiednią wentylację urządzenia.
–Nie zasłaniaj otworów wentylacyjnych urządzenia gazetami, obrusami, zasłonami i podobnymi przedmiotami.
–Nie umieszczać na urządzeniu źródeł otwartego ognia, jak np. zapalone świece.
•Urządzenie jest przeznaczone do używania w klimacie umiarkowanym.
•To urządzenie może odbierać zakłócenia wywołane użyciem telefonu komórkowego. Jeżeli takie zakłócenia wystąpią, wskazane jest zwiększenie odległości pomiędzy urządzeniem a telefonem komórkowym.
•Urządzenie wykorzystuje promień lasera. Sterowanie, regulacje lub postępowanie w sposób tutaj nie określony grozi niebezpiecznym naświetleniem promieniami lasera.
Przewód zasilania
•Wtyczka przewodu sieciowego umożliwia odłączenie zasilania urządzenia. Urządzenie należy zamontować w sposób umożliwiający szybkie wyjęcie wtyczki z gniazda zasilania.
Bateria
•Istnieje niebezpieczeństwo wybuchu w przypadku, gdy baterie zostaną nieprawidłowo założone. Baterie należy wymieniać na takie same lub na baterie równorzędnego typu, zalecane przez producenta.
•Zużyte baterie należy odpowiednio zutylizować. Właściwą metodę powinny wskazać władze lokalne.
•Nie zbliżać baterii do źródeł ciepła lub ognia.
•Baterii nie należy pozostawiać przez dłuższy czas, w pojeździe z zamkniętymi drzwiami i oknami, narażonym na bezpośrednie promieniowanie słoneczne.
•Nie wolno zwierać biegunów baterii ani jej rozbierać.
•Nie ładować baterii alkalicznych ani manganowych.
•Nie wolno używać baterii, z których została zdjęta warstwa ochronna.
•Jeśli pilot ma nie być używany przez dłuższy czas, należy wyjąć z niego baterię. Przechowywać w chłodnym, ciemnym miejscu.
16
Loading...
