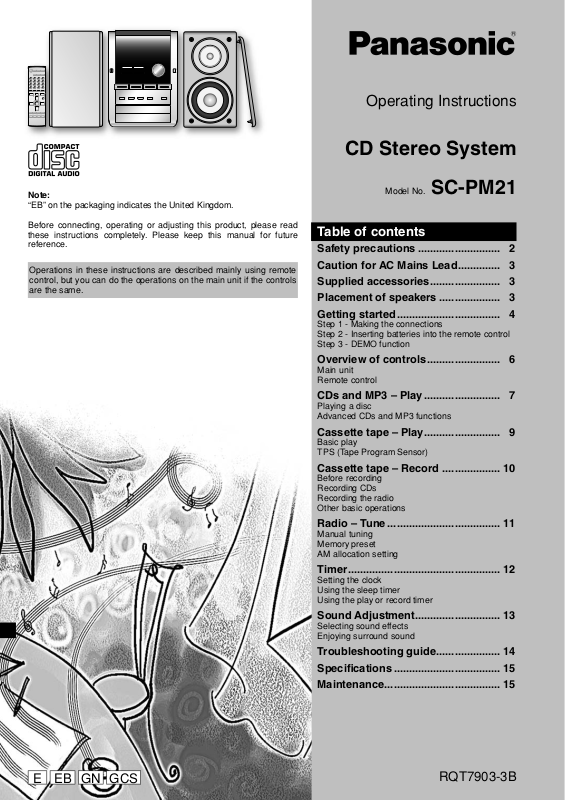

Panasonic SC-PM21 User Manual

Page 1

Operating Instructions

CD Stereo System

Note:

“EB” on the packaging indicates the United Kingdom.

Before connecting, operating or adjusting this product, please read these instructions completely. Please keep this manual for future reference.

Operations in these instructions are described mainly using remote control, but you can do the operations on the main unit if the controls are the same.

Model No. SC-PM21

Table of contents

Safety precautions ........................... 2

Caution for AC Mains Lead .............. 3

Supplied accessories ....................... 3

Placement of speakers .................... 3

Getting started .................................. 4

Step 1 - Making the connections Step 2 - Inserting batteries into the remote control Step 3 - DEMO function

Overview of controls ........................ 6

Main unit Remote control

CDs and MP3 – Play ......................... 7

Playing a disc Advanced CDs and MP3 functions

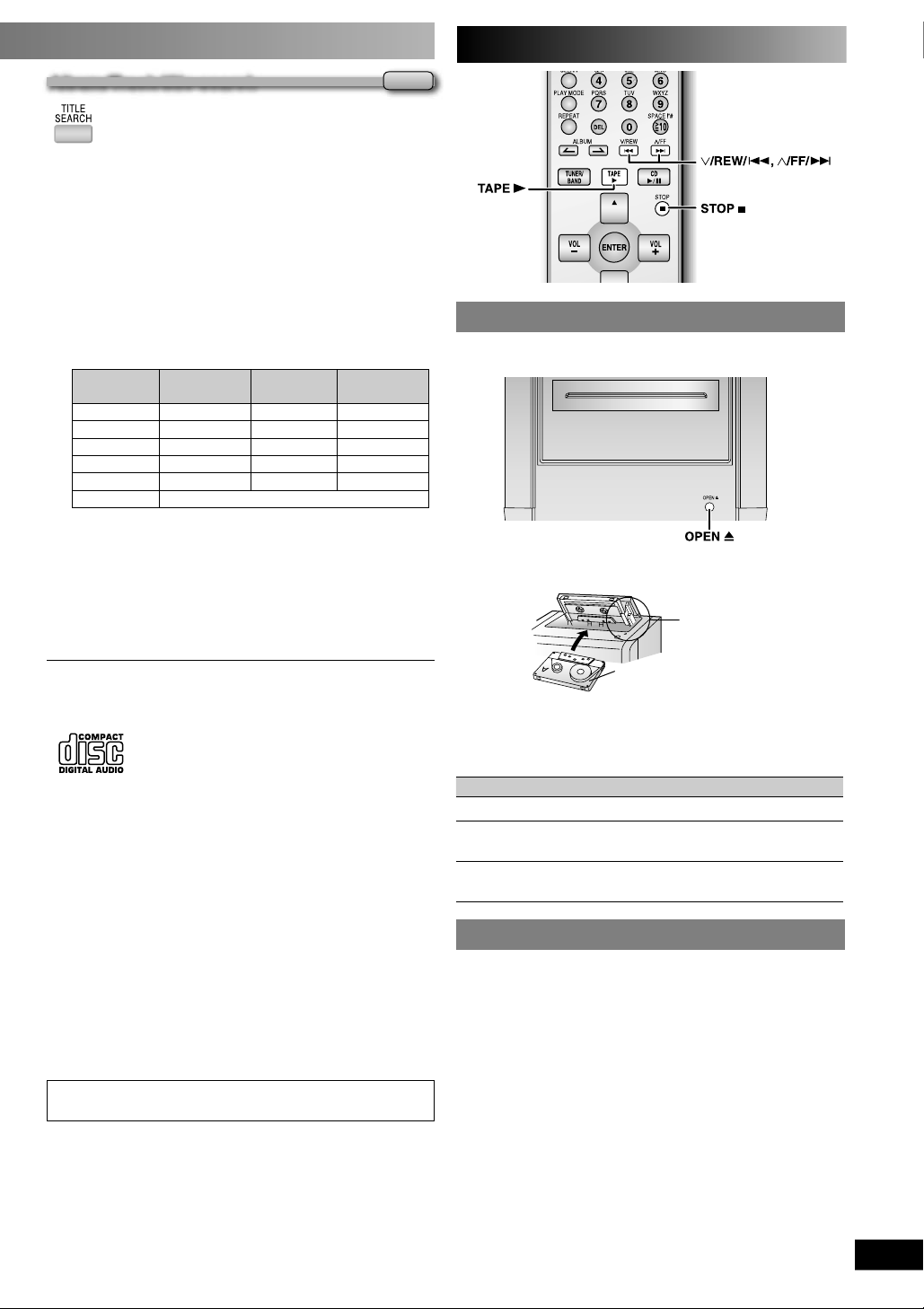

Cassette tape – Play ......................... 9

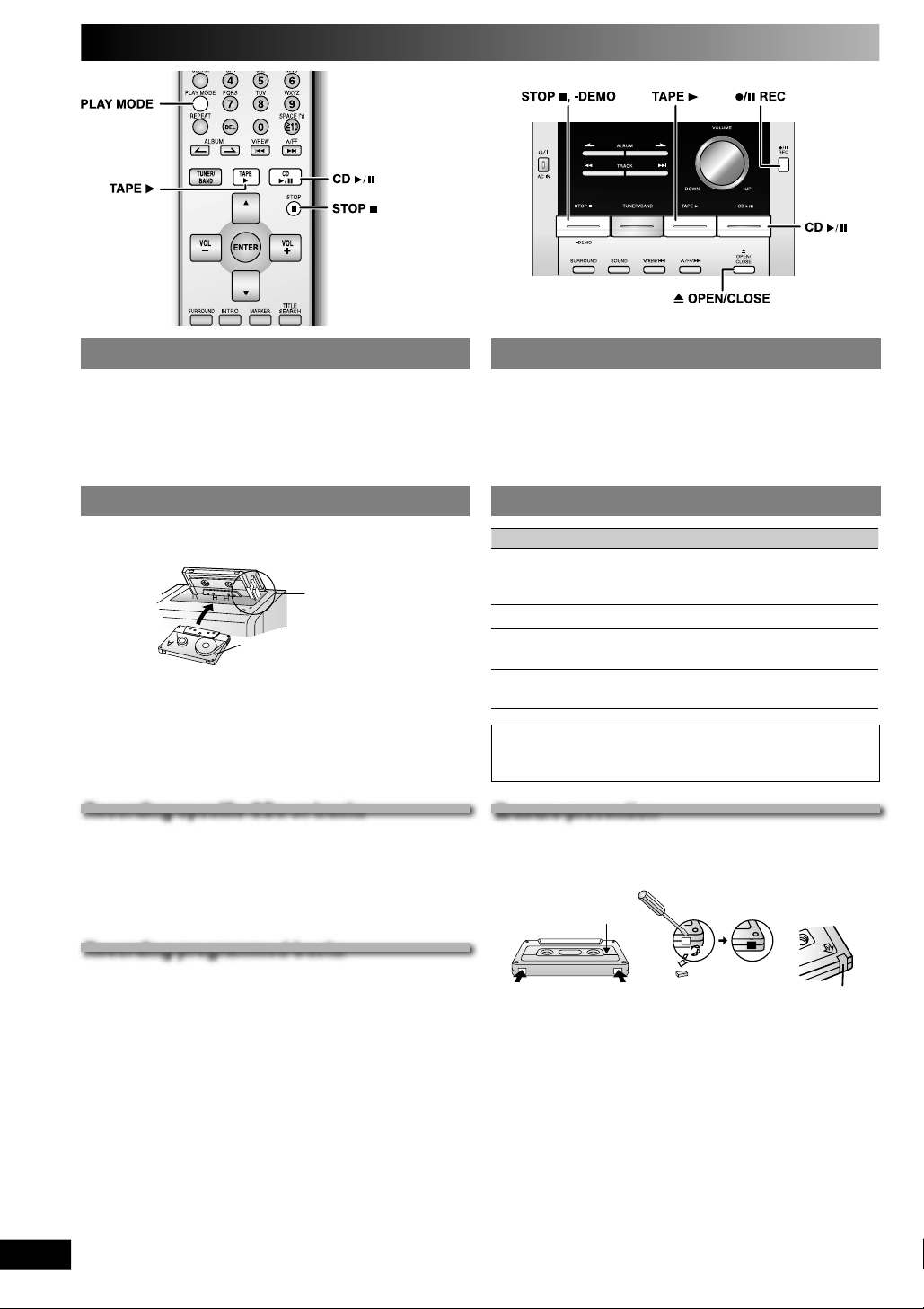

Basic play TPS (Tape Program Sensor)

Cassette tape – Record ................... 10

Before recording Recording CDs Recording the radio Other basic operations

Radio – Tune ..................................... 11

Manual tuning Memory preset AM allocation setting

Timer .................................................. 12

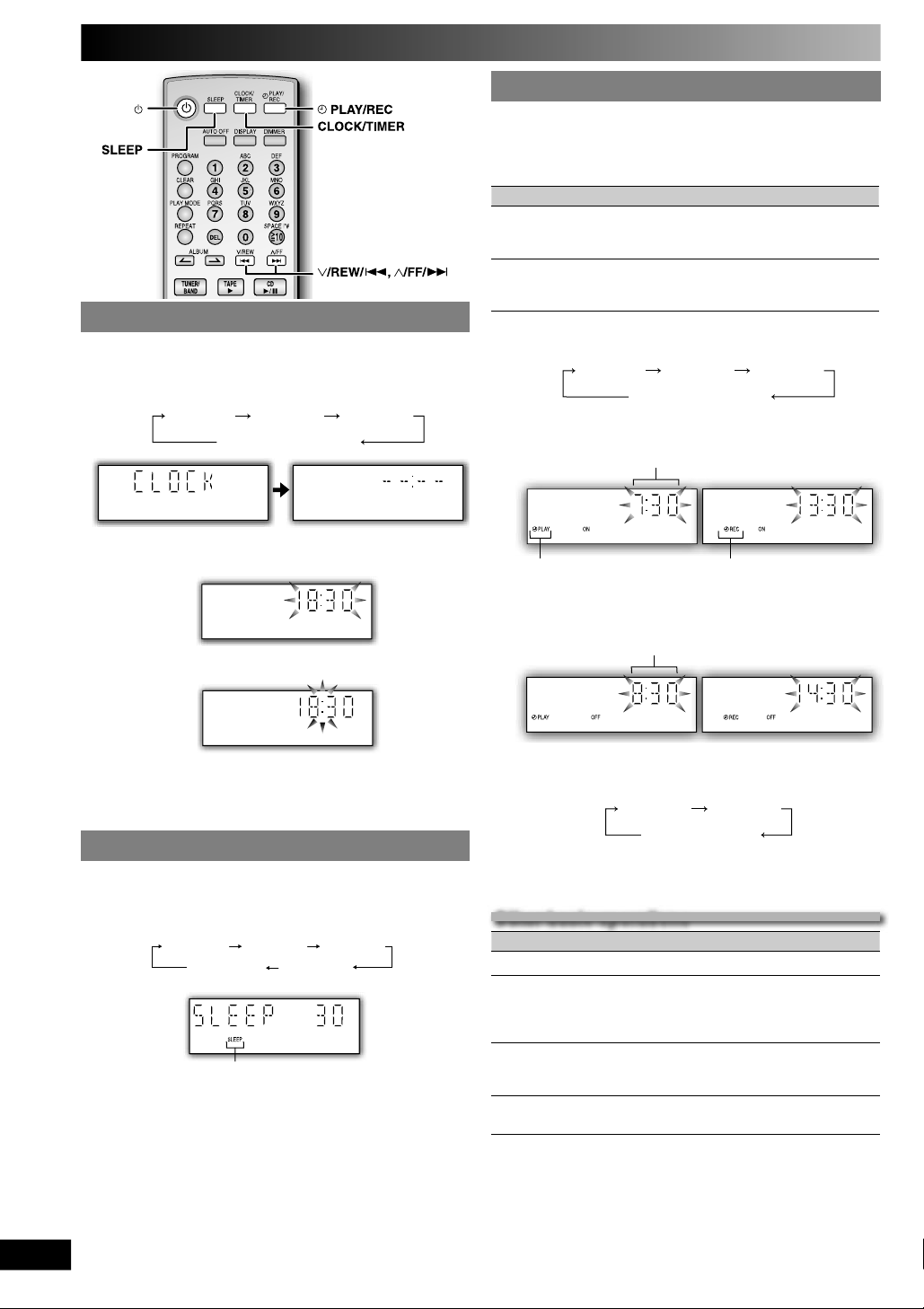

Setting the clock Using the sleep timer Using the play or record timer

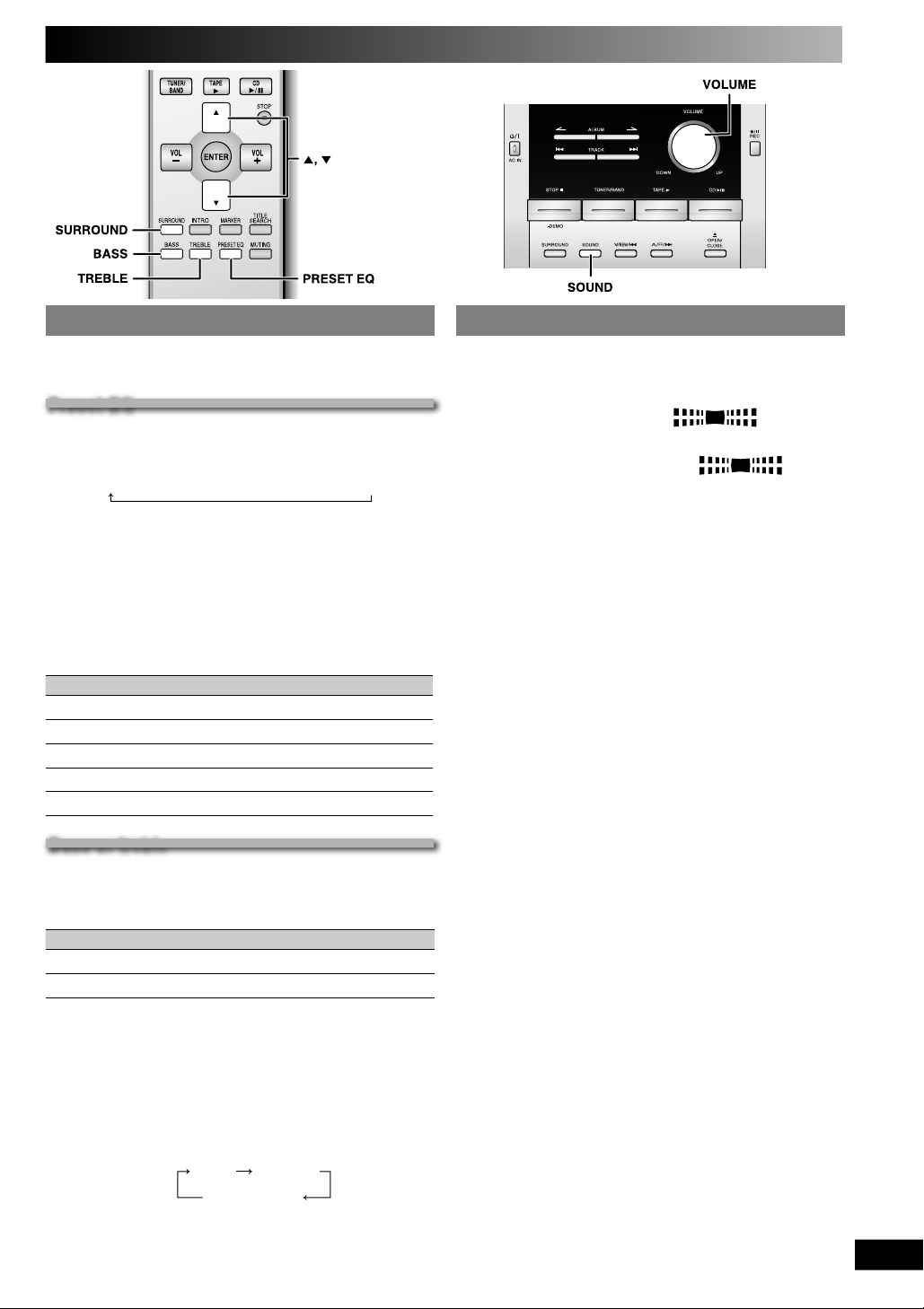

Sound Adjustment ............................ 13

Selecting sound effects Enjoying surround sound

Troubleshooting guide ..................... 14

Speciﬁ cations ................................... 15

Maintenance ...................................... 15

E EB GN GCS

RQT7903-3B

Page 2

Dear customer

Thank you for purchasing this product. For optimum performance and safety, please read these instructions carefully.

These operating instructions are applicable to the following system.

System SC-PM21

Main unit SA-PM21 Speakers SB-PM21

Side of product

Inside of product Tuotteen sisällä Produktets innside

(For Europe, Australia and New Zealand)

THIS UNIT IS INTENDED FOR USE IN MODERATE CLIMATES.

Safety precautions

Placement

Set the unit up on an even surface away from direct sunlight, high temperatures, high humidity, and excessive vibration. These conditions can damage the cabinet and other components, thereby shortening the unit’s service life.

Place it at least 15 cm away from wall surfaces to avoid distortion and unwanted acoustical effects.

Do not place heavy items on the unit.

Voltage

Do not use high voltage power sources. This can overload the unit and cause a ﬁ re.

Do not use a DC power source. Check the source carefully when setting the unit up on a ship or other place where DC is used.

AC mains lead protection

Ensure the AC mains lead is connected correctly and not damaged. Poor connection and lead damage can cause ﬁ re or electric shock. Do not pull, bend, or place heavy items on the lead.

Grasp the plug ﬁ rmly when unplugging the lead. Pulling the AC mains lead can cause electric shock.

Do not handle the plug with wet hands. This can cause electric shock.

Foreign matter

Do not let metal objects fall inside the unit. This can cause electric shock or malfunction.

Do not let liquids get into the unit. This can cause electric shock or malfunction. If this occurs, immediately disconnect the unit from the power supply and contact your dealer.

Do not spray insecticides onto or into the unit. They contain ﬂ ammable gases which can ignite if sprayed into the unit.

Service

Do not attempt to repair this unit by yourself. If sound is interrupted, indicators fail to light, smoke appears, or any other problem that is not covered in these instructions occurs, disconnect the AC mains lead and contact your dealer or an authorized service center. Electric shock or damage to the unit can occur if the unit is repaired, disassembled or reconstructed by unqualiﬁ ed persons.

Extend operating life by disconnecting the unit from the power source if it is not to be used for a long time.

RQT7903

TÄMÄ LAITE ON TARKOITETTU KÄYTETTÄVÄKSI LEUDOSSA ILMASTOSSA.

DETTE APPARATET ER BEREGNET TIL BRUK UNDER MODERATE KLIMAFORHOLD.

(For Others)

THIS UNIT IS INTENDED FOR USE IN TROPICAL CLIMATES.

This product may receive radio interference caused by mobile telephones during use. If such interference is apparent, please increase separation between the product and the mobile telephone.

The socket outlet shall be installed near the equipment and easily accessible or the mains plug or an appliance coupler shall remain readily operable.

Laite tulee asettaa lähelle verkkopistorasiaa ja pistokkeen täytyy olla sellaisessa asennossa, että siihen on helppo tarttua ongelman sattuessa.

Utstyret bør plasseres i nærheten av AC-stikkontakten, og støpslet må være lett tilgjengelig hvis det skulle oppstå problemer.

■ Sales and Support Information

(For the United Kingdom and Republic of Ireland)

Customer Care Centre

• For UK customers: 08705 357357

• For Republic of Ireland customers: 01 289 8333

• Visit our website for product information

• E-mail: [email protected]

Direct Sales at Panasonic UK

• Order accessory and consumable items for your product with ease and conﬁ dence by phoning our Customer Care Centre MondayFriday 9:00am-5:30pm. (Excluding public holidays)

• Or go on line through our Internet Accessory ordering application at www.panasonic.co.uk

• Most major credit and debit cards accepted.

• All enquiries transactions and distribution facilities are provided directly by Panasonic UK Ltd.

• It couldn’t be simpler!

• Also available through our Internet is direct shopping for a wide range of ﬁ nished products, take a browse on our website for further details.

Page 3

Caution for AC Mains Lead

Supplied accessories

(For United Kingdom)

(“EB” area code model only)

For your safety, please read the following text carefully.

This appliance is supplied with a moulded three pin mains plug for your safety and convenience. A 5-ampere fuse is ﬁ tted in this plug. Should the fuse need to be replaced please ensure that the replacement fuse has a rating of 5-ampere and that it is approved by ASTA or BSI to BS1362. Check for the ASTA mark m or the BSI mark o on the body of the fuse.

If the plug contains a removable fuse cover you must ensure that it is reﬁ tted when the fuse is replaced. If you lose the fuse cover the plug must not be used until a replacement cover is obtained. A replacement fuse cover can be purchased from your local dealer.

CAUTION!

IF THE FITTED MOULDED PLUG IS UNSUI T ABLE FOR THE SOCKET OUTLET IN YOUR HOME THEN THE FUSE SHOULD BE RE MOVED AND THE PLUG CUT OFF AND DIS POSED OF SAFELY. THERE IS A DANGER OF SEVERE ELECTRI CAL SHOCK IF THE CUT OFF PLUG IS IN SERTED INTO ANY 13-AMPERE SOCKET.

If a new plug is to be ﬁ tted please observe the wiring code as stated below. If in any doubt please consult a qualiﬁ ed electrician.

IMPORTANT

The wires in this mains lead are coloured in accor dance with the following code: Blue: Neutral, Brown: Live. As these colours may not correspond with the coloured markings identifying the terminals in your plug, proceed as follows: The wire which is coloured Blue must be connected to the terminal which is marked with the letter N or col oured Black or Blue. The wire which is coloured Brown must be connected to the terminal which is marked with the letter L or coloured Brown or Red.

WARNING: DO NOT CONNECT EITHER WIRE TO THE EARTH TERMINAL WHICH IS MARKED WITH THE LETTER E, BY THE EARTH SYMBOL n OR COLOURED GREEN OR GREEN/YELLOW.

Please check and identify the supplied accessories. Use numbers indicated in parentheses when asking for replacement parts. (As of January 2005)

1 x Remote Control

1 x FM indoor antenna

1 x Antenna plug adaptor

(For U.K: K1YZ02000013)

2 x Remote control

Placement of speakers

(N2QAJB000131)

(RSA0007-L)

batteries

1 x AC mains lead

(For U.K: VJA0733)

(For Australia and N.Z:

K2CJ2DA00010)

(For others:

K2CQ2CA00002)

1 x AM loop antenna

(N1DAAAA00001)

THIS PLUG IS NOT WATERPROOF—KEEP DRY.

Before use

Remove the connector cover.

How to replace the fuse

The location of the fuse differ according to the type of AC mains plug (figures A and B). Confirm the AC mains plug fitted and follow the instructions below. Illustrations may differ from actual AC mains plug.

1. Open the fuse cover with a screwdriver.

Figure A Figure B

Fuse cover

2. Replace the fuse and close or attach the fuse cover.

Figure A Figure B

Fuse (5 ampere)

Speakers are designed identically so that no left or right channel orientation is necessary.

• Keep your speakers at least 10 mm away from the system for proper ventilation.

• These speakers do not have magnetic shielding. Do not place them near televisions, personal computers or other devices easily inﬂ uenced by magnetism.

• To avoid damage to the speakers, do not touch the speaker cones if you have taken the nets off.

Use only the supplied speakers.

• The combination of the main unit and speakers provide the

best sound. Using other speakers can damage the unit and sound quality will be negatively affected.

Caution

• Use the speakers only with the recommended system. Failure to do so can damage the ampliﬁ er and speakers, and can cause ﬁ re. Consult a qualiﬁ ed service person if damage occurs or if a sudden change in performance is apparent.

• Do not attach these speakers to walls or ceilings.

RQT7903

Page 4

Getting started

Connect the AC mains lead only after all other connections have been made.

Preparation

Twist and pull off the vinyl tip of the speaker cords. OR If the speaker cords do not have vinyl tips, directly connect them to the terminals.

Connect the FM indoor antenna.

Adhesive tape

FM indoor antenna

Tape the antenna to a wall or column, in a position with least amount of interference.

Connect the AM loop antenna.

Stand the antenna up on its base. Keep loose antenna cord away from other wires and cords.

AM loop antenna

RQT7903

Connect the speaker cables.

White

Blue

Grey (+)

Blue (–)

Cords with white and blue tags are for high frequency. Cords with red and black tags are for low frequency.

Incorrect connection can damage the unit.

Red Black

Black (–)

Red (+)

To household mains socket

Connect the AC mains lead.

FOR THE UNITED KINGDOM ONLY READ THE CAUTION FOR THE AC MAINS LEAD ON PAGE 3 BEFORE CONNECTION.

• The included AC mains lead is for use with this unit only. Do not use it with other equipment.

Insertion of connector

Appliance inlet

Approx. 3.5 mm

Even when the connector is perfectly inserted, depending on the type of inlet used, the front part of the connector may jut out as shown in the drawing. However there is no problem using the unit.

Connector

Page 5

FM outdoor antenna AM outdoor antenna

AM loop antenna (included)

AM outdoor antenna (not included)

• Never use an outdoor antenna during a lightning storm.

• You can connect the FM outdoor antenna for better reception. Please consult your dealer for installation.

• Disconnect the FM indoor antenna if an FM outdoor antenna is installed.

• Connect the AM outdoor antenna without removing the AM loop antenna. Run 5 to 12 m vinyl-covered wire horizontally along a window or other convenient location.

■ Batteries

• Insert so the poles (+ and –) match those in the remote control.

• Remove if the remote control is not going to be used for a long period of time. Store in a cool, dark place.

• Do not use rechargeable type batteries.

• Mishandling of batteries can cause electrolyte leakage which can damage items the ﬂ uid contacts and may cause a ﬁ re.

Do not:

• mix old and new batteries.

• use different types at the same time.

• heat or expose to ﬂ ame.

• take apart or short circuit.

• attempt to recharge alkaline or manganese batteries.

• use batteries if the covering has been peeled off.

■ Use

• Aim at the remote control sensor, avoiding obstacles, at a maximum range of

m directly in front of the unit.

Refer to page 6 for remote control signal sensor position.

When the unit is ﬁ rst plugged in, a demonstration of its functions may be shown on the display. If the demo setting is off, you can show a demonstration by selecting “DEMO ON”.

Press and hold [STOP 7, -DEMO]. The display change each time the button is held down.

DEMO OFF DEMO ON

While in standby mode, select “DEMO OFF” to reduce power consumption.

RQT7903

Page 6

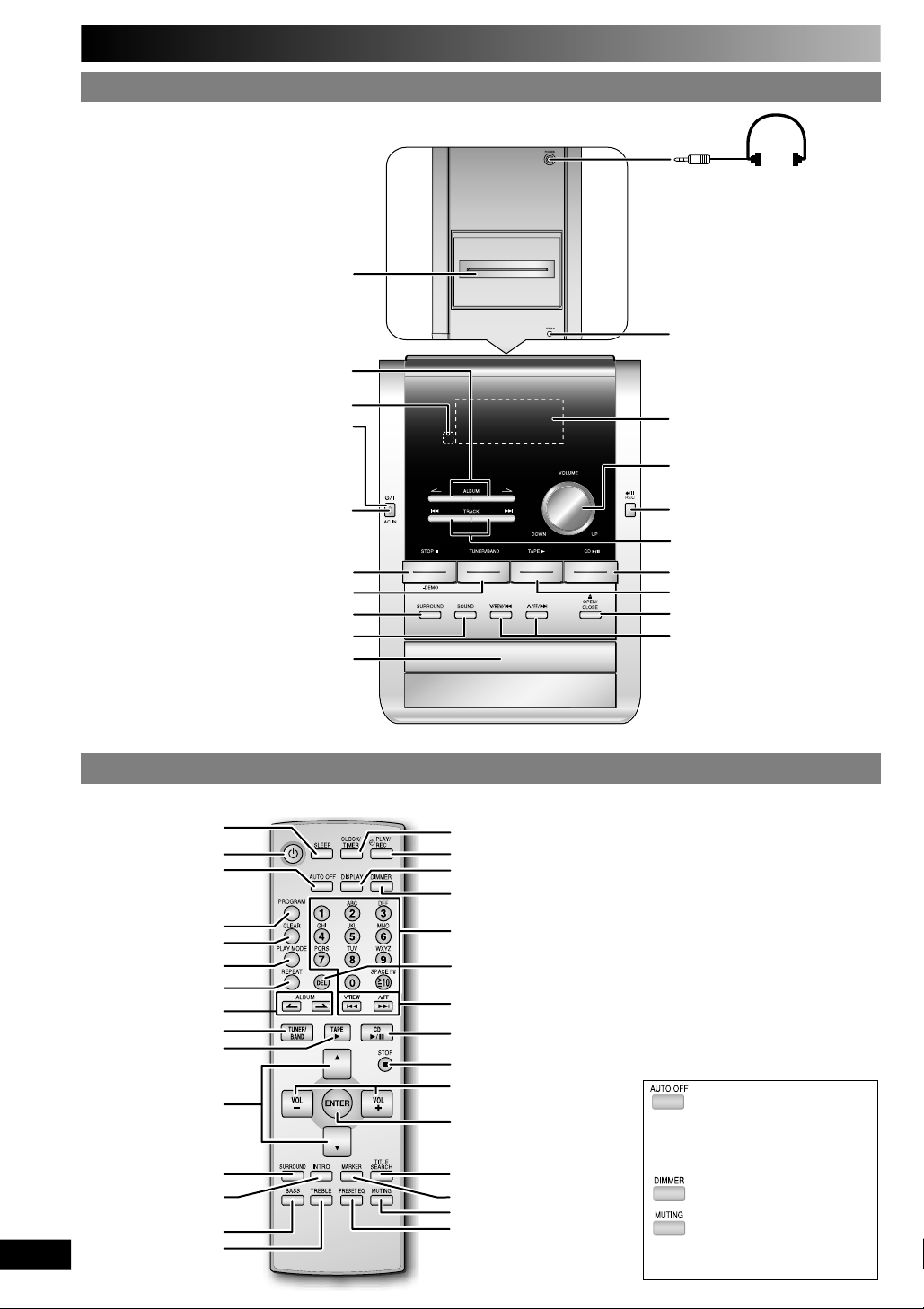

Overview of controls

Refer numbers in parentheses for page reference.

Cassette lid (9, 10)

1 Album selection (7, 8)

Remote control sensor

2Standby/on switch (y/l) (7, 12)

Press to switch the unit from on to standby

mode or vice versa. In standby mode, the unit

is still consuming a small amount of power.

AC supply indicator (AC IN)

This indicator lights when the unit is

connected to the AC mains supply.

Stop/Demo (5, 7, 8, 9, 10)

3Tuner/Band selection (11)

4 Surround sound (13)

Sound (13)

CD tray (7)

Top of the unit

Headphone jack (PHONES)

Avoid listening for prolonged periods of time to prevent hearing damage. Plug type: 3.5 mm stereo (not included)

Cassette open (9, 10)

Display panel

5 Volume control (7, 13)

Recording start/pause (10)

Track selection (7, 8 ,9)

6 CD play/pause (7, 8 ,9, 10) 7 Tape play (9, 10)

CD tray open/close (7, 10) 8 CD skip/search, tape

fast-forward/rewind, tune/ preset channel selection, time adjustment (7, 8, 9, 11, 12)

RQT7903

Buttons such as 3 function the same as the controls on the main unit.

Sleep timer (12)

Auto off

Program (8, 11)

Clear (8)

Play mode (7, 10, 11)

Repeat (8)

1 3 7

Treble/bass

adjustment (13)

Intro (8)

Bass (13)

Treble (13)

Clock/Timer (12) Play timer/Record timer (12)

Display (7, 11) Dimmer

Numeric, characters (7, 8, 9)

Delete (8, 9)

Stop (7, 8, 9, 10)

Enter (8, 9)

Title search (9) Marker (8)

Muting Preset EQ (13)

This function allows you to turn off the unit in CDs or tape mode only after left unused for 10 minutes.

• The setting is maintained even if the unit is turned off.

To dim the display panel.

To mute the sound

• Press the button to activate.

• Press again to cancel.

Page 7

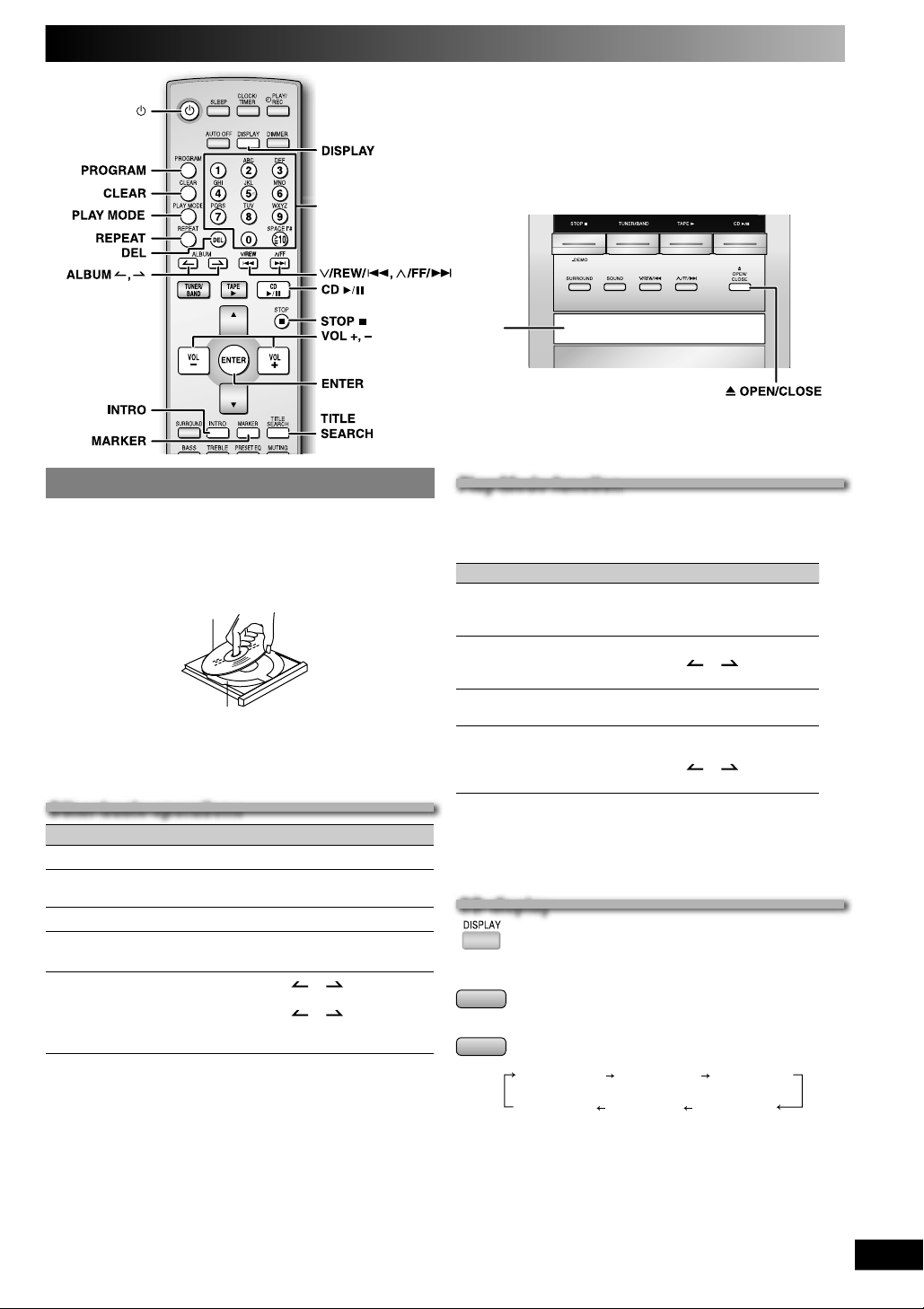

CDs and MP3 – Play

Numeric buttons

Press [y] to turn the unit on.

Press [0 OPEN/CLOSE] to open the disc tray and

then load the disc. Press again to close the tray.

Label must face upward

Disc tray

Press [CD 6] to start play.

Adjust the volume.

Disc tray

Press [CD 6].

Press [PLAY MODE] to select the desired mode.

Mode To play

1-TRACK

1TR

1-ALBUM

1ALBUM

(MP3 only)

RANDOM

RND

1-ALBUM RANDOM

1ALBUM RND

(MP3 only)

one selected track on the disc. Press the numeric buttons to select the track.

one selected album on the disc. Press [ALBUM the album.

a disc randomly.

all tracks in one selected album randomly. Press [ALBUM the album.

or ] to select

To Action

stop the disc Press [STOP 7].

pause play Press [CD 6]. Press again to resume

skip tracks Press [4/REW/4] or [3/FF/¢].

search through tracks

(CD-DA Only)

skip album (MP3 Only) Press [ALBUM

play.

Press and hold [4/REW/4] or [3/FF/¢] during play or pause.

mode. Press [ALBUM then the numeric buttons in the stop mode.

or ] in the play

or ] once and

• During RANDOM or 1-ALBUM RANDOM play, you cannot skip to tracks which have been played.

• During CD-DA RANDOM play, you can search backward or forward only within the current track.

This function allows you to display the information of the current track.

Press [DISPLAY] repeatedly during play or pause mode.

CD-DA

Elapsed play time ↔ Remaining play time

MP3

Elapsed time Album name Track name

ID3 (Artist) ID3 (Track) ID3 (Album)

• Maximum number of displayable characters: 30

• This unit supports ver. 1.0 & 1.1 ID3 tags. Text data that is not supported will not be displayed.

• ID3 is a tag embedded in MP3 track to provide information about the track.

(Continued on next page)

RQT7903

Page 8

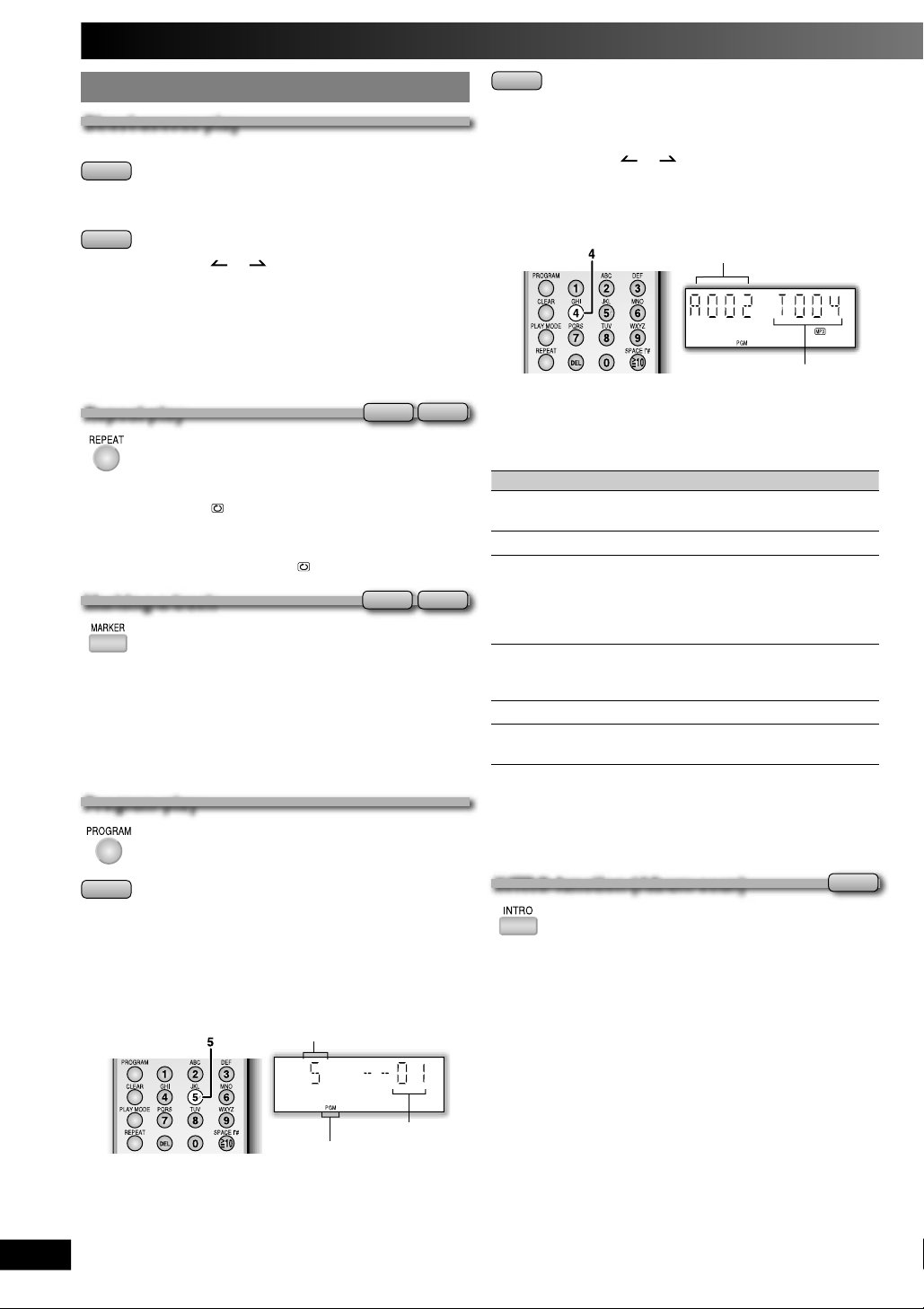

CDs and MP3 – Play (Continued)

This function allows you to start play from a speciﬁ c track.

CD-DA

Press the numeric buttons to select and play your desired track.

MP3

Press [ALBUM or ] to select the album.

Press [4/REW/4] or [3/FF/¢] once and then the

numeric buttons to select and play your desired track.

For two-digit track, press [ For three-digit track, press [h10] twice then the three digits.

• This function does not work during any random/program mode.

You can repeat program play or other selected play mode.

Press [REPEAT] before or during play.

“REPEAT ON” and “ ” are displayed.

To cancel

Press [REPEAT] again.

“REPEAT OFF” is displayed and “

Enable you to mark one track on the disc loaded so that you can directly play the track later.

During play, press and hold the [MARKER] until “STORING” blinks on the display to mark your favourite track.

Press [MARKER] during play or stop mode to recall and play a marked track.

• The marker memory is cleared when you open the CD tray.

• This function does not work during any random/program mode.

This function allows you to program up to 24 tracks.

CD-DA

Press [CD 6] and then [STOP 7].

Press [PROGRAM].

Press the numeric buttons to select your desired

track.

Repeat this step to program other tracks. Example:

10] once then the two digits.

CD-DA

” is cleared.

CD-DA

Track number

MP3

Press [CD 6] and then [STOP 7].

Press [PROGRAM].

Press [ALBUM or ] to select your desired

album. Press [3/FF/¢] once and then the numeric buttons

to select your desired track.

Example:

Press [ENTER] to store the program.

Repeat steps 3 to 5 to program other tracks.

Press [CD 6] to start play.

To Action

cancel program mode

replay the program Press [PROGRAM] then [CD 6].

check program contents

add to the program Repeat step 3 in the stop mode for CD-DA.

clear the last track Press [DEL] in the stop mode.

clear all programmed tracks

•

When you try to programme more than 24 tracks “PGM FULL” appears.

• During program play for CD-DA, you can search backward or forward only within the current track.

•

The program memory is cleared when you open the CD tray.

This function allows you to ﬁ nd an album by listening to the ﬁ rst track of all albums in the current disc for 10 seconds each.

Press [CD 6] and then [STOP 7].

Press [INTRO] to start the intro function.

While your desired album is playing, press [CD 6].

Intro mode cancelled and the playback continues.

Press [PROGRAM] in the stop mode.

Press [4/REW/4] or [3/FF/¢] when “PGM” is displayed in the stop mode. To check while programming, press [PROGRAM] twice after “PGM” appears, then press [4/REW/4] or [3/FF/¢].

Repeat steps 3 to 5 in the stop mode for MP3.

Press [CLEAR] in the stop mode. “PGM CLEAR” is displayed.

Album number

Track number

MP3

RQT7903

Press [CD 6] to start play.

Program indicator

Program number

INTRO function is cancelled after playing the ﬁ rst track in the last album.

To stop during the process, press [INTRO] or [STOP 7].

• This function does not work during any random/program mode.

Page 9

Enable you to search your desired album or track.

Press [CD 6] and then [STOP 7].

For album title search, press [TITLE SEARCH] once.

For track title search, press [TITLE SEARCH] twice. Press the numeric buttons repeatedly to select your

desired character then press [3/FF/¢] to key in the next character.

• You can enter up to 9 characters.

• To edit, press [4/REW/4] or [3/FF/¢]

to revise any

characters.

• To delete, move the cursor over the character and then press [DEL].

Numbered buttons

1 1 6 M N O 6 2 A B C 2 7 P Q R S 7 3 D E F 3 8 T U V 8 4 G H I 4 9 W X Y Z 9 5 J K L 5 0 0

Press [ENTER].

Press [4/REW/4] or [3/FF/¢] to search for

Characters Numbered

buttons

space !“#$ %&’()∗+,– ./:;=?_

Characters

previous or next match. Press [CD 6] to start play from the album/track

found.

• “NOT FOUND” is displayed when there is no match.

• This function does not work during any random/program mode.

MP3

Cassette tape – Play

Press [OPEN 0] on top of the unit.

Insert a cassette.

•

OPE

Insert inside the guides

NOTE on CDs

• This unit can access up to 99 tracks.

• Choose CD with this mark.

• This unit can play MP3 ﬁ les and CD-DA format audio CD-R/RW that have been ﬁ nalized.

• It may not be able to play some CD-R/RW due to the condition of the recording.

• Do not use irregular shaped disc.

• Do not use disc with labels and stickers that are coming off or with adhesive exuding from under labels and stickers.

• Do not attach extra labels or stickers on the disc.

• Do not write anything on the CD.

NOTE on MP3

• Files are treated as tracks and folders are treated as albums.

• This unit can access up to 999 tracks, 255 albums and 20 sessions.

• Disc must conform to ISO9660 level 1 or 2 (except for extended formats).

• To play in a certain order, preﬁ x the folder and ﬁ le names with 3-digits numbers in the order you want to play them.

MPEG Layer-3 audio decoding technology licensed from Fraunhofer IIS and Thomson multimedia.

Forward side

Close the lid by hand.

Press [TAPE 3] to start play.

To play the other side of the cassette, turn the cassette over.

To Action

stop tape playback Press [STOP 7].

start one touch play Press [TAPE 3] when the unit is OFF with

fast-forward and rewind

the cassette loaded.

Press [4/REW/4] or [3/FF/¢] in the stop mode.

This function enables you to search the beginning of a track, up to a maximum of 9.

Press [4/REW/4] or [3/FF/¢] during play.

Play resumes from the track found.

TPS may not function properly with:

• Short silent parts

• Noise occurs between tunes

• Silent parts found within tunes

RQT7903

Page 10

Cassette tape – Record

Preparation

Wind up the leader tape so that recording can begin immediately.

• Use normal position tapes.

• High position and metal position tapes can be used, but this unit will not be able to record or erase them correctly.

Insert the cassette to be recorded on.

•

OPE

Forward side

Press [0 OPEN/CLOSE] to insert the CD.

Press again to close. Press [CD 3/8] and then [STOP 7, -DEMO].

Press [¶/8 REC] to start recording.

Press [CD 3/8] and then [STOP 7, -DEMO].

Press [PLAY MODE] to select your desired mode

(refer page 7). Press [¶/8 REC] to start recording.

Insert inside the guides

Insert the cassette to be recorded on.

Tune to the required station (refer page 11).

Press [¶/8 REC] to start recording.

To Action

erase a recorded sound

stop recording Press [STOP 7].

stop recording temporarily

record on the other side of the tape

Your attention is drawn to the fact that recording pre-recorded tapes or discs or other published or broadcast material may infringe copyright laws.

The illustration shows how to remove the tabs to prevent recording. To record on the tape again, cover as shown.

1) Insert the cassette to be recorded on.

2) Press [TAPE 3] and then [STOP 7].

3) Press [¶/8 REC].

1) Press [¶/8 REC].

2) Press again to resume recording.

Turn the cassette over and press [¶/8 REC].

Side A

To re-record

Normal tape

RQT7903

Program the tracks you want (refer page 8).

Press [¶/8 REC] to start recording.

Tab for side B

Tab for side A

Adhesive tape

Page 11

Radio – Tune

Numeric buttons

Press [TUNER/BAND] to select “FM” or “AM”.

Press [PLAY MODE] to select “MANUAL”.

Press [4/REW/4] or [3/FF/¢] to select the

frequency of the required station.

• is displayed when a stereo FM broadcast is being received.

To tune automatically

Press [4/REW/4] or [3/FF/¢] for a moment until the frequency starts changing rapidly. The unit begins auto tuning, stopping when it ﬁ nds a station.

• Auto tuning may not function when there is excessive interference.

• To cancel auto tuning, press [4/REW/4] or [3/FF/¢] once again.

• Sound is momentarily interrupted if you load or unload tapes while listening to an AM broadcast.

Press and hold [PLAY MODE] to display “MONO”.

To cancel

Press and hold [PLAY MODE] again until “MONO” disappear.

• MONO is also cancelled if the frequency is changed.

• Turn off “MONO” for normal listening.

Up to 15 stations each can be set in the FM and AM bands.

Preparation

Press [TUNER/BAND] to select “FM” or “AM”.

Press and hold [PROGRAM] to start presetting.

Press [PLAY MODE] to select “MANUAL”.

Press [4/REW/4] or [3/FF/¢] to tune to the

required station. Press [PROGRAM].

Press numeric buttons to select a channel.

• The station occupying a channel is erased if another station is preset in that channel.

Repeat steps 2 to 4 to preset more stations.

Press numeric buttons to select the channel.

• For channels 10 to 15 press [h10], then the two digits.

Press [PLAY MODE] to select “PRESET”.

Press [4/REW/4] or [3/FF/¢] to select the

channel.

Enable you to display the name of a broadcasting station or a program type.

Press [DISPLAY] to display:

Station Name (PS)

Frequency display

• RDS displays may not be available if reception is poor.

Program type displays

NEWS VARIED FINANCE COUNTRY

AFFAIRS POP M CHILDREN NATIONAL

INFO ROCK M SOCIAL A OLDIES

SPORT M.O.R.M

EDUCATE LIGHT M PHONE IN DOCUMENT

DRAMA CLASSICS TRAVEL TEST

CULTURE OTHER M LEISURE ALARM

SCIENCE WEATHER JAZZ

M.O.R.M = “Middle of the road music”

Program Type (PTY)

RELIGION FOLK M

• This system can also receive AM broadcasts allocated in 10 kHz steps.

To change the step from 9 kHz to 10 kHz

Press [TUNER/BAND] to select “FM”.

Press and hold [TUNER/BAND].

• After a few seconds the display changes to a ﬂ ashing display of the current minimum frequency.

Continue to hold down [TUNER/BAND].

• When the minimum frequency changes, release the button. To return to the original step, repeat the above steps.

• After changing the setting, previously preset frequency will be cleared.

RQT7903

Page 12

Timer

This is a 24-hour clock.

Press [CLOCK/TIMER] to select “CLOCK”.

Each time you press the button:

CLOCK

˚ PLAY

Original display

Within 5 seconds, press [4/REW/4] or [3/FF/¢]

to set the time.

˚ REC

You can set the timer to come on at a certain time to wake you up (play timer) or to record from the radio (record timer).

Preparation

Turn the unit on and set the clock.

Timer Action

Play timer Prepare the music source you want to

Record timer

Press [CLOCK/TIMER] to select your desired timer.

Each time you press the button:

listen to; cassette, CD or radio, and set the volume.

Check the cassette’s erasure prevention tabs (refer page 10), insert the tape and tune to the radio station (refer page 11).

CLOCK

˚ PLAY

˚ REC

Original display

Within 5 seconds, press [4/REW/4] or [3/FF/¢]

to set the starting time.

Start time

Play timer indicator

Record timer indicator

RQT7903

Press [CLOCK/TIMER] again to confirm.

Displaying the clock

Press [CLOCK/TIMER] to display the clock for few seconds.

• The clock may lose or gain some time over a period. Readjust if necessary.

This function enables you to turn off the unit automatically after the set time.

Press [SLEEP] to select your desired time.

SLEEP 30 SLEEP 60 SLEEP 90

SLEEP 120SLEEP OFF

Sleep timer indicator

To cancel

Press [SLEEP] to select “SLEEP OFF”.

Changing the remaining time

Press [SLEEP] to show the time and press [SLEEP] again to select your desired time.

• The play and sleep timer or the record and sleep timer can be used together.

• The sleep timer always has priority. Be sure not to overlap timer settings.

Press [CLOCK/TIMER] to confirm.

Repeat steps 2 to 3 to set the finishing time.

Finish time

To activate the timer

Press [˚PLAY/REC] to turn on your desired timer.

˚ PLAY

˚ REC

no display (off)

Press [y] to turn off the unit.

The unit must be off for the timers to operate.

To Action

change the settings

change the source or volume

check the settings (when the unit is on or in standby mode)

cancel Press [˚PLAY/REC] to clear the timer

• Play timer and record timer cannot be used together.

• The play timer will start at the preset time with volume increasing gradually to preset level.

• The record timer will start 30 seconds before the set time with the volume muted.

• The timer comes on at the set time everyday if the timer is on.

• The unit must be in the standby mode for the timer to function.

• If you turn the unit off and on again while a timer is functioning, the ﬁ nish time setting will not be activated.

Repeat steps 1 to 4 and 6 above.

1) Press [

2) Make changes to the source or volume.

3) Do steps 5 to 6 as above.

Press [CLOCK/TIMER] repeatedly to select

˚PLAY/REC] to clear the timer

indicator from the display.

˚PLAY or ˚REC.

indicators from the display.

Page 13

Sound Adjustment



You can change the sound effect by selecting Preset EQ or adjusting the bass or treble effect.

Press [PRESET EQ] repeatedly to select your desired setting.

HEAVY

→

CLEAR → SOFT → VOCAL → EQ-OFF

OR To select Preset EQ using the main unit:

Press and hold [SOUND] to select “PRESET EQ”.

Each time you press and hold the button:

PRESET EQ ↔ MANUAL EQ

Press [SOUND] repeatedly to select your desired

setting.

Setting Effect

HEAVY Adds punch to rock

CLEAR Clariﬁ es higher frequencies

SOFT For background music

VOCAL Adds gloss to vocal

EQ-OFF No effect

Enable you to enjoy the lower or higher pitch sound.

Press [BASS] or [TREBLE] to select your desired

setting.

Setting Effect

BASS For lower pitch sound

TREBLE For higher pitch sound

Enable you to add natural width and depth to the stereo sound.

To activate

Press [SURROUND] to display “

To cancel

Press [SURROUND] again to clear “ indicator.

• Surround sound is less discernible when listening through headphones.

• If interference in FM stereo reception increases, cancel the surround sound effect.

” indicator.

”

Press [∞] or [5] to adjust the level.

OR To select bass or treble using the main unit:

Press and hold [SOUND] to select “MANUAL EQ”.

Press [SOUND] to select bass or treble.

Each time you press the button:

BASS TREBLE

original display

Turn the [VOLUME] up or down to adjust the bass or

treble level.

• The tone level can be varied within -5 to +5.

RQT7903

Page 14

Troubleshooting guide

Before requesting service, make the below checks. If you can’t ﬁ x the system as described below, or if something not listed here occurs, refer to the enclosed directory to locate an Authorized Service Center convenient to you or contact your dealer.

Common problems

No sound.

Sounds unﬁ xed, reversed or come from one speaker only.

Humming heard during play.

“ERROR” is displayed. “- -:- -” appears on the display.

“F76” is displayed.

Listening to the radio

Noise is heard. The stereo indicator ﬂ ickers or doesn’t light. Sound is distorted.

A beat sound is heard. A low hum is heard during AM

broadcast. An AM broadcast station cannot be

picked up clearly.

Turn the volume up. The speaker cords may not be connected properly. Turn the unit off, check and correct the connections and turn the unit on (refer page 4).

Check the speaker connections (refer page 4).

An AC mains lead or ﬂ uorescent light is near the cables. Keep other appliances and leads away from this unit’s cables. If possible in your area, turn the AC mains lead’s plug or connector over to reverse the lead’s polarity.

Incorrect operation performed. Read the instructions and try again.

You plugged the AC mains lead in for the ﬁ rst time or there was a power failure recently. Set the time (refer page 12).

Check and correct the speaker cord connections (refer page 4). If this does not ﬁ x the problem, there is a power supply problem. Consult the dealer.

Use an outdoor antenna (refer page 5).

Turn the TV off or separate it from the unit.

Separate the antenna from other cables and cords.

Frequency step is set to 10 kHz. Change the frequency step to 9 kHz (refer page 11).

When there is a television set nearby

The picture on the TV disappears or stripes appear on the screen.

Using the cassette deck

Recording is not possible.

Playing discs

The display is wrong or play won’t start.

The remote control

Remote control doesn’t work.

The location and orientation of the antenna are incorrect. If you are using an indoor antenna, change to an outdoor antenna (refer page 5). The TV antenna wire is too close to the unit. Separate the antenna wire of the TV set from the unit.

If the erasure prevention tabs have been removed, cover the holes with adhesive tape (refer page 10).

The disc may be upside down (refer page 7). Wipe the disc. Replace the disc if it is scratched, warped, or nonstandard. Condensation may have formed inside the unit due to a sudden change in temperature. Wait about an hour for it to clear and try again.

Check that the batteries are inserted correctly (refer page 5). Replace the batteries if they are worn.

RQT7903

Page 15

Speciﬁ cations

AMPLIFIER SECTION

RMS OUTPUT POWER both channel driven

10 % Total harmonic distortion 1 kHz

(Low channel) 15

kHz

8 (High channel) 5 Total Bi-Amp power 20 W per channel PMPO output power (For South East Asia only) 430 W Output impedance Headphone 16-32 Ω

FM TUNER SECTION

Frequency range 87.50–108.00 MHz (50 kHz step) Sensitivity 1.5 µV (IHF) S/N 26 dB 1.25 µV Antenna terminal(s) 75 Ω (unbalanced)

AM TUNER SECTION

Frequency range 522 – 1629 kHz (9 kHz steps) 520 – 1630 kHz (10 kHz steps) Sensitivity S/N 20 dB (at 999 kHz) 500 µV/m

CASSETTE DECK SECTION

Track system 4 track, 2 channel Heads

Record/playback Solid permalloy head Erasure AC erase head

Motor DC servo motor Recording system AC bias 100 kHz Erase system AC erase 100 kHz Tape speed 4.8 cm/s Overall frequency response (+3, -6 dB) at DECK OUT NORMAL 35 Hz – 14 kHz S/N RATIO 50 dB (A weighted) Wow and ﬂ utter 0.08 % (WRMS) Fast forward and rewind time Approx. 120 seconds with C-60 cassette tape

W per channel (6 Ω)

CD SECTION

Disc played CD/MP3/CD-R/RW 8 cm/12 cm Bit rate MP3 32 kbps − 320 kbps Sampling frequency

CD 44.1 kHz MP3 32 kHz, 44.1 kHz, 48 kHz

Decoding 16 bit linear Pickup

Beam source/wavelength Semiconductor laser/780 nm (For Norge) Bølgelengde 780 nm Laserstyrke Ingen farlig stråling sendes ut

Number of channels Stereo Wow and ﬂ utter Below measurable limit Digital ﬁ lter 8 D/A converter MASH (1 bit DAC) Frequency response 20 Hz − 20 kHz (+1, -2 dB)

SPEAKER SECTION

Type 2 way, 2 speaker system Speaker(s)

Woofer 10 cm cone type Tweeter 6 Impedance High 6 Low 6 Input power (IEC) High 40 W (Max) Low 40 W (Max)

Sound pressure level 82 dB/W (1.0 m) Crossover frequency 3.5 kHz Frequency range 50 Hz–30 kHz (–16 dB)

55 Hz–25 kHz (–10 dB)

Dimensions (W x H x D) 140 mm x 225 mm x 218 mm Mass 1.95 kg

GENERAL

Power supply For Continental Europe AC 230 V, 50 Hz For United Kingdom, Australia and N.Z. AC 230-240 V, 50 Hz For South East Asia AC 220-240 V, 50/60 Hz

cm cone type

Ω Ω

Maintenance

To clean this unit, wipe with a soft, dry cloth.

• Never use alcohol, paint thinner or benzine to clean this unit.

• Before using chemically treated cloth, read the instructions that came with the cloth carefully.

Power consumption 62 W Dimensions (W x H x D) 165 mm x 228 mm x 315.6 mm Mass 3.8 kg

Power consumption in standby mode 0.8 W

Note:

1. Speciﬁ cations are subject to change without notice. Mass and dimensions are approximate.

2. Total harmonic distortion is measured by the digital spectrum analyzer.

Clean the heads regularly to assure good quality playback and recording. Use a cleaning tape (not included).

RQT7903

Page 16

CAUTION!

THIS PRODUCT UTILIZES A LASER. USE OF CONTROLS OR ADJUSTMENTS OR PERFORMANCE OF PROCEDURES OTHER THAN THOSE SPECIFIED HEREIN MAY RESULT IN HAZARDOUS RADIATION EXPOSURE. DO NOT OPEN COVERS AND DO NOT REPAIR YOURSELF. REFER SERVICING TO QUALIFIED PERSONNEL.

CAUTION!

• DO NOT INSTALL OR PLACE THIS UNIT IN A BOOK CASE, BUILT-IN CABINET OR IN ANOTHER CONFINED SPACE. ENSURE THE UNIT IS WELL VENTILATED. TO PREVENT RISK OF ELECTRIC SHOCK OR FIRE HAZARD DUE TO OVERHEATING, ENSURE THAT CURTAINS AND ANY OTHER MATERIALS DO NOT OBSTRUCT THE VENTILATION VENTS.

• DO NOT OBSTRUCT THE UNIT’S VENTILATION OPENINGS WITH NEWSPAPERS, TABLECLOTHS, CURTAINS, AND SIMILAR ITEMS.

• DO NOT PLACE SOURCES OF NAKED FLAMES, SUCH AS LIGHTED CANDLES, ON THE UNIT.

• DISPOSE OF BATTERIES IN AN ENVIRONMENTALLY FRIENDLY MANNER.

WARNING:

TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK OR PRODUCT DAMAGE, DO NOT EXPOSE THIS APPARATUS TO RAIN, MOISTURE, DRIPPING OR SPLASHING AND THAT NO OBJECTS FILLED WITH LIQUIDS, SUCH AS VASES, SHALL BE PLACED ON THE APPARATUS.

SUOMI

VAROITUS!

LAITTEEN KÄYTTÄMINEN MUULLA KUIN TÄSSÄ KÄYTTÖOHJEESSA MAINITULLA TAVALL A SAATTAA ALTIS TAA KÄYTTÄJÄN TURVALLISUUSLUOKAN 1 YLITTÄ VÄLLE NÄKYMÄTTÖMÄLLE LASERSÄTEILYLLE.

VAROITUS!

• ÄLÄ ASENNA TAI LAITA TÄTÄ LAITETTA KABINET TITYYPPISEEN KIRJAKAAPPIIN TAI MUUHUN SULJET TUUN TILAAN, JOTTA TUULETUS ONNISTUISI. VAR MISTA, ETTÄ VERHO TAI MIKÄÄN MUU MATERIAALI EI HUONONNA TUULETUSTA, JOTTA VÄLTETTÄISIIN YLIKUUMENEMISESTA JOHTUVA SÄHKÖISKU- TAI TU LIPALOVAARA.

• ÄLÄ PEITÄ LAITTEEN TUULETUSAUKKOJA SANOMALEHDELLÄ, PÖYTÄLIINALLA, VERHOLLA TAI MUULLA VASTAAVALLA ESINEELLÄ.

• ÄLÄ ASETA PALAVAA KYNTTILÄÄ TAI MUUTA AVOTULEN LÄHDETTÄ LAITTEEN PÄÄLLE.

• HÄVITÄ PARISTOT LUONTOA VAHINGOITTAMATTOMALLA TAVALLA.

VAROITUS:

TULIPALO-, SÄHKÖISKUVAARAN TAI TUOTETTA KOHTAAVAN MUUN VAHINGON VÄHENTÄMISEKSI EI LAITETTA SAA ALTISTAA SATEELLE, KOSTEUDELLE, VESIPISAROILLE TAI ROISKEELLE, EIKÄ NESTETTÄ SISÄLTÄVIÄ ESINEITÄ, KUTEN ESIMERKIKSI MALJAKOITA, SAA ASETTAA LAITTEEN PÄÄLLE.

NORSK

ADVARSEL!

DETTE PRODUKTET ANVENDER EN LASER. BETJENING AV KONTROLLER, JUSTERINGER ELLER ANDRE INNGREP ENN DE SOM ER BESKREVET I DENNE BRUKSANVISNING, KAN FØRE TIL FARLIG BE STRÅLING. DEKSLER MÅ IKKE ÅPNES, OG FORSØK ALDRI Å RE PARERE APPARATET PÅ EGENHÅND. ALT SERVICE OG REPARASJONSARBEID MÅ UTFØRES AV KVALIFI SERT PERSONELL.

Matsushita Electric Industrial Co., Ltd. Web Site: http://www.panasonic.co.jp/global/

ADVARSEL!

• APPARATET MÅ IKKE PLASSERES I EN BOKHYLLE, ET INNEBYGGET KABINETT ELLER ET ANNET LUKKET STED HVOR VENTILASJONSFORHOLDENE ER UTIL STREKKELIGE. SØRG FOR AT GARDINER ELLER LIGNENDE IKKE FORVERRER VENTILASJONSFORHOL DENE, SÅ RISIKO FOR ELEKTRISK SJOKK ELLER BRANN FORÅRSAKET AV OVERHETING UNNGÅS.

• APPARATETS VENTILASJONSÅPNINGER MÅ IKKE DEKKES TIL MED AVISER, BORDDUKER, GARDINER OG LIGNENDE.

• PLASSER IKKE ÅPEN ILD, SLIK SOM LEVENDE LYS, OPPÅ APPARATET.

• BRUKTE BATTERIER MÅ KASSERES UTEN FARE FOR MILJØET.

ADVARSEL:

FOR Å REDUSERE FAREN FOR BRANN, ELEKTRISK STØT ELLER SKADER PÅ PRODUKTET, MÅ DETTE APPARATET IKKE UTSETTES FOR REGN, FUKTIGHET, VANNDRÅPER ELLER VANNSPRUT. DET MÅ HELLER IKKE PLASSERES GJENSTANDER FYLT MED VANN, SLIK SOM BLOMSTERVASER, OPPÅ APPARATET.

RQT7903-3B

L1204CP3035
