Operating Instructions

Model No. SC-MT1

Before connecting, operating or adjusting this product, please read these instructions completely. Please keep this manual for future reference.

Region number supported by this player

Region numbers are allocated to DVD players and software according to where they are sold.

≥The region number of this player is “1”. ≥The player will play DVD-Video marked with labels containing

“1” or “ALL”.

Example:

1 ALL

AUDIO/VIDEO

[For\U.S.A.\only]

The warranty can be found on page 39.

RQT6719-P

Page 2

Dear customer

Thank you for purchasing this product. For optimum performance and safety, please read these instructions carefully.

Operations in these instructions are described mainly with the remote control, but you can do the operations on the main unit if the controls are the same.

CAUTION!

THIS PRODUCT UTILIZES A LASER. USE OF CONTROLS OR ADJUSTMENTS OR PERFORMANCE OF PROCEDURES OTHER THAN THOSE SPECIFIED HEREIN MAY RESULT IN HAZARDOUS RADIATION EXPOSURE.

Getting started

DO NOT OPEN COVERS AND DO NOT REPAIR YOURSELF. REFER SERVICING TO QUALIFIED PERSONNEL.

WARNING:

TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK OR PRODUCT DAMAGE, DO NOT EXPOSE THIS APPARATUS TO RAIN, MOISTURE, DRIPPING OR SPLASHING AND THAT NO OBJECTS FILLED WITH LIQUIDS, SUCH AS VASES, SHALL BE PLACED ON THE APPARATUS.

CAUTION:

TO PREVENT ELECTRIC SHOCK MATCH WIDE BLADE OF PLUG TO WIDE SLOT, FULLY INSERT.

CAUTION!

DO NOT INSTALL OR PLACE THIS UNIT IN A BOOKCASE, BUILT-IN CABINET OR IN ANOTHER CONFINED SPACE. ENSURE THE UNIT IS WELL VENTILATED. TO PREVENT RISK OF ELECTRIC SHOCK OR FIRE HAZARD DUE TO OVERHEATING, ENSURE THAT CURTAINS AND ANY OTHER MATERIALS DO NOT OBSTRUCT THE VENTILATION VENTS.

CAUTION



RISK OF ELECTRIC SHOCK

DO NOT OPEN

System SC-MT1

Main unit SA-MT1

Front and surround speakers

Center speaker SB-PC700

Active subwoofer SB-WA340

THE FOLLOWING APPLIES ONLY IN THE U.S.A.:

SB-FS801A

(Inside of product)

CAUTION:

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

≥Reorient or relocate the receiving antenna. ≥Increase the separation between the equipment and receiver. ≥Connect the equipment into an outlet on a circuit different from

that to which the receiver is connected.

≥Consult the dealer or an experienced radio/TV technician for

help.

Any unauthorized changes or modifications to this equipment would void the user’s authority to operate this device.

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

RQT6719

CAUTION: TO REDUCE THE RISK OF ELECTRIC

SHOCK, DO NOT REMOVE SCREWS. NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

Page 3

Accessories

Please check and identify the supplied accessories. Use numbers indicated in parentheses when asking for replacement parts.

(Only for U.S.A.) To order accessories contact 1-800-332-5368 or web site (http:// www.panasonic.com). (Only for Canada) To order accessories, call the dealer from whom you have made your purchase.

∏ 1 Remote control

(EUR7623X20)

∏ 2 Batteries

for remote control

∏ 1 AC power supply cord

(RJA0065-1D)

∏ 1 AM loop antenna

(N1DAAAA00001)

∏ 1 FM indoor antenna

(RSA0007-J)

∏ 1 Video cable

(RJL1P016815A)

∏ 1 System cable

(K1HA25HA0001)

∏ 5 Speaker cables

(RFA2163-J) 3k4-m (13-foot) cables 2k10-m (33-foot) cables

Getting started

Accessories. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

IMPORTANT SAFETY INSTRUCTIONS . . . . . . . . . . . . . . 4

Disc information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Simple setup

STEP1 Locating . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6

STEP2 Speakers . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7

STEP3 Television . . . . . . . . . . . . . . . . . . . . . . . . . . . .8

STEP4 Connecting the subwoofer, antennas, and

AC power supply cord. . . . . . . . . . . . . . . . . .9

STEP5 The remote control. . . . . . . . . . . . . . . . . . . . .9

Other speaker setup options

STEP6 QUICK SETUP. . . . . . . . . . . . . . . . . . . . . . . .11

Control reference guide . . . . . . . . . . . . . . . . . . . . . . . . . 12

Disc operations

Discs—Basic play. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

Position Memory function . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

Skipping items/Fast forward and rewind—SEARCH. . . . . . . . . 14

Slow-motion play/Frame-by-frame viewing . . . . . . . . . . . . . . . . 14

Discs—Convenient functions . . . . . . . . . . . . . . . . . . . . 15

Starting play from a selected item/Repeat play. . . . . . . . . . . . . 15

A-B repeat play/Selecting groups to play . . . . . . . . . . . . . . . . . 15

All group play/Program play/Random play . . . . . . . . . . . . . . . . 16

Soundtracks/Subtitles . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

Marking places to play again/Variable Zoom function. . . . . . . . 18

WMA/MP3 and CD text navigation menus . . . . . . . . . . 19

Playing the programs or play lists on DVD-RAM. . . . . 20

Selecting a program to play—DIRECT NAVIGATOR . . . . . . . . 20

Using the play list menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

Using On-Screen Menu Icons . . . . . . . . . . . . . . . . . . . . 21

Common procedures/Progress indicator. . . . . . . . . . . . . . . . . . 21

Disc information/Unit information . . . . . . . . . . . . . . . . . . . . . . . 22

Getting started

∏ 1 Antenna plug

(K2RC021B0001)

∏ 1 Sheet of speaker-cable stickers

[Note]

The included AC power supply cord is for use with this unit only. Do not use it with other equipment.

User memo:

DATE OF PURCHASE _______________________________ DEALER NAME ____________________________________ DEALER ADDRESS _________________________________

__________________________________________________

TELEPHONE NUMBER ______________________________

The model number and serial number of this product can be found on either the back or the bottom of the unit. Please note them in the space provided below and keep for future reference.

MODEL NUMBER SC-MT1

SERIAL NUMBER

Radio operations

The radio . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

Manual tuning/Preset tuning . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

Sound field/sound quality operations

Sound field . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

Dolby Digital and DTS/Dolby Pro Logic. . . . . . . . . . . . . . . . . . . 25

Speaker level adjustments . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

Super Surround/Sound Field Control . . . . . . . . . . . . . . . . . . . . 26

Center Focus. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

Custom Sound Memory—Store the sound settings . . . . . . . . . 26

Sound quality . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

Adjusting the bass. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

Re-master—Enjoying more natural sound . . . . . . . . . . . . . . . . 27

Other functions

Convenient functions . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

Muting the volume/Dimming the display . . . . . . . . . . . . . . . . . . 28

The sleep timer/Using headphones. . . . . . . . . . . . . . . . . . . . . . 28

Changing settings. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

Language code list . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

Optional antenna connections . . . . . . . . . . . . . . . . . . . 31

Operating a television or video cassette recorder . . . 32

Reference

Glossary. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34

Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35

Troubleshooting guide. . . . . . . . . . . . . . . . . . . . . . . . . . 36

Product Service. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38

Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38

Limited Warranty (U.S.A.). . . . . . . . . . . . . . . . . . . . . . . . 39

RQT6719

Page 4

IMPORTANT SAFETY INSTRUCTIONS

Read these operating instructions carefully before using the unit. Follow the safety instructions on the unit and the applicable safety instructions listed below. Keep these operating instructions handy for future reference.

1) Read these instructions.

2) Keep these instructions.

3) Heed all warnings.

4) Follow all instructions.

5) Do not use this apparatus near water.

6) Clean only with dry cloth.

7) Do not block any ventilation openings. Install in accordance with

Getting started

the manufacturer’s instructions.

8) Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.

9) Do not defeat the safety purpose of the polarized or groundingtype plug. A polarized plug has two blades with one wider than the other. A grounding-type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.

10) Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.

11) Only use attachments/accessories specified by the manufacturer.

12) Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.

13) Unplug this apparatus during lightning storms or when unused for long periods of time.

14) Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

RQT6719

Page 5

Disc information

∫ Discs that can be played

Disc type Logo Indication used in

instructions

DVD-RAM [RAM]

DVD-Audio [DVD-A]

DVD-Video [DVD-V]

DVD-R

Video CD [VCD]

CD [CD]

Including CD text

CD-R/RW — [WMA]

[MP3]

≥Use discs with the above logos and that conform to specifications.

The unit cannot play other discs correctly.

≥Do not use irregularly shaped discs (e.g. heart-shaped), as these

can damage the unit.

∫ Discs that cannot be played

PAL discs (except DVD-Audio), DVD-ROM, CD-ROM, CDV, CD-G, iRW, DVD-RW, CVD, SVCD, SACD, Divx Video Discs and Photo CD.

∫ Disc structure

Disc structure and the labels given to the items on discs depend on the disc type. Track: the smallest division on DVD-Audio, CDs and Video CDs,

or a single WMA/MP3 file.

Chapter: the smallest division on DVD-Video. Group: collections of tracks on DVD-Audio and equivalent to

folders or albums on data discs.

Title: the largest division on DVD-Video, usually an entire

movie.

Program: the division on DVD-RAM equivalent to a single

recording.

Play list: a group of scenes on DVD-RAM. Scene: DVD-RAM program sections specified and grouped into

play lists on a DVD video recorder.

Playing DVDs and Video CDs

The producer of these discs can control how they are played so you may not always be able to control play as described in these operating instructions (for example if the play time is not displayed or if a Video CD has menus). Read the disc’s instructions carefully.

∫ CD-R and CD-RW discs

This unit can play CD-R/RW (audio recording disc) recorded with CD-DA, video CD, WMA or MP3. Finalize

the disc after recording.

∫ DVD-R discs

Panasonic DVD-R recorded and finalized§ on a Panasonic DVD video recorder are played as DVD-Video on this unit.

A process that allows play on compatible equipment.

∫ DVD-RAM discs

DVD-RAM discs must meet the following conditions for this unit to be able to play them.

≥Remove TYPE 2 and 4 discs from their cartridges before use, then

return them when you are finished. Read the instructions for the disc carefully.

≥Do not allow the disc to become dirty or scratched. Store discs in

their cartridges and ensure the disc label and cartridge label face the same way.

≥Some parts of the disc, for example where one program ends and

another begins, may not play smoothly.

[Note]

It may not be possible to play CD-R, CD-RW, DVD-R and DVD-RAM in all cases due to the type of disc or condition of the recording.

∫ Playing PAL system DVD-Audio

This unit converts PAL to NTSC for play. The picture is compressed to show it in its entirety, but this may cause it to be stretched vertically.

∫ To clean discs

DVD-Audio, DVD-Video, Video CD, CD

Wipe with a damp cloth and then wipe dry.

DVD-RAM, DVD-R

≥Clean with an optional DVD-RAM/PD disc cleaner (LF-K200DCA1,

where available).

≥Never use cloths or cleaners for CDs etc.

∫ Handling precautions

≥Do not write on the label side with a ball-point pen or other writing

instrument.

≥Do not use record cleaning sprays, benzine, thinner, static

electricity prevention liquids or any other solvent.

≥Do not attach labels or stickers to discs. (Do not use discs with

exposed adhesive from tape or left over peeled-off stickers.)

≥Do not use scratch-proof protectors or covers. ≥Do not use discs printed with label printers available on the market.

Getting started

RQT6719

Page 6

Simple setup

STEP

Locating

RQT6719

≥Use only supplied speakers

Using other speakers can damage the unit and sound quality will be negatively affected.

≥Set the speakers up on an even surface to prevent them from

falling. Take proper precautions to prevent the speakers from falling if you cannot set them up on an even surface.

Positioning for best effect

How you set up your speakers can affect the bass and the sound field. Note the following points.

≥Place speakers on flat secure bases. ≥Placing speakers too close to floors, walls, and corners can result

in excessive bass. Cover walls and windows with thick curtain.

Main unit

Note

Keep your speakers at least 10 mm ( for proper ventilation.

Center speaker

≥You can also put this speaker directly under the television. ≥Vibration caused by the center speaker can disrupt the picture if it

is placed directly on the television. Put the center speaker on a rack or shelf.

Subwoofer

Place to the right of the television, on the floor or a sturdy shelf so that it won’t cause vibration. Leave 10 cm (4q) on the right for the woofer to be effective. Leave 10 cm (4q) at the rear for ventilation.

/32q) away from the system

Page 7

STEP2 Speakers

Simple setup

[1] Attaching the stickers to the speaker

cables

Attach the speaker-cable stickers to make connection easier.

[2] Connecting the speakers

[Note]

≥Never short-circuit positive (i) and negative (j) speaker wires. ≥Be sure to connect only positive (copper) wires to positive (i)

terminals and negative (silver) wires to negative (j) terminals. Incorrect connection can damage the speakers.

RQT6719

Page 8

STEP3 Television

∫ Connecting a television with a VIDEO IN terminal

Television

(not included)

VIDEO IN

Video cable

Simple setup

Connect directly to your television.

Video cable

Do not connect the unit through a video cassette recorder, because the picture may not be played correctly due to the copy guard.

(included)

AM ANT

EXT LOOP

FM ANT

VCR/AUXINTV

75½

RL RL

COMPONENT VIDEO OUT

(480P/480I)

S VIDEO

OUT

VIDEO

OUT

∫ Connecting a television with COMPONENT VIDEO terminals

COMPONENT VIDEO OUT terminal

These terminals can be used for either interlace or progressive

COMPONENT

VIDEO IN

Video cables

(not included)

AM ANT

EXT LOOP

FM ANT

VCR/AUXINTV

75½

RL RL

COMPONENT

VIDEO OUT

(480P/480I)

S VIDEO

OUT

VIDEO

OUT

output and provide a purer picture than the S VIDEO OUT terminal. Connection using these terminals outputs the color difference signals (P order to achieve high fidelity in reproducing colors. ≥The description of the component video input terminals depends

on the television or monitor (e.g. Y/P Connect to terminals of the same color.

≥After making this connection, change the black level for a better

picture (➡ page 29, Video—Black Level Control).

B/PR) and luminance signal (Y) separately in

B/PR, Y/B-Y/R-Y, Y/CB/CR).

RQT6719

To enjoy progressive video

≥Connect to the component video (480P) input terminals on a television compatible with this unit’s copy guard system.

(Video will not be displayed correctly if connected to an incompatible television.)

≥Press [PROGRESSIVE OUT] on the main unit so “PROG.” appears on the display (➡ page 13). ≥All televisions manufactured by Panasonic and that have 480P input connectors are compatible. Consult the manufacturer if

you have another brand of television.

∫ Connecting a television with an S-VIDEO IN terminal

S VIDEO OUT terminal

The S video terminal achieves a more vivid picture than the VIDEO OUT terminal by separating the chrominance (C) and luminance

S VIDEO

S-video cable

(not included)

AM ANT

EXT LOOP

FM ANT

VCR/AUXINTV

75½

RL RL

COMPONENT

VIDEO OUT

(480P/480I)

S VIDEO

OUT

VIDEO

OUT

(Y) signals. (Actual results depend on the television.)

Page 9

STEP4

Connecting the subwoofer, antennas, and AC power supply cord

Simple setup

Conserving power

The unit consumes power (approx. 0.5 W) even when it is turned off with [Í]. To save power when the unit is not to be used for a long time, unplug it from the household AC outlet.

AM ANT

EXT LOOP

FM ANT

75½

VCR/AUXINTV

RL RL

S VIDEO

VIDEO

COMPONENT VIDEO OUT

(480P/480I)

OUT

Remember to reset the radio stations and any other memory items before using the unit again. Information you enter into the unit’s memory remains intact for up to 2 weeks after the AC power supply cord is disconnected.

Do not;

≥mix old and new batteries. ≥use different types at the same time. ≥heat or expose to flame. ≥take apart or short circuit. ≥attempt to recharge alkaline or manganese batteries. ≥use batteries if the covering has been peeled off.

Mishandling of batteries can cause electrolyte leakage which can damage items the fluid contacts and may cause a fire.

Remove if the remote control is not going to be used for a long period of time. Store in a cool, dark place.

∫ Use

Aim at the sensor, avoiding obstacles, at a maximum range of 7 m (23 feet) directly in front of the unit.

RQT6719

Page 10

Simple setup

Other speaker setup options

Attaching to a wall

[Note]

The wall or pillar on which the speakers are to be attached should be capable of supporting 10 kg (22 Ib.) per screw.

1 Remove the stand.

BEFORE REMOVING THE STAND

≥Take the speaker cable out of the stand’s hole if it is

threaded through.

≥Lay the speaker on a soft cloth.

Unscrew the screw with a Phillips-head screwdriver.

2 Screw a screw (not included) into the

wall.

30–35 mm

/16q–13/8q)

‰7.5–9.4 mm

/64q–3/8q)

(

8–11 mm

(

Wall

/8q–7/16q)

3 Fit the speaker securely onto the

screw with the hole or holes.

Stand

Preparation

Remove the stand (➡ step 1 above). Ensure the stands meet these conditions before purchasing them. ≥Observe the diameter and length of the screws and the distance

between screws as shown in the diagram.

≥The stands must be able to support over 10 kg (22 lb.). ≥The stands must be stable even if the speakers are in a high

position.

Notes on speaker use

≥You can damage your speakers and shorten their useful life if you

play sound at high levels over extended periods.

≥Reduce the volume in the following cases to avoid damage.

–When playing distorted sound. –When the speakers are receiving howling from a record player,

noise from FM broadcasts, or continuous signals from an

oscillator, test disc, or electronic instrument. –When adjusting the sound quality. –When turning the unit on or off.

If irregular coloring occurs on your television

These speakers are designed to be used close to a television, but the picture may be affected with some televisions and setup combinations.

If this occurs, turn the television off for about 30 minutes.

The television’s demagnetizing function should correct the problem. If it persists, move the speakers further away from the television.

RQT6719

Page 11

STEP6 QUICK SETUP

AV SYSTEM

4–7

SLEEP

FL DISPLAY

DIMMER

PLAY MODE

MIX 2CH

REPEAT

POSITION

MEMORY

TOP MENU

DIRECT

NAVIGATOR

DISPLAY

TV VOL

MUTING

S.SRND

FM MODE

SETUP

TV VCR /AUX

TUNER/BAND DVD/CD

TV/VIDEO

123

456

7809

CANCEL

SKIP

SLOW/SEARCH

ENTER

VOLUME

C.S.M.

SFC

PL C.FOCUS

ZOOM GROUP AUDIO

10/

ENTER

PLAY LIST

RETURN

TV VOL

SUBWOOFER

LEVEL

CH SELECT

TEST

RETURN

3, 7

The QUICK SETUP screen appears when you press [SETUP] the first time after purchase and assists you to make necessary settings. You can access this screen again later if you need to (➡ page 29, Others—QUICK SETUP).

Preparation

Turn on the television and select the appropriate video input on the television to suit the connections for the unit.

1 Press [Í] to turn on the unit. 2 Press [DVD/CD] to select “DVD/CD”

as the source.

3 Press [SETUP] to show the QUICK

SETUP screen.

SETUP

SELECT

ENTER RETURN

QUICK SETUP

Select the menu language.

English

Français

Español

4 Press [3, 4] to select the menu

language and press [ENTER].

5 Press [3, 4] to select “Yes” to

continue and press [ENTER].

6 Press [3, 4, 2, 1] to select the item

and press [ENTER].

≥Audio Language (➡ page 29) ≥Subtitle Language (➡ page 29) ≥TV Type (➡ below) ≥TV Aspect (➡ below)

7 Press [ENTER] and then [SETUP] to

end the settings.

Simple setup

To return to the previous screen

Press [RETURN].

∫ TV Type

Select to suit the type of television.

≥Standard (Direct View TV) (factory preset) ≥CRT Projector ≥LCD TV/Projector ≥Projection TV ≥Plasma TV

∫ TV Aspect

Select “4:3” (regular) or “16:9” (widescreen) to suit your television. If you have a regular 4:3 television, you can also select how video on some discs is shown (➡ page 29, Video—TV Aspect).

≥4:3 Pan&Scan (factory preset)

Widescreen software is expanded to fill the screen of a 4:3 aspect television (unless prohibited by the producer of the disc).

≥4:3 Letterbox

Widescreen software is shown in the letterbox style on a 4:3 aspect television.

RQT6719

Page 12

Control reference guide

Remote control

1 Standby/on switch [Í] . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11

2 Sleep button [SLEEP] . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .28

AV SYSTEM

1 2

SLEEP

FL DISPLAY

DIMMER

PLAY MODE

MIX 2CH

Getting started

REPEAT

POSITION

MEMORY

SKIP

TV VCR/AUX

TUNER/BAND DVD/CD

TV/VIDEO

123

456

7809

10/

CANCEL

ENTER

SLOW/SEARCH

C D

SFC

PLAY LIST

RETURN

TV VOL

SUBWOOFER

LEVEL

CH SELECT

TEST

I J

: ; <

= >

? @

TOP MENU

DIRECT

NAVIGATOR

DISPLAY

TV VOL

MUTING

S.SRND

FM MODE

SETUP

ENTER

VOLUME

C.S.M.

PL C.FOCUS

ZOOM GROUP AUDIO

3 FL display, Dimmer button [FL DISPLAY, –DIMMER] . . .25, 28 4 Play mode, Mix 2ch button

[PLAY MODE, –MIX 2CH] . . . . . . . . . . . . . . . . . . . . . . . . .16, 25

5 Repeat button [REPEAT]. . . . . . . . . . . . . . . . . . . . . . . . . . . . .15

6 Cancel button [CANCEL] . . . . . . . . . . . . . . . . . . . . . . . . . . . .16

7 Position memory button [POSITION MEMORY] . . . . . . . . . .13

8 Skip, Preset channel, TV channel buttons

[: 9, SKIP, X CH W] . . . . . . . . . . . . . . . . . . . . . .14, 24, 32

9 Basic operation buttons . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13

: Top menu, Direct navigator button

[TOP MENU, DIRECT NAVIGATOR] . . . . . . . . . . . . . . . . .14, 20

; Cursor buttons [3, 4, 2, 1], Enter button [ENTER] . . . . .11

< Display, TV volume down button

[DISPLAY, TV VOLs] . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21, 32

= Volume buttons [s, r, VOLUME] . . . . . . . . . . . . . . . . . . . . . .13

> Muting button [MUTING] . . . . . . . . . . . . . . . . . . . . . . . . . . . . .28

? Sound field, sound quality buttons . . . . . . . . . . . . . . . . .25–27

@ FM mode, Setup button [FM MODE, SETUP] . . . . . . . . .11, 24

A Zoom button [ZOOM] . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18

B AV system standby/on button [Í, AV SYSTEM]. . . . . . . . . .32

C Source select buttons

≥Face towards this unit to change the source. ≥Press [TV] or [VCR/AUX] first to operate a Panasonic television

or video cassette recorder (➡ page 32).

D TV/VIDEO button [TV/VIDEO] . . . . . . . . . . . . . . . . . . . . . . . . .32

E Numbered buttons [1–9, 0, S10/ENTER]. . . . . . . . . . . . . . . .14

F Slow/search, Tuning buttons

[6, 5 SLOW/SEARCH] . . . . . . . . . . . . . . . . . . . . . . . .14, 24

G Menu, Play list button [MENU, PLAY LIST] . . . . . . . . . . .14, 20

H Return, TV volume up button [RETURN, TV VOLr] . . . .11, 32

I Audio button [AUDIO] . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17

J Group button [GROUP] . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15

Main unit

1 Standby/on switch [Í/I, POWER] . . . . . . . . . . . . . . . . . . . . .11

Press to switch the unit from on to standby mode or vice versa.

VOLUME

In standby mode, the unit is still consuming a small amount of power.

K Disc tray . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13

L Display

PROGRESSIVE OUT PHONES

DOWN

SELECTOR

M Open/close button [<] . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13

N Basic operation buttons . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13

O Volume control [VOLUME, DOWN, UP] . . . . . . . . . . . . . . . . .13

P Standby/on indicator [Í]

When the unit is connected to the AC mains supply, this indicator lights up in standby mode and goes out when the unit is turned on.

Q Remote control signal sensor

R Progressive out button [PROGRESSIVE OUT]. . . . . . . . . . .13

S Source select button [SELECTOR]

DVD /CD >FM>AM>TV>VCR/AUX

T Skip, Preset channel buttons [: 9] . . . . . . . . . . . .14, 24

U Shuttle dial [SEARCH 6, 5] . . . . . . . . . . . . . . . . . . . . . .14

V Headphone jack [PHONES] . . . . . . . . . . . . . . . . . . . . . . . . . .28

Subwoofer

W AC supply indicator [AC IN]

This indicator lights when the unit is connected to the AC mains

supply.

RQT6719

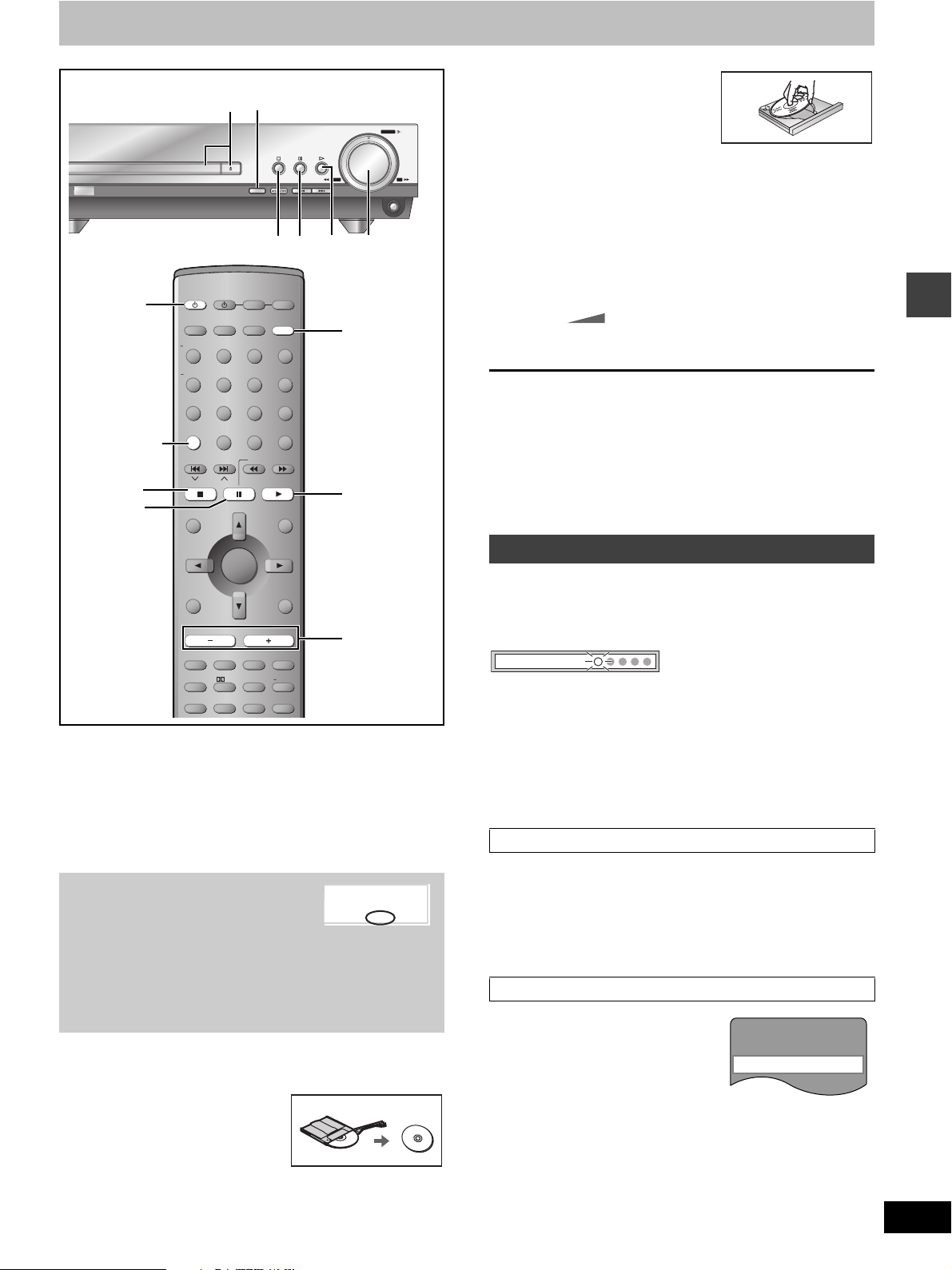

Page 13

Discs—Basic play

Press PLAY to Preview Chapters

POSITION

MEMORY

[RAM] [DVD-A] [DVD-V] [VCD] [CD] [WMA] [MP3]

Preparation

≥Press [Í] to turn on the unit. ≥Turn on the television and select the appropriate video input on the

television to suit the connections for the unit.

1 Press [DVD/CD] to select “DVD/CD” as

the source.

To enjoy progressive video

Press [PROGRESSIVE OUT].

The television will be disrupted for a moment but this is normal. ≥Output from this unit is interlace if you have connected to the

television through VIDEO OUT or S-VIDEO OUT or playing PAL discs, even if “PROG.” is on the display.

≥When progressive output is on, closed captions will not be

displayed.

2 Press [<] to open the disc tray and

place the disc.

≥Remove TYPE 2 and 4 discs

from their cartridges before use. [RAM]

≥Label-up (With double-sided

discs, load so the label for the

PROGRESSIVE OUT

VOLUME

side you want to play is facing up.)

3 Press [1] (play).

The disc tray closes and play begins. [WMA] [MP3] [CD] (CD text only) Group and track names are displayed on the television.

≥To turn the display on or off ➡ page 22, Disc information 5 ≥You can also use the navigation menus to control play

(➡ page 19).

;

DOWN

PROGRESSIVE OUT PHONES

SELECTOR

∫

4 Adjust the volume.

AV SYSTEM

TV VCR /AUX

SLEEP

FL DISPLAY

DIMMER

PLAY MODE

MIX 2CH

REPEAT

POSITION MEMORY

∫

;

TOP MENU

DIRECT

NAVIGATOR

DISPLAY

TV VOL

MUTING

S.SRND PL C.FOCUS

FM MODE

SETUP

TUNER/BAND DVD/CD

TV/VIDEO

123

456

7809

CANCEL

SKIP

SLOW/SEARCH

ENTER

VOLUME

C.S.M. SFC

ZOOM GROUP AUDIO

10/

ENTER

PLAY LIST

RETURN

TV VOL

SUBWOOFER

LEVEL

CH SELECT

TEST

AAC

DTS

ZOOM

DIGITAL

C.F

SFC

PROG.

SSS

CSM

D.MIX

Turn the inner dial on the main unit.

– – dB

0 dB

(Minimum) (Maximum)

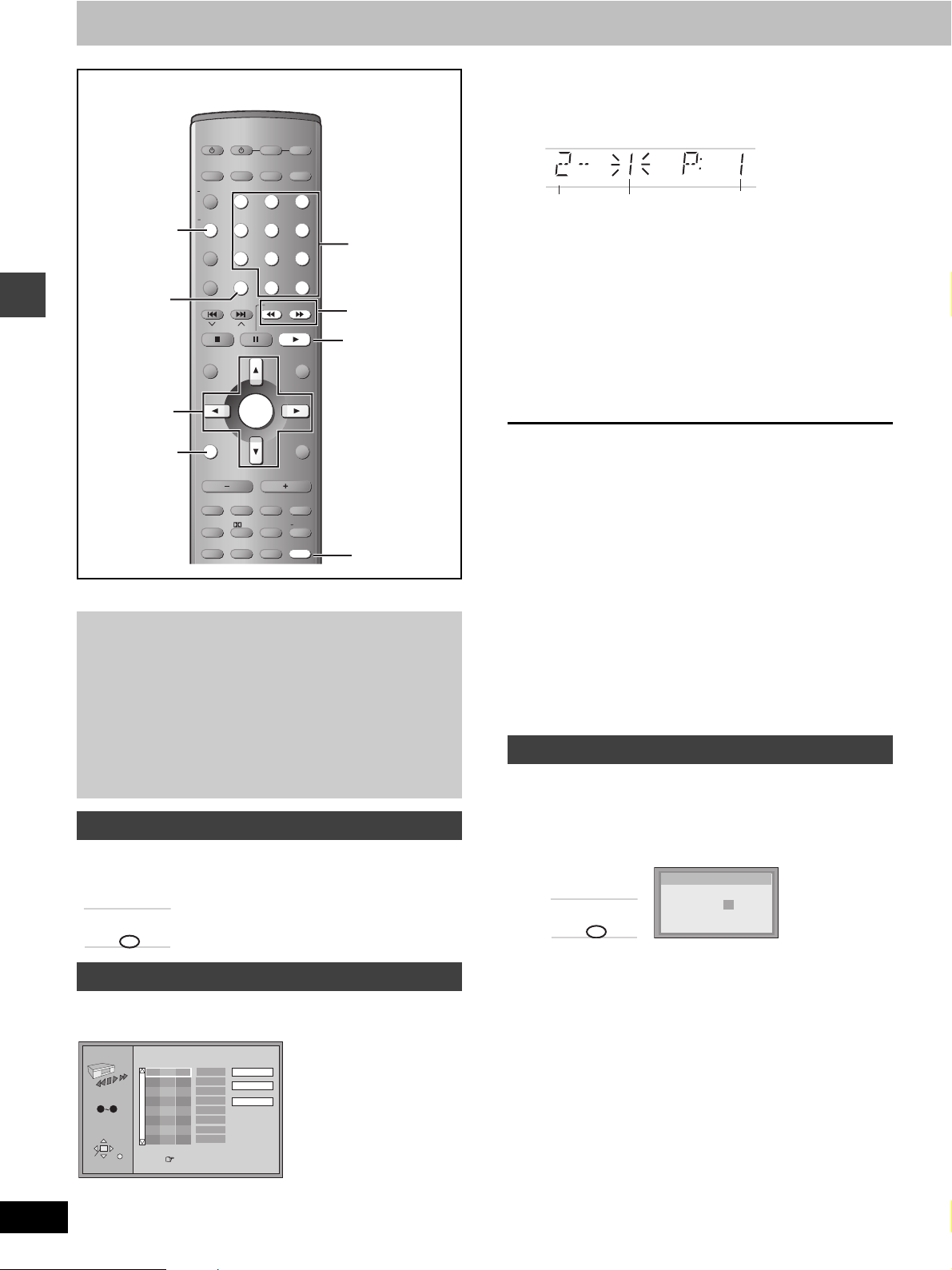

∫ To pause play

Press [;] during play. Press [1] (play) to restart play.

∫ To stop play

Press [∫] (➡ below, Resume function).

[Note]

≥If “$” appears on the television

The operation is prohibited by the unit or disc.

≥It may take some time for play to start but this is normal.

Position Memory function

[RAM] [DVD-A] [DVD-V] [VCD] [CD] [WMA] [MP3]

During play

Press [POSITION MEMORY] to memorize a position.

Position memorized

Press again to replace the position. This position is saved even if you turn the unit off, change the source or open the disc tray. When you turn the unit on, reselect “DVD/CD” or reinsert the disc whose position you memorized, “RESUME” lights on the display. Press [1] (play) to start play from the memorized position. The position is cleared. ≥You can memorize positions on up to five different discs at a time.

When you memorize another position, the earliest position is replaced.

Resume function

“RESUME” lights on the display when the unit has recorded the position at which you stopped play. Press [1] (play) to start play from that position. ≥The position is cleared when you:

—Turn the unit off. —Select another source or open the disc tray.

≥Press [∫] to clear the position.

Chapter Preview

[DVD-V]

The following message appears immediately after you press [1] (play) when “RESUME” is displayed. Press [1] (play) while the message is displayed and the beginning portions of each chapter up to the current one are played. Full play resumes from the point where you pressed [∫] or [POSITION MEMORY]. (This feature works only within a title.) If you do not press [1] (play), the message disappears and play starts from where you pressed [∫] or [POSITION MEMORY].

Disc operations

RQT6719

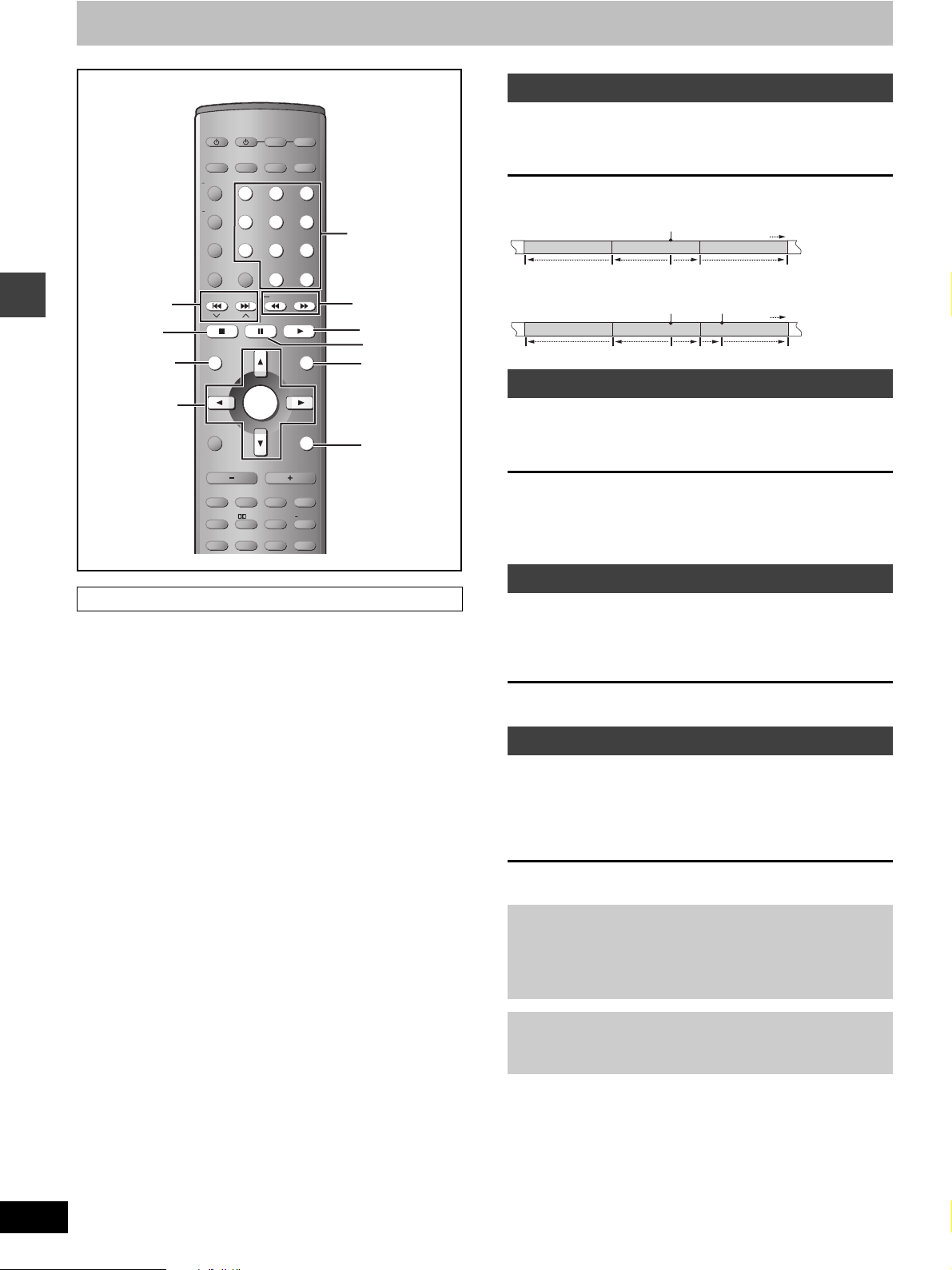

Page 14

Disc operations

Discs—Basic play

SLEEP

FL DISPLAY

DIMMER

PLAY MODE

MIX 2CH

REPEAT

POSITION

MEMORY

SKIP

: 9

∫

TOP MENU

342 1

ENTER

TOP MENU

DIRECT

NAVIGATOR

DISPLAY

TV VOL

MUTING

S.SRND

FM MODE

SETUP

AV SYSTEM

TV VCR /AUX

TUNER/BAND DVD/CD

TV/VIDEO

123

456

7809

CANCEL

SKIP

SLOW/SEARCH

ENTER

VOLUME

C.S.M.

SFC

PL C.FOCUS

ZOOM GROUP AUDIO

10/ENTER

SLOW/SEARCH

PLAY LIST

RETURN

TV VOL

SUBWOOFER

LEVEL

CH SELECT

TEST

Numbered buttons

6 5

1 ;

RETURN

Skipping items

[RAM] [DVD-A] [DVD-V] [VCD] [CD] [WMA] [MP3]

During play or while paused

Press [:] or [9].

≥Each press increases the number of skips.

[DVD-A] [DVD-V] [VCD] [CD] [WMA] [MP3]

Play position

Chapter/track

twice

[RAM]

Program/scene

twice

Chapter/track

once

Play position Marker

Program/scene Program/scene

once

Chapter/track

twice

three times

twice

Fast forward and rewind—SEARCH

[RAM] [DVD-A] [DVD-V] [VCD] [CD] [WMA] [MP3]

During play

Press [6] or [5].

≥Turn the shuttle dial [6, 5] (the outer dial) on the main unit.

Play starts again when you release the shuttle dial.

≥Audio will be heard during search for most discs. You can turn this

audio off if you want to (➡ page 29, Audio—Audio during Search).

≥[DVD-V] You can slow down or speed up play (➡ page 21).

When a menu appears on the television

[DVD-A] [DVD-V] [VCD]

Press the numbered buttons to select an item.

To select a 2-digit number

Example: To select item 23, press [S10] ➡ [2] ➡ [3]. ≥When playing DVDs, you can also use [3, 4, 2, 1] to select

items. Press [ENTER] to confirm your selection.

To return to the menu screen

[DVD-A] [DVD-V] [TOP MENU]: Shows the first menu screen. [DVD-V] [MENU]: Shows the menu screen.

[VCD] [RETURN]: Shows the menu screen.

[Note]

≥The disc continues to rotate while the menu is displayed even after

you finish playing an item. Press [∫] when you finish to preserve the unit’s motor and your television screen.

Slow-motion play

[RAM] [DVD-V] [VCD] [DVD-A] (Motion picture parts only)

While paused

Press [6] or [5].

Turn the shuttle dial [6, 5] (the outer dial) on the main unit. The picture stills again when you release the shuttle dial.

Frame-by-frame viewing

[RAM] [DVD-V] [VCD] [DVD-A] (Motion picture parts only)

While paused

Press [2] or [1].

The frame changes each time you press the button.

≥The frames change in succession if you press and hold the button. ≥Pressing [;] also activates forward frame-by-frame.

Notes

≥The speed of search and slow-motion increases up to 5 steps. ≥Press [1] (play) to restart play. ≥You cannot move backwards with Video CD during frame-by-

frame and slow-motion.

When playing Video CDs with playback control

Pressing buttons to perform skip, search or slow-motion may take you to a menu screen.

RQT6719

Page 15

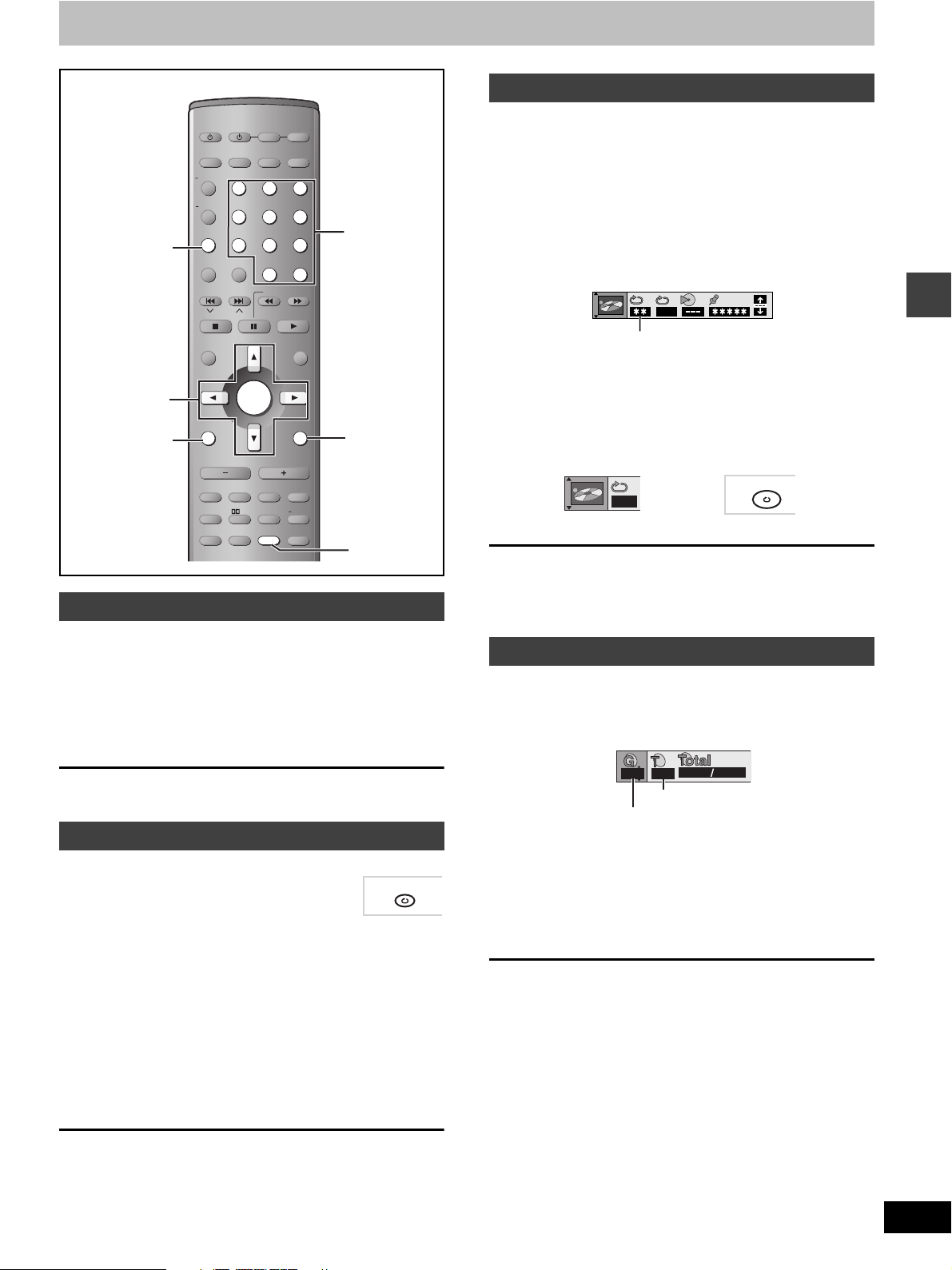

Discs—Convenient functions

AV SYSTEM

TV VCR /AUX

SLEEP

FL DISPLAY

DIMMER

PLAY MODE

MIX 2CH

REPEAT

POSITION

MEMORY

TOP MENU

DIRECT

NAVIGATOR

342 1

ENTER

DISPLAY

TV VOL

MUTING

S.SRND

FM MODE

SETUP

Starting play from a selected item

[RAM] [DVD-A] [DVD-V] [VCD] [CD] [WMA] [MP3]

Press the numbered buttons to select the item.

Play starts from the selected item.

To select a 2-digit number

Example: To select track 23, press [S10] ➡ [2] ➡ [3]. [WMA] [MP3] [2] ➡ [3] ➡ [ENTER]

[Note\

This works only when stopped with some discs.

Repeat play

[RAM] [DVD-A] [DVD-V] [VCD] [CD] [WMA] [MP3]

During play

Press [REPEAT].

Each time you press the button:

[RAM]

Program>All (Entire disc)>Off

≥During play list play

Scene>Playlist>Off

[DVD-V]

Chapter>Title

[VCD] [CD]

Tr ac k >All (Entire disc)>Off

[DVD-A] [WMA] [MP3]

Tr ac k >Group

§During all group ([DVD-A]), program and random play

“All” is displayed.

>Off

TUNER/BAND DVD/CD

TV/VIDEO

123

456

7809

CANCEL

SKIP

SLOW/SEARCH

ENTER

VOLUME

C.S.M.

SFC

PL C.FOCUS

ZOOM GROUP AUDIO

10/ENTER

PLAY LIST

RETURN

TV VOL

SUBWOOFER

LEVEL

CH SELECT

TEST

Numbered buttons

RETURN

GROUP

TUNED

ST RDS PS SLEEP

JPEG

MP3 WMA

MONO

PTY

A-B repeat play

[RAM] [DVD-A] [DVD-V] [VCD] [CD] [WMA] [MP3] You can repeat a section between points A and B within a program, title or track.

1 During play

Press [DISPLAY] until the unit information screen is displayed

(➡ page 22).

2 Press [3, 4] to select the play menu.

OFF

A-B Repeat

Press [2, 1] to select “A-B Repeat” and 1 Press [ENTER] at the starting point

(A).

2 Press [ENTER] at the finishing

point (B).

TUNED

MONO

RDS PS

PTY

SLEEP

A B

JPEG

MP3 WMA

A-B repeat starts.

To return to the normal play

Press [ENTER] again.

To clear the menus

Press [RETURN] until the menu disappears.

Selecting groups to play

[DVD-A] [WMA] [MP3]

1 During play

Press [GROUP].

Example [MP3]

Group number

118

Track number in group

2 Press the numbered buttons to select

the group and press [ENTER].

3 Press the numbered buttons to select

the track number and press [ENTER].

[DVD-A]

Playing all the groups in succession (➡ page 16, All group play) Playing bonus groups

Some discs contain bonus groups. If a password screen appears after selecting a group, enter the password with the numbered buttons. Refer also to the disc’s jacket.

Disc operations

∫ To repeat only your favorite tracks/chapters

Start program play (➡ page 16) and press [REPEAT] to select the repeat mode.

RQT6719

Page 16

Discs—Convenient functions

AV SYSTEM

TV VCR /AUX

Disc operations

PLAY MODE

CANCEL

342 1

ENTER

DISPLAY

SLEEP

FL DISPLAY

DIMMER

PLAY MODE

MIX 2CH

REPEAT

POSITION MEMORY

TOP MENU

DIRECT

NAVIGATOR

DISPLAY

TV VOL

MUTING

S.SRND

FM MODE

SETUP

TUNER/BAND DVD/CD

TV/VIDEO

123

456

7809

CANCEL

SKIP

SLOW/SEARCH

ENTER

VOLUME

C.S.M.

SFC

PL C.FOCUS

ZOOM GROUP AUDIO

10/ENTER

PLAY LIST

RETURN

TV VOL

SUBWOOFER

LEVEL

CH SELECT

TEST

[DVD-A] [DVD-V] [VCD] [CD] [WMA] [MP3]

Common procedures for all group, program and random play

While stopped Press [PLAY MODE].

Each time you press the button: All group ([DVD-A])>Program>Random

^-------=Off (Normal play)(-----------}

[DVD-A]

If you select bonus groups, you will have to enter a password (➡ page 15).

All group play

[DVD-A]

Press [1] (play).

ALL

PGM

ALL

Program play

You can select up to 32 items to play in the order you choose. Example [DVD-V]

PROGRAM

SELECT NUMBER

SELECT

ENTER RETURN

Choose a title and chapter, then press ENTER.

No Time

Press PLAY to start

Play

Clear

Clear all

Numbered buttons

SLOW/SEARCH

6 5

AUDIO

1 Press the numbered buttons to select

a title, chapter, group or track ([WMA] [MP3] then press [ENTER]).

CHAP

ALL

RND

D.MIX

TTL

Title No.

PGM

Chapter No.

≥To select a 2-digit number

Example: To select item 25, press [S10] ➡ [2] ➡ [5].

[WMA] [MP3]:[2] ➡ [5] ➡ [ENTER]

≥Repeat this step to program other items. ≥To select an item using the cursor buttons

Press [ENTER] and [3, 4] to select an item, then press [ENTER] again to register the number. All the items in the selected disc, title or group are selected when you select “ALL”.

Program No.

2 Press [1] (play).

To add or change the program Press [3, 4] to select an available item, then repeat step 1.

To move to the page before or after the one shown

Press [6, 5].

To clear an item

1 Select the item you want to clear with [3, 4]. 2 Press [CANCEL], or select “Clear” with [3, 4, 2, 1] and press

[ENTER].

To clear the whole program

Select “Clear all” with [3, 4, 2, 1] and press [ENTER].

[Note\

≥[DVD-V] [WMA] [MP3]

Times are not displayed while programming.

≥The program is cleared when you switch the unit to standby, open

the disc tray, select another source, or exit the program mode by pressing [PLAY MODE].

Random play

1 [DVD-A] [DVD-V]

Press the numbered buttons to select a title or a group.

Example [DVD-V]

Random Playback

Title 1

ALL

PGM

RND

[DVD-A]

≥You can select more than one group. ≥To enter all groups, select “All” using [2, 1] and press

[ENTER].

≥To deselect a group, press the numbered buttons

corresponding to the group you want to clear.

0Press PLAY to start

2 Press [1] (play).

RQT6719

Page 17

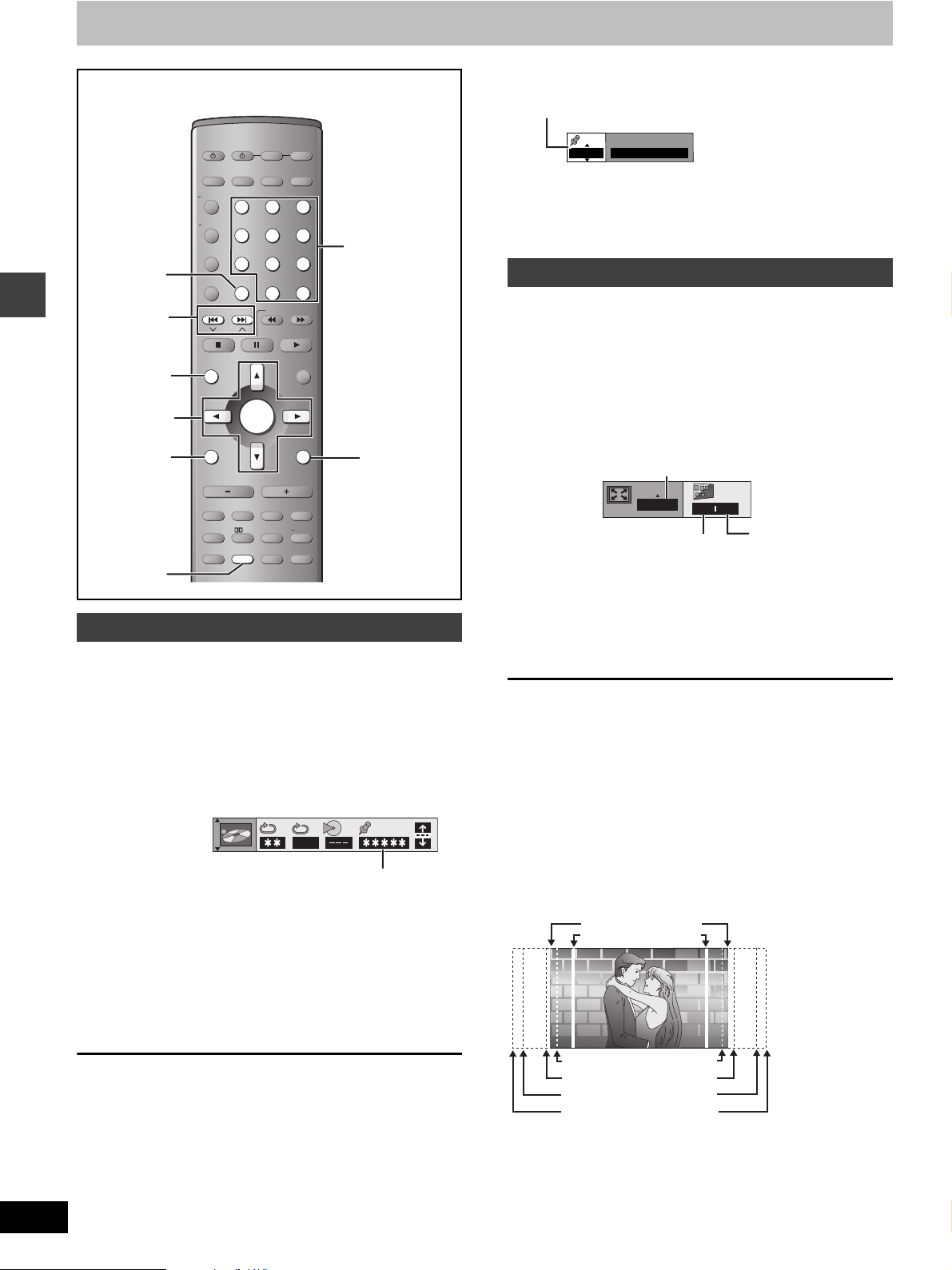

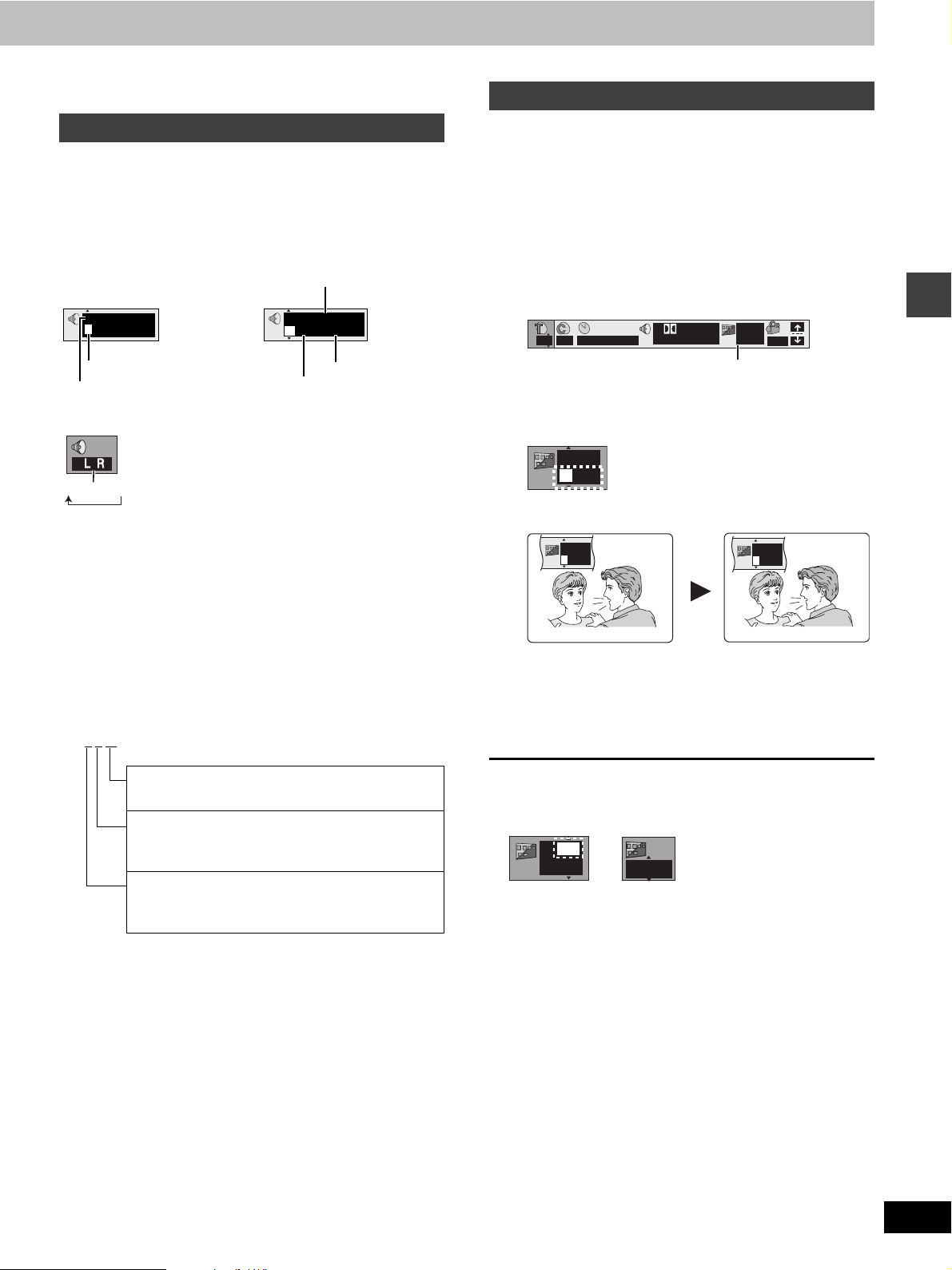

≥“–” or “––” is displayed instead of the language number in

1 ENGON2 FRA

circumstances such as when no language is recorded on the disc.

Subtitles

Soundtracks

[RAM] [DVD-A] [DVD-V] [VCD] (Discs with multiple soundtracks)

During play

Press [AUDIO].

The number changes each time you press the button.

Signal type/data

[DVD-A]

LPCM

192k24b 2ch

Soundtrack selected

Soundtrack playing Audio language

[VCD]

[RAM]

LR>L )R

≥You can also use this button to turn the vocals on and off on

karaoke discs. Read the disc’s instructions for details.

[DVD-A]

≥Play restarts from the beginning of the soundtrack when changing

soundtracks that are accompanied by still pictures.

≥Even if a second soundtrack isn’t recorded, two soundtrack

numbers will normally be shown when you press [AUDIO]. The soundtrack currently playing is number 1.

Signal type/data

LPCM/PPCM/ÎDigital/DTS: Signal type k (kHz): Sampling frequency b (bit): Number of bits ch (channel): Number of channels

Example:

/2 .1ch

[DVD-V]

(➡ below)

Digital

1 English 3/2.1 ch

Number of channels (➡ below)

[DVD-A] (Motion picture parts only) [DVD-V]

(Discs with multiple subtitle languages) You can change the subtitle language and turn the subtitles on and off.

[RAM]

You can turn the subtitles on and off.

1 During play

Press [DISPLAY] until the disc information screen is displayed.

2 2 1 : 46 : 50

Digital

1 ENG 3/2.1 ch

Subtitle Number

1 ENG

2 Press [2, 1] to select “Subtitle

Number”.

1 ENG

3 Press [3, 4] to select the language.

I love you

≥In some cases, the subtitle language is not changed to the

selected one immediately.

≥Refer to “Audio/Subtitle language” (➡ page 22) for language

abbreviations.

≥If the subtitles overlap closed captions recorded on discs, turn the

subtitles off.

Je t’aime

Disc operations

.1: Low frequency effect

.1: (not displayed if there is no signal)

.0: No surround .1: Mono surround .2: Stereo surround (left/right)

.1: Center .2: Front leftiFront right .3: Front leftiFront rightiCenter

To clear/display the subtitles

1Press [2, 1] to highlight the following icon.

[DVD-A] [DVD-V]

OFF

1 ENG

2Press [3, 4] to select “OFF” or “ON”.

[RAM]

OFF

∫ Changing the position and brightness of the

subtitles (➡ page 23)

RQT6719

Page 18

Discs—Convenient functions

AV SYSTEM

TV VCR /AUX

Disc operations

CANCEL

SKIP

: 9

TOP MENU

342 1

ENTER

DISPLAY

SLEEP

FL DISPLAY

DIMMER

PLAY MODE

MIX 2CH

REPEAT

POSITION MEMORY

TOP MENU

DIRECT

NAVIGATOR

DISPLAY

TV VOL

MUTING

S.SRND

FM MODE

SETUP

TUNER/BAND DVD/CD

TV/VIDEO

123

456

7809

CANCEL

SKIP

SLOW/SEARCH

ENTER

VOLUME

C.S.M.

SFC

PL C.FOCUS

ZOOM GROUP AUDIO

10/ENTER

PLAY LIST

RETURN

TV VOL

SUBWOOFER

LEVEL

CH SELECT

TEST

Numbered buttons

RETURN

ZOOM

Marking places to play again

[RAM] [DVD-A] [DVD-V] [VCD] [CD] [WMA] [MP3] You can mark a position so you can return to it easily at a later time.

1 During play

Press [DISPLAY] until the unit information screen is displayed

(➡ page 22).

2 Press [3, 4] to select the play menu.

Example [DVD-V]

OFF

Marker

3 Press [2, 1] to select “Marker” and

press [ENTER].

[RAM]

Press [1] to select an asterisk (¢).

[RAM]

To mark the eleventh point and beyond

1Press [2, 1] to select the marker pin icon.

12345678910

1–10

2Press [3, 4] to select “11–20”. You can select the next group when the current group is full.

[Note]

Markers added with this unit clear when you switch the unit to standby, change the source, or open the disc tray.

Variable Zoom function

[RAM] [DVD-V] [VCD] [DVD-A] (Motion picture parts only)

Change the zoom ratio so the picture expands to the optimum size to fill the screen.

Preparation

Change the setting “TV Aspect” to suit your television (➡ page 29).

During play

Press [ZOOM] to select the aspect ratio.

Zoom display

Example [DVD-V]

x1.00

Subtitle Position (➡ page 23)

Each time you press the button:

4:3 Standard>European Vista>16:9 Standard

Cinemascope2<Cinemascope1<American Vista

≥Refer to the disc’s instructions and “Screen size” below for the

aspect ratio of the picture.

To restore the original ratio

Press [ZOOM] until the ratio returns to 1.00. ≥The ratio also returns to 1.00 when you open the disc tray, change

the source or switch the unit to standby.

≥The ratio may return to 1.00 when a menu is displayed.

Making fine adjustments to the zoom ratio

While the ZOOM icon is displayed Press [3,4]. The ratio changes in 0.01 units between 1.00 and 1.60 and in 0.02 units between 1.60 and 2.00.

∫ Screen size

Movies are made using a variety of screen sizes.

16:9 Standard (16:9)

4:3 Standard (4:3)

0 0

Subtitle Brightness (➡ page 23)

RQT6719

4 Press [ENTER] at the point you want

to mark.

To mark another position

Up to 5 points ([RAM] only: up to 999 points) 1 Press [1] to select “ 2 Press [ENTER] at the point.

To recall or erase a marker

1 Press [2, 1] to select a marker. 2 Press [ENTER] to recall or press [CANCEL] to erase.

¢”.

European Vista (1.66:1)

American Vista (1.85:1)

Cinemascope1 (2.35:1)

Cinemascope2 (2.55:1)

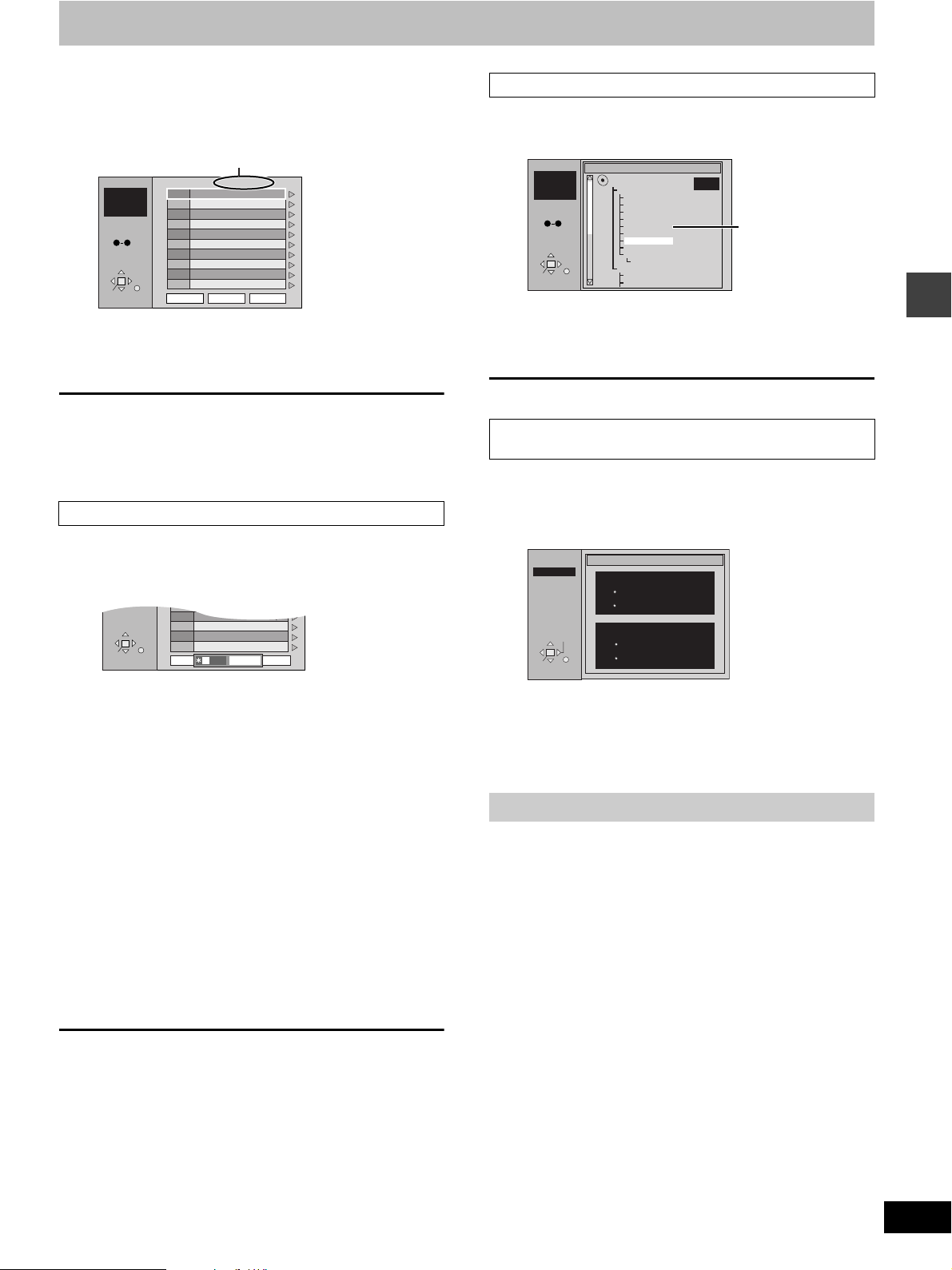

Page 19

WMA/MP3 and CD text navigation menus

Another Pineapple Board The Golden Ship Fall In The Frozen Season Violet Sky Pink Island

NextFindPrev

6 7 8 9

SELECT

ENTER RETURN

SELECT NUMBER

Find

[WMA] [MP3] [CD] (CD text only) Various menus help you find items you want to start play.

1 Press [TOP MENU].

Example [MP3] navigation menu

Group name

G 1 T 1 Total 223

SELECT NUMBER

SELECT

ENTER RETURN

No Group: 001 My favorite Tree

001 Both Ends Freezing

002 Lady Starfish

003 Life on Jupiter

004 Metal Glue

005 Paint It Yellow

006 Pyjamamama

007 Shrimps from Mars

008 Starperson

009 Velvet Cuppermine

010 Ziggy Starfish

Find

NextPrev

2 Press [3, 4] to select a track, and

press [ENTER].

“0” indicates the track currently playing.

To show other pages

Press [3, 4, 2, 1] to select “Prev” or “Next” and press [ENTER]. After listing all the tracks in one group, the list for the next group appears.

To exit the navigation menu

Press [TOP MENU].

Track title search

Example: finding a track including the word “LOVE”

1 Press [3, 4] to select “Find” and

press [ENTER].

To use the tree screen to find a group [WMA] [MP3]

1 Press [1] while a track is highlighted

to display a tree screen.

G 8 T 14 Total 123

SELECT NUMBER

SELECT

ENTER RETURN

Tree

MP3 music 001 My favorite 001 Brazilian pops 002 Chinese pops 003 Czech pops 004 Hungarian pops 005 Liner notes 006 Japanese pops

007 Mexican pops 008 Philippine pops 009 Swedish pops 001 Momoko 002 Standard number 001 Piano solo 002 Vocal

G 7/16

You cannot select groups that contain no compatible files.

2 Press [3, 4, 2, 1] to select a group

and press [ENTER].

The navigation menu for the group appears.

To return to the navigation menu

Press [RETURN].

To use the contents screen to find a track

[CD] (CD text only)

You can use the text information recorded on these discs to find a track to play.

1 Press [1] while a track is highlighted

to display the contents screen.

T 10 /14

SELECT

ENTER RETURN

Contents

Disc Title/Artist SHIPWRECKED

ORIGINAL SOUNDTRACK

Track 10 Title/Ar tist Pink Island

Long John Platinum

Disc operations

2 Press [3, 4] to select “L” and press

[ENTER].

Characters change in alphanumeric order each time you press [3]. Repeat this step to enter “O”, “V”, and “E”.

≥Press [:,9] to skip between A, E, I, O, and U. ≥Only uppercase appear but the search also includes lower

case.

≥Press [2] to erase a character. ≥You can erase the asterisk (¢) to search for the first word in

a title.

≥You can enter numbers with the numbered buttons.

3 Press [1] to select “Find” and press

[ENTER].

The search results screen appears.

4 Press [3, 4] to select the track and

press [ENTER].

To return to the navigation menu

Press [RETURN].

2 Press [2, 1] to move through the

tracks and press [ENTER].

See page 34 for details about WMA, MP3, and CD text.

RQT6719

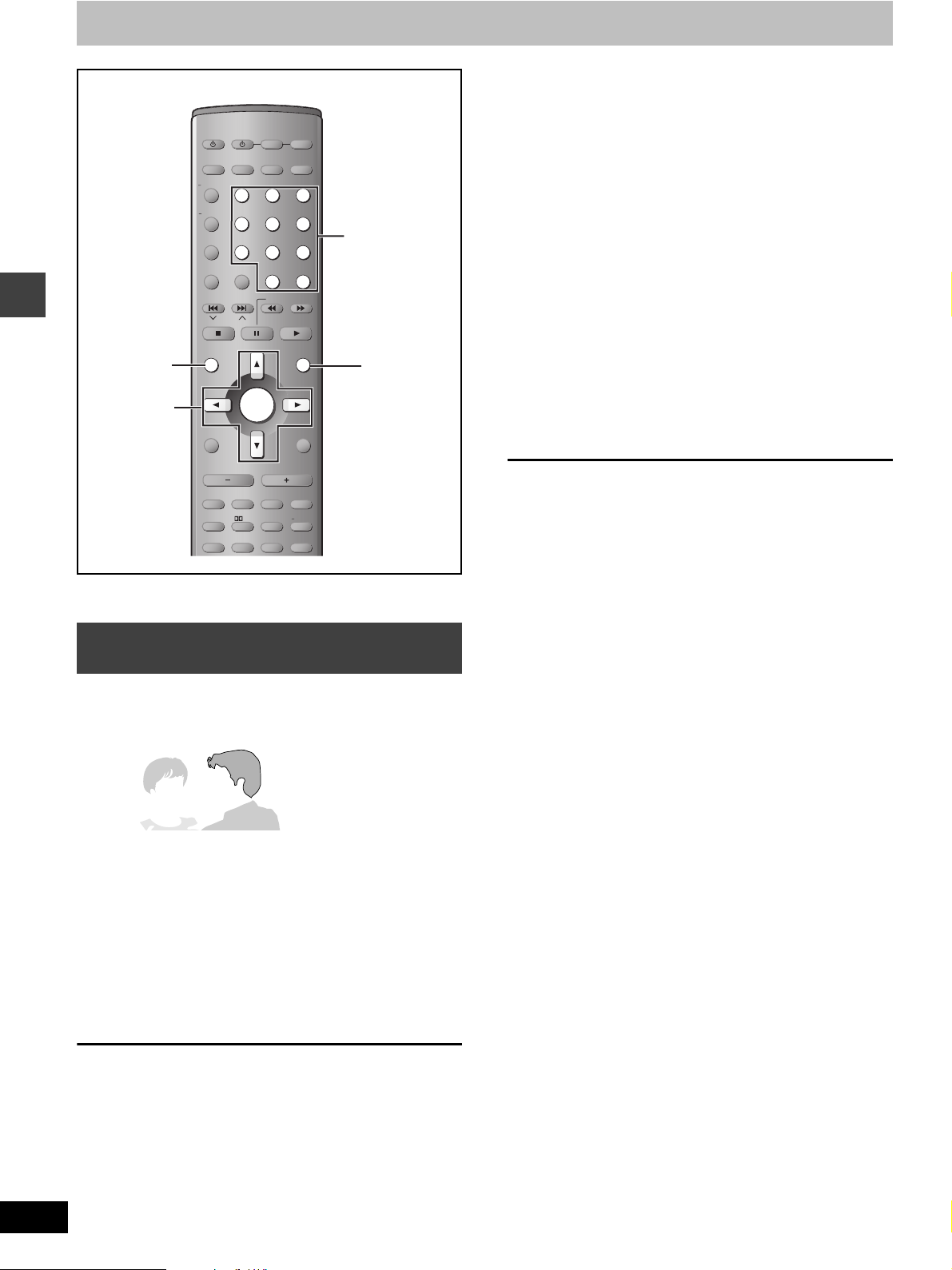

Page 20

Playing the programs or play lists on DVD-RAM

Disc operations

DIRECT

NAVIGATOR

342 1

ENTER

SLEEP

FL DISPLAY

DIMMER

PLAY MODE

MIX 2CH

REPEAT

POSITION MEMORY

TOP MENU

DIRECT

NAVIGATOR

DISPLAY

TV VOL

MUTING

S.SRND

FM MODE

SETUP

AV SYSTEM

TV/VIDEO

CANCEL

SKIP

TV VCR /AUX

TUNER/BAND DVD/CD

123

456

7809

10/ENTER

SLOW/SEARCH

PLAY LIST

ENTER

RETURN

TV VOL

VOLUME

SFC

PL C.FOCUS

SUBWOOFER

LEVEL

CH SELECT

TEST

C.S.M.

ZOOM GROUP AUDIO

Numbered buttons

PLAY LIST

You can play a group of scenes, a play list, created on other equipment such as a DVD video recorder.

1 Press [PLAY LIST].

2 Press [3, 4] to select the play list.

≥You can select play lists with the numbered buttons.

To select a 2-digit number

Example 23: [S10] ➡ [2] ➡ [3]

3 Press [ENTER] to start play.

To clear the play list screen

Press [PLAY LIST].

[RAM]

Selecting a program to play —DIRECT NAVIGATOR

Use the program list to find programs to play.

1 Press [DIRECT NAVIGATOR].

2 Press [3, 4] to select the program.

The selected program plays in the background. ≥You can select programs with the numbered buttons.

To select a 2-digit number

Example 23: [S10] ➡ [2] ➡ [3]

3 Press [ENTER].

The program being played in the background continues.

RQT6719

To clear the program list

Press [DIRECT NAVIGATOR].

[Note]

≥Titles appear only if you have entered them. ≥You cannot change program and disc titles.

Page 21

Using On-Screen Menu Icons

AV SYSTEM

TV VCR /AUX

342 1

ENTER

DISPLAY

SLEEP

FL DISPLAY

DIMMER

PLAY MODE

MIX 2CH

REPEAT

POSITION MEMORY

TOP MENU

DIRECT

NAVIGATOR

DISPLAY

TV VOL

MUTING

S.SRND

FM MODE

SETUP

TUNER/BAND DVD/CD

TV/VIDEO

123

456

7809

CANCEL

SKIP

SLOW/SEARCH

ENTER

VOLUME

C.S.M.

SFC

PL C.FOCUS

ZOOM GROUP AUDIO

10/ENTER

PLAY LIST

RETURN

TV VOL

SUBWOOFER

LEVEL

CH SELECT

TEST

Numbered buttons

RETURN

4 Press [3, 4] to select the setting.

≥Items with “3” or “4” above and below can be changed by

[3, 4].

≥Press [ENTER] if the setting does not change after pressing

[3, 4].

≥Some items require different operations. Read the

explanations on the following pages.

For your reference

≥Depending on the condition of the unit (playing, stopped, etc.) and

the type of software you are playing, there are some items that you cannot select or change.

≥When numbers are displayed (e.g. title No.), the numbered buttons

are also effective for setting. After entering the numbers, press [ENTER] to register the setting.

To clear the menus

Press [RETURN] until the menus disappear.

∫ To change the position of the icons

1Press [2, 1] to select the rightmost icon. 2Press [3, 4] to move the icons.

(There are 5 positions.)

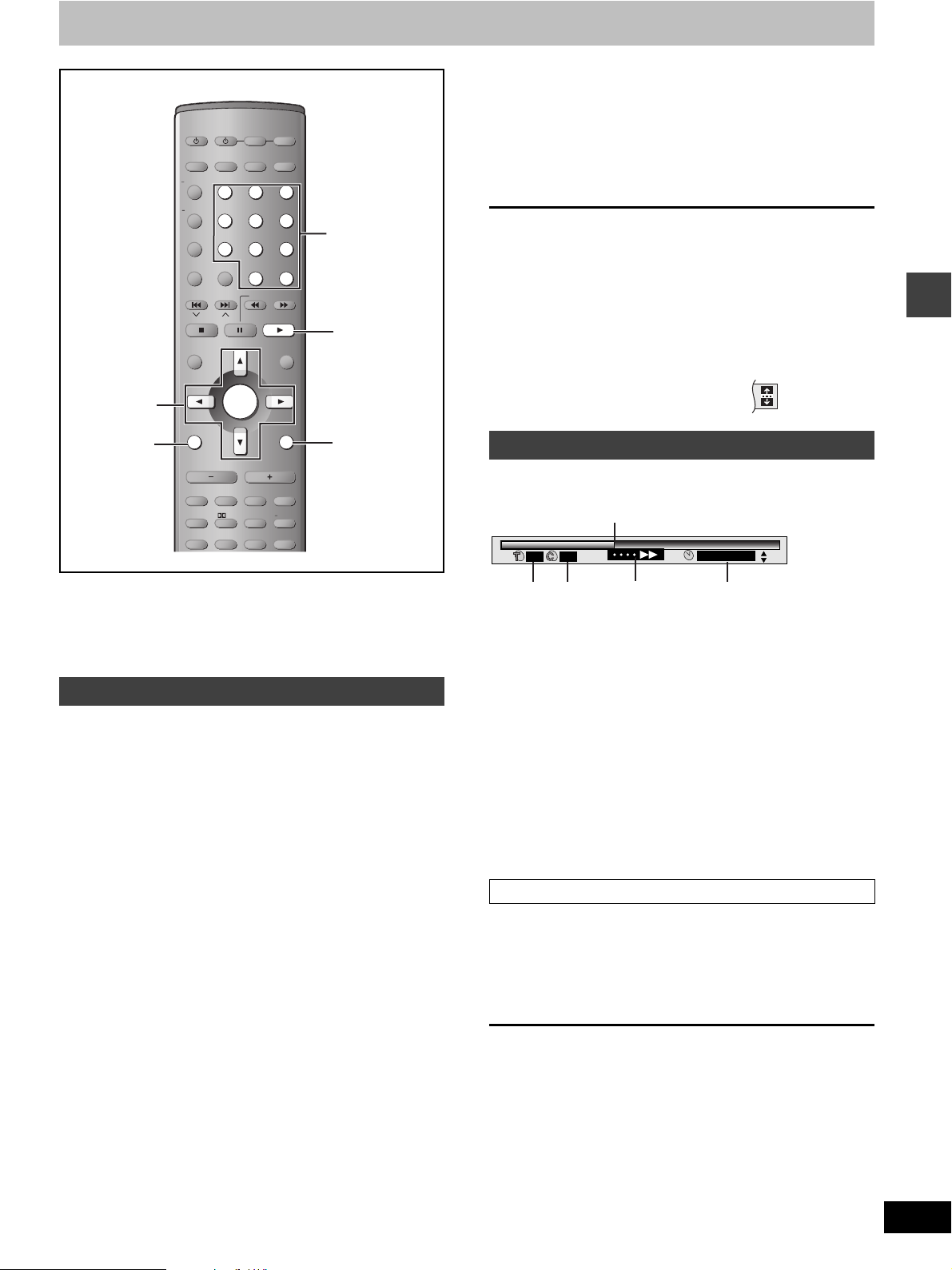

Progress indicator

Indicates how far you have played through an item. Example [DVD-V]

2 2 1 : 46 : 50

Disc operations

[RAM] [DVD-A] [DVD-V] [VCD] [CD] [WMA] [MP3]

On-Screen Menu Icons are menus that contain information about the disc or unit. These menus allow you to perform operations by changing this information.

Common procedures

1 Press [DISPLAY].

Each time you press the button:

[>Disc information (➡ page 22) l; l>Progress indicator (➡ right) l; l>Unit information (➡ page 22) l; {=Original display

2 [Unit\information\only]

While the leftmost icon is highlighted

Press [3, 4] to select the menu.

Each time you press the button:

[>Play menu l;: l>Display menu l;: l>Audio menu l;: {>Picture menu

3 Press [2, 1] to select the item.

1 Current position [RAM] [DVD-A] [DVD-V] [VCD] [CD] [WMA] [MP3] 2 PG: Program number [RAM]

PL: Play list number [RAM] T: Title number [DVD-V]

Track number [VCD] [CD]

G: Group number [DVD-A] [WMA] [MP3]

3 T: Track number in group [DVD-A] [WMA] [MP3]

C: Chapter number [DVD-V]

4 Condition – play, pause, or slow/search

[RAM] [DVD-A] [DVD-V] [VCD] [CD] [WMA] [MP3] Play speed (➡ below)

5 Changing the time display [RAM] [DVD-A] [DVD-V] [VCD] [CD]

Press [3, 4] to show the elapsed play time or remaining time for the program, play list, track or title (or chapter during program and random play). Elapsed play time [WMA] [MP3] (display only, cannot be changed)

Changing play speed

[DVD-V] (Dolby Digital only) You can slow down or speed up play.

During play

Press [2] (slower) or [1] (faster).

There are five speeds: k0.8()k0.9()k1.0 (normal speed)()k1.2()k1.4

After you change the speed, output is in stereo. Sound is stereo as long as “k1.0” is orange. To return to normal play (surround sound), press [1] (play) or [ENTER]. Normal play is also restored when you return the speed to k1.0 and clear the progress indicator.

RQT6719

Page 22

Using On-Screen Menu Icons

Unless otherwise indicated, select items with [2, 1] and change with [3, 4].

Disc information

Disc operations

2 2 1 : 46 : 50

12 18

3456

Voc al

1 ENG 3/2.1 ch

OFF

Digital

128kbps

44.1kHz

1 ENG

L R

;

PG: Program number [RAM] PL: Play list number [RAM] G: Group number [DVD-A] [WMA] [MP3]

T: Title number [DVD-V]

T: Track number [VCD] [CD]

T: Track number in group

T: [DVD-A] [WMA] [MP3]

C: Chapter number [DVD-V]

Time [RAM] [DVD-A] [DVD-V] Select a position to start play by specifying a time.

Changing the time display

[RAM] [DVD-A] [DVD-V] [VCD] [CD] ([WMA] [MP3] Display only)

[>Elapsed play time for the program, play list, title or l>track l;: l>Remaining time for the group ([DVD-A]) or disc l>([VCD] [CD]) l;: {>Remaining time for the program, play list, title or track

Numbered

[3, 4]

;

[ENTER]

buttons

;

[ENTER]

Page

Return

Slideshow

Soundtrack [RAM] [DVD-A] [DVD-V]

(➡ page 17)

Subtitle language [DVD-A] [DVD-V] (➡ page 17)

Subtitles on/off [RAM] [DVD-A] [DVD-V]

Audio/Subtitle language

Track information on/off [WMA] C A]

[Play\menu] [Audio\menu]

RQT6719

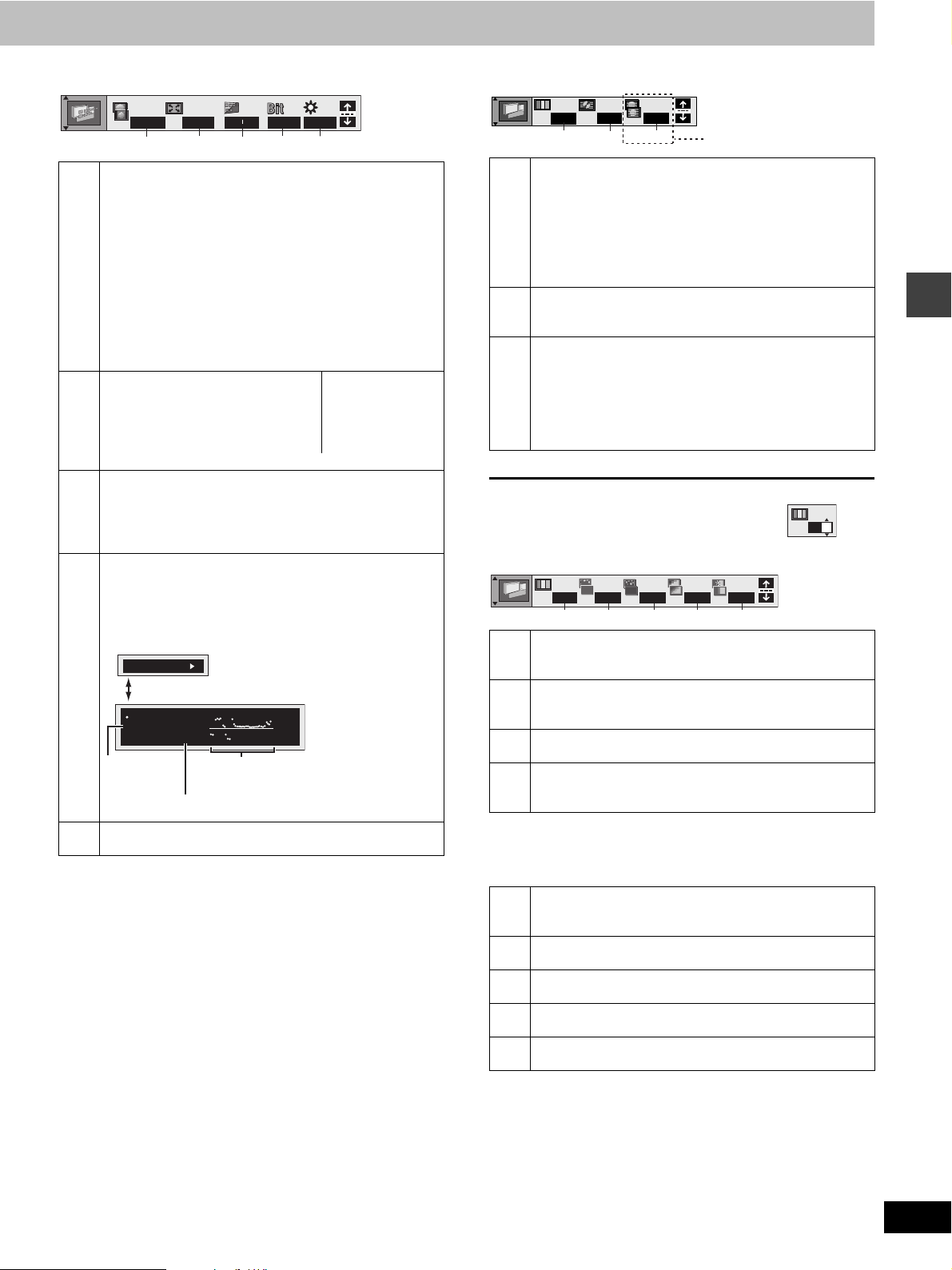

Page 23

[Display\menu]

x1.00

0 0

OFF

5.0 Mbps

Normal

2345

4:3 Aspect

[RAM] [DVD-A] [DVD-V] [VCD] Select how to show images made for 4:3 aspect screens on a 16:9 aspect television. ≥Normal: laterally stretches images made for a 4:3

screen.

≥Auto: expands suitable 4:3 letterbox images to fill more

of the screen. Other images appear in full in the center of the screen.

≥Shrink: images appear in the center of the screen. ≥Zoom: expands all images to fill the screen.

If your television has a similar feature, use it instead for a better effect.

Zoom (➡ page 18) [RAM] [DVD-A] [DVD-V] [VCD]

Making fine adjustments to the zoom ratio Subtitle position/Subtitle brightness [DVD-A] [DVD-V]

≥Position (0 to j60): in 2 unit steps ≥Brightness (Auto

The brightness adjusts automatically against the

/0 to j9)

background.

Bitrate display on/off [RAM] [DVD-A] [DVD-V] [VCD]

During play: shows the bitrate (approximate values) of the

video being played

While paused: shows the data volume of the frame and

type of picture (➡ page 34, Glossary—I/P/ B)

9.438 Mbps

[2, 1]

Bit rate

Cur. 7.507 Mbps Ave. 6.730 Mbps

Current bitrate

A record of bitrates for a sampling period.

Average bitrate

OSD brightness (j3 to i3)

Adjust the brightness of the on-screen displays.

[ENTER]

;

[2, 1]

;

[ENTER]

[Picture\menu]

[RAM] [DVD-A] [DVD-V] [VCD]

480P

123

Auto1

Only when “PROG.” is on

Picture mode

≥N: Normal mode ≥S: Soft mode (Soft picture with fewer video artifacts) ≥F: Fine mode (Details are sharper)

≥C1: Mellows images and enhances detail in dark scenes ≥C2: Sharpens images and enhances detail in dark

scenes

≥U1/U2/U3: User mode (➡ below) Video output mode

≥480I: Interlace video ≥480P: Progressive video (“PROG.” is on)

Transfer mode

Select the method of conversion for progressive output to suit the type of material being played. ≥Auto 1 (normal): for viewing film material

≥Auto 2: for viewing film material (the same as Auto 1, but

able to convert 30-frame-per-second progressive video)

≥Video: for video material

To change the user mode

1 Select User mode and press [1] to highlight the

number.

2Press [3, 4] to select “1”, “2” or “3”.

U1: MPEG D.N.R. (Digital Noise Reduction)

U 1

15467

Depth Enhancer (0 to i4)

Reduces the rough noise in the background to give a greater feeling of depth. 3D-NR (0 to i4)/Dot NR (On)

Reduces overall noise/Reduces the dot noise that occurs at the borders between colors.

Block NR (0 to i3)

Smoothes block noise. Mosquito NR (0 to i3)

Reduces the smudging that appears around contrasting sections of the picture.

Disc operations

U 1

Contrast (j7 to i7)

Increases the contrast between light and dark parts of the picture. Brightness (0 to i15)

Brightens the picture. Sharpness (j7 to i7)

Adjusts the sharpness of the edges of the horizontal lines. Color (j7 to i7)

;

Adjust the shade of the picture’s color. Gamma (0 to i5)

Emphasis of outlines.

RQT6719

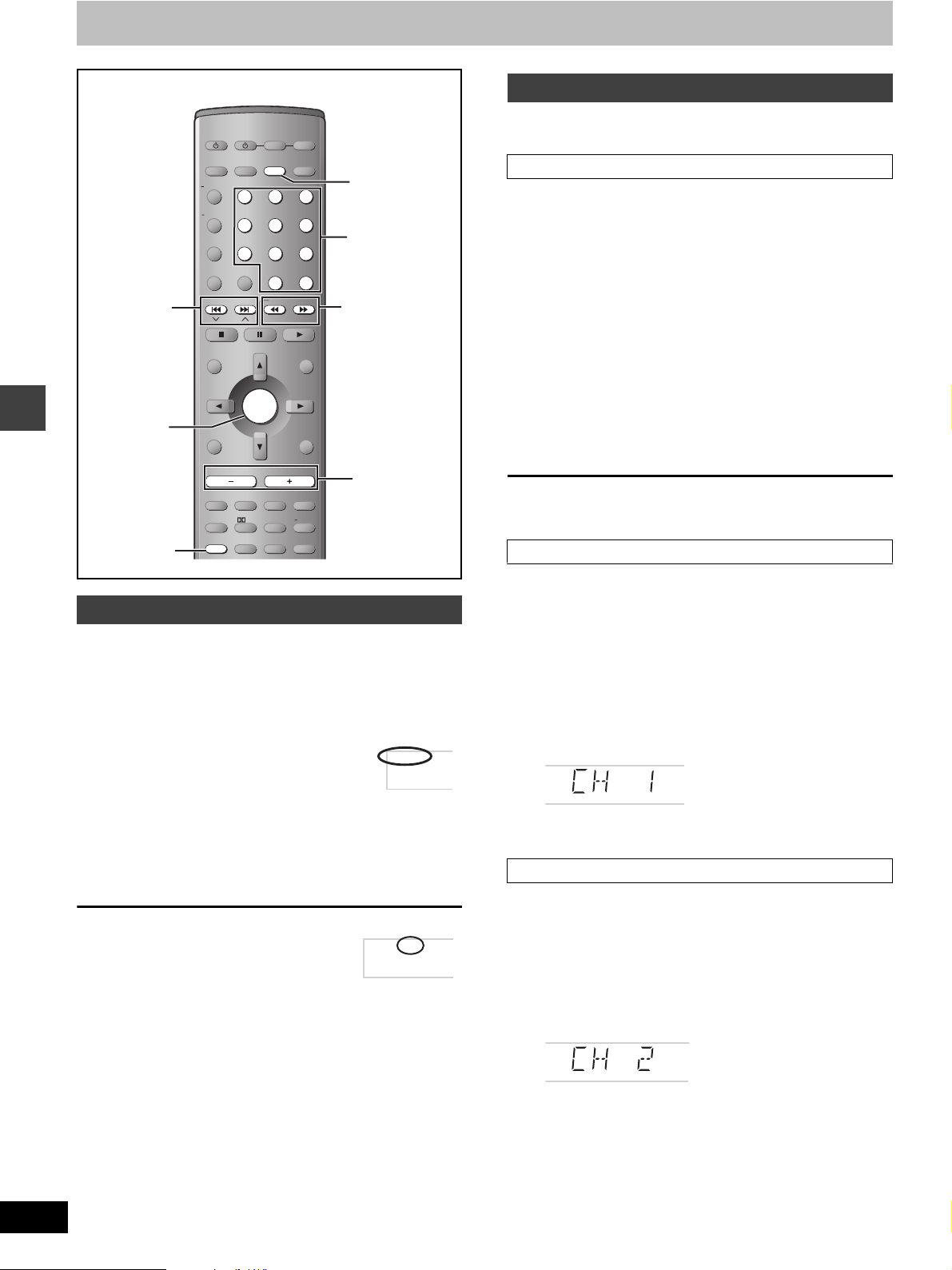

Page 24

The radio

Preset tuning

Radio operations

SLEEP

FL DISPLAY

DIMMER

PLAY MODE

MIX 2CH

REPEAT

POSITION

MEMORY

SKIP

: 9

X CH W

TOP MENU

DIRECT

NAVIGATOR

ENTER

FM MODE

DISPLAY

TV VOL

MUTING

S.SRND PL C.FOCUS

FM MODE

SETUP

Manual tuning

AV SYSTEM

TV VCR /AUX

TUNER/BAND DVD/CD

TV/VIDEO

123

456

7809

CANCEL

SKIP

SLOW/SEARCH

ENTER

VOLUME

C.S.M. SFC

ZOOM GROUP AUDIO

10/

ENTER

PLAY LIST

RETURN

TV VOL

SUBWOOFER

LEVEL

CH SELECT

TEST

TUNER/BAND

Numbered buttons

SLOW/SEARCH

6 5

VOLUME

j i

Preset channels to make selection simple. Up to 15 stations can each be set in the FM and AM bands.

Automatic presetting

1 Tune to “FM 87.9 MHz” or

“FM 87.5 MHz” (➡ left).

2 Press and hold [ENTER].

Release the button when “FM AUTO” is displayed.

The tuner presets all the stations it can receive into the channels in ascending order. “SET OK” is displayed when the stations are set. The last station to be set is then played.

3 Tune to “AM 520 kHz”. 4 Press and hold [ENTER].

∫ “ERROR” is displayed

Presetting was unsuccessful. Preset manually.

Manual presetting

1 Tune to the station (➡ left).

RQT6719

1 Press [TUNER/BAND] to select “FM”

or “AM”.

2 Press [6] or [5] to select the

frequency of the required station.

TUNED: Displayed when a radio station is tuned. ST: Displayed when a stereo FM broadcast is being received.

Press and hold [6] or [5] until the frequency starts scrolling to start automatic tuning. Tuning stops when a station is found.

TUNED ST

RDS PS SLEEP JPEG

MP3 WMA

MONO

PTY

3 Adjust the volume.

∫ If noise is excessive in FM

Press [FM MODE] to display “MONO”.

Press [FM MODE] again to cancel the mode. The mode is also canceled when you changed the frequency.

∫ FM frequency step

The step is factory-set to 0.2 MHz, but you can change it to receive broadcasts allocated 0.1-MHz steps. 1 Press [TUNER/BAND] to select “FM”. 2 Press and hold [TUNER/BAND].

After a few seconds the display changes to show the current minimum frequency. Continue to hold the button down. The minimum frequency changes and the step is changed.

To return to the original step, repeat the above steps.

[Note]

Any FM frequencies preset in channels will be changed by this procedure. Preset them again.

RDS PS SLEEP JPEG

MONO

PTY

MP3 WMA

GRP

2 Press [ENTER]. 3 While “PGM” is flashing

Press the numbered buttons to select a channel.

Alternatively, press [:, X CH] or [9, CH W] then press [ENTER].

TRCK

CHAP

ALL

RND

PGM

The station occupying a channel is erased if another station is preset in that channel.

Selecting channels

1 Press [TUNER/BAND] to select “FM”

or “AM”.

2 Press the numbered buttons or

[:, X CH] or [9, CH W] to select the channel.

TRCK

CHAP

ALL

RND

PGM

To select a 2-digit number

Example: To select channel 12, press [S10] ➡ [1] ➡ [2]

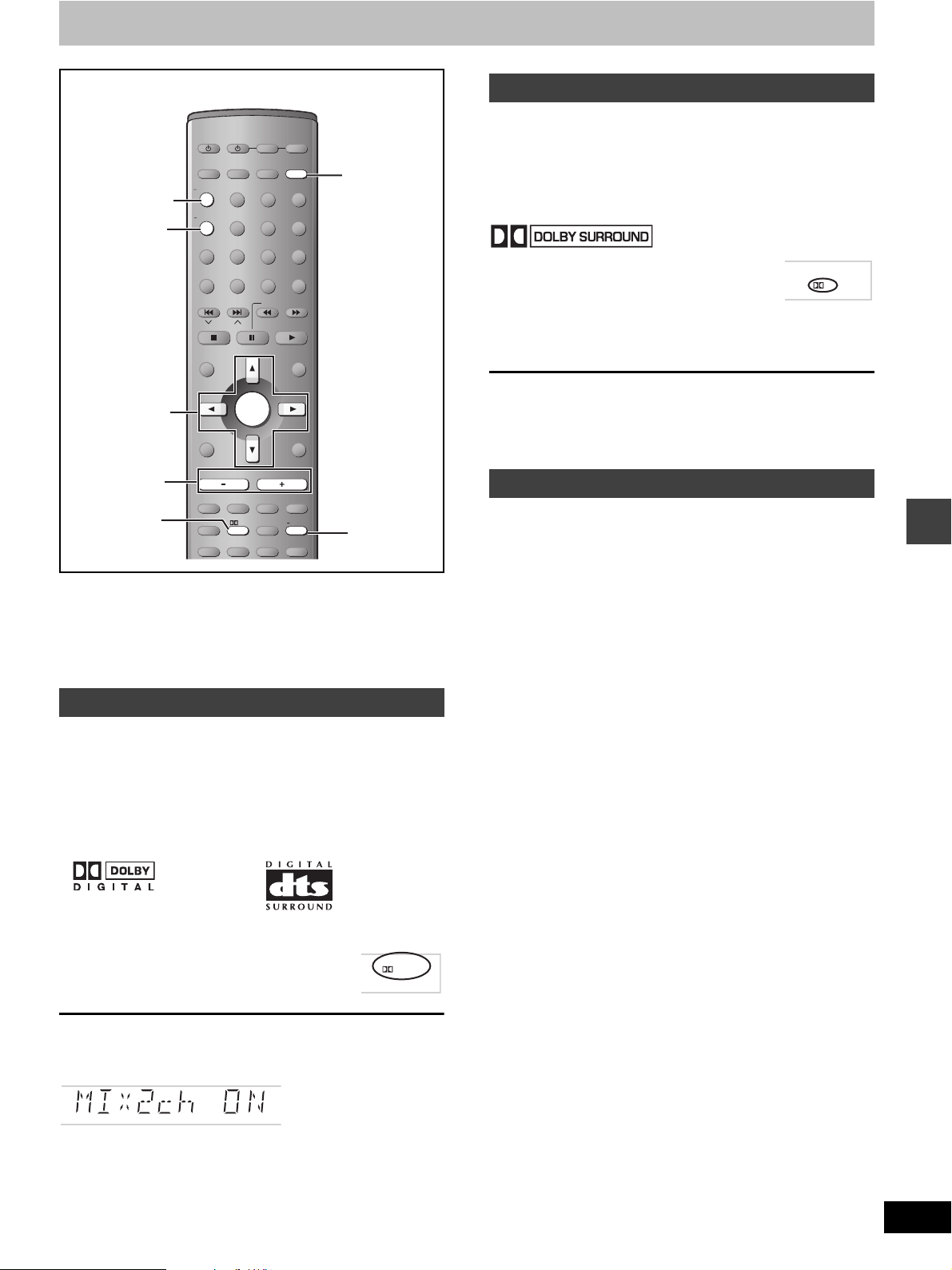

Page 25

Sound field

AV SYSTEM

TV VCR /AUX

SLEEP

FL DISPLAY

–MIX 2CH

DIMMER

PLAY MODE

MIX 2CH

REPEAT

POSITION

MEMORY

TOP MENU

DIRECT

NAVIGATOR

342 1

ENTER

DISPLAY

TV VOL

VOLUME

j i

Î PL

≥Dolby Pro Logic, Super Surround, Center Focus and Subwoofer

Level adjusting (➡ page 27) cannot be used if headphones are connected (“ERROR” appears on the display).

≥You may experience a reduction in sound quality when these

sound field systems are used with some sources. If this occurs, turn the sound field system off.

MUTING

S.SRND

FM MODE

SETUP

Dolby Digital and DTS

≥Dolby Digital and DTS are digital encoding systems used on DVD

to carry surround sound. Both were originally developed for use in cinemas.

≥This unit automatically recognizes and decodes these systems.

Software encoded with Dolby Digital can be identified with this mark.

Play a Dolby Digital or DTS source.

The Dolby Digital or DTS indicator lights.

TUNER/BAND DVD/CD

TV/VIDEO

123

456

7809

CANCEL

SKIP

SLOW/SEARCH

ENTER

VOLUME

C.S.M.

SFC

PL C.FOCUS

ZOOM GROUP AUDIO

Software encoded with DTS can be identified with this mark.

10/ENTER

PLAY LIST

RETURN

TV VOL

SUBWOOFER

LEVEL

CH SELECT

TEST

CH SELECT

DVD/CD

–TEST

AAC

PROG.

DTS DIGITAL

SFC

ZOOM

C.F

SSS

CSM

Dolby Pro Logic

Dolby Pro Logic is a decoding system that was developed to get a better sense of presence from sources encoded with Dolby Surround. The feeling of position has been improved by the addition of a separate center speaker channel.

Software encoded with Dolby Surround can be identified with this mark (DVD, CD, Video CD, Laser Disc, Video tape).

AAC

DTS

1 Press [ÎPL].

DIGITAL

PROG.

SFC

ZOOM

C.F

SSS

CSM

2 Play a Dolby Surround

source.

To cancel

Press [ÎPL] again.

[Note]

This does not work when playing multi-channel Dolby Digital.

Speaker level adjustments

If the level of the speakers appears to be different while listening to a source, adjust the level of the speakers to the same apparent level.

Preparation

≥Press [DVD/CD].

1 Press and hold [–TEST] to output a test signal.

Lch: Front left Cch: Center Rch: Front right RSch: Right surround LSch: Left surround

2 Press [VOLUME, r] or [s] to set the volume level normally

used for enjoying the source.

3 Press [3] (to increase) or [4] (to decrease).

L, R: j16 dB to 0 dB C, RS, LS: j10 dB to i6 dB

To stop the test signal, press and hold [–TEST] again.

∫ To adjust speaker level during play

1 Press [CH SELECT] to select the speaker.

Lch>Cch>Rch>RSch>LSch>SWch

^--------------------------------------------------------------}

SWch: Subwoofer ≥You can only adjust SWch if the disc includes a subwoofer

channel.

2 Press [3] (to increase) or [4] (to decrease).

L, R: j16 dB to 0 dB C, RS, LS: j10 dB to i6 dB SW: j10 dB to i10 dB

Sound field/sound quality operations

∫ To down-mix Dolby Digital or DTS (multiple-

channel) signals to 2 channels

Press and hold [–MIX 2CH].

GRP

TTL

TRCK

CHAP

ALL

PGM

RND

D.MIX

To cancel, press and hold [–MIX 2CH] again.

To check the current setting

Press [FL DISPLAY].

When “D.MIX” flashes on the display [DVD-A]

The DVD-Audio contains multiple-channel signals that cannot be down-mixed.

RQT6719

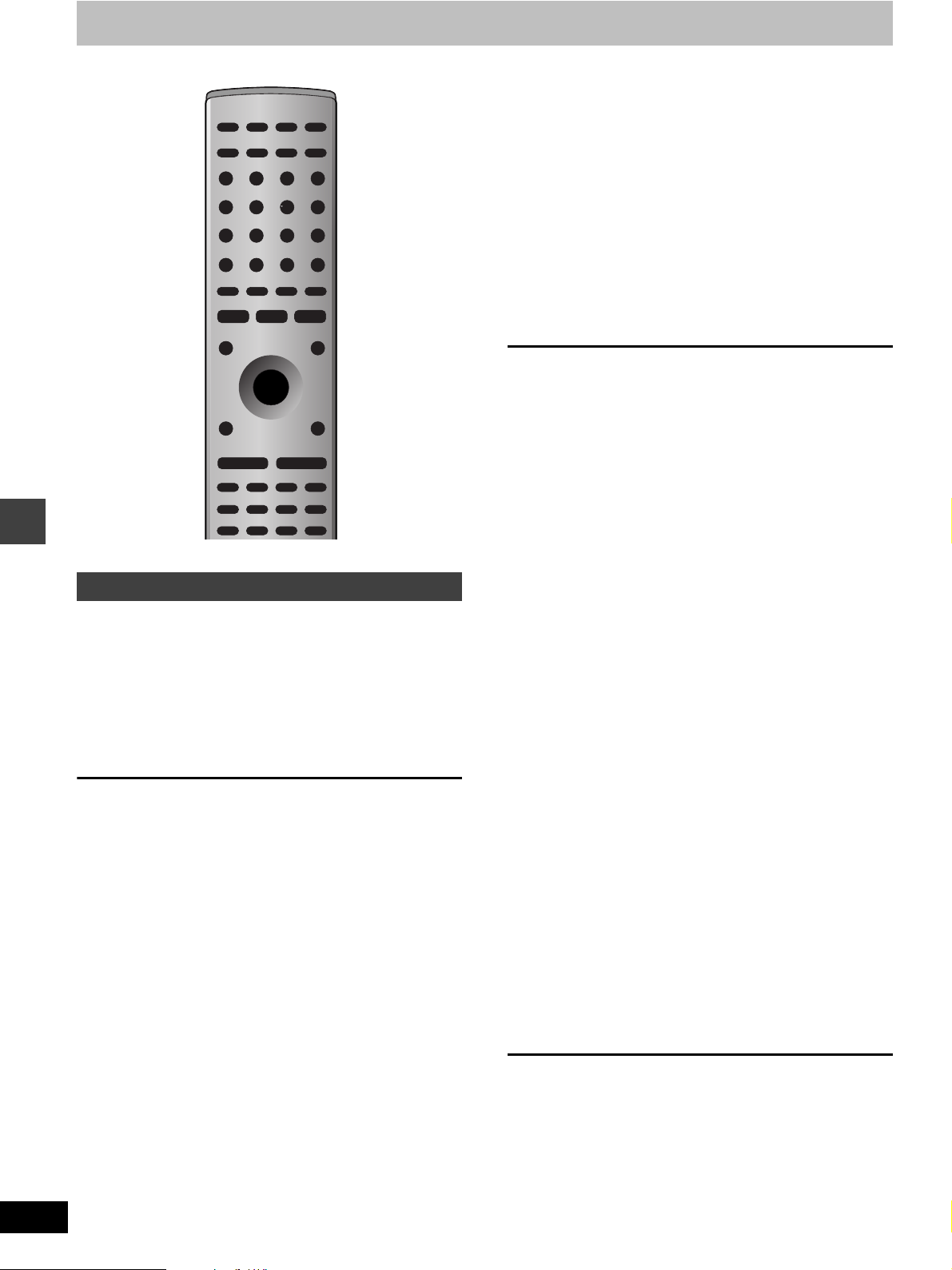

Page 26

Sound field

Press [SFC] to select a setting.

Each time you press the button:

HEAVY: Adds punch to rock. CLEAR: Clarifies higher sounds. SOFT: For background music. DISCO: Reverberates sound to make you feel like you were in a

disco.

LIVE: Makes vocals more alive. HALL: Expands sound to make you feel like you were in a hall. FLAT: Canceled (no effect is added) (factory preset).

To check the current setting

Press [SFC].

You can make the sound of the center speaker seem like it is coming from within the television.

Super Surround

Add surround effects to stereo sound.

Press [S.SRND].

Each time you press the button: MUSIC>MOVIE>OFF

^--------------------------------}

≥You can adjust the volume of the surround speakers to get the best

surround effect (➡ page 25, Speaker level adjustments).

Sound field/sound quality operations

[Note]

≥Turn Super Surround off when playing a DVD recorded with Dolby

Digital or DTS. The surround effects will not be reproduced correctly if this is left on.

≥Dolby Pro Logic (➡ page 25) switches off.

Press [C.FOCUS].

Each time you press the button: CENTER FOCUS 1 (Normal)>CENTER FOCUS 2 (Enhanced)

^--------------=OFF(-------------}

≥This does not work when Super Surround is turned on. ≥This will have less effect when Dolby Pro Logic is turned on.

[DVD-A] [DVD-V] [VCD] [CD]

Store the sound settings for a disc so the unit recalls them the next time you play it.

≥Number of discs: 30 ≥Settings: Dolby Pro Logic, Subwoofer level, Center Focus, Sound

Field Control, Super Surround

∫ Store the settings

1 Make the settings. 2 Press and hold [C.S.M].

RQT6719

∫ Recall the settings

The unit recalls the settings when you play the disc again.

≥The settings are replaced if you change them. ≥When you store settings for a 31st disc, the earliest settings

disappear.

≥Press [C.S.M] while “CSM” is lit and the settings return to those

that were on before the settings are recalled.

≥Press [C.S.M] while “CSM” is out and you are playing a disc for

which you stored settings and those settings are recalled.

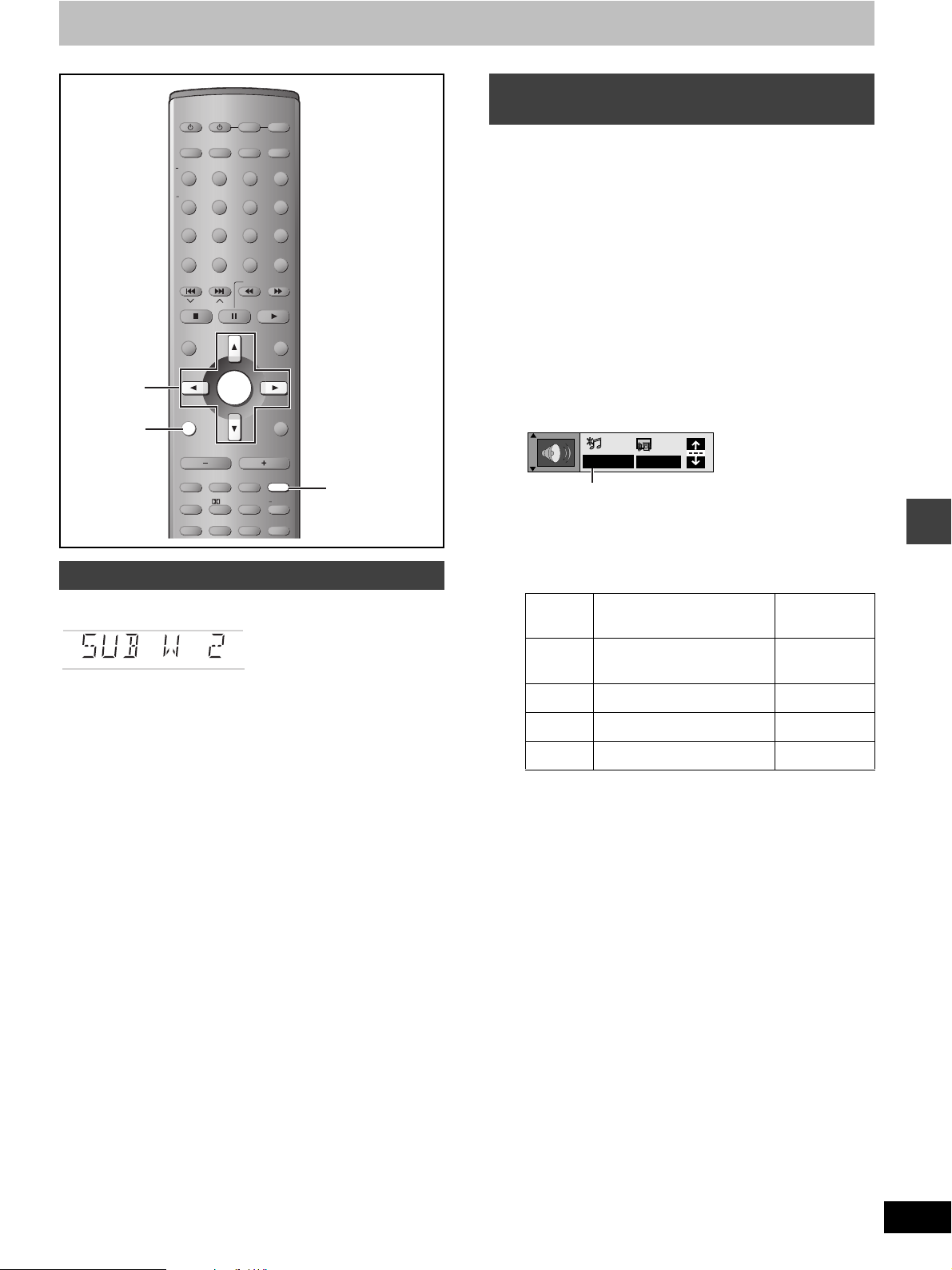

Page 27

Sound quality

SLEEP

FL DISPLAY

DIMMER

PLAY MODE

MIX 2CH

REPEAT

POSITION MEMORY

SKIP

TOP MENU

DIRECT

NAVIGATOR

342 1

ENTER

DISPLAY

TV VOL

MUTING

S.SRND

FM MODE

SETUP

AV SYSTEM

TV VCR /AUX

TUNER/BAND DVD/CD

TV/VIDEO

123

456

7809

SLOW/SEARCH

ENTER

VOLUME

SFC

PL C.FOCUS

10/ENTER

PLAY LIST

RETURN

TV VOL

SUBWOOFER

LEVEL

CH SELECT

TEST

CANCEL

C.S.M.

ZOOM GROUP AUDIO

SUBWOOFER

LEVEL

Re-master— Enjoying more natural sound

[RAM] [DVD-A] [DVD-V] [CD] Discs recorded with 2-channel LPCM at 44.1 kHz or 48 kHz

This feature gives you a more natural sound by adding the higher frequency signals not recorded on the disc.

[WMA] [MP3]

Discs recorded at 44.1 kHz or 48 kHz

This feature reproduces the frequencies lost during recording to give you a sound closer to the original.

1 During play

Press [DISPLAY] until the unit information screen is displayed

(➡ page 22).

2 Press [3, 4] to select the audio

menu.

OFF/48kHz

Re-master

OFF

3 Press [2, 1] to select “Re-master”.

Adjusting the bass

Press [SUBWOOFER LEVEL].

GRP

TTL

TRCK

CHAP

ALL

PGM

RND

D.MIX

Each time you press the button: SUB W 1>SUB W 2>SUB W 3>SUB W 4 (factory preset)

^--------------------------------------------------------------}

4 Press [3, 4].

Each time you press the button:

Setting [RAM] [DVD-A] [DVD-V] [CD]

Type of music

1 High tempo (e.g., pops and

rock)

2 Various tempos (e.g., jazz) Medium

3 Low tempo (e.g., classical) Strong

OFF Off Off

[WMA] [MP3] Effect level

Light

Sound field/sound quality operations

RQT6719

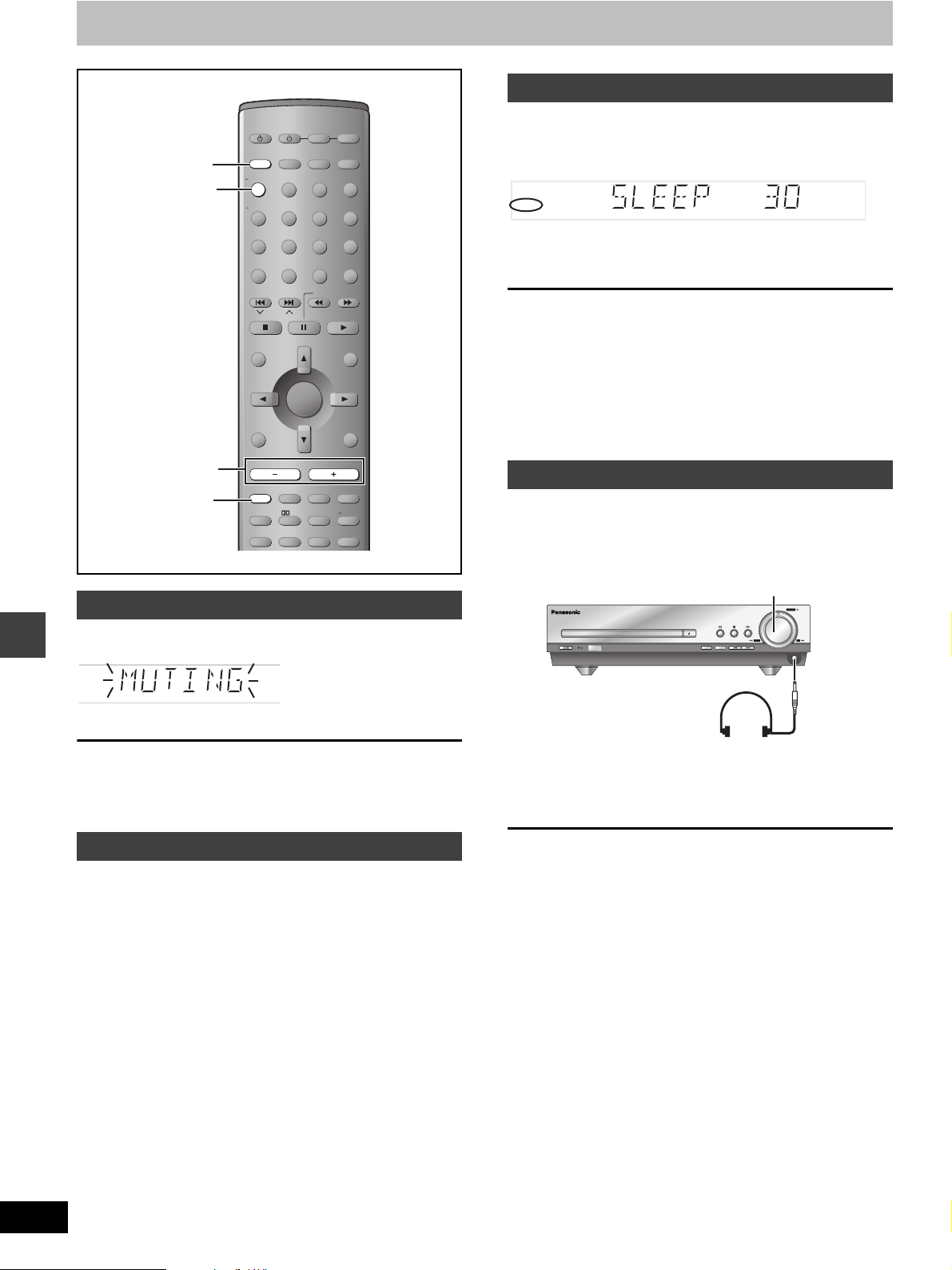

Page 28

Convenient functions

The sleep timer

SLEEP

–DIMMER

FL DISPLAY

DIMMER

PLAY MODE

MIX 2CH

REPEAT

POSITION MEMORY

TOP MENU

DIRECT

NAVIGATOR

DISPLAY

TV VOL

VOLUME

j i

MUTING

FM MODE

Muting the volume

AV SYSTEM

TV VCR /AUX

SLEEP

TV/VIDEO

TUNER/BAND DVD/CD

123

456

7809

CANCEL

SKIP

SLOW/SEARCH

ENTER

VOLUME

MUTING

C.S.M. SFC

S.SRND PL C.FOCUS

ZOOM GROUP AUDIO

SETUP

10/

ENTER

PLAY LIST

RETURN

TV VOL

SUBWOOFER

LEVEL

CH SELECT

TEST

This timer turns the unit off after a set time.

Press [SLEEP] to select the time (minutes).

TUNED

ST RDS PS

SLEEP

JPEG

MP3 WMA

MONO

PTY

GRP

TTL

TRCK

CHAP

ALL

PGM

RND

AAC

DIGITAL

D.MIXPGPROG.

DTS

SFC

ZOOM

C.F

SSS

CSM

Each time you press the button: SLEEP 30_--)SLEEP 60_--)SLEEP 90 ^-=SLEEP OFF(=SLEEP 120(_}

To cancel the timer

Press [SLEEP] to select “SLEEP OFF”.

To check the SLEEP setting

Press [SLEEP] once. ≥The time remaining appears.

To change the setting

Press [SLEEP] to display the remaining time, then press again to select the required time.

Using headphones

1 Reduce the volume and connect the

headphones (not included).

Headphone plug type: 3.5 mm (1/8z) stereo

VOLUME

Press [MUTING].

GRP

TTL

TRCK

CHAP

ALL

PGM

RND

D.MIX

Volume is reduced to minimum.

To cancel

Press [MUTING] again or reduce the volume to minimum (–– dB),

Other functions

then raise it to the required level. Muting is also canceled when you switch the unit to standby.

Dimming the display

Press and hold [–DIMMER].

To return to the original brightness, press and hold [–DIMMER] again. The display also returns to the original brightness when you switch the unit to standby.

DOWN

PROGRESSIVE OUT PHONES

SELECTOR

2 Adjust headphone volume with

[VOLUME].

Audio is automatically switched to stereo (2-channel).

[Note]

Avoid listening for prolonged periods of time to prevent hearing damage.

RQT6719

Page 29

Changing settings

This chart shows the settings for this unit. Change the settings to suit your preferences and to suit the unit to the environment in which it is being used. These settings are retained in memory until they are changed, even if the unit is turned off. See page 30 for details on menu operation.

≥Underlined items are the factory preset.

Menus Items Options

Disc

Video

Audio

Display

Others

Audio

Choose the preferred audio language.

Subtitle

Choose the preferred subtitle language.

Menus

Choose the preferred language for disc menus.

Ratings (➡ page 30) Set a ratings level to limit DVD-Video play. ≥The password screen is shown if you choose levels 0 to 7

or if you choose “Ratings” when levels 0 to 7 have been selected.

≥Select “Level 0” to prevent play of discs that do not have

ratings levels recorded on them.

TV Aspect (➡ page 11) Choose the setting to suit your television and preference.

TV Type (➡ page 11) Select to suit the type of television.

Still Mode

Specify the type of picture shown when paused.

Black Level Control

Change the black level of the picture if you connected a television through the COMPONENT VIDEO OUT terminals.

Speaker Setting (➡ page 30) Set the delay time for your center and surround speakers.

Dynamic Range Compression (Dolby Digital only) Change the dynamic range for late night viewing.

Audio during Search

Choose whether to have sound during search.

Menu Language

Choose the preferred language for these menus and the onscreen messages.

On-Screen Messages

Choose whether to show on-screen messages or not.

DVD-Video Mode

Select how to play pictures contained on some DVD-Audio. The setting returns to “Off” when you remove the disc, turn the unit off or change the source.

QUICK SETUP (➡ page 11) Answer questions to make basic settings.

English French Spanish Original Other ¢¢¢¢ Original: The original language of each disc will be

Other ¢¢¢¢: Input a code number with the numbered

Automatic Automatic: If the language selected for “Audio” is not

English

Setting ratings (When level 8 is selected)

8 No Limit: 1 to 7: Prohibits play of DVD-Video with corresponding

0 Lock All: Prohibits play of all DVD-Video.

Changing ratings (When level 0–7 is selected)

Unlock Player Change Level Change Password Temporary Unlock

4:3 Pan&Scan 4:3 Letterbox 16:9

Standard (Direct View TV) CRT Projector LCD TV/Projector Projection TV Plasma TV

Automatic

Lighter

: when connected to a TV through the VIDEO OUT

Darker: when connected to a TV through the

Multi-channel

Center: 0 Surround (L/R): 0

Off On: For clear dialog when listening at low volume.

On Off ≥This feature doesn’t work for some discs.

English

Off

: DVD-Audio are played as DVD-Audio.

On: DVD-Video contents found on DVD-Audio can be

played.

Yes (Menu language, Audio language, Subtitle language, TV type, TV aspect) No

selected.

buttons (➡ page 31).

English French Spanish Other ¢¢¢¢

available, subtitles of that language will automatically appear if available on that disc.

French Spanish Other ¢¢¢¢

All DVD-Video can be played.

ratings recorded on them.

Field Frame

or S VIDEO OUT terminal.

COMPONENT VIDEO OUT (Y/P

/1.3/2.6/3.9/5.3 ms /5.3/10.6/15.9 ms

Français Español

Off

B/PR) terminals.

Other functions

RQT6719

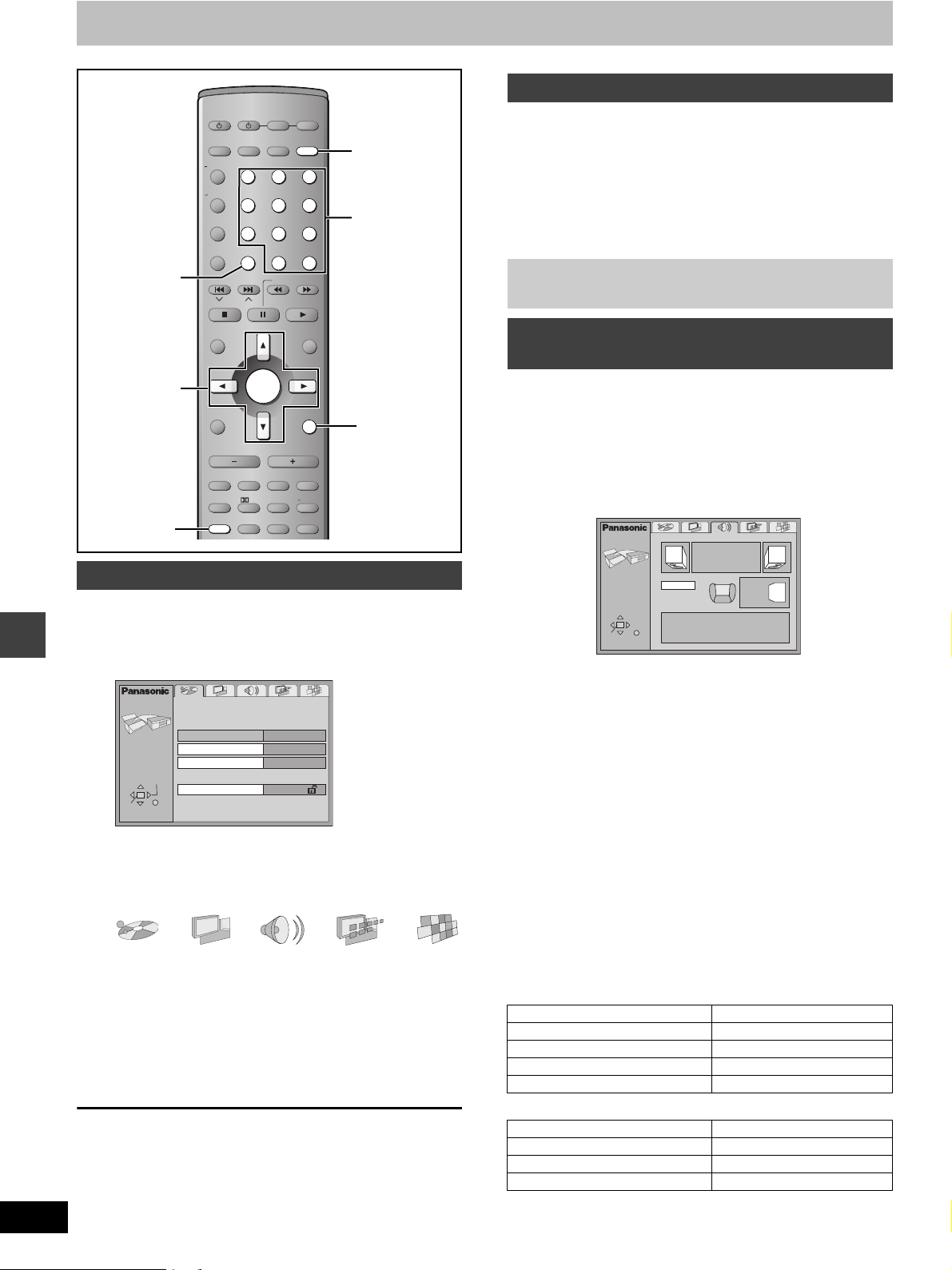

Page 30

Changing settings

AV SYSTEM

SLEEP

TV/VIDEO

FL DISPLAY

DIMMER

123

PLAY MODE

MIX 2CH

456

REPEAT

7809

POSITION

CANCEL

MEMORY

CANCEL

SKIP

TV VCR /AUX

TUNER/BAND DVD/CD

10/ENTER

SLOW/SEARCH

DVD/CD

Numbered buttons

Entering a password (Ratings)

[DVD-V]

The password screen is shown when you select levels 0 to 7. 1 Input a 4-digit password with the numbered buttons and press

[ENTER]. ≥If you enter a wrong number, press [CANCEL] to erase it before

you press [ENTER].

≥The lock symbol appears closed to show the rating is locked. ≥Do not forget your password.

2 Press [ENTER] to confirm the 4 digits.

Now, when you insert a DVD-Video that exceeds the ratings limit you set, a message appears on the television. Follow the on-screen instructions.

SFC

PLAY LIST

RETURN

TV VOL

SUBWOOFER

LEVEL

CH SELECT

TEST

342 1

ENTER

SETUP

TOP MENU

DIRECT

NAVIGATOR

DISPLAY

TV VOL

MUTING

S.SRND

FM MODE

SETUP

ENTER

VOLUME

C.S.M.

PL C.FOCUS

ZOOM GROUP AUDIO

Common procedures

See page 29 for menu and option details.

Preparation

Press [DVD/CD].

1 Press [SETUP] to show the menus.

SELECT

Disc

Audio Subtitle

Menus

TAB

Ratings

English

Automatic

English

Level 8

SETUP

Other functions

ENTER RETURN

RETURN

Changing the delay time (Speaker Setting)

[DVD-V]

(Center and surround speakers only)

For optimum listening with 5.1-channel sound, all the speakers, except for the subwoofer, should be the same distance from the seating position. If you have to place the center or surround speakers closer to the seating position, adjust the delay time to make up for the difference.

SETUP

SELECT

ENTER RETURN

1 Press [3, 4, 2, 1] to select the delay time box and press

[ENTER].

2 Press [3, 4] to adjust the delay time and press [ENTER].

RQT6719

2 Press [2, 1] to select the menu’s tab.

The screen changes to display the menu.

Disc Video Audio Display Others

() () () ()

^------------------------------------------------------------------------------------------J

3 Press [3, 4] to select the item you

want to change and press [ENTER].

4 Press [3, 4, 2, 1] to select the

option and press [ENTER].

The screen now shows the menu again.

To return to the previous screen

Press [RETURN].

When you are finished

Press [SETUP].

Values

If distance a or b is greater than or equal to distance c, set to “0”. If distance a or b is less than distance c, set as follows.

a Center speaker

Difference Setting

Approx. 50 cm (1

/2 feet)

1.3 ms Approx. 100 cm (3 feet) 2.6 ms Approx. 150 cm (5 feet) 3.9 ms Approx. 200 cm (6 feet) 5.3 ms

b Surround speakers

Difference Setting Approx. 200 cm (6 feet) 5.3 ms Approx. 400 cm (12 feet) 10.6 ms Approx. 600 cm (18 feet) 15.9 ms

When you are finished

Press [3, 4, 2, 1] to select “Exit” and press [ENTER].

Page 31

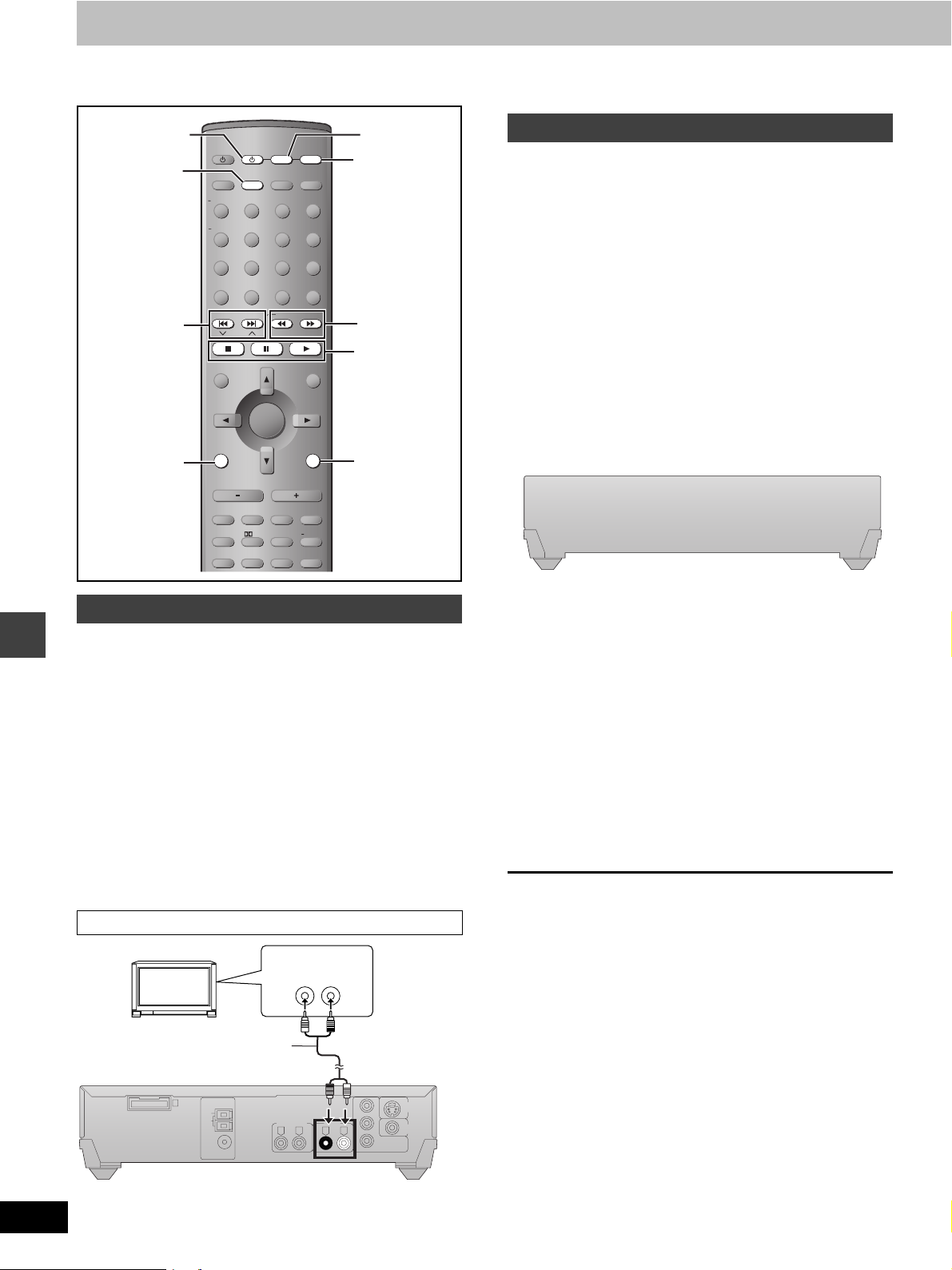

Page 32

You can use the remote control to operate a Panasonic television or a video cassette recorder. (Some models cannot be operated by this remote control.)

AV SYSTEM

TV/VIDEO

SKIP

: 9

X CH W

TV VOL j

SLEEP

FL DISPLAY

DIMMER

PLAY MODE

MIX 2CH

REPEAT

POSITION

MEMORY

TOP MENU

DIRECT

NAVIGATOR

DISPLAY

TV VOL

MUTING

S.SRND PL C.FOCUS

FM MODE

SETUP

TV VCR /AUX

TUNER/BAND DVD/CD

TV/VIDEO

123

456

7809

CANCEL

SKIP

SLOW/SEARCH

ENTER

VOLUME

C.S.M. SFC

ZOOM GROUP AUDIO

10/

ENTER

PLAY LIST

RETURN

TV VOL

SUBWOOFER

LEVEL

CH SELECT

TEST

SLOW/SEARCH

Operating a television

Preparation

≥Face the remote control at this unit and press [TV]. The button

lights and “TV” appears on the unit’s display. You can now operate the television.

≥Face the remote control at the television for the following

operations.

Turning the television on/off

Press [Í AV SYSTEM].

Other functions

Switching the television’s video input mode

Press [TV/VIDEO].

Changing channels

Press [:, X CH] or [9, CH W].

Adjusting the volume

Press [TV VOLr] or [TV VOLs].

Playing the television through this unit’s speakers

AUDIO OUT

VCR/AUX

6 5

∫ ; 1

TV VOL i

Operating a video cassette recorder

Connection example

Preparation

≥Face the remote control at this unit and press [VCR/AUX]. The

button lights and “VCR/AUX” appears on the unit’s display. You can operate the video cassette recorder.

≥Change the video input mode on the television (“VIDEO 2” in the

example).

≥Face the remote control at the video cassette recorder for the

following operations.

Turning the video cassette recorder on/off

Press [Í AV SYSTEM].

Play, pause and stop

Press [1], [;] or [∫].

Fast forward and rewind

Press [6] or [5].

You can connect a laser disc or record player instead of a video cassette recorder.

Connect as shown above and select “VCR/AUX” as the source.

When connecting a record player

We recommend using a record player with a built-in phono equalizer. If your player doesn’t have a built-in equalizer, connect it first to a separate equalizer and then connect that to this unit.

RQT6719

Audio cable

(not included)

AM ANT

EXT LOOP

FM ANT

VCR/AUXINTV

75½

RL RL

COMPONENT VIDEO OUT

(480P/480I)

S VIDEO

OUT

VIDEO

OUT

Reduce the volume on the television to minimum and control the volume on this unit.

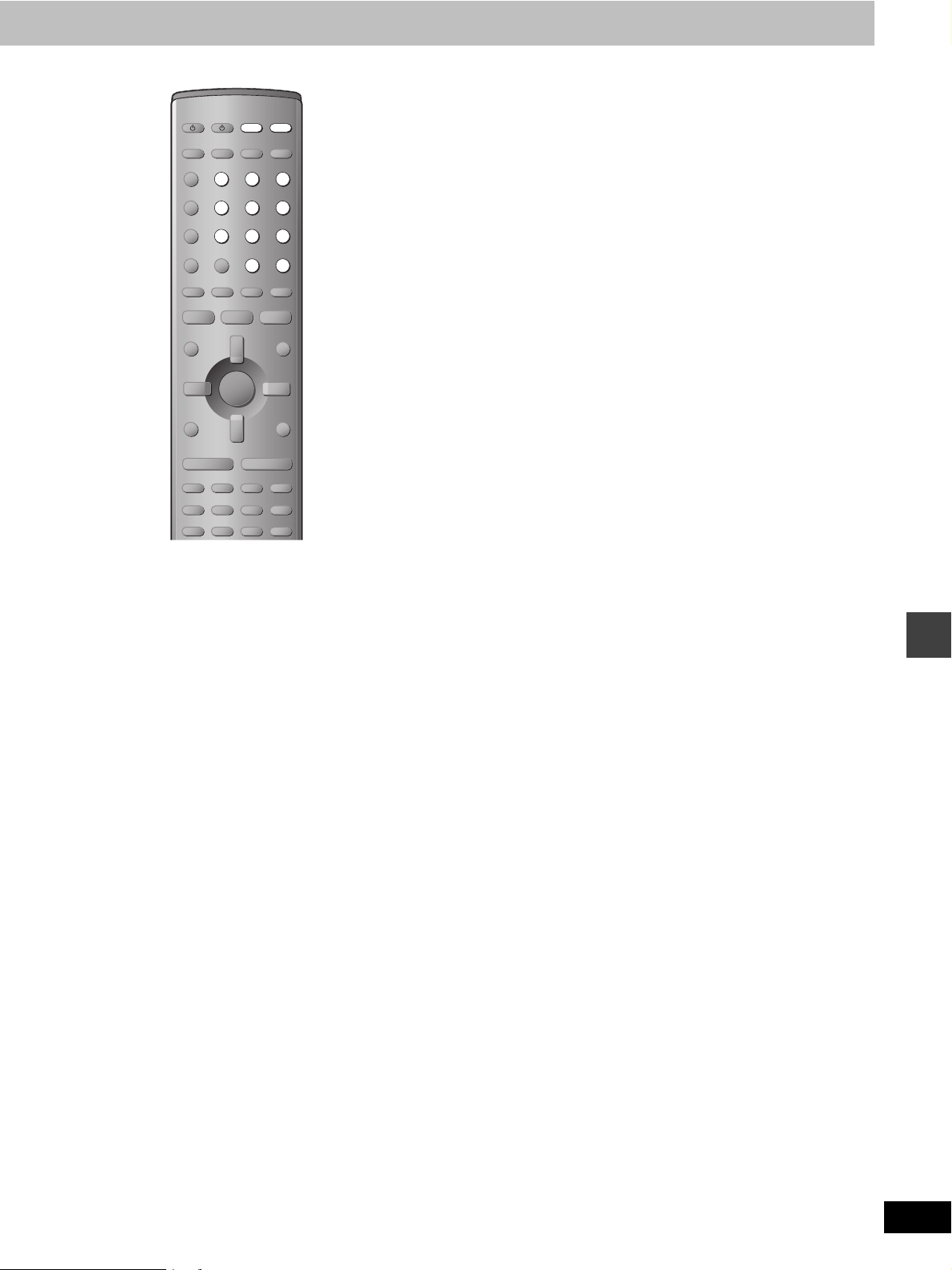

Page 33

SLEEP

FL DISPLAY

DIMMER

PLAY MODE

MIX 2CH

REPEAT

POSITION

MEMORY

TOP MENU

AV SYSTEM

CANCEL

SKIP

The remote control can also operate some other brands of televisions and video cassette recorders. Change the code to operate such equipment and some Panasonic products.

While aiming the remote control at the equipment,

Press and hold [TV] or [VCR/AUX], Press a numbered button to enter

the first digit, Press a numbered button to enter

the second digit.

The remote control outputs the on/off signal. If the code is correct, the equipment turns on or off. If it doesn’t, try entering another code.

DISPLAY

TV VOL

VOLUME

MUTING

C.S.M. SFC

S.SRND PL C.FOCUS

FM MODE

ZOOM GROUP AUDIO

SETUP

RETURN

SUBWOOFER

LEVEL

≥Note that this remote control cannot operate some equipment and

that it may not be able to perform some operations.

≥Reenter the codes after you change the batteries.

Other functions

RQT6719

Page 34

Glossary

Decoder

A decoder restores the coded audio signals on DVDs to normal. This is called decoding.

Dolby Digital

This is a method of coding digital signals developed by Dolby Laboratories. Apart from stereo (2-channel) audio, these signals can also be multi-channel audio. A large amount of audio information can be recorded on one disc using this method.

Dolby Pro Logic

A surround system where a 4-channel audio track is recorded as 2 channels and then is restored to 4 channels for play. The surround channel is monaural and can reproduce up to 7 kHz.

DTS (Digital Theater Systems)

This surround system is used in many movie theaters around the world. There is good separation between the channels, so realistic sound effects are possible.

Dynamic range

Dynamic range is the difference between the lowest level of sound that can be heard above the noise of the equipment and the highest level of sound before distortion occurs.

Film and video

DVD-Videos are recorded using either film or video. Usually, film is recorded at 24 frames per second, the rate movies are filmed at, while video is recorded at 30 frames per second.

Frame still and field still

Frames are the still pictures that go together to make a moving picture. There are about 30 frames shown each second. One frame is made up of two fields. A regular television shows these fields one after the other to create frames. A still is shown when you pause a moving picture. A frame still is made up of two alternating fields, so the picture may appear blurred, but overall quality is high. A field still is not blurred, but it has only half the information of a frame still so picture quality is lower.

Interlace and progressive output

NTSC, the video signal standard, has 480 interlaced (I) scan lines, whereas progressive scanning uses twice the number of scan lines. This is called 480P. The video signals output from this unit’s COMPONENT VIDEO OUT terminals (Y, P higher quality pictures than if the signals were output from the VIDEO OUT terminal or S VIDEO OUT terminal.

Reference

I/P/B

MPEG 2, the video compression standard adopted for use with DVD-Video, codes frames using these 3 picture types. I: Intra coded picture

This picture has the best quality and is the best to use when adjusting the picture.

P: Predictive coded picture

This picture is calculated based on past I or P-pictures.

B: Bidirectionally-predictive coded picture

This picture is calculated by comparing past and future I and P-pictures so it has the lowest volume of information.

B, PR) allow you to enjoy

Linear PCM (pulse code modulation)

These are uncompressed digital signals, similar to those found on CDs.

Playback control (PBC)

If a Video CD has playback control, you can select scenes and information with menus.

WMA, MP3, and CD text information

≥Discs must conform to ISO9660 level 1 or 2 (except for extended

formats).

≥This unit is compatible with multi-session but if there are a lot of

sessions it takes more time for play to start. Keep the number of sessions to a minimum to avoid this.

≥The order tracks appear in the menus may differ to the order shown

on your computer.

[WMA]

≥Noise may occur when playing WMA files. ≥You cannot play WMA files that are copy protected.

[MP3]

≥This unit is not compatible with ID3 tags. ≥If you play an MP3 track that includes still picture data, it will take

some time before the music itself starts playing and the elapsed time will not be displayed during this time. Even after the track starts, the correct play time will not be displayed.

Order of play

[WMA] [MP3]

root

001group

001

004track.wma 005track.wma 006track.wma

002group

003group 007track.mp3

008track.mp3 009track.mp3

010track.mp3 011track.mp3 012track.mp3 013track.mp3

[CD] (CD text only)

When making your own CD text discs

The unit plays the tracks in the order you record them so you do not have to prefix the titles with numbers.

Windows Media, and the Windows logo are trademarks, or registered trademarks of Microsoft Corporation in the United States and/or other countries.

WMA is a compression format developed by Microsoft Corporation. It achieves the same sound quality as MP3 with a file size that is smaller than that of MP3.

MPEG Layer-3 audio decoding technology licensed from Fraunhofer IIS and Thomson multimedia.

Naming folders and files

Prefix folder and file names with 3-digit numbers in the order you want to play them.

Extension

004track.wma

(or .WMA)

The extension for MP3 is “.mp3” or “.MP3”.

RQT6719

Page 35

Specifications

AMPLIFIER SECTION

RMS Output Power: Dolby Digital Mode, 10 % Total Harmonic

Distortion 1 kHz Front CH 55 W per channel 6 ≠ 1 kHz Surround CH 55 W per channel 6 ≠ 1 kHz Center CH 160 W per channel 6 ≠

100 Hz Subwoofer CH 220 W per channel 4 ≠ Total RMS Dolby Digital Mode Power 600 W RMS Output Power Stereo Mode:

1 kHz Front CH 45 W per channel 6 ≠

100 Hz Subwoofer CH 220 W per channel 4 ≠ Total RMS Stereo Mode Power 310 W FTC Output Power: Dolby Digital Mode, 1 % Total Harmonic

Distortion

120 Hz–20 kHz Front CH 30 W per channel 6 ≠

120 Hz–20 kHz Surround CH 30 W per channel 6 ≠

120 Hz–20 kHz Center CH 110 W per channel 6 ≠

45 Hz–120 Hz Subwoofer CH 140 W per channel 4 ≠ Total FTC Dolby Digital Mode Power 370 W FTC Output Power Stereo Mode:

120 Hz–20 kHz Front CH 25 W per channel 6 ≠

45 Hz–120 Hz Subwoofer CH 140 W per channel 4 ≠ Total FTC Stereo Mode Power 190 W Input sensitivity/Input impedance

AUX 350 mV, 10 k≠

FM TUNER SECTION

Frequency range 87.9–107.9 MHz (200-kHz step)

87.5–108.0 MHz (100-kHz step)

Sensitivity 2.5 ¨V (IHF)

S/N 26 dB 2.2 ¨V Antenna terminals 75 ≠ (unbalanced) Preset station 15

AM TUNER SECTION

Frequency range 520–1710 kHz (10-kHz step) AM Sensitivity S/N 20 dB at 1000 kHz 560 ¨V/m Preset station 15

DISC SECTION

Disc played (one layer per side)

DVD-Audio/Video 8 cm/12 cm, single/double-sided,

single/double-layer

DVD-RAM/R (DVD-Video formatted discs)

CD (CD-DA), Video-CD

CD/VCD/MP3/WMA 8 cm/12 cm, CD-R/RW Video

Signal system NTSC

Output level Composite video 1 Vp-p (75 ≠)

S-video Y 1 Vp-p (75 ≠)

S-video C 0.286 Vp-p (75 ≠)

Audio

Sampling frequency

CD 44.1 kHz MP3 32 kHz, 44.1 kHz, 48 kHz DVD 48 kHz, 96 kHz, 192 kHz

Bitrate

MP3 32–320 kbps

Decoding 16/20/24 bit linear Pick up

Beam Source Semiconductor Laser

Wavelength

CD/VCD 780 nm

DVD 658 nm Number of channels 5.1 ch (FL, FR, SL, SR, C, SW) Frequency response 20 Hz–20 kHz (i1, j2 dB) Wow and flutter Less than possible measurement data Digital filter 8 fs D/A converter Delta signal DAC

SPEAKER SECTION

[Front/Surround\speakers\SB-FS801A]

Type 1 way, 1 speaker, Bass-ref. Speakers

Full range 6.5 cm (2 Input power 60 W (Music) Output sound pressure level 79 dB/W (1.0 m) Frequency range 110 Hz–25 kHz (j16 dB)

Dimensions (WtHtD) 110k226k133 mm (4

Mass 0.93 kg (2.1 Ib.)

[Center\speaker\SB-PC700]

Type 1 way, 2 speaker, Bass-ref. Speakers

Full range 6.5 cm (2 Input power (with filter) 220 W (Music) Output sound pressure level 82 dB/W (1.0 m) Frequency range 110 Hz–25 kHz (j16 dB)

Dimensions (WtHtD) 250k140k145 mm (9

Mass 1.6 kg (3.5 Ib.)

[Active\subwoofer\SB-WA340]

Type 1 way, 1 speaker, Bass-ref. Speaker unit

Woofer 17 cm (6 Input power 240 W (Music) Output sound pressure level 80 dB/W (1.0 m) Frequency range 40 Hz–220 Hz (j16 dB)

Dimensions (WtHtD) 160k450k424 mm

Mass 12 kg (26.5 Ib.)

/2q) cone type 6 ≠

130 Hz–22 kHz (j10 dB)

/32qk829/32qk51/4q)

(With stand)

/2q) cone type 6 ≠

130 Hz–22 kHz (j10 dB)

/32qk51/2qk523/32q)

(With stand)

/4q) cone type 6 ≠

45 Hz–180 Hz (j10 dB)

/16qk1723/32qk1611/16q)

GENERAL

Power supply AC 120 V, 60 Hz Power consumption SA-MT1 25 W

Dimensions (WtHtD) 280k76k316 mm (11qk3qk12 Mass 2.4 kg (5.3 Ib.)

Power consumption in standby mode (Subwoofer) 0.5 W

[Note]

1. Specifications are subject to change without notice.

Mass and dimensions are approximate.

2. Total harmonic distortion is measured by the digital spectrum

analyzer.

SB-WA340 250 W

/16q)

Reference

RQT6719

Page 36

Troubleshooting guide

Before requesting service, make the below checks. If you are in doubt about some of the check points, or if the remedies indicated in the chart do not solve the problem:

In the U.S.A., contact the Panasonic Customer Call Center at 1-800-211-7262, or e-mail [email protected], or web site (http://www.panasonic.com). In Canada, contact Panasonic Canada Inc. Customer Care Centre at 1-800-561-5505, web site (www. panasonic.ca), or an authorized Servicentre closest to you.

Power Page

No power. ≥Insert the AC power supply cord and system cable securely. 9 The unit is automatically

switched to the standby mode.

Operation

No response when buttons pressed.

No operations can be performed with the remote control.

Cannot switch on the television with the remote control.

Play doesn’t start (or stops immediately) when you press [1] (play).

Cannot select alternative languages.

No menu play. ≥This function is dependent on software availability. — No subtitles. ≥This function is dependent on software availability.

The position of the subtitles is incorrect.

Soundtrack and/or subtitle language is not the one selected with the SETUP menus.

Cannot change angle. ≥This function is dependent on software availability. Even if a disc has a number of angles

The SETUP menu cannot be accessed.

Cannot add markers. ≥You cannot add markers while playing a play list or if the disc’s play time doesn’t appear on the

Reference

There are already markers. [RAM] ≥The unit reads and displays the markers added with a DVD video recorder. You can clear them

Marker numbers I added are different when I call them up.

[RAM]

Cannot select random or program play.

Folders deeper than the eighth layer on a data CD are not displayed correctly.

You have forgotten your ratings password.

Reset all the SETUP settings to Factory Preset.

≥The unit was switched to standby by the sleep timer. 28

≥Some operations may be prohibited by the disc. ≥The unit may not be operating properly due to lightning, static electricity or some other external

factor.

Reset procedure:

Press [Í] to switch the unit to the standby mode and then back to ON. Alternatively, press [Í] to switch the unit to the standby mode, disconnect the AC power supply cord, and then reconnect it.

≥Check that the batteries are installed correctly. ≥The batteries are depleted: Replace them with new ones. ≥Point the remote control at the remote control sensor and operate.

≥Press [TV] first to operate the television. —

≥Condensation has formed: Wait 1 to 2 hours for it to evaporate. ≥This unit cannot play discs other than the ones listed in these operating instructions. ≥This unit cannot play DVD-Video with a region number other than “1”, “ALL” or multiple region

numbers including “1”.

≥The disc may be dirty and may require cleaning. ≥Ensure that the disc is installed with the label of the side to be played facing upwards. ≥Check that the DVD-RAM has something recorded on it.

≥This function is dependent on software availability. ≥Try selecting from the disc’s menu if one is available.

≥Subtitles are cleared from the television. Display the subtitles. ≥Change the position of the subtitles with “Subtitle Position” in the on-screen icon menus. 23

≥This function is dependent on software availability. —

recorded, these angles may be recorded for specific scenes only.

≥Select “DVD/CD” as the source. ≥Cancel all group, program and random play.

unit’s display.

but reappear when you switch the unit to standby, change the source, or open the disc tray.

≥The unit numbers markers by time so they change when you add and delete them. —

≥You cannot select random or program play with some DVD-Video. —

≥Folders deeper than the eighth layer are displayed as the eighth layer. —

≥While stopped and “DVD/CD” is the source, press and hold [∫] on the unit and [S10] on the

remote control for about 3 seconds until “Initialized” disappears from the television. Turn the unit off and on again. All settings will return to the default values.

— —

9 9

—

Cover

5 13 —

— 14

— 17

—

— 16

—

RQT6719

Page 37

Sound

No sound. Distorted sound.

Humming heard during play. ≥An AC power supply cord or fluorescent light is near the subwoofer. Keep other appliances and

≥Check the connections. ≥Turn the volume up. ≥Turn muting off. ≥Switch off the unit, determine and correct the cause, then switch the unit on.

Causes include: –Shorting (bare wires touching) of positive and negative speaker wires. –Using speakers with an impedance lower than that rated for this unit. –Straining of the speakers through excessive volume or power. –Using the unit in a hot environment without proper ventilation.

cords away from the subwoofer.


Picture distorted. ≥Some distortion is normal during SEARCH. — No picture. ≥Check the connection.

The picture shown on the television is not normal. (The sides of the picture are cut off, the picture is stretched horizontally, or black bands appear at the top and bottom of the screen.)

There is ghosting when progressive output is on.

Picture quality is poor. ≥Check the settings in the On-Screen Menu Icons’ Picture Menu.

The picture on the television disappears or stripes appear on the screen.

Menus not displayed correctly. ≥Change the zoom ratio to “k1.00”.

≥Make sure the television is on. ≥Ensure the television’s video input setting (e.g., VIDEO 1) is correct.

≥Go to Video in the SETUP menus, and change “TV Aspect” to suit your television. ≥Use the television to change the aspect to the correct one.

If your television cannot change the aspect when input is progressive, try changing 4:3 Aspect with the on-screen menu icons.

≥Ensure that the unit is connected directly to the television, and is not connected through a video

cassette recorder.

≥Connect to the component video (480P) input terminals on a television compatible with this

unit’s copy guard system. You cannot view progressive video if your television is not compatible.

≥Change the size with the variable zoom function. ≥The images on PAL system DVD-Audio are compressed for display. They may also appear

vertically stretched.

≥Press [PROGRESSIVE OUT] so the indicator goes out. This problem is caused by the editing

method or material used on DVD-Video, but should be corrected if you use interlace output.

≥The “U1” settings do not work on the images from PAL system DVD-Audio. ≥Mobile telephone chargers can cause some disturbance.

≥The location and orientation of the antenna are incorrect. If you are using an indoor antenna,

change to an outdoor antenna.

≥The television antenna wire is too close to the unit. Separate the antenna wire of the television

from the unit.

≥With the on-screen icon menus, change “Subtitle Position” to “0” or change “4:3 Aspect” to

“Normal”.

Listening to the radio

Noise is heard. “ST” flickers or doesn’t light. Sound is distorted.

A beat sound is heard. ≥Turn the television off or separate it from the unit. — A low hum is heard during AM

broadcasts.

≥Adjust the position of the FM or AM antenna. ≥Use an outdoor antenna.

≥Separate the antenna from other cables and cords. —

—

8 — —

—

23 23

—

18 23

—

Reference

RQT6719

Page 38

Troubleshooting guide

Unit displays

The display is dark. ≥Press and hold [–DIMMER] to brighten the display. 28 “NO PLAY” ≥You inserted a disc the unit cannot play; insert one it can.

“NO DISC” ≥You haven’t inserted a disc; insert one.

“F61” ≥Check and correct the speaker cord connections.

“DVD U11” ≥Disc is dirty. Wipe it clean. 5 “ERROR” ≥Incorrect operation performed. Read the instructions and try again. — “DVD H∑∑”

∑∑ stands for a number.

Television displays

No on-screen display. ≥Go to Display in the SETUP menus, and select “On” for “On-Screen Messages”. 29 On-Screen Menu Icons not

displayed or only partially displayed on the television.

The disc’s menu is displayed in a different language.

≥You inserted a blank DVD-RAM.

≥You haven’t inserted the disc correctly; insert it correctly.

If this does not fix the problem, there is a power supply problem. Call 1-800-211-PANA.

≥Trouble may have occurred. The number following “H” depends on the status of the unit.

Reset procedure:

Press [Í] to switch the unit to the standby mode and then back to ON. Alternatively, press [Í] to switch the unit to the standby mode, disconnect the AC power supply cord, and then reconnect it.

≥If the service numbers fail to clear, note the service number and contact a qualified service

person.

≥Press [3, 4] while the rightmost icon is highlighted to move them down. 21

≥Go to Disc in the SETUP menus, and select the preferred language for “Menus”. 29

— —

—

Product Service

1. Damage requiring service—The unit should be serviced by qualified service personnel if:

(a) The AC power supply cord or AC adaptor has been damaged; or (b) Objects or liquids have gotten into the unit; or (c) The unit has been exposed to rain; or (d) The unit does not operate normally or exhibits a marked change in performance; or (e) The unit has been dropped or the cabinet damaged.

2. Servicing—Do not attempt to service the unit beyond that described in these operating instructions. Refer all other servicing to authorized

servicing personnel.

3. Replacement parts—When parts need replacing ensure the servicer uses parts specified by the manufacturer or parts that have the same

characteristics as the original parts. Unauthorized substitutes may result in fire, electric shock, or other hazards.

4. Safety check—After repairs or service, ask the servicer to perform safety checks to confirm that the unit is in proper working condition.

The servicer will require all components to service your system. Therefore, should service ever be necessary, be sure to bring the entire system.

Reference

Product information

For product information or assistance with product operation:

In the U.S.A., contact the Panasonic Customer Call Center at 1-800-211-7262, or e-mail [email protected], or web site (http://www.panasonic.com). In Canada, contact Panasonic Canada Inc. Customer Care Centre at 1-800-561-5505, web site (www.panasonic.ca), or an authorized Servicentre closest to you.

Maintenance

RQT6719

To clean this unit, wipe with a soft, dry cloth.

≥Never use alcohol, paint thinner or benzine to clean this unit. ≥Before using chemically treated cloth, read the instructions that

came with the cloth carefully.

Before moving the unit, ensure the disc tray is empty.

Failure to do so will risk severely damaging the disc and the unit.

Page 39

Limited Warranty (U.S.A.)

Panasonic Consumer Electronics Company, Division of Matsushita Electric Corporation of America

One Panasonic Way Secaucus, New Jersey 07094

Panasonic/Technics Audio Products

Limited Warranty

Limited Warranty Coverage

If your product does not work properly because of a defect in materials or workmanship, Panasonic Consumer Electronics Company or Panasonic Sales Company (collectively referred to as “the warrantor”) will, for the length of the period indicated on the chart below, which starts with the date of original purchase (“warranty period”), at its option either (a) repair your product with new or refurbished parts, or (b) replace it with a new or a refurbished product. The decision to repair or replace will be made by the warrantor.

Product or Part Name Parts Labor

Audio Products (except items listed below)

All Audio Racks (cabinets) Thirty (30)

Technics Stand Alone Speakers, Subwoofer Speakers

USB Reader-Writer, Personal Computer Card Adapters (in exchange for defective item)

Accessories: Headphones, Cartridges, Microphones, Adapters

Rechargeable Batteries (in exchange for defective item)

SD Memory Cards, Rechargeable Battery Packs (in exchange for defective item)

During the “Labor” warranty period there will be no charge for labor. During the “Parts” warranty period, there will be no charge for parts. You must carry-in or mail-in your product during the warranty period. If non-rechargeable batteries are included, they are not warranted. This warranty only applies to products purchased and serviced in the United States or Puerto Rico. This warranty is extended only to the original purchaser of a new product which was not sold “as is”. A purchase receipt or other proof of the original purchase date is required for warranty service.

One (1) year One (1) year

days

Three (3) years Three (3) years

One (1) year Not Applicable

Ninety (90)

days

Ten (10) days Not Applicable

Ninety (90)

days

Not Applicable

Ninety (90)

days

Not Applicable

Panasonic Sales Company, Division of Matsushita Electric of Puerto Rico, Inc.

Ave. 65 de Infantería, Km. 9.5 San Gabriel Industrial Park, Carolina, Puerto Rico 00985

Carry-In or Mail-In Service

For Carry-In or Mail-In Service in the United States call 1-800-211-PANA (1-800-211-7262) or visit Panasonic web site: http://www.panasonic.com For assistance in Puerto Rico call Panasonic Sales Company (787)-750-4300 or fax (787)-768-2910.

Limited Warranty Limits And Exclusions

This warranty ONLY COVERS failures due to defects in materials or workmanship, and DOES NOT COVER normal wear and tear or cosmetic damage. The warranty ALSO DOES NOT COVER damages which occurred in shipment, or failures which are caused by products not supplied by the warrantor, or failures which result from accidents, misuse, abuse, neglect, mishandling, misapplication, alteration, faulty installation, set-up adjustments, misadjustment of consumer controls, improper maintenance, power line surge, lightning damage, modification, or commercial use (such as in a hotel, office, restaurant, or other business), rental use of the product, service by anyone other than a Factory Servicenter or other Authorized Servicer, or damage that is attributable to acts of God.

THERE ARE NO EXPRESS WARRANTIES EXCEPT AS LISTED UNDER “LIMITED WARRANTY COVERAGE”. THE WARRANTOR IS NOT LIABLE FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES RESULTING FROM THE USE OF THIS PRODUCT, OR ARISING OUT OF ANY BREACH OF THIS WARRANTY. (As examples, this excludes

damages for lost time, travel to and from the servicer, loss of media or images, data or other memory content. The items listed are not exclusive, but are for illustration only.) ALL

EXPRESS AND IMPLIED WARRANTIES, INCLUDING THE WARRANTY OF MERCHANTABILITY, ARE LIMITED TO THE PERIOD OF THE LIMITED WARRANTY.

Some states do not allow the exclusion or limitation of incidental or consequential damages, or limitations on how long an implied warranty lasts, so the exclusions may not apply to you. This warranty gives you specific legal rights and you may also have other rights which vary from state to state. If a problem with this product develops during or after the warranty period, you may contact your dealer or Servicenter. If the problem is not handled to your satisfaction, then write to the warrantor’s Consumer Affairs Department at the addresses listed for the warrantor.

PARTS AND SERVICE WHICH ARE NOT COVERED BY THIS LIMITED WARRANTY ARE YOUR RESPONSIBILITY.

Customer Services Directory

For Product Information, Operating Assistance, Literature Request, Dealer Locations, and all Customer Service inquiries please contact: 1-800-211-PANA (7262), Monday–Friday 9 am–9 pm; Saturday–Sunday 9 am–7 pm, EST. or send e-mail: [email protected] For hearing or speech impaired TTY users, TTY: 1-877-833-8855

Web Site: http://www.panasonic.com You can purchase parts, accessories or locate your nearest servicenter by visiting our Web Site.

Accessory Purchases:

1-800-332-5368 (Customer Orders Only) For hearing or speech impaired TTY users, TTY: 1-866-605-1277 Panasonic Services Company 20421 84th Avenue South, Kent, WA 98032 (6 am to 5 pm Monday–Friday; 6 am to 10:30 am Saturday; PST) (Visa, MasterCard, Discover Card, American Express, Check)

Service in Puerto Rico

Matsushita Electric of Puerto Rico, Inc. Panasonic Sales Company/Factory Servicenter:

Ave. 65 de Infanteria, Km. 9.5, San Gabriel Industrial Park, Carolina, Puerto Rico 00985

Phone (787) 750-4300 Fax (787) 768-2910

Reference

RQT6719

Page 40

Listening caution

EST. 1924

Selecting fine audio equipment such as the unit you’ve just purchased is only the start of your musical enjoyment. Now it’s time to consider how you can maximize the fun and excitement your equipment offers. This manufacturer and the Electronic Industries Association’s Consumer Electronics Group want you to get the most out of your equipment by playing it at a safe level. One that lets the sound come through loud and clear without annoying blaring or distortion—and, most importantly, without affecting your sensitive hearing.

We recommend that you avoid prolonged exposure to excessive noise.

Sound can be deceiving. Over time your hearing “comfort level” adapts to higher volumes of sound. So what sounds “normal” can actually be loud and harmful to your hearing. Guard against this by setting your equipment at a safe level BEFORE your hearing adapts. To establish a safe level:

≥Start your volume control at a low setting. ≥Slowly increase the sound until you can hear it comfortably and clearly, and without distortion.

Once you have established a comfortable sound level: ≥Set the dial and leave it there.

Taking a minute to do this now will help to prevent hearing damage or loss in the future. After all, we want you listening for a lifetime.

Manufactured under license from Digital Theater Systems, Inc. US Pat. No. 5,451,942, 5,956,674, 5,974,380, 5,978,762 and

other world-wide patents issued and pending. “DTS” and “DTS Manufactured under license from Dolby Laboratories. “Dolby”, “Pro Logic” and the double-D symbol are trademarks of Dolby Laboratories.

Digital Surround” are registered trademarks of Digital Theater

Systems, Inc. C 1996, 2000 Digital Theater Systems, Inc. All

rights reserved.

Apparatus Claims of U.S. Patent Nos. 4,631,603, 4,577,216, and 4,819,098, licensed for limited viewing uses only.

This product incorporates copyright protection technology that is protected by method claims of certain U.S. patents and other intellectual property rights owned by Macrovision Corporation and other rights owners. Use of this copyright protection technology must be authorized by Macrovision Corporation, and is intended for home and other limited viewing uses only unless otherwise authorized by Macrovision Corporation. Reverse engineering or disassembly is prohibited.

[For\U.S.A.]

As an

ENERGY STAR

has determined that this product meets the

ENERGY STAR

efficiency.

Panasonic Consumer Electronics Company, Division of Matsushita Electric Corporation of America

One Panasonic Way Secaucus, New Jersey 07094

http://www.panasonic.com

Partner, Panasonic

guidelines for energy

Panasonic Sales Company, Division of Matsushita Electric of Puerto Rico, Inc. (“PSC”)

Ave. 65 de Infantería, Km. 9.5 San Gabriel Industrial Park, Carolina, Puerto Rico 00985

Panasonic Canada Inc.

5770 Ambler Drive Mississauga, Ontario L4W 2T3

www.panasonic.ca

C 2003 Matsushita Electric Industrial Co., Ltd.

Printed in Singapore

RQT6719-P

F0103MF0

Panasonic SC-MT1 User Manual

Accessories

Table of contents

Getting started

IMPORTANT SAFETY INSTRUCTIONS

Disc information

Simple setup

STEP2 Speakers

STEP3 Television

Other speaker setup options

STEP6 QUICK SETUP

Control reference guide

Disc operations

WMA/MP3 and CD text navigation menus

Playing the programs or play lists on DVD-RAM

Using On-Screen Menu Icons

The radio

Radio operations

Sound field

Sound field/sound quality operations

Sound quality

Convenient functions

Other functions

Changing settings

Glossary

Reference

Specifications

Troubleshooting guide

Product Service

Maintenance

Limited Warranty (U.S.A.)
