D-link DGS-1210-52P, DGS-1210-10, DGS-1210-52MP User Manual [ru]

Name: D-link DGS-1210-52P
Brand: D-link
SKU: 2625051
Rating: 4 (1 reviews)

4 (1)

D-link DGS-1210-52P, DGS-1210-10, DGS-1210-52MP User Manual

Table of Contents	D-Link Web Smart Switch User Manual
Table of Contents
Table of Contents .............................................................................................................................................	i
About This Guide.............................................................................................................................................	1
Terms/Usage..................................................................................................................................................	1
Copyright and Trademarks ............................................................................................................................	1
1 Product Introduction ...................................................................................................................................	2
DGS-1210-10 .................................................................................................................................................	3
Front Panel .................................................................................................................................................	3
Rear Panel..................................................................................................................................................	3
DGS-1210-10P...............................................................................................................................................	3
Front Panel .................................................................................................................................................	3
Rear Panel..................................................................................................................................................	4
DGS-1210-20 .................................................................................................................................................	4
Front Panel .................................................................................................................................................	4
Rear Panel..................................................................................................................................................	5
DGS-1210-28 .................................................................................................................................................	5
Front Panel .................................................................................................................................................	5
Rear Panel..................................................................................................................................................	5
DGS-1210-28P...............................................................................................................................................	5
Front Panel .................................................................................................................................................	6
Rear Panel..................................................................................................................................................	6
DGS-1210-52 .................................................................................................................................................	6
Front Panel .................................................................................................................................................	6
Rear Panel..................................................................................................................................................	7
DGS-1210-52P...............................................................................................................................................	7
Front Panel .................................................................................................................................................	7
Rear Panel..................................................................................................................................................	8
DGS-1210-52MP............................................................................................................................................	8
Front Panel .................................................................................................................................................	8
Rear Panel..................................................................................................................................................	9
2 Hardware Installation ................................................................................................................................	10
Step 1: Unpacking........................................................................................................................................	10
Step 2: Switch Installation ............................................................................................................................	10
Desktop or Shelf Installation.....................................................................................................................	10
Rack Installation .......................................................................................................................................	10
Step 3: Plugging in the AC Power Cord with Power Cord Clip ....................................................................	11
Power Failure ...........................................................................................................................................	14
3 Getting Started...........................................................................................................................................	15
Management Options...................................................................................................................................	15
Using Web-based Management ..................................................................................................................	15
Supported Web Browsers ........................................................................................................................	15
Connecting to the Switch..........................................................................................................................	15
Login Web-based Management ...............................................................................................................	16
Smart Wizard ...............................................................................................................................................	16
Web-based Management.............................................................................................................................	16
D-Link Network Assistant (DNA) ..................................................................................................................	16
4 Configuration .............................................................................................................................................	18
Smart Wizard Configuration .........................................................................................................................	18

Table of Contents	D-Link Web Smart Switch User Manual

IP Information ...........................................................................................................................................	18
Password..................................................................................................................................................	18
SNMP .......................................................................................................................................................	19
Web-based Management.............................................................................................................................	21
Tool Bar > Save Menu .................................................................................................................................	22
Save Configuration ...................................................................................................................................	22
Save Log ..................................................................................................................................................	22
Tool Bar > Tool Menu ..................................................................................................................................	22
Reset ........................................................................................................................................................	22
Reset System ...........................................................................................................................................	22
Reboot Device ..........................................................................................................................................	22
Configuration Backup and Restore ..........................................................................................................	23
Firmware Backup and Upgrade................................................................................................................	23
Tool Bar > Smart Wizard..............................................................................................................................	24
Tool Bar > Online Help.................................................................................................................................	24
Function Tree ...............................................................................................................................................	24
Device Information....................................................................................................................................	25
System > System Settings .......................................................................................................................	26
System > IPv6 System Settings ...............................................................................................................	27
System > IPv6 Route Settings..................................................................................................................	27
System > IPv6 Neighbor Settings ............................................................................................................	28
System > Password..................................................................................................................................	28

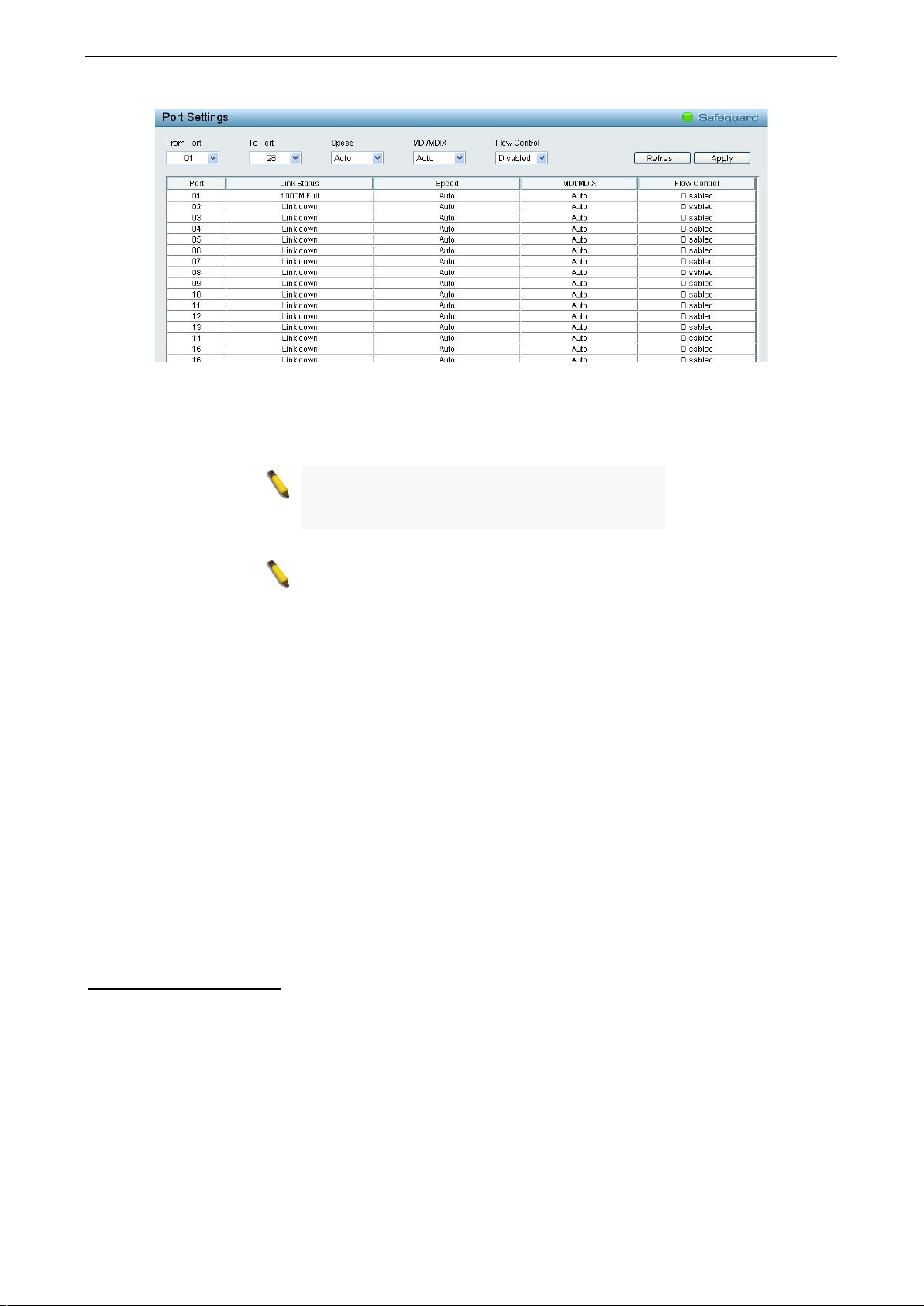

System > Port Settings.............................................................................................................................	28
System > Port Description........................................................................................................................	29
System > DHCP Auto Configuration ........................................................................................................	30
System > DHCP Relay > DHCP Relay Global Settings..........................................................................	30
System > DHCP Relay > DHCP Relay Interface Settings ......................................................................	31
System > DHCP Local Relay Settings .....................................................................................................	32
System > DHCPv6 Relay Settings ...........................................................................................................	32
System > SysLog Host .............................................................................................................................	33

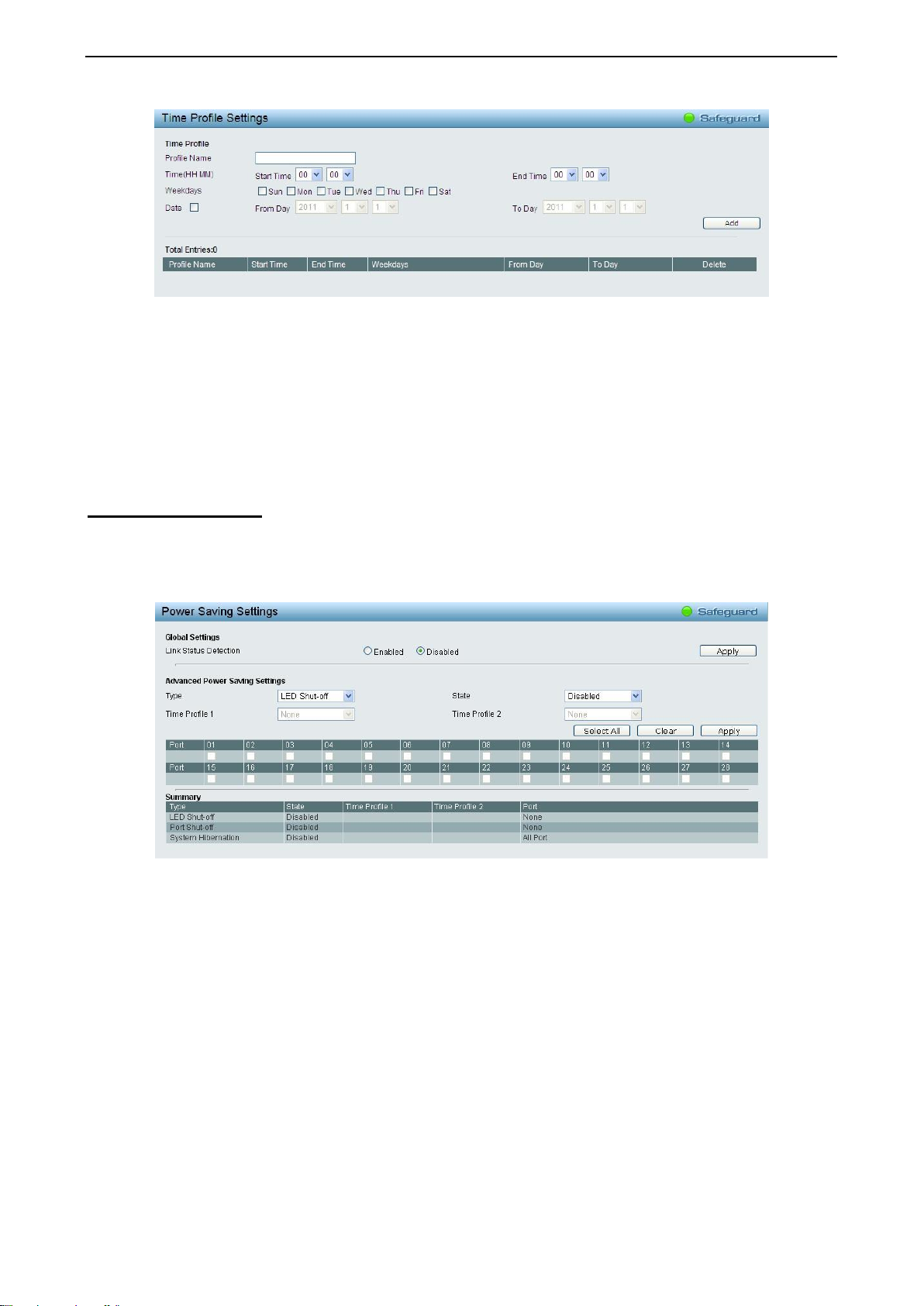

System > Time Profile ..............................................................................................................................	33
System > Power Saving ...........................................................................................................................	34
System > IEEE802.3az EEE Settings ......................................................................................................	35
System > D-Link Discover Protocol Settings............................................................................................	35
VLAN > 802.1Q VLAN..............................................................................................................................	36
VLAN > 802.1Q VLAN PVID ....................................................................................................................	36
VLAN > 802.1Q Management VLAN........................................................................................................	37
VLAN > Voice VLAN > Voice VLAN Global Settings ...............................................................................	37
VLAN > Voice VLAN > Voice VLAN Port Settings ...................................................................................	38
VLAN > Voice VLAN > Voice Device List.................................................................................................	39
VLAN > Auto Surveillance VLAN Settings ...............................................................................................	39
L2 Functions > Jumbo Frame...................................................................................................................	40
L2 Functions > Port Mirroring ...................................................................................................................	40
L2 Functions > Loopback Detection .........................................................................................................	41
L2 Functions > MAC Address Table > Static MAC ..................................................................................	41
L2 Functions > MAC Address Table > Dynamic Forwarding Table .........................................................	42
L2 Functions > Spanning Tree > STP Global Settings ............................................................................	42
L2 Functions > Spanning Tree > STP Port Settings ................................................................................	43
L2 Functions > Link Aggregation > Port Trunking....................................................................................	45
ii

Table of Contents	D-Link Web Smart Switch User Manual

L2	Functions > Link Aggregation > LACP Port Settings ..........................................................................	45
L2	Functions > Multicast > IGMP Snooping .............................................................................................	46
L2	Functions > Multicast > MLD Snooping ..............................................................................................	47
L2	Functions > Multicast > Multicast Forwarding .....................................................................................	49
L2	Functions > Multicast > Multicast Filtering Mode ................................................................................	50
L2	Functions > SNTP > Time Settings .....................................................................................................	50
L2	Functions > SNTP > TimeZone Settings.............................................................................................	51
L2	Functions > LLDP > LLDP Global Settings .........................................................................................	51
L2	Functions > LLDP > LLDP-MED Settings (DGS-1210-10P/28P/52P/52MP only) ..............................	52
L2	Functions > LLDP > LLDP Port Settings .............................................................................................	52
L2	Functions > LLDP > 802.1 Extension TLV ..........................................................................................	53

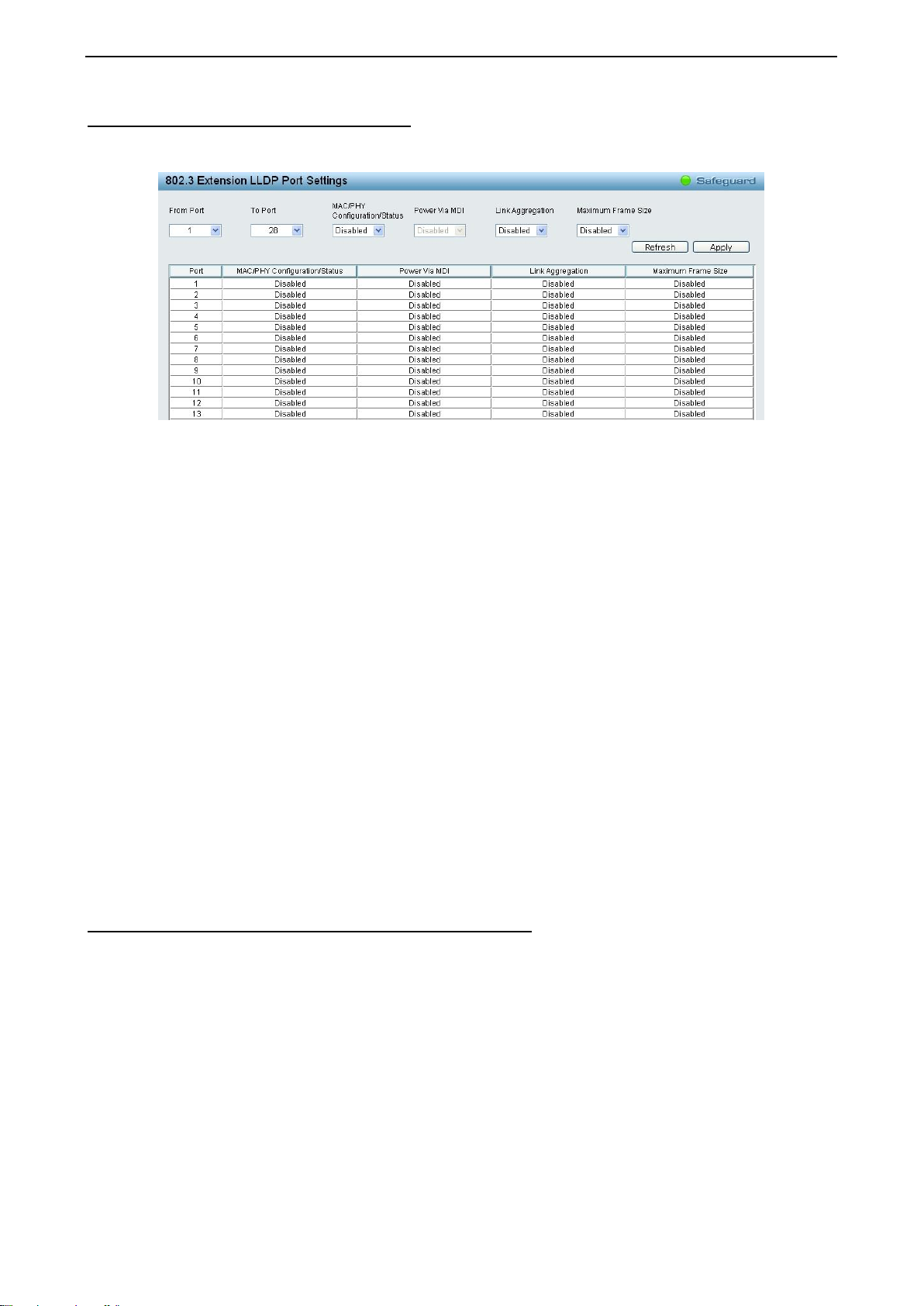

L2	Functions > LLDP > 802.3 Extension TLV ..........................................................................................	54
L2	Functions > LLDP > LLDP Management Address Settings ................................................................	54
L2 Functions > LLDP > LLDP Management Address Table ....................................................................		55
L2	Functions > LLDP > LLDP Local Port Table .......................................................................................	55
L2	Functions > LLDP > LLDP Remote Port Table ...................................................................................	57
L2	Functions > LLDP > LLDP Statistics ...................................................................................................	58
QoS > Bandwidth Control.........................................................................................................................		59
QoS > 802.1p/DSCP/ToS.........................................................................................................................		60
Security > Trusted Host............................................................................................................................		61
Security > Port Security............................................................................................................................		61
Security > Traffic Segmentation ...............................................................................................................		62
Security > Safeguard Engine....................................................................................................................		62
Security > Storm Control ..........................................................................................................................		63
Security > ARP Spoofing Prevention .......................................................................................................		63
Security > DHCP Server Screening .........................................................................................................		64
Security > SSL Settings............................................................................................................................		64

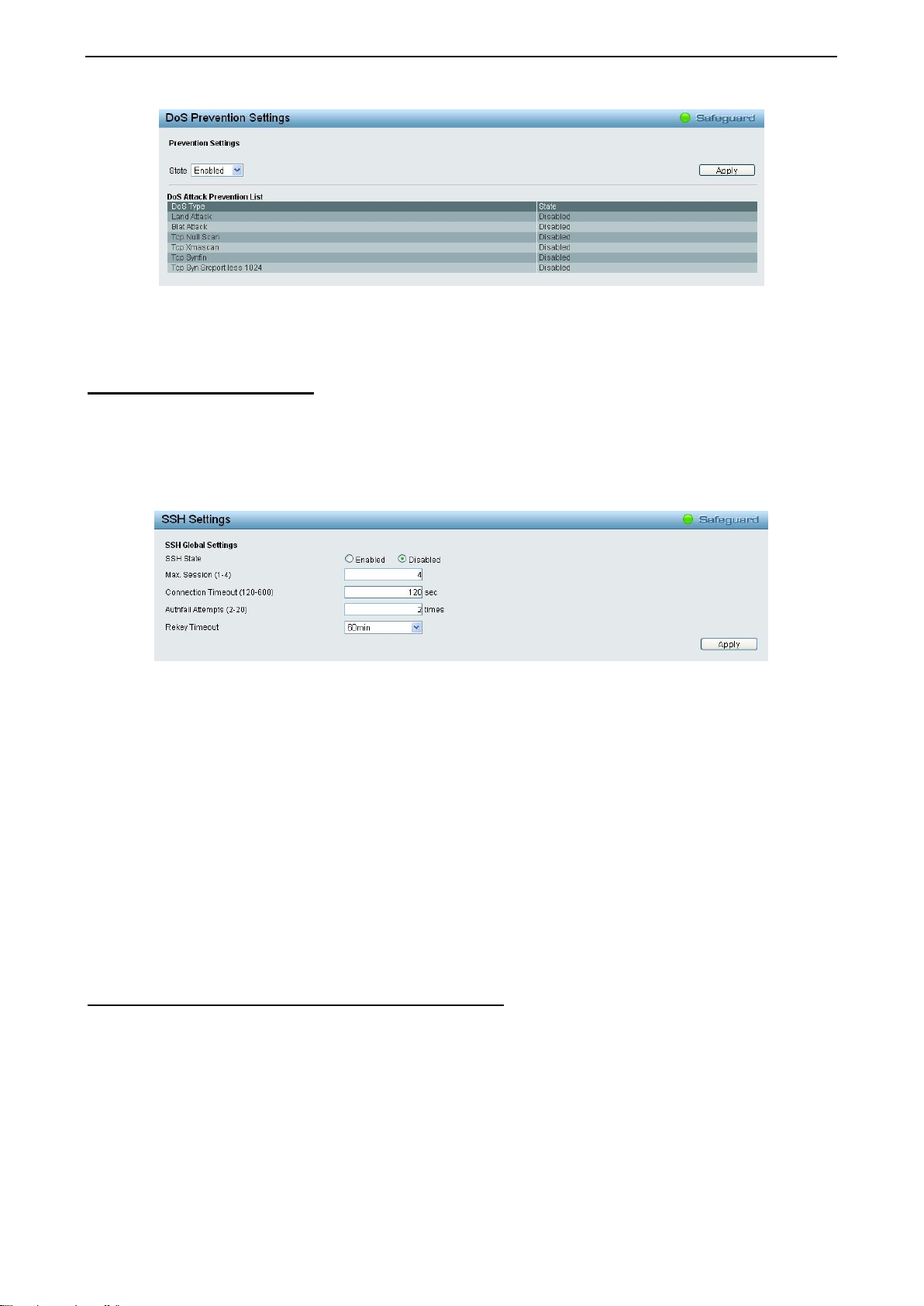

Security > DoS Prevention Settings .........................................................................................................		64
Security > SSH > SSH Settings ...............................................................................................................		65
Security > SSH > SSH Authmode and Algorithm Settings.......................................................................		65
Security > SSH > SSH User Authentication Lists ....................................................................................		66
Security > Smart Binding > Smart Binding Settings .................................................................................		67
Security > Smart Binding > Smart Binding ...............................................................................................		68
Security > Smart Binding > White List......................................................................................................		68
Security > Smart Binding > Black List ......................................................................................................		68
AAA > RADIUS Server .............................................................................................................................		69
AAA > 802.1X > 802.1X Global Settings..................................................................................................		70
AAA > 802.1X > 802.1X Port Settings......................................................................................................		70
AAA > 802.1X > 802.1X User...................................................................................................................		71
ACL > ACL Wizard ...................................................................................................................................		72
ACL > ACL Access List ............................................................................................................................		79
ACL > ACL Access Group........................................................................................................................		80
ACL > ACL Hardware Resource Status ...................................................................................................		81
PoE > PoE Global Settings (DGS-1210-10P/28P/52P/52MP only) .........................................................		81
PoE > PoE Port Settings (DGS-1210-10P/28P/52P/52MP only) .............................................................		81
SNMP > SNMP > SNMP Global Settings ................................................................................................		84
SNMP > SNMP > SNMP User .................................................................................................................		84
SNMP > SNMP > SNMP Group Table .....................................................................................................		85
SNMP > SNMP > SNMP View .................................................................................................................		85
	iii

Table of Contents	D-Link Web Smart Switch User Manual

	SNMP > SNMP > SNMP Community.......................................................................................................	86
	SNMP > SNMP > SNMP Host..................................................................................................................	86
	SNMP > SNMP > SNMP Engine ID .........................................................................................................	87
	SNMP > RMON > RMON Global Settings ...............................................................................................	87
	SNMP > RMON > RMON Statistics .........................................................................................................	87
	SNMP > RMON > RMON History.............................................................................................................	87
	SNMP > RMON > RMON Alarm Settings ................................................................................................	88
	SNMP > RMON > RMON Event...............................................................................................................	88
	Monitoring > Port Statistics.......................................................................................................................	89
	Monitoring > Cable Diagnostics ...............................................................................................................	90
	Monitoring > System Log..........................................................................................................................	91

5	Command Line Interface...........................................................................................................................	92
	................................................................................................................To connect a switch via TELNET:	92
	Logging on to the Command Line Interface:................................................................................................	92
	CLI Commands: ...........................................................................................................................................	92
?................................................................................................................................................................		93
	download ..................................................................................................................................................	93
	upload .......................................................................................................................................................	94
	config ipif system ......................................................................................................................................	95
	config ipif system ......................................................................................................................................	96
	logout ........................................................................................................................................................	96
	ping ...........................................................................................................................................................	97
	ping6 .........................................................................................................................................................	97
	create iproute............................................................................................................................................	98
	delete iproute............................................................................................................................................	98
	show iproute .............................................................................................................................................	98
	reboot .......................................................................................................................................................	99
	reset config ...............................................................................................................................................	99
	show ipif..................................................................................................................................................	100
	show switch ............................................................................................................................................	100
	config account admin password .............................................................................................................	101
	save ........................................................................................................................................................	101
	debug info...............................................................................................................................................	102
Appendix A - Ethernet Technology............................................................................................................		103
	Gigabit Ethernet Technology .....................................................................................................................	103
	Fast Ethernet Technology ..........................................................................................................................	103
	Switching Technology ................................................................................................................................	103
Appendix B - Technical Specifications .....................................................................................................		104
	Hardware Specifications ............................................................................................................................	104
	Key Components / Performance ............................................................................................................	104
	Port Functions ........................................................................................................................................	104
	Physical & Environment .........................................................................................................................	104
	Emission (EMI) Certifications .................................................................................................................	104
	Safety Certifications................................................................................................................................	104
	Features .....................................................................................................................................................	104
	L2 Features ............................................................................................................................................	104
	VLAN ......................................................................................................................................................	104
	QoS (Quality of Service).........................................................................................................................	105
	Security...................................................................................................................................................	105

Table of Contents	D-Link Web Smart Switch User Manual

OAM .......................................................................................................................................................	105
Management...........................................................................................................................................	105
D-Link Green Technology ......................................................................................................................	105
Appendix C – Rack mount Instructions ....................................................................................................	106

About This Guide	D-Link Web Smart Switch User Manual

About This Guide

This guide provides instructions to install the D-Link Gigabit Web Smart Switch DGS-1210 series, and to configure Web-based Management step-by-step.

Note: The model you have purchased may appear slightly different from the illustrations shown in the document. Refer to the Product Instruction and Technical Specification sections for detailed information about your switch, its components, network connections, and technical specifications.

This guide is mainly divided into four parts:

1.Hardware Installation: Step-by-step hardware installation procedures.

2.Getting Started: A startup guide for basic switch installation and settings.

3.Web Configuration: Information about the function descriptions and configuration settings via Web.

4.Command Line Interface: Information about the function descriptions and configuration settings via Telnet.

Terms/Usage

In this guide, the term “Switch” (first letter capitalized) refers to the Smart Switch, and “switch” (first letter lower case) refers to other Ethernet switches. Some technologies refer to terms “switch”, “bridge” and “switching hubs” interchangeably, and both are commonly accepted for Ethernet switches.

A NOTE indicates important information that helps a better use of the device.

A CAUTION indicates potential property damage or personal injury.

Reproduction in any manner whatsoever without the written permission of D-Link Corporation is strictly forbidden.

Trademarks used in this text: D-Link and the D-LINK logo are trademarks of D-Link Corporation; Microsoft and Windows are registered trademarks of Microsoft Corporation.

Other trademarks and trade names may be used in this document to refer to either the entities claiming the marks and names or their products. D-Link Corporation disclaims any proprietary interest in trademarks and trade names other than its own.

1 Product Introduction	D-Link Web Smart Switch User Manual

1 Product Introduction

Thank you and congratulations on your purchase of D-Link Web Smart Switch Products.

D-Link's next generation Web Smart Ethernet switch series blends plug-and-play simplicity with exceptional value and reliability for small and medium-sized business (SMB) networking. All models are housed in a new style rack-mount metal case with easy-to-view front panel diagnostic LEDs, and provides advanced features including network security, traffic segmentation, QoS and versatile management.

Flexible Port Configurations. The DGS-1210 series is the new generation of Web Smart series. It provides a variety of port counts 16, 24 or 48 10/100/1000Mbps ports plus 4 SFP ports and 8 GE ports plus 2 SFP ports. Besides, the series offers 24 or 48 10/100/1000Mbps PoE ports plus 4 SFP ports and 8 GE PoE ports plus 2 SFP ports.

D-Link Green Technology. D-Link Green devices are about providing eco-friendly alternatives without compromising performance. D-Link Green Technology includes a number of innovations to reduce energy consumption on DGS-1210 series such as shutting down a port, or turning off some LED indicators, or adjusting the power usage according to the Ethernet cable connected to it.

Extensive Layer 2 Features. Implemented as complete L2 devices, these switches include functions such as IGMP snooping, port mirroring, Spanning Tree, 802.3ad LACP and Loopback Detection to enhance performance and network resiliency.

Traffic Segmentation, QoS and Auto Surveillance VLAN. The switches support 802.1Q VLAN standard tagging to enhance network security and performance. The switches also support 802.1p priority queues, enabling users to run bandwidth-sensitive applications such as streaming multimedia by prioritizing that traffic in network. These functions allow switches to work seamlessly with VLAN and 802.1p traffic in the network. Auto Surveillance VLAN will automatically place the vedio traffic from pre-defined IP surveillance devices to an assigned VLAN with higher priority, so it can be separated from normal data traffic. Asymmetric VLAN is implemented in these switches for a more efficient use of shared resources, such as server or gateway devices.

Network Security. D-Link’s innovative Safeguard Engine function protects the switches against traffic flooding caused by virus attacks. Additional features like 802.1X port-based authentication provide access control of the network with external RADIUS servers. ACL is a powerful tool to screen unwanted IP or MAC traffic. Storm Control can help to keep the network from being overwhelmed by abnormal traffic. Port Security is another simple but useful authentication method to maintain the network device integrity.

Versatile Management. The new generation of D-Link Web Smart Switches provides growing businesses with a simple and easy management of their network, using an intuitive SmartConsole utility or a Web-Based management interface that allows administrators to remotely control their network down to the port level. The SmartConsole easily allows customers to discover multiple D-Link web smart switches with the same L2 network segment connected to the user’s local PC. With this utility, users do not need to change the IP address of the PC and provide easy initial settings of the smart switches. The switches within the same L2 network segment connected to the user’s local PC are displayed on the screen for instant access. It allows extensive switch configuration settings, and basic configuration of discovered devices, such as a password change or firmware upgrade.

Users can also access the switch via TELNET. Some basic tasks can be performed such as changing the Switch IP address, resetting the settings to factory defaults, setting the administrator password, rebooting the Switch, or upgrading the Switch firmware by using the Command Line Interface (CLI).

In addition, users can utilize the SNMP MIB (Management Information Base) to poll the switches for information about the status, or send out traps of abnormal events. SNMP support allows users to integrate the switches with other third-party devices for management in an SNMP-enabled environment. D-Link Web Smart Switches also come with the D-View plug-in module that works with D-View 6 SNMP Management Software, and provides easy-to-use graphic interface and facilitates the operation efficiency.

1 Product Introduction	D-Link Web Smart Switch User Manual

DGS-1210-10

8-Port 10/100/1000Mbps plus 2 SFP Slot Web Smart Switch.

Front Panel

Figure 1.1 – DGS-1210-10 Front Panel

Power LED: The Power LED lights up when the Switch is connected to a power source.

Port Link/Act/Speed LED (1-8): The Link/Act/Speed LED flashes, which indicates a network link through the corresponding port. Blinking indicates that the Switch is either sending or receiving data to the port. When a port has an amber light, this indicates that the port is running on 10M or 100M. When it has a green light it is running on 1000M.

Port Link/Act/Speed LED (9F, 10F): The Link/Act/Speed LED flashes, which indicates a network link through the corresponding port. Blinking indicates that the Switch is either sending or receiving data to the port. When a port has a green light, this indicates that the port is running on 1000M.

Reset: Press the Reset button for 5 seconds to reset the Switch back to the default settings. All previous changes will be lost.

CAUTION: The MiniGBIC ports should use UL listed Optical

Transceiver product, Rated Laser Class I. 3.3Vdc.

Rear Panel

Figure 1.2 – DGS-1210-10 Rear Panel

Power: Connect the supplied AC power cable to this port.

DGS-1210-10P

8-Port 10/100/1000Mbps plus 2 SFP Slot Web Smart PoE Switch.

Front Panel

Figure 1.3 – DGS-1210-10P Front Panel

Power LED: The Power LED lights up when the Switch is connected to a power source.

Pwr Max: The Pwr Max LED lights up when the Switch reaches the maximum power budget defined by the administrator via PoE System Settings page of Web GUI or the default power budget of 78 Watts.

Port Link/Act/Speed LED (1-8, 9F, 10F): The Link/Act/Speed LED flashes, which indicates a network link through the corresponding port. Blinking indicates that the Switch is either sending or receiving data to the port. When a port has an amber light, this indicates that the port is running on 10M or 100M. When it has a green light it is running on 1000M.

Pwr Fail: The Pwr Fail lights up when the Switch PoE is connected to a power failure.

1 Product Introduction	D-Link Web Smart Switch User Manual

Pwr OK: The Pwr OK led solid indicates a PoE connection to a good power source.

Reset: Press the Reset button for 5 seconds to reset the Switch back to the default settings. All previous changes will be lost.

Mode: By pressing the Mode button, the Port LED will switch between Link/Act and PoE modes.

CAUTION: The MiniGBIC ports should use UL listed Optical

Transceiver product, Rated Laser Class I. 3.3Vdc.

CAUTION: This equipment can be connected only to PoE networks without routing to the outside plant.

Rear Panel

Figure 1.4 – DGS-1210-10P Rear Panel

Power: Connect the supplied AC power cable to this port.

DGS-1210-20

16-Port 10/100/1000Mbps plus 4 SFP Slot Web Smart Switch.

Front Panel

Figure 1.5 – DGS-1210-20 Front Panel

Power LED: The Power LED lights up when the Switch is connected to a power source.

Port Link/Act/Speed LED (1-16): The Link/Act/Speed LED flashes, which indicates a network link through the corresponding port. Blinking indicates that the Switch is either sending or receiving data to the port. When a port has an amber light, this indicates that the port is running on 10M or 100M. When it has a green light it is running on 1000M.

Port Link/Act/Speed LED (17F, 18F, 19F, 20F): The Link/Act/Speed LED flashes, which indicates a network link through the corresponding port. Blinking indicates that the Switch is either sending or receiving data to the port. When a port has a green light, this indicates that the port is running on 1000M.

Reset: Press the Reset button for 5 seconds to reset the Switch back to the default settings. All previous changes will be lost.

CAUTION: The MiniGBIC ports should use UL listed Optical

Transceiver product, Rated Laser Class I. 3.3Vdc.

1 Product Introduction	D-Link Web Smart Switch User Manual

Rear Panel

Figure 1.6 – DGS-1210-20 Rear Panel

Power: Connect the supplied AC power cable to this port.

DGS-1210-28

24-Port 10/100/1000Mbps plus 4 SFP Slot Web Smart Switch.

Front Panel

Figure 1.7 – DGS-1210-28 Front Panel

Power LED: The Power LED lights up when the Switch is connected to a power source.

Port Link/Act/Speed LED (1-24): The Link/Act/Speed LED flashes, which indicates a network link through the corresponding port. Blinking indicates that the Switch is either sending or receiving data to the port. When a port has an amber light, this indicates that the port is running on 10M or 100M. When it has a green light it is running on 1000M.

Port Link/Act/Speed LED (25F, 26F, 27F, 28F): The Link/Act/Speed LED flashes, which indicates a network link through the corresponding port. Blinking indicates that the Switch is either sending or receiving data to the port. When a port has a green light, this indicates that the port is running on 1000M.

Reset: Press the Reset button for 5 seconds to reset the Switch back to the default settings. All previous changes will be lost.

CAUTION: The MiniGBIC ports should use UL listed Optical

Transceiver product, Rated Laser Class I. 3.3Vdc.

Rear Panel

Figure 1.8 – DGS-1210-28 Rear Panel

Power: Connect the supplied AC power cable to this port.

DGS-1210-28P

24-Port 10/100/1000Mbps plus 4 SFP Slot Web Smart PoE Switch.

1 Product Introduction	D-Link Web Smart Switch User Manual

Front Panel

Figure 1.9 – DGS-1210-28P Front Panel

Power LED: The Power LED lights up when the Switch is connected to a power source.

Fan Error: The Fan Error lights up with solid red when the fan has runtime failure and is brought offline.

Pwr Max: The Pwr Max LED lights up with solid red when the Switch reaches the maximum power budget defined by the administrator via PoE System Settings page of Web GUI or the default power budget of 193 Watts.

Reset: By pressing the Reset button for 5 seconds, the Switch will change back to the default configuration and all changes will be lost.

Mode: By pressing the Mode button, the Port LED will switch between Link/Act and PoE modes.

CAUTION: The MiniGBIC ports should use UL listed Optical

Transceiver product, Rated Laser Class I. 3.3Vdc.

CAUTION: This equipment can be connected only to PoE networks without routing to the outside plant.

Rear Panel

Figure 1.10 – DGS-1210-28P Rear Panel

Power: Connect the supplied AC power cable to this port

DGS-1210-52

48-Port 10/100/1000Mbps plus 4 SFP Slot Web Smart Switch.

Front Panel

Figure 1.11 – DGS-1210-52 Front Panel

Power LED: The Power LED lights up when the Switch is connected to a power source.

Fan Error: The FAN LED shows the status of the fans, light off indicates all fans work fine and the red light indicates that one or multiple fans are working abnormally.

1 Product Introduction	D-Link Web Smart Switch User Manual

When a port has an amber light, this indicates that the port is running on 10M or 100M. When it has a green light it is running on 1000M.

Port Link/Act/Speed LED (49F, 50F, 51F, 52F): The Link/Act/Speed LED flashes, which indicates a network link through the corresponding port. Blinking indicates that the Switch is either sending or receiving data to the port. When a port has a green light, this indicates that the port is running on 1000M.

Fan Error: The FAN LED shows the status of the fans, light off indicates all fans work fine and the red light indicates that one or multiple fans are working abnormally.

Reset: Press the Reset button for 5 seconds to reset the Switch back to the default settings. All previous changes will be lost.

CAUTION: The MiniGBIC ports should use UL listed Optical

Transceiver product, Rated Laser Class I. 3.3Vdc.

Rear Panel

Figure 1.12 – DGS-1210-52 Rear Panel

Power: Connect the supplied AC power cable to this port.

DGS-1210-52P

24-Port 10/100/1000Mbps PoE, 24-Port 10/100/1000Mbps plus 4 SFP Slot Web Smart Switch.

Front Panel

Figure 1.13 – DGS-1210-52P Front Panel

Power LED: The Power LED lights up when the Switch is connected to a power source.

Mode: To select the mode of port LED, the Link/Act and PoE LED under the mode button will solid green to indicate which mode is selected.

Port Link/Act/Speed LED (1-48): The Link/Act/Speed LED flashes, which indicates a network link through the corresponding port. Blinking indicates that the Switch is either sending or receiving data to the port. When a port has an amber light, this indicates that the port is running on 10M or 100M. When it has a green light it is running on 1000M.

Fan Error: The FAN LED shows the status of the fans, light off indicates all fans work fine and the red light indicates that one or multiple fans are working abnormally.

Reset: Press the Reset button for 5 seconds to reset the Switch back to the default settings. All previous changes will be lost.

Mode: By pressing the Mode button, the Port LED will switch between Link/Act and PoE modes.

CAUTION: The MiniGBIC ports should use UL listed Optical

Transceiver product, Rated Laser Class I. 3.3Vdc.

1 Product Introduction	D-Link Web Smart Switch User Manual

CAUTION: The port 1 ~ port 24 are PoE ports. When user press the Mode button to PoE mode, only port 1 ~ port 24 will light up.

CAUTION: This equipment can be connected only to PoE networks without routing to the outside plant.

Rear Panel

Figure 1.14 – DGS-1210-52P Rear Panel

Power: Connect the supplied AC power cable to this port.

DGS-1210-52MP

48-Port 10/100/1000Mbps plus 4 SFP Slot Web Smart PoE Switch.

Front Panel

Figure 1.15 – DGS-1210-52MP Front Panel

Power LED: The Power LED lights up when the Switch is connected to a power source.

Mode: To select the mode of port LED, the Link/Act and PoE LED under the mode button will solid green to indicate which mode is selected.

Fan Error: The FAN LED shows the status of the fans, light off indicates all fans work fine and the red light indicates that one or multiple fans are working abnormally.

Reset: Press the Reset button for 5 seconds to reset the Switch back to the default settings. All previous changes will be lost.

Mode: By pressing the Mode button, the Port LED will switch between Link/Act and PoE modes.

CAUTION: The MiniGBIC ports should use UL listed Optical

Transceiver product, Rated Laser Class I. 3.3Vdc.

CAUTION: The port 1 ~ port 48 are PoE ports. When user press the Mode button to PoE mode, only port 1 ~ port 48 will light up.

CAUTION: This equipment can be connected only to PoE networks without routing to the outside plant.

1 Product Introduction	D-Link Web Smart Switch User Manual

Rear Panel

Figure 1.16 – DGS-1210-52MP Rear Panel

Power: Connect the supplied AC power cable to this port.

2 Hardware Installation	D-Link Web Smart Switch User Manual

2 Hardware Installation

This chapter provides unpacking and installation information for the D-Link Web-Smart Switch.

Step 1: Unpacking

Open the shipping carton and carefully unpack its contents. Please consult the packing list located in the User Manual to make sure all items are present and undamaged. If any item is missing or damaged, please contact your local D-Link reseller for replacement.

One D-Link Web-Smart Switch

One AC power cord

Four rubber feet

Screws and two mounting brackets

One Multi-lingual Getting Started Guide

One CD with User Manual, D-Link Network Assistant (DNA) Utility program, D-Link Network Assistant User Guide and D-View Module

If any item is found missing or damaged, please contact the local reseller for replacement.

Step 2: Switch Installation

For safe switch installation and operation, it is recommended that you:

Visually inspect the power cord to see that it is secured fully to the AC power connector. Make sure that there is proper heat dissipation and adequate ventilation around the switch. Do not place heavy objects on the switch.

Desktop or Shelf Installation

When installing the switch on a desktop or shelf, the rubber feet included with the device must be attached on the bottom at each corner of the device’s base. Allow enough ventilation space between the device and the objects around it.

Figure 2.1 – Attach the adhesive rubber pads to the bottom

Rack Installation

The switch can be mounted in an EIA standard size 19-inch rack, which can be placed in a wiring closet with other equipment. To install, attach the mounting brackets to the switch’s side panels (one on each side) and secure them with the screws provided (please note that these brackets are not designed for palm size switches).

Figure 2.2 – Attach the mounting brackets to the Switch

2 Hardware Installation	D-Link Web Smart Switch User Manual

Then, use the screws provided with the equipment rack to mount the switch in the rack.

Figure 2.3 – Mount the Switch in the rack or chassis

Please be aware of following safety Instructions when installing:

A)Elevated Operating Ambient - If installed in a closed or multi-unit rack assembly, the operating ambient temperature of the rack environment may be greater than room ambient. Therefore, consideration should be given to installing the equipment in an environment compatible with the maximum ambient temperature (Tma) specified by the manufacturer.

B)Reduced Air Flow - Installation of the equipment in a rack should be such that the amount of air flow required for safe operation of the equipment is not compromised.

C)Mechanical Loading - Mounting of the equipment in the rack should be such that a hazardous condition is not achieved due to uneven mechanical loading.

D)Circuit Overloading - Consideration should be given to the connection of the equipment to the supply circuit, and the effect that overloading of the circuits might have on overcurrent protection and supply wiring. Appropriate consideration of equipment nameplate ratings should be used when addressing this concern.

E)Reliable Earthing - Reliable earthing of rack-mounted equipment should be maintained. Particular attention should be given to supply connections other than direct connections to the branch circuit (e.g. use of power strips)."

Step 3: Plugging in the AC Power Cord with Power Cord Clip

To prevent accidental removal of the AC power cord, it is recommended to install the power cord clip together with the power cord.

A) With the rough side facing down, insert the Tie Wrap into the hole below the power socket.

2 Hardware Installation

D-Link Web Smart Switch User Manual

Figure2.4 – Insert Tie Wrap to the Switch

B) Plug the AC power cord into the power socket of the Switch.

Figure 2.5 – Connect the power cord to the Switch

C) Slide the Retainer through the Tie Wrap until the end of the cord.

Figure 2.6 – Slide the Retainer through the Tie Wrap

2 Hardware Installation	D-Link Web Smart Switch User Manual

D) Circle the tie of the Retainer around the power cord and into the locker of the Retainer.

Figure 2.7 – Circle around the power cord

E) Fasten the tie of the Retainer until the power cord is secured.

Figure 2.8 – Secure the power cord

F) Users may now connect the AC power cord to an electrical outlet (preferably one that is grounded and surge protected).

2 Hardware Installation	D-Link Web Smart Switch User Manual

Figure 2.9 – Plugging the switch into an outlet

Power Failure

As a precaution, the switch should be unplugged in case of power failure. When power is resumed, plug the switch back in.

3 Getting Started	D-Link Web Smart Switch User Manual

3 Getting Started

This chapter introduces the management interface of D-Link Web-Smart Switch.

Management Options

The D-Link Web Smart Switch can be managed through any port on the device by using the Web-based Management, or through any PC using the D-Link Network Assistant (DNA).

Each switch must be assigned its own IP Address, which is used for communication with the Web-Based Management or a SNMP network manager. The PC should have an IP address in the same range as the switch. Each switch can allow up to four users to access the Web-Based Management concurrently.

However, if you want to manage multiple D-Link Web Smart Switches, the D-Link Network Assistant (DNA) is a more convenient choice. By using the D-Link Network Assistant (DNA), you do not need to change the IP address of your PC and it is easier to initialize multiple Smart Switches.

Please refer to the following installation instructions for the Web-based Management and the D-Link Network Assistant (DNA).

Using Web-based Management

After a successful physical installation, you can configure the Switch, monitor the network status, and display statistics using a web browser.

Supported Web Browsers

The embedded Web-based Management currently supports the following web browsers:

Internet Explorer 6 or later version

Netscape 8 or later version

Firefox 3.0 or later version Opera 10 or later version Mozilla the latest version

Connecting to the Switch

You will need the following equipment to begin the web configuration of your device:

1.A PC with a RJ-45 Ethernet connection

2.A standard Ethernet cable

Connect the Ethernet cable to any of the ports on the front panel of the switch and to the Ethernet port on the PC.

Figure 3.1 – Connected Ethernet cable

3 Getting Started	D-Link Web Smart Switch User Manual

In order to login and configure the switch via an Ethernet connection, the PC must have an IP address in the same subnet as the switch. For example, if the switch has an IP address of 10.90.90.90, the PC should have an IP address of 10.x.y.z (where x/y is a number between 0 ~ 254 and z is a number between 1 ~ 254), and a subnet mask of 255.0.0.0. There are two ways to launch the Web-based Management, you may either click the Web Access button at the top of the SmartConsole Utility or open the web browser and enter 10.90.90.90 (the factory-default IP address) in the address bar. Then press <Enter>.

Figure 3.2 –Enter the IP address 10.90.90.90 in the web browser

NOTE: The switch's factory default IP address is 10.90.90.90 with a subnet mask of 255.0.0.0 and a default gateway of 0.0.0.0.

The web configuration can also be accessed through the SmartConsole Utility. Open the SmartConsole Utility and double-click the switch as it appears in the Monitor List. This will automatically load the web configuration in your web browser.

When the following logon dialog box appears, enter the password and choose the language of the Webbased Management interface then click OK.

The switch supports 10 languages including English, Traditional Chinese, Simplified Chinese, German, Spanish, French, Italian, Portuguese, Japanese and Russian. By default, the password is admin and the language is English.

Figure 3.3 – Logon Dialog Box

Smart Wizard

After a successful login, the Smart Wizard will guide you through essential settings of the D-Link Web Smart Switch. Please refer to the Smart Wizard Configuration section for details.

Web-based Management

By clicking the Exit button in the Smart Wizard, you will enter the Web-based Management interface. Please refer to Chapter 4 Configuration for detailed instructions.

D-Link Network Assistant (DNA)

The D-Link Network Assistant (DNA), included in the installation CD, is a program that allows administrators to quickly discover all D-Link smart switches and D-Link Discover Protocol (DDP) supported devices (for a list of supported models, refer to the D-Link Network Assistant (DNA) User Guide), that are in the same subnet as the PC, collect traps and log messages, and provide quick access to basic configurations of the switch. This tool is only for computers running Windows 7, Vista, XP, or 2000 on both 32/64bit systems. There are two options for the installation of the DNA; one is through the Autorun program on the installation CD and the other is manual installation.

3 Getting Started	D-Link Web Smart Switch User Manual

NOTE: Please be sure to uninstall any existing

DNA from your PC before installing the latest

DNA.

For detailed explanations of the DNA functions, please refer to D-Link Network Assistant (DNA) User Guide.

4 Configuration	D-Link Web Smart Switch User Manual

4 Configuration

The features and functions of the D-Link Web Smart Switch can be configured for optimum use through the Web-based Management Utility.

Smart Wizard Configuration

After a successful login, the Smart Wizard will guide you through essential settings of the D-Link Web Smart Switch. If you do not plan to change anything, click Exit to leave the Wizard and enter the Web Interface. You can also skip it by clicking Ignore the Wizard next time for the next time you logon to the Web-based Management.

IP Information

IP Information will guide you to do basic configurations in 3 steps for the IP Information, access password, and SNMP.

Select Static, DHCP or BOOTP, and enter the desired new IP Address, select the Netmask and enter the Gateway address, then click the Next button to enter the next Password setting page. (No need to enter IP Address, Netmask and Gateway if DHCP and BOOTP are selected.) The Smart Wizard is for the quick setting in IPv4 environment. For IPv6 network, please go to System > IPv6 System Settings. If you are not changing the settings, click Exit button to go back to the main page. Or you can click on Ignore the wizard next time to skip wizard setting when the switch boots up.

Figure 4.1 – IP Information in Smart Wizard

NOTE: The Smart Wizard supports quick settings for IPv4 network.

Password

Type the desired new password in the Password box and again in the Confirm Password, then click the Next button to the SNMP setting page.

4 Configuration	D-Link Web Smart Switch User Manual

Figure 4.2 – Password in Smart Wizard

SNMP

The SNMP Setting allows you to quickly enable/disable the SNMP function. The default SNMP Setting is Disabled. Click Enabled and then click Apply to make it effective.

Figure 4.3 – SNMP in Smart Wizard

NOTE: Changing the system IP address will disconnect you from the current connection. Please enter the correct IP address in the Web browser again and make sure your PC is in the same subnet with the switch. See Login Webbased Management for a detailed description.

If you want to change the settings, click OK and start a new web browser.

4 Configuration	D-Link Web Smart Switch User Manual

Figure 4.4 – Confirm the changes of IP address in Smart Wizard

4 Configuration	D-Link Web Smart Switch User Manual

Web-based Management

After clicking the Exit button in Smart Wizard you will see the screen below:

Figure 4.5 – Web-based Management

The above image is the Web-based Management screen. The three main areas are the Tool Bar on top, the

Function Tree, and the Main Configuration Screen.

The Tool Bar provides a quick and convenient way for essential utility functions like firmware and configuration management.

By choosing different functions in the Function Tree, you can change all the settings in the Main Configuration Screen. The main configuration screen will show the current status of your Switch by clicking the model name on top of the function tree.

At the upper right corner of the screen the username and current IP address will be displayed.

Under the username is the Logout button. Click this to end this session.

NOTE: If you close the web browser without clicking the Logout button first, then it will be seen as an abnormal exit and the login session will still be occupied.

Finally, by clicking on the D-Link logo at the upper-left corner of the screen you will be redirected to the local D-Link website.

4 Configuration	D-Link Web Smart Switch User Manual

Tool Bar > Save Menu

The Save Menu provides Save Configuration and Save Log functions.

Figure 4.6 – Save Menu

Save Configuration

Select to save the entire configuration changes you have made to the device to switch’s non-volatile RAM.

Figure 4.7 – Save Configuration

Save Log

Save the log entries to your local drive and a pop-up message will prompt you for the file path. You can view or edit the log file by using text editor (e.g. Notepad).

Figure 4.8 – Save Log

Tool Bar > Tool Menu

The Tool Menu offers global function controls such as Reset, Reset System, Reboot Device, Configuration Backup and Restore, Firmware Backup and Upgrade.

Figure 4.9 – Tool Menu

Reset

Provide a safe reset option for the Switch. All configuration settings in non-volatile RAM will be reset to factory default except for the IP address.

Figure 4.10 – Tool Menu > Reset

Reset System

Provide another safe reset option for the Switch. All configuration settings in non-volatile RAM will reset to factory default and the Switch will reboot.

Figure 4.11 – Tool Menu > Reset System

Reboot Device

Provide a safe way to reboot the system. Click Reboot to restart the switch.

4 Configuration	D-Link Web Smart Switch User Manual

Figure 4.12 – Tool Menu > Reboot Device

Configuration Backup and Restore

Allow the current configuration settings to be saved to a file (not including the password), and if necessary, you can restore configuration settings from this file. Two methods can be selected: HTTP or TFTP.

Figure 4.13 – Tool Menu > Configure Backup and Restore

HTTP: Backup or restore the configuration file to or from your local drive.

Click Backup to save the current settings to your disk.

Click Browse to browse your inventories for a saved backup settings file.

Click Restore after selecting the backup settings file you want to restore.

TFTP: TFTP (Trivial File Transfer Protocol) is a file transfer protocol that allows you to transfer files to a remote TFTP server. Specify TFTP Server IP Address with IPv4 or IPv6 address and TFTP File Name for the configuration file you want to save to / restore from.

Click Backup to save the current settings to the TFTP server.

Click Restore after selecting the backup settings file you want to restore.

Note: Switch will reboot after restore, and all current configurations will be lost

Firmware Backup and Upgrade

Allow for the firmware to be saved, or for an existing firmware file to be uploaded to the Switch. Two methods can be selected: HTTP or TFTP.

4 Configuration	D-Link Web Smart Switch User Manual

Figure 4.14 – Tool Menu > Firmware Backup and Upload

HTTP: Backup or upgrade the firmware to or from your local PC drive.

Click Backup to save the firmware to your disk.

Click Browse to browse your inventories for a saved firmware file.

Click Upgrade after selecting the firmware file you want to restore.

TFTP: Backup or upgrade the firmware to or from a remote TFTP server. Specify TFTP Server IP Address with IPv4 or IPv6 address and TFTP File Name for the configuration file you want to save to / restore from.

Click Backup to save the firmware to the TFTP server.

Click Upgrade after selecting the firmware file you want to restore.

CAUTION: Do not disconnect the PC or remove the power cord from device until the upgrade completes. The Switch may crash if the Firmware upgrade is incomplete.

Tool Bar > Smart Wizard

By clicking the Smart Wizard button, you can return to the Smart Wizard if you wish to make any changes there.

Tool Bar > Online Help

The Online Help provides two ways of online support: D-Link Support Site will lead you to the D-Link website where you can find online resources such as updated firmware images; User Guide can offer an immediate reference for the feature definition or configuration guide.

Figure 4.15 – Online Help

Function Tree

All configuration options on the switch are accessed through the Setup menu on the left side of the screen. Click on the setup item that you want to configure. The following sections provide more detailed description of each feature and function.
