'2/ 2 5GTKGU 2GCM CPF #XGTCIG 2QYGT /GVGTU
+PUVCNNCVKQP )WKFG
)GPGTCN
Information contained in this document is subject to change without notice. Agilent Technologies makes no warranty of any kind with regard to this material, including, but not limited to, the implied warranties of merchantability and fitness for a particular purpose. Agilent Technologies shall not be liable for errors contained herein or for incidental or consequential damages in connection with the furnishings, performance, or use of this material. No part of this document may be photocopied, reproduced, or translated to another language without the prior written consent of Agilent Technologies.
.GICN +PHQTOCVKQP
Certification
Agilent Technologies certifies that this product met its published specifications at the time of shipment from the factory. Agilent Technologies further certifies that its calibration measurements are traceable to the United States National Institute of Standards and Technology, to the extent allowed by the Institute’s calibration facility, and to the calibration facilities of other International Standards Organization members.
Exclusive Remedies
THE REMEDIES PROVIDED HEREIN ARE BUYER’S SOLE AND EXCLUSIVE REMEDIES. AGILENT TECHNOLOGIES SHALL NOT BE LIABLE FOR ANY DIRECT, INDIRECT, SPECIAL, INCIDENTAL, OR CONSEQUENTIAL DAMAGES, WHETHER BASED ON CONTRACT, TORT, OR ANY OTHER LEGAL THEORY.
Copyright 2000 Agilent Technologies
Station Road, South Queensferry, Scotland,
EH30 9TG, UK.
Agilent Part No. E4416-90002
Printed in UK
October 2000
Warranty
This Agilent Technologies instrument product is warranted against defects in material and workmanship for a period of three years from date of shipment. During the warranty period, Agilent Technologies will at its option, either repair or replace products which prove to be defective. For warranty service or repair, this product must be returned to a service facility designated by Agilent Technologies. Buyer shall prepay shipping charges to Agilent Technologies and Agilent Technologies shall pay shipping charges, duties, and taxes for products returned to Agilent Technologies from another country. Agilent Technologies warrants that its software and firmware designated by Agilent Technologies for use with an instrument will execute its programming instructions when properly installed on that instrument. Agilent Technologies does not warrant that the operation of the instrument, or firmware will be uninterrupted or error free.
Limitation of Warranty
The foregoing warranty shall not apply to defects resulting from improper or inadequate maintenance by Buyer, Buyer-supplied software or interfacing, unauthorized modification or misuse, operation outside of the environmental specifications for the product, or improper site preparation or maintenance. NO OTHER WARRANTY IS EXPRESSED OR IMPLIED. AGILENT TECHNOLOGIES SPECIFICALLY DISCLAIMS THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE.
5CHGV[ 5[ODQNU
5CHGV[ 5[ODQNU
The following symbols on the instrument and in the documentation indicate precautions which must be taken to maintain safe operation of the instrument.
6JG +PUVTWEVKQP &QEWOGPVCVKQP 5[ODQN 6JG RTQFWEV KU OCTMGF YKVJ VJKU U[ODQN YJGP KV KU PGEGUUCT[ HQT VJG WUGT VQ TGHGT VQ VJG KPUVTWEVKQPU KP VJG UWRRNKGF FQEWOGPVCVKQP
#NVGTPCVKPI EWTTGPV #%
6JKU U[ODQN KPFKECVGU VJG QRGTCVKPI UYKVEJ HQT 1P OQFG
6JKU U[ODQN KPFKECVGU VJG QRGTCVKPI UYKVEJ HQT 5VCPF D[ OQFG 0QVG VJG KPUVTWOGPV KU 016 KUQNCVGF HTQO VJG OCKPU YJGP VJG UYKVEJ KU RTGUUGF 6Q KUQNCVG VJG KPUVTWOGPV VJG OCKPU EQWRNGT OCKPU KPRWV EQTF UJQWNF DG TGOQXGF HTQO VJG RQYGT UWRRN[
5CHGV[ 0QVKEGU This guide uses warnings and cautions to denote hazards
WARNING A warning calls attention to a procedure, practice or the like, which, if not correctly performed or adhered to, could result in injury or loss of life. Do not proceed beyond a warning until the indicated conditions are fully understood and met.
CAUTION A caution calls attention to a procedure, practice or the like which, if not correctly performed or adhered to, could result in damage to or the destruction of part or all of the equipment. Do not proceed beyond a caution until the indicated conditions are fully understood and met.
5CHGV[ 5[ODQNU
)GPGTCN 5CHGV[ +PHQTOCVKQP
The following general safety precautions must be observed during all phases of operation, service, and repair of this instrument. Failure to comply with these precautions or with specific warnings elsewhere in this manual violates safety standards of design, manufacture, and intended use of the instrument. Agilent Technologies assumes no liability for the customer’s failure to comply with these requirements.
WARNING This is a Safety Class I instrument (provided with a protective earthing ground, incorporated in the power cord). The mains plug shall only be inserted in a socket outlet provided with a protective earth contact. Any interruption of the protective conductor inside or outside of the instrument is likely to make the instrument dangerous. Intentional interruption is prohibited.
DO NOT operate the product in an explosive atmosphere or in the presence of flammable gasses or fumes.
DO NOT use repaired fuses or short-circuited fuseholders: For continued protection against fire, replace the line fuse(s) only with fuse(s) of the same voltage and current rating and type.
DO NOT perform procedures involving cover or shield removal unless you are qualified to do so: Operating personnel must not remove equipment covers or shields. Procedures involving the removal of covers and shields are for use by service-trained personnel only.
DO NOT service or adjust alone: Under certain conditions, dangerous voltages may exist even with the equipment switched off. To avoid dangerous electrical shock, service personnel must not attempt internal service or adjustment unless another person, capable of rendering first aid and resuscitation, is present.
DO NOT operate damaged equipment: Whenever it is possible that the safety protection features built into this product have been impaired, either through physical damage, excessive moisture, or any other reason, REMOVE POWER and do not use the product until safe operation can be
5CHGV[ 5[ODQNU
verified by service-trained personnel. If necessary, return the product to a Agilent Sales and Service Office for service and repair to ensure the safety features are maintained.
DO NOT substitute parts or modify equipment: Because of the danger of introducing additional hazards, do not install substitute parts or perform any unauthorized modification to the product. Return the product to a Agilent Sales and Service Office for service and repair to ensure the safety features are maintained.
5CHGV[ 5[ODQNU
%QPVGPVU
%QPVGPVU
Safety Symbols . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
)GVVKPI 5VCTVGF |
9 |
|
|
Welcome . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10 Initial Inspection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10 Documentation Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11 What You’ll Find in this Guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12 Power Meter and Sensor Capability. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14 Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14 Adjusting the Carrying Handle . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15 Turning the Power Meter On . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16 Front Panel Keys and Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19 Connecting a Power Sensor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23 Rear Panel Connections. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26 Remote Interface Configurations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28 GPIB . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28 RS232/RS422. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29 Rack Mounting the Power Meter. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
Rack Mounting One Meter
(Using the Option 908 rack mount kit) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30

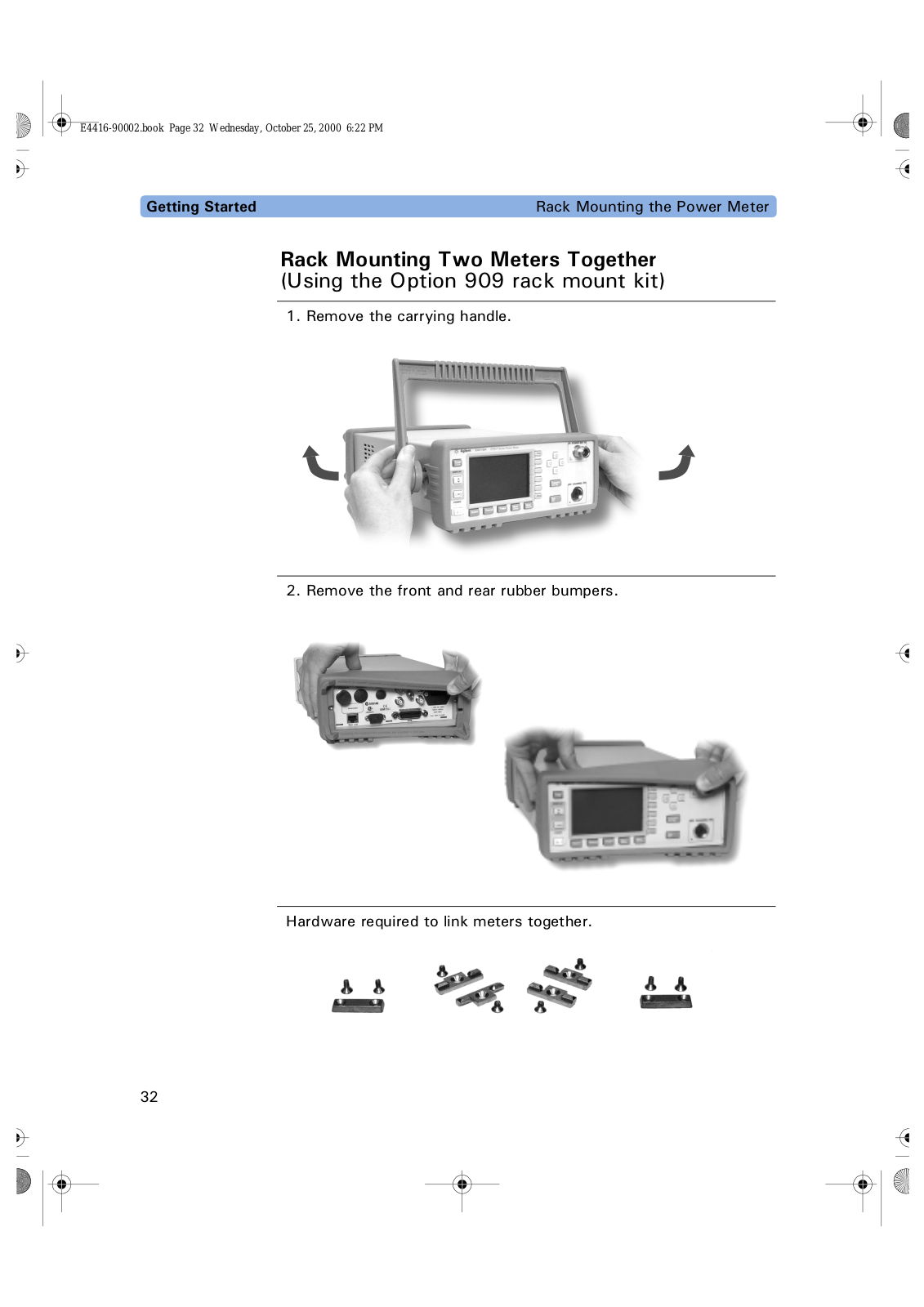

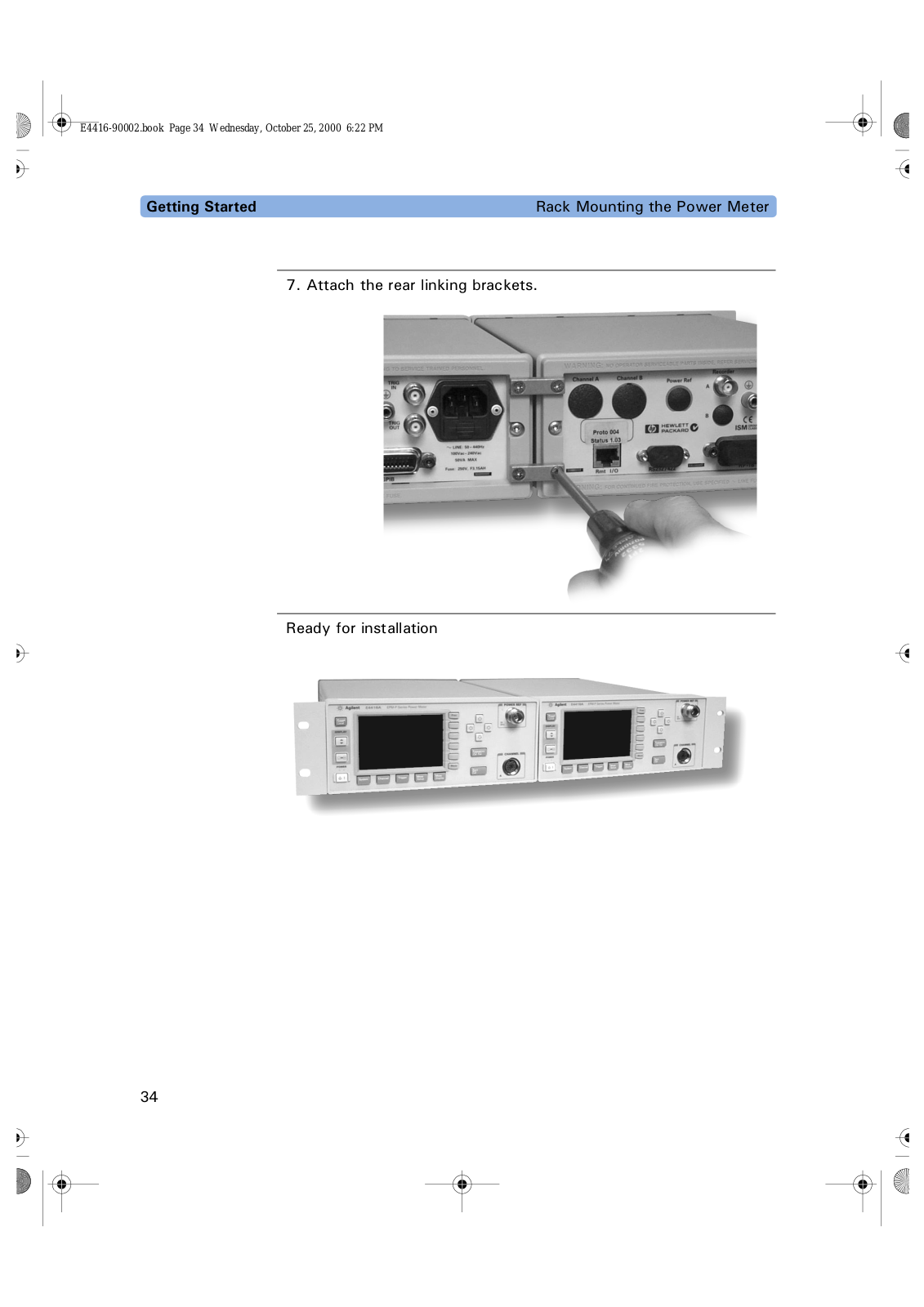

Rack Mounting Two Meters Together
(Using the Option 909 rack mount kit) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
4GIWNCVQT[ +PHQTOCVKQP |
35 |
|
|
General Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
Compliance and Markings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
IEC61010-1 Compliance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
Electromagnetic Compatibility (EMC) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
Safety. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
Markings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39

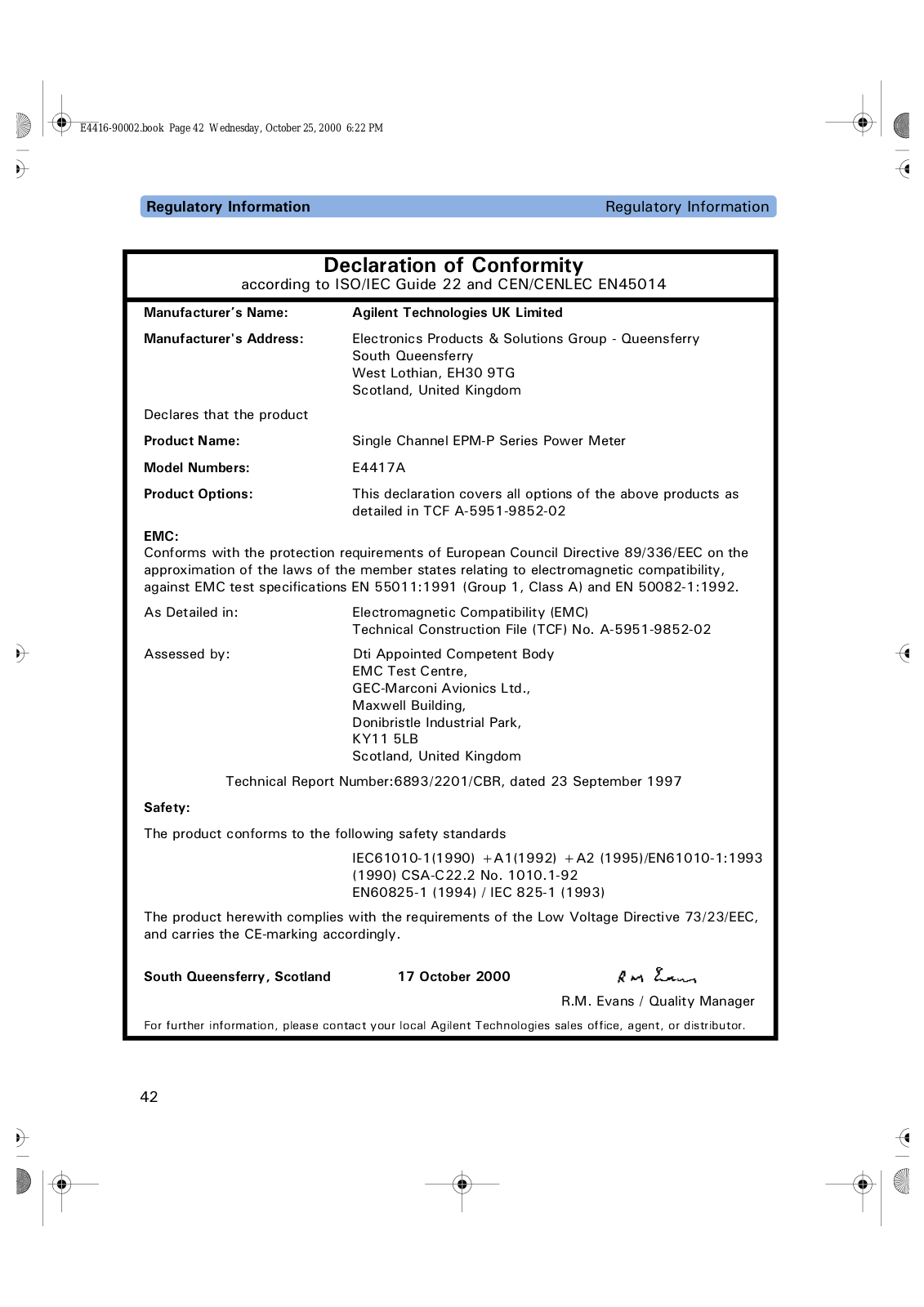

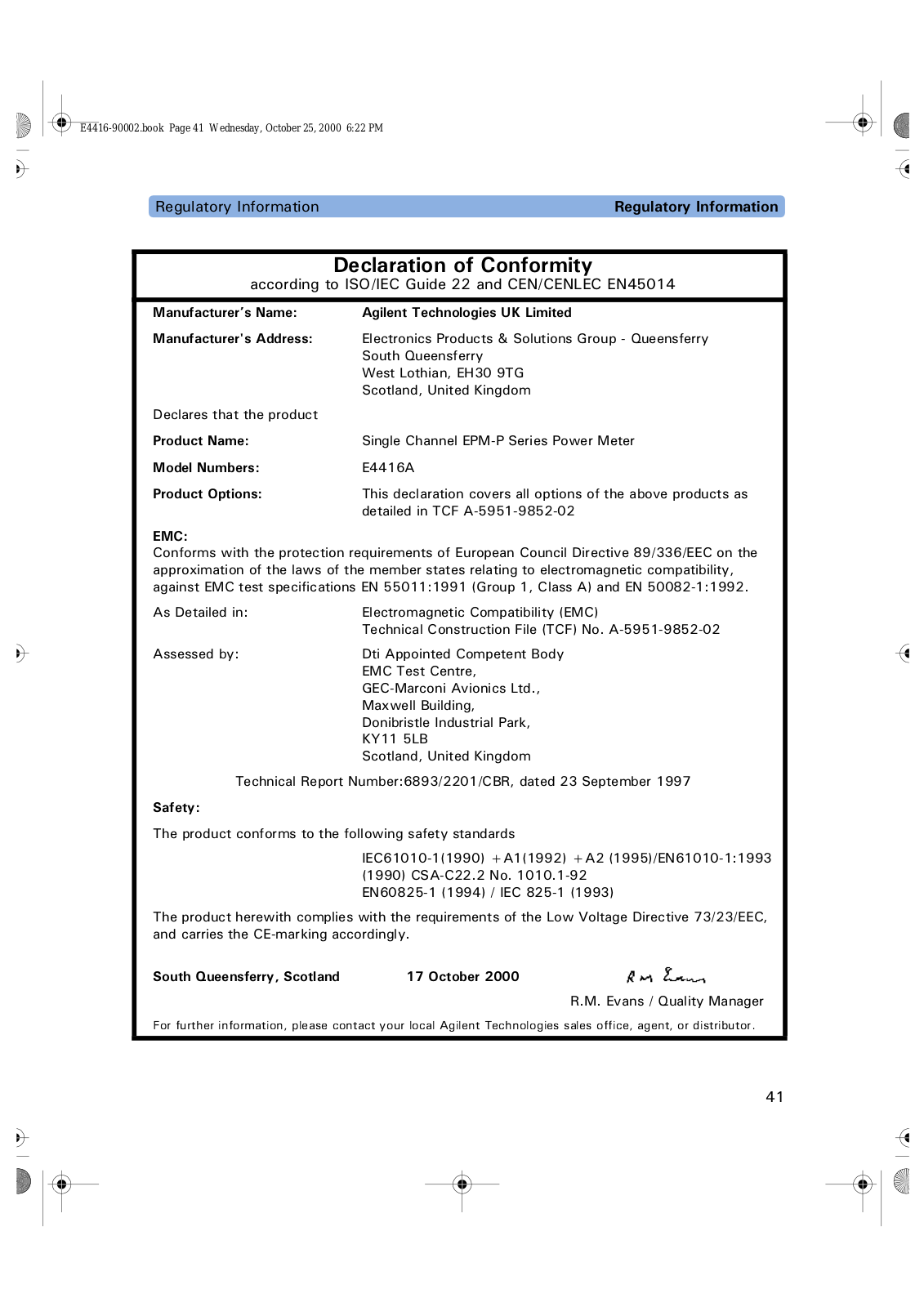

Regulatory Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40
Sound Emission . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40
Responsibilities of the Customer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43
Agilent Sales and Service Offices . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
%QPVGPVU
)GVVKPI 5VCTVGF
)GVVKPI 5VCTVGF |
9GNEQOG |
9GNEQOG
Welcome to the Agilent Technologies E4416A and E4417A EPM-P series peak and average power meters Installation Guide. This guide shows you how to:
•physically check the power meter
•adjust the carrying handle
•switch it on
•confirm the meter passes the power on self test
•connect it to a power sensor
•carry out a zero and calibration routine
•make connections to the rear panel
•configure the remote programming interfaces
•attach the rack mounting kits (supplied with option 908 or option 909)
N O T E Both single and dual channel power meters with variety of rear panel configurations have been used for the illustrations in this guide. Your power meter may differ in detail to those shown.
+PKVKCN +PURGEVKQP
Please inspect the shipping container for damage. If the shipping container or packaging material is damaged, it should be kept until the contents have been checked mechanically and electrically. If there is mechanical damage, notify the nearest Agilent Technologies office. Keep the damaged shipping materials (if any) for inspection by the carrier and an Agilent representative. If required, you can find a list of Agilent Sales and Service Offices on page 44.
Before continuing, please ensure you have read and understood the preceding safety information.
&QEWOGPVCVKQP +PHQTOCVKQP |
)GVVKPI 5VCTVGF |
&QEWOGPVCVKQP +PHQTOCVKQP
This guide is only part of the information supplied. The documentation consists
of:
•The Installation Guide (this book) - Shows you how to check your power meter, switch it on and connect it to an Agilent power sensor. This information is presented in English, French, German, Italian, Japanese, and Spanish languages.
•The User’s Guide - Shows you how to operate your power meter from the front panel interface to make measurements using the Agilent E-series E9320, E-series E9300, E-series E4400, and 8480 series power sensors. You can find the User’s Guide as Adobe Acrobat PDF (Portable Document Format) files on the supplied CD-ROM in English, French, German, Italian, Japanese, and Spanish languages.
•The Programmer’s Guide - Shows you how to operate your power meter using the remote interfaces. You can find the Programmer’s Guide as an Adobe Acrobat PDF file on the supplied CD-ROM in English language only.
Printed Guides available by ordering the following options:
•English language User’s Guide - Option OBK
•French language User’s Guide - Option ABF
•German language User’s Guide - Option ABD
•Italian language User’s Guide - Option ABZ
•Japanese language User’s Guide - Option ABJ
•Spanish language User’s Guide - Option ABE
N O T E A printed Programmer’s Guide is also supplied with the above options but in English Language only.
)GVVKPI 5VCTVGF |
9JCV ;QW NN (KPF KP VJKU )WKFG |
9JCV ;QW NN (KPF KP VJKU )WKFG
This guide is divided into the following sections:
•Adjusting the Carrying Handle on page 15
•Turning the Power Meter On on page 16
•Front Panel Keys and Connections on page 19
•Connecting a Power Sensor on page 23

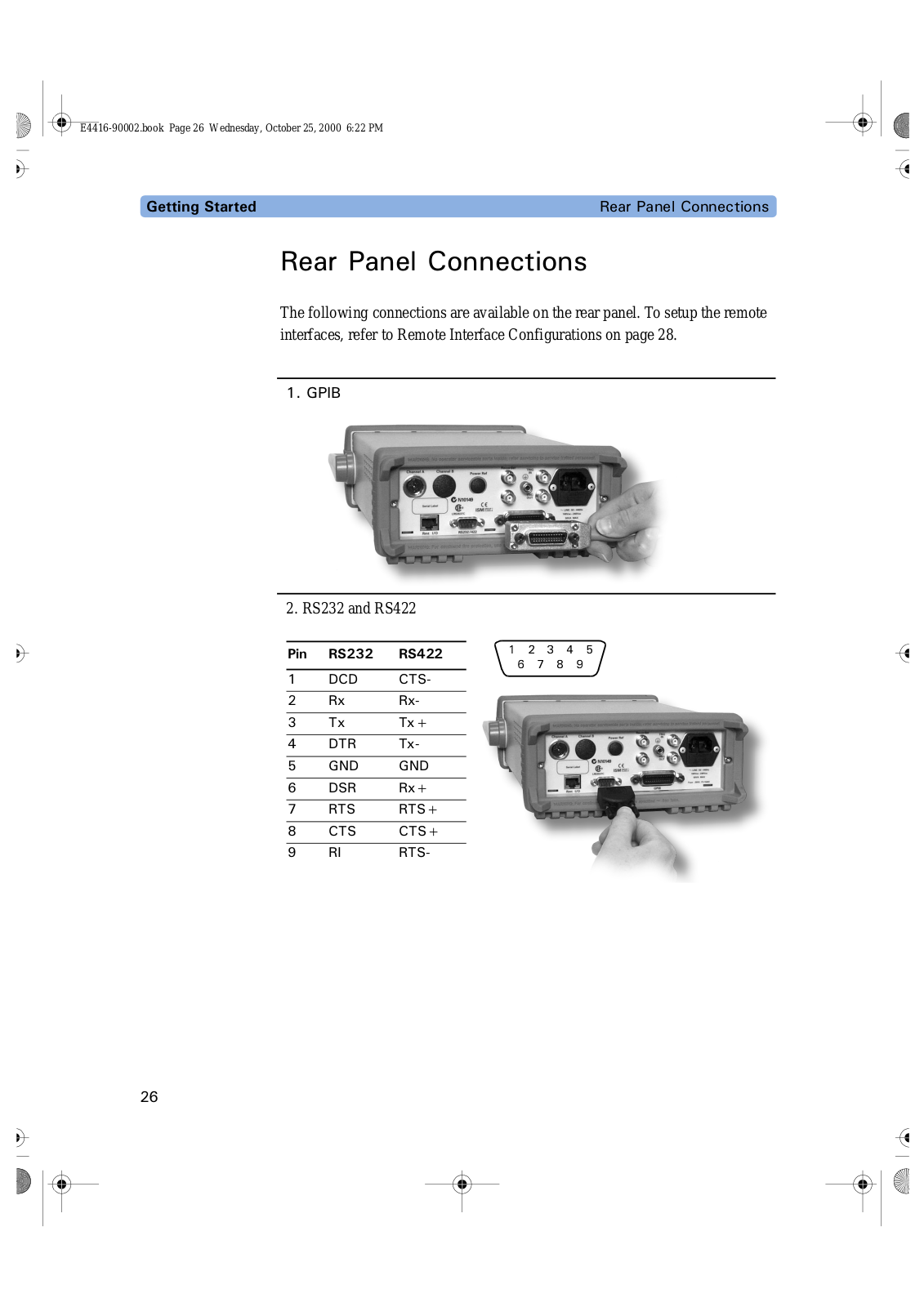

•Rear Panel Connections on page 26

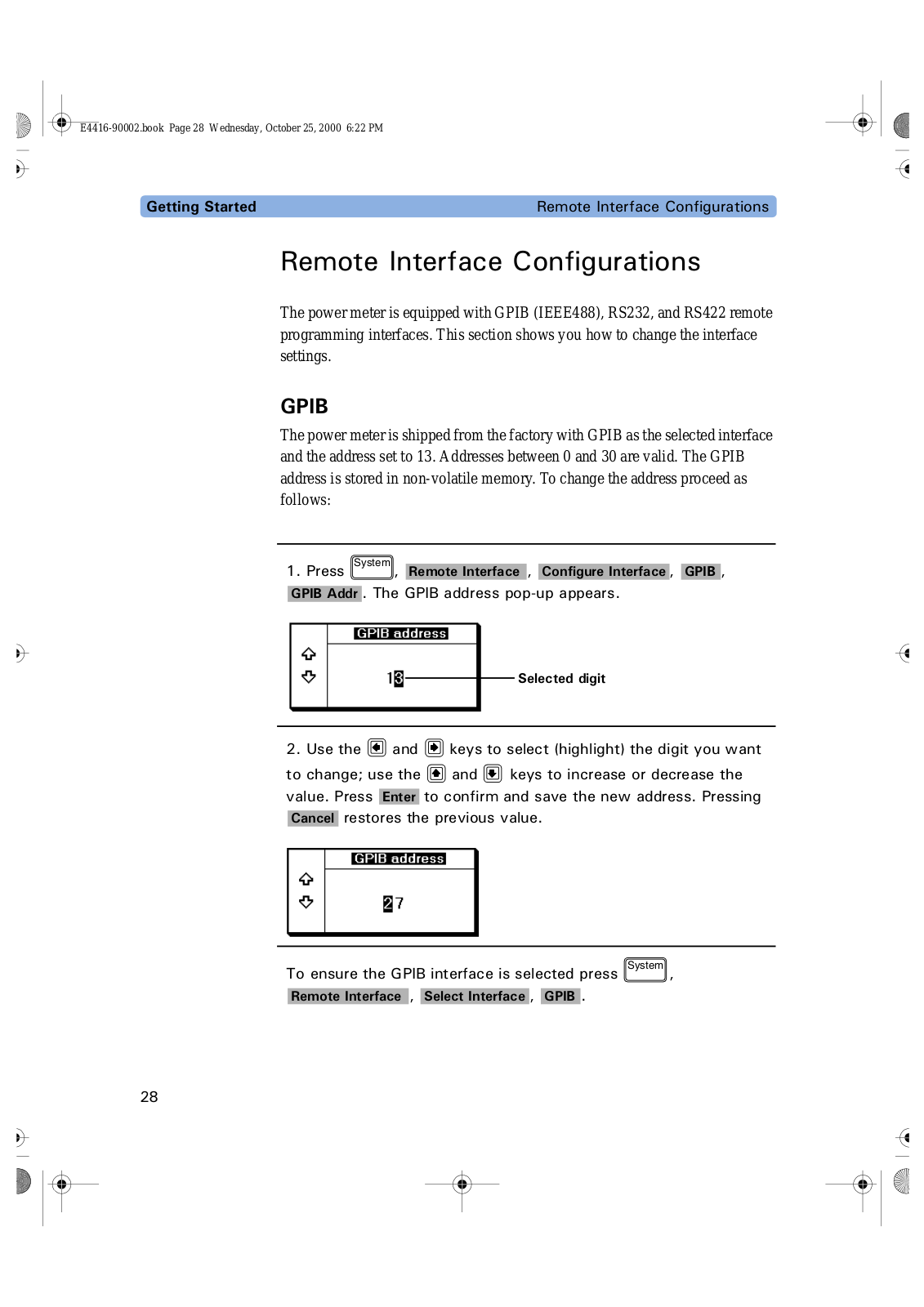

•Remote Interface Configurations on page 28
•Rack Mounting the Power Meter on page 30
•General Specifications on page 36
•Compliance and Markings on page 38
•Regulatory Information on page 40
•According to ISO 7779 (Type Test). on page 40
•Responsibilities of the Customer on page 43
•Agilent Sales and Service Offices on page 44
For more detailed operating information, refer to the EPM-P series power meters User’s Guide and Programmer’s Guide.
9JCV ;QW NN (KPF KP VJKU )WKFG |
)GVVKPI 5VCTVGF |
%QPXGPVKQPU 7UGF KP VJKU )WKFG
The following conventions are used to show the difference between a front
panel key and a softkey.
Zero
Cal
5QHVMG[
This is used to represent a labeled key on the power meter front panel.
This is used to represent a labeled softkey and, when used as part of a procedure, indicates you should press the unmarked key beside the displayed text.
/GUUCIG |
|
This is used to represent a displayed message. |
Parameter |
This is used to represent a parameter, value, or title. |
|
)GVVKPI 5VCTVGF |
2QYGT /GVGT CPF 5GPUQT %CRCDKNKV[ |
2QYGT /GVGT CPF 5GPUQT %CRCDKNKV[
Your E4416A or E4417A power meter is compatible with Agilent
E-series E9320, E-series E9300, E-series E4400, and HP 8480 series power sensors. However, not all sensor and meter combinations have the same features or capabilities. The main differences are:
(GCVWTGU |
' 5GTKGU ' 5GTKGU ' 5GTKGU |
|||
' |
' |
' |
5GTKGU |
|
|
|
|
|
|
#XGTCIG 2QYGT QH %9 5KIPCN |
• |
• |
• |
• |
|
|
|
|
|
%CN (CEVQTU QP ''241/ |
• |
• |
• |
|
|
|
|
|
|
4GCFKPIU UGE |
• |
• |
• |
|
|
|
|
|
|
#XGTCIG 2QYGT QH OQFWNCVGF UKIPCN |
• |
• |
|
|
|
|
|
|
|
2GCM 2QYGT |
• |
|
|
|
|
|
|
|
|
4KUKPI 'FIG 6TKIIGT |
• |
|
|
|
|
|
|
|
|
(CNNKPI 'FIG 6TKIIGT |
• |
|
|
|
5RGEKHKECVKQPU
The specifications for the power meter are listed in the E4416A and E4417A
User’s Guide.
