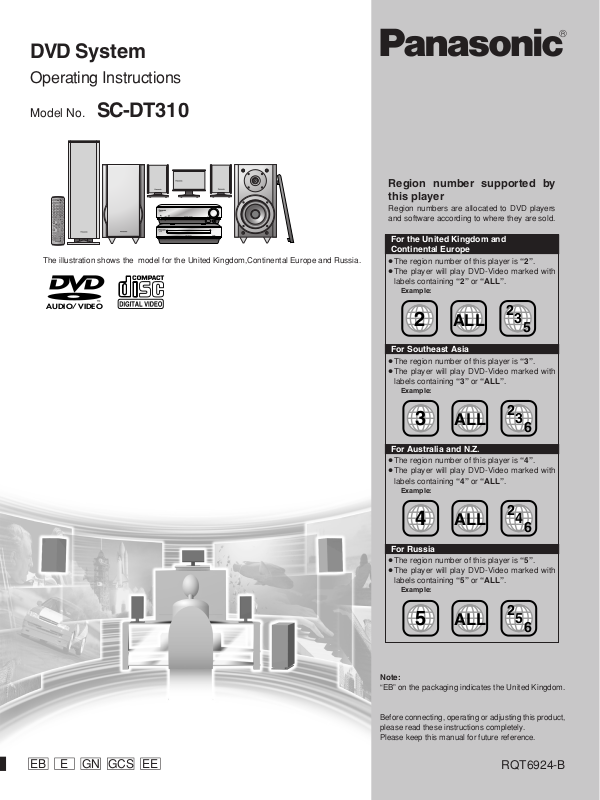

Panasonic SC-DT310 User Manual

DVD System

Operating Instructions

Model No. SC-DT310

The illustration shows the model for the United Kingdom,Continental Europe and Russia.

AUDIO/ VIDEO

EB E GN GCS EE

Region number supported by this player

Region numbers are allocated to DVD players and software according to where they are sold.

For the United Kingdom and

Continental Europe

≥The region number of this player is “2”. ≥The player will play DVD-Video marked with

labels containing “2” or “ALL”.

Example:

2 ALL 235

For Southeast Asia

≥The region number of this player is “3”. ≥The player will play DVD-Video marked with

labels containing “3” or “ALL”.

Example:

3 ALL 236

For Australia and N.Z.

≥The region number of this player is “4”.

≥The player will play DVD-Video marked with labels containing “4” or “ALL”.

Example:

4 ALL 246

For Russia

≥The region number of this player is “5”.

≥The player will play DVD-Video marked with labels containing “5” or “ALL”.

Example:

5 ALL 256

Note:

“EB” on the packaging indicates the United Kingdom.

Before connecting, operating or adjusting this product, please read these instructions completely.

Please keep this manual for future reference.

RQT6924-B

Getting started

2

Dear customer

Thank you for purchasing this product.

For optimum performance and safety, please read these instructions carefully.

Unless otherwise indicated, illustrations in these operating instructions are of the system for the United Kingdom, Continental Europe and Russia.

System	SC-DT310
DVD/CD player	SL-DT310
AV control receiver	SA-DT310
Front speakers	SB-PF310
Center speaker	SB-PC310
Surround speakers	SB-PS310
Subwoofer	SB-W310

CAUTION!		SUOMI
		VAROITUS!
THIS PRODUCT UTILIZES A LASER.
USE OF CONTROLS OR ADJUSTMENTS OR PERFORMANCE OF
		LAITTEEN KÄYTTÄMINEN MUULLA KUIN TÄSSÄ KÄYT-
PROCEDURES OTHER THAN THOSE SPECIFIED HEREIN MAY
		TÖOHJEESSA MAINITULLA TAVALLA SAATTAA ALTISTAA
RESULT IN HAZARDOUS RADIATION EXPOSURE.
		KÄYTTÄJÄN TURVALLISUUSLUOKAN 1 YLITTÄVÄLLE
DO NOT OPEN COVERS AND DO NOT REPAIR YOURSELF.
REFER SERVICING TO QUALIFIED PERSONNEL.		NÄKYMÄTTÖMÄLLE LASERSÄTEILYLLE.

WARNING:

TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK OR PRODUCT DAMAGE, DO NOT EXPOSE THIS APPARATUS TO RAIN, MOISTURE, DRIPPING OR SPLASHING AND THAT NO OBJECTS FILLED WITH LIQUIDS, SUCH AS VASES, SHALL BE PLACED ON THE APPARATUS.

CAUTION!

≥DO NOT INSTALL OR PLACE THIS UNIT IN A BOOKCASE,

BUILT-IN CABINET OR IN ANOTHER CONFINED SPACE. ENSURE THE UNIT IS WELL VENTILATED. TO PREVENT RISK OF ELECTRIC SHOCK OR FIRE HAZARD DUE TO OVERHEATING, ENSURE THAT CURTAINS AND ANY OTHER MATERIALS DO NOT OBSTRUCT THE VENTILATION VENTS.

≥DO NOT OBSTRUCT THE UNIT’S VENTILATION OPENINGS

WITH NEWSPAPERS, TABLECLOTHS, CURTAINS, AND SIMILAR ITEMS.

≥DO NOT PLACE SOURCES OF NAKED FLAMES, SUCH AS

LIGHTED CANDLES, ON THE UNIT.

≥DISPOSE OF BATTERIES IN AN ENVIRONMENTALLY FRIEND-

LY MANNER.

This product may receive radio interference caused by mobile telephones during use. If such interference is apparent, please increase separation between the product and the mobile telephone.

[For\Southeast\Asia]

THIS UNIT IS INTENDED FOR USE IN TROPICAL CLIMATES.

[For\others]

THIS UNIT IS INTENDED FOR USE IN MODERATE CLIMATES.

AV control receiver (SA-DT310)

Marking sign is located on bottom of the unit.

For the United Kingdom,

Continental Europe and Russia

[For\others]

LUOKAN 1 LASERLAITE
KLASS 1 LASER APPARAT
			AUDIO					AUDIO
	VIDEO				VIDEO
	OUT		L		OUT			L
	OPT B	A				OPT B	A
			R					R
	DIGITAL	IN	OUT IN				IN
S-VIDEO		TV(AUX)	VCR(EXT)	S-VIDEO		DIGITAL		OUT IN
	OUT				COMPONENT VIDEO OUT
OUT				OUT	(480P/480I)	OUT	TV(AUX)	VCR(EXT)

(Back of product)

(Inside of product) (Tuotteen sisällä) (Produktets innside)

VAROITUS:

TULIPALO-, SÄHKÖISKUVAARAN TAI TUOTETTA KOHTAAVAN MUUN VAHINGON VÄHENTÄMISEKSI EI LAITETTA SAA ALTISTAA SATEELLE, KOSTEUDELLE, VESIPISAROILLE TAI ROISKEELLE, EIKÄ NESTETTÄ SISÄLTÄVIÄ ESINEITÄ, KUTEN ESIMERKIKSI MALJAKOITA, SAA ASETTAA LAITTEEN PÄÄLLE.

VAROITUS!

≥ÄLÄ ASENNA TAI LAITA TÄTÄ LAITETTA KABINET-

TITYYPPISEEN KIRJAKAAPPIIN TAI MUUHUN SULJETTUUN TILAAN, JOTTA TUULETUS ONNISTUISI. VARMISTA, ETTÄ VERHO TAI MIKÄÄN MUU MATERIAALI EI HUONONNA TUULETUSTA, JOTTA VÄLTETTÄISIIN YLIKUUMENEMISESTA JOHTUVA SÄHKÖISKUTAI TULIPALOVAARA.

≥ÄLÄ PEITÄ LAITTEEN TUULETUSAUKKOJA SANOMALEH-

DELLÄ, PÖYTÄLIINALLA, VERHOLLA TAI MUULLA VASTAAVALLA ESINEELLÄ.

≥ÄLÄ ASETA PALAVAA KYNTTILÄÄ TAI MUUTA AVOTULEN

LÄHDETTÄ LAITTEEN PÄÄLLE.

≥HÄVITÄ PARISTOT LUONTOA VAHINGOITTAMATTOMALLA

TAVALLA.

TÄMÄ LAITE ON TARKOITETTU KÄYTETTÄVÄKSI LEUDOSSA ILMASTOSSA.

NORSK

ADVARSEL!

DETTE PRODUKTET ANVENDER EN LASER.

BETJENING AV KONTROLLER, JUSTERINGER ELLER ANDRE INNGREP ENN DE SOM ER BESKREVET I DENNE BRUKSANVISNING, KAN FØRE TIL FARLIG BESTRÅLING.

DEKSLER MÅ IKKE ÅPNES, OG FORSØK ALDRI Å REPARERE APPARATET PÅ EGENHÅND. ALT SERVICE OG REPARASJONSARBEID MÅ UTFØRES AV KVALIFISERT PERSONELL.

ADVARSEL:

FOR Å REDUSERE FAREN FOR BRANN, ELEKTRISK STØT ELLER SKADER PÅ PRODUKTET, MÅ DETTE APPARATET IKKE UTSETTES FOR REGN, FUKTIGHET, VANNDRÅPER ELLER VANNSPRUT. DET MÅ HELLER IKKE PLASSERES GJENSTANDER FYLT MED VANN, SLIK SOM BLOMSTERVASER, OPPÅ APPARATET.

ADVARSEL!

≥APPARATET MÅ IKKE PLASSERES I EN BOKHYLLE, ET

INNEBYGGET KABINETT ELLER ET ANNET LUKKET STED HVOR VENTILASJONSFORHOLDENE ER UTILSTREKKELIGE. SØRG FOR AT GARDINER ELLER LIGNENDE IKKE FORVERRER VENTILASJONSFORHOLDENE, SÅ RISIKO FOR ELEKTRISK SJOKK ELLER BRANN FORÅRSAKET AV OVERHETING UNNGÅS.

≥APPARATETS VENTILASJONSÅPNINGER MÅ IKKE DEKKES

TIL MED AVISER, BORDDUKER, GARDINER OG LIGNENDE. ≥PLASSER IKKE ÅPEN ILD, SLIK SOM LEVENDE LYS, OPPÅ

APPARATET.

≥BRUKTE BATTERIER MÅ KASSERES UTEN FARE FOR

MILJØET.

DETTE APPARATET ER BEREGNET TIL BRUK UNDER MODERATE KLIMAFORHOLD.

RQT6924

Accessories

Please check and identify the supplied accessories. Use numbers indicated in parentheses when asking for replacement parts.

∏ 1 Remote control	∏ 2 Batteries
(For the United Kingdom,	for remote control
Continental Europe and Russia
: EUR7623010)
(For others: EUR7623020)
∏ 1 AC mains lead
[For\the\United\Kingdom]	[For\Australia\and\N.Z.]
(REZ1496)	(RJA0035-2X)
For Continental Europe and	[For\Southeast\Asia]
Russia	(RJA0019-2X)
(REZ1495)
∏ 1 AM loop antenna	∏ 1 FM indoor antenna
(N1DAAAA00003)	(RSA0007)
∏ 1 Video cable	∏ 1 Optical cable
For the United Kingdom and	(RJL1X008B05)
Continental Europe

(VJA0815-A)

[For\others]

(RJL1P019B15)

∏ (Included in speaker packing box)

2 Front Speaker cables

(4 wires, 4 m) (REE1245)

1 Center Speaker cable and

1 Subwoofer cable

(2 wires, 4 m) (REE1203A)

2 Surround Speaker cables

(2 wires, 10 m) (REE1203C)

∏ 1 Sheet of speaker-cable stickers

[For\the\United\Kingdom\only]

∏ 1 Antenna plug adaptor (SJP9009)

[For\the\United\Kingdom,\Continental\Europe\and\Russia\

∏ 1 RCAJ adaptor (K1JZ24D00002)

Note

The included AC mains lead is for use with this unit only. Do not use it with other equipment.

[For\th\United\Kingdom\and\Republic\of\Ireland\

www.panasonic.co.uk (for UK customers only)

≥Order accessory and consumable items for your product with ease and confidence by telephoning our Customer Care Centre Mon–Friday 9:00am–5:30pm. (Excluding public holidays.)

≥Or go on line through our Internet Accessory ordering application.

≥Most major credit and debit cards accepted.

≥All enquiries transactions and distribution facilities are provided directly by Panasonic UK Ltd.

≥It couldn’t be simpler!

Customer Care Centre

For UK customers: 08705 357357

For Republic of Ireland customers: 01 289 8333

Technical Support

For UK customers: 0870 1 505610

This Technical Support Hot Line number is for

Panasonic PC software related products only.

For Republic of Ireland, please use the Customer Care

Centre number listed above for all enquiries.

For all other product related enquiries, please use the

Customer Care Centre numbers listed above.

Table of contents

Getting started

Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .	13
Caution for AC Mains Lead . . . . . . . . . . . . . . . . .	4
Disc information . . . . . . . . . . . . . . . . . . . . . . . . . .	5
Simple setup
STEP 1 Locating . . . . . . . . . . . . . . . . . . . . . . . . . .	6
STEP 2 Speakers . . . . . . . . . . . . . . . . . . . . . . . . .	7
. . . . . . . . . . . . . . . . . . . . . . . .STEP 3 Television	8		started
STEP 6 The remote control . . . . . . . . . . . . . . . . .	9
STEP 4 Flat cable and optical cable . . . . . . . . . .	9
STEP 5 Antennas and AC mains lead . . . . . . . .	9
Other speaker setup options . . . . . . . . . . . . . .	10		Getting
STEP 7 QUICK SETUP	11
Control reference guide . . . . . . . . . . . . . . . . . . . .	12

Disc operations

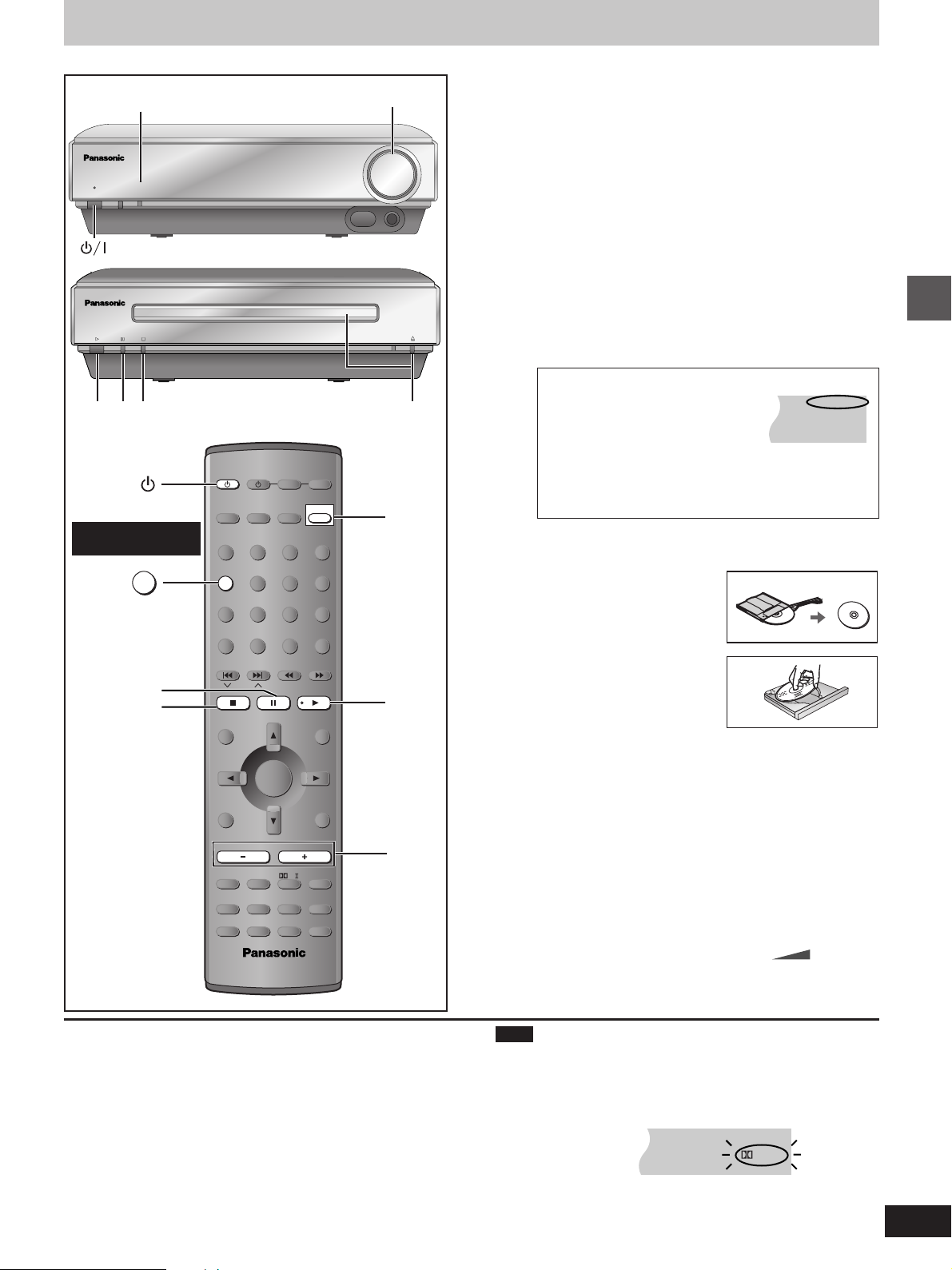

Discs—Basic play . . . . . . . . . . . . . . . . . . . . . . . . . 13

Position Memory function . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14 Skipping items . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14 Fast forward and rewind—SEARCH . . . . . . . . . . . . . . . . . . . . 14 Slow-motion play . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14 Frame-by-frame viewing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

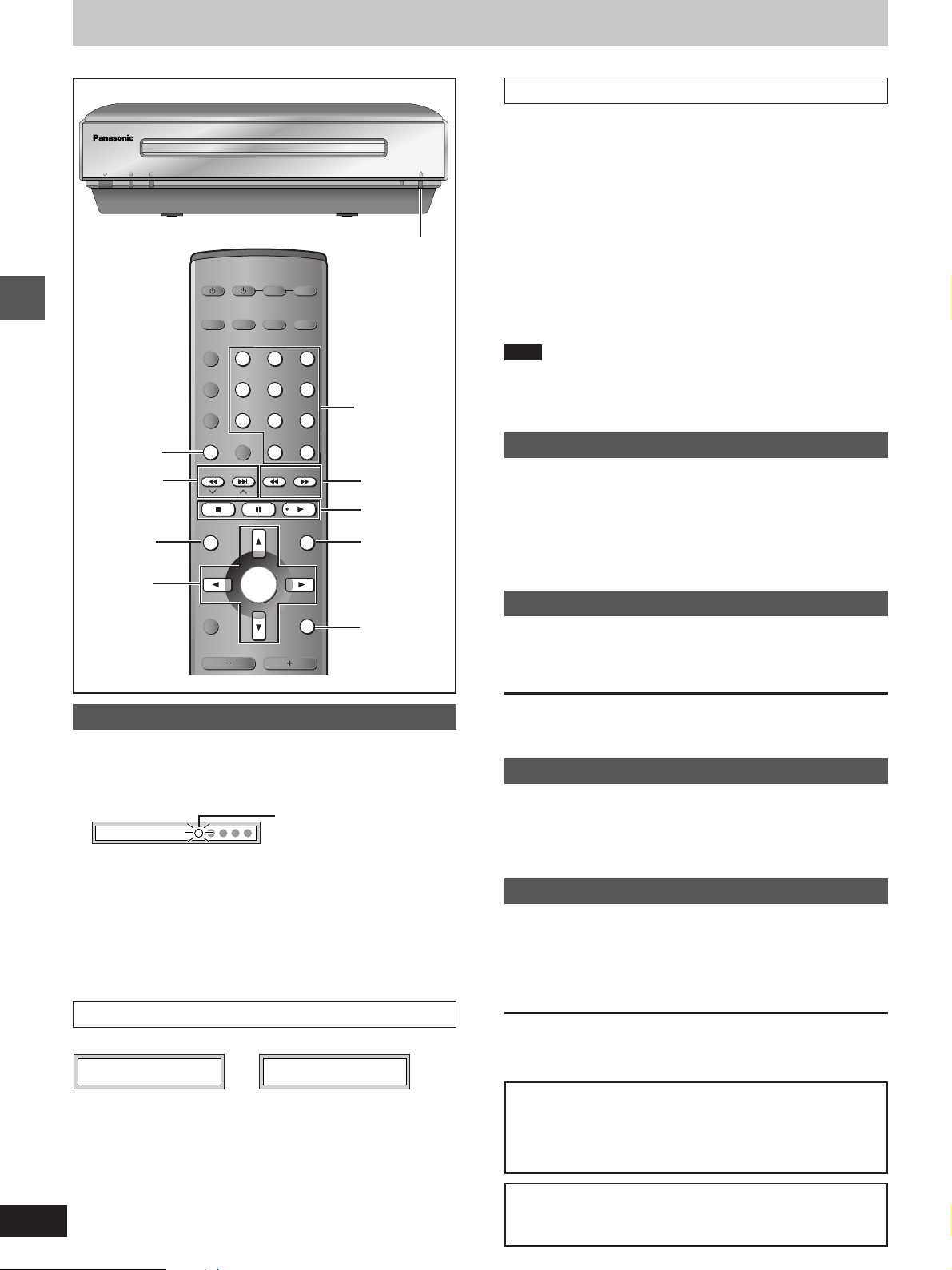

Discs—Convenient functions . . . . . . . . . . . . . . . 15

Starting play from a selected item . . . . . . . . . . . . . . . . . . . . . . 15 Repeat play/A-B repeat play . . . . . . . . . . . . . . . . . . . . . . . . . . 15 Selecting groups to play . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15 All group play/Program play/Random play . . . . . . . . . . . . . . . 16 Soundtracks/Subtitles . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17 Marking places to play again/Variable Zoom function . . . . . . . 18

Playing the program or play lists on DVD-RAM . . 19

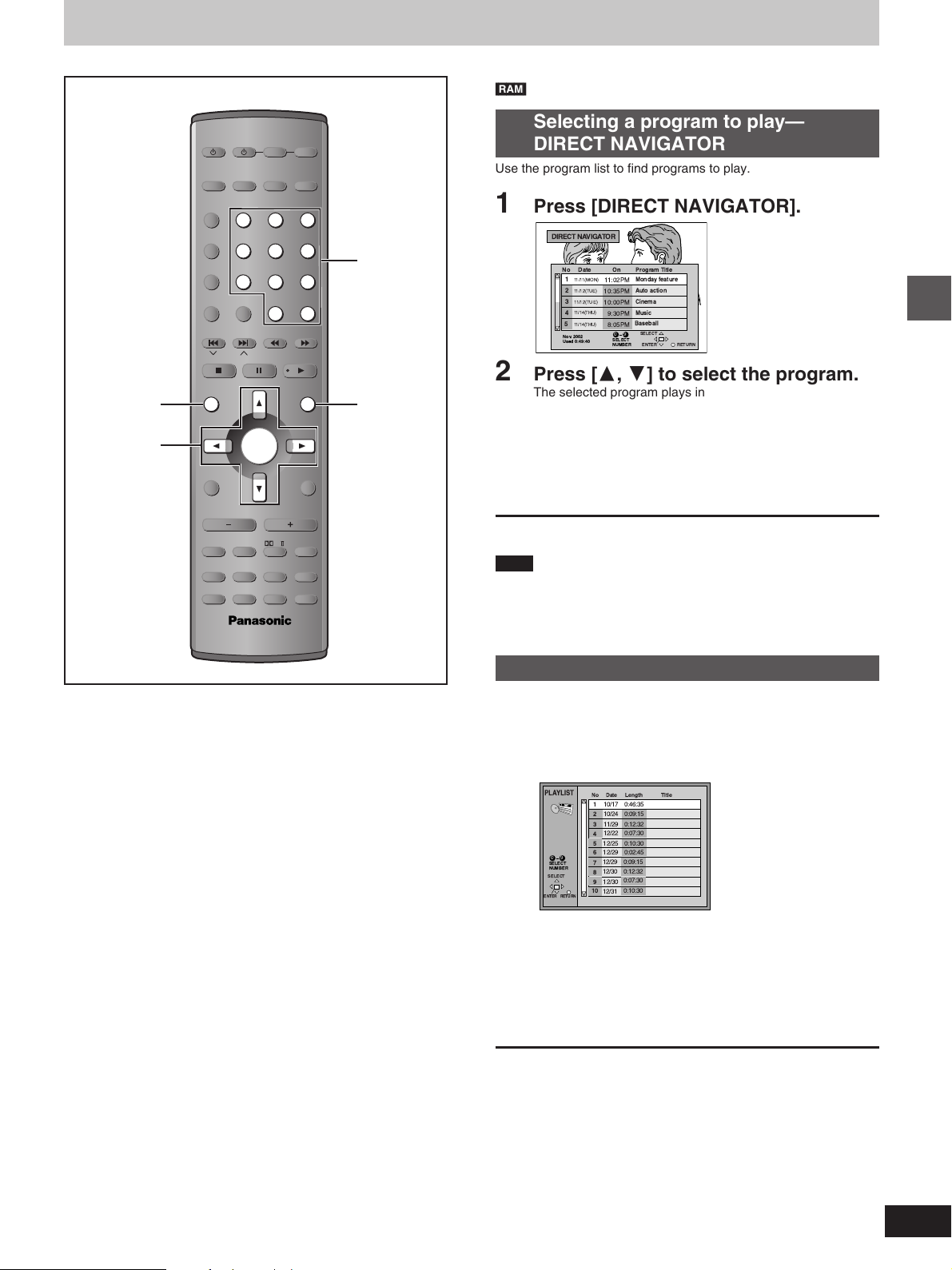

Selecting a program to play—DIRECT NAVIGATOR . . . . . . . 19 Using the play list menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

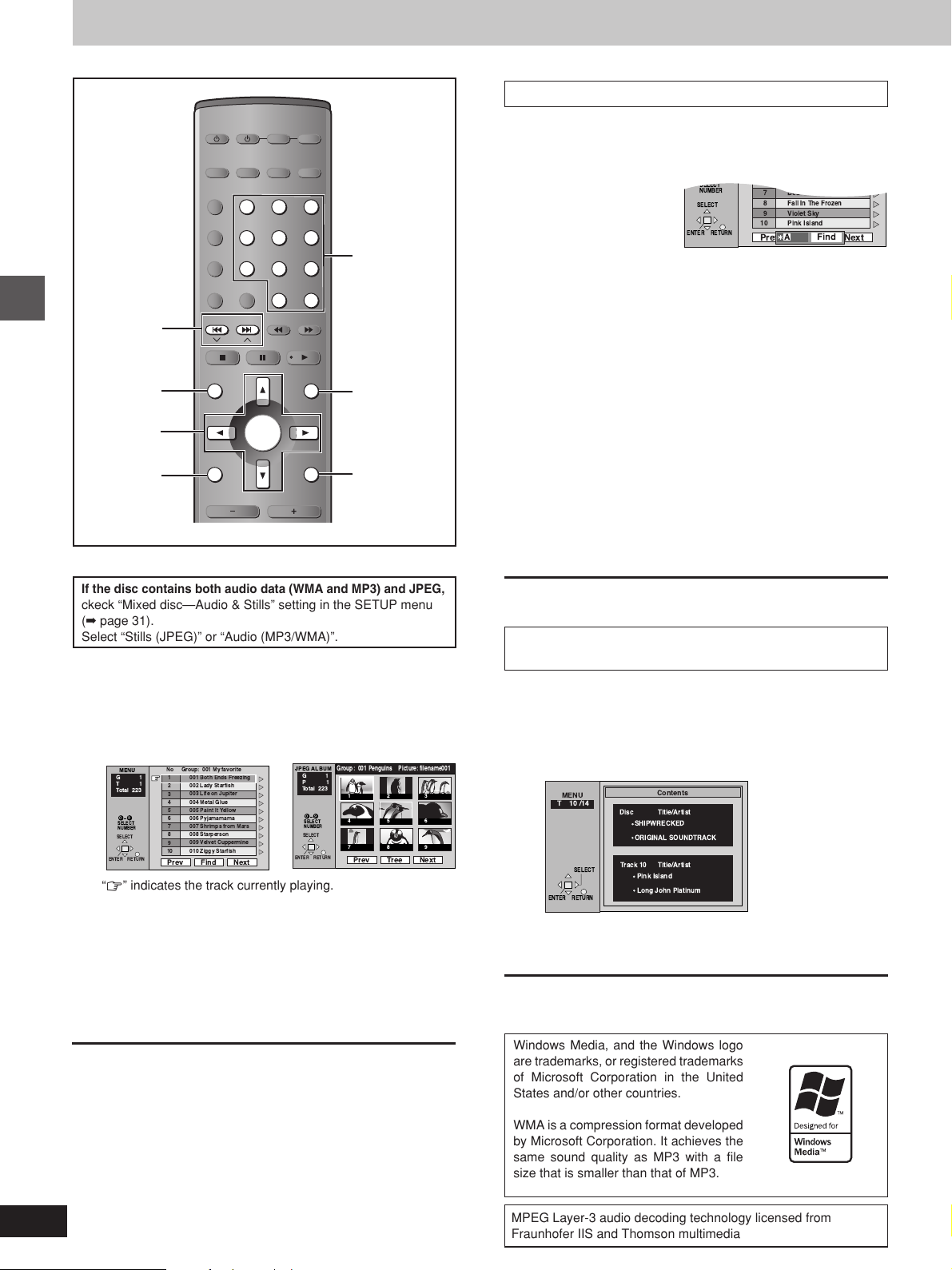

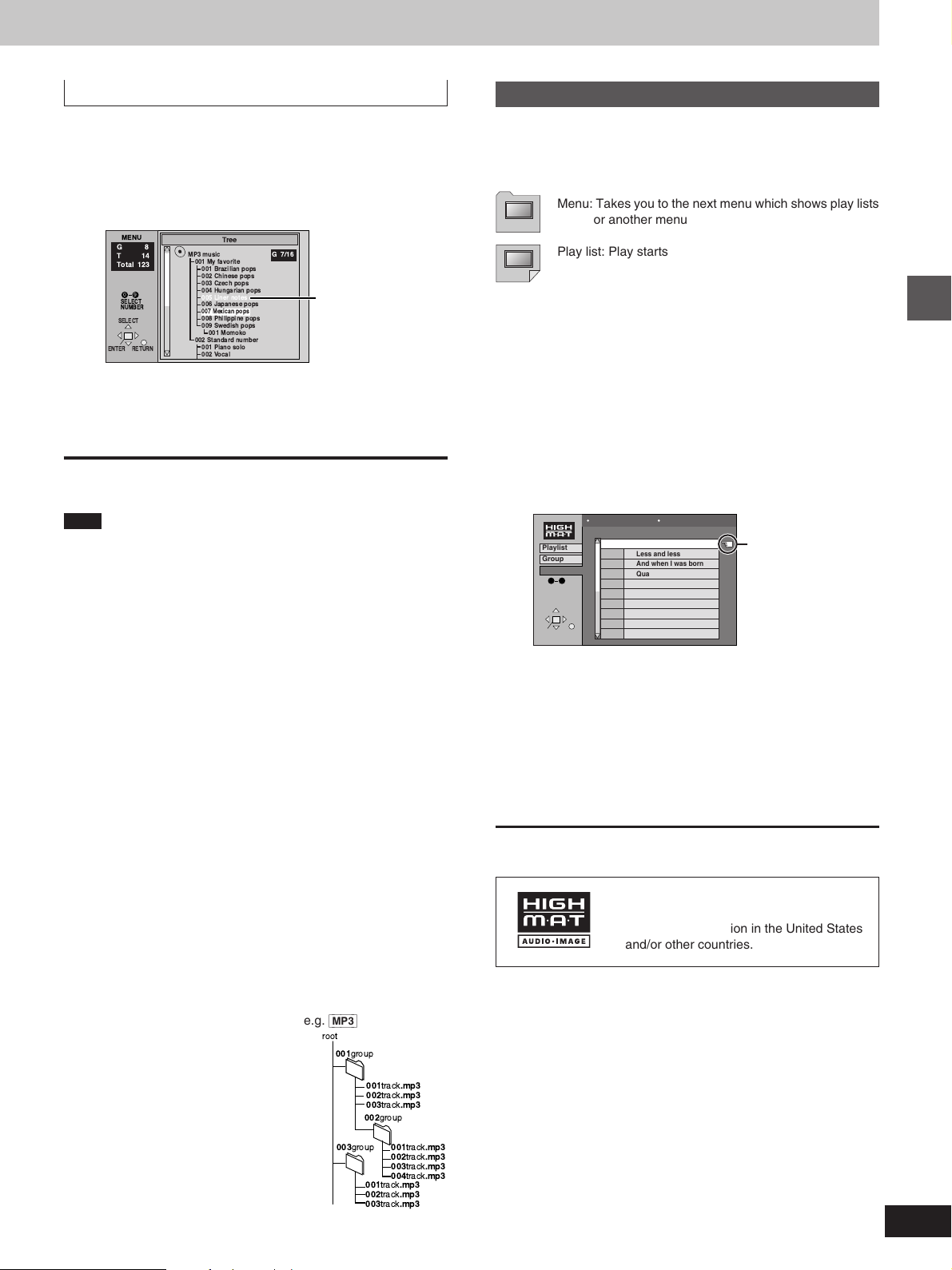

WMA/MP3, CD text and JPEG navigation menus . . 20

Playing HighMAT discs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

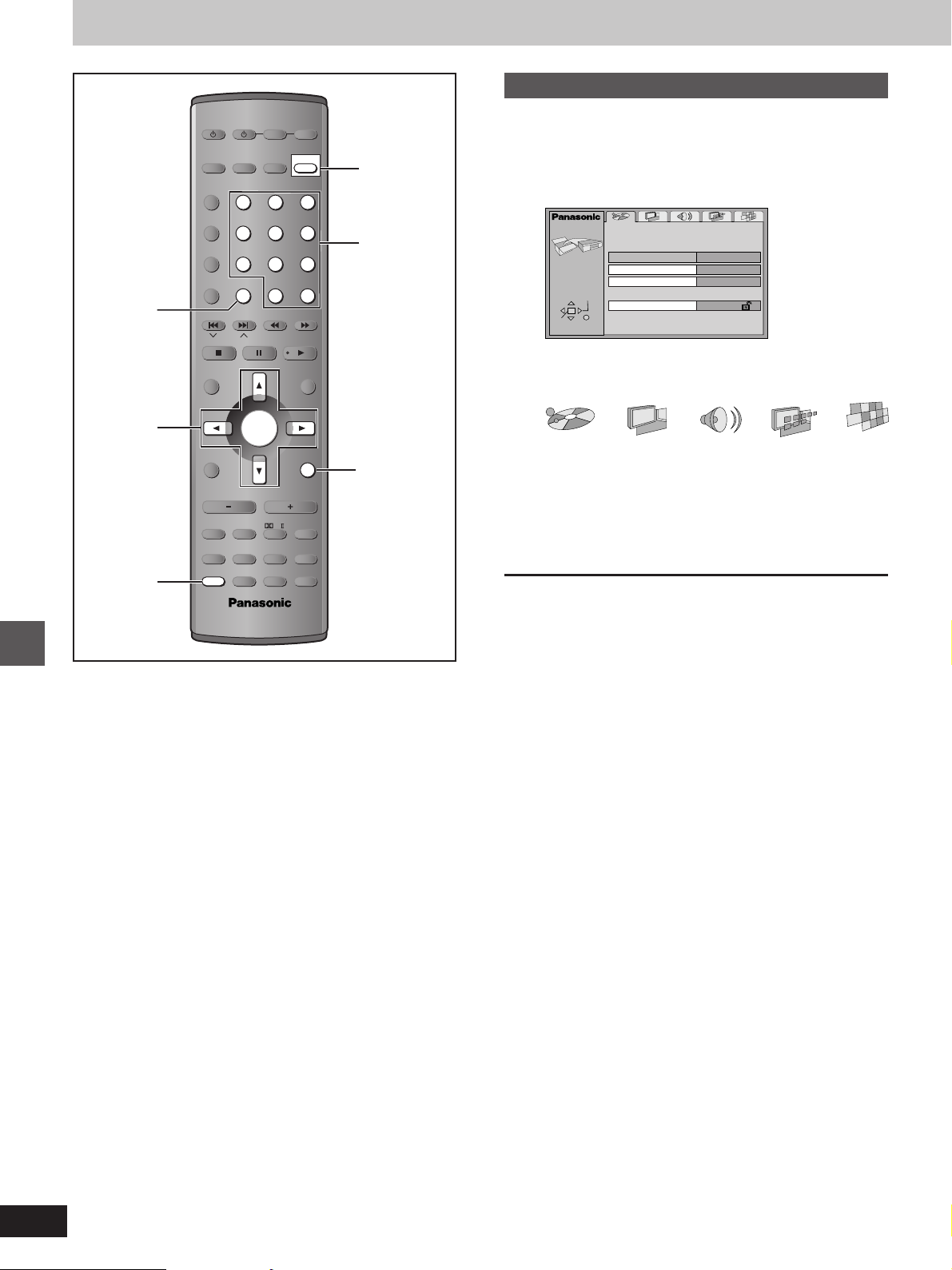

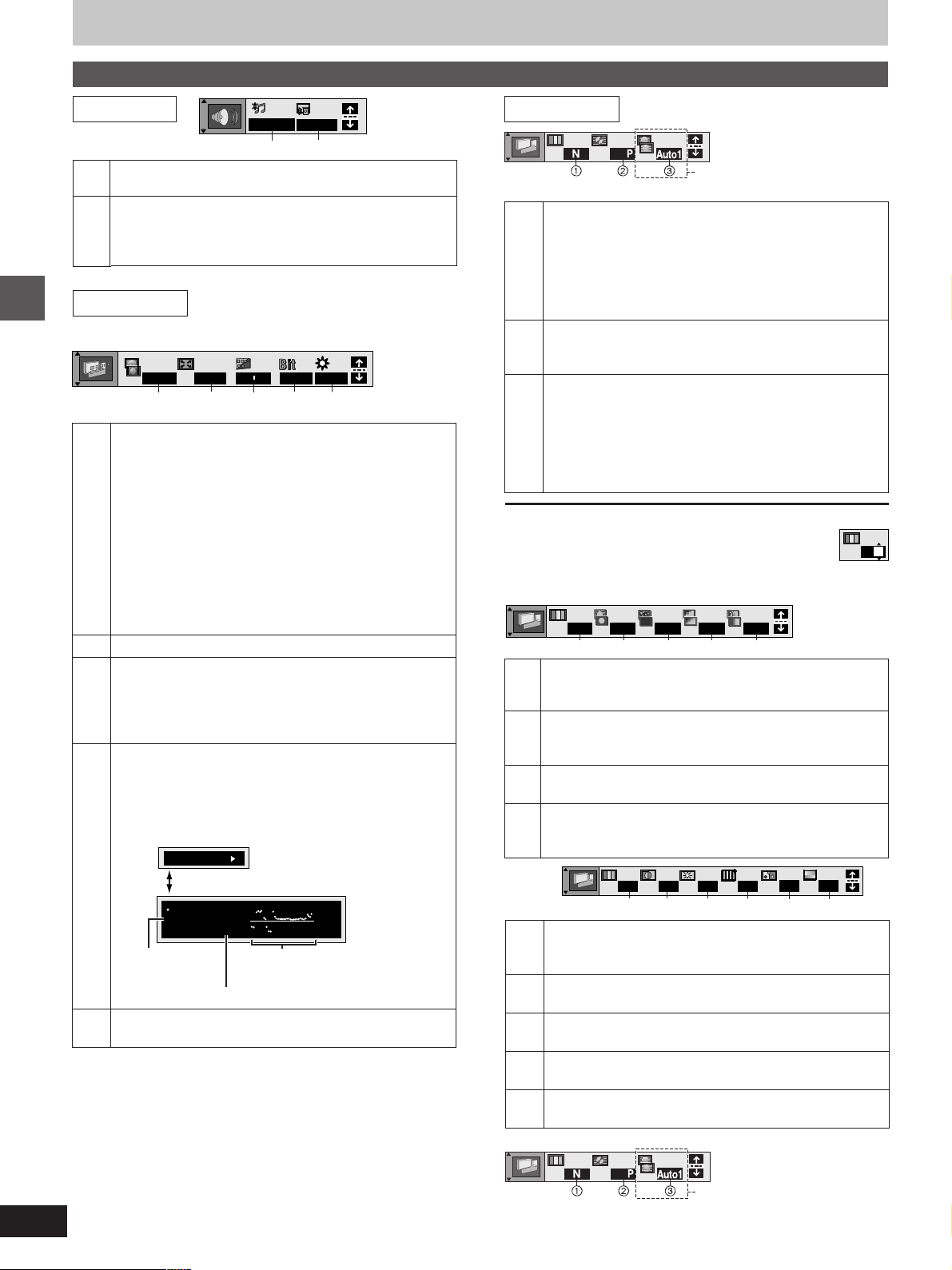

Using GUI (Graphical User Interface) screens . . . 22

Common procedures/Progress indicator . . . . . . . . . . . . . . . . . 22 Disc information/Unit information . . . . . . . . . . . . . . . . . . . . . . 23

Radio operations

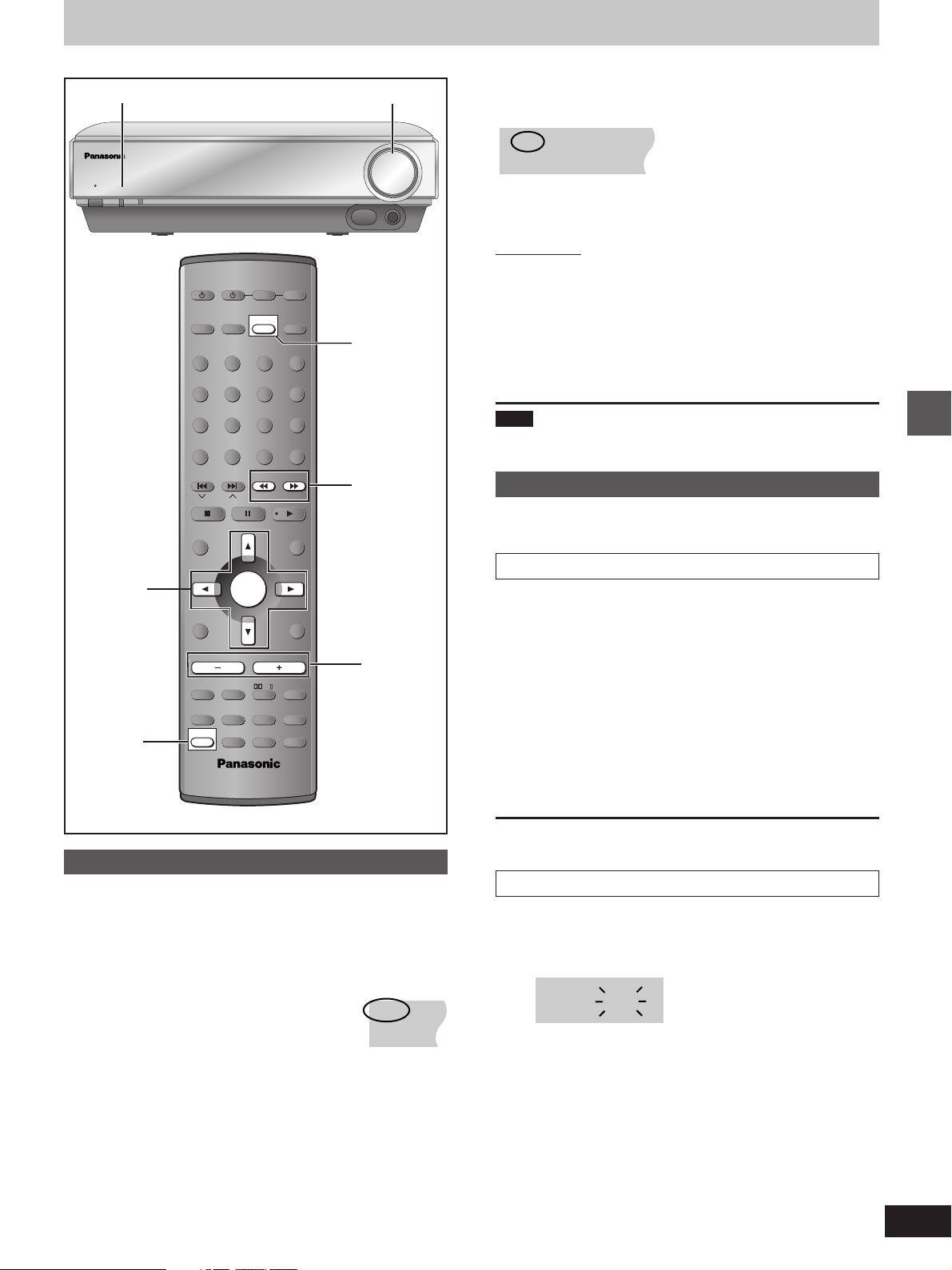

The radio . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

Manual tuning/Preset tuning . . . . . . . . . . . . . . . . . . . . . . . . . . 25 RDS broadcasting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

Sound field/sound quality operations

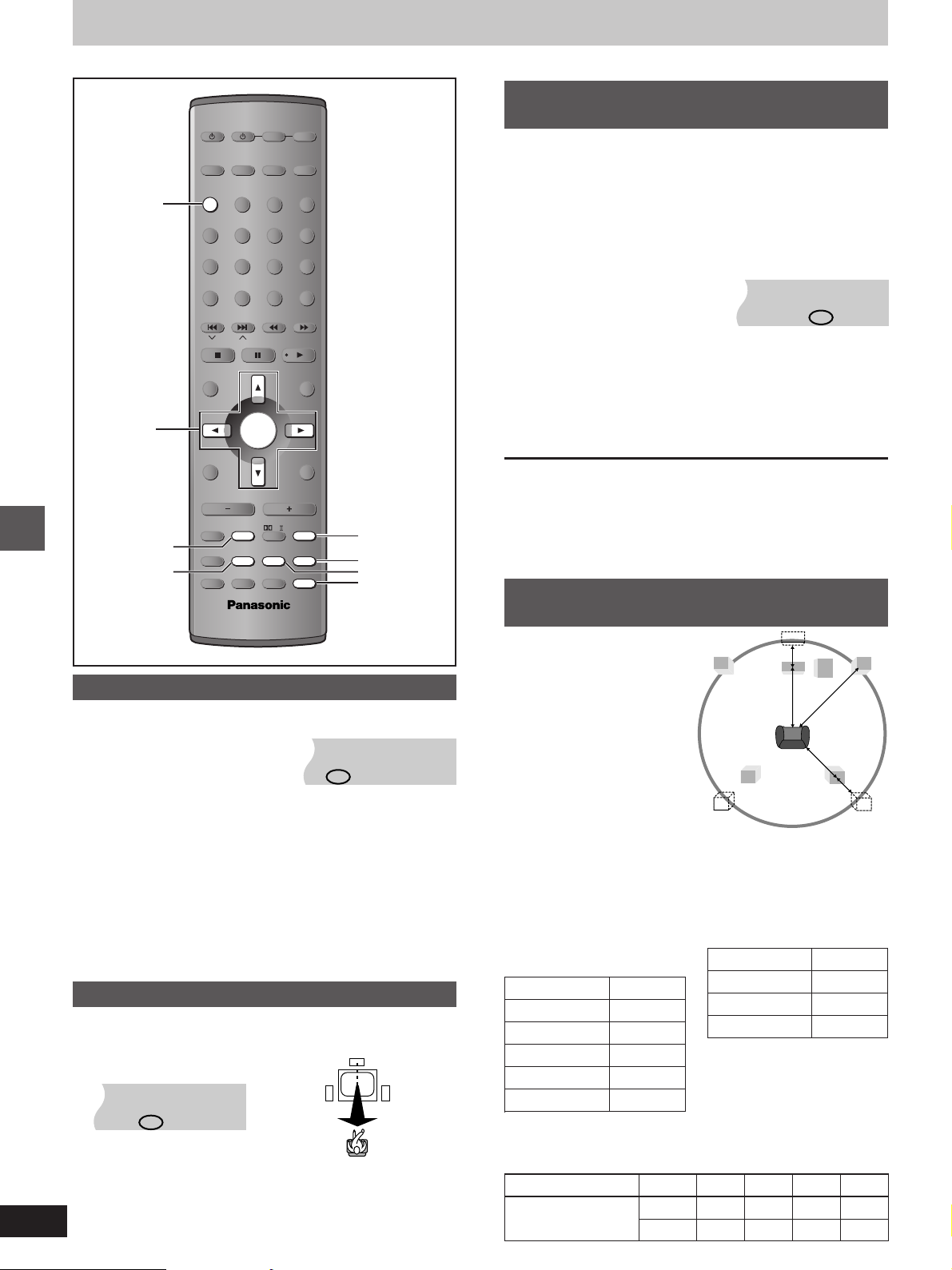

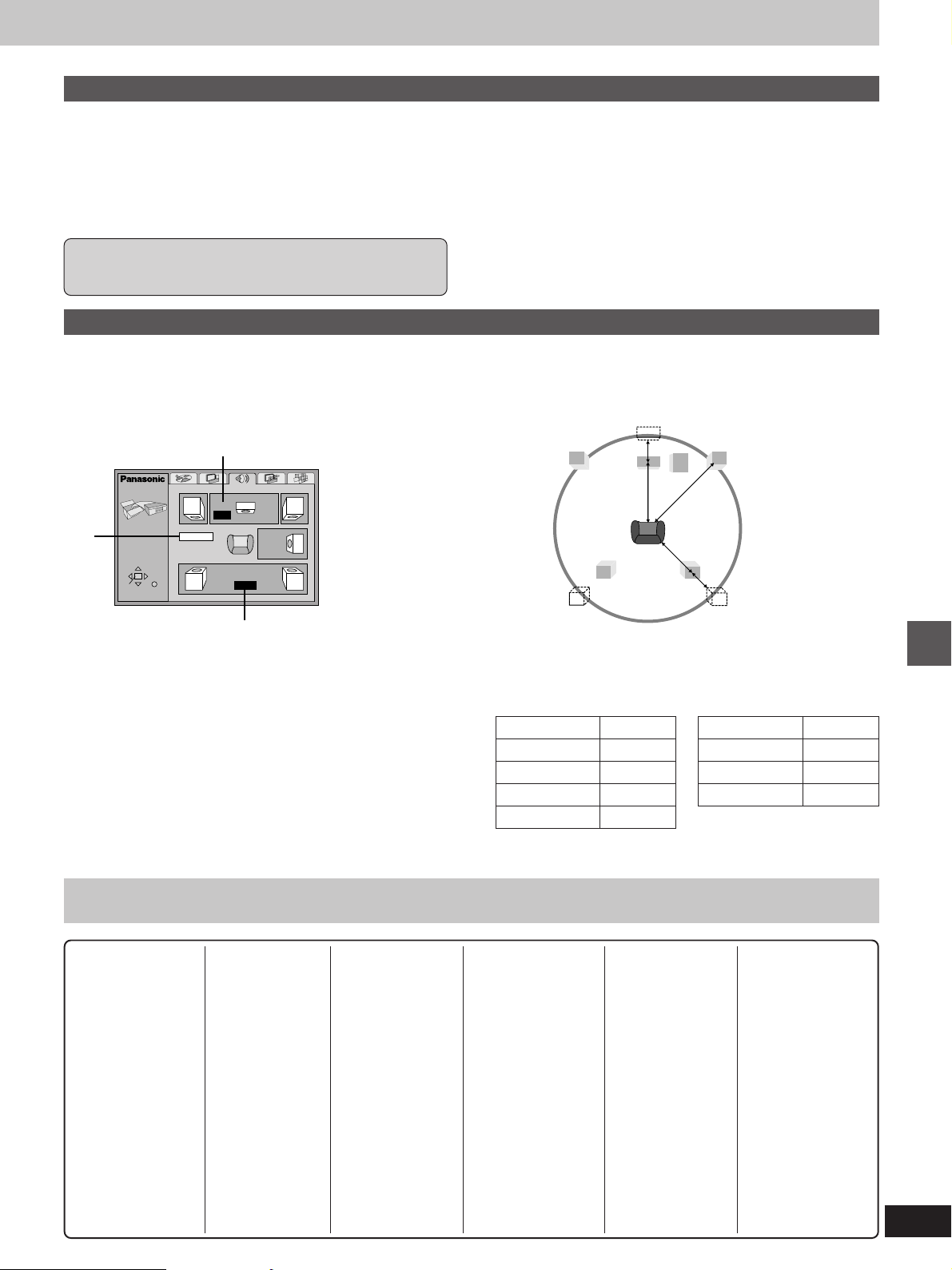

Sound field . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

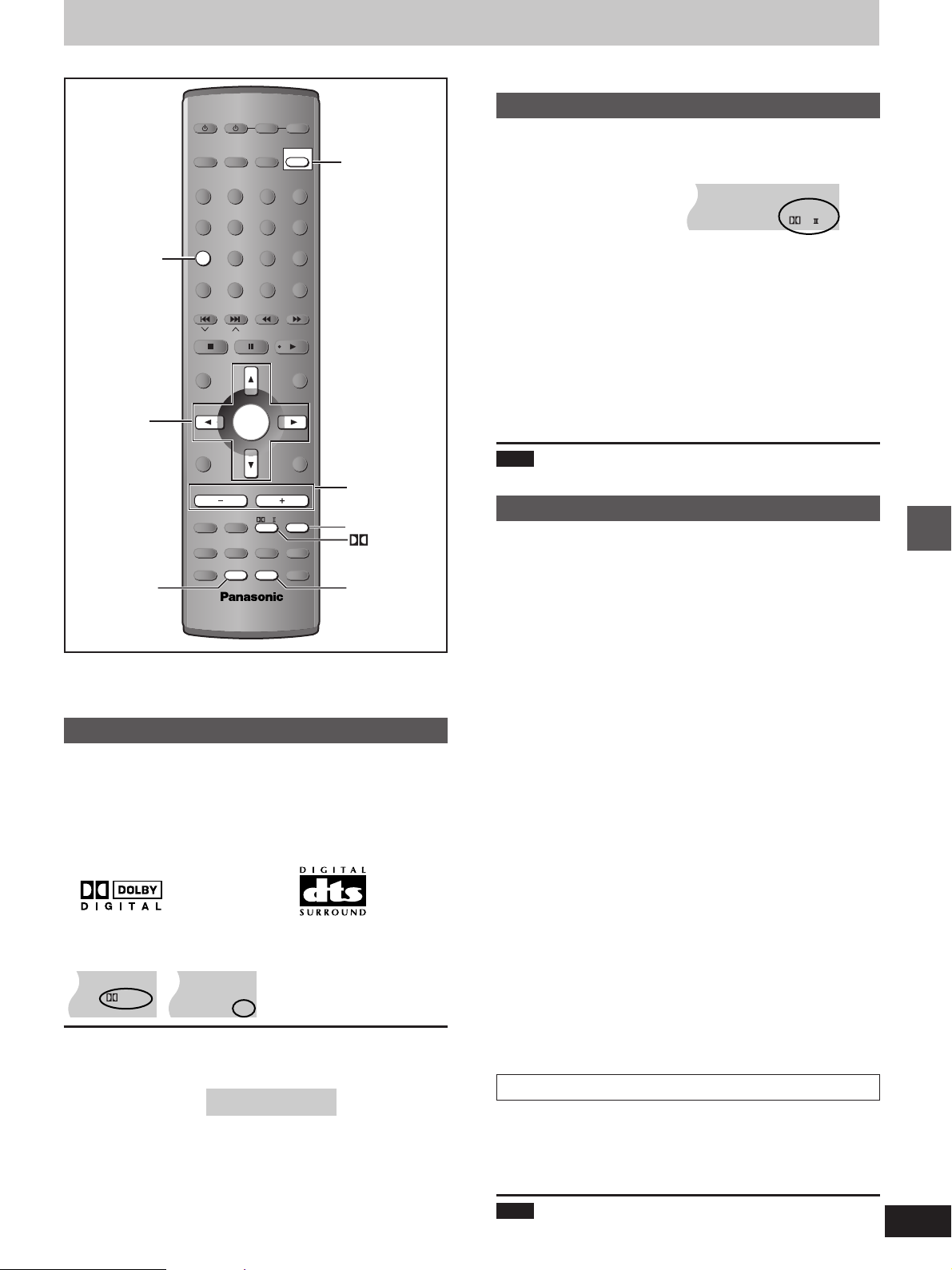

Dolby Digital and DTS/Dolby Pro Logic II . . . . . . . . . . . . . . . . . . 27 Speaker level adjustments . . . . . . . . . . . . . . . . . . . . . . . . . . . 27 Sound Field Control/Center Focus . . . . . . . . . . . . . . . . . . . . . 28

Custom Sound Memory—Store the sound settings . . . . . . . . 28 Changing the delay time of the AV control receiver . . . . . . . . 28

Sound quality . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

Adjusting the bass/Turning the subwoofer off . . . . . . . . . . . . . 29 Double re-master—Enjoying more natural sound . . . . . . . . . . 29 To enjoy even higher quality sound—AUDIO ONLY . . . . . . . . 29

Other functions

Convenient functions . . . . . . . . . . . . . . . . . . . . . . 30

Muting the volume/Turning off the display . . . . . . . . . . . . . . . . 30 The sleep timer/Using headphones . . . . . . . . . . . . . . . . . . . . . 30

Changing settings . . . . . . . . . . . . . . . . . . . . . . . . . 31 Language code list . . . . . . . . . . . . . . . . . . . . . . . . 33 Operating other equipment . . . . . . . . . . . . . . . . . 34

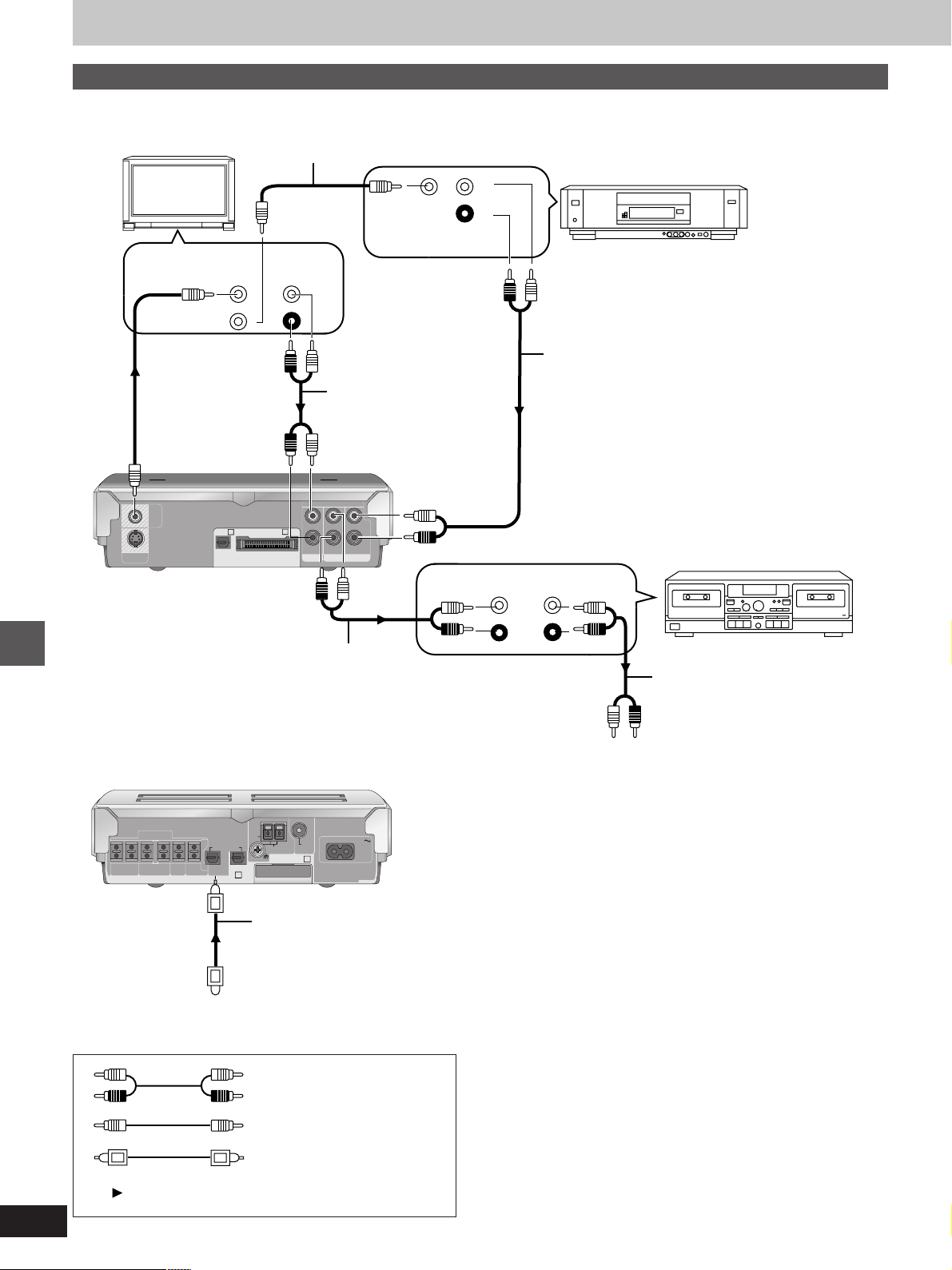

Connection example . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34 Operating a television/Operating a video cassette recorder . . . 35 Operating the tape deck or digital receiver . . . . . . . . . . . . . . . . 35

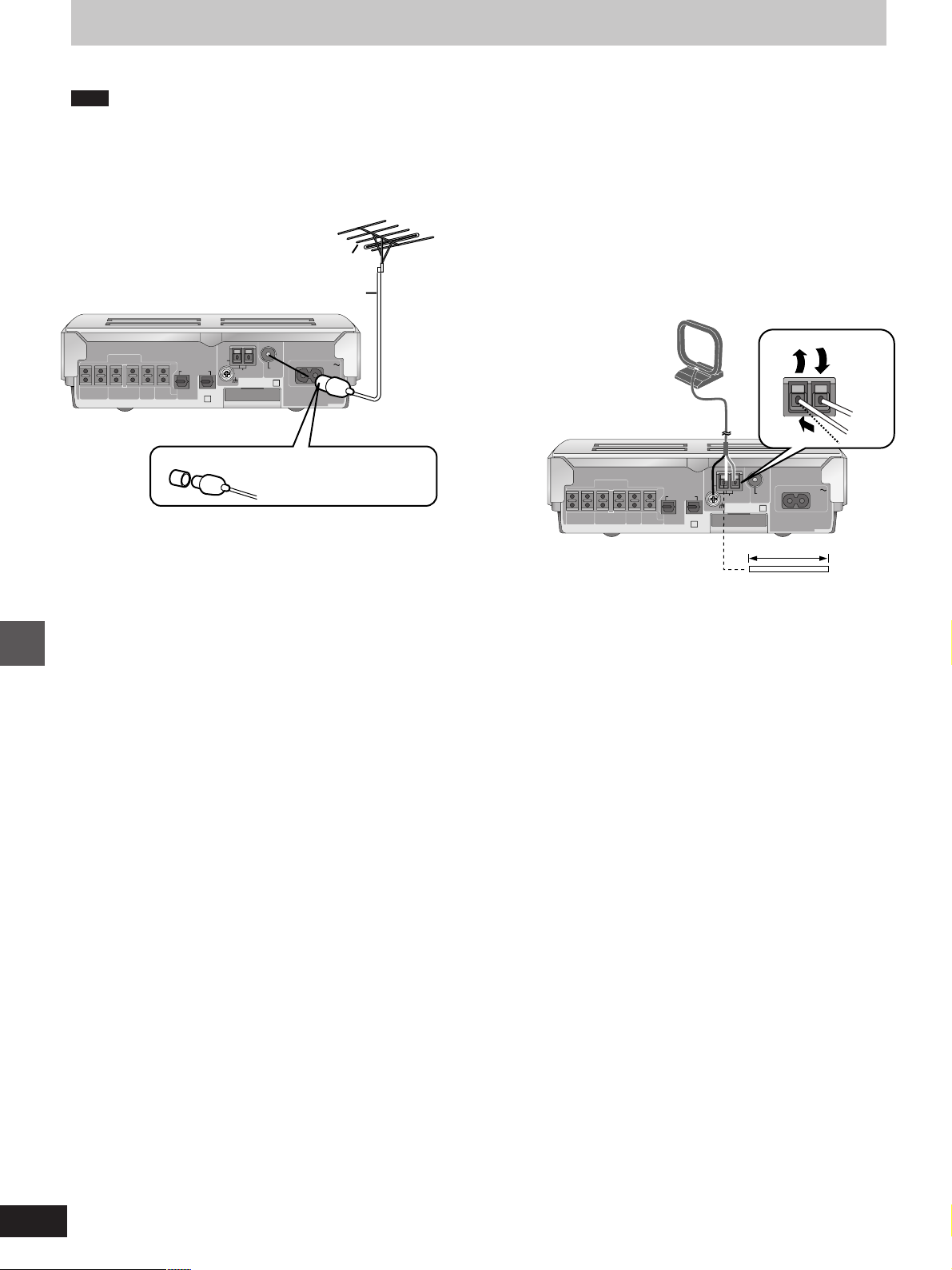

Optional antenna connections . . . . . . . . . . . . . . . 36

Reference

Safety precautions/Glossary . . . . . . . . . . . . . . . . 37 Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37 Troubleshooting guide . . . . . . . . . . . . . . . . . . . . . 38 3 Specifications (DIN 45 500) . . . . . . . . . Back cover RQT6924

Caution for AC Mains Lead

(For United Kingdom)

(“EB” area code model only)

For your safety, please read the following text carefully.

	started	This appliance is supplied with a moulded three pin
		mains plug for your safety and convenience.
		A 5-ampere fuse is fitted in this plug.
	Getting	Should the fuse need to be replaced please ensure
		Check for the ASTA mark Ï or the BSI mark Ì on
		that the replacement fuse has a rating of 5-ampere
		and that it is approved by ASTA or BSI to BS1362.
		the body of the fuse.
		If the plug contains a removable fuse cover you must
		ensure that it is refitted when the fuse is replaced.
		If you lose the fuse cover the plug must not be used
		until a replacement cover is obtained.
		A replacement fuse cover can be purchased from
		your local dealer.

CAUTION!

IF THE FITTED MOULDED PLUG IS UNSUITABLE FOR THE SOCKET OUTLET IN YOUR HOME THEN THE FUSE SHOULD BE REMOVED AND THE PLUG CUT OFF AND DISPOSED OF SAFELY.

THERE IS A DANGER OF SEVERE ELECTRICAL SHOCK IF THE CUT OFF PLUG IS INSERTED INTO ANY 13-AMPERE SOCKET.

If a new plug is to be fitted please observe the wiring code as stated below.

If in any doubt please consult a qualified electrician.

IMPORTANT

The wires in this mains lead are coloured in accordance with the following code:

Blue: Neutral, Brown: Live.

As these colours may not correspond with the coloured markings identifying the terminals in your plug, proceed as follows:

The wire which is coloured Blue must be connected to the terminal which is marked with the letter N or coloured Black or Blue.

The wire which is coloured Brown must be connected to the terminal which is marked with the letter L or coloured Brown or Red.

4

WARNING: DO NOT CONNECT EITHER WIRE TO THE EARTH TERMINAL WHICH IS MARKED WITH THE LETTER E, BY THE EARTH SYMBOL Ó OR

COLOURED GREEN OR GREEN/YELLOW.

THIS PLUG IS NOT WATERPROOF—KEEP DRY.

Before use

Remove the connector cover.

How to replace the fuse

The location of the fuse differ according to the type of AC mains plug (figures A and B). Confirm the AC mains plug fitted and follow the instructions below.

Illustrations may differ from actual AC mains plug.

1. Open the fuse cover with a screwdriver.

Figure A

Figure B

Fuse cover

2.Replace the fuse and close or attach the fuse cover.

Figure A

Fuse

(5 ampere)

Figure B

Fuse

(5 ampere)

RQT6924

Disc information

∫ Discs that can be played

Disc type

Logo

Indication used in

instructions

DVD-RAM

[RAM]

DVD-Audio

[DVD-A]

DVD-Video

[DVD-V]

DVD-R
Video CD		[VCD]
CD		[ [CD]]
		Including CD text
CD-R/RW	—	[WMA] [MP3] [JPEG]

≥Use discs with the above logos and that conform to specifications.

The unit cannot play other discs correctly.

≥Do not use irregularly shaped discs (e.g. heart-shaped), as these can damage the unit.

∫ Discs that cannot be played

DVD-ROM, CD-ROM, CDV, CD-G, iRW, DVD-RW, CVD, SVCD, SACD, Divx Video Discs and Photo CD.

∫ Disc structure

Disc structure and the labels given to the items on discs depend on the disc type.

Track: the smallest division on DVD-Audio, CDs and Video CDs, or a single WMA/MP3 file.

Chapter: the smallest division on DVD-Video.

Group: collections of tracks on DVD-Audio and equivalent to folders or albums on data discs.

Title: the largest division on DVD-Video, usually an entire movie. Program: the division on DVD-RAM equivalent to a single recording. Picture: a single JPEG file.

Play list: the largest grouping on a HighMAT disc, or a group of scenes on DVD-RAM.

Scene: DVD-RAM program sections specified and grouped into play lists on a DVD video recorder.

Content: covers tracks and pictures on HighMAT discs.

Playing DVDs and Video CDs

The producer of these discs can control how they are played so you may not always be able to control play as described in these operating instructions (for example if the play time is not displayed or if a Video CD has menus).

Read the disc’s instructions carefully.

∫ CD-R and CD-RW discs

This unit can play CD-R/RW (audio recording disc) recorded with

CD-DA, video CD, WMA, MP3, or JPEG. Finalize§ the disc after recording.

See page 20 for more information about WMA, MP3, and JPEG.

∫ DVD-R discs

Panasonic DVD-R recorded and finalized§ on a Panasonic DVD video recorder are played as DVD-Video on this unit.

§A process that allows play on compatible equipment.

∫ DVD-RAM discs

DVD-RAM discs must meet the following conditions for this unit to be able to play them.

Type ≥Non-cartridge discs

≥Discs that can be removed from their cartridges (TYPE 2 and 4)

Capacity ≥12 cm 9.4 GB (double-sided) and 4.7 GB (singlesided)

≥8 cm 2.8 GB (double-sided)

Recording Discs recorded with DVD video recorders, DVD format video cameras, personal computers, etc., using

Version 1.1 of the Video Recording Format (a unified video recording standard).

≥Remove TYPE 2 and 4 discs from their cartridges before use, then return them when you are finished. Read the instructions for the disc carefully.

≥Do not allow the disc to become dirty or scratched. Store discs in their cartridges and ensure the disc label and cartridge label face the same way.

≥Some parts of the disc, for example where one program ends and another begins, may not play smoothly.

Note

It may not be possible to play CD-R, CD-RW, DVD-R and DVD-RAM in all cases due to the type of disc or condition of the recording.

∫ Video systems

This unit can play both the PAL and NTSC video systems. To view

PAL or NTSC, however, your television must match the system used on the disc.

PAL discs cannot be correctly viewed on an NTSC television. NTSC can be correctly viewed on a PAL television by converting the video signal to PAL 60 ( page 31, Video—NTSC Disc Output).

∫ HighMAT discs

This unit is compatible with HighMAT discs containing WMA, MP3, and/or JPEG files.

∫ To clean discs

DVD-Audio, DVD-Video, Video CD, CD

Wipe with a damp cloth and then wipe dry.

DVD-RAM, DVD-R

≥Clean with an optional DVD-RAM/PD disc cleaner (LF-K200DCA1, where available).

≥Never use cloths or cleaners for CDs etc.

∫ Handling precautions

≥Do not write on the label side with a ball-point pen or other writing instrument.

≥Do not use record cleaning sprays, benzine, thinner, static electricity prevention liquids or any other solvent.

≥Do not attach labels or stickers to discs. (Do not use discs with exposed adhesive from tape or left over peeled-off stickers.)

≥Do not use scratch-proof protectors or covers.

≥Do not use discs printed with label printers available on the market.

Getting started

5

RQT6924

Simple setup

Simple setup

Plug in the AC mains lead after making all connections.

STEP1 Locating

CENTER

SURROUND(R)

FRONT(R)

SUBWOOFER

FRONT(L)

SURROUND(L)

Main unit

	AV control receiver	To raise the angle
		e.g.) DVD/CD Player
SA-DT310
DIGITAL
/I SELECT INPUT	AV CONTROL RECEIVER
	Ë
SL-DT310		SL-DT310
		DVD / CD PLAYER
	DVD / CD PLAYER
DVD/CD Player		Stand

≥Use only supplied speakers

≥Using other speakers can damage the unit and sound quality will be negatively affected.

≥Set the speakers up on an even surface to prevent them from falling. Take proper precautions to prevent the speakers from falling if you cannot set them up on an even surface.

≥Place the front, center, and surround speakers at approximately the same distance from the seating position. The angles in the diagram are approximate.

Positioning for best effect

How you set up your speakers can affect the bass and the sound field. Note the following points.

≥Place speakers on flat secure bases.

≥Placing speakers too close to floors, walls, and corners can result in excessive bass. Cover walls and windows with thick curtain.

6

	The size of the front speakers and surround speakers are
RE-MASTER	the same respectively.
DOUBLE

Note

≥Do not use the stand to carry the unit.

≥Do not apply force down upon the unit while using the stand.

≥Do not place anything on top of the AV control receiver.

Main unit

Keep your speakers at least 10 mm away from the system for proper ventilation.

Center speaker

≥You can also put this speaker directly under the television.

≥Vibration caused by the center speaker can disrupt the picture if it is placed directly on the television. Put the center speaker on a rack or shelf.

Subwoofer

Place to the right of the television, on the floor or a sturdy shelf so that it won’t cause vibration.

Leave 10 cm on the right for the woofer to be effective. Leave

10 cm at the rear for ventilation.

RQT6924

FRONTch L

2

Push the lever in the direction indicated by the arrow, insert the wire, then release the lever.

Copper: r

Silver: s

FRONT L

To prevent damage to circuitry, never short-circuit positive (r) and negative (s) speaker wires.

AV control receiver

Rch HF FRONT

FRONT R

FRONT LF Rch

FRONT Rch

1

FRONT HF Rch

e.g.) FRONT R

1

Speaker-cable stickers

2 Connecting the speakers

Match the labels on the speaker stickers with the labels on the terminals.

Connect center, surround L and subwoofer in the same way.

Attach the speaker-cable stickers to make connection easier.

A noise filter comes attached with the speaker cables to prevent undue influence to other equipment. Do not remove the noise filter from the speaker cable.

Connect the noise filter side of the speaker cables to the

AV control receiver speaker terminals.

FRONT L, R (4 m)

Attach the stickers to the speaker cables.

Push the lever in the direction indicated by the arrow, insert the wire, release the lever and press down on it lightly.

FRONT LF Rch

FRONT R ch

1

Speakers

STEP2

HF

LF

HF

Lch

FRONT

FRONTLch

LF

HF

LF

HF: High Frequency

LF: Low Frequency

2	Speaker cables (4 wires, 4 m)	Sheet of speaker-cable
2	Speaker cables (2 wires, 4 m)	stickers
2	Speaker cables (2 wires, 10 m)

Twist the same colored wires

together.

Copper

Silver

SURROUND L,R (10 m) e.g.) SURROUND R

150 mm	150 mm
SURROUND	SURROUND
R ch	R ch
	3
CENTER, SUBWOOFER (4 m)
e.g.) SUBWOOFER
150 mm	150 mm
SUB	SUB
WOOFER	WOOFER
	6
SURROUND R

	SURROUND R ch	SURROUND L	SUBWOOFER
			CENTER
Copper: r
	SURROUND R ch
Silver: s		3

SPEAKERS

+

1 R (6≠) L 2 3 R (6≠) L 4 5(6≠) 6(3≠) -

FRONT HF/LF

SURROUND

CENTER SUBWOOFER

The subwoofer’s terminals are on the bottom.

Fit the cables into the slots provided. From the side

Speaker cable

From the rear

HF

Copper

LF	Silver

Copper

Silver

Simple setup

7

RQT6924

Simple setup

STEP3 Television

∫ Connecting a television with a VIDEO IN terminal

Connect directly to your television.

Do not connect the unit through a video cassette recorder, because the picture may not be played correctly due to the copy guard.

VIDEO

IN

				Video cable
				(included)
		VIDEO			AUDIO
		OUT				L
		OPT	B	A
						R
	S-VIDEO	DIGITAL		IN	OUT	IN
				TV(AUX)	VCR(EXT)
		OUT
	OUT

Video cable

[For\the\United\Kingdom,\Continental\Europe\and\Russia]

Use the RCAJ adaptor (included) if your television has a 21-pin SCART terminal. You do not have to connect anything to the AUDIO terminals.

		VIDEO			AUDIO
		OUT
						L
		OPT	B	A
						R
	S-VIDEO	DIGITAL		IN	OUT	IN
				TV(AUX)	VCR(EXT)
		OUT
	OUT

Video terminal

Video cable

(included)	To your
	television
	RCAJ adaptor
	Audio terminals

∫ Connecting a television with COMPONENT VIDEO terminal

[For\Southeast\Asia,\Australia\and\N.Z.]

Television’s COMPONENT VIDEO IN terminal

Y PB PR

COMPONENT VIDEO OUT terminal

								These terminals can be used for either interlace or progressive output
				Video cable				and provide a purer picture than the S VIDEO OUT terminal. Connec-
								tion using these terminals outputs the color difference signals (PB/PR)
				(not included)
								and luminance signal (Y) separately in order to achieve high fidelity in
								reproducing colors.
						AUDIO		≥The description of the component video input terminals depends on
								the television or monitor (e.g. Y/PB/PR, Y/B-Y/R-Y, Y/CB/CR). Con-
	VIDEO
	OUT						L	nect to terminals of the same color.
	Y	PB	PR
				OPT B	A
							R
S-VIDEO				DIGITAL	IN	OUT	IN
	COMPONENT VIDEO OUT			OUT	TV(AUX)	VCR(EXT)
OUT		(480P/480I)

To enjoy progressive video

≥Connect to the component video (480P) input terminals on a television compatible with this unit’s copy guard system. (Video will not be displayed correctly if connected to an incompatible television.)

≥Press [PROGRESSIVE] so “PROGRESSIVE” appears on the display ( page 13).

≥All televisions manufactured by Panasonic and that have 480P input connectors are compatible. Consult the manufacturer if you have another brand of television.

∫ Connecting a television with an S-VIDEO IN terminal

		Television’s S VIDEO IN terminal
					S VIDEO OUT terminal
			S-Video cable		The S video terminal achieves a more vivid picture than the VIDEO
			(not included)		OUT terminal by separating the chrominance (C) and luminance (Y)
					signals. (Actual results depend on the television.)
					AUDIO
		VIDEO
		OUT			L
			OPT B	A
	8				R
		S-VIDEO	DIGITAL	IN	OUT IN
				TV(AUX)	VCR(EXT)
			OUT

OUT

RQT6924

STEP4 Flat cable and optical cable

Optical cable

Optical cable

						Insert fully,
SPEAKERS		EXT		AC IN		with this side
+	DIGITAL IN		75≠
			LOOP AM ANT FM ANT			facing up.
		GND	TO SL-DT310 A
1 R (6≠) L 2 3R (6≠) L 4 5(6≠) 6(3≠) - OPT 2 OPT 1
FRONT HF/LF SURROUND CENTER SUBWOOFER	(TV)	B
Insert fully,						AUDIO
with this side			VIDEO			L
			OUT
facing up.				OPT B	A		To connect	To unplug
		OUT		OUT	TV(AUX)	R
						VCR(EXT)	cable	cable
		S-VIDEO		DIGITAL	IN	OUT IN
Flat cable								2	1
								1

STEP5 Antennas and AC mains lead

AC mains lead	AM loop	FM indoor
[For\the\United\Kingdom] [For\Australia\and\N.Z.] [For\Continental\Europe\and\Russia] [For\Southeast\Asia]	antenna	antenna
Click!

		Click!			Conserving power
					The unit consumes power (approx. 0.7 W) even when it is
					turned off with [Í]. To save power when the unit is not to be
AM loop antenna		FM indoor antenna			used for a long time, unplug it from the household mains
					socket.
Stand the antenna up on its		Fix the other end of
					Remember to reset the radio stations and any other memory
base.		the antenna where
					items before using the unit again.
Keep loose antenna cord		reception is best.
away from other wires and					Information you enter into the unit’s memory remains intact
cords.				Adhesive tape for up to two weeks after the AC mains lead is disconnected.

			1	3
			2
SPEAKERS	EXT		AC IN
	+
			75≠
	DIGITAL IN	LOOP AM ANT FM ANT
	GND	TO SL-DT310	A

1 R (6≠) L 2 3 R (6≠) L 4 5(6≠) 6(3≠) - OPT 2 OPT 1

FRONT HF/LF	SURROUND	CENTER SUBWOOFER	(TV)	B

[For\the\United\Kingdom\only]	AC mains
BE SURE TO READ THE CAUTION FOR THE AC	lead
MAINS LEAD ON PAGE 4 BEFORE CONNECTION.
	To household
	mains socket
STEP6 The remote control

Unscrew the terminal	6
with a Phillips-head
	4
screwdriver.
	Black	5

Remote control

Batteries

≥Insert so the poles (i and j) match those in the remote control.

≥Do not use rechargeable type

+ -3 R6,AA,UM-3 batteries.

1

3 -+

2

Do not;

≥mix old and new batteries.

≥use different types at the same time.

≥heat or expose to flame. ≥take apart or short circuit.

≥attempt to recharge alkaline or manganese batteries.

≥use batteries if the covering has been peeled off.

Mishandling of batteries can cause electrolyte leakage which can damage items the fluid contacts and may cause a fire.

Remove if the remote control is not going to be used for a long period of time. Store in a cool, dark place.

∫ Use

Aim at the sensor, avoiding obstacles, at a maximum range of 7 m directly in front of the unit.

Simple setup

9

RQT6924

Simple setup

10

Other speaker setup options

Attatching to a wall

(Center and surround speakers only)

[Note]

The wall or pillar on which the speakers are to be attached should be capable of supporting 5 kg per screw.

1 Remove the stand.

BEFORE REMOVING THE STAND

≥Take the speaker cable out of the stand’s hole if it is threaded through.

≥Lay the speaker on a soft cloth.

Unscrew the screw with a Phillips-head screwdriver.

Fitting speaker stands (optional)

2 Screw a screw (not included) into the wall.

30—35 mm

‰7.5—9.4 mm

8—11 mm

Wall

3 Fit the speaker securely onto the screw with the hole.

Preparation

Remove the stand ( step 1 above).

Ensure the stands meet these conditions before purchasing them. ≥Observe the diameter and length of the screws and the distance

between screws as shown in the diagram. ≥The stands must be able to support over 5 kg.

≥The stands must be stable even if the speakers are in a high position.

5 mm

pitch 0.8 mm

		60 mm
		Speaker stand
		(not included)
	Attach the stands with	Plate thickness plus
	these holes.
		7 to 10 mm

Keeping the cables out of the way	Pass through the
Pass the cables through the holes in the stand to keep them out of the way.	cutout in the base.
	Insert and tighten
	screw.
Pass the cable
through the hole.
C
CENTER

Notes on speaker use

≥You can damage your speakers and shorten their useful life if you play sound at high levels over extended periods.

≥Reduce the volume in the following cases to avoid damage.

–When playing distorted sound.

–When the speakers are receiving howling from a record player, noise from FM broadcasts, or continuous signals from an oscillator, test disc, or electronic instrument.

–When adjusting the sound quality.

–When turning the unit on or off.

If irregular coloring occurs on your television

These speakers are designed to be used close to a television, but the picture may be affected with some televisions and setup combinations.

Stand

If this occurs, turn the television off for about 30 minutes.

The television’s demagnetizing function should correct the problem. If it persists, move the speakers further away from the television.

Caution

≥Use the speakers only with the recommended system.

Failure to do so may lead to damage to the amplifier and/or the speakers, and may result in the risk of fire. Consult a qualified service person if damage has occurred or if you experience a sudden change in performance.

≥Do not attempt to attach these speakers to walls using methods other than those described in this manual.

RQT6924

STEP7	QUICK SETUP
					Preparation
					Turn on the television and select the appropriate video input on the
					television to suit the connections for the unit.
1	AV SYSTEM	TV	VCR		1 Press [Í] to turn on the unit.
					2
		AUX	EXT			Press [DVD] to select “DVD”.
SLEEP	TV/AV	TUNER	DVD	2
		BAND	CD		3	Press	[SETUP]	to show the QUICK
RE-MASTER
DOUBLE
	1	2	3			SETUP screen.
			AUDIO ONLY
GROUP
	4	5	6			[For\the\United\Kingdom,\Continental\Europe\and\Russia]
REPEAT/
MIX 2CH
	7	8	9			SETUP	QUICK SETUP
PLAY MODE/	CANCEL		S10/-/--
P.MEMORY							Select the menu language.
		0
SKIP		SLOW/SEARCH					English	Français
CH							Deutsch	Italiano
						SELECT	Español	Português
							Svenska	Nederlands
TOP MENU			MENU			ENTER RETURN

	DIRECT			PLAY LIST	4 Press [3, 4, 2, 1] to select the
4≥5	NAVIGATOR
		ENTER
≥					menu language and press [ENTER].
6 7	DISPLAY			RETURN	RETURN
	TV VOL s			TV VOL r	5 Press [3, 4] to select “Yes” to
		VOLUME
				SUBWOOFER	continue and press [ENTER].
	MUTING	C.S.M	PL	LEVEL
	FL DISPLAY	AUDIO ONLY C.FOCUS		SFC	6 Press [3, 4, 2, 1] to select the item
	RDS
3≥7	FM MODE	CH SELECT	TEST	DELAY TIME
	SETUP				and press [ENTER].

≥Audio Language ( page 31)

≥Subtitle Language ( page 31) ≥TV Type ( below)

≥TV Aspect ( below)

7 Press [ENTER] and then [SETUP] to end the settings.

The QUICK SETUP screen appears when you press [SETUP] the first time after purchase and assists you to make necessary settings. You can access this screen again later if you need to

( page 31, Others—QUICK SETUP)

To return to the previous screen

Press [RETURN].

∫ TV Type

Select to suit the type of television.

≥Standard (Direct View TV) (factory preset) ≥CRT Projector

≥LCD TV/Projector ≥Projection TV ≥Plasma TV

∫ TV Aspect

Select “4:3” (regular) or “16:9” (widescreen) to suit your television.

If you have a regular 4:3 television, you can also select how video on some discs is shown ( page 31, Video—TV Aspect).

≥4:3 Pan&Scan (factory preset) Widescreen software is expanded to fill the screen of a 4:3 aspect television (unless prohibited by the producer of the disc).

≥4:3 Letterbox

Widescreen software is shown in the letterbox style on a 4:3 aspect television.

Simple setup

11

RQT6924

Control reference guide

						A
	1		AV SYSTEM	TV	VCR	B
				AUX	EXT
	2	SLEEP	TV/AV	TUNER	DVD
				BAND	CD
		DOUBLE				C
		RE-MASTER
	3		1	2	3
started		GROUP
	4		4	5	6	D
		REPEAT/
		MIX 2CH
	5		7	8	9
Getting	6	PLAY MODE/	CANCEL		S10/-/--
		P.MEMORY
	7			0
	8	SKIP		SLOW/SEARCH		E
		CH
	9
		TOP MENU			MENU
	:					F
		DIRECT			PLAY LIST
		NAVIGATOR
	;		ENTER
		DISPLAY			RETURN

<G

	TV VOL s			TV VOL r
=		VOLUME
				SUBWOOFER
>	MUTING	C.S.M	PL	LEVEL
				H
?	FL DISPLAY	AUDIO ONLY	C.FOCUS	SFC
	RDS
@	FM MODE	CH SELECT	TEST	DELAY TIME
	SETUP

M	N	O
			VOLUME
SA-DT310
DIGITAL
Í/I SELECT INPUT	AV CONTROL RECEIVER	DOWN	UP
		Ë
1 I J		K L

S

SL-DT310
DVD / CD PLAYER	DOUBLE
	RE-MASTER
P	Q R

12

Remote control

1 Standby/on button [Í] . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11 2 Sleep button [SLEEP] . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30 3 Double re-master button [DOUBLE RE-MASTER] . . . . . . 29

4 [For\the\United\Kingdom,\Continental\Europe\and\Russia]

Group button [GROUP] . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

[For\Southeast\Asia,\Australia\and\N.Z.]
Progressive button [PROGRESSIVE] . . . . . . . . . . . . .	. . . 13
5 Repeat/Mix 2ch button [REPEAT/MIX 2CH] . . . . . . . . .	15, 27
6 Cancel button [CANCEL] . . . . . . . . . . . . . . . . . . . . . . .	. . . 16
7 Play mode/Position memory button
[PLAY MODE/ P.MEMORY] . . . . . . . . . . . . . . . . . . . . .	14, 16

8[For\the\United\Kingdom,\Continental\Europe\and\Russia]

Skip, preset channel, TV channel button

	[:, 9, SKIP, X CH W] . . . . . . . . . . . . . . . .	. 14, 26, 35
	[For\Southeast\Asia,\Australia\and\N.Z.]
	Skip, preset channel, TV channel, Group button
	[SKIP/CH, :/X, W/9, – GROUP] . . . . . .	14, 15, 26, 35
9	Basic operation buttons . . . . . . . . . . . . . . . . . . .	. . . . . . . . 13
	Stop button [∫], Pause button [;], Play button [1]
: Top menu, Direct navigator button
	[TOP MENU, DIRECT NAVIGATOR] . . . . . . . . .	. . . . . 14, 19
; Cursor buttons [3, 4, 2, 1], Enter button [ENTER] . . . 11
< Display, TV volume down button
	[DISPLAY, TV VOL –] . . . . . . . . . . . . . . . . . . . . .	. . . . . 22, 35
= Volume buttons [s, r, VOLUME] . . . . . . . . . . . .		. . . . . . . . 13
> Muting button [MUTING] . . . . . . . . . . . . . . . . . . .		. . . . . . . . 30
? [For\the\United\Kingdom,\Continental\Europe\and\Russia]
	RDS, FL display button [RDS, FL DISPLAY] . .	. . . . . 26, 30
	[For\Southeast\Asia,\Australia\and\N.Z.]
	FL display button [FL DISPLAY] . . . . . . . . . . . .	. . . . . . . . 30
@ FM mode, Setup button [FM MODE, SETUP] . .		. . . . . 11, 25
A AV system standby/on button [Í, AV SYSTEM]		. . . . . . . 35

BSource select buttons

≥Face towards this unit to change the source.

≥Press [TV] or [VCR] first to operate a Panasonic television or video cassette recorder ( page 35).

C TV/AV button [TV/AV] . . . . . . . . . . . . . . . . . . . . . . .	. . . . . . 35
D Numbered buttons [1–9, 0, S10/-/--] . . . . . . . . . . .	. . . . . . 14
E Slow/Search buttons [6, 5 SLOW/SEARCH]	. . . 14, 25
F Menu, Play list button [MENU, PLAY LIST] . . . . . .	. . . 14, 19
G Return, TV volume up button
[RETURN, TV VOL r] . . . . . . . . . . . . . . . . . . . . . . .	. . . 11, 35
H Sound field, sound quality button . . . . . . . . . . . . . .	. . 27–29
Main unit
1 Standby/on switch [Í/I] . . . . . . . . . . . . . . . . . . . . . .	. . . . . 11

Press to switch the unit from on to standby mode or vice versa. In standby mode, the unit is still consuming a small amount of power.

ISource select button [SELECT]

Each time you press the button:

DVD>DVD OPT1 >TV<AUX>>TV OPT2>VCR<EXT>
^-------------------------	AM ! FM------------------------------------------	}
J DIGITAL INPUT indicator . . . . . . . . . . . . . . . . . . .		. . . . . . . 13
K Remote control signal sensor
L Headphone jack [Ë] . . . . . . . . . . . . . . . . . . . . . . .		. . . . . . . 30

MStandby/on indicator [Í/I]

When the unit is connected to the AC mains supply, this indicator lights up in standby mode and goes out when the unit is turned on.

N Display

O Volume control [VOLUME, DOWN, UP] . . . . . . . . . . . . . . . 13 P Basic operation buttons . . . . . . . . . . . . . . . . . . . . . . . . . . . 13 Q DOUBLE RE-MASTER indicator . . . . . . . . . . . . . . . . . . . . . 29 R Open/close button [<] . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13 S Disc tray . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

RQT6924
