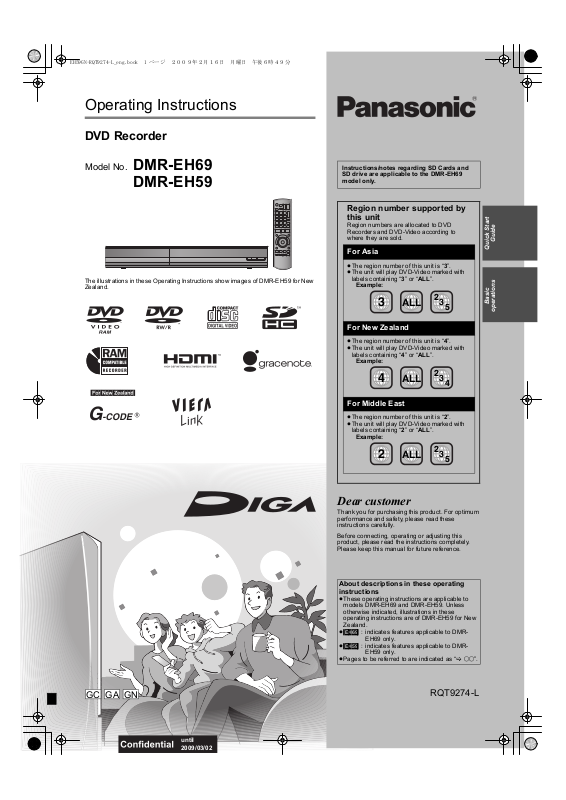

Operating Instructions
DVD Recorder
Model No. DMR-EH69
DMR-EH59
The illustrations in these Operating Instructions show images of DMR-EH59 for New Zealand.
GC GA GN |
Instructions/notes regarding SD Cards and SD drive are applicable to the DMR-EH69 model only.
Region number supported by |
|
|
|
||||||||||||||||||
|
|
|
|||||||||||||||||||
this unit |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
StartQuick |
Guide |
|||||
Region numbers are allocated to DVD |
|
||||||||||||||||||||
Recorders and DVD-Video according to |
|
|
|
||||||||||||||||||
where they are sold. |
|
|
|
|
|
|
|
|
|||||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
For Asia |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||
≥The region number of this unit is “3”. |
|
|
|
||||||||||||||||||
≥The unit will play DVD-Video marked with |
|
|
|
||||||||||||||||||
labels containing “3” or “ALL”. |
235 |
|
|
Basic |
operations |
||||||||||||||||
3 |
|
|
ALL |
|
|
||||||||||||||||
Example: |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
For New Zealand
≥The region number of this unit is “4”. ≥The unit will play DVD-Video marked with
labels containing “4” or “ALL”.
Example:
4 ALL 234
For Middle East
≥The region number of this unit is “2”. ≥The unit will play DVD-Video marked with
labels containing “2” or “ALL”.
Example:
2 ALL 235
Dear customer
Thank you for purchasing this product. For optimum performance and safety, please read these instructions carefully.
Before connecting, operating or adjusting this product, please read the instructions completely. Please keep this manual for future reference.
About descriptions in these operating instructions
≥These operating instructions are applicable to models DMR-EH69 and DMR-EH59. Unless otherwise indicated, illustrations in these operating instructions are of DMR-EH59 for New Zealand.
≥[EH69] : indicates features applicable to DMREH69 only.
≥[EH59] : indicates features applicable to DMREH59 only.
≥Pages to be referred to are indicated as “> ±±”.
RQT9274-L
CAUTION!
THIS PRODUCT UTILIZES A LASER.
USE OF CONTROLS OR ADJUSTMENTS OR PERFORMANCE OF PROCEDURES OTHER THAN THOSE SPECIFIED HEREIN MAY RESULT IN HAZARDOUS RADIATION EXPOSURE.
DO NOT OPEN COVERS AND DO NOT REPAIR YOURSELF. REFER SERVICING TO QUALIFIED PERSONNEL.
WARNING:
TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK OR PRODUCT DAMAGE,
≥DO NOT EXPOSE THIS APPARATUS TO RAIN, MOISTURE,
DRIPPING OR SPLASHING AND THAT NO OBJECTS FILLED WITH LIQUIDS, SUCH AS VASES, SHALL BE PLACED ON THE APPARATUS.
≥USE ONLY THE RECOMMENDED ACCESSORIES.
≥DO NOT REMOVE THE COVER (OR BACK); THERE ARE
NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
CAUTION!
≥DO NOT INSTALL OR PLACE THIS UNIT IN A BOOKCASE,
BUILT-IN CABINET OR IN ANOTHER CONFINED SPACE. ENSURE THE UNIT IS WELL VENTILATED. TO PREVENT RISK OF ELECTRIC SHOCK OR FIRE HAZARD DUE TO OVERHEATING, ENSURE THAT CURTAINS AND ANY OTHER MATERIALS DO NOT OBSTRUCT THE VENTILATION VENTS.
≥DO NOT OBSTRUCT THE UNIT’S VENTILATION OPENINGS
WITH NEWSPAPERS, TABLECLOTHS, CURTAINS, AND SIMILAR ITEMS.
≥DO NOT PLACE SOURCES OF NAKED FLAMES, SUCH AS
LIGHTED CANDLES, ON THE UNIT.
≥DISPOSE OF BATTERIES IN AN ENVIRONMENTALLY
FRIENDLY MANNER.
CAUTION
Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type recommended by the manufacturer. Dispose of used batteries according to the manufacturer’s instructions.
[For]New]Zealand]
THIS UNIT IS INTENDED FOR USE IN MODERATE CLIMATES.
[For]Asia]and]Middle]East]
THIS UNIT IS INTENDED FOR USE IN TROPICAL CLIMATES.
This product may receive radio interference caused by mobile telephones during use. If such interference is apparent, please increase separation between the product and the mobile telephone.
The socket outlet shall be installed near the equipment and easily accessible.
The mains plug of the power supply cord shall remain readily operable.
To completely disconnect this apparatus from the AC Mains, disconnect the power supply cord plug from AC receptacle.
CLASS 1
LASER PRODUCT
(Inside of product)
RQT9274
Caution for AC Mains Lead
(For Saudi Arabia)
For your safety, please read the following text carefully.
This appliance is supplied with a moulded three pin mains plug for your safety and convenience.
A 5-ampere fuse is fitted in this plug.
Should the fuse need to be replaced please ensure that the replacement fuse has a rating of 5-ampere and that it is approved by ASTA or BSI to BS1362.
Check for the ASTA mark Ï or the BSI mark Ì on the body of the fuse.
If the plug contains a removable fuse cover you must ensure that it is refitted when the fuse is replaced.
If you lose the fuse cover the plug must not be used until a replacement cover is obtained.
A replacement fuse cover can be purchased from your local dealer.
CAUTION!
IF THE FITTED MOULDED PLUG IS UNSUITABLE FOR THE SOCKET OUTLET IN YOUR HOME THEN THE FUSE SHOULD BE REMOVED AND THE PLUG CUT OFF AND DISPOSED OF SAFELY.
THERE IS A DANGER OF SEVERE ELECTRICAL SHOCK IF THE CUT OFF PLUG IS INSERTED INTO ANY 13-AMPERE SOCKET.
If a new plug is to be fitted please observe the wiring code as stated below.
If in any doubt please consult a qualified electrician.
IMPORTANT
The wires in this mains lead are coloured in accordance with the following code:
Blue: Neutral, Brown: Live.
As these colours may not correspond with the coloured markings identifying the terminals in your plug, proceed as follows:
The wire which is coloured Blue must be connected to the terminal which is marked with the letter N or coloured Black or Blue.
The wire which is coloured Brown must be connected to the terminal which is marked with the letter L or coloured Brown or Red.
WARNING: DO NOT CONNECT EITHER WIRE TO THE EARTH TERMINAL WHICH IS MARKED WITH THE LETTER E, BY THE EARTH SYMBOL Ó OR
COLOURED GREEN OR GREEN/YELLOW. THIS PLUG IS NOT WATERPROOF—KEEP DRY.
Before use
Remove the connector cover.
How to replace the fuse
The location of the fuse differ according to the type of AC mains plug (figures A and B). Confirm the AC mains plug fitted and follow the instructions below.
Illustrations may differ from actual AC mains plug.
1. Open the fuse cover with a screwdriver.
Figure A |
Figure B |
Fuse cover
2. Replace the fuse and close or attach the fuse cover.
Figure A |
Figure B |
Fuse |
Fuse |
(5 ampere) |
|
(5 ampere) |
|
-If you see this symbol-
Information on Disposal in other Countries outside the European Union
This symbol is only valid in the European Union.
If you wish to discard this product, please contact your local authorities or dealer and ask for the correct method of disposal.
2
Table of contents
Getting started
Included accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4 The remote control information . . . . . . . . . . . . . . . . . . . .4 HDD (Hard disk drive) handling care . . . . . . . . . . . . . . . .5 Unit care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
Quick Start Guide
Control reference guide . . . . . . . . . . . . . . . . . . . . . . . . . . .6 Easy access to various functions — FUNCTION MENU Display. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7 STEP 1 Connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8
STEP 2 Channel reception settings and TV aspect settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10
HDD and disc information . . . . . . . . . . . . . . . . . . . . . . . .11 USB memory and card information . . . . . . . . . . . . . . . .13 Regarding DivX® files, Music files and still pictures
(JPEG) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14 Media handling (Disc/USB memory/SD card) . . . . . . . .15
Basic operations
Playing recorded video contents/
Playing play-only discs . . . . . . . . . . . . . . . . . . . . . . . . .16 Recording television programmes . . . . . . . . . . . . . . . . .17 Timer recording using G-CODE system [For]New]Zealand] . . . .18 Deleting titles . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19
Advanced operations
Notes for recording . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20 Advanced recording. . . . . . . . . . . . . . . . . . . . . . . . . . . . .21
Recording modes and approximate recording times . . . . . . . . . 21 When the format confirmation screen is displayed. . . . . . . . . . . 21 When removing a recorded disc. . . . . . . . . . . . . . . . . . . . . . . . . 21 Flexible Recording . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22 Playing while you are recording . . . . . . . . . . . . . . . . . . . . . . . . . 22
Copying from a video cassette recorder . . . . . . . . . . . .23
Manual recording . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23 DV automatic recording (DV Auto Rec) . . . . . . . . . . . . . . . . . . . 23
Advanced timer recording . . . . . . . . . . . . . . . . . . . . . . . .24
Manually programming timer recordings . . . . . . . . . . . . . . . . . . 24 To cancel recording when recording has already begun . . . . . . 24 To release the unit from recording standby . . . . . . . . . . . . . . . . 24 Notes on timer recording . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24 Check, change or delete a programme . . . . . . . . . . . . . . . . . . . 25 Relief Recording. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25 Auto Renewal Recording . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Advanced playback . . . . . . . . . . . . . . . . . . . . . . . . . . . . .26
Operation during play . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26 Changing audio during play . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Selecting recorded programmes (titles) to play —DIRECT NAVIGATOR . . . . . . . . . . . . . . . . . . . . . . . . .27
Switching the DIRECT NAVIGATOR appearance . . . . . . . . . . . 27 To sort the titles for easy searching . . . . . . . . . . . . . . . . . . . . . . 27 To play grouped titles [HDD] . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27 To edit the group of titles [HDD]. . . . . . . . . . . . . . . . . . . . . . . . . . 27
Playing DivX, Music files and still pictures (JPEG) . . . .28
Showing the menu screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28 Playing DivX video contents. . . . . . . . . . . . . . . . . . . . . . . . . . . . 28 Playing Music files . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29 Playing still pictures . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30 Useful functions during still picture play . . . . . . . . . . . . . . . . . . . 31
Playing music . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .32
To play music CD . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32 To play music recorded on HDD . . . . . . . . . . . . . . . . . . . . . . . . 32 Useful functions during music play. . . . . . . . . . . . . . . . . . . . . . . 32
Convenient functions . . . . . . . . . . . . . . . . . . . . . . . . . . . .33
FUNCTION MENU window . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33 To pause the TV programme you are watching
—Pause Live TV . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
Linked operations with the TV (VIERA Link
“HDAVI ControlTM”). . . . . . . . . . . . . . . . . . . . . . . . . . . . .34
Easy control only with VIERA remote control. . . . . . . . . . . . . . . 35
Editing
Editing titles/chapters . . . . . . . . . . . . . . . . . . . . . . . . . . 36 Creating, editing and playing playlists . . . . . . . . . . . . . 38 Editing still pictures and music. . . . . . . . . . . . . . . . . . . 40 Entering text . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
Copying
Copying titles or playlists . . . . . . . . . . . . . . . . . . . . . . . 43
Copy [Video (HDD to DVD)] . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44 Copying using the copying list–Advanced Copy . . . . . . . . . . . . . 45 Copying a finalised DVD-R, DVD-R DL, DVD-RW (DVD-Video format),
+R and +R DL. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46 Copying SD Video from an SD card [EH69] . . . . . . . . . . . . . . . . . 47 Copying SD Video from a video equipment . . . . . . . . . . . . . . . . 47
Copying still pictures . . . . . . . . . . . . . . . . . . . . . . . . . . . 48
Copying using the copying list. . . . . . . . . . . . . . . . . . . . . . . . . . . 48 Copying still pictures on the USB memory . . . . . . . . . . . . . . . . . 49 Copying new still pictures on the SD card—Copy New Pictures
[EH69]. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49
Copying music to HDD . . . . . . . . . . . . . . . . . . . . . . . . . . 50
About the Gracenote® Database . . . . . . . . . . . . . . . . . . . . . . . . . 50 Copying music from a CD . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50 Copying music from a USB memory or CD-R/CD-RW/DVD-R/
DVD-R DL. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50 To update the Gracenote® Database . . . . . . . . . . . . . . . . . . . . . 51
Setting menus
Using on-screen menus/Status message. . . . . . . . . . . 52
Using on-screen menus . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52 Status messages. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53
HDD, disc and card management . . . . . . . . . . . . . . . . . 54
Common procedures. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54 Setting the protection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54 Providing a name for a disc. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54 Deleting all titles and playlists—Delete all titles . . . . . . . . . . . . . 55 Deleting all the contents—Format. . . . . . . . . . . . . . . . . . . . . . . . 55 Selecting the background style —Top Menu . . . . . . . . . . . . . . . 56 Selecting whether to show the Top Menu first
–Auto-Play Select . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56 Enabling discs to be played on other equipment–Finalise . . . . . 56 Creating Top Menu—Create Top Menu . . . . . . . . . . . . . . . . . . . 56
Changing the unit’s settings . . . . . . . . . . . . . . . . . . . . . 57
Common procedures. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57 Tuning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57 Disc . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58 Picture . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59 Sound . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59 Display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59 Connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60 Others . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61
Other Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 62
Television operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 62 Child Lock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 62
Reference
Additional connections . . . . . . . . . . . . . . . . . . . . . . . . . 63
Connecting a television with S VIDEO terminals . . . . . . . . . . . . 63 Connecting a television with COMPONENT VIDEO
terminals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 63 Connecting an amplifier with a digital input terminal . . . . . . . . . . 64 Connecting a stereo amplifier . . . . . . . . . . . . . . . . . . . . . . . . . . . 64 Connecting with an HDMI compatible television and
receiver . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 64 Connecting a television and VCR . . . . . . . . . . . . . . . . . . . . . . . . 65
Frequently asked questions . . . . . . . . . . . . . . . . . . . . . 66 Messages. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 68 Troubleshooting guide . . . . . . . . . . . . . . . . . . . . . . . . . . 70 Safety precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 75 Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 76 Glossary. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 78 Index. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Back Cover
Getting started |
|
|
|
|
|
Quick Start Guide |
|
|
|
|
|
Basic |
operations |
|
|
|
|
Advanced |
operations |
|
|
|
|
Editing |
|
|
|
|
|
Copying |
|
|
|
|
|
Setting menus |
|
|
|
|
|
Reference |
|
|
|
RQT9274
3
Getting started
Included accessories
Please check and identify the supplied accessories.
(Product numbers correct as of February 2009. These may be subject to change.)
∏ |
∏ |
∏ |
∏ |
∏ |
[For]Asia]and]Middle]East] |
[For]Asia] |
1 RF coaxial cable |
2 Batteries |
1 Audio/Video cable |
1 Remote control |
2 AC mains leads |
|
for remote control |
|
(N2QAYB000342) |
For Thailand |
|
[For]New]Zealand] |
||
|
||
[For]New]Zealand] |
1 AC mains lead |
|
|
||
1 Remote control |
|
[For]Middle]East]
2 AC mains leads
(N2QAYB000341)
For Saudi Arabia
For use with this unit only. Do not use it with other equipment. Also, do not use cords for other equipment with this unit.
The remote control information
∫ Batteries
≥Insert so the poles (i and j) match those in the remote control.
Remove if the remote control is not going to be used for a long period of time. Store in a cool, dark place.
Remote control operations (> 6)
∫ Use
Remote control signal sensor
RQT9274
4
R6/LR6, AA |
|
|
≥Use alkaline or manganese batteries. |
|
|
≥Do not mix old and new batteries. |
|
|
≥Do not use different types at the same time. |
|
20 |
≥Do not heat or expose to flame. |
|
|
|
|
|
≥Do not leave the battery(ies) in an automobile exposed to direct |
30 |
20 |
sunlight for a long period of time with doors and windows closed. |
|
|
≥Do not take apart or short circuit. |
|
30 |
≥Do not attempt to recharge alkaline or manganese batteries. |
|
|
≥Do not use batteries if the covering has been peeled off. |
7 m directly in front of the unit |
|
Mishandling of batteries can cause electrolyte leakage which can damage items the fluid contacts and may cause a fire.
Manufactured under license from Dolby Laboratories. Dolby and the double-D symbol are trademarks of Dolby Laboratories.
Manufactured under license under U.S. Patent #’s: 5,451,942; 5,956,674; 5,974,380; 5,978,762; 6,487,535 & other U.S. and worldwide patents issued & pending. DTS and DTS 2.0 + Digital Out are registered trademarks and the DTS logos and Symbol are trademarks of DTS, Inc. © 1996-2008 DTS, Inc. All Rights Reserved.
This product incorporates copyright protection technology that is protected by U.S. patents and other intellectual property rights. Use of this copyright protection technology must be authorized by Macrovision, and is intended for home and other limited viewing uses only unless otherwise authorized by Macrovision. Reverse engineering or disassembly is prohibited.
≥SDHC Logo is a trademark.
≥Portions of this product are protected under copyright law and are provided under license by ARIS/SOLANA/4C.
Plays DivX® video
DivX® is a registered trademark of DivX, Inc., and is used under license.
HDMI, the HDMI logo and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC.
HDAVI Control™ is a trademark of Panasonic Corporation.
Windows Media and the Windows logo are trademarks or registered trademarks of Microsoft Corporation in the United States and/or other countries.
This product is protected by certain intellectual property rights of Microsoft Corporation and third parties. Use or distribution of such technology outside of this product is prohibited without a license from Microsoft or an authorized Microsoft subsidiary and third parties.
HDD (Hard disk drive) handling care
The HDD is a high precision recording instrument and because of its long recording capability and high speed operation it is a very special device that is easily susceptible to damage.
As a basic rule, save important content to a disc as backup.
∫ The HDD is a device that is not built to withstand vibration/shock or dust
Depending on the setup environment and handling of the HDD some content may become damaged and play and recording may no longer be possible. Especially during operation, do not subject the unit to any vibration, shock, or remove the AC mains lead from the household mains socket. In the event of a power failure during recording or play, the content may be damaged.
∫ The HDD is a temporary storage device
The HDD is not an everlasting storage device for recorded content. Use the HDD as a temporary storage place for one-off viewing, editing, or copying. It is recommended to save the recorded content on a disc or to keep the original data or CDs that they were copied from.
∫ Immediately save (backup) all content as soon as you feel there may be a problem with the HDD
If there is an irregularity within the HDD, repetitive strange sounds or problems with picture (block noise, etc.) may result. Using the HDD in this condition may worsen the problem and in the worst case the HDD may no longer be usable. As soon as you notice this type of problem, copy all content to disc and request service. Recorded content (data) on a HDD that has become unusable is unrecoverable.
≥When the unit is turned on or off, there may be an unexpected sound. This does not indicate a problem with this unit.
∫ Setup precautions
≥Do not place in an enclosed area where the rear cooling fan and the cooling vents on the side are covered up.
≥Place the unit on a surface that is flat and not subject to vibration or impact.
≥Do not place on anything that generates heat like a video cassette recorder, etc.
≥Do not place in an area often subject to temperature changes.
≥Place in an area where condensation does not occur. Condensation is a phenomenon where moisture forms on a cold surface when there is an extreme
change in temperature. Condensation may cause internal damage to the unit.
≥Conditions where condensation may occur
–When there is an extreme change in temperature (moving from a very hot location to a very cold location, or vice versa, or when subjected to an air conditioner or when cooled air directly impacts the unit). When the HDD (warms during operation) is subjected to cold air, condensation may form on the inside of the HDD and may cause damage to the HDD heads, etc.
–When there is high humidity or a lot of steam in the room.
–During the rainy season.
In the above situation, without turning the unit on, let the unit adjust to the room temperature and wait 2–3 hours until condensation is gone.
∫ Cigarette smoke etc. causes malfunction or breakdown
The unit may breakdown if cigarette smoke or bug spray/vapor, etc. gets inside the unit.
∫ While operating
≥Do not move the unit or subject to vibration or impact. (The HDD may become damaged.)
≥Do not remove the AC mains lead from the household mains socket, or flip the power breaker switch.
While the unit is on, the HDD is rotating at high speed. Sound or movement due to rotation is normal.
∫ When moving the unit
1Turn the unit off. (Wait until “BYE” disappears from the display.)
2 Remove the AC mains lead from the household mains socket.
3Move only after the unit has come to a complete stop (approx. 2 minutes) in order to avoid subjecting to vibration and shock. (Even after turning the unit off, the HDD continues operating for a short time.)
∫ HDD recording time remaining
This unit records using a VBR (Variable bit rate) data compression system to vary recorded data segments to match video data segments which may cause differences in the displayed amount of time and space remaining for recording.
If the remaining amount of time is insufficient, delete any unwanted titles to create enough space before you start recording. (Deleting a playlist will not increase the amount of time.)
Getting started
∫ Indemnity concerning recorded content
Panasonic does not accept any responsibility for damages directly or indirectly due to any type of problems that result in loss of recording or edited content (data), and does not guarantee any content if recording or editing does not work properly. Likewise, the above also applies in a case where any type of repair is made to the unit (including any other non-HDD related component).
Unit care
The precision parts in this unit are readily affected by the environment, especially temperature, humidity, and dust. Cigarette smoke also can cause malfunction or breakdown.
To clean this unit, wipe with a soft, dry cloth.
≥Never use alcohol, paint thinner or benzine to clean this unit. ≥Before using chemically treated cloth, carefully read the
instructions that came with the cloth.
Observe the following points to ensure continued listening and viewing pleasure.
Dust and dirt may adhere to the unit’s lens over time, making it impossible to record or play discs.
Use the DVD lens cleaner (not included) about once every year, depending on frequency of use and the operating environment. Carefully read the lens cleaner’s instructions before use.
DVD lens cleaner: RP-CL720E
≥This lens cleaner may not be for sale depending on the region.
DO NOT
Do not place the unit on amplifiers or equipment that may become hot.
The heat can damage the unit.
Note
Do not obstruct the rear panel’s internal cooling fan.
Before moving the unit, ensure the disc tray is empty.
Failure to do so will risk severely damaging the disc and the
unit.
RQT9274
5
Quick Start
Guide
Control reference guide
Remote control
Instructions for operations are generally described using the remote control. e.g., [For]New]Zealand]
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
TV |
|
|
|
|
|
|
|
||||
|
|
|
|
|
|
|
|
||||||
|
DRIVE |
|
|
|
|
VOL |
CH |
|
|||||
|
SELECT |
AV |
|
|
|
|
|
|
|
||||
|
|
|
|
|
|
|
|
|
|
|
|||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
1 |
2 |
|
|
3 |
CH |
|
||||||
|
4 |
5 |
|
|
6 |
||||||||
|
|
|
|
||||||||||
|
7 |
8 |
|
|
9 INPUT SELECT |
||||||||
|
DELETE |
0 |
|
|
|
|
G-Code |
|
|||||
|
|
|
|
SKIP |
|
|
|
SLOW/SEARCH |
|
||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
STOP |
|
|
PAUSE |
|
|
PLAY/x1.3 |
|
|||||
|
TIME SLIP |
|
|
|
|
|
|
|
EXIT |
|
|||
|
|
|
|
|
|
|
/ |
|
|
|
|
||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
G CH |
E |
|
|
|
||
|
|
|
|
|
|
O |
|
|
C |
|
|
||
|
|
|
|
|
R |
|
|
|
|
|
|||
|
|
|
|
P |
|
|
|
|
|
K |
|||
|
|
|
|
R |
|
|
|
|
|
|
|
F |
|
|
|
T |
O |
|
|
|
|
|
|
|
U |
|
|
|
|
|
|
|
|
|
|
|
|
N |
|
||
|
|
|
|
|
|
|
|
|
|
C |
|
||
|
A |
|
|
|
|
|
|
|
|
|
T |
|
|
|
IG |
|
|
|
|
|
|
|
|
|
|
I |
|
V |
|
|
|
|
|
|
|
|
|
|
O |
|
|
|
A |
|
|
|
|
|
|
|
|
|
|
|
|
|
N |
|
|
|
|
|
|
|
|
|
|
N |
|
|
T |
|
|
|
|
|
|
OK |
|
|
|||
|
C |
|
|
|
|
|
|
|
|
M |
|
||
|
E |
|
|
|
|
|
|
|
|
|
|
E |
|
|
R |
|
|
|
|
|
|
|
|
|
|
|
|
|
I |
|
|
|
|
|
|
|
|
|
|
N |
|
|
D |
|
|
|
|
|
|
|
|
|
|
||
|
|
|
|
|
|
|
|
|
|
|
|
U |
|
|
OPTION |
|
|
|
|
|
|
|
RETURN |
|
|||
|
AUDIO |
|
|
|
|
CREATE |
|
||||||
|
DISPLAY CHAPTER MANUAL SKIP |
|
|||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
||
|
REC |
REC MODE |
F Rec |
STATUS |
|
||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
1 Turn the unit on (> 10)
2Select drive [HDD, DVD or SD ([EH69])] (> 16, 17, 30) Drive changes each time you press [DRIVE SELECT].
3 Select channels and title numbers, etc./Enter numbers
4 To delete unnecessary recorded titles, timer programmes, still pictures or music (> 19, 41)
5 Basic operations for recording and play
6 Skip the specified time (> 26)
7 Selection/OK, Frame-by-frame (> 26)
8 Show DIRECT NAVIGATOR (> 27, 36)
9Show OPTION menu (> 36)
This menu is used when playing or editing titles and still pictures, etc.
: Select audio (> 26)
;Colour buttons
–for switching the DIRECT NAVIGATOR screen (> 27, 30, 32)
–for switching VIDEO/Playlists (> 45)
–for manual tuning settings (> 57)
–for deactivating timer programme (> 24)
< Show on-screen menu (> 52)
=Recording functions
≥[¥ REC] Start recording (> 17)
≥[REC MODE] Change recording mode (> 17) ≥[F Rec] Start Flexible Recording (> 22)
> Transmit the remote control signal ? Television operations (> 62)
@ Channel select (> 17)
A Input select (AV1, AV2, AV3, AV4 or DV) (> 23)
B [For]New]Zealand] Show G-CODE screen (> 18)
C Exit the menu screen
D Show Timer Recording screen (> 24) E Show FUNCTION MENU Display (> 33)
By using the FUNCTION MENU window you may access the main functions (Playback, Recording, etc.) quickly and easily.
F Return to previous screen G Create chapter (> 26)
H Skip approx. 1 minute forward (> 26) I Show status messages (> 53)
The unit’s display
|
|
REC |
|
|
|
PLAY |
[EH69] |
|
|
|
|
|
|
|
|
1 Copying indicator |
|
|
|
2 Recording/Playback indicator |
|
|
|
Recording indicator |
Playback |
Recording/Playback |
|
REC |
indicator |
indicator |
|
PLAY |
REC |
|
|
|
PLAY |
|
|
3 Timer recording indicator
4 [EH69] SD card slot indicator
5 Disc indicator
6 Drive [HDD, DVD or SD ([EH69])] indicator RQT9274 7 Main display section indicator
6 |
8 Recording mode indicator |
|
Main unit
|
|
|
|
|
|
REC |
|
|
|
|
|
[EH69]
Pull to flip down the front panel.
REC
Guide
Quick Start
1Standby/on switch (Í/I) (> 10)
Press to switch the unit from on to standby mode or vice versa. In standby mode, the unit is still consuming a small amount of power.
2 Disc tray (> 15)
3 Connection for digital video (DV) camcorder (> 23) 4 Connection for VCR, camcorder etc. (> 23)
5 Display (> 6)
6 Open/Close disc tray (> 15)
7 USB port (> 15)
8 Stop (> 17, 26)
9 Start play (> 16)
: Channel select (> 17)
; Start recording (> 17)/Specify a time to stop recording (> 17) < Remote control signal sensor
= [EH69] SD card slot (> 15)
Rear panel terminals (> 8, 9, 63, 64, 65)
Easy access to various functions — FUNCTION MENU Display
“FUNCTION MENU” automatically appears when you turn the power on. (When “FUNCTION MENU Display” is set to “On” in the Setup menu) You can access the main function quickly and easily.
1 |
|
|
1 Playback |
Select when you wish to |
|
|
|
|
play back the contents. |
||
|
|
Video (> 16, 27) |
|||
|
|
The DIRECT NAVIGATOR |
|||
OK |
OK |
DivX (> 28) |
screen or menu screen etc. |
||
Picture (> 30) |
|||||
|
|
|
will be displayed. |
||
|
|
|
Music (> 29) |
||
|
|
|
|
||
Select a function. |
Press [OK]. |
Top Menu (> 16) |
|
||
Menu (> 16) |
|
||||
|
Selectable items are |
|
|
2 Recording |
Select the recording |
|
displayed on the right. |
|
|
Timer Recording (> 24) |
method. |
|
|
|
|
||
|
|
|
|
|
|
|
|
|
|
[For]New]Zealand] |
|
|
|
|
|
G-Code Record (> 18) |
|
|
|
|
|
3 Delete |
Select the title or file type |
|
|
|
|
Video (> 19) |
you wish to delete. The |
|
|
|
|
DELETE Navigator screen |
|
|
Playback |
|
|
Picture (> 41) |
|
Video |
|
will be displayed. |
|||
|
Recording |
Picture |
|
Music (> 41) |
|
|
4 Copy |
Select the copy method. |
|||
|
Delete |
Music |
|
||
|
|
|
|
|
|
|
|
|
|
Video (HDD to DVD) (> 44) |
|
|
|
|
|
Advanced Copy (> 45) |
|
|
|
|
Copy Music CD (> 50) |
|
|
|
|
|
|
Copy Music (> 50) |
|
|
|
|
|
Copy New Pictures ([EH69]) |
|
|
|
|
|
(> 49) |
|
|
|
|
|
5 Others |
Select and execute a |
|
|
|
|
Playlists (> 38) |
function other than those |
|
|
|
|
above, such as recording |
|
|
|
|
|
Flexible Rec (> 22) |
|
|
|
|
|
or setting. |
|
|
2 |
|
|
DV Auto Rec (> 23) |
|
|
|
|
|
||
|
|
|
HDD Management (> 54) |
|
|
|
|
|
DVD Management (> 54) |
|
|
|
OK |
|
OK |
Card Management ([EH69])(> 54) |
|
|
|
Setup (> 57) |
|
||
|
|
|
|
|
|
|
6 Drive Select |
Change which drive is |
Select an item. |
Press [OK]. |
HDD |
used. |
DVD
SD ([EH69])
USB
Note
If you do not need to display FUNCTION MENU when turning the unit on, set “FUNCTION MENU Display” to “Off” in the Setup menu (> 60).
RQT9274
7
STEP 1 Connection
≥Before connection, turn off all equipment and read the appropriate operating instructions.
≥Refer to “Additional connections” (> 63) for connection using other terminals and connection with other equipment.
≥Connect to terminals of the same colour.
When the unit is not to be used for a long time
To save power, unplug it from the household mains socket. This unit consumes a small amount of power, even when it is turned off
[Approx. 2 W (“Power Save” is set to “On”)]
Connecting a television |
|
|
|
|
|
|
|
||||
To the aerial |
|
|
|
|
|
|
|
|
To household mains socket |
||
|
|
|
|
|
|
|
|
|
|
||
|
Aerial cable |
|
|
Television’s rear panel |
[For\Saudi\Arabia[ BE SURE TO |
[For]New]Zealand] |
|||||
|
|
|
|
|
|
|
|
|
READ THE |
(AC 220 to 240 V, 50 Hz) |
|
|
|
VHF/UHF |
|
|
AUDIO IN |
VIDEO IN |
|
CAUTION FOR |
[For]Asia]and]Middle]East] |
||
|
|
RF IN |
|
|
R |
L |
|
|
THE AC MAINS |
(AC 220 to 240 V, 50/60 Hz) |
|
|
|
|
|
|
|
|
|
|
|||
|
|
|
|
|
|
|
|
|
LEAD ON PAGE |
|
|
|
|
|
|
|
|
|
|
|
2 BEFORE |
|
|
|
|
|
|
|
|
|
|
|
CONNECTION. |
|
|
|
RF coaxial cable |
|
|
|
|
|
|
AC mains lead |
|
|
|
|
(included) |
|
|
|
|
|
|
|
|
||
|
|
|
|
|
|
|
(included) |
|
|
||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Other connections |
|
|
|
|
Connect only after all other |
|
|||
1 |
2 |
|
3 |
|
|
connections are complete. |
4 |
|
|||
(> 9, 63) |
|
|
|
|
[For]Middle]East] |
|
|||||
|
|
|
|
|
|
|
|
|
Use the AC mains lead that matches |
|
|
|
|
|
|
|
|
|
|
|
the socket for the area you live in. |
|
|
|
|
|
|
Audio/Video cable |
|
|
|
[For]Asia] |
|
|
|
|
|
|
|
(included) |
|
|
|
AC mains lead with a label is for |
|
||
|
|
|
|
|
|
|
|
|
Thailand. |
|
|
|
|
|
|
|
|
|
|
|
AC mains lead without a label is for |
|
|
|
|
|
|
|
|
|
|
|
areas other than Thailand. |
|
|
|
|
|
|
|
|
|
|
|
Cooling fan |
|
|
|
RF |
|
Y |
|
|
|
|
|
|
|
|
|
IN |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
PB |
AV1 |
OUT |
|
|
|
|
|
|
|
|
|
|
(TV) |
|
|
|
|
|
|
|
|
RF |
OPTICAL |
PR |
|
4 IN |
|
|
|
|
AC IN |
|
|
OUT |
|
|
|
|
|
|
|
|||
|
|
DIGITAL AUDIO OUT COMPONENT |
|
AV |
|
|
|
|
|
||
|
|
|
|
|
|
|
|
|
|||
|
|
|
|
R-AUDIO-L |
VIDEO |
S-VIDEO |
AV OUT |
|
|
||
|
|
(PCM/BITSTREAM) |
VIDEO OUT |
AV2(EXT) |
|
|
|
||||
|
|
|
|
|
|
|
|
|
|
This unit’s rear panel |
|
Connecting to a television with 21-pin Scart terminal
You can also connect with the AV1 terminal on this unit using the 21-pin Scart cable.
≥If your television is equipped with RGB input capability, by connecting with a fully wired 21-pin Scart cable you can see video using RGB output on this unit.
Required setting “AV1 Output” in the Setup menu (> 60)
RQT9274
8
You can enjoy high-quality picture by changing the connection between this unit and your TV on page 8 as follows.
Connecting to a TV with an HDMI (High Definition Multimedia Interface) cable
When connected to an HDMI compatible unit, an uncompressed digital audio and video signal is transmitted. You can enjoy high quality, digital video and audio with just one cord. When connecting to an HDMI-compatible HDTV (High Definition Television), the output can be switched to 1080p, 1080i or 720p HD video.
≥This unit incorporates HDMITM (V.1.3a with Deep Colour) technology.
≥Video sources converted to 1920k1080 resolution, while of high quality, will exhibit somewhat lower subjective image resolution than true, native 1080p full-HD sources. See dealer for details.
≥Please use High Speed HDMI Cables that have the HDMI logo (as shown on the cover).
≥When setting video output to “1080p”, please use the HDMI cables 5.0 meters or less.
Regarding VIERA Link “HDAVI ControlTM” function
When connecting with a Panasonic TV (VIERA) or a receiver equipped with the “HDAVI Control” function, linked operations would be possible. [> 34, Linked operations with the TV (VIERA Link “HDAVI ControlTM”)]
≥Non-HDMI-compliant cables cannot be utilised.
≥It is recommended that you use Panasonic’s HDMI cable.
Recommended part number:
RP-CDHG10 (1.0 m), RP-CDHG15 (1.5 m), RP-CDHG20 (2.0 m), RP-CDHG30 (3.0 m), RP-CDHG50 (5.0 m), etc.
Television’s rear panel
HDMI IN
Guide
Quick Start
HDMI cable
RF |
|
Y |
|
IN |
|
|
|
|
|
|
|
|
|
PB |
AV1 |
|
|
|
(TV) |
RF |
OPTICAL |
PR |
|
OUT |
|
|
|
|
DIGITAL AUDIO OUT |
COMPONENT |
|
|
(PCM/BITSTREAM) |
VIDEO OUT |
AV2 (EXT) |
OUT |
|
|
|
AV4 IN |
|
|
|
R-AUDIO-L |
VIDEO |
S-VIDEO |
AV OUT |
HDMI AV OUT
AC IN
This unit’s rear panel
Required setting
Set “Digital Audio Output” to “HDMI and Optical” (> 60).(The default setting is “HDMI and Optical”.)
Note
≥If you are connecting to a TV that is only compatible with 2 channel audio output, audio with 3 channels or more will be down mixed (> 78) and output as 2 channels, even if connecting with an HDMI cable. (Some discs cannot be down mixed.)
≥You cannot connect this unit to DVI devices that are incompatible with HDCP.
For units compatible with HDCP (High-Bandwidth Digital Content Protection) copyright protection that are equipped with a digital DVI input terminal (PC monitors, etc.):
Depending on the unit, images may not be displayed properly or at all when connecting with a DVI/HDMI switching cable. (Audio cannot be output.)
RQT9274
9
STEP 2 Channel reception settings and TV aspect settings
|
|
TV |
|
|
|
|
|
|
DRIVE |
VOL |
CH |
|
|
|
SELECT AV
Numbered |
1 |
2 |
|
3 |
CH |
|||||
4 |
5 |
|
6 |
|||||||
buttons |
|
|
||||||||
7 |
8 |
|
9 INPUT SELECT |
|||||||
|
|
|||||||||
|
DELETE |
0 |
|
|
|
G-Code |
||||
|
|
|
|
SKIP |
|
|
SLOW/SEARCH |
|||
|
STOP |
|
PAUSE PLAY/x1.3 |
|||||||
|
TIME SLIP |
|
|
|
|
|
EXIT |
|||
|
|
|
|
|
|
|
/ |
|
|
|
|
|
|
|
|
|
OG CHE |
C |
|
||
|
|
|
|
|
R |
|
|
|
||
|
|
|
|
R |
P |
|
|
|
K |
|
|
|
|
|
|
|
|
|
|
U |
|
|
|
T |
O |
|
|
|
|
|
|
F |
|
|
|
|
|
|
|
|
N |
||
|
|
|
|
|
|
|
|
|
C |
|
|
A |
|
|
|
|
|
|
|
T |
|
|
IG |
|
|
|
|
|
|
|
|
I |
|
V |
|
|
|
|
|
|
|
|
O |
|
A |
|
|
|
|
|
|
|
|
|
|
N |
|
|
|
|
|
|
|
|
N |
|
T |
|
|
|
|
|
OK |
|
||
|
E |
|
|
|
|
|
|
M |
||
|
C |
|
|
|
|
|
|
|
|
E |
|
R |
|
|
|
|
|
|
|
|
|
|
D |
|
|
|
|
|
|
|
N |
|
|
I |
|
|
|
|
|
|
|
|
U |
|
|
|
|
|
|
|
|
|
|
|
, , , |
OPTION |
|
|
|
|
|
RETURN |
|||
OK |
|
|
|
|
|
|||||
|
|
|
|
|
|
|
CREATE |
RETURN |
||
|
AUDIO |
|
|
|
||||||
|
DISPLAY CHAPTER MANUAL SKIP |
|||||||||
|
REC |
REC MODE |
F Rec |
STATUS |
||||||
1 Turn on the television and select the
appropriate AV input to suit the connections to this unit.
2 Press [Í] to turn the unit on.
When connecting to a television that has the VIERA Link (> 34), downloading from the television starts.
Download from TV
Download in progress. Please wait.
RETURN: to cancel
RETURN
You can download the tuning positions from the television for the channels in this unit’s channel coverage.
[For]New]Zealand]
The country setting screen appears on the television.
Country
Australia
New Zealand
Others
Press [3, 4] to select the country and press [OK].
Pre-set channels are set when you select “Australia” in the country setting menu.
Auto-Setup does not start. The clock setting menu appears (> step 3). If your favourite channel is not received after selecting “Australia”, perform “Auto-Setup Restart” (> 58).
Auto-Setup starts. This takes about 5 minutes.
Auto-Setup
1
Auto-Setup in progress. Please wait.
RETURN: to cancel
RETURN
Auto-Setup is complete when you see the clock setting menu.
Clock
Time |
Date |
0 |
: |
00 |
: |
00 |
1 . |
1 |
. |
2009 |
Number
RQT9274 |
0 |
9 |
|
Please set clock manually. |
|
|
|
|
10 |
CHANGE |
SELECT OK: store RETURN: leave |
|
||
OK |
RETURN |
|
|
3 Press [2, 1] to select the item you want to change.
This is a 24-hour clock.
The items change as follows:
Hour!#Minute!#Second!#Day!#Month!#Year
^-----------------------------------------------------------------------------------------J
Reset the clock regularly to maintain accuracy (> 61). (Monthly accuracy +/– 15 seconds.)
4 Press [3, 4] to change the setting.
You can also use the numbered buttons for setting.
5 Press [OK] when you have finished
the settings.
6 Press [3, 4] to select “On” or “Off”
when the “Power Save” setting menu appears.
Power Save
On
Off
On : Minimises standby power consumption; disables Quick
Start function and
≥On: It will go into the Power Save mode when the unit is in standby mode.
≥Off: It is possible to start quickly from the standby mode. (Quick Start mode)
The features of the power save function when the unit is in standby mode are as below.
Power Save |
On§1 |
Off |
|
Power consumption |
Approx. 2 W |
Approx. 8 W |
|
Startup time |
Not Quick |
Quick§2 |
|
Watching the picture from |
Cannot do |
Can do |
|
the device connected to |
|
|
|
AV2 |
|
|
|
§1 |
“FL Display” is set to “Automatic” in the Setup menu. (> 59) |
||
§2 |
It is possible to startup and start recording within several |
||
|
seconds. |
|
|
–Depending on the type of TV or the connected terminal, it may take time to display the screen.
TV aspect setting screen appears.
TV Aspect
16:9 WIDE TV
16:9
4:3 TV
Pan & Scan
Letterbox
SELECT
OK
RETURN
7 Press [3, 4] to select the TV aspect
and press [OK].
≥16:9:
When connected to a 16:9 widescreen television
≥Pan & Scan:
When connected to a 4:3 aspect television,
side picture is trimmed for 16:9 picture (> 78).
≥Letterbox:
.
When connected to a 4:3 aspect television. 16:9 picture is shown in the letterbox style (> 78)
To stop partway
Press [RETURN].
∫To confirm that stations have been tuned correctly (> 57)
∫To restart setup (> 58)
HDD and disc information
HDD and discs you can use for recording and play
(≤: Possible, –: Impossible)
Disc type |
Logo |
Data that can |
Rewritable |
Play on other |
Recording 16:9 |
Recording both M 1 |
Copy-once |
|
|
be recorded |
|
players§1 |
aspect picture§2 |
and M 2 for bilingual |
recording |
Standard symbol |
|
and played |
|
|
|
broadcasts§2 |
(CPRM) |
Hard disk drive (HDD) |
– |
Video |
≤ |
– |
≤ |
≤ |
≤ |
[HDD] |
|
Still picture |
|
|
|
|
|
|
|
Music |
|
|
|
|
|
DVD-RAM |
|
Video |
≤ |
≤ |
≤ |
≤ |
≤ |
[RAM] |
|
Still picture |
|
|
|
|
CPRM (> 78) |
|
|
|
|
|
|
|
compatible |
|
|
|
|
|
|
|
discs only. |
DVD-R |
|
Video§5 |
– |
≤ |
≤ |
–§3 |
– |
[-R] before finalisation |
|
or |
|
|
|
(Either one) |
|
[DVD-V] after finalisation |
|
Still picture§5 |
|
|
|
|
|
(Video only) |
|
|
|
|
|
|
|
DVD-R DL§4 |
|
Video |
– |
≤ |
≤ |
–§3 |
– |
[-R]DL] before finalisation |
|
|
|
|
|
(Either one) |
|
[DVD-V] after finalisation |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
DVD-RW |
|
Video |
≤ |
≤ |
≤ |
–§3 |
– |
[-RW‹V›] before finalisation |
|
|
|
|
|
(Either one) |
|
[DVD-V] after finalisation |
|
|
|
|
|
|
|
+R |
– |
Video |
– |
≤ |
– (4:3 aspect) |
–§3 |
– |
[+R] before finalisation |
|
|
|
|
|
(Either one) |
|
[DVD-V] after finalisation |
|
|
|
|
|
|
|
+R DL§4 |
– |
Video |
– |
≤ |
– (4:3 aspect) |
–§3 |
– |
[+R]DL] before finalisation |
|
|
|
|
|
(Either one) |
|
[DVD-V] after finalisation |
|
|
|
|
|
|
|
+RW |
– |
Video |
≤ |
≤ |
– (4:3 aspect) |
–§3 |
– |
[+RW] |
|
|
|
|
|
(Either one) |
|
[-R] [-R]DL] [-RW‹V›] [+R] [+R]DL]
Finalisation needed for playback on other equipment (> 56). [RAM] can be played back on Panasonic DVD recorders and DVD-RAM compatible DVD players.
[-R]DL], [+R]DL] or [+RW] can be played back only on equipment compatible with these discs.
For further information (> 20, Notes for recording)
The audio selected in “Bilingual Audio Selection” (> 59) is recorded.
[-R]DL] [+R]DL] You cannot directly record to these discs (@ right). [-R] Videos and still pictures cannot be mixed on one disc.
≥[RAM] [-RW‹V›] [+R] [+R]DL] [+RW] To use a new disc, formatting is necessary (> 55).
≥[+RW] If the disc failed to play on other equipment, we recommend you create top menu (> 56).
≥Use of Panasonic discs is recommended.
For available recording times for different discs under different recording modes, see “Recording modes and approximate recording times” (> 21).
≥Formatting and/or recording/initializing constraints may prevent you from playing or recording certain discs.
≥Please see specifications (> 76) for compatible disc versions and recording speeds.
∫ Recording format
This unit records video in the following formats.
DVD Video Recording format [HDD] [RAM]
This is a recording method which allows you to record and edit television broadcasts and so on.
≥You can delete unwanted parts of a title, create playlists, etc. ≥The broadcasts that allow “One time only recording” can be
recorded to a CPRM compatible disc.
DVD-Video format [-R] [-R]DL] [-RW‹V›]
This recording method is the same as commercially available DVDVideo.
≥The broadcasts that allow “One time only recording” cannot be recorded even if using a CPRM compatible disc.
≥After finalising the disc, you can play the disc on DVD players and other equipment.
+VR (+R/+RW Video Recording) format [+R] [+R]DL] [+RW]
This is a method for recording moving pictures to +R/+RW discs. You can playback such discs recorded in this method in a similar way as contents recorded in the DVD-Video format.
≥The broadcasts that allow “One time only recording” cannot be recorded.
≥After finalising the disc or creating the top menu, you can play the disc on DVD players and other equipment.
Note
≥When “Rec for High Speed Copy” is set to “On”, the restrictions on secondary audio recording are also applied to DVD-RAM. Turn this setting “Off” if high speed copy to [-R] [-R]DL] [-RW‹V›] [+R] [+R]DL] [+RW] is not necessary (The default setting is “On”. > 58).
≥+R discs recorded with this unit and +R discs recorded with another Panasonic DVD Recorder may be incompatible. However, discs that are finalised are compatible and can be played.
≥This unit cannot record NTSC signals to discs that already have PAL signal recordings. (However, both types of programmes can be recorded onto the HDD.)
≥You may not be able to record depending on the condition of the discs and you may not be able to play due to the condition of the recording.
You cannot directly record to a DVD-R DL and +R DL disc on this unit.
Record to the HDD and then copy to the disc.
When playing DVD-R DL (Dual Layer, single-sided) and +R DL (Double Layer, single-sided)
DVD-R DL (Dual Layer, single-sided) and +R DL (Double Layer, single-sided) discs have two writable layers on one side. If there is not enough space on the first layer to record a programme, the remainder is recorded on the second layer. When playing a title recorded on both layers, the unit automatically switches between layers and plays the title in the same way as a normal programme. However, video and audio may momentarily cut out when the unit is switching layers.
DVD-R DL
+R DL When switching layers:
Video and audio may momentarily cut
Second recordable layer |
|
|
|
||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
||
|
|
The available |
|
|
|
|
|
|
|||||
|
|
|
space |
|
|
|
|
|
|
||||
|
|
|
|
|
|
|
|
|
|
||||
First recordable layer |
|
|
|
||||||||||
|
|
|
|
|
|
|
|
Title 2 |
|
|
|
||
|
|
Title 1 |
|
|
|
|
|
|
|
|
|||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
(Inner section |
|
|
|
|
|
|
|
(Outer section |
|||||
Playback direction |
|||||||||||||
of the disc) |
|
of the disc) |
|||||||||||
|
|
|
|
|
|
|
|
||||||
Guide
Quick Start
RQT9274
11
HDD and disc information
Play-only discs
Disc type |
|
|
Logo |
Standard symbol |
Uses |
||
DVD-Video |
|
|
|
|
|
[DVD-V] |
High quality movie and music discs |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
DVD-RW (DVD |
|
|
|
|
|
[-RW‹VR›] |
DVD-RW video recorded on another DVD recorder |
Video |
|
|
|
|
|
|
≥You can play programmes that allow “One time only recording” if they |
Recording |
|
|
|
|
|
|
have been recorded onto a CPRM compatible disc. |
format) |
|
|
|
|
|
|
≥By formatting (> 55) the disc, you can record onto it in DVD-Video |
|
|
|
|
|
|
|
format. |
|
|
|
|
|
|
|
≥It may be necessary to finalise the disc on the equipment used for |
|
|
|
|
|
|
|
recording. |
DVD-R |
|
|
|
|
|
DivX/MP3/ |
≥DVD-R and DVD-R DL with video recorded in DivX |
DVD-R DL |
|
|
|
|
|
WMA/ |
≥DVD-R and DVD-R DL with music recorded in WMA/MP3 |
|
|
|
|
|
|
JPEG |
≥DVD-R and DVD-R DL with still pictures recorded in JPEG |
|
|
|
|
|
|
|
|
CD |
|
|
|
|
|
[CD] |
Recorded audio and music (including CD-R/RW§) |
|
|
|
|
|
|
|
|
|
|
|
|
– |
DivX/MP3/ |
≥CD-R and CD-RW with video recorded in DivX |
|
|
|
|
|
|
|
WMA/ |
≥CD-R and CD-RW with music recorded in WMA/MP3 |
|
|
|
|
|
|
JPEG |
≥CD-R and CD-RW with still pictures recorded in JPEG |
Video CD |
|
|
|
|
|
[VCD] |
≥Recorded music and video (including CD-R/RW§) |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
§ Close the session after recording. Play may be impossible on some discs due to the condition of the recording.
≥The producer of the disc can control how discs are played. So you may not always be able to control play as described in these operating instructions. Read the disc’s instructions carefully.
≥Operation and sound quality of CDs that do not conform to CD-DA specifications (copy control CDs, etc.) cannot be guaranteed.
Discs that cannot be played
≥2.6 and 5.2 GB DVD-RAM, 12 cm ≥3.95 and 4.7 GB DVD-R for Authoring
≥DVD-R, DVD-R DL, DVD-RW, +R, +R DL recorded on another unit and not finalised (> 78).
≥Discs recorded with AVCHD format.
≥[For]Asia] DVD-Video with a region number other than “3” or “ALL” ≥[For]New]Zealand] DVD-Video with a region number other than “4” or
“ALL”
≥[For]Middle]East] DVD-Video with a region number other than “2” or
“ALL”
≥DVD-Audio ≥Blu-ray, HD DVD
≥DVD-ROM, +R (8 cm), CD-ROM, CDV, CD-G, Photo CD, CVD, SVCD, SACD, MV-Disc, PD, etc.
Types of disc or title recorded on HDD for the type of connected TV
When you use the discs recorded either PAL or NTSC, or playback a title recorded on HDD using PAL or NTSC, refer to this table.
(≤: Possible to view, –: Impossible to view)
TV type |
Disc/Titles |
Yes/No |
|
recorded on HDD |
|
|
|
|
Multi-system TV |
PAL |
≤ |
|
|
|
|
NTSC |
≤ |
|
|
|
PAL TV |
PAL |
≤ |
|
|
|
|
NTSC |
≤§1 (PAL60) |
|
|
|
NTSC TV |
PAL |
– |
|
|
|
|
NTSC |
≤§2 |
§1 If your television is not equipped to handle PAL 525/60 signals the picture will not be shown correctly.
§2 Select “NTSC” in “TV System” (> 60).
≥When playing back a disc or a title recorded on the HDD, ensure that you match the “TV System” setting to the disc or the title (PAL or NTSC) (> 60).
RQT9274
12
USB memory and card information
USB memories you can use on this unit
Compatible USB memories |
USB memories which are defined as USB mass storage class, and digital cameras that use PTP |
|||
|
|
protocol: |
|
|
|
|
– USB memories that support USB 1.0/1.1 and USB 2.0 Full Speed/High Speed. |
||
|
|
≥USB memories of up to 128 GB can be used. |
|
|
|
|
≥USB memories that support bulk only transfer. |
|
|
|
|
CBI (Control/Bulk/Interrupt) is not supported. |
|
|
|
|
≥Digital Cameras which require additional programme installation when connected to a PC are not supported. |
||
|
|
≥MTP (Media Transport Protocol) device is not supported. |
|
|
|
|
≥A multi-port USB card reader is not supported. |
|
|
Format |
FAT16 and FAT32 file systems are supported. |
|
||
|
|
≥UDF/NTFS/exFAT file system is not supported. |
|
|
|
|
≥Depending on the sector size, some files may not work. |
|
|
|
|
≥Only the first partition on USB memories with multi-partition is supported. |
||
Indicated in these instructions by |
[USB] |
|
|
|
|
|
|
|
|
Data that can be played or copied (≤: Possible, –: Impossible) |
|
|
||
|
File format |
DivX |
WMA/MP3 |
Still pictures (JPEG) |
|
Playing |
≤ |
≤ |
≤ |
|
Copying to HDD |
– |
≤ |
≤ |
|
Instructions |
You can play DivX files recorded |
You can play and copy to HDD |
You can play and copy to HDD or |
|
|
with a computer onto the USB |
WMA/MP3 files recorded with a |
DVD-RAM still pictures recorded |
|
|
memory (> 28). |
computer onto the USB memory |
with a computer onto the USB |
|
|
|
(> 29, 50). |
memory (> 30, 48). |
≥Despite meeting the conditions mentioned above, there may be USB memories that cannot be used for this unit.
≥If a Panasonic digital video camera with HDD etc, is connected to this unit’s USB port, you can copy the SD Video recorded with the camera to this unit’s HDD or DVD-RAM.
Note
≥This unit’s USB port does not support bus-powered USB device.
Guide
Quick Start
Cards you can use on this unit [EH69]
Type
Indicated in these instructions by
Data that can be recorded and played
Instructions
SD Memory Card§ (from 8 MB to 2 GB)
SDHC Memory Card (from 4 GB to 32 GB) MultiMediaCard
§ Including miniSD Card and microSD Card
The card types mentioned above will be referred to as “SD card” in these operating instructions.
[SD]
Still pictures (JPEG)
Video (SD Video)
You can insert directly into the SD card slot.
§ A miniSD Card and a microSD Card must be used with the adaptor that comes with the card. ≥You can play and copy still pictures taken on a digital camera etc. (> 30, 48).
≥SD Video shot with a Panasonic SD Video camera, etc. can be copied to the HDD or DVD-RAM. (> 47) ≥SD Video cannot be played directly from the SD card.
Suitable SD cards
≥When using SD cards 4 GB or larger, only SD cards that display the SDHC logo can be used.
≥Useable memory is slightly less than the card capacity. ≥Please confirm the latest information on the following website.
http://panasonic.co.jp/pavc/global/cs
(This site is in English only.)
≥If the SD card is formatted on other equipment, the time necessary for recording may be longer. Also, if the SD card is formatted on a PC, you may not be able to use it on this unit. In these cases, format the card on this unit (> 55, 78).
≥This unit is compatible with SD Memory Cards that meet SD Card Specifications FAT12 and FAT16 formats, as well as SDHC Memory Cards in FAT32 format.
≥SDHC Memory Cards used for recording with this unit can only be used with other SDHC Memory Card-compatible equipment. SDHC Memory Cards cannot be used with equipment that is only compatible with SD Memory Cards.
≥We recommend using a Panasonic SD card.
≥This unit cannot play AVCHD format motion pictures on an SD card.
≥Keep the Memory Card out of reach of children to prevent swallowing.
Structure of folders
¢¢¢: Numbers XXX: Letters
Card
DCIM
XXXXX
(Picture folder)
XXXX .JPG
(Any folder with JPEG files) e.g.,
001
SD_VIDEO
PRG
(MPEG2 folder)
MOV .MOD
MOV .MOI
PRG .PGI
These folders are shown earlier in the Album View screen than other still picture folders.
MGR_INFO
(MPEG2 information folder)
RQT9274
13
Regarding DivX® files, Music files and still pictures (JPEG)
Instructions/notes regarding SD cards and SD drive are applicable to the DMR-EH69 model only.
DivX
Playable |
[-R] [-R]DL] [CD] [USB] |
|||
media |
|
|
|
|
|
|
|
|
|
File |
DivX |
|||
format |
≥Files must have the |
|||
|
extension “.DIVX”, “.divx”, |
|
|
|
|
|
|||
|
“.AVI” or “.avi”. |
|
|
|
|
|
|
|
|
Number |
Maximum number of folders recognizable: 300 folders |
|||
of folders |
(including the root folder) |
|||
Number |
Maximum number of files recognizable§1: 200 files |
|||
of files |
|
|
|
|
Support |
Certified to the DivX Home Theater Profile. |
|||
version |
Video |
|||
|
– Number of stream: Up to 1 |
|||
|
– Codec: DIV3, DIV4, DIVX, DV50 |
|||
|
– Picture size: 32 x 32 to 720 x 576 |
|||
|
– FPS (Frame Per Second): Up to 30 fps |
|||
|
Audio |
|||
|
– Number of stream: Up to 8 |
|||
|
– Format: MP3, MPEG, Dolby Digital |
|||
|
– Multi channel: Dolby Digital is possible. MPEG |
|||
|
|
multi is 2 ch conversion. |
||
WMA/MP3 |
|
|
|
|
Playable |
|
[HDD] [-R] [-R]DL] [CD] [USB] |
||
media |
|
|
|
|
File format |
|
MP3 |
||
|
|
≥Files must have the extension “.mp3” or “.MP3”. |
||
|
|
WMA (Windows Media-formatted file) |
||
|
|
≥Files must have the extension “.wma” or “.WMA”. |
||
|
|
|
|
|
Number of |
|
Maximum number of folders (groups or albums) |
||
folders |
|
recognizable: 300 folders (groups or albums) |
||
(groups or |
|
(including the root folder) |
||
albums) |
|
|
|
|
Number of |
|
Maximum number of files (tracks) recognizable§1: |
||
files (tracks) |
3000 files (tracks) |
|||
|
|
|
|
|
Bit rates |
|
32 kbps to 320 kbps |
||
(MP3) |
|
|
|
|
|
|
|
|
|
Sampling |
|
16 kHz/22.05 kHz/24 kHz/32 kHz/44.1kHz/48 kHz |
||
frequency |
|
|
|
|
(MP3) |
|
|
|
|
For WMA |
|
This unit is compatible with Windows Media |
||
|
|
Audio 9 (WMA9). |
||
ID3 tags |
|
compatible ([HDD] [USB]) |
||
WMA tags |
|
|
|
|
≥If there is a large amount of still picture data etc. within a WMA/ MP3 file, play may not be possible.
Still pictures (JPEG§2)
|
Playable |
[HDD] [RAM] [-R] [-R]DL] [CD] [USB] |
|
|
media |
[SD] |
|
|
|
|
|
|
File format |
File format: JPEG |
|
|
|
|
≥Files must have the extension “.jpg” or “.JPG”. |
|
Number of |
Between 34k34 and 6144k4096 |
|
|
pixels |
(Sub sampling is 4:2:2 or 4:2:0) |
|
|
|
|
|
|
Number of |
[-R] [-R]DL] [CD] [USB] Maximum number of folders |
|
|
folders§3 |
recognizable: 300 folders |
|
|
|
|
[HDD] [RAM] [SD] This unit can handle a maximum of |
|
|
|
300 folders |
|
|
|
|
|
Number of |
[-R] [-R]DL] [CD] [USB] Maximum number of files |
|
|
files§3 |
recognizable§1: 3000 files |
|
|
|
|
[HDD] [RAM] [SD] This unit can handle a maximum of |
|
|
|
3000 files |
|
|
|
|
|
MOTION |
Not supported |
|
|
JPEG |
|
|
|
PROGRESSIVE |
|
|
|
JPEG |
|
|
§1 |
Total number |
of recognizable file including MP3, WMA, JPEG, |
|
|
|
DivX and other types of files is 4000. |
|
§2 |
It may take a few moments for still pictures to display. |
||
§3 |
When there are many files and/or folders, some files may not |
||
RQT9274 |
display or be playable. |
||
[-R] [-R]DL] [CD]
≥Compatible formats: ISO9660 level 1 or 2 (except for extended formats) and Joliet
≥This unit is compatible with multi-session/border (except for DVD- R DL), but reading or play of the disc may take time if there are a lot of sessions.
≥Operation may take time to complete when there are many files (tracks) and/or folders (groups or albums) and some files (tracks) may not display or be playable.
≥English alphabet and Arabic numerals are displayed correctly. Other characters may not be displayed correctly.
≥The display order on this unit may differ from how the order is displayed on a computer.
≥Depending on how you create the disc (writing software), files (tracks) and folders (groups or albums) may not play in the order you numbered them.
≥This unit is not compatible with packet-write format. ≥Depending on the recording conditions, the disc may not be
played.
≥This unit is not compatible with copy-protected, Lossless, Professional, Voice and Multiple Bit Rate (MBR) for WMA.
≥This unit is not compatible with WMA files protected with digital rights management (DRM).
[HDD] [RAM] [SD]
≥Compatible formats: DCF§4 compliant (Content recorded on a digital camera, etc.)
§4 Design rule for Camera File system: unified standard established by Japan Electronics and Information Technology Industries Association (JEITA).
∫ Structure of folders displayed by this unit
You can play Music files (WMA/MP3) and still pictures (JPEG) on this unit by making folders as shown below. However depending on the method of writing data (writing software), play may not be in the order you numbered the folders.
Structure of WMA/MP3 folders
[-R] [-R]DL] [CD] [USB]
Prefix with 3-digit numbers in the order you want to play them.
≥The file name extension of WMA files will be “.wma”.
e.g. Structure of MP3 folders
Root (folder=group)
001
(file=track)
001track.mp3
002track.mp3
003track.mp3
002 group
003 group |
001track.mp3 |
|
002track.mp3 |
||
|
||
|
003track.mp3 |
|
|
004track.mp3 |
001track.mp3
002track.mp3
003track.mp3
Order of play
Structures of still picture folders
[-R] [-R]DL] [CD] [USB]
Files inside a folder are displayed in the order they were updated or taken.
Root
002 Folder
003 Folder
004 Folder
Order of play |
|
|
P0000010.jpg |
|
|
|
P0000011.jpg |
|
|
|
|
|
|
|
P0000012.jpg |
|
|
[RAM]
The following
can be displayed on this unit.
¢¢¢: Numbers XXX: Letters |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
§1 |
Still pictures on the root |
Root |
|
|||||||||||
|
folder can also be |
|
1 |
|
||||||||||
|
displayed. |
|
|
XXXX .JPG |
|
|||||||||
|
|
|
|
|||||||||||
|
|
|
JPEG |
|
||||||||||
§2 |
Folders can be created |
|
|
|
||||||||||
|
|
|
|
DCIM |
|
|||||||||
|
on other equipment. |
|
|
|
|
|
||||||||
|
|
|
|
|
|
|||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
However, these folders |
|
|
|
|
|
|
|
|
XXXXX |
|
|||
|
|
|
|
|
|
|
|
|||||||
|
cannot be selected as a |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
copying destination. |
|
|
|
|
|
|
|
|
|
|
|
XXXX .JPG |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||
|
|
|
|
|
|
|
|
|
|
|
|
|
||
≥If a folder name or file |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||
name has been input |
|
|
|
|
|
|
|
|
|
|
|
|
2 |
|
using other equipment, |
|
|
DCIM |
|||||||||||
|
|
|
||||||||||||
the name may not be |
|
|
|
|
|
XXXXX |
|
|||||||
|
|
|
|
|
|
|||||||||
displayed properly or you |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||
may not be able to play or |
|
|
|
|
|
|
|
|
|
|
XXXX .JPG |
|
||
|
|
|
|
|
|
|
|
|
|
|
||||
edit the data. |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
14
Media handling (Disc/USB memory/SD card)
Inserting discs
1Press [< OPEN/CLOSE] to open the tray.
∫Cartridge disc
Insert label-up. |
Insert label-up with the arrow |
facing in. |
Insert fully.
2 Press [< OPEN/CLOSE] to close the tray.
Automatic drive select function
[RAM] [Only for discs with the write-protect tab on the cartridge set to “PROTECT” (> 54, Cartridge-protection and Card-protection)]
[DVD-V] [VCD]
≥If the unit is recording to the HDD or stopped, it automatically switches to the DVD drive when a disc is inserted.
≥If you eject a disc and close the disc tray, the HDD drive is automatically selected.
Note
≥When using 8 cm DVD-RAM, or 8 cm DVD-R, remove the disc from the cartridge.
≥[RAM] It is not possible to record or play continuously from one side of a double sided disc to the other. You will need to eject the disc and turn it over.
≥[RAM] When using cartridge discs with the write-protect tab in the protect position (> 54), play automatically starts when inserted in the unit.
Inserting, removing the USB memory
Inserting the USB memory
≥Before inserting any USB memory to
this unit, ensure that the data stored therein has been backed up.
≥Check the orientation of the USB connector and insert it straight in.
≥Insert an USB device while the unit is stopped, so the “USB device” screen is displayed. Select an item and press
[OK] to switch to the USB-related operations (> 28, 49).
Removing the USB memory
≥Complete all USB-related operations and pull the USB memory straight out.
≥If a USB memory being accessed is pulled out, then the data may be damaged.
Disc and card care
∫ How to hold a disc or card
Do not touch the recorded surface or the terminal surface.
DO |
DO NOT |
|
|
∫ Concerning non-cartridge discs
Be careful about scratches and dirt.
∫ If there is dirt or condensation on the disc
Wipe with a damp cloth and then wipe dry.
DO |
DO NOT |
∫ Handling precautions
≥Do not attach labels or stickers to discs. (This may cause disc warping and un-balanced rotation, rendering it unusable.)
≥Write on the label side of the disc only with a soft, oil-based felt pen. Do not use ballpoint pens or other hard writing implements.
≥Do not use record cleaning sprays, benzine, thinner, static electricity prevention liquids or any other solvent.
≥Do not use scratch-proof protectors or covers.
≥Do not expose the terminals of the card to water, garbage or other strange things.
≥Do not drop stack, or impact discs. Do not place objects on them. ≥Do not use the following discs:
– Discs with exposed adhesive from removed stickers or labels (rental discs, etc.).
– Discs that are badly warped or cracked.
– Irregularly shaped discs, such as heart shapes.
≥Do not place in the following areas:
– In direct sunlight.
–In very dusty or humid areas.
–Near a heater.
–Locations susceptible to significant difference in temperature (condensation can occur).
–Where static electricity or electromagnetic waves occur.
≥To protect discs from scratches and dirt, return them to their cases or cartridges when you are not using them.
Guide
Quick Start
Inserting, removing the SD card [EH69]
When the card indicator (“SD”) on the unit’s display is flashing, the card is being read from or written to. Do not turn off the unit or remove the card. Such action may result in malfunction or loss of the card’s contents.
≥Inserting foreign objects can cause a malfunction.
Inserting the card
Press on the centre of the card until it clicks into place.
Insert the card label up with the cut-off corner on the right.
If you are using a miniSD card or a microSD card, insert it into the adaptor that comes with the card.
Insert and remove this adaptor from the unit.
e.g., miniSD
ADAPTER
Removing the card
Press on the centre of the card.
Pull it straight out.
Automatic drive select function
≥If you insert an SD card while the unit is stopped, the “SD Card” screen is displayed. Select an item and press [OK] to switch to the SD drive (> 28, 49).
≥If you remove an SD card, the HDD drive is automatically selected.
The manufacturer accepts no responsibility and offers no compensation for loss of recorded or edited material due to a problem with the unit or recordable media, and accepts no responsibility and offers no compensation for any subsequent damage caused by such loss.
Examples of causes of such losses are
≥A disc recorded and edited with this unit is played in a DVD Recorder or computer disc drive manufactured by another company.
≥A disc used as described above and then played again in this unit.
≥A disc recorded and edited with a DVD Recorder or computer disc drive manufactured by another company is played in this unit.
RQT9274
15
Basic operations
Playing recorded video contents/Playing play-only discs
Refer to “Advanced playback” (> 26) for detail information.
|
2 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
REC |
|
|
|
|
|
|
|
|
|
|
|
3 |
|
|
TV |
|
|
|
|
|
||||
|
|
|
|
|
|
|
|
|
|
|
|
1 |
DRIVE |
|
|
|
VOL |
CH |
|
||||
SELECT |
AV |
|
|
|
|
|
|||||
|
|
|
|
|
|
|
|
|
|||
1 |
2 |
|
3 |
|
|
||||||
Numbered |
|
CH |
|
||||||||
4 |
5 |
|
6 |
|
|||||||
|
|
|
|||||||||
buttons |
|
|
|
||||||||
7 |
8 |
|
9 INPUT SELECT |
|
|||||||
|
|
|
|||||||||
|
DELETE |
0 |
|
|
|
G-Code |
|
||||
|
|
|
|
SKIP |
|
|
SLOW/SEARCH |
|
|||
|
STOP |
|
PAUSE |
|
PLAY/x1.3 |
3 |
|||||
|
|
|
|||||||||
|
TIME SLIP |
|
|
|
|
|
EXIT |
||||
|
|
|
|
|
|
|
|||||
|
|
|
|
|
|
|
/ |
|
|
|
|
|
|
|
|
|
|
OG CHE |
C |
|
|
||
|
|
|
|
|
R |
|
|
|
|
||
|
|
|
|
|
P |
|
|
|
K |
|
|
|
|
|
|
R |
|
|
|
|
|
F |
|
|
|
T |
O |
|
|
|
|
|
U |
|
|
|
|
|
|
|
|
|
|
N |
|
||
|
|
|
|
|
|
|
|
|
C |
|
|
|
A |
|
|
|
|
|
|
|
T |
|
|
|
IG |
|
|
|
|
|
|
|
|
I |
|
|
V |
|
|
|
|
|
|
|
|
O |
|
|
A |
|
|
|
|
|
|
|
|
|
|
|
N |
|
|
|
|
|
|
|
|
N |
|
|
T |
|
|
|
|
|
OK |
|
|
||
, , , |
C |
|
|
|
|
|
|
M |
|
||
E |
|
|
|
|
|
|
|
||||
R |
|
|
|
|
|
|
|
|
E |
|
|
I |
|
|
|
|
|
|
|
|
N |
|
|
D |
|
|
|
|
|
|
|
U |
|
||
OK |
OPTION |
|
|
|
|
|
RETURN |
RETURN |
|||
OPTION |
|
|
|
|
|
||||||
|
|
|
|
|
|
|
CREATE |
||||
|
AUDIO |
|
|
|
|
||||||
|
DISPLAY CHAPTER MANUAL SKIP |
|
|||||||||
|
REC |
REC MODE |
F Rec |
STATUS |
|
||||||
Preparation
≥Turn on the television and select the appropriate AV input to suit the connections to this unit.
≥Turn on this unit.
1 Press [DRIVE SELECT] to select the
HDD or DVD drive.
The HDD or DVD indicator lights up on the unit’s display.
2 If you selected the DVD drive
Press [< OPEN/CLOSE] on the main unit to open the tray and insert a disc.
≥Press the button again to close the tray.
3 Press [1] (PLAY).
[HDD] [RAM] [-R] [-R]DL] [-RW‹V›] [+R] [+R]DL] [+RW] [-RW‹VR›]
Play starts from the most recently recorded title.
[DVD-V] [VCD]
Play starts from the points specified by the disc.
[CD]
Play starts from the beginning of the disc.
Menu operation for other type of contents
≥DivX (> 28) ≥WMA/MP3(> 29)
≥Still pictures (JPEG) (> 30) ≥Music on HDD (> 32) ≥Music CD (> 32)
Note
≥A disc or title with different “TV System” (> 60) may not be able to playback while recording or on standby for the timer recording. You will be able to playback by changing the “TV System” settings in that case, but to prevent failure of the timer recording, change back
the settings before the recording starts.
RQT9274 ≥Depending on the disc, it may take time for the menu screen,
pictures, sound, etc. to start.
16
≥The producer of the disc can control how discs are played. So you may not always be able to control play as described in these operating instructions. Read the disc’s instructions carefully.
≥When playing back a title recorded on the HDD, ensure that you match the “TV System” setting to the recorded title (> 60).
∫ When a menu screen appears on the television
[DVD-V]
Press [3, 4, 2, 1] to select the item and press [OK].
≥Some items can also be selected using the numbered buttons.
≥If you are instructed to press the “ENTER” button by the menu screen or the disc’s instruction document, press [OK].
[VCD]
Press the numbered buttons to select the item. e.g., 5: [0] @ [5] 15: [1] @ [5]
≥To return to the menu screen
[DVD-V]
1Press [OPTION].
2Press [3, 4] to select “Top Menu” or “Menu” and press [OK].
[VCD]
Press [RETURN].
Note
Discs continue to rotate while menus are displayed. Press [∫] when you have finished playback to protect the unit’s motor, your television screen and so on.
Recording television programmes
Refer to “Notes for recording” (> 20) and “Advanced |
||||||||||||
recording” (> 21) for detail information. |
|
|||||||||||
|
2 |
|
|
|
|
|
|
|
|
|||
|
|
|
|
|
|
|
|
|
|
|
|
REC |
|
|
|
|
|
|
|
|
|
|
|
|
3 5 |
|
|
|
|
|
|
|
|
|
||||
1 |
DRIVE |
|
|
|
VOL |
CH |
|
|
||||
SELECT |
AV |
|
|
|
|
|
|
|||||
|
|
|
|
|
|
|
|
|
|
|||
1 |
2 |
|
3 |
|
|
|
||||||
|
|
CH |
3 |
|
||||||||
|
4 |
5 |
|
6 |
|
|||||||
|
|
|
|
|||||||||
|
7 |
8 |
|
9 INPUT SELECT |
Numbered |
|||||||
|
DELETE |
0 |
|
|
|
G-Code |
buttons |
|
||||
|
|
|
|
SKIP |
|
|
SLOW/SEARCH |
|
|
|||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
STOP |
|
PAUSE |
|
PLAY/x1.3 |
|
|
|||||
|
TIME SLIP |
|
|
|
|
|
EXIT |
|
|
|||
|
|
|
|
|
|
|
/ |
|
|
|
|
|
|
|
|
|
|
|
OG CHE |
C |
|
|
|
||
|
|
|
|
|
R |
|
|
|
|
|
||
|
|
|
|
|
P |
|
|
|
K |
|
|
|
|
|
|
|
R |
|
|
|
|
|
F |
|
|
|
|
T |
O |
|
|
|
|
|
U |
|
|
|
|
|
|
|
|
|
|
|
N |
|
|
||
|
|
|
|
|
|
|
|
|
C |
|
|
|
|
A |
|
|
|
|
|
|
|
T |
|
|
|
|
IG |
|
|
|
|
|
|
|
|
I |
|
|
|
V |
|
|
|
|
|
|
|
|
O |
|
|
|
A |
|
|
|
|
|
|
|
|
|
|
|
|
N |
|
|
|
|
|
|
|
|
N |
|
|
|
T |
|
|
|
|
|
OK |
|
|
|
||
|
C |
|
|
|
|
|
|
M |
|
|
||
|
E |
|
|
|
|
|
|
|
|
|||
|
R |
|
|
|
|
|
|
|
|
E |
|
|
|
I |
|
|
|
|
|
|
|
|
N |
|
|
|
D |
|
|
|
|
|
|
|
|
|
||
|
|
|
|
|
|
|
|
|
|
U |
|
|
|
OPTION |
|
|
|
|
|
RETURN |
|
|
|||
|
AUDIO |
|
|
|
CREATE |
|
|
|||||
AUDIO |
DISPLAY CHAPTER MANUAL SKIP |
|
|
|||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
5 |
REC |
REC MODE |
F Rec |
STATUS |
4 |
|
||||||
|
|
|
|
|
|
|
|
|
|
|
||
[HDD] [RAM] [-R] [-RW‹V›] [+R] [+RW] |
|
|
|
|
|
|||||||
5 Press [¥ REC] to start recording.
REC
Recording will take place on open space on the HDD or on disc. Data will not be overwritten.
≥You cannot change the channel or recording mode during recording.
≥You can record while the unit is in standby for timer recording. However, once the time for the timer recording to begin is reached, any recording taking place will stop and the timer recording will begin.
≥[HDD] [RAM] When “Rec for High Speed Copy” is set to “Off” (> 58), you can change the audio being received by pressing [AUDIO] during recording. (Does not affect the recording of audio.)
∫To pause recording
Press [;].
Press again to restart recording.
You can also press [¥ REC] to restart. (Title is not split into separate titles.)
∫ To stop recording
Press [∫].
≥From the start to the end of the recording is called one title. ≥[-R] [-RW‹V›] [+R] [+RW] It takes about 30 seconds for the unit to complete recording management information after recording
finishes.
In order to play DVD-R, DVD-RW (DVD-Video format) and +R (recorded with this unit) on other DVD players, it is necessary to finalise them (> 56).
In order to play +RW on other players, we recommend you to create a top menu. (> 56)
≥[USB] It is not possible to record on a USB memory. ≥[SD] It is not possible to record on a card.
≥Video cannot be recorded to DVD-R discs with JPEG images already recorded on them.
Basic operations
|
To select with the numbered |
||
HDD |
buttons: |
|
|
|
e.g., |
5: |
[0] @ [5] |
|
|
15: |
[-/--] @[1] @ [5] |
|
|
||
4 Press [REC MODE] to select the recording mode (XP, SP, LP or EP).
≥Recording modes and approximate recording times (> 21)
Recording Mode
Rec Mode |
Remain |
XP |
47:47 |
|
|
|
|
SP |
95:34 |
|
|
LP |
191:11 |
|
|
EP |
381:16 |
|
|
SELECT
≥To record sound using LPCM (XP mode only):
Set the “Audio Mode for XP Recording” to “LPCM” in the Setup menu (> 59).
To specify a time to stop recording— One Touch Recording
[HDD] [RAM] [-R] [-RW‹V›] [+R] [+RW]
During recording
Press [¥ REC] on the main unit to select the recording time.
≥You can specify up to 4 hours later.
≥The unit display changes as shown below.
OFF 0:30 ""# OFF 1:00 |
""# |
OFF 1:30 |
""# OFF 2:00 |
^" Counter (cancel) ,"" |
OFF |
4:00 ,"" |
OFF 3:00 ,} |
≥This does not work during timer recordings (> 18, 24) or while using Flexible Recording (> 22).
≥The unit turns off automatically after the time to stop recording is reached.
To cancel
Press [¥ REC] on the main unit several times until the counter appears.
≥The time to stop recording is cancelled; however, recording continues.
To stop recording
Press [∫].
RQT9274
17
Timer recording using G-CODE system [For]New]Zealand]
Refer to “Advanced timer recording” (> 24–25) for detail information.
|
|
TV |
|
|
|
||
|
DRIVE |
VOL |
CH |
|
SELECT |
AV |
|
|
|
|
2 |
1 |
2 |
|
3 |
CH |
|
|||||
4 |
5 |
|
6 |
|
|||||||
|
|
|
|||||||||
|
7 |
8 |
|
9 INPUT SELECT |
1 |
||||||
|
DELETE |
0 |
|
|
|
G-Code |
|||||
|
|
|
|
SKIP |
|
|
SLOW/SEARCH |
||||
|
STOP |
|
PAUSE |
|
PLAY/x1.3 |
|
|||||
|
TIME SLIP |
|
|
|
|
|
EXIT |
|
|||
|
|
|
|
|
|
|
/ |
|
|
|
|
|
|
|
|
|
|
OG CHE |
C |
|
|
||
|
|
|
|
|
R |
|
|
|
|
||
|
|
|
|
R |
P |
|
|
|
K |
|
|
3, 4 |
|
|
|
|
|
|
|
|
U |
|
|
|
T |
O |
|
|
|
|
|
|
F |
|
|
|
|
|
|
|
|
|
N |
|
|||
|
|
|
|
|
|
|
|
C |
|
||
D |
|
|
|
|
|
|
|
N |
|
||
|
A |
|
|
|
|
|
|
|
T |
|
|
|
IG |
|
|
|
|
|
|
|
|
I |
|
|
V |
|
|
|
|
|
|
|
|
O |
|
|
A |
|
|
|
|
|
|
|
|
|
|
|
N |
|
|
|
|
|
|
|
|
N |
|
|
T |
|
|
|
|
OK |
|
|
|||
|
E |
|
|
|
|
|
M |
|
|||
|
C |
|
|
|
|
|
|
|
|
E |
|
|
R |
|
|
|
|
|
|
|
|
|
|
|
I |
|
|
|
|
|
|
|
|
U |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
OPTION |
|
|
|
|
|
RETURN |
|
|||
|
AUDIO |
|
|
|
CREATE |
|
|||||
|
DISPLAY CHAPTER MANUAL SKIP |
|
|||||||||
|
REC |
REC MODE |
|
F Rec |
STATUS |
|
|||||
[HDD] [RAM] [-R] [-RW‹V›] [+R] [+RW]
≥You can enter up to 32 programmes up to a month in advance. (Each daily or weekly programme is counted as one programme.)
≥[RAM] [-RW‹V›] [+R] [+RW] To use a new disc, formatting is necessary.
Preparation
≥Turn on the television and select the appropriate AV input to suit the connections to this unit.
≥If recording to DVD, insert a disc that you can use for recording (> 15).
≥Make sure that the clock settings are correct (> 61).
G-CODE is a registered trademark of Gemstar Development Corporation. The G-CODE system is manufactured under license from Gemstar Development Corporation.
Entering G-CODE numbers is an easy way of timer recording. You can find these numbers in TV listings in newspapers and magazines.
1 Press [G-Code].
G-Code |
|
Remain HDD 30:24 SP DVD 1:58 SP |
|
|||||||||
Record |
|
|
|
|
|
|
TUE 18.08.09. 12:53:00 |
|
||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Input G-Code Number 0-9, and press OK.
2 Press the numbered buttons to enter the G-CODE number.
Press [2] to move back to correct a digit.
3 Press [OK].
Timer |
Remain |
HDD |
30:24 SP |
DVD 1:58 SP |
||
Recording |
|
|
|
TUE 18.08.09. 12:54:00 |
||
|
Channel |
Date |
Start |
Stop |
HDD |
Mode |
|
DVD |
|||||
|
1 ARD |
25. 8.TUE |
19:00 |
20:00 |
HDD |
SP |
Programme Name
≥Confirm the programme (start and end time) by using a TV magazine, etc. and make corrections if necessary using
|
|
[3, 4, 2, 1] (> 24, step 3). |
|
|
|
|
|
|
|
|
||||||
|
|
≥When “-- ---” appears in the “Channel” column, you cannot |
||||||||||||||
|
|
set timer recording. Press [3, 4] to select desired |
||||||||||||||
|
|
programme position. After you have entered the information |
||||||||||||||
4 |
|
of a TV station, it is kept in the unit’s memory. |
|
|
||||||||||||
|
Press [OK]. |
|
|
|
|
|
|
|
|
|
|
|
|
|||
|
|
The timer programme is stored and the timer icon is |
||||||||||||||
|
|
displayed. |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
No. Channel |
|
|
|
|
|
|
Timer icon |
|
|
|
|
|
|
01 |
ARD |
|
|||
|
|
|
|
|
|
|
|
|
|
|
||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
“F” lights on the unit’s display to indicate timer recording |
||||||||||||||
|
|
standby has been activated. |
|
|
|
|
|
|
|
|
||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||
|
|
|
TUE 18.08.09 12:56:00 |
|
|
|
|
|
|
|
|
|||||
|
|
Stop |
HDD |
Mode |
Drive |
|
|
|
|
|
|
|
|
|
||
|
|
DVD |
space |
|
|
Check to make sure “OK” |
||||||||||
|
|
20:00 |
HDD |
SP |
OK |
|
|
|
||||||||
|
|
|
|
|
||||||||||||
|
|
Programme |
|
|
|
|
|
|
is displayed (> 25). |
|||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Repeat steps 1–4 to programme other recordings.
Press [Í] to turn the unit off.
∫To cancel recording when recording has already begun (> 24)
∫To release the unit from recording standby (> 24)
∫Notes on timer recording (> 24)
RQT9274
18
Deleting titles
|
TV |
|
|
|
|
DRIVE |
VOL |
CH |
SELECT |
AV |
|
DRIVE SELECT |
|
|
|
|
|
1 |
2 |
3 |
CH |
|
|||||
|
4 |
5 |
6 |
|
||||||
|
|
|
||||||||
|
7 |
8 |
9 INPUT SELECT |
|
||||||
DELETE |
DELETE |
0 |
|
|
G-Code |
|
||||
|
|
|
|
SKIP |
|
SLOW/SEARCH |
|
|||
, |
|
|
|
|
|
|
|
|
|
4 |
|
STOP |
|
PAUSE PLAY/x1.3 |
|||||||
|
TIME SLIP |
|
|
|
|
EXIT |
||||
|
|
|
|
|
|
|||||
|
|
|
|
|
|
OG/CHE |
C |
|
EXIT |
|
|
|
|
|
|
R |
|
|
|
||
|
|
|
|
|
P |
|
|
K |
|
|
|
|
|
|
R |
|
|
|
|
F |
|
|
|
T |
O |
|
|
|
|
U |
|
|
|
|
|
|
|
|
|
N |
|
||
|
|
|
|
|
|
|
|
C |
|
|
|
A |
|
|
|
|
|
|
T |
|
|
|
IG |
|
|
|
|
|
|
|
I |
|
|
V |
|
|
|
|
|
|
|
O |
|
|
A |
|
|
|
|
|
|
|
FUNCTION |
|
|
N |
|
|
|
|
|
|
|
N |
|
|
T |
|
|
|
|
OK |
|
|
||
|
C |
|
|
|
|
|
|
M |
||
|
E |
|
|
|
|
|
|
|||
|
R |
|
|
|
|
|
|
|
E |
MENU |
|
I |
|
|
|
|
|
|
|
N |
|
|
D |
|
|
|
|
|
|
|||
2, 3, 4, |
|
|
|
|
|
|
|
|
U |
|
OPTION |
|
CREATE |
RETURN |
RETURN |
||||||
5, 6 |
AUDIO |
DISPLAY CHAPTER MANUAL SKIP |
|
|||||||
REC |
REC MODE F Rec |
STATUS |
|
|||||||
[HDD] [RAM] [-R] [-R]DL] [-RW‹V›] [+R] [+R]DL] [+RW]
(You cannot delete items on finalised discs.)
≥A title cannot be restored once it is deleted. Make certain before proceeding.
≥You cannot delete while recording or copying.
Preparation
≥Press [DRIVE SELECT] to select the HDD or DVD drive. ≥[RAM] Release protection (> 54, Setting the protection).
∫Available disc space after deleting
≥[HDD] [RAM] The space deleted becomes available for recording.
Available disc space increases after deleting any of these titles
|
|
|
|
|
|
|
|
Title |
Title |
...... |
Last title |
Available |
|
|
|
|
|
recorded |
disc space |
|
|
|
|
|
|
|
|
≥[-RW‹V›] [+RW] Available recording space increases only when the last recorded title is deleted.
|
Available disc space does |
|
|
|
|
Available disc space |
||||
|
not increase even after |
|
|
|
|
increases after deleting |
||||
|
deleting |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Title |
Title |
...... |
|
Last title |
Available |
||||
|
|
|
|
|
|
|
recorded |
disc space |
||
|
|
|
|
|
|
|
|
|
||
|
|
|
|
Later recorded |
|
|||||
|
|
|
|
titles |
|
|
|
|
||
|
Title |
Deleted |
...... |
|
Last title |
Available |
||||
|
|
|
|
|
|
|
recorded |
disc space |
||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
This space become available for recording after all the later recorded titles are deleted.
≥[-R] [-R]DL] [+R] [+R]DL] Available space does not increase even after the contents are deleted.
Using the DELETE Navigator to delete
1 While stopped
Press [FUNCTION MENU].
2 Press [3, 4] to select “Delete” and press [OK].
3 Press [3, 4] to select “Video” and press [OK].
DELETE Navigator |
Grouped Titles |
HDD |
VIDEO PICTURE MUSIC |
10.10. |
11.10. |
2 |
|
Previous |
Page 02/02 |
Next |
|
OK |
OPTION |
Select |
Previous |
Next |
|
||||
RETURN |
|
|
|
|
4 Press [3, 4, 2, 1] to select the title and press [;].
A check mark is displayed. Repeat this step until you select all necessary items.
≥Press [;] again to cancel.
To show other pages
Press [:, 9] to show other pages.
You can confirm the titles, that you have selected using the option menu.
≥Refer to option menu operations for the “Title View” (> 36, step 4).
5 Press [OK].
6 Press [2] to select “Delete” and press
[OK].
The title is deleted.
To return to the previous screen
Press [RETURN].
To exit the screen
Press [EXIT].
Deleting during play
1 While playing
Press [DELETE ¢].
2 Press [2, 1] to select “Delete” and press [OK].
The title is deleted.
Basic operations
RQT9274
19
Advanced operations
Notes for recording
When recording a |
[HDD] [RAM] |
|
[-R] [-RW‹V›] [+R] [+RW] |
bilingual programme |
Both main and secondary audio can be recorded. |
Select the main or secondary audio before |
|
|
You can change the audio during playback. |
recording |
|
|
(> 26, Changing audio during play) |
(> 59, Bilingual Audio Selection) |
|
|
However in the following cases, select whether to |
M 1 |
|
|
record the main or secondary audio: |
Hello |
|
|
– Recording sound in LPCM (> 59, Audio Mode for |
||
|
|
||
|
XP Recording) |
|
The selected |
|
– “Rec for High Speed Copy” is set to “On” (The |
||
|
default setting is “On”. > 58) |
audio only is |
|
|
M 1 |
M 2 |
recorded. |
|
|
||
|
Hello |
Hallo |
|
|
|
|
[HDD] [RAM] [-R] [-RW‹V›] [+R] [+RW] |
|
|
|
If you record from external equipment |
|
|
|
– Select “M 1” or “M 2” on the external equipment. |
About the aspect when |
[HDD] [RAM] (When “Rec for High Speed Copy” is set to “On”) |
[HDD] [RAM] (When “Rec for High Speed Copy” is set to “Off”) |
|
recording a programme |
[-R] [-RW‹V›] |
|
The programme will be recorded in the original |
|
If “Aspect for Recording” in the Setup menu is set to |
aspect. |
|
|
“Automatic” (The default setting is “Automatic” > 58), |
|
|
|
the programme will be recorded in the original aspect |
|
|
|
used when recording started (including when |
|
|
|
recording started at a commercial, etc.). If recorded |
[+R] [+RW] |
|
|
with a different aspect, select the correct aspect |
The programme will be recorded in 4:3 aspect. |
|
|
(“16:9” or “4:3”). |
|
|
However, in the following cases, programme will be recorded in 4:3.
[-R] [-RW‹V›]
Programme recorded using “EP” or “FR (recordings 5 hours or longer)” recording modes will be recorded in 4:3 aspect.
When you want to copy |
[-R] [-R]DL] [-RW‹V›] [+R] [+R]DL] [+RW] |
|
||||||||
titles in high speed |
Set “Rec for High Speed Copy” to “On” before recording to the HDD. |
|||||||||
mode from the HDD to |
(The default setting is “On”. > 58) |
|
||||||||
DVD-R, etc. |
You can copy titles in high speed mode (max. speed is 75X§); however, the audio and aspect settings |
|||||||||
|
(@ above) are necessary before recording to the HDD. |
|||||||||
|
§ Depending on the disc, max. speed may vary. |
|||||||||
|
|
|
Record to the HDD |
High speed copy to DVD-R, etc. |
||||||
|
|
|
|
|
|
|
|
|
HDD |
|
|
|
|
|
|
|
|
|
|
|
|
When recording the |
It is not possible to record the broadcasts that allow “One time only recording” onto DVD-R, DVD-RW, +R, |
|||||||||
“One time only |
+RW or 8 cm DVD-RAM discs. Use the HDD or CPRM (> 78) compatible DVD-RAM. |
|||||||||
recording” broadcasts |
[RAM] CPRM compatible discs only. |
|
||||||||
|
|
|
|
|
|
|
|
|
|
[-R] [-RW‹V›] [+R] [+RW] |
|
|
|
|
|
|
|
|
|
|
(≤: Can do, –: Cannot do) |
|
[HDD] |
|||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
≥“One time only recording” titles can only be transferred from the HDD to CPRM compatible DVD-RAM (They are deleted from the HDD). They cannot be copied.
≥Even when copying to videotape the title may not be copied correctly because of the copy guard. ≥You cannot copy a playlist created from “One time only recording” titles.
Playing the disc on |
[-R] [-R]DL] [-RW‹V›] [+R] [+R]DL] |
|
other DVD players |
The disc must be finalised after recording or copying (> 56). |
|
|
It is necessary to finalise DVD-R, etc. on this unit after recording or copying titles to them. You can then play |
|
|
them as a commercially sold DVD-Video. However, the discs become play-only and you can no longer record |
|
|
or copy.§ |
|
|
§ You can record and copy again if you format DVD-RW. |
|
|
Record to DVD-R, etc. |
Play on other DVD equipment |
|
|
|
|
Finalise |
|
|
[+RW] |
|
|
If the disc failed to play on other equipment, we recommend you create top menu (> 56). |
|
Recording to DVD-R DL |
You cannot directly record to a DVD-R DL and +R DL disc on this unit. |
|
and +R DL |
Record to the HDD and then copy to the disc. |
|
≥It is not possible to record to both the HDD and the DVD drive simultaneously.
RQT9274
20
Advanced recording
Recording modes and approximate recording times
Depending on the content being recorded, the recording times may become shorter than indicated. (The times provided on this chart are an estimate.)
Recording Mode |
HDD |
DVD-RAM |
DVD-R |
DVD-R DL§3 |
+R DL§3 |
||
|
|
|
|
|
DVD-RW |
(8.5 GB) |
(8.5 GB) |
|
[EH59] |
[EH69] |
Single- |
Double- |
+R |
|
|
|
(250 GB) |
(320 GB) |
sided |
sided§1 |
+RW |
|
|
|
|
|
(4.7 GB) |
(9.4 GB) |
(4.7 GB) |
|
|
|
|
|
|
|
|
|
|
XP (High picture |
55 hours |
71 hours |
1 hour |
2 hours |
1 hour |
1 hour 45 min. |
1 hour 45 min. |
quality recording |
|
|
|
|
|
|
|
mode) |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
SP (Standard |
110 hours |
142 hours |
2 hours |
4 hours |
2 hours |
3 hours 35 min. |
3 hours 35 min. |
recording mode) |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
LP (Long |
221 hours |
284 hours |
4 hours |
8 hours |
4 hours |
7 hours 10 min. |
7 hours 10 min. |
recording mode) |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
EP (Extra long |
441 hours |
567 hours |
8 hours |
16 hours |
8 hours |
14 hours 20 min. |
|
recording mode)§4 |
(331 hours§2) |
(426 hours§2) |
(6 hours§2) |
(12 hours§2) |
(6 hours§2) |
(10 hours 45 min.§2) |
|
FR (Flexible |
441 hours |
567 hours |
8 hours |
8 hours |
8 hours |
14 hours 20 min. |
Approximately |
Recording |
maximum |
maximum |
maximum |
maximum |
maximum |
|
9 hours with video |
Mode)§4 |
|
|
|
for one side |
|
|
quality equivalent |
|
|
|
|
|
|
|
to LP mode. |
|
|
|
|
|
|
|
|
§1 It is not possible to record or play continuously from one side of a double sided disc to the other. §2 When “Recording time in EP mode” is set to “EP ( 6Hours )” in the Setup menu (> 58).
The sound quality is better when using “EP ( 6Hours )” than when using “EP ( 8Hours )”.
§3 You cannot record directly to DVD-R DL and +R DL discs with this unit. The table shows the recording time when copying. [+R]DL] You cannot copy in “EP” or “FR (recordings 5 hours or longer)” mode.
§4 When recording to the HDD in “EP” or “FR (recordings 5 hours or longer)” mode, you cannot perform high-speed copy to +R, +R DL or +RW discs.
≥[RAM] When recording to DVD-RAM using “EP ( 8Hours )” mode, play may not be possible on DVD players that are compatible with DVD-RAM. Use “EP ( 6Hours )” mode if playback may be on other equipment.
[HDD]
≥You can record up to 499 titles on HDD. (When continuously recording for long durations, titles are automatically divided every 8 hours.)
[RAM] [-R] [-RW‹V›]
≥You can record up to 99 titles on one disc.
[+R] [+RW]
≥You can record up to 49 titles on one disc.
FR (Flexible Recording Mode)
You can set FR (Flexible Recording) mode when copying or programming timer recordings.
The unit automatically selects a recording rate between XP and EP ( 8Hours ) that will enable the recordings to fit in the remaining disc space with the best possible recording quality.
For example with a 90 minute recording to an unused DVD-RAM, the picture quality is adjusted to between “XP” and “SP”. ≥When recording to the HDD, picture quality is automatically adjusted to precisely fit a copied title on a 4.7 GB disc.
≥All the recording modes from XP to EP appear in the display.
REC
When the format confirmation screen is displayed
[RAM] [-RW‹V›] [+R] [+R]DL] [+RW]
When you insert a new disc or a disc recorded on a computer or other equipment, a format confirmation screen is displayed. Format the disc to use it. However, all the recorded contents are deleted.
Format
This disc is not formatted properly.
Do you want to format the disc now ?
Yes No
SELECT
OK
RETURN
Press [2, 1] to select “Yes” and press [OK].
To format a disc
“Deleting all the contents—Format” (> 55)
When removing a recorded disc
[-R] [-R]DL] [-RW‹V›] [+R] [+R]DL]
The following screen appears when you have not processed the disc for play on other equipment.
Finalise
Finalise the disc so that it can be played on other DVD players.
Note: Recording or Editing is not possible after finalising. This may take up to
min.
Press the REC button to start finalise.
Press the OPEN/CLOSE button to exit.
The disc cannot be played on other
DVD players without finalising.
∫ To finalise the disc
Press [¥ REC] on the main unit.
≥You cannot stop this process once you have started it.
≥If you want to set the background, play menu select or provide a disc name, select “Top Menu” (> 56), “Auto-Play Select” (> 56) or “Disc Name” (> 54) in “DVD Management” before finalising.
∫ To open the tray without disc finalisation
Press [< OPEN/CLOSE] on the main unit.
Advanced operations
RQT9274
21
Advanced recording
Flexible Recording
(Recording that fits the remaining disc space)
[HDD] [RAM] [-R] [-RW‹V›] [+R] [+RW]
The unit sets the best possible picture quality that fits the recording within the remaining disc space. The recording mode becomes FR mode.
∫ Using “Flexible Rec” is convenient in these kinds of situations.
[RAM] [-R] [-RW‹V›] [+R] [+RW]
≥When the amount of free space on the disc makes selecting an appropriate recording mode difficult
≥When you want to record a long programme with the best picture quality possible
[HDD]
≥When you want to record a title to HDD so that it can then be copied to fit one 4.7 GB disc perfectly
≥You do not need to edit the recorded title, or change the recording mode when copying, to fit the disc space.
e.g., Recording a 90 minute programme to disc
If you select XP mode, the programme will not fit one disc.
|
|
If you try to record a 90-minute |
|
|
|
programme in XP mode, only the |
|
|
|
first 60 minutes will fit on the disc |
|
4.7GB |
4.7GB |
and the 30-minute balance will not |
|
get recorded. |
|||
DVD-RAM |
DVD-RAM |
||
|
|
≥Another disc is necessary. |
If you select SP mode, the programme will fit one disc.
However there will be 30 minutes remaining disc space.
4.7GB DVD-RAM
If you select “Flexible Rec” the programme will fit one disc perfectly.
4.7GB DVD-RAM
Necessary space for recording
Preparation
≥Select the channel or the external input to record. ≥Press [DRIVE SELECT] to select the HDD or DVD drive.
|
1 |
While stopped |
|
|
|
|
|
|
|||||||
|
|
|
Press [F Rec]. |
|
|
|
|
|
|
||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Flexible Rec |
|
Maximum recording time |
|
|
|||||||
|
|
|
|
Record in FR mode. |
|
|
|
||||||||
|
|
|
|
|
This is the maximum recording |
|
|
||||||||
|
|
|
Maximum rec. time |
8 Hour 00 Min. |
|
|
|
|
|
||||||
|
|
|
|
|
|
|
|
|
|
time in EP ( 8Hours ) mode. |
|
|
|||
|
|
|
|
Set rec. time |
|
8 Hour 00 Min. |
|
|
|
|
|||||
|
2 |
|
Start |
|
Cancel |
|
|
|
|
|
|
|
|
||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||
|
Press [2, 1] to select “Hour” and |
|
|
||||||||||||
|
|
|
“Min.” and press [3, 4] to set the |
|
|
||||||||||
|
|
|
recording time. |
|
|
|
|
|
|
||||||
|
|
|
≥You can also set the recording time with the numbered |
|
|
||||||||||
|
|
|
|
buttons. |
|
|
|
|
|
|
|
|
|
|
|
|
3 |
≥You cannot record more than 8 hours. |
|
|
|
|
|
||||||||
|
When you want to start recording |
|
|
|
|
|
|||||||||
|
|
|
Press [3, 4, 2, 1] to select “Start” |
|
|
||||||||||
|
|
|
and press [OK]. |
|
|
|
|
|
|
||||||
|
|
|
≥Recording starts. |
|
|
|
|
|
|
||||||
|
|
|
≥All the recording modes from XP to EP appear in |
|
XP |
|
|||||||||
|
|
|
|
SP |
|
||||||||||
|
|
|
|
the display. |
|
|
|
|
|
|
|
|
|
||
|
|
|
|
|
|
|
|
|
|
|
|
LP |
|
||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
EP |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
To exit the screen without recording |
e.g., HDD |
|||||||||||||
|
Press [RETURN]. |
|
|
|
|
|
|
|
|
|
|
||||
|
To stop recording partway |
Remaining |
HDD |
|
|
||||||||||
|
Press [∫]. |
|
|
|
|
REC 0:59 |
|
||||||||
|
|
|
|
|
time of |
|
|||||||||
|
To show the remaining time |
ARD |
|
|
|||||||||||
RQT9274 |
recording |
M 1 / M 2 |
|||||||||||||
Press [STATUS]. |
|
|
|
|
|
L R |
|
|
|||||||
Playing while you are recording
[HDD] [RAM]
Playing from the beginning of the title you are recording—Chasing playback
Press [1] (PLAY) during recording.
There is no sound output while searching forward or backward.
To stop play
Press [∫].
To stop recording
2 seconds after play stops, press [∫].
To stop timer recording
2 seconds after play stops
1Press [∫].
2Press [2, 1] to select “Stop Recording” and press [OK].
Playing a title previously recorded while recording— Simultaneous rec and play
≥You can also change the drive and play while recording. Press [DRIVE SELECT].
1 Press [DIRECT NAVIGATOR] during recording.
2 Press [3, 4, 2, 1] to select a title and press [OK].
≥There is no sound output while searching forward or backward.
To stop play
Press [∫].
To exit the DIRECT NAVIGATOR screen
Press [DIRECT NAVIGATOR].
To stop recording/To stop timer recording
After play stops
1Press [DIRECT NAVIGATOR] to exit screen.
2Press [∫].
3If the recording stop confirmation screen is displayed, press [2, 1] to select “Stop Recording” and press [OK].
Note
“Chasing playback” and “Simultaneous rec and play” can only be used with programmes of the same encoding system (PAL/NTSC).
22
Copying from a video cassette recorder
e.g., Connecting to the AV3 or DV input terminals on the front
You can also connect to the AV4 input terminals on the rear.
≥Turn off the unit and other video equipment before connecting.
REC |
This unit
DV IN |
S VIDEO |
VIDEO L/MONO - AUDIO- R |
|
|
AV3 IN |
DV cable |
S Video |
|
(IEEE 1394, 4-pin) |
cable§1 |
Audio/Video |
|
|
cable§2 |
Other video equipment |
|
|
Connect to Audio/Video output terminals.
If the audio output of the other equipment is monaural
Connect to L/MONO on the AV3 input terminals at the front.
§1 The S VIDEO terminal achieves a more vivid picture than the VIDEO terminal.
§2 Connect to terminals of the same colour.
When recording from the unit’s DV terminal
≥Select the type of audio recording from “Audio Mode for DV Input” in the Setup menu (> 59).
≥When recording from DV equipment (e.g., digital video camcorder), you can record audio/video recordings from DV tape only.
≥When “Rec for High Speed Copy” (> 58) is set to “On” and you make a copy, the copy will be made using the picture size selected in “Aspect for Recording” (> 58) of the Setup menu.
About the aspect when recording a programme (> 20)
Note
≥If it becomes time for a timer recording to start while copying, the recording will start and the copying will stop.
≥If video is copied from another piece of equipment to this unit, then the video quality will be degraded.
Manual recording
[HDD] [RAM] [-R] [-RW‹V›] [+R] [+RW]
Preparation
≥Press [DRIVE SELECT] to select the HDD or DVD drive. ≥Press [REC MODE] to select the recording mode.
≥When recording bilingual programmes (> 20, Notes for recording) ≥When the output signal from the external equipment is NTSC,
change the “TV System” to “NTSC” in the Setup menu (> 60). This unit cannot record NTSC signals to discs that already have PAL signal recordings. (However, both types of programmes can be recorded onto the HDD.)
≥To reduce noise in input from a video cassette recorder, set “Input NR” to “On” in the on-screen menu (> 53).
≥Check the time on the unit is correct.
1 While stopped
Press [INPUT SELECT] to select the input channel for the equipment you have connected.
e.g., If you have connected to AV3 input terminals, select “AV3”.
2 Start play on the other equipment.
3 When you want to start recording
Press [¥ REC].
Recording starts.
To skip unwanted parts
Press [;] to pause recording. (Press again to restart recording.)
To stop recording
Press [∫].
Almost all videos and DVD-Video on sale have been treated to prevent illegal copying. Any software that has been so treated cannot be recorded using this unit.
≥Using Flexible Recording (> 22), you can record the content of a video cassette (approx. 1–8 hours) to a 4.7 GB disc with the best possible quality of recording without wasting disc space.
DV automatic recording (DV Auto Rec)
[HDD] [RAM] [-R] [-RW‹V›] [+R] [+RW]
[HDD] [RAM] When the “DV Auto Rec” function is used, programmes are recorded as a title while at the same time chapters are created at each break in the images and the playlist is created automatically.
Preparation
1Turn off the main unit and DV equipment, then connect the equipment with the unit’s DV input terminal (@ left).
2Turn on the main unit.
≥When the output signal from the external equipment is NTSC, change the “TV System” to “NTSC” in the Setup menu (> 60).
1 Turn on the DV equipment, and pause
play at the point you want recording to start.
The following screen appears.
DV Auto Rec
DV unit is connected. |
|
||
Record from the DV unit? |
|||
Rec to HDD |
Rec to DVD |
Cancel |
|
|
SELECT |
|
|
|
OK |
RETURN |
|
≥When the screen is not displayed |
|
||
After performing step 1 |
|
||
1 |
Press [DRIVE SELECT] to select the HDD or DVD drive. |
|
|
2 |
Press [FUNCTION MENU]. |
|
|
3 |
Press [3, 4] to select “Others” and press [OK]. |
|
|
4 |
Press [3, 4] to select “DV Auto Rec” and press [OK]. |
|
|
|
@Go to step 3 (@ below) |
Advanced operations |
|
2 Press [2, 1] to select “Rec to HDD” |
|||
|
|||
or “Rec to DVD” and press [OK].
3 Press [REC MODE] to select the recording mode.
4 Press [2, 1] to select “Rec” and press [OK].
Recording starts.
When recording finishes
The confirmation screen appears. Press [OK] to finish DV automatic recording.
To stop recording
Press [∫].
Note
≥Only one piece of DV equipment (e.g., digital video camcorder) can be connected to the unit via the DV input terminal.
≥It is not possible to operate the unit from the connected DV equipment. ≥The DV input on this unit is for use with DV equipment only. (It
cannot be connected to a computer, etc.)
≥The DV equipment name may not be shown correctly. ≥Depending on the DV equipment, the images or audio may not be
input properly.
≥The date and time information on the tape of the DV equipment will not be recorded.
≥You cannot record and play simultaneously.
If the DV automatic recording function does not work properly, check the connections and DV equipment settings, and turn the unit off and back on.
If that does not work, follow the instructions for manual recording (@ left).
RQT9274
23
|
|
Advanced timer recording |
|
|
|
|
||||||
[HDD] [RAM] [-R] [-RW‹V›] [+R] [+RW] |
|
|
To cancel recording when recording |
|||||||||
≥You can enter up to 32 programmes up to a month in advance. |
|
|||||||||||
(Each daily or weekly programme is counted as one programme.) |
|
has already begun |
|
|||||||||
|
|
|
|
|
|
|
|
|
|
|
||
[RAM] [-RW‹V›] [+R] [+RW] |
|
|
|
|
1 While the unit is on |
|
||||||
≥To use a new disc, formatting is necessary. |
|
|||||||||||
|
|
|
|
|
|
|
|
|
|
|||
Preparation |
|
|
|
|
|
|
|
Press [∫]. |
|
|
||
≥Turn on the television and select the appropriate AV input to suit |
|
|
|
|||||||||
the connections to this unit. |
|
|
|
Stop Recording |
|
|||||||
≥If recording to DVD, insert a disc that you can use for recording (> 15). |
|
|
|
|
||||||||
≥Make sure that the clock settings are correct (> 61). |
|
Timer recording in progress. |
|
|||||||||
|
|
|
|
|
|
|
|
|
|
Stop this timer recording? |
|
|
|
Manually programming timer |
|
It will be cancelled if you stop. |
|
||||||||
|
|
Stop Recording |
Cancel |
|
||||||||
|
recordings |
|
|
|
|
|
SELECT |
|
|
|||
1 |
|
|
|
|
|
OK |
RETURN |
|
||||
Press [PROG/CHECK]. |
2 Press [2, 1] to select “Stop |
|||||||||||
|
|
Timer |
Remain |
HDD |
30:24 SP DVD 1:58 SP |
|
Recording” and press [OK]. |
|||||
|
|
Recording |
|
|
|
TUE 18.08.09. 12:53:00 |
|
If you stop a timer recording, it will be cancelled. However, if |
||||
|
|
No. Channel |
Date |
Start |
Stop |
HDD |
Mode |
Drive |
|
|||
|
|
DVD |
space |
|
you have set a weekly or daily timer recording, the recording |
|||||||
|
|
01 ARD |
15. 7.TUE 19:00 |
20:00 |
HDD |
SP |
OK |
|
||||
|
|
|
will start from the next time the timer recording is set. |
|||||||||
|
|
|
New Timer Programme |
|
|
|
||||||
2 Press [3, 4] to select “New Timer |
|
To release the unit from recording |
||||||||||
|
Programme” and press [OK]. |
|
standby |
|
|
|||||||
3 Press [1] to move through the items |
Even when the unit is turned off, you can display the timer recording |
|||||||||||
list by pressing [PROG/CHECK]. |
|
|||||||||||
|
and change the items with [3, 4]. |
1 |
Press [PROG/CHECK]. |
|||||||||
|
|
|
|
|
|
|
|
|
||||
|
|
Timer |
Remain |
HDD |
30:24 SP |
DVD |
1:58 SP |
2 Press [3, 4] to select the programme |
||||
|
|
Recording |
|
|
|
TUE 18.08.09. 12:54:00 |
||||||
|
|
|
|
|
|
|||||||
|
|
|
|
|
|
|
|
|
||||
|
|
Channel |
Date |
Start |
Stop |
HDD |
Mode |
|
|
and press the “Red” button. |
||
|
|
DVD |
|
|
||||||||
|
|
1 ARD |
25. 8. TUE |
22:00 |
22:30 |
HDD |
SP |
|
|
|||
|
|
|
|
≥The timer icon “F” (> 25) disappears from the timer |
||||||||
|
|
|
|
|
|
|
|
|
|
|||
|
|
|
|
|
|
|
Programme Name |
|
recording list. |
|
|
|
|
≥Press and hold [3, 4] to alter the Start (Start time) and Stop |
|
≥You cannot cancel timer recording standby mode as long as |
|||||||||
|
|
even one timer icon “F” (> 25) remains in the timer |
||||||||||
|
|
(Finish time) in 30-minute increments. |
|
recording list. |
|
|
||||||
|
≥You can also set Channel (Programme position/TV Station |
|
≥Press the “Red” button again to activate timer recording |
|||||||||
|
|
Name), Date, Start (Start time), and Stop (Finish time) with |
|
standby. |
|
|
||||||
|
|
the numbered buttons. |
|
|
Notes on timer recording |
|||||||
|
≥Date |
|
|
|
|
|
|
|
||||
|
[. Date: |
|
Current date up to one month later minus |
|
||||||||
|
l |
;: |
|
|
one day |
|
≥When a timer recording is set, DVDs that were recorded using a |
|||||
|
l |
Daily timer: |
SUN-SAT>MON-SAT>MON-FRI |
different TV system cannot be played unless the TV system is |
||||||||
|
l |
;: |
|
|
|
|
|
|
changed in the Setup menu (> 60) or the timer recording has |
|||
|
l |
|
|
|
|
|
|
completed or has been cancelled. |
|
|||
|
a. Weekly timer: SUN>--->SAT |
≥Timer recordings are activated regardless of whether the unit is |
||||||||||
|
|
Titles recorded using the same daily or weekly timer are |
||||||||||
|
|
turned on/off. |
|
|
||||||||
|
|
bundled and displayed as a “group” in the |
|
|
||||||||
|
|
≥Timer recordings begin when the set time is reached even when |
||||||||||
|
|
DIRECT NAVIGATOR screen (> 27) except when using |
playing. |
|
|
|||||||
|
|
Auto Renewal Recording. |
≥Timer recordings do not begin while editing or copying in normal |
|||||||||
|
≥You can also press [DRIVE SELECT] to select the recording |
speed mode (> 43). |
|
|
||||||||
|
|
drive. |
|
|
|
|
|
|
≥If the unit is turned on when timer recording begins, it remains |
|||
|
|
When the recording drive is “DVD” and there is not enough |
||||||||||
|
|
turned on after recording finishes. It does not turn off automatically. |
||||||||||
|
|
remaining space, recording automatically switches to the |
You can turn the unit off during timer recording. |
|||||||||
|
|
“HDD” (> 25, Relief Recording). |
||||||||||
|
|
≥When you programme successive timer recordings to start |
||||||||||
|
≥You can also press [REC MODE] to change the recording |
immediately one after the other, the unit cannot record the part at |
||||||||||
|
|
mode. |
|
|
|
|
|
|
the beginning of the later programmes. |
|||
|
≥[HDD] RENEW (Auto Renewal Recording) (> 25) |
|||||||||||
|
|
|
|
|
||||||||
|
|
ON!)OFF |
|
|
|
|
|
Programme |
Programme |
Not recorded |
||
|
≥Programme Name |
|
|
|
|
|
||||||
|
|
Press [2, 1] to select “Programme Name” and press [OK]. |
|
|
|
|
||||||
4 |
|
(> 42, Entering text) |
|
|
|
Recorded |
Recorded |
|
||||
Press [OK]. |
|
|
|
|
|
|||||||
|
|
|
|
|
|
|
||||||
|
The timer programme is stored and the timer icon is |
≥If the actual broadcasting times of timer recordings overlap, the |
||||||||||||||
|
recording that starts first always has priority, and the recording of |
|||||||||||||||
|
displayed. |
|
|
|
|
|
|
|
|
|
|
|
|
|
||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
the later programme will start only after the first timer recording has |
||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
No. Channel |
finished. |
||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|||
|
|
|
Timer icon |
|
|
|
|
|
|
01 |
|
ARD |
|
|||
|
|
|
|
|
|
|
|
|
|
|
||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
“F” lights on the unit’s display to indicate timer recording |
|
||||||||||||||
|
standby has been activated. |
|
|
|
|
|
|
|
|
|
||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||
|
|
TUE 18.08.09 12:56:00 |
|
|
|
|
|
|
|
|
|
|||||
|
Stop |
HDD |
Mode |
Drive |
|
|
|
|
|
|
|
|
|
|
||
|
DVD |
space |
|
|
Check to make sure “OK” |
|
||||||||||
|
20:00 |
HDD |
SP |
OK |
|
|
|
|
||||||||
|
|
|
|
|
||||||||||||
|
Programme |
|
|
|
|
|
|
is displayed (> 25). |
|
|||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Repeat steps 2–4 to programme other recordings. |
|
|
|||||||||||||
RQT9274 |
Press [Í] to turn the unit off. |
|
|
|
|
|
|
|
|
|
||||||
24
Loading...
