TABLE LAMP
User manual and
service information
Energy-saving table lamp TL1710 ..................................................2
Operating and Safety Instructions
IAN 49213 Version v1.9
Energy-saving table lamp TL1710
Table of Contents
Package Contents .................................................................................................. 3
Safety Instructions .................................................................................................. 4
Power Cord ......................................................................................................... 5
Intended Use....................................................................................................... 5
Conformity ........................................................................................................... 5
Technical Specifications ......................................................................................... 6
Getting Started........................................................................................................ 7
Assembling the Lamp.......................................................................................... 7
Model B / Model C ........................................................................................... 7
Model A............................................................................................................ 8
Powering the Device On/Off................................................................................ 9
The Lamp's Operating Modes ......................................................................... 9
Appendix ............................................................................................................... 11
Replacing the Bulb ............................................................................................ 11
Cleaning ............................................................................................................ 11
Disposal of Old Devices .................................................................................... 12
Warranty Information......................................................................................... 13
English - 2
Package Contents
Energy-saving table lamp TL1710

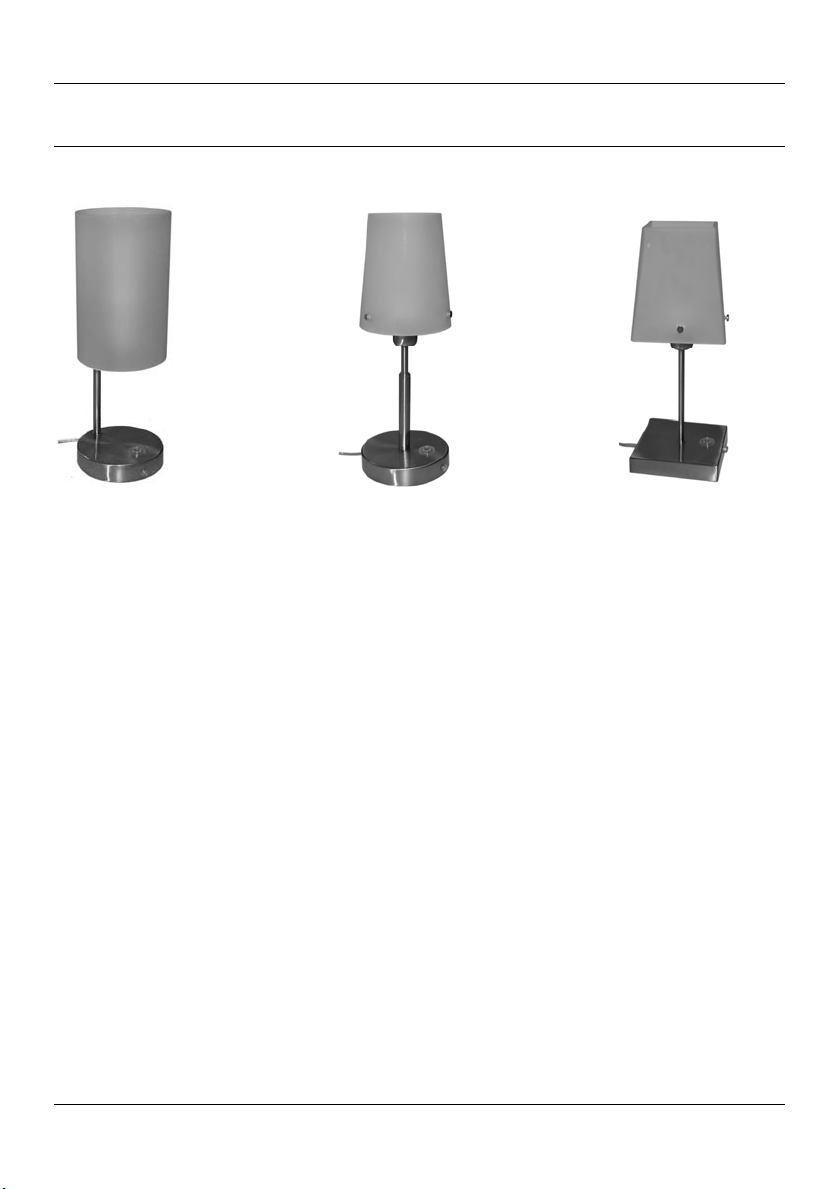

1 Lampshade (design depending on model)
2 On/Off switch with timer selection and control lights
3 Daylight sensor
4 Power cable with cord On/Off switch
User manual and assembly instructions with service
5
information (not illustrated)
3 - English
Energy-saving table lamp TL1710
Safety Instructions
Before you use this device for the first time, please read the following notes in this
manual and heed all warnings, even if you are familiar with handling electronic
devices. Keep this manual safe for future reference. If you sell the device or pass
it on, it is essential you hand over this manual also.
This icon denotes important information for the safe operation
of the product and for the user’s safety.
This symbol denotes further information on the topic.
Never use any optical devices such as a lens to look directly into the light
beam.
Electrical devices do not belong in the hands of children. Do not allow
children to use electrical devices when not under supervision. Children may
not comprehend the presence of potential risks. Keep the packaging away
from children too as there is danger of suffocation.
If you notice any smoke, unusual noise or strange smells, switch off the
device immediately and pull the plug from the wall outlet. Do not breath in any
smoke originating from a device fire. In these cases the device should not be
used further and should be inspected by authorized service personnel.
The lamp housing and the power cord must not be damaged in any way. Stop
using the lamp immediately if you find any cables damaged.
Never open the device housing.
English - 4
Energy-saving table lamp TL1710
Power Cord
Unplug the power cord by holding the plug and never pull on the cable itself.
Never place the device, pieces of furniture or other heavy objects on the cable
and take care that this does not become trapped. Never make knots in the cable
and do not tie it together with other cables. All cables should be positioned so that
nobody can trip over them or be obstructed by them. Never use adapter plugs or
extension cables that do not comply with the current safety regulations in your
country, and do not modify any of the cables yourself.
Intended Use
The energy-saving table lamp TL1710 can be used as an energy-saving
occasional lamp. The lamp randomly switches off and on and can therefore easily
make it seem that you are present and thus prevent break-ins. Please remember
that this function does not relieve you of your duty to make sure doors and
windows in your home are kept locked.
This lamp is not intended for use with a dimmer switch. Always make sure the
lamp is on a stable surface. This lamp is not destined for commercial use. Any
modifications to the device other than recommended changes by the
manufacturer may result in these directives no longer being met.
Conformity
This device complies with the basic and other relevant
requirements of the EMC Directive 2004/108/EC and the Low
Voltage Directive 2006/95/EC.
5 - English
Energy-saving table lamp TL1710
Technical Specifications
Model A Model B Model C
Manufacturer: LivarnoLux
Model name: TL1710
Operating voltage: 230 V ~ 50 Hz
Cable length: 2 m
Bulb: 11W energy-saving bulb
Energy efficiency category A,
with bulb socket: E14
Dimensions of lampshade:
Model A
Height: approx. 20 cm
Diameter: approx. 12.5 cm
Model B
Height: approx. 15 cm
Dimensions at bottom: approx. 12.5 cm
Dimensions at top: approx. 9.5 cm
Model C
Height: approx. 15 cm
Bottom: approx. 12.5 x 12.5 cm
Top: approx. 9.5 x 9.5 cm
English - 6
Energy-saving table lamp TL1710
Getting Started
Please unpack all parts and check if the package contents are complete.
Assembling the Lamp
During assembly the power receptacle of the connection cable
must be removed from the mains outlet.
Where possible hold the bulb with a cloth to avoid getting any
dirt on the bulb.
Model B / Model C
Unscrew the plastic ring from the bulb socket counter-clockwise.
Place the lampshade over the socket and turn the plastic ring over it,
screwing it tight.
Screw the supplied bulb into the bulb socket.
7 - English
Energy-saving table lamp TL1710
Model A
Remove both screws (1) with the protective sleeve (2) and the
counterprofile (3) from the U-bolt on the lamp base.
Put one of the screws (1) through one of the protective sleeves (2) and
guide both from the outside through one of the two holes in the lampshade.
Hold the counterprofile (3) from the inside in front of the hole and guide the
screw (1) through.
Then turn the screw (1) in the corresponding hole on the U-bolt of the lamp.
Repeat the process with the second screw and the second protective
sleeve.
Screw the supplied bulb into the bulb socket (5).
1 Screw
2 Protective sleeve
3 Counterprofile
Position of
4
lampshade
5 Socket
English - 8

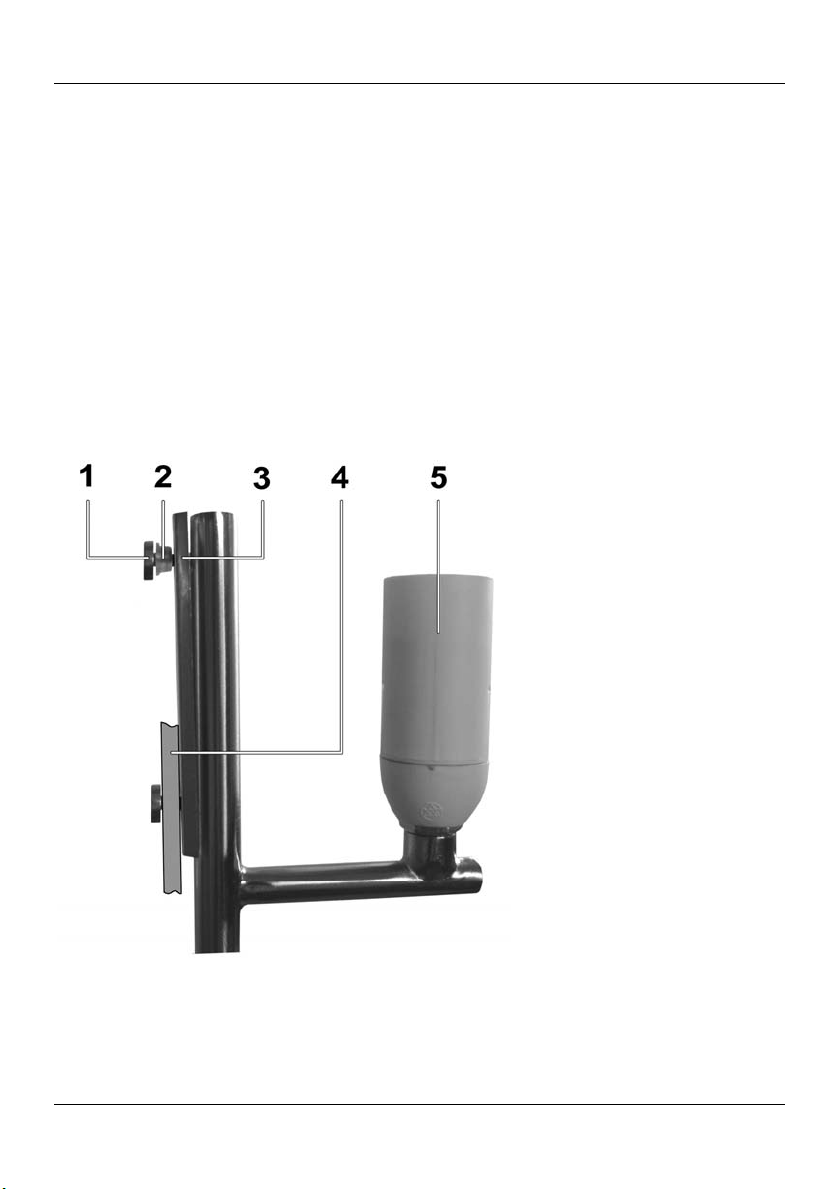

Figure: Lamp type A, Detailed figure of the screw joint
Energy-saving table lamp TL1710
Powering the Device On/Off
Notice on Mains Separation:
The device is only fully separated from the mains when the mains
plug is pulled out of the wall outlet. Switching off the device with
the On/Off switch does not disconnect the device from the mains.
Plug the power plug into a suitable power socket. No extension cables or
multiple outlet strips should be used that do not meet safety requirements.
Switch on the lamp using the cord On/Off switch (4). The first time it is
switched on the operating mode is set at "Z" (random). On the On/Off
switch (2), the operation mode "Z" control light lights red.
Using the On/Off switch (2), you can now switch the light on and off, or
change the operating mode:
Press the On/Off switch briefly:
Switches the lamp on/off
Press the On/Off switch for a longer time:
Changes the operating mode
The Lamp's Operating Modes
Using the On/Off switch (2), you can change the operating mode. For this,
the lamp must be switched on with the cord On/Off switch. One of the four
control lights on the On/Off switch will light.
Keep pressing the On/Off switch until the control light changes to the next
position.
Repeat the process until the desired operation mode has been reached.
Briefly press the On/Off switch to switch the lamp on or off.
9 - English
Energy-saving table lamp TL1710
The lamp can only be switched on and
M
off manually. Every automatic function is
disabled.
The lamp switches itself off after
I
approximately 1 hour.
The lamp switches itself off after
II
approximately 2 hours.
The lamp switches itself on and off at
Z
random intervals

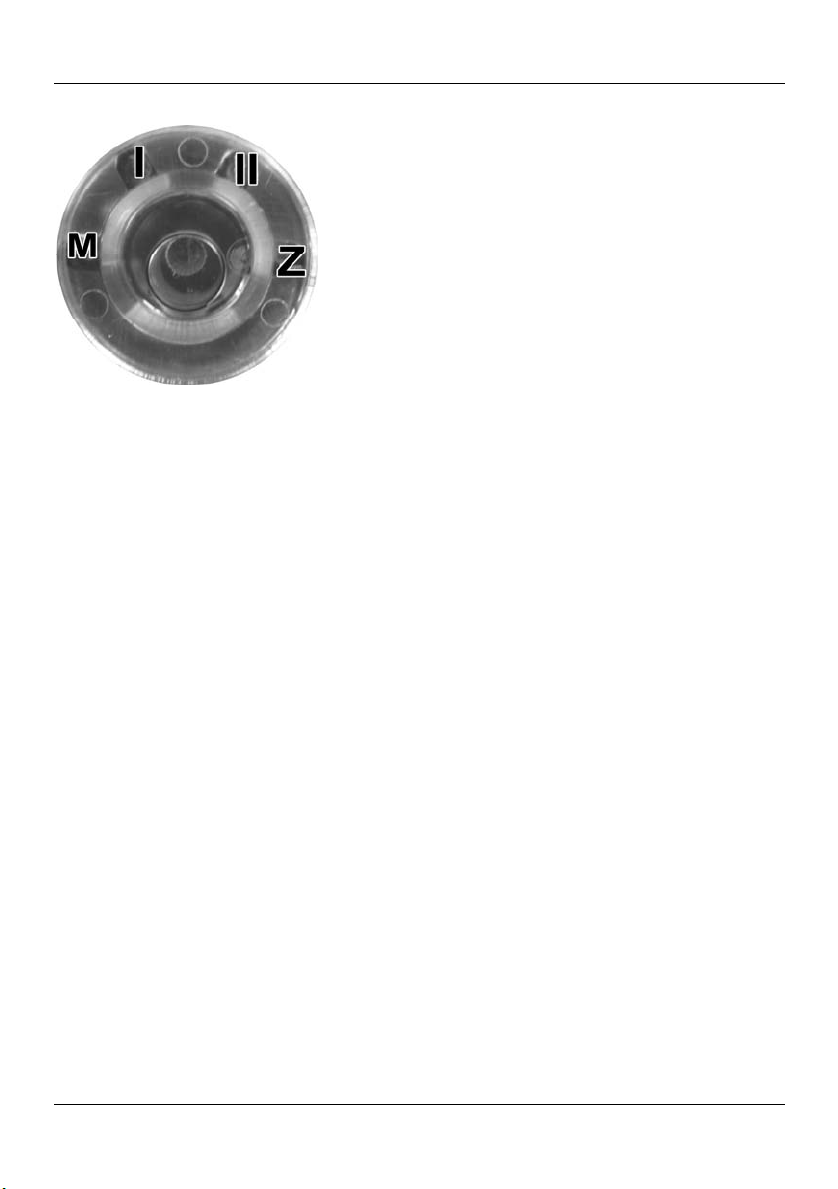

Figure: Detailed figure of the On/Off button
The Random Switch (Z)
The Random Switch only works in darkness. The level of environmental light is
measured electronically using the daylight sensors (3) on the front of the lamp
base, therefore make sure that the sensor is not affected by other light sources.
Operating times of the Random Switch
On: Randomly between approximately 15 and 120 minutes.
Off: Randomly between approximately 5 and 90 minutes.
(see below – The Random Switch).
English - 10
Energy-saving table lamp TL1710
Appendix
Replacing the Bulb
Use only a bulb of the same type.
Where possible hold the bulb with a cloth to avoid getting any dirt
on the bulb.
Unplug the mains plug from the wall outlet.
Unscrew the bulb counter-clockwise from the socket and remove the bulb
from above.
Screw a new bulb of the same type into the socket.
Cleaning
To clean the lamp use a dry cloth. Never use any solvents or cleaners. Make sure
that no liquid gets into the housing. When very dirty, use a slightly dampened
cloth.
11 - English
Energy-saving table lamp TL1710
Disposal of Old Devices
If the product is labeled with a struck-out waste bin, it is subject to
the European Guideline 2002/96/EC. All electric and electronic
devices must be disposed of separately from household waste at
established bodies. Do not dispose of this device in with domestic
trash. You can find out more information on collection points or
collection dates from your municipal administration or local waste
disposal company.
Recycle the packaging material properly also. Cardboard packaging can be taken
to paper recycling containers or public collection points for recycling. Any films or
plastic contained in the packaging should be taken to your public collection points.
Ensure the proper disposal of faulty energy-saving bulbs too. These can be
handed into the shop where you buy new bulbs or ask your local disposal
companies about public collection points for bulbs.
English - 12
Energy-saving table lamp TL1710
Warranty Information
36 month warranty from date of purchase
We ask you to read carefully through the enclosed documentation or online help
before putting your product into service. If you have a problem, which cannot be
solved in this way, please contact our hotline. In case that trouble solving over the
telephone is not possible, our hotline will arrange the service depending on the
fault of the device. This will contain the elimination of defects by production and
material at no charge.
This guarantee is valid in United Kingdom / Cyprus / Ireland.
Your statutory guarantees from the seller are in addition to this warranty and are
not limited by it.
Hotline:
0207 - 36 50 744
01 - 242 15 83
Please have your IAN / serial number at hand!
Manufacturer:
TARGA GmbH
Postfach 22 44
D-59482 Soest
www.targa.de
13 - English
EC-Declaration of Conformity
Address: Targa GmbH
Lange Wende 41
59494 Soest, Germany
Product: Table lamp
Model: LIVARNOLUX TL 1710
The product complies with the requirements of the following European
directives:
2004/108/EC Electromagnetic Compatibility
2006/95/EG Low Voltage
Compliance was proved by the application of the following standards:
EMC: EN 55015/A1: 2007
EN 61547/A1: 2000
EN 61000-3-2: 2006
EN 61000-3-3/A2: 2005
Safety: EN 60598-2-4: 1997
EN 60598-1: 2008 + A11: 2009
EN61058-1: 2002 + A2: 2008
Year of CE marking: 2010
Soest, 19th of May 2010 ____________________________________
Matthias Klauke, Managing Director
IE
GB
CY
TARGA GmbH
Lange Wende 41
D-59494 Soest
www.service.targa.co.uk
Mat-No: 1550598, 1550599, 1551450
6
Loading...
