Livarno LHS 55 A1 User Manual

Rechargeable Battery Flashlight



LHS 55 A1 ..............................................................

2

Operating and Safety Instructions



Ręczny reflektor akumulatorowy



LHS 55 A1 ............................................................

18

Instrukcja obsługi i bezpieczeństwa



LHS 55 A1 akkumulátoros kézilámpa...........

36

Kezelési és biztonsági utasítások



Polnilna ročna svetilka LHS 55 A1 ................

53

Navodila za uporabo in varnostna navodila



Nabíjecí akumulátorová svítilna LHS 55 A1 70

Provozní a bezpečnostní pokyny

Nabíjacie akumulátorové svietidlo



LHS 55 A1 ............................................................

87

Prevádzkové a bezpečnostné pokyny



Akku-Handstrahler LHS 55 A1....................

104

Bedienungsund Sicherheitshinweise



IAN 56622 Version / Wersja / Verziószám / Verzija / Verze / Verzia v1.3

Rechargeable Battery Flashlight LHS 55 A1



Table of Contents



Package Contents .................................................

3

Safety Instructions .................................................

4

Intended Use ......................................................

7

Description .............................................................

8

Technical Specifications.....................................

9

Rechargeable Battery Flashlight LHS 55 A1..

9

Approx. lighting duration with full battery......

10

Charger WJG-Y41120500D .........................

10

Car adapter...................................................

10

Getting Started.....................................................

11

Charging via the Charger .................................

11

Charging via the Car Adapter...........................

12

Powering the Flashlight On/Off............................

12

The Halogen Lamp .......................................

12

The LED Ring ...............................................

13

Blinking LED Warning Light..........................

13

LED Room Light ...........................................

13

Adjusting the Handle and Stand ..........................

13

Appendix ..............................................................

14

Cleaning ...........................................................

14

Servicing...........................................................

14

Replacing the Bulb .......................................

14

Disposal of Old Devices ...................................

16

Declaration of Conformity.................................

16

Warranty Information........................................

17

2 - English



Rechargeable Battery Flashlight LHS 55 A1

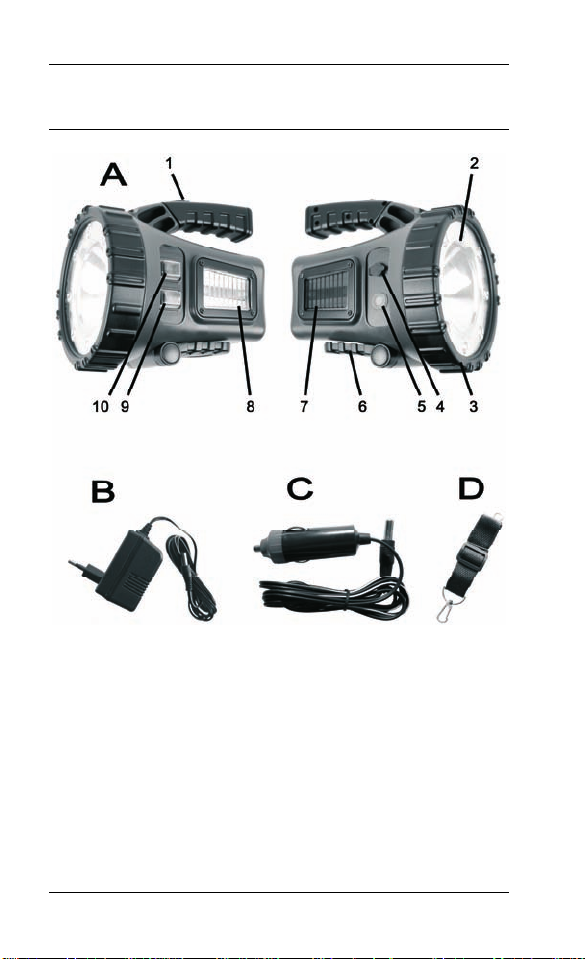

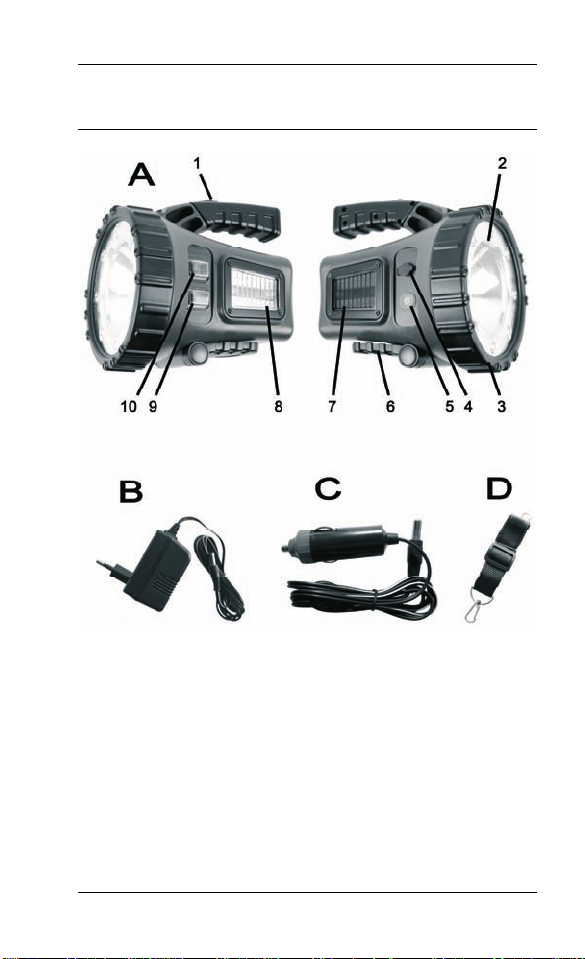

Package Contents

[A]Rechargeable Battery Flashlight LHS 55 A1

[B]Charger WJG-Y41120500D

[C]Car adapter (for 12V car battery)

[D]Strap

English - 3

Rechargeable Battery Flashlight LHS 55 A1

Safety Instructions

Before you use this device for the first time, please read the following notes in this manual and heed all warnings, even if you are familiar with handling electronic devices. Keep this manual in a safe place for future reference. If you sell the device or pass it on, it is essential that you also hand over this manual.

This icon denotes important information for the safe operation of the product and for the user’s safety.

The minimum distance to any lighted surfaces must be 50 cm (19.7 inches).

Every broken protective cover must be replaced.

4 - English

Rechargeable Battery Flashlight LHS 55 A1

LED Radiation! Avoid harm to the eyes! Never look into the LED beam. If you suspect any eye damage, consult a doctor.

The protective glass of the reflector becomes very hot in halogen light mode. There is a risk of injury upon touching it! Never cover the reflector while using the device otherwise overheating may occur!

Never use any optical devices such as a magnifying lens to look directly into the light beam as you may damage your eyes.

Electrical devices do not belong in the hands of children. Do not allow children to play with electrical devices when not under supervision. Children may not understand that they can be dangerous. Keep the packaging away from children too as there is danger of suffocation.

If smoke, unusual noises or smells are noticed, switch off the device immediately. Do not inhale any smoke originating from a device fire to avoid damage to your respiratory tract. If this occurs the device should no longer be used and should be inspected by authorized service personnel.

Make sure that the housing of the flashlight, of the charger WJG-Y41120500D and of the car adapter do not become damaged as there is danger of electric shock. Stop using the flashlight immediately if you find any cables

English - 5

Rechargeable Battery Flashlight LHS 55 A1

damaged.

The supplied devices do not contain any parts that require user maintenance. Never open the housing of the devices otherwise they can be damaged.

The supplied charger WJG-Y41120500D and the supplied car charger must be used to recharge the built-in battery of the flashlight only. The charger WJG-Y41120500D must not be used for continuous power supply. Never connect the charger WJG-Y41120500D or the car charger to other devices. Only recharge the built-in battery of your flashlight using the supplied charger WJG-Y41120500D or the supplied car adapter.

This flashlight has not been designed for use on vehicles. It must not be used as a replacement for a bicycle or motorbike headlamp.

Always make sure that:

no direct heat sources (e.g. radiators) can affect the device;

no direct sunlight or bright artificial light reach the device;

contact with abrasive liquids must be avoided and the appliance should never be operated near water. It must especially never be immersed;

the device should not be subject to excessive shocks and vibrations.

6 - English

Rechargeable Battery Flashlight LHS 55 A1

When not following the above warnings the device may become damaged.

Intended Use

The Rechargeable Battery Flashlight LHS 55 A1, hereafter called “flashlight” can be used as a mobile light beamer for hobbies, leisure or camping. The supplied charger WJG-Y41120500D allows you to recharge the built-in battery when a wall outlet is available. The car adapter allows you to recharge the battery from your vehicle.

This flashlight is not intended for commercial use. The device fulfils all relevant norms and standards associated with CE Conformity. Any modifications to the device other than recommended changes by the manufacturer may result in these standards no longer being met.

English - 7

Rechargeable Battery Flashlight LHS 55 A1

Description

The items in the figure have the following meaning:

[1]Slide switch for changing the handle position (carrying position / pistol position)

[2]Reflector

[3]Reflector ring

[4]Receptacle for charger WJG-Y41120500D or car adapter

[5]Charging indicator

[6]Adjustable stand

[7]Blinking LED warning light (red)

[8]LED room light (white)

[9]Rocker switch Position 0 = Off

Position I = Blinking LED warning light (red) Position II = LED room light (white)

[10]Rocker switch Position 0 = Off

Position I = Halogen lamp Position II = LED ring

8 - English

Rechargeable Battery Flashlight LHS 55 A1

Technical Specifications

Rechargeable Battery Flashlight LHS 55 A1

Brand name: LivarnoLux

Safety Level:

IPX4 – splash-waterproof

Light source:

8 x LEDs



Light intensity: approx. 13000



mcd



Power approx. 0.06 W



LED ring light range: 10-15m



1 x H3 6 V/55 W PK22s OSRAM



halogen bulb



Luminous flux: 1000 lm +/- 15%



Halogen light range:



40-50 m



2 x LEDs



white room light



Light intensity: approx. 13000



mcd



Power approx. 0.06 W



2 x LEDs



blinking red warning light



Light intensity: approx. 6000 mcd



Power: approx. 0.06 W

Rechargeable



battery:

Lead-acid battery



6 V / 5.3 Ah

English - 9

Rechargeable Battery Flashlight LHS 55 A1

Dimensions:

23 x 29 cm



(L x H, handle in pistol position)



Head diameter: 17.5 cm

Weight:

1960 g

Approx. lighting duration with full battery

Halogen light mode



(up to 70%):

max. 20 min.

LED light mode (up to

approx. 20 hours

70%):

LED room light mode

approx. 40 hours

(up to 30%):

LED warning light



mode (up to 30%):

approx. 85 hours

Charger WJG-Y41120500D

Input voltage:

230V~, 50 Hz

Output voltage:

12 V , 500 mA

Safety Class:

II

Weight:

270 g

Car adapter

Operating voltage:

12 V

Weight:

26 g

10 - English

Rechargeable Battery Flashlight LHS 55 A1

Getting Started

The Rechargeable Battery Flashlight LHS 55 A1, henceforward named “flashlight”, features a built-in rechargeable battery. Optionally you can recharge the built-in battery with the supplied charger WJGY41120500D or the supplied car adapter.

Batteries are subject to discharge when stored for a long period of time. Therefore, when not using the flashlight for a long time, recharge the battery every 3 months.

Charging via the Charger

Remove the protective cover from the jack [4] on the flashlight.

Insert the small connector from the charger WJGY41120500D [B] into the jack [4] on the flashlight.

Plug the charger WJG-Y41120500D [B] into a wall outlet. During charging the charge indicator

[5]will light orange.

A full charging cycle takes up to 18 hours. The charging process is completed when the charging indicator [5] lights green. Then unplug the charger WJG-Y41120500D [B] from the wall outlet, to save energy.

English - 11

Rechargeable Battery Flashlight LHS 55 A1

Charging via the Car Adapter

Make sure that your vehicle has a 12V battery. Never connect the car adapter to a 24V battery. Otherwise the flashlight and the car adapter may be damaged.

Remove the protective cover from the jack [4] on the flashlight.

Insert the small connector from the car charging adapter [C] into the jack [4] on the flashlight.

Then connect the car adapter [C] to a suitable cigarette lighter in your car. During charging the charge indicator [5] will light orange.

A full charging cycle takes up to 18 hours. The charging process is completed when the charging indicator [5] lights green. Then unplug the car adapter [C] from the cigarette lighter.

Powering the Flashlight On/Off

This flashlight features four different lamps. You can select the suitable light operation mode for each application.

The Halogen Lamp

Press the rocker switch [10] to position I to power the flashlight on.

Press the rocker switch [10] to position 0 to power the flashlight off.

12 - English

Rechargeable Battery Flashlight LHS 55 A1

The LED Ring

Press the rocker switch [10] to position II to power the flashlight on.

Press the rocker switch [10] to position 0 to power the flashlight off.

Blinking LED Warning Light

Press the rocker switch [9] to position I to power the blinking warning light on.

Press the rocker switch [9] to position 0 to power the blinking warning light off.

LED Room Light

Press the rocker switch [9] to position II to power the flashlight on.

Press the rocker switch [9] to position 0 to power the flashlight off.

Adjusting the Handle and Stand

You can put the handle in pistol or carrying position. To do this, unlock the handle by using the slide switch [1] and rotate the handle into the desired position until it clicks into place.

The stand [6] allows you to place the flashlight on ground. You can adjust the light beam through the different lock positions. Adjust the stand [6] so that it clicks into any of the lock positions and place the flashlight on the ground.

English - 13

Rechargeable Battery Flashlight LHS 55 A1

Appendix

Cleaning

To clean the flashlight use a dry cloth. Never use any solvents or cleaners that may damage the plastic housing. Make sure that no liquid gets into the housing. If the product is very dirty, use a slightly moistened cloth otherwise the device may suffer damage.

Servicing

The LEDs and the battery cannot be replaced.

Replacing the Bulb

The built-in H3 halogen bulb must be replaced by authorized service personnel only.

After the lamp has cooled down, unscrew the reflector ring [3] counter-clockwise.

Carefully remove the reflector [2] forwards.

Slide the insulation hose apart and disconnect the bulb from the cable.

Press the holding wire of the bulb together, unhook it from the holder and remove it.

Next remove the bulb.

Replace the H3 6 V/55 W bulb by a new bulb of the same type.

14 - English

Rechargeable Battery Flashlight LHS 55 A1

Do not touch the glass with your fingers. Touching the lamp glass can reduce the bulb's lifetime. We recommend that you use a soft, lint-free cloth.

Fix the bulb again with the holding wire and reconnect the cable.

Warning:

Make sure the insulation hose fully covers the cable connector, otherwise there is a risk of short-circuit!

Re-insert the reflector [2] and make sure that the two pins of the reflector [2] fit into the holes of the standing bolts of the flashlight housing. This fixes the reflector [2] to the flashlight housing.

Insert the reflector ring [3] and turn it clockwise to fasten.

English - 15

Rechargeable Battery Flashlight LHS 55 A1

Disposal of Old Devices

Devices marked with this symbol are subject to the European Directive 2002/96/EC. All electric and electronic devices must be disposed of separately from household waste at official disposal centres.

Avoid hazards to the environment and dangers to your personal health by disposing of the device properly. For further information about proper disposal, contact your local government or disposal bodies.

The built-in rechargeable battery cannot be removed for disposal.

Declaration of Conformity

Targa GmbH, Lange Wende 41, 59494 Soest, Germany, declares that this product complies with the basic and

other relevant requirements as well as with the EMC Directive 2004/108/EC. The corresponding Declaration of Conformity can be found at the end of this User's Manual.

16 - English

Rechargeable Battery Flashlight LHS 55 A1

Warranty Information

36 month warranty from date of purchase

We ask you to read carefully through the enclosed documentation or online help before putting your product into service. If you have a problem, which can not be solved in this way, please contact our hotline.

In case that trouble solving over the telephone is not possible, our hotline will arrange the service depending on the fault of the device. This will contain the elimination of defects by production and material at no charge.

This guarantee is valid in United Kingdom.

Your statutory guarantees from the seller are in addition to this warranty and are not limited by it.

Manufacturer:

TARGA GmbH Postfach 22 44

D-59482 Soest Hotline: www.targa.de

0207 - 36 50 744

Please have your IAN / serial number at hand!

English - 17

Ręczny reflektor akumulatorowy LHS 55 A1



Spis treści



Zawartość opakowania ........................................

19

Instrukcja bezpieczeństwa...................................

20

Przeznaczenie..................................................

24

Opis......................................................................

25

Dane techniczne...............................................

26

Ręczny reflektor akumulatorowy LHS 55 A1 26

Przybliżony czas świecenia przy pełnym



naładowaniu akumulatora.............................

27

Ładowarka WJG-Y41120500D.....................

27

Adapter samochodowy.................................

27

Przygotowanie do użytku.....................................

28

Ładowanie przy użyciu ładowarki.....................

28

Ładowanie przy użyciu adaptera



samochodowego ..............................................

29

Włączanie/wyłączanie reflektora..........................

30

Lampa halogenowa ......................................

30

Pierścień LED...............................................

30

Migające światło ostrzegawcze LED ............

30

Światło pokojowe LED..................................

30

Regulacja uchwytu i stojaka ................................

31

Dodatek................................................................

31

Czyszczenie .....................................................

31

Serwisowanie ...................................................

32

Wymiana żarówki .........................................

32

Postępowanie z urządzeniami wycofanymi z



eksploatacji.......................................................

34

Deklaracja zgodności .......................................

34

Informacje gwarancyjne ...................................

35

18 - Polski



Ręczny reflektor akumulatorowy LHS 55 A1

Zawartość opakowania

[A]Ręczny reflektor akumulatorowy LHS 55 A1

[B]Ładowarka WJG-Y41120500D

[C]Adapter samochodowy (do samochodów z akumulatorem 12 V)

[D]Pasek

Polski - 19

Ręczny reflektor akumulatorowy LHS 55 A1

Instrukcja bezpieczeństwa

Przed pierwszym użyciem urządzenia należy przeczytać odpowiednie instrukcje zawarte w niniejszym podręczniku i zastosować się do wszystkich ostrzeżeń. Dotyczy to również osób, które mają duże doświadczenie w korzystaniu z urządzeń elektronicznych. Podręcznik należy przechowywać w bezpiecznym miejscu do przyszłego wykorzystania. W razie sprzedaży lub odstąpienia urządzenia należy także przekazać niniejszy podręcznik.

Ten symbol oznacza ważne informacje dotyczące bezpiecznej obsługi produktu i bezpieczeństwa użytkownika.

Minimalna odległość od dowolnej oświetlanej powierzchni nie może być mniejsza niż 50 cm.

Wszelkie pęknięte osłony ochronne należy bezzwłocznie wymienić.

20 - Polski

Ręczny reflektor akumulatorowy LHS 55 A1

Promieniowanie diod LED! Niebezpieczeństwo uszkodzenia oczu! W żadnym wypadku nie wolno patrzeć w wiązkę emitowaną przez diody LED. W przypadku podejrzenia uszkodzenia wzroku należy skontaktować się z lekarzem.

Ochronne szkło odbłyśnika osiąga bardzo wysoką temperaturę w trybie światła halogenowego. Dotknięcie grozi oparzeniem! Podczas używania reflektora nie wolno w żadnym wypadku przykrywać jego odbłyśnika. Może to doprowadzić do przegrzania!

W żadnym wypadku nie wolno patrzeć bezpośrednio na promień światła przez urządzenia optyczne, np. przez szkło powiększające, gdyż może to doprowadzić do uszkodzenia wzroku.

Urządzenia elektryczne należy chronić przed dostępem dzieci. Nie wolno pozwalać dzieciom na zabawę urządzeniami elektrycznymi bez nadzoru. Dzieci mogą nie zdawać sobie sprawy z grożącego im niebezpieczeństwa. Opakowanie należy przechowywać w miejscu niedostępnym dla dzieci; dziecko może udusić się opakowaniem.

Jeśli z urządzenia wydostaje się dym, dziwne zapachy lub dźwięki, urządzenie należy natychmiast wyłączyć. Nie wolno wdychać dymu wydobywającego się z urządzenia —

Polski - 21

Ręczny reflektor akumulatorowy LHS 55 A1

może to doprowadzić do uszkodzenia dróg oddechowych. Z takiego urządzenia nie należy dalej korzystać, lecz zanieść je do autoryzowanego punktu serwisowego w celu sprawdzenia.

Upewnić się, że obudowa reflektora, ładowarki WJG-Y41120500D i adaptera samochodowego nie są uszkodzone, gdyż może to stwarzać ryzyko porażenia prądem. W razie zauważenia uszkodzeń przewodów natychmiast zaprzestać użytkowania reflektora.

Urządzenie nie zawiera żadnych części wymagających serwisowania przez użytkownika. W żadnym wypadku nie wolno otwierać obudowy urządzenia, gdyż może to spowodować jego uszkodzenie.

Wbudowany akumulator reflektora można ładować wyłącznie za pomocą znajdującej się w zestawie ładowarki WJG-Y41120500D oraz adaptera samochodowego. Ładowarki WJGY41120500D nie wolno używać do zasilania reflektora w trybie ciągłym. W żadnym wypadku nie należy podłączać ładowarki WJGY41120500D ani adaptera samochodowego do innych urządzeń. Znajdująca się w zestawie ładowarka akumulatorowa WJG-Y41120500D lub adapter samochodowy służą wyłącznie do ładowania wbudowanego akumulatora reflektora.

22 - Polski

Ręczny reflektor akumulatorowy LHS 55 A1

Niniejszy reflektor nie jest przeznaczony do użytku w pojazdach. Nie wolno używać go w zastępstwie reflektora rowerowego lub motocyklowego.

Należy pamiętać, aby:

urządzenie nie było narażone na działanie bezpośrednich źródeł ciepła (np. grzejników);

na urządzenie nie padały bezpośrednio promienie światła słonecznego lub jasnego światła sztucznego;

nie dopuszczać do kontaktu urządzenia z płynami ściernymi, a ponadto w żadnym wypadu nie użytkować urządzenia w pobliżu wody; w szczególności nie wolno zanurzać urządzenia w płynach;

nie narażać urządzenia na nadmierne wstrząsy i drgania.

Nieprzestrzeganie powyższych ostrzeżeń może doprowadzić do uszkodzenia urządzenia.

Polski - 23

Ręczny reflektor akumulatorowy LHS 55 A1

Przeznaczenie

Ręczny

reflektor

akumulatorowy

LHS 55 A1

(określany

dalej

jako „reflektor”)

może być

używany jako przenośne źródło światła w zastosowaniach hobbystycznych lub rekreacyjnych. Znajdująca się w zestawie ładowarka WJG-Y41120500D umożliwia ładowanie wbudowanego akumulatora ze ściennego gniazda zasilania. Adapter samochodowy umożliwia ładowanie akumulatora w pojeździe.

Reflektor nie jest przeznaczony do zastosowań komercyjnych. Urządzenie spełnia wymagania wszystkich odnośnych norm i standardów dotyczących zgodności CE. Wszelkie modyfikacje urządzenia, inne niż zmiany zalecane przez producenta, mogą spowodować, że wymagania odnośnych norm przestaną być spełniane.

24 - Polski

Ręczny reflektor akumulatorowy LHS 55 A1

Opis

Opis elementów wskazanych na ilustracji:

[1]Przesuwny przełącznik do zmiany pozycji uchwytu (pozycja przenoszenia/pozycja „pistoletowa”)

[2]Odbłyśnik

[3]Pierścień odbłyśnika

[4]Gniazdo do podłączania ładowarki WJGY41120500D lub adaptera samochodowego

[5]Wskaźnik ładowania

[6]Regulowany stojak

[7]Migające światło ostrzegawcze LED (czerwone)

[8]Światło pokojowe LED (białe)

[9]Przełącznik kołyskowy Pozycja 0 = wyłączony

Pozycja I = migające światło ostrzegawcze LED (czerwone)

Pozycja II = światło pokojowe LED (białe)

[10]Przełącznik kołyskowy Pozycja 0 = wyłączony Pozycja I = lampa halogenowa Pozycja II = pierścień LED

Polski - 25

Ręczny reflektor akumulatorowy LHS 55 A1

Dane techniczne

Ręczny reflektor akumulatorowy LHS 55 A1

Nazwa firmowa:

Poziom bezpieczeństwa:

Źródło światła:

LivarnoLux

IPX4 – obudowa bryzgoszczelna

8 diod LED

Natężenie oświetlenia: ok. 13000 mcd

Moc: ok. 0,06 W

Zasięg świecenia pierścienia LED: 10-15 m

Żarówka halogenowa 1 x H3 6 V / 55 W PK22s OSRAM

Strumień świetlny: 1000 lm +/- 15%

Zasięg światła halogenowego: 40-50 m

2 diody LED

białe światło pokojowe Natężenie oświetlenia: ok. 13000 mcd

Moc: ok. 0,06 W

2 diody LED

migające światło ostrzegawcze Natężenie oświetlenia: ok. 6000 mcd

Moc: ok. 0,06 W

26 - Polski

Ręczny reflektor akumulatorowy LHS 55 A1

Akumulator:

Akumulator ołowiowy



6 V / 5,3 Ah

Wymiary:

23 x 29 cm



(dł. x wys., uchwyt w pozycji



„pistoletowej”)



Średnica głowicy: 17,5 cm

Masa:

1960 g

Przybliżony czas świecenia przy pełnym naładowaniu akumulatora

Tryb światła



halogenowego (do

maks. 20 min

70%):

Tryb światła LED (do



70%):

ok. 20 godzin

Tryb światła



pokojowego LED (do



30%):

ok. 40 godzin

Tryb światła



ostrzegawczego LED

ok. 85 godzin

(do 30%):

Ładowarka WJG-Y41120500D

Napięcie sieciowe:

230 V AC / 50 Hz

Napięcie wyjściowe:

12 V , 500 mA

Klasa bezpieczeństwa:

II

Masa:

270 g

Adapter samochodowy

Napięcie robocze:

12 V

Masa:

26 g

Polski - 27

Ręczny reflektor akumulatorowy LHS 55 A1

Przygotowanie do użytku

Ręczny reflektor akumulatorowy LHS 55 A1 (określany dalej jako „reflektor”) jest wyposażony we wbudowany akumulator. Wbudowany akumulator można opcjonalnie ładować za pomocą znajdującej się w zestawie ładowarki WJG-Y41120500D lub adaptera samochodowego.

W przypadku długotrwałego przechowywania akumulator ulega rozładowaniu. W związku z tym, jeśli reflektor nie jest używany przez dłuższy czas, akumulator należy ładować co 3 miesiące.

Ładowanie przy użyciu ładowarki

Zdjąć osłonę z gniazda [4] reflektora.

Włożyć mały wtyk ładowarki WJG-Y41120500D

[B]do gniazda [4] w reflektorze.

Podłączyć ładowarkę WJG-Y41120500D [B] do ściennego gniazda zasilania. Podczas ładowania wskaźnik ładowania [5] świeci się na pomarańczowo.

Pełny cykl ładowania trwa do 18 godzin. Po zakończeniu procesu ładowania wskaźnik ładowania [5] zmienia kolor na zielony. Należy wówczas odłączyć ładowarkę WJG-Y41120500D

[B]od ściennego gniazda zasilania.

28 - Polski

Loading...
+ 95 hidden pages
