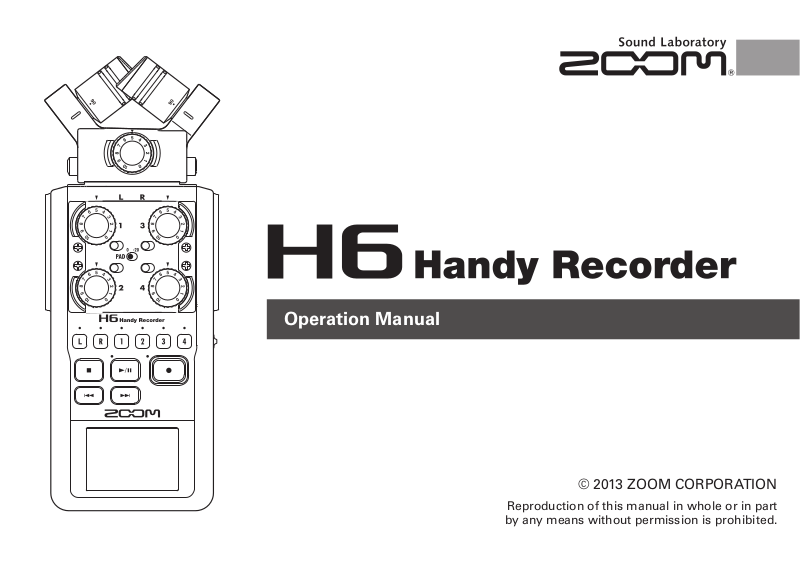

Zoom H6 User Manual

Operation Manual

© 2013 ZOOM CORPORATION

Reproduction of this manual in whole or in part by any means without permission is prohibited.

		Usage and safety precautions
		SAFETY PRECAUTIONS
				Precautions
		In this operation manual, symbols are used to	Product handling
		highlight warnings and cautions that you must
				Do not drop, bump or apply excessive
		read to prevent accidents. The meanings of
				force to the unit.
		these symbols are as follows.
				Be careful not to allow foreign objects or
		Something that could cause serious		liquids enter the unit.
		Warning injury or death	Operating environment
				Do not use in extremely high or low
		Something that could cause injury
Usage				temperatures.
		Caution or damage to the equipment
				Do not use near heaters, stoves and other
		Other symbols used
				heat sources.
and		An action that is mandatory		Do not use in very high humidity or where
				it could be splashed by water.
safety
		An action that is prohibited
				vibrations.
				Do not use in places with frequent
precautions		Use only a ZOOM AD-17 AC adapter (sold		When disconnecting the power plug from
		Warnings		Do not use in places with much dust or
				sand.
		Operation using an AC adapter	AC adapter handling
		separately) with this unit.		an outlet, always hold the plug when
		Do not do anything that could exceed the		pulling.
		ratings of outlets and other electrical wir-		Disconnect the power plug from the out-
		ing equipment.		let during lightning storms and when not
		Do not use with power other than AC		using the unit for a long time.
		100V. Before using the equipment in a for-	Battery handling
		eign country or other region with a power		Install the batteries with the correct
		voltage other than AC100V, always consult		+/− orientation.
		with a shop that carries ZOOM products		Use a specified battery type. Do not mix
		and use the appropriate AC adapter.		new and old batteries or different brands
	Operation using batteries			or types at the same time.
		Use 4 conventional 1.5-volt AA batteries		When not using the unit for an extended
				period of time, remove the batteries.
		(alkaline or nickel-metal hydride).
				If a battery leak should occur, wipe the
		Read battery warning labels carefully.
				battery compartment and the battery ter-
		Always close the battery compartment
				minals carefully to remove all residue.
		cover when using the unit.
	Alterations

Do not open the case or modify the 02 product.

Mics

Before connecting a mic, always turn the power off. Do not use excessive force when connecting a unit

When not using a mic for a long time, put the protective cap on.

Connection cables and input/output jacks

Always turn the power OFF for all equipment before connecting any cables.

Always disconnect all connection cables and the AC adapter before moving the unit.

Volume

Do not use at a loud volume for a long time.

Usage Precautions

Interference with other electrical equipment

In consideration of safety, the has been designed to minimize its emission of electromagnetic waves and to suppress interference from external electromagnetic waves. However, equipment that is very susceptible to interference or that emits powerful electromagnetic waves could result in interference if placed nearby. If this occurs, place the and the other device farther apart.

With any type of electronic device that uses digital control, including the , electromagnetic interference could cause malfunction, corrupt or destroy data and result in other unexpected trouble. Always use caution.

Cleaning

Use a soft cloth to clean the exterior of the unit if it becomes dirty. If necessary, use a damp cloth that has been wrung out well.

Never use abrasive cleansers, wax or solvents such as alcohol, benzene or paint thinner.

Breakdown and malfunction

If the unit becomes broken or malfunctions, immediately disconnect the AC adapter, turn the power OFF and disconnect other cables. Contact the store where you bought the unit or ZOOM service with the following information: product model, serial number and specific symptoms of breakdown or malfunction, along with your name, address and telephone number.

Copyrights

ږ Windows®, Windows® 8, Windows® 7, Windows Vista® and Windows® XP are trademarks or registered trademarks of Microsoft Corporation.

ږ Macintosh, Mac OS and iPad are trademarks or registered trademarks of Apple Inc.

ږThe SD, SDHC and SDXC logos are trademarks.

ږ The use of MPEG Layer-3 audio compression technology is licensed from Fraunhofer IIS and Sisvel SpA.

ږAll other product names, trademarks and company names in this document are the property of their respective owners.

Note: All trademarks and registered trademarks in this document are for identification purposes only and are not intended to infringe on the copyrights of their respective owners.

Recording for any purpose other than personal use from copyrighted sources, including CDs, records, tapes, live performances, video works and broadcasts, without permission of the copyright holder is prohibited by law.

Zoom Corporation will not assume any responsibility related to infringements of copyrights.

Introduction

Thank you very much for purchasing a ZOOM Handy Recorder.The has the following features.

Ɣ Stereo mics can be changed according to use

An XY mic that can record sound images with depth and an MS mic that allows the stereo width to be adjusted freely are included.You can switch mics according to the situation as you would switch lenses on an SLR camera.

Options include a highly-directional shotgun mic and an external XLR/TRS input.

Ɣ Record up to 6 track at once

In addition to the swappable stereo mic (L/R input), the main unit has 4 XLR/TRS inputs (Inputs 1–4).

Use these to simultaneously record a maximum of 6 tracks, including ambiance, narration, a stereo image and the voices of multiple performers, for example.

Ɣ Advanced recording features

•The XY mic, which has newly-developed 14.6mm large diaphragm mics, records the full range of frequencies with good stereo placement.

•Using the L/R input mics, you can simultaneously record a backup file with a recording level that is 12 dB less than the regular recording.You can use this backup recording if an unexpected loud noise should cause the regular recording to distort, for example.

H6 Handy Recorder

•Inputs 1–4 have increased maximum gain compared to previous models. In response to popular demand, they have independent PAD switches that allow them to easily handle +4dB input.They can also provide phantom power (+12V/+24V/+48V).

•All input volume (gain) levels can be adjusted quickly by hand using dedicated knobs.

Ɣ Useful operation features

•High-capacity SDXC cards can be used as recording media, allowing even longer recording times.

•The color LCD is positioned to be easy to read even when mounted on an SLR camera.

•In addition to the standard headphones output, a line output jack is built-in.This allows you to send the audio signal to a video camera or other device while monitoring with headphones.

•When the is connected by USB, in addition to card reader functions, it can be used as an audio interface that is either 2 IN and 2 OUT or 6 IN and 2 OUT (driver required for 6 IN use with Windows).

•Of course, a tuner, a metronome and playback speed and pitch adjustments are included among the useful functions that are also found in other models in the H series.

•An optional remote control (wired) is also available.

Please read this manual carefully to fully understand the functions of the so that you can make the most of it for many years. After reading the manual, please keep it with the warranty in a safe place.

Introduction

03

Contents

Contents
Usage and safety precautions...............................	02
Introduction ............................................................	03
Contents..................................................................	04
Included items ........................................................	05
Names of parts ......................................................	06
Mic overview .........................................................	08
XY mic..................................................................	08
MS mic .................................................................	08
Connecting and disconnecting mics ....................	09
Mic connection ..................................................	09
Mic disconnection .............................................	09
Connecting mics/other devices to Inputs 1–4 ......	10
Connecting mics..................................................	10
Connecting instruments/other devices..............	10
Stereo inputs .......................................................	10
Connection examples .........................................	11
Optional accessories .............................................	12
Display overview....................................................	14
Home/Recording Screen ....................................	14
Playback Screen ..................................................	15
Preparations
Supplying power ...................................................	16
Using batteries ....................................................	16
Using an AC adapter (sold separately) .............	17
Loading an SD card................................................	18
Turning the power on and off................................	19
Turning the power on..........................................	19
Turning the power off .........................................	19
Using the hold function .........................................	20
Activating the hold function...............................	20
Deactivating the hold function...........................	20
Setting the language..............................................	21
Setting the date and time ......................................	22
Setting the type of battery used............................	23

Recording
Recording process..................................................	24
Folder and file structure.........................................	25
Basic recording.......................................................	26
Selecting the folder where projects are saved ....	28
Recording automatically........................................	29
Pre-recording..........................................................	31
Counting in before recording................................	32
Adjusting the side mic level ..................................	33
Backup recording ...................................................	34
Overdubbing...........................................................	35
Playback
Basic playback ........................................................	38
Select the playback project from the list ..............	40
Changing the playback speed ...............................	41
Repeat playback of a set interval (AB repeat) ......	42
Changing the playback mode................................	44
Changing the playback pitch (key) ........................	45
Mixing .....................................................................	46
Checking/editing projects/files
Checking project information................................	48
Checking track marks .............................................	49
Changing project names........................................	50
Mixing down a project...........................................	52
Normalizing tracks .................................................	54
Dividing projects ....................................................	56
Trimming project beginnings and ends ...............	58
Deleting one project...............................................	60
Deleting all projects in a folder .............................	61
Rebuilding a project...............................................	62
Recording a project voice memo ..........................	63
Playing backup files ...............................................	64

USB functions
Data exchange with computers (card reader)......	66
Using as an audio interface...................................	68
Audio interface settings.........................................	70
Making direct monitoring settings.....................	70
Using Loop Back (in stereo mix mode) .............	71
Mixing the inputs ................................................	72
Tools
Using the tuner.......................................................	74
Using the metronome............................................	76
Other settings
Reducing noise (low cut filter) ..............................	78
Using the input compressor/limiter......................	79
Adjusting the input signal monitoring mix..........	80
Monitoring MS-RAW signals.................................	82
Setting the recording format.................................	83
Changing automatic recording settings ...............	84
Enabling automatic stopping ............................	85
Setting how projects are named ...........................	86
Changing the phantom power setting..................	87
Using plug-in power ..............................................	88
Using VU meters to check input levels .................	89
Setting the display to save power ........................	90
Adjusting the display brightness ..........................	91
Checking the firmware versions............................	92
Restoring the default settings ...............................	93
Other functions
Checking SD card open space...............................	94
Formatting SD cards ..............................................	95
Testing SD card performance................................	96
Updating the firmware...........................................	98
Using SD cards from older H series recorders ....	99
Using a remote control (sold separately)...........	100
Troubleshooting ...................................................	101
Specifications .......................................................	102

04

Included items

The package should contain the following items.

Please confirm that they have all been included.

4 AA batteries (for unit testing)

XY mic

SD card

main unit	MS mic

Cubase LE installation DVD

H6 Handy Recorder

items Included

Main unit case

USB cable

© 2013 ZOOM CORPORATION

Operation manual	Wind screen
(this document)	(sponge)

05

parts of Names

Names of parts

Left

Front

XY mic

MS mic

Input volume L/R

(Swappable)

Input 1	Input volume 1	Input volume 3
		PAD switches (1–4)
Input 2	Input volume 2	Input volume 4

			Play/pause button
		Track buttons and		& indicator
				Record button
		indicators	Stop button
				& indicator
	SD card slot	(L, R, 1–4)
	VOLUME button

PHONE jack

POWER/HOLD switch	Display

Back button Forward button

06

H6 Handy Recorder

Right (back)

Bottom

LINE OUT jack

REMOTE jack (remote control sold separately)

MIC/LINE input jack

(supports plug-in power)

Input 3

Speaker (back)

Input 4

Scroll button

Up and down

Select menu items

Press: Confirm menu

selection

Strap holes

(can also be used with camera straps)

MENU button	XLR		TRS
Press:
Open menu,
Return to last screen	Battery cover (back)
USB jack	2	1	TIP: HOT
		1: GND	RING: COLD
		2: HOT	SLEEVE: GND
	3	3: COLD

parts of Names

07

overview Mic

08

Mic overview

The includes XY and MS mics.These mics can be swapped according to your need.

A shotgun mic (SGH-6) and an external XLR/TRS input (EXH-6) are also available as optional accessories. ( P.12) The input from these mics (L/R input) is recorded on the L/R tracks.

XY mic

This has two crossing directional mics.

By rotating the mics, you can switch the width of the recording field between 90° and 120°.

L	R	L	R
	90°		120°

Features:

Newly-developed large diaphragm mics enable low and high frequencies to be recorded with good stereo placement while sounds in the center are captured clearly.

This mic is ideal for recording at close and medium ranges when aimed at specific sound sources to capture a three-di- mensional sound with natural depth and width.

Use examples: solo performances, chamber music, live rehearsals, field recording

NOTE

The XY mic has a MIC/LINE input jack that can be used to connect an external mic or line-level device.This jack can also provide plug-in power to mics that use it. ( P.88)

MS mic

This mic combines a unidirectional mid mic that captures sound from the center with a bidirectional side mic that captures sound from the left and right.

By adjusting the side mic level, you can change the stereo width as you like. If you record in MS-RAW mode, you can adjust the side mic level after recording to change the stereo width.

	Mid mic
L	R	Mid mic
	Side mic

Side mic level

Features:

This mic can capture a wide and detailed stereo image, making it ideal for recording wide open spaces with multiple sound sources.

With the side mic off it can also be used for mono recording. Use examples: orchestras, live concerts, soundscapes

Use examples with side mic off: interviews, narrations, meetings

Connecting and disconnecting mics

Mic connection

1. Remove the protective caps from the main unit and the mic.

2. While pressing the buttons on the sides of the mic, connect it to the main unit, inserting the connector completely.

H6 Handy Recorder

Mic disconnection

1. While pressing the buttons on the sides of the mic, pull it out of the main unit.

NOTE

•When disconnecting a mic, do not use too much force. Doing so could damage the mic or the main unit.

•Recording will stop if a mic is removed during recording.

•If a mic will not be attached for a long time, put on the protective cap.

mics disconnecting and Connecting

09

4–1 Inputs to devices mics/other Connecting

Connecting mics/other devices to Inputs 1–4

In addition to the input (L/R) from an XY or MS mic, the also has Inputs 1–4. These can be used together to record up to six tracks at one time.

Mics, instruments and other equipment can be connected to Inputs 1–4 and recorded independently to tracks 1–4.

L/R inputs

Input 1

Input 3

PAD switch

Input 2

Input 4

Connecting mics

Connect dynamic mics and condenser mics to the Input 1–4 XLR jacks.

Phantom power (+12V/+24V/+48V) can be supplied to condenser mics. ( P.87)

Connecting instruments/other devices

Connect keyboards and mixers directly to the Input 1–4TRS jacks.

Direct input of passive guitars and basses is not supported. Connect these instruments through a mixer or effects device, for example.

Set the PAD switch to −20 when connecting a mixer or other device with a standard output level of +4dB.

Stereo inputs

By linking tracks 1 and 2 (or tracks 3 and 4) as a stereo tracks, Inputs 1/2 (or Inputs 3/4) can be used for stereo input. ( P.26)

In this case, Input 1 (Input 3) becomes the left channel and Input 2 (Input 4) becomes the right channel.

10

Connection examples

The allows you to record in a variety of configurations.

While filming

•L/R input mic: Main subject

•Shotgun/lapel mics connected to Inputs 1/2: Performer

•Mics connected to Inputs 3/4: Ambient sound

Shotgun mic

Lapel mic

L/R

1 3

2 4

Lapel mic

Ambient mic

Ambient mic

H6 Handy Recorder

Concert recording
• L/R input mic: Performance on stage
• Inputs 1/2: Line outputs from mixer		4–1Inputstodevicesmics/otherConnecting
• Mics connected to Inputs 3/4: Audience sound
	L/R
PA mixer	1	3
	2	4

Ambient mic				Ambient mic			11

accessories Optional

Optional accessories

The following optional accessories are available for use with the .

Shotgun mic attachment (SGH-6)

External XLR/TRS input (EXH-6)

Use instead of a stereo mic to give the two more XLR/ TRS input jacks (L/R input).

•This does not support phantom power.

This highly-directional mic is great for capturing monophonic sound from a specific location. Use it in place of an stereo mic.

•This mic records to the L/R track in mono.

12

H6 Handy Recorder

Accessory pack (APH-6)

This accessory pack includes the following 3 items: a remote control, a hairy windscreen and an AC adapter.

Remote control (RCH-6)

This is a wired remote control for use with the . Connect it to the REMOTE jack.

AC adapter (AD-17)

This AC adapter is designed for use with the . Connect it to the USB jack using a USB cable and plug it into an outlet.

Hairy windscreen

This windscreen can be used with both the XY and MS mics.

accessories Optional

13

overview Display

Display overview

Home/Recording Screen

Name of project that

Battery charge indicator

will play when the

Full

Status icon

button is pressed

Recording time

(when recording, name of

Stopped

project being recorded)

Recording

Empty

Paused

Folder name

Pan sliders

Monitoring volume

(Monitoring mixer P.80)

(Monitoring mixer P.80)

Low cut indicator (

P.78)

Level meter

(Recording input level)

Compressor/limiter indicator (

P.79)

Phantom power indicator (

P.87)

Tracks 1–4

L/R track

(Name of connected

mic unit shown)

Recording format

Auto record

SD card icon and remaining

(When using as an audio interface,

computer or iPad setting shown)

( P.29)

recording time

Phantom power voltage

(

P.87)

14

Playback Screen

Status icon
Playing back							Playback time
Paused
Folder name
Pan sliders
Playback volume
Pitch control
L/R track
(Name of connected
mic unit shown)
					Playback format			Playback speed
								( P.41)

H6 Handy Recorder

Battery charge indicator

Name of project playing back

Level meter (playback level)

Tracks 1–4

A-B repeat ( P.42)

(Shown when A and B points set)

overview Display

15

Preparations

power Supplying

Supplying power

Using batteries

1. Turn the power off and then remove the battery cover.

Open while pushing up

2. Install the batteries.

3. Replace the battery cover.

NOTE

•Use alkaline batteries or nickelmetal hydride batteries.

•If the battery indicator becomes empty, turn the power off immediately and install new batteries.

•Set the type of battery being used. ( P.23)

16

Using an AC adapter (sold separately)

1. Connect a USB cable to the USB jack.

2. Plug the adapter into an outlet.

H6 Handy Recorder

Preparations

power Supplying

17

Preparations

card SD an Loading

Loading an SD card

1. Turn the power off and then open the SD card slot

cover.

2. Insert the card in the slot.

To eject an SD card:

Push the card further into the slot and then pull it out.

SD card slot in center of left side

NOTE

•Always turn the power off before inserting or removing an SD card.

Inserting or removing a card while the power is on could result in data loss.

•When inserting an SD card, be sure to insert the correct end with the top side up as shown.

•When an SD card is not loaded, recording and playback are not possible.

• See “Formatting SD cards”. ( P.95)

18

H6 Handy Recorder

Turning the power on and off

Turning the power on		Turning the power off
Ŷ Slide	to the right.	Ŷ Slide	to the right.

NOTE

• The first time you turn the power on after purchase, you must set the language ( P.21) and date/time ( P.22).You can also change these settings later.

•If “No SD Card!” appears on the display, confirm that the SD card is inserted properly.

•If “Card Protected!” appears on the display, the SD card write-protection is enabled. Slide the lock switch on the SD card to disable write-protection.

•If “Invalid Card!” appears on the display, the card is not correctly formatted for use with this recorder. Format the

card or use a different card. See “Formatting SD cards”. ( P.95)

NOTE

Keep holding the switch to the right until the ZOOM logo appears.

Preparations

off and on power the Turning

19

Preparations

function hold the Using

Using the hold function

The has a hold function that can be used to disable the buttons in order to prevent accidental operation during recording.

Activating the hold function		Deactivating the hold function
Ŷ Slide	to the left.	Ŷ Slide	to the center.

NOTE

The hold function does not affect the remote control (sold separately). Even when hold is active, the remote can still be used.

20

H6 Handy Recorder

Setting the language*

The language shown on the display can be set to English or Japanese.

1. Press .

2. Use to

select “LANGUAGE”, and press .

3. Use to select the language,

and press .

*The first time you turn the power on after purchase, you must set the language and date/time.

Preparations

language the Setting

21

Preparations

time and date the Setting

Setting the date and time*

When the date and time are set, the recorder can store accurate recording date and time information in files.

1.	Press	.	4. Set the date and time.
2.	Use	to select	Ŷ Changing settings
	“SYSTEM”,
	and press	.	Move cursor: Move		up/down
			Select item:	Press	then move	up/down
3.	Use	to select	Confirm change: Press
	“Date/Time”,		5. Press
	and press	.		to complete the setting.

*The first time you turn the power on after purchase, you must set the language and date/time.

22

Setting the type of battery used

Set the type of battery used so that the amount of remaining battery charge can be shown accurately.

1.

2.

Press .

Use to select “SYSTEM”, and press .

3.

4.

Use to select “Battery”, and press .

Use to select the type, and press .

H6 Handy Recorder

Preparations

used battery of type the Setting

23

Recording

process Recording

Recording process

The recording process includes the following steps.

With the , a unit of recording/playback data is called a project.

Connect	Turn power	Prepare to	Record	Playback and	Overdub
	on ( P.19)	record	( P.24)	check ( P.38)	and edit

• Connect the XY or MS mic unit. ( P.09)

•Connect mics, instruments and

other equipment to

Inputs 1–4. ( P.10)

•Start recording:

•Stop recording:

•You can also make mark settings.

•Pause recording:

•Start playback:

•Stop playback:

•Make settings as desired for

mark, AB repeat (		P.42),
playback speed (	P.41)
playback pitch (	P.45),
playback mode (		P.44), and
the project mixer (		P.46).

• You can overdub

(	P.35), mix down
to a stereo file
(	P.52) and check

project/file information, for example.

1. Set the recording format (WAV/MP3). ( P.83)

•When set to MP3, a stereo mix will be recorded regardless of the number of tracks.

• You can also make automatic recording ( P.29), pre-recording ( P.31), backup recording

(	P.34), low cut ( P.78), compressor/limiter
(	P.79) and metronome ( P.76) settings,

for example.

2. Select recording tracks ( P.26)

•Use the track buttons to select. When the selected track indicator lights red, the input signal can be monitored.

•Press two track buttons at the same time to use them as a stereo track (stereo link).

3. Adjust input levels

•Use the for each input.

•Adjust so that the level meter stays in the yellow when the loudest sound is input.

•When connecting a device with a standard output level of +4 dB or the level stays too high for any other reason, set the PAD switch to −20.

•You can also adjust the side mic level (when using

the MS mic unit) ( P.33) and show the VU meters ( P.89), for example.

24

H6 Handy Recorder

Folder and file structure

When recording with the , the following folders and files are created on the SD card.

Root

	Select FOLDER01 – FOLDER10 as the folder					• • • • • • •
	where projects will be saved ( P.28)
FOLDER01				FOLDER02		FOLDER10

ZOOM0001

ZOOM0002

Stereo file of

ZOOM0003

First file when

ZOOM0004

First stereo file

recorded L/R

recording

recorded on the L/R

A folder named

input signals

exceeded 2GB

tracks

ZOOM0002_LR.WAV

ZOOM0003_LR-0001.WAV

ZOOM0004_LR.WAV

ZOOM0001 –

ZOOM9999 is created

Mono file of

Second file when

Additional stereo file

for each project.

recorded Input 1

recording

recorded on the 1/2

signal

exceeded 2GB

tracks ( P.35)

ZOOM0002_Tr1.WAV

ZOOM0003_LR-0002.WAV

ZOOM0004_Tr12_01.WAV

Stereo file of

Stereo file created

recorded Input 3/4

Recorded voice

by mixing down

signals

memo file ( P.63)

( P.52)

ZOOM0002_Tr34.WAV

ZOOM0003_VM.MP3

ZOOM0004_ST001.WAV

L/R input backup

The settings file

Project file when

recording file

has the same

project name is set

( P.34)

name as the

to “Date” ( P.50)

ZOOM0002_BU.WAV

JazzLive.hprj

project name

130410-163015.hprj

Project settings

file

ZOOM0005

Recorded stereo MP3 file ( P.83)

ZOOM0005.MP3

ZOOM0005.hprj

Recording

structure file and Folder

ZOOM0002.hprj	25

Recording

recording Basic

Basic recording

2
1	3	4
6
	5

1. Press the button of the track that you want to record.

HINT

•The indicator of the selected track button lights red.

•If you press track button 2 while pressing and holding track button 1, tracks 1/2 will become a stereo track (stereo link). Tracks 3/4 can be made into a stereo track in the same way. Stereo links can also be deactivated in the same way.The L/ R track stereo link, however, cannot be deactivated.

HINT

•When recording, files are created for each selected track button as follows.

Tracks recorded	File name	Contents
L/R track	ZOOMnnnn-LR	Stereo file
Mono track	ZOOMnnnn_Tr1	Mono file
	(for track 1)
Stereo track	ZOOMnnnn_Tr34	Stereo file
	(for tracks 3/4)

Note: “nnnn” in the file name is the project number

•All the files that are created during the same recording are managed by the as a single project unit.

26

2. Turn for the selected input to adjust the input level.

HINT

• Adjust so that the peak level stays around −12dB.

• You can change the recording format. ( P.83)

•You can cut noise from wind and other sources during recording. ( P.78)

3.Press to start recording.

4.Press to add a mark.

H6 Handy Recorder

5. Press to pause.

NOTE

When recording is paused, a mark is added at that point.

6. Press to stop recording.

NOTE

•A maximum of 99 marks can be added to a single project.

•During recording if the file size exceeds 2 GB a new file will be created automatically in the same project and recording will continue without pause. When this happens, numbers will be added to the ends of the file names: “-0001” for the first file, “-0002” for the second file and so on.

Recording

recording Basic

27

Recording

saved are projects where folder the Selecting

Selecting the folder where projects are saved

Choose one of ten folders as the folder where new recorded projects will be saved.

1.

2.

3.

Press	.
Use	to

select “PROJECT LIST”,

and press

.

Use to select the folder where you want to save new projects,

and press .

4. Press to confirm the folder selection and return to the Home Screen.

28

H6 Handy Recorder

Recording automatically

Recording can be started and stopped automatically in response to the input level.

1.

2.

3.

Press .

Use to select “REC”, and press .

Use to select “Auto Rec”, and press .

4. Use to select “On/ Off”, and press .

NEXT

Recording

automatically Recording

29

Recording

automatically Recording

Recording automatically (continued)

5. Use	to select “On”,	7. Press	to exit standby
and press	.	or stop recording.

NOTE

For details, see “Changing automatic recording function settings”. ( P.84)

6. Return to the Home Screen, and press to put the recorder into

standby.

HINT

When the input exceeds the set level (shown on the level meters), recording starts automatically.You can also set the recording to stop automatically when the input goes below a set level. ( P.85)

30
