1 INTRODUCTION

The GDL 39 includes internal GPS - WAAS enabled and ADS-B receivers.

The GDL 39 receives Traffic (ADS-B/ADS-R and TIS-B) on both Universal Access Transceiver (UAT) and 1090 ES (Extended Squitter). When in proximity to a ground station, the GDL 39 will receive FIS-B weather over the UAT.

The GDL 39 Standard Detachable Antenna provides ADS-B traffic, TIS-B traffic, and FIS-B weather information for viewing on your compatible Garmin® unit. Garmin units like the aera 796 and devices running Garmin Pilot™ will be able to request ADS-B traffic, TIS-B traffic, FIS-B weather, and GPS data over a Bluetooth connection.

The internal GPS receiver is used for processing of traffic and weather data, and also providing position information to the display device.

The GDL 39 3D possesses AHRS capabilities to serve as an aid to attitude awareness.

Descriptions of the functions GDL 39, GDL 39R, and GDL 39 3D are the same and the units will be referred to as the GDL 39 except as specifically noted.

190-11110-00 Rev. H

Garmin GDL 39 Portable ADS-B and GPS Receiver User’s Guide

1-1

Standard Detachable

GDL 39 Antenna

Power Button

GDL 39

Data/Power Port

Optional External GPS

Antenna Connection

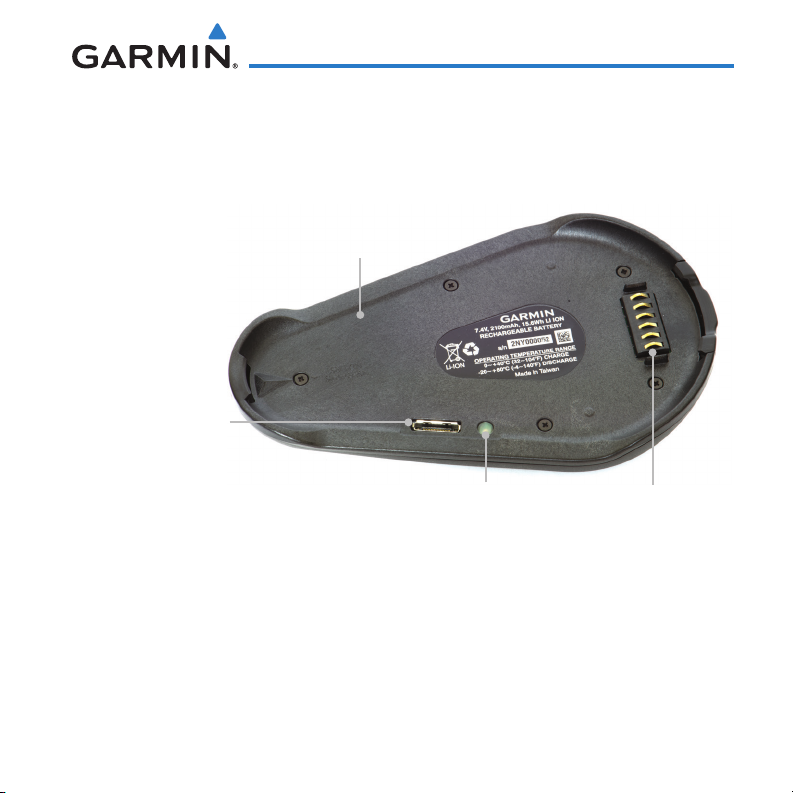

Optional Battery Assembly				Mounting Tray

Figure 1-1 GDL 39 with Optional Battery Assembly

To get the most out of your new system, take the time to go through this manual and the Owner’s Manual for your display unit. Operational procedures are found in the Owner’s Manual for your display unit.

Serial Port

Connector

	GPS Antenna				ADS-B Antenna
		Figure 1-2 GDL 39R
1-2	Garmin GDL 39 Portable ADS-B and GPS Receiver User’s Guide				190-11110-00 Rev. H

1.1Product Registration

Help us better support you by completing your online registration today! Have the serial number of your product handy and connect to the Garmin web site (http://my.garmin.com). Look for the Product Registration link on the Home page. Also, be sure to record your serial number in the space provided. Keep the original sales receipt, or a photocopy, in a safe place.

1.2Serial Number for the GDL 39

Use the line below to record the serial number in case it is lost, is stolen, or needs service. The serial number is located on the bottom of your unit.

Serial Number:

190-11110-00 Rev. H

Garmin GDL 39 Portable ADS-B and GPS Receiver User’s Guide

1-3

1.3GDL 39 System Configuration Part Numbers

The following part numbers cover the GDL 39 and the cable assembly to connect to the listed product:

Part Number	Description
010-11689-00	GDL 39 Portable ADS-B and GPS Receiver
010-11689-01	GDL 39 Portable ADS-B and GPS Receiver for GPSMAP69x
010-11689-02	GDL 39 Portable ADS-B and GPS Receiver for GPSMAP39x/49x
010-11689-03	GDL 39 Portable ADS-B and GPS Receiver for aera 5xx
010-11689-04	GDL 39 Portable ADS-B and GPS Receiver with DC Power Cable
010-11689-05	GDL 39 Portable ADS-B and GPS Receiver for aera 79x
010-11689-06	GDL 39 Portable ADS-B and GPS Receiver with bare wire power
010-11689-07	GDL 39 Portable ADS-B and GPS Receiver with Battery
010-11689-08	GDL 39R Portable ADS-B and GPS Receiver
010-11689-20	GDL 39 3D Portable ADS-B and GPS Receiver
010-11689-24	GDL39 3D Portable ADS-B and GPS Receiver with DC Cable
010-11689-27	GDL39 3D Portable ADS-B and GPS Receiver with Battery

Table 1-1 GDL 39 Configurations

1-4

Garmin GDL 39 Portable ADS-B and GPS Receiver User’s Guide

190-11110-00 Rev. H

1.4What’s In The Box

Part Number	Description
010-11689-xx	GDL 39 Portable ADS-B and GPS Receiver*
253-00503-00	Suction Cup**
010-11687-00	Mounting Tray**

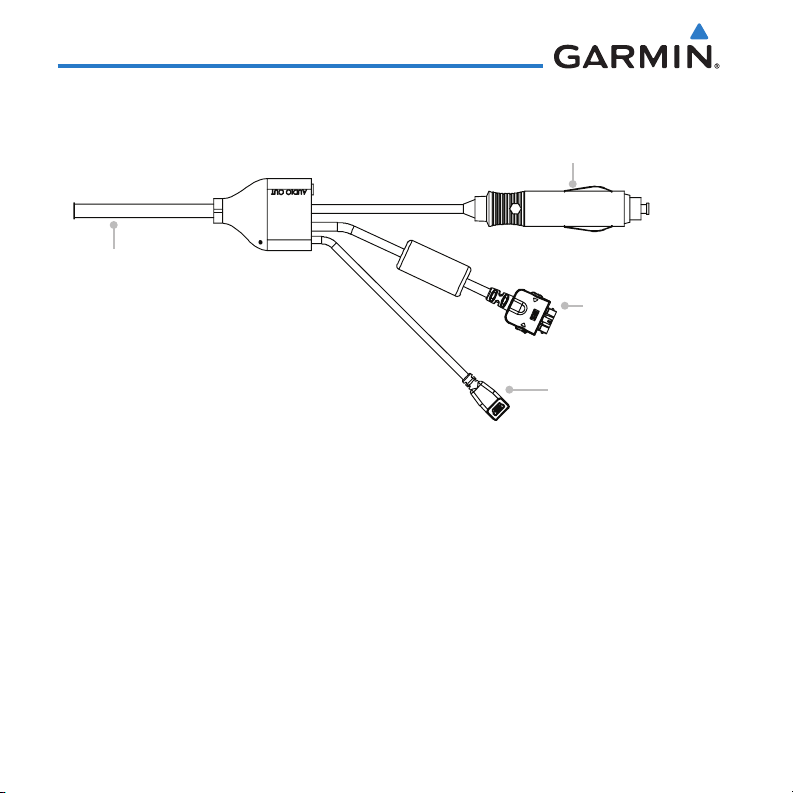

010-11686-xx	Cable (if ordered, see the table above for part numbers)
190-11110-00	Garmin GDL 39 Portable ADS-B and GPS Receiver User’s Guide
190-11257-00	Trial Certificate to Garmin Pilot™

Table 1-2 GDL 39 Shipping Box Contents

*A standard detachable antenna is included with the GDL 39. An antenna is not included with the GDL 39R.

**Not included with GDL 39R.

190-11110-00 Rev. H

Garmin GDL 39 Portable ADS-B and GPS Receiver User’s Guide

1-5

This page intentionally left blank

1-6

Garmin GDL 39 Portable ADS-B and GPS Receiver User’s Guide

190-11110-00 Rev. H

2GETTING STARTED

1.Check to see if an update to the system software of your GDL 39, display and/or Bluetooth devices is available. See the user guides of those devices for instructions. Updating of the devices may be easier to perform before installation in the aircraft.

2.When the GDL 39 is powered on, the GDL 39 will go into Bluetooth pairing mode. Follow the directions for the device intended to connect to the GDL 39. Once a connection is established with a Bluetooth device, the GDL 39 will automatically connect to the Bluetooth device upon power-up. The blue LED will light if a Bluetooth connection has been made. The GDL 39 may be connected to multiple Bluetooth devices simultaneously.

3.Locate the positions for the GDL 39, any external antenna(s), and cable routing.

4.Install the GDL 39 mounting plate (if desired), optional battery pack (if used), and the GDL 39.

5.Connect cabling, if necessary.

6.If the GDL 39 is connected to external power, the GDL 39 will power on automatically. If the GDL 39 is attached to the battery pack, press the power button to turn on the GDL 39.

190-11110-00 Rev. H

Garmin GDL 39 Portable ADS-B and GPS Receiver User’s Guide

2-1

Optional External ADS-B Antenna

		Bluetooth Device
Optional External GPS Antenna		Display Device
		GDL 39

Power and Data

Figure 2-1 GDL 39 System

2-2

Garmin GDL 39 Portable ADS-B and GPS Receiver User’s Guide

190-11110-00 Rev. H
