DCS-6620 User’s Manual |
Package Contents |
Package Contents
D-Link SECURICAM DCS-6620 PTZ Internet Camera
Remote Control
12V AC Power Adapter
A/V Cables
Category 5 Ethernet Cable
Camera Stand
Quick Installation Guide
Installation software and manual on CD
If any of the above items are missing, please contact your reseller.
Note: Using a power supply with a different voltage than the one included with the DCS-6620 will cause damage and void the warranty for this product.
Minimum System Requirements
Internet Explorer 6.0 or above
CPU: Pentium 4, 2.0GHz plus processor
Memory Size: 128MB or above
32MB AGP Video Card
D-Link Systems, Inc. |
3 |
DCS-6620 User’s Manual |
Introduction |
Introduction
The D-Link SECURICAM Network DCS-6620 PTZ (Pan,Tilt, and Zoom) Internet Camera is a full featured surveillance system that connects to an Ethernet, Fast Ethernet or broadband Internet connectiontoprovideremotehigh-quality2-WayFullDuplexaudio,and10xopticaland10xdigital zoom1forgreaterclarityanddetailfromyourrecordings.TheDCS-6620isthelatestproductaddedtothe D-Link SECURICAM Network line. The DCS-6620 PTZ Internet Camera differs from a conventional PC Camera because it is a stand-alone system with a built-in CPU and Web server, capable of solving demanding security and home/office monitoring needs. The PTZ Internet Camera can be accessed remotely, and controlled, from any PC or notebook computer over the Internet from anywhere in the world. Simple installation procedures, along with the built-in Web-based interface offers easy integration to your network environments.
Features and Benefits
The SECURICAM Network DCS-6620 PTZ Internet Camera is a stand-alone system requiring no special hardware or software such as PC frame grabber cards. For remote viewing, all that is required is a computer with Internet Explorer Web browser (version 6.x or above). Just plug in the camera and monitor the site from your PTZ Internet Camera with a valid IP Address.
Motorized Pan and Tilt Operation
The DCS-6620 has a pan and tilt function that can expand your viewing area to cover a wide 270o angle side-to-side and a 90o angle up and down. This can be controlled with a PC from any location or locally using the included infrared remote control.
CCD Sensor
The DCS-6620 comes standard with a high quality CCD sensor that is superior to a CMOS type sensor. The variable focus glass lens will facilitate the use of the DCS-6620 providing crystal clear and sharp images.You can view up to 30 frames2 per second of live motion video with 380 TV lines of resolution.
Broad Range of Applications
With today’s high-speed Internet services, the PTZ Internet Camera can provide the ideal solution for live video images and audio over the Intranet and Internet for remote monitoring. The DCS-6620 allows remote access from your Internet Explorer Web browser for live image viewing with audio, and allows the administrator to manage and control the PTZ Internet Camera anytime and anywhere in the world. Apply the Internet Camera to monitor various objects and places such as homes, offices, banks, hospitals, child-care centers, amusement parks and other varieties of industrial and public monitoring.The PTZ Internet Camera can also be used for intruder detection with its motion-detection mode, capture still images and video images for archiving, and many more applications such as sending images to an FTP server or configuring for E-mail alerts.The DCS-6620 features 2-way Full-Duplex audio with a built-in microphone that lets you remotely monitor and record audio with your video.With the addition of optional speakers (not included), you can have 2-way Full-Duplex audio communication with the people you are viewing. The DCS-6620 also features 10x optical and digital zoom for
closer viewing.
1 10x digital zoom enlarges an image by magnifying the pixels in a selected portion of the image by 10 times. 2 Actual frame rate will vary due to network traffic, compression rate, frame rate, and lighting.
D-Link Systems, Inc. |
4 |
DCS-6620 User’s Manual |
Features & Benefits |
Supports a Variety of Protocols
In addition, the DCS-6620 supports a variety of platforms including FTP, SMTP, NTP, and HTTP. The camera also supports UPnP and DDNS. DDNS allows the camera to use an easier to remember naming format rather than an IP address. UPnP will allow users of Windows® XP to install the camera with the click of a mouse.
A/V Output
The SECURICAM Network DCS-6620 comes with an A/V output allowing you to connect to your TV for local viewing.The DCS-6620 can also be connected directly to your VCR to record activities.
Web Configuration
Using the Internet Explorer Web browser, administrators can configure and manage the PTZ Internet Camera directly from its own Web page via the Intranet or the Internet. Up to 20 user names and passwords are permitted, with privilege settings controlled by the administrator.
Powerful Surveillance and Remote Monitoring Utility
The powerful IP surveillance software application assigns an administrator with a pre-defined user ID and password who can modify the PTZ Internet Camera settings from the remote site via the Intranet or the Internet. Administrators are allowed to monitor the image, record the image to a hard drive, and take snapshots.
Connection to External Devices
Supporting auxiliary Input/Output connectors, you can connect the PTZ Internet Camera to a variety of external devices such as IR-sensors, switches and alarm relays. Combined with programmable alarming equipments, you can develop a variety of security applications that are triggered on alarm-based events.The PTZ Internet Camera provides an industry standard in/out external connector for connectivity.
Internal/External Microphone
The SECURICAM Network DCS-6620 allows you to monitor video as well as audio through the web browser.You have the option of using the DCS-6620’s integrated microphone or your own external microphone using the connection located at the rear of the unit.
Note: Use of audio or video equipment for recording the image or voice of a person without their knowledge and consent is prohibited in certain states or jurisdictions. Nothing herein represents a warranty or representation that the D-Link product provided herein is suitable for the end-user’s intended use under the applicable laws of his or her state. D-Link disclaims any liability whatsoever for any end-user use of the D-Link product, which fails to comply with applicable state, local, or federal laws.
D-Link Systems, Inc. |
5 |
DCS-6620 User’s Manual |
Connections |
Connections
Microphone Connector
Ethernet 10/100 RJ45 socket |
External I/O Port |
|
A/V Out Connector
Power Cord socket
Ethernet 10/100 RJ45 socket
The DCS-6620 back panel features an RJ-45 connector for connections to 10Base-T Ethernet cabling or 100Base-TX Fast Ethernet cabling. This network port supports the NWay protocol, allowing the PTZ Internet Camera to automatically detect or negotiate the transmission speed of the network.
The Ethernet cable included with the DCS-6620 PTZ Internet Camera is a Category 5 “straight through” cable. This is the recommended cable type when the camera is connected to a 100Mbps Fast Ethernet network router, hub or switch.
Power
The DC power input connector is located on the DCS-6620 PTZ Internet Camera’s back panel and is labeled 12V with a single socket to supply power to the PTZ Internet Camera.
Microphone
The DCS-6620 PTZ Internet Camera has an internal microphone.However, you have the option of using an external microphone by plugging it into the microphone connector.
A/V Out
Plug the included A/V cable into the A/V out connector to use the DCS-6620 with a television or VCR.
D-Link Systems, Inc. |
6 |
DCS-6620 User’s Manual |
Connections |
External I/O Port
The DCS-6620 provides a terminal block with two pairs of connectors situated on the back panel. One pair is for input and the other is for output. The External I/O Port provides the physical interface to send, and receive, digital signals to a variety of external alarm devices. Please refer to the appendix in this manual for detailed information (page 131).
Bottom Panel
Socket for stand
Attachment socket for the Camera Stand
Located on the bottom panel of the DCS-6620, the socket is used to connect the camera stand to the PTZ Internet Camera by attaching the screw head on the camera stand to the PTZ Internet Camera.
D-Link Systems, Inc. |
7 |
DCS-6620 User’s Manual |
Connections |
Infrared Remote Control
Included with the DCS-6620 is an infrared remote control.You have the option of controlling the camera via the Pan/Tilt/Zoom Controls using the IP surveillance software, Internet Explorer, or via the infrared remote. To use the remote, make sure that IR Control is enabled on the

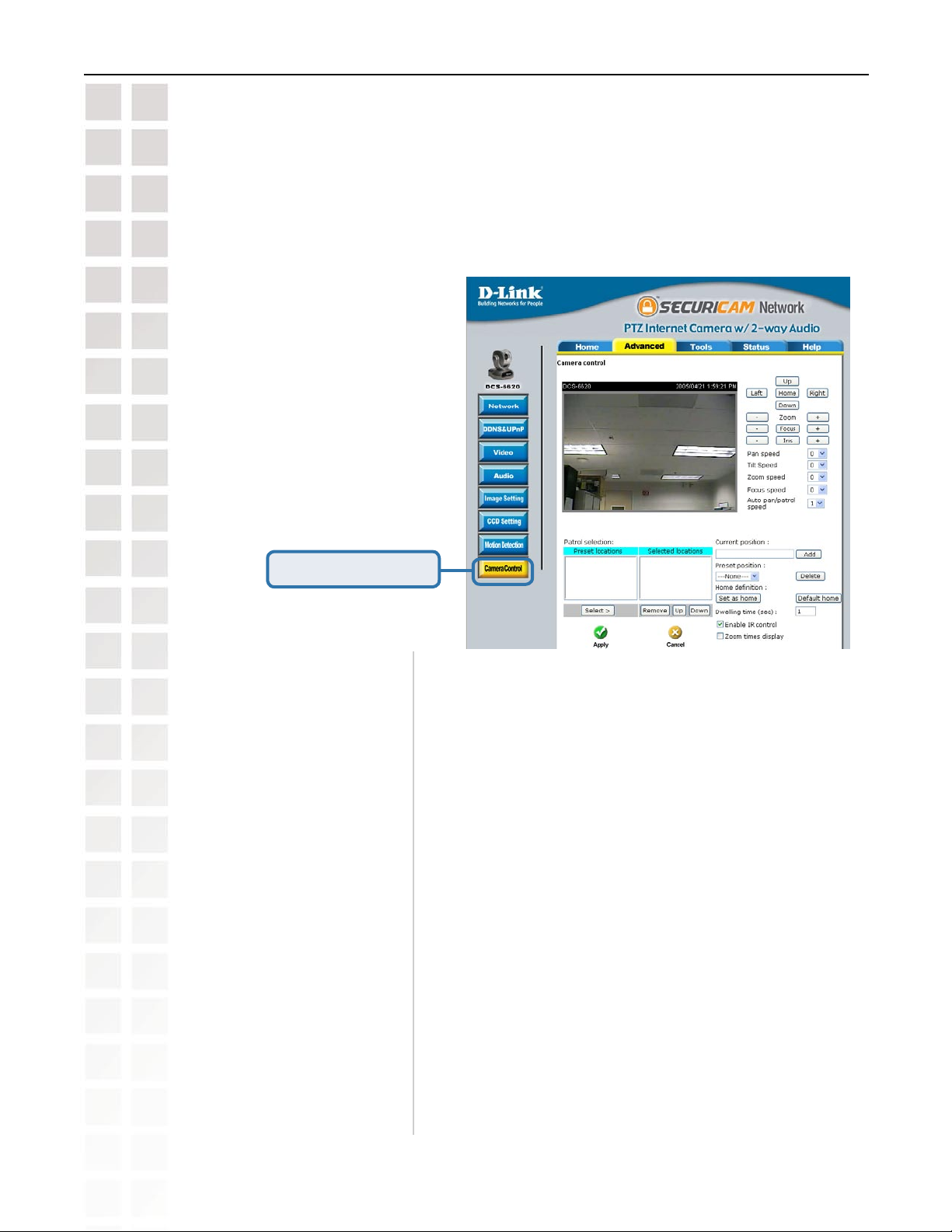

Camera Control page in the Configuration Menu under Advanced. Please refer to the section titled
“Using the DCS-6620 with an Internet Browser” in this manual for more information.
Arrows
Home
Zoom In
Zoom Out
Auto-Pan
Center
Auto-Patrol
Stop
Arrows: Use the Up, Down, Left and Right arrows to tilt/navigate the camera lens. Home: Returns the camera lens to the set home position.
Zoom In: Zooms in to display a specific area.
Zoom Out: Zooms out to display a larger area.
Auto-Patrol: Enables the Auto-Patrol function.
Auto-Pan: Pans the camera one full cycle.
Center: Centers the camera lens.
Stop: Stops the movement of the camera during pan.
D-Link Systems, Inc. |
8 |
DCS-6620 User’s Manual |
Hardware Installation |
Hardware Installation
1Connect an Ethernet cable
Connect an Ethernet cable to the network cable connector located on the DCS-6620’s back panel and attach it to the network.
2Attach the external power supply
Attach the external power supply to the DC power input connector located on the DCS-6620’s back panel labeled 12V and connect the other end to your wall outlet.
Power LED
LED stands for Light-Emitting Diode.
The Power LED is positioned in the center of the PTZ Internet Camera base. As soon as the power adapter is connected to the PTZ Internet Camera, the power and the activity LED will flash red and green several times. The DCS-6620 is conducting a self-test. Upon passing the self-test, the red LED will be solid and the green LED will start to blink to indicate a good connection to an Ethernet port.If you are directly connected to the camera via a crossover cable, the light may cycle on and off and your computer may show an intermittent loss of connectivity.This is normal until you have configured your PTZ Internet Camera.The absence of a blinking green LED indicates no connection has been made.
Attaching the PTZ Internet Camera to the Camera Stand
The PTZ Internet Camera comes with a camera stand and a swivel ball screw head that can be attached to the PTZ Internet Camera bottom socket cavity.Attach the camera stand to the PTZ Internet Camera and station it for your application.There is a hole located in the base of the camera stand allowing the PTZ Internet Camera to be mounted to the ceiling, or any wall securely.
D-Link Systems, Inc. |
9 |
DCS-6620 User’s Manual |
Installation Wizard |
Installation Wizard
After you have successfully completed the hardware installation of the DCS-6620 PTZ Internet Camera, it is necessary to install software to configure and operate the camera.The first step is to install the Installation Wizard program from the CD. Installation Wizard will allow you to configure the PTZ Internet Camera to your network.
After the Installation Wizard software program is completed, you will have an operating and controllable PTZ Internet Camera. From your Internet Explorer Web browser you will be able to access the video and sound from the PTZ Internet Camera.The camera has a built-in Web server. This Web server will allow the camera to access the Internet without being attached to a computer and permits users to view the video and audio remotely.
However, it is necessary to install the IP surveillance software from the enclosed CD to create a truly powerful surveillance system.The following section will show in detail the launching of the Installation Wizard and installation of the IP surveillance software.
Launching the Installation Wizard program
Insert the CD that is included with the DCS-6620 PTZ Internet Camera into your computer’s CD-ROM. The DCS-6620 installation menu will start up automatically from the CD. If the CD does not start up automatically, (this function may be disabled in the Windows operating system), access the CD from Windows My Computer and click on the autorun.exe program to access the installation menu shown below:

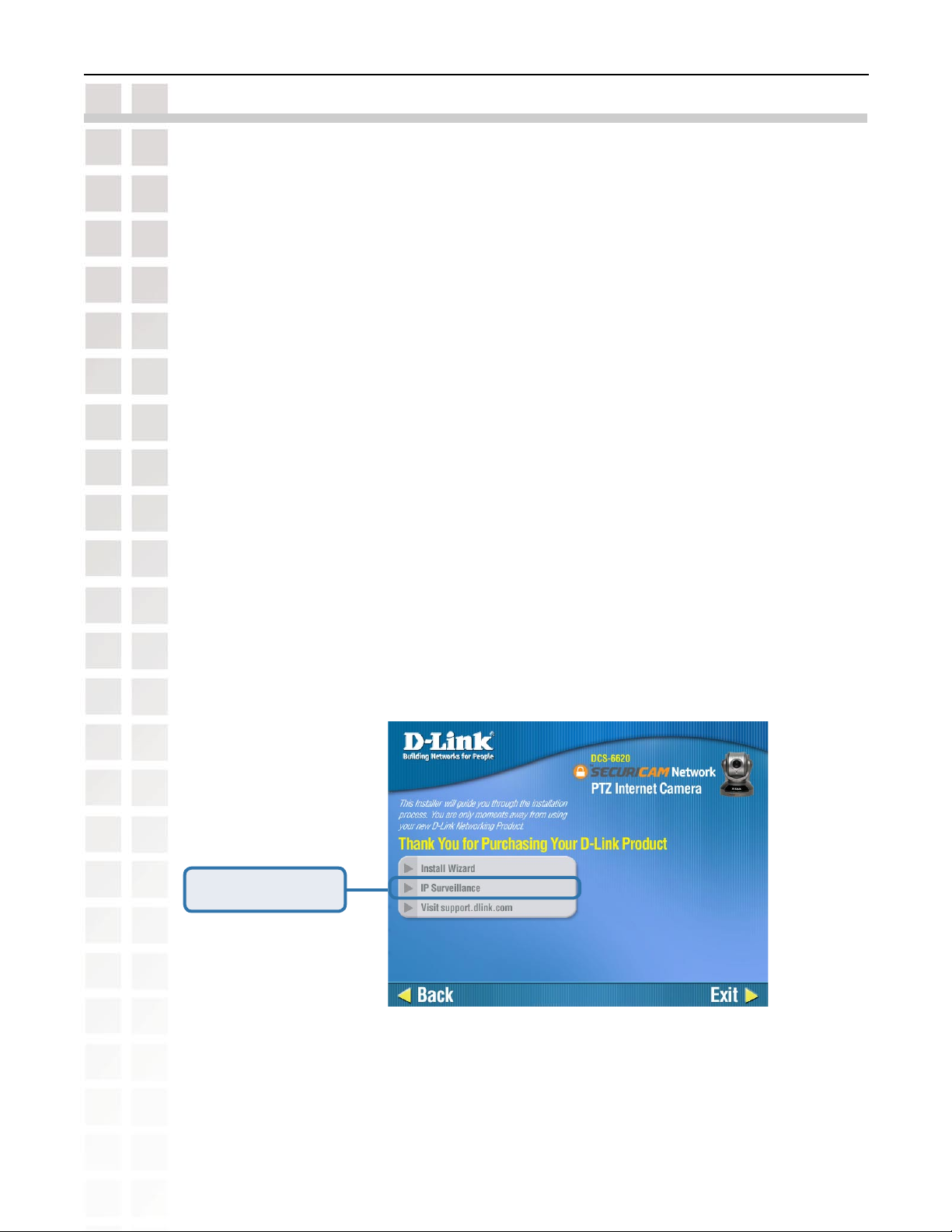

Click Install Software
D-Link Systems, Inc. |
10 |
DCS-6620 User’s Manual |
Installation Wizard |
Click Install Wizard
Please wait while the InstallShield Wizard prepares to install.
Click Next
D-Link Systems, Inc. |
11 |
DCS-6620 User’s Manual |
Installation Wizard |

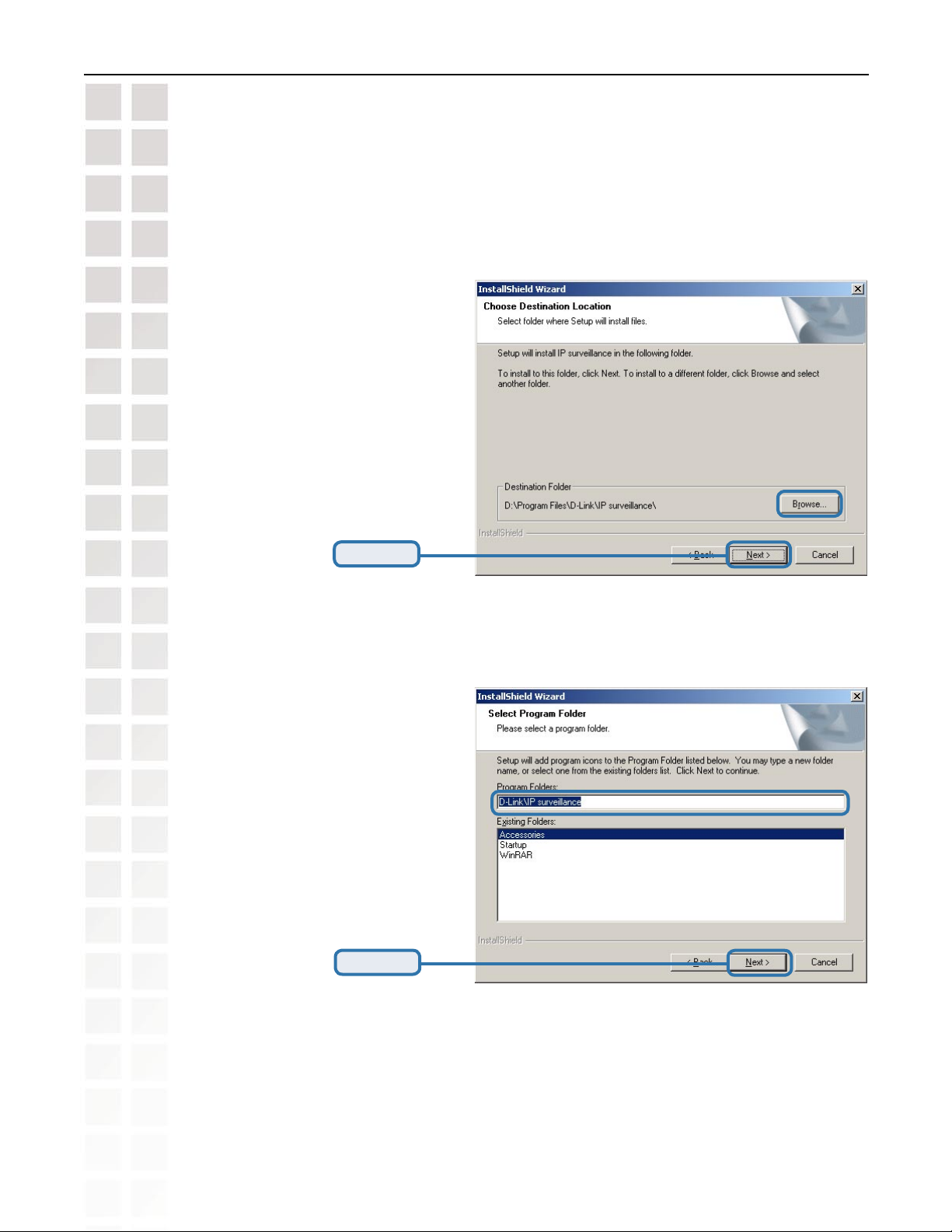

The InstallShield will install in the following folder. To install into a different folder, click Browse and select another folder.
Click Next
Select the Program folder that Setup will add program icons to.You may type a new folder name, or select one from the existing folders list.
Click Next
Please wait while the Installation Wizard is installed.
D-Link Systems, Inc. |
12 |
DCS-6620 User’s Manual |
Installation Wizard |
Installation is now complete.
Click Finish
To access the Installation Wizard screen, click on the
Installation Wizard Icon on your desktop.
The opening Installation Wizard screen will appear and show a MAC address of the DCS-6620 and an IP Address (which may or may not be correct depending on what you have your DCS-6620 connected to). If you have a DHCP* server on your network, there will be a valid IP Address displayed here, indicated by a “Yes” under the assigned column.
*A DHCP server is a device that supplies IP Addresses to its clients that are on the same network.
IMPORTANT:
A hardware reset of the PTZ Internet Camera may be required if the Installation Wizard cannot find the camera. To accomplish this reset, lightly insert a paper clip (or a similar sized tool) into the reset hole on the side of the camera (see page 130 for the location of the reset hole). The LED on the front of the camera will begin blinking alternately. When it stops the blinking cycle continue to hold in the reset button for about 10 seconds.
D-Link Systems, Inc. |
13 |
DCS-6620 User’s Manual |
Installation Wizard |
The Installation Wizard will now show a MAC address for the DCS-6620 and an IP address. This IP address may not be correct at this step in the installation until you see “Yes” under the assigned column.The camera is now automatically configured with an IP address consistent to the network it is connected to.
Select the MAC address
Click on the Link to Selected
Devices button
For more information regarding the functions of this screen, see the following section titled “Installation Wizard Screen” (page 15).
AfteryouclickontheLinktoSelected Devices button, Installation Wizard will automatically open your InternetbrowsertotheIPAddress of the DCS-6620, in this example it is:http://192.168.0.120.Your DCS-6620 may have a different IP Address.
Ifawindowappearsaskingtoinstalla Verisigncertificateforauthentication ClickYes.Thisallowstheproprietary MPEG-4 video stream to be recognized by Internet Explorer.
D-Link Systems, Inc. |
14 |
DCS-6620 User’s Manual |
Installation Wizard Screen |
Afteryouclick“Yes”totheVerisign certificate for authentication, you should see an image from your DCS-6620 PTZ Internet Camera.
You have now completed the Setup Wizard and are ready to use your camera! You can also continue to the section titled “Installing IP surveillance Software” (page 22) to install the IP surveillance software before you begin to use the DCS-6620.
Installation Wizard Screen
The following options are available on the Installation Wizard screen by clicking on the corresponding tab:
Search: |
Click to search for any available |
|
cameras to connect to the network. |
Add: |
Click to manually add a camera |
|
to the network. A window will |
|
appear, prompting you to enter the |
|
camera’s IP address or domain |
|
name.A second window will appear, |
|
prompting you to enter the port |
|
number. |
Remove: |
Click to remove the selected |
|
camera(s) from the network. |
Uncheck |
Click to uncheck all selected cameras. |
All: |
|
Links to |
Click to view all of the selected cameras. For each individual camera selected, |
Selected |
an individual Internet browser will appear. |
Devices: |
|
|
|
D-Link Systems, Inc. |
15 |
DCS-6620 User’s Manual |
Installation Wizard Screen |
Setup

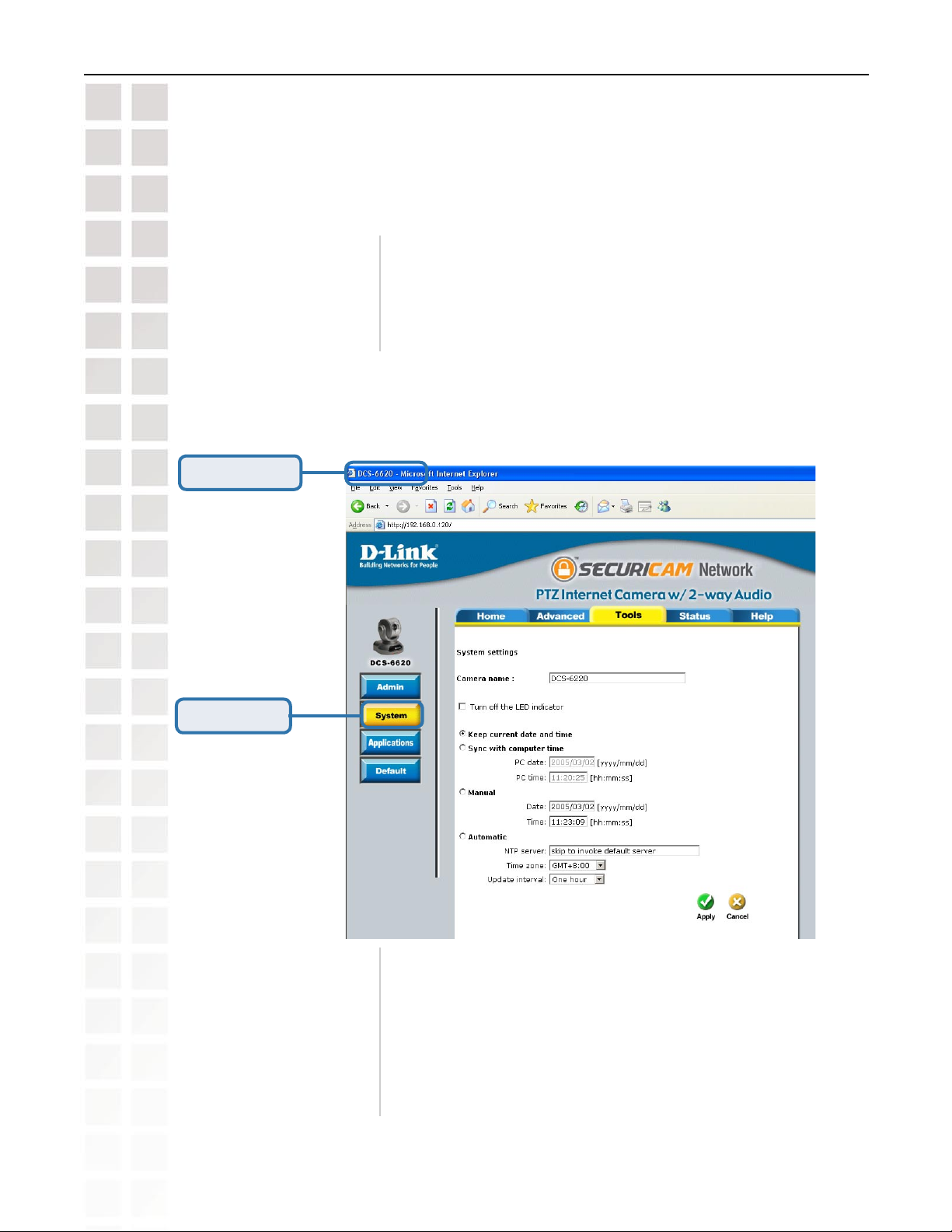

On the initial Setup Screen you can configure System and Date/Time settings for each camera. Click Next to configure Network settings for the camera.
System |
Enter a Camera Name and create an |
Settings: |
Admin password for the camera. |
Date/Time |
Enter the Date and Time for each |
Settings: |
camera. These settings can also |
|
be configured on the Tools > System |
|
screen (page 57) when configuring |
|
the camera via a Web browser. |
|
|
Network HereuserscanconfiguretheNetwork Settings: Settings for the camera. Enter the IP address, Subnet mask, Default router IP, Primary DNS, and Secondary DNS. Automatically, the option to reset IP address at boot is selected.
If you would like to save your IP address settings, make sure to uncheck this box.These settings can also be configured on the Advanced > Network screen (page 39) when configuring the camera via a Web Browser.
Click Next and then Apply to save the configured settings. Users can click Previous to modify changes or mistakes.
D-Link Systems, Inc. |
16 |
DCS-6620 User’s Manual |
Installation Wizard Screen |
Upgrade
The upgrade window allows users to upload a saved firmware file. If the firmware is older than that currently on the camera, a screen will appear indicating so and prompting the user to confirm the upload.
Package
Information:
Locate the Firmware to Upgrade:
Selected
Package:
This displays information about the firmware and plugin currently installed on the camera.
Allows you to browse to the location of the firmware to be uploaded to the camera.
This displays the file name of the firmware selected for upload.
Reset to Default
Click the Reset to Default tab to reset the camera’s settings to factory defaults.
About
Click About to display the current version and date of the Installation Wizard.
Exit
Click the Exit tab to exit the Installation Wizard screen.
D-Link Systems, Inc. |
17 |
DCS-6620 User’s Manual |
Enabling UPnPTM for Windows® XP |
Enabling UPnPTM for Windows® XP
UPnPTM is short for Universal Plug and Play, which is a networking architecture that provides compatibility among networking equipment, software, and peripherals.The DCS-6620 is a UPnP enabled PTZ Internet Camera. If your operating system is UPnP enabled, the device will be easier to configure. If you do not want to use the UPnP functionality, it can be disabled by unselecting “Enabled” on the DDNS/UPnP settings page under “Advanced” in the configuration menu. Use the following steps to enable UPnP (Universal Plug and Play) settings only if you are running Windows XP. If you are running Windows 2000, UPnP is not available.
Go to Start >Settings.
Click Control Panel
Click Add or Remove
Programs
D-Link Systems, Inc. |
18 |
DCS-6620 User’s Manual |
Enabling UPnPTM for Windows® XP |
Click Add/Remove Windows
Components
The following screen will appear:
Select Networking Services
Click Details
Select Universal Plug
and Play
Click Ok
D-Link Systems, Inc. |
19 |
DCS-6620 User’s Manual |
Enabling UPnPTM for Windows® XP |
Click Next
Please wait while Setup configures the components.
Click Finish
D-Link Systems, Inc. |
20 |
DCS-6620 User’s Manual |
Enabling UPnPTM for Windows® XP |
To view your DCS-6620 PTZ Internet Camera in an Internet browser, go to your Desktop and click My Network Places.
Click My Network Places
Click DCS-6620-146
The last three digits (146), represent the fourth octet of your PTZ Internet Camera’s IP address (in this example, 198.168.0.146).
After you click on the DCS-6620-146 icon, your Internet browser will automatically be opened to the IP Address of the DCS-6620, in this example it is: http://192.168.0.120. Your DCS-6620 may have a different IP Address.
D-Link Systems, Inc. |
21 |
DCS-6620 User’s Manual |
Installing IP surveillance Software |
Installing IP Surveillance Software
The IP surveillance Software on the CD included with the DCS-6620 PTZ Internet Camera converts the DCS-6620 into a powerful, yet flexible, surveillance system for home or business, with the following features:
Real-time Monitoring
Video and Audio Recording to hard disk
High quality video
High compression ratio
Maximum of 16 cameras with different monitor layouts
Smart playback
Triggered event browsing
Fast database searching
Configurable automated alarms
Account password protection
Scheduled recording for each camera
AVI file export
Motion detection for each camera
To install the IP surveillance software, click on Install IP surveillance Software on the CD included with the PTZ Internet Camera. The Welcome screen appears:
Click Next
D-Link Systems, Inc. |
22 |
DCS-6620 User’s Manual |
Installing IP surveillance Software |
Click Yes
Please read the Software Licensing Agreement and click yes if you wish to accept the agreement. Click “No” to exit the installation.
Click Next
Enter your name and company information and then click “Next”.
D-Link Systems, Inc. |
23 |
DCS-6620 User’s Manual |
Installing IP surveillance Software |
Select the destination directory.
Click Next
Select the program folder the software will be installed into.
Click Next
D-Link Systems, Inc. |
24 |
DCS-6620 User’s Manual |

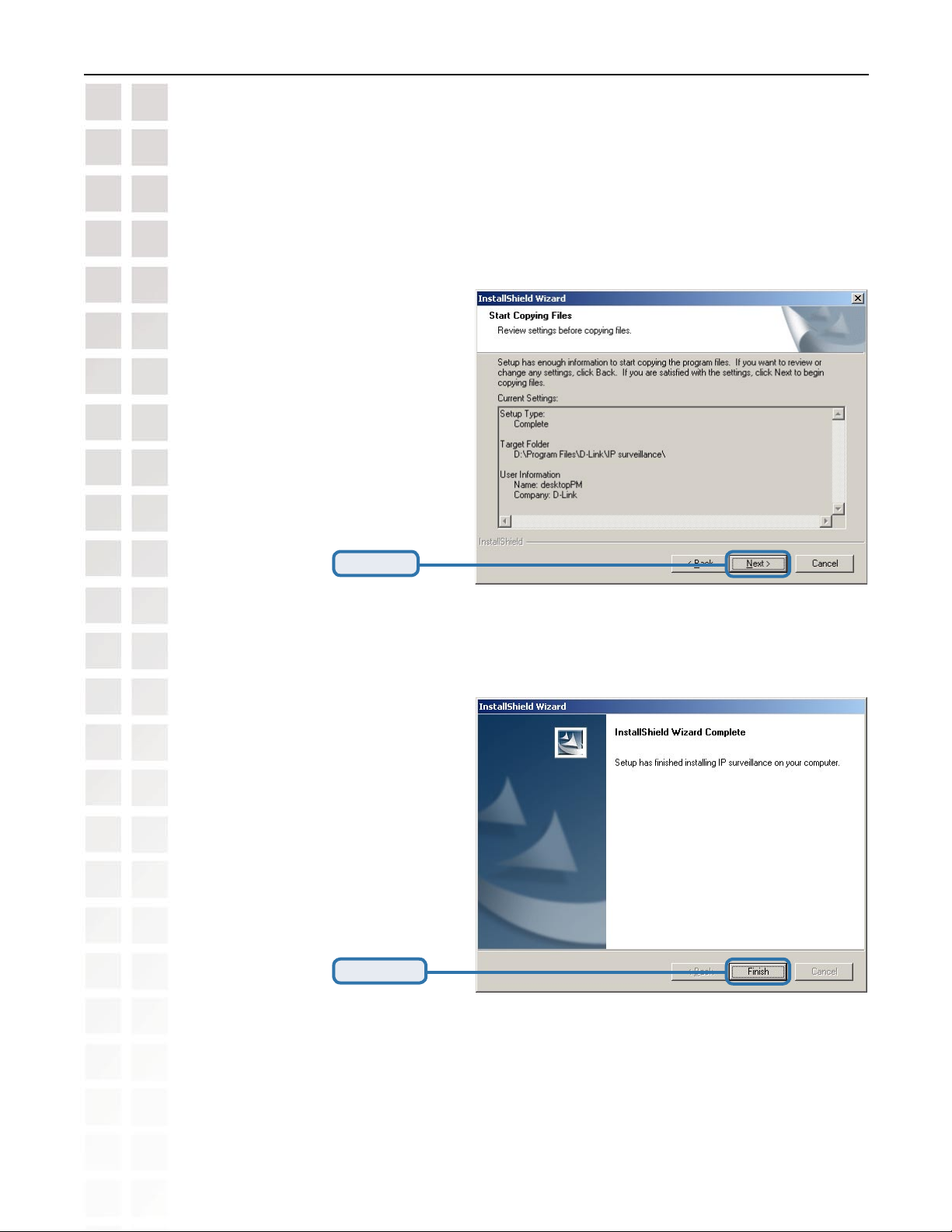

Installing IP surveillance Software |
Click Next
Click Finish
The installation is complete.
D-Link Systems, Inc. |
25 |
DCS-6620 User’s Manual |
Testing the DCS-6620 |
Testing the DCS-6620
Open your Internet browser and type in the IP address of the DCS-6620. In this example the address is: http://192.168.0.120 (your DCS-6620 may have a different IP address based on what you found with the Installation Wizard program).
The window in the center of your browser is the camera image window.You should now see a video image and hear the audio over your computer speakers from the DCS-6620. If you are having problems please consult the FAQ section of this manual (page 126).
D-Link Systems, Inc. |
26 |
DCS-6620 User’s Manual |
Security |
Security
At this point it is highly recommended that you click on the Configuration button on the Home screen, and then the Tools tab to bring you to the Admin screen. Enter a password for security purposes.
To ensure the highest security and prevent unauthorized use of the PTZ Internet Camera, the Administrator has the exclusive privilege to access the System Administration settings to allow users entry and authorize privileges for all users. The PTZ Internet Camera supports multi-level password protection/access to the PTZ Internet Camera that can be restricted to defined users who have a User Name and User Password, which is assigned by the Administrator.
The Administrator can release a public user name and password so that when remote users access the PTZ Internet Camera they will have the right to view the image transmitted by the PTZ Internet Camera.
When the PTZ Internet Camera is used for the first time, it is highly recommended that the Administrator set the Administrator Password to constrain user access to the PTZ Internet Camera since the Default settings are Null String (no password). Once the Password is defined, only the Administrator has access to the management of the PTZ Internet Camera. This procedure should be done as soon as possible since the security features of the PTZ Internet Camera will not be enabled until the Administrator Password is defined.
D-Link Systems, Inc. |
27 |
DCS-6620 User’s Manual |
Using and Configuring the DCS-6620 with a Router |
Using and Configuring the DCS-6620 with a Router
D-Link’s DCS-6620 is a versatile and cost effective PTZ Internet Camera offering both video and audio monitoring. It can also serve as a powerful surveillance system in security applications. The DCS-6620 can be used with any wired or wireless router.This section explains how to view the camera from either the Internet or from inside your internal network.
Materials Needed:
•1 DCS-6620 PTZ Internet Camera
•1 Ethernet Cable
•A Wired or Wireless router such as the D-Link DI-624 Wireless Router
•Ethernet based PC for system configuration
SETTING UP THE DCS-6620 FOR USE BEHIND A ROUTER
Installing a DCS-6620 PTZ Internet Camera on your network is an easy 4-step procedure:
Assign a local IP Address to your PTZ Internet Camera
View the PTZ Internet Camera Using Your Internet Explorer Web browser Access the Router with Your Web browser
Open Virtual Server Ports for Your Router (Enable Remote Viewing)
This section is designed to walk you through the setup process for installing your camera behind a router and enable remote video viewing. For the basic setup of the DCS-6620, follow the steps outlined in the Quick Installation Guide.
After you have completed the setup of the DCS-6620 outlined in the Quick Installation Guide you will have an operating camera that has an assigned IP Address. Because you are using a router to share the Internet with one or more PCs, the IP Address assigned to the PTZ Internet Camera will be a local IP Address. This allows viewing within your Local Area Network (LAN) until the router is configured to allow remote viewing of the camera over the Internet.
Assign a Local IP Address for Your Camera
Run the Installation Wizard program from the CD included with the DCS-6620. Follow the steps in the Quick Installation Guide to configure the DCS-6620. The camera will be assigned a local IP Address that allows it to be recognized by the router.
D-Link Systems, Inc. |
28 |
DCS-6620 User’s Manual |
Using and Configuring the DCS-6620 with a Router |
This is the IP Address assigned to your camera. Write it down for later use. 192.168.0.120 is only an example.You will probably have a different IP Address.
View the PTZ Internet Camera using your Internet Explorer Web browser

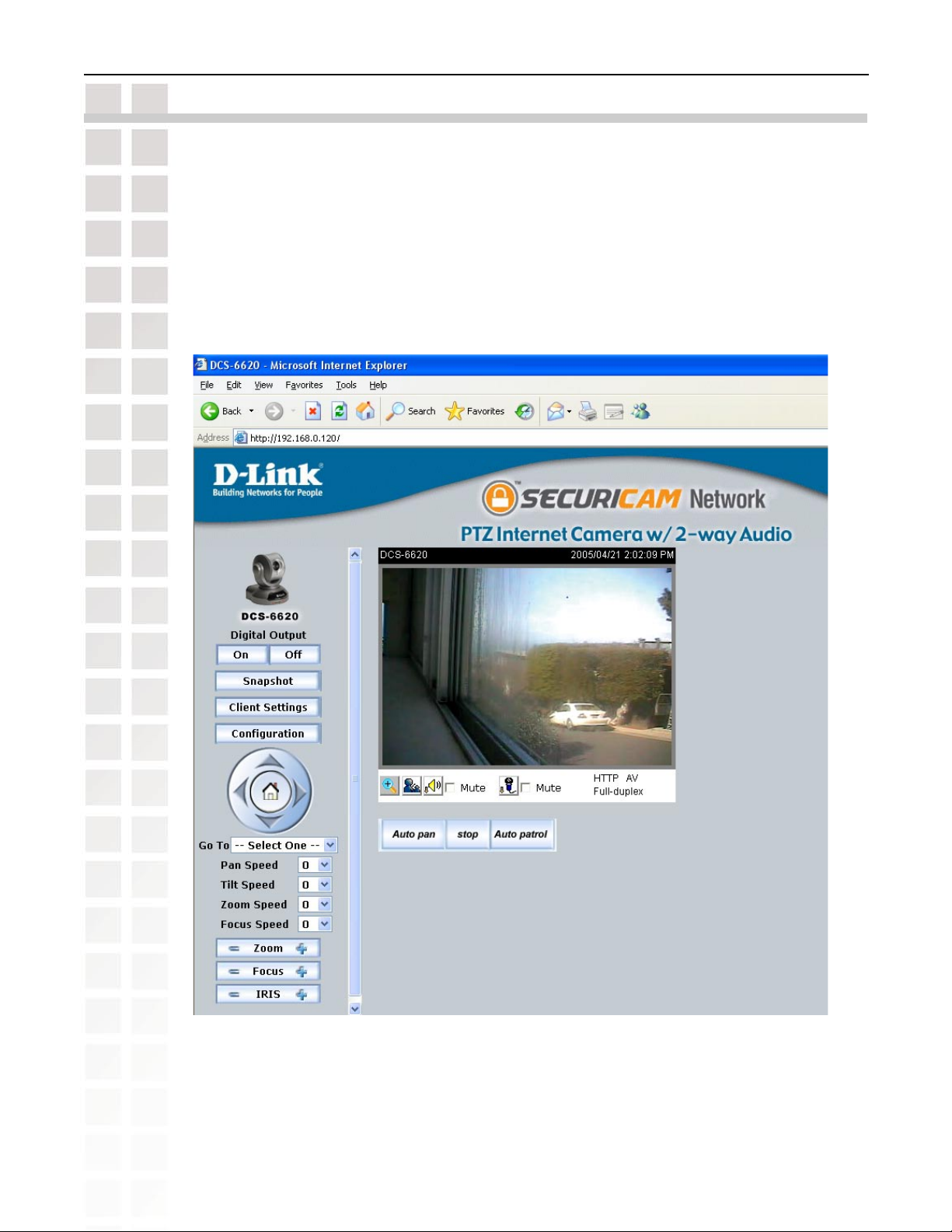

Run your Internet Explorer Web browser. In the address bar, type in the IP Address that was assigned to the PTZ Internet Camera by the Installation Wizard program.The DCS-6620 Home Page appears with a window displaying live video from the camera.You are able to view this screen from any PC running Internet Explorer on your LAN.
Click on the Configuration button.
Viewing the Video on the browser to test the connection

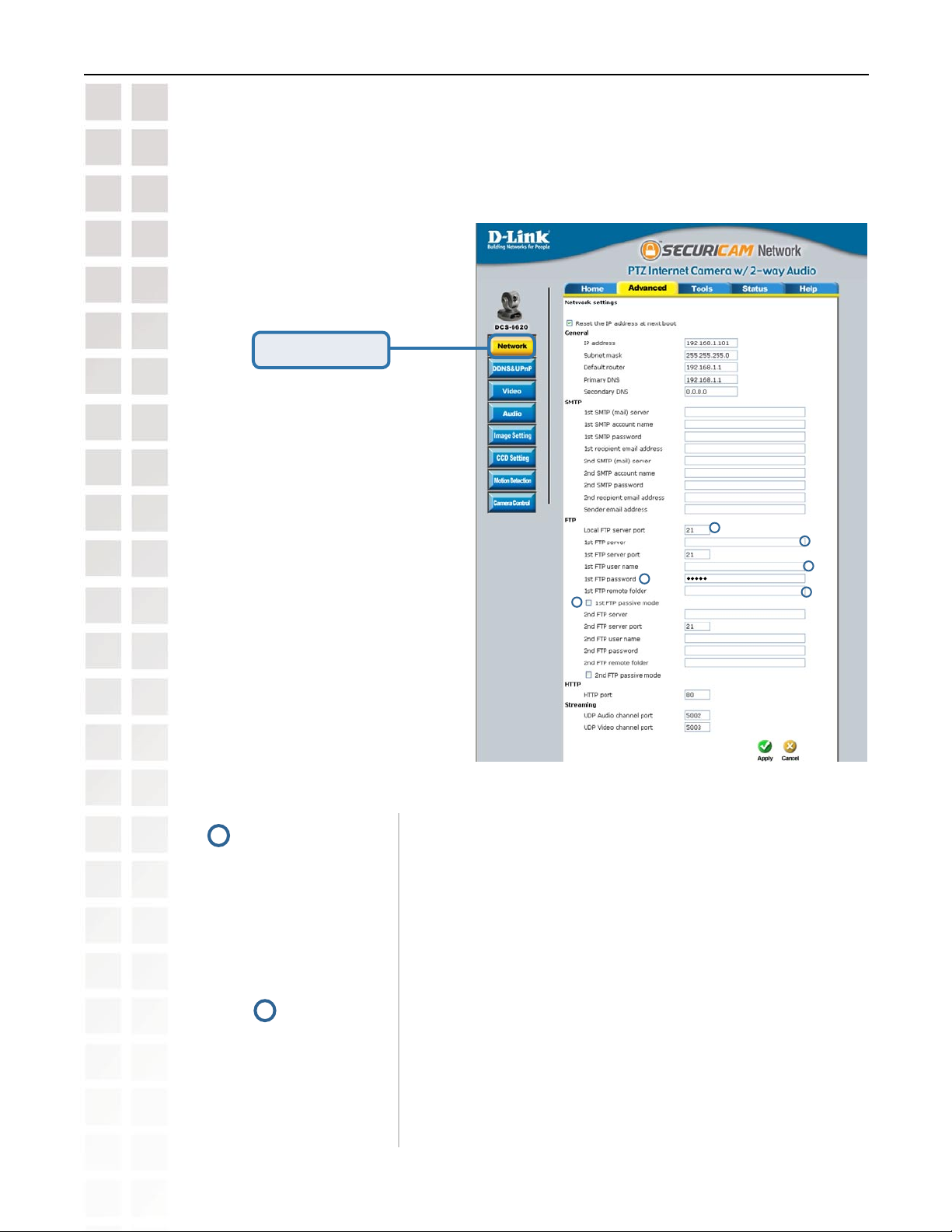

Click on the Configuration button on the left side of the display. Scroll to the bottom of the Network Configuration page to display the ports used by HTTP and Streaming audio and video.
D-Link Systems, Inc. |
29 |
DCS-6620 User’s Manual |
Using and Configuring the DCS-6620 with a Router |
These are the port settings for your camera.If necessary, these ports can be changed if they are already in use by other devices (e.g. in a multiple camera environment).
Router Set-Up and Installation
The following steps generally apply to any router that you have on your network. The D-Link DI-624 is used as an example to clarify the configuration process. Configure the initial settings of the DI-624 by following the steps outlined in the DI-624 Quick Installation Guide.
Access Your Router on Your Web Browser
If you have cable or DSL service, you will most likely have a dynamically assigned WAN IP Address. ‘Dynamic’ means that your router’s WAN IP address can change from time to time depending on your ISP. A dynamicWAN IP Address identifies your router on the public network and allows it to access the Internet. To find out what your router’s WAN IP Address is, go to the Status screen on your router and locate the WAN information for your router. As shown on the next page the WAN IP Address will be listed.This will be the address that you will need to type in your web browser to view your camera over the Internet. Be sure to uncheck the Reset IP address at next boot button at the top of the screen after modifying the IP address. Failure to do so will reset the IP address when you restart your computer.
D-Link Systems, Inc. |
30 |
