NETWORK CAMERA
User Manual
SND-L6013/SND-L6013R/ SNO-L6013R/SND-L6083R/ SNO-L6083R/SNV-L6083R
Network Camera
User Manual
Copyright
©2015 Samsung Techwin Co., Ltd. All rights reserved.
Trademark
is the registered logo of Samsung Techwin Co., Ltd. The name of this product is the registered trademark of Samsung Techwin Co., Ltd.
Other trademarks mentioned in this manual are the registered trademark of their respective company.
Restriction
Samsung Techwin Co., Ltd shall reserve the copyright of this document. Under no circumstances, this document shall be reproduced, distributed or changed, partially or wholly, without formal authorization of Samsung Techwin.
Disclaimer
Samsung Techwin makes the best to verify the integrity and correctness of the contents in this document, but no formal guarantee shall be provided. Use of this document and the subsequent results shall be entirely on the user’s own responsibility. Samsung Techwin reserves the right to change the contents of this document without prior notice.
Design and specifications are subject to change without prior notice.
The initial administrator ID is “admin” and the password should be set when logging in for the first time. Please change your password every three months to safely protect personal information and to prevent the damage of the information theft.
Please, take note that it’s a user’s responsibility for the security and any other problems caused by mismanaging a password.
overview
Important Safety Instructions
1. |
Read these instructions. |
|
|
2. |
Keep these instructions. |
|
|
3. |
Heed all warnings. |
● |
|
4. |
Follow all instructions. |
overview |
|
|
|
||
5. |
Do not use this apparatus near water. |
|
|
6. |
Clean only with dry cloth. |
|
|
7. |
Do not block any ventilation openings, Install in accordance with the manufacturer’s |
|
|
8. |
instructions. |
|
|
Do not install near any heat sources such as radiators, heat registers, stoves, or other |
|
|
|
9. |
apparatus (including amplifiers) that produce heat. |
|
|
Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized |
|
|
|
|
plug has two blades with one wider than the other. A grounding type plug has two |
|
|
|
blades and a third grounding prong. The wide blade or the third prong are provided for |
|
|
|
your safety. If the provided plug does not fit into your outlet, consult an electrician for |
|
|
10. |
replacement of the obsolete outlet. |
|
|
Protect the power cord from being walked on or pinched particularly at plugs, |
|
|
|
11. |
convenience receptacles, and the point where they exit from the apparatus. |
|
|
Only use attachments/ accessories specified by the manufacturer. |
|
|
|
12. |
Use only with the cart, stand, tripod, bracket, or table specified by |
|
|
|
the manufacturer, or sold with the apparatus. When a cart is used, |
|
|
|
use caution when moving the cart/apparatus combination to avoid |
|
|
13. |
injury from tip-over. |
|
|
Unplug this apparatus during lighting storms or when unused for |
|
|
|
14. |
long periods of time. |
|
|
Refer all servicing to qualified service personnel. Servicing is required when the |
|
|
|
|
apparatus has been damaged in any way, such as power-supply cord or plug is |
|
|
|
damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus |
|
|
|
has been exposed to rain or moisture, does not operate normally, or has been dropped. |
|
|
English _3
overview
WARNING
TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS PRODUCT TO RAIN OR MOISTURE. DO NOT INSERT ANY METALLIC OBJECT THROUGH THE VENTILATION GRILLS OR OTHER OPENNINGS ON THE EQUIPMENT.
Apparatus shall not be exposed to dripping or splashing and that no objects filled with liquids, such as vases, shall be placed on the apparatus.
To prevent injury, this apparatus must be securely attached to the Wall/ceiling in accordance with the installation instructions.
CAUTION
CAUTION
RISK OF ELECTRIC SHOCK.
DO NOT OPEN
CAUTION : TO REDUCE THE RISK OF ELECTRIC SHOCK.
DO NOT REMOVE COVER (OR BACK).
NO USER SERVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
EXPLANATION OF GRAPHICAL SYMBOLS
The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.
The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating
and maintenance (servicing) instructions in the literature accompanying the product.
4_ overview
Battery
Batteries(battery pack or batteries installed) shall not be exposed to excessive heat such as sunshine, fire or the like.
Disconnection Device
Disconnect the main plug from the apparatus, if it’s defected. And please call a repair man in your location.
When used outside of the U.S., it may be used HAR code with fittings of an approved agency is employed.
CAUTION
Risk of explosion if battery is replaced by an incorrect type. Dispose of used batteries according to the instructions.
These servicing instructions are for use by qualified service personnel only. To reduce the risk of electric shock do not perform any servicing other than that contained in the operating instructions unless you are qualified to do so.
Please use the input power with just one camera and other devices must not be connected.
The ITE is to be connected only to PoE networks without routing to the outside plant.
overview ●
English _5
overview
Please read the following recommended safety precautions carefully.
yyDo not place this apparatus on an uneven surface.
yyDo not install on a surface where it is exposed to direct sunlight, near heating equipment or heavy cold area.
yyDo not place this apparatus near conductive material. yyDo not attempt to service this apparatus yourself. yyDo not place a glass of water on the product.
yyDo not install near any magnetic sources. yyDo not block any ventilation openings. yyDo not place heavy items on the product.
User’s Manual is a guidance book for how to use the products. The meaning of the symbols are shown below.
yyReference : In case of providing information for helping of product’s usages
yyNotice : If there’s any possibility to occur any damages for the goods and human caused by not following the instruction
Please read this manual for the safety before using of goods and keep it in the safe place.
6_ overview
CONTENTS
overview |
9 |
Product Features |
3 |
3 |
Important Safety Instructions |
10 |
Recommended PC Specifications |
|
11 |
Recommended Micro SD/SDHC |
|
11 |
Memory Card Specifications |
|
|
NAS recommended specs |
|
|
12 |
What’s Included |
|
15 |
At a Glance (SND-L6013) |
|
18 |
At a Glance (SND-L6013R) |
|
21 |
At a Glance (SND-L6083R) |
|
24 |
At a Glance (SNO-L6013R) |
|
26 |
At a Glance (SNO-L6083R) |
|
29 |
At a Glance (SNV-L6083R) |
installation & connection
32
network connection and setup
54
32 Installation (SND-L6013/
SND-L6013R/SND-L6083R)
34 Installation (SNO-L6013R/
SNO-L6083R)
38 Installation (SNV-L6083R)
45 Inserting/Removing a Micro SD
Memory Card
48Memory Card Information (Not Included)
49Connecting with other Device
54Connecting the Camera Directly to Local Area Networking
55Connecting the Camera Directly to a DHCP Based DSL/Cable Modem
56Connecting the Camera Directly to a PPPoE Modem
57Connecting the Camera to a Broadband Router with the PPPoE/Cable Modem
overview ●
English _7
overview
network connection and setup
54
web viewer
67
setup screen
82
appendix
132
58 |
Buttons used in IP Installer |
59 |
Static IP Setup |
63 |
Dynamic IP Setup |
64 |
Port Range Forward (Port Mapping) |
66 |
Setup |
Connecting to the Camera from a |
|
66 |
Shared Local PC |
Connecting to the Camera from a |
|
|
Remote PC via the Internet |
67 |
Connecting to the Camera |
69 |
Password setting |
69 |
Login |
70 |
Installing STW WebViewer Plugin |
72 |
Using the Live Screen |
75 |
Playing the recorded video |
82 |
Setup |
82 |
Basic Setup |
92 |
Video & Audio setup |
101 |
Network Setup |
110 |
Event Setup |
116 |
NAS (Network Attached Storage) |
126 |
guide |
System Setup |
|
131 |
Viewing profile information |
132 |
Specification |
138 |
Product Overview |
143 |
Troubleshooting |
145 |
Open Source Announcement |
8_ overview
Product Features
•• Dustproof/Waterproof (IP66) (SNO-L6013R/SNO-L6083R/SNV-L6083R)
The dustproof and waterproof design makes you feel at ease when installing the product outdoors or exposing it to rain.
•• IR mode (SND-L6013R/SNO-L6013R/SND-L6083R/SNO-L6083R/SNV-L6083R)
If the IR indicator turns on, the product switches to the IR mode for preventing an object from being too bright, which helps you identify the object in near distance.
•• Visibility: 15m (SND-L6013R/SND-L6083R)
In B/W mode, the IR indicator turns on with the effective visibility of 15m at 0 Lux.
•• Visibility: 20m (SNO-L6013R/SNO-L6083R/SNV-L6083R)
In B/W mode, the IR indicator turns on with the effective visibility of 20m at 0 Lux.
•• Full HD Video Quality
•• Multi-Streaming
This network camera can display videos in different resolutions and qualities simultaneously using different CODECs.
•• Web Browser-based Monitoring
Using the Internet web browser to display the image in a local network environment.
•• Alarm
When an event occurs, video is either sent to the email address registered by the user, sent to the FTP server, saved in a Micro SD card or NAS.
•• Tampering Detection
Detects tempering attempts on video monitoring.
•• Motion Detection
Detects motion from the camera’s video input.
•• ONVIF Compliance
This product supports ONVIF Profile-S&G. For more information, refer to www.onvif.org.
overview ●
English _9
overview
Recommended PC Specifications
•• CPU : Intel Core 2 Duo 2.4 GHz or higher (for using 1920x1080 30 fps)
`` Web Plug-in is optimized to SSE 4.1 Instruction Set.
•• Resolution : 1280X1024 pixels or higher (32 bit color)
•• RAM : 2GB or higher
•• Supported OS : Windows XP / VISTA / 7 / 8 / 8.1, MAC OS X 10.7 ~ 10.10
•• Supported Browser : Microsoft Internet Explorer (Ver. 8~11),
Mozilla Firefox (Ver. 9~35), Google Chrome (Ver. 15~40),
Apple Safari (Ver. 8.0.2(Mac OS X 10.10), 7.0.6(Mac OS X 10.9), 6.0.2(Mac OS X 10.8, 10.7 only), 5.1.7) Mac OS X only
`` Windows 8 is supported only in the Desktop mode.
`` Neither a beta test version unlike the version released in the company website nor the developer version will be supported.
`` For IPv6 connection, Window 7 or higher is recommended. `` For Mac OS X, only the Safari browser is supported.
•• Video Memory : 256MB or higher
JJ`` If the driver of the video graphic adapter is not installed properly or is not the latest version, the video may not be played properly.
`` For a multi-monitoring system involving at least 2 monitors, the playback performance can be deteriorated depending on the system.
10_ overview
Recommended Micro SD/SDHC Memory Card
Specifications
•• Recommended capacity : 4GB ~ 32GB
•• For your camera, we recommend you use a memory card from the following manufacturers: Micro SD/SDHC Memory Card : Sandisk, Transcend
•• Memory cards with a specification of Class 10 + UHS-1 or higher are recommended.
NAS recommended specs
•• Recommended capacity : 200GB or higher is recommended.
•• Simultaneous access : One unit of NAS can accept a maximum of sixteen camera accesses.
•• For this camera, you are recommended to use a NAS with the following manufacturer’s specs.
|
|
|
|
Recommended products |
Available sizes |
|
Netgear NAS |
A maximum of 16 cameras can access simultaneously. |
|
Synology NAS |
A maximum of 16 cameras can access simultaneously. |
JJ`` |
When you use Netgear’s NAS equipment, do not allocate the capacity for use. |
|
`` |
If you use NAS equipment for purposes other than video saving, the number of accessible |
|
|
cameras may be reduced. |
|
overview ●
English _11
overview
What’s Included
Please check if your camera and accessories are all included in the product package.
Appearance |
Item Name |
Quantity |
Description |
Model Name |
|
|
1 |
|
|
|
1 |
|
|
|
SND-L6013 or |
|
1 |
|
|
|
SND-L6013R or |
Camera |
|
SNO-L6013R or |
|
SND-L6083R or |
|
|
1 |
SNO-L6083R or |
|
SNV-L6083R |
|
|
|
|
|
1 |
|
|
|
|
|
1 |
|
|
|
|
|
|
SND-L6013/ |
Instruction book, |
|
SND-L6013R/ |
1 |
SNO-L6013R/ |
|
Installer S/W CD |
SND-L6083R/ |
|
|
|
SNO-L6083R/ |
|
|
SNV-L6083R |
12_ overview
Appearance |
Item Name |
Quantity |
Description |
Model Name |
|
|
|
|
SND-L6013/ |
|
Quick Guide |
|
|
SND-L6013R/ |
|
1 |
|
SNO-L6013R/ |
|
|
(Optional) |
|
SND-L6083R/ |
|
|
|
|
|
SNO-L6083R/ |
|
|
|
|
SNV-L6083R |
|
|
|
|
SND-L6013/ |
|
Warranty card |
|
|
SND-L6013R/ |
|
1 |
|
SNO-L6013R/ |
|
|
(Optional) |
|
SND-L6083R/ |
|
|
|
|
|
SNO-L6083R/ |
|
|
|
|
SNV-L6083R |
|
|
|
|
SND-L6013/ |
|
|
|
|
SND-L6013R/ |
|
Template |
1 |
Product installation guide |
SNO-L6013R/ |
|
SND-L6083R/ |
|||
|
|
|
|
SNO-L6083R/ |
|
|
|
|
SNV-L6083R |
|
|
2 |
|
SND-L6013/ |
|
|
|
SND-L6013R/ |
|
|
Tapping Screw |
|
Useful for installation on the |
SND-L6083R |
|
|
ceiling, wall, etc. |
SNO-L6013R/ |
|
|
|
3 |
||
|
|
|
SNO-L6083R/ |
|
|
|
|
|
SNV-L6083R |
|
|
|
It protects the camera from the |
SNO-L6013R |
|
Sunshield |
1 |
|
|
|
direct sunlight. |
|
||
|
|
|
SNO-L6083R |
|
|
|
|
|
|
|
Sunshield Hold |
1 |
It fixes the sunshield with the |
SNO-L6013R/ |
|
camera. |
SNO-L6083R |
||
|
|
|
overview ●
English _13
overview
Appearance |
Item Name |
Quantity |
Description |
Model Name |
|
RJ45 waterproof accessory |
1 |
Used to install in humid places |
SNO-L6013R/ |
|
SNO-L6083R |
|||
|
|
|
|
|
|
|
|
Used to control the direction of |
SNO-L6083R/ |
|
L Wrench |
1 |
the camera / Used to remove |
|
|
SNV-L6083R |
|||
|
|
|
and replace the dome cover |
|
|
|
|
|
|
|
Card-type moisture |
3 |
|
SNO-L6083R |
|
|
Attached when installed. |
|
|
|
absorbent |
|
|
|
|
|
|
|
|
|
|
1 |
|
SNV-L6083R |
|
Audio cable |
1 |
Used to connect with the audio |
SNV-L6083R |
|
port |
|||
|
|
|
|
|
|
Cable bush |
1 |
Used to connect the LAN cable |
SNV-L6083R |
|
with a diameter of Ø7~8.5. |
|||
|
|
|
|
|
|
|
|
Used for assembling the dome |
|
|
Machine Screws |
3 |
case when installing the product |
SNV-L6083R |
|
on the pipe, wall mount, etc. or |
|||
|
|
|
blocking a hole. |
|
|
Options (not included) |
|
||
|
Indoor Buried Housing |
|
Housing for installing indoor |
SND-L6083R/ |
|
|
buried type cameras |
SNV-L6083R |
|
|
|
|
14_ overview
At a Glance (SND-L6013) |
|
Appearance |
|
|
● |
a |
overview |
|
|
b |
|
Item |
Description |
a Dome cover |
Case cover used to protect the lens and the main unit. |
|
|
b Camera Case |
Housing part that covers the camera body. |
|
|
English _15
overview
Components
a
b
ACTLINK
NETWORK
FRONT
RESET
ACTNETWORK LINK
c d e
16_ overview
Item |
Description |
a Internal Cover |
It is a cover to protect the main body. |
b Lens |
Lens for the camera. |
|
|
|
The button restores all camera settings to the factory default. |
|
Press and hold for about 5 seconds to reboot the system. |
c Reset Button |
J If you reset the camera, the network settings will be adjusted so that |
DHCP can be enabled. If there is no DHCP server in the network, you |
|
|
must run the IP Installer program to change the basic network settings |
|
such as IP address, Subnet mask, Gateway, etc., before you can |
|
connect to the network. |
Micro SD Memory |
Compartment for the Micro SD memory card. |
d Card Compartment |
|
e PoE Connector |
Connects to the network and supplies power through Ethernet cable. |
overview ●
English _17
overview
At a Glance (SND-L6013R)
Appearance |
a |
b |
Item |
Description |
a Dome cover |
Case cover used to protect the lens and the main unit. |
|
|
b Camera Case |
Housing part that covers the camera body. |
18_ overview
Components |
|
a |
b |
|
c |
|
d |
ACTLINK
NETWORK
FRONT
overview ●
RESET
ACTNETWORK LINK
e f g
English _19
overview
Item |
Description |
|
a Internal Cover |
It is a cover to protect the main body. |
|
b Illumination Sensor |
Detects incoming light to control the IR LED. |
|
|
|
|
c IR LED |
These infrared LED’s are controlled by the illumination sensor. |
|
|
|
|
d Lens |
Lens for the camera. |
|
|
The button restores all camera settings to the factory default. |
|
|
Press and hold for about 5 seconds to reboot the system. |
|
e Reset Button |
J If you reset the camera, the network settings will be adjusted so that |
|
DHCP can be enabled. If there is no DHCP server in the network, you |
||
|
must run the IP Installer program to change the basic network settings |
|
|
such as IP address, Subnet mask, Gateway, etc., before you can |
|
|
connect to the network. |
|
Micro SD Memory |
Compartment for the Micro SD memory card. |
|
f Card Compartment |
||
g PoE Connector |
Connects to the network and supplies power through Ethernet cable. |
|
|
|
|
20_ overview
At a Glance (SND-L6083R)
Appearance
a
A
b
Item |
Description |
a Dome cover |
Case cover used to protect the lens and the main unit. |
|
|
b Camera Case |
Housing part that covers the camera body. |
overview ●
English _21
overview
Components
a |
b |
|
|
|
c |
|
d |
|
NETWORK |
|
ACT |
|
LINK |
|
FRONT |
|
e |
F |
f |
RESET
ACT LINK NETWORK
i h g
22_ overview
Item |
|
|
Description |
|
a Internal Cover |
It is a cover to protect the main body. |
|||
b Illumination Sensor |
Detects incoming light to control the IR LED. |
|||
|
|
|
||
c IR LED |
These infrared LED’s are controlled by the illumination sensor. |
|||
|
|
|||
d Lens |
Lens for the camera. |
|||
|
T |
|
Zoom in (Tele) |
|
e Zoom control lever |
W |
|
Zoom out (Wide) |
|
By rotating it to the right or the left, the lens zoom can be adjusted. By |
||||
|
||||
|
rotating it clockwise, the zoom can be fixed. |
|||
|
N |
|
Focusing on a near object (Near) |
|
f Focus control lever |
F |
|
Focusing on a far object (Far) |
|
By rotating it to the right or the left, the focus can be controlled. By rotating it |
||||
|
||||
|
clockwise, the focus can be fixed. |
|||
g PoE Connector |
Connects to the network and supplies power through Ethernet cable. |
|||
|
|
|
|
|
Micro SD Memory |
Compartment for the Micro SD memory card. |
|||
h Card Compartment |
||||
|
The button restores all camera settings to the factory default. |
|||
|
Press and hold for about 5 seconds to reboot the system. |
|||
i Reset Button |
J If you reset the camera, the network settings will be adjusted so that |
|||
|
DHCP can be enabled. If there is no DHCP server in the network, you |
|||
|
|
must run the IP Installer program to change the basic network settings |
||
|
|
such as IP address, Subnet mask, Gateway, etc., before you can |
||
|
|
connect to the network. |
overview ●
English _23
overview
At a Glance (SNO-L6013R)
Appearance
a b |
c |
|
d |
Item |
Description |
Micro SD Memory |
Compartment for the Micro SD memory card. |
a Card Compartment |
The button restores all camera settings to the factory default.
Press and hold for about 5 seconds to reboot the system.
J If you reset the camera, the network settings will be adjusted so that b Reset Button DHCP can be enabled. If there is no DHCP server in the network, you
must run the IP Installer program to change the basic network settings such as IP address, Subnet mask, Gateway, etc., before you can connect to the network.
c Sunshield |
It protects the camera from the direct sunlight. |
|
|
d Sunshield Hold |
It fixes the sunshield with the camera. |
MM`` Wipe out a dirty surface of the lens softly with a lens tissue or cloth to which you have applied ethanol.
24_ overview

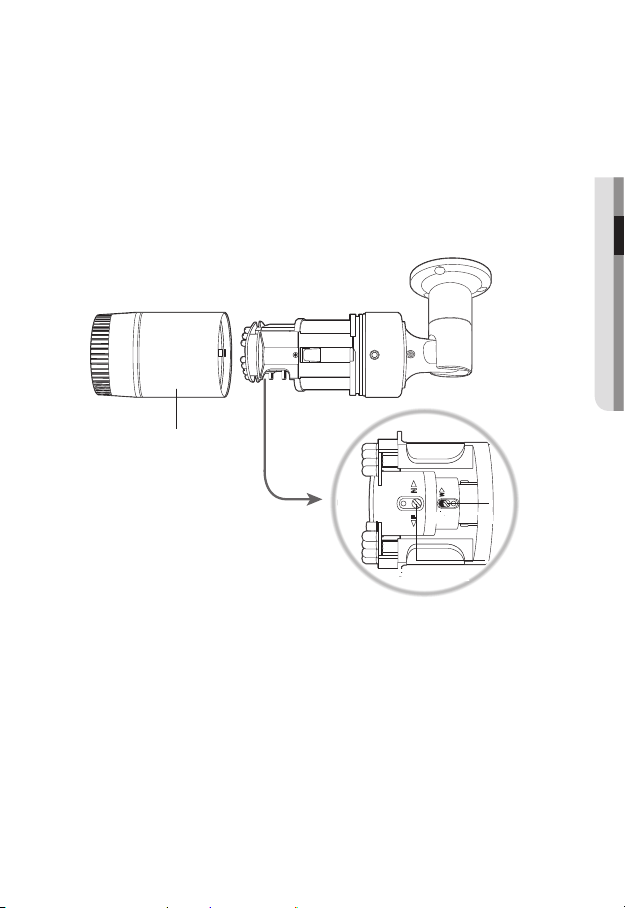

Components
a b
c |
d |
Item |
Description |
a Audio In Jack |
Used to connect to a microphone. |
|
|
b PoE Connector |
Connects to the network and supplies power through Ethernet cable. |
|
|
c IR LED |
These infrared LED’s are controlled by the illumination sensor. |
|
|
d Illumination Sensor |
Detects incoming light to control the IR LED. |
|
|
overview ●
English _25
overview
At a Glance (SNO-L6083R)
Appearance
a b |
c |
|
d |
e |
f |
26_ overview
Item |
|
|
Description |
||
|
The button restores all camera settings to the factory default. |
||||
|
Press and hold for about 5 seconds to reboot the system. |
||||
a Reset Button |
J If you reset the camera, the network settings will be adjusted so that |
||||
|
DHCP can be enabled. If there is no DHCP server in the network, you |
||||
|
|
must run the IP Installer program to change the basic network settings |
|||
|
|
such as IP address, Subnet mask, Gateway, etc., before you can |
|||
|
|
connect to the network. |
|||
Micro SD Memory |
Compartment for the Micro SD memory card. |
||||
b Card Compartment |
|||||
c Sunshield |
It protects the camera from the direct sunlight. |
||||
|
|
|
|||
d Sunshield Hold |
It fixes the sunshield with the camera. |
||||
|
|
|
|
|
|
|
N |
|
Focusing on a near object (Near) |
||
e Focus control lever |
F |
|
Focusing on a far object (Far) |
|
|
By rotating it to the right or the left, the focus can be controlled. By rotating it |
|||||
|
|||||
|
clockwise, the focus can be fixed. |
||||
|
T |
|
Zoom in (Tele) |
||
f Zoom control lever |
W |
|
Zoom out (Wide) |
|
|
By rotating it to the right or the left, the lens zoom can be adjusted. By |
|||||
|
|||||
|
rotating it clockwise, the zoom can be fixed. |
MM`` Wipe out a dirty surface of the lens softly with a lens tissue or cloth to which you have applied ethanol.
overview ●
English _27
overview
Components
a b
c d
Item |
Description |
a Audio In Jack |
Used to connect to a microphone. |
|
|
b PoE Connector |
Connects to the network and supplies power through Ethernet cable. |
|
|
c IR LED |
These infrared LED’s are controlled by the illumination sensor. |
|
|
d Illumination Sensor |
Detects incoming light to control the IR LED. |
|
|
28_ overview
At a Glance (SNV-L6083R)
Appearance
a
NETWO
ACT
b
Item |
Description |
a Dome cover |
Case cover used to protect the lens and the main unit. |
|
|
b Camera Case |
Housing part that covers the camera body. |
|
|
overview ●
English _29
overview
Components
a b c
NETWORK |
|
LINK |
ACT |
|
d e |
F |
N |
W |
RESET
ACT |
LINK |
|
NETWORK |
||
|
f g h i
30_ overview
