Important Notices about the CD-ROM

Data Types

This CD-ROM includes two types of data: application software and sampled audio data. Please refer to pages 4 (Windows) and 9 (Macintosh) for software installation instructions, and page 14 for the audio contents.

These applications allow you to edit MOTIF data and transfer data between your computer and the MOTIF.

You can import the audio data from an audio CD player (or any CD playing/ripping function on your computer) to the MOTIF via its INPUT jacks. For detailed information, refer to the MOTIF Owner’s manual.

The application software is contained on track 1 (as recognized on an audio CD player), and the sampled audio data is contained in the subsequent tracks.

Never attempt to play back track 1 (containing the application software) on an audio CD player. Doing so may result in damage to your hearing as well as to your CD player/audio speakers.

Operating System (OS)

The applications in this CD-ROM are provided in versions for both Windows and Macintosh operating systems. The installation procedure and the applications themselves differ depending on the operating system that you are using. Please refer to the appropriate installation instructions.

→ Windows Read page 4. → Macintosh Read page 9.

Media format

The MOTIF6/MOTIF7/MOTIF8 and the File Utility software are compatible with the following format media.

• MS-DOS • CD-ROM with ISO9660

nThe MOTIF and File Utility cannot copy contents of CD-ROM supplied with Yamaha A5000/4000/3000.

nIf a read-only file is copied to the Memory card in the MOTIF’s card slot or the SCSI device connected to the MOTIF, the file cannot be deleted from the MOTIF. nThe MOTIF cannot directly read the contents of the included CD-ROM. The CD-ROM is intended for use only with a computer.

For Windows Users

Contents of the CD-ROM

The CD-ROM contains a variety of applications (with installers) and data in the following folders.

Folder Name		Application Name	Contents
Acroread_		Acrobat Reader*	PDF (Portable Document Format) viewer. Enables you to view each PDF manual for the
			applications.
Tools	VEMOT_	Voice Editor for MOTIF6/MOTIF7/MOTIF8	Enables you to edit the MOTIF voices on your computer.
	FU_	File Utility	Enables you to manage files in the Memory card in the card slot on the MOTIF or in the SCSI
			device connected to the MOTIF.
	TWE	YAMAHA Wave Editor TWE V2.3	Enables you to edit the audio (wave) data on your computer and transfer it between the computer
			and the MOTIF.
USBdrv_		YAMAHA USB MIDI Drivesr (for Win 98, Me)	Enables your computer to communicate with the MOTIF when your computer and the MOTIF
			are connected using a USB cable.
USBdrv2k_		YAMAHA USB MIDI Driver	Enables your computer to communicate with the MOTIF when your computer and the MOTIF
		(for Win 2000, XP)	are connected using a USB cable.
Seq_Demo		Cubase VST/32 Demo Version*	Demo version of the sequence software Cubase VST/32.

* Unfortunately, Yamaha makes no guarantee concerning the stability of these programs (marked with *) nor can it offer user support for them.

•All the applications listed above are supplied with online/PDF manuals.All the applications listed above are supplied with online/PDF manuals.

•You can start the Voice Editor for MOTIF6/MOTIF7/MOTIF8 or File Utility software as either a stand-alone software or a plug-in application in the Open Plug-in Technology compatible application. Refer to the owner’s manual of the client application (sequencer, etc.) for details on using the Voice Editor for MOTIF6/MOTIF7/MOTIF8 or File Utility as a plug-in software.

Folder Name		File Name	Contents
Remote	Cubase	Setup file for Cubase	Contains settings for controlling Cubase on your computer from the MOTIF.
	Logic	Setup file for Logic	Contains settings for controlling Logic on your computer from the MOTIF.
	Sonar	Setup file for SONAR/Cakewalk ProAudio	Contains settings for controlling SONAR and Cakewalk on your computer from the MOTIF.
Voice List		Normal Voice List	Normal Voice List for the MOTIF
		Drum Voice List	Drum Voice List for the MOTIF
		Performance List	Performance List for the MOTIF

2

Using an Audio CD Player

Track 1: Applications mentioned above; NEVER attempt to play back this track.

Never attempt to play back track 1 (containing the application software) o n an audio CD player. Doing so may result in damage to your hearing as well as to your CD player/audio speakers.

Track 2 - 40: Sampled audio data; prepared for recording on the MOTIF6/MOTIF7/MOTIF8.

About Open Plug-in Technology

You can start the Voice Editor for MOTIF or the File Utility software as either a stand-alone software or a plug-in application in the Open Plug-in Technology compatible application.

Open Plug-in Technology (OPT) is a newly developed software format that allows control over MIDI devices from a music software sequencer. For example, this allows you to start up and operate various parts of your music system, such as plug-in board editors, and mixing control editors – directly from an OPT-compatible sequencer, without having to use each separately. This also makes it unnecessary to set MIDI drivers for each application, streamlining your music production system and making all operations more convenient and seamless.

About the OPT Levels

The client application and its compatibility with OPT can be divided into three levels, as shown below.

Level 1 – OPT Panels provides basic support for opening and displaying OPT control panels that can transmit data via the clients’ external MIDI ports. Typically this will allow basic hardware editor control panels to operate properly.

English

Level 2 – OPT Processors provides support for real-time MIDI processors and panel automation. Typically this will allow both real-time and offline MIDI effects (e.g. Arpeggiators, transposers etc.) to operate properly and supply automation to OPT panels.

Level 3 – OPT Views provides support for edit views and MIDI processors/panels that require direct access to client sequencer storage structures. Typically this will allow sophisticated MIDI edit views to be supported (e.g. List editors, Auto Accompaniment, Data Checkers etc.).

OPT Level Implementation for the Voice Editor

This chart shows the OPT-compatibility of the Voice Editor for MOTIF.

	OPT levels of the client application								Voice Editor for MOTIF operation
									Operation support	Operation limits
			VIEWS (Level3)						Yes	None
			PROCESSORS (Level2)						Yes	None
			PANELS (Level1)						Yes (with limitations)	Bulk reception

nCertain operations may not work as expected if there is no corresponding function in the client application (sequencer, etc.). The highest level of implementation for the client application is indicated in the OPT logo (which appears along with the version information in the application).

OPT Level Implementation for the File Utility

This chart shows the OPT-compatibility of the File Utility.

	OPT levels of the client application								File Utility operation
									Operation support	Operation limits
			VIEWS (Level3)						Yes	None
			PROCESSORS (Level2)						Yes	None
			PANELS (Level1)						No	—

nCertain operations may not work as expected if there is no corresponding function in the client application (sequencer, etc.). The highest level of implementation for the client application is indicated in the OPT logo (which appears along with the version information in the application).

3

English

Minimum System Requirements

The system requirements below may differ slightly depending on the particular operating system.

• Voice Editor for MOTIF6/MOTIF7/MOTIF8

OS:	Windows 95/98/Me/NT4.0/2000/
Computer:	XP Home Edition/XP Professional
	166 MHz or higher;
Available Memory:	Intel Pentium/Celeron processor
	32 MB or more
Hard Disk:	12 MB or more
Display:	640 x 480, High Color (16 bit)

• File Utility

OS:	Windows 98/Me/2000/XP Home Edition/
Computer:	XP Professional
	166 MHz or higher;
Available Memory:	Intel Pentium/Celeron processor
	32 MB or more
Hard Disk:	6 MB or more
Display:	640 x 480, High Color (16 bit)
• TWE V2.3
OS:	Windows 95/98/Me
Computer:	166 MHz or higher;
Available Memory:	Intel Pentium/Celeron processor
	24 MB or more
Hard Disk:	Average access time 30 ms or less
Display:	800 x 600, 256 colors or more
• USB MIDI Driver
OS:	Windows 98/Me/2000/XP Home Edition/
Computer:	XP Professional
	166 MHz or higher;
Available Memory:	Intel Pentium/Celeron processor
	32 MB or more
Hard Disk:	(64 MB or more is recommended)
	2 MB or more

For details about the application software contained in the “Seq_Demo” folder, refer to the owner’s manual of each software.

Software Installation

Uninstall (Removing the installed applictaion)

You can remove the installed applictaion software.

Select [START] → [Settings] → [Control Panel] → [Add/Remove Programs] → [Install/Uninstall], then select the application to be removed and click [Add/Remove...].

Follow the on-screen instructions to uninstall the application.

nThe button names or menus may differ depending on the computer OS.

Acrobat Reader

• • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • •

In order to view the electronic (PDF) manuals included with each application, you’ll need to install Acrobat Reader.

nIf an older version of Acrobat Reader is installed on your PC, you’ll need to uninstall it before proceeding.

1Double-click on the “Acroread_” folder.

Four different language folders will be displayed.

2Select the language you want to use and double-click on its folder. The file “ar***.exe” file will be displayed. (“***” indicates the selected language.)

3Double-click on “ar***.exe.”

Acrobat Reader Setup Dialog box will be displayed.

4 Execute the installation by following the on-screen directions.

After installation is complete, the Acrobat folder appears on your PC (in Program Files, as the default).

For information on using the Acrobat Reader, refer to the Reader Guide in the Help menu.

USB MIDI Driver

• • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • •

To operate the MOTIF from your computer via USB, you’ll need to install the appropriate driver software.

The USB-MIDI driver is software that transfers MIDI data back and forth between sequence software and the MOTIF via a USB cable.

Computer
Sequence	MOTIF
Software
USB cable
Driver
→Windows 98/Me users	See below.
→Windows 2000 users	See page 5.
→Windows XP users	See page 6.

●Installing the driver on a Windows 98/Me system

1 Start the computer.

2 Insert the included CD-ROM into the CD-ROM drive.

3Make sure the POWER switch on the MOTIF is set to OFF and use the USB cable to connect the USB terminal of the computer (or the USB hub) to the USB terminal of the MOTIF. When the MOTIF is turned on, the computer automatically displays the “Add New Hardware Wizard.” If the Add New Hardware Wizard does not appear, click “Add New Hardware” in the Control Panel.

nFor Windows Me users, check the radio button to the left of “Automatic search for a better driver (Recommended)” and click [Next]. The system automatically starts searching and installing the driver. Proceed to Step 8. If the system does not detect the driver, select “Specify the location of the driver (Advanced)” and specify the CD-ROM drive’s “USBdrv_” folder to install the driver.

Windows 98

Windows Me

4

4Click [Next].

The window below enables you to select the search method.

5Check the radio button to the left of “Search for the best driver for your device. (Recommended).” Click [Next]. The window below enables you to select a location in which to install the driver.

6 Check the “CD-ROM drive” box and uncheck all other items. Click [Next].

nThe system may ask you to insert a Windows CD-ROM while it checks for the driver. Specify the USBdrv_ directory of the CD-ROM drive (such as D:\USBdrv_\) and continue the installation.

nWhen using the Windows 98, specify the USBdrv_ directory of the CD-ROM drive (such as D:\USBdrv_\) and continue the installation.

7When the system detects the driver on the CD-ROM and is ready for installation, it displays the following screen.

Make sure that the “YAMAHA USB MIDI Driver” is listed, and click [Next]. The system starts the installation.

8When the installation is complete, the following screen appears. Click [Finish].

nSome computers may take about ten seconds to show this screen after the installation is complete.

Windows 98

Windows Me

The driver has been installed.

●Installing the driver on a Windows 2000 system

1Start the computer and use the “Administrator” account to log into Windows 2000.

2Select [My Computer | Control Panel | System | Hardware | Driver Signing | File Signature Verification], and check the radio button to the left of “Ignore -Install all files, regardless of file signature” and click [OK].

3 Insert the included CD-ROM into the CD-ROM drive.

4Make sure the POWER switch on the MOTIF is set to OFF and use the USB cable to connect the USB terminal of the computer (or the USB hub) to the USB terminal of the MOTIF. When the MOTIF is turned on, the computer automatically displays the “Found New Hardware Wizard.” Click [Next].

5Check the radio button to the left of “Search for a suitable driver for my device. (Recommended).” Click [Next].

The window that appears enables you to select a location in which to install the driver.

6 Check the “CD-ROM drives” box and uncheck all other items. Click [Next].

nThe system may ask you to insert a Windows CD-ROM while it checks for the driver. Specify the “USBdrv2k_” directory of the CD-ROM drive (such as D:\USBdrv2k_\) and continue the installation.

7When the installation is complete, the system displays “Completing the Found New Hardware Wizard.” Click [Finish].

nSome computers may take about ten seconds to show this screen after the installation is complete.

8Restart the computer.

The driver has been installed.

English

5

English

●	Installing the driver on a Windows XP system
1	Start the computer.
2	Select [Start] → [Control Panel].
	If the control panel appears as shown below, click “Switch to Classic View”
	in the upper left of the window.
	All control panels and icons will be displayed.

3 Go to [System] → [Hardware] → [Driver Signing] → [File Signature Verification], and check the radio button to the left of “Ignore -Install all files, regardless of file signature” and click [OK].

4Click the [OK] button to close System Properties, and then click “X” in the upper right of the window to close the Control Panel.

5 Insert the included CD-ROM into the CD-ROM drive.

6Make sure the POWER switch on the MOTIF is set to OFF and use the USB cable to connect the USB terminal of the computer (or the USB hub) to the USB terminal of the MOTIF. When the MOTIF is turned on, the computer automatically displays the “Found New Hardware Wizard.”

7Check the radio button to the left of “Search for a suitable driver for my device. (Recommended).” Click [Next].

The system starts the installation.

8When the installation is complete, the system displays “Completing the Found New Hardware Wizard.” Click [Finish].

nSome computers may take about ten seconds to show this screen after the installation is complete.

9Restart the computer.

The driver has been installed.

Voice Editor, File Utility

• • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • •

Once you‘ve installed these software programs, you can use your computer to edit the voices of the MOTIF as well as access and organize data stored to media connected to the MOTIF (Memory card and SCSI devices).

1Double-click on the “Tools” folder in the CD-ROM.

The “VEMOT_” folder, “FU_” folder and “TWE” folder will be displayed.

2Double-click on the “VEMOT_” folder or “FU_” folder. “setup.exe” file will be displayed.

3Double-click on the “setup.exe” file.

The Voice Editor or the File Utility Tools setup dialog will be displayed.

4 Execute the installation by following the on-screen directions.

nWhen installing the above software, make sure to install the MIDI Setup program first.

For details, refer to the each on-line Help or the each PDF owner’s manual.

TWE

• • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • •

With the TWE audio editing software, you can edit wave data directly on your computer.

1Double-click on the “TWE” folder.

Four different language folders will be displayed.

2Select the language that you want to use and double-click on its folder. The “YAMAHA TWE” folder will be displayed.

3Copy the “YAMAHA TWE” folder onto the desktop of your computer. For details on operation, refer to the PDF manual provided in the folder.

Setup Files for remote control of sequencing software

• • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • •

To use these files, the appropriate sequencing software should be installed to your computer.

● Setup Files for Cubase

1 Start Cubase.

2 Select Option from the menu bar and select Setup in Remote Setup.

3Set the value in the VST Remote window called up via step #2 as illustrated below, and click the [OK] button.

Remote: Generic Remote

Input: YAMAHA USB IN 0-3

Output: YAMAHA USB OUT 0-3

nIf the MOTIF is connected to the computer via MIDI, set the port to 1.

4Click the [EDIT] button in the Generic Remote window called up via step#3.

5 Click the [Import] button in the Generic Remote Setup called up via step#4.

6Select the Setup file for remote control of Cubase (Yamaha MOTIF Remote.xml) in the dialog opened via step #5 and click the [Open] button.

7 Close the Generic Remote Setup window.

6

● Preference File for Logic

1 Start Logic.

2 Select Key Commands... in Settings from the Option menu.

3Select Import Key Commands... from the Option menu in the “Key Commands” window called up via step #2.

4In the dialog window called up via step #3, select a preference file for Logic named “Logic32.prf” in the included CD-ROM and click [Open].

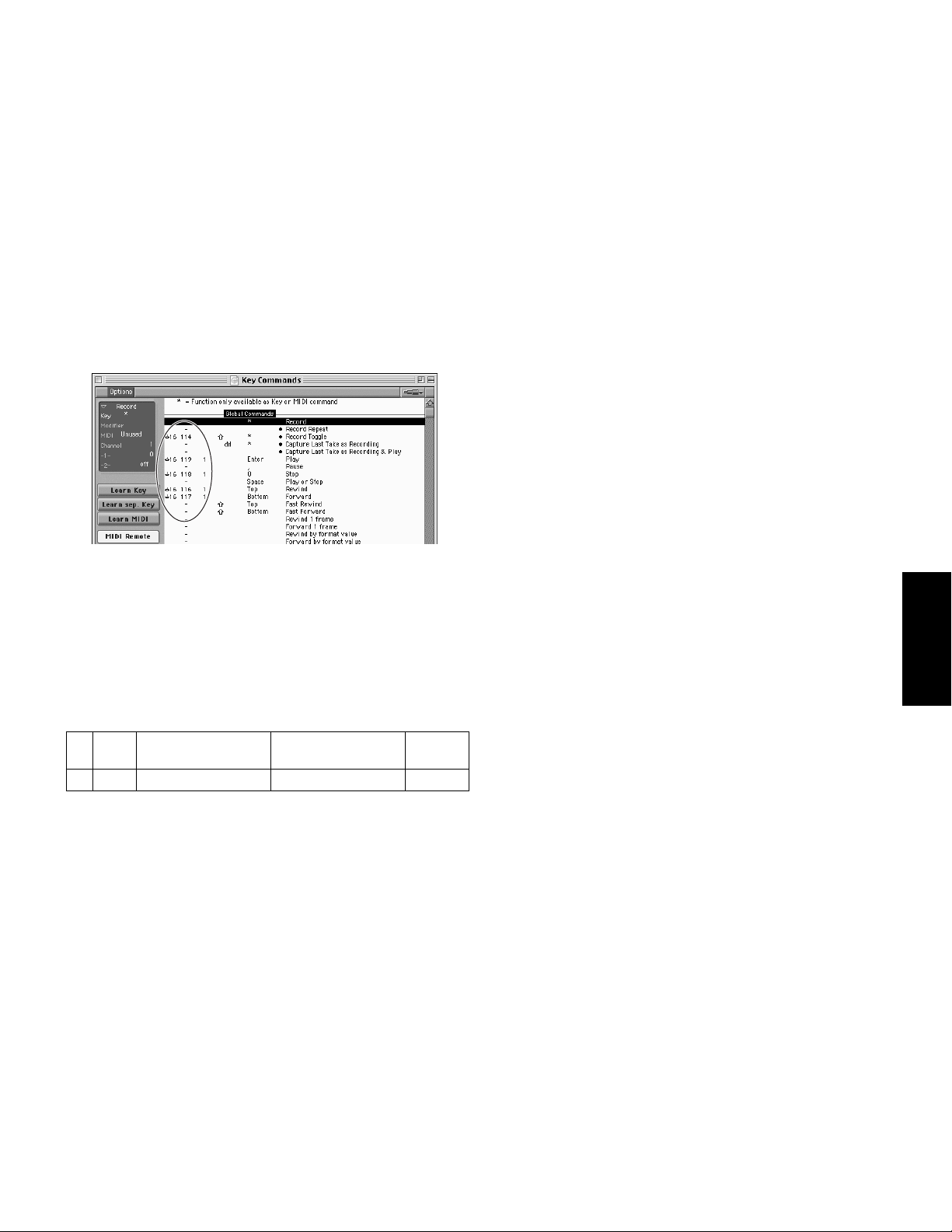

After importing the file, the following setup appears.

■ When you change the track structure from the template setting...

1 Click the [CONFIG] button in the Panel window (above).

2Set the first track number of the MIDI tracks by using the [SET MIDI First Track] knob.

•When this template is used, the MIDI tracks should be arranged in numerical order. Otherwise, you cannot control Cakewalk ProAudio from the MOTIF.

•If you set the first track number to an unused track number, the knobs, buttons, and sliders on the window may be grayed out. In this case, set the first track number to the first available track containing data.

Please note that the Key Command settings are replaced with the selected preference file.

●Template for SONAR/SONAR2/Cakewalk ProAudio (Installation)

1Copy the template file from the CD-ROM to the folder where the SONAR/ SONAR2/Cakewalk ProAudio are installed.

2 Start SONAR/SONAR2/Cakewalk ProAudio.

3Select Option from the menu bar and select Audio. The “Direct” Show Audio (Cakewalk Direct Show Audio)” dialog will be displayed.

4Set the text box Number of Aux Busses to 3 (default setting is 2.) and click [OK].

The setup for loading a template has been installed.

●Template for SONAR/SONAR2/Cakewalk ProAudio (Importing)

1 Start SONAR/SONAR2/Cakewalk ProAudio.

2Select “Open (SONAR)/New (Cakewalk)” from the File menu. The Open/New Project File dialog will be displayed.

3Select the “Cakewalk Template” from the “Files of type” menu (when you are using the SONAR), then select “Yamaha MOTIF Synthesizer” from the dialog list and click [OK].

The template will be imported and the three windows (Track window, Control window, and Panel window) will be displayed.

The setup has been completed and you can control SONAR/SONAR2/ Cakewalk ProAudio from the MOTIF.

nSelect “MIDI Devices...” from the Option menu to open the MIDI Ports window. From this window, set Input Ports to “YAMAHA USB IN 0-3.” If the MOTIF is connected to the computer via MIDI, set Input Ports to 1 (for example, “IN 0-1”).

Pro Tools

The special setup file is not necessary for using Pro Tools. You can control Pro Tools from the MOTIF by changing settings on the Pro Tools. The method for setting up is the same as on the Macintosh. See page 11.

Cubase VST/32 Demo version

• • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • •

1Double-click on the “Seq_Demo” folder. The “Cubase” folder will be displayed.

2Double-click on the “Cubase” folder.

The “Cubase_VST/32_Demo_50.exe” file will be displayed.

3 Double-click on the “Cubase_VST/32_Demo_50.exe” file.

4 Execute the installation by following the on-screen directions.

MIDI port setting

(when starting the software as a stand-alone application)

Before setting the MIDI port on the Voice Editor or File Utility, you should set the MIDI port from the MIDI SETUP toolbar.

nWhen you start the Voice Editor or File Utility as a plug-in application in the Open Plug-in Technology compatible application, refer to the the PDF manual for the respective software.

1 Start the Voice Editor or File Utility.

2 Click the MIDI Setup button in the Toolbar called up via step #1.

MIDI Setup button

3In the MIDI Setup window called up via step#2, click the [▼] button at the right end of each box and make the port settings as shown.

nIn order for MIDI ports to be available here, you’ll need to select the relevant MIDI port within each application software (Voice Editor or File Utility). This is the port that you’ll use in the various software. For details on setting the MIDI port, refer to the on-line manual of each software.

English

7

English

For Macintosh Users

Contents of the CD-ROM

The CD-ROM includes two folders: “International” and “Japanese.” Double-click on the “International” folder to open it. A variety of applications (with installers) and data are contained in the following folders.

Folder Name	Application Name	Contents
ACROBAT	Acrobat Reader*	PDF (Portable Document Format) viewer. Enables you to view each PDF manual for
		the applications
OMS	Open Music System (OMS)*	Enables you to use several MIDI applications on the Mac OS.
	OMS Setup for YAMAHA	Contains the OMS Setup files for the Yamaha MOTIF.
USBdrv_	YAMAHA USB MIDI Driver	Enables your computer to communicate with the MOTIF when your computer and the
		MOTIF are connected using a USB cable.
Tools	Voice Editor for MOTIF6/MOTIF7/MOTIF8	Enables you to edit the MOTIF voices on your computer.
	File Utility	Enables you to manage files in the Memory card in the card slot on the MOTIF or in the
		SCSI device connected to the MOTIF.
	YAMAHA Wave Editor TWE V2.3	Enables you to edit the audio (wave) data on your computer and transfer it between the
		computer and the MOTIF.
Seq_Demo	Cubase VST 5.0 Demo Version*	Demo version of the sequence software Cubase VST 5.0.
	Logic Audio Platinum 4.6 Demo*	Demo version of the sequence software Logic Audio Platinum 4.6.

* Unfortunately, Yamaha makes no guarantee concerning the stability of these programs (marked with *) nor can it offer user support for them.

•All the applications listed above are supplied with online/PDF manuals.

•OMS® and are trademarks of Opcode Systems, Inc.

Folder Name	File Name	Contents
Remote	Setup file for Cubase	Contains settings for controlling Cubase on your computer from the MOTIF.
	Setup file for Logic	Contains settings for controlling Logic on your computer from the MOTIF.
Voice List	Normal Voice List	Normal Voice List for the MOTIF
	Drum Voice List	Drum Voice List for the MOTIF
	Performance List	Performance List for the MOTIF

Using an Audio CD Player

Track 1: Applications mentioned above; NEVER attempt to play back this track.

Never attempt to play back track 1 (containing the application software) on an audio CD player. Doing so may result in damage to your hearing as well as to your CD player/audio speakers.

Track 2 - 40: Sampled audio data; prepared for recording on the MOTIF6/MOTIF7/MOTIF8.

8

Minimum System Requirements

The system requirements below may differ slightly depending on the particular operating system.

• Voice Editor for MOTIF6/MOTIF7/MOTIF8

OS:	Mac OS 8.6 through OS 9.22 (Mac OS X is not supported)
Computer:	A Macintosh computer with a PowerPC or later CPU
Available Memory:	16 MB or more
Hard Disk:	40 MB or more
Display:	800 x 600, 32,000 colors or more
• File Utility
OS:	Mac OS 8.0 through OS 9.22 (Mac OS X is not supported)
Computer:	A Macintosh computer with a PowerPC or later CPU
Available Memory:	6 MB or more
Hard Disk:	4 MB or more (except for OMS)
Display:	640 x 480, 256 colors or more
Other:	OMS 2.3.8 (included in the CD-ROM in the package)
• TWE V2.3
OS:	Mac OS 7.6.1 through OS 9.22 (Mac OS X is not supported)
Computer:	A Macintosh computer with a PowerPC or later CPU
Available Memory:	8 MB or more
Hard Disk:	Average access time 30 ms or less
Display:	640 x 400, 256 colors or more

• USB MIDI Driver

OS: Mac OS 8.5 through OS 9.22 (Mac OS X is not supported)

Computer: A Macintosh computer with a USB connector and a PowerPC or later CPU Memory: 64 MB or more (128 MB or more is recommended)

nTurn off virtual memory.

Hard disk:	2 MB or more
Other:	OMS 2.3.8 (included in the CD-ROM in the package)

English

Software Installation

Acrobat Reader

• • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • •

In order to view the electronic (PDF) manuals included with each application, you’ll need to install Acrobat Reader.

1Double-click on the “ACROBAT” folder.

Three different language folders will be displayed: English, German and French.

2Select the language you want to use and double-click on its folder. “Reader Installer” will be displayed.

The Installer name may differ depending on the language you select.

3Double-click on the “Reader Installer.” Acrobat Reader Setup Dialog will be displayed.

4Execute the installation by following the directions appearing on the screen. After installation is complete, the Acrobat folder appears on your computer (in Hard Disk, as the default).

For information on using the Acrobat Reader, refer to the Reader Guide in the Help menu.

Open Music System (OMS) 2.3.8

• • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • •

OMS allows you to use several MIDI applications on the Mac OS at the same time.

1Double-click on the “OMS” folder (English version only). “Install OMS 2.3.8” will be displayed.

2Double-click on “Install OMS 2.3.8.” OMS Setup Dialog will be displayed.

3Execute the installation by following the on-screen directions. After the installation, select “Restart.”

nAfter the installation is complete, you may possibly encounter an error message warning that the installer did not close. In this case, go to the “File” menu and select “Quit” to close the installer. Then reboot the computer.

After restarting the Macintosh, you will find the “Opcode”/“OMS Applications” folder on your computer (Hard Disk, as the default).

4Copy the “OMS_2.3_Mac.pdf” in the CD-ROM to the “OMS Applications” folder (drag-and-drop it to the folder).

Refer to the “OMS_2.3_Mac.pdf” (English version only) how to use the application.

5Copy the “OMS Setup for YAMAHA” in the CD-ROM to the “OMS Applications” folder (drag-and-drop it to the folder).

In the “OMS Setup for YAMAHA” folder you will find the OMS Setup files for the Yamaha tone generators, which can be used as templates.

9

English

USB MIDI Driver

• • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • •

To operate the MOTIF from your computer via USB, you’ll need to install the appropriate driver software.

The USB-MIDI driver is software that transfers MIDI data back and forth between sequence software and the MOTIF via a USB cable.

Computer

Sequence	MOTIF
Software
	USB cable

OMS Driver

First install OMS before you install the USB-MIDI driver. Also, after installing the driver, you will need to set up OMS (above).

1 Start the computer.

2Insert the included CD-ROM into the CD-ROM drive. The system displays the CD-ROM icon on the desktop.

3Double-click the CD-ROM icon and double-click the “Install USB Driver” icon in the “USBdrv_” folder to display the following installation screen.

7When the installation is complete, the system displays the following message: “Installation was successful. You have installed software which requires you to restart your computer.” Click [Restart]. The computer automatically restarts. You can locate the installed files in the following locations:

•System Folder | Control Panels | YAMAHA USB MIDI Patch

•System Folder | Extensions | USB YAMAHA MIDI Driver

•System Folder | OMS Folder | YAMAHA USB MIDI OMS Driver

Voice Editor, File Utility, MIDI Setup

• • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • •

Once you‘ve installed these software programs, you can use your computer to edit the voices of the MOTIF as well as access and organize data stored to media connected to the MOTIF (Memory card and SCSI devices).

1Double-click on the “Tools” folder in the CD-ROM. “Motif” folder and “TWE” folder will be displayed.

2Double-click on the “Motif” folder.

“Install File Utility” and “Install Voice Editor for MOTIF6” file will be displayed.

3Double-click on the “Install File Utility” file.

The File Utility installation dialog will be displayed. Execute the installation by following the on-screen directions.

4After installing the File Utility, double-click on the “Install Voice Editor for MOTIF6” file.

The Voice Editor installation dialog will be displayed. Execute the installation by following the on-screen directions.

5After installing, restart the computer.

For details, refer to the on-line Help or the PDF owner’s manual.

4The “Install Location” box displays the destination of the installation. If you wish to change the destination disk or folder, use the [Switch Disk] button and the pop-up menu to specify the desired destination.

nThis box usually displays the start-up disk as the destination.

5Click the [Install] button. The system displays the following message: “This installation requires your computer to restart after installing this software. Click Continue to automatically quit all other running applications.” Click [Continue].

nTo cancel the installation, click [Cancel].

6The installation starts. If the driver has already been installed, you will receive the following message. To return to step 3, press [Continue]. To complete the installation, click [Quit].

TWE

• • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • •

With the TWE audio editing software, you can edit wave data directly on your computer.

1Double-click on the “TWE” folder.

Four different language folders will be displayed.

2Select the language that you want to use and double-click on its folder. The “YAMAHA TWE” folder will be displayed.

3Copy the “YAMAHA TWE” folder to the hard disk of your computer.

For details on how to use TWE, refer to the on-line manual provided in the folder.

10

Setup Files for remote control of sequencing software

• • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • •

To use these files, the appropriate sequencing software should be installed to your computer.

Setup Files for Cubase

Same as for Windows. See page 7.

Preference File for Logic

1 Start Logic.

2 Select Key Commands... in Settings from the Option menu.

3Select Import Key Commands... from the Option menu in the “Key Commands” window called up via step #2.

4In the dialog window called up via step #3, select the preference file for Logic named “Logic Preferences” in the included CD-ROM and click [Open].

After importing the file, the following setup appears.

Please note that the Key Command settings are replaced with the preference file.

Pro Tools

The special setup file is not necessary for using Pro Tools.

1 Select Peripherals... from the “Setup” menu.

2Click the [MIDI Controllers] button in the “Peripherals” windows called up via step #1.

The MIDI Controllers window appears and set as follows.

	Type	Receive From	Send to	#ch’s
#1	CS-10	YAMAHA USB IN 0-3	YAMAHA USB OUT 0-3	16

nIf the MOTIF is connected to the computer via MIDI, set the port to 1.

The setup has been completed and you can control Pro Tools from the MOTIF.

Cubase VST 5.0 Demo version

• • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • •

1Double-click on the “Seq_Demo” folder. The “Cubase” folder will be displayed.

2Double-click on the “Cubase” folder.

The “Cubase VST 5.0 DEMO Installer” will be displayed.

3 Double-click on the “Cubase VST 5.0 DEMO installer” file.

4 Execute the installation by following the on-screen directions.

Logic Audio Platinum 4.6 Demo

• • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • •

1Double-click on the “Seq_Demo” folder. The “Logic” folder will be displayed.

2 Copy the “Logic” folder to the hard disk on your computer.

Setting up OMS

The OMS studio setup file for the MOTIF is contained in the included CDROM. This studio setup file is used for setting up OMS.

nBefore performing the following procedure, the OMS and USB MIDI Driver should be installed.

1Use a USB cable to connect the USB terminal of the computer (or the USB hub) to the USB terminal of the MOTIF and turn the MOTIF’s power on.

2 Start the computer.

3Insert the included CD-ROM into the CD-ROM drive of your Macintosh computer. The CD-ROM icon appears on the desktop.

4Double-click on the CD-ROM icon, “International”, “OMS”, and “OMS Setup for YAMAHA.”

The two files “MOTIF-USB” and “MOTIF-USB_multi” appear. Copy these to the hard disk on your computer.

5Double-click on the “MOTIF-USB” or “MOTIF-USB_multi” file to start the OMS Setup. Each studio setup file is as follows.

•MOTIF-USB

This is used when connecting a single MOTIF to the computer and using one port (up to 16 MIDI channels).

•MOTIF-USB_multi

This is used when connecting several MOTIFs to the computer and using up to eight ports (up to 128 MIDI channels). Note that one MOTIF can handle up to three ports (up to 48 MIDI channels).

nUse of a USB hub is necessary when several MOTIFs are connected to the computer.

nBe sure to select [MOTIF-USB_multi] when using the Remote Control function of the MOTIF via the USB cable, since Port 3 is used in this case.

English

11

English

6After starting the OMS Setup, the Studio setup file double-clicked in step #5 opens.

Indicates this setup is available

When opening “MOTIF-USB_multi”:

nIf “ ” is not indicated at the right of the setup file name, select “Make Current” from the “File” menu and execute the save operation.

The OMS studio setup has been completed.

nAfter the OMS studio setup above has been completed, your computer will recognize only the MOTIF as a MIDI instrument. If you use another MIDI instrument in addition to the MOTIF or you add a second MOTIF to the existing system, you should create an original Studio Setup file. For details, refer to the on-line manual supplied with the OMS.

nThe included OMS studio setup file may not function even if you follow the above procedure, depending on your Macintosh/Mac OS version. (MIDI data cannot be transmitted/received even if the setup becomes available.)

In this situation, connect your Macintosh to the MOTIF via the USB cable and follow the procedure below to re-create the setup file.

1 Start OMS Setup and select “New Setup” from the “File” menu.

2The “OMS Driver Search” dialog appears. Remove the check from the “Modem” and “Printer” check boxes, and click [Search] to execute the device search.

If the Search operation has been completed successfuly, the [USB-MIDI] device is displayed in the OMS driver setting dialog.

3Click the [OK] button to search for ports. Port 1, Port 2 ... appears in the dialog. Mark the appropriate checkbox of the port and click the [OK] button to store the setting.

For details about how to use OMS, refer to “OMS2.3J_Manual.pdf” supplied with OMS.

For Windows/

Macintosh Users

About USB Driver Setup window

From this window, you can change the MIDI port number transmitted to the MOTIF from the one set in the computer sequence software.

The default settings are as follows.

Port number	MIDI OUT terminal	MIDI IN terminal (Track
	(Thru Port number*)	Port number)
1	MIDI OUT (1)	MIDI IN (1)
2	MIDI OUT (2)	MIDI IN (2)
3	MIDI OUT (3)	MIDI IN (3)
4	MIDI OUT (4)	-
5	MIDI OUT (5)	-
6	MIDI OUT (6)	-
7	MIDI OUT (7)	-
8	MIDI OUT (8)	-

*This is actually the MIDI port number set from the MIDI/OTHER display in the Utility mode.

12

Troubleshooting

The driver cannot be installed.

•Is the USB cable connected correctly?

→Check the USB cable connection.

→Disconnect the USB cable, then connect it again.

•[Windows] Is the USB function enabled on your computer?

→When you connect the MOTIF to the computer for the first time, if the “Add New Hardware Wizard” does not appear, the USB function on the computer may be disabled. Perform the following steps.

1Double-click “System” in the Control Panel to open the System Properties window.

2Double-click the “Device Manager” tab and make sure that no “!” or “x” marks appear at “Universal serial bus controller” or “USB Root Hub.” If you see an “!” or “x” mark, the USB controller is disabled.

For more information, refer to the owner’s manual of your computer.

•[Windows] Is any unknown device registered?

→If driver installation fails, the MOTIF will be marked as an “Unknown device,” and you will not be able to install the driver. Delete the “Unknown device” by following the steps below.

1 Double-click “System” in the Control Panel to open the System Properties window.

2Double-click the “Device Manager” tab. With the “View devices by type” check box checked, look for “Other devices.”

3If you find “Other devices,” double-click it to extend the tree to look for “Unknown device.” If one appears, select it and click the [Remove] button.

4Remove the USB cable from the MOTIF, and make the connection again.

5 Install the driver again.

When controlling the MOTIF from your computer via USB, the MOTIF does not operate correctly or no sound is heard.

•Did you install the driver?

•Is the USB cable connected correctly?

•Are the volume settings of the tone generator, playback device, and application program set to the appropriate levels?

•Have you selected an appropriate port in the sequence software?

•Check whether the MIDI IN/OUT setting in the Utility mode corresponds to the actually used cable (USB or MIDI).

Playback response is delayed.

•Does your computer satisfy the system requirements?

•Is any other application or device driver running?

[Macintosh]

→Turn off virtual memory.

→Disable AppleTalk.

Cannot suspend or resume the computer correctly.

•Do not suspend the computer while the MIDI application is running.

•If you are using Windows 2000, you may not be able to suspend/resume normally, depending on the particular environment (USB Host Controller, etc.). Even so, simply disconnecting and connecting the USB cable will allow you to use the MOTIF functions again.

How can I delete or re-install the driver?

[Windows Me/98]

1When the MOTIF is recognized correctly, double-click “System” in the Control Panel to open the System window.

2Double-click the “Device Manager” tab, select “YAMAHA USB MIDI Driver” and delete it.

3Use the MS-DOS prompt or Explorer to delete the following three files.

nTo delete these files using Explorer, select “Folder Options” from the Tool (View) menu, and select “Show all files (and folders).”

•\WINDOWS\INF\OTHER\YAMAHAMOTIF6.INF

•\WINDOWS\SYSTEM\Xgusb.drv

•\WINDOWS\SYSTEM\Ymidusb.sys

4 Disconnect the USB cable.

5 Restart the computer.

6 Re-install the driver.

[Macintosh]

1Delete the files in the following locations:

•System Folder | Control Panels | YAMAHA USB MIDI Patch

•System Folder | Extensions | USB YAMAHA MIDI Driver

•System Folder | OMS Folder | YAMAHA USB MIDI OMS Driver

2 Restart the computer.

3 Install the driver and set up OMS.

English

13

Deutsch

Wichtige Hinweise zu CD-ROM

Datentypen

Diese CD-ROM enthält zwei verschiedene Datentypen: Anwendungssoftware und digitalisierte Audiodaten (Samples).

Informationen zur Software-Installation finden Sie auf den Seiten 4 (Windows) und 9 (Macintosh). Informationen über die enthaltenen Audiodaten finden Sie auf Seite 14. Die Anwendungen erlauben Ihnen die Übertragung von Daten zwischen dem MOTIF und Ihrem Computer sowie die Bearbeitung der Daten auf dem Computer.

Die Audiodaten können Sie mit Hilfe eines Audio-CD-Players (oder einer entsprechenden Abspieloder Ripping-Funktion Ihres Computers) über seine Audioeingänge in den MOTIF importieren. Für weitere Informationen hierzu schlagen Sie bitte in der Bedienungsanleitung des MOTIF nach.

Die Anwendungssoftware befindet sich auf Track 1 (als solcher wird der Datentrack von einem Audio-CD-Player erkannt) der CD, die Audiodaten befinden sich auf den darauffolgenden Tracks.

Spielen Sie NIEMALS Track 1 (enthält die Softwaredaten) auf einem Audio-CD-Player ab. Sie können dadurch sowohl Ihrem Gehör als auch Ihrem CDPlayer und Ihren Lautsprechern schwere Schäden zufügen.

Betriebssysteme

Die Anwendungen auf dieser CD-ROM liegen sowohl in einer Version für das Windowsals auch in einer Version für das Macintosh-Betriebssystem vor. Der Installationsvorgang und die Anwendungen selbst sind je nach verwendetem Betriebssystem unterschiedlich. Befolgen Sie daher die für Ihr Betriebssystem richtige

Installationsanleitung.
→ Windows Siehe Seite 4.	→ Macintosh Siehe Seite 9.

Medienformate

Der MOTIF 6 / MOTIF 7 / MOTIF 8 und die File Utility-Software sind kompatibel mit den folgenden Medienformaten.

• MS-DOS • ISO9660-CD-ROM

Der MOTIF und das File Utility können keine Inhalte von CD-ROMs für den Yamaha A5000/4000/3000 kopieren.

Falls eine Nur-Lese-Datei auf eine im MOTIF eingesteckte Speicherkarte oder ein am MOTIF angeschlossenes SCSI-Gerät kopiert wird, kann sie nicht durch den MOTIF gelöscht werden.

Der MOTIF kann den Inhalt der mitgelieferten CD-ROM nicht direkt lesen. Die CD-ROM ist exklusiv für die Verwendung mit einem Computer gedacht.

Für Windows-Benutzer

Inhalt der CD-ROM

Die CD-ROM enthält eine Reihe von Anwendungen (mit Installationsprogrammen), die Daten befinden sich in den folgenden Ordnern.

Verzeichnis-Name		Name der Anwendung	Inhalt
Acroread_		Acrobat Reader*	Anzeigeprogramm für PDF-Dateien (Portable Document Format). Dient zum Anzeigen der
			Anwendungshandbücher im PDF-Format.
Tools	VEMOT_	Voice Editor for MOTIF6/MOTIF7/MOTIF8	Ermöglicht Ihnen die Bearbeitung der MOTIF-Voices auf Ihrem Computer.
	FU_	File Utility	Ermöglicht Ihnen die Verwaltung der Dateien auf der in den MOTIF eingesteckten Speicherkarte oder auf
			einem SCSI-Gerät, das an den MOTIF angeschlossen ist.
	TWE	YAMAHA Wave Editor TWE V. 2.3	Ermöglicht Ihnen die Bearbeitung von Audio-(Wave-)daten auf Ihrem Computer und die Übertragung der
			Daten zwischen Ihrem Computer und dem MOTIF.
USBdrv_		YAMAHA USB-MIDI-Treiber (für Win98, Me)	Ermöglicht die Kommunikation zwischen Ihrem Computer und dem MOTIF, wenn sie über ein USB-Kabel
			miteinander verbunden sind.
USBdrv2k_		YAMAHA USB-MIDI-Treiber(für Windows 2000/XP)	Ermöglicht die Kommunikation zwischen Ihrem Computer und dem MOTIF, wenn sie über ein USB-Kabel
			miteinander verbunden sind.
Seq_Demo		Cubase VST/32 Demo-Version*	Demo-Version des Sequenzerprogramms Cubase VST/32.

* Yamaha gibt keine Garantie für die Stabilität dieser Programme (markiert mit einem Stern) und kann den Anwendern auch keine technische Unterstützung anbieten.

•Alle oben aufgelisteten Programme werden mit Online-Handbüchern/PDF-Anleitungen ausgeliefert.

•Sie können das File Utility oder den Voice Editor für MOTIF6/MOTIF7/MOTIF8 entweder als Stand-alone-Software oder als Plug-in-Anwendung in Programmen verwenden, die mit der Open-Plug-in- Technologie kompatibel sind. Weitere Informationen über die Verwendung des File Utility oder des Voice Editor für den MOTIF6/MOTIF7/MOTIF8 als Plug-In-Software finden Sie in der Bedienungsanleitung der Client-Anwendung (Sequenzer, usw.).

Name des Ordners		Dateiname	Inhalt
Remote	Cubase	Setup-Datei für Cubase	Enthält die Einstellungen zur Steuerung von Cubase durch den MOTIF.
	Logic	Setup-Datei für Logic	Enthält die Einstellungen zur Steuerung von Logic durch den MOTIF.
	Sonar	Setup-Datei für SONAR/Cakewalk ProAudio	Enthält die Einstellungen zur Steuerung von SONAR und Cakewalk auf Ihrem Computer durch den MOTIF.
Liste der		Liste der Normal Voices	Eine Liste der Normal Voices (tonal spielbaren Voices) des MOTIF
Voices
		Liste der Drum Voices	Eine Liste der Drum Voices (Schlaginstrument-Voices) des MOTIF
		Liste der Performances	Eine Liste der „Performances“ des MOTIF

2
