For canceling the display demonstration, see page 5. Информацию об отмене демонстрации функций дисплея см. на стр. 5.

For installation and connections, refer to the separate manual. Указания по установке и выполнению соединений приводятся в отдельной инструкции.

INSTRUCTIONS

ИНСТРУКЦИИ ПО ЭКСПЛУАТАЦИИ

GET0341-001A

[EE]

Thank you for purchasing a JVC product.

Please read all instructions carefully before operation, to ensure your complete understanding and to

obtain the best possible performance from the unit.

IMPORTANT FOR LASER PRODUCTS

1. CLASS 1 LASER PRODUCT

ENGLISH

2. CAUTION: Do not open the top cover. There are no user serviceable parts inside the unit; leave all servicing to qualified service personnel.

3. CAUTION: Visible and invisible laser radiation when open and interlock failed or defeated. Avoid direct exposure to beam.

4. REPRODUCTION OF LABEL: CAUTION LABEL, PLACED OUTSIDE THE UNIT.

Warning:

If you need to operate the unit while driving, be sure to look ahead carefully or you may be involved in a traffic accident.

Caution on volume setting:

Discs produce very little noise compared with other sources. Lower the volume before playing a disc to avoid damaging the speakers by the sudden increase of the output level.

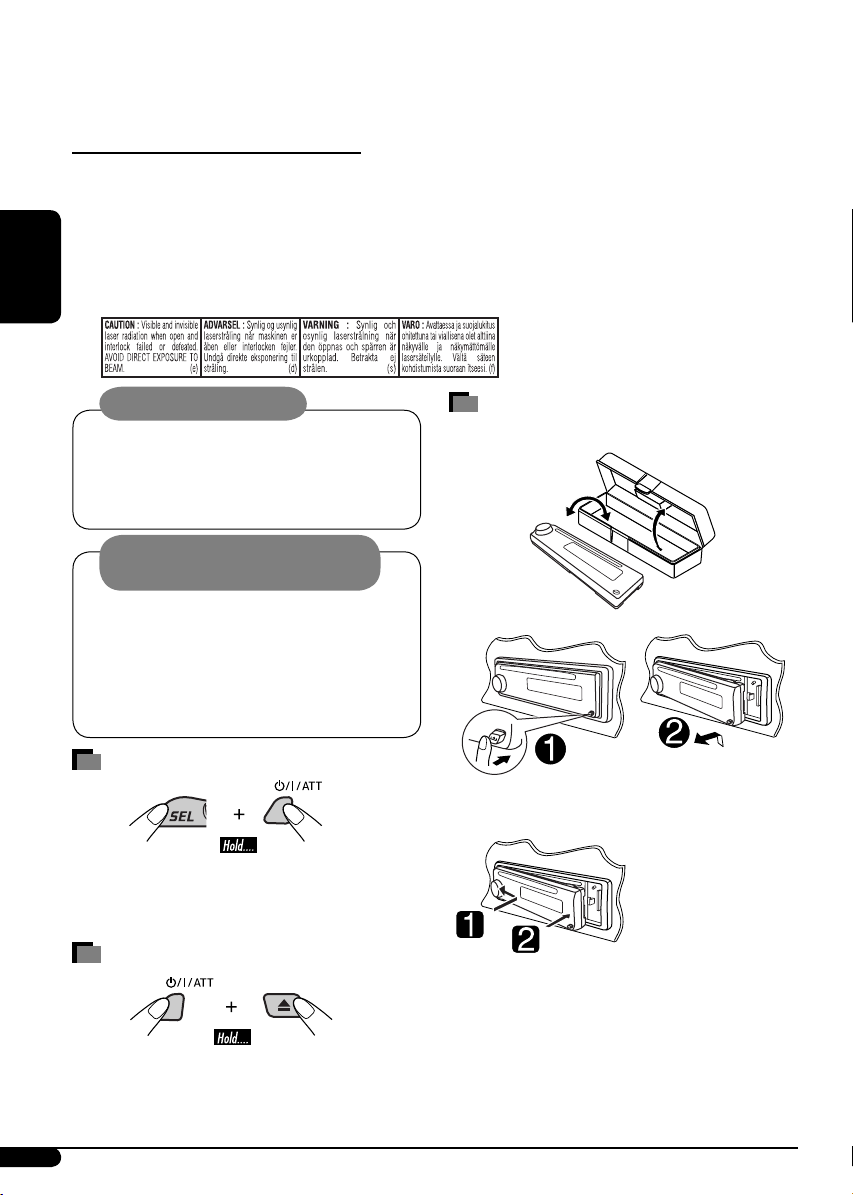

How to reset your unit

• Your preset adjustments will also be erased.

• If a disc is loaded, it will eject. Be careful not to

drop the disc.

How to forcibly eject a disc

How to detach/attach the control

panel

Detaching...

Attaching...

• If this does not work, reset your unit.

• Be careful not to drop the disc when it ejects.

How to read this manual

• Button operations are mainly explained with the illustrations in the table below.

•

is used to indicate an indicator is

displayed for the corresponding operation.

• Some related tips and notes are explained in “More about this unit” (see pages 14 and 15).

Press briefly.

Press repeatedly.

Press either

one.

Press and hold until your desired response begins.

Press and hold both buttons at the same time.

How to use the M MODE button

If you press M MODE, the unit goes into functions mode, then the number buttons and

¢/4 buttons work as different

function buttons.

CONTENTS

Control panel — KD-G227 ..................... 4

Getting started ................................. 5

Basic operations .................................................... 5

Radio operations .............................. 6

Disc operations ................................. 7

Playing a disc in the unit ...................................... 7

Sound adjustments ........................... 9

General settings — PSM ................... 10

Remote Controller —

Maintenance .................................... 13

More about this unit ......................... 14

Troubleshooting ............................... 16

Specifications ................................... 17

RM-RK60 ............. 12

ENGLISH

Ex.: When number button 2 works as

MO (monaural) button.

Time countdown indicator

To use these buttons for their original functions again after pressing M MODE, wait

for 5 seconds without pressing any of these buttons until the functions mode is cleared or press M MODE again.

For safety...

• Do not raise the volume level too much, as this will block outside sounds, making driving dangerous.

• Stop the car before performing any complicated operations.

Temperature inside the car...

If you have parked the car for a long time in hot or cold weather, wait until the temperature in the car becomes normal before operating the unit.

Control panel — KD-G612/KD-G611/KD-G511

Control panel — KD-G227

Parts identification

ENGLISH

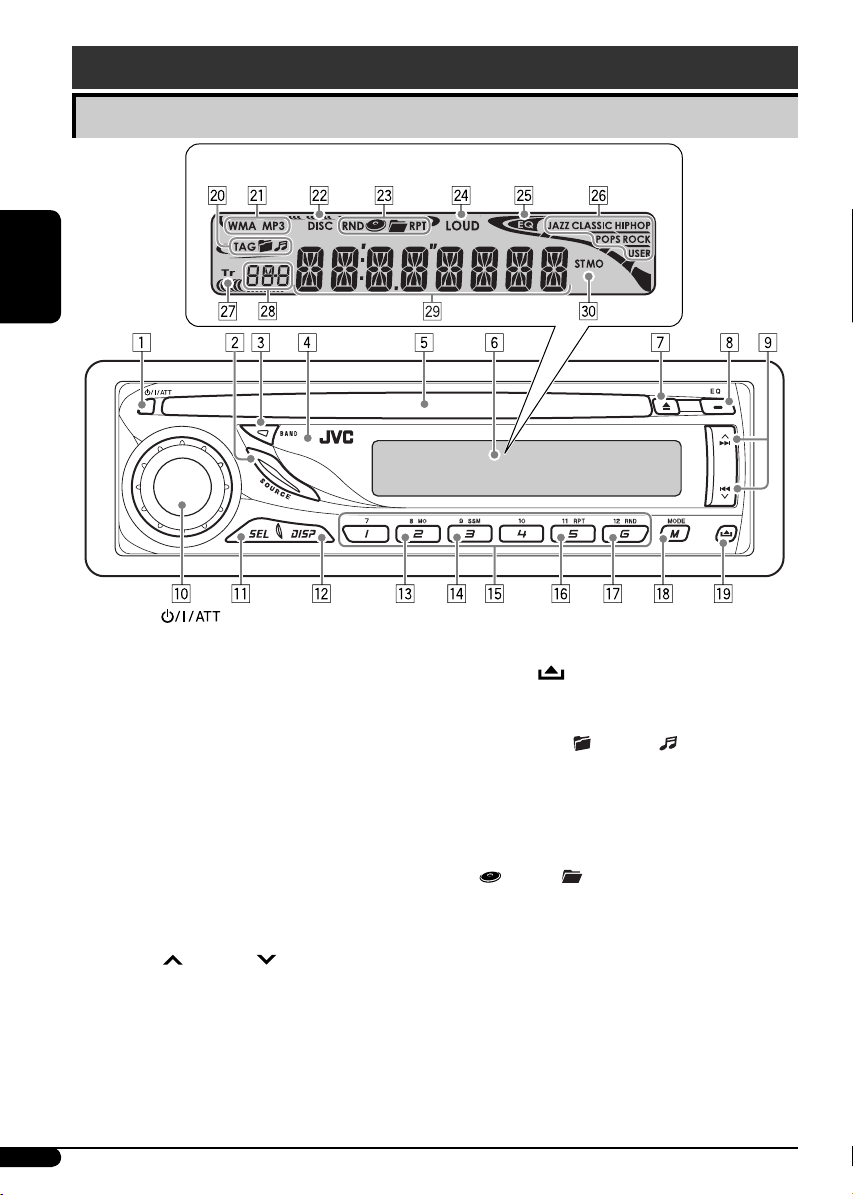

1 (standby/on/attenuator) button 2 SOURCE button 3 BAND button 4 Remote sensor

• You can control this unit with an

optionally purchased remote controller. For details, see page 12.

• DO NOT expose the remote sensor to strong light (direct sunlight or artificial lighting).

5 Loading slot 6 Display window 7 0 (eject) button 8 EQ (equalizer) button 9

¢/4 buttons

p Control dial q SEL (select) button w DISP (display) button e MO (monaural) button r SSM (Strong-station Sequential Memory)

button

t Number buttons y RPT (repeat) button

Display window

u RND (random) button i M MODE button o

(control panel release) button

Display window

; Disc information indicators—TAG (ID3

Tag),

a Disc type indicators—WMA, MP3 s DISC indicator d Playback mode / item indicators—

RND (random), RPT (repeat)

f LOUD (loudness) indicator g EQ (equalizer) indicator h Sound mode (C-EQ: custom equalizer)

indicators—JAZZ, CLASSIC, HIP HOP, POPS, ROCK, USER

j Tr (track) indicator k Source display / Volume level indicator /

Time countdown indicator

l Main display / Tuner reception indicators—ST (stereo),

MO (monaural)

(folder), (track/file)

(disc), (folder),

Getting started

Basic operations

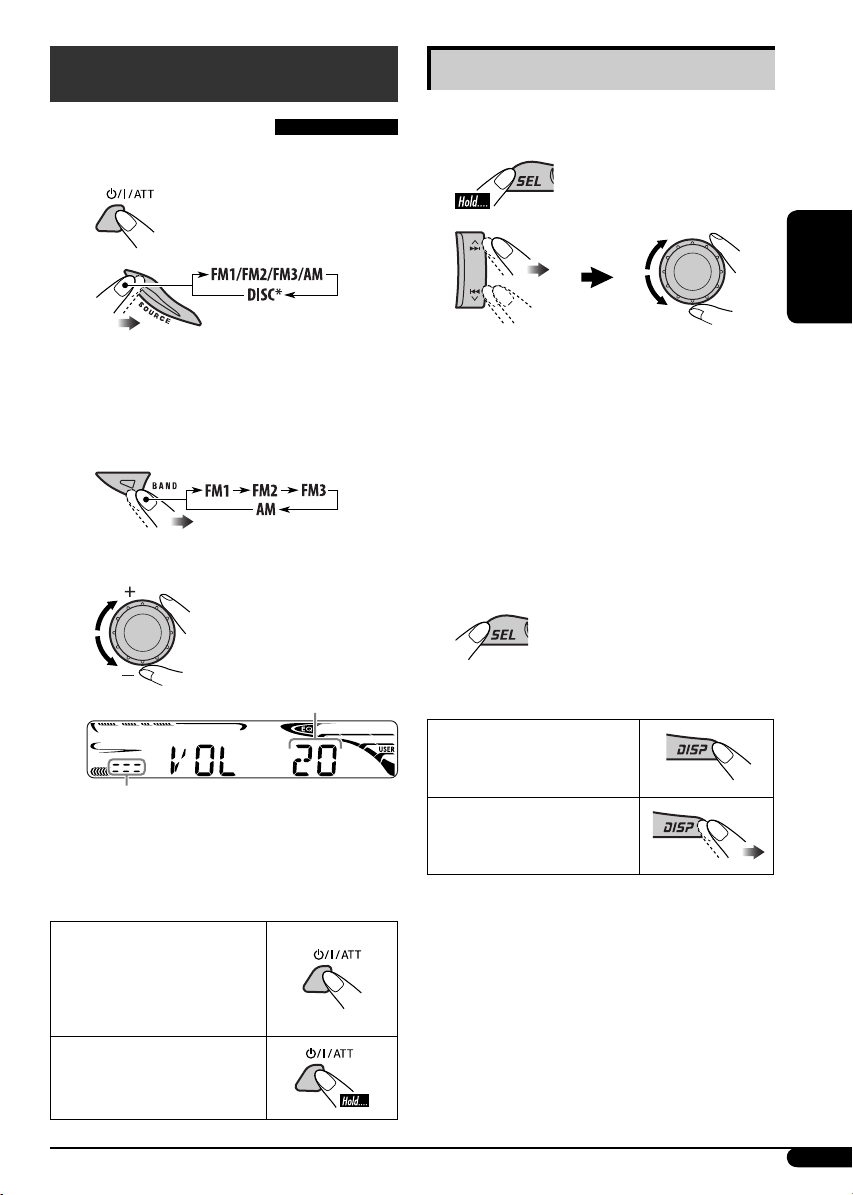

~ Turn on the power.

Basic settings

• See also “General settings — PSM” on pages 10 and 11.

ENGLISH

* You cannot select “DISC” as the

playback source if there is no disc in the unit.

! For FM/AM tuner

⁄ Adjust the volume.

Volume level appears.

Volume level indicator

@ Adjust the sound as you want. (See

pages 9 and 10.)

To drop the volume in a moment (ATT)

To restore the sound, press it again.

1 Canceling the display

demonstrations

Select “DEMO,” then “DEMO OFF.”

2 Setting the clock

Select “CLOCK H” (hour), then adjust the hour. Select “CLOCK M” (minute), then adjust the minute.

3 Finish the procedure.

To check the current clock time while...

The power is turned off

Listening to the radio

Frequency Ô Clock

To turn off the power

Radio operations

ENGLISH

When an FM stereo broadcast is hard to receive

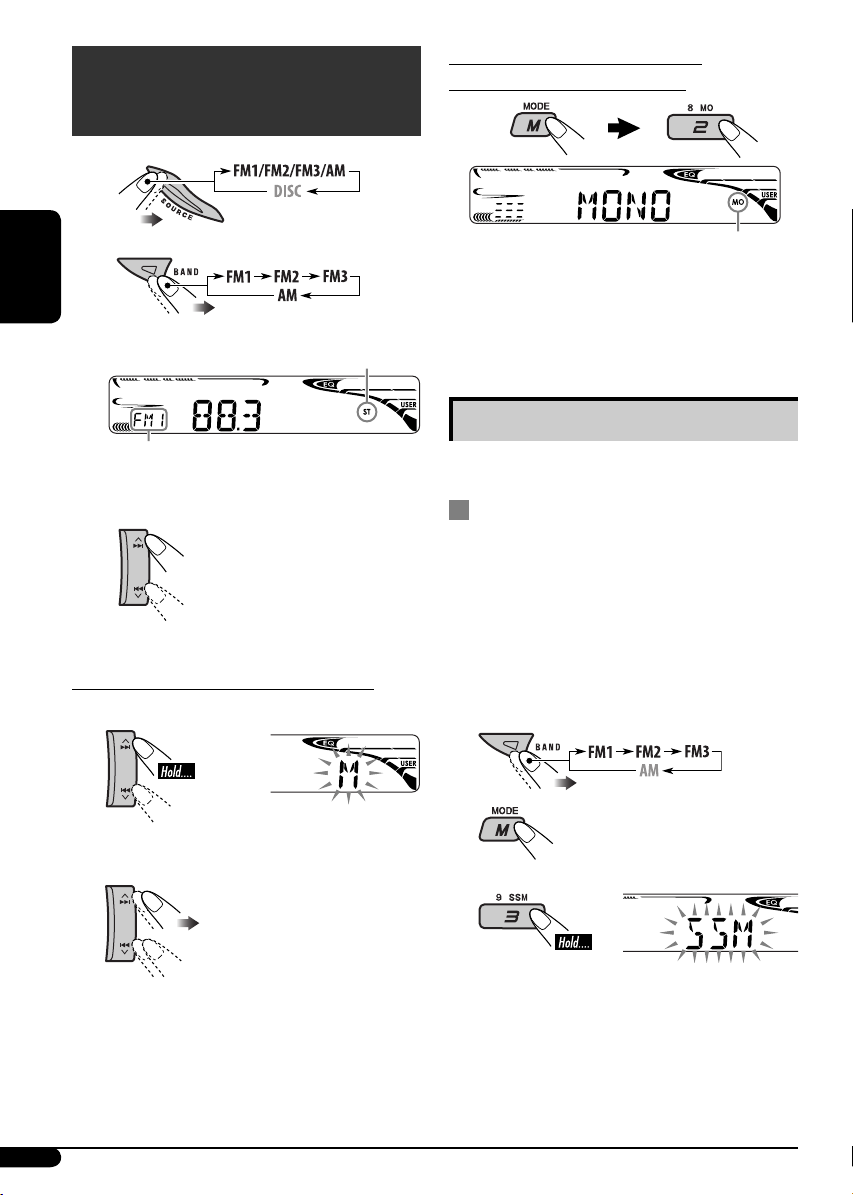

Lights up when receiving an FM stereo broadcast with sufficient signal strength.

Selected band appears.

! Start searching for a station.

When a station is received, searching stops. To stop searching, press the same button again.

To tune in to a station manually

In step ! above... 1

2 Select the desired station frequencies.

Lights up when monaural mode is activated.

Reception improves, but stereo effect will be lost.

To restore the stereo effect, repeat the same procedure. “MONO OFF” appears and the MO indicator goes off.

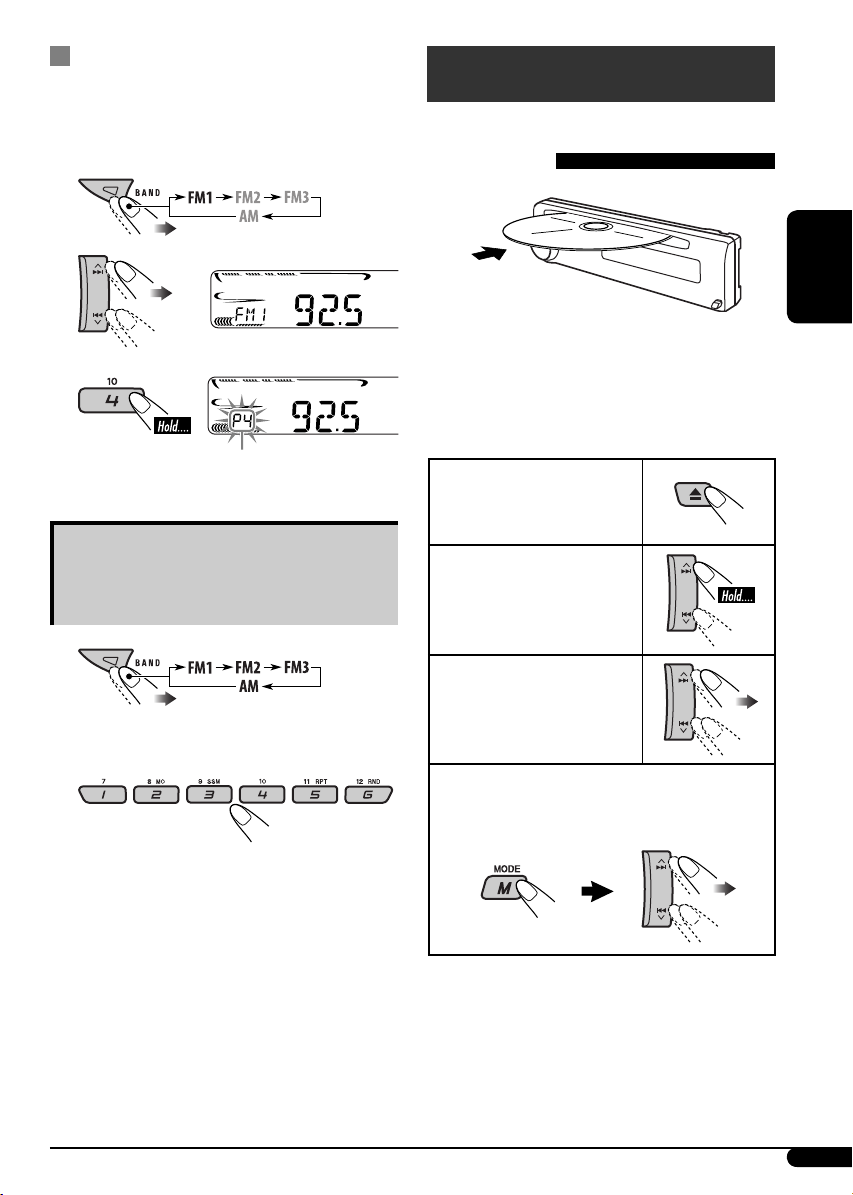

Storing stations in memory

You can preset six stations for each band.

FM station automatic presetting —

SSM (Strong-station Sequential Memory)

1 Select the FM band (FM1 – FM3) you

want to store into.

“SSM” flashes, then disappears when automatic presetting is over.

Local FM stations with the strongest signals are searched and stored automatically in the FM band.

Manual presetting

Ex.: Storing FM station of 92.5 MHz into preset

number 4 of the FM1 band.

Disc operations

Playing a disc in the unit

ENGLISH

Preset number flashes for a while.

Listening to a preset station

2 Select the preset station (1 – 6) you

want.

All tracks will be played repeatedly until you change the source or eject the disc.

To stop play and eject the disc

To fast-forward or reverse the track

To go to the next or previous tracks

To go to the next or previous folders (only for MP3 or WMA discs)

To be continued...

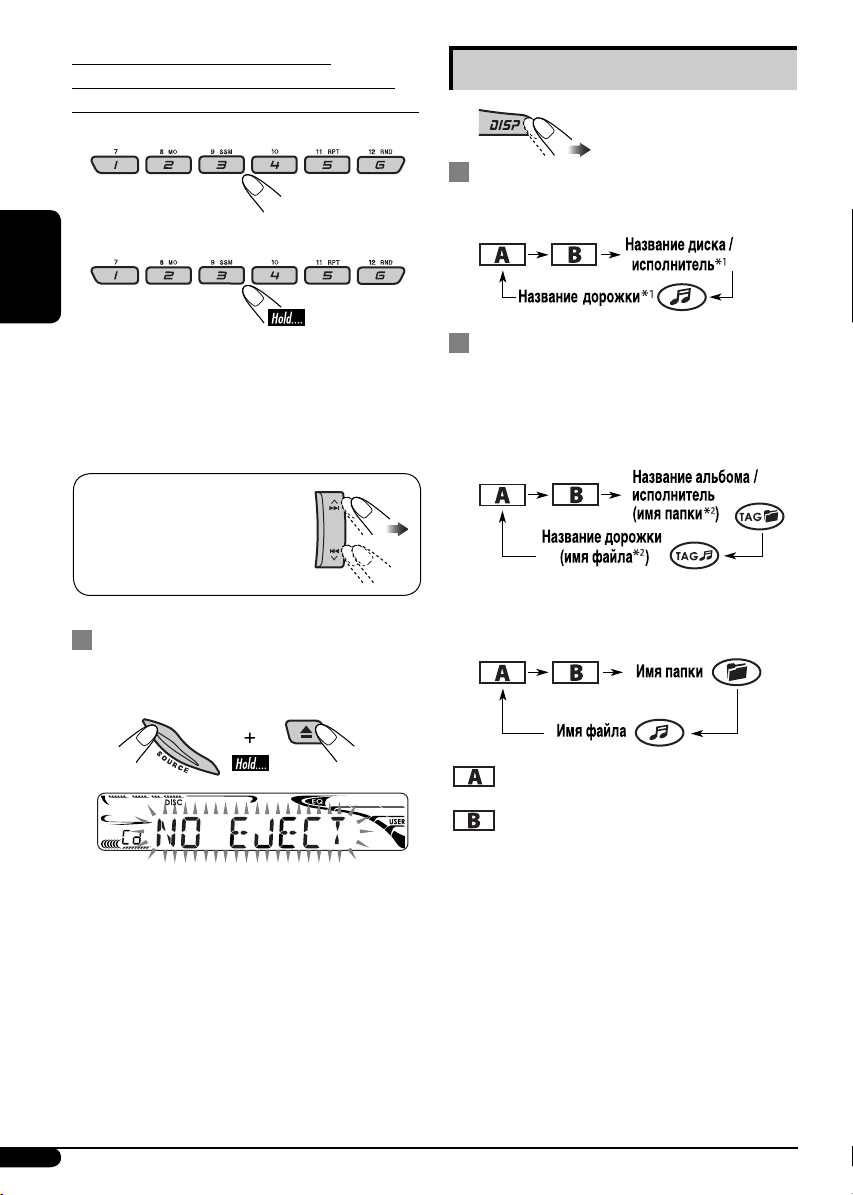

To locate a particular track (for CD) or folder (for MP3 or WMA discs) directly

To select a number from 01 – 06:

Changing the display information

ENGLISH

To select a number from 07 – 12:

• To use direct folder access on MP3/WMA discs, it is required that folders are assigned with 2-digit numbers at the beginning of their folder names—01, 02, 03, and so on.

To select a particular track in

a folder (for MP3 or WMA disc):

Prohibiting disc ejection

You can lock a disc in the loading slot.

While playing an audio CD or a CD Text

While playing an MP3 or a WMA disc

• When “TAG DISP” is set to “TAG ON” (see page 11)

• When “TAG DISP” is set to “TAG OFF”

: Elapsed playing time with the current

track number

: Clock with the current track number

To cancel the prohibition, repeat the same

procedure.

If the current disc is an audio CD,

“NO NAME” appears.

If an MP3/WMA file does not have ID3 tags,

folder name and file name appear. In this case, the TAG indicator will not light up.

Selecting the playback modes

You can use only one of the following playback modes at a time.

Sound adjustments

You can select a preset sound mode suitable to the music genre (C-EQ: custom equalizer).

2 Select your desired playback mode.

7 Repeat play

Mode Plays repeatedly

TRK RPT : The current track. FLDR RPT*3 : All tracks of the current

folder.

RPT OFF : Cancels.

7 Random play

Mode Plays at random

FLDR RND*3 : All tracks of the current

folder, then tracks of the next folder and so on.

DISC RND : All tracks of the current disc.

RND OFF : Cancels.

Only while playing an MP3 or a WMA

disc.

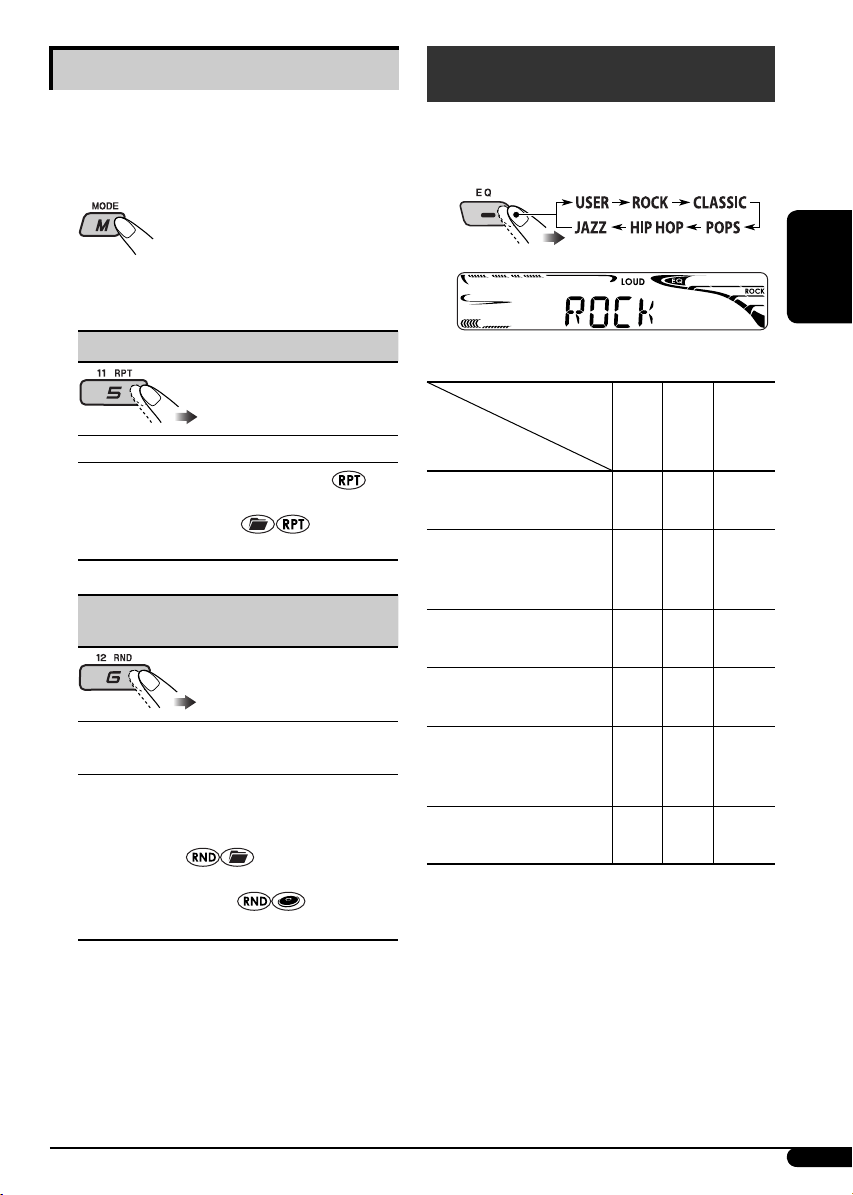

Ex.: When “ROCK” is selected

Preset values

Indication (For)

USER

(Flat sound)

ROCK

(Rock or disco music)

CLASSIC

(Classical music)

POPS

(Light music)

HIP HOP

(Funk or rap music)

JAZZ

(Jazz music)

BAS TRE LOUD

(bass) (treble)

00 00 OFF

+03 +01 ON

+01 –02 OFF

+04 +01 OFF

+02 00 ON

+02 +03 OFF

(loudness)

ENGLISH

To be continued...

Adjusting the sound

You can adjust the sound characteristics to your preference.

ENGLISH

General settings — PSM

You can change PSM (Preferred Setting Mode) items listed in the table that follows.

Indication, [Range]

BAS*1 (bass), [–06 to +06]

Adjust the bass.

TRE*

(treble), [–06 to +06]

Adjust the treble.

FAD*2 (fader), [R06 to F06]

Adjust the front and rear speaker balance.

BAL (balance), [L06 to R06] Adjust the left and right speaker balance.

LOUD*1 (loudness), [LOUD ON or LOUD OFF]

Boost low and high frequencies to produce a well-balanced sound at low volume level.

VOL (volume), [00 to 30 or 50* Adjust the volume.

*1 When you adjust the bass, treble, or loudness,

the adjustment you have made is stored for the currently selected sound mode (C-EQ) including “USER.”

If you are using a two-speaker system, set the

fader level to “00.”

Depending on the amplifier gain control

setting. (See page 11 for details.)

]

2 Select a PSM item.

3 Adjust the PSM item selected.

4 Repeat steps 2 and 3 to adjust other

PSM items if necessary.

5 Finish the procedure.

Indications Selectable settings, [reference page]

DEMO

Display demonstration

CLOCK H

Hour adjustment

CLOCK M

Minute adjustment

DIMMER

Dimmer

SCROLL*

Scroll

TAG DISP

Tag display

AMP GAIN

Amplifier gain control

Some characters or symbols will not be shown correctly (or will be blanked) on the display.

DEMO ON : [Initial]; Display demonstration will be activated

automatically if no operation is done for about 20 seconds, [5].

DEMO OFF : Cancels.

1 – 12, [5]

[Initial: 1 (1:00)]

00 – 59, [5]

[Initial: 00 (1:00)]

ON : Dims the display illumination of this unit. OFF : [Initial]; Cancels.

ONCE : [Initial]; Scrolls the disc information once. AUTO : OFF : Cancels.

• Pressing DISP for more than one second can scroll the display regardless of the setting.

TAG ON : [Initial]; Shows the ID3 tag while playing MP3/WMA

TAG OFF : Cancels.

You can change the maximum volume level of this unit.

LOW PWR : VOL 00 – VOL 30 (Select this if the maximum power

HIGH PWR : [Initial]; VOL 00 – VOL 50

Repeats scrolling (5-second intervals in between).

tracks, [8].

of the speaker is less than 45 W to prevent them from damaging the speaker.)

ENGLISH
