CD RECEIVER
РЕСИВЕР С ПРОИГРЫВАТЕЛЕМ КОМПАКТ-ДИСКОВ ПРИЙМАЧ З ПРОГРАВАЧЕМ КОМПАКТ-ДИСКІВ
KD-G547
УКРАЇНА РУCCKИЙ ENGLISH
В соответствии с Законом Российской Федерации “О защите прав потребителей” срок службы (годности) данного товара “по истечении которого он может представлять опасность для жизни, здоровья потребителя, причинять вред его имуществу или окружающей среде” составляет семь (7) лет со дня производства. Этот срок является временем,
втечение которого потребитель данного товара может безопасно им пользоваться при условии соблюдения инструкции по эксплуатации данного товара, проводя необходимое обслуживание, включающее замену расходных материалов и/или соответствующее ремонтное обеспечение в специализированном сервисном центре.
Дополнительные косметические материалы к данному товару, поставляемые вместе с ним, могут храниться в течение двух (2) лет со дня его производства.
Срок службы (годности), кроме срока хранения дополнительных косметических материалов, упомянутых
впредыдущих двух пунктах, не затрагивает никаких других прав потребителя, в частности, гарантийного свидетельства JVC, которое он может получить в соответствии с законом о правах потребителя или других законов, связанных с ним.
For canceling the display demonstration, see page 5.
Информацию об отмене демонстрации функций дисплея см. на стр. 5. Інформацію щодо відміни демонстрації функцій дисплею див. на стор. 5.
For installation and connections, refer to the separate manual.
Указания по установке и выполнению соединений приводятся в отдельной инструкции. Вказівки по встановленню та виконанню підключень наведені у окремій інструкції.
INSTRUCTIONS
ИНСТРУКЦИИ ПО ЭКСПЛУАТАЦИИ ІНСТРУКЦІЇ
GET0499-001A
[EE]
ENGLISH
Thank you for purchasing a JVC product.
Please read all instructions carefully before operation, to ensure your complete understanding and to obtain the best possible performance from the unit.
IMPORTANT FOR LASER PRODUCTS
1.CLASS 1 LASER PRODUCT
2.CAUTION: Do not open the top cover. There are no user serviceable parts inside the unit; leave all servicing to qualified service personnel.
3.CAUTION: Visible and/or invisible class 1M laser radiation when open. Do not view directly with optical instruments.
4.REPRODUCTION OF LABEL: CAUTION LABEL, PLACED OUTSIDE THE UNIT.
Warning:
If you need to operate the unit while driving, be sure to look around carefully or you may be involved in a traffic accident.
Caution on volume setting:
Discs produce very little noise compared with other sources. Lower the volume before playing a disc
to avoid damaging the speakers by the sudden increase of the output level.
Available characters on the display
Available characters
Display indications
[European Union only]
2
How to reset your unit
• Your preset adjustments will also be erased.
How to forcibly eject a disc
“PLEASE” and “EJECT” appear alternately on the display.
•Be careful not to drop the disc when it ejects.
•If this does not work, reset your unit.
How to use the M MODE button
If you press M MODE, the unit goes into functions mode, then the number buttons and 5/∞buttons will work as different function buttons.
Ex.: When number button 2 works as MO (monaural) button.
To use these buttons for their original functions, press M MODE again.
•Waiting for about 5 seconds without pressing any of these buttons will automatically exit from the functions mode.
CONTENTS
|
|
|
ENGLISH |
|
Control panel |
4 |
|||
|
||||
Getting started................................ |
5 |
|
||
Basic operations................................................... |
5 |
|
||
Radio operations ............................. |
6 |
|
||
FM RDS operations........................... |
7 |
|
||
Searching for your favorite FM RDS |
|
|
|
|
programme .................................................. |
7 |
|
||
Disc operations................................ |
9 |
|
||
Playing a disc in the unit ..................................... |
9 |
|
||
Sound adjustments.......................... |
12 |
|
||
General settings — PSM .................. |
13 |
|
||
Other external component |
|
|
|
|
operations ................................... |
15 |
|
||
Remote controller — RM-RK50........... |
16 |
|
||
Maintenance ................................... |
17 |
|
||
More about this unit ........................ |
18 |
|
||
Troubleshooting.............................. |
20 |
|
||
Specifications.................................. |
22 |
|

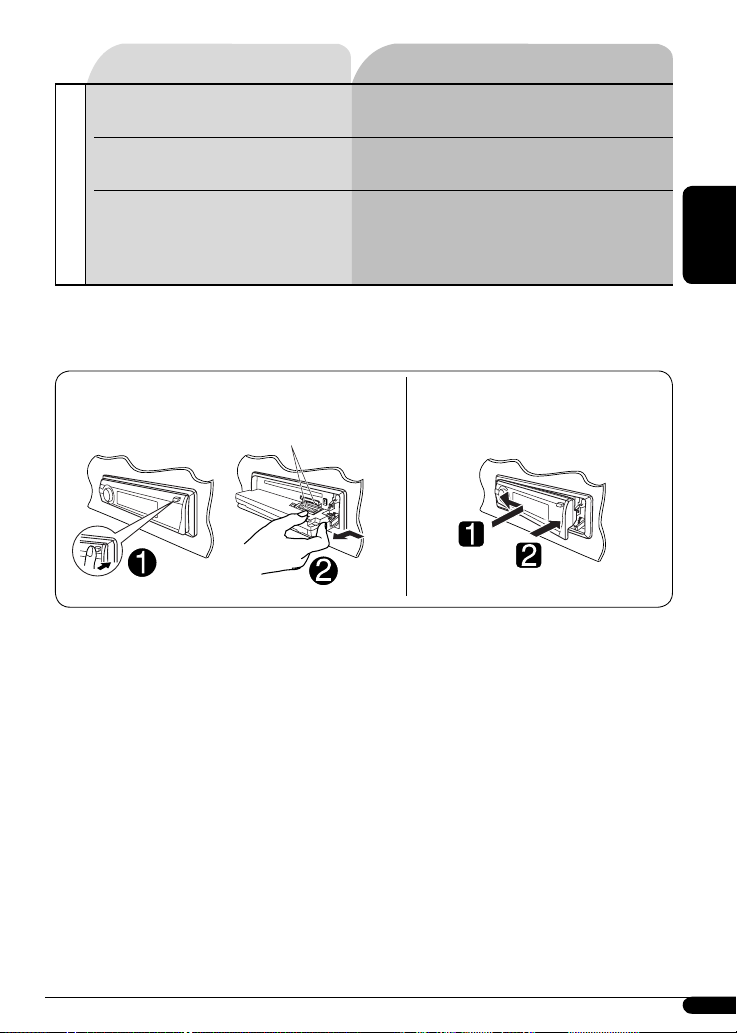

For detaching/attaching the control panel see page 21.
For safety...
•Do not raise the volume level too much, as this will block outside sounds, making driving dangerous.
•Stop the car before performing any complicated operations.
Temperature inside the car...
If you have parked the car for a long time in hot or cold weather, wait until the temperature in the car becomes normal before operating the unit.
3
ENGLISH
Control panel
Display window
Parts identification
1 |
4 / ¢ buttons |
||
2 |
|
|
(standby/on/attenuator) button |
|
|
||
|
|
||
3 |
5(up)/∞(down) buttons |
||
4 |
Source button / Control dial |
||
5 |
Display window |
||
6 |
T/P (traffic programme/programme type) button |
7OPEN button
•To flip-open the control panel.
•To eject the disc, flip-open the control panel then
press 0on the unit. 8 SEL (select) button 9 EQ (equalizer) button p MO (monaural) button
q SSM (Strong-station Sequential Memory) button w Number buttons
e RPT (repeat) button r RND (random) button t M MODE button
y DISP (display) button u BAND button
iRemote sensor
•You can control this unit with an optionally purchased remote controller. For details, see page 16.
•DO NOT expose the remote sensor to strong light
(direct sunlight or artificial lighting). o AUX (auxiliary) input jack
; Tr (track) indicator
aSource display / Track number / Folder number / Time countdown indicator
s Auxiliary indicator d DISC indicator
f LOUD (loudness) indicator
gSound mode (iEQ: intelligent equalizer) indicators—CLASSIC, HIP HOP, JAZZ, ROCK, POPS, USER
4
h EQ (equalizer) indicator
j Disc information indicators—
TAG (Tag information), (folder), (track/file) k RDS indicators—AF, REG, TP, PTY
l Main display
/Playback mode / item indicators—RND (random), (disc), (folder), RPT (repeat)
zTuner reception indicators—ST (stereo), MO (monaural)
To drop the volume in a moment (ATT)
To restore the sound, press the button again.
To turn off the power

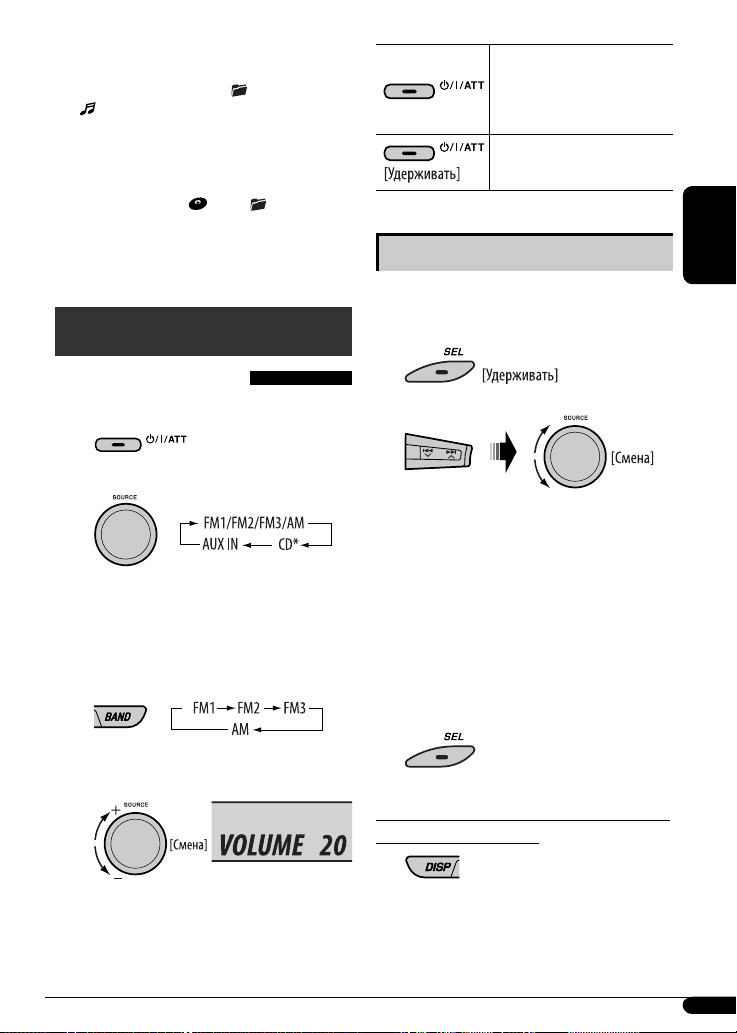

Getting started
Basic operations
~ Turn on the power.
Ÿ
* You cannot select “CD” as the playback source if there is no disc in the unit.
! For FM/AM tuner
⁄ Adjust the volume.
Basic settings
•See also “General settings — PSM” on pages 13 – 15.
1
2
1 Canceling the display demonstrations
Select “DEMO,” then “DEMO OFF.”
2Setting the clock
Select “CLOCK HOUR”, then adjust the hour. Select “CLOCK MIN” (minute), then adjust the minute.
Select “24H/12H,” then “24 HOUR” or “12 HOUR.”
3 Finish the procedure.
ENGLISH
Volume level appears.
@Adjust the sound as you want. (See page 12.)
To check the current clock time while the power is turned off
Clock time is shown on the display for about 5 seconds. See also page 13.
5
Radio operations
ENGLISH ~
Ÿ
Lights up when receiving an FM stereo broadcast with sufficient signal strength.
!Start searching for a station.
When a station is received, searching stops. To stop searching, press the same button again.
To tune in to a station manually
In step !above...
1
2 Select a desired station frequency.
Note:
FM1 and FM2: 87.5 MHz – 108.0 MHz
FM3: |
65.00 MHz – 74.00 MHz |
When an FM stereo broadcast is hard to receive
Lights up when monaural mode is activated.
Reception improves, but the stereo effect will be lost.
To restore the stereo effect, repeat the same procedure. “MONO OFF” appears and the MO indicator goes off.
Storing stations in memory
You can preset six stations for each band.
FM station automatic presetting— SSM (Strong-station Sequential Memory)
1Select the FM band (FM1 – FM3) you want to store into.
2
3
“SSM” flashes, then disappears when automatic presetting is over.
Local FM stations with the strongest signals are searched and stored automatically in the FM band.
6
Manual presetting
Ex.: Storing the FM station of 92.50MHz into preset number 4 of the FM1 band.
1
2
3
Preset number flashes for a while.
FM RDS operations
What you can do with RDS
RDS (Radio Data System) allows FM stations to send an additional signal along with their regular programme signals.
By receiving the RDS data, this unit can do the following:
•Programme Type (PTY) Search (see the following)
•TA (Traffic Announcement) and PTY Standby Receptions (see pages 8, 9, and 14)
•Tracing the same programme automatically —Network-Tracking Reception (see page 9)
•Programme Search (see pages 9 and 14)
ENGLISH
Listening to a preset station
1
2Select the preset station (1 – 6) you want.
or
To check the current clock time while listening to an FM (non-RDS) or AM station
• For FM RDS stations, see page 9.
Frequency ÔClock
Searching for your favorite FM RDS programme
You can tune in to a station broadcasting your favorite programme by searching for a PTY code.
• To store your favorite programme types, see page 8.
~
The last selected PTY code appears.
ŸSelect one of your favorite programme types.
or
Select one of the PTY codes (see page 9).
Continued on the next page
7
|
! Start searching for your favorite |
|
ENGLISH |
programme. |
|
If there is a station broadcasting a programme |
||
|
||
|
of the same PTY code as you have selected, that |
|
|
station is tuned in. |
Storing your favorite programme types
You can store six favorite programme types.
Preset programme types in the number buttons (1 to 6):
1Select a PTY code (see steps ~to !on pages 7 and 8).
2Select the preset number (1 – 6) you want to store into.
Using the standby receptions
TA Standby Reception
TA Standby Reception allows the unit to switch temporarily to Traffic Announcement (TA) from any source other than AM.
The volume changes to the preset TA volume level if the current level is lower than the preset level (see
page 14).
To activate TA Standby Reception
The TP (Traffic Programme) indicator either lights up or flashes.
•If the TP indicator lights up, TA Standby Reception is activated.
•If the TP indicator flashes, TA Standby Reception is not yet activated. (This occurs when you are listening to an FM station without the RDS signals required for TA Standby Reception.)
To activate TA Standby Reception, tune in to another station providing these signals. The TP indicator will stop flashing and remain lit.
To deactivate the TA Standby Reception
The TP indicator goes off.
ROCK M MEMORY
Ex.: When “ROCK M” is selected
3Repeat steps 1 and 2 to store other PTY codes into other preset numbers.
4 Finish the procedure.
PTY Standby Reception
PTY Standby Reception allows the unit to switch temporarily to your favorite PTY programme from any source other than AM.
To activate and select your favorite PTY code for PTY Standby Reception, see page 14.
The PTY indicator either lights up or flashes.
•If the PTY indicator lights up, PTY Standby Reception is activated.
•If the PTY indicator flashes, PTY Standby Reception is not yet activated.
To activate PTY Standby Reception, tune in to another station providing these signals. The PTY indicator will stop flashing and remain lit.
8
To deactivate the PTY Standby Reception, select “OFF” for the PTY code (see page 14). The PTY indicator goes off.
Tracing the same programme— Network-Tracking Reception
When driving in an area where FM reception is not sufficient enough, this unit automatically tunes in to another FM RDS station of the same network, possibly broadcasting the same programme with stronger signals (see the illustration below).
When shipped from the factory, Network-Tracking Reception is activated.
To change the Network-Tracking Reception setting, see “AF-REG” on page 14.
Programme A broadcasting on different frequency areas (01 – 05)
Automatic station selection— Programme Search
Usually when you press the number buttons, the preset station is tuned in.
If the signals from the FM RDS preset station are not sufficient for good reception, this unit, using the AF data, tunes in to another frequency broadcasting the same programme as the original preset station is broadcasting.
•The unit takes some time to tune in to another station using programme search.
•See also page 14.
To check the current clock time while |
|
|
listening to an FM RDS station |
ENGLISH |
|
Station name (PS) =Station |
||
|
||
Frequency =Programme type |
|
|
(PTY) =Clock =(back to the |
|
|
beginning) |
|
PTY codes
NEWS, AFFAIRS, INFO, SPORT, EDUCATE, DRAMA, CULTURE, SCIENCE, VARIED, POP M (music), ROCK M (music), EASY M (music), LIGHT M (music), CLASSICS, OTHER M (music), WEATHER, FINANCE, CHILDREN, SOCIAL, RELIGION, PHONE IN, TRAVEL, LEISURE, JAZZ, COUNTRY, NATION M (music), OLDIES, FOLK M (music), DOCUMENT
Disc operations
Playing a disc in the unit
All tracks will be played repeatedly until you change the source or eject the disc.
To stop play and eject the disc
• Press SOURCE to listen to another playback source.
Continued on the next page
9
To fast-forward or reverse the track
ENGLISH |
To go to the next or previous tracks |
|
To go to the next or previous folders (only for MP3 or WMA discs)
To locate a particular track (for CD) or folder (for MP3 or WMA discs) directly
To select a number from 01 – 06:
Other main functions
Skipping tracks quickly during play
•For MP3 or WMA discs, you can skip tracks within the same folder.
Ex.: To select track 32 while playing a track whose number is a single digit (1 to 9)
1
2
Each time you press the button, you can skip 10 tracks.
•After the last track, the first track will be selected and vice versa.
3
To select a number from 07 – 12:
•To use direct folder access on MP3/WMA discs, it is required that folders are assigned with 2-digit numbers at the beginning of their folder names— 01, 02, 03, and so on.
To select a particular track in a folder (for MP3 or WMA disc):
Prohibiting disc ejection
You can lock a disc in the loading slot.
To cancel the prohibition, repeat the same procedure.
10
Changing the display information |
|
Selecting the playback modes |
|
|
|
You can use only one of the following playback modes at a time.
|
While playing an audio CD or CD Text |
1 |
|
|
|
|
|
|
|
2 Select your desired playback mode. |
|
||||||
|
A =B =Disc title/performer*1 =Track |
|
||||||
|
title*1 [ ] =(back to the beginning) |
|
|
|
|
|
|
|
|
|
|
7 Repeat play |
|
|
|
||
|
While playing an MP3 or a WMA track |
|
|
|
|
|
|
|
|
Mode |
|
Plays repeatedly |
|
||||
|
|
|
||||||
|
• When “TAG DISPLAY” is set to “TAG ON” |
|
|
|||||
|
|
|
|
|
|
|
||
|
TRACK RPT |
: |
The current track. [ |
] |
||||
|
(see page 15) |
|
||||||
|
|
FOLDER RPT* : All tracks of the current folder. |
||||||
|
|
|
||||||
|
A =B =Album name/performer |
|
|
|
[ |
] |
|
|
|
RPT OFF |
: |
Cancels. |
|
|
|||
|
(folder name*2) [ |
] =Track title |
|
|
||||
|
|
|
|
|
|
|
||
|
7 Random play |
|
|
|||||
|
(file name*2) [ |
] =(back to the |
|
|
beginning)
• When “TAG DISPLAY” is set to “TAG OFF”
A =B =Folder name [] =File name
[] =(back to the beginning)
A : The elapsed playing time with the current track number
B : Clock with the current track number
[ ] : Corresponding indicator lights up on the display.
*1 If the current disc is an audio CD, “NO NAME” appears. *2 If an MP3/WMA file does not have Tag information, folder name and file name appear. In this case, the
TAG indicator will not light up.
Mode |
|
Plays at random |
|
|
FOLDER RND* : |
All tracks of the current folder, |
|||
|
|
then the tracks of the next |
|
|
|
|
folder and so on. [ |
] |
|
ALL RND |
: |
All tracks of the inserted disc. |
||
|
|
[ |
] |
|
RND OFF |
: |
Cancels. |
|
|
* Only while playing an MP3 or a WMA disc.
[ ] : Corresponding indicator lights up on the display.
ENGLISH
11
ENGLISH |
|
Sound adjustments |
|
|
|
1 |
||
|
You can select a preset sound mode suitable to the |
|
|
music genre (iEQ: intelligent equalizer). |
2
Preset values |
BASS |
MIDDLE |
TREBLE |
LOUD |
|
Indication (For) |
|||||
|
|
|
|
||
USER |
00 |
00 |
00 |
OFF |
|
(Flat sound) |
|||||
|
|
|
|
||
|
|
|
|
|
|
ROCK |
+03 |
00 |
+02 |
OFF |
|
(Rock or disco music) |
|||||
|
|
|
|
||
|
|
|
|
|
|
CLASSIC |
+01 |
00 |
+03 |
OFF |
|
(Classical music) |
|||||
|
|
|
|
||
|
|
|
|
|
|
POPS |
+02 |
+01 |
+02 |
OFF |
|
(Light music) |
|||||
|
|
|
|
||
|
|
|
|
|
|
HIP HOP |
+04 |
–02 |
+01 |
OFF |
|
(Funk or rap music) |
|||||
|
|
|
|
||
|
|
|
|
|
|
JAZZ |
+03 |
00 |
+03 |
OFF |
|
(Jazz music) |
|||||
|
|
|
|
Adjusting the sound
You can adjust the sound characteristics to your preference.
1
2
Indication, [Range]
BASS*1, [–06 to +06]
Adjust the bass.
MIDDLE*1 (mid-range), [–06 to +06] Adjust the mid-range frequencies sound level.
TREBLE*1, [–06 to +06]
Adjust the treble.
FADER*2, [R06 to F06]
Adjust the front and rear speaker output balance.
BALANCE*3, [L06 to R06]
Adjust the left and right speaker output balance.
LOUD*4 (loudness), [LOUD ON or LOUD OFF] Boost low and high frequencies to produce a well-balanced sound at a low volume level.
SUB.W (subwoofer), [00 to 08, initial: 04] Adjust the subwoofer output level.
VOL ADJ (volume adjust), [–05 to +05, initial: 00] Adjust the volume level of each source (except FM), in relation to the FM volume level. The volume level will automatically increase or decrease when you change the source.
•Before making an adjustment, select the source you want to adjust.
VOLUME, [00 to 50 or 00 to 30]*5
Adjust the volume.
*1 When you adjust the bass, mid-range, or treble, the adjustment you have made is stored for the currently selected sound mode (iEQ) including “USER.”
*2 If you are using a two-speaker system, set the fader level to “00.”
*3 This adjustment will not affect the subwoofer output. *4 The adjustment made (LOUD ON/LOUD OFF) will be
applied to all sound modes.
*5 Depending on the amplifier gain control setting. (See page 15 for details.)
12
General settings — PSM
You can change PSM (Preferred Setting Mode) items |
4 |
Repeat steps 2 and 3 to adjust other PSM |
|
listed in the table below and on pages 14 and 15. |
|
items if necessary. |
|
1 |
|
5 |
Finish the procedure. |
2 |
Select a PSM item. |
|
|
3 |
Adjust the PSM item selected. |
|
|
ENGLISH
Indications |
Item |
Selectable settings, [reference page] |
||
|
( |
|
: Initial) |
|
|
|
|
|
|
DEMO |
• |
DEMO ON |
: The display demonstration will be activated automatically if no |
|
Display demonstration |
|
|
|
operation is done for about 20 seconds, [5]. |
|
• |
DEMO OFF |
: Cancels. |
|
|
|
|
|
|
CLOCK DISP *1 |
• |
CLOCK ON |
: The clock time is shown on the display at all times when the |
|
Clock display |
|
|
|
power is turned off. |
|
• |
CLOCK OFF |
: Cancels; pressing DISP will show the clock time for about |
|
|
|
|
|
5 seconds when the power is turned off, [5]. |
|
|
|
|
|
CLOCK HOUR |
0 – 23 (1 – 12) |
[Initial: 0 (0:00)], [5]. |
||
Hour adjustment |
|
|
|
|
|
|
|
|
|
CLOCK MIN |
00 – 59 |
[Initial: 00 (0:00)], [5]. |
||
Minute adjustment |
|
|
|
|
|
|
|
|
|
24H/12H |
• |
24 HOUR |
: See also page 5 for setting. |
|
Time display mode |
• |
12 HOUR |
|
|
|
|
|
|
|
*1 If the power supply is not interrupted by turning off the ignition key of your car, it is recommended that you select “CLOCK OFF” to save the car’s battery.
Continued on the next page
13
ENGLISH
Indications |
Item |
Selectable settings, [reference page] |
||||
|
|
( |
|
: Initial) |
|
|
|
|
|
|
|
|
|
CLOCK ADJ *2 |
• |
AUTO |
: |
The built-in clock is automatically adjusted using the CT (clock |
||
Clock adjustment |
|
|
|
|
time) data in the RDS signal. |
|
|
|
• |
OFF |
: |
Cancels. |
|
|
|
|
|
|
|
|
AF-REG *2 |
• |
AF |
: |
When the currently received signals become weak, the unit |
||
Alternative frequency/ |
|
|
|
|
switches to another station (the programme may differ from the |
|
regionalization |
|
|
|
|
one currently received), [9]. |
|
reception |
|
|
|
|
• The AF indicator lights up. |
|
|
|
• |
AF-REG |
: |
When the currently received signals become weak, the unit |
|
|
|
|
|
|
|
switches to another station broadcasting the same programme. |
|
|
|
|
|
|
• The AF and REG indicators light up. |
|
|
• |
AF OFF |
: |
Cancels. |
|
|
|
|
|
|||
PTY-STANDBY *2 |
OFF, PTY codes |
Activates PTY Standby Reception with one of the PTY codes, [8, 9]. |
||||
PTY standby |
|
|
|
|
|
|
|
|
|
|
|||
TA VOLUME *2 |
VOLUME 00 |
[Initial: VOLUME 15] |
||||
Traffic announcement |
– VOLUME 50 |
|
|
|||
volume |
(or VOLUME 00 |
|
|
|||
|
|
– VOLUME 30) *3 |
|
|
||
P-SEARCH *2 |
• |
ON |
: |
Activates Programme Search, [9]. |
||
Programme search |
• |
OFF |
: |
Cancels. |
||
|
|
|
|
|
|
|
DIMMER |
• |
ON |
: |
Dims the display and button illumination. |
||
Dimmer |
• |
OFF |
: |
Cancels. |
||
|
|
|
|
|
|
|
KEY ILLUM |
• |
RED |
: |
You can select the button illumination according to your |
||
Illumination switch |
• |
GREEN |
|
preference. |
||
|
|
|
|
|
|
|
TEL MUTING |
• |
MUTING 1/ |
: |
Select either one which mutes the sounds while using a cellular |
||
Telephone muting |
|
MUTING 2 |
|
phone. |
||
|
|
• |
MUTING OFF |
: |
Cancels. |
|
|
|
|
|
|
|
|
SCROLL*4 |
• |
ONCE |
: |
Scrolls the displayed information once. |
||
Scroll |
• |
AUTO |
: |
Repeats scrolling (at 5-second intervals). |
||
|
|
• |
OFF |
: |
Cancels. |
|
|
|
|
|
|
• |
Pressing DISP for more than one second can scroll the display |
|
|
|
|
|
|
regardless of the setting. |
|
|
|
|
|
|
|
*2 |
Only for FM RDS stations. |
|
|
|
|
|
*3 |
Depends on the amplifier gain control. |
|
|
|||
*4 |
Some characters or symbols will not be shown correctly (or will be blanked) on the display. |
14
Indications |
Item |
Selectable settings, [reference page] |
||
|
( |
|
: Initial) |
|
|
|
|
|
|
SUB.W FREQ |
• |
LOW |
: Frequencies lower than 90 Hz are sent to the subwoofer. |
|
Subwoofer cutoff |
• |
MID |
: Frequencies lower than 135 Hz are sent to the subwoofer. |
|
frequency |
• |
HIGH |
: Frequencies lower than 180 Hz are sent to the subwoofer. |
|
|
|
|
|
|
TAG DISPLAY |
• |
TAG ON |
: Shows the Tag information while playing MP3/WMA tracks, |
|
Tag display |
|
|
|
[11]. |
|
• |
TAG OFF |
: Cancels. |
|
|
|
|
|
|
AMP GAIN |
• |
LOW POWER |
: VOLUME 00 – VOLUME 30 (Select this if the maximum power of |
|
Amplifier gain control |
|
|
|
the speaker is less than 50 W to prevent damaging the speaker.) |
|
• |
HIGH POWER |
: VOLUME 00 – VOLUME 50 |
|
|
|
|
|
|
IF BAND |
• |
AUTO |
: Increases the tuner selectivity to reduce interference noise |
|
Intermediate frequency |
|
|
|
between close stations. (The stereo effect may be lost.) |
band |
• |
WIDE |
: Subject to the interference noise from adjacent stations, but the |
|
|
|
|
|
sound quality will not be degraded and the stereo effect will |
|
|
|
|
remain. |
|
|
|
|
|
ENGLISH
Other external component operations
You can connect an external component to the AUX (auxiliary) input jack on the control panel.
Portable audio player, etc.
3.5 mm stereo mini plug (not supplied)
~
ŸTurn on the connected component and start playing the source.
! Adjust the volume.
⁄Adjust the sound as you want. (See page 12.)
To check the clock time while listening to an external component
AUX IN ÔClock
15
ENGLISH
Remote controller — RM-RK50
This unit can be remotely controlled as instructed here (with an optionally purchased remote controller). We recommend that you use remote controller RM-RK50 with your unit.
Installing the lithium coin battery (CR2025)
Aim the remote controller directly at the remote sensor on the unit. Make sure there is no obstacle in between.
Warning:
•Do not install any battery other than CR2025 or its equivalent; otherwise, it may explode.
•Do not leave the remote controller in a place (such as dashboards) exposed to direct sunlight for a long time; otherwise, it may explode.
•Store the battery in a place where children cannot reach to avoid risk of accident.
•To prevent the battery from over-heating, cracking, or starting a fire:
–Do not recharge, short, disassemble, heat the battery, or dispose of it in a fire.
–Do not leave the battery with other metallic materials.
–Do not poke the battery with tweezers or similar tools.
–Wrap the battery with tape and insulate when throwing away or saving it.
Main elements and features
1 (standby/on/attenuator) button
•Turns the power on if pressed briefly or attenuates the sound when the power is on.
•Turns the power off if pressed and held. 2 5U (up) / D (down) ∞buttons
•Changes the FM/AM bands with 5U.
•Changes the preset stations with D ∞.
•Changes the folder of the MP3/WMA discs. 3 VOL – / VOL + buttons
•Adjusts the volume level.
4SOUND button
•Selects the sound mode (iEQ: intelligent equalizer).
5SOURCE button
•Selects the source. 6 2R/F 3buttons
•Searches for stations if pressed briefly.
•Fast-forwards or reverses the track if pressed and held.
•Changes the tracks if pressed briefly.
16
Maintenance
How to clean the connectors
Frequent detachment will deteriorate the connectors. To minimize this possibility, periodically wipe the connectors with a cotton swab or cloth moistened with alcohol, being careful not to damage the connectors.
To keep discs clean
A dirty disc may not play correctly.
If a disc does become dirty, wipe it with a soft cloth in a straight line from center to edge.
•Do not use any solvents (for example, conventional record cleaner, spray, thinner, benzine, etc.) to clean discs.
ENGLISH
Connectors
Moisture condensation
Moisture may condense on the lens inside the unit in the following cases:
•After starting the heater in the car.
•If it becomes very humid inside the car.
Should this occur, the unit may malfunction. In this case, eject the disc and leave the unit turned on for a few hours until the moisture has evaporated.
To play new discs
New discs may have some rough spots
around the inner and outer edges. If such a disc is used, this unit may reject the disc.
To remove these rough spots, rub the edges with a pencil or ball-point pen, etc.
Do not use the following discs:
Single CD (8 cm disc) Warped disc
How to handle discs
When removing a disc from its |
Center holder |
case, press down the center holder |
|
of the case and lift the disc out, |
|
holding it by the edges. |
|
•Always hold the disc by the edges. Do not touch its recording surface.
When storing a disc in its case, gently insert the disc around the center holder (with the printed surface facing up).
• Make sure to store discs in cases after use.
Sticker and sticker residue |
Stick-on label |
Unusual shape
17
ENGLISH
More about this unit
Basic operations
Turning on the power
•By pressing SOURCE on the unit, you can also turn on the power. If the source is ready, playback also starts.
Turning off the power
•If you turn off the power while listening to a disc, disc play will start from where it had been stopped previously next time you turn on the power.
Tuner operations
Storing stations in memory
•During SSM search...
–All previously stored stations are erased and the stations are stored anew.
–Received stations are preset in No. 1 (lowest frequency) to No. 6 (highest frequency).
–When SSM is over, the station stored in No. 1 will be automatically tuned in.
•When storing a station manually, the previously preset station is erased when a new station is stored in the same preset number.
FM RDS operations
•Network-Tracking Reception requires two types of RDS signals—PI (Programme Identification) and AF (Alternative Frequency) to work correctly. Without receiving these data correctly, Network-Tracking Reception will not operate correctly.
•If a Traffic Announcement is received by TA Standby Reception, the volume level automatically changes to the preset level (TA VOL) if the current level is lower than the preset level.
•When Alternative Frequency Reception is activated (with AF selected), Network-Tracking Reception is also activated automatically.
•If you want to know more about RDS, visit <http://www.rds.org.uk>.
Disc operations
Caution for DualDisc playback
•The Non-DVD side of a “DualDisc” does not comply with the “Compact Disc Digital Audio” standard. Therefore, the use of Non-DVD side of a DualDisc on this product may not be recommended.
General
•This unit has been designed to reproduce CDs/ CD Texts, and CD-Rs (Recordable)/CD-RWs (Rewritable) in audio CD (CD-DA), MP3 and WMA formats.
•MP3 and WMA “tracks” (words “file” and “track” are used interchangeably) are recorded in “folders.”
•While fast-forwarding or reversing on an MP3 or WMA disc, you can only hear intermittent sounds.
•When a disc is inserted upside down, “PLEASE” and “EJECT” appear alternately on the display. Press OPEN, then 0to eject the disc.
Playing a CD-R or CD-RW
•Use only “finalized” CD-Rs or CD-RWs.
•This unit can only play back files of the same type as those which are detected first if a disc includes both audio CD (CD-DA) files and MP3/WMA files.
•This unit can play back multi-session discs; however, unclosed sessions will be skipped while playing.
•Some CD-Rs or CD-RWs may not be played back on this unit because of their disc characteristics, or for the following reasons:
–Discs are dirty or scratched.
–Moisture condensation has occurred on the lens inside the unit.
–The pickup lens inside the unit is dirty.
–The files on the CD-R/CD-RW are written using the “Packet Write” method.
–There are improper recording conditions (missing data, etc.) or media conditions (stained, scratched, warped, etc.).
18
•CD-RWs may require a longer readout time since the reflectance of CD-RWs is lower than that of regular CDs.
•Do not use the following CD-Rs or CD-RWs:
–Discs with stickers, labels, or protective seal stuck to the surface.
–Discs on which labels can be directly printed by an ink jet printer.
Using these discs under high temperature or high humidity may cause malfunctions or damage to the unit.
Playing an MP3/WMA disc
•This unit can play back MP3/WMA files with the extension code <.mp3> or <.wma> (regardless of the letter case—upper/lower).
•This unit can show the names of albums, artists (performer), and Tag (Version 1.0, 1.1, 2.2, 2.3, or 2.4) for MP3 files and for WMA files.
•This unit can display only one-byte characters. No other characters can be correctly displayed.
•This unit can play back MP3/WMA files meeting the conditions below:
–Bit rate: 8 kbps — 320 kbps
–Sampling frequency:
48 kHz, 44.1 kHz, 32 kHz (for MPEG-1) 24 kHz, 22.05 kHz, 16 kHz (for MPEG-2)
–Disc format: ISO 9660 Level 1/ Level 2, Romeo, Joliet, Windows long file name
•The maximum number of characters for file/folder names vary depending on the disc format used (includes 4 extension characters—<.mp3> or <.wma>).
–ISO 9660 Level 1: up to 12 characters
–ISO 9660 Level 2: up to 31 characters
–Romeo: up to 128 characters
–Joliet: up to 64 characters
–Windows long file name: up to 128 characters
•This unit can recognize a total of 512 files, 255 folders, and 8 hierarchical levels.
•This unit can play back files recorded in VBR (variable bit rate).
Files recorded in VBR have a discrepancy in the elapsed time display, and do not show the actual elapsed time. In particular, this difference becomes noticeable after performing the search function.
•This unit cannot play back the following files:
–MP3 files encoded in MP3i and MP3 PRO format.
–MP3 files encoded in an inappropriate format.
–MP3 files encoded with Layer 1/2.
–WMA files encoded in lossless, professional, and voice format.
–WMA files which are not based upon Windows Media® Audio.
–WMA files copy-protected with DRM.
–Files which have data such as WAVE, ATRAC3, etc.
•The search function works but search speed is not constant.
Changing the source
•If you change the source, playback also stops (without ejecting the disc).
Next time you select “CD” for the playback source, disc play starts from where it has been stopped previously.
Ejecting a disc
•If the ejected disc is not removed within 15 seconds, it is automatically inserted into the loading slot again to protect it from dust. Playback starts automatically.
•After ejecting a disc, “NO DISC” appears and you cannot operate some of the buttons. Insert another disc or press SOURCE to select another playback source.
General settings—PSM
•If you change the “AMP GAIN” setting from “HIGH POWER” to “LOW POWER” while the volume level is set higher than “VOLUME 30,” the unit automatically changes the volume level to “VOLUME 30.”
ENGLISH
19
ENGLISH
Troubleshooting
What appears to be trouble is not always serious. Check the following points before calling a service center.
|
|
Symptoms |
Remedies/Causes |
|
|
|
|
|
|
General |
• |
Sound cannot be heard from the speakers. |
• Adjust the volume to the optimum level. |
|
|
|
• Check the cords and connections. |
||
|
|
|
||
|
|
|
|
|
|
• |
The unit does not work at all. |
Reset the unit (see page 3). |
|
|
|
|
|
|
FM/AM |
• |
SSM automatic presetting does not work. |
Store stations manually. |
|
|
|
|
||
• |
Static noise while listening to the radio. |
Connect the aerial firmly. |
||
|
||||
|
|
|
|
|
|
• |
Disc cannot be played back. |
Insert the disc correctly. |
|
|
|
|
|
|
|
• |
CD-R/CD-RW cannot be played back. |
• Insert a finalized CD-R/CD-RW. |
|
|
• |
Tracks on the CD-R/CD-RW cannot be skipped. • Finalize the CD-R/CD-RW with the component which |
||
|
|
|
you used for recording. |
|
playback |
|
|
|
|
• |
Disc can be neither played back nor ejected. |
• Unlock the disc (see page 10). |
||
|
||||
|
|
|
• Eject the disc forcibly (see page 3). |
|
Disc |
|
|
|
|
• |
Disc sound is sometimes interrupted. |
• Stop playback while driving on rough roads. |
||
|
||||
|
|
|
• Change the disc. |
|
|
|
|
• Check the cords and connections. |
|
|
|
|
|
|
|
• |
“NO DISC” appears on the display. |
Insert a playable disc into the loading slot. |
•“PLEASE” and “EJECT” appear alternately on the display.
|
• Disc cannot be played back. |
• Use a disc with MP3/WMA tracks recorded in a format |
|
|
compliant with ISO 9660 Level 1, Level 2, Romeo, or |
playback |
|
Joliet. |
|
• Add the extension code <.mp3> or <.wma> to the file |
|
|
|
|
|
|
names. |
MP3/WMA |
|
|
• Noise is generated. |
WMA tracks.) |
|
|
Skip to another track or change the disc. (Do not add the |
|
|
|
extension code <.mp3> or <.wma> to non-MP3 or |
|
|
|
|
• A longer readout time is required (“READING” Do not use too many hierarchical levels and folders. |
|
|
keeps flashing on the display). |
|
20
|
|
Symptoms |
Remedies/Causes |
|
|
|
|
|
|
playback |
• Tracks are not played back in the order you |
The playback order is determined when the files are |
||
|
have intended. |
recorded. |
||
|
|
|||
|
|
|
|
|
|
• The elapsed playing time is not correct. |
This sometimes occurs during playback. This is caused by |
||
MP3/WMA |
|
|
how the tracks are recorded on the disc. |
|
|
|
|
||
• The correct characters are not displayed (e.g. |
This unit can only display Roman alphabets (upper case), |
|||
|
||||
|
|
album name). |
Cyrillic alphabets (upper case), numbers, and a limited |
|
|
|
|
number of symbols (see page 2). |
|
|
|
|
|
•Microsoft and Windows Media are either registered trademarks or trademarks of Microsoft Corporation in the United States and/or other countries.
ENGLISH
Detaching the control panel |
Attaching the control panel |
Avoid touching the connectors.
21
