CD RECEIVER
CD-RECEIVER
РЕСИВЕР С ПРОИГРЫВАТЕЛЕМ КОМПАКТ-ДИСКОВ
KD-G421
РУCCKИЙ DEUTSCH ENGLISH
For canceling the display demonstration, see page 5. Zum Abbrechen der Displaydemonstration siehe Seite 5.
Информацию об отмене демонстрации функций дисплея см. на стр. 5.
For installation and connections, refer to the separate manual.
Für den Einbau und die Anschlüsse siehe das eigenständige Handbuch.
Указания по установке и выполнению соединений приводятся в отдельной инструкции.
INSTRUCTIONS
BEDIENUNGSANLEITUNG
ИНСТРУКЦИИ ПО ЭКСПЛУАТАЦИИ
GET0352-006A
[EY]
ENGLISH
Thank you for purchasing a JVC product.
Please read all instructions carefully before operation, to ensure your complete understanding and to obtain the best possible performance from the unit.
IMPORTANT FOR LASER PRODUCTS
1.CLASS 1 LASER PRODUCT
2.CAUTION: Do not open the top cover. There are no user serviceable parts inside the unit; leave all servicing to qualified service personnel.
3.CAUTION: Visible and invisible laser radiation when open and interlock failed or defeated. Avoid direct exposure to beam.
4.REPRODUCTION OF LABEL: CAUTION LABEL, PLACED OUTSIDE THE UNIT.
How to reset your unit
• Your preset adjustments will also be erased.
How to use the MODE button
If you press MODE, the unit goes into functions mode, then the number buttons and 5/∞ buttons work as different function buttons.
Ex.: When number button 2 works as MO (monaural) button.
How to forcibly eject a disc
•If this does not work, reset your unit.
•Be careful not to drop the disc when it ejects.
Time countdown indicator
To use these buttons for their original functions again after pressing MODE, wait for 5 seconds without pressing any of these buttons until the functions mode is cleared or press MODE again.
How to detach/attach the control panel
Detaching... |
Attaching... |
2

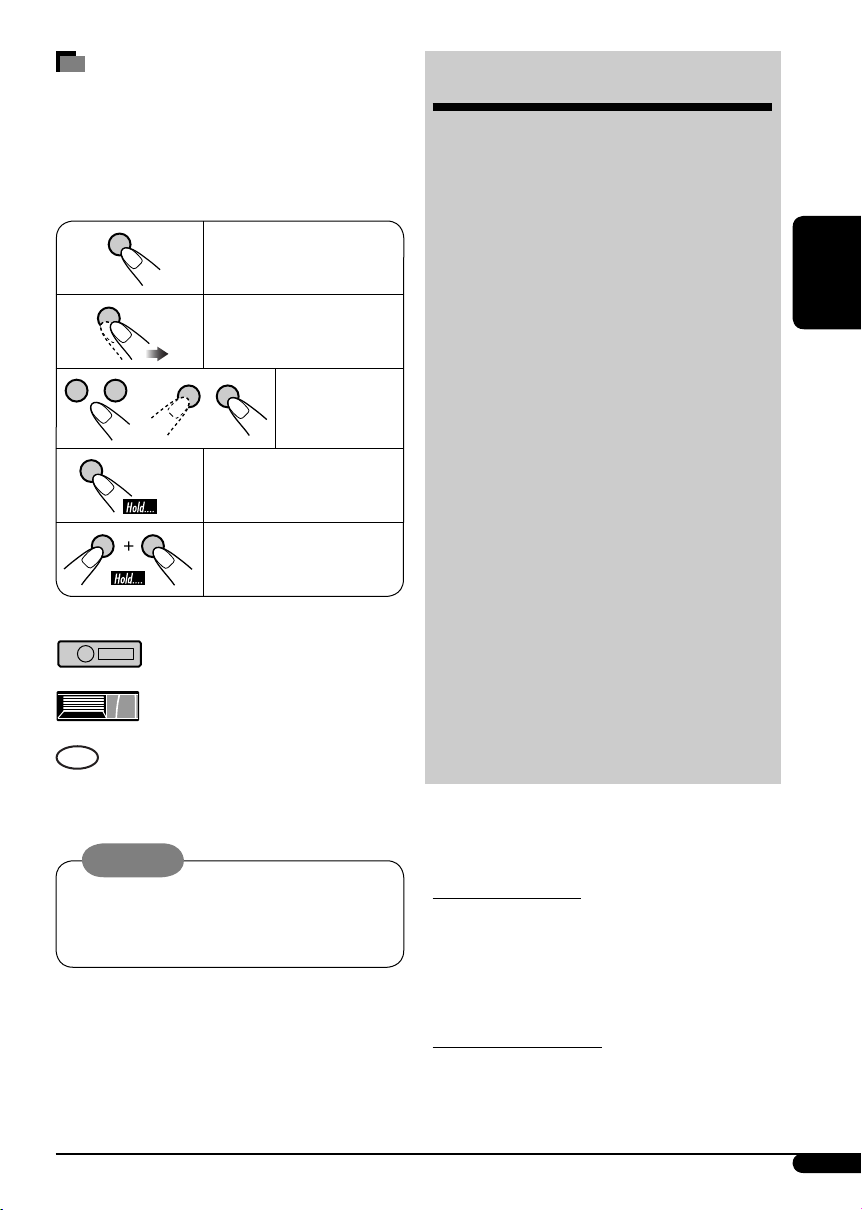

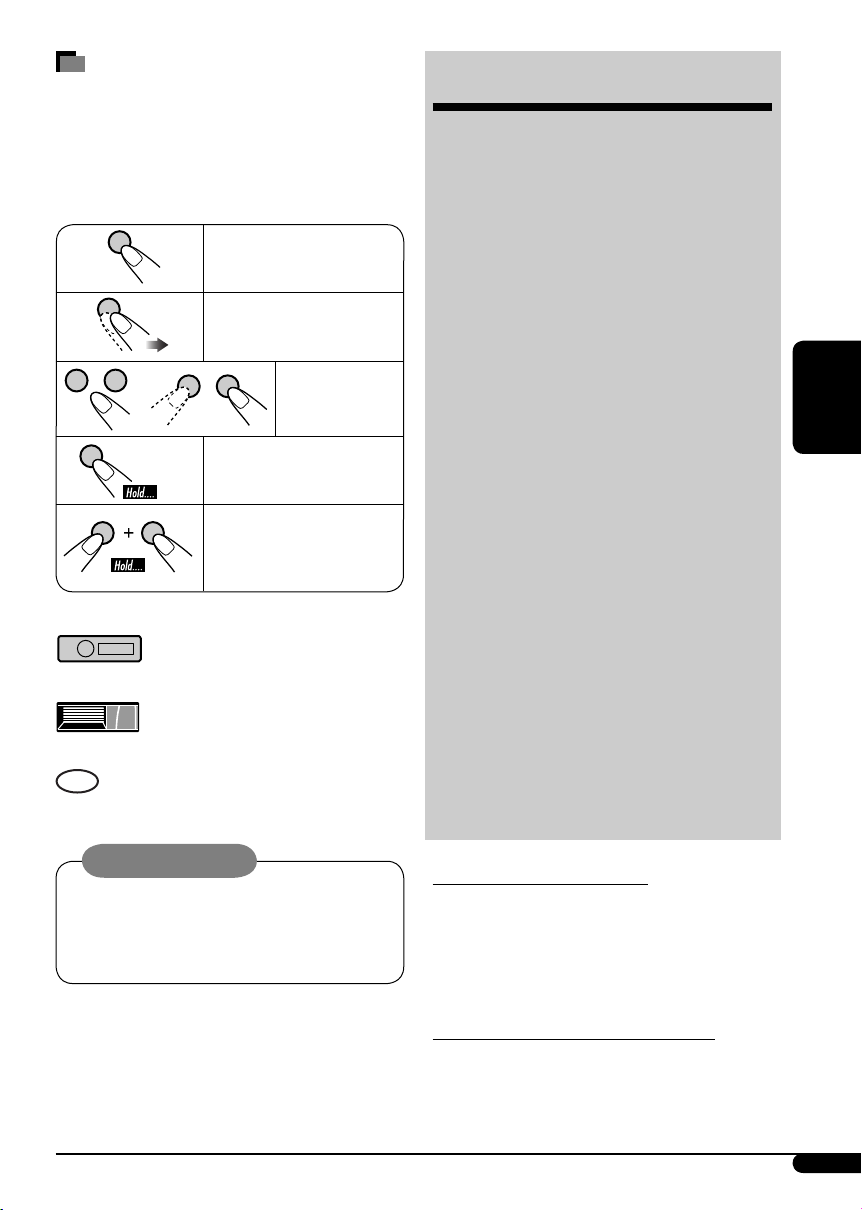

How to read this manual
•Button operations are mainly explained with the illustrations in the table below.
•Some related tips and notes are explained in “More about this unit” (see pages 21 – 23).
Press briefly.
Press repeatedly.
Press either one.
Press and hold until your desired response begins.
Press and hold both buttons at the same time.
The following marks are used to indicate...
: Built-in CD player operations.
: External CD changer operations.
:Indicator displayed for the corresponding operation.
Warning:
If you need to operate the unit while driving, be sure to look ahead carefully or you may be involved in a traffic accident.
For security reasons, a numbered ID card is provided with this unit, and the same ID number is imprinted on the unit’s chassis.
Keep the card in a safe place, as it will help the authorities to identify your unit if stolen.
CONTENTS
|
|
|
ENGLISH |
|
|
|
|
||
Control panel |
4 |
|||
|
||||
Getting started................................. |
5 |
|
||
Basic operations.................................................... |
5 |
|
||
Radio operations .............................. |
6 |
|
||
FM RDS operations............................ |
7 |
|
||
Searching for your favorite FM RDS programme ... |
7 |
|
||
Disc operations................................. |
9 |
|
||
Playing a disc in the unit ....................................... |
9 |
|
||
Playing discs in the CD changer............................. |
9 |
|
||

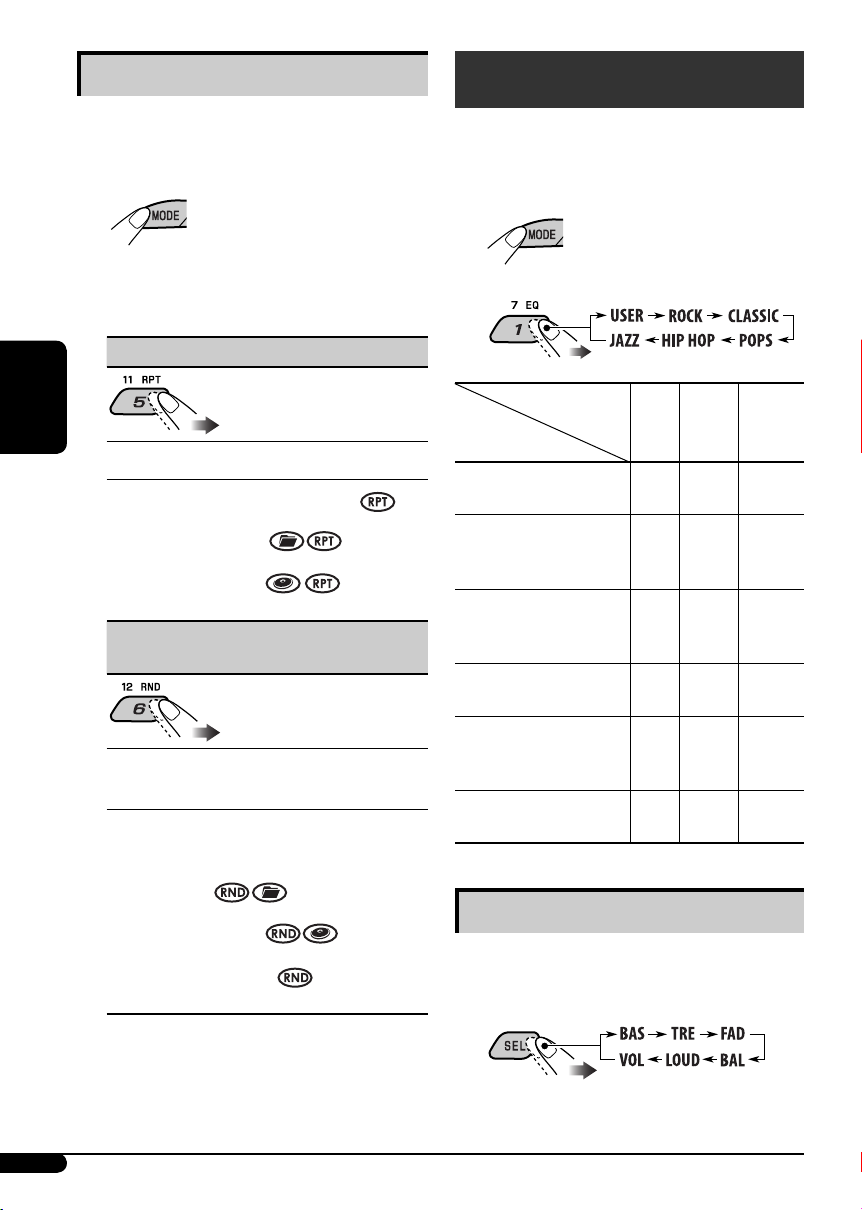

Sound adjustments........................... |
12 |
|
||

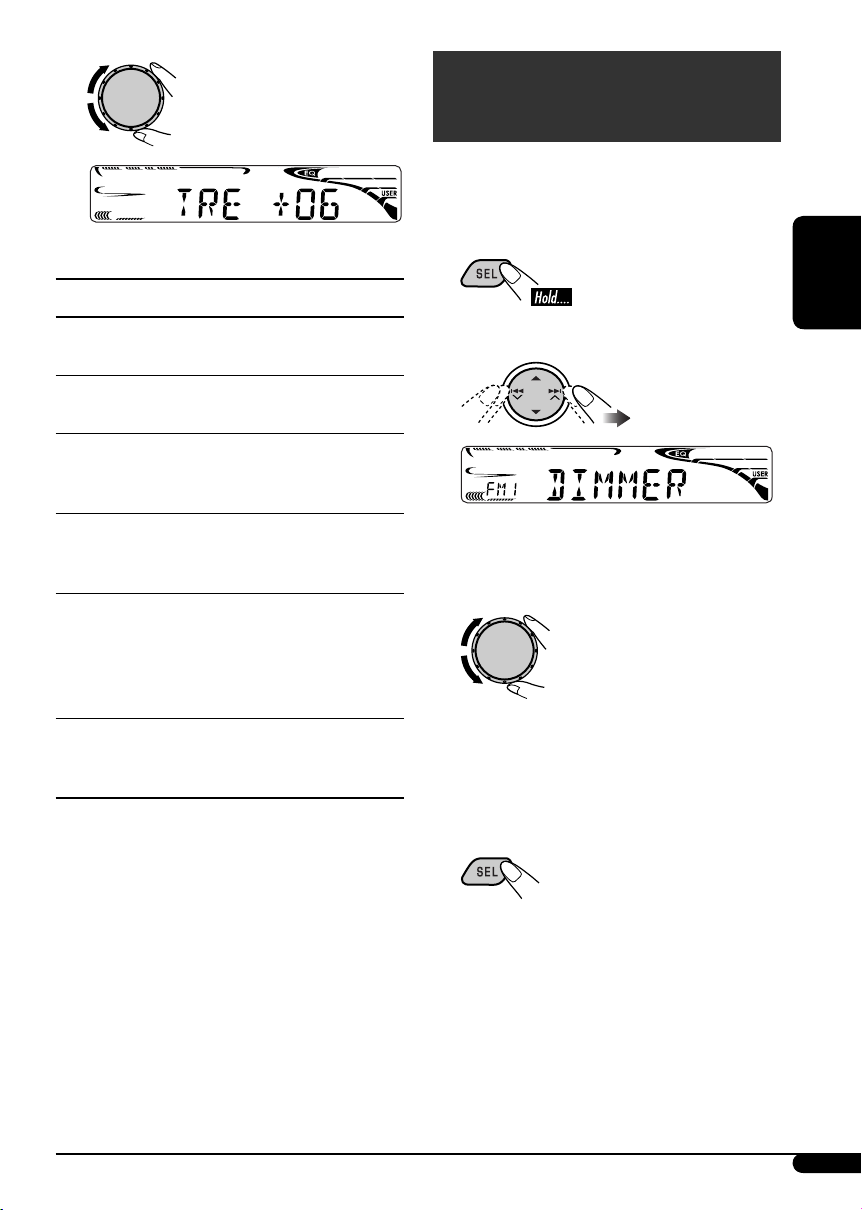

General settings — PSM ................... |
13 |
|
||

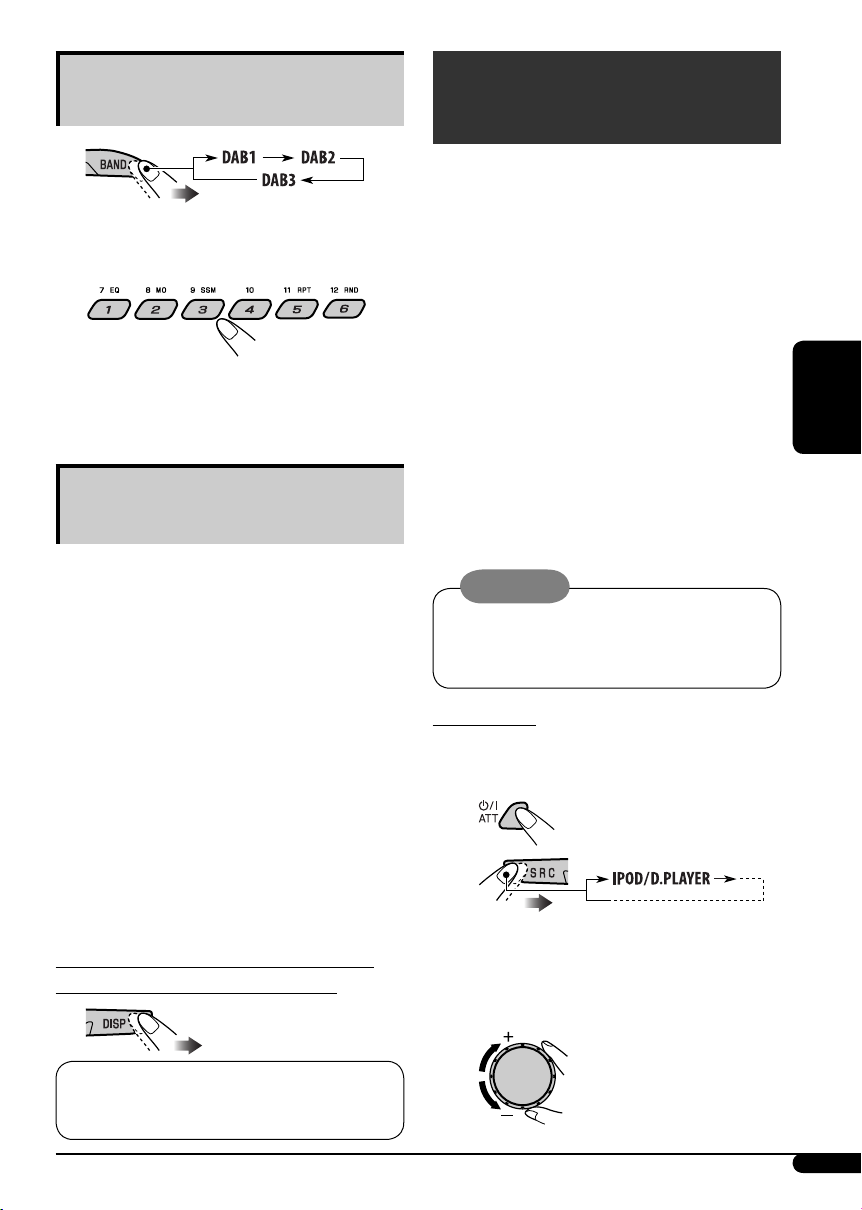

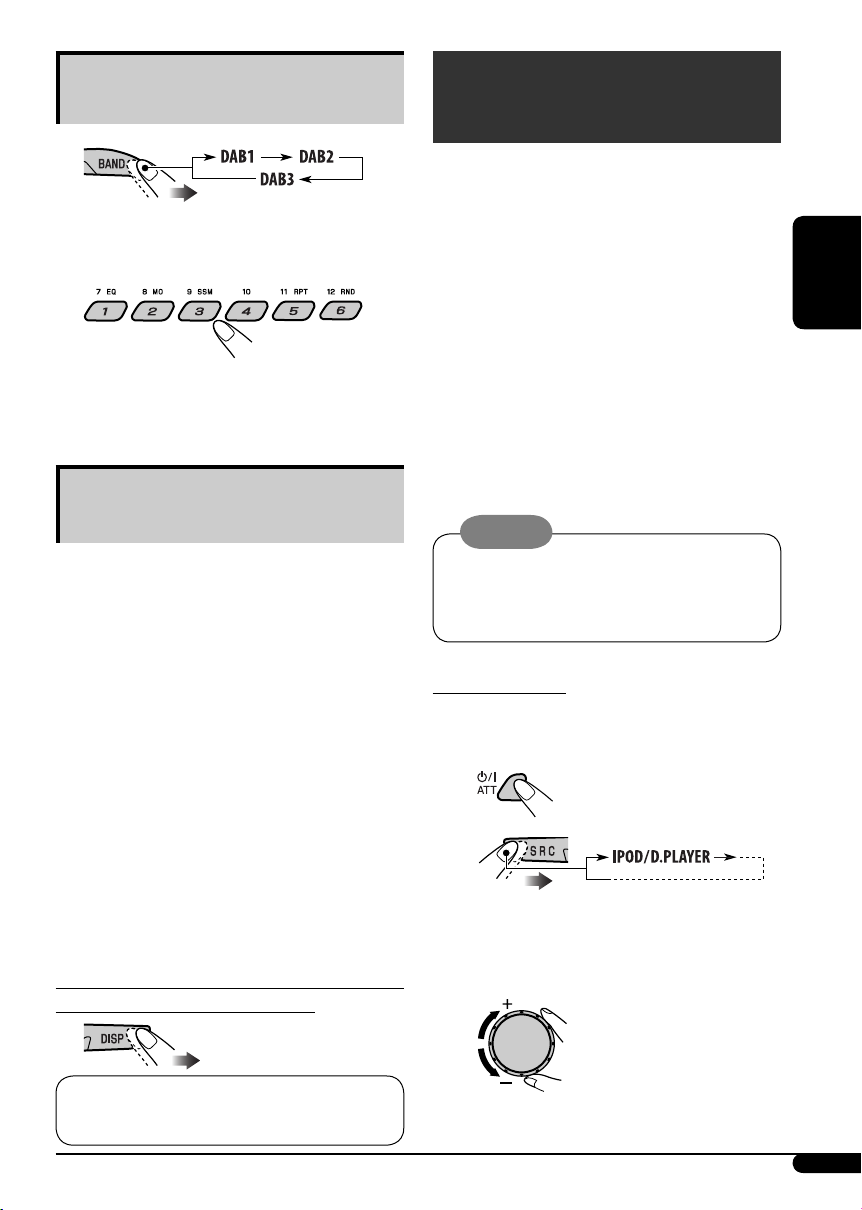

DAB tuner operations........................ |
16 |
|
||
iPod®/D. player operations ................ |
17 |
|
||
Other external component operations... |
19 |
|
||

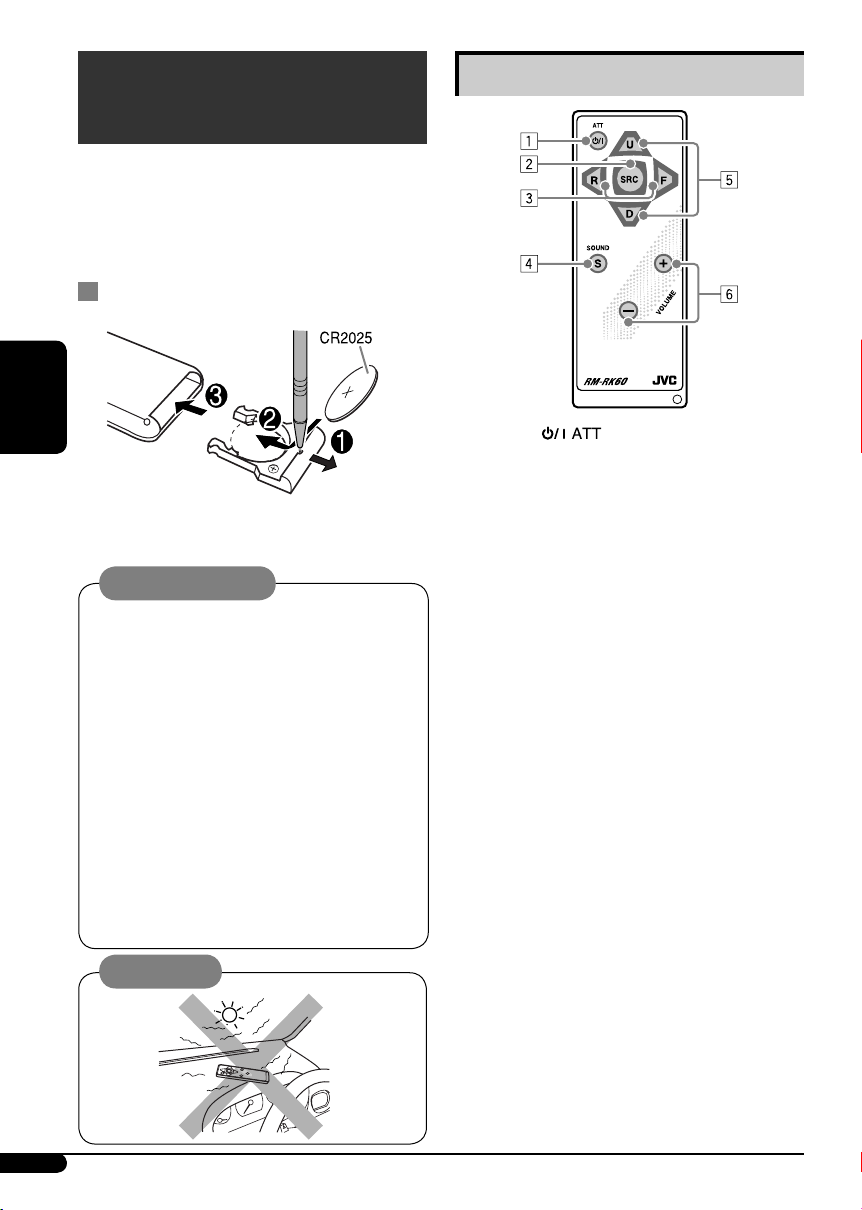

Remote controller — RM-RK60 ............. |
20 |
|
||
More about this unit ......................... |
21 |
|
||
Maintenance .................................... |
24 |
|
||
Troubleshooting............................... |
24 |
|
||
Specifications................................... |
27 |
|
For safety...
•Do not raise the volume level too much, as this will block outside sounds, making driving dangerous.
•Stop the car before performing any complicated operations.
Temperature inside the car...
If you have parked the car for a long time in hot or cold weather, wait until the temperature in the car becomes normal before operating the unit.
3
ENGLISH

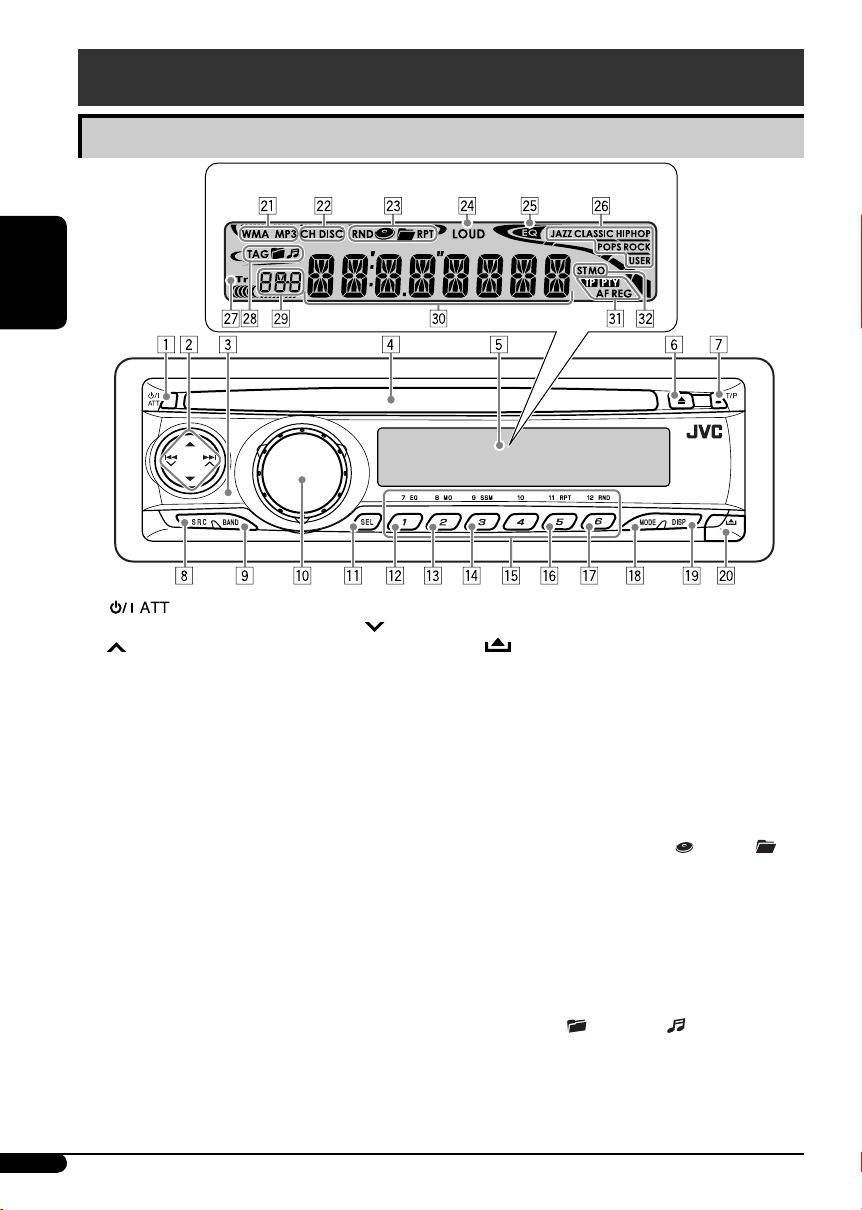

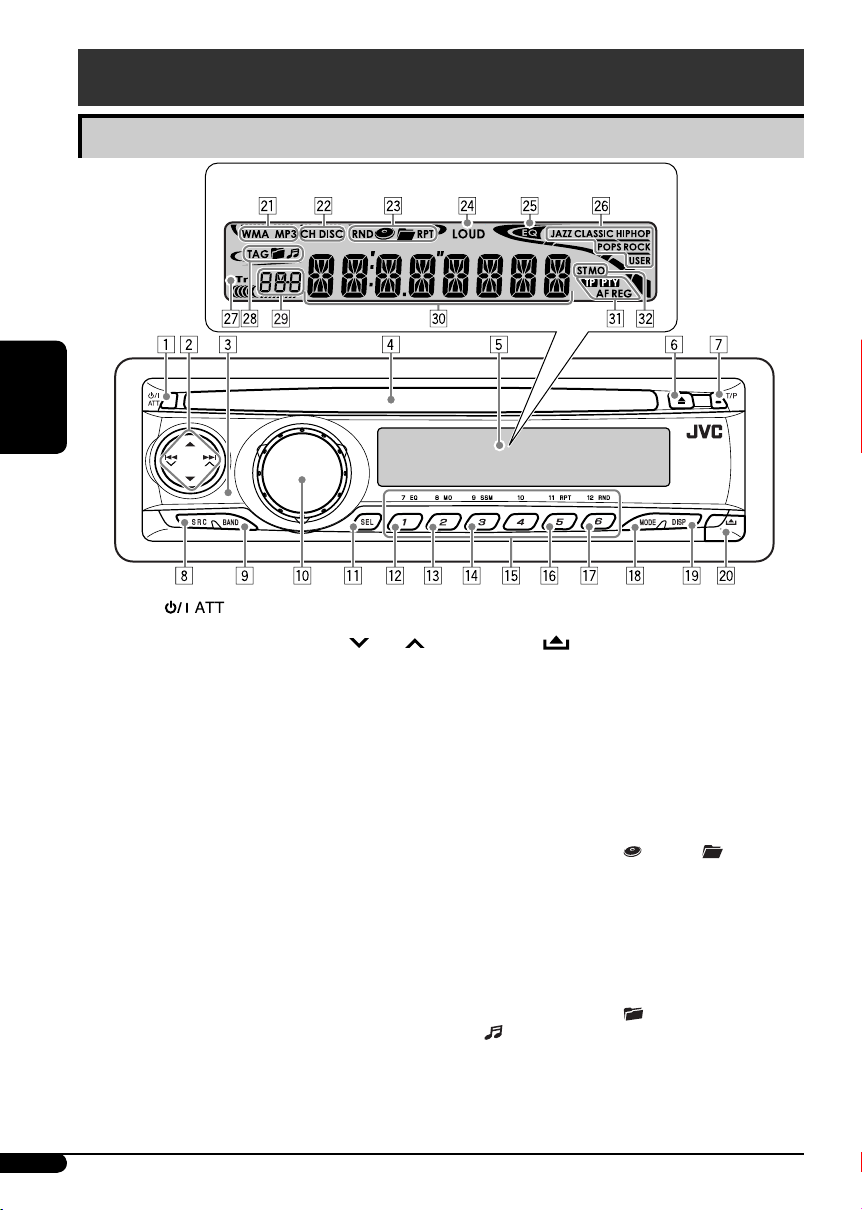

Control panel
Parts identification
Display window
1 |
(standby/on attenuator) button |
25(up) / ∞(down) and 4/¢ buttons
3Remote sensor
•You can control this unit with an optionally purchased remote controller. For details, see page 20.
•DO NOT expose the remote sensor to strong light (direct sunlight or artificial lighting).
4 Loading slot
5 Display window
6 0(eject) button
7T/P (traffic programme/programme type) button
8 SRC (source) button
9 BAND button p Control dial
q SEL (select) button w EQ (equalizer) button
e MO (monaural) button
r SSM (Strong-station Sequential Memory) button
t Number buttons y RPT (repeat) button
u RND (random) button
i MODE button
o DISP (display) button
; (control panel release) button
Display window
a Disc type indicators—WMA, MP3
sPlayback source indicators—
CH: Lights up only when CD-CH is selected as the playback source.
DISC: Lights up for the built-in CD player.
d Playback mode / item indicators— RND (random), (disc),(folder), RPT (repeat)
f LOUD (loudness) indicator g EQ (equalizer) indicator
h Sound mode (C-EQ: custom equalizer) indicators—JAZZ, CLASSIC, HIP HOP POPS, ROCK, USER
j Tr (track) indicator
kDisc information indicators—TAG (ID3 Tag),(folder), (track/file)
l Source display / Volume level indicator / Main display
z RDS indicators—TP, PTY, AF, REG
xTuner reception indicators—ST (stereo), MO (monaural)
4
Getting started |
@ Adjust the sound as you want. (See |
|
pages 12 and 13.) |
Basic operations |
|
~ Turn on the power. |
To drop the volume in a |
|
moment (ATT) |
|
To restore the sound, press |
|
it again. |
Ÿ |
To turn off the power |
Basic settings
*You cannot select these sources if they
are not ready or not connected. • See also “General settings — PSM” on pages
13 – 15.
! 1
•For FM/AM tuner
•For DAB tuner
⁄Adjust the volume.
Volume level appears.
Volume level indicator
2
1 Canceling the display demonstrations
Select “DEMO,” then “DEMO OFF.”
2Setting the clock
Select “CLOCK H” (hour), then adjust the hour.
Select “CLOCK M” (minute), then adjust the minute.
Select “24H/12H,” then “24H” (hour) or “12H” (hour).
3 Finish the procedure.
Caution on volume setting:
Discs produce very little noise compared |
|
|
|
with other sources. Lower the volume |
To check the current clock |
|
|
before playing a disc to avoid damaging |
time when the power is |
|
|
|
|
||
the speakers by the sudden increase of the |
|
|
|
turned off |
|
|
|
output level. |
|
|
|
|
|
|
ENGLISH
5
ENGLISH

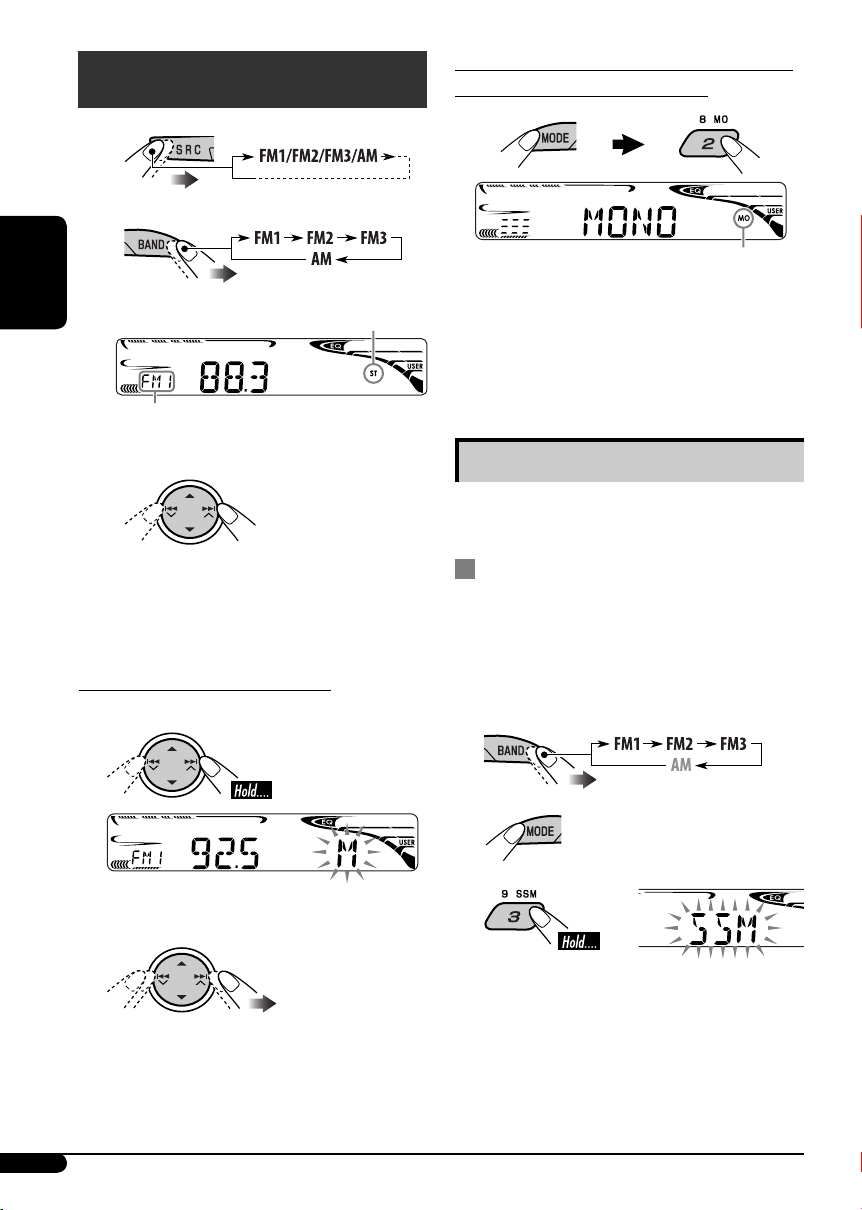

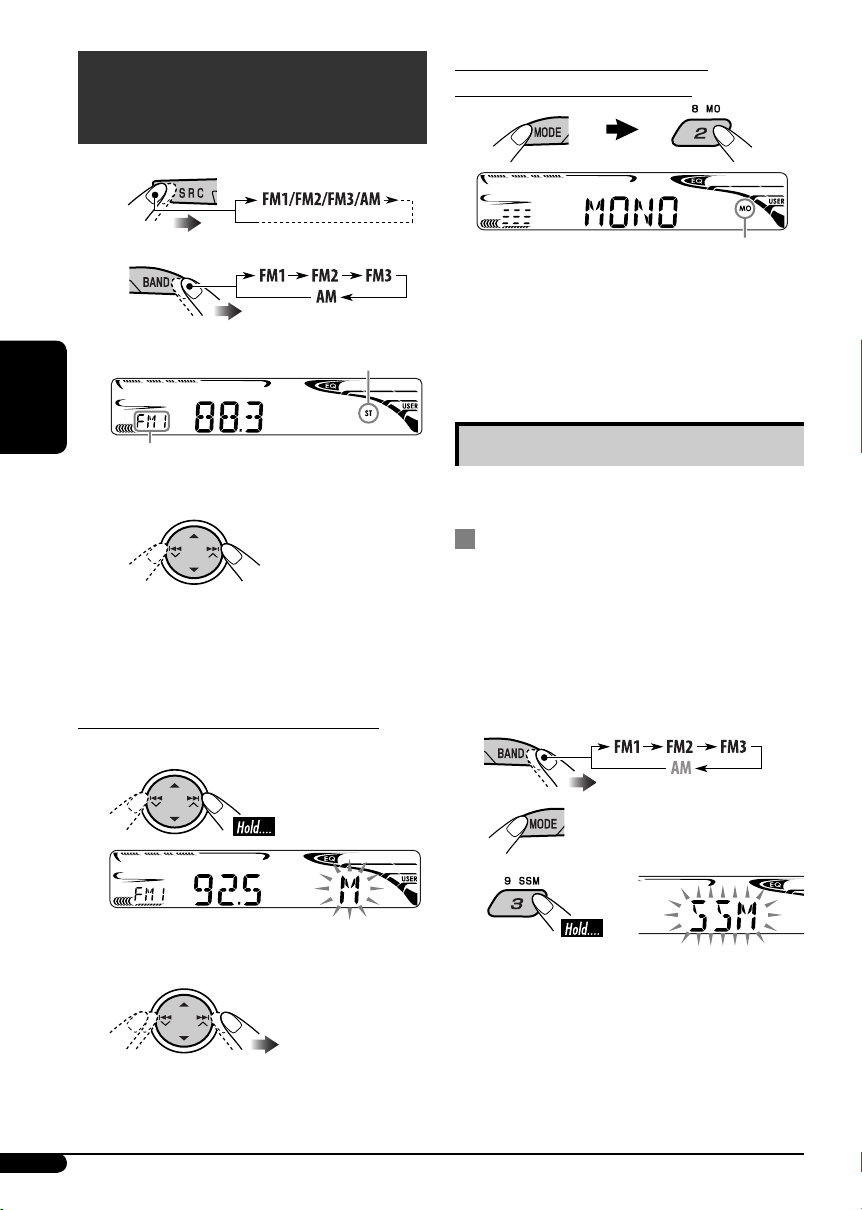

Radio operations
~
Ÿ
Lights up when receiving an FM stereo broadcast with sufficient signal strength.
Selected band appears.
!Start searching for a station.
When a station is received, searching stops.
To stop searching, press the same button again.
To tune in to a station manually
In step ! above...
1
2 Select a desired station frequency.
When an FM stereo broadcast is hard to receive
Lights up when monaural mode is activated.
Reception improves, but stereo effect will be lost.
To restore the stereo effect, repeat the same procedure. “MONO OFF” appears and the MO indicator goes off.
Storing stations in memory
You can preset six stations for each band.
FM station automatic presetting— SSM (Strong-station Sequential Memory)
1Select the FM band (FM1 – FM3) you want to store into.
2
3
“SSM” flashes, then disappears when automatic presetting is over.
Local FM stations with the strongest signals are searched and stored automatically in the FM band.
6

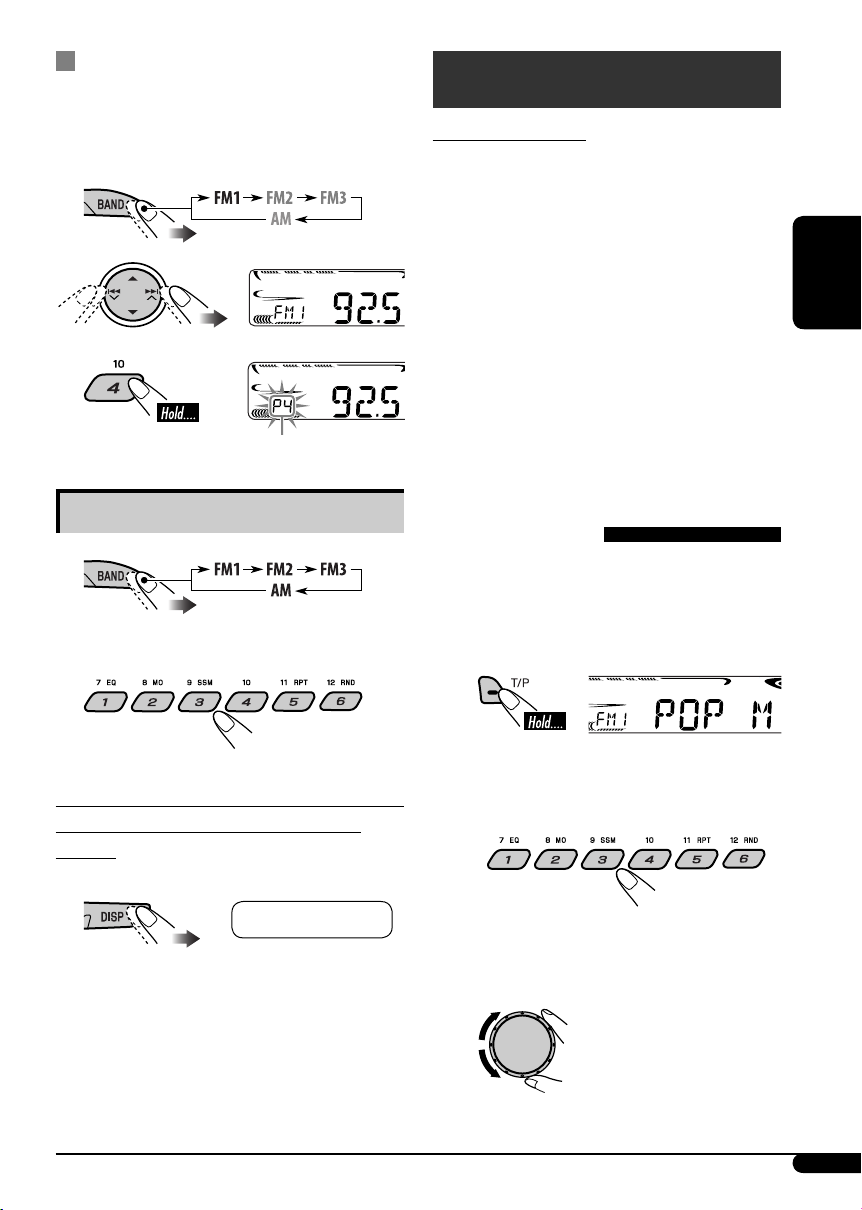

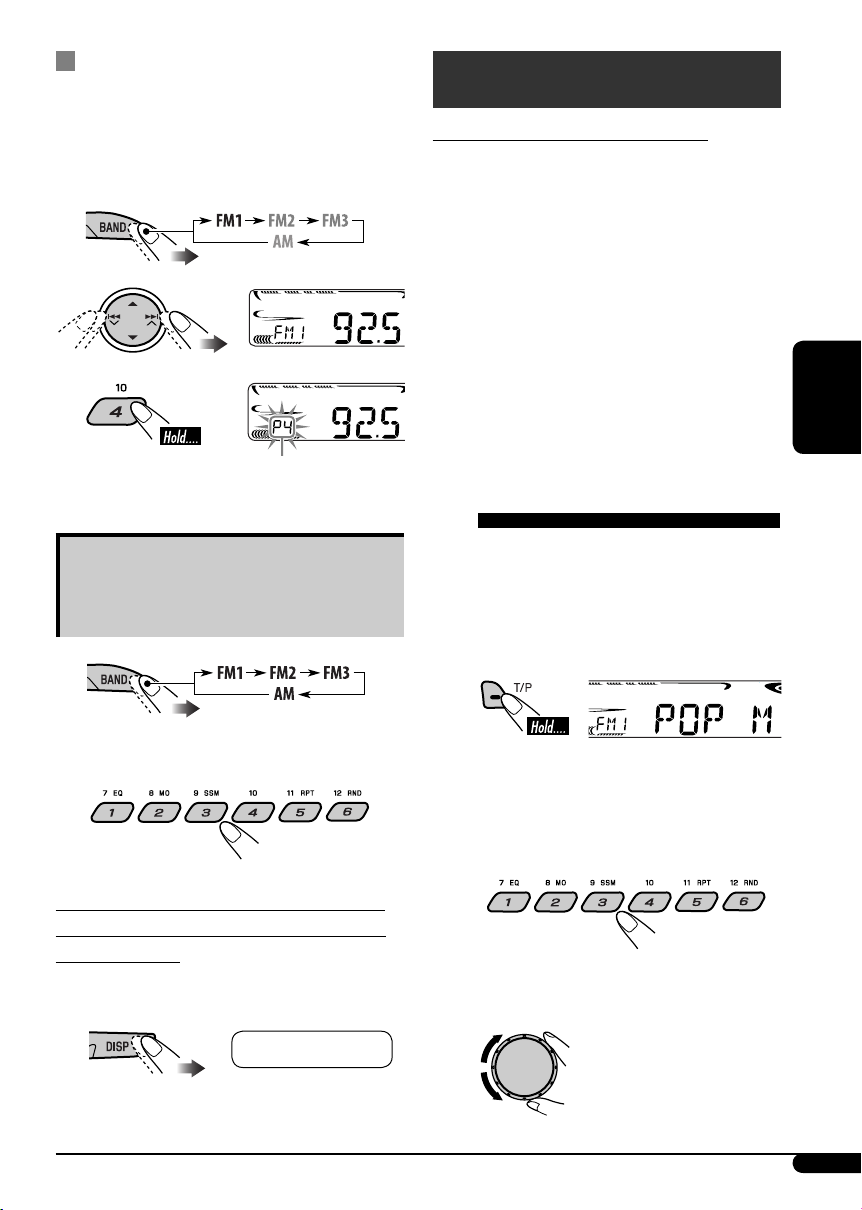

Manual presetting
Ex.: Storing FM station of 92.5 MHz into preset number 4 of the FM1 band.
1
2
3
Preset number flashes for a while.
Listening to a preset station
1
2Select the preset station (1 – 6) you want.
To check the current clock time while listening to an FM (non-RDS) or AM station
• For FM RDS stations, see page 9.
Frequency ÔClock
FM RDS operations
to send an additional signal along with their |
ENGLISH |
What you can do with RDS |
|
RDS (Radio Data System) allows FM stations |
|
regular programme signals. |
|
By receiving the RDS data, this unit can do the |
|
following: |
|
•Programme Type (PTY) Search (see the following)
•TA (Traffic Announcement) and PTY Standby Receptions (see pages 8 and 14)
•Tracing the same programme automatically —Network-Tracking Reception (see page 9)
•Programme Search (see page 14)
Searching for your favorite FM RDS programme
You can tune in to a station broadcasting your favorite programme by searching for a PTY code.
•To store your favorite programme types, see page 8.
~
The last selected PTY code appears.
ŸSelect one of your favorite preset programme types.
or
Select one of the PTY codes (see page 9).
To be continued....
7
|

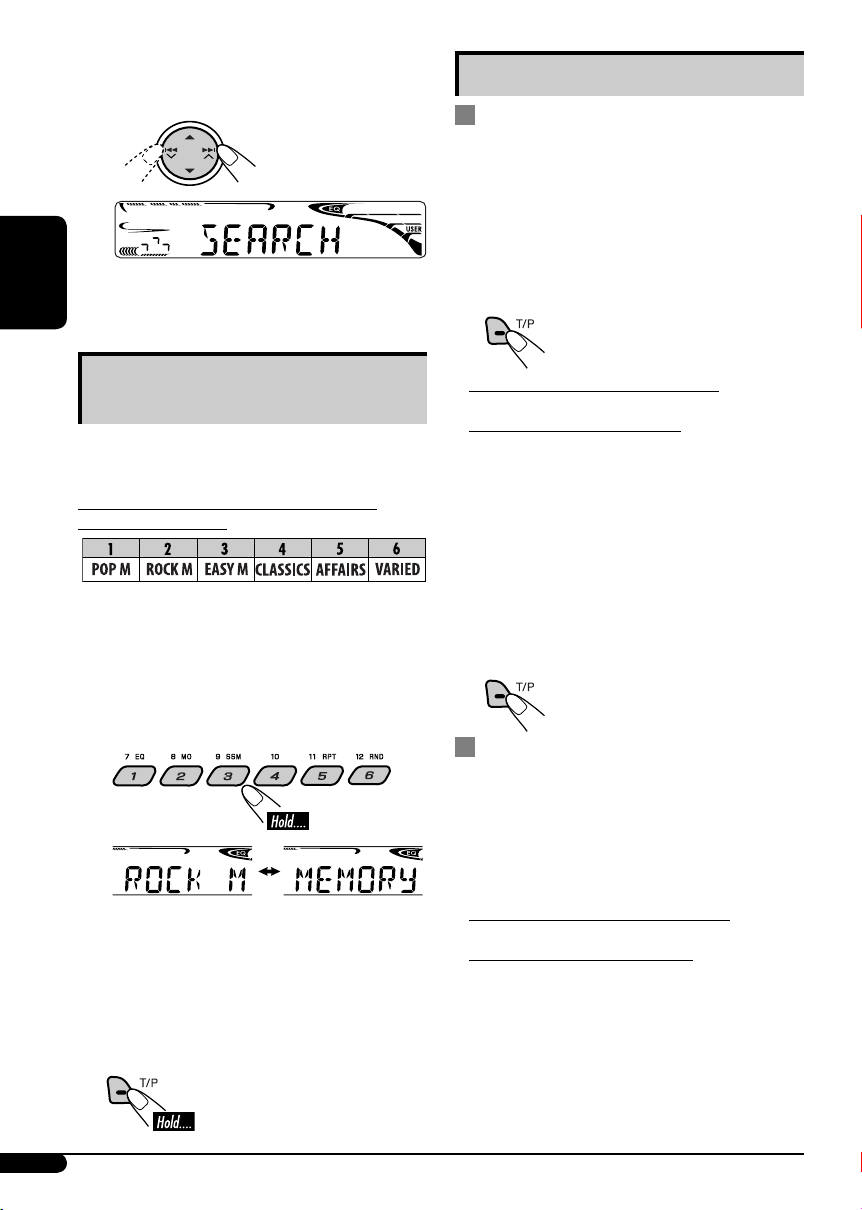

! Start searching for your favorite |
ENGLISH |
programme. |
|
If there is a station broadcasting a programme of the same PTY code as you have selected, that station is tuned in.
Storing your favorite programme types
You can store six favorite programme types.
Preset programme types in the number buttons (1 to 6):
1 Select a PTY code (see page 7).
2Select the preset number (1 – 6) you want to store into.
Ex.: When “ROCK M” is selected
3Repeat steps 1 and 2 to store other PTY codes into other preset numbers.
4 Finish the procedure.
Using the standby receptions
TA Standby Reception
TA Standby Reception allows the unit to switch temporarily to Traffic Announcement (TA) from any source other than AM.
The volume changes to the preset TA volume level if the current level is lower than the preset level (see page 14).
To activate TA Standby Reception
The TP (Traffic Programme) indicator either lights up or flashes.
•If the TP indicator lights up, TA Standby Reception is activated.
•If the TP indicator flashes, TA Standby Reception is not yet activated. (This occurs when you are listening to an FM station without the RDS signals required for TA Standby Reception.)
To activate TA Standby Reception, tune in to another station providing these signals. The TP indicator will stop flashing and remain lit.
To deactivate the TA Standby Reception
The TP indicator goes off.
PTY Standby Reception
PTY Standby Reception allows the unit to switch temporarily to your favorite PTY programme from any source other than AM.
To activate and select your favorite PTY code for PTY Standby Reception, see page 14.
The PTY indicator either lights up or flashes.
•If the PTY indicator lights up, PTY Standby Reception is activated.
•If the PTY indicator flashes, PTY Standby Reception is not yet activated.
To activate PTY Standby Reception, tune in to another station providing these signals. The PTY indicator will stop flashing and remain lit.
To deactivate the PTY Standby Reception, select “OFF” for the PTY code (see page 14). The PTY indicator goes off.
8

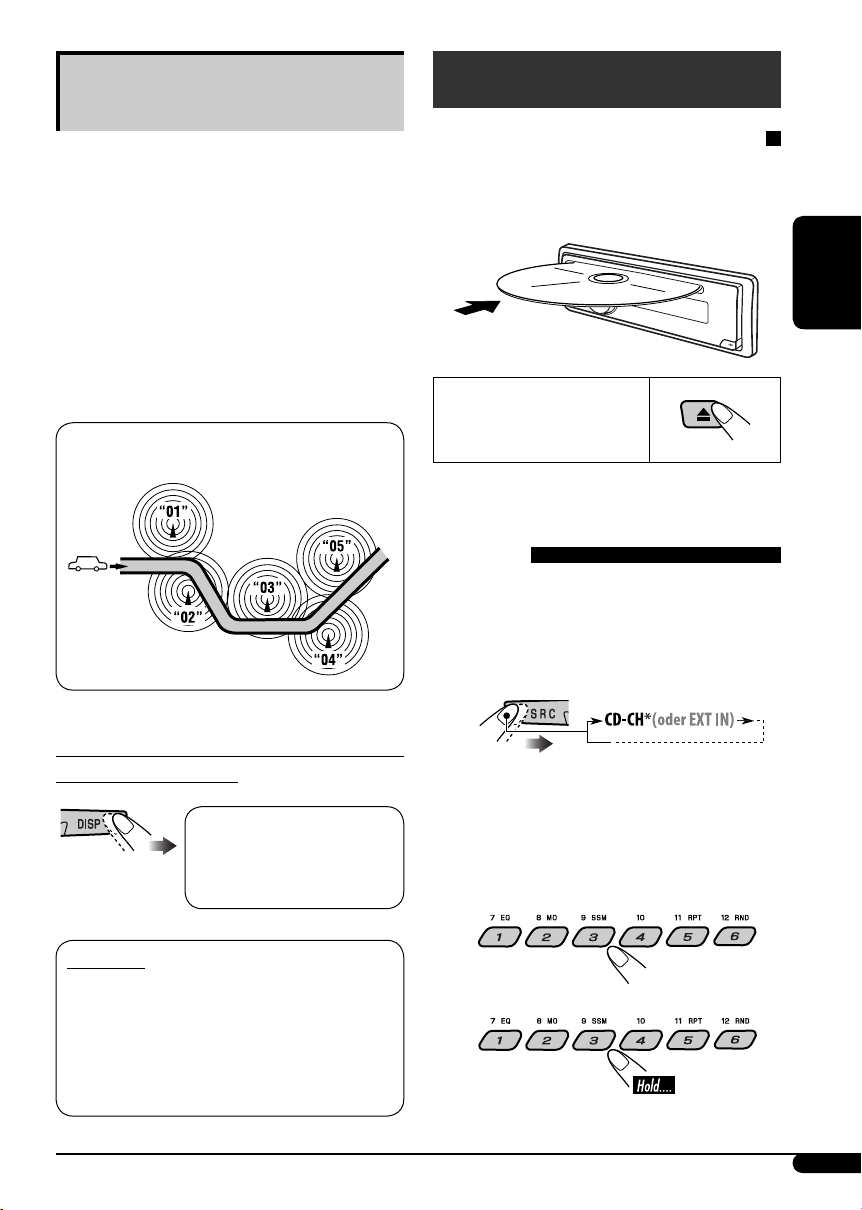

Tracing the same programme— Network-Tracking Reception
When driving in an area where FM reception is not sufficient enough, this unit automatically tunes in to another FM RDS station of the same network, possibly broadcasting the same programme with stronger signals (see the illustration below).
When shipped from the factory, NetworkTracking Reception is activated.
To change the Network-Tracking Reception setting, see “AF-REG” on page 14.
Programme A broadcasting on different frequency areas (01 – 05)
Disc operations
Playing a disc in the unit
All tracks will be played repeatedly until you change the source or eject the disc.
To stop play and eject the disc
ENGLISH
To check the current clock time while listening to an FM RDS station
Station name (PS) =Station Frequency =Programme type (PTY) =Clock =(back to the beginning)
PTY codes
NEWS, AFFAIRS, INFO, SPORT, EDUCATE, DRAMA, CULTURE, SCIENCE, VARIED, POP M (music), ROCK M (music), EASY M (music), LIGHT M (music), CLASSICS, OTHER M (music), WEATHER, FINANCE, CHILDREN, SOCIAL, RELIGION, PHONE IN, TRAVEL, LEISURE, JAZZ, COUNTRY, NATION M (music), OLDIES, FOLK M (music), DOCUMENT
Playing discs in the CD changer
All discs in the magazine will be played repeatedly until you change the source.
• Ejecting the magazine will also stop playing.
~ |
*If you have changed the external input setting to “EXT IN” (see page 15), you cannot select the CD changer.
ŸSelect a disc.
For disc number from 01 – 06:
For disc number from 07 – 12:
To be continued....
9
About MP3 and WMA discs
ENGLISH |
MP3 and WMA “tracks” (words “file” and |
|
“track” are used interchangeably) are recorded |
||
|
||
|
in “folders.” |
|
|
About the CD changer |
It is recommended to use a JVC MP3compatible CD changer with your unit.
•You can also connect other CH-X series CD changers (except CH-X99 and CH-X100). These units are not compatible with MP3 discs.
•You cannot play any WMA disc in the CD changer.
•You cannot use the KD-MK series CD changers with this unit.
•Disc text information recorded in the CD Text can be displayed when a JVC CD Text compatible CD changer is connected.
•For connection, see Installation/Connection Manual (separate volume).

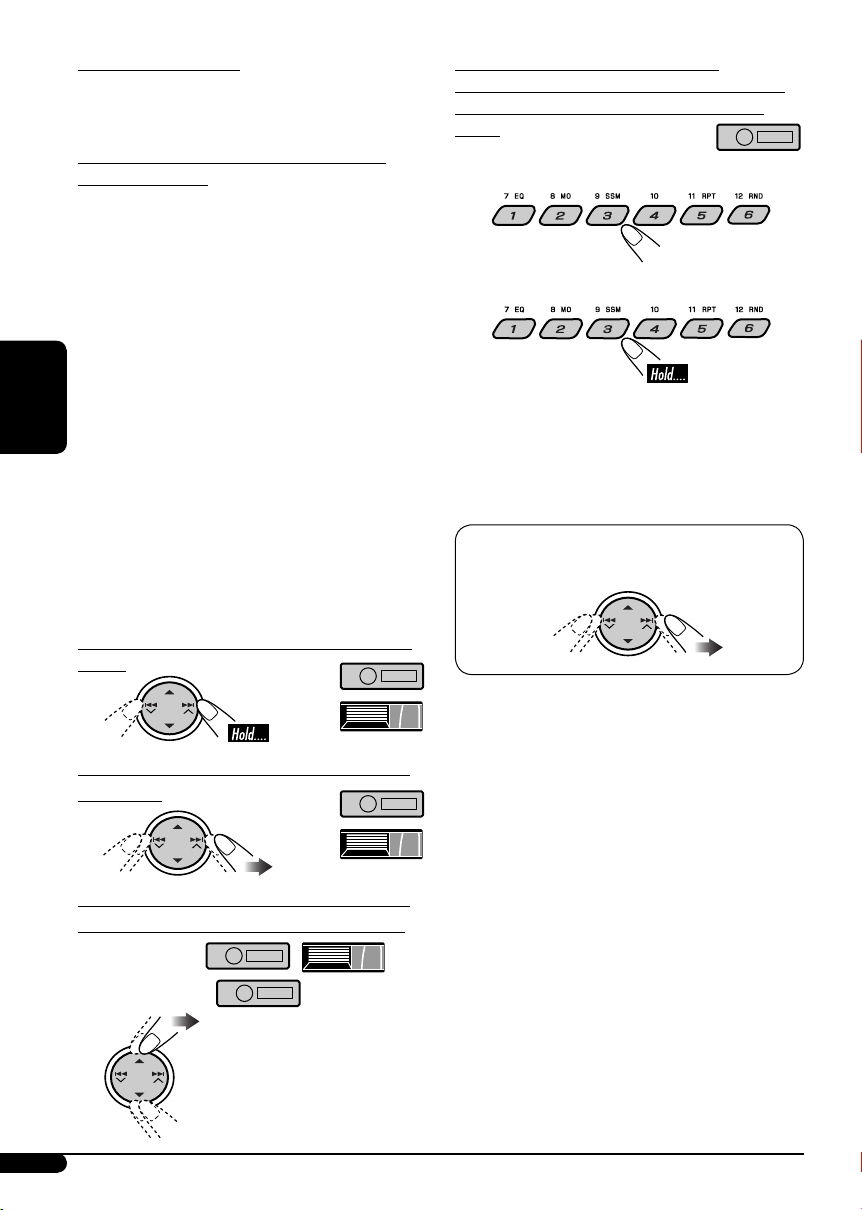

To fast-forward or reverse the track
To go to the next or previous tracks
To go to the next or previous folders (only for MP3 or WMA discs)
For MP3 discs:
For WMA discs:
To locate a particular track (for CD) or folder (for MP3 or WMA discs) directly
To select a number from 01 – 06:
To select a number from 07 – 12:
•To use direct folder access on MP3/WMA discs, it is required that folders are assigned with 2-digit numbers at the beginning of their folder names—01, 02, 03, and so on.
To select a particular track in a folder (for MP3 or WMA discs):
10

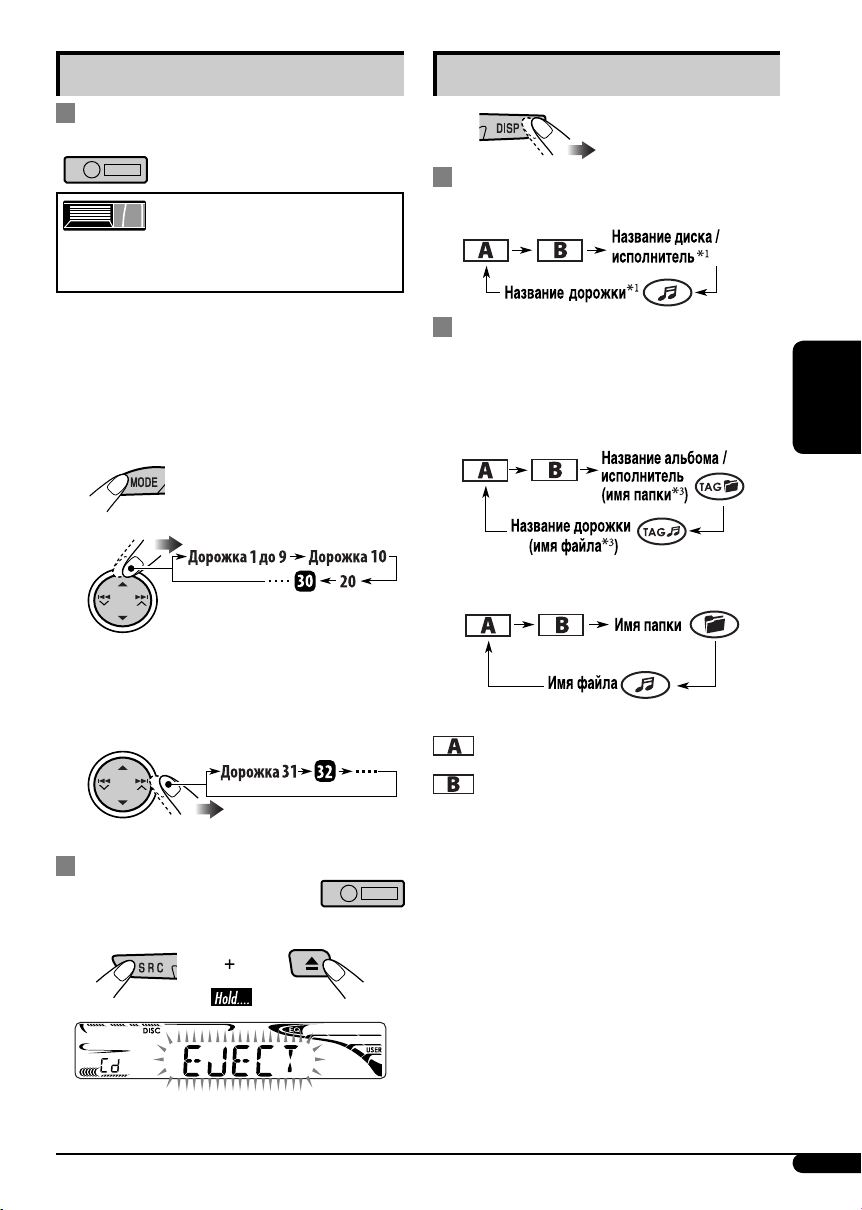

Other main functions
Skipping tracks quickly during play
Only possible on JVC
MP3-compatible CD changer
•For MP3 or WMA discs, you can skip tracks within the same folder.
Ex.: To select track 32 while playing a track whose number is a single digit (1 to 9)
Changing the display information
While playing an audio CD or a CD Text
While playing an MP3 or a WMA*2 disc
•When “TAG DISP” is set to “TAG ON” (see page 15)
ENGLISH
1
2
•When “TAG DISP” is set to “TAG OFF”
Each time you press the button, you can skip 10 tracks.
•After the last track, the first track will be selected and vice versa.
3
Prohibiting disc ejection
You can lock a disc in the loading slot.
To cancel the prohibition, repeat the same procedure.
: Elapsed playing time with the current track number
: Clock with the current track number
*1 If the current disc is an audio CD, “NO NAME” appears.
*2 Only for the built-in CD player.
*3 If an MP3/WMA file does not have Tag information, folder name and file name appear. In this case, the TAG indicator will not light up.
11
ENGLISH |

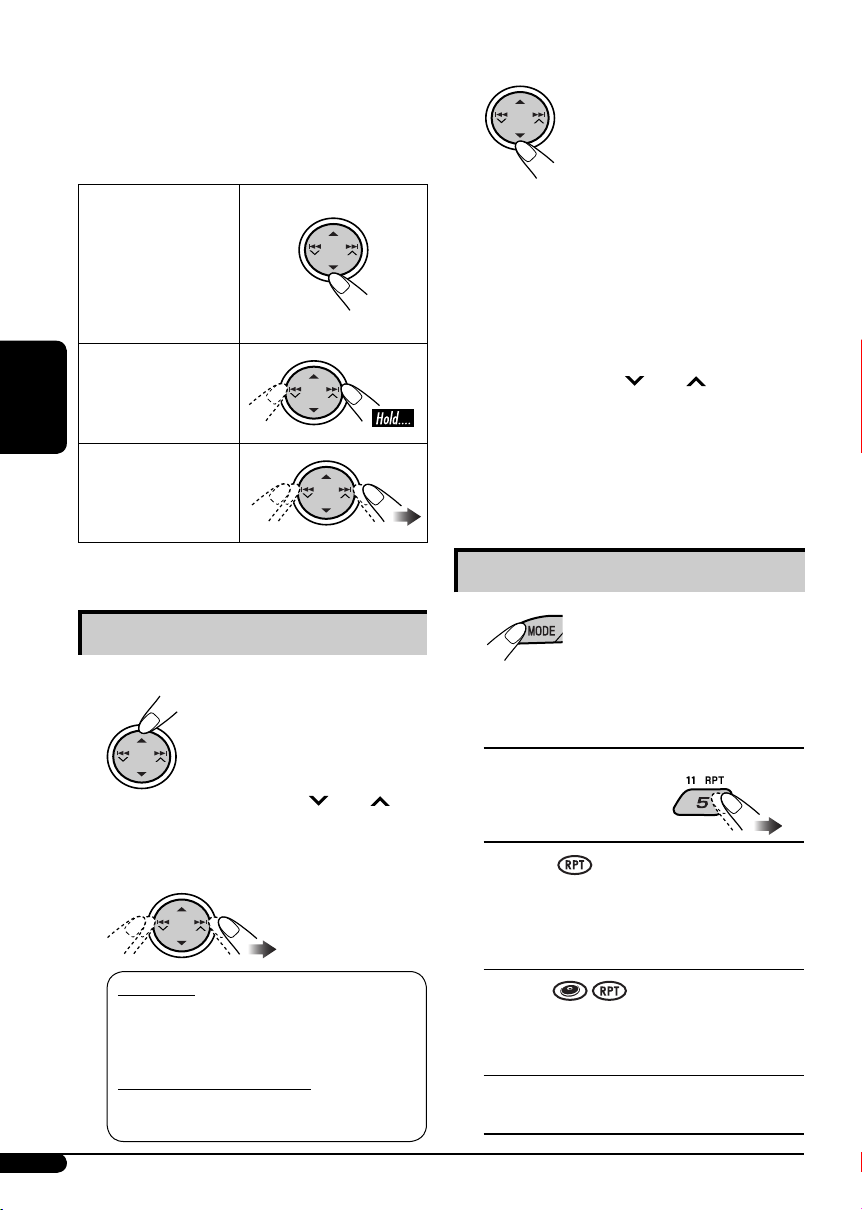

Selecting the playback modes |
|
You can use only one of the following playback |
||
|
||
|
modes at a time. |
|
|
1 |
2 Select your desired playback mode.
7 Repeat play
Mode |
Plays repeatedly |
|
|
TRK RPT : The current track. FLDR RPT*1 : All tracks of the current
folder.
DISC RPT*2 : All tracks of the current disc.
RPT OFF : Cancels.
7 Random play
Mode |
Plays at random |
FLDR RND*1 : All tracks of the current folder, then tracks of the next folder and so on.
DISC RND : All tracks of the current disc.
MAG RND*2 : All tracks of the inserted discs.
RND OFF : Cancels.
*1 Only while playing an MP3 or a WMA disc.
*2 Only while playing discs in the CD changer.
Sound adjustments
You can select a preset sound mode suitable to the music genre (C-EQ: custom equalizer).
1
2
Preset values |
BAS |
TRE |
LOUD |
|
|
||||
Indication (For) |
(bass) |
(treble) |
(loudness) |
|
USER |
00 |
00 |
OFF |
|
(Flat sound) |
||||
|
|
|
||
ROCK |
+03 |
+01 |
ON |
|
(Rock or disco music) |
||||
|
|
|
||
CLASSIC |
+01 |
–02 |
OFF |
|
(Classical music) |
||||
|
|
|
||
POPS |
+04 |
+01 |
OFF |
|
(Light music) |
||||
|
|
|
||
HIP HOP |
+02 |
00 |
ON |
|
(Funk or rap music) |
||||
|
|
|
||
JAZZ |
+02 |
+03 |
OFF |
|
(Jazz music) |
||||
|
|
|
Adjusting the sound
You can adjust the sound characteristics to your preference.
1
12
2
Ex.: When “TRE” is selected
Indication [Range]
BAS*1 (bass)
Adjust the bass. [–06 to +06]
TRE*1 (treble)
Adjust the treble. [–06 to +06]
FAD*2 (fader)
Adjust the front and rear speaker balance. [R06 to F06]
BAL (balance)
Adjust the left and right speaker balance. [L06 to R06]
LOUD*1 (loudness)
Boost low and high frequencies to produce a well-balanced sound at low volume level. [LOUD ON or LOUD OFF]
VOL (volume)
Adjust the volume. [00 to 30 or 50*3]
*1 When you adjust the bass, treble, or loudness, the adjustment you have made is stored for the currently selected sound mode (C-EQ) including “USER.”
*2 If you are using a two-speaker system, set the fader level to “00.”
*3 Depending on the amplifier gain control setting. (See page 15 for details.)
General settings — PSM
You can change PSM (Preferred Setting Mode) |
ENGLISH |
|||
|
||||
items listed in the table that follows. |
|
|||
1 |
|
|
|
|
2 |
|
|
||
|
|
|
|
|
Select a PSM item. |
|
Ex.: When “DIMMER” is selected
3 Adjust the PSM item selected.
4Repeat steps 2 and 3 to adjust the other PSM items if necessary.
5 Finish the procedure.
To be continued....
13
ENGLISH
Indications |
Selectable settings, [reference page] |
||
DEMO |
DEMO ON |
: [Initial]; Display demonstration will be activated |
|
|
Display demonstration |
|
automatically if no operation is done for about |
|
|
|
20 seconds, [5]. |
|
|
DEMO OFF : Cancels. |
|
|
|
||
CLOCK H |
0 – 23 (1 – 12), [5] |
||
|
Hour adjustment |
[Initial: 0 (0:00)] |
|
|
|
|
|
CLOCK M |
00 – 59, [5] |
|
|
|
Minute adjustment |
[Initial: 00 (0:00)] |
|
|
|
||
24H/12H |
12H O24H, [5] |
||
|
Time display mode |
[Initial: 24H] |
|
|
|
|
|
CLK ADJ*1 |
AUTO |
: [Initial]; The built-in clock is automatically adjusted |
|
|
Clock adjustment |
|
using the CT (clock time) data in the RDS signal. |
|
|
OFF |
: Cancels. |
|
|
||
AF-REG*1 |
When the received signals from the current FM RDS station or DAB |
||
|
Alternative frequency/ |
service become weak... |
|
|
regionalization reception |
AF |
: [Initial]; Switches to another station (or service) |
|
|
|
(the programme may differ from the one currently |
|
|
|
received), [9, 17]. |
|
|
|
• The AF indicator lights up. |
|
|
AF REG |
: Switches to another station broadcasting the same |
|
|
|
programme. |
|
|
|
• The AF and REG indicators light up. |
|
|
OFF |
: Cancels (not selectable when “DAB AF” is set to |
|
|
|
“AF ON”). |
|
|
||
PTY-STBY*1 |
Activates PTY Standby Reception with one of the PTY codes, [8]. |
||
|
PTY standby |
OFF [Initial] =PTY codes, [9] =(back to the beginning) |
|
|
|
||
TA VOL*1 |
[Initial: VOL 15]; VOL 00 — VOL 30 or 50*2, [8, 21] |
||
|
Traffic announcement |
|
|
|
volume |
|
|
|
|
|
|
P-SEARCH*1 |
ON |
: Using the AF data, the unit tunes in to another |
|
|
Programme search |
|
frequency broadcasting the same programme as the |
|
|
|
original preset RDS station is if the preset station |
|
|
|
signals are not sufficient. |
|
|
OFF |
: [Initial]; Cancels. |
|
|
|
|
*1 |
Only for FM RDS stations. |
|
|
*2 |
Depends on the amplifier gain control. |
|
14
Indications |
Selectable settings, [reference page] |
||
DAB AF*3 |
AF ON |
: [Initial]; Traces the programme among DAB services |
|
|
Alternative frequency |
|
and FM RDS stations, [9, 17]. |
|
reception |
AF OFF |
: Cancels. |
|
|
||
DAB VOL*3 |
You can adjust the volume level (VOL –12 — VOL +12) of DAB |
||
|
DAB volume adjustment |
tuner to match the FM sound level and store it in memory. |
|
|
|
[Initial: VOL 00] |
|
|
|
|
|
DIMMER |
ON |
: Dims the display illumination of this unit. |
|
|
Dimmer |
OFF |
: [Initial]; Cancels. |
|
|
||
TEL |
MUTING 1/MUTING 2 : Select either one which mutes the sounds |
||
|
Telephone muting |
|
while using a cellular phone. |
|
|
OFF |
: [Initial]; Cancels. |
|
|
|
|
SCROLL*4 |
ONCE |
: [Initial]; Scrolls the disc information once. |
|
|
Scroll |
AUTO |
: Repeats scrolling (5-second intervals in between). |
|
|
OFF |
: Cancels. |
|
|
• Pressing DISP for more than one second can scroll the display |
|
|
|
regardless of the setting. |
|
|
|
|
|
EXT IN*5 |
CHANGER |
: [Initial]; To use a JVC CD changer, [9], an Apple iPod |
|
|
External input |
|
or a JVC D. player, [17]. |
|
|
EXT IN |
: To use any other external component than the above, |
|
|
|
[19]. |
|
|
|
|
TAG DISP |
TAG ON |
: [Initial]; Shows the Tag information while playing |
|
|
Tag display |
|
MP3/WMA tracks, [11]. |
|
|
TAG OFF |
: Cancels. |
|
|
||
AMP GAIN |
You can change the maximum volume level of this unit. |
||
|
Amplifier gain control |
LOW PWR |
: VOL 00 – VOL 30 (Select this if the maximum power |
|
|
|
of the speaker is less than 50 W to prevent them from |
|
|
|
being damaged.) |
|
|
HIGH PWR |
: [Initial]; VOL 00 – VOL 50 |
|
|
|
|
IF BAND |
AUTO |
: [Initial]; Increases the tuner selectivity to reduce |
|
|
Intermediate frequency |
|
interference noises between close stations. (Stereo |
|
filter |
|
effect may be lost.) |
|
|
WIDE |
: Subject to interference noises from adjacent stations, |
|
|
|
but sound quality will not be degraded and the stereo |
|
|
|
effect will remain. |
|
|
||
*3 |
Displayed only when DAB tuner is connected. |
||
*4 |
Some characters or symbols will not be shown correctly (or will be blanked) on the display. |
||
*5 |
Displayed only when one of the following sources is selected—FM, AM, or DISC. |
ENGLISH
15
ENGLISH |
|
DAB tuner operations |
||||||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
What is DAB system? |
||||||||||||||||
Digital Audio Broadcasting (DAB) can deliver |
||||||||||||||||
digital quality sound without any annoying |
||||||||||||||||
|
interference and signal distortion. Furthermore, |
|||||||||||||||
|
it can carry text, pictures, and data. When |
|||||||||||||||
|
transmitting, DAB combines several |
|||||||||||||||
|
programmes (called “services”) to form one |
|||||||||||||||
|
“ensemble.” In addition, each “service”—called |
|||||||||||||||
|
“primary service”—can also be divided into its |
|||||||||||||||
|
components (called “secondary service”). A |
|||||||||||||||
|
typical ensemble has six or more programmes |
|||||||||||||||
|
(services) broadcast at the same time. |
|||||||||||||||
|
By connecting the DAB tuner, this unit can do |
|||||||||||||||
|
the following: |
|||||||||||||||
|
• Tracing the same programme automatically |
|||||||||||||||
|
|
—Alternative Frequency Reception (see |
||||||||||||||
|
|
“DAB AF” on page 15). |
||||||||||||||
|
It is recommended to use DAB tuner |
|||||||||||||||
|
KT-DB1000 with your unit. If you have |
|||||||||||||||
|
another DAB tuner, consult your JVC |
|||||||||||||||
|
IN-CAR ENTERTAINMENT dealer. |
|||||||||||||||
|
• Refer also to the Instructions supplied for |
|||||||||||||||
|
|
your DAB tuner. |
||||||||||||||
|
~ |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||
|
Ÿ |
|
|
|
|
|
|
|
|
|
|
|
|
|||
|
|
|
|
|
|
|
|
|
|
|
|
|
||||
|
|
|
|
|
|
|
|
|
|
|
|
|
||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
! Start searching for an ensemble. |
|||||||||||||||
|
|
When an ensemble is received, searching |
||||||||||||||
|
|
stops. |
||||||||||||||
|
|
To stop searching, press the same button |
||||||||||||||
|
|
again. |
⁄Select a service (either primary or secondary) to listen to.
To tune in to an ensemble manually
Start searching for an ensemble, as in step ! on the left column.
1
2 Select the desired ensemble frequencies.

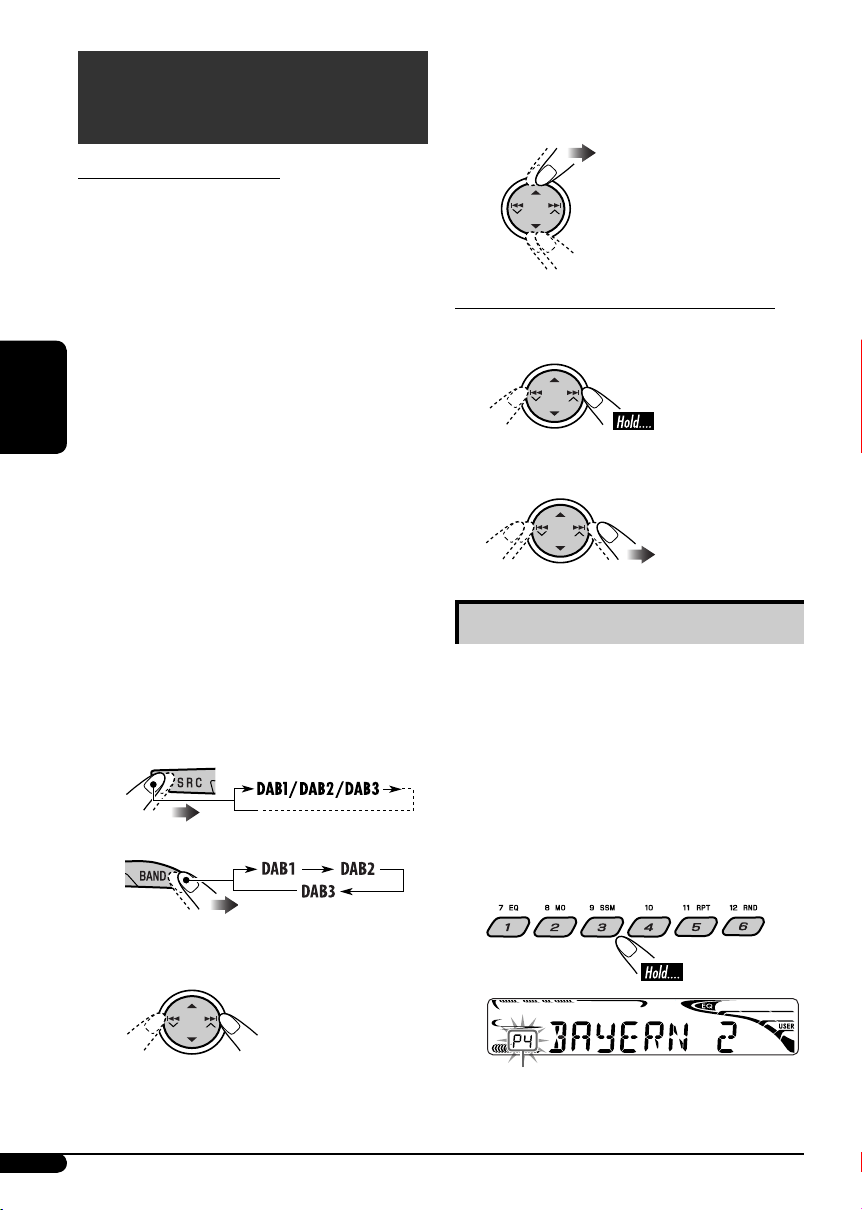

Storing DAB services in memory
You can preset six DAB services (primary) for each band.
1Select a service you want (see steps ~ to ⁄on the left column).
2Select the preset number (1 – 6) you want to store into.
Preset number flashes for a while.
16
Tuning in to a preset DAB service
1
2Select the preset DAB service (primary) number (1 – 6) you want.
If the selected primary service has some secondary services, pressing the same button again will tune in to the secondary services.
Tracing the same programme— Alternative Frequency Reception
You can keep listening to the same programme by activating the Alternative Frequency Reception.
•While receiving a DAB service:
When driving in an area where a service cannot be received, this unit automatically tunes in to another ensemble or FM RDS station, broadcasting the same programme.
•While receiving an FM RDS station:
When driving in an area where a DAB service is broadcasting the same programme as the FM RDS station is broadcasting, this unit automatically tunes in to the DAB service.
When shipped from the factory, Alternative Frequency Reception is activated.
To deactivate the Alternative Frequency Reception, see page 14 and 15.
To change the display information while tuning to an ensemble
Service name =Ensemble name =Channel number =Frequency =Clock =(back to the beginning)
iPod®/D. player operations
This unit is ready for operating an Apple iPod |
ENGLISH |
|
|
or a JVC D. player from the control panel. |
|
Before operating your iPod or D. player: |
|
Connect either one of the following (separately |
|
purchased) to the CD changer jack on the rear |
|
of this unit. |
|
•Interface adapter for iPod®—KS-PD100 for controlling an iPod.
•D. player interface adapter—KS-PD500 for controlling a D. player.
•For connection, see Installation/Connection Manual (separate volume).
•For details, refer also to the manual supplied with the interface adapter.
Caution:
Make sure to turn off this unit or turn off the vehicle’s ignition switch before connecting or disconnecting the iPod or D. player.
Preparations:
Make sure “CHANGER” is selected for the external input setting, see page 15.
~
Ÿ
Playback starts automatically from where it has been paused*1 or stopped*2 previously.
! Adjust the volume.
To be continued....
17
⁄ Adjust the sound as you want. (See
ENGLISH |
pages 12 and 13.) |
|
• Make sure the equalizer on the iPod or |
||
|
||
|
D. player is deactivated. |
To pause*1 or stop*2 playback
To resume playback, press it again.
To fast-forward or reverse the track
To go to the next or previous tracks
*1 For iPod
*2 For D. player
Selecting a track from the menu
1 Enter the main menu.
Now the 5/∞/ 4 /¢buttons work as the menu selecting buttons*3.
2 Select the desired menu.
For iPod:
PLAYLIST ÔARTISTS ÔALBUMS ÔSONGS ÔGENRES ÔCOMPOSER Ô(back to the beginning)
For D. player:
PLAYLIST ÔARTIST ÔALBUM ÔGENRE
ÔTRACK Ô(back to the beginning)
3 Confirm the selection.
To move back to the previous menu, press 5.
•If a track is selected, playback starts automatically.
•If the selected item has another layer, you will enter the layer. Repeat steps 2 and 3 until the desired track is played.
•Holding 4/¢ can skip 10 items at a time.
*3 The menu selecting mode will be canceled:
–If no operations are done for about 5 seconds.
–When you confirm the selection of a track.
Selecting the playback modes
1
2 Select your desired playback mode.
7 Repeat play
ONE RPT
Functions the same as “Repeat One” of the iPod or “Repeat Mode One” for the D. player.
ALL RPT
Functions the same as “Repeat All” of the iPod or “Repeat Mode All” for the D. player.
RPT OFF
Cancels.
18

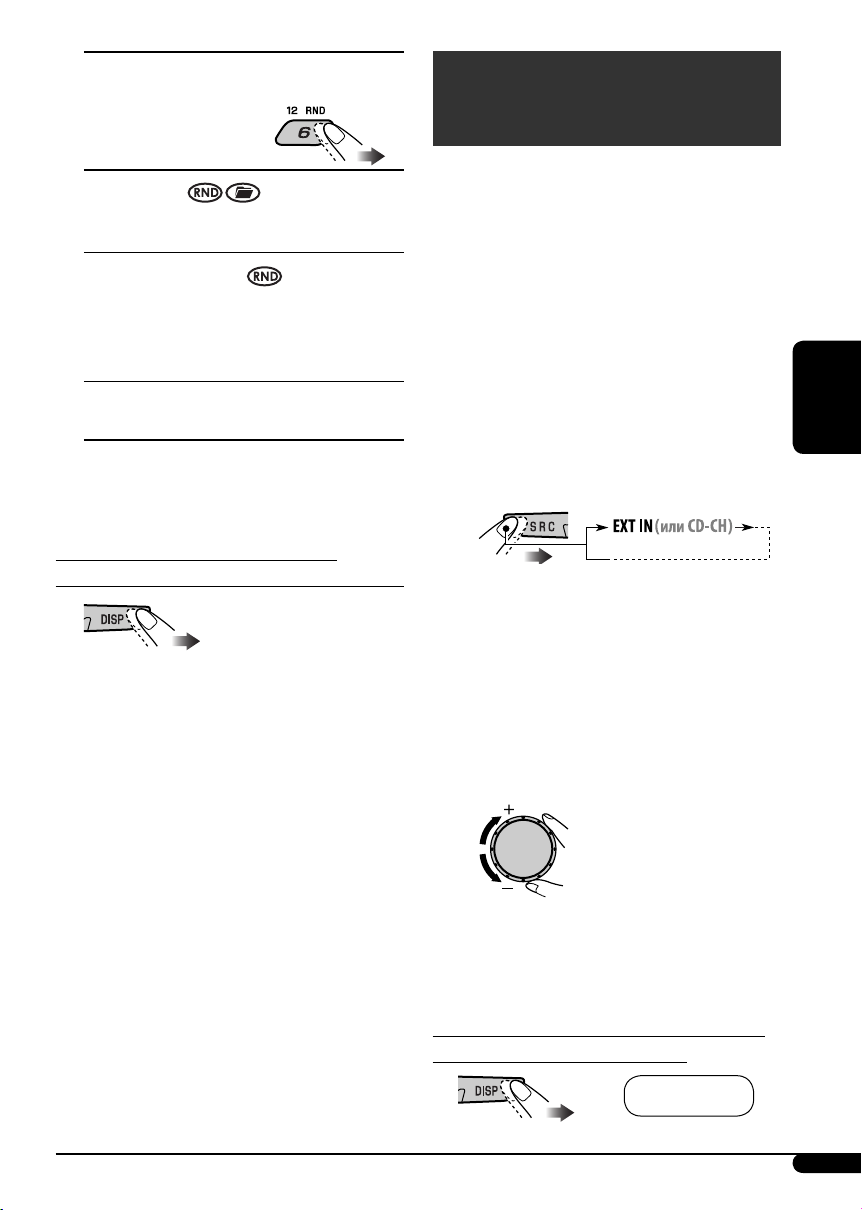

7 Random play
ALBM RND*4
Functions the same as “Shuffle Albums” of the iPod.
SONG RND/RND ON
Functions the same as “Shuffle Songs” of the iPod or “Random Play On” of the D. player.
RND OFF
Cancels.
*4 For iPod: Only if you select “ALL” in “ALBUMS” of the main “MENU.”
To check other information while listening to an iPod or a D. player
Other external component operations
You can connect an external component to the CD changer jack on the rear using the Line
Input Adapter—KS-U57 (not supplied) or AUX Input Adapter—KS-U58 (not supplied).
•For connection, see Installation/Connection Manual (separate volume).
For listening to the iPod or D. player, refer to pages 17 – 19.
~
If “EXT IN” does not appear, see page 15 and select the external input (“EXT IN”).
ŸTurn on the connected component and start playing the source.
! Adjust the volume.
⁄Adjust the sound as you want. (See pages 12 and 13.)
To check the clock time while listening to an external component
EXT IN ÔClock
ENGLISH
19
ENGLISH
Remote controller — RM-RK60
This unit can be remotely controlled as instructed here (with an optionally purchased remote controller). We recommend that you use remote controller RM-RK60 with your unit.
Installing the lithium coin battery (CR2025)
Aim the remote controller directly at the remote sensor on the unit. Make sure there is no obstacle in between.
Warning:
•Do not install any battery other than CR2025 or its equivalent; otherwise, it may explode.
•Store the battery in a place where children cannot reach to avoid risk of accident.
•To prevent the battery from over-heating, cracking, or starting a fire:
–Do not recharge, short, disassemble, heat the battery, or dispose of it in a fire.
–Do not leave the battery with other metallic materials.
–Do not poke the battery with tweezers or similar tools.
–Wrap the battery with tape and insulate when throwing away or saving it.
Caution:
Main elements and features
1 (standby/on attenuator) button
•Turns the power on if pressed briefly or attenuates the sound when the power is on.
•Turns the power off if pressed and held. 2 SRC (source) button
•Selects the source.
3R (reverse) / F (forward) buttons
•Searches for stations (or services) if pressed briefly.
•Searches for ensembles if pressed and held.
•Fast-forwards or reverses the track if pressed and held.
•Changes the tracks if pressed briefly.
•While listening to an Apple iPod or a JVC D. player (in menu selecting mode):
–Selects an item if pressed briefly. (Then, press D (down) to confirm the selection.)
–Skips 10 items at a time if pressed and held.
4SOUND button
•Selects the sound mode (C-EQ: custom equalizer).
20
5U (up) / D (down) buttons
•Changes the FM/AM/DAB bands with U (up).
•Changes the preset stations with D (down).
•Changes the folder of the MP3/WMA discs.
•While playing an MP3 disc on an MP3-compatible CD changer:
–Changes the disc if pressed briefly.
–Changes the folder if pressed and held.
•While listening to an iPod or a D. player:
–Pauses/stops or resumes playback with D (down).
–Enter the main menu with U (up). (Now U/D/R/F work as the menu
selecting buttons.)*
6VOLUME – /+ buttons
• Adjusts the volume level.
* U (up) |
: |
Returns to the previous menu. |
D (down) : |
Confirms the selection. |
The unit is equipped with the steering wheel remote control function.
•See the Installation/Connection Manual (separate volume) for connection.
More about this unit
Basic operations
Turning on the power
•By pressing SRC button on the unit, you can also turn on the power. If the source is ready, playback also starts.
Turning off the power
•If you turn off the power while listening to a disc, disc play will start from where playback has been stopped previously, next time you turn on the power.
Tuner operations
Storing stations in memory
•During SSM search...
–All previously stored stations are erased and stations are stored newly.
–Received stations are preset in No. 1 (lowest frequency) to No. 6 (highest frequency).
–When SSM is over, the station stored in No. 1 will be automatically tuned in.
•When storing a station manually, the previously preset station is erased when a new station is stored in the same preset number.
FM RDS operations
•Network-Tracking Reception requires two types of RDS signals—PI (Programme Identification) and AF (Alternative Frequency) to work correctly. Without receiving these data correctly, Network-
Tracking Reception will not operate correctly.
•If a Traffic Announcement is received by TA Standby Reception, the volume level automatically changes to the preset level (TA VOL) if the current level is lower than the preset level.
ENGLISH
To be continued....
21
ENGLISH
•When Alternative Frequency Reception is activated (with AF selected), NetworkTracking Reception is also activated
automatically. On the other hand, NetworkTracking Reception cannot be deactivated without deactivating Alternative Frequency Reception. (See page 14.)
•If you want to know more about RDS, visit «http://www.rds.org.uk».
Disc operations
Caution for DualDisc playback
•The Non-DVD side of a “DualDisc” does not comply with the “Compact Disc Digital Audio” standard. Therefore, the use of NonDVD side of a DualDisc on this product may not be recommended.
General
•This unit has been designed to reproduce CDs/CD Texts, and CD-Rs (Recordable)/ CD-RWs (Rewritable) in audio CD (CD-DA), MP3 and WMA formats.
•When a disc had been loaded, selecting “DISC” for the playback source starts disc play.
Inserting a disc
•When a disc is inserted upside down, the disc automatically ejects.
•Do not insert 8 cm discs (single CD) and unusual shape discs (heart, flower, etc.) into the loading slot.
Playing a disc
•While fast-forwarding or reversing on an MP3 or WMA disc, you can only hear intermittent sounds.
Playing a CD-R or CD-RW
•Use only “finalized” CD-Rs or CD-RWs.
•This unit can play back only files of the same type which are first detected if a disc includes both audio CD (CD-DA) files and MP3/ WMA files.
•This unit can play back multi-session discs; however, unclosed sessions will be skipped while playing.
•Some CD-Rs or CD-RWs may not play back on this unit because of their disc characteristics, or for the following reasons:
–Discs are dirty or scratched.
–Moisture condensation occurs on the lens inside the unit.
–The pickup lens inside the unit is dirty.
–CD-R/CD-RW on which the files are written with “Packet Write” method.
–There are improper recording conditions (missing data, etc.) or media conditions (stained, scratched, warped, etc.).
•CD-RWs may require a longer readout time since the reflectance of CD-RWs is lower than that of regular CDs.
•Do not use the following CD-Rs or CD-RWs:
–Discs with stickers, labels, or a protective seal stuck to the surface.
–Discs on which labels can be directly printed by an ink jet printer.
Using these discs under high temperatures or high humidities may cause malfunctions or damage to the unit.
Playing an MP3/WMA disc
•This unit can play back MP3/WMA files with the extension code <.mp3> or <.wma> (regardless of the letter case—upper/lower).
•This unit can show the names of albums, artists (performer), and Tag (Version 1.0, 1.1, 2.2, 2.3, or 2.4) for MP3 files and for WMA files.
•This unit can display only one-byte characters. No other characters can be correctly displayed.
•This unit can play back MP3/WMA files meeting the conditions below:
–Bit rate: 8 kbps — 320 kbps
–Sampling frequency:
48 kHz, 44.1 kHz, 32 kHz (for MPEG-1) 24 kHz, 22.05 kHz, 16 kHz (for MPEG-2)
–Disc format: ISO 9660 Level 1/Level 2, Romeo, Joliet, Windows long file name
22
•The maximum number of characters for file/ folder names vary among the disc format used (includes 4 extension characters—<.mp3> or <.wma>).
–ISO 9660 Level 1: up to 12 characters
–ISO 9660 Level 2: up to 31 characters
–Romeo: up to 128 characters
–Joliet: up to 64 characters
–Windows long file name: up to 128 characters
•This unit can play back files recorded in VBR (variable bit rate).
Files recorded in VBR have a discrepancy in elapsed time display, and do not show the actual elapsed time. Especially, after performing the search function, this difference becomes noticeable.
•This unit can recognize a total of 512 files, of 200 folders, and of 8 hierarchies.
•This unit cannot play back the following files:
–MP3 files encoded with MP3i and MP3 PRO format.
–MP3 files encoded in an inappropriate format.
–MP3 files encoded with Layer 1/2.
–WMA files encoded with lossless, professional, and voice format.
–WMA files which are not based upon Windows Media® Audio.
–WMA files copy-protected with DRM.
–Files which have the data such as WAVE, ATRAC3, etc.
•The search function works but search speed is not constant.
Changing the source
•If you change the source, playback also stops (without ejecting the disc).
Next time you select “DISC” for the playback source, disc play starts from where it has been stopped previously.
Ejecting a disc
•If the ejected disc is not removed within
15 seconds, the disc is automatically inserted again into the loading slot to protect it from dust. (Disc will not play this time.)
General settings—PSM
•If you change the “AMP GAIN” setting from “HIGH PWR” to “LOW PWR” while the volume level is set higher than “VOL 30,” the unit automatically changes the volume level to “VOL 30.”
DAB tuner operations
•Only primary DAB services can be presetted even when you store a secondary service.
•A previously preset DAB service is erased when a new DAB service is stored in the same preset number.
iPod® or D. player operations
•When you turn on this unit, the iPod or D. player is charged through this unit.
•While the iPod or D. player is connected, all operations from the iPod or D. player are disabled. Perform all operations from this unit.
•The text information may not be displayed correctly.
– Some characters such as accented letters cannot be shown correctly on the display.
– Depends on the condition of communication between the iPod or D. player and the unit.
•If the text information includes more than 8 characters, it scrolls on the display (see also page 15). This unit can display up to 40 characters.
Notice:
When operating an iPod or a D. player, some operations may not be performed correctly or as intended. In this case, visit the following JVC web site:
For iPod users: <http://www.jvc.co.jp/ english/car/support/ks-pd100/index.html>
For D. player users: <http://www.jvc.co.jp/ english/car/support/ks-pd500/index.html>
ENGLISH
23
ENGLISH
Maintenance
How to clean the connectors
Frequent detachment will deteriorate the connectors.
To minimize this possibility, periodically wipe the connectors with a cotton swab or cloth moistened with alcohol, being careful not to damage the connectors.
Connector
Moisture condensation
Moisture may condense on the lens inside the CD player in the following cases:
•After starting the heater in the car.
•If it becomes very humid inside the car. Should this occur, the CD player may malfunction. In this case, eject the disc and leave the unit turned on for a few hours until the moisture evaporates.
How to handle discs
When removing a disc from |
Center holder |
its case, press down the center holder of the case and lift the disc out, holding it by the edges.
•Always hold the disc by the
edges. Do not touch its recording surface.
When storing a disc into its case, gently insert the disc around the center holder (with the printed surface facing up).
•Make sure to store discs into the cases after use.
To keep discs clean
A dirty disc may not play correctly. If a disc does become dirty, wipe it with a soft cloth in a straight line from center to edge.
•Do not use any solvent (for example, conventional record cleaner, spray, thinner, benzine, etc.) to clean discs.
To play new discs
New discs may have some rough spots around the inner and outer edges. If such a disc is used, this unit may reject the disc.
To remove these rough spots, rub the edges with a pencil or ball-point pen, etc.
Do not use the following discs:
Warped disc
Sticker |
Sticker residue |
|
Stick-on label
Troubleshooting
What appears to be trouble is not always serious. Check the following points before calling a service center.
|
|
Symptoms |
Remedies/Causes |
General |
|
• Sound cannot be heard from the |
• Adjust the volume to the optimum level. |
|
speakers. |
• Check the cords and connections. |
|
|
|
||
|
|
|
|
|
|
• The unit does not work at all. |
Reset the unit (see page 2). |
|
|
|
|
FM/AM |
|
• SSM automatic presetting does not |
Store stations manually. |
|
work. |
|
|
|
|
|
|
• Static noise while listening to the |
Connect the aerial firmly. |
||
|
|
radio. |
|
|
|
|
|
24
