JVC KD-G511, KD-G612, KD-G611 User Manual

CD RECEIVER

RECEPTEUR CD

KD-G612/KD-G611/KD-G511

FRANÇAIS ENGLISH

For canceling the display demonstration, see page 8.

Pour annuler la démonstration des affichages, référez-vous à la page 8.

For installation and connections, refer to the separate manual.

Pour l’installation et les raccordements, se référer au manuel séparé.

INSTRUCTIONS

MANUEL D’INSTRUCTIONS

GET0266-003A

[EX/EU]

ENGLISH

Thank you for purchasing a JVC product.

Please read all instructions carefully before operation, to ensure your complete understanding and to obtain the best possible performance from the unit.

IMPORTANT FOR LASER PRODUCTS

1.CLASS 1 LASER PRODUCT

2.CAUTION: Do not open the top cover. There are no user serviceable parts inside the unit; leave all servicing to qualified service personnel.

3.CAUTION: Visible and invisible laser radiation when open and interlock failed or defeated. Avoid direct exposure to beam.

4.REPRODUCTION OF LABEL: CAUTION LABEL, PLACED OUTSIDE THE UNIT.

Warning:

If you need to operate the receiver while driving, be sure to look ahead carefully or you may be involved in a traffic accident.

How to forcibly eject a disc

If a disc cannot be recognized by the receiver or cannot be ejected, ejects the disc as follows.

How to reset your unit

This will reset the microcomputer. Your preset adjustments will also be erased.

“PLEASE” and “EJECT” appear alternately on the display.

•If this does not work, try to reset your receiver.

•Be careful not to drop the disc when it ejects.

Note: Only for [EX] model users in UK and European countries

For security reasons, a numbered ID card is provided with this receiver, and the same ID number is imprinted on the receiver’s chassis. Keep the card in a safe place, as it will help the authorities to identify your receiver if stolen.

2

Contents

How to reset your unit ...........................	2
How to forcibly eject a disc...................	2
How to read this manual........................	4
How to use the M MODE button...........	4
Control panel
— KD-G612/KD-G611/KD-G511....	5
Parts identification.................................	5
Remote controller — RM-RK50 ...	6
Main elements and features ...................	6
Getting started.......................	7
Basic operations..................................	7
Canceling the display demonstrations ...	8
Setting the clock ....................................	8
Radio operations ...................	9
Listening to the radio...........................	9
Storing stations in memory....................	10
Listening to a preset station ...................	10
FM RDS operations.................	11
Searching for your favorite FM RDS
programme .......................................	11
Storing your favorite programmes.........	12
Using the standby receptions.................	12
Tracking the same programme
—Network-Tracking Reception ........	13
Disc operations ......................	14
Playing a disc in the receiver ...............	14
Playing discs in the CD changer ...........	15
Other main functions .............................	17
Changing the display information .........	18
Selecting the playback modes................	19

Sound adjustments ................	20
Selecting preset sound modes
(C-EQ: custom equalizer) ..................	20
Adjusting the sound ...............................	21
General settings — PSM .........	22
Basic procedure .....................................	22
Other main functions .............	25
Assigning titles to the sources ...............	25
Detaching the control panel...................	26
External component operations...	27
Playing an external component ............	27
DAB tuner operations ................	28
Listening to the DAB tuner ...................	28
Storing DAB services in memory..........	29
Tuning in to a preset DAB service ........	29
Tracing the same programme
—Alternative Reception ....................	29
Maintenance ..........................	30
More about this receiver ........	31
Troubleshooting .....................	34
Specifications .........................	37

The receiver is equipped with the steering wheel remote control function.

•See the Installation/Connection Manual (separate volume) for connection.

ENGLISH

*For safety....

•Do not raise the volume level too much, as this will block outside sounds, making driving dangerous.

•Stop the car before performing any complicated operations.

*Temperature inside the car....

If you have parked the car for a long time in hot or cold weather, wait until the temperature in the car becomes normal before operating the unit.

3

ENGLISH

How to read this manual

The following methods are used to made the explanations simple and easy-to-understand:

•Some related tips and notes are explained in “More about this receiver” (see pages

31 – 33).

•Button operations are mainly explained with the illustrations as follows:

Press briefly.

Press repeatedly.

How to use the M MODE button

If you press M MODE, the receiver goes into functions mode, then the number buttons and 5/∞ buttons work as different function buttons.

Ex.: When number button 2 works as MO (monaural) button.

Press either one.

Press and hold until your desired response begins.

Press and hold both buttons at the same time.

The following marks are used to indicate...

: Built-in CD player operations.

: External CD changer operations.

Time countdown indicator

To use these buttons for original functions again after pressing M MODE, wait for

5 seconds without pressing any of these buttons until the functions mode is cleared.

•Pressing M MODE again also clears the functions mode.

Caution on volume setting:

Discs produce very little noise compared with other sources. Lower the volume before playing a disc to avoid damaging the speakers by the sudden increase of the output level.

4

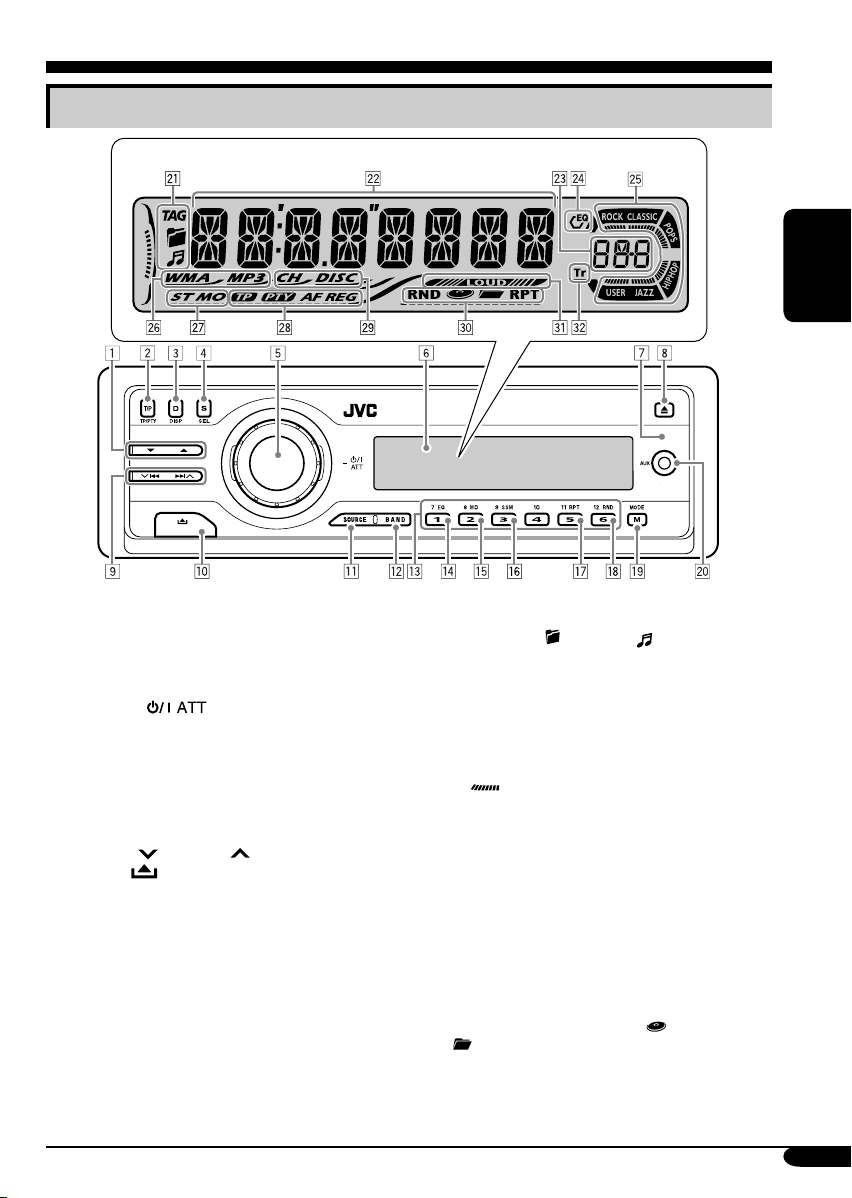

Control panel — KD-G612/KD-G611/KD-G511

Parts identification

Display window

ENGLISH

1 5 (up) / ∞ (down) buttons

2T/P TP/PTY (traffic programme/programme type) button

3 D DISP (display) button

4 S SEL (select) button

5• Control dial

• (standby/on attenuator) button 6 Display window

7 Remote sensor

•DO NOT expose the remote sensor to strong light (direct sunlight or artificial lighting).

8 0 (eject) button

9	4/¢ buttons
p	(control panel release) button

q SOURCE button w BAND button e Number buttons

r EQ (equalizer) button t MO (monaural) button

ySSM (Strong-station Sequential Memory) button

u RPT (repeat) button i RND (random) button o M MODE button

;AUX (auxiliary) input jack

•Only for KD-G612/KD-G611.

•NOT compatible with digital signals.

Display window

aDisc information indicators—TAG (ID3 Tag), (folder), (track/file)

s Main display

d Source display / Volume level indicator f EQ (equalizer) indicator

gSound mode (C-EQ: custom equalizer) indicators—ROCK, CLASSIC, POPS, HIP HOP, JAZZ, USER

• also works as the time countdown indicator and level meter during play (see

page 23).

h Disc type indicators—WMA, MP3

jTuner reception indicators—ST (stereo), MO (monaural)

k RDS indicators—TP, PTY, AF, REG l Playback source indicators—

CH: Lights up only when CD-CH is selected as the playback source.

DISC: Lights up for the built-in CD player.

/Playback mode / item indicators— RND (random), (disc), (folder), RPT (repeat)

z LOUD (loudness) indicator x Tr (track) indicator

5

ENGLISH

Remote controller — RM-RK50

•RM-RK50 is supplied for KD-G612/KD-G611.

•KD-G511 can be remotely controlled as instructed here (with an optionally purchased remote controller—recommended to use RM-RK50).

Installing the lithium coin battery (CR2025)

•When operating, aim the remote controller directly at the remote sensor on the receiver. Make sure there is no obstacle in between.

Warning:

•Store the battery in a place where children cannot reach to avoid risk of accident.

•To prevent the battery from over-heating, cracking, or starting a fire:

–Do not recharge, short, disassemble, or heat the battery or dispose of it in a fire.

–Do not leave the battery with other metallic materials.

–Do not poke the battery with tweezers or similar tools.

–Wrap the battery with tape and insulate when throwing away or saving it.

Caution:

Main elements and features

1(standby/on/attenuator) button

• Turns on and off the power and also

attenuates the sound.

25 U (up) / D (down) ∞ buttons

•5 U: Changes the FM/AM/DAB bands.

•D ∞: Changes the preset stations (or services).

•Changes the folder of the MP3/WMA discs.

•While playing an MP3 disc on an MP3-compatible CD changer:

–Changes the disc if pressed briefly.

–Changes the folder if pressed and held. 3 VOL – / VOL + buttons

•Adjusts the volume level.

4SOUND button

• Selects the sound mode (C-EQ: custom

equalizer).

5 SOURCE button

• Selects the source.

62 R (reverse) / F (forward) 3 buttons

•Searches for stations (or services) if pressed briefly.

•Searches for ensembles if pressed and held.

•Fast-forwards or reverses the track if pressed and held.

•Changes the tracks of the disc.

6

Getting started

Basic operations

*The control panel illustrations used for explanation in this manual is KD-G612/ KD-G611.

ENGLISH

~

Ÿ

!

You cannot select some sources if they are not ready.

* Only for KD-G612/KD-G611.

•For FM/AM tuner only

•For DAB tuner only

⁄

Volume level appears.

Volume level indicator

@Adjust the sound as you want. (See pages 20 and 21.)

To drop the volume in a moment (ATT)

To restore the sound, press it again.

To turn off the power

7

ENGLISH

Canceling the display demonstrations

If no operations are done for about 20 seconds, display demonstration starts.

[Initial: DEMO ON]—see page 22.

1

2

3

4 Finish the procedure.

Setting the clock

1

2Set the hour, minute, and clock

system.

1Select “CLOCK H” (hour), then adjust the hour.

2Select “CLOCK M” (minute), then adjust the minute.

3Select “24H/12H,” then select “24H” (hour) or “12H” (hour).

3 Finish the procedure.

To check the current clock time when the power is turned off

To activate the display demonstration

In step 3 above...

8

Radio operations

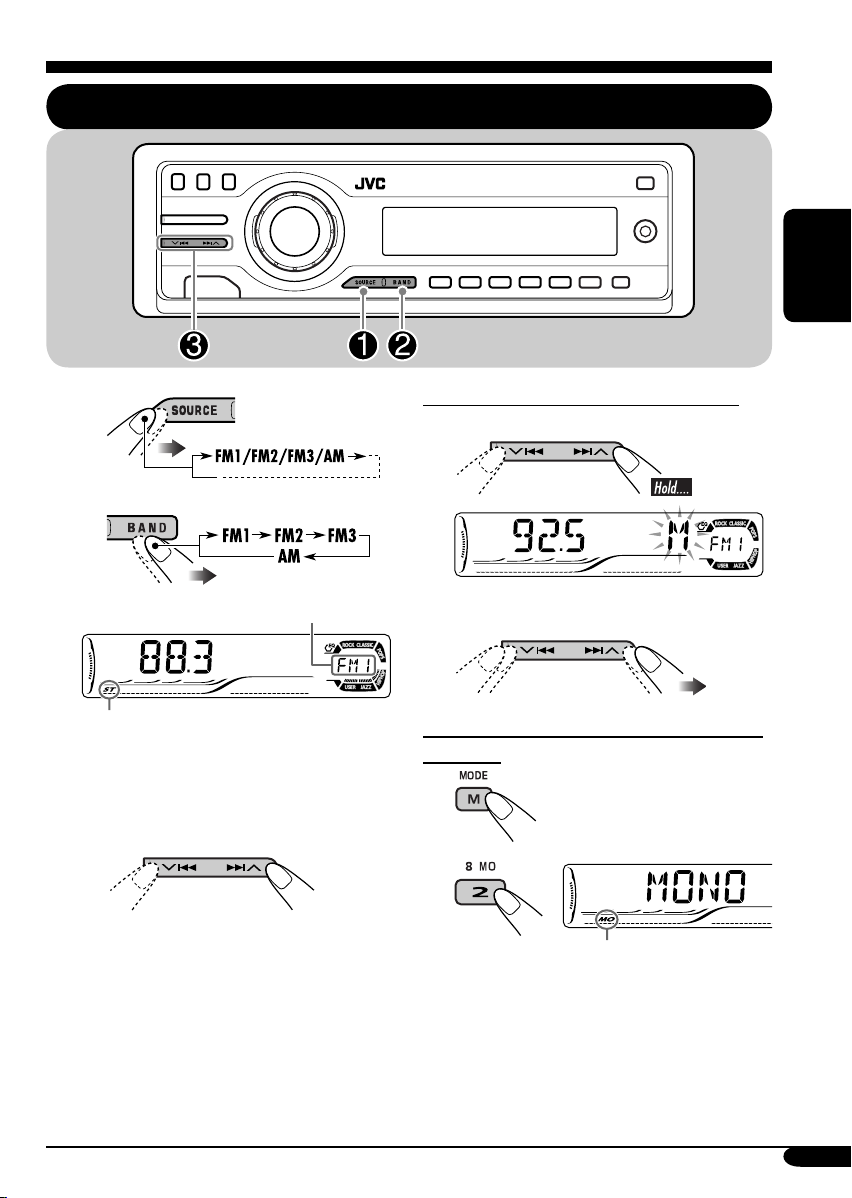

Listening to the radio

ENGLISH

	~	To tune in to a station manually
		In step ! on the left...
		1

Ÿ

Selected band appears.			2 Select the desired station frequencies.

Lights up when receiving an FM stereo broadcast with sufficient signal strength.

!Start searching for a station.

When a station is received, searching stops.

To stop searching, press the same button again.

When an FM stereo broadcast is hard to receive

1

2

Lights up when monaural mode is activated.

Reception improves, but stereo effect will be lost.

To restore the stereo effect, repeat the same procedure. “MONO OFF” appears and the MO indicator goes off.

9

ENGLISH

Storing stations in memory

You can preset six stations for each band.

FM station automatic presetting— SSM (Strong-station Sequential Memory)

1

2Select the FM band (FM1 – FM3)

you want to store into.

2

3

4

Preset number flashes for a while.

3

4

“SSM” flashes, then disappears when automatic presetting is over.

Local FM stations with the strongest signals are searched and stored automatically in the FM band.

Listening to a preset station

1

2

3Select the preset station (1 – 6) you want.

Manual presetting

Ex.: Storing FM station of 92.5 MHz into the preset number 4 of the FM1 band.

1

To check the current clock time while listening to an FM (non-RDS) or AM station

• For FM RDS stations, see page 13.

10

FM RDS operations

Searching for your favorite FM RDS programme

ENGLISH

You can tune in to a station broadcasting your	! Start searching for your favorite
favorite programme by searching for a PTY code.
~	programme.

The last selected PTY code appears.

ŸSelect one of your favorite programme type.

or

Select one of the twenty-nine PTY codes.

Ex.: When “ROCK M” is selected

If there is a station broadcasting a programme of the same PTY code as you have selected, that station is tuned in.

PTY codes

NEWS, AFFAIRS, INFO, SPORT,

EDUCATE, DRAMA, CULTURE,

SCIENCE, VARIED, POP M (music),

ROCK M (music), EASY M (music),

LIGHT M (music), CLASSICS,

OTHER M (music), WEATHER,

FINANCE, CHILDREN, SOCIAL,

RELIGION, PHONE IN, TRAVEL,

LEISURE, JAZZ, COUNTRY,

NATION M (music), OLDIES,

FOLK M (music), DOCUMENT

11

ENGLISH	What you can do with RDS
	RDS (Radio Data System) allows FM
	stations to send an additional signal along
	with their regular programme signals.
	By receiving the RDS data, this receiver can
	do the following:
	• Programme Type (PTY) Search (see page 11)
	• Standby Reception of Traffic
	Announcement—TA (see the following) or
	your favorite programme (PTY) (see pages
	13 and 23)
	• Tracing the same programme automatically
	—Network-Tracking Reception (see page 13)
	• Programme Search (see page 23)

Storing your favorite programmes

You can store six favorite programme types.

Preset programme types in the number buttons (1 to 6):

1 Select a PTY code (see page 11).

2 Select the preset number (1 – 6) you want to store into.

3Repeat steps 1 and 2 to store other PTY codes into other preset numbers.

4Finish the procedure.

Using the standby receptions

TA Standby Reception

TA Standby Reception allows the receiver to switch temporarily to Traffic Announcement (TA) from any source other than AM.

The volume changes to the preset TA volume level (see page 23).

To activate TA Standby Reception

The TP indicator either lights up or flashes.

•If the TP indicator lights up, TA Standby Reception is activated.

•If the TP indicator flashes, TA Standby Reception is not yet activated. (This occurs when you are listening to an FM station without the RDS signals required for TA Standby Reception.)

To activate TA Standby Reception, tune in to another station providing these signals. The TP indicator will stop flashing and remain lit.

To deactivate the TA Standby Reception

The TP indicator goes off.

Ex.: When “ROCK M” is selected

12

PTY Standby Reception

PTY Standby Reception allows the receiver to switch temporarily to your favorite PTY programme from any source other than AM.

To activate and select your favorite PTY code for PTY Standby Reception, see page 23.

The PTY indicator either lights up or flashes.

•If the PTY indicator lights up, PTY Standby Reception is activated.

•If the PTY indicator flashes, PTY Standby Reception is not yet activated.

To activate PTY Standby Reception, tune in to another station providing these signals. The PTY indicator will stop flashing and remain lit.

To deactivate the PTY Standby Reception, select “OFF” for the PTY code (see page 23). The PTY indicator goes off.

Tracking the same programme—	ENGLISH
Network-Tracking Reception
When driving in an area where FM reception
is not sufficient enough, this receiver
automatically tunes in to another FM RDS
station of the same network, possibly
broadcasting the same programme with stronger
signals (see the illustration below).
When shipped from the factory, Network-
Tracking Reception is activated.
To change the Network-Tracking Reception
setting, see “AF-REG” on page 23.

Programme A broadcasting on different frequency areas (01 – 05)

To check the current clock time while listening to an FM RDS station

13

ENGLISH

Disc operations

Playing a disc in the receiver

All tracks will be played repeatedly until you change the source or eject the disc.

	About MP3 and WMA discs	• When inserting an audio CD or a CD Text
		disc:
	MP3 and WMA (Windows Media® Audio)
		Total playing time	Total track number
	“tracks” (words “file” and “track” are used
		of the inserted disc	of the inserted disc
	interchangeably) are recorded in “folders.”

• When inserting an MP3 or a WMA disc:

		CD Text: Disc title/performer =
Total folder	Total track	Track title appears automatically
		(see page 18).
number	number
		Elapsed playing	Current track
		time	number

Disc information appears

automatically (see page 18).

To stop play and eject the disc

Elapsed playing	Current track
time	number

Selected folder number

*Either the MP3 or WMA indicator lights up depending on the detected file.

14

Playing discs in the CD changer

ENGLISH

About the CD changer

It is recommended to use the JVC MP3compatible CD changer with your receiver.

•You can also connect other CH-X series CD changers (except CH-X99 and CH-X100). However, they are not compatible with MP3 discs, so you cannot play back MP3 discs.

•You cannot use the KD-MK series CD changers with this receiver.

•Disc text information recorded in the CD Text can be displayed when a JVC CD Text compatible CD changer is connected.

Before operating your CD changer:

•Refer also to the Instructions supplied with your CD changer.

•You cannot control and play any WMA disc in the CD changer.

All tracks of the inserted discs in the magazine will be played repeatedly until you change the source or eject the magazine from the CD changer.

~

*If you have changed “EXT IN” setting to “EXT IN” (see page 24), you cannot select the CD changer.

Selected disc number

ŸSelect a disc.

For disc number from 01 – 06:

For disc number from 07 – 12:

15

ENGLISH	• When the current disc is an MP3 disc:
	Folder name*

Selected folder number

Disc information appears automatically (see page 18).

Elapsed playing Current track time number

*“ROOT” appears if no folder is included in the disc.

•When the current disc is an audio CD or a CD Text disc:

CD Text: Disc title/performer =

Track title appears automatically (see page 18).

Elapsed playing Current track time number

To fast-forward or reverse the track

Fast-forwards.

Reverses.

To go to the next or previous tracks

To the following tracks.

To the beginning of the current track, then the previous tracks.

To go to the next or previous folders (only for MP3 or WMA discs)

For MP3 discs:

For WMA discs:

To next folders.

To previous folders.

16

To locate a particular track (for CD) or folder (for MP3 or WMA discs) directly

To select a number from 01 – 06:

To select a number from 07 – 12:

2	ENGLISH

First time you press +10 or –10 button, the track skips to the nearest higher or lower track with a track number of multiple ten (ex. 10th, 20th, 30th).

Then each time you press the button, you can skip 10 tracks.

•After the last track, the first track will be selected and vice versa.

•To use folder search on MP3/WMA discs, it is required that folders are assigned with 2-digits number at the beginning of their folder names—01, 02, 03, and so on.

•To select a particular track in a folder (for MP3 or WMA disc) after selecting a folder:

3

Prohibiting disc ejection

You can lock a disc in the loading slot.

Other main functions

Skipping a track quickly during play

•For MP3 or WMA disc, you can skip a track within the same folder.

Ex.: To select track 32 while playing track 6

1

To cancel the prohibition, repeat the same procedure.

17

ENGLISH

Changing the display information

While playing an audio CD or a CD Text ( / )

*1 For KD-G612/KD-G611: If no title is assigned to an audio CD, “NO NAME” appears. To assign a title to an audio CD, see page 25.

For KD-G511: “NO NAME” appears.

While playing an MP3 ( / ) or WMA ( ) disc

• When “TAG DISP” is set to “TAG ON” (see page 24)

*2 If an MP3/WMA file does not have ID3 tags, folder name and file name appear. In this case, the TAG indicator will not light up.

• When “TAG DISP” is set to “TAG OFF”

18

Selecting the playback modes

You can use only one of the following playback modes at a time.

1

2Select your desired playback mode.

Repeat play	Mode	Plays repeatedly
	TRK RPT:	The current track.
		• RPT lights up.
	FLDR RPT*1: All tracks of the current folder.
		• and RPT light up.
	DISC RPT*2: All tracks of the current disc.
		• and RPT light up.
	RPT OFF:	Cancels.
Ex.: When “TRK RPT” is selected while
playing an MP3 disc in the receiver
Random play	Mode	Plays at random

Ex.: When “DISC RND” is selected while playing an MP3 disc in the receiver

FLDR RND*1:All tracks of the current folder, then tracks of the next folder and so on.

• RND and light up. DISC RND: All tracks of the current disc.

• RND and light up. MAG RND*2: All tracks of the inserted discs.

• RND lights up. RND OFF: Cancels.

*1 Only while playing an MP3 ( / ) or WMA ( ) disc. *2 Only while playing discs in the CD changer ( ).

ENGLISH

19

ENGLISH

Sound adjustments

Selecting preset sound modes (C-EQ: custom equalizer)

You can select a preset sound mode suitable to the music genre.

~

Ÿ

Ex.: When “ROCK” is selected

Indication pattern for each sound mode:

	Indication		For:	Preset values
				BAS*1	TRE*2	LOUD*3
	USER		(Flat sound)	00	00	OFF
	ROCK		Rock or	+03	+01	ON
			disco music
	CLASSIC		Classical	+01	–02	OFF
			music
	POPS		Light music	+04	+01	OFF
	HIP HOP		Funk or rap	+02	00	ON
			music
	JAZZ		Jazz music	+02	+03	OFF
	*1	BAS: Bass
	*2	TRE: Treble
	*3	LOUD: Loudness

20

Adjusting the sound

You can adjust the sound characteristics to your preference.

1

Ex.: When “TRE” is selected

2

Indication pattern changes as you adjust the level.

Indication	To do:	Range
BAS*1	Adjust the bass.	–06 (min.)
(bass)		to
		+06 (max.)
TRE*1	Adjust the treble.	–06 (min.)
(treble)		to
		+06 (max.)
FAD*2	Adjust the front	R06 (Rear
(fader)	and rear speaker	only)
	balance.	to
		F06 (Front
		only)
BAL	Adjust the left	L06 (Left
(balance)	and right speaker	only)
	balance.	to
		R06 (Right
		only)
LOUD*1	Boost low and	LOUD ON
(loudness)	high frequencies
	to produce a well-	LOUD OFF
	balanced sound at
	low volume level.
SUB. W*3	Adjust the	00 (min.)
(subwoofer)	subwoofer output	to
	level.	08 (max.)
VOL*4	Adjust the	00 (min.)
(volume)	volume.	to
		30 or 50
		(max.)*5

*1 When you adjust the bass, treble, or loudness, the adjustment you have made is stored for the currently selected sound mode (C-EQ) including “USER.”

*2 If you are using a two-speaker system, set the fader level to “00.”

*3 Only for KD-G612/KD-G611: This takes effect only when a subwoofer is connected.

*4 Normally the control dial works as the volume control. So you do not have to select “VOL” to adjust the volume level.

*5 Depending on the amplifier gain control setting. (See page 24 for details.)

ENGLISH

21

ENGLISH

General settings — PSM

Basic procedure

You can change PSM (Preferred Setting Mode) items listed in the table that follows.

1

2Select a PSM item.

3 Adjust the PSM item selected.

4Repeat steps 2 and 3 to adjust the other PSM items if necessary.

5Finish the procedure.

Ex.: When you select “DIMMER”

Indications	Selectable settings, [reference page]
DEMO	DEMO ON: [Initial]; Display demonstration will be activated
Display demonstration		automatically if no operation is done for about
		20 seconds, [8].
	DEMO OFF: Cancels.
CLOCK H	0 – 23 (1 – 12), [8]
Hour adjustment	[Initial: 0 (0:00)]
CLOCK M	00 – 59, [8]
Minute adjustment	[Initial: 00 (0:00)]
24H/12H	12H O 24H, [8]
24 hours or 12 hours time	[Initial: 24H]
display
CLK ADJ	AUTO: [Initial]; The built-in clock is automatically adjusted
Clock adjustment		using the CT (clock time) data in the RDS signal.
	OFF:	Cancels.

22

Indications		Selectable settings, [reference page]
AF-REG		When the received signals from the current station become weak...
	Alternative frequency/	AF:	[Initial]; Switches to another station (the programme
	regionalization reception		may differ from the one currently received), [13].
			• The AF indicator lights up.
		AF REG: Switches to another station broadcasting the same
			programme.
			• The AF and REG indicators light up.
		OFF:	Cancels (not selectable when “DAB AF” is set to
			“AF ON”).
PTY-STBY		Activates PTY Standby Reception with one of the 29 PTY codes,
	PTY standby	[13].
		OFF [Initial] = 29 PTY codes, [11] = (back to the beginning)
TA VOL		[Initial: VOL 20]; VOL 00 — VOL 30 or 50*1, [12]
	Traffic announcement
	volume
P-SEARCH		ON:	Using the AF data, the receiver tunes in to another
	Programme search		frequency broadcasting the same programme as the
			original preset RDS station is if the preset station
			signals are not sufficient.
		OFF:	[Initial]; Cancels.
DAB AF*2		AF ON: [Initial]; Traces the programme among DAB services
	Alternative frequency		and FM RDS stations, [29].
	reception	AF OFF: Cancels.
DAB VOL*2		You can adjust the volume level (VOL –12 — VOL +12) of DAB
	DAB volume adjustment	tuner to match the FM sound level and store it in memory.
		[Initial: VOL 00]
LEVEL		ON: [Initial]; Activates the audio level indicator.
	Audio level meter	OFF: Cancels; sound mode indicator is shown, [20].
DIMMER		AUTO: [Initial]; Dims the display when you turn on the
	Dimmer		headlights.
		ON:	Activates dimmer.
		OFF:	Cancels.
*1	Depends on the amplifier gain control.
*2	Displayed only when DAB tuner is connected.

To be continued...

ENGLISH

23
