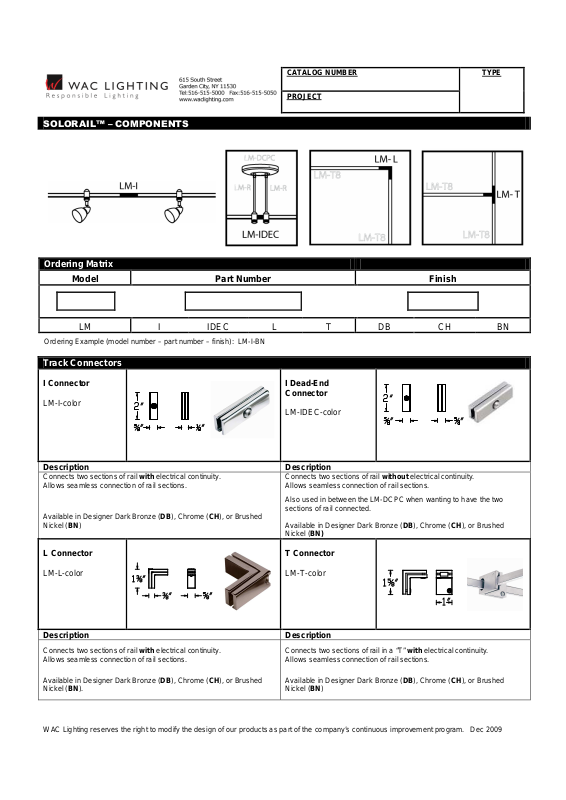

SOLORAIL™
–
COMPONENTS
Track Connectors
CATALOG NUMBER
PROJECT
Ordering Matrix
Model Part Number Finish
TYPE
LM I
Ordering Example (model number – part number – finish): LM-I-BN
I Connector
LM-I-color
IDEC
L T DB CH BN
I Dead-End
Connector
LM-IDEC-color
Description Description
Connects two sections of rail with electrical continuity.
Allows seamless connection of rail sections.
Available in Designer Dark Bronze (DB), Chrome (CH), or Brushed
Nickel (BN)
L Connector
LM-L-color
Connects two sections of rail without electrical continuity.
Allows seamless connection of rail sections.
Also used in between the LM-DCPC when wanting to have the two
sections of rail connected.
Available in Designer Dark Bronze (DB), Chrome (CH), or Brushed
Nickel (BN)
T Connector
LM-T-color
Description Description
Connects two sections of rail with electrical continuity.
Allows seamless connection of rail sections.
Available in Designer Dark Bronze (DB), Chrome (CH), or Brushed
Nickel (BN).
Connects two sections of rail in a “T” with electrical continuity.
Allows seamless connection of rail sections.
Available in Designer Dark Bronze (DB), Chrome (CH), or Brushed
Nickel (BN)
WAC Lighting reserves the right to modify the design of our products as part of the company’s continuous improvement program. Dec 2009
SOLORAIL™
–
COMPONENTS
Track Connectors
CATALOG NUMBER
PROJECT
Ordering Matrix
Model Part Number Finish
LM XDEC
Ordering Example (model number – part number – finish): LM-JS-DB
JS
QADP R(length) DB CH BN
TYPE
X Connector
LM-XDEC-color
Jumper Set
LM-JS-color
Description Description
Connects four sections of rail without electrical continuity.
Allows seamless connection of rail sections.
Available in Designer Dark Bronze (DB), Chrome (CH), or Brushed
Nickel (BN)
Quick-Connect
Adapter
LM-QADP-color
Connects two sections of rail with electrical continuity.
Allows separated sections of rail to be powered from a single feed
location.
Available in Designer Dark Bronze (DB), Chrome (CH), or Brushed
Nickel (BN).
Extension Rod
LM-R12-color
LM-R24-color
LM-R36-color
LM-R48-color
Description Description
Solorail™ system Quick Connect™ adaptor allows all Quick
Connect™ elements (QF track heads or QP pendants) to be used with
the LM system rail. The adaptor contains a threaded nipple for Quick
Connect™ socket sets and attaches anywhere along the LM track.
One adaptor must be ordered for each Quick Connect™ element used
on a system.
Available in Designer Dark Bronze (DB), Chrome (CH), or Brushed
Nickel (BN).
Used to extend suspension standoffs and power feed canopies.
Extending suspension standoffs requires one LM-R and one LM-X. The
LM-CPC and LM-WPC power feeds require two LM-R’s for extension,
and the LM-DCPC requires four LM-R.
The LM-R Extension Rods come in lengths of 12”, 24”, 36”, 48” and can
be field cut to other lengths as well as extended to longer lengths with
the use of the LM-RI coupler.
Available in Designer Dark Bronze (DB), Chrome (CH), or Brushed
Nickel (BN).
