Page 1
CATALOG NUMBER
PROJECT

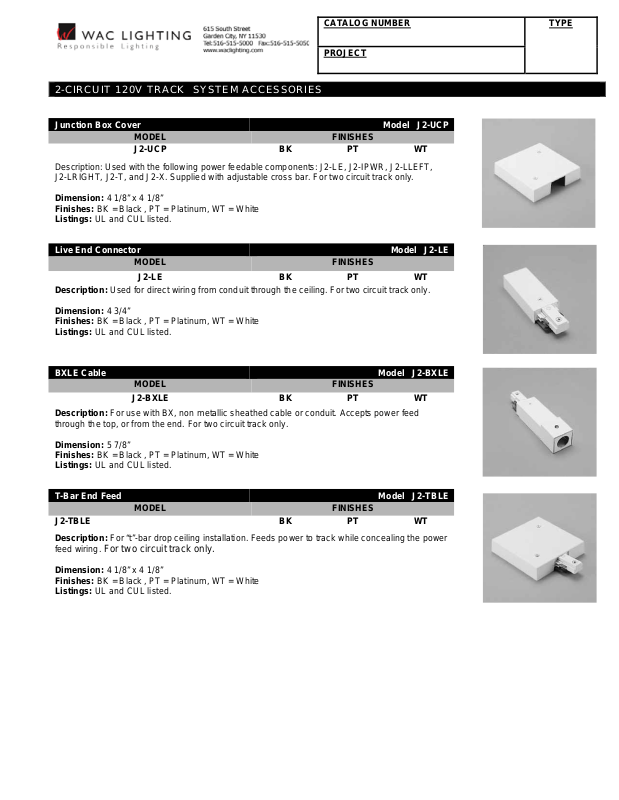

2-CIRCUIT 120V TRACK SYSTEM ACCESSORIES
Junction Box Cover Model J2-UCP
MODEL FINISHES
J2-UCP BK PT WT
Description: Used with the following power feedable components: J2-LE, J2-IPWR, J2-LLEFT,
J2-LRIGHT, J2-T, and J2-X. Supplied with adjustable cross bar. For two circuit track only.
Dimension: 4 1/8” x 4 1/8”
Finishes: BK = Black , PT = Platinum, WT = White
Listings: UL and CUL listed.
TYPE
Live End Connector Model J2-LE
MODEL FINISHES
J2-LE BK PT WT
Description: Used for direct wiring from conduit through the ceiling. For two circuit track only.
Dimension: 4 3/4”
Finishes: BK = Black , PT = Platinum, WT = White
Listings: UL and CUL listed.
BXLE Cable Model J2-BXLE
MODEL FINISHES
J2-BXLE BK PT WT
Description: For use with BX, non metallic sheathed cable or conduit. Accepts power feed
through the top, or from the end. For two circuit track only.
Dimension: 5 7/8”
Finishes: BK = Black , PT = Platinum, WT = White
Listings: UL and CUL listed.
T-Bar End Feed Model J2-TBLE
MODEL FINISHES
J2-TBLE BK PT WT
Description: For “t”-bar drop ceiling installation. Feeds power to track while concealing the power
feed wiring.
For two circuit track only.
Dimension: 4 1/8” x 4 1/8”
Finishes: BK = Black , PT = Platinum, WT = White
Listings: UL and CUL listed.
