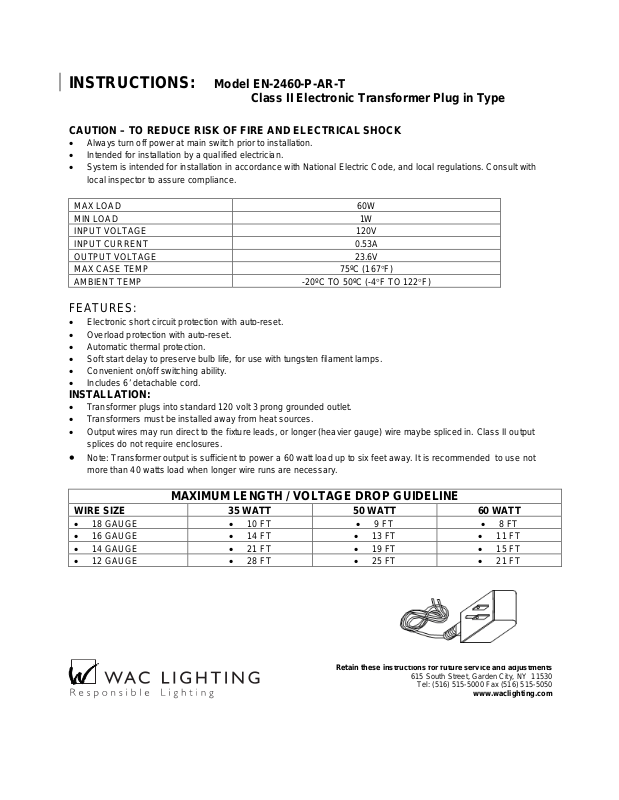

INSTRUCTIONS: Model EN-2460-P-AR-T
MAX LOA D
60W
MIN LOAD
1W
INPUT VOLTAGE
120V
INPUT CURRENT
0.53A
OUTPUT VOLTAGE
23.6V
MAX CASE TEMP
75ºC (167°F)
AMBIENT TE MP
-20ºC TO 50ºC (-4°F TO 122°F)
MAXIMUM LENGTH / VOLTAGE DROP GUIDELINE
WIRE SIZE
35 WATT
50 WATT
60 WATT
18 GAUGE
10 FT
9 FT
8 FT
16 GAUGE
14 FT
13 FT
11 FT
14 GAUGE
21 FT
19 FT
15 FT
12 GAUGE
28 FT
25 FT
21 FT
Retain these instructions for f ut ure ser vi c e and adjust m e nt s
Class II Electronic Transformer Plug in Type
CAUTION – TO REDUCE RISK OF FI RE AND ELECTRICAL SHOCK
• Always turn off power at main switch prior to installation.
• Intended for installation by a qualified electrician.
• System is intended for installation in accordance with National Electric Code, and local regulations. Consult with
local inspector to assure compliance.
FEATURES:
• Electronic short circuit protection with auto-reset.
• Overload protection with auto-reset.
• Automatic thermal protection.
• Soft start delay to preserve bulb life, for use with tungsten filament lamps.
• Convenient on/off switching ability.
• Includes 6’ detachable cord.
INSTALLATION:
• Transformer plugs into standard 120 volt 3 prong grounded outlet.
• Transformers must be installed away from heat sources.
• Output wires may run direct to the fixture leads, or longer (heavier gauge) wire maybe spliced in. Class II output
splices do not require enclosures.
• Note: Transformer output is sufficient to power a 60 watt load up to six feet away. It is recommended to use not
more than 40 watts load when longer wire runs are necessary.
•
•
•
•
•
•
•
•
•
•
•
•
615 South Street, Garden City, NY 11530
Tel: (516) 515-5000 Fax (516) 515-5050
•
•
•
•
www.waclighting.com
