Overview:

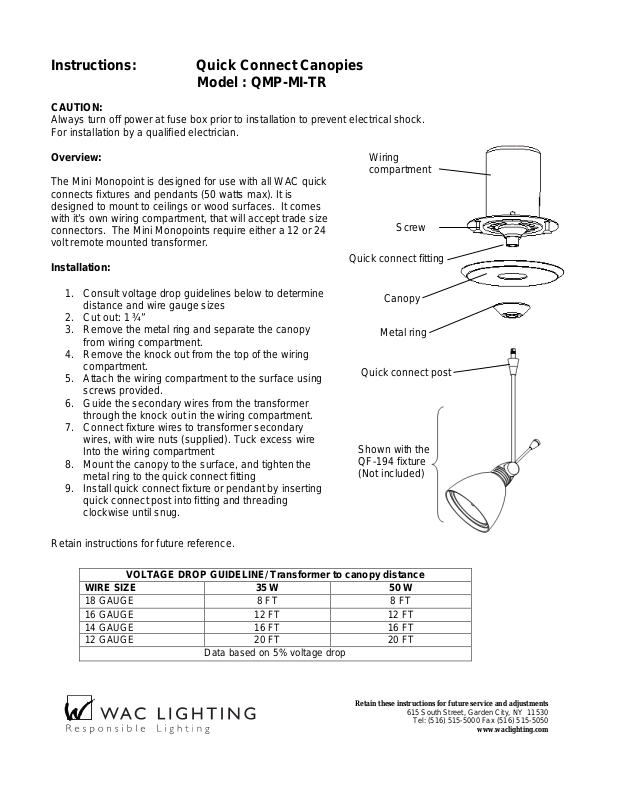

Instructions: Quick Connect Canopies
VOLTAGE DROP GUIDELINE/ Transformer to canopy d istance
WIRE SIZE
35 W
50 W
18 GAUGE
8 FT
8 FT
16 GAUGE
12 FT
12 FT
14 GAUGE
16 FT
16 FT
12 GAUGE
20 FT
20 FT
Data based on 5% voltage drop

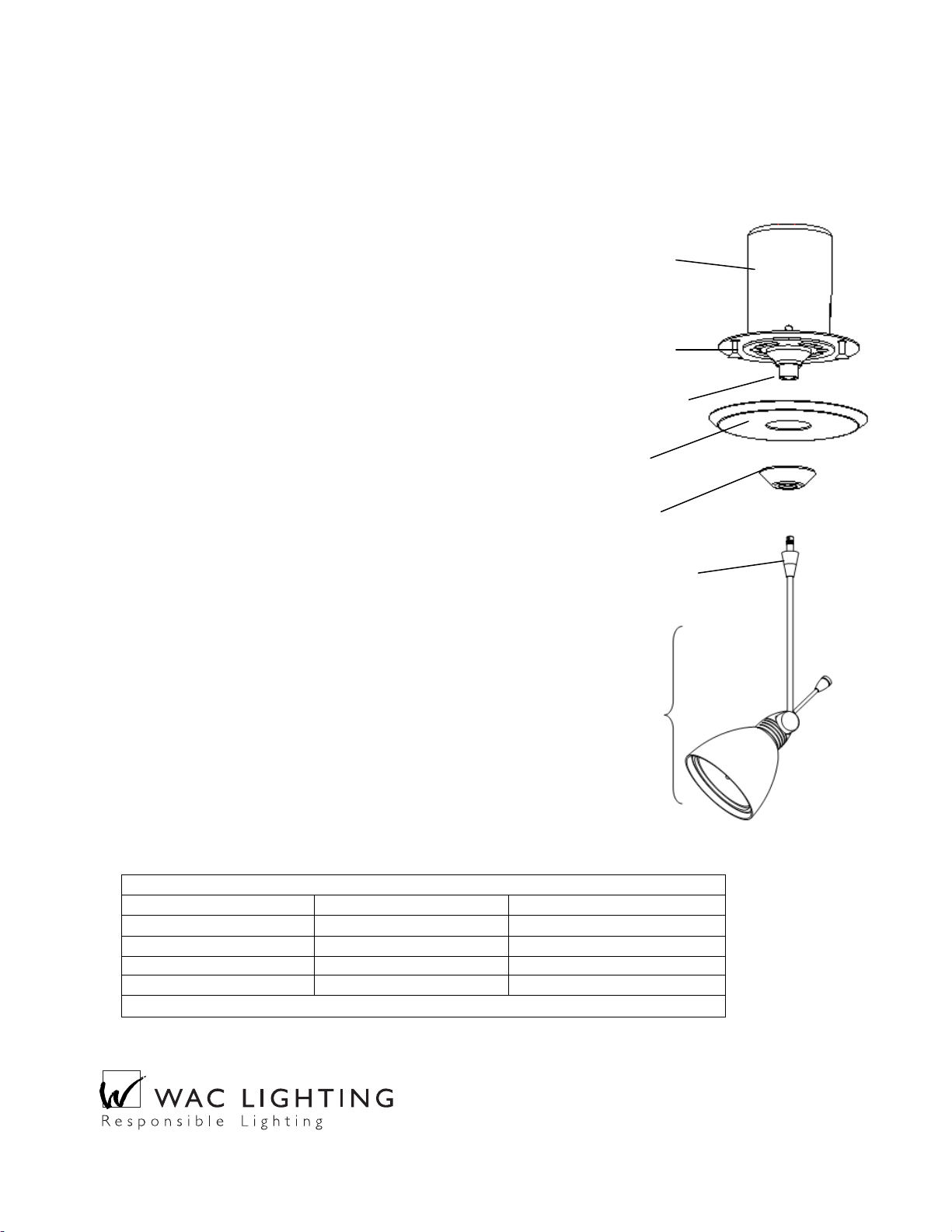

Wiring
compartment
Screw
Quick connect fitting
Canopy
Metal ring
Quick connect post
Shown with the
(Not included)
CAUTION:
Always turn off power at fuse box prior to installation to pr event electrical shock.
For installation by a qualified el ectrician.
The Mini Monopoint is designed for use with all WAC quick
connects fixtures and pendants (50 watts max). It is
designed to mount to ceili ngs or wood surfaces. It comes
with it’s own wiring compar t ment, t hat will accept trade size
connectors. The Mini Monopoints require either a 12 or 24
volt remote mounted transformer.
Installation:
1. Consult voltage drop guidelines below to determine
Retain instructions for future reference.
distance and wire gauge siz es
2. Cut out: 1 ¾”
3. Remove the metal ring and separ at e the canopy
from wiring compartment.
4. Remove the knock out from the top of the wiring
compartment.
5. Attach the wiring compartment to the surface using
screws provided.
6. Guide the secondary wires from the transformer
through the knock out in the wiring co m par t m ent .
7. Connect fixture wires to tr ansformer secondary
wires, with wire nuts (sup pli ed) . Tuck excess wire
Into the wiring compart ment
8. Mount the canopy to the surface, and tighten the
metal ring to the quick connect fitting
9. Install quick connect fixture or pendant by inserting
quick connect post into fitt ing a nd threading
clockwise until snug.
Model : QMP-MI-TR
QF-194 fixture
Retain these instructions for future service and adjustments
615 South Street, Garden City, NY 11530
Tel: (516) 515-5000 Fax (516) 515-5050
www.waclighting.com
