WAC Lighting WAC4361 Installation & Assembly

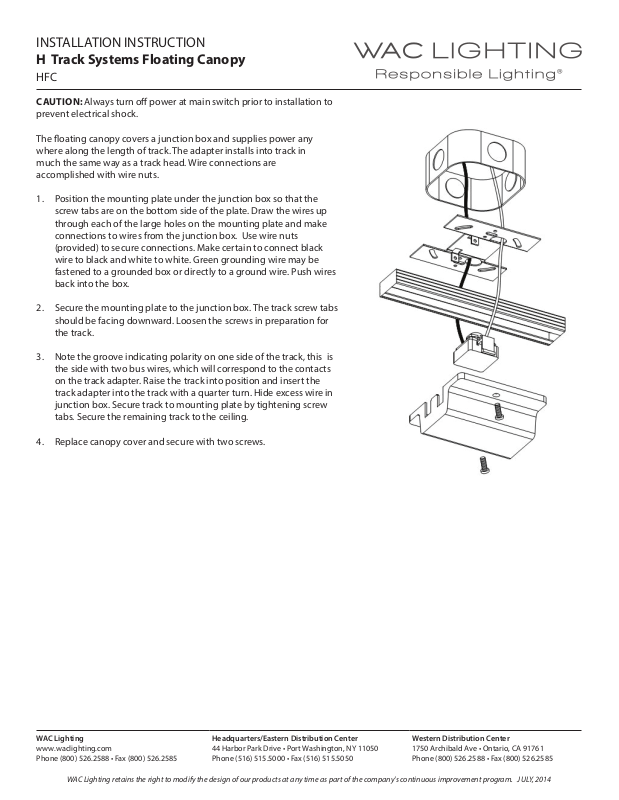

INSTALLATION INSTRUCTION

H Track Systems Floating Canopy

HFC

CAUTION: Always turn o power at main switch prior to installation to
prevent electrical shock.

The oating canopy covers a junction box and supplies power any
where along the length of track. The adapter installs into track in
much the same way as a track head. Wire connections are
accomplished with wire nuts.

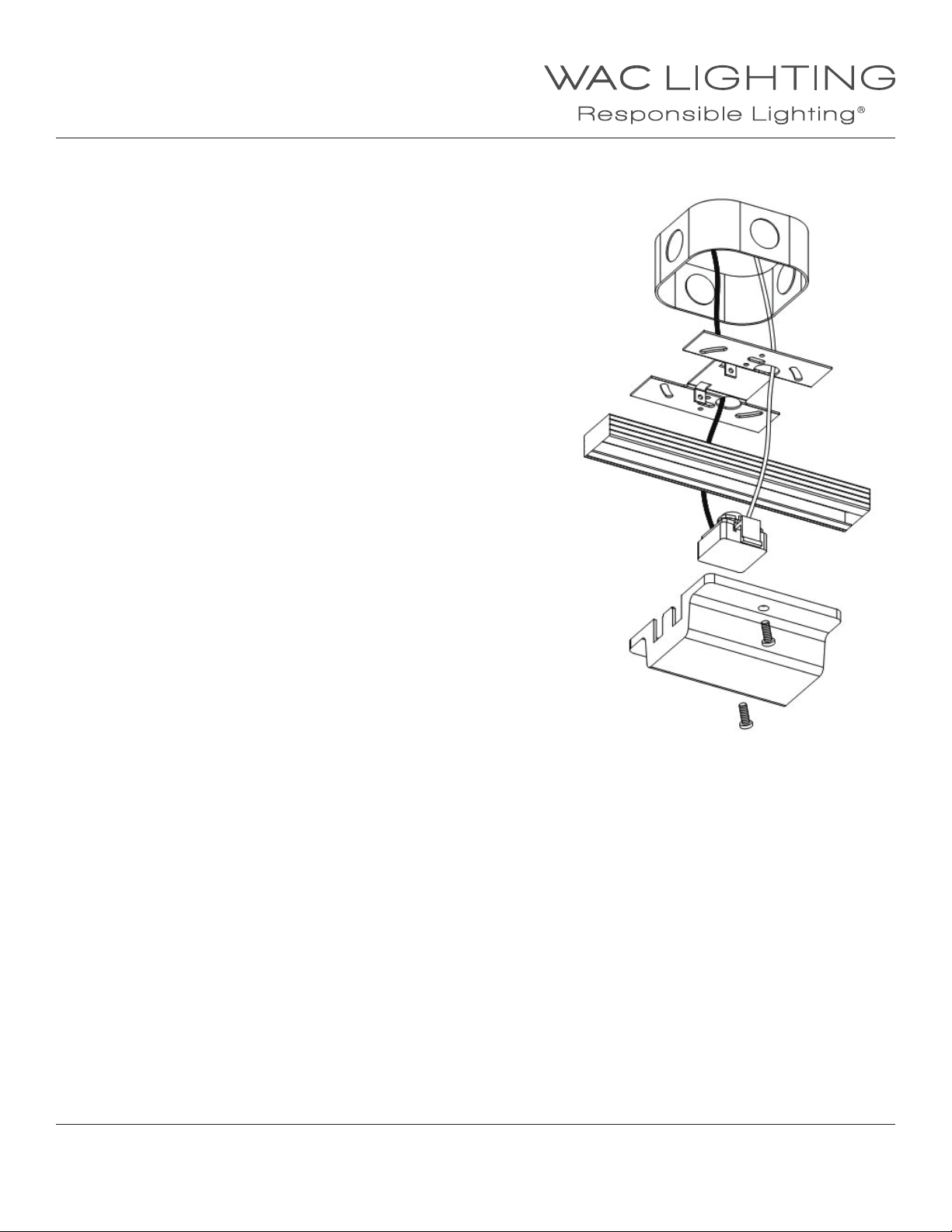

1. Position the mounting plate under the junction box so that the
screw tabs are on the bottom side of the plate. Draw the wires up
through each of the large holes on the mounting plate and make
connections to wires from the junction box. Use wire nuts
(provided) to secure connections. Make certain to connect black
wire to black and white to white. Green grounding wire may be
fastened to a grounded box or directly to a ground wire. Push wires
back into the box.

2. Secure the mounting plate to the junction box. The track screw tabs
should be facing downward. Loosen the screws in preparation for
the track.

3. Note the groove indicating polarity on one side of the track, this is
the side with two bus wires, which will correspond to the contacts
on the track adapter. Raise the track into position and insert the
track adapter into the track with a quarter turn. Hide excess wire in
junction box. Secure track to mounting plate by tightening screw
tabs. Secure the remaining track to the ceiling.

4. Replace canopy cover and secure with two screws.

WAC Lighting

www.waclighting.com
Phone [phone] • Fax [phone]

WAC Lighting retains the right to modify the design of our products at any time as part of the company's continuous improvement program. JULY, 2014
