WAC Lighting WAC6091 Installation & Assembly

Page 1

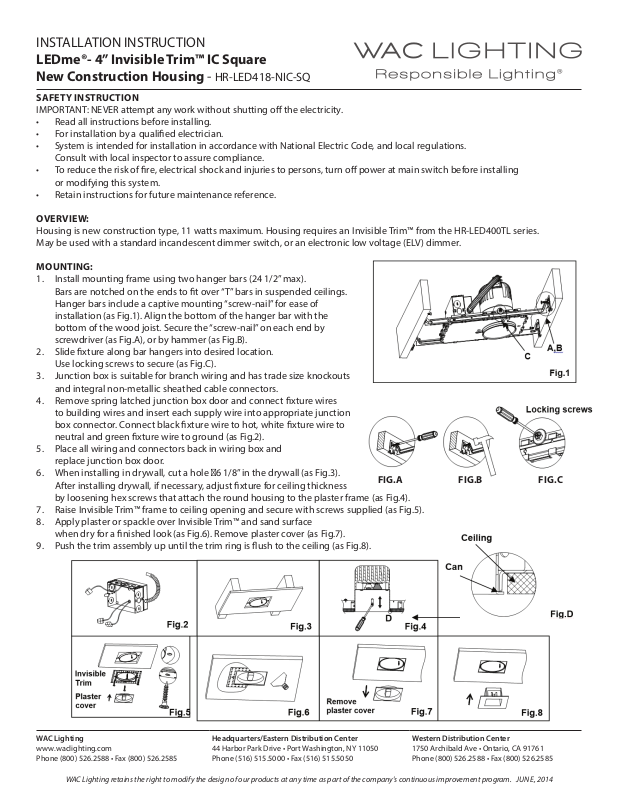

LEDme®- 4” Invisible Trim™ IC Square New Construction Housing - HR-LED418-NIC-SQ
SAFETY INSTRUCTION
IMPORTANT: NEVER attempt any work without shutting o the electricity.
• Read all instructions before installing.
• For installation by a qualied electrician.
• System is intended for installation in accordance with National Electric Code, and local regulations. Consult with local inspector to assure compliance.
• To reduce the risk of re, electrical shock and injuries to persons, turn o power at main switch before installing or modifying this system.
• Retain instructions for future maintenance reference.
OVERVIEW: Housing is new construction type, 11 watts maximum. Housing requires an Invisible Trim™ from the HR-LED400TL series. May be used with a standard incandescent dimmer switch, or an electronic low voltage (ELV) dimmer.
MOUNTING:
1. Install mounting frame using two hanger bars (24 1/2” max).
Bars are notched on the ends to t over “T” bars in suspended ceilings. Hanger bars include a captive mounting “screw-nail” for ease of installation (as Fig.1). Align the bottom of the hanger bar with the bottom of the wood joist. Secure the “screw-nail” on each end by screwdriver (as Fig.A), or by hammer (as Fig.B).
2. Slide xture along bar hangers into desired location.
Use locking screws to secure (as Fig.C).
3. Junction box is suitable for branch wiring and has trade size knockouts
and integral non-metallic sheathed cable connectors.
4. Remove spring latched junction box door and connect xture wires
to building wires and insert each supply wire into appropriate junction box connector. Connect black xture wire to hot, white xture wire to neutral and green xture wire to ground (as Fig.2).
5. Place all wiring and connectors back in wiring box and
replace junction box door.
6. When installing in drywall, cut a hole 6 1/8” in the drywall (as Fig.3).
After installing drywall, if necessary, adjust xture for ceiling thickness by loosening hex screws that attach the round housing to the plaster frame (as Fig.4).
7. Raise Invisible Trim™ frame to ceiling opening and secure with screws supplied (as Fig.5).
8. Apply plaster or spackle over Invisible Trim™ and sand surface
when dry for a nished look (as Fig.6). Remove plaster cover (as Fig.7).
9. Push the trim assembly up until the trim ring is ush to the ceiling (as Fig.8).
FIG.A FIG.B FIG.C
WAC Lighting
www.waclighting.com Phone (800) 526.2588 • Fax (800) 526.2585
WAC Lighting retains the right to modify the design of our products at any time as part of the company's continuous improvement program. JUNE, 2014
Headquarters/Eastern Distribution Center
44 Harbor Park Drive • Port Washington, NY 11050 Phone (516) 515.5000 • Fax (516) 515.5050
Western Distribution Center
1750 Archibald Ave • Ontario, CA 91761 Phone (800) 526.2588 • Fax (800) 526.2585
Page 2
LEDme®- 4” Invisible Trim™ IC Square New Construction Housing - HR-LED418-NIC-SQ

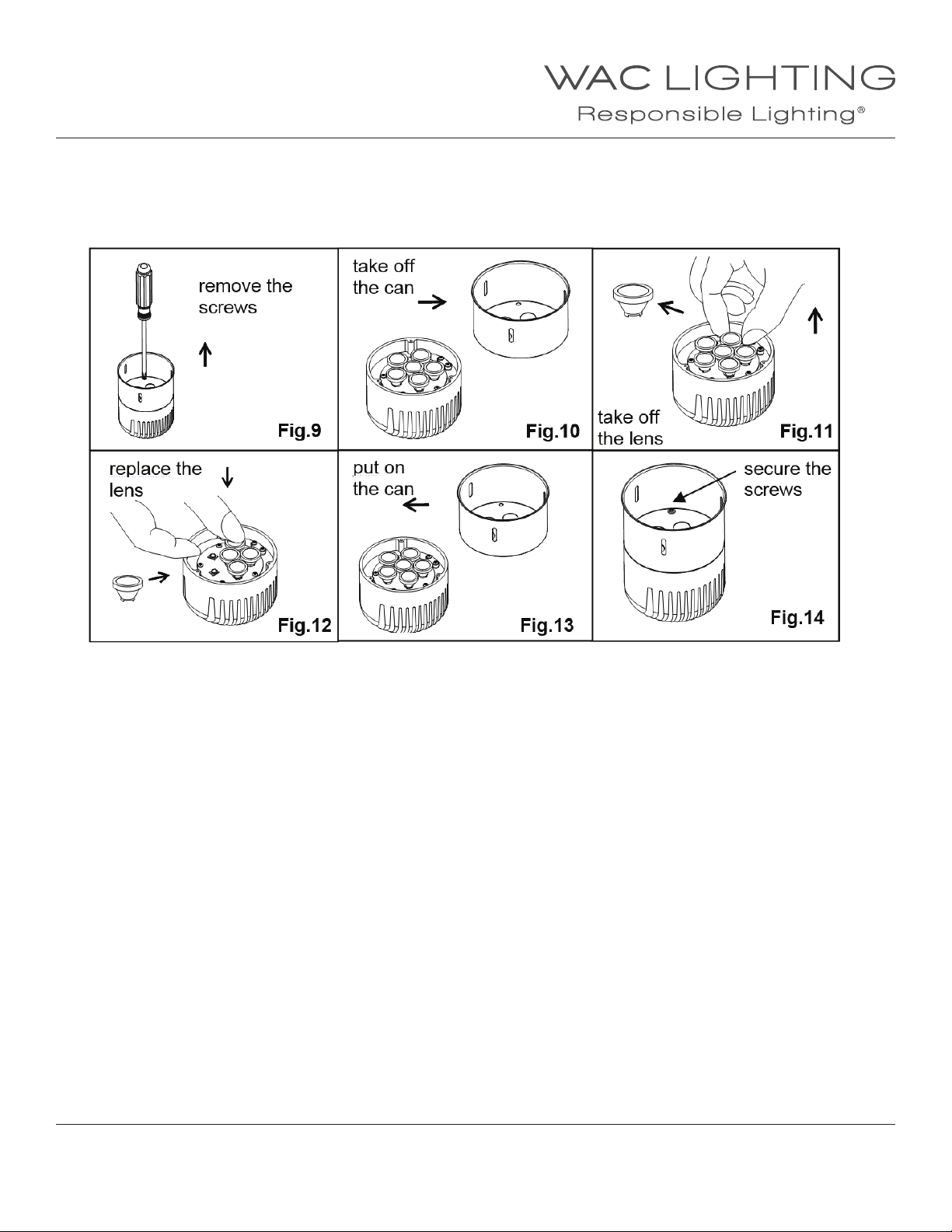

REPLACE LED LENS:
1. Remove the screws and take o the can (as Fig.9 and Fig.10).
2. Replace the lens you choose (as Fig.11 and Fig.12).
3. Put on the can and secure the screws (as Fig.13 and Fig.14).
WAC Lighting
www.waclighting.com Phone (800) 526.2588 • Fax (800) 526.2585
WAC Lighting retains the right to modify the design of our products at any time as part of the company's continuous improvement program. JUNE, 2014
Headquarters/Eastern Distribution Center
44 Harbor Park Drive • Port Washington, NY 11050 Phone (516) 515.5000 • Fax (516) 515.5050
Western Distribution Center
1750 Archibald Ave • Ontario, CA 91761 Phone (800) 526.2588 • Fax (800) 526.2585
Page 3
LEDme®- 4” Invisible Trim™ Non-IC Square New Construction Housing - HR-LED418-N-SQ
SAFETY INSTRUCTION
IMPORTANT: NEVER attempt any work without shutting o the electricity.
• Read all instructions before installing.
• For installation by a qualied electrician.
• System is intended for installation in accordance with National Electric Code, and local regulations.
• Consult with local inspector to assure compliance.
• To reduce the risk of re, electrical shock and injuries to persons, turn o power at main switch before installing or modifying the system.
• Warning: (Risk of re) do not install insulation within 3 inches of xture sides, or junction box, or in a manner to entrap heat.
• Retain instructions for future maintenance reference.
OVERVIEW: Housing is new construction type, 18 watts maximum. Housing requires an Invisible Trim™ from the HR-LED400TL series. May be used with a standard incandescent dimmer switch, or an electronic low voltage (ELV) dimmer. MOUNTING:
1. Install mounting frame using two hanger bars (24 1/2” max).
Bars are notched on the ends to t over “T” bars in suspended ceilings. Hanger bars include a captive mounting “screw-nail” for ease of installation (as Fig.1). Align the bottom of the hanger bar with the bottom of the wood joist. Secure the “screw-nail” on each end by screwdriver (as Fig.A), or by hammer (as Fig.B).
2. Slide xture along bar hangers into desired location.
Use locking screws to secure (as Fig.C).
3. Junction box is suitable for branch wiring and has trade size
knockouts and integral non-metallic sheathed cable connectors.
4. Remove spring latched junction box door and connect xture
wires to building wires and insert each supply wire into appropriate junction box connector. Connect black xture wire to hot, white xture wire to neutral and green xture wire to ground (as Fig.2).
5. Place all wiring and connectors back in wiring box and
replace junction box door.
6. When installing in drywall, cut a hole □6 1/8” in the drywall (as Fig.3).
After installing drywall, if necessary, adjust xture for ceiling thickness by loosening hex screws that attach the round housing to the plaster frame (as Fig.4).
7. Raise Invisible Trim™ frame to ceiling opening and secure
with screws supplied (as Fig.5).
8. Apply plaster or spackle over Invisible Trim™ and sand surface
when dry for a nished look (as Fig.6). Remove plaster cover (as Fig.7).
9. Push the trim assembly up until the trim ring is ush to the ceiling (as Fig.8).
FIG.A FIG.B FIG.C
WAC Lighting
www.waclighting.com Phone (800) 526.2588 • Fax (800) 526.2585
WAC Lighting retains the right to modify the design of our products at any time as part of the company's continuous improvement program. JUNE, 2014
Headquarters/Eastern Distribution Center
44 Harbor Park Drive • Port Washington, NY 11050 Phone (516) 515.5000 • Fax (516) 515.5050
Western Distribution Center
1750 Archibald Ave • Ontario, CA 91761 Phone (800) 526.2588 • Fax (800) 526.2585
Page 4
LEDme®- 4” Invisible Trim™ Non-IC Square New Construction Housing - HR-LED418-N-SQ

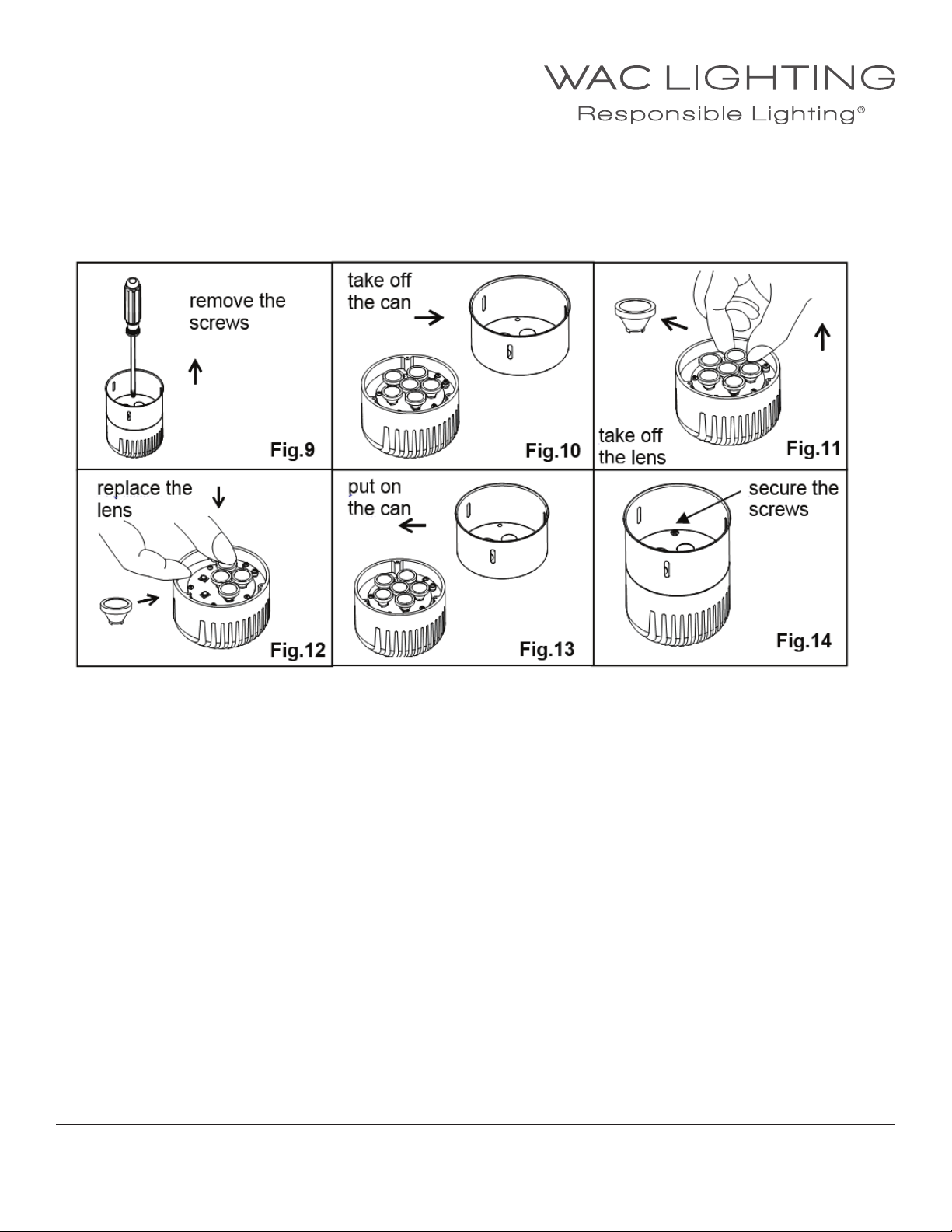

REPLACE LED LENS:
1. Remove the screws and take o the can (as Fig.9 and Fig.10).
2. Replace the lens you choose (as Fig.11 and Fig.12).
3. Put on the can and secure the screws (as Fig.13 and Fig.14).
WAC Lighting
www.waclighting.com Phone (800) 526.2588 • Fax (800) 526.2585
WAC Lighting retains the right to modify the design of our products at any time as part of the company's continuous improvement program. JUNE, 2014
Headquarters/Eastern Distribution Center
44 Harbor Park Drive • Port Washington, NY 11050 Phone (516) 515.5000 • Fax (516) 515.5050
Western Distribution Center
1750 Archibald Ave • Ontario, CA 91761 Phone (800) 526.2588 • Fax (800) 526.2585
