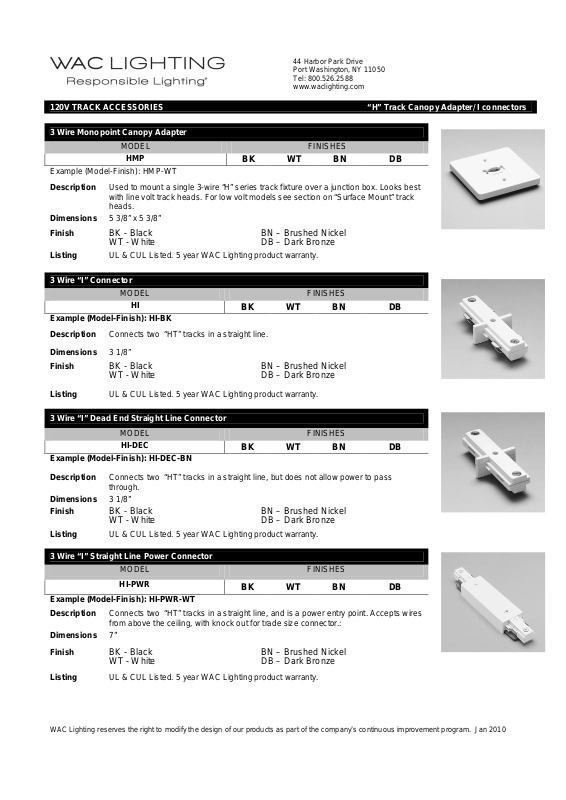

Page 1
120V TRACK ACCESSORIES “H” Track Canopy Adapter/ I connectors
3 Wire Monopoint Canopy Adapter
MODEL FINISHES
HMP
Example (Model-Finish): HMP-WT
BK WT BN DB
44 Harbor Park Drive
Port Washington, NY 11050
Tel: 800.526.2588
www.waclighting.com
Description Used to mount a single 3-wire “H” series track fixture over a junction box. Looks best
Dimensions 5 3/8” x 5 3/8”
Finish
Listing UL & CUL Listed. 5 year WAC Lighting product warranty.
3 Wire “I” Connector
Example (Model-Finish): HI-BK
Description Connects two “HT” tracks in a straight line.
Dimensions 3 1/8”
Finish
Listing UL & CUL Listed. 5 year WAC Lighting product warranty.
3 Wire “I” Dead End Straight Line Connector
Example (Model-Finish): HI-DEC-BN
with line volt track heads. For low volt models see section on “Surface Mount” track
heads.
BK - Black
WT - White
MODEL FINISHES
HI
BK - Black
WT - White
MODEL FINISHES
HI-DEC
BN – Brushed Nickel
DB – Dark Bronze
BK WT BN DB
BN – Brushed Nickel
DB – Dark Bronze
BK WT BN DB
Description Connects two “HT” tracks in a straight line, but does not allow power to pass
Dimensions 3 1/8”
Finish
Listing UL & CUL Listed. 5 year WAC Lighting product warranty.
3 Wire “I” Straight Line Power Connector
Example (Model-Finish): HI-PWR-WT
Description Connects two “HT” tracks in a straight line, and is a power entry point. Accepts wires
Dimensions 7”
Finish
Listing UL & CUL Listed. 5 year WAC Lighting product warranty.
WAC Lighting reserves the right to modify the design of our products as part of the company’s continuous improvement program. Jan 2010
through.
BK - Black
WT - White
MODEL FINISHES
HI-PWR
from above the ceiling, with knock out for trade size connector.:
BK - Black
WT - White
BN – Brushed Nickel
DB – Dark Bronze
BK WT BN DB
BN – Brushed Nickel
DB – Dark Bronze
Page 2
120V TRACK ACCESSORIES “J” Track Canopy Adapter/ I connectors
Monopoint Canopy Adapter
MODEL FINISHES
JMP
Example (Model-Finish): JMP-WT
Description Used to mount a single “J” series track fixture over a junction box. Looks best with
Dimensions 4 3/4" W
Finish
line volt track heads. For low volt models see section on “Surface Mount” track
heads.
BK - Black
BK WT BN
WT - White
Listing UL & CUL Listed. 5 year WAC Lighting product warranty.
Wide 2-Wire “I” Connector
MODEL FINISHES
JI
Example (Model-Finish): JI-DB
Description Connects two “JT” tracks in a straight line.
Dimensions 3”
BK WT BN
44 Harbor Park Drive
Port Washington, NY 11050
Tel: 800.526.2588
www.waclighting.com
BN – Brushed Nickel
Finish
Listing UL & CUL Listed. 5 year WAC Lighting product warranty.
Wide 2-Wire “I” Dead End Straight Line Connector
Example (Model-Finish): JI-DEC-BN
Description Connects two “JT” tracks in a straight line, but does not allow power to pass
Dimensions 3”
Finish
Listing UL & CUL Listed. 5 year WAC Lighting product warranty.
Wide 2-Wire “I” Straight Line Power Connector
Example (Model-Finish): JI-PWR-WT
Description Connects two “JT” tracks in a straight line, and is a power entry point. Accepts wires
Dimensions 7 1/8”
Finish
BK - Black
WT - White
MODEL FINISHES
JI-DEC
through.:
BK - Black
WT - White
MODEL FINISHES
JI-PWR
from above the ceiling, with knock out for trade size connector.
BK - Black
WT - White
BN – Brushed Nickel
BK WT BN
BN – Brushed Nickel
BK WT BN
BN – Brushed Nickel
Listing UL & CUL Listed. 5 year WAC Lighting product warranty.
WAC Lighting reserves the right to modify the design of our products as part of the company’s continuous improvement program. Jan 2010
Page 3
BK - Black
BN – Brushed Nickel
120V TRACK ACCESSORIES “L” Track Canopy Adapter/ I connectors
2 Wire Monopoint Canopy Adapter
MODEL FINISHES
LMP
Example (Model-Finish): LMP-DB
Description Used to mount a single “L” series track fixture over a junction box. Looks best with
line volt track heads. For low volt models see section on “Surface Mount” track
heads.
Dimension 4 3/8” W
BK WT BN
44 Harbor Park Drive
Port Washington, NY 11050
Tel: 800.526.2588
www.waclighting.com
Finish
Listing UL & CUL Listed. 5 year WAC Lighting product warranty.
2 Wire “I” Connector
Example (Model-Finish): LI-BK
Description Connects two “LT” tracks in a straight line.
Dimension 3”
Finish
Listing UL & CUL Listed. 5 year WAC Lighting product warranty.
2 Wire “I” Dead End Straight Line Connector
Example (Model-Finish): LI-DEC-BN
Description Connects two “LT” tracks in a straight line, but does not allow power to pass
Dimension 3”
Finish
Listing UL & CUL Listed. 5 year WAC Lighting product warranty.
2 Wire “I” Straight Line Power Connector
Example (Model-Finish): LI-PWR-WT
Description Connects two “LT” tracks in a straight line, and is a power entry point. Accepts
Dimension 6 3/4"
WT - White
MODEL FINISHES
LI
BK - Black
WT - White
MODEL FINISHES
LI-DEC
through.
BK - Black
WT - White
MODEL FINISHES
LI-PWR
wires from above the ceiling, with knock out for trade size connector.
BK WT BN
BN – Brushed Nickel
BK WT BN
BN – Brushed Nickel
BK WT BN
Finish
Listing UL & CUL Listed. 5 year WAC Lighting product warranty.
WAC Lighting reserves the right to modify the design of our products as part of the company’s continuous improvement program. Jan 2010
BK - Black
WT - White
BN – Brushed Nickel
