Overview:

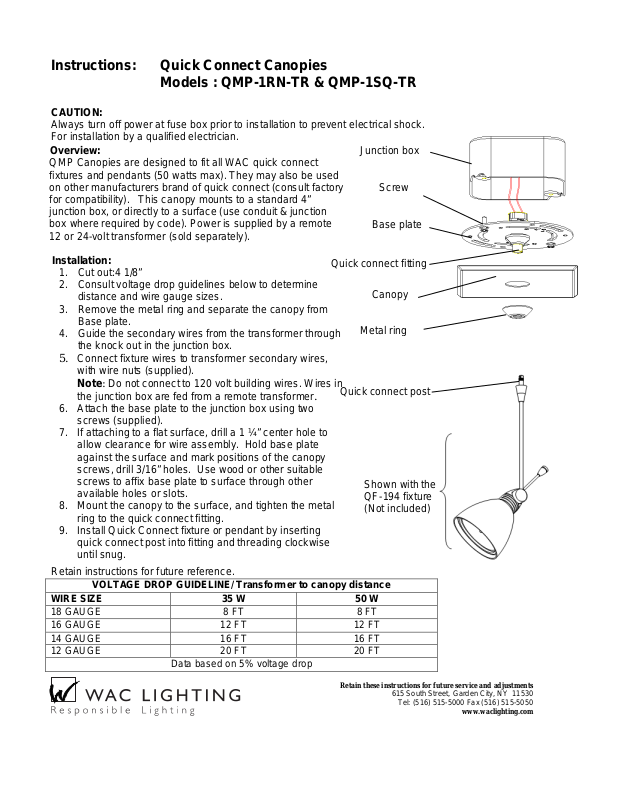

Instructions: Quick Connect Canopies
VOLTAGE DROP GUIDELINE/ Transformer to canopy d istance
WIRE SIZE
35 W
50 W
18 GAUGE
8 FT
8 FT
14 GAUGE
16 FT
16 FT
12 GAUGE
20 FT
20 FT
Data based on 5% voltage drop

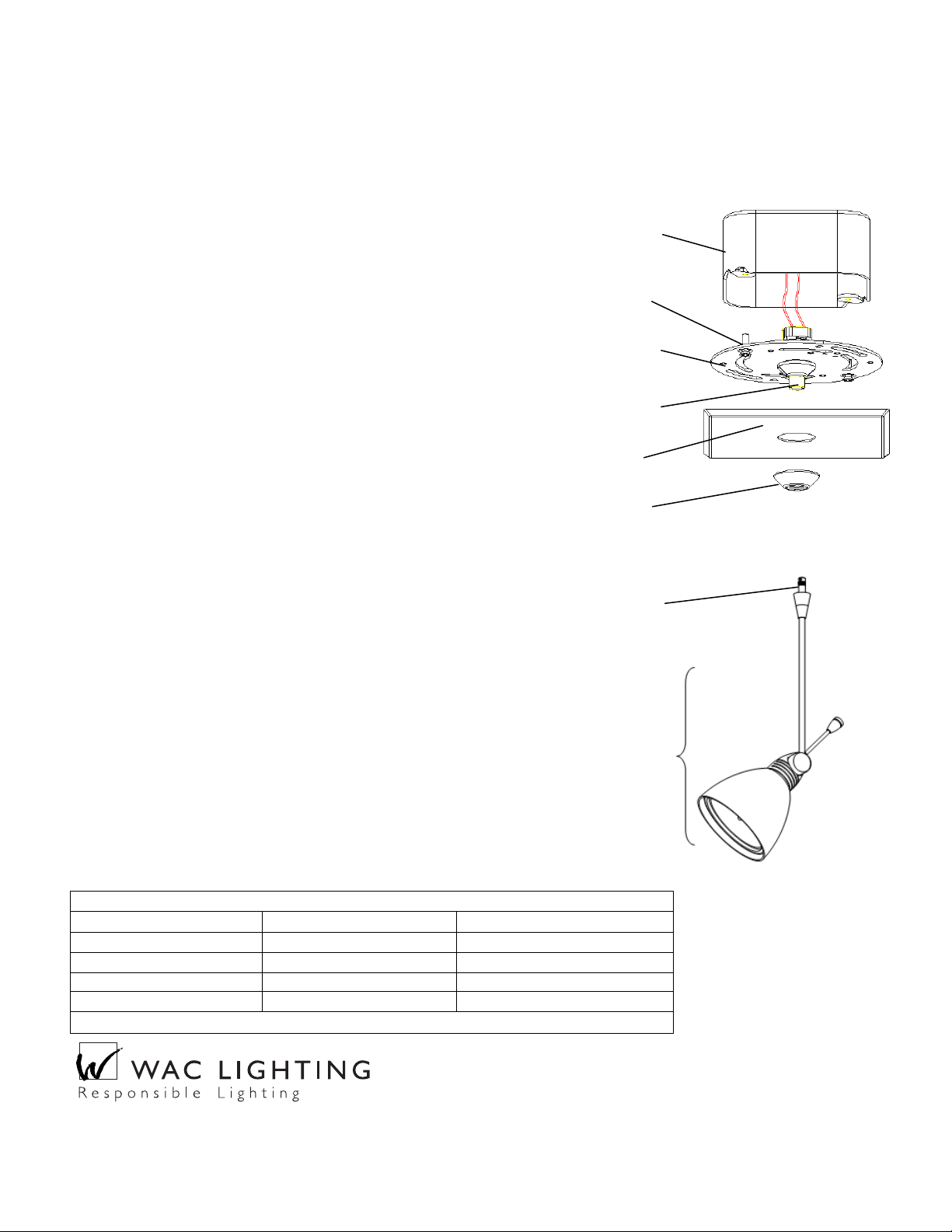

Junction box
Screw
Base plate
Quick connect fitting
Canopy
Metal ring
Quick connect post
Shown with the
Retain these instructions for future service and adjustments
Models : QMP-1RN-TR & QMP-1SQ-TR
CAUTION:
Always turn off power at fuse box prior to installation t o pr event electrical shock.
For installation by a qualified electrician.
QMP Canopies are designed t o fit all WAC quick connect
fixtures and pendants (50 w atts max). They may also be used
on other manufacturers br and of quick connect (consult factory
for compatibility). This ca nopy mounts to a standard 4”
junction box, or directly to a surface (use conduit & junctio n
box where required by code). Pow er is supplied by a remote
12 or 24-volt transformer (sold s eparately).
Installation:
1. Cut out:4 1/8”
2. Consult voltage drop guidelines below to determine
distance and wire gauge siz es.
3. Remove the metal ring and separate the canopy from
Base plate.
4. Guide the secondary wires from the transformer thr ough
the knock out in the junction box .
5. Connect fixture wires to transformer secondary wires,
with wire nuts (supplied).
Note:
the junction box are fed fr om a remote transformer
6. Attach the base plate to the junction box using two
screws (supplied).
7. If attaching to a flat surface, dr ill a 1 ¼” ce nt er hole to
allow clearance for wire a ssembly. Hold base plate
against the surface and mar k p ositions of the canopy
screws, drill 3/16” holes. Use w ood or other suitable
screws to affix base plate to sur face through other
available holes or slots.
8. Mount the canopy to the surface, and tighten the metal
ring to the quick connect fitting.
9. Install Quick Connect fixture or pendant by inserting
quick connect post into fitt ing a nd threading clockwise
until snug.
Retain instructions for future reference.
16 GAUGE 12 FT 12 FT
Do not connect to 120 volt building wires. Wires in
.
QF-194 fixture
(Not included)
615 South Street, Garden City, NY 11530
Tel: (516) 515-5000 Fax (516) 515-5050
www.waclighting.com
