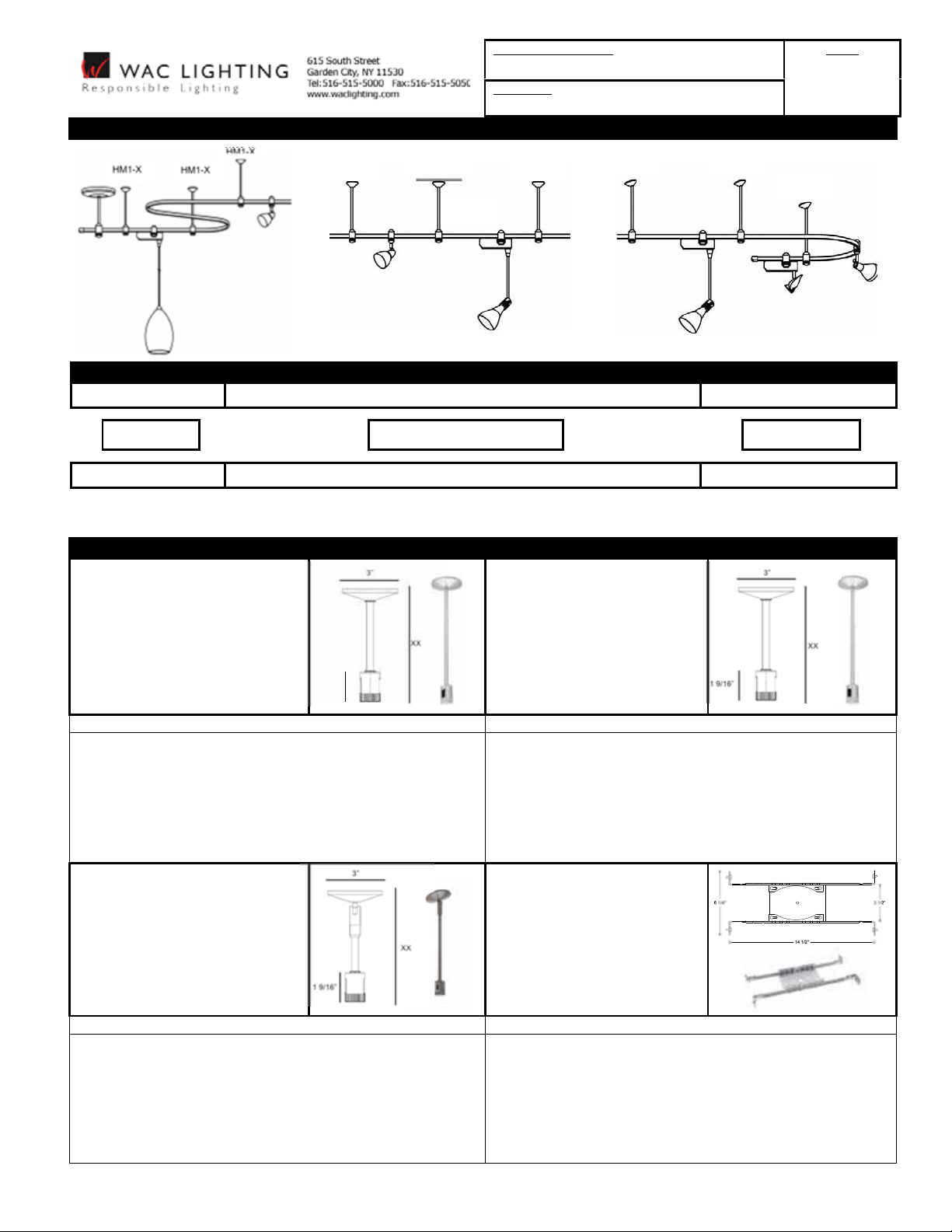

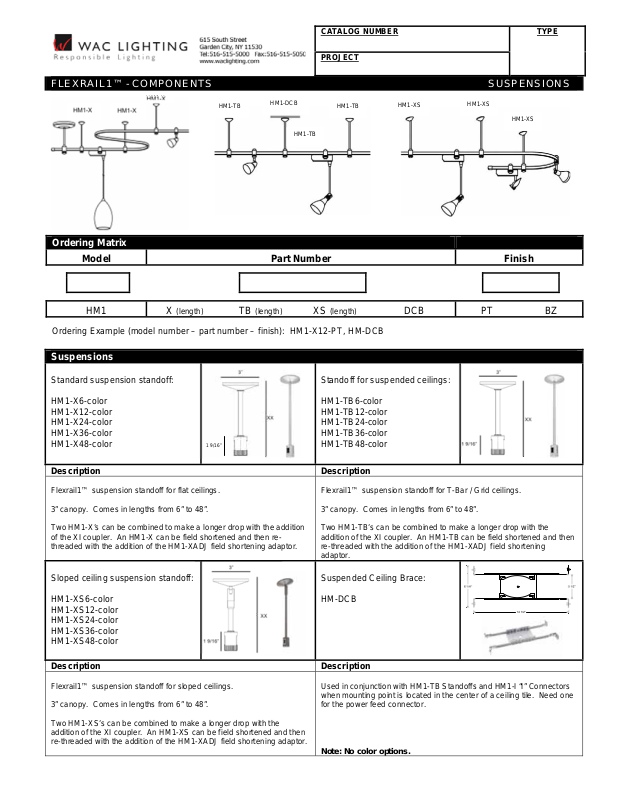

FLEXRAIL1™ - COMPONENTS SUSPENSIONS
HM1-X
HM1-X
-
HM1-TB
HM1-DCB
HM1-TB
HM1-TB
HM1-XS
HM1-XS
HM1-XS
Ordering Matrix
Model Part Number Finish
HM1 X (length) TB (length) XS (length) DCB PT BZ
Ordering Example (model number – part number – finish): HM1-X12-PT, HM-DCB
Suspensions
Standard suspension standoff:
HM1-X6-color
HM1-X12-color
HM1-X24-color
HM1-X36-color
HM1-X48-color
1 9/16”
3”
Standoff for suspended ceilings:
HM1-TB6-color
XX
HM1-TB12-color
HM1-TB24-color
HM1-TB36-color
HM1-TB48-color
Description Description
Flexrail1™ suspension standoff for flat ceilings.
3” canopy. Comes in lengths from 6” to 48”.
Two HM1-X’s can be combined to make a longer drop with the addition
of the XI coupler. An HM1-X can be field shortened and then rethreaded with the addition of the HM1-XADJ field shortening adaptor.
3”
Sloped ceiling suspension standoff:
HM1-XS6-color
HM1-XS12-color
HM1-XS24-color
XX
Flexrail1™ suspension standoff for T-Bar / Grid ceilings.
3” canopy. Comes in lengths from 6” to 48”.
Two HM1-TB’s can be combined to make a longer drop with the
addition of the XI coupler. An HM1-TB can be field shortened and then
re-threaded with the addition of the HM1-XADJ field shortening
adaptor.
Suspended Ceiling Brace:
HM-DCB
HM1-XS36-color
HM1-XS48-color
1 9/16”
1 9/16”
3”
XX
Description Description
Flexrail1™ suspension standoff for sloped ceilings.
3” canopy. Comes in lengths from 6” to 48”.
Two HM1-XS’s can be combined to make a longer drop with the
addition of the XI coupler. An HM1-XS can be field shortened and then
re-threaded with the addition of the HM1-XADJ field shortening adaptor.
Used in conjunction with HM1-TB Standoffs and HM1-I “I” Connectors
when mounting point is located in the center of a ceiling tile. Need one
for the power feed connector.
Note: No color options.
