Page 1
CATALOG NUMBER
PROJECT
TYPE

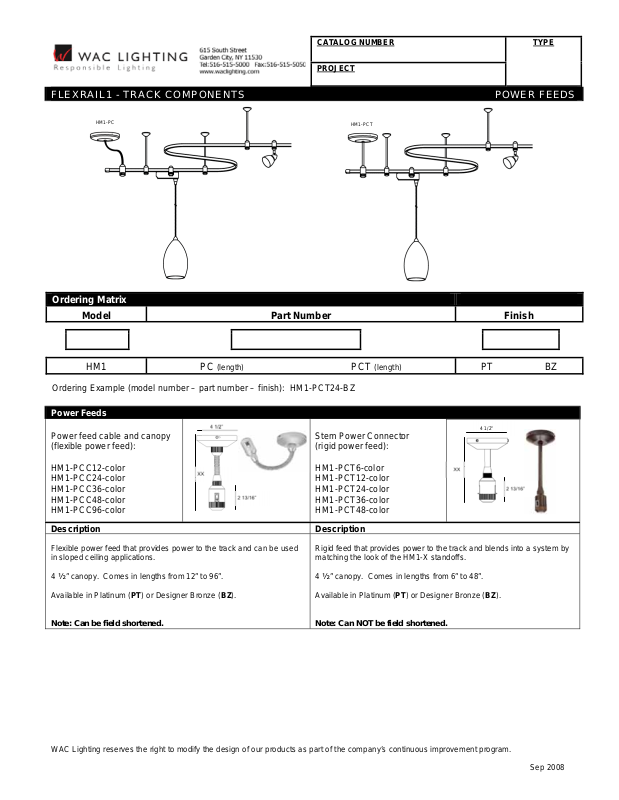

FLEXRAIL1 - TRACK COMPONENTS POWER FEEDS
HM1-PC
HM1-PCT
Ordering Matrix
Model Part Number Finish
HM1 PC (length) PCT (length) PT BZ
Ordering Example (model number – part number – finish): HM1-PCT24-BZ
Power Feeds
Power feed cable and canopy
(flexible power feed):
HM1-PCC12-color
HM1-PCC24-color
HM1-PCC36-color
HM1-PCC48-color
HM1-PCC96-color
4 1/2”
Stem Power Connector
(rigid power feed):
XX
2 13/16”
HM1-PCT6-color
HM1-PCT12-color
HM1-PCT24-color
HM1-PCT36-color
HM1-PCT48-color
Description Description
Flexible power feed that provides power to the track and can be used
in sloped ceiling applications.
4 ” canopy. Comes in lengths from 12” to 96”.
Available in Platinum (PT) or Designer Bronze (BZ).
Note: Can be field shortened.
Rigid feed that provides power to the track and blends into a system by
matching the look of the HM1-X standoffs.
4 ” canopy. Comes in lengths from 6” to 48”.
Available in Platinum (PT) or Designer Bronze (BZ).
Note: Can NOT be field shortened.
WAC Lighting reserves the right to modify the design of our products as part of the company’s continuous improvement program.
4 1/2”
XX
2 13/16”
Sep 2008
