WAC Lighting reserves the right to modify the design of our products as part of the company’s continuous improvement program.

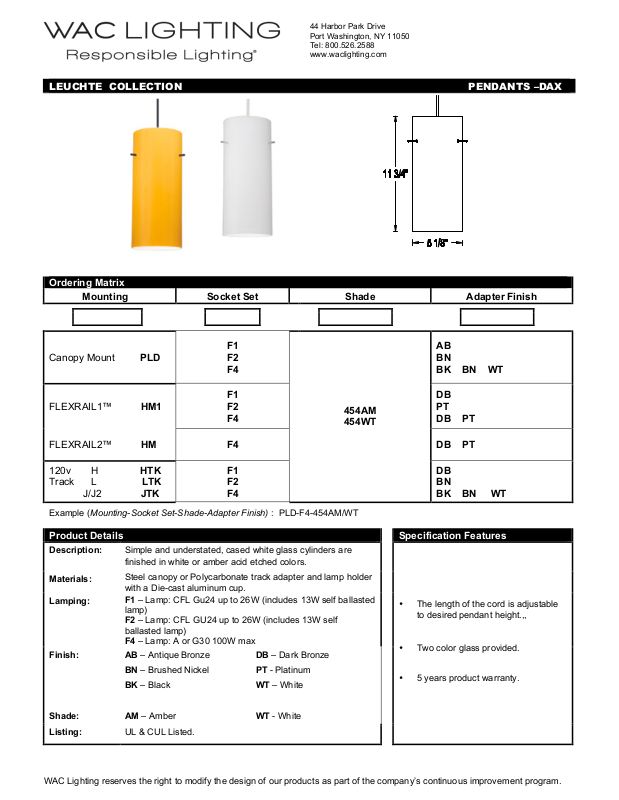

LEUCHTE COLLECTION PENDANTS –DAX
Ordering Matrix
Mounting
Socket Set
Shade
Adapter Finish
Canopy Mount PLD
F1
F2
F4
AB
BN
BK BN WT
FLEXRAIL1™ HM1
F1
F2
F4
DB
PT
DB PT
FLEXRAIL2™ HM
F4
DB PT
120v H HTK
Track L LTK
J/J2 JTK
F1
F2
F4
454AM
454WT
DB
BN
BK BN WT
Example (Mounting-Socket Set-Shade-Adapter Finish) : PLD-F4-454AM/WT
Product Details
Specification Features
Description:
Simple and understated, cased white glass cylinders are
finished in white or amber acid etched colors.
Materials:
Steel canopy or Polycarbonate track adapter and lamp holder
with a Die-cast aluminum cup.
Lamping:
F1 – Lamp: CFL Gu24 up to 26W (includes 13W self ballasted
lamp)
F2 – Lamp: CFL GU24 up to 26W (includes 13W self
ballasted lamp)
F4 – Lamp: A or G30 100W max
Finish:
Shade:
AB – Antique Bronze
BN – Brushed Nickel
BK – Black
AM – Amber
DB – Dark Bronze
PT - Platinum
WT – White
WT - White
Listing:
UL & CUL Listed.
• The length of the cord is adjustable
to desired pendant height.,,
• Two color glass provided.
• 5 years product warranty.
44 Harbor Park Drive
Port Washington, NY 11050
Tel: 800.526.2588
www.waclighting.com
