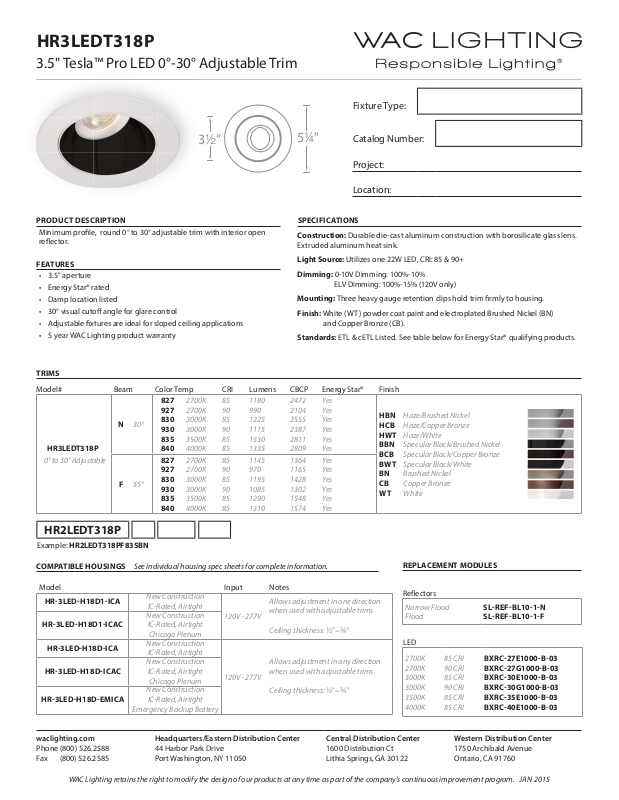

HR3LEDT318P
3
3.5" Tesla™ Pro LED 0°-30° Adjustable Trim
Fixture Type:
32”
54"
Catalog Number:
Project:
Location:
PRODUCT DESCRIPTION
Minimum pro le, round 0° to 30° adjustable trim with interior open
re ector.
FEATURES
• 3.5" aperture
• Energy Star® rated
• Damp location listed
• 30° visual cuto angle for glare control
• Adjustable xtures are ideal for sloped ceiling applications
• 5 year WAC Lighting product warranty
TRIMS
Model# Beam Color Temp CRI Lumens CBCP Energy Star® Finish
827
HR3LEDT318P
0° to 30° Adjustable
N 30°
F 55°
927
830
930
835
840
827
927
830
930
835
840
2700K
2700K
3000K
3000K
3500K
4000K
2700K
2700K
3000K
3000K
3500K
4000K
85
1180
90
990
85
1225
90
1115
85
1330
85
1335
85
1145
90
970
85
1195
90
1085
85
1290
85
1310
SPECIFICATIONS
Construction: Durable die-cast aluminum construction with borosilicate glass lens.
Extruded aluminum heat sink.
Light Source: Utilizes one 22W LED, CRI: 85 & 90+
Dimming:
ELV Dimming: 100%-15% (120V only)
Mounting: Three heavy gauge retention clips hold trim rmly to housing.
Finish: White (WT) powder coat paint and electroplated Brushed Nickel (BN)
and Copper Bronze (CB).
Standards: ETL & cETL Listed. See table below for Energy Star® qualifying products.
2472
2104
2555
2387
2811
2809
1364
1165
1428
1302
1548
1574
0-10V Dimming: 100%-10%
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
HBN
HCB
HWT
BBN
BCB
BWT
BN
CB
WT
Haze/Brushed Nickel
Haze/Copper Bronze
Haze/White
Specular Black/Brushed Nickel
Specular Black/Copper Bronze
Specular Black/White
Brushed Nickel
Copper Bronze
White
HR2LEDT318P
Example: HR2LEDT318PF835BN
COMPATIBLE HOUSINGS See individual housing spec sheets for complete information.
Model Input Notes
HR-3LED-H18D1-ICA
HR-3LED-H18D1-ICAC
HR-3LED-H18D-ICA
HR-3LED-H18D-ICAC
HR-3LED-H18D-EMICA
waclighting.com
Phone (800) 526.2588
Fax (800) 526.2585
WAC Lighting retains the right to modify the design of our products at any time as part of the company's continuous improvement program. JAN 2015
New Construction
IC-Rated, Airtight
New Construction
IC-Rated, Airtight
Chicago Plenum
New Construction
IC-Rated, Airtight
New Construction
IC-Rated, Airtight
Chicago Plenum
New Construction
IC-Rated, Airtight
Emergency Backup Battery
Headquarters/Eastern Distribution Center
44 Harbor Park Drive
Port Washington, NY 11050
120V -277V
120V -277V
Allows adjustment in one direction
when used with adjustable trims
Ceiling thickness: 2"-w"
Allows adjustment in any direction
when used with adjustable trims
Ceiling thickness: 2"-w"
Central Distribution Center
1600 Distribution Ct
Lithia Springs, GA 30122
REPLACEMENT MODULES
Re ectors
Narrow Flood
Flood
LED
2700K
2700K
3000K
3000K
3500K
4000K
85 CRI
90 CRI
85 CRI
90 CRI
85 CRI
85 CRI
SL-REF-BL10-1-N
SL-REF-BL10-1-F
BXRC-27E1000-B-03
BXRC-27G1000-B-03
BXRC-30E1000-B-03
BXRC-30G1000-B-03
BXRC-35E1000-B-03
BXRC-40E1000-B-03
Western Distribution Center
1750 Archibald Avenue
Ontario, CA 91760
