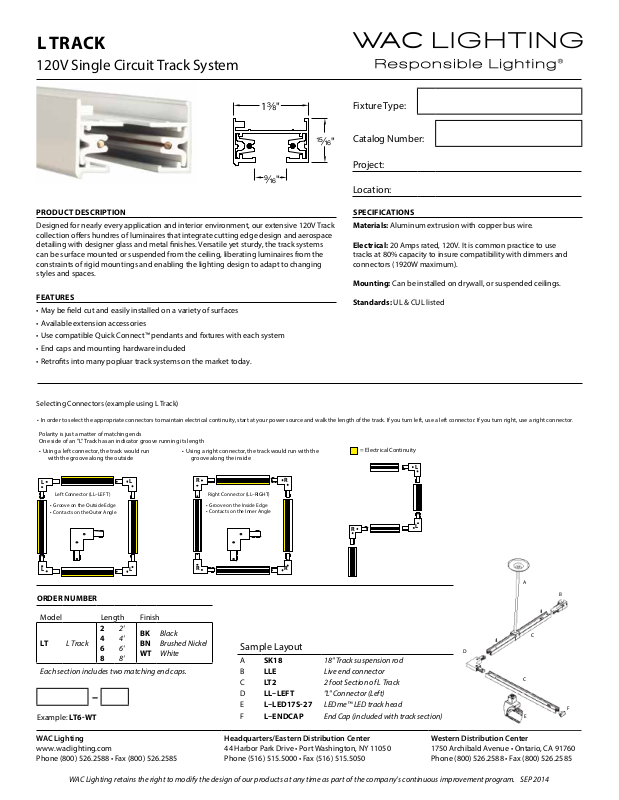

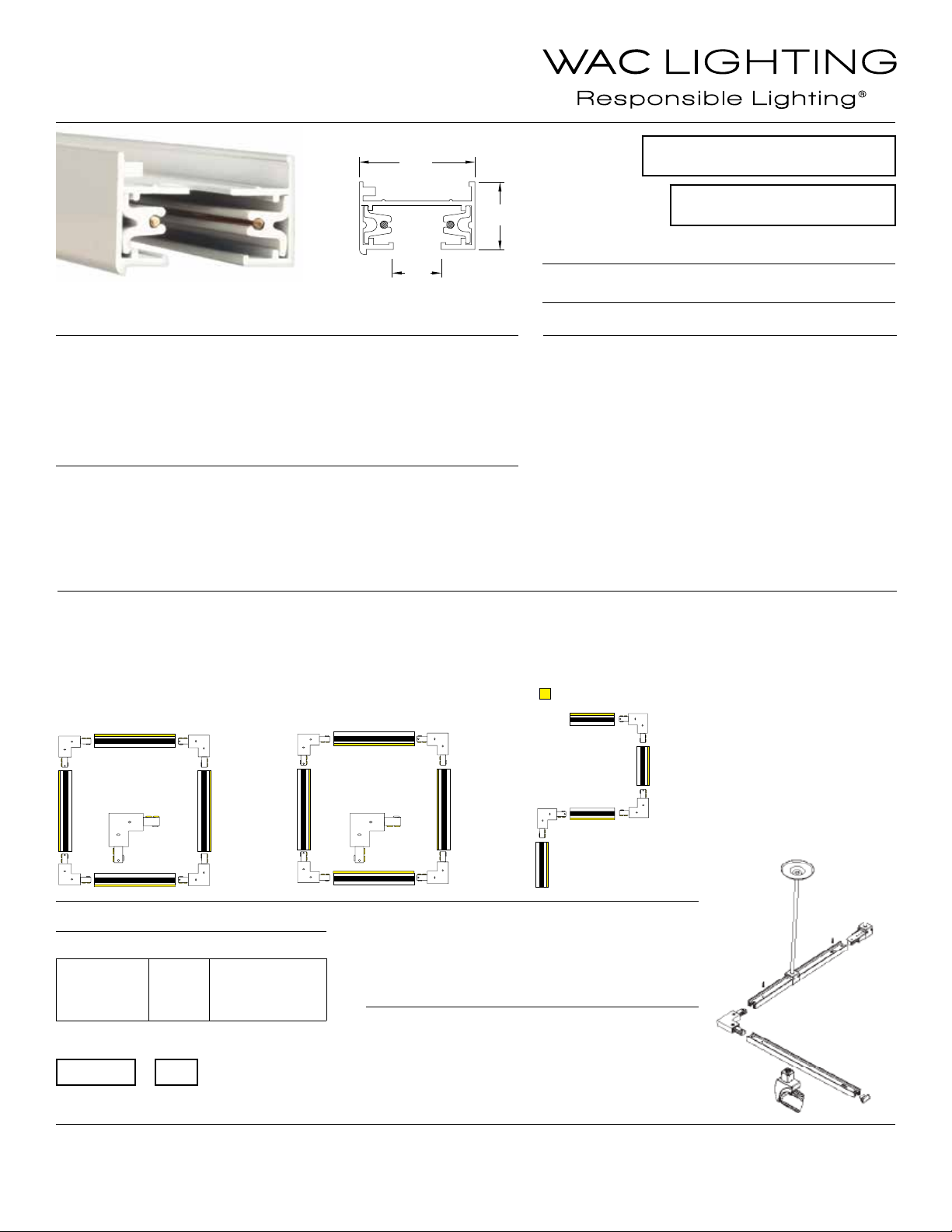

Page 1
L TRACK
120V Single Circuit Track System
1a"
,"
b"
PRODUCT DESCRIPTION
Designed for nearly every application and interior environment, our extensive 120V Track
collection oers hundres of luminaires that integrate cutting edge design and aerospace
detailing with designer glass and metal nishes. Versatile yet sturdy, the track systems
can be surface mounted or suspended from the ceiling, liberating luminaires from the
constraints of rigid mountings and enabling the lighting design to adapt to changing
styles and spaces.
FEATURES
• May be eld cut and easily installed on a variety of surfaces
• Available extension accessories
• Use compatible Quick Connect™ pendants and xtures with each system
• End caps and mounting hardware included
• Retrots into many popluar track systems on the market today.
Fixture Type:
Catalog Number:
Project:
Location:
SPECIFICATIONS
Materials: Aluminum extrusion with copper bus wire.
Electrical: 20 Amps rated, 120V. It is common practice to use
tracks at 80% capacity to insure compatibility with dimmers and
connectors (1920W maximum).
Mounting: Can be installed on drywall, or suspended ceilings.
Standards: UL & CUL listed
Selecting Connectors (example using L Track)
• In order to select the appropriate connectors to maintain electrical continuity, start at your power source and walk the length of the track. If you turn left, use a left connector. If you turn right, use a right connector.
Polarity is just a matter of matching ends
One side of an "L" Track has an indicator groove running its length
• Using a left connector, the track would run
with the groove along the outside
L
Left Connector (LL–LEFT)
• Groove on the Outside Edge
• Contacts on the Outer Angle
L
L
L
• Using a right connector, the track would run with the
groove along the inside
ORDER NUMBER
R
Right Connector (LL–RIGHT)
• Groove on the Inside Edge
• Contacts on the Inner Angle
R
R
R
= Electrical Continuity
R
L
L
A
B
Model Length Finish
2
2'
BK
LT L Track
4
4'
6
6'
8
8'
BN
WT
Black
Brushed Nickel
White
Each section includes two matching end caps.
–
Example: LT6WT
Sample Layout
A SK18 18" Track suspension rod
B LLE Live end connector
C LT2 2 foot Section of L Track
D LLLEFT "L" Connector (Left)
E LLED17S27 LEDme™ LED track head
F LENDCAP End Cap (included with track section)
D
C
C
E
F
WAC Lighting
www.waclighting.com
Phone (800) 526.2588 • Fax (800) 526.2585
WAC Lighting retains the right to modify the design of our products at any time as part of the company's continuous improvement program. SEP 2014
Headquarters/Eastern Distribution Center
44 Harbor Park Drive • Port Washington, NY 11050
Phone (516) 515.5000 • Fax (516) 515.5050
Western Distribution Center
1750 Archibald Avenue • Ontario, CA 91760
Phone (800) 526.2588 • Fax (800) 526.2585

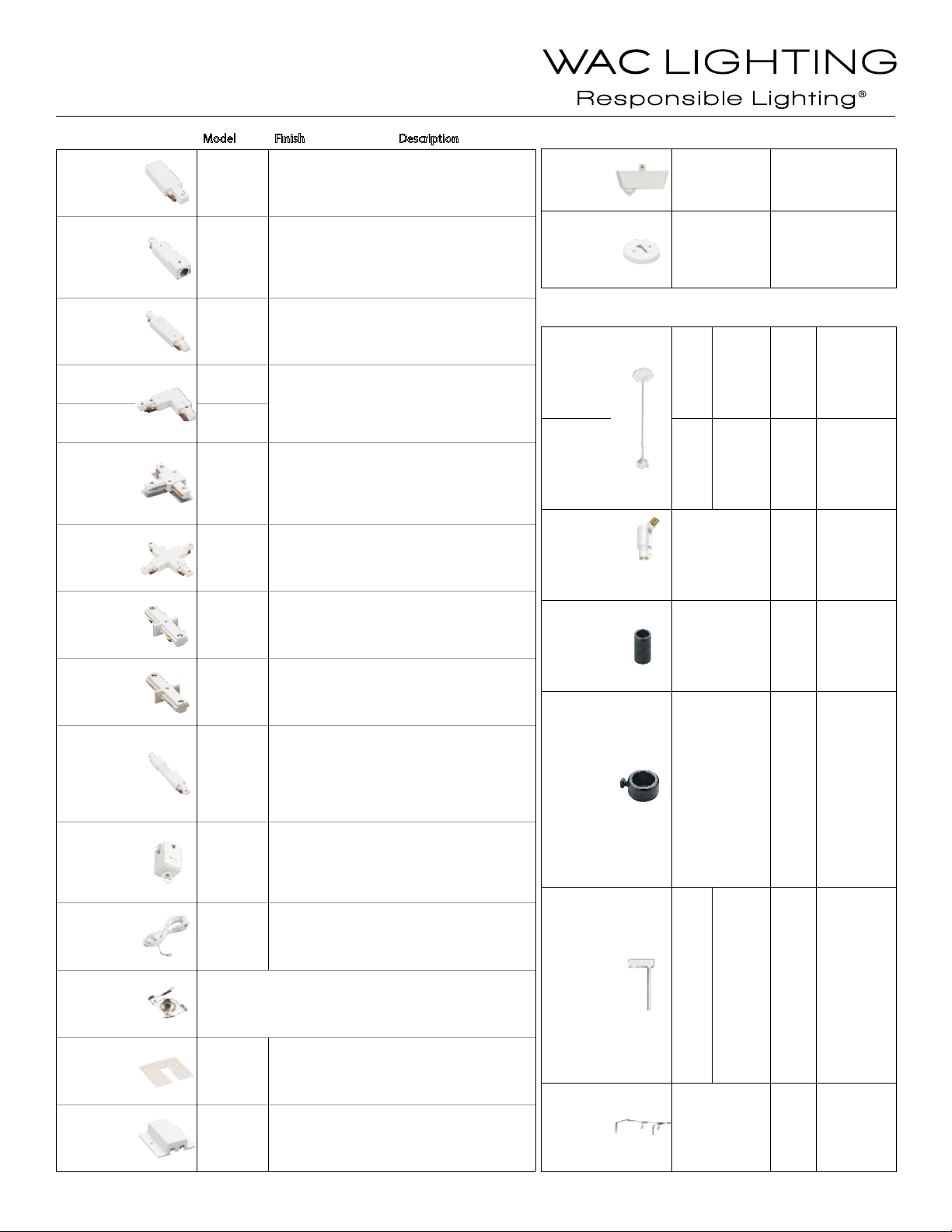

Page 2
L TRACK
120V Single Circuit Track System
Accessories Model Finish Description
Live End
Connector
Live End
BX Connector
"I" Power
Connector
"L" Connector
Left
"L" Connector
Right
"T" Connector LT
"X" Connector LX
LLE
LBXLE
LIPWRBKBN
LL
LEFT
LLRIGHT
BK
BN
44” × 1a” × w”
WT
BK
BN
5w” × 1a” × 14”
WT
7” × 1a” × w”
WT
BK
BN
44” × 44” × w”
WT
BK
BN
74” × 44” × w”
WT
BK
BN
78” × 78” × w”
WT
Use for direct wiring
through ceiling. Canopy
plate required when using
with a junction box.
Use with surface mounted
BX or non-metallic
sheathed cable. Also
provides through the
ceiling connection.
Power entry point at the
connection of 2 tracks.
Use to join 2 track sections
to make power feedable
90° left polarity turns.
Use to join 3 track sections.
Power feedable on H and
J only. "T" Connector with
opposite polarity can be
custom ordered.
Use to join 4 track sections.
Power feedable on H and
J only.
Adapters Model Finish Description
Connects
Quick
Connect™
Adapter
Monopoint
Canopy
Adapter
ENLQ50AR
LMP
BK
BN
WT
BK
BN
WT
pendant or
xture to
track.
Mount a
single system
track xture
to a junction
box.
Track Suspension Model Finish Description
All Track
Suspension
Kit
Suspension
Kit Extender
Sloped
Ceiling
Adapter
SK
R
SK14
18
24
36
48
18
24
36
48
72
18"
24"
36"
48"
18"
24"
36"
48"
72"
BK
BN
WT
BK
BN
WT
BK
BN
WT
Extends track
from ceiling.
Includes track
bracket, rod
and ceiling
canopy.
Use with Rod
Coupler (RI)
to further
extend track
from ceiling.
Use with
suspension
kits for sloped
ceilings
"I" Connector LI
"I" Dead End
Connector
Flexible Track
Connector
Suspension
Loop
15’ Cord,
Male Plug w/
Switch
T-Bar Drop
Ceiling
Attach
Canopy Plate CP
Floating
Canopy
Connector
LIDEC
LFLX
LLOOPBKBN
LCORDSET
TBARCLIP
LFC
BK
BN
38” × 1a” × w”
WT
BK
BN
38” × 1a” × w”
WT
BK
BN
9w” × 1a” × w”
WT
1a” × 1a” × 3”
WT
BK
15'
WT
12” × 14”
BK
BN
42” × 42”
WT
BK
BN
44” × 44” × 1a”
WT
Use to join two sections
of track with electrical
continuity.
Joins two sections of
track without electrical
continuity.
Connects two track
sections at variable
angles. Use as a transition
from wall-to-wall, wallto-ceiling, or ceiling-toceiling. Power feedable.
3" electrical loop accepts
chain hung xtures
up to 35lbs. Contains
compartment for electrical
connections.
Maximum capacity: 7A,
800W, 120V.
Attaches track to T-bar
drop ceilings. Use two for 2
foot or 4 foot tracks, three
for 6 foot or 8 foot tracks.
Covers a standard 4"
junction box. Use with any
powerable connectors.
Connects to octagon box.
Allows track to be powered
anywhere along the
length of the track.
Rod Coupler
Suspension
Adjustment
Collar kit
Low
Voltage
Track Head
Extension
Wall Mount
Suspension
Bracket
RI
SK05
6
12
18
X
24
36
48
TBKT 18"
6"
12"
18"
24"
36"
48"
BK
BN
WT
BK
BN
WT
BK
BN
WT
BK
BN
WT
Join two rods
for
suspensions
longer than
48".
Used when
suspension
rod is eld
cut to custom
lengths. One
kit of two
required for
each rod.
Includes two
collars
Extends low
voltage track
heads from
track. Specify
extension,
xture and
nish. Only
available as
complete
unit.
Extends track
24" from wall.
Use two per 4’
length, three
per 8’ length.
WAC Lighting retains the right to modify the design of our products at any time as part of the company's continuous improvement program. SEP 2014
