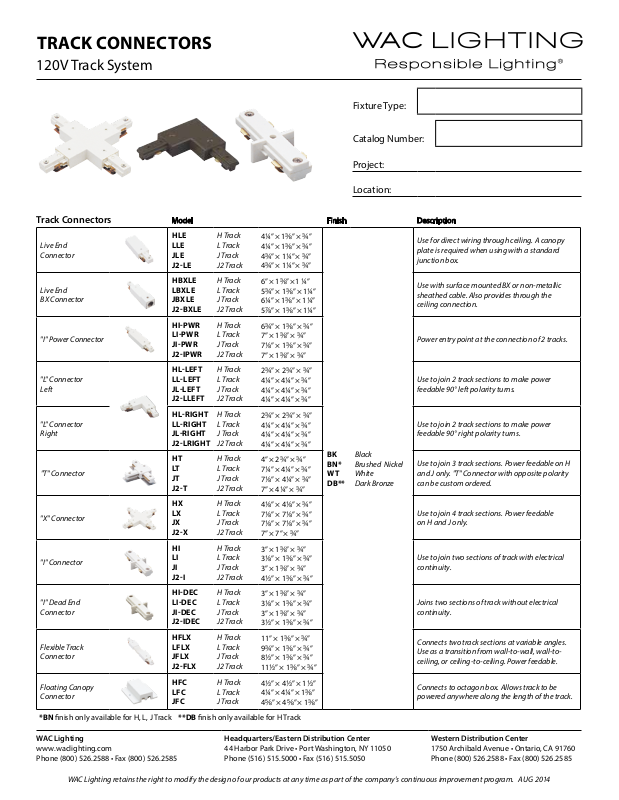

TRACK CONNECTORS
120V Track System
Fixture Type:
Catalog Number:
Project:
Location:
Track Connectors Model Finish Description
HLE
Live End
Connector
Live End
BX Connector
"I" Power Connector
"L" Connector
Left
"L" Connector
Right
"T" Connector
"X" Connector
"I" Connector
"I" Dead End
Connector
Flexible Track
Connector
Floating Canopy
Connector
*BN nish only available for H, L, J Track **DB nish only available for H Track
LLE
JLE
J2-LE
HBXLE
LBXLE
JBXLE
J2-BXLE
HI-PWR
LI-PWR
JI-PWR
J2-IPWR
HL-LEFT
LL-LEFT
JL-LEFT
J2-LLEFT
HL-RIGHT
LL-RIGHT
JL-RIGHT
J2-LRIGHT
HT
LT
JT
J2-T
HX
LX
JX
J2-X
HI
LI
JI
J2-I
HI-DEC
LI-DEC
JI-DEC
J2-IDEC
HFLX
LFLX
JFLX
J2-FLX
HFC
LFC
JFC
H Track
L Track
J Track
J2 Track
H Track
L Track
J Track
J2 Track
H Track
L Track
J Track
J2 Track
H Track
L Track
J Track
J2 Track
H Track
L Track
J Track
J2 Track
H Track
L Track
J Track
J2 Track
H Track
L Track
J Track
J2 Track
H Track
L Track
J Track
J2 Track
H Track
L Track
J Track
J2 Track
H Track
L Track
J Track
J2 Track
H Track
L Track
J Track
44” × 1a” × w”
44” × 1a” × w”
4w” × 14” × w”
4w” × 14” × w”
6” × 1a” ×1 4”
5w” × 1a” × 14”
64” × 1a” × 14”
5d” × 1a” × 14”
6w” × 1a” × w”
7” × 1a” × w”
78” × 1a” × w”
7” × 1a” × w”
2w” × 2w” × w”
44” × 44” × w”
44” × 44” × w”
44” × 44” × w”
2w” × 2w” × w”
44” × 44” × w”
44” × 44” × w”
44” × 44” × w”
4” × 2w” × w”
74” × 44” × w”
78” × 44” × w”
7” × 44” × w”
48” × 48” × w”
78” × 78” × w”
78” × 78” × w”
7” × 7” × w”
3” × 1a” × w”
38” × 1a” × w”
3” × 1a” × w”
42” × 1a” × w”
3” × 1a” × w”
38” × 1a” × w”
3” × 1a” × w”
32” × 1a” × w”
11” × 1a” × w”
9w” × 1a” × w”
82” × 1a” × w”
112” × 1a” × w”
42” × 42” × 12”
44” × 44” × 1a”
4s” × 4s” × 1a”
BK
BN*
WT
DB**
Black
Brushed Nickel
White
Dark Bronze
Use for direct wiring through ceiling. A canopy
plate is required when using with a standard
junction box.
Use with surface mounted BX or non-metallic
sheathed cable. Also provides through the
ceiling connection.
Power entry point at the connection of 2 tracks.
Use to join 2 track sections to make power
feedable 90° left polarity turns.
Use to join 2 track sections to make power
feedable 90° right polarity turns.
Use to join 3 track sections. Power feedable on H
and J only. "T" Connector with opposite polarity
can be custom ordered.
Use to join 4 track sections. Power feedable
on H and J only.
Use to join two sections of track with electrical
continuity.
Joins two sections of track without electrical
continuity.
Connects two track sections at variable angles.
Use as a transition from wall-to-wall, wall-toceiling, or ceiling-to-ceiling. Power feedable.
Connects to octagon box. Allows track to be
powered anywhere along the length of the track.
WAC Lighting
www.waclighting.com
Phone (800) 526.2588 • Fax (800) 526.2585
WAC Lighting retains the right to modify the design of our products at any time as part of the company's continuous improvement program. AUG 2014
