QADP Quick Cconnect™ adaptor.
CATALOG NUMBER
TYPE
PROJECT

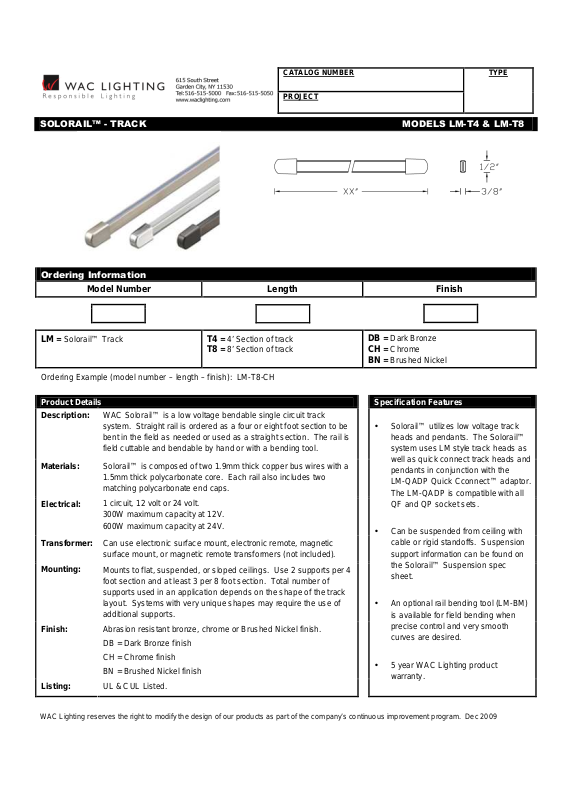

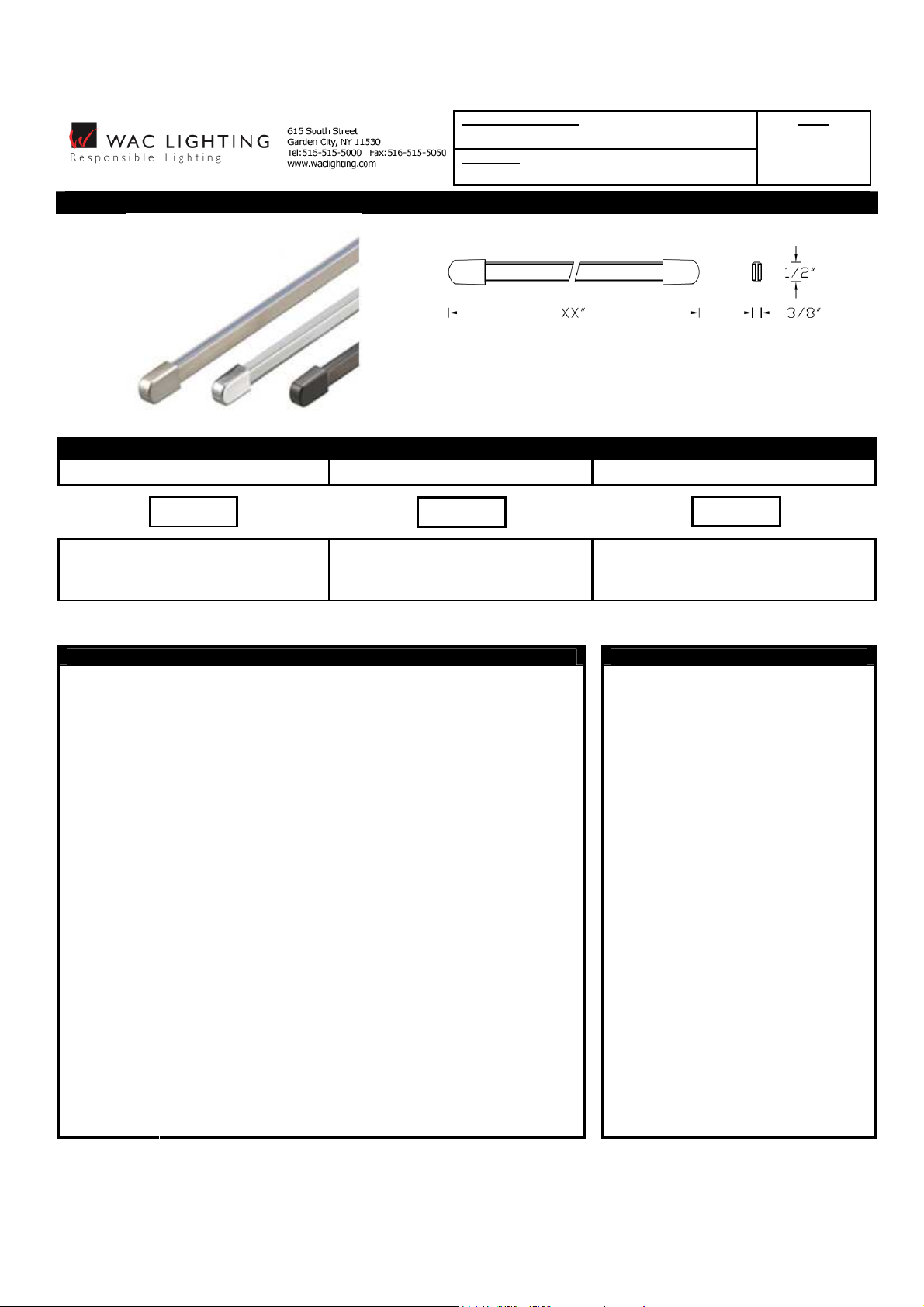

SOLORAIL™ - TRACK MODELS LM-T4 & LM-T8
Ordering Information
Model Number Length Finish
T4
LM
= Solorail™ Track
Ordering Example (model number – length – finish): LM-T8-CH
= 4’ Section of track
T8
= 8’ Section of track
DB
= Dark Bronze
CH
= Chrome
BN
= Brushed Nickel
Product Details
Description:
Materials:
Electrical:
Transformer:
Mounting:
Finish:
Listing:
WAC Solorail™ is a low voltage bendable single circuit track
system. Straight rail is ordered as a four or eight foot section to be
bent in the field as needed or used as a straight section. The rail is
field cuttable and bendable by hand or with a bending tool.
Solorail™ is composed of two 1.9mm thick copper bus wires with a
1.5mm thick polycarbonate core. Each rail also includes two
matching polycarbonate end caps.
1 circuit, 12 volt or 24 volt.
300W maximum capacity at 12V.
600W maximum capacity at 24V.
Can use electronic surface mount, electronic remote, magnetic
surface mount, or magnetic remote transformers (not included).
Mounts to flat, suspended, or sloped ceilings. Use 2 supports per 4
foot section and at least 3 per 8 foot section. Total number of
supports used in an application depends on the shape of the track
layout. Systems with very unique shapes may require the use of
additional supports.
Abrasion resistant bronze, chrome or Brushed Nickel finish.
DB = Dark Bronze finish
CH = Chrome finish
BN = Brushed Nickel finish
UL & CUL Listed.
Specification Features
• Solorail™ utilizes low voltage track
heads and pendants. The Solorail™
system uses LM style track heads as
well as quick connect track heads and
pendants in conjunction with the
LMThe LM-QADP is compatible with all
QF and QP socket sets.
• Can be suspended from ceiling with
cable or rigid standoffs. Suspension
support information can be found on
the Solorail™ Suspension spec
sheet.
• An optional rail bending tool (LM-BM)
is available for field bending when
precise control and very smooth
curves are desired.
• 5 year WAC Lighting product
warranty.
WAC Lighting reserves the right to modify the design of our products as part of the company’s continuous improvement program. Dec 2009
Page 2
Track Accessories
CATALOG NUMBER
TYPE
PROJECT

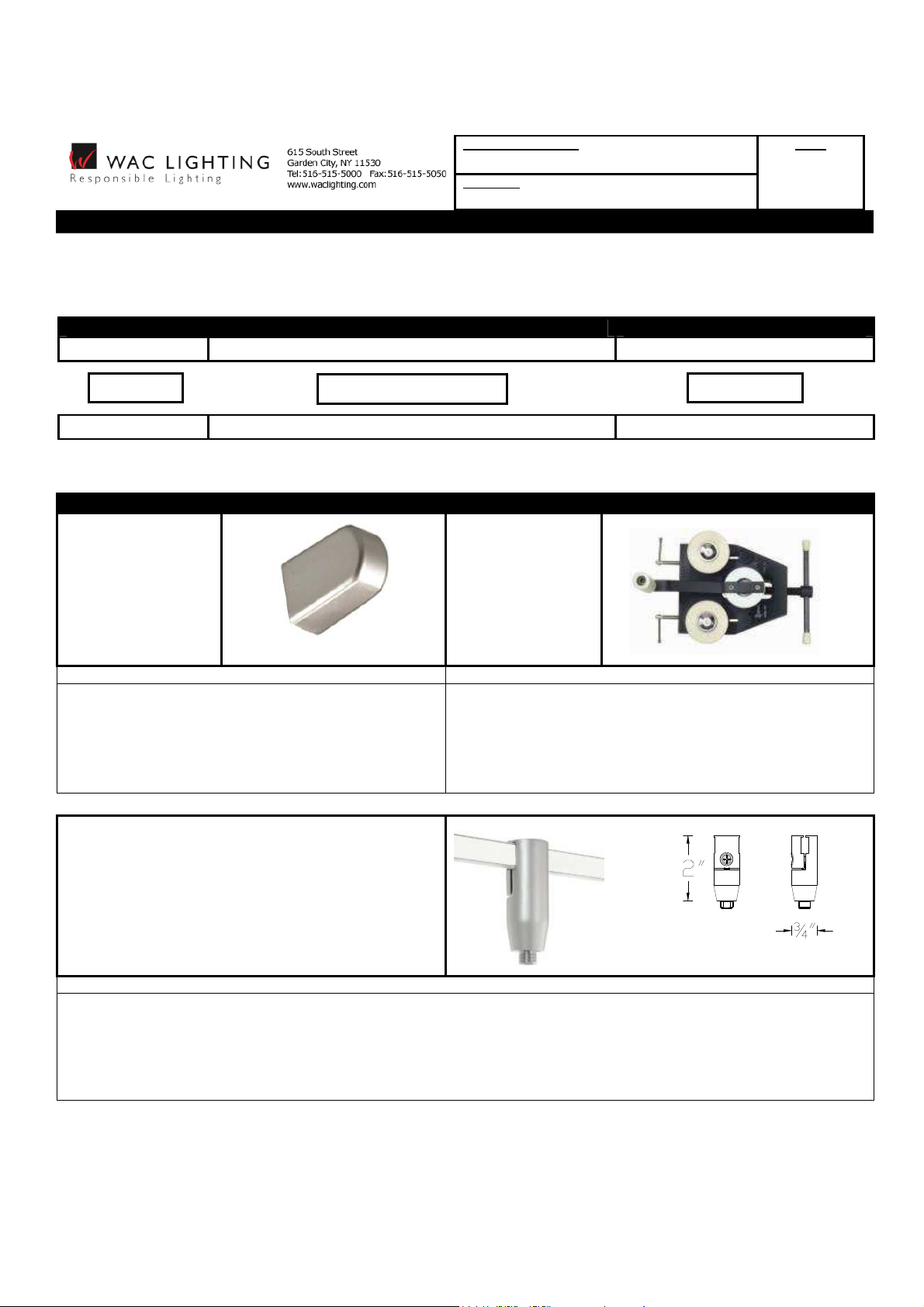

SOLORAIL™ – TRACK ACCESSORIES MODELS LM-T4 & LM-T8
Ordering Matrix
Model Part Number Finish
LM EC BM QADP DB CH BN
Ordering Example (model number – part number – finish): LM-EC-DB
Solorail™ End Cap
LM-EC-color
Bending Machine
LM-BM
Description Description
Extra end cap for Solorail™. Ordered when doing multiple
cuts of a long piece of rail.
Available in Dark Bronze (DB), Chrome (CH), or Brushed
Nickel (BN).
Used to make smooth and consistent bends of rail. Two clamp
brackets mount bending machine to table or similar flat surface.
Angle indicators on bending machine help the user determine the
proper amount of tension.
Note: No color options.
Solorail™ Quick Connect™ adapter.
LM-QADP-color
Description
Solorail™ system quick connect adaptor allows all quick connect elements (QF track heads or QP pendants) to be used with the LM
system rail. The adaptor contains a threaded nipple for quick connect socket sets and attaches anywhere along the LM track. One
adaptor must be ordered for each quick connect element used on a system.
Available in Dark Bronze (BZ), Chrome (CH), or Brushed Nickel (BN).
WAC Lighting reserves the right to modify the design of our products as part of the company’s continuous improvement program. Dec 2009
