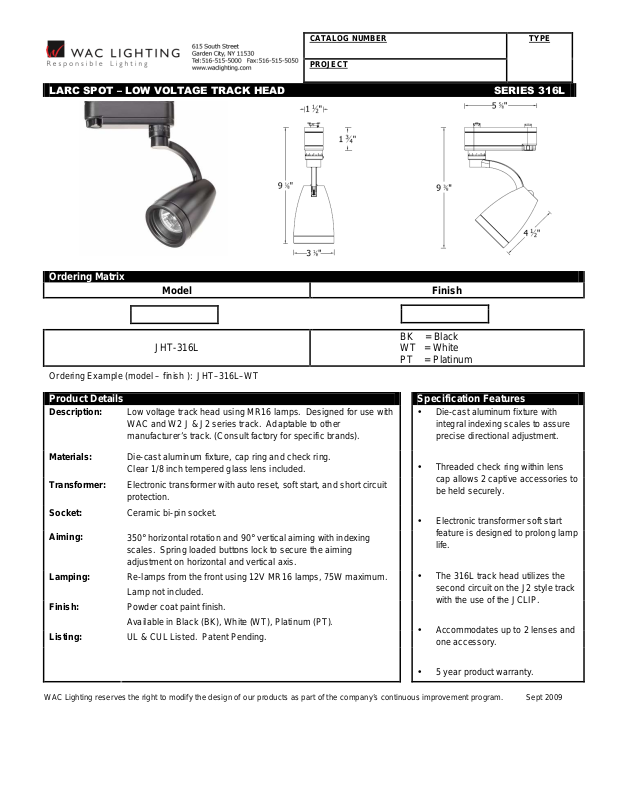

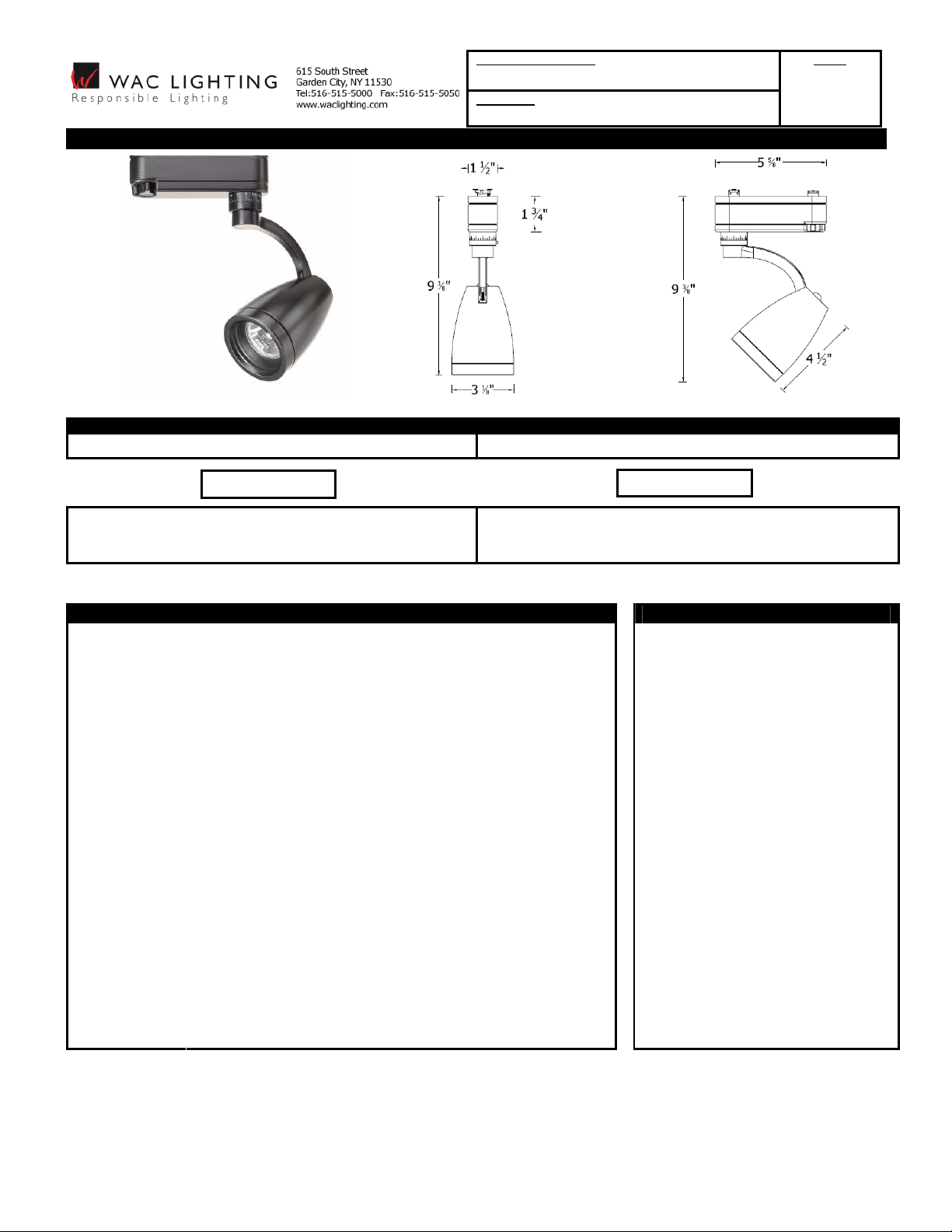

LARC SPOT
–
LOW VOLTAGE TRACK HEAD SERIES 316L
Ordering Matrix
Model Finish
CATALOG NUMBER
PROJECT
TYPE
BK = Black
JHT-316L
Ordering Example (model – finish ): JHT–316L–WT
Product Details
Description:
Materials:
Transformer:
Socket: Ceramic bi-pin socket.
Aiming:
Lamping: Re-lamps from the front using 12V MR16 lamps, 75W maximum.
Finish: Powder coat paint finish.
Listing: UL & CUL Listed. Patent Pending.
WAC Lighting reserves the right to modify the design of our products as part of the company’s continuous improvement program. Sept 2009
Low voltage track head using MR16 lamps. Designed for use with
WAC and W2 J & J2 series track. Adaptable to other
manufacturer’s track. (Consult factory for specific brands).
Die-cast aluminum fixture, cap ring and check ring.
Clear 1/8 inch tempered glass lens included.
Electronic transformer with auto reset, soft start, and short circuit
protection.
350° horizontal rotation and 90° vertical aiming with indexing
scales. Spring loaded buttons lock to secure the aiming
adjustment on horizontal and vertical axis.
Lamp not included.
Available in Black (BK), White (WT), Platinum (PT).
WT = White
PT = Platinum
Specification Features
• Die-cast aluminum fixture with
integral indexing scales to assure
precise directional adjustment.
• Threaded check ring within lens
cap allows 2 captive accessories to
be held securely.
• Electronic transformer soft start
feature is designed to prolong lamp
life.
• The 316L track head utilizes the
second circuit on the J2 style track
with the use of the JCLIP.
• Accommodates up to 2 lenses and
one accessory.
• 5 year product warranty.
Page 2

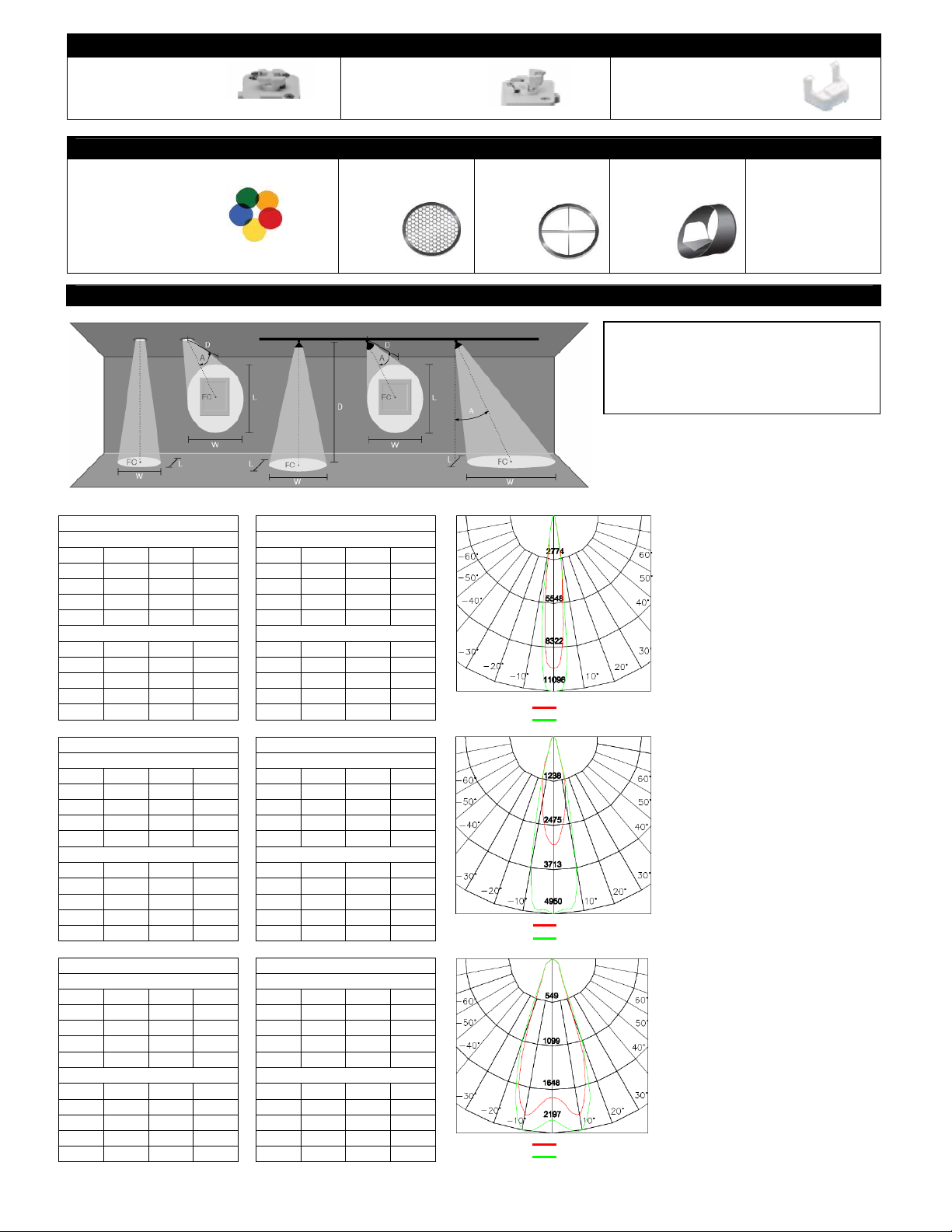

Track Adaptor Information
75W CBCP 4950
Standard Adaptor
For J style
W2 & WAC track
J2 Adaptor
For J2 style
W2 & WAC track
JCLIP
Ordered when using track
heads on 2
nd
circuit of J2
Compatible Accessories
LENS-20-DIC-COLOR
Dichroic Lenses
LENS-20-COLOR
Color Lenses
AMB = Amber ; BLU = Blue ; GRN = Green
RED = Red ; YEL = Yellow
Photometry
50W MR16 N (15 DEG)
0° Aiming Angle
D(ft) FC W L D(ft) FC W L
6 283 1.6 1.6 6 333 1.6 1.6
9 126 2.4 2.4 9 148 2.4 2.4
12 71 3.2 3.2 12 83 3.2 3.2
15 45 3.9 3.9 15 53 3.9 3.9
45° Aiming Angle
D(ft) FC W L D(ft) FC W L
6 100 3.2 2.2 6 118 3.2 2.2
9 45 4.8 3.4 9 52 4.8 3.4
12 25 6.4 4.5 12 29 6.4 4.5
15 16 8.0 5.6 15 19 8.0 5.6
75W MR16 N (15 DEG)
50W MR16 F (25 DEG)
0° Aiming Angle
D(ft) FC W L D(ft) FC W L
6 94 2.7 2.7 6 136 2.7 2.7
9 42 4.0 4.0 9 60 4.0 4.0
12 24 5.3 5.3 12 34 5.3 5.3
15 15 6.7 6.7 15 22 6.7 6.7
45° Aiming Angle
D(ft) FC W L D(ft) FC W L
6 33 5.6 3.8 6 48 5.6 3.8
9 15 8.4 5.6 9 21 8.4 5.6
12 8 11.2 7.5 12 12 11.2 7.5
15 5 14.0 9.4 15 8 14.0 9.4
75W MR16 F (25 DEG)
50W MR16 W (40 DEG)
0° Aiming Angle
D(ft) FC W L D(ft) FC W L
6 51 4.4 4.4 6 58 4.4 4.4
9 23 6.6 6.6 9 26 6.6 6.6
12 13 8.7 8.7 12 15 8.7 8.7
15 8 10.9 10.9 15 9 10.9 10.9
45° Aiming Angle
D(ft) FC W L D(ft) FC W L
6 18 10.1 6.2 6 21 10.1 6.2
9 8 15.1 9.3 9 9 15.1 9.3
12 5 20.1 12.4 12 5 20.1 12.4
15 3 25.2 15.4 15 3 25.2 15.4
75W MR16 W (40 DEG)
WAC Lighting reserves the right to modify the design of our products as part of the company’s continuous improvement program. Sept 2009
LENS-20-HCL
Honeycomb Louver
0° Aiming Angle
45° Aiming Angle
0° Aiming Angle
45° Aiming Angle
0° Aiming Angle
45° Aiming Angle
LENS-20-CRL
Cross Louver
HOOD-065-BK
Light Deflecting Hood
for wall wash application
D Distance To Fixture From Wall Or Floor
FC Initial Footcandle Level At Center Of Beam
L Beam Length (where candlepower drops
to 50% of maximum)
W Beam Width (where candlepower drops to
50% of maximum)
50W CBCP 10188
75W CBCP 11096
50W CBCP 3384
50W CBCP 1836
75W CBCP 2088
LENS-20-UVF
UV Filter
LENS-20-FR
Frosted Lens
LENS-20-SPR
Spread Lens
LENS20-BEL
Beam Elongating Lens
