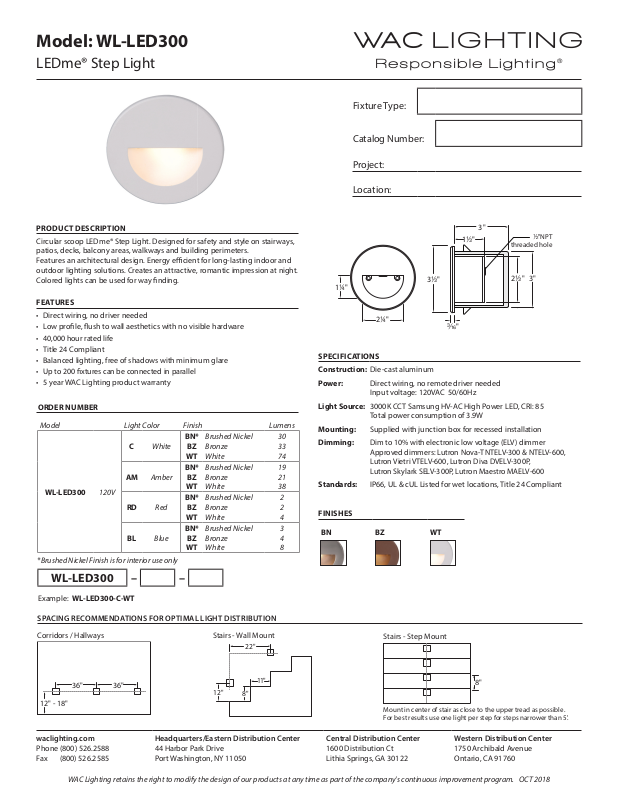

Page 1
Model: WL-LED300
LEDme® Step Light
Fixture Type:
Catalog Number:
Project:
Location:
PRODUCT DESCRIPTION
Circular scoop LEDme® Step Light. Designed for safety and style on stairways,
patios, decks, balcony areas, walkways and building perimeters.
Features an architectural design. Energy e cient for long-lasting indoor and
outdoor lighting solutions. Creates an attractive, romantic impression at night.
Colored lights can be used for way nding.
FEATURES
• Direct wiring, no driver needed
• Low pro le, ush to wall aesthetics with no visible hardware
• 40,000 hour rated life
• Title 24 Compliant
• Balanced lighting, free of shadows with minimum glare
• Up to 200 xtures can be connected in parallel
• 5 year WAC Lighting product warranty
ORDER NUMBER
Model Light Color Finish Lumens
BN*
C White
AM Amber
WL-LED300 120V
RD Red
BL Blue
*Brushed Nickel Finish is for interior use only
BZ
WT
BN*
BZ
WT
BN*
BZ
WT
BN*
BZ
WT
Brushed Nickel
Bronze
White
Brushed Nickel
Bronze
White
Brushed Nickel
Bronze
White
Brushed Nickel
Bronze
White
30
33
74
19
21
38
2
2
4
3
4
8
3"
12"
14"
24"
SPECIFICATIONS
Construction: Die-cast aluminum
Power: Direct wiring, no remote driver needed
Light Source: 3000K CCT Samsung HV-AC High Power LED, CRI: 85
Mounting: Supplied with junction box for recessed installation
Dimming:
Standards: IP66, UL & cUL Listed for wet locations, Title 24 Compliant
FINISHES
BN BZ WT
Input voltage: 120VAC 50/60Hz
Total power consumption of 3.9W
Dim to 10% with electronic low voltage (ELV) dimmer
Approved dimmers: Lutron Nova-T NTELV-300 & NTELV-600,
Lutron Vietri VTELV-600, Lutron Diva DVELV-300P,
Lutron Skylark SELV-300P, Lutron Maestro MAELV-600
32"
x"
2"NPT
threaded hole
22"
3"
WL-LED300 – –
Example: WL-LED300-C-WT
SPACING RECOMMENDATIONS FOR OPTIMAL LIGHT DISTRIBUTION
Corridors / Hallways
36" 36"
12" - 18"
waclighting.com
Phone (800) 526.2588
Fax (800) 526.2585
WAC Lighting retains the right to modify the design of our products at any time as part of the company's continuous improvement program. OCT 2018
Headquarters/Eastern Distribution Center
44 Harbor Park Drive
Port Washington, NY 11050
Stairs - Wall Mount
22"
11"
12"
8"
Stairs - Step Mount
Mount in center of stair as close to the upper tread as possible.
For best results use one light per step for steps narrower than 5'.
Central Distribution Center
1600 Distribution Ct
Lithia Springs, GA 30122
8"
Western Distribution Center
1750 Archibald Avenue
Ontario, CA 91760
