Overview:

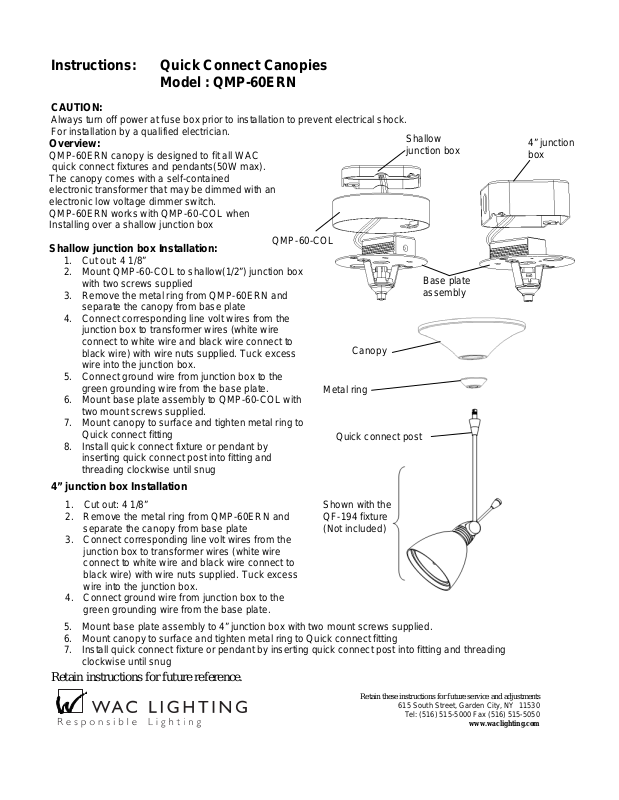

Instructions: Quick Connect Canopies
Retain these instructions for future service and adjustments

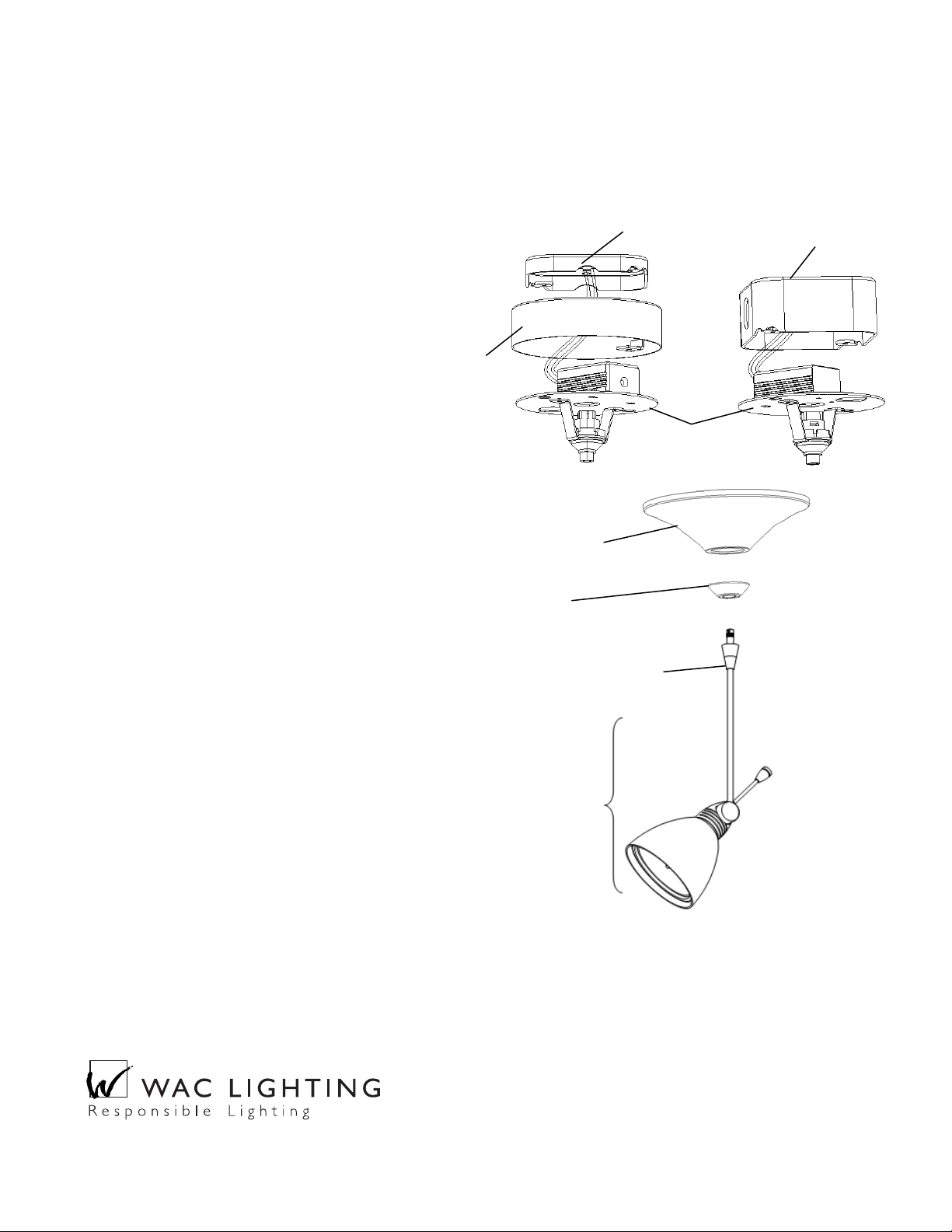

Shallow
junction box
QMP-60-COL
Canopy
Metal ring
Quick connect post
4” junction
box
5. Mount base plate assembly to 4” junction box with two mount screws supplied.
clockwise until snug
Shown with the
CAUTION:
Always turn off power at fuse box prior to installation to prevent electrical shock.
For installation by a qualified electrician.
QMP-60ERN canopy is designed to fit all WAC
quick connect fixtures and pendants(50W max).
The canopy comes with a self-contained
electronic transformer that may be dimmed with an
electronic low voltage dimmer switch.
QMP-60ERN works with QMP-60-COL when
Installing over a shallow junction box
Shallow junction box Installation:
4” junction box Installation
Retain instructions for future reference.
Model : QMP-60ERN
1. Cut out: 4 1/8”
2. Mount QMP-60-COL to shallow(1/2”) junction box
with two screws supplied
3. Remove the metal ring from QMP-60ERN and
separate the canopy from base plate
4. Connect corresponding line volt wires from the
junction box to transformer wires (white wire
connect to white wire and black wire connect to
black wire) with wire nuts supplied. Tuck excess
wire into the junction box.
5. Connect ground wire from junction box to the
green grounding wire from the base plate.
6. Mount base plate assembly to QMP-60-COL with
two mount screws supplied.
7. Mount canopy to surface and tighten metal ring to
Quick connect fitting
8. Install quick connect fixture or pendant by
inserting quick connect post into fitting and
threading clockwise until snug
1. Cut out: 4 1/8”
2. Remove the metal ring from QMP-60ERN and
separate the canopy from base plate
3. Connect corresponding line volt wires from the
junction box to transformer wires (white wire
connect to white wire and black wire connec t to
black wire) with wire nuts supplied. Tuck excess
wire into the junction box.
4. Connect ground wire from junction box to the
green grounding wire from the base plate.
6. Mount canopy to surface and tighten metal ring to Quick connect fitting
7. Install quick connect fixture or pendant by inserting quick connect post into fitting and threading
QF-194 fixture
(Not included)
Base plate
assembly
615 South Street, Garden City, NY 11530
Tel: (516) 515-5000 Fax (516) 515-5050
