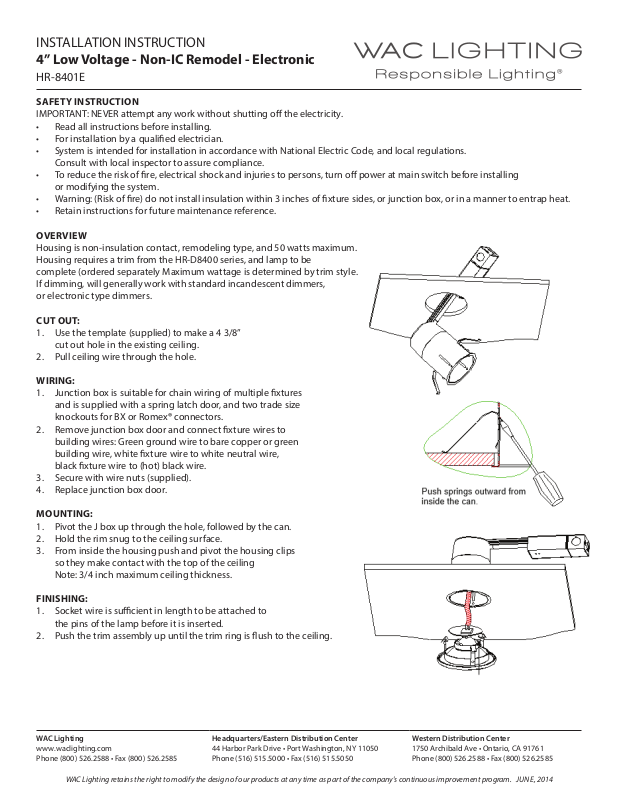

INSTALLATION INSTRUCTION
4” Low Voltage - Non-IC Remodel - Electronic
HR-8401E
SAFETY INSTRUCTION
IMPORTANT: NEVER attempt any work without shutting o the electricity.
• Read all instructions before installing.
• For installation by a qualied electrician.
• System is intended for installation in accordance with National Electric Code, and local regulations.
Consult with local inspector to assure compliance.
• To reduce the risk of re, electrical shock and injuries to persons, turn o power at main switch before installing
or modifying the system.
• Warning: (Risk of re) do not install insulation within 3 inches of xture sides, or junction box, or in a manner to entrap heat.
• Retain instructions for future maintenance reference.
OVERVIEW
Housing is non-insulation contact, remodeling type, and 50 watts maximum.
Housing requires a trim from the HR-D8400 series, and lamp to be
complete (ordered separately Maximum wattage is determined by trim style.
If dimming, will generally work with standard incandescent dimmers,
or electronic type dimmers.
CUT OUT:
1. Use the template (supplied) to make a 4 3/8”
cut out hole in the existing ceiling.
2. Pull ceiling wire through the hole.
WIRING:
1. Junction box is suitable for chain wiring of multiple xtures
and is supplied with a spring latch door, and two trade size
knockouts for BX or Romex® connectors.
2. Remove junction box door and connect xture wires to
building wires: Green ground wire to bare copper or green
building wire, white xture wire to white neutral wire,
black xture wire to (hot) black wire.
3. Secure with wire nuts (supplied).
4. Replace junction box door.

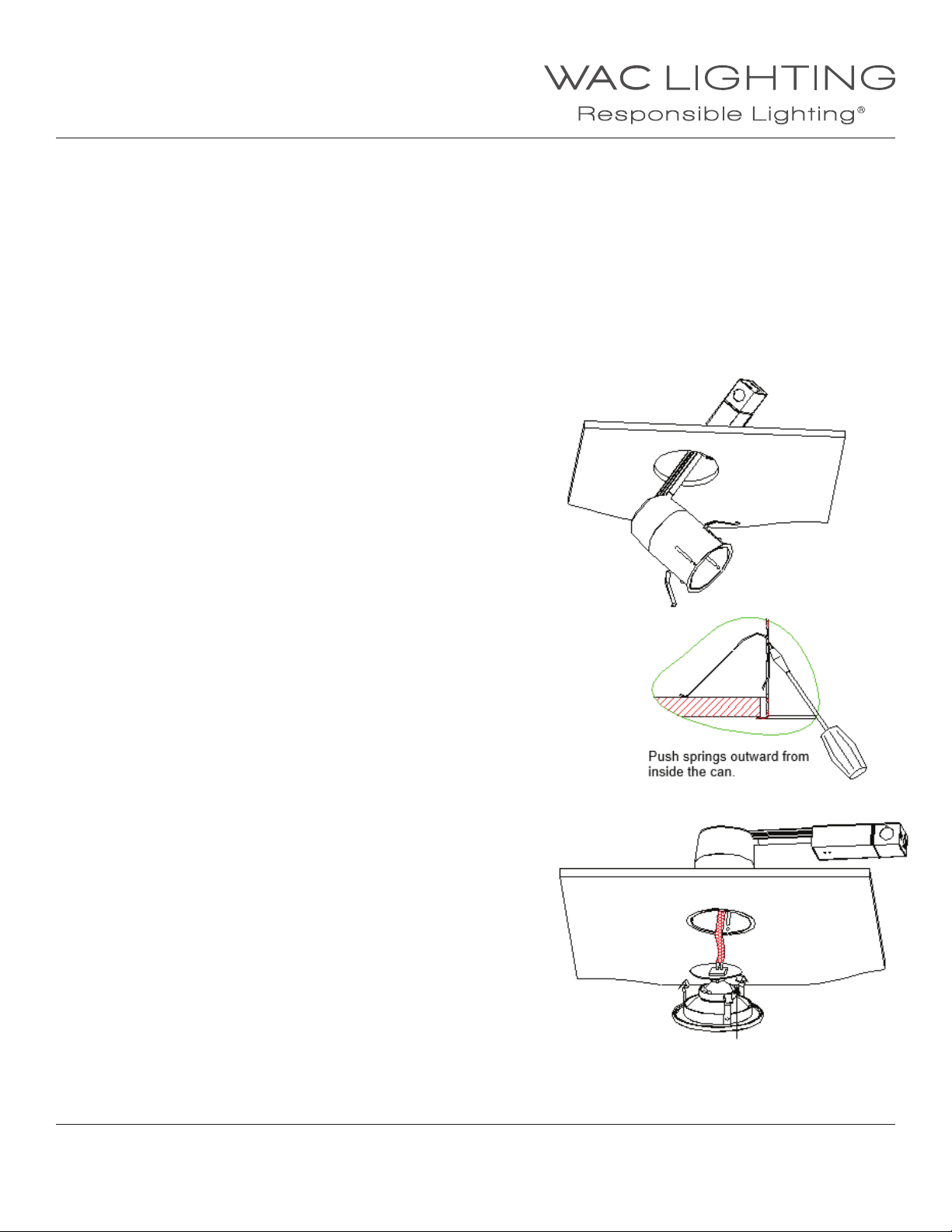

MOUNTING:
1. Pivot the J box up through the hole, followed by the can.
2. Hold the rim snug to the ceiling surface.
3. From inside the housing push and pivot the housing clips
so they make contact with the top of the ceiling
Note: 3/4 inch maximum ceiling thickness.
FINISHING:
1. Socket wire is sucient in length to be attached to
the pins of the lamp before it is inserted.
2. Push the trim assembly up until the trim ring is ush to the ceiling.
WAC Lighting
www.waclighting.com
Phone (800) 526.2588 • Fax (800) 526.2585
WAC Lighting retains the right to modify the design of our products at any time as part of the company's continuous improvement program. JUNE, 2014
Headquarters/Eastern Distribution Center
44 Harbor Park Drive • Port Washington, NY 11050
Phone (516) 515.5000 • Fax (516) 515.5050
Western Distribution Center
1750 Archibald Ave • Ontario, CA 91761
Phone (800) 526.2588 • Fax (800) 526.2585
