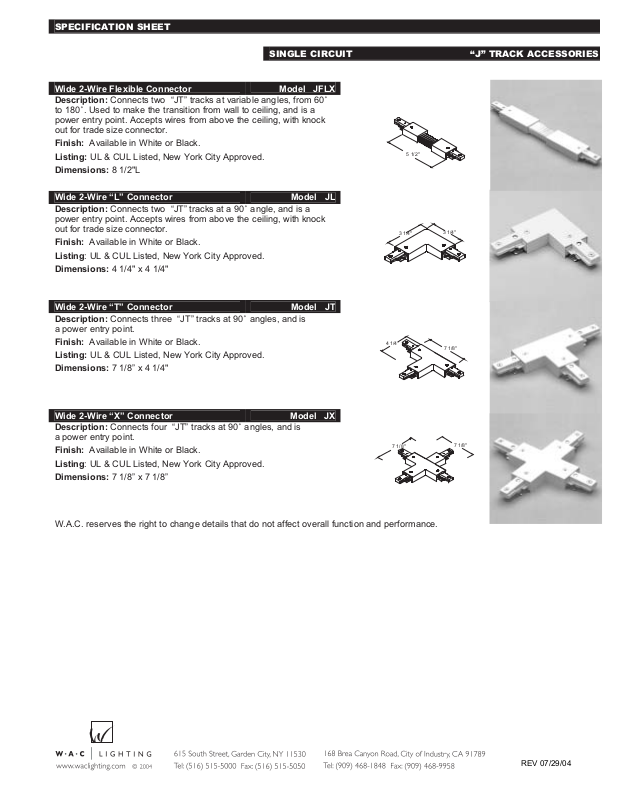

Page 1
SPECIFICATION SHEET
SINGLE CIRCUIT “J” TRACK ACCESSORIES
Wide 2-Wire Flexible Connector
Model JFLX
Description: Connects two “JT” tracks at variable angles, from 60˚
to 180˚. Used to make the transition from wall to ceiling, and is a
power entry point. Accepts wires from above the ceiling, with knock
out for trade size connector.
Finish: Available in White or Black.
Listing: UL & CUL Listed, New York City Approved.
Dimensions: 8 1/2"L
Wide 2-Wire “L” Connector
Model JL
Description: Connects two “JT” tracks at a 90˚ angle, and is a
power entry point. Accepts wires from above the ceiling, with knock
out for trade size connector.
Finish: Available in White or Black.
Listing: UL & CUL Listed, New York City Approved.
Dimensions: 4 1/4" x 4 1/4"
5 1/2"
3 1/4"
3 1/4"
Wide 2-Wire “T” Connector
Model JT
Description: Connects three “JT” tracks at 90˚ angles, and is
a power entry point.
Finish: Available in White or Black.
4 1/4"
Listing: UL & CUL Listed, New York City Approved.
Dimensions: 7 1/8” x 4 1/4"
Wide 2-Wire “X” Connector
Model JX
Description: Connects four “JT” tracks at 90˚ angles, and is
a power entry point.
Finish: Available in White or Black.
7 1/8"
Listing: UL & CUL Listed, New York City Approved.
Dimensions: 7 1/8” x 7 1/8”
W.A.C. reserves the right to change details that do not affect overall function and performance.
7 1/8"
7 1/8"
REV 07/29/04
Page 2
SPECIFICATION SHEET
SINGLE CIRCUIT “L” TRACK ACCESSORIES
2 Wire Flexible Connector
Model LFLX
Description: Connects two “LT” tracks at variable angles, from 60˚
to 180˚. Used to make the transition from wall to ceiling, and is a
power entry point. Accepts wires from above the ceiling, with knock
out for trade size connector.
Finish: Available in White or Black.
Listing: UL & CUL Listed, New York City Approved.
Dimensions: 11”L
2 Wire “L” Connector
Model LL
Description: Connects two “LT” tracks at a 90˚ angle, and is a
power entry point. Accepts wires from above the ceiling, with knock
out for trade size connector.
Finish: Available in White or Black.
Listing: UL & CUL Listed, New York City Approved.
Dimensions: 2 3/4" x 2 3/4"
8 1/2"
1 1/2"
1 1/2"
2 Wire “T” Connector
Model LT
Description: Connects three “LT” tracks at 90˚ angles, and is a
power entry point. Accepts wires from above the ceiling, with knock
out for trade size connector.
1 1/2"
Finish: Available in White or Black.
Listing: UL & CUL Listed, New York City Approved.
Dimensions: 4” x 2 3/4"
2 Wire “X” Connector
Model LX
Description: Connects four “LT” tracks at 90˚ angles, and is a power
entry point. Accepts wires from above the ceiling, with knock out for
trade size connector.
1 1/2"
Finish: Available in White or Black.
Listing: UL & CUL Listed, New York City Approved.
Dimensions: 4 1/8” x 4 1/8”
W.A.C. reserves the right to change details that do not affect overall function and performance.
1 1/2"
1 1/2"
REV 07/29/04
Page 3
SPECIFICATION SHEET
SINGLE CIRCUIT “H” TRACK ACCESSORIES
3 Wire Flexible Connector
Model HFLX
Description: Connects two “HT” tracks at variable angles, from 60˚
to 180˚. Used to make the transition from wall to ceiling, and is a
power entry point. Accepts wires from above the ceiling, with knock
out for trade size connector.
Finish: Available in White or Black.
Listing: UL & CUL Listed, New York City Approved.
Dimensions: 9 3/4"
3 Wire “L” Connector
Model HL
Description: Connects two “HT” tracks at a 90˚ angle, and is a
power entry point. Accepts wires from above the ceiling, with knock
out for trade size connector.
Finish: Available in White or Black.
Listing: UL & CUL Listed, New York City Approved.
Dimensions: 4 1/4" x 4 1/4"
9 3/4"
2 3/4"
2 3/4"
3 Wire “T” Connector
Model HT
Description: Connects three “HT” tracks at 90˚ angles, and is a
power entry point. Accepts wires from above the ceiling, with knock
out for trade size connector.
Finish: Available in White or Black.
2 3/4"
4 1/4"
Listing: UL & CUL Listed, New York City Approved.
Dimensions: 7 1/4" x 4 1/4"
3 Wire “X” Connector
Model HX
Description: Connects four “HT” tracks at 90˚ angles, and is a
power entry point. Accepts wires from above the ceiling, with knock
out for trade size connector.
4 1/4"
Finish: Available in White or Black.
Listing: UL & CUL Listed, New York City Approved.
Dimensions: 7 1/8” x 7 1/8”
W.A.C. reserves the right to change details that do not affect overall function and performance.
4 1/4"
REV 07/29/04
