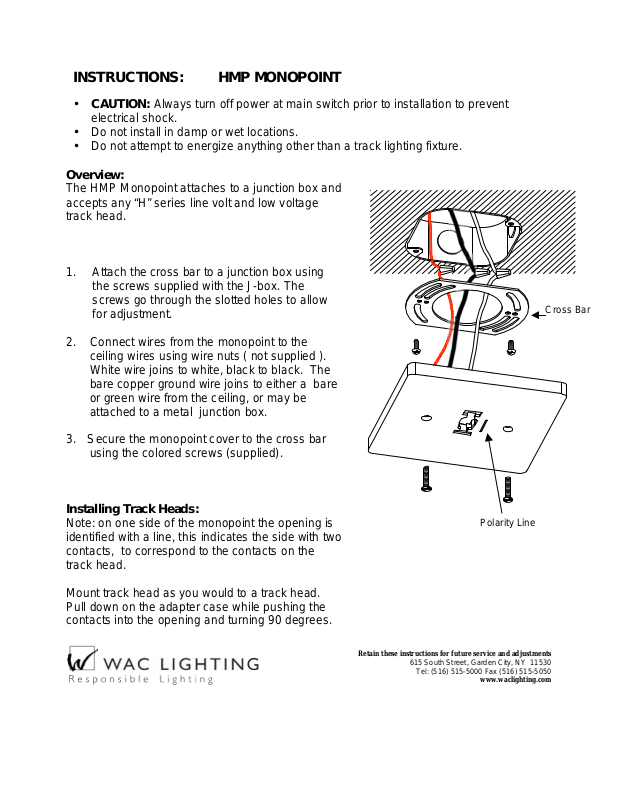

INSTRUCTIONS: HMP MONOPOINT
• CAUTION: Always turn off power at main switch prior to installation to prevent
electrical shock.
• Do not install in damp or wet locations.
• Do not attempt to energize anything other than a track lighting fixture.
Overview:
The HMP Monopoint attaches to a junction box and
accepts any “H” series line volt and low voltage
track head.

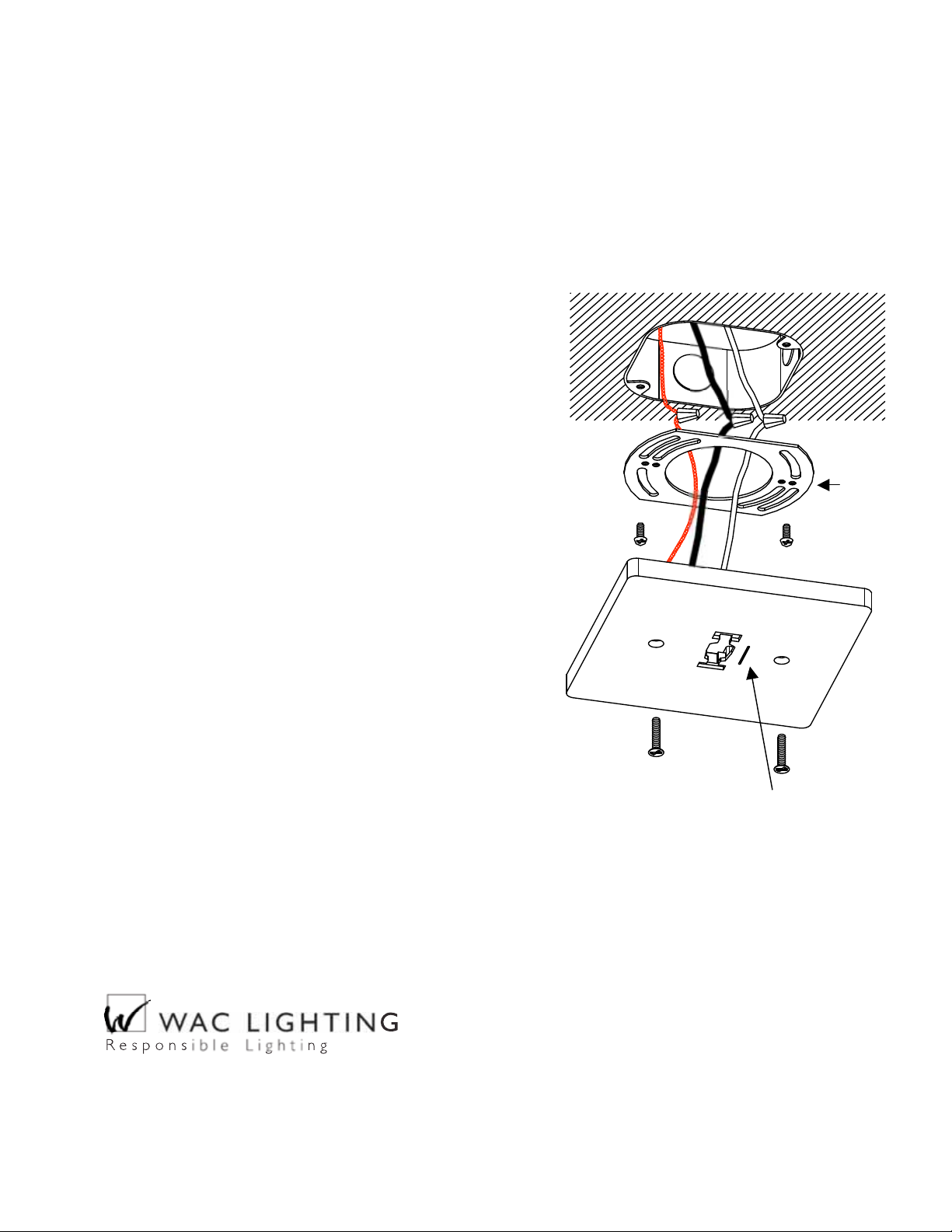

1. Attach the cross bar to a junction box using
the screws supplied with the J-box. The
screws go through the slotted holes to allow
for adjustment.
2. Connect wires from the monopoint to the
ceiling wires using wire nuts ( not supplied ).
White wire joins to white, black to black. The
bare copper ground wire joins to either a bare
or green wire from the ceiling, or may be
attached to a metal junction box.
3. Secure the monopoint cover to the cross bar
using the colored screws (supplied).
Installing Track Heads:
Note: on one side of the monopoint the opening is
identified with a line, this indicates the side with two
contacts, to correspond to the contacts on the
track head.
Mount track head as you would to a track head.
Pull down on the adapter case while pushing the
contacts into the opening and turning 90 degrees.
Polarity Line
Retain these instructions for future service and adjustments
