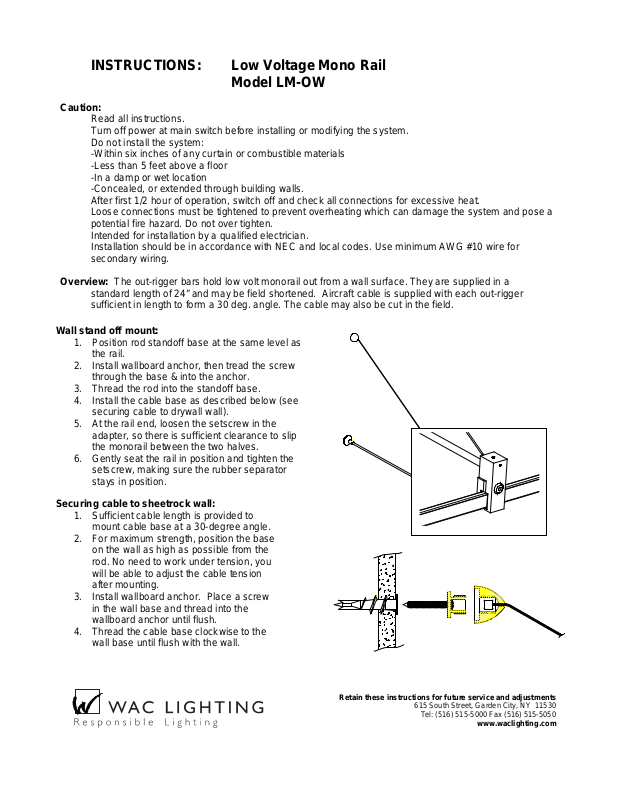

INSTRUCTIONS: Low Voltage Mono Rail
Securing cable to sheetrock wall:
wall base until flush with the wall.
Wall stand off mount:
Retain these instructions for f ut ure ser vi c e and adjust m e nt s
Model LM-OW
Caution:
Read all instructions.
Turn off power at main switch before installing or modifying the system.
Do not install the system:
-Within six inches of any curtain or combustible materials
-Less than 5 feet above a floor
-In a damp or wet location
-Concealed, or extended through building walls.
After first 1/2 hour of operation, switch off and check all connections for excessive heat.
Loose connections must be tightened to prevent overheating which can damage the system and pose a
potential fire hazard. Do not over tighten.
Intended for installation by a qualified electrician.
Installation should be in accordance with NEC and local codes. Use minimum AWG #10 wire for
secondary wiring.
Overview: The out-rigger bars hold low volt monorail out from a wall surface. They are supplied in a
standard length of 24” and may be field shortened. Aircraft cable is supplied with each out-rigger
sufficient in length to form a 30 deg. angle. The cable may also be cut in the field.

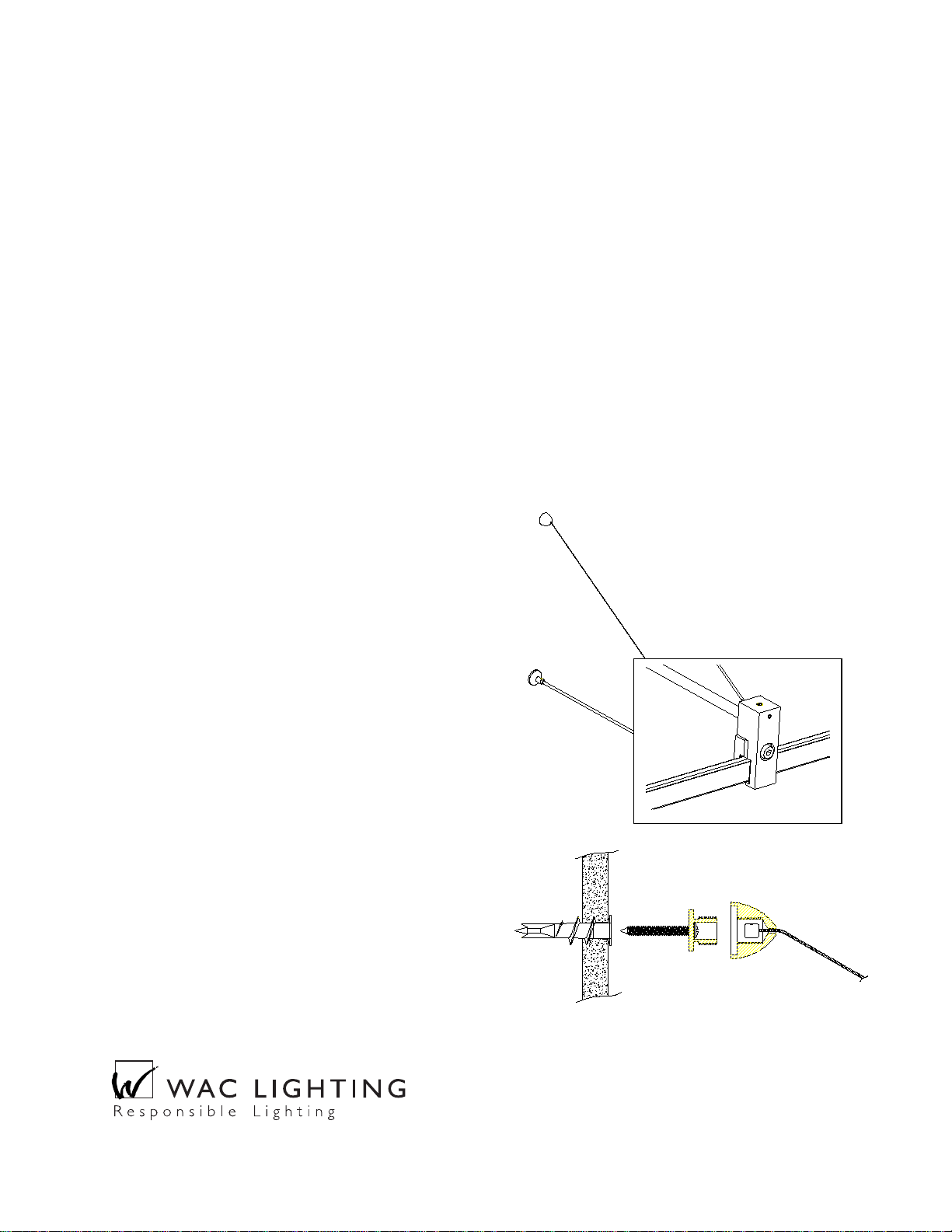

1. Position rod standoff base at the same level as
the rail.
2. Install wallboard anchor, then tread the screw
through the base & into the anchor.
3. Thread the rod into the standoff base.
4. Install the cable base as described below (see
securing cable to drywall wall).
5. At the rail end, loosen the setscrew in the
adapter, so there is sufficient clearance to slip
the monorail between the two halves.
6. Gently seat the rail in position and tighten the
setscrew, making sure the rubber separator
stays in position.
1. Sufficient cable length is provided to
mount cable base at a 30-degree angle.
2. For maximum strength, position the base
on the wall as high as possible from the
rod. No need to work under tension, you
will be able to adjust the cable tension
after mounting.
3. Install wallboard anchor. Place a screw
in the wall base and thread into the
wallboard anchor until flush.
4. Thread the cable base clockwise to the
