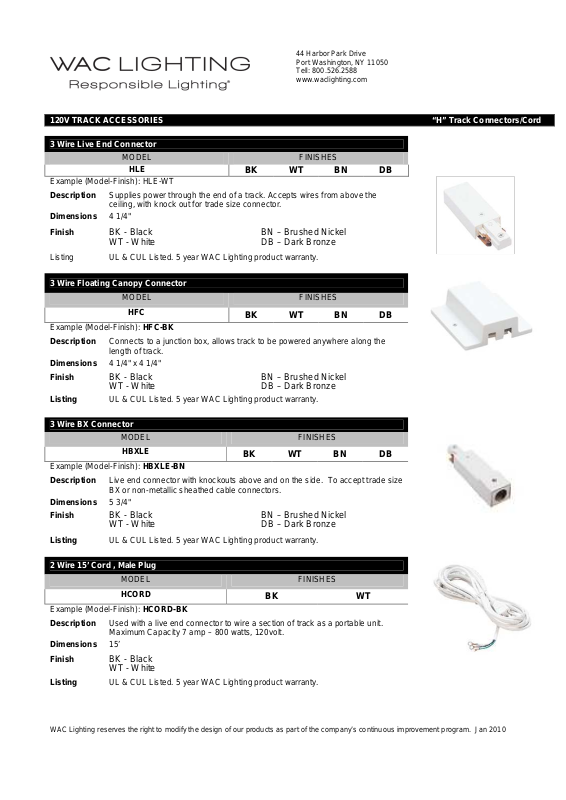

Page 1
HLE
120V TRACK ACCESSORIES “H” Track Connectors/Cord
3 Wire Live End Connector
MODEL FINISHES
BK WT BN DB
Example (Model-Finish): HLE-WT
Description Supplies power through the end of a track. Accepts wires from above the
ceiling, with knock out for trade size connector.
Dimensions 4 1/4"
44 Harbor Park Drive
Port Washington, NY 11050
Tell: 800.526.2588
www.waclighting.com
Finish
Listing UL & CUL Listed. 5 year WAC Lighting product warranty.
3 Wire Floating Canopy Connector
Example (Model-Finish): HFC-BK
Description Connects to a junction box, allows track to be powered anywhere along the
Dimensions 4 1/4" x 4 1/4"
Finish
Listing UL & CUL Listed. 5 year WAC Lighting product warranty.
3 Wire BX Connector
Example (Model-Finish): HBXLE-BN
Description Live end connector with knockouts above and on the side. To accept trade size
Dimensions 5 3/4"
Finish
Listing UL & CUL Listed. 5 year WAC Lighting product warranty.
BK - Black
WT - White
MODEL FINISHES
HFC
length of track.
BK - Black
WT - White
MODEL FINISHES
HBXLE
BX or non-metallic sheathed cable connectors.
BK - Black
WT - White
BN – Brushed Nickel
DB – Dark Bronze
BK WT BN DB
BN – Brushed Nickel
DB – Dark Bronze
BK WT BN DB
BN – Brushed Nickel
DB – Dark Bronze
2 Wire 15’ Cord , Male Plug
MODEL FINISHES
HCORD
Example (Model-Finish): HCORD-BK
Description Used with a live end connector to wire a section of track as a portable unit.
Dimensions 15’
Finish
Maximum Capacity 7 amp – 800 watts, 120volt.
BK - Black
BK WT
WT - White
Listing UL & CUL Listed. 5 year WAC Lighting product warranty.
WAC Lighting reserves the right to modify the design of our products as part of the company’s continuous improvement program. Jan 2010
Page 2
120V TRACK ACCESSORIES “J” Track Connectors/Cord
Wide 2-Wire Live End Connector
MODEL FINISHES
JLE
Example (Model-Finish): JLE-WT
Description Supplies power through the end of a track. Accepts wires from above the ceiling, with
Dimensions 4 3/4"L
Finish
knock out for trade size connector.
BK - Black
BK WT BN
44 Harbor Park Drive
Port Washington, NY 11050
Tell: 800.526.2588
www.waclighting.com
BN – Brushed Nickel
WT - White
Listing UL & CUL Listed. 5 year WAC Lighting product warranty.
Wide 2-Wire Floating
MODEL FINISHES
JFC
Example (Model-Finish): JFC-WT
Description Connects to a junction box, allows track to be powered anywhere along the track.
Dimensions 4 5/8” x 4 5/8”
Finish
BK - Black
BK WT BN
BN – Brushed Nickel
WT - White
Listing UL & CUL Listed. 5 year WAC Lighting product warranty.
Wide 2-Wire BX Connector
MODEL FINISHES
JBXLE
Example (Model-Finish): JBXLE-BN
Description Live end connector with knockouts above and on the side. To accept trade size BX or
Dimensions 6 1/4"L
Finish
non-metallic sheathed cable connectors.
BK - Black
BK WT BN
BN – Brushed Nickel
WT - White
Listing UL & CUL Listed. 5 year WAC Lighting product warranty.
Wide 2-Wire 15’ Cord, Male Plug
MODEL FINISHES
HCORD
Example (Model-Finish): HCORD-WT
Description Used with a live end connector to wire a section of track as a portable unit. Maximum
Dimensions 15’
Finish
Capacity 7amp – 800 watts, 120volt.
BK - Black
BK WT
WT - White
Listing UL & CUL Listed. 5 year WAC Lighting product warranty.
WAC Lighting reserves the right to modify the design of our products as part of the company’s continuous improvement program. Jan 2010
Page 3
120V TRACK ACCESSORIES “L” Track Connectors/Cord
2 Wire Live End Connector
MODEL FINISHES
LLE
Example (Model-Finish): LLE-WT
Description Supplies power through the end of a track. Accepts wires from above the ceiling,
with knock out for trade size connector.
Dimensions 4 1/4"
BK WT BN
44 Harbor Park Drive
Port Washington, NY 11050
Tell: 800.526.2588
www.waclighting.com
Finish
Listing UL & CUL Listed. 5 year WAC Lighting product warranty.
2 Wire Floating Canopy
Example (Model-Finish): LFC-BK
Description Connects to a junction box, allows track to be powered anywhere along the length
Dimensions 4 1/2" x 4 1/2"
Finish
Listing UL & CUL Listed. 5 year WAC Lighting product warranty.
2 Wire BX Connector
Example (Model-Finish): LBXLE-DB
Description Live end connector with knockouts above and on the side. To accept trade size
Dimensions 6”
Finish
Listing UL & CUL Listed. 5 year WAC Lighting product warranty.
2 Wire 15’ Cord, Male Plug & Switch
Example (Model-Finish): LCORDSET-WT
Description Used with a live end connector to wire a section of track as a portable unit.
Dimensions 15’
Finish
BK - Black
WT - White
MODEL FINISHES
LFC
of track
BK - Black
WT - White
MODEL FINISHES
LBXLE
BX or non-metallic sheathed cable connectors.
BK - Black
WT - White
MODEL FINISHES
LCORDSET BK WT
Maximum Capacity 7 amp – 800 watts, 120volt.
BK - Black
BN – Brushed Nickel
BK WT BN
BN – Brushed Nickel
BK WT BN
BN – Brushed Nickel
WT - White
Listing UL & CUL Listed. 5 year WAC Lighting product warranty.
WAC Lighting reserves the right to modify the design of our products as part of the company’s continuous improvement program. Jan 2010
