Installation Guide
Gigabit Unmanaged Switch
TL-SG1048/TL-SG1024 TL-SG1024D/TL-SG1016 TL-SG1016D/TL-SG1008
COPYRIGHT & TRADEMARKS
Specifications are subject to change without notice.
is a registered trademark of TP-LINK TECHNOLOGIES CO., LTD. Other brands and product names are trademarks of their respective holders.
No part of the specifications may be reproduced in any form or by any means or used to make any derivative such as translation, transformation, or adaptation without permission from TP-LINK TECHNOLOGIES CO., LTD. Copyright © 2012 TP-LINK TECHNOLOGIES CO., LTD. All rights reserved.
http://www.tp-link.com
FCC STATEMENT
This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense.
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:
111 This device may not cause harmful interference.
222This device must accept any interference received, including interference that may cause undesired operation.
Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.
CE Mark Warning
This is a Class A product. In a domestic environment, this product may cause radio interference, in which case the user may be required to take adequate measures.
Copyright & Trademarks |
|
I |
|
||
|
Related Document
This Installation Guide is also available in PDF on our website. To obtain the latest documentation and product information, please visit the official website:
http://www.tp-link.com
About this Installation Guide
This Installation Guide describes the hardware characteristics, installation methods and the points that should be attended to during installation. This Installation Guide is structured as follows:
Chapter 1 Introduction. This chapter describes the external components of the Switch.

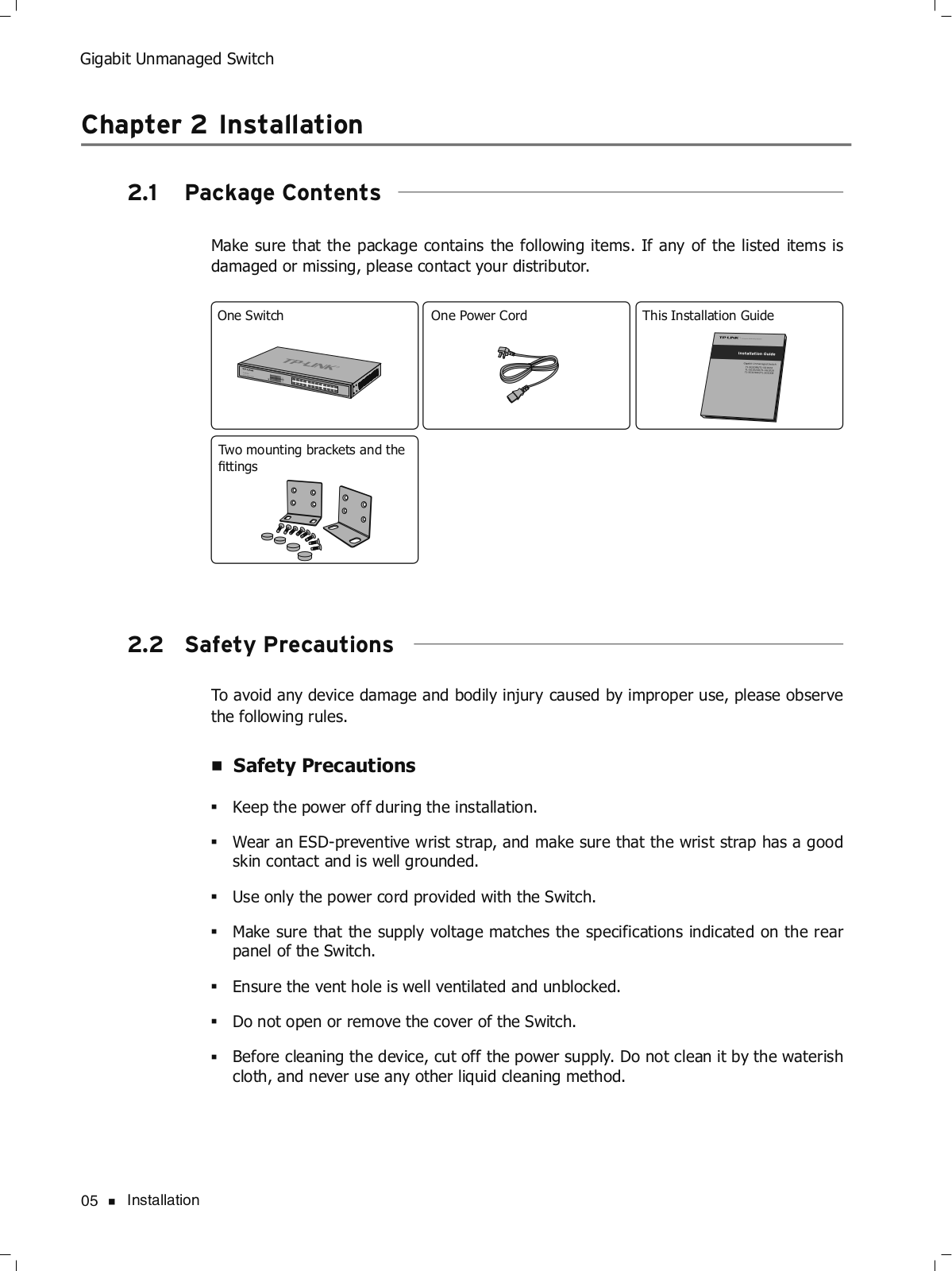

Chapter 2 Installation. This chapter illustrates how to install the Switch.

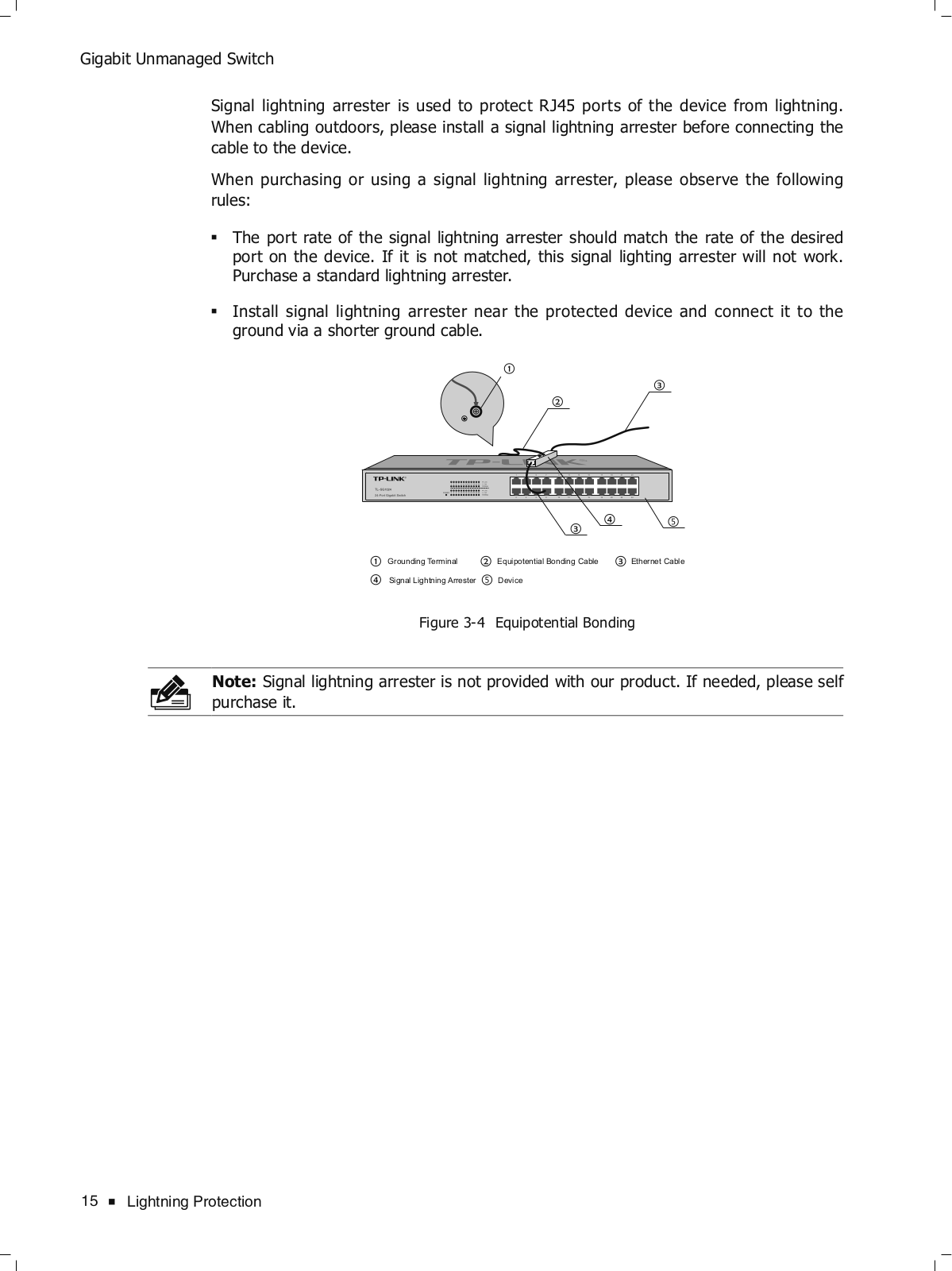

Chapter 3 Lightning Protection. This chapter illustrates how to prevent lightning damage.
Chapter 4 Connection. This chapter illustrates how to do the physical connection of the Switch.
Appendix A Troubleshooting.

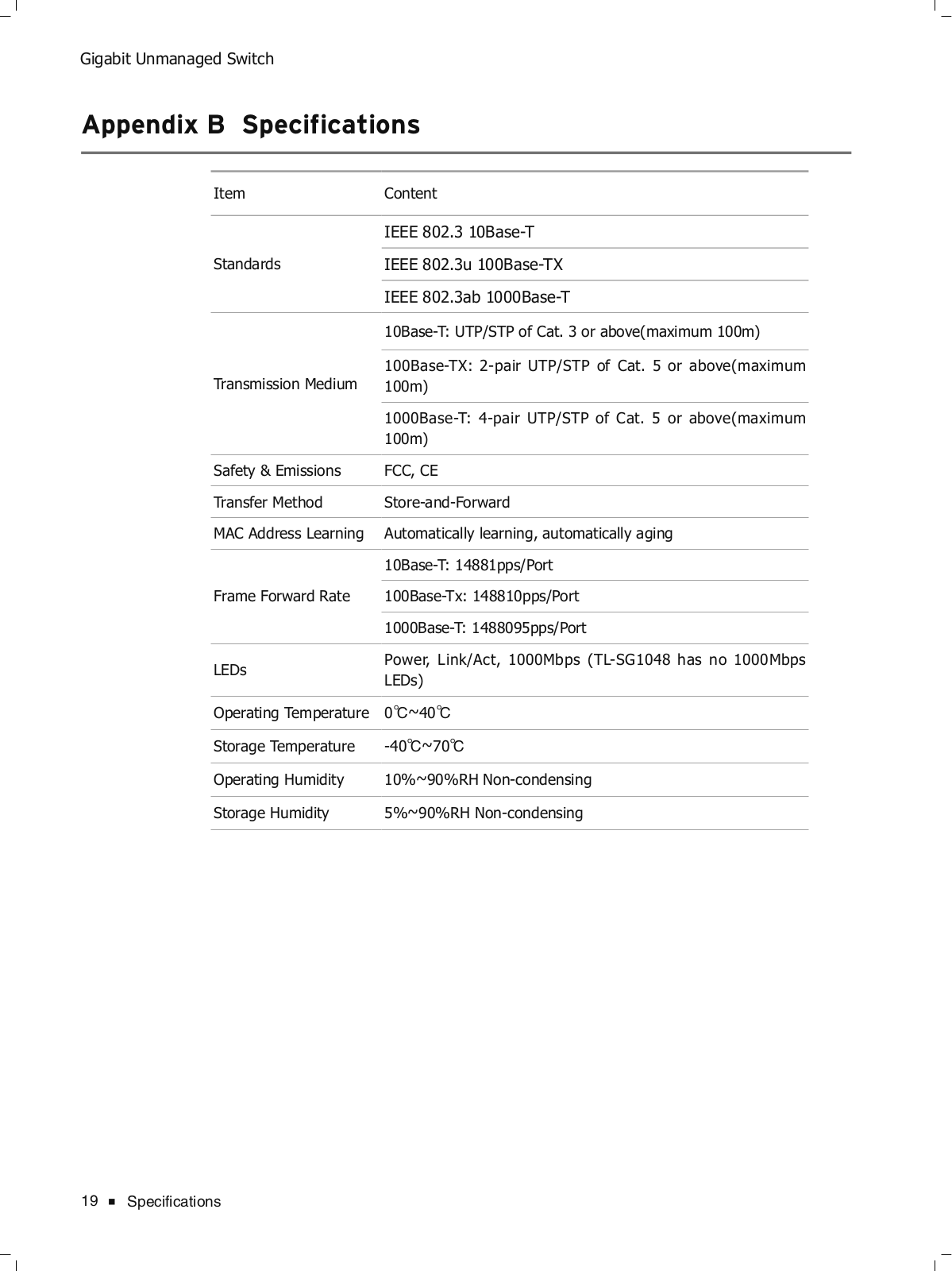

Appendix B Specifications. Appendix C Technical Support.
Audience
This Installation Guide is for:
Network Engineer Network Administrator
Conventions
Due to the similarity in structure of the Gigabit Unmanaged Switch series, in this Installation Guide we take TL-SG1024 as an example to illustrate Chapter 2 Installation, Chapter 3 Lightning Protection and Chapter 4 Connection.
This Guide uses the specific formats to highlight special messages. The following table lists the notice icons that are used throughout this guide.
Remind to be careful. A caution indicates a potential which may result in device damage.
Remind to take notice. The note contains the helpful information for a better use of the product.
II
Related Document
Contents
Chapter 1 |
Introduction ——————————— 01 |
|
1.1 |
Product Overview................................................................... |
01 |
1.2 |
Features ...................................................................................... |
01 |
1.3 |
Appearance............................................................................... |
02 |
Chapter 2 |
Installation ———————————— 05 |
|
2.1 |
Package Contents ................................................................... |
05 |
2.2 |
Safety Precautions .................................................................. |
05 |
2.3 |
Installation Tools...................................................................... |
07 |
2.4 |
Product Installation................................................................ |
08 |
Chapter 3 Lightning Protection ———————— 10 |
||
3.1 |
Cabling Reasonably................................................................ |
10 |
3.2 |
Connect to Ground................................................................. |
12 |
3.3 |
Equipotential Bonding.......................................................... |
13 |
3.4 |
Use Lightning Arrester .......................................................... |
14 |
Chapter 4 |
Connection ——————————— 16 |
|
4.1 |
Ethernet Port ............................................................................ |
16 |
4.2 |
Verify Installation .................................................................... |
16 |
4.3 |
Power On.................................................................................... |
16 |
4.4 |
Initialization .............................................................................. |
17 |
Appendix A Troubleshooting |
————————— 18 |
|
Appendix B Speci cations——————————— 19 |
||
Appendix C Technical Support ————————— 20 |
||
Contents
III
Gigabit Unmanaged Switch
CCCCCCCCCC Introduction
1111 Product Overview
The Gigabit Unmanaged Switch provides you with a high-performance, low-cost, easy- to-use, seamless and standard upgrade to boost your old network to 1000Mbps. Increase the speed of your network server and backbone connections, making
Gigabit a reality. Power users in the home, office, workgroup, or creative production environment can now move large, bandwidth-intensive files faster. Transfer graphics, CGI, CAD, or multimedia files and other applications that have to move large files across the network almost instantly.
The Gigabit Unmanaged Switch features a non-blocking switching architecture that forwards and filters packets at full wire-speed for maximum throughput, MAC address auto-learning and auto-aging, IEEE802.3x flow control for full-duplex mode and backpressure for half-duplex mode. It is compatible with all 10Mbps, 100Mbps and 1000Mbps Ethernet devices because it is standard-based. It protects your existing network investments while providing you with a straightforward migration path to faster Gigabit speeds.
The Gigabit Unmanaged Switch is plug-and-play and no configuration is required. Auto MDI/MDI-X cable detection on all ports eliminates the need for crossover cable or Uplink port. Each port can be used as general port or Uplink port, and any port can be simply plugged into a server, a hub, a router or a switch, using the straight cable or crossover cable. Diagnostic LEDs which display link status and activity, allow you to quickly detect and correct problems on the network.
1111 Features
•• Complies with IEEE802.3, IEEE802.3u, IEEE802.3ab standards
•• 8/16/24/48 10/100/1000Mbps Auto-Sense RJ45 ports supporting Auto-MDI/MDIX
•• All ports Support Full/Half Duplex transfer mode for 10/100Mbps and Full Duplex transfer mode for 1000Mbps
•• Supports IEEE802.3x flow control for full-duplex mode and backpressure for halfduplex transfer mode
•• Non-blocking switching architecture that forwards and filters packets at full wirespeed for maximum throughput
•• Supports MAC address auto-learning and auto-aging
•• LED indicators for monitoring power, link, speed and activity
•• Desktop and rack-mountable steel case
•• Internal power supply
01
Introduction
Gigabit Unmanaged Switch
1111 Appearance
■■ Front Panel
The front panel of TL-SG1048 is shown as the following figure.
LEDs
10/100/1000Mbps RJ45 Port
FFFFFFFFFFF Front Panel of TL-SG1048
The front panel of TL-SG1024 is shown as the following figure.
LEDs
10/100/1000Mbps RJ45 Port
FFFFFFFFFFF Front Panel of TL-SG1024
The front panel of TL-SG1024D is shown as the following figure.
LEDs
10/100/1000Mbps RJ45 Port
FFFFFFFFFFF Front Panel of TL-SG1024D
The front panel of TL-SG1016 is shown as the following figure.
LEDs
10/100/1000Mbps RJ45 Port
FFFFFFFFFFF Front Panel of TL-SG1016
The front panel of TL-SG1016D is shown as the following figure.
LEDs
10/100/1000Mbps RJ45 Port
FFFFFFFFFFF Front Panel of TL-SG1016D
Introduction
02
Gigabit Unmanaged Switch
The front panel of TL-SG1008 is shown as the following figure.
LEDs
10/100/1000Mbps RJ45 Port
|
|
FFFFFFFFFFF Front Panel of TL-SG1008 |
|
LEDs |
|
|
|
|
|
|
|
LED |
Status |
|
Indication |
|
|
|
|
Power |
On |
|
The Switch is powered on |
|
|
|
|
Off |
|
The Switch is powered off or power supply is abnormal |
|
|
|
||
|
|
|
|
|
On |
|
There is a device linked to the corresponding port but |
|
|
not active |
|
Link/Act |
|
|
|
|
|
|
|
Flashing |
|
The corresponding port is transmitting or receiving data |
|
|
|
||
|
|
|
|
|
Off |
|
There is no device linked to the corresponding port |
|
|
|
|
|
On |
|
A 1000Mbps device is connected to the corresponding |
|
|
port |
|
1000Mbps |
|
|
|
|
|
|
|
Off |
|
A 10/100Mbps device or no device is connected to the |
|
|
|
||
|
|
corresponding port |
|
|
|
|
|
|
|
|
|
Note: TL-SG1048 has no 1000Mbps LEDs while its Link/Act LEDs can indicate port speed by flashing different colors (Green:1000Mbps, Yellow:10/100Mbps\.
10/100/1000Mbps Port
Designed to connect to the device with a bandwidth of 10Mbps, 100Mbps or 1000Mbps. Each has a corresponding Link/Act LED and a 1000Mbps LED. TL-SG1048 has no 1000Mbps LEDs while its Link/Act LEDs can indicate port speed by fashing different colors (Green:1000Mbps,Yellow:10/100Mbps\.
Rear Panel
The rear panel of TL-SG1048 is shown as the following figure.
Power Socket
Grounding Terminal
FFFFFFFFFFF Rear Panel of TL-SG1048
The rear panel of TL-SG1024/TL-SG1016 is shown as the following figure.
03
Introduction
Gigabit Unmanaged Switch
Power Socket |
Grounding Terminal |
FFFFFFFFFFF Rear Panel of TL-SG1024/TL-SG1016
The rear panel of TL-SG1024D/TL-SG1016D is shown as the following figure.
Grounding Terminal
Power Socket
FFFFFFFFFFF Rear Panel of TL-SG1024D/TL-SG1016D
The rear panel of TL-SG1008 is shown as the following figure.
Grounding Terminal |
Power Socket |
FFFFFFFFFFFFRear Panel of TL-SG1008
Power Socket
Connect the female connector of the power cord here, and the male connector to the AC (Alternating Current\ power outlet. Please make sure the voltage of the power supply meets the requirement of the input voltage.
Grounding Terminal
The Switch already comes with lightning protection mechanism. You can also ground the Switch through the PE (Protecting Earth\ cable of AC cord or with Ground Cable. For detailed information, please refer to Chapter 3 Lightning Protection.
Caution: Please use the provided power cord.
Introduction
04
